Blood Glucose and Lactate Levels and Cerebral Oxygenation in Preterm and Term Neonates—A Systematic Qualitative Review of the Literature

  • 1. Division of Neonatology, Department of Paediatrics, Medical University of Graz, Graz, Austria

  • 2. Research Unit for Neonatal Micro- and Macrocirculation, Department of Paediatrics, Medical University of Graz, Graz, Austria

  • 3. Centre for the Studies of Asphyxia and Resuscitation, Royal Alexandra Hospital, Edmonton, AB, Canada

  • 4. Department of Pediatrics, University of Alberta, Edmonton, AB, Canada

Abstract

Background: Cerebral oxygenation monitored non-invasively by near-infrared spectroscopy (NIRS) is of increasing interest in neonatal care. Cerebral oxygenation is determined by cerebral oxygen delivery and cerebral oxygen consumption. Oxygen delivery as well as oxygen consumption might be influenced by metabolic parameters like blood glucose and lactate.

Objective: The aim of the present systematic qualitative review is therefore to identify and summarize all studies, which describe cerebral oxygenation measured with NIRS and blood glucose and/or blood lactate levels in neonates.

Data sources: A systematic search of Ovid Embase and PubMed was performed. Search terms included near-infrared spectroscopy, fractional tissue oxygen extraction, cerebral tissue oxygen saturation, regional cerebral tissue oxygen saturation, oxygenation, term, and preterm neonates, cesarean delivery, transition, after-birth, newborn, vaginal delivery, cesarean delivery, baby, neonatal transition, metabolism, lactate, glucose, and blood glucose level.

Study selection/data synthesis: Studies analyzing cerebral oxygenation and blood glucose and/or blood lactate levels in neonates were included. Animal studies, duplicates, or studies in non-English language were excluded.

Results: Twenty-five studies were identified that describe blood glucose and/or blood lactate levels as primary or secondary outcome parameters with additional measured cerebral oxygenation by NIRS in neonates. Twelve studies were included with blood glucose measurements: four described an association between blood glucose levels and cerebral oxygenation, two show no association, and six do not report on possible associations. Eighteen studies were included with lactate measurements: one describe an association between lactate levels and cerebral oxygenation, while three show no association and 14 do not report on possible associations.

Discussion: The influence of blood glucose and blood lactate levels on the cerebral oxygenation in neonates is still controversial. However, there seems to be an association between cerebral oxygenation and the metabolic parameter blood glucose and lactate, which need further investigation.

Introduction

Irreversible cerebral injury due to impaired cerebral oxygenation is a persisting problem in the neonatal period despite improved monitoring and intervention options. Standard non-invasive monitoring in neonatal care does not yet assess cerebral oxygenation, oxygen delivery to the brain, or cerebral oxygen consumption (). However, cerebral near-infrared spectroscopy (NIRS) monitoring has the potential to detect impaired cerebral oxygenation in neonates while other vital parameters such as arterial oxygen saturation or heart rate remain within their normal range (). NIRS is a continuous, non-invasive monitoring technique to measure the cerebral oxygenation in neonates and measures the cerebral regional oxygen saturation and fractional tissue oxygen extraction. A recently published multicenter trial using cerebral NIRS monitoring to reduce the burden of cerebral hypoxia in preterm neonates described beside cardiovascular and respiratory interventions also interventions based on blood glucose levels (). Another recently published study describe an association between blood glucose level and cerebral oxygenation in preterm and term neonates immediately after birth (). Further, lactate as a product of anaerobic metabolism might be associated with hypoxic conditions in the tissue. An association between the blood lactate level and the cerebral oxygenation has been described in extremely preterm neonates during the 1st days after birth ().

The aim of the present systematic qualitative review is therefore to identify and summarize all studies, which describe cerebral oxygenation measured with NIRS and blood glucose and/or blood lactate levels in neonates.

Methods

Search Strategy and Selection Criteria

Studies were identified using the stepwise approach specified in the Preferred Reporting Items for Systematic Reviews and Meta-Analysis (PRISMA) Statement ().

Eligibility Criteria

Studies had to address cerebral oxygenation measurements with NIRS as well as the metabolic parameters blood glucose and/or lactate in neonates.

Search Strategy

A systematic search of Ovid Embase and PubMed NCBI was performed to identify studies in English language published between 1974 and November 2019. Search terms included near-infrared spectroscopy, fractional tissue oxygen extraction, cerebral tissue oxygen saturation, regional cerebral tissue oxygen saturation, oxygenation, term, and preterm neonates, cesarean delivery, neonatal transition, after-birth, newborns, vaginal delivery, baby, after cesarean delivery, metabolism, lactate, glucose, and blood glucose level.

Inclusion and Exclusion Criteria—Population

To be eligible, studies had to investigate human neonates. Neonates were defined as infants with a postnatal age of <28 days. Studies that included neonates and infants or children were also included in our analysis, when the results were not separately analyzed for neonates. Animal studies were excluded.

Inclusion and Exclusion Criteria—Measurements (Exposure)

We included studies with different NIRS devices, if any additional measurements of either capillary, venous, or arterial blood glucose levels and/or lactate levels were included.

Inclusion and Exclusion Criteria—Types of Publication

We included clinical or observational studies published in English language. Non-original articles, such as comments, book chapters, editorials, reviews, and methods papers, were excluded. Duplications and publications in non-English languages were also excluded.

Study Selection

The articles identified in the literature review were evaluated independently by two authors (CM and GP) for inclusion using the titles and abstracts. Then, full texts were retrieved and were included based on the eligibility criteria. Any disagreement was resolved through discussion and consensus between two authors. If there was uncertainty regarding eligibility for inclusion on the basis of the abstract, the full text was assessed too. Data were analyzed qualitatively. Data extraction included the study design, characterization of type (preterm/term) and number of neonates included in the study, applied device, NIRS and metabolic values, age of neonates during NIRS and metabolic measurements, and the presence or absence of any association.

Risk of Bias in Individual Studies

A longer period between cerebral measurements and blood samples may originate a bias. Therefore, we included the exact time between cerebral measurements and blood samples in our qualitative analysis.

Results

After the initial search, 978 abstracts were identified, which were assessed for eligibility. After full text search, 25 studies remained to be included in the present review (Figure 1) (, , ).

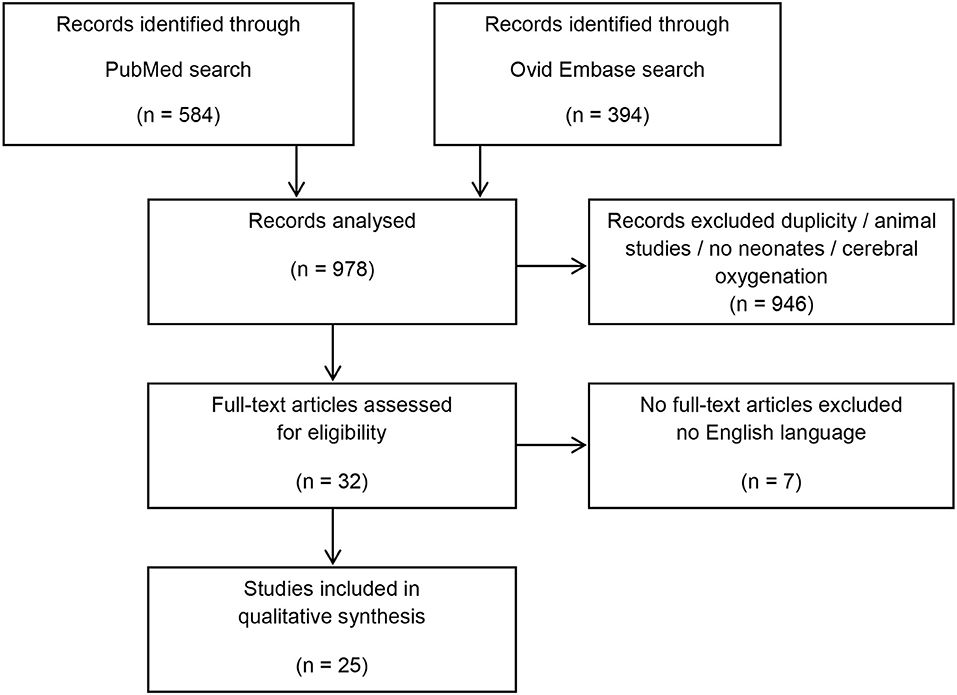

Figure 1

Blood Glucose Level and Cerebral Oxygenation

Twelve studies were identified, which describe blood glucose level measurements in combination with cerebral NIRS measurements (Table 1) (, ). Four studies describe an association (, , , ) between blood glucose levels and cerebral oxygenation. All studies demonstrate a negative correlation. Two studies show no association (, ) and six studies do not report on possible associations (, , , ).

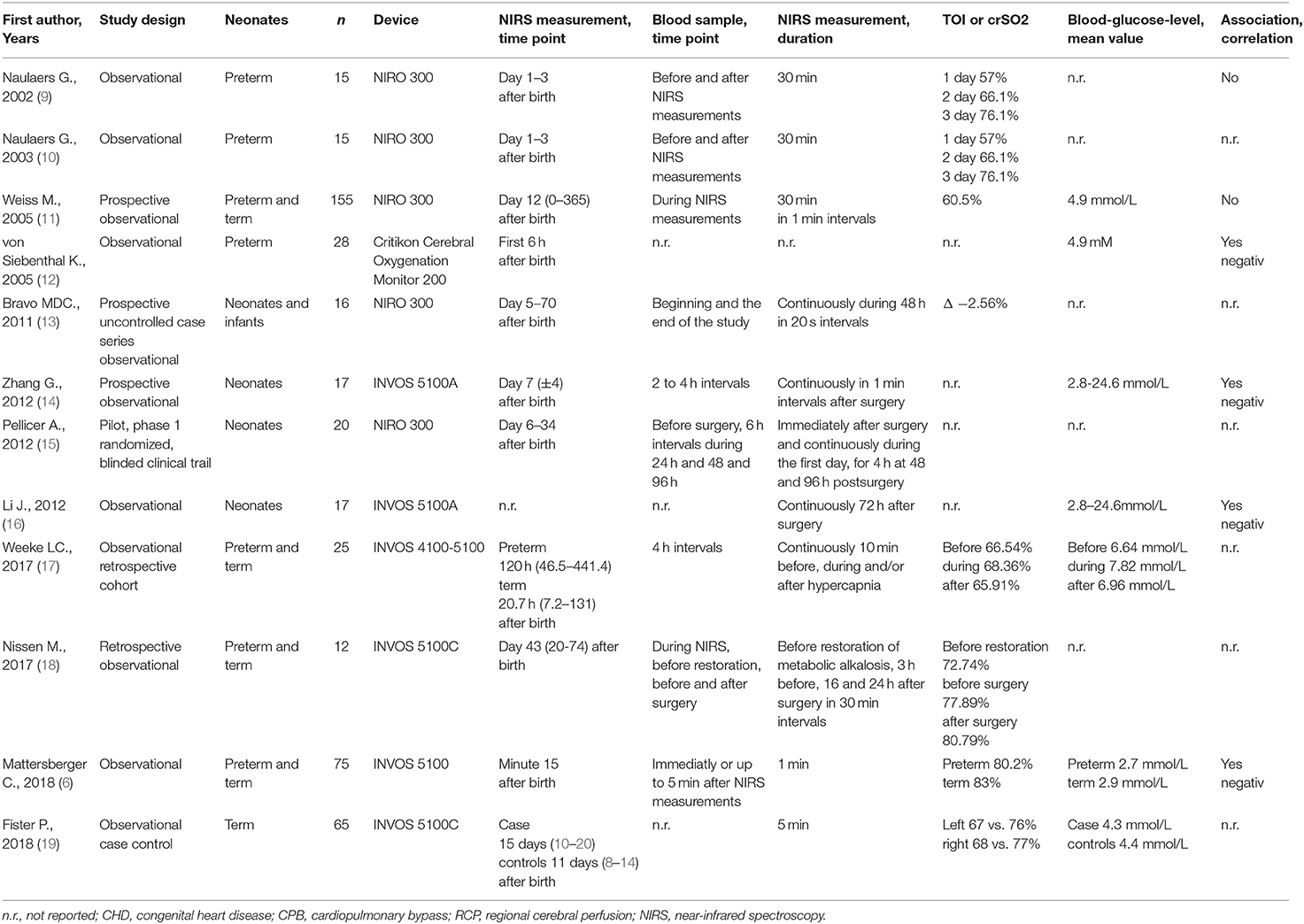

Table 1

First author, YearsStudy designNeonatesnDeviceNIRS measurement,
time point
Blood sample,
time point
NIRS measurement,
duration
TOI or crSO2Blood-glucose-level,
mean value
Association,
correlation
Naulaers G., 2002 ()ObservationalPreterm15NIRO 300Day 1–3
after birth
Before and after NIRS measurements30 min1 day 57%
2 day 66.1%
3 day 76.1%
n.r.No
Naulaers G., 2003 ()ObservationalPreterm15NIRO 300Day 1–3
after birth
Before and after NIRS measurements30 min1 day 57%
2 day 66.1%
3 day 76.1%
n.r.n.r.
Weiss M., 2005 ()Prospective observationalPreterm and term155NIRO 300Day 12 (0–365)
after birth
During NIRS measurements30 min
in 1 min intervals
60.5%4.9 mmol/LNo
von Siebenthal K., 2005 ()ObservationalPreterm28Critikon Cerebral Oxygenation Monitor 200First 6 h
after birth
n.r.n.r.n.r.4.9 mMYes
negativ
Bravo MDC., 2011 ()Prospective uncontrolled case series observationalNeonates and infants16NIRO 300Day 5–70
after birth
Beginning and the end of the studyContinuously during 48 h in 20 s intervalsΔ −2.56%n.r.n.r.
Zhang G., 2012 ()Prospective observationalNeonates17INVOS 5100ADay 7 (±4)
after birth
2 to 4 h intervalsContinuously in 1 min intervals after surgeryn.r.2.8-24.6 mmol/LYes
negativ
Pellicer A., 2012 ()Pilot, phase 1 randomized, blinded clinical trailNeonates20NIRO 300Day 6–34
after birth
Before surgery, 6 h intervals during 24 h and 48 and 96 hImmediately after surgery and continuously during the first day, for 4 h at 48 and 96 h postsurgeryn.r.n.r.n.r.
Li J., 2012 ()ObservationalNeonates17INVOS 5100An.r.n.r.Continuously 72 h after surgeryn.r.2.8–24.6mmol/LYes
negativ
Weeke LC., 2017 ()Observational retrospective cohortPreterm and term25INVOS 4100-5100Preterm
120 h (46.5–441.4)
term
20.7 h (7.2–131)
after birth
4 h intervalsContinuously 10 min before, during and/or after hypercapniaBefore 66.54%
during 68.36%
after 65.91%
Before 6.64 mmol/L
during 7.82 mmol/L
after 6.96 mmol/L
n.r.
Nissen M., 2017 ()Retrospective observationalPreterm and term12INVOS 5100CDay 43 (20-74) after birthDuring NIRS, before restoration, before and after surgeryBefore restoration of metabolic alkalosis, 3 h before, 16 and 24 h after surgery in 30 min intervalsBefore restoration 72.74%
before surgery 77.89%
after surgery 80.79%
n.r.n.r.
Mattersberger C., 2018 ()ObservationalPreterm and term75INVOS 5100Minute 15
after birth
Immediatly or up to 5 min after NIRS measurements1 minPreterm 80.2%
term 83%
Preterm 2.7 mmol/L
term 2.9 mmol/L
Yes
negativ
Fister P., 2018 ()Observational case controlTerm65INVOS 5100CCase
15 days ()
controls 11 days ()
after birth
n.r.5 minLeft 67 vs. 76%
right 68 vs. 77%
Case 4.3 mmol/L
controls 4.4 mmol/L
n.r.

Glucose and cerebral oxygenation in neonates.

n.r., not reported; CHD, congenital heart disease; CPB, cardiopulmonary bypass; RCP, regional cerebral perfusion; NIRS, near-infrared spectroscopy.

Blood Lactate Level and Cerebral Oxygenation

Eighteen studies were identified, which describe blood lactate level measurements in combination with cerebral NIRS measurements (Table 2) (, , , , , , ). Only one study demonstrated a negative correlation between blood lactate levels and cerebral oxygenation (). Three studies demonstrate no association (, , ) and 14 do not report on possible associations (, , , , , , , ). Five studies include blood glucose level as well as blood lactate level (, , , , ).

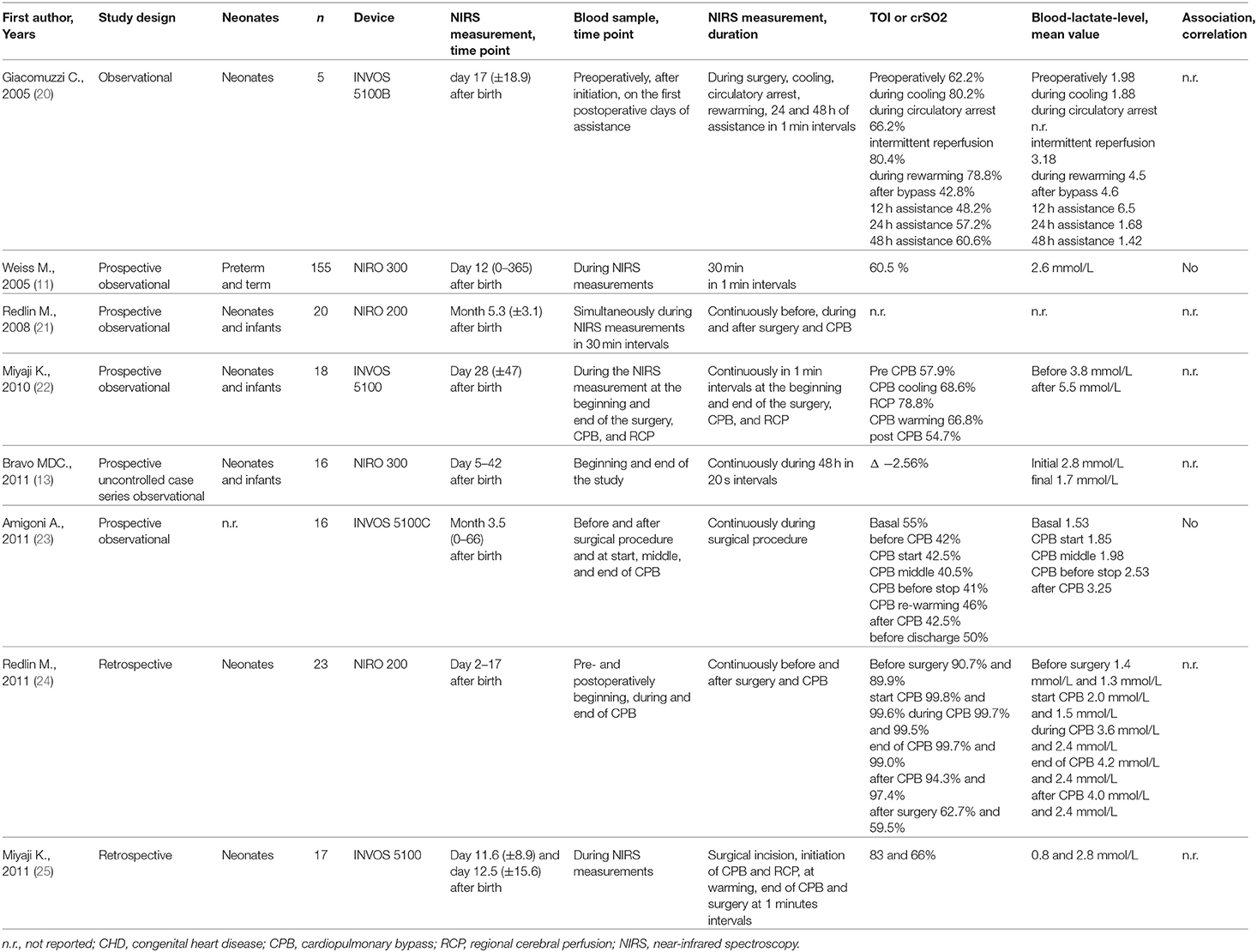

Table 2A

First author, YearsStudy designNeonatesnDeviceNIRS measurement,
time point
Blood sample,
time point
NIRS measurement,
duration
TOI or crSO2Blood-lactate-level, mean valueAssociation, correlation
Giacomuzzi C.,
2005 ()
ObservationalNeonates5INVOS
5100B
day 17 (±18.9)
after birth
Preoperatively, after initiation, on the first
postoperative days of assistance
During surgery, cooling, circulatory arrest, rewarming, 24 and 48 h of assistance in 1 min intervalsPreoperatively 62.2% during cooling 80.2%
during circulatory arrest 66.2%
intermittent reperfusion 80.4%
during rewarming 78.8%
after bypass 42.8%
12 h assistance 48.2%
24 h assistance 57.2%
48 h assistance 60.6%
Preoperatively 1.98
during cooling 1.88
during circulatory arrest n.r.
intermittent reperfusion 3.18
during rewarming 4.5
after bypass 4.6
12 h assistance 6.5
24 h assistance 1.68
48 h assistance 1.42
n.r.
Weiss M.,
2005 ()
Prospective observationalPreterm
and term
155NIRO 300Day 12 (0–365)
after birth
During NIRS measurements30 min
in 1 min intervals
60.5 %2.6 mmol/LNo
Redlin M.,
2008 ()
Prospective observationalNeonates
and infants
20NIRO 200Month 5.3 (±3.1)
after birth
Simultaneously during NIRS measurements in 30 min intervalsContinuously before, during and after surgery and CPBn.r.n.r.n.r.
Miyaji K.,
2010 ()
Prospective observationalNeonates
and infants
18INVOS
5100
Day 28 (±47)
after birth
During the NIRS measurement at the beginning and
end of the surgery, CPB, and RCP
Continuously in 1 min intervals at the beginning and end of the surgery, CPB, and RCPPre CPB 57.9%
CPB cooling 68.6%
RCP 78.8%
CPB warming 66.8%
post CPB 54.7%
Before 3.8 mmol/L
after 5.5 mmol/L
n.r.
Bravo MDC.,
2011 ()
Prospective uncontrolled case series observationalNeonates
and infants
16NIRO 300Day 5–42
after birth
Beginning and end of the studyContinuously during 48 h in 20 s intervalsΔ −2.56%Initial 2.8 mmol/L
final 1.7 mmol/L
n.r.
Amigoni A.,
2011 ()
Prospective observationaln.r.16INVOS 5100CMonth 3.5
(0–66)
after birth
Before and after surgical procedure and at start, middle, and end of CPBContinuously during surgical procedureBasal 55%
before CPB 42%
CPB start 42.5%
CPB middle 40.5%
CPB before stop 41%
CPB re-warming 46%
after CPB 42.5%
before discharge 50%
Basal 1.53
CPB start 1.85
CPB middle 1.98
CPB before stop 2.53
after CPB 3.25
No
Redlin M.,
2011 ()
RetrospectiveNeonates23NIRO 200Day 2–17
after birth
Pre- and postoperatively
beginning, during and end of CPB
Continuously before and after surgery and CPBBefore surgery 90.7% and 89.9%
start CPB 99.8% and 99.6% during CPB 99.7% and 99.5%
end of CPB 99.7% and 99.0%
after CPB 94.3% and 97.4%
after surgery 62.7% and 59.5%
Before surgery 1.4 mmol/L and 1.3 mmol/L
start CPB 2.0 mmol/L and 1.5 mmol/L
during CPB 3.6 mmol/L and 2.4 mmol/L
end of CPB 4.2 mmol/L and 2.4 mmol/L
after CPB 4.0 mmol/L and 2.4 mmol/L
n.r.
Miyaji K.,
2011 ()
RetrospectiveNeonates17INVOS 5100Day 11.6 (±8.9) and
day 12.5 (±15.6)
after birth
During NIRS measurementsSurgical incision, initiation of CPB and RCP, at warming, end of CPB and surgery at 1 minutes intervals83 and 66%0.8 and 2.8 mmol/Ln.r.

Lactate and cerebral oxygenation in neonates.

n.r., not reported; CHD, congenital heart disease; CPB, cardiopulmonary bypass; RCP, regional cerebral perfusion; NIRS, near-infrared spectroscopy.

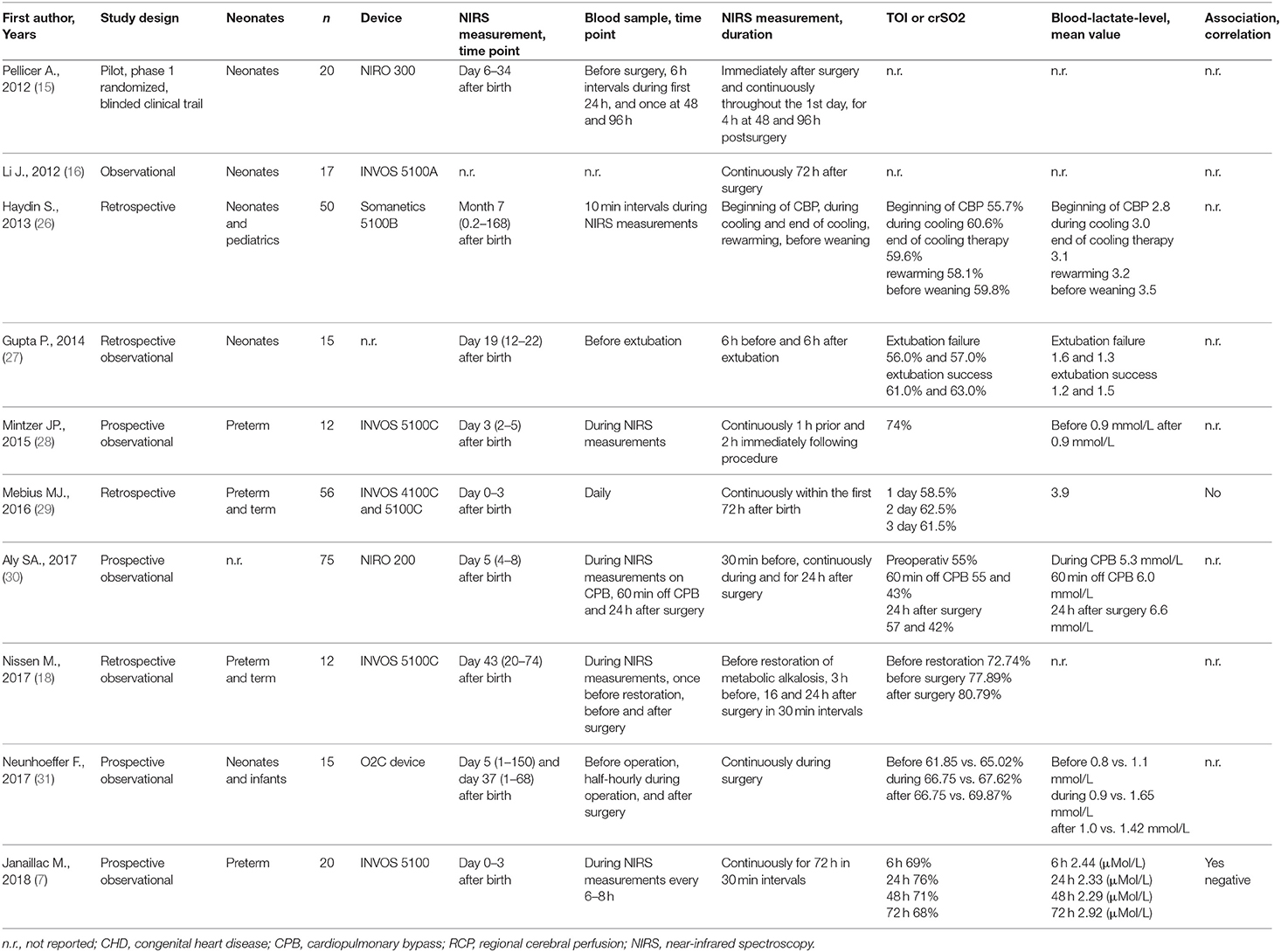

Table 2B

First author, YearsStudy designNeonatesnDeviceNIRS measurement, time pointBlood sample, time pointNIRS measurement, durationTOI or crSO2Blood-lactate-level, mean valueAssociation, correlation
Pellicer A., 2012 ()Pilot, phase 1 randomized, blinded clinical trailNeonates20NIRO 300Day 6–34
after birth
Before surgery, 6 h intervals during first 24 h, and once at 48 and 96 hImmediately after surgery and continuously throughout the 1st day, for 4 h at 48 and 96 h postsurgeryn.r.n.r.n.r.
Li J., 2012 ()ObservationalNeonates17INVOS 5100An.r.n.r.Continuously 72 h after surgeryn.r.n.r.n.r.
Haydin S., 2013 ()RetrospectiveNeonates and pediatrics50Somanetics 5100BMonth 7
(0.2–168)
after birth
10 min intervals during NIRS measurementsBeginning of CBP, during cooling and end of cooling, rewarming, before weaningBeginning of CBP 55.7%
during cooling 60.6%
end of cooling therapy 59.6%
rewarming 58.1%
before weaning 59.8%
Beginning of CBP 2.8
during cooling 3.0
end of cooling therapy 3.1
rewarming 3.2
before weaning 3.5
n.r.
Gupta P., 2014 ()Retrospective observationalNeonates15n.r.Day 19 (12–22)
after birth
Before extubation6 h before and 6 h after extubationExtubation failure
56.0% and 57.0%
extubation success
61.0% and 63.0%
Extubation failure
1.6 and 1.3
extubation success
1.2 and 1.5
n.r.
Mintzer JP., 2015 ()Prospective observationalPreterm12INVOS 5100CDay 3 (2–5)
after birth
During NIRS measurementsContinuously 1 h prior and 2 h immediately following procedure74%Before 0.9 mmol/L after 0.9 mmol/Ln.r.
Mebius MJ., 2016 ()RetrospectivePreterm and term56INVOS 4100C and 5100CDay 0–3
after birth
DailyContinuously within the first 72 h after birth1 day 58.5%
2 day 62.5%
3 day 61.5%
3.9No
Aly SA., 2017 ()Prospective observationaln.r.75NIRO 200Day 5 (4–8)
after birth
During NIRS measurements on CPB, 60 min off CPB and 24 h after surgery30 min before, continuously during and for 24 h after surgeryPreoperativ 55%
60 min off CPB 55 and 43%
24 h after surgery
57 and 42%
During CPB 5.3 mmol/L
60 min off CPB 6.0 mmol/L
24 h after surgery 6.6 mmol/L
n.r.
Nissen M., 2017 ()Retrospective observationalPreterm and term12INVOS 5100CDay 43 (20–74)
after birth
During NIRS measurements, once before restoration, before and after surgeryBefore restoration of metabolic alkalosis, 3 h before, 16 and 24 h after surgery in 30 min intervalsBefore restoration 72.74%
before surgery 77.89%
after surgery 80.79%
n.r.n.r.
Neunhoeffer F., 2017 ()Prospective observationalNeonates and infants15O2C deviceDay 5 (1–150) and
day 37 (1–68)
after birth
Before operation, half-hourly during operation, and after surgeryContinuously during surgeryBefore 61.85 vs. 65.02%
during 66.75 vs. 67.62%
after 66.75 vs. 69.87%
Before 0.8 vs. 1.1 mmol/L
during 0.9 vs. 1.65 mmol/L
after 1.0 vs. 1.42 mmol/L
n.r.
Janaillac M., 2018 ()Prospective observationalPreterm20INVOS 5100Day 0–3
after birth
During NIRS measurements every 6–8 hContinuously for 72 h in 30 min intervals6 h 69%
24 h 76%
48 h 71%
72 h 68%
6 h 2.44 (μMol/L)
24 h 2.33 (μMol/L)
48 h 2.29 (μMol/L)
72 h 2.92 (μMol/L)
Yes
negative

Lactate and Cerebral Oxygenation in Neonates.

n.r., not reported; CHD, congenital heart disease; CPB, cardiopulmonary bypass; RCP, regional cerebral perfusion; NIRS, near-infrared spectroscopy.

Tables 1 and 2A,B give an overview of the data of the included studies.

None of the studies reported on possible simultaneous associations between both metabolic parameters (glucose and lactate) and cerebral oxygenation.

Discussion

In the last few years, interest into research of cerebral oxygenation and metabolic parameters during the neonatal period increased significantly. There are several studies describing results of possible or missing association between metabolic parameters and cerebral oxygenation measured with NIRS. These results are controversial.

Blood Glucose Level and Cerebral Oxygenation

Hyperglycemia has been identified as a risk factor for adverse outcome in critically ill patients (, ). The findings of the 12 identified studies (, ). with cerebral oxygenation measured with NIRS and blood glucose measurements are conflicting. Most studies described a negative association between cerebral oxygenation and blood glucose level (, , , ) with a decrease of cerebral oxygenation with increasing blood glucose levels. However, two studies described no association (, ). Naulears et al. () described an increase of cerebral oxygenation from day 1 to 3 after birth in neonates with postmenstrual age of 28 weeks. In this cohort, the multiple regression analysis showed no correlation between tissue oxygenation index and glycemia. In the largest cohort of neonates described by Weiss et al. () no association between blood glucose and cerebral oxygenation was observed. Interestingly, there was a negative association of blood glucose level with cerebral oxygenation observed in neonates after a Norwood procedure (). Jia et al. () described a negative association between hyperglycemia and oxygen delivery. Further, she described a positive association between hyperglycemia and oxygen extraction ratio in neonates 72 h after Norwood procedure. Mattersberger et al. () demonstrated that blood glucose levels have a negative correlation to the cerebral oxygen saturation and a positive correlation to the cerebral fractional tissue oxygen extraction in preterm and term neonates 15 min after birth. Cerebral hemoglobin concentration that influences cerebral oxygenation, measured with NIRS, was investigated by Von Siebental K in neonates in the first 6 h of life. () He described different parameters influencing the cerebral hemoglobin concentration of neonates, whereby blood glucose had a negative correlation with cerebral hemoglobin concentration. The changes in cerebral hemoglobin concentration are in accordance with the above-described negative association between cerebral oxygenation and blood glucose levels when taking into account an auto-regulatory mechanism to maintain glucose supply to the brain. With decreasing blood glucose levels, there might be an increase in cerebral hemoglobin volume/concentration by increase of cerebral blood flow due to vasodilatation. This causes an increase in oxygen delivery with increase in cerebral oxygenation in case of a consistent cerebral oxygen consumption.

Lactate Level and Cerebral Oxygenation

High lactate levels might be associated with an adverse neurologic outcome and can be a predictor for short-term neonatal adverse outcomes with similar predictive value as the pH value (). Since lactate is a product of anaerobic metabolism, an increased level of lactate might represent hypoxic conditions in the tissue. Therefore, the interest in lactate in relation to the cerebral oxygenation in the neonatal period increased in the last years. Eighteen studies were identified, which investigated cerebral oxygenation and blood lactate level in neonates (, , , , , , ). However, only one of these publications demonstrated a negative association between cerebral oxygenation and lactate (), and three studies found no association (, , ) between these factors.

Weiss et al. () described, in the largest cohort of critically ill neonates, no significant correlation between cerebral oxygenation and lactate. Amigoni et al. () also did not find an association between serum lactate and cerebral oxygenation. However, they described a correlation between pH value and cerebral oxygenation. Mebius et al. assessed the course of cerebral regional oxygen saturation and clinical factors in neonates born with duct-dependent congenital heart disease and found no correlation during the first 72 h after birth (). In extremely preterm infants, it has been demonstrated that the crSO2 and preductal perfusion index were weakly correlated with lactate and blood gas ().

Limitation

The identified publications show many differences in methods: (e.g., study population, number of included neonates, NIRS devices, time point, and frequency of NIRS measurements). Important limitations are also the differences in frequencies of blood samples and differences in time periods between taking blood samples and NIRS measurements, ranging from 5 min () to 24 h (). Several studies even provide no or inaccurate information on frequencies and time points of taking blood samples (, , , , ). This review identified only observational studies, where associations between cerebral oxygenation and blood glucose and/or lactate levels are described. No interventional study was identified elucidating any causality. Furthermore, there were several studies just describing cerebral oxygenation and blood glucose or lactate in neonates without analyzing any possible associations between these parameters.

Conclusion

The influence of blood glucose level and blood lactate level on the cerebral oxygenation in neonates is still controversial. However, there is some evidence that there is an association between cerebral oxygenation and the metabolic parameters, blood glucose, and blood lactate, whereby causal relationship needs further investigation.

Statements

Author contributions

CM, GP, and BU: conception and design. CM and GP: literature search and drafting of the article. CM, GS, BU, and GP: analyses and interpretation of data, critical revision, editing, and final approval of the article. All authors contributed to the article and approved the submitted version.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

Summary

Keywords

neonates, blood glucose, lactate, near-infrared spectroscopy, cerebral oxygenation

Citation

Mattersberger C, Schmölzer GM, Urlesberger B and Pichler G (2020) Blood Glucose and Lactate Levels and Cerebral Oxygenation in Preterm and Term Neonates—A Systematic Qualitative Review of the Literature. Front. Pediatr. 8:361. doi: 10.3389/fped.2020.00361

Received

11 March 2020

Accepted

29 May 2020

Published

29 July 2020

Volume

8 - 2020

Edited by

Elisabeth M. W. Kooi, University Medical Center Groningen, Netherlands

Reviewed by

Anne Elisabeth Richter, University Medical Center Groningen, Netherlands; Lizelle Van Wyk, Stellenbosch University, South Africa

Updates

Copyright

*Correspondence: Gerhard Pichler

This article was submitted to Neonatology, a section of the journal Frontiers in Pediatrics

†ORCID: Gerhard Pichler orcid.org/0000-0003-2405-7143

Disclaimer

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.

Outline

Figures

Cite article

Copy to clipboard


Export citation file


Share article

Article metrics
