Abstract
Objective:
To explore the reasons of failure in a case of pulmonary tuberculosis (PTB) after 9 years systematic treatment.
Methods:
We extracted the patients' treatment history, drug susceptibility testing (DST), Computed tomography (CT) images, and sequenced the isolated strains by whole gene sequencing (WGS).
Results:
Although most results of the phenotypical DSTs were consistent with the genotype DST, the occurrence of gene resistance to amikacin (AMK), capreomycin (CAP), moxifloxacin (MFX) was earlier than the phenotypical DST. Based on the continuously reversed results of phenotypical DSTs, CT images in different stages and WGS, it can be confirmed that the patient was infected with two different strains of Mycobacterium tuberculosis (M.TB). Moreover, severe cavities may be another factor leading to treatment failure.
Conclusion:
Given the suggestive effect of genotype DST is earlier than the phenotypical DST, so genotype DST can play a better guiding role in patients with MDR-TB. Additionally, for patients who have not been cured for a long time, medication should be more cautious and the role of WGS in drug resistance surveillance should be fully utilized.
We report and discuss a case of pulmonary tuberculosis (PTB) with failure after 9 years (February 2012, to July 2021) systematic treatment. The immunodeficiency workup on the patient, a 29-year-old female, revealed normal immunoglobulin levels and a negative result for the anti-HIV human T-lymphotropic virus. In addition, further relevant analysis showed no evidence of other comorbidities including hepatitis, diabetes, and other respiratory diseases. By analyzing her treatment history, drug susceptibility testing (DST), Computed tomography (CT) images, and isolated strains' whole genome sequencing (WGS), we hope to identify the causes of treatment failure and seek expert guidance to improve her survival time and quality of life (A detailed case report is provided in the Supplementary Appendix).
The case's whole treatment history can be divided into three stages: in the first stage (February 2012 to March 19, 2017), the patient was hospitalized in the local tuberculosis-designated hospital in February 2012 with her first pulmonary tuberculosis diagnosis and began to receive first-line antituberculosis regimen. After 1 year of treatment, she decided to stop treatment with improvement in March 2013. Only 2 months later, she was admitted to Beijing Chest Hospital due to the recurrence and deterioration of the previous clinical manifestations and then treated with para-aminosalicylate (PAS), rifabutin (RFB), pyrazinamide (PZA), amikacin (AMK), ethambutol (EMB), and levofloxacin (LFX) for 2 years but not cured. On March 19, 2017, CT images showed the lesions increased and progressed. Throughout this stage of therapy, DSTs results were absent. In the second stage (March 20, 2017, to June 12, 2019), the patient received standardized treatment for multidrug-resistant tuberculosis (MDR-TB) under DST results and was not cured. In this stage, based on the DST results, the patient was treated with TB sensitive drugs, including cycloserine (CS), linezolid (LZD), capreomycin (CM), moxifloxacin (MFX), clofazimine (CFZ), but the deterioration continued to progress. In addition, the CT images showed that two pre-existing independent thick-walled cavities 1 and 2 in the right upper lung had partial absorption. In the third stage (June 13, 2019, to July 23, 2021), the patient received Bedaquiline (BDQ) and Delamanid (DLM) combinated with the previous standardized treatment but was still not cured. In the absence of accessible therapeutic medications and after declining our surgical recommendations, the patient was gradually transitioned to palliative care. Interestingly, the DSTs results on June 13, 2019, and August 24, 2020, showed that LFX, protionamide (PTO) and isoniazid aminosalicylate (PA) changed from drug resistance to sensitivity. However, the subsequent five phenotypical DSTs results from October 30, 2020, to July 23, 2021, were similar to those in 2017. In addition, CT images presented those two cavities fused from connected locally to extensively. The fusion lesion infiltrated outward and deteriorated rapidly, resulting in the destruction of the entire right upper lobe (Figures 1A,B, Table 1).
Figure 1

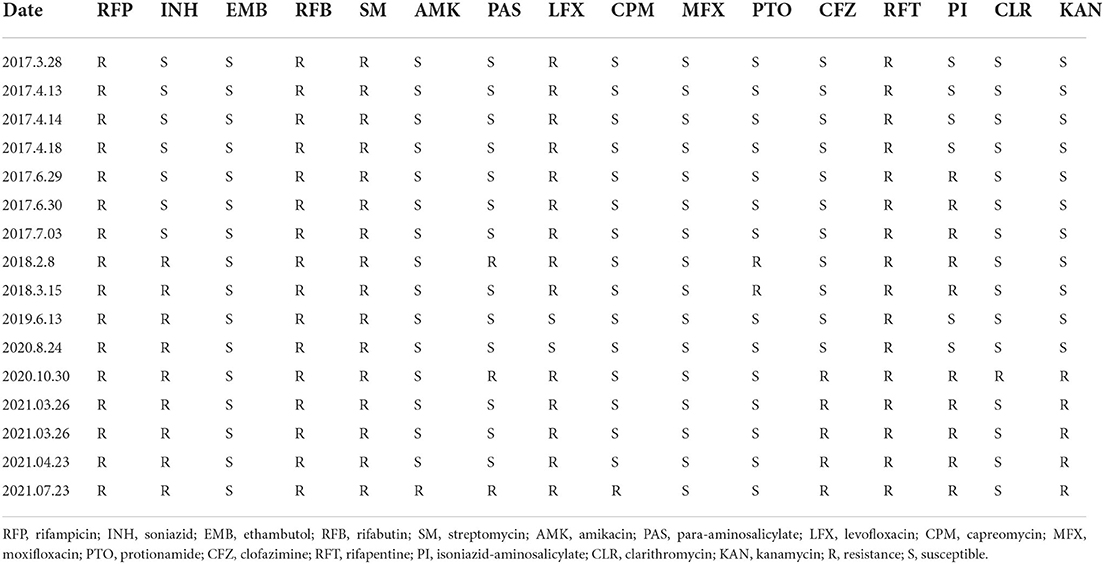

Table 1
| Date | RFP | INH | EMB | RFB | SM | AMK | PAS | LFX | CPM | MFX | PTO | CFZ | RFT | PI | CLR | KAN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2017.3.28 | R | S | S | R | R | S | S | R | S | S | S | S | R | S | S | S |
| 2017.4.13 | R | S | S | R | R | S | S | R | S | S | S | S | R | S | S | S |
| 2017.4.14 | R | S | S | R | R | S | S | R | S | S | S | S | R | S | S | S |
| 2017.4.18 | R | S | S | R | R | S | S | R | S | S | S | S | R | S | S | S |
| 2017.6.29 | R | S | S | R | R | S | S | R | S | S | S | S | R | R | S | S |
| 2017.6.30 | R | S | S | R | R | S | S | R | S | S | S | S | R | R | S | S |
| 2017.7.03 | R | S | S | R | R | S | S | R | S | S | S | S | R | R | S | S |
| 2018.2.8 | R | R | S | R | R | S | R | R | S | S | R | S | R | R | S | S |
| 2018.3.15 | R | R | S | R | R | S | S | R | S | S | R | S | R | R | S | S |
| 2019.6.13 | R | R | S | R | R | S | S | S | S | S | S | S | R | S | S | S |
| 2020.8.24 | R | R | S | R | R | S | S | S | S | S | S | S | R | S | S | S |
| 2020.10.30 | R | R | S | R | R | S | R | R | S | S | S | R | R | R | R | R |
| 2021.03.26 | R | R | S | R | R | S | S | R | S | S | S | R | R | R | S | R |
| 2021.03.26 | R | R | S | R | R | S | S | R | S | S | S | R | R | R | S | R |
| 2021.04.23 | R | R | S | R | R | S | S | R | S | S | S | R | R | R | S | R |
| 2021.07.23 | R | R | S | R | R | R | R | R | R | S | S | R | R | R | S | R |
The results of drug susceptibility test to 16 drugs from 2017 to 2021.
RFP, rifampicin; INH, soniazid; EMB, ethambutol; RFB, rifabutin; SM, streptomycin; AMK, amikacin; PAS, para-aminosalicylate; LFX, levofloxacin; CPM, capreomycin; MFX, moxifloxacin; PTO, protionamide; CFZ, clofazimine; RFT, rifapentine; PI, isoniazid-aminosalicylate; CLR, clarithromycin; KAN, kanamycin; R, resistance; S, susceptible.
Based on the continuously reversed results of phenotypical DSTs results and CT images in different stages, we speculate that the patient was infected with two different strains of Mycobacterium tuberculosis (Mtb). To verify our conjecture, the five existing sputum samples sampled in Apr 2017, Aug 2017, Jun 2019, Apr 2021, and May 2021 were sequenced by the whole genome (Details of WGS and Variant calling are provided in the Supplementary Appendix). All five strains belonged to lineage 2.3, differing by up to 196 SNPs, of which the strain in 2019 is a separate isolate (cluster 1), and the remaining four strains are from the same cluster (cluster 2). In view of the diversity of strains in vivo hardly exceeds 12 SNPs, () we speculate that this patient has mixed infection. The two clusters shared four mutations in rpoB, fabG1_promoter, rpsL and gyrA, which were associated with rifampicin (RFP), isoniazid (INH), streptomycin (SM) and fluoroquinolones resistance, respectively. Additionally, five independent mutations in cluster 1 were associated with first-line drug resistance (INH, EMB, PZA), consistent with the patient's first-stage treatment history. Given that drug selection pressure is the primary driver of resistance mutations in strains, () and no EMB and PZA related mutations were found in cluster 2, we speculate that cluster 1 was the first infected strain of this patient (Figures 1C,D). This was reflected in the emergence of mutations in rrl. Therefore, we speculated that the two strains coexisted in the lung for a long time, resulting in the failure of the patient's treatment.
Summarizing the above information, although most results of the phenotypical DSTs results were consistent with the genotype DST results, the occurrence of gene resistance to AMK, capreomycin (CAP), MFX was earlier than the phenotypical DST results, which indicates that the drug resistance mutations had gradually accumulated during the treatment, but the phenotypical DST results was not prompted in time. The treatment scheme was not changed in time, resulting in the gradual accumulation of resistance and treatment failure. In addition, with the advent of new drugs such as BDQ and DLM, the cure rate of multidrug-resistant TB can reach over 80% (). However, this patient still failed to respond to treatment without resistance to BDQ and DLM, which may be related to severe cavities () The necrotic tissue in the cavities is not only the rich medium of Mtb, () but also the cavity walls composed of connective tissue may hinder the drugs' penetration, () which is easier to induce Mtb to produce resilience, tolerance and resistance.
This study has some limitations. First, the treatment failure in the first stage can be explained from the genotype resistance results of the strain in April 2017, but we have no way of knowing the resistance situation and evolution process of the strains before. Second, the early strains were not preserved during the 9-year treatment process, so the sequencing of infection of the two clusters cannot be accurately obtained and the cumulative changes of drug resistance genes could not be dynamically observed.
In this study, we found that genotype DST findings, which are sooner than phenotypical DST results, can provide superior treatment guidance for tuberculosis. In addition, mixed infection of Mtb leads to the emergence of heterogeneous flora, making the treatment more complex. Therefore, we should be more cautious when prescribing medication to patients who haven't been healed for a long time and utilize WGS for drug resistance surveillance.
