ORIGINAL RESEARCH article
Correlated Changes Between Volcanic Structures and Magma Composition in the Faial Volcanic System, Azores
- 1GeoZentrum Nordbayern, Friedrich-Alexander-Universität Erlangen-Nürnberg, Erlangen, Germany
- 2Center for Earth System Research and Sustainability, Institut für Geophysik, Universität Hamburg, Hamburg, Germany
The interaction between magmatic and tectonic processes in ocean intraplate volcanism yields insights into the ascent and transport of magmas. Many oceanic intraplate studies lack a temporal component and do not consider changes in tectonic regime and/or magmatic processes during the evolution of magmatic systems. The eastern part of the Azores archipelago formed under the influence of both an intraplate melting anomaly and a system of ultraslow spreading rift axes. The majority of recent submarine and subaerial eruptions in the Azores occur along volcanic rift zones and thus melt transport and volcanic processes are largely controlled by tectonic processes, and are therefore ideally suited to study volcano-tectonic interactions. Here, we investigate how variable the magmatic and tectonic processes are in space and time and how they interact. We present new bathymetric, geophysical, geochemical, and Sr-Nd-Pb isotope data from Faial Island and the surrounding seafloor, providing insights into the interaction between the asthenospheric melting anomaly and extensional lithospheric stresses. The bathymetry reveals large submarine volcanic rift zones on the western flank of Faial, including that of the 1957–1958 Capelinhos eruption. Based on absolute ages and seismic imagery, we develop a relative chronology of the magmatic evolution of the submarine rift zones. Their preferred WNW-ESE orientation implies that the stress field has not changed within the last ~1 Ma. We can however show that melt productivity progressively decreased with time. Compositionally different magma batches fed distinct volcanic rift zones and edifices, suggesting that changes in the melting regime occur on a small spatial scale and that the distribution of compositionally similar lavas is tectonically controlled. As melt supply decreases, the tectonic influence on volcanism increases with a stronger localisation of melts along tectonically controlled lineaments. The youngest mafic and intermediate melts (<10 ka) on Faial are exclusively erupted along single rift zones and cover a smaller area, whereas the older volcanism was more widespread.
Volcanoes situated close to plate boundaries form by the interaction between magmatic intraplate processes and those associated with the tectonic stress field. Tectonic and magmatic processes both affect melt formation, ascent, movement in the shallow crust, and finally eruption. For example, volcanoes at oceanic spreading axes are commonly elongated reflecting the intrusion of kilometer long dikes above which lavas erupt and build up volcanic ridges (Morgan, 1987). Studies of oceanic island volcanoes, e.g., Hawaii, Iceland, and the Canary Islands, have shown that extensional forces on different local and regional scales generate lithospheric pathways for the ascending melts (Garcia et al., 1996; Klügel et al., 2005a; Gudmundsson et al., 2014). However, little is known on how structural features or compositions of magmas change if an extensional component is present as a response to either changes in melting or tectonic regime. If volcanism is predominantly concentrated along rift zones, melting rates and pathways of magma transport are strongly controlled by lithospheric extension (Galipp et al., 2006). Shorttle et al. (2013) show that magmas appear to be related to each other on length scales similar to those of individual, rift-parallel volcanic systems, implying that extension may impart some control on the development of segmentation.
The eruption of melts in intraplate environments generally produces alkaline basalts that display enriched trace element and isotope signatures (White et al., 1976; Zindler and Hart, 1986; Hofmann, 1997) and may be ideally suited to investigate the extent of mantle heterogeneity (Hofmann, 2003; Stracke, 2012). The formation of melts in intraplate environments has generally been attributed to either increased temperatures (Morgan, 1971; Schilling, 1975; White et al., 1976; Cannat et al., 1999) or increased volatile contents (Schilling et al., 1980; Bonatti, 1990) or a combination of these. Contrarily, melt formation at oceanic spreading axes frequently results from adiabatic decompression melting by the upwelling depleted upper mantle (McKenzie and Bickle, 1988). Melts that have formed in an intraplate environment from melting of an enriched mantle rising beneath an extensional regime, e.g., in the Azores, may provide a means to disentangle the processes influencing the final melt composition and those that influence the tectonic stress field and the structure of related volcanic bodies. Studies on ocean islands generally either deal with the volcanic evolution of the islands (e.g., in the Azores; Larrea et al., 2014) or the tectonic evolution of a particular system or area (e.g., Hildenbrand et al., 2014; Miranda et al., 2018), or a combination of both (e.g., on Faial, Trippanera et al., 2014). Yet, most of these studies do not consider the temporal and spatial evolution within a single magmatic system. In many intraoceanic systems these processes are however linked, i.e., tectonic stresses may affect volcanic processes. The variability in the temporal evolution of a single volcanic system and how and whether changes in either tectonic regime or melting conditions are reflected in the respective structural and compositional features remains however unknown.
Our main aim is to investigate how magma compositions and eruption patterns evolve at ocean volcanoes in space and time. The Azores submarine volcanic systems and islands are strongly influenced by extension of the lithosphere above a mantle melting anomaly (Gente et al., 2003; Vogt and Jung, 2004; Beier et al., 2008) making them an ideal target location for studying volcano-tectonic interactions. The boundary between the Eurasian, African and American lithospheric plates has experienced significant tectonic changes in the past 10 Ma (Miranda et al., 2018; Vogt and Jung, 2018). During this period the magmatism and the tectonic stress are probably an omnipresent feature in the Azores allowing to determine the impact of the structural regime on intraplate melting.
Here, we combine new bathymetric data with geochemical and petrological data from a series of subaerial and submarine mafic to intermediate igneous rock samples from Faial and the north- and southwestern submarine ridges extending from the island. We expand existing chemical and structural studies of the island toward the submarine volcanic edifices in order to reconstruct the volcanic evolution of Faial and the surrounding submarine structures. We show that much of the temporal evolution of melts on timescales >1 Ma are controlled by mantle melting processes, in which changes in degree of partial melting and enrichment result in geochemically distinct lavas. The tectonic control on the volcanism becomes more significant as mantle processes, i.e., the degree of partial melting and the mantle source, progressively change. Our observations may also be applicable to other smaller volcanic rift systems and indicate that mantle heterogeneity and extensional movements can impact on the composition and ascent of melts on different temporal and spatial length scales.
The Azores Plateau in the Central Northern Atlantic is separated by the Mid-Atlantic Ridge (MAR) into an eastern and western part (Figure 1). Six of the seven islands in the eastern part of the archipelago are influenced by the NW-SE striking Terceira Rift or its predecessors, only Santa Maria displays no substantial rift component. The Terceira Rift is an ultraslow oblique spreading axis that formed about 1 Ma ago (Vogt and Jung, 2004). The Terceira Rift and the MAR form the ridge-ridge-ridge triple junction located either west of Faial and/or Graciosa (Grimison and Chen, 1988). The easternmost island Santa Maria and the eastern part of São Miguel are related to the W-E striking East Azores Fracture Zone (EAFZ) which is the former boundary between the African and Eurasian plate (Luis et al., 1994). Three of the seven volcanic islands and an active seamount in the eastern plateau (São Miguel, Terceira, Graciosa, and João de Castro seamount) are located along the recently active Terceira Rift, divided by deep non-volcanic basins (Beier et al., 2008). Three islands south of the Terceira Rift (e.g., Faial, Pico, São Jorge) may also be related to a previous rifting movement (Vogt and Jung, 2004), forming parallel lineaments relative to the nowadays position of the Terceira Rift (Beier et al., 2015). They thus represent former extinct stages of the Terceira Rift reflecting its northwards shift with time (Krause and Watkins, 1970; Vogt and Jung, 2004). Recent earthquake orientations also imply that some of this extension is still active causing numerous and destructive earthquakes (e.g., in 1998; Matias et al., 2007), i.e., extension is still taking place in the vicinity of Faial (see also Fontiela et al., 2018).
Figure 1. Bathymetric maps and digital elevation models (DEM) of (A) the eastern Azores Plateau with major tectonic boundaries (contours are 1000 m elevation) and; (B) Faial Island with western adjoining submarine rift zones and major structural features (contours are 250 m elevation). Lineaments and faults on the island modified from Hildenbrand et al. (2012); Tempera et al. (2013); and Trippanera et al. (2014). Thick white line marks the position of the Pedro Miguel graben axis (Trippanera et al., 2014).
The Azores Plateau as a whole likely formed from a melting anomaly in the mantle, either due to a small thermal plume head (Schilling, 1975; White et al., 1976; Cannat et al., 1999) or to an anomalous volatile-enriched mantle (Schilling et al., 1980; Bonatti, 1990; Beier et al., 2012; O'Neill and Sigloch, 2018). Noble gas isotopes and melting models suggest that a deep mantle plume may be located beneath Terceira (Moreira et al., 1999, 2018; Bourdon et al., 2005).
Faial Island is located on a subparallel lineament some 50 km SW of the recently active Terceira Rift. Structural features on the island, e.g., the Pedro Miguel graben (Trippanera et al., 2014; Pimentel et al., 2015) and the rift zones show that structures and lineaments on Faial are influenced by the general WNW-ESE striking extensional stress regime prevailing in the eastern Azores Plateau (Figure 1), perpendicular to the extensional movement of the African and Eurasian plates (Luis et al., 1998; Weiß et al., 2015a). The subparallel lineaments have previously been interpreted to be extinct rift axes related to the movement of the recently active Terceira Rift. Rift-related structural features on Faial imply that rifting has played a role in the past (Luis et al., 1994; Miranda et al., 1998; Gente et al., 2003) and recent observations of earthquake epicenters suggest that tectonic movements still occur (Fernandes et al., 2002; Dias et al., 2007; Matias et al., 2007; Marques et al., 2013). The extension combined with volcanic activity during the past 1 Ma (Madeira et al., 1995; Hildenbrand et al., 2012; Beier et al., 2015) and the most recent Capelinhos eruption in 1957–1958 provides an opportunity to investigate the interaction between magmatic and tectonic processes in time and space.
Faial can be divided into several volcanic units (Chovelon, 1982; Madeira, 1998; Pacheco, 2001) similar to other volcanic islands in the Azores. The island is dominated by a central volcano with a caldera. Several adjoining rift zones extend in a north-westerly direction from the Caldeira Volcano into a submarine basin forming the submarine volcanic ridges (Figure 1). Similar features are observed along the western flanks of São Miguel (Weiß et al., 2015b). The oldest exposed lavas on the island belong to the Ribeirinha Volcano and were dated at 850–800 ka in the southern part and at 400–350 ka in the north of the volcano. (Hildenbrand et al., 2012; Figure 2). Although the younger ages for the northern part of the Ribeirinha Volcano are not supported by computed magnetisations, the gap in radiometric ages indicates a prolonged hiatus between the south and the north (Hildenbrand et al., 2012). However, based on insular shelf data from Quartau and Mitchell (2013) it can be excluded that the Ribeirinha Volcano consists of two central volcanoes. The system rather represents one central volcano with episodic activity, where the older lavas outcrop in the south and the younger eruptives outcrop in the north. A major part of the island consists of the central Caldeira Volcano with lavas dated between ~120 and ~40 ka (Hildenbrand et al., 2012), covering most of the older volcanic units. Further younger explosive volcanism through a central vent at the Caldeira Volcano occurred in the last 16 ka, erupting mostly trachytic pyroclastic material (Pimentel et al., 2015). Several studies (e.g., Madeira, 1998; Pacheco, 2001), have proposed that the volcanic activity at the Caldeira Volcano could be as old as 470 ka, based on a single K-Ar age from Demande et al. (1982). However, as discussed in detail in Hildenbrand et al. (2012), this radiometric age may be abnormally old, due to high amounts of pyroxene and olivine phenocrysts in the analyzed whole rock sample. Each volcanic eruption is associated with a distinct developing phase of the eastern and central Pedro Miguel graben (Hildenbrand et al., 2012).
Figure 2. Bathymetric map and DEM of Faial with its neighboring submarine rift zones (same as Figure 1B). Superimposed areas marked on the island are different volcanic units with distinct periods of volcanic activity based on K-Ar and radiocarbon ages and models from Hildenbrand et al. (2012) (*) and Madeira et al. (1995) (**). The age for Condor rift is based on Ar-Ar dating from Beier et al. (2015) (***). Black lines mark seismic profiles P66 an P75 from cruise M113, highlighted sections are shown in detail in Figure 3. Symbols mark the locations of lava samples, circles refer to submarine and squares to subaerial samples, respectively. The colors are the same as used in the following diagrams and refer to different volcanic units and their respective ages. (CFZ, Central Fissure Zone; comprising the submarine Capelinhos rift and the subaerial Capelo Fissure Zone).
Mafic and intermediate volcanism at the Horta Fissure Zone in the south-eastern part of Faial is exclusively younger than 40 ka (Hildenbrand et al., 2012). At the Capelo Fissure Zone in the western part volcanism is probably younger than 10 ka (Madeira et al., 1995; Madeira, 1998; Di Chiara et al., 2014). Historic eruptions at Capelo Fissure Zone occurred in 1672–1673 at Cabeço do Fogo, and in 1957–1958 at Capelinhos forming a complex tuff cone (Cole et al., 2001).
Generally, volcanism on Faial Island is characterized by short periods of volcanic activity, lasting less than 30 ka, with prolonged hiatuses of up to 500 ka between these periods (Hildenbrand et al., 2012). Hildenbrand et al. (2012) suggest that the volcanic pulses were coeval with tectonic movements and the faulting may be caused partly by deflation of shallow magma reservoirs and partly by extension of the lithosphere. Thus, Faial exhibits similar periodic volcanic activity compared to other islands from the eastern Azores Plateau (e.g., São Jorge, Graciosa; Feraud et al., 1980; Hildenbrand et al., 2008; Larrea et al., 2014; Sibrant et al., 2014).
Sampling and Methods
Bathymetry and Sampling of the Volcanic Structures
The submarine samples from the rift zones and new bathymetric data were obtained during R/V Meteor cruises M113 (Hübscher et al., 2016) and M128 (Beier et al., 2017a; see Figure 2 for sampling localities). The high resolution bathymetric data were obtained using the hull mounted EM122 and EM710 multi-beam systems with signal frequencies of 12 and 70–100 kHz, respectively. In our working area, most rock samples were taken with a TV-guided grab. Samples from Condor rift (previously also referred to as Condor de Terra, Condor seamount, Condor bank, or Condor ridge in the literature, hereafter simply referred to as Condor rift for clarity), taken via Remotely Operated Vehicle (ROV MARUM Quest 4000), were obtained stratigraphically along a vertical profile and along the NW-SE oriented axis. The island of Faial was sampled during several field trips between 2001 and 2003. Samples from cruises Pos232, Pos286 with R/V Poseidon and the subaerial samples are the same used in Beier et al. (2012) and Beier et al. (2015).
The subaerial samples from Faial are divided into different volcanic units based on 14C ages and models from Madeira et al. (1995) and K-Ar ages and models from Hildenbrand et al. (2012) according to the sampling localities (Figure 2). In this work, we treat the young volcanism at Capelo Fissure Zone and submarine lavas from Capelinhos rift as one geological unit, summarized as the Central Fissure Zone in agreement with a strong structural connection between the subaerial and submarine parts (Figure 1, Quartau et al., 2012). Samples from other submarine rift zones are treated as distinct volcanic units for the purpose of our work (Figure 2).
The seismic data for this work were obtained during cruise M113 (Hübscher et al., 2016). Seismic signals were generated using an array of three GI-Guns and one Mini-Gun in a water depth of about 2.5 m. The streamer used was a digital 144-channel streamer of 600 m active length. Data processing included frequency filtering (15–350 Hz), gain, velocity analysis (every 50 CMPs), NMO-correction, coherency filtering, stacking, time-migration, bandpass, white noise removal, dip filtering, fx-deconvolution. For a detailed overview of the method see Hübscher and Gohl (2014).
The major element analysis for whole rocks from cruises M113 and M128 were carried out using a Spectro XEPOS He—XRF spectrometer at the GeoZentrum Nordbayern, Friedrich-Alexander Universität Erlangen-Nürnberg using methods described in Woelki et al. (2018). Exactly 1.000 g of dried sample powder was mixed with 4.83 g of lithium tetraborate and 230 mg of di-iodpentoxide, fused to homogenous glass beads using an OXIFLUX burner. The loss on ignition was calculated by the difference between the weighted sample powders to 1 ± 0.0015 g and the same sample powders after 12 h at 1050°C. Using fused glass beads precision and accuracy are better than 0.8% (2σ) and 1% (2σ), respectively, based on repeated measurements of the international rock standard BE-N, BR, and BHVO-1.
The major element analyses of glasses were performed on a JEOL JXA-8200 Superprobe at the GeoZentrum Nordbayern, Universität Erlangen-Nürnberg using methods and standards described in Beier et al. (2017b). An acceleration voltage of 15 kV, a beam current of 15 nA, and a defocused beam (10 μm) were used. Counting times were set to 20 s for peaks and 10 s for backgrounds. Natural volcanic glass standards (basaltic glass standard VG-A99 and rhyolitic glass standard VG-568), together with mineral standards scapolite R-6600 (Smithsonian Institution), apatite, chalcopyrite, fluorite, and rhodonite (P and H Developments) were used for calibration. Glass standards VG-2, VG-A99, and VG-568 were analyzed periodically as unknowns in order to monitor the accuracy of the microprobe result (Brandl et al., 2012).
Trace element analyses for some samples were performed on an Agilent 7500c/s Quadrupole Inductively Coupled Plasma Mass Spectrometer (ICP-MS) at the Institut für Geowissenschaften, Universität zu Kiel. The samples were prepared as described in Beier et al. (2008) and Beier et al. (2012) with a standard deviation of the precision and accuracy of < 5% (2σ) and < 8% (2σ), respectively, based on repeated standard measurements. Further trace element analyses for submarine and selected subaerial samples from Faial were carried out using a Thermo Fisher Scientific X-Series 2 Quadrupole Inductively Coupled Plasma Mass Spectrometer (ICP-MS) connected to an Aridus 2 membrane desolvating sample introduction system at the GeoZentrum Nordbayern, Friedrich-Alexander Universität Erlangen-Nürnberg. For the dissolution of sample powder and rock standards (BHVO-2) we used the method as described in detail in Freund et al. (2013) following standard techniques using a 3:1 mixture of HF and HNO3. The dissolved sample solution is diluted accordingly in order to get a dilution factor of about 4000. We use an internal standard containing elements not present in the sample solutions in order to correct the data for machine drifts during the duration of the measurements. Precision and accuracy are better than 1.1% (2σ) and 1.1% (2σ), respectively, based on repeated measurements of the international rock standard BHVO-2.
New Sr-Nd-Pb isotope data from submarine and subaerial samples from Faial were analyzed at the GeoZentrum Nordbayern, Friedrich-Alexander Universität Erlangen-Nürnberg. For Sr-Nd-Pb isotopes ~150–200 mg dried sample powder were leached in hot 6M HCl for at least 2 h then dissolved (for Sr-Nd-Pb) and separated in ion-exchange columns (for Sr-Nd) using the method described in Haase et al. (2017). Strontium and Nd isotopes were analyzed using a Thermo-Fischer Triton thermal ionization multicollector mass spectrometer in static mode. Strontium isotope measurements were corrected for mass fractionation using 88Sr/86Sr = 0.1194, and mass 85 monitored to correct for possible contribution of 87Rb to mass 87. Neodymium isotope data were corrected for mass fractionation using a 146Nd/144Nd ratio of 0.7219. Samarium interference on masses 144, 148, 150 were corrected for by measuring 147Sm, although the correction was negligible for all samples presented here. During the analysis, SRM987 standard yielded 87Sr/86Sr = 0.710256 ± 0.000005, and the Erlangen Nd standard gave 143Nd/144Nd = 0.511543 ± 0.000003 (corresponding to a value of 0.511850 for the La Jolla Nd isotope standard). The data were not normalized to the measured standards.
For the digestions and Pb column chemistry only double-distilled acids were used with dropper bottles to keep the blanks as low as possible. For the separation of Pb the dissolved samples were loaded on 100 μl Sr-Spec resin columns and washed with 1M HCl. The Pb was collected using 6M HCl. Lead isotope measurements were carried out on a Thermo-Fisher Neptune MC-ICP-MS using a 207Pb/204Pb double spike to correct for instrumental mass fractionation. The double spike, with a 207Pb/204Pb ratio of 0.8135, was calibrated against a solution of the NBS982 equal atom Pb standard. Samples were diluted with 2% HNO3 to a concentration of ~20 ppb, and an aliquot of this solution spiked in order to obtain a 208Pb/204Pb ratio of about 1. Spiked and unspiked sample solutions were introduced into the plasma via a Cetac Aridus desolvating nebuliser and measured in static mode. Interference of 204Hg on mass 204 was corrected by monitoring 202Hg. An exponential mass fractionation correction was applied offline using the iterative method of Compston and Oversby (1969), the correction was typically 4.5 permil per amu. Twenty measurements of the NBS981 Pb isotope standard (measured as an unknown) over the course of this study gave 206Pb/204Pb, 207Pb/204Pb, 208Pb/204Pb ratios of 16.9410 ± 0.0020, 15.4993 ± 0.0019, and 36.7244 ± 0.0046 respectively. The Pb blanks are generally below 30 pg. The results for all samples can be found in Supplementary Tables 1 and 2.
Our bathymetric data west of Faial Island display four WNW-ESE oriented volcanic ridges rising up to 1700 m above the surrounding seafloor (Figure 1). These ridges are structurally connected to the island with their south-eastern ends directly joining the western and south-western coast of Faial. Their elevation relative to the sea level decreases with increasing distance from the island. The central Capelinhos rift forms the western submarine extension of the subaerial Capelo Fissure Zone, where the most recent subaerial volcanic activity occurred. South and north of the Capelinhos rift, three rift zones can be distinguished. The Condor rift is located south of Capelinhos rift, the Ribeira Funda, and Northern rifts are located north of the Capelinhos rift (Figure 2). Amongst the rift zones north of Capelinhos, the southern rift (Ribeira Funda rift) is along the continuation of a large WNW-ESE subaerial normal fault near the village Ribeira Funda (NW sector of Faial) and the axis of the Pedro Miguel graben (Trippanera et al., 2014) and the northernmost rift zone is situated along the continuation of the northern coast of Faial (Northern rift; Figure 2). The length of these submarine rift zones varies between ~8 km (Capelinhos rift) and ~50 km (Condor rift), compared to ~27 km for the SE-NW extent of the island of Faial. Apparently, much of the volcanic activity related to the vicinity of Faial formed only submarine volcanic ridges that did not reach subaerial levels. The WNW-ESE along-rift orientation of the submarine volcanic ridges (~300°) is similar to the general orientation of faults related to the formation of the Pedro Miguel graben, the alignment and elongation of vents and the orientation of the majority of dikes on the island (Trippanera et al., 2014) and at Condor rift (Tempera et al., 2013). The morphology of the rift zones is dominated by isolated cones or groups of elongated cones and several kilometer-long ridges. In contrast to the Capelinhos rift, the Ribeira Funda, and Northern rifts show evidence for normal faulting in addition to structures related to volcanic activity. Similar features are observed on the island, where the flanks of the Caldeira Volcano and, in particular, the Ribeirinha Volcano are affected by normal faulting, whereas the morphology at the Horta and Capelo Fissure Zones is dominated by dikes and alignments of cones (Trippanera et al., 2014). On a smaller scale the orientation of lineaments within the rift zones does not entirely correspond to their general WNW-ESE orientation. Whereas most rift zones display almost exclusively subparallel oriented lineaments and elongation of cones, several elongated cones along the Capelinhos rift display orientations trending more SW and NW than the dominating orientation of lineaments, forming a fan-shaped system of lineaments (Figure 1).
For the purpose of our work we use both absolute, radiometric, and relative ages from direct observations during ROV dives, geodynamic modeling and seismic profiles. Absolute, radiometric K-Ar and 14C ages from Faial were published in Feraud et al. (1980), Hildenbrand et al. (2012), and Madeira et al. (1995), respectively. They range from 0.848 to 0.03 Ma and 10.25 to 0.32 ka with maximum errors of 0.012 Ma and 1.77 ka, respectively. Last eruptions on the Capelo Fissure Zone occurred in 1672–1673 and recently in 1957–1958 (Capelinhos eruption; Cole et al., 2001). The Capelinhos eruption initially started ~1.2 km from the old coastline along the Capelinhos rift and rapidly migrated toward the island. The largest uncertainty in the ages used here lies in the submarine samples. Condor rift has been sampled by dredging during R/V Poseidon cruise POS 286. A single Ar-Ar age of a submarine lava displays 1.10 ± 0.80 Ma presented in Beier et al. (2015). We note however, that these are minimum ages. Dredging during POS 286 was performed at water depths from 356 to 470 m below sea level, while the ROV profiles during R/V Meteor cruise M128 range from 588 to 918 m below sea level. Hence, we treat the age by Beier et al. (2015) as minimum age. We also note that the Ar-Ar age determination on variably altered (Beier et al., 2015, 2017a) mafic submarine volcanic rocks may be challenging. However, geodynamic estimates (Cannat et al., 1999; Gente et al., 2003; Miranda et al., 2018) reveal that much of the igneous basement of Princessa Alice bank, to which Condor's basement may belong, formed at 8–10 Ma. Thus, within the uncertainties of the current ages, we treat Condor rift as the oldest exposed unit in the vicinity of Faial considering that older igneous strata may still be exposed at greater depth but covered by younger lavas. Older ages of formation of Condor rift would significantly strengthen our model presented below.
Relative ages of the different submarine volcanic rift zones west of Faial can be obtained from two seismic profiles each with a length of ~30 km (Figure 3). The two profiles are both SW-NE oriented, perpendicular to the orientation of the rift zones. Profile P75 is located proximal and profile P66 distal relative to Faial (Figure 2). P75 comprises all rift zones west of Faial, whereas P66 comprises only the Condor and Ribeira Funda rifts, because these two ridges extend further westwards than the Capelinhos and Northern rifts. In seismic profile P75 all rift zones are significantly elevated against the surrounding seafloor (Figure 3). The strong reflecting acoustic basement represents the volcanic basement of each rift zone overlain by several less strong reflecting cones. Weak reflecting horizons together with stratified basin fills are associated with marine sediments and debris flows extending from the volcanic bodies toward north-east and south-west (Figure 3). Onlap and downlap structures of such debris flows from the Capelinhos rift onto the volcanic basement and debris flows from Condor and Ribeira Funda rifts imply that the Capelinhos rift is younger than the rifts to the north and south. Symmetric and planar layered sediment-filled basins between the Ribeira Funda and Northern rifts suggest that they formed synchronously. The relative age relation between Condor and Ribeira Funda rifts given in profile P66 is less precise compared to the age constraints inferred from P75, because the distance between the rift zones is larger. However, the strong seismic reflection of the volcanic basement of Condor rift is comparable to that observed at Ribeira Funda rift, which may indicate a contemporaneous formation.
Figure 3. Interpreted SW-NE seismic profiles across the rift zones with (A) proximal, and (B) distal relative to Faial. Inset map highlights the relative ages derived from seismic imagery, lines mark seismic profiles. Main seismic reflectors are marked with thick black lines. Note that the ages of the rift zones in (B) are increasing from Capelinhos rift toward Condor (SW) and Ribeira Funda rifts (NE) as illustrated by the double arrow in (A) and the inset map.
Geochemistry and Isotopes
The most abundant rock types from Faial Island and the adjoining rift zones are alkali basalts to trachybasalts, except for some lavas from Condor rift that are classified as tholeiites based on the Total Alkali vs. SiO2 (TAS) classification of Le Maitre et al. (1989) (Supplementary Figure 1).
Lavas from Faial and associated submarine rift zones from this work range from mafic to evolved rocks covering a MgO content from ~9 to 1 wt. % (Figure 4). Subaerial lavas from the Caldeira and Ribeirinha Volcanoes, ranging from ~6 to 1 wt. % MgO, equivalent to SiO2 contents between 45 and 65 wt. %, are generally more evolved than most submarine lavas. Many of the intermediate lavas from the Caldeira Volcano have SiO2 contents ranging from 53 to 57 wt. %, contrasting observations from other large volcanoes in the Azores, e.g., Santa Barbara Volcano on Terceira (Daly et al., 2012) and the central volcano on Graciosa (Larrea et al., 2018). A larger volume of highly evolved (trachytic) pyroclastic rocks (up to ~64 wt. % SiO2 equivalent to MgO contents <1 wt. %) derive from explosive eruptions through a central vent from the Caldeira Volcano. They mainly erupted within the last 16 ka, in part associated with the formation of the caldera (Pimentel et al., 2015). For the purpose of this work, we focus on rock samples covering a range from mafic to intermediate composition (basaltic to trachy-andesitic) to disentangle deep magmatic processes and their interactions with tectonic stresses. Thus, we exclude literature data dealing with the silicic (trachytic) eruptions from the Caldeira Volcano <16 ka, i.e., those from Pimentel et al. (2015), because they may rather reflect shallow magmatic processes.

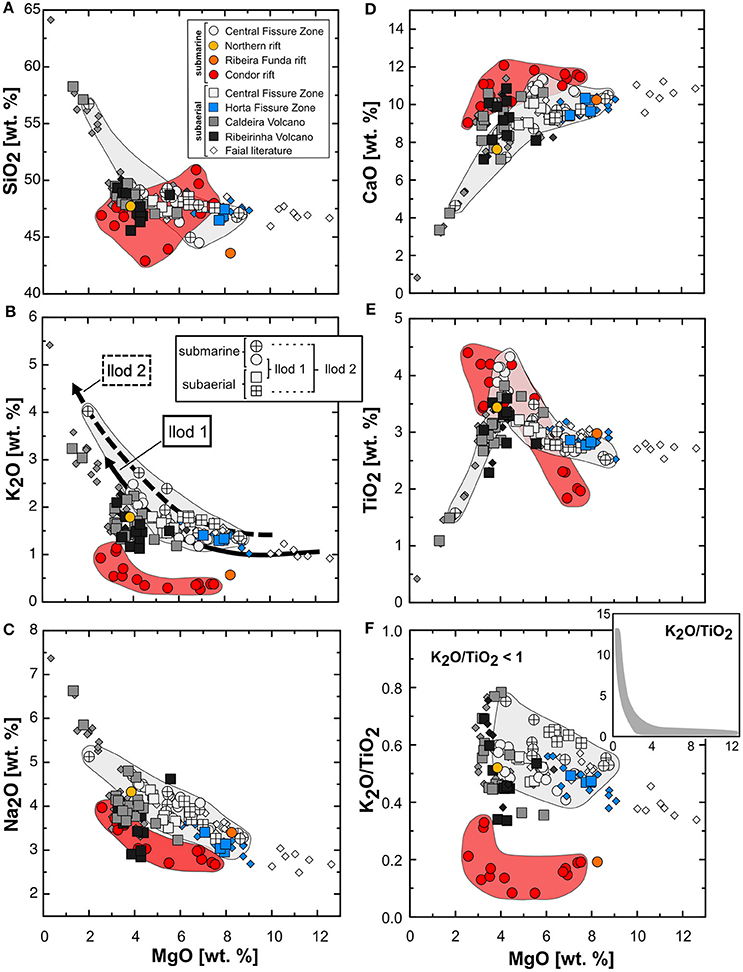

Figure 4. (A-E) Major element contents and (F) K2O/TiO2 ratios vs. MgO [wt. %]. Symbols are the same as in Figure 2. Red and white areas highlight our samples from Condor rift and the Central Fissure Zone, respectively. Two liquid lines of descent with lower (llod 1) and higher (llod 2) K2O contents are distinguished [(B), see also Figure 6]. Arrows in (B) schematically highlight llod1 (solid line) and llod2 (dashed line). Diamonds are subaerial samples from Zanon et al. (2013) and Hildenbrand et al. (2014). The colors are the same as used for our samples and refer to the respective volcanic units distinguished in Figure 2. Inset in (F) highlights the range in K2O/TiO2 for all Faial lavas. Note that published samples largely overlap those from this study.
The submarine lavas from the Central Fissure Zone are more evolved than their subaerial equivalents and cover almost the entire range in MgO for lavas from Faial from ~9 to 2 wt. %, compared to ~8 to 5 wt. % for the subaerial Central Fissure Zone lavas. The Na2O, K2O, and TiO2 contents at a given MgO content from the Central Fissure Zone are significantly higher compared to both subaerial lavas from the Caldeira and Ribeirinha Volcanoes and submarine lavas from Condor and Ribeira Funda rifts, however, they are also more variable. At a MgO content of 7 wt. % lavas from the Central Fissure Zone range from 1.2 to 1.7 wt. % K2O and 3.4 to 4.1 wt. % Na2O, compared to 0.3 to 0.4 wt. % and 2.8 to 3.0 wt. %, respectively, for lavas from Condor rift (Figure 4). Lavas from the Caldeira and Ribeirinha Volcanoes overlap in their K2O contents. The Na2O contents of lavas from the Ribeirinha Volcano are lower than those from the Caldeira Volcano ranging from 2.9 to 3.8 wt. % Na2O compared to 3.8 to 4.7 wt. % Na2O, respectively. Instead, lavas from Ribeirinha Volcano resemble those from Condor rift.
The incompatible element compositions of lavas from Faial and the rift zones display distinct signatures for the different volcanic units. Lavas from the Central and Horta Fissure Zones have higher La/Yb and Ba/Nb and lower Sm/Nd ratios compared to all other submarine rift zones, except for a single sample (IGSN: IEAZO1169) from the Northern rift (Figure 5). An additional Rare-Earth Element diagram is provided in the supplemental material (Supplementary Figure 2). On a larger scale lavas from the Central and Horta Fissure Zones are very similar in their compositions, however on a smaller scale they show subtle differences (Zanon et al., 2013) with lavas from the Central Fissure Zone being slightly more enriched in some incompatible trace element ratios. We use incompatible ratios for lavas between 3 and 5 wt. % MgO, because lavas from the Caldeira and Ribeirinha Volcanoes are mostly covering a comparable range in fractionation indices. We have tested for the influence of fractionation and conclude that most trace element ratios used here are only influenced by fractional crystallization at less than 3 wt. % MgO (Figure 4). Subaerial lavas from the Caldeira and Ribeirinha Volcanoes overlap and both lie between those lavas from Condor rift and the Central Fissure Zone with the notable exception of La/Yb ratios. Lavas from the Ribeirinha Volcano have La/Yb of 10 to 13 significantly lower than those from the Caldeira Volcano, ranging from 13 to 21, overlapping with lavas from the Central Fissure Zone (Figure 5).
Figure 5. Incompatible trace element variations of submarine and subaerial lavas from Faial. Data sources are the same as in Figure 4. (CFZ = Central Fissure Zone).
The subaerial and submarine lavas from Faial also display distinct isotope signatures. The overall range is between 0.70343 and 0.70413 for 87Sr/86Sr and 0.51303 and 0.51283 for 143Nd/144Nd, which is within the array of North Atlantic MORB from Dosso et al. (1999) (ranging from 0.70252 to 0.70414 for 87Sr/86Sr and 0.51267 to 0.51325 for 143Nd/144Nd) but shifted toward higher 87Sr/86Sr ratios (Figure 7). The only exception are the two lowermost samples from the stratigraphic profile at Condor rift (IGSN: IEAZO1135, IEAZO1136) which have notably lower 143Nd/144Nd of 0.51274 and 0.51285 compared to other lavas from this section and most other subaerial and submarine lavas. Other samples from Condor and Ribeira Funda rifts display the highest Nd and lowest Sr isotopes, whereas lavas from the Central Fissure Zone have the lowest 143Nd/144Nd and highest 87Sr/86Sr ratios, except for one sample from the Caldeira Volcano (IGSN: IEAZO0028) which has an elevated Sr isotope composition. Lavas from the Caldeira Volcano cover a large range in Sr-Nd isotope space overlapping with those from the Central Fissure Zone. Lavas from the Ribeirinha Volcano have homogenous Sr-Nd isotope compositions with slightly higher 143Nd/144Nd ratios compared to lavas from the Central Fissure Zone and the Caldeira Volcano. The overall range in Pb isotopes for Faial lavas is between 19.187 and 19.623 for 206Pb/204Pb, 15.540 and 15.652 for 207Pb/204Pb and 38.671 and 39.393 for 208Pb/204Pb. Lavas with the highest 87Sr/86Sr and lowest 143Nd/144Nd also have the lowest 206Pb/204Pb (Figure 7). Lavas from Faial lie on a linear array toward more radiogenic 207Pb/204Pb and 208Pb/204Pb at a given 206Pb/204Pb for lavas from the Central Fissure Zone and the Caldeira Volcano compared to lavas from Ribeirinha Volcano and Condor rift (Figure 7). Our Sr-Nd-Pb isotope data are in good agreement with those published previously by Hildenbrand et al. (2014) from respective volcanic units. Generally, lavas from Faial have slightly lower 206Pb/204Pb at similar 207Pb/204Pb and 208Pb/204Pb ratios compared to other islands from the Central Azores Plateau, i.e., Pico and São Jorge (206Pb/204Pb = 19.347 to 20.092; 207Pb/204Pb = 15.540 to 15.650; 208Pb/204Pb = 38.744 to 39.510; Figure 7). In Sr-Nd space, however, lavas from Faial cover a larger range in 87Sr/86Sr and a slightly elevated 143Nd/144Nd compared to samples from both Pico and São Jorge (ranging from 0.70338 to 0.70406 for 87Sr/86Sr and 0.51281 to 0.51300 for 143Nd/144Nd; Figure 7).
In summary, lavas from different volcanic units on Faial and submarine rift zones generally have distinct major and trace element and Sr-Nd-Pb isotope signatures. The two most extreme compositions are observed in lavas from the Central Fissure Zone with the highest K2O contents (at a given MgO content) and most radiogenic Sr and Pb isotope ratios compared to other subaerial and submarine units. Lavas from Condor rift display the lowest K2O contents and least radiogenic Sr-Pb isotope ratios. Lavas from other volcanic units show major element, trace element and isotope pattern between these two groups. Comprehensive selected major and trace elements, and Sr-Nd-Pb isotopes from all volcanic units on Faial and submarine volcanic rift zones are provided in Table 1.

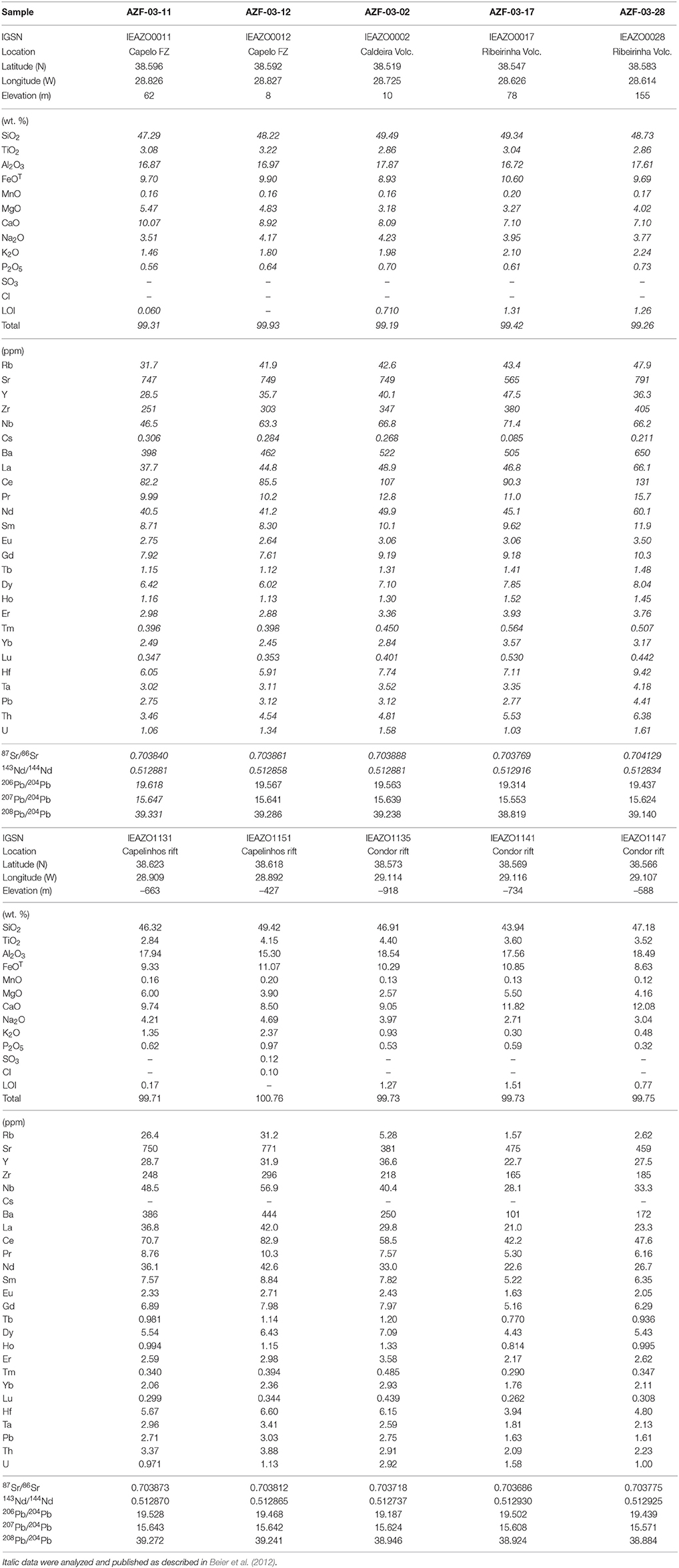

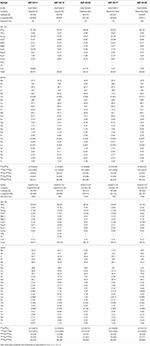

Table 1. Comprehensive selected major and trace elements, and Sr-Nd-Pb isotopes from Faial Island and submarine volcanic rift zones.
The Formation of the Volcanic Rift Zones
The morphological, structural and geochemical features on Faial have been subject of several detailed studies in the last two decades (Madeira, 1998; Pacheco, 2001; Matias et al., 2007; Hildenbrand et al., 2012; Zanon and Frezzotti, 2013; Zanon et al., 2013; Di Chiara et al., 2014; Marques et al., 2014; Trippanera et al., 2014; Pimentel et al., 2015). Lithospheric extension is a major feature influencing both the morphology and structure of volcanic units forming the island. Bathymetric data from the seafloor west of Faial reveal that much of the volcanic activity is situated below sea level along WNW-ESE oriented rift zones, covering roughly the same areal extent compared to the subaerial volcanic units forming the island (Figure 1). In contrast to the central volcanic edifices, i.e., the Ribeirinha Volcano and Caldeira Volcano, which comprise a major volume of the island, the submarine volcanism occurs along narrow rift zones extending from the island over tens of kilometers into the basin. The submarine volcanism is structurally comparable to that occurring subaerially at the Capelo and Horta Fissure Zones, consisting mostly of fissure eruptions, isolated cones and alignments of elongated cones, and dikes (Zanon et al., 2013; Trippanera et al., 2014). This is in contrast to eruptions forming the Caldeira Volcano and probably the Ribeirinha Volcano, which are large central volcanoes.
Generally, there are two different directions of lineations influencing the volcanic units on the island. Most structures, including those showing fissural and monogenetic volcanism along the Capelo and Horta Fissure Zones, are oriented WNW-ESE with extension taking place in a mean 045° direction (Trippanera et al., 2014, Figures 1, 6). Central volcanic edifices, e.g., the Caldeira Volcano, however, additionally show less dominant structures with a NNE-SSW orientation, which may be the result of far-field effects of activity along the MAR (Trippanera et al., 2014) or may be due to local stresses during magma emplacement. The orientation of the submarine rift zones (~300°), parallel to the dominating WNW-ESE orientation of most lineaments on the island of Faial, indicate that they are also influenced by the general regional tectonic stress field prevailing at Faial (Figures 1, 6). Studies on, e.g., Iceland have shown that melts can be transported along dikes up to tens of kilometers causing fissure eruptions and alignments of monogenetic cones, like the 2014 dike emplacements near Bardarbunga Volcano (Gudmundsson et al., 2014, 2016; Sigmundsson et al., 2014). Dikes are usually oriented rift-parallel and perpendicular to the least principal compressive stress σ3 and, therefore, reflect the regional stress field (Schwarz et al., 2005). The occurrence and orientation of dikes in a mean 311° ± 15° direction on Faial (Trippanera et al., 2014) corresponds to the orientation of the submarine rift zones. Thus, we suggest that the lateral transport of melts via dikes into the basin is the major process during the formation of the rift zones. The direction of dikes on Faial is indeed slightly rotated against the general direction of lineaments (mean of 298° ± 16°(Trippanera et al., 2014), however, this is rather an effect of shallow en-echelon dyking, comparable to that observed at Desertas Islands in the Madeira archipelago (Klügel et al., 2005b; Trippanera et al., 2014).
Figure 6. Bathymetric map and DEM of the Central Fissure Zone comprising of a submarine part (Capelinhos rift) and a subaerial part (Capelo Fissure Zone). In (A) different smaller volcanic units are shown and refer to historic eruptions along the Central Fissure Zone. Numbers in brackets are year of eruption (A.D.). Symbols are the same as in Figure 4 and refer to two liquid lines of descent with lower (llod 1) and higher (llod 2) K2O contents. (B) Schematic model of the local and regional stress fields during the formation of the Central Fissure Zone. Red dashed lines and arrows display the orientation of lineaments reflecting the regional stress field (σ3reg perpendicular to the WNW-ESE lineaments); white dashed lines and arrows display the orientation of the local stress field (σ3loc perpendicular to NW-SE and WSW-ENE lineaments). Inset map for orientation.
Lineaments at the Capelinhos rift, differing from the otherwise consistent WNW-ESE orientation, reflect local rather than regional changes in the stress field. These lineaments are located at the north-eastern and south-western flanks of the Capelinhos rift in ~265° and ~320° directions, respectively (Figure 6). A recent study by Tibaldi et al. (2014) has shown that eruptions at the flanks of elongated volcanic edifices may result in locally rotated stress fields which are related to gravity forces and controlled by the topography forming a diverging volcanic rift system. We conclude that the fan-like arrangement of lineaments at Capelinhos rift is the result of a combination of dike emplacement at the flanks of existing volcanic edifices, the shallow rotation of σ3 and, subsequently, a local change in the orientation of lineaments from the predominant WNW-ESE to a more E-W and NW-SE direction (Figure 6).
Lavas from the western tip of Faial (Capelo Fissure Zone) have erupted within the last ~10 ka and represent the youngest volcanic unit on Faial (Madeira et al., 1995; Hildenbrand et al., 2012; Di Chiara et al., 2014). Samples taken along the western adjoining submarine Capelinhos rift using visual sampling techniques during R/V Meteor cruise M128 reveal that these are fresh, glassy lavas with scarce biological coatings (Beier et al., 2017a). We conclude that lavas along the entire Capelinhos rift are as young as those erupted subaerially along the Capelo Fissure Zone (<10 ka) forming a single volcanic unit. Lavas taken along the rift zones north and south of Capelinhos rift are strongly altered with biological overgrowths and are covered by carbonate sand and debris. Representative images of rock samples and the ocean seafloor west of Faial are provided in the supplements (Supplementary Figure 3) and in Beier et al. (2017a).
For the submarine rift zones north and south of Capelinhos rift, we combine absolute ages from geochronology with seismic data providing relative age constraints between individual larger units (Figure 3). In agreement with Ar-Ar ages and direct observations using visual sampling techniques, the seismic profiles show that the age of the rift zones increases with increasing distance from Capelinhos rift systematically to the south (Condor rift) and north (Ribeira Funda and Northern rifts; Figure 3). They are covering an age range from 1.1 Ma until recently, based on Ar-Ar ages from Beier et al. (2015). Hence, we have grouped our samples into subaerial and submarine lavas consistent with their approximate ages (Figure 2).
The seismic data allow to constrain the relative ages between the Ribeira Funda and Capelinhos rifts, but it is much more difficult to determine the age of Ribeira Funda rift relative to units on the island or Condor rift. In this case, structural features, however, can be used for a rough estimate of the relative age of the volcanic activity along Ribeira Funda. The Ribeira Funda rift has the same orientation and is located in the extension of the Pedro Miguel graben axis (Figure 1), which was active at 400 ka (Hildenbrand et al., 2012). We suggest that this strong structural connection could be explained by a contemporaneous formation. The internal structure of Ribeira Funda rift evidences normal faulting, in contrast to the Central Fissure Zone (Figure 3). This implies that Ribeira Funda rift was formed when tectonic activity along the Pedro Miguel graben began and was already formed while the displacement at the graben was still active, with the result that the existing ridge was rifted. Assuming that the orientation of the rift zones mirrors the tectonic stress field, it has not changed significantly during their evolution. Note that the submarine rift zones probably cover the entire age interval of subaerial volcanic activity on Faial (~1 Ma until recently). This contrasts observations from São Miguel and to some extent Santa Maria, which experienced distinct major stress fields during their formation due to the reconfiguration of the Africa-Eurasia plate boundary (Sibrant et al., 2015, 2016; Ramalho et al., 2017).
Geochemical Relationship Between the Rift Zone Lavas
Models dealing with the formation of volcanic rift zones and dike emplacement suggest a central accumulation zone of melts feeding a central volcano, from which sills and dikes intrude along rift zones depending on the local and regional stress fields (e.g., Gudmundsson, 1995; Garcia et al., 1996; Paquet et al., 2007; Gudmundsson et al., 2014). These models have in common that melts feeding both the central volcanoes and the associated rift zones form from the same shallow crustal reservoir. The magmatic system of Faial consists of both large central volcanoes and distinct, individual rift zones with lavas derived from fissure eruptions and dyking deviating in age on the order of several 100 ka. This allows to test whether melts erupted from different volcanic structures (i.e., central volcanoes or rift zones) systematically deviate in source and composition and to determine what the spatial and temporal parameters are that influence the melts.
All lavas from Faial and from the submarine rift zones display evidence for fractional crystallization during magma ascent. Most major elements (CaO, K2O, Na2O, FeOT, and Al2O3) are correlated with fractionation indices, e.g., MgO (Figure 4) and SiO2. The most primitive lava from Faial in this work has a MgO content of 8.62 wt. % (IGSN: IEAZO0651) and, thus is significantly more evolved than primitive lavas from the islands along the Terceira Rift with about 10–12.5 wt. % MgO (Beier et al., 2006, 2008). Zanon et al. (2013) showed that some Faial lavas have MgO contents up 12.5 wt. % (Figure 4) but their lavas with >10 wt. % MgO are highly porphyritic ankaramites and are thus considered to be the result of accumulation of olivine and clinopyroxene crystals. We conclude that the most primitive submarine and subaerial rocks from Faial have about 9 to 10 wt. % MgO in equilibrium with forsterite contents of Fo79 in olivines (Roeder and Emslie, 1970) analyzed in these lavas (Beier et al., 2012). Generally, lavas from the Caldeira and Ribeirinha Volcanoes are more evolved compared to other samples from the island and rift zones (Figure 4). We suggest that extensive fractional crystallization is dominant in these large volcanic edifices compared to lavas from the submarine rift zones and subaerial fissure zones. This is in agreement with thermobarometric calculations from Zanon et al. (2013) and Zanon and Frezzotti (2013), which have shown that rocks derived from fissure eruptions at the Capelo and Horta Fissure Zones have not stagnated significantly during their ascent from the mantle, whereas melts at the Caldeira Volcano have undergone polybaric fractional crystallization and stagnation at shallower crustal levels, leading to the formation of trachytes (Pimentel et al., 2015). The variability of most major elements, in particular K2O, and incompatible trace element ratios, (e.g., La/Yb, Nb/Zr) at a given MgO content (Figures 4, 5) however, cannot be explained by simple fractional crystallization and may rather be related to changes in mantle source composition or degree of partial melting, respectively (see below). We conclude that lavas from different subaerial and submarine units cannot be related to crystallization along a single liquid line of descent but may have experienced similar degrees of fractionation.
We also observe variable major element contents in single volcanic units. Using samples from the Central Fissure Zone as the best sampled unit, some major elements, in particular K2O, imply that there are two slightly distinct liquid lines of descent even within a volcanic unit (Figures 4, 6). As a result, we divide the Central Fissure Zone lavas into two groups each representing liquid lines of descent with lower and higher K2O contents, respectively. Small-scale compositional variations within a single volcanic system are also well-known from other oceanic volcanic systems (e.g., the 1783 Laki eruption; Neave et al., 2013) where multiple lines of evidence contradict the evolution of the erupted magma along a single liquid line of descent. Samples from recent eruptions along the Central Fissure Zone, including those from the 1957–58 Capelinhos eruption, form a lower K2O liquid line of descent (llod1). Whereas most lavas from the historic 1672–73 Cabeço do Fogo eruption and a few submarine lavas from the Capelinhos rift lie on a liquid line with higher K2O contents (llod2). Combining our data with those from Zanon et al. (2013), there is no clear correlation with historic eruption centers. Several other eruptions occurred within the last 10 ka along the Central Fissure Zone on a small spatial area which may be the result of overlapping eruptions. More importantly, lavas from both liquid lines of descent occur subaerially and along the entire submarine rift axis (Figure 6). We thus conclude that there are several magmatic phases in which melts are efficiently transported laterally within relatively short timescales over several kilometers (>12 km) along the rift zones prior to eruption, probably via sills and dikes.
This implies that melts erupted at length scales of <12 km, i.e., the length of Central Fissure Zone rift, provide information on the geochemical variability within relatively short timescales. Comparison of the northern and southern rift zones relative to submarine and subaerial lavas from Faial may, on the other hand, provide information on the temporal evolution of the melts over <1 Ma during which these rift zones have been active. The high K2O and Na2O contents of lavas from the Central Fissure Zone compared to the other lavas from the island and the rift zones (Figure 4) indicate that there are several magmatic series erupting along the rift zones and the central volcanoes. The distinct major element compositions not related to fractional crystallization thus may result from systematic changes in either the conditions and/or sources of melting and/or the tectonic regime influencing the magmatic system beneath Faial.
Source of Melting
Incompatible trace element ratios can be used to distinguish between mantle sources (e.g., Sun and McDonough, 1989; Hofmann, 2003; and references therein). The variable K2O contents and K2O/TiO2 ratios (Figure 4) of lavas from Faial combined with variable incompatible trace element ratios, e.g., Nb/Zr, Ba/Nb, Sm/Nd (Figure 5) and their Sr-Nd-Pb isotope compositions (Figure 7) indicate that subaerial and submarine lavas can indeed be distinguished based on their mantle source signatures. Lavas from Condor and Ribeira Funda rifts have lower Ba/Nb and higher Sm/Nd at a given MgO content and lower 87Sr/86Sr and higher 143Nd/144Nd isotope ratios, respectively, compared to lavas from the Central Fissure Zone. We suggest that lavas from Condor and Ribeira Funda rifts may have originated from a more depleted mantle source compared to Central Fissure Zone melts. The two stratigraphically lowermost lavas from the Condor section with lower 143Nd/144Nd are likely to reflect a more enriched mantle source compared to other lavas from this rift zone. Considering their relative stratigraphic position, we suggest that they are the oldest samples from Condor rift and might reflect a former more enriched mantle source which has progressively changed in composition toward the younger volcanism along this ridge. In agreement, the 206Pb/204Pb ratios are lower for lavas from Condor rift compared to those from the Central Fissure Zone. Lavas from Ribeira Funda rift tend to slightly more radiogenic 207Pb/204Pb and 208Pb/204Pb ratios compared to Condor rift at a given 206Pb/204Pb (Figure 7). Thus, melts feeding the volcanism on Faial and submarine rift zones originate from a variably heterogeneous mantle similar to that observed in other Azores islands (Hawkesworth et al., 1979; Turner et al., 1997; Widom et al., 1997; Haase and Beier, 2003; Beier et al., 2007, 2008; Elliott et al., 2007; Madureira et al., 2011).
Figure 7. Strontium-Nd-Pb isotope ratios of submarine and subaerial lavas from Faial. Green highlighted areas are samples from the Central Azores Plateau (São Jorge and Pico) from Hildenbrand et al. (2008), Beier et al. (2012), and Hildenbrand et al. (2014). Gray field are samples from the Mid-Atlantic-Ridge (MAR) from Dosso et al. (1999). CFZ, Central Fissure Zone.
The difference between the Condor rift and the Central Fissure Zone lavas indicates that the mantle source compositions became more radiogenic in Sr and Pb isotope compositions with decreasing age. The mantle source signatures for lavas from the Caldeira and Ribeirinha Volcanoes lie between those from the Central Fissure Zone and Condor and Ribeira Funda rifts, based on their K2O contents and most incompatible element ratios (Figures 4, 5) at a given MgO content. The Sr-Nd isotope ratios of the Ribeirinha Volcano suggest a slightly more depleted source than those from the Central Fissure Zone, whereas lavas from the Caldeira Volcano overlap those of the young lavas forming the Central Fissure Zone (Figure 7). Samples associated with the Ribeirinha Volcano deviate in Pb isotopes toward less radiogenic 207Pb/204Pb and 208Pb/204Pb ratios compared to the Caldeira Volcano consistent with small variations in major and trace elements. If Faial is treated as a single magmatic system, the trace element and isotope variability between distinct lava suites implies continuous trends in which some lavas form a compositional transition between the two most extreme compositions. We thus suggest that these lavas originate from a comparatively enriched but heterogeneous mantle. Combining these observations with the ages of the distinct lava suites implies that Faial lavas have experienced a progressive enrichment of the mantle source with time (Figures 7, 8, 10). Thus, as the chemical signatures of the Ribeira Funda rift lavas are comparable to lavas from Condor rift and the Ribeirinha Volcano, we suggest that Ribeira Funda rift is probably older than the Caldeira Volcano (Figure 10).

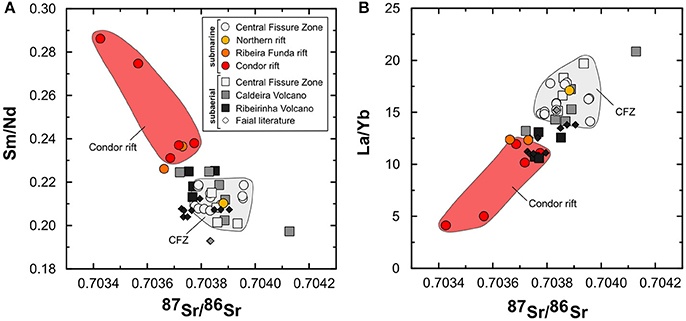

Figure 8. Variations of (A) source sensitive trace element ratio Sm/Nd and (B) melting sensitive trace element ratios La/Yb vs. 87Sr/86Sr. Data sources are the same as in Figure 4.
The progressive evolution of the mantle source composition is accompanied by changes in the spatial distribution of the volcanism. Older lavas with a more depleted mantle source composition cover a large spatial area, whereas the youngest and most enriched lavas erupted along a single rift zone, indicating that the composition of melts and their spatial distribution may be linked, the significance of which we will discuss below.
Conditions of Melting
The degree of partial melting can be estimated using moderately incompatible elements, e.g., Na2O (Klein and Langmuir, 1987; Prytulak and Elliott, 2007) and incompatible trace element ratios, e.g., La/Yb. These values represent mean degrees of melting, given that most oceanic basalts probably represent the accumulated products of a continuous melting process that generates instantaneous melts at a range of melt fractions. Two groups can be distinguished based on their distinct La/Yb ratios (Figure 9). The consistently higher Na2O contents and La/Yb ratios from the Central Fissure Zone imply slightly smaller degrees of partial melting compared to most of the surrounding volcanoes and rift zones (Figures 4, 5). Both submarine lavas from Condor and Ribeira Funda rifts and subaerial lavas from the Ribeirinha Volcano indicate higher degrees of partial melting (based on lower La/Yb ratios), relative to lavas from the Central Fissure Zone and the Caldeira Volcano. These groups are similar to those observed with respect to their mantle source compositions, except for Ribeirinha Volcano which has a similar degree of partial melting compared to Condor rift but a more enriched source composition. Incompatible trace elements sensitive to either mantle source signatures (e.g., Sm/Nd) and the degree of partial melting (e.g., La/Yb) correlate with Sr-Nd isotope compositions (Figure 8) implying a heterogeneous mantle source. Hence, we conclude that the two distinct groups not only reflect changes in mantle source composition but may also reflect changes in degree of partial melting.
Figure 9. La/Yb vs. (A) elemental concentration of La [ppm] and; (B) Fractional melting model modified from Bourdon et al. (2005) and Beier et al. (2013) for Faial lavas using a Tb/Yb vs. La/Yb space and a primitive mantle source from Sun and McDonough (1989) comprised of 55% olivine, 25% orthopyroxene and variable ratios of clinopyroxene and garnet as shown by gray boxes and dashed lines, respectively. White boxes and solid lines mark the degree of partial melting. Partition coefficients for olivine, orthopyroxene, and clinopyroxene were taken from those compiled in Halliday et al. (1995) and references therein, Adam and Green (2006) and Villemant et al. (1981), for garnet from Green et al. (2000). The distribution coefficients used for this model can be found in Supplementary Table 3. Data sources are the same as in Figure 4.
Using a fractional melting model modified from Bourdon et al. (2005) and Beier et al. (2013) we show that lavas from Condor and Ribeira Funda rifts, and the Ribeirinha Volcano are melting at higher degrees of partial melting between 4 and 8%, compared to 2–4% degree of partial melting at the Central Fissure Zone and the Caldeira Volcano (Figure 9). In agreement with Na2O, lavas from the Caldeira Volcano display slightly higher degrees of partial melting compared to the Central Fissure Zone (based on lower La/Yb; Figure 9). The island of Faial and its submarine ridges, however, are built on a lithosphere with approximately the same thickness of about 30 km, calculated using the 1300°C isotherm of Stein and Stein (1992) and a lithosphere age of about 10 Ma (Cande and Kent, 1995; Luis and Miranda, 2008). Robinson and Wood (1998) have shown that the fractionation of middle Rare Earth Elements (MREE) relative to heavy Rare Earth Elements (HREE) in the melt fraction depends on the amount of residual garnet in the mantle that may be increasing with increasing lithosphere thickness in the oceanic environment. Generally, lavas from Faial contain similar amounts of residual garnet between 4 and 6%. This is in agreement with the fact that the amount of garnet in the residual mantle should not differ significantly within the island and the neighboring rift zones if correlated to lithospheric thickness. Thus, we suggest that the small but notable variability in MREE/HREE ratios reflects variations in their mantle source composition rather than different melting depths, i.e., the lowest Tb/Yb ratios are limited to Condor rift and the Ribeirinha Volcano. We conclude that older lavas from Faial, lavas from Condor and Ribeira Funda rifts and the Ribeirinha Volcano formed at a higher degree of partial melting compared to the younger lavas.
The Origin of Chemical and Isotopic Variations
Changes in source composition may also be accompanied or influenced by changes in the degree of melting, i.e., variably more enriched sources may melt deeper and hence to a larger extent (Phipps Morgan, 2000; Niu et al., 2002; Shorttle et al., 2014). In other volcanic systems (e.g., on Iceland; Maclennan, 2008; Shorttle et al., 2014) neighboring volcanoes which have originated from a single mantle column have distinct correlated trace element and isotope patterns. These differences are probably related to mantle source heterogeneity showing that the source composition and the melting depth are closely linked. Comparatively, a study from the Galapagos Rise (Haase et al., 2011) has shown that differences in major and trace elements and isotopes are the result of different degrees of partial melting of a heterogeneous mantle source. The progressive decrease in degrees of partial melting with time occurred as the rifting of the Galapagos Rise slowed down and finally stopped. As a result incompatible element-enriched mantle lithologies can generate a systematic enrichment in incompatible elements with increasing alkalinity of the melt as they preferentially contribute to melts generated at smaller degrees of partial melting (Haase et al., 2011).
Similar to the Galapagos Rise case, lavas from Faial and adjoining submarine rift zones reflect progressive changes in both their mantle source compositions and degrees of partial melting since ~1 Ma (from Condor rift to the Central Fissure Zone; Figure 9). We suggest that the similarity of both cases, changes in mantle source compositions and the conditions of melting in the Faial lavas result from a process that is linked. The youngest lavas from the Central Fissure Zone (<10 ka) have the most enriched mantle source composition, melting with a lower degree of partial melting compared to the older lavas. Hence, we conclude that the consequence of the progressive decrease in the degree of melting at Faial results in a larger contribution of trace element-enriched mantle lithologies from a heterogenous mantle source characteristic to the Azores melting anomaly (Beier et al., 2018).
Spatial and Temporal Evolution
The large compositional and age differences of the Faial lavas imply that they probably do not derive from one large reservoir beneath the Caldeira Volcano. Although volcanic units with comparable ages tend to be similarly enriched or depleted, they did not evolve along a single fractionation path. The differences in K2O contents and K2O/TiO2 ratios between the Central Fissure Zone and the Caldeira Volcano (Figures 4B,F), for example, are too large to be explained by similar liquid lines of descent. Some volcanic systems on Hawaii, i.e., the Kilauea Volcano and the associated Pu'u O'o rift zone (Greene et al., 2013) are geochemically variable and probably derive from one plumbing system. However, the time scales of eruptions with lavas of distinct composition are much shorter (years to decades) compared to Faial. The nature of the periodicity of eruptions on Faial, with short periods of volcanic activity followed by hiatuses of up to several 100 ka (Hildenbrand et al., 2012) rather implies that the compositional differences between distinct volcanic units result from distinct primary magmas and plumbing systems. The younger volcanic units on the island, in particular the Caldeira Volcano, likely cover older units, and in the absence of samples one might speculate that these may form compositional equivalents to the lavas erupted along the submarine rift zones. Thus, we suggest that a model like on Iceland (Gudmundsson, 1995) or Hawaii (Garcia et al., 1996) with a summit reservoir feeding both a central volcano and the rift zones is not applicable for Faial. Instead, the volcanic structures may be comparable to those observed on La Palma where the central volcano and the rift zone formed above distinct plumbing systems (Galipp et al., 2006). Melts feeding the rift zones, e.g., the Central Fissure Zone, ascend from the mantle either directly beneath their locus of eruption or beneath a central volcano, i.e., the Caldeira Volcano. In the latter case, ascending melts would likely stagnate in the uppermost crust, where the base of volcanic edifices and their sedimentary covers have a lower density (Klügel et al., 2005a) and then get laterally transported as sills and dikes into the rift zone. Despite the fact that most samples from the Central Fissure Zone have mafic to intermediate compositions, stagnation and probably further cooling and fractionation beneath the Caldeira Volcano could explain why some samples from the Central Fissure Zone are relatively evolved. However, Zanon and Frezzotti (2013) showed that melts from the subaerial fissure zones have not stagnated significantly during their ascent. In both cases, the effective lateral transport of melts and eruption along fissures are a major process for the development of the rift zones. Elongated rift zones and large volcanic edifices imply that they are internally homogeneous but the distinct geochemical variability between the different rift zones and central volcanoes implies that these systems only show limited interaction.
Combining our chemical observations with the spatial distribution of eruption ages at Faial also provides the possibility to better constrain the temporal evolution of the sources and melting signatures (Figure 10). In contrast to the Ribeirinha Volcano forming the oldest volcanism on the island and to some extent the Caldeira Volcano, the youngest mafic and intermediate volcanic activity (<10 ka) on Faial exclusively occurs very localized along rift structures. This may be a result of melt focussing into the rift zones, because the structural features indicate that the tectonic control on youngest volcanic units becomes stronger, i.e., a preferential formation of volcanic rift zones as opposed to central volcanic edifices. The distribution of lava ages suggests that the youngest mafic and intermediate volcanism occurs on a small area along the Central Fissure Zone and Horta Fissure Zone, whereas the older lavas form both submarine rift zones and large central volcanic edifices and cover large areas (Figure 11). The differences in spatial distribution of the volcanic activity correspond to the compositional differences of the groups reflecting different mantle source compositions and degrees of partial melting. This may indicate that the processes leading to compositional variation and eruption style are linked. Hence, the volcanism on Faial appears to become increasingly localized along tectonically controlled lineaments as changes in the melting regime occur.
Figure 10. (A) La/Yb and (B) 87Sr/86Sr vs. absolute (Madeira et al., 1995; Hildenbrand et al., 2012; Beier et al., 2015) and relative ages from seismic profiles of Faial lavas and respective rift zones. La/Yb and 87Sr/86Sr ratios display both a progressive decrease in the degree of partial melting and a progressive enrichment of the mantle source compositions. Color gradient schematically illustrates the progressive change in the melting regime from a more depleted mantle source and high degree of partial melting (red) to a more enriched mantle source and a lower degree of partial melting (white) (see also Figure 11). Gray area marks the range La/Yb and 87Sr/86Sr ratios of the Ribeira Funda rift lavas. Error bars display the analytical variation in Ar-Ar age form the submarine Condor rift. The analytical errors of the other absolute, radiometric ages are smaller than the respective symbols. Note that the lower La/Yb and 87Sr/86Sr for those lavas compared to the Caldeira Volcano may indicate that this rift zone is older. Literature data are from Hildenbrand et al. (2014) for La/Yb and 87Sr/86Sr. The respective ages derive from K-Ar age dating from Hildenbrand et al. (2012) on the same rock specimen like on which the trace element and isotope analysis were carried out. Symbols are maximum radiometric ages from the respective volcanic units.

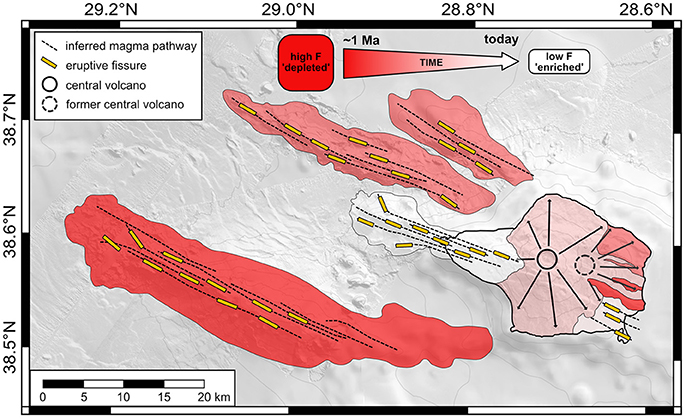

Figure 11. Schematic illustration of the progressive spatial evolution of the conditions of melting and structural features. Note that older lavas with less enriched mantle source compositions at higher degrees of partial melting (F) (dark red colors, large box) occur more widespread than the younger lavas, having more enriched mantle source compositions at lower melting degrees (bright red to white colors, small box). The recent mafic and intermediate volcanic activity on Faial occurs exclusively along narrow rift zones, whereas the older volcanic activity is characterized by both volcanic rift zones and central volcanic edifices. Not to scale.
The similarity of both source and melting signatures in the Faial lavas suggests that this magmatic system is significantly influenced by changes in the melting regime, particularly in the degree of partial melting. A decrease of melting productivity in the upper mantle beneath Faial may be due to a waning of the Azores melting anomaly (O'Neill and Sigloch, 2018). Variability in magmatic productivity is well-documented in other ocean island locations, classically in the alkaline pre-shield, tholeiitic shield and alkaline post-shield phases of Hawaiian volcanism (Clague and Dalrymple, 1987). However, a tholeiitic shield phase is not present in Faial. On Iceland changes in the plume temperature may be responsible for changes in lava compositions (Poore et al., 2011), indicating that geochemical variations in the produced melts are largely driven by changes in the melting regime. However, rift jumps and mantle plume migration may also be responsible for the alkaline volcanic activity of the Snaefellsnes Rift on Iceland (Hardarson et al., 1997), indicating that changes in both tectonic and magmatic processes may variably contribute to changes in the lava compositions. In the eastern Azores Plateau the successive jumps of the Terceira Rift (Gente et al., 2003; Vogt and Jung, 2004) to its present position may additionally support the decreasing degrees of partial melting beneath Faial. However, the position of the triple junction in the Azores remains unclear and may be treated as a diffuse plate boundary situated in the vicinity of the area west of Faial and/or Graciosa (Miranda et al., 2014). Noble gas isotopes and melting models suggest that a deep mantle plume may be located beneath Terceira (Moreira et al., 1999; Bourdon et al., 2005), some 150 km north-east of Faial, whereas geophysical models suggest the plume beneath Faial (Yang et al., 2006). However, our data suggest that the melt supply beneath Faial decreases toward the youngest volcanism. We conclude that the progressive changes in the melting regime, the composition of melts and their spatial distribution reflect changes in the plate tectonic regime and mantle plume upwelling. Even though the Azores case with an extensional tectonic regime above a (wet) melting anomaly may be treated as a rather unique case, these observations may also be applicable to other (intraplate) settings where both significant tectonic stresses and magmatism are present, e.g., in the Canary Islands or on Iceland. We note however, that the Canary Islands may contain less of a plate tectonic component whereas the Iceland volcanic systems combined a much stronger plume signal with a true spreading movement.
Summary and Conclusions
The island of Faial and the western adjoining submarine rift zones have undergone a complex volcano-tectonic evolution. We use new geophysical, high resolution bathymetric, geochemical, and Sr-Nd-Pb isotope data combined with published ages to expand existing models covering the volcanic and tectonic evolution of the island and its submarine rift zones in the Azores. Much of the volcanism related to Faial occurs below sea level, covering a similar spatial extent compared to the subaerial volcanism. The formation of four WNW-ESE oriented narrow submarine structural and magmatic features since ~1 Ma together with the formation of the Pedro Miguel graben some 400 ka ago both likely resulting from extensional stresses, show that lithospheric extension is an important process during the evolution of the subaerial and submarine volcanic structures. We suggest that dikes efficiently transport melts along the volcanic rift zones at Faial over length scales of >12 km while plumbing systems parallel to the rift axes are distinct over a similar length scale, e.g., the distance between Capelinhos and Condor rifts. The fact that the orientation of the rift zones and other structural features related to tectonic stresses on Faial have generally not changed since their formation ~1 Ma shows that the regional tectonic stress field has not changed significantly during the evolution of the island. Lavas from Faial and its respective submarine rift zones, however, display a regular spatial distribution in both compositional signatures (mantle source compositions and degree of partial melting) and ages of eruption (Figures 10, 11). The older lavas from 1.1 Ma to ~400 ka formed by higher degrees of partial melting from a more depleted mantle source and cover a larger area. The younger volcanic activity forms by smaller degrees of partial melting from a more enriched source. We suggest that the degree of partial melting decreases progressively toward the youngest volcanism resulting in increasingly enriched magmas, largely sampling the enriched mantle sources as they preferentially contribute to small degree melts. As melt supply decreases, volcanism appears to become increasingly localized along tectonically controlled (active and non-active) lineaments in the last 10 ka exclusively erupting along fissures, alignments of elongated cones and dikes. Hence, mafic and intermediate melts erupted during the youngest volcanic activity on Faial focus along single rift zones, whereas the old volcanism occurs more widespread. The compositional and age differences between the central volcanic edifices and the rift zones suggest that lavas feeding these systems do not derive from one shallow magma reservoir and rather derived from different plumbing systems. Our study demonstrates the importance of detailed geochemical investigations of ocean islands that are strongly influenced by tectonic stresses and their potential to disentangle how changes in the melting regime may be reflected in the structural features of volcanic bodies and their spatial distribution. A continuous change in divergent plate movements may affect the melt formation and supply from the mantle.
