Original Research ARTICLE

Front. Earth Sci., 18 October 2018 | https://doi.org/10.3389/feart.2018.00167

Growth Kinetics and Distribution of Trace Elements in Precious Corals

Daniel Vielzeuf1*, Alexander C. Gagnon2, Angèle Ricolleau1, Jean-Luc Devidal3, Catherine Balme-Heuze4, Nassima Yahiaoui1, Claire Fonquernie2, Jonathan Perrin1,5, Joaquim Garrabou6, Jean-Marc Montel7 and Nicole Floquet1
  • 1Aix Marseille Université, CNRS, Centre Interdisciplinaire de Nanoscience de Marseille, UMR 7325, Marseille, France
  • 2School of Oceanography, University of Washington, Seattle, WA, United States
  • 3Laboratoire Magmas et Volcans, Université Blaise Pascal – CNRS – IRD, OPGC, Aubière, France
  • 4Corallium, La Ciotat, France
  • 5Synchrotron Soleil, L’Orme des Merisiers, Saint-Aubin, France
  • 6Institut de Ciencies del Mar – CSIC, Barcelona, Spain
  • 7Université de Lorraine, CREGU, CNRS, Ecole Nationale Supérieure de Géologie, Laboratoire Géoressources, Vandœuvre-lès-Nancy, France

The concentration and spatial distribution of major (Ca, Mg) and trace elements (Na, Sr, S, Li, Ba, Pb, and U) in different Corallium skeletons (C. rubrum, C. japonicum, C. elatius, C. konojoi) have been studied by electron microprobe (EMP) and laser ablation inductively coupled plasma mass spectrometry (LA-ICPMS). EMP data show positive Na-Mg and negative Na-S and Mg-S correlations in all skeletons. LA-ICPMS data display additional Sr-Mg, Li-Mg, and U-Mg positive correlations. Medullar zones in the skeletons, corresponding to fast growing zones, are systematically richer in Mg, Na, Sr, Li, and U and poorer in S than the surrounding slow growing zones. These spatial distributions are mostly interpreted in terms of growth kinetics combined with steric effects influencing the incorporation of impurities in biogenic calcites. This interpretation is in agreement with available experimental data on kinetic effects on the incorporation of elements in calcite. At a different scale, annual growth rings in annular slow growing zones show oscillations in Mg, Na, Sr, and S. These chemical oscillations probably result from growth rate variations: fast growth would produce rings enriched in Mg, Sr, and Na, while slow growth would produce rings enriched in Ca, S and organic matter. From previous studies in C. rubrum, the Mg-rich rings would develop during the spring to fall period while the S-rich rings would form immediately after (late fall and winter). Analytical traverses performed in annular zones of different Corallium skeletons indicate that Mg, Na, Sr, Li, and U decrease from core to rim. This observation indicates that radial growth rate decreases as the colony gets older. Contrary to Mg, Na, Sr, Li, S, and U, barium and lead concentrations are identical in medullar and annular zones and appear independent of growth kinetics. Thus, concentrations in Corallium skeletons could provide indications on Ba and Pb contents in the oceans. Barium and lead concentrations are higher in Mediterranean than in Pacific precious corals, these two elements can be used to discriminate C. rubrum from C. japonicum, and contribute enforcing regulations on the trade of precious corals.

Introduction

Chemical contents of major, minor, and trace elements vary and are spatially arranged in Corallium skeletons (Weinbauer et al., 2000; Vielzeuf et al., 2008, 2013; Hasegawa et al., 2012; Nguyen et al., 2014; Tamenori et al., 2014). An important point is to determine whether these variations are due to environmental parameters, biological or mineralogical influences, or combinations of factors. The impact of environmental parameters on chemical contents of Corallium skeletons is debated. Weinbauer et al. (2000) considered that the concentrations of magnesium in Corallium rubrum is an indicator of sea water temperature. A positive correlation of Mg/Ca with sea water temperature is also inferred by Yoshimura et al. (2011). Alternatively, Vielzeuf et al. (2013) showed that Mg/Ca and Sr/Ca ratios in C. rubrum collected at various locations and different depths (8–73 m), and thus different temperatures, cannot be used as proxies of sea water temperature. They also demonstrated that a single colony that grew in an area where the temperature was monitored for 30 years did not register the increase of sea water temperature of about 1°C through its Mg and Sr chemistry. These authors suggested that the Mg spatial distribution could be an indicator of growth rate variations on decadal time scales and that C. rubrum was an example of how growth dynamics affected biomineral chemistry. The hypothesis that elemental distributions depend on skeleton growth kinetics is difficult to test in situ on Corallium species with slow growth rates (Garrabou and Harmelin, 2002; Marschal et al., 2004; Vielzeuf et al., 2008, 2013; Hasegawa et al., 2012). An indirect route can be taken as Corallium skeletons systematically display a central core (or medullar zone) surrounded by an annular zone (Lacaze-Duthiers, 1864; Marschal et al., 2004; Vielzeuf et al., 2008; Perrin et al., 2015). The medullar zone is made of sclerites (small grains of Mg-calcite developing in the living tissues around the hard skeleton) and sclerite aggregates embedded in a ‘cement’ consisting of fine layers of Mg-calcite. The annular zone is made of concentric layers of calcite crystallites with only rare sclerites (Figure 1). These contrasting features imply two different growth modes: (1) in the medullar zone, a “block and cement” mode takes place at the apex of a branch and is associated with a fast axial growth rate (∼2 mm/year); (2) in the annular zone, a layer-by-layer growth mode is associated with slow radial growth (∼0.2 mm/year) (Allemand, 1993; Garrabou and Harmelin, 2002; Marschal et al., 2004; Debreuil et al., 2012; Perrin et al., 2015). When necessary, medullar fast growing zones and annular slow growing zones will be abbreviated as MFGZ and ASGZ, respectively. These two contrasting zones provide an opportunity to determine whether growth rates impact the concentration of major and trace elements in biogenic calcite. Implications on the origin of growth rings in the annular slow growing zones are also discussed.

FIGURE 1
www.frontiersin.org

FIGURE 1. Sections of Corallium skeletons under binocular magnifier. (a) C. japonicum. The medullar zone is located inside the white domain (black arrow), but does not coincide with it. The off-centered annular zone is white around the medullar zone, then red. (b) C. rubrum. Enlargement showing the medullar zone with its characteristic morphology. Sclerites appear as dark units inside the medullar zone. The annular zone with concentric annual layers surrounds the medullar zone. (c) Perpendicular section of C. elatius. The medullar zone located in the inner white zone is not readily identifiable. (d) Section of C. konojoi. The medullar zone can be identified because of the red color of the sclerites. The dark dots correspond to LA-ICPMS spots. MFGZ, medullar fast growing zone; ASGZ, annular slow growing zone.

Materials and Methods

Materials

Colonies of C. rubrum were collected along the rocky coast of the Mediterranean Sea between Marseille and Cassis (France). Colonies of C. elatius and C. japonicum come from various locations in Tosa Bay (Shikoku, Kochi, Japan). Other samples of C. elatius and some samples of C. japonicum of unknown origin were obtained from a jeweller’s private collection. Two other samples from this collection with uncertain taxonomic identification (Midway C. sp. and Deep sea C. sp.), were studied. Geographic locations and sampling dates are given as Supplementary Material (SM) in SM1 Table 1. For the analyses, the samples were cut perpendicular (more rarely parallel) to the main axis of the branch, with or without removal of the dried organic tissues, mounted and polished in epoxy. In some colonies, sclerites were extracted from the organic tissues by immersion of the specimen in sodium hypochlorite (5%) for about 2 h, rinsed a few times with demineralized water then ethanol, and dried at room temperature. Portions of skeletons and sclerites were ground in ethanol for bulk analyses by ICP-OES and ICPMS. Note that the high-magnesium calcite corals used in this study are mineralogically, compositionally, physiologically, and genetically different from the aragonitic reef-forming (scleractinian) corals, and geochemical trends are not expected to be similar between these two orders of Anthozoa.

TABLE 1
www.frontiersin.org

TABLE 1. Electron microprobe analyses of Corallium skeletons.

Analytical and Preparation Methods

Techniques with complementary capabilities were used to obtain comprehensive chemical information on Corallium skeletons. Electron microprobe (EMP) provides good spatial resolution and allows accurate surface mapping of Ca, Mg, S, and Na. Laser ablation inductively coupled plasma mass spectrometry (LA-ICPMS) has better sensitivity and precision than EMP for minor and trace elements (like Sr, Ba, Li, B, U), but its spatial resolution is not as good (spots of 50 μm instead of 2–5 μm). Due to their sizes and shapes, sclerites are difficult to analyze in situ; thus, bulk analyses of C. rubrum skeletons and sclerites were obtained by inductively coupled plasma – optical emission spectroscopy (ICP-OES) and inductively coupled plasma mass spectrometry (ICPMS). Finally, hydrogen analyses were obtained with an organic element analyzer.

Electron Microprobe (EMP)

Electron microprobe chemical images of Ca, Mg, Na, and S were obtained on thick polished samples embedded in epoxy, on a SX100 CAMECA electron microprobe [Laboratoire Magmas et Volcans (LMV), Clermont-Ferrand, France]. For image acquisition, the beam current, beam diameter, counting times, and step interval varied in the range 10–50 nA, 1–2 μm, 30–50 ms per pixel, 1–5 μm, respectively, with an acceleration voltage of 15 kV. In general, four images (Ca, Mg, Na, and S) were acquired simultaneously during sessions that lasted ∼8 h. All samples were coated with a ∼20 nm thick carbon layer. Quantitative analyses (spot analyses, usually along analytical traverses) of Ca, Mg, Na, Sr, and S were obtained on nine different Corallium species. In addition, Cl was analyzed in C. rubrum. Typical EMP internal instrumental (1σ) errors on analyzed corals are 2,900, 830, 620, 840, 250, and 110 μg/g, for Ca, Mg, Na, Sr, S, and Cl, respectively. Special attention was paid to analytical conditions as sulfur can be lost during analysis, in particular under focused beam. The optimal conditions were 20 nA, 20 μm, 20 s [for all elements except Na (10 s)] for the beam current, beam diameter, and counting time, respectively, with an acceleration voltage of 15 kV. Conditions to analyze simultaneously Sr and S by EMP are antagonistic as Sr requires long counting times and focused beam while S needs the opposite. We decided to optimize sulfur analytical conditions because Sr concentrations can be also measured by LA-ICPMS. Concerning sodium, similar concentrations and distribution patterns were observed in samples treated and untreated by sodium hypochlorite. This absence of effect is due to the high density of Corallium skeletons and removal of altered surfaces by polishing. The compositions in weight percent oxide were measured by EMP as CaO, Na2O, SrO, SO3, MgO. Natural calcite, albite, celestine, periclase, and scapolite (for Cl) were used as standards. Matrix effects were corrected using the phi-rho-z correction available on Peak Sight© software from CAMECATM. Since C and O are not independently measured, CO2 was calculated by stoichiometry from the concentrations of CaO, MgO, SrO, Na2O considering that Ca, Mg, Sr, and Na combine into carbonate and sulfate, according to the structural formula (CawMgxSryNaz)A [(CO3)u(SO4)v)]A, with w + x + y + 0.5z = u + v = A. This way, C and O wt% contents can be determined, together with analysis totals. Totals in the range 99 ± 3 wt% are considered as an indication of a good analysis. Throughout this article, elemental concentrations are given in μg/g (or ppm), elemental ratios (e.g., Mg/Ca) in mmol/mol, and the proportion of MgCO3 in calcite in mol%.

Laser Ablation Inductively Coupled Plasma Mass Spectrometry (LA-ICPMS)

Trace element analyses were obtained at LMV (Clermont-Ferrand, France) on an Agilent 7500 cs ICPMS coupled to a 193 nm Excimer Resonetics M-50E laser ablation system with maximum output energy of 6 mJ. Analyses were made with a laser pulse frequency of 2 Hz and a constant beam diameter of 40 μm. The ablated material was carried by helium (0.7 L/min) and then mixed with nitrogen and argon in front of the ICP. The following isotopes were collected: 7Li, 23Na, 24Mg, 31P, 66Zn, 88Sr, 137Ba, 208Pb, 238U, with integration times varying between 30 and 200 ms depending on the element and the session. Typical minimum detection limits are 0.04, 0.3, 0.2, 4.5, 0.2, 0.02, 0.12, 0.02, and 0.01 μg/g for Li, Na, Mg, P, Zn, Sr, Ba, Pb, and U, respectively. Internal instrumental (1σ) errors are typically in the range of 0.1, 120, 1040, 20, 0.10, 80, 0.2, 0.01, and 0.01 μg/g, for Li, Na, Mg, P, Zn, Sr, Ba, Pb, and U, respectively. The mean calcium abundance measured by EMP for each coral sample was used as internal standard. A typical signal acquisition consisted in collecting a background signal for 30 s followed by laser firing for 70 s. Trace-element reductions were done with the Glitter software (Van Achterbergh et al., 2001). The long firing time (70 s) allowed checking (1) if the signal was stable during the measure (flat plateau) and (2) if any voids or inclusions were encountered during firing. Only flat plateau portions were processed, and initial spikes or signals associated with surface contamination were systematically discarded. The NIST 610 glass was used as an external standard (Shaheen et al., 2008). The glasses NIST 612 and BCR-2G (Gao et al., 2002) were also analyzed to check the accuracy and precision of the analyses.

Inductively Coupled Plasma – Optical Emission Spectroscopy and Inductively Coupled Plasma Mass Spectrometry (ICP-OES and ICPMS)

Bulk samples of sclerites, branch tips, and branch bases were extracted from two colonies of C. rubrum collected at the same location in the Calanques of Marseille, at two different periods of the year (October and April). Major and trace element analyses of the six powdered samples were obtained on a Thermo ICP-OES Icap 6500 and Thermo IcapQ, respectively, at Service d’Analyse des Roches et des Minéraux (SARM), Centre de Recherches Pétrologiques et Géochimiques (CRPG), Nancy, France. 200 mg of material were used for each analysis. Procedures and instrumental errors are given in Carignan et al. (2001).

Thirty-four samples of skeletons from nine different C. rubrum colonies collected in the Calanques area (Marseille, France), and 14 sclerite batches extracted from colonies coming from various places in the Mediterranean were analyzed by isotope dilution (ID) – ICPMS at the Division of Geological and Planetary Sciences at Caltech, Pasadena, CA, United States. The analytical conditions to determine Mg/Ca and Sr/Ca ratios are given in Vielzeuf et al. (2013). The long term external reproducibility of coral analysis using ID-ICPMS, as determined by the 2σ standard deviation of repeat measurements of two different dissolved coral consistency standards, is better than ±0.003 mmol/mol (Sr/Ca) and ±0.5 mmol/mol (Mg/Ca).

Organic Element Analyzer

C, H, N, and S contents of skeletons and sclerites were obtained at LMV (Clermont-Ferrand, France). Three analytical standards and reference materials were used in the process: BBOT (C26H26N2O2S), ascorbic acid (C6H8O6), and a soil reference (homogeneous batch of soil from Thermo Scientific) for C, N, and S. About 1 mg of sample, analytical standard or reference material was weighed in a tin capsule on a XP6 microbalance (Mettler Toledo, Greifensee, Switzerland) with a 1 μg resolution. Similar amounts of V2O5 were added to the sample to optimize the combustion. Analyses were carried out in a Flash 2000 CHNS-O organic elemental analyzer from Thermo Fisher Scientific Inc., equipped with a MAS 200R autosampler. During the analyses, the following parameters were used: 2.4 bar helium with a 140 mL/min flow rate of carrier gas and a 120 mL/min flow rate of reference gas, 2.2 bar oxygen with a flow rate of 90 mL/min, and an injection end time (duration of O2 injection) of 11 s. Accuracies of the measurements are better than 1% relative for C (i.e., ±1,200 μg/g), and 10% relative for H and S (i.e., ±200 μg/g).

Results

Concentrations of Elements and Correlations

Ca, Mg, Sr, Na, and S Measured by EMP

Calcium, magnesium, strontium, sodium, and sulfur concentrations of nine Corallium species are given in Table 1. The magnesium content is rather constant among the different species ∼11 ± 1 mol% MgCO3, except for the Midway C. sp. sample that has a lower Mg content (7.7 mol% MgCO3). The Sr content does not vary much either, between 2,200 and 2,700 μg/g. As already noted for C. rubrum (Vielzeuf et al., 2013), the Na and S contents are relatively high, in the range 3,000–3,400 and 2,900–3,600 μg/g for Na and S, respectively. The chlorine contents measured in C. rubrum vary between 20 and 370 μg/g.

Correlations that may exist between elements are critical to understand the crystallo-chemistry of biogenic Mg calcites. A negative correlation necessarily exists between Ca and Mg [because (1) the sum of cations is fixed in Mg calcite, and (2) Ca and Mg are the two predominant cations]; thus, the classic Ca-Mg substitution does not need further discussion. Other correlations are more unexpected. In most Corallium species, a positive correlation is observed between Na and Mg (Figure 2A). The two exceptions (Midway C. sp. and C. niobe) are attributed to insufficient number of analyses and limited range of Mg contents. A similar Na/Mg correlation has been recently described in deep sea calcitic octocorals (Rollion-Bard et al., 2017). For clarity, the data of C. elatius have been isolated (Figure 2D), the dots are moderately aligned with a correlation coefficient (r2) of 0.52 (Supplementary Material SM1 Table 3). A second correlation is observed between Na and S (Figure 2B). Indeed, if the cases of Midway C. sp. and C. niobe are ignored (same justification as above), all species display a negative correlation between Na and S (r2 between 0.3 and 0.7 – Supplementary Material SM1 Table 3). Figure 2E shows the same diagram with only two species: C. japonicum and C. elatius. As shown in Figures 2C,F, a negative correlation between S and Mg arises from the two previous ones (Na-Mg, and Na-S). In this case, all species, including Midway C. sp. and C. niobe, display negative correlations between S and Mg (r2 between 0.1 and 0.8 – Supplementary Material SM1 Table 3). Finally, contrary to what will be observed later on LA-ICPMS data, no correlation is observed between Sr and Mg on EMP data. As discussed earlier, this lack of correlation is attributed to the relatively poor Sr precision under selected EMP analytical conditions.

FIGURE 2
www.frontiersin.org

FIGURE 2. Electron microprobe analyses of different Corallium skeletons [Midway (C. sp.), C. thrinax, C. johnsoni, C. niobe, C. konojoi, Deep sea (C. sp.), C. japonicum, C. elatius, C. rubrum]. (A–C) All data and linear adjustment for each species (equation parameters and correlation coefficients are supplied as Supplementary Material SM1 Table 3). (D–F) C. elatius and C. japonicum data extracted from (A–C). The equations and correlation coefficients correspond to C. elatius data (MFGZ and ASGZ combined). MFGZ, medullar fast growing zone; ASGZ, annular slow growing zone.

Trace Elements Concentrations Measured by LA-ICPMS

Na concentrations determined by LA-ICPMS in C. rubrum, C. japonicum, C. elatius, and C. konojoi, (3,700, 3,800, 3,700, 3,900 μg/g, respectively – Supplementary Material SM1 Table 2) are higher than those determined by EMP (3,100, 3,200, 3,000, 3,100) (Table 1). Differences are attributed to the instruments and possible Na losses during EMP analyses, but also to concentration variabilities, within a sample and from a sample to another. Concerning Sr, the concentrations obtained with the two instruments are similar within error and/or sample internal variation [LA-ICPMS: 2,700, 2,600, 2,800, 2,700 μg/g; EMP: 2,700, 2,500, 2,500, 2,500, for C. rubrum, C. japonicum, C. elatius, and C. konojoi, respectively]. Contrary to other elements that have almost similar concentrations in the different Corallium species, Ba and Pb concentrations are higher in C. rubrum than in C. japonicum, C. elatius, and C. konojoi (Ba: 8.2 ± 1.1 in C. rubrum vs. 6 ± 0.8 μg/g in the three other species – Pb: 0.48 ± 0.19 in C. rubrum vs. 0.14 ± 0.02 μg/g in other species – Supplementary Material SM1 Table 2 and Figure 3). These differences will be interpreted later. During LA-ICPMS data acquisitions, contents of P, K, Cr, Mn, and Zn were often determined; the concentrations of these elements are given in Supplementary Material SM1 Table 2 but will not be discussed further here.

FIGURE 3
www.frontiersin.org

FIGURE 3. Pb and Ba LA-ICPMS data. (A) Pb vs. Ba diagram showing the respective fields of C. rubrum and C. japonicum (all analyses). (B) Pb vs. Ba for C. rubrum, C. japonicum, C. elatius, and C. konojoi. Mean composition of analyzed colonies. Fields of C. elatius and C. konojoi are likely to expand with additional data.

LA-ICPMS data point out positive correlations between Sr and Mg (Figure 4B) (r2 between 0.4 and 0.8 – Supplementary Material SM1 Table 3). Although the intercepts at Mg = 0 differ in the four species, from about 1,000 to 2,000 μg/g (Supplementary Material SM1 Table 3), the Sr/Mg slopes are close (from 0.03 to 0.05). On another hand, Figure 4A shows a positive correlation between Na and Mg for all species (r2 between 0.2 and 0.9 – Supplementary Material SM1 Table 3), confirming EMP observations (Figure 2A). Other correlations such as Li vs. Mg, and U vs. Mg are displayed in Figure 5. C. elatius data have been isolated in Figures 5C,D. These figures indicate that data from each species have to be treated separately in order to establish (or not) elemental correlations as slight differences of concentration from a species to another (species dependence) may prevent global correlation. This observation is also valid for EMP correlations discussed earlier. Correlations coefficients (r2) of the data series displayed in Figures 2, 4, 5 are variable and sometimes low (Supplementary Material SM1 Table 3); however, the fact that similar trends are observed in all species adds credit to our conclusions.

FIGURE 4
www.frontiersin.org

FIGURE 4. LA-ICPMS data. (A,B) Na and Sr vs. Mg in C. rubrum, C. japonicum, C. elatius and C. konojoi and corresponding regression lines (equations and correlation coefficients are given as Supplementary Material SM1 Table 3). (C,D) C. elatius data extracted from (A,B) (equations and correlation coefficients from MFGZ and ASGZ combined data). ASGZ, annular slow growing zone; MFGZ, medullar fast growing zone.

FIGURE 5
www.frontiersin.org

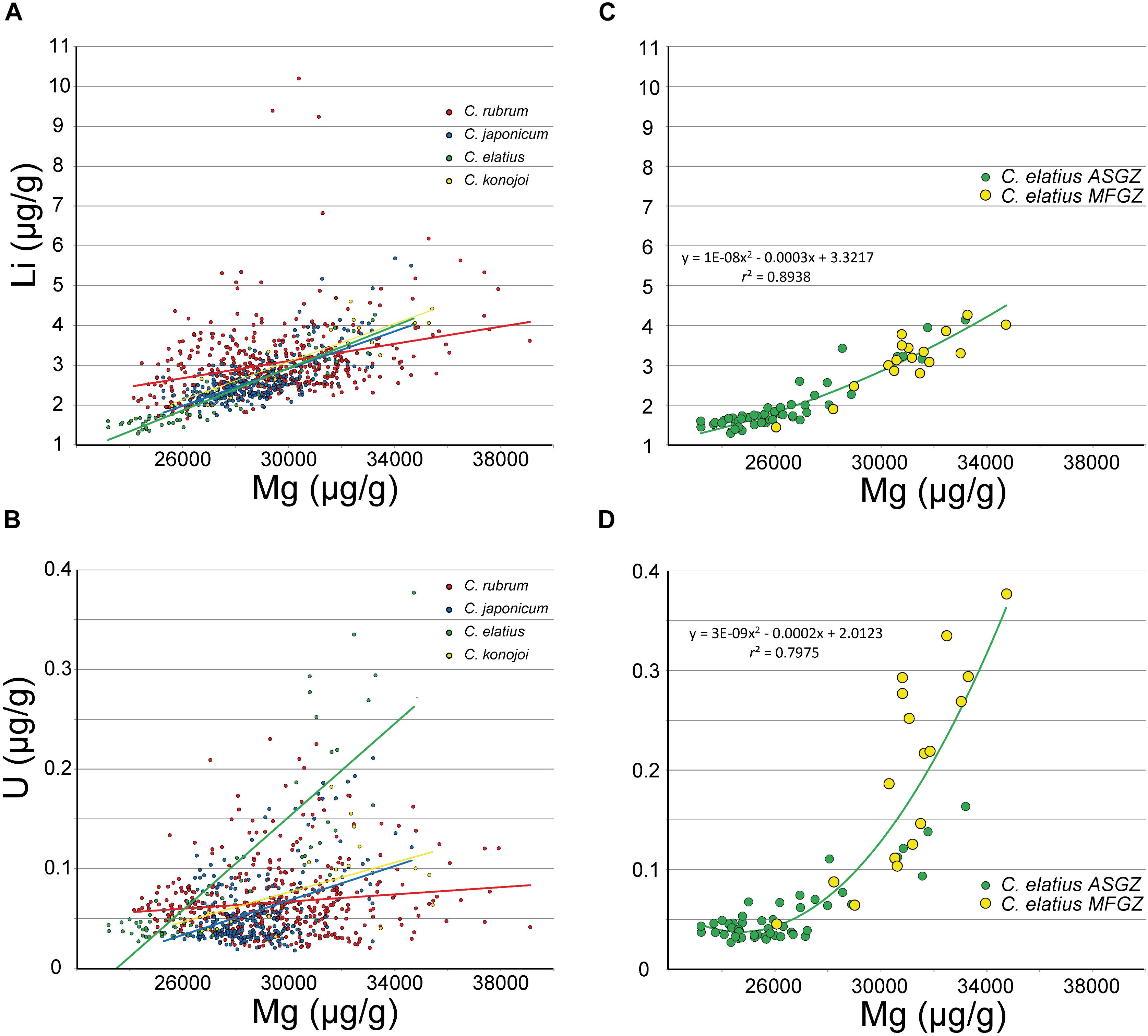

FIGURE 5. LA-ICPMS data. (A,B) Li and U vs. Mg in C. rubrum, C. japonicum, C. elatius and C. konojoi (equations and correlation coefficients in Supplementary Material – SM1 Table 3). (C,D) C. elatius data extracted from (A,B) (equations and correlation coefficients from MFGZ and ASGZ combined data).

Hydrogen and Sulfur Measured by OEA

Carbon, hydrogen, and sulfur have been analyzed by OEA in nine Corallium species (Table 2). Sulfur contents in the range 2,150–3,050 (mean value: 2,580 ± 330 μg/g) are usually lower than those determined by EMP [range 2,880–3,640; mean value: 3,160 ± 220 μg/g – excluding medullar zones (MFGZ) for reasons discussed below]. Due to the special attention paid on the analytical conditions of sulfur, the concentrations determined by EMP are considered more accurate than those determined by OEA on a bulk powder.

TABLE 2
www.frontiersin.org

TABLE 2. Carbon, hydrogen, and sulfur contents in Corallium species.

The measured concentrations of carbon vary from a species to another between 119,000 and 130,000 μg/g. The theoretical values of carbon concentration in calcite (CaCO3) and magnesite (MgCO3) are 120,003 and 142,452 μg/g, respectively. Thus, differences of C contents in Corallium species can be ascribed in part to differences in proportion of MgCO3 component, and from variations of organic matter (OM) content (see below). Carbon contents lower than 120,003 μg/g (the C content of inorganic calcite) may indicate the presence of sulfate substituting to carbonate ions as demonstrated in previous studies (Vielzeuf et al., 2013; Tamenori et al., 2014; Nguyen et al., 2014; Perrin et al., 2017).

Hydrogen contents in the skeletons can be related to the amount of OM in the biomineral if all H is contained in the OM, and if the H content of the OM is known (Perrin et al., 2017). Concerning the first assumption, no evidence of hydrated Mg calcite in Corallium species has been found so far in Raman investigations (Merlin and Dele-Dubois, 1986). Concerning the OM hydrogen content, preliminary measurements of red coral tissues after decarbonation of the skeleton indicate H contents of about 76,000 μg/g (7.6 wt%). In addition, hydrogen contents in organic constituents of a wide range of organisms are rather constant and close to 8–10 wt% (Trask, 1937). A simple proportional calculation (skeleton hydrogen content/OM hydrogen content × 106) gives the concentration of OM in the skeleton in μg/g. If the value of 76,000 μg/g is taken for the OM hydrogen content, then the OM concentrations in the Corallium species are close to 2 wt%, except for Midway C. sp. that reaches 4.6 wt% (Table 2). Combining an error of ±10% relative for the amount of H in the OM with an error of ±10% relative for the amount of H in the skeleton translates into an error of 20% relative for the concentration of OM in the skeletons. It will be noted that the highest C contents coincide with the highest concentrations of OM, as expected due to the contribution of organic carbon.

Comparison of Medullar-Fast and Annular-Slow Growing Zones

EMP Data

Although differences are small, C. japonicum, C. elatius, and C. rubrum mean compositions of medullar fast growing zones are systematically higher in Mg, Sr, Na, Cl, and lower in Ca and S than annular slow growing zones (Table 1). These differences are verified on the chemical maps of Mg, Na, and S of C. rubrum, C. japonicum, C. elatius, and C. konojoi covering medullar and annular zones (Figure 6). In these maps, concentrations increase from black to white. Figures 6a–i show maps of transverse sections of C. elatius, C. rubrum, and C. japonicum branches while Figures 6j–l display a sagittal (longitudinal) section of C. konojoi. The last figures show the complex 2-D shape of the medullar zone, a direct consequence of the rugged 3-D morphology of branch tips.

FIGURE 6
www.frontiersin.org

FIGURE 6. Mg, Na and S EMP maps of Corallium skeletons. (a–c) Transverse section of C. elatius. (d–f) Transverse section of C. rubrum. (g–i) Transverse section of C. japonicum. (j–l) Longitudinal section of C. konojoi. White dashed lines encircle medullar zones. ASGZ, annular slow growing zone; MFGZ, medullar fast growing zone.

LA-ICPMS Data

LA-ICPMS measurements were made specifically on medullar and annular zones of C. rubrum, C. japonicum, C. elatius, and C. konojoi (Supplementary Material SM1 Table 2). These compositions are plotted in Figure 7 and confirm that medullar zones are richer in Na and Mg than annular zones (Na: ∼4,140 vs. 3,560, Mg: ∼31,000 vs. ∼27,700 μg/g, for medullar and annular zones, respectively). LA-ICPMS data also show that the medullar zones of the four species are enriched in Li (3.7 vs. 2.6 μg/g), U (0.13 vs. 0.05 μg/g), and Sr (2,780 vs. 2,610 μg/g – not shown in Figure 7), with respect to annular zones. The increase of U content is particularly important as medullar zones contain two to five times more U than the annular zone (Figure 7D), with a minimum of 0.05 and a maximum of 0.25 μg/g in C. elatius annular and medullar zones, respectively. A statistical analysis (Wilcoxon–Mann–Withney Test and principal component analysis) of both EMP and LA-ICPMS data confirms the difference of composition between annular and medullar zones (Supplementary Material SM2).

FIGURE 7
www.frontiersin.org

FIGURE 7. Chemical comparison of medullar fast growing and annular slow growing zones (LA-ICPMS data). (A–C) Na, Li, and U vs. Mg. (D) U vs. Li. Mean compositions of annular slow growing zones (blue squares) and medullar fast growing zones (yellow squares) in C. rubrum, C. japonicum, C. elatius, and C. konojoi (undifferentiated). MFGZ, medullar fast growing zone; ASGZ, annular slow growing zone. Error bars correspond to standard deviations (±1σ SD) given in Supplementary Material SM1 Table 2. Horizontal SD for magnesium have not been reported for clarity (for each dot, the mean Mg SD is about 1,500 μg/g).

In annular zones, LA-ICPMS data were collected along traverses, from rim to core. Figure 8 shows an analytical traverse in a C. konojoi skeleton. It confirms that medullar and annular zones have different Mg, Na, Li, U, and to a smaller extent, Sr compositions. Most notably, Mg, Na, Sr, Li, and U decrease progressively from core to rim in the annular zone. These patterns will be interpreted later.

FIGURE 8
www.frontiersin.org

FIGURE 8. LA-ICPMS analytical traverse in C. konojoi. (A–E) Mg, Na, Sr, Li, and U traverses in a section of C. konojoi. Some analytical points in the medullar zone are not aligned along the traverse (see Figure 1d for a case of misalignment in the medullar zone). Error bars for lithium are smaller than the dot. Error bars in the medullar zone are not reported for clarity.

C. rubrum Skeleton and Sclerite Compositions Determined by ICP-OES, ICP-MS, and ID-ICP-MS

Basal portions of skeleton branches, tips of branches and sclerites of two colonies of C. rubrum have been analyzed. The branch tip (that becomes later the medullar part) is made of sclerites embedded in Mg calcitic ‘cement’ (medullar cement). Note that the word ‘cement’ is used here in the structural sense of a material holding together separately built units (the sclerites). The basal portion of a branch is predominantly made of Mg calcite layers practically devoid of sclerites (annular zone) but it contains a small part of medullar zone (itself made of sclerites and medullar cement) (Allemand, 1993; Perrin et al., 2015). Results presented in Table 3 confirm that the tips (i.e., medullar zones) are richer in Na, Mg, and U than the basal branch (more representative of the annular zone). These results also confirm that the sclerites are richer in Mg than the skeleton (Weinbauer et al., 2000; Vielzeuf et al., 2013; Perrin et al., 2015). However, it is not yet known if the medullar ‘cement’ and annular zone (both made of Mg calcite crystallites) are similar or not in composition. If the medullar cement and annular zone had similar compositions, the tip should have an intermediate composition between annular zone and sclerites. Table 3 shows that even if it is the case for Mg, it is not for Na, Ba, and U. From these observations, and in particular U concentrations, it can be postulated that annular zones and medullar cements have different compositions. Thus, annular and medullar zone compositional differences discussed above on the basis of EMP and ICP-MS data cannot be simply ascribed to the presence of sclerites in the medullar zone. Finally, sclerites are poorer in S, Na, Sr, and richer in rare earth elements (REEs) than the skeleton (Vielzeuf et al., 2013 for sulfur, and Table 3). In short, sclerites, tip ‘cement’ and annular zones have different compositions in C. rubrum.

TABLE 3
www.frontiersin.org

TABLE 3. Chemical compositions of C. rubrum skeletons (Sk), tips and sclerites (Scl) determined by ICP-AES and ICP-MS (samples Sormiou Canceou and Falaise Voile).

Mg/Ca and Sr/Ca ratios obtained on C. rubrum skeletons and sclerites by ID-ICPMS, confirm that the sclerites are richer in Mg and slightly poorer in Sr than the skeletons. First indications of such differences in composition were provided by Weinbauer et al. (2000). Figure 8 shows that Mg and Sr are correlated in both the skeletons and the sclerites along two separated trends with identical slopes.

To summarize:

(1) EMP measurements of Corallium skeletons show positive correlations between Na and Mg, and negative correlations between Na and S, and Mg and S.

(2) LA-ICPMS measurements confirm the positive Na/Mg correlation in Corallium skeletons and also demonstrate Sr/Mg, Li/Mg, and U/Mg positive correlations.

(3) EMP measurements indicate that medullar zones are systematically richer in Mg, Sr, Na, (possibly Cl) and poorer in Ca and S than annular zones. This conclusion is confirmed by LA-ICPMS data which also indicate that medullar zones are enriched in Li and U compared to annular zones.

(4) Chemical traverses show that Mg, Na, Sr, Li, and U progressively decrease from core to rim in the annular zone of C. konojoi. Traverses in other precious corals show similar patterns.

(5) C. rubrum sclerites are richer in Mg and REE, and poorer in Sr, Na, and S, than the skeletons. Skeletons and sclerite display two separate positive Sr/Mg correlations.

Discussion

Growth Kinetics and the Incorporation of Elements in Calcite

The data presented above indicate that the concentrations of Mg, Na, Sr, Li, and U are higher in medullar fast growing zones than in the annular slow growing zone, and conversely for Ca and S. Although not unique, a possible and parsimonious explanation for this situation is that the incorporation of these elements in Corallium biogenic calcites could be in part linked to growth kinetics. The idea that kinetics plays a role in the incorporation of impurities in crystals (and conversely) is probably as old as the concept of crystal growth itself. As a reminder, impurities in calcite include metal cations, anions (such as SO42-), and organic molecules among which polyelectrolytes (soluble polymers, proteins, and polysaccharides). The literature concerning the effect of impurities on crystal growth is enormous and the reader is referred to Abbona and Aquilino (2010) for a review. In Earth science, Lorens (1981) was among the first to discuss the way growth rate affects element distribution between calcite and solution. He demonstrated that Sr increases with the precipitation rate of calcite. Staudt et al. (1994) gave an early review of the effect of growth rate on non-equilibrium anion and cation incorporation during crystal growth. The empirical tendency derived from these studies is that in a given environment, the content of compatible elements in calcite (most divalent cations with ionic radii close to Ca2+ such as Mn2+, Fe2+, Co2+, Cd2+) decreases with increasing growth rate, while the content of incompatible elements such as Sr2+ and Ba2+ increases (Staudt et al., 1994). In biogenic calcites, the situation is complicated by the fact that organic molecules are structurally incorporated, and form a hybrid nano-composite. Indeed, X-ray diffraction (Bischoff et al., 1983; Zolotoyabko, 2016) and synchrotron small and wide angle X-ray scattering (Gilow et al., 2011) indicate that lattice distortions in biogenic calcites originate from atomic interactions between crystal faces and organic molecules.

A review of experimental studies – Numerous experimental studies demonstrate that the incorporation of incompatible elements in inorganic calcite is favored by fast growth rates [Sr: (Lorens, 1981; Mucci, 1988; Tesoriero and Pankow, 1996; Gabitov and Watson, 2006; Tang et al., 2008); Ba: (Tesoriero and Pankow, 1996); Na: (Busenberg and Plummer, 1985; Mucci, 1988); U: (Bedzyk and Cheng, 2002; Weremeichik et al., 2017)]. Concerning lithium, data indicate that the Li/Ca ratio increases with aragonite precipitation rate (Gabitov et al., 2011), but, to our knowledge, this effect has not yet been confirmed in calcite. Interestingly, Okumura and Kitano (1986) observed positive correlations between Li and Mg, and Na and Mg in synthetic calcites, as in the present biogenic calcites. Surprisingly, the case of magnesium, the major cation substituting to Ca in biogenic calcites, remains ambiguous. The amount of Mg incorporated in calcite overgrowth synthesized by Mucci and Morse (1983) were found to be independent of precipitation rate. On the other hand, Mavromatis et al. (2013) observed that calcite Mg contents increase with growth rate. Alternatively, Gabitov et al. (2014) observed an opposite effect between the incorporation of Sr and Mg and concluded that Mg content decreases with calcite increasing growth rate. Thus, the question of the influence of growth kinetics on Mg incorporation in calcite is still pending, even if the positive correlation between Sr and Mg observed in the present study seem to favor the conclusions of Mavromatis et al. (2013). The incorporation of anions in calcite has received less attention than the incorporation of cations. According to Busenberg and Plummer (1985), the amount of SO4 (and Na) in calcite is directly related to growth rate. However, this conclusion is contradicted by the findings of Staudt et al. (1994) who observed that fast growing calcite faces [e.g., (11–20) and (01–12)] are depleted in SO4 (and enriched in Mg) relative to slow growing (10–14) faces. To our knowledge, this is the only experimental evidence that the incorporation of SO4 in calcite decreases with precipitation rate. The variations of concentration in Corallium species are consistent with most of these experimental data in particular with respect to Sr, Na, U, and Li.

Substitution mechanisms – Substitution mechanisms in biogenic calcite are difficult to identify because of the complexity of the material. However, mechanisms proposed in previous studies can be discussed and new directions of work can be proposed. Pure (or close to pure) carbonate minerals exist for all cations considered here, and combinations between them [CaCO3: calcite; MgCO3: magnesite; Na2CO3: natrite; SrCO3: strontianite; Li2CO3: zabuyelite; MnCO3: rhodochrosite; BaCO3: witherite; PbCO3: cerussite; UO2(CO3): rutherfordine; (CaMg)CO3: dolomite; Na2Ca (CO3)2: nyerereite; Na2Mg(CO3)2: eitelite; BaMg(CO3)2: norsethite; CaMn(CO3)2: kutnohorite]. Thus, the presence of Mg, Na, Sr, Li, Ba, Pb, and U in various amounts is expected in biogenic carbonates. It has been known for a long time that Mg substitutes to calcium and enters the calcite structure in large amounts (Mackenzie et al., 1983). Mucci and Morse (1983) documented a positive Sr-Mg correlation in synthetic inorganic high-Mg calcites, and concluded that the incorporation of Mg in calcite could change the distribution coefficient of Sr. The positive correlation between Mg and Sr was explained by steric effects: a large cation (Sr) compensating the distortion produced in calcite by the introduction of small cation (Mg). The sulfur case is more complicated: it has been demonstrated that sulfur is present as sulfate ions (SO42-) substituting to carbonate ions (CO32-) in Corallium skeletons (Vielzeuf et al., 2013; Nguyen et al., 2014; Tamenori et al., 2014; Perrin et al., 2017). One would expect the lattice distortion related to the presence of a large anion (SO42- larger than CO32-) to be compensated by the incorporation of a small cation such as Mg. The opposite is observed with a negative correlation between Mg and S. This relationship could result from multicomponent substitutions generating complex interactions with effects difficult to predict. Due to charge balance, the incorporation of Na in calcite is problematic. Nevertheless sodium concentrations in biogenic calcites can reach several thousand μg/g (see the review by Yoshimura et al., 2017). Different hypothesis for the substitution of Na in calcite have been proposed and have been summarized by these authors:

• 2 Ca2+ = 1 Na+ + Me3+ (Billings and Ragland, 1968)

• Ca2+ + CO32- = Na+ + Cl- (Yoshimura et al., 2017)

• 2 Ca2+ = 2 Na+ + □ (CO32- vacant site) (White, 1977; Yoshimura et al., 2017).

The first mechanism is unlikely in the Corallium case as the concentration of trivalent metals (Me3+, e.g., Al3+) is considerably lower than the Na concentration. In this type of substitution, lanthanides are often considered potential substituting trivalent cations, but the REE concentrations are too low to retain this mechanism (see Table 3). Similar mass balance considerations apply for the second mechanism involving chlorine: according to the measurements carried out on C. rubrum, chlorine contents are too low (see Table 1). On the basis of synchrotron X-ray spectroscopy, Yoshimura et al. (2017) favored the third mechanism involving a carbonate vacancy. An alternative hypothesis can be proposed: White (1978) observed that Na content is higher in biogenic than in inorganic calcites and suggested that the presence of organic molecules in biogenic calcites could be responsible for this difference. A direct association between organic molecules and sodium at the atomic scale was recently demonstrated in biominerals by Branson et al. (2016). Bonding between hydrogen (from an organic molecule) and oxygen belonging to carbonate ion at the calcite surface is a potential linking mechanism (Ataman et al., 2016). Such an interaction could compensate the deficit of charge induced by the incorporation of Na. The substitution mechanism can be tentatively written as:

Ca2++CO32=Na++HCO3

where HCO3- would represent the bond between OM and calcite surface via hydrogen bonding. This hypothesis remains to be verified as other possibilities of interaction between OM and calcite surface exist (Mann et al., 1993; Sommerdijk and de With, 2008).

The present data underline the importance of U to distinguish fast and slow growing zones. Yet, there is no consensus on the mechanism of incorporation of U in calcite. Indeed, Reeder et al. (2000) consider that a uranyl unit [UO22+] is unable to reach a stable structural environment in calcite. On the contrary, Kelly et al. (2003) consider that uranyl has a stable lattice position in calcite. According to these authors, this substitution would result in a charge excess of +4 around the uranyl site because of the two missing carbonate ions and the substitution mechanism would be: 5Ca2+ = UO22+ + 4 Na+. In biogenic calcite, the presence of large amounts of Na could easily compensate the charge excess around the uranyl group, but the exact substitution mechanism of U remains to be determined.

A conceptual model for Corallium skeleton crystal growth – As a possible scenario for Corallium skeleton growth, biogenic Mg calcites would grow extracellularly in a complex organic/inorganic solution with fluctuating compositions, dynamically regulated by the organism. The cations and anions required for the mineralization would be present in the solution (in forms that are not yet determined: possibly including organo-mineral polymers) together with a large variety of organic molecules (Debreuil et al., 2011), such as polyenic chains, responsible for the precious coral red color (Merlin and Dele-Dubois, 1986; Brambilla et al., 2012). As biogenic calcite would grow in the presence of impurities, the most compatible organic molecules would be incorporated on specific crystal faces and would induce defects that would facilitate the incorporation of other impurities (anions or cations) in the crystal (or conversely), in a constant feedback process. Simultaneously, fast crystal growth combined with steric constraints would allow non-equilibrium incorporation of more incompatible elements such as Mg, Sr, Na, Li, and U. Thus, skeleton growth would result from the competition between thermodynamic equilibrium and kinetic effects associated with (1) crystal growth rate, (2) diffusion of elements and molecules in the solution (in this scenario, intracrystalline diffusion is considered negligible), and (3) dynamic renewal (by addition and removal) of the solution by the organism. Interestingly, the concentration of elements and organic molecules not incorporated in biogenic calcite could temporarily accumulate at the growth front and stop the skeleton growth, leading to crystallization pulses at the skeleton surface. A dynamic process of renewal of the solution (global exchange) would alternate with a more static situation during which local exchange between crystal and solution would take place, in a partially closed system. In such a situation, the composition of the solution may evolve depending upon the distribution coefficients of elements into that mineral. This process of Rayleigh fractionation leads to positive correlations between elements with partition coefficients less than 1. Indeed, the correlations between Mg/Ca and Sr/Ca in the ID-ICPMS dataset (Figure 9) could be also explained by a Rayleigh fractionation process where calcite grows from an initial solution of seawater. The Rayleigh fractionation path displayed in Figure 9 is based on the following assumptions: (1) the initial calcifying fluid has Sr/Ca and Mg/Ca ratios that are the same as seawater (8.6 mmol/mol and 5.1 mol/mol, respectively); (2) calcite partition coefficients are consistent with the inorganic data of Mucci and Morse (1983) and Mucci (1986) (DSr/Ca = 0.35 and DMg/Ca = 0.0215). It is of course likely that the calcifying fluid has a different composition than seawater, but we think that these are reasonable assumptions in the absence of direct measurements of the calcifying fluid. The fractionation path shown in Figure 9 indicates that the model fits rather well the data. Thus, Rayleigh fractionation could be part of the explanation for observed Mg/Ca vs. Sr/Ca correlations.

FIGURE 9
www.frontiersin.org

FIGURE 9. ID-ICPMS data. Comparison of C. rubrum sclerites and skeletons. Mg/Ca vs. Sr/Ca. Sclerites: green dots. Skeletons: blue dots. Black dots are from Weinbauer et al. (2000). Gray dashed line: Rayleigh fractionation path (see text for explanation); black solid lines: best fitting lines for sclerites and skeletons.

Concerning the calcifying fluid, whether ion fluxes between sea water and the surface of calcification occur (1) through tissues by active transcellular transport or by paracellular pathways (i.e., between the cells) (e.g., Tambutté et al., 2012; Taubner et al., 2017), or (2) by direct and rapid seawater transport to the site of calcification (e.g., Bentov et al., 2009; Gagnon et al., 2012), is not known. Nevertheless, putting emphasis on kinetic effects, as we do in the present work, implies that calcifying fluids and their mechanisms of formation are similar in fast and slow growing zones. The fact that geochemical trends are identical in the two zones (see for instance Figures 2D–F, 4C,D, 5C,D for the C. elatius case) favors a similarity of mechanism of formation of the calcifying fluid. It will be noted that geochemical trends slightly vary from a species to another, possibly indicating some physiological differences of formation of the calcifying fluid in the different species. Contrary to medullar and annular zones, sclerites, and skeletons of C. rubrum display separate Mg/Sr trends in Figure 9. In this case, differences of composition between sclerites and skeleton can be tentatively ascribed (at least partly) to differences of calcifying fluid, themselves related to differences of mechanism of formation of the skeleton and the sclerites. Indeed, while the formation of the skeleton takes place extracellularly, the early stages of formation of sclerites take place intracellularly in a primary scleroblast, then in a highly confined extracellular medium formed by only two secondary scleroblasts (Le Goff et al., 2017).

To conclude, kinetic factors are considered of importance in this study, but they do not exclusively control the chemical variations of precious coral skeletons; indeed, our model represents a possible but not a unique explanation for the data.

The impurity incorporation/repulsion model proposed here is based on the concept of growth entrapment grasped decades ago by Kinsman and Holland (1969) and popularized by Watson (2004) who formalized a model to investigate hypothetical calcite growth scenarios. Though originally designed for abiogenic crystals, the growth entrapment model has been invoked to explain variations of concentrations of magnesium in brachiopod calcitic shells (Rollion-Bard et al., 2016). The present model differs from the growth entrapment model by the facts that (i) incorporation of organic molecules plays a part in the process, (ii) the accumulation of incompatible elements or organic molecules at the growth front may interrupt crystal growth, and induce crystallization pulses, and (iii) biological rhythms inducing dynamic renewal (by addition and removal) of the solution are essential parts of the process.

Comparison With Other Fast and Slow Growing Zones in Calcitic and Aragonitic Biominerals

Comparative studies of fast and slow growing zones in calcitic biominerals are rare. Thébault and Chauvaud (2012) noted that the Li/Ca ratios in the central axis (with faster growth rate) of Pecten maximus were higher than around it. These differences are explained by faster daily growth rates in central axis than in lateral ribs. Yoshimura et al. (2017, their Figure 6) observed a core enriched in Mg and depleted in S in a Japanese precious pink coral, as in C. rubrum (Figure 3 in Vielzeuf et al., 2008) confirming that these features are systematic in Corallium species (Figure 4 in Perrin et al., 2015). In the calcitic central core of the deep-water bamboo coral Keratoisis sp., Sinclair et al. (2011) observed an enrichment in Ba and Mg; these authors concluded that the central axis of the skeleton may represent a different mode of growth than its periphery. Contrary to biogenic calcites, biogenic aragonites gave rise to numerous comparative studies of fast and slow growing zone. As summarized by Rollion-Bard and Blamart (2015), scleractinian coral skeletons made of aragonite are characterized by two types of internal structures: rapid accretion deposits (RADs; Stolarski, 2003), also referred to as early mineralization zones (EMZs; Cuif et al., 2003) or centers of calcification (COC; Wells, 1956), in between thickening deposits (TDs; Stolarski, 2003 – also called fibers – Ogilvie, 1896). RAD are enriched in Mg (Meibom et al., 2004; Meibom et al., 2006; Gagnon et al., 2007; Brahmi et al., 2012; Montagna et al., 2014; Rollion-Bard and Blamart, 2015). The status of Sr is not so clear: following Ferrier-Pagès et al. (2002), Meibom et al. (2004) stated that the Sr uptake is inversely correlated with the rate of calcification in Pavona clavus. However, this statement was contradicted by observations on Colpophyllia sp. showing that RAD were enriched in Mg, Sr, B, S, and Ba (Meibom et al., 2006). Case et al. (2010) and later Montagna et al. (2014) analyzed a large suite of aragonite coral skeletons and showed that Li and Mg are positively correlated and that RAD are enriched in these two elements. Using three scleractinian corals as models, Rollion-Bard and Blamart (2015) showed that RAD are enriched in Mg, Na, and Li; they observed a positive correlation between Na and Mg and confirmed the Li/Mg correlation demonstrated by Case et al. (2010) and Montagna et al. (2014). In many of these works, kinetics effects were considered a factor for the preferential incorporation of elements in aragonite, but other mechanisms such as Rayleigh fractionation have also been invoked. Note that, since aragonite and calcite have different crystallographic structure and that structural aspects are of major importance in the incorporation of impurities, the results on aragonite corals, and especially elemental correlation, are difficult to compare with calcitic corals. Nevertheless, the presence of (1) fast and slow growing zones in both hexa- and octocorals, with block and cement mode of growth in the fast growing zone, and layer by layer mode in the slow growing zone (see Gladfelter, 1982; Perrin et al., 2015; for hexa- and octocoral growth modes, respectively), and (2) systematic differences in chemical composition between the two types of zones, indicate a possible convergence of factors (including growth rate) influencing the chemistry of calcium carbonates during growth.

The Origin of Annual Growth Rings in C. rubrum

The origin of chemical oscillations in annual growth rings, within the annular zone in Corallium skeletons is still unclear. Two facts lead to consider that annual growth rings may result in part from variations of growth rate during the year: (1) the study of Vielzeuf et al. (2013) demonstrated that the variations of Mg and Sr in the growth rings could not be correlated with sea water temperature; (2) the correlations between elements such as Na-Mg, Na-S, S-Mg, Sr-Mg, Li-Mg, U-Mg follow the same trends in medullar and annular zones. Thus, it is reasonable to consider that fast growth would produce ring portions rich in Mg, Sr, Na, Li, and U, while slow growth would produce the Ca and S-rich portions. Marschal et al. (2004) conducted a series of experiments to determine the period of the year during which OM-rich bands develop in C. rubrum. Twelve colonies collected at 15 m depth were labeled with calcein in November 2001, March, and July 2002. Nine colonies were recovered December 2002, about a year after the first labeling. These colonies showed that late fall and winter is the period during which the narrow OM-rich band develops. Marschal et al. (2004) also concluded that late fall and winter is the period with the lowest growth rates in C. rubrum. Combining these observations with their own data, Vielzeuf et al. (2013) showed that Mg-rich rings develop during the period spring to fall while S-rich rings form immediately after (late fall and winter). The situation of sulfur in the skeleton is particularly difficult to understand and deserves further consideration. Vielzeuf et al. (2013) showed two types of spatial anti-correlations: OM and Mg, Mg and S, with the consequence that OM and S are correlated. A logical conclusion would be to consider that S is present in the OM. However, Vielzeuf et al. (2013) pointed out that OM could not contain the measured amounts of S and thus, that important portion had to be present as structurally substituted sulfate in calcite. This hypothesis was verified by Nguyen et al. (2014), Tamenori et al. (2014), and Perrin et al. (2017), who performed XANES studies on C. elatius, C. japonicum, and C. rubrum skeletons, respectively. The three studies demonstrated that S is mainly present as SO42- and incorporated as sulfur structurally substituted to carbonate (SSS – synonymous of carbonate associated sulfate – CAS). Thus, the most plausible hypothesis to explain the observed positive correlation between S and OM in C. rubrum is to consider that OM-rich rings are also made of calcite rich in structurally substituted sulfate. This conclusion is consistent with the hypothesis discussed earlier that S-rich calcite and OM-rich rings are indicative of slow growth rates. Concerning the medullar zone, the facts that no obvious periodic chemical oscillations is observed (at least so far) along the branch axis (e.g., Figures 6j–l) and that the medullar zone is systematically poorer in S and richer in Mg than the annular zone indicate that the medullar axial growth is discontinuous in time and happens preferentially during the period spring to fall. Due to similarity of growth processes (Perrin et al., 2015), we can reasonably hypothesize that the considerations on the origin of growth rings in C. rubrum apply to other Corallium species.

Implication for the Use of Proxies in Corallium Species

The present study reiterates the idea that the incorporation of ions during crystal growth depends in part on growth kinetics (Lorens, 1981; Staudt et al., 1994). However, it should be kept in mind that growth kinetics is not an independent variable as it is affected by the organism biological activity which is itself dependent on environmental parameters such as temperature, pH, salinity, nutrient supply, etc. (Shinn, 1966). In the case of C. rubrum, the fact that fast growth happens during the hottest period of the year (spring to fall) is an indication of a temperature and growth interdependence. But this relation is complex and complicated by the thermo-tolerance of the organism: indeed, experiments carried out in aquaria showed that calcification rates of C. rubrum decrease above 21°C and that exposure to 25°C for durations between 9 and 14 days causes mortality of most samples (Torrents et al., 2008). Most elements discussed in this study (Mg, Sr, Na, Li, Ba, U) have been considered as environmental proxies in calcitic biominerals [Mg: (Rosenthal et al., 1997), Sr: (Yu et al., 2014), Na: (Yoshimura et al., 2017), Li: (Thébault and Chauvaud, 2012), Ba: (Yoshimura et al., 2015), U: (Yoshimura et al., 2015) and references therein]. Thus, the influence of environmental parameters cannot be discarded in the Corallium case.

If kinetics seems to play a role in the incorporation of Mg, Na, Sr, Li, and U, it does not affect barium and lead as these two elements have similar contents in fast and slow growing zones. These features are indications that their concentrations could reflect the concentrations and fluctuations with space and time of Ba and Pb in the seawater. This conclusion is in agreement with observations obtained on the Bamboo coral, and the statement that in this species external environmental conditions control the skeletal Ba incorporation in calcite rather than internal biological effects (LaVigne et al., 2011). As seen above, the barium content is higher in the Mediterranean C. rubrum than in the Pacific C. japonicum (Figure 3) which makes the absolute value of Ba a good criterion to identify the two species (for instance in past or present day jewels or traded corals). Hasegawa et al. (2012) indicated that the Ba/Ca ratio could be used to determine the geographic origin of Corallium species. However, Yoshimura et al. (2015) showed that the Ba content of Japanese corals increases at ocean depths beneath about 300 m, to reach values close to those of the Mediterranean coral. Thus, deep Japanese coral could have similar Ba contents than near surface Mediterranean corals. The change of Ba content with depth might explain the range of Ba concentrations in the three studied Pacific coral species observed in Figure 3B. Thus, the Ba identification criterion alone might not be sufficient to discriminate Mediterranean and Pacific corals. We showed above that lead contents in Mediterranean corals are higher than in their Pacific counterparts. Here again, no difference of concentration of Pb was observed between medullar fast growing and annular slow growing zones in C. rubrum, and C. japonicum, nor between skeleton, tips and sclerites in C. rubrum, meaning that kinetics may not play an important role in the incorporation of Pb in biogenic calcites. To summarize, as a first simple criterion, Ba and Pb contents higher than 6 and 0.2 μg/g, respectively, in a red precious coral of unknown origin can be considered indicative of a Mediterranean origin of the sample (Figure 3).

Conclusion

Emphasis on crystal growth kinetics or environmental parameters to explain biogenic calcite compositions should not hide the bigger picture. The fact that the mean magnesium contents of calcitic biominerals growing in similar environments vary from a species to another between 0 and ∼30 mol% MgCO3 cannot be ascribed to growth kinetics, nor environmental parameters. Genetic coding and physiology of each species are obviously of primary importance. Here, we are just evaluating the narrower and more tractable question of whether the variability of composition around the mean concentrations of a given species is consistent or not with kinetic effects. It is well known that living processes occur away from equilibrium. Biominerals produced by living organisms are no exception. Crystallographic hierarchical structures, chemical heterogeneities and complex morphologies are unambiguous indications that biominerals do not simply follow free energy minimization principles. Their construction under the influence of organisms involves a variety of biological, chemical and physical periodic processes. Some like biological factors, growth kinetics, periodic renewal/removal of the solution, and environmental changes may drive biogenic calcites away from global equilibrium, while others such as crystallization, Rayleigh fractionation, or diffusion in the solution, push them toward it. The role of each process probably changes from a species to another, and even within a single organism depending on the period of the year and the location of calcification within the organism. Identifying the implication of each process in Corallium chemical variability and understanding skeleton growth dynamics are difficult goals to achieve but remain necessary steps for environmental applications.

Author Contributions

DV and NF conceived the project. DV, J-LD, and JP collected the EMP data. DV, AR, J-LD, NY, and JP collected LA-ICPMS data. DV prepared the samples. AG collected the ID-ICPMS data. CF, DV, and JP collected OEA data. JG collected and supplied some samples from the Mediterranean. CB-H provided rare samples from her personal collection. J-MM performed the statistical analysis of the data. All authors participated to the interpretation of the data. DV wrote the first draft of the manuscript and all authors participated in the subsequent stages of preparation of the manuscript.

Funding

This work has been supported by the Centre National de la Recherche Scientifique (CNRS), by the Institut National des Sciences de l’Univers (INSU) through grant INTERRVIE 2017 to DV, by the Agence Nationale pour la Recherche (ANR) through ANR CoRo 2011-2015, by the Centre Interdisciplinaire de Nanoscience de Marseille (CINaM) through internal grants, and by the European Union COST action TD0903. This study benefited from the generosity of numerous contributors who supplied rare samples.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

We thank P. Raffin, J. G. Harmelin, and C. Marschal for providing C. rubrum colonies from various places in the Mediterranean. Samples of C. japonicum, C. elatius, and C. konojoi were kindly provided by S. Tambutté from Centre Scientifique of Monaco, and G. Tanaka from the Precious Coral Protection and Development Association. We also thank K. Saiki from Osaka University for initiating the fruitful exchange with G. Tanaka. Rare specimens of C. johnsoni and C. niobe were provided by F. J. de Mora Porteiro from the Department of Oceanography and Fisheries, University of the Azores. Finally, we are grateful to P. Lozouet, C. Dupoux, P. Joannot, and A. Andouche from the Museum National d’Histoire Naturelle, Paris (MNHN) for providing the paratype of P. thrinax (MNHN-Oct-243). Comments by Rinat Gabitov, Thomas DeCarlo, and Hans Dahms as well as efficient editorial handling by KB are gratefully acknowledged. This is contribution ANR CoRo n° 11.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/feart.2018.00167/full#supplementary-material
