Original Research ARTICLE

Front. Earth Sci., 29 March 2019 | https://doi.org/10.3389/feart.2019.00054

Sensitivity of Inherent Optical Properties From Ocean Reflectance Inversion Models to Satellite Instrument Wavelength Suites

  • 1Ocean Ecology Laboratory, NASA Goddard Space Flight Center, Greenbelt, MD, United States
  • 2Go2Q Pty Ltd., Buderim, QLD, Australia

The Earth science community seeks to develop climate data records (CDRs) from satellite measurements of ocean color, a continuous data record that now exceeds 20 years. Space agencies will launch additional instruments in the coming decade that will continue this data record, including the NASA PACE spectrometer. Inherent optical properties (IOPs) quantitatively describe the absorbing and scattering constituents of seawater and can be estimated from satellite-observed spectroradiometric data using semi-analytical algorithms (SAAs). SAAs exploit the contrasting optical signatures of constituent matter at spectral bands observed by satellite sensors. SAA performance, therefore, depends on the spectral resolution of the satellite spectroradiometer. A CDR spanning SeaWiFS, MODIS, OLCI, and PACE, for example, would include IOPs derived using varied wavelength suites if all available wavelengths were considered. Here, we explored differences in derived IOPs that stem simply from the use of (eight) different wavelength suites of input radiometric measurements. Using synthesized data and SeaWiFS Level-3 mission-long composites, we demonstrated equivalent SAA performance for all wavelength suites, but that IOP retrievals vary by several percent across wavelength suites and as a function of water type. The differences equate to roughly ≤ 6, 12, and 7% for adg(443), aph(443), and bbp(443), respectively, for waters with Ca ≤ 1 mg m−3. These values shrink for sensors with similar wavelength suites (e.g., SeaWiFS, MODIS, and MERIS) and rise to substantially larger values for higher Ca waters. Our results also indicate that including 400 nm (in the case of OLCI) influences the derived IOPs, using longer wavelengths (>600 nm) influences the derived IOPs when there is a red signal, and, including additional spectral information shows potential for improved IOP estimation, but not without revisiting SAA parameterizations and execution. While modest in scope, we believe this study contributes to the knowledge base for CDR development. The implication of ignoring such an analysis as CDRs continue to be developed is a prolonged inability to distinguish between algorithmic and environmental contributions to trends and anomalies in the IOP time-series.

Introduction

The oceanographic community seeks to develop biogeochemical climate data records (CDRs) from satellite measurements of ocean color (NRC, 2011). The U.S. National Research Council defines a CDR as “a time series of measurements of sufficient length, consistency, and continuity to determine climate variability and change” (NRC, 2004). The continuous global data record from ocean color satellites now exceeds 20 years, including (but not limited to) the following instruments: the NASA Sea-viewing Wide Field of View Sensor (SeaWiFS; 1997–2010), the NASA Moderate Resolution Imaging Spectroradiometers (MODIS; 1999-present onboard Terra and 2002-present onboard Aqua), the ESA Medium Resolution Imaging Spectrometer (MERIS; 2002–2012), the Visible Infrared Imaging Radiometer Suite (VIIRS; 2012-present onboard Suomi NPP and 2018-present onboard JPSS-1), the ESA Ocean and Land Color Instrument (OLCI; 2016-present onboard Sentinel-3A and 2018-present onboard Sentinel-3B), and the JAXA Second generation GLobal Imager (SGLI; 2017-present). NASA and several international space agencies plan to launch additional ocean color instruments in the coming decade, including the NASA Plankton, Aerosol, Cloud, ocean Ecosystem (PACE; 2022 launch) ocean color instrument. To facilitate CDR development, the community invests substantially into ensuring the characterization of the space-borne radiometric measurements (e.g., Meister et al., 2012; Zibordi et al., 2014; Meister and Franz, 2014) and the consistency of their derived data products (e.g., Franz et al., 2005; Werdell et al., 2009; Melin and Sclep, 2015; Barnes and Hu, 2016; Mélin et al., 2016). Sathyendranath et al. (2017) provides a useful exploration of desired characteristics of satellite-derived ocean color products for CDR development, including, and perhaps more importantly, analyses to support discussion of the implications potentially realized when these characteristics are not met.

Ocean color satellite instruments provide estimates of spectral remote-sensing reflectance [Rrs(λ); sr−1], the light exiting the water normalized to the hypothetical condition of a non-attenuating atmosphere with an overhead Sun, after atmospheric correction (Mobley et al., 2016). Bio-optical algorithms are applied to the Rrs(λ) to produce estimates of geophysical and optical quantities, such as the near surface concentration of the phytoplankton pigment chlorophyll-a (Ca; mg m−3) (O'Reilly et al., 1998) and spectral marine inherent optical properties (IOPs) (Werdell et al., 2018). Time-series of remotely-sensed IOPs provide valuable data records for studying long-term changes in ocean ecosystems. IOPs, the spectral absorption and scattering properties of seawater and its particulate and dissolved constituents, can be used to infer the contents of the upper ocean. This information is critical for advancing our understanding of biogeochemical oceanic processes such as carbon exchanges and fluxes, phytoplankton community dynamics, and ecosystem responses to disturbances (e.g., Behrenfeld et al., 2005; IOCCG, 2009, 2014, 2018; Siegel et al., 2014).

Semi-analytical algorithms (SAAs) provide one mechanism for estimating marine IOPs from Rrs(λ) using a combination of empiricism and radiative transfer theory (Werdell et al., 2018). Most SAAs attempt to simultaneously estimate the magnitudes of spectral backscattering by particles [bbp(λ); m−1], absorption by phytoplankton [aph(λ); m−1], and the combined absorption by non-algal particles and colored dissolved organic material [adg(λ); m−1]. This is typically accomplished by assigning constant spectral values for seawater absorption and backscattering, assuming spectral shape functions for the remaining constituent absorption and scattering components, and retrieving the magnitudes of each remaining constituent required to match the spectral distribution of Rrs(λ). Such spectral-matching algorithms require contrasting optical signatures for adg(λ), aph(λ), and bbp(λ) within the spectral bands detected by the satellite. The performance of most SAAs therefore depends on the spectral resolution of Rrs(λ) used as input to the algorithm, which is primarily driven by the spectral resolution of the satellite radiometer (Lee et al., 2007; Werdell et al., 2014; Wolanin et al., 2016; Vandermuelen et al., 2017). Conventional wisdom now supports the inclusion of additional ultraviolet-visible wavelengths into new satellite radiometers (relative to historical instruments such as SeaWiFS) to enable the improved discrimination of particulate and dissolved components within seawater and of absorbing and non-absorbing atmospheric aerosols (PACE Science Definition Team, 2018).

Semi-analytical algorithms continue to evolve rapidly, and substantial focus has been placed on intercomparisons (IOCCG, 2006; Brewin et al., 2015), reducing the number of required assumptions [e.g., Zheng and Stramski, 2013; and estimation of uncertainties (Werdell et al., 2018) and references therein]. Uncertainties in SAA-derived IOPs arise from multiple sources: uncertainties in input Rrs(λ) (Maritorena et al., 2010), assumptions embedded into the adopted Rrs(λ)-to-IOPs relationship (Lee et al., 2004, 2011), the choice of spectral-matching method [see Appendix A of Werdell et al. (2013a)], accounting (or not accounting) for inelastic scattering (Lee et al., 1994; Westberry et al., 2013; McKinna et al., 2016; Loisel et al., 2018), the ancillary data sources used for various corrections (Werdell et al., 2013b), and the assignment of spectral shape functions for adg(λ), aph(λ), and bbp(λ) to name only a few. With regards to the latter, for example, any single spectrum cannot unequivocally represent all water masses at all times and Werdell et al. (2013a) demonstrated that selecting alternate spectral shapes can vary derived IOPs by up to ~100%. Note also that most SAAs do not currently include account for the polarization of light (Ibrahim et al., 2012; Gilerson et al., 2014).

In concert with this ongoing refinement, time-series of data products from SAAs continue to be developed, with the larger goal of producing CDRs (Behrenfeld et al., 2005; Siegel et al., 2013). Some focus has been placed on merging satellite IOP data records (Maritorena et al., 2010), but fewer studies have explored differences in derived products that stem simply from the use of different suites of input Rrs(λ). For example, SeaWiFS had a green wavelength centered on 510 nm, whereas the MODIS instruments' green wavelength is centered on 531 nm and VIIRS does not include a green wavelength. A CDR from these instruments spanning 1997 to present would therefore include IOPs derived using varied wavelength suites if all available wavelengths were considered. It remains conceivable that different combinations of input Rrs(λ) yield differences in IOPs that exceed the magnitude of observable environmental change in a CDR. Albeit modest in scope, the goal of this paper is simply to use a controlled modeling environment to quantify the magnitude of change in derived IOPs associated with the use of different spectral suites of satellite Rrs(λ). The implication of ignoring such an analysis as CDRs continue to be developed is a prolonged inability to distinguish between algorithmic and environmental contributions to trends and anomalies in the IOP time-series.

Methods

Data Acquisition

For the sensitivity analyses, we generated a synthesized dataset of coincident Rrs(λ), adg(λ), aph(λ), bbp(λ), and Ca that closely mimics the IOCCG Ocean Color Algorithms Working Group synthetic dataset (IOCCG, 2006), but with expanded and finer spectral resolution. Appendix A describes its development (see the online article page to access the Appendix). This dataset maintains a spectral resolution of 1 nm intervals from 350 to 800 nm. We targeted Rrs(λ) and IOPs at the following center satellite wavelengths:

• SeaWiFS: 412, 443, 490, 510, 555, 670

• MODIS: 412, 443, 488, 531, 547, 667

• MERIS: 412, 443, 490, 510, 560, 620, 665

• VIIRS: 410, 443, 486, 551, 671

• OLCI: 400, 412, 443, 490, 510, 560, 620, 665

• PACE: 400, 412, 425, 443, 460, 475, 490, 510, 532, 555, 583, 617, 640, 655, 665

• 410–670 nm: 5 nm intervals from 410 to 670 nm

• 410–600 nm: 5 nm intervals from 410 to 600 nm

The latter three wavelength suites all represent possibilities for PACE, with the first of these three (15 wavelengths) indicating aggregated bands to be distributed by the mission (PACE Science Definition Team, 2018) and the second and third representing the full science resolution of the spectrometer (5 nm) spanning two ranges for inversion (410–600 nm vs. 410–670 nm). While it remains tempting to execute the inversion using the full spectrum of the synthesized dataset, we opted to limit our 5 nm examples to a SeaWiFS-like range to specifically compare differences in performance when using contiguous (so called hyperspectral) spectra vs. discrete heritage wavelengths. Furthermore, we feel the extension of SAA inversions into the ultraviolet remains sufficiently underdeveloped to warrant examination in separate works. We explored a more limited hyperspectral range—to only 600 nm in lieu of 670 nm—to evaluate the impact of very low red radiometric signals in the inversion. For comparative purposes with heritage instruments, we also estimated IOP retrievals for the two 5 nm cases (410–670 and 410–600 nm) at 443 nm using a cubic spline fit on the retrieved adg(λ), aph(λ), and bbp(λ).

The native synthesized dataset defines its IOPs using four orders of magnitude of Ca (20 values within the range 0.03 to 30 mg m−3, N = 500) (IOCCG, 2006). In most cases (specifically noted), we limited our analyses to 0.03 ≤ Ca ≤ 5 mg m−3, as the SAA became sufficiently unstable from instrument-to-instrument above 5 mg m−3 such that low retrieval sample sizes confounded meaningful reporting of results (N ≅ 350). We discuss the strengths and weaknesses of these synthesized data for our analyses in section Discussion. For the satellite comparisons, we acquired the mission-mean (1997–2010) SeaWiFS Level-3 Rrs(λ) bin file at 9 km spatial resolution from the NASA Ocean Biology Processing Group (OBPG; https://oceancolor.gsfc.nasa.gov; reprocessing version 2018.0). For several analyses, we stratified the results into three Ca ranges—Ca ≤ 0.1 mg m−3 (intended to represent oligotrophic water), 0.1 < Ca ≤ 1 mg m−3 (mesotrophic), and Ca > 1 mg m−3 (eutrophic)—to broadly evaluate performance differences as a function of water type. We note that shape and magnitude of synthesized Rrs(λ) spectra shift from being blue-dominated to red-dominated as the water type transitions from oligotrophic to eutrophic as shown in Figure 1.

FIGURE 1
www.frontiersin.org

Figure 1. Characteristics of the simulated AOP-IOP dataset: Three example Rrs(λ) spectra selected from the synthesized AOP-IOP dataset for Ca of 0.05, 0.5, and 5 mg m−3 (A); Ca and a(443) as a function of the ratio of Rrs(443):Rrs(555) (B); bbp(443) and a(443) as a function of Ca (C); and, anap(443), acdom(443), and aph(443) as a function of Ca (D).

Regarding our use of single center wavelengths for this exercise, we acknowledge that different satellite instruments maintain inherently different radiometric bandpasses. Standard NASA processing applies an out-of-band correction using instrument-specific spectral response functions that adjusts the retrieved Rrs(λ) to the nominal band centers after atmospheric correction (Wang et al., 2001; Patt et al., 2003). Given that this is done prior to execution of an SAA, our use of center wavelengths sufficiently mimics the satellite input Rrs(λ)—acknowledging, of course, that the out-of-band adjustment carries uncertainties that inevitably impact the final IOP retrievals.

Inversion Modeling

Our default SAA adopts the default generalized IOP (GIOP) form described in Werdell et al. (2013a). Briefly, Rrs(λ) are first converted to their subsurface values following (Lee et al., 2002):

rrs(λ,0-)=Rrs(λ)0.52+1.7 Rrs(λ).     (1)

Subsurface remote-sensing reflectances relate to marine IOPs following (Gordon et al., 1988):

rrs(λ,0-)=0.0949 u+0.0794 u2,    (2a)
u(λ)=bb(λ)a(λ)+bb(λ)(2b)    (2b)

where bb(λ) is the total backscattering coefficient (m−1) and a(λ) is the total absorption coefficient (m−1). Total backscattering can be expanded as the sum of all backscattering components. Further, each component can be expressed as the product of its mass-specific backscattering spectrum (spectral shape; b*) and its magnitude or concentration (M):

bb(λ)=bbw(λ)+Mbp bbp*(λ).    (3)

Similarly, total absorption can be expanded to:

a(λ)=aw(λ)+Mdgadg*(λ)+ Mphaph*(λ).    (4)

where the subscript w indicates contributions by water. Both bbw(λ) and aw(λ) are known (Pope and Fry, 1997; Zhang et al., 2009). Werdell et al. (2013a) describes in the detail the rationale for the default choices of bbp*(λ), adg*(λ), and aph*(λ). By default, we expressed bbp*(λ) as λSbp, where Sbp defines the steepness of the power law and typically varies between −2 and 0 in natural waters (Stramski et al., 2004). We dynamically assigned Sbp to each station/pixel using the Rrs(λ) band-ratio method described in Lee et al. (2002). We expressed adg*(λ) as exp(-Sdg λ), where Sdg describes the rate of exponential decay and typically varies between 0.01 and 0.02 nm−1 (Roesler et al., 1989), and adopted a fixed Sdg of 0.018 nm−1. Finally, we expressed aph*(λ) as the Ca-specific absorption spectrum of Bricaud et al. (1998) seeded using each station/pixel-specific Ca and normalized to 0.055 m2 mg−1 at 443 nm. Broadly speaking, many alternatives for such parameterizations exist (as explored in Werdell et al., 2013a), but our choices in parameterization remain of secondary importance for this paper given that we apply them consistently across analyses.

Three unknowns remain in Equations (1–4) after assignment of the eigenvectors, namely Mbp, Mdg, and Mph. Using Rrs(λ) as input, the SAA estimates these eigenvalues via non-linear least squares (Levenberg-Marquardt) inversion of Equation (2) with minimization of a χ2 cost function [see Equation (11) of Werdell et al., 2013a]. We retained only those solutions with viable estimates of Mbp, Mdg, and Mph [for example, −0.005 ≤ adg(λ) ≤ 5 m−1] that resulted in reconstructed Rrs(λ) that differed from the input Rrs(λ) by < 33% in the range 400 to 600 nm. We reconstructed Rrs(λ) using the retrieved eigenvalues as input into Equations (1–4) and defined failure as non-convergence in the inversion. Werdell et al. (2013a) outlines exclusion criteria used to determine viable estimates, as well as the similarities in accuracy shared by this SAA configuration and other common approaches.

Analyses

We ran the inversion model using the synthesized Rrs(λ) for every satellite input wavelength suite listed in section Data Acquisition. We then statistically compared the model-derived IOPs (hereafter referred to by satellite to identify the input wavelength suite) with the source synthesized IOPs. Our reported statistics include the sample size (N), the Type I linear regression slope, the median absolute error (MAE), and the bias. We calculated MAE as:

MAE=10(i=1N|log10(satellitei)-log10(synthesizedi)|N)     (5)

and bias as:

bias=10(i=1Nlog10(satellitei)-log10(synthesizedi)N).    (6)

Note that observations are log-transformed such that MAE and bias present multiplicative metrics (that is, a MAE of 1.5 indicates that the satellite observations are 1.5 × (50% greater) on average than the synthesized observations and a bias less than unity indicates a negative bias). Note also that Table 1 reports bias and MAE as calculated in Equations (5) and (6), but we discuss these performance metrics using their more intuitive percentage counterparts throughout the Results and Discussion sections.

TABLE 1
www.frontiersin.org

Table 1. Statistics for SAA-derived vs. synthesized IOPs at 443 nm.

Next, we compared derived IOPs from each satellite wavelength suite with those from every other satellite wavelength suite. This comparison included determination of unbiased percent differences (UPD). We calculated UPD for two satellites (satellite1 and satellite2) as:

UPD=200%(satellite2-satellite1satellite2+satellite1)    (7)

and report the median UPD for the complete population of match-ups. A negative UPD indicates that the IOP from satellite2 is biased low relative to satellite1.

To evaluate if the results varied with the configuration of the inversion model (that is, if they varied with assignment of spectral shapes), we ran the inversion model for each satellite input Rrs(λ) wavelength suite an additional seven times, sequentially re-assigning one variable per run as: (1) default Sbp from Lee et al. (2002) + 33%; (2) default Sbp from Lee et al. (2002)−33%; (3) default Sdg + 33% (= 0.024 nm−1); (4) default Sdg−33% (= 0.012 nm−1); (5) seed Ca to calculate aph*(λ) using Bricaud et al. (1998) + 50%; (6) seed Ca to calculate aph*(λ) using Bricaud et al. (1998)−50%; and, (7) replacing 0.0949 and 0.0794 in Equation (2a) with 0.0895 and 0.1247 as in Lee et al. (2002).

Finally, we twice ran the default inversion model (as defined in section Inversion Modeling) on the mission-long mean Level-3 SeaWiFS Rrs(λ) to determine if results from our controlled modeling environment were generally representative of real satellite data. To do so, we used OBPG-supported satellite data processing software (l3 gen) to run the inversion model via the GIOP software framework, which allows assignment of wavelengths to be used in the inversion, on the Level-3 SeaWIFS Rrs(λ). The NASA SeaWiFS Data Analysis Software (SeaDAS; https://seadas.gsfc.nasa.gov) package includes this software. The first run used all six SeaWiFS wavelengths. The second run served to mimic VIIRS and, as such, we only assigned the five common SeaWiFS-VIIRS wavelengths. Given the known differences between SeaWiFS and VIIRS Rrs(λ) (Eplee et al., 2015; Barnes and Hu, 2016), using a narrower SeaWiFS band set as a surrogate for VIIRS provided a more suitable controlled environment to explore differences in band selection.

Results

Data Product Validation

Broadly speaking, the satellite-to-synthesized IOP validation analyses demonstrated equivalent performance across all wavelength suites (Figure 2, Table 1), with performance metrics that mirror those from previous studies that used equivalent simulated datasets (e.g., IOCCG, 2006; Lee et al., 2010; Werdell et al., 2013a). All runs reported very similar MAE, ranging from 5 to 10% for a(443) and 10 to 16% for bbp(443) and from 5 to 8% for a(555) and 8 to 14% for bbp(555). In general, we achieved comparable results across blue-green wavelengths for all analyses and, thus, our tables and figures focus only on 443-nm for clarity in presentation of results. MAEs for the absorption subcomponents ranged from 25 to 27% for adg(443) and 47 to 54% for aph(443). Every wavelength suite carried its lowest MAEs for a(443) and the highest MAE for aph(443). The regression slopes behaved similarly. All runs reported very similar values for a(λ), adg(λ), and bbp(λ), ranging from 1.00 to 1.07 for a(443), 1.03 to 1.06 for adg(443) and 0.94 to 1.01 for bbp(443). Across IOPs for each wavelength suite, aph(443) deviated most substantially from unity. It also exhibited the broadest range across wavelength suites, ranging from 0.72 to 1.05. Interestingly, the runs with the most wavelengths (PACE, 410–670 nm, and 410–600 nm) reported the aph(443) regression slopes that deviated most from unity. The satellite-to-synthesized biases diverged more across runs than either MAE or regression slope. While a(443) biases spanned across unity, all adg(443) biases fell below unity (recall that a bias less than unity indicates a negative bias), ranging from 7% for SeaWiFS to 15% for the 410–670 nm run, and all aph(443) biases fell either very close to unity or were positive, ranging from exactly unity for the 410–670 nm run to 24% for SeaWiFS and VIIRS. All bbp(443) biases exceeded unity (were positive), ranging from 1% for the two 5 nm runs to 10% for SeaWiFS.

FIGURE 2
www.frontiersin.org

Figure 2. Synthesized-vs.-satellite IOPs at 443 nm for SeaWiFS (A–D), VIIRS (E–H), and 410–670 nm (I–L). IOPs include a(443) (A,E,I), adg(443) (B,F,J), aph(443) (C,G,K), and bbp(443) (D,H,L). The solid line represents a 1:1 relationship. The colors indicate chlorophyll-a ranges, with the oligotrophic range presented in red (Ca ≤ 0.1 mg m−3), the mesotrophic in green (0.1 < Ca < 1 mg m−3), and the eutrophic in red (Ca ≥ 1 mg m−3).

These results predominantly encompass simulations with Ca ≤ 5 mg m−3, as 85% of SAA failures occurred for those simulations with higher Ca values (reducing the viable N to ≅350 as previously mentioned). Few failures resulted from non-convergence in the inversion. Rather, most occurred because of quality assurance metrics applied to the IOP retrievals, including requiring them to fall within predefined acceptable ranges (for example, −0.005 ≤ adg(λ) ≤ 5 m−1) and requiring that reconstructed Rrs(λ) differ from input Rrs(λ) by < 33% at every wavelength in the range 400 to 600 nm. While relaxing or modifying these quality assurance metrics would enable extending our analyses into more complex water, we opted to not do so to: (a) ensure that our results encompassed only the highest quality SAA retrievals; (b) limit the introduction of results biases that emerge from global SAA parameterizations that do not properly represent complex waters; and, (c) acknowledge that the simulated dataset itself may be the least representative of natural conditions in this Ca range. Moreover, as simulations with Ca > 5 mg m−3 realized so few results (low sample sizes), we opted to exclude them from subsequent analyses and data product intercomparisons. Follow-on analyses will benefit from additional attention to SAAs and datasets that better represent optically complex water.

Data Product Inter-comparisons

IOP retrievals for the synthetic dataset varied across wavelength suites and as a function of water type as defined by Ca (Figures 36, Tables 24). UPDs in a(443), adg(443), aph(443), and bbp(443) across all wavelength suites ranged from −3.83 to 2.91%, −3.14 to 5.27%, −11.57 to 6.33%, and −6.09 to 4.74%, respectively, for the lowest Ca waters (Table 2). For comparison, UPDs in a(555), adg(555), aph(555), and bbp(555) for SeaWiFS, PACE, and the two 5 nm wavelength suites (the only four suites with 555 nm) ranged from −0.51 to 0.35%, −0.74 to 3.13%, −6.65 to 1.47%, and −2.78 to 1.52%, respectively. Generally speaking, the differences between any two wavelength suites remained constant for all Ca ≤ 0.1 mg m−3 (Figures 36). Retrievals for the wavelength suites we consider most similar, SeaWiFS, MODIS, and MERIS, generally differed the least—by ≤ 0.92, 0.40, 1.11, and 1.25% for a(443), adg(443), aph(443), and bbp(443), respectively, in absolute terms. OLCI retrieved low adg(443) and high aph(443) relative to all other wavelength suites, perhaps due to the inclusion of a 400 nm band that altered the separation of the two absorption subcomponents. The two 5 nm wavelength suites retrieved high adg(443), low aph(443), and low bbp(443) relative to all other wavelength suites. With only several exceptions, they also realized the highest magnitude UPDs.

FIGURE 3
www.frontiersin.org

Figure 3. Satellite-to-satellite median UPD for a(443) at each Ca interval. Each panel title refers to the reference satellite to which the others are compared (satellite1 in Equation 7). Each comparative satellite (satellite2 in Equation 7) maintains a unique color: SeaWiFS (violet), MODIS (blue), MERIS (cyan), VIIRS (green), OLCI (yellow), PACE (orange), 410-670 nm (red), and 410-600 nm (black).

TABLE 2
www.frontiersin.org

Table 2. Satellite-to-satellite median UPD for IOPs at 443 nm for oligotrophic water (Ca ≤ 0.1 mg m−3). Relative to Equation (7), columns represent satellite1 and rows represent satellite2 (e.g., MODIS a(443) is 0.49% lower (thus, negative) on average than that for SeaWIFS).

For the mesotrophic Ca range, UPDs in a(443), adg(443), aph(443), and bbp(443) across all wavelength suites ranged from −1.66 to 1.80%, −3.18 to 4.79%, −10.46 to 4.50%, and −2.27 to 2.60%, respectively (Table 3). These ranges for adg(443) and aph(443) generally match those for the oligotrophic Ca range, whereas these ranges for a(443) and bbp(443) compress closer to unity. For comparison, UPDs in a(555), adg(555), aph(555), and bbp(555) for SeaWiFS, PACE, and the two 5 nm wavelength suites ranged from −1.50 to 0.21%, −1.74 to 3.99%, −7.47 to 1.34%, and −1.32 to 0.24%, respectively. Generally speaking, the differences between any two wavelength suites remained invariant for 0.1 ≤ Ca ≤ 0.5 mg m−3, above which they started to diverge (Figures 36). SeaWiFS, MODIS, and MERIS differed by ≤ 1.50, 2.32, 0.75, and 2.59% for a(443), adg(443), aph(443), and bbp(443), respectively, in absolute terms. Like the oligotrophic subset, OLCI retrieved low adg(443) relative to all other wavelength suites. Unlike that subset, however, its aph(443) retrievals exceeded all other wavelength suites. As for the oligotrophic subset, the two 5 nm wavelength suites retrieved high adg(443), low aph(443), and low bbp(443) relative to all other wavelength suites. Their UPD magnitudes, however, fell more in line with the others.

TABLE 3
www.frontiersin.org

Table 3. As in Table 2, but for mesotrophic water (0.1 < Ca ≤ 1.0 mg m−3).

The eutrophic Ca range (capped at 5 mg m−3) realized the most diversity and highest magnitudes in UPDs across all wavelength suites [noting that: (a) SAA retrievals often realize instabilities in such ranges (Werdell et al., 2009, 2018); and (b) the synthesized dataset represents the widest diversity in water in this range (IOCCG, 2006)]. UPDs in a(443), adg(443), aph(443), and bbp(443) across all wavelength suites ranged from −16.07 to 12.70%, −19.69 to 17.67%, −53.92 to 12.01%, and −19.50 to 12.99%, respectively (Table 4). For comparison, UPDs in a(555), adg(555), aph(555), and bbp(555) for SeaWiFS, PACE, and the two 5 nm wavelength suites ranged from −17.00 to 5.33%, −0.24 to 11.23%, −42.26 to 9.31%, and −10.60 to 3.54%, respectively. The differences between any two wavelength suites varied considerably for Ca > 1 mg m−3 (Figures 36). Even SeaWiFS, MODIS, and MERIS differed more substantially than in other Ca ranges—by ≤ 15.74, 15.03, 18.64, and 17.12% for a(443), adg(443), aph(443), and bbp(443), respectively, in absolute terms. Like the oligotrophic subset, OLCI retrieved low adg(443) and high aph(443) relative to all other wavelength suites, with the exception of MERIS. As for the other two subsets, the two 5 nm wavelength suites retrieved high adg(443), low aph(443), and low bbp(443) relative to all other wavelength suites. Their UPDs for aph(443) far exceeded those for the other suites.

TABLE 4
www.frontiersin.org

Table 4. As in Table 2, but for eutrophic water (1.0 < Ca ≤ 5.0 mg m−3).

Differences in IOPs from SeaWiFS and SeaWiFS-modified-to-look-like-VIIRS largely demonstrated similar patterns. For context, Figure 7 shows SeaWiFS-derived Ca (Hu et al., 2012) and the spatial distribution of olig-, meso-, and eutrophic waters, and Figure 8 shows the SeaWiFS-derived adg(443), aph(443), and bbp(443). Naturally, the cumulative distribution of observations falling into each of the trophic levels differs widely in comparison to the synthesized data set, which might be considered in the interpretation of these results. The median SeaWiFS-derived Ca for its olig-, meso-, and eutrophic regions were 0.066, 0.19, and 1.6 mg m−3, respectively. The corresponding median UPDs for adg(443) for these regions were 1.7, 1.8, and 4.2%, respectively, which approximately track the magnitude of the UPDs at these Ca values in Figure 4 (upper left panel, green line). Note, however, that VIIRS adg(443) falls below that for SeaWiFS by ~2% on average across the synthesized mesotrophic subset. Note also that the mesotrophic subset dominates globally and represents a great diversity in water type (Figure 7). The median UPDs for aph(443) for the three trophic regions were 9.8, 7.7, and −3.4%, respectively. These also roughly track the UPDs at the corresponding Ca shown in Figure 5, with the exception of the eutrophic subset, which also has a sign difference. Finally, the median UPDs for bbp(443) for these regions were 8.9, 8.0, and 2.3%, respectively. These UPDs match those shown in Figure 6 for the oligo- and eutrophic subsets. Geographically, adg(443) differ the least between SeaWiFS and surrogate VIIRS, with UPDs that hover around unity (Figure 8B). Both aph(443) and bbp(443) show some latitudinal dependence in their UPDs and surrogate VIIRS-derived values almost unequivocally exceed those from SeaWiFS (Figures 8D,F).

FIGURE 4
www.frontiersin.org

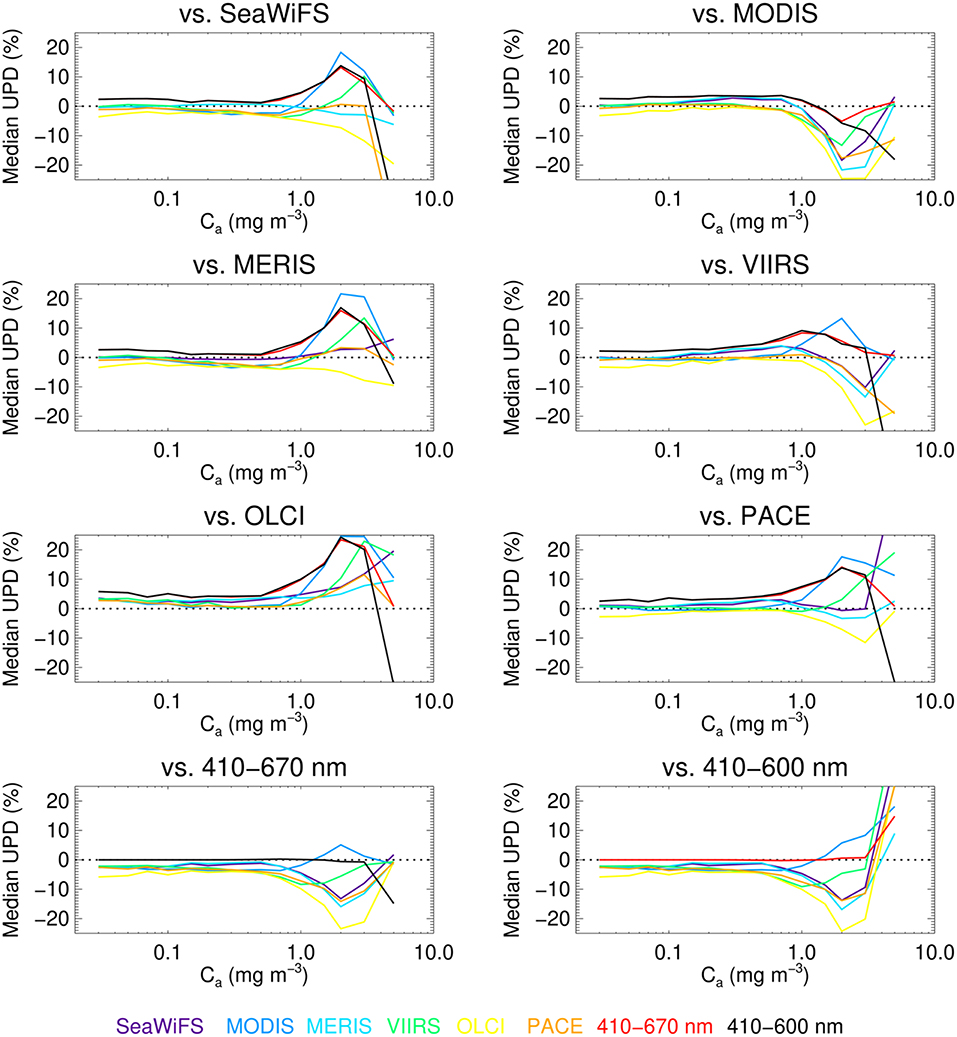

Figure 4. As for Figure 3, but for adg(443).

FIGURE 5
www.frontiersin.org

Figure 5. As for Figure 3, but for aph(443).

FIGURE 6
www.frontiersin.org

Figure 6. As for Figure 3, but for bbp(443).

FIGURE 7
www.frontiersin.org

Figure 7. SeaWiFS Ca calculated using mission-long Rrs(λ) as input into the OCI algorithm (Hu et al., 2012) (A) and the global spatial distribution of oligotrophic (cyan), mesotrophic (green), and eutrophic (orange) waters (B). Black and white indicate land and SAA algorithm failure, respectively.

FIGURE 8
www.frontiersin.org

Figure 8. Global IOPs calculated using SeaWiFS mission-long Rrs(λ) and the UPD between IOP values calculated using SeaWiFS and VIIRS wavelength suites (SeaWIFS = satellite1 and VIIRS = satellite2 in Equation 7). Geophysical values and UPD for adg(443) shown in (A,B), for aph(443) in (C,D), and for bbp(443) in (E,F).

As an additional thought experiment to loosely begin to tie our results to marine particle size distributions (PSDs) and, thus, phytoplankton functional types (PFTs), we applied the approach of Hirata et al. (2011) to locate pixels in this SeaWiFS imagery dominated by pico-, nano-, and microplankton (with dominance defined as >50%). On average, SeaWiFS and surrogate VIIRS-derived adg(443) differed by 1.7, 1.7, and 2.1% for these size classes, whereas aph(443) and bbp(443) differed by 8.4, 7.6, and 7.8% and 8.0, 7.4, and 8.0%, respectively. These values do not differ substantially from those of the previous exercise as expected, given that Hirata et al. (2011) seeds with Ca, but they offer a modest confirmation of the spatial patterns realized in our analyses. While evaluating the impact of our findings on PSD and PFT retrievals extends beyond the scope of this paper, we feel it remains an obvious follow-on to this work. Many options for estimation of PSDs and PFTs exist and follow-on activities could: (a) build upon our brief example using model-derived distributions of phytoplankton (e.g., Dutkiewicz et al., 2009; Rousseaux and Gregg, 2015); (b) quantify the impacts of varied SAA retrievals within PSD and PFT algorithms that use IOPs as input (see, e.g., IOCCG, 2014; Bracher et al., 2017; Mouw et al., 2017); or; (c) explore in more detail how differences in SAA retrievals for multiple sensors compare to spectral changes in marine IOPs that occur across natural variations in phytoplankton community composition (Alvain et al., 2012).

Sensitivity of the SAA Parameterization

Our choice in SAA parameterization made little difference in results achieved from the synthesized dataset. Figures 912 follow Figures 36 with the exception that the reported UPDs represent the average for eight SAA parameterizations. At Ca ≤ 0.5 mg m−3, the patterns in satellite-to-satellite UPDs for the ensemble of runs almost exactly mimicked those for the default SAA runs. This Ca range represents roughly 86% of the retrieved ocean in Figure 7. The most obvious difference in UPD patterns emerge at Ca > 2 mg m−3, which represents roughly 1.5% of the retrieved ocean. Interestingly, when Ca exceeded 2 mg m−3, UPD values for bbp(443) remained reasonably steady (Figure 12) for wavelength suites that included one or more orange/red bands placed between 550 and 670 nm (e.g., 620 nm on MERIS, OLCI, PACE, and the two 5 nm suites). This may be explained, in part, as due to eutrophic Rrs(λ) spectral features being more distinct in the red and less so in the blue. While differences in SAA retrievals almost certainly increase when directly comparing two parameterizations (vs. comparing one SAA to an ensemble of SAAs), this analysis serves to confirm that our default parameterization sufficiently represents a global average to reinforce that, in general, our results apply universally and do not depend on our choice in SAA parameterization.

FIGURE 9
www.frontiersin.org

Figure 9. Satellite-to-satellite median UPD for a(443) at each Ca interval as for Figure 3, but cumulatively considering all eight SAA parameterizations introduced in section Analyses.

FIGURE 10
www.frontiersin.org

Figure 10. As for Figure 9, but for adg(443).

FIGURE 11
www.frontiersin.org

Figure 11. As for Figure 9, but for aph(443).

FIGURE 12
www.frontiersin.org

Figure 12. As for Figure 9, but for bbp(443).

Discussion

We set out to use a controlled modeling environment to reveal and quantify the magnitude of change in derived IOPs associated with the use of eight different suites of satellite Rrs(λ). Ignoring such an analysis as CDRs continue to be developed will result in a prolonged inability to distinguish between algorithmic and environmental contributions to trends and anomalies in the IOP time-series. We believe we chose a sufficiently robust SAA (and parameterization) to execute this analysis, as we achieved respectable validation results across varied satellite wavelength suites and demonstrated that variations in algorithm parameterization do not affect the final results. Our results ultimately indicated, however, that different suites of satellite Rrs(λ) do indeed result in divergent IOP retrievals and that these divergences vary with global geography and water type.

Knowledge of these divergences carries implications and provokes additional questions about remediation strategies and paths forward. A comprehensive evaluation of the implications of our results on trend analyses or CDR development exceeds the scope of this paper. Suffice it to say, however, several of the differences we report will exceed the IOP trends one might wish to reveal, even for sensors with near common wavelengths. These differences will potentially translate into differences in downstream data products (e.g., PSDs, PFTs, and carbon and primary production data products) that use IOPs as inputs. We devote the remainder of this paper to brief discussions of what we learned, the limitations of our analyses, other confounding issues, and potential remediation strategies that might merit community attention in the future.

As previously stated, we revealed that differences in wavelengths in input Rrs(λ) lead to several percent differences in derived IOPs when using SAAs (and spectral matching approaches). We contend that this is critical to understand when developing CDRs across satellite platforms. But, we also acknowledge that, while the realized differences occasionally exceeded several percent, the absolute differences may be small. For example, a 5% window around an absorption value of 0.1 m−1 corresponds to ±0.005 m−1, which approaches the detection limit of in situ absorption meters. With this in mind, we offer that our results contribute to the knowledge base for CDR development, but should not necessarily be cause for enduring alarm. Perhaps more importantly—at least in the context of identifying needs for future studies—our results also suggest that: (a) validation exercises alone cannot unequivocally identify the differences that will be realized across varied satellite instrument wavelength suites; (b) including 400 nm (in the case of OLCI) influences the derived IOPs and UPDs relative to other wavelength suites; (c) using longer wavelengths (> 600 nm) influences the derived IOPs when there is a red signal (e.g., eutrophic conditions); and (d) including additional spectral information shows potential for improved IOP estimation [e.g., those suites with greater spectral resolution reported the lowest combined biases in derived aph(443) and bbp(443)], but not without revisiting SAA parameterizations and execution [e.g., they often also carried the highest biases in derived adg(443)].

What points (b)–(d) above really indicate is the need for additional consideration of SAA behavior as the community moves toward increased spectral information. This could involve revisiting the use of alternate Sdg parameterization when considering additional shorter wavelengths, improved consideration of band-to-band covariances within the inversion strategy, the use of alternate cost functions that exploit additional spectral information (e.g., through weighting or consideration of instrument noise and uncertainties), additional evaluation of the AOP-to-IOP relationship expressed in Equation (2), and the development of schemes that switch between parameterizations under different regions, trophic levels, or bio-optical, hydrological, or environmental conditions, to name only a few (Werdell et al., 2018). Within the paradigm of CDR development, the need also exists for robust datasets to explore, train, and evaluate SAAs for application to varied satellite instruments.

We considered two independent datasets, but neither perfectly encapsulate or represent all marine conditions at all times. Despite not being perfectly aligned in composition, the two datasets revealed the existence of differences in derived IOPs that generally matched each other in direction and magnitude. Their differences in composition, however, should be considered while interpreting our results. While the synthesized dataset represents a wide dynamic range of water types, it only represents those conditions that follow its inherent bio-optical assumptions (and, recall, that all bio-optical relationships within this dataset begin with Ca). Note that bio-optical relationships within our SAA differ from those in the synthesized dataset. Furthermore, the cumulative distribution of stations within the synthesized dataset do not numerically represent natural global oligo-, meso-, and eutrophic distributions of seawater. While the mission-long Level-3 SeaWiFS data provided a representation of global distributions of data, they offered long-term averages without explicit consideration of seasonal and geographic variations that emerge in time-series analyses. All this said, we believe our two datasets adequately complemented each other and offered a broad dynamic range of conditions for this initial study. They successfully indicated similar differences in IOP retrievals, but future results will likely vary depending on the dataset under consideration.

Our analyses used common and consistent input Rrs(λ) across all eight wavelength suites, which we well known does not represent real life in multi-mission CDR development (e.g., Franz et al., 2005, 2018). Space agencies invest substantial effort into absolute and temporal radiometric characterization of ocean color satellite instruments that minimizes cross-instrument biases in Rrs(λ), but differences inevitably remain (Zibordi et al., 2014; Barnes and Hu, 2016; Mélin et al., 2016). Such differences will certainly further confound the compatibility of derived IOPs across satellite instruments, although whether they amplify or dampen our results will vary instrument-to-instrument based on the relative consistencies of the Rrs(λ). Naturally, relative temporal stability across satellite instruments presents the greatest concern and challenge in long-term CDR development. Other confounding issues include variations in instrument design (e.g., pushbroom vs. whiskbroom and the resulting number of detectors providing science data), differences in pre-launch instrument characterization activities and methods, differences in protocols and data sources for on-orbit instrument calibration, and variations in algorithms applied prior to executing an SAA, all of which contribute in some way to varied instrument-to-instrument uncertainties in Rrs(λ).

Once again ignoring the latter for the moment, several proposed strategies exist to mitigate the use of differing Rrs(λ) as input into bio-optical algorithms. The first, and perhaps least satisfying, simply reduces the number of input wavelengths to the lowest common suite (e.g., limiting SAA execution to roughly 412, 443, 490, 547-555-560, and 667-670-665 nm for MODIS-SeaWiFS-MERIS/OLCI for comparison with VIIRS). Werdell et al. (2009) provides a relevant example of doing so in Chesapeake Bay to retrieve Ca using an SAA. Approaches to shift bands, say from Rrs(547) to Rrs(555), also exist. Several of the bio-optical algorithms under the OBPG purview, for example, require such adjustment (e.g., Stramski et al., 2008; Hu et al., 2012), which they perform using simple linear statistical relationships developed using in situ data (Werdell and Bailey, 2005). Melin and Sclep (2015) developed a more sophisticated band-shifting approach that employs bio-optical models to adjust band centers. Their approach uses preliminary estimates of IOPs such that its use within the context of this analyses would ultimately results in an iterative scheme.

Ultimately, none of these remediation strategies assist with moving from multispectral heritage instruments to future hyperspectral instruments (e.g., PACE). While degrading PACE's spectral resolution to mimic heritage instrumentation remains possible, doing so discards the advances of its instrumentation that we ultimately expect to improve SAA performance and IOP estimation in general, such as inclusion of ultraviolet bands. In the end, this may be unavoidable, with multi-decade IOP-based CDRs in the PACE era reduced to the best available approach across heritage instruments. While we expect novel approaches to emerge that include additional ancillary (environmental) information or spectral weighting/balancing that somewhat mitigate differences in input wavelength suites, the promise of the emerging era of satellite spectroscopy is that additional wavelengths will result in superior data products. Intuitively, we therefore expect two parallel paths forward in SAA development: one that continues to push the boundary of what is possible with heritage, existing, and planned multispectral instruments (e.g., VIIRS and OLCI) and one that exploits spectroscopy and contiguous spectral resolution. The challenge to the community will then become tracking and understanding differences between the two paths such that the presumably advanced approaches (through spectroscopy) can inform on the underlying limitations and additional uncertainties associated with the long-term (multispectral) data record.

Data Availability

The synthetic dataset generated for this study can be found on PANGAEA (https://doi.pangaea.de/10.1594/PANGAEA.899407). The satellite imagery can be found on the NASA OceanColor Web site (https://oceancolor.gsfc.nasa.gov).

Author Contributions

PW: conceptualization, methodology, and data analysis. LM: synthetic dataset development. PW and LM: original draft, reviewing, editing, and revision.

Funding

This research was funded by the NASA Ocean Biology and Biogeochemistry Program via an award under the solicitation The Science of Terra, Aqua, and Suomi NPP.

Conflict of Interest Statement

LM was employed by company Go2Q Pty Ltd.

The remaining author declares that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

We thank the NASA Ocean Biology Processing Group staff for their advice during the preparation of this manuscript. We also thank our two reviewers for their highly constructive comments and recommendations.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/feart.2019.00054/full#supplementary-material
