MINI REVIEW article

Front. Earth Sci., 26 November 2020 | https://doi.org/10.3389/feart.2020.576017

Hydrogeological Earthquake Precursors: A Case Study From the Kamchatka Peninsula

  • Geophysical Survey of the Russian Academy of Sciences, Kamchatka Branch, Petropavlovsk-Kamchatsky, Russia

The relevance of hydrogeological precursors (HGPs) study is justified by the need to obtain reliable information about the spatio-temporal manifestations and the relationships of HGPs with the parameters of subsequent earthquakes for seismic forecasting. In the review the data on repeated manifestations of HGPs before strong earthquakes obtained from long-term observations in five deep wells on the Kamchatka Peninsula (Far East of Russia) are presented. The analysis of the correlation of HGPs occurring in several wells is carried out in comparison with earthquake parameters characterizing both earthquake sources (magnitude, linear size of the source) and the impact of earthquakes in the area of wells (specific energy density in wave, intensity of shaking). It is shown that the manifestation of HGPs in several wells is observed before earthquakes with Mw = 6.6–7.8 at epicentral distances up to the first hundreds of km to observation wells in the near and intermediate zones of the sources with the ratio of the epicentral distances and the source sizes no more than 1–5. A feature of our study was the use of certain types of HGPs in water-level changes for predictive assessments of the strong earthquakes in the Kamchatka Peninsula. The review presents precursors in water-level changes detected in real time and the corresponding earthquake forecasts, which were recognized as successful according to the conclusions of the expert council on earthquake prediction.

Introduction

Studies of hydrogeological precursors of earthquakes, manifested in changes in physical and chemical parameters of groundwater HGPs have been carried for decades (Roeloffs, 1988; Thomas, 1988; Wang and Manga, 2010; King, 2018; King and Manga, 2018; Skelton et al., 2019). The relevance of studying such phenomena is justified by the need to obtain reliable information about the spatio-temporal manifestations and the relationships of HGPs with the parameters of subsequent earthquakes for seismic forecasting. The basis for studying the HGPs for predicting earthquakes is the systematization of their recurring manifestations according to the data of long-term observations in individual wells. Unfortunately, there are few such reliable data on HGPs. In the above-mentioned works, it is reported mainly about “supposed” precursors in the parameters of groundwater. The lack of a sufficient number of such “supposed” precursors does not allow them to be used for seismic forecasting and obtaining of such new data is the primary task of further research.

The review presents data on HGPs obtained from long-term hydrogeochemical and level observations in five wells on the Kamchatka Peninsula. These data are poorly known, because most of the previous publications about HGPs in wells of Kamchatka were in Russian. Brief information on hydrogeochemical observations in the Kamchatka Peninsula is given in (Wang and Manga, 2010). In Biagi et al. (2000a) and Biagi et al. (2000b) some anomalies in the chemical composition of groundwater and gas before the Kamchatka earthquakes of the 1990s were described.

Our review is aimed to a description at both of data on HGPs in the Kamchatka wells, and an experiment for predicting earthquakes in real time using some types of HGPs. The data on HGPs in previously works of authors and other researchers along with the graphical presentation of the HGPs (see Supplementary Materials S1) provide detailed information on the observation wells, methods of observations and the features of HGPs manifestations in the individual wells. These materials form the basis of generalization about the relationship of the considered HGPs with parameters of the subsequent earthquakes.

An important feature of our long-term study of HGPs in water-level changes is the combination of observations in wells with an experiment on the use of certain types of HGPs for predictive assessments of the strong earthquakes in the Kamchatka Peninsula. This review presents examples of the precursors in water-level changes detected in real time, and forecasts of strong earthquakes recognized as successful according to conclusions of the expert council on earthquake prediction working in the Kamchatka Krai.

Observational Data, Precursors, Cooperation With the Expert Council

The Kamchatka Peninsula (Figure 1A) is part of the Kamchatka Krai in the Russian Far East. It is located at the junction of the Pacific oceanic plate with the Eurasian and North American continental plates. This region is prone to frequent strong earthquakes which cause damaging ground motion and devastating tsunami. The strategies for reducing negative impacts from the earthquakes include, inter alia, the monitoring studies aimed at establishing the precursors and forecasting the time of the strong earthquakes.

FIGURE 1
www.frontiersin.org

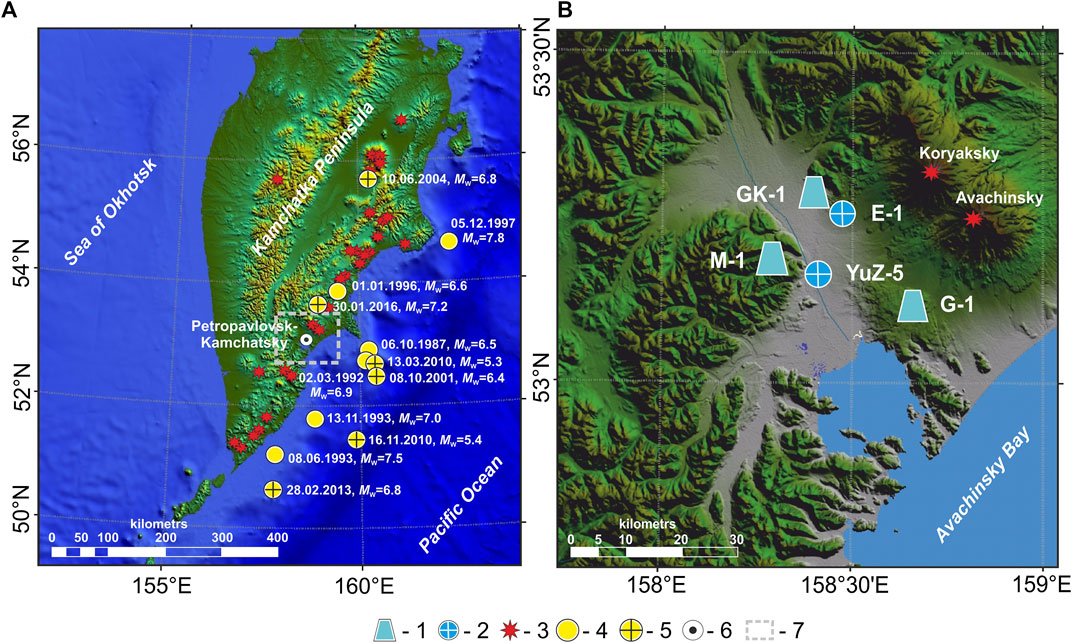

FIGURE 1. The layout of the observation wells and earthquake epicenters in the Kamchatka Peninsula: (A) earthquakes preceded by hydrogeological precursors; (B) observation wells at the Petropavlovsk-Kamchatsky test site. Designations: 1, flowing wells; 2, piezometric wells; 3, active volcanoes; 4, 5, earthquake epicenters: 4, hydrogeological precursors revealed retrospectively; 5, hydrogeological precursors detected in water-level changes in the E-1 well in real time; 6, Petropavlovsk-Kamchatsky city; 7, Petropavlovsk-Kamchatsky test site in Figure 1A.

Kamchatka Branch of the Geophysical Survey of the Russian Academy of Sciences (KB GS RAS) conducts long-term groundwater-level and chemical composition monitoring at a network of wells in the Petropavlovsk-Kamchatsky testing site (Figure 1B) in order to search for hydrogeological precursors of earthquakes and other effects of seismicity in groundwater parameters (Kopylova and Boldina, 2019). The data on the wells with repeated HGPs occurrences are presented in Supplementary Materials Table S1 and Figure S1. In all considered wells, water is not pumped out, as well as other man-made activities do not affect their natural state.

During the visits to the flowing wells GK-1, M-1, and G-1, the employees of the Laboratory of hydroseismology carried out flow rate measurements and water sampling every three days in 1986–1999. Free gas sampling was conducted from the GK-1 well. Water samples were tested for pH as well as for the anion and cation concentrations. The gas content was analyzed chromatographically. Water and gas parameters were determined with an accuracy of 2–10% (Khatkevich and Ryabinin, 2006). After 1999, the system of hydrogeochemical observations had changed due to an increase in the observation interval, a decrease in the set of determined parameters of the groundwater composition and experiments with the installation of equipment into wellbores that violate the natural hydrodynamic and hydrogeochemical regime of wells. Therefore, we consider the hydrogeochemical data only for the period 1986–1998, for which uniform time series were obtained under the conditions of the natural regime of observation wells.

In piezometric wells E-1 and YuZ-5 the instruments installed in 1996 provide highly sensitive water-level and atmospheric pressure recording up to ±0.1 cm and ±0.1 hPa, respectively, with a frequency of 5–10 min (Kopylova et al., 2017). In 1987–1994, water-level measurements in the E-1 well were carried out daily with an accuracy of ±0.5 cm, variations in atmospheric pressure were recorded by a barograph with an accuracy of 1 hPa (Kopylova, 2001). The seismic effects in water-level changes are identified with due regard of the influence of atmospheric pressure, precipitation, Earth’s tides, seasonal trend, and other factors (Kopylova et al., 2019).

The primary outcome of long-term observations is that it was revealed hydrogeochemical and hydrogeodynamic phenomena preceding strong local earthquakes (Figure 1A). The data on earthquakes preceded by HGPs manifested in two to four observation wells are presented in Supplementary Materials Table S2.

In this paper, we consider the following effects as HGPs originally detected retrospectively:

i) visually distinguishable and statistically confirmed anomalies in the ionic and dissolved gas composition of the groundwater in the flowing wells GK-1, M-1 and G-1 (Kopylova et al., 1994; Biagi et al., 2000a; Biagi et al., 2000b; Khatkevich and Ryabinin, 2006; Kopylova and Taranova, 2013);

ii) higher-rate water-level decreases repeatedly manifested before earthquakes with M ≥ 5.0 in the E-1 well which were identified as the precursors PS1 and PS2 (Kopylova, 2001; Kopylova and Boldina, 2012; Kopylova and Boldina, 2019);

iii) substantial deviation in water-level behavior from seasonal average pattern in the YuZ-5 well (Boldina and Kopylova, 2017; Kopylova and Boldina, 2019; Supplementary Materials Figure S4).

Hydrogeological precursors in the groundwater ion and gas composition in three wells are presented in Supplementary Materials Figure S3.

In the GK-1 well, a decline in chloride ion concentration was observed within one to nine months before six earthquakes (Supplementary Materials Table S2 and Figure S3A, left diagram). In the cases of the earthquakes of January 1, 1996 and December 5, 1997, the decreases in chloride ion concentration were changed into the sharp increases lasting 4–5 months. The increase in the variance and the change in the average concentrations of free gases were observed during 2 months before the earthquake of March 2, 1992 (Supplementary Materials Figure S3A, right diagram).

In the M-1 well, the concentration of bicarbonate ion decreased before five earthquakes (Supplementary Materials Table S2 and Figure S3B). In four cases, simultaneous increases were detected in the concentrations of sulfate ion, calcium, and sodium. Within one month before the earthquake of March 2, 1992, water mineralization increased by 25%, and the hydrogeochemical type of water has changed due to the increase in the concentration of sulfate ion and the decrease in the concentration of bicarbonate ion (Kopylova et al., 1994).

The changes in the concentrations of chloride ion, sulfate ion, bicarbonate ion as well as sodium and calcium were observed in the G-1 well before the earthquakes of January 1, 1996 and December 5, 1997 (Supplementary Materials Figure S3С) (Khatkevich and Ryabinin, 2006).

The maximum durations of hydrogeochemical anomalies (T1) and lead times before earthquakes (T2) in individual wells are presented in Supplementary Materials Table S2. The T1 and T2 values coincide for wells GK-1 and G-1. At the same time, the M-1 well is characterized by the appearance of relatively short-term hydrogeochemical anomalies (T1 = 4 weeks) during 4–21.5 weeks before earthquakes. This feature of the well is associated with a high rate of water exchange in the wellbore due to the high water discharge (q = 1.5 dm3/s) compared to wells GK-1 and G-1 (q = 0.1 and <0.001 dm3/s).

Examples of hydrogeological precursors in water-level changes in wells E-1 and YuZ-5 are given in (Kopylova, 2001; Kopylova, 2006; Boldina and Kopylova, 2017; Kopylova and Boldina, 2019; Supplementary Materials Figures S4–S7).

According to digital observations 1996–2016 at well E-1, two types of the pre-seismic signals are identified in daily rate of water-level decreases: PS1 developing weeks prior to the earthquakes (Supplementary Materials Figures S4,S6) and PS2 with a manifestation time of 5–6 years (Supplementary Materials Figure S7). The PS1 signal manifests itself in a more rapid water-level decline with increased daily rate before the earthquakes with M ≥ 5.0 at epicentral distances de ≤ 350 km. It was found that an expected earthquake can occur within a time of about one month after the end of the PS1 (in 90% of the cases) or during the PS1 development (in 10% of the cases).

According to the manual level measurements in 1987–1994, seven cases of a water-level decreases with amplitudes 4–47.4 cm were revealed during 3–36 weeks before earthquakes with Mw = 5.6–7.5 considered as hydrogeodynamic precursors (Kopylova, 2001).

The PS2 signal appears as a more rapid long-term water-level decline with increased daily rate preceding and accompanying the groups of the Kamchatka strong earthquakes (Kopylova and Boldina, 2019). This type of HGP was observed in 1991–1997 (six 1992–1997 earthquakes with Mw = 6.9–7.8 at epicentral distances up to 300 km) (Kopylova, 2001) and in 2012–2016 (four 2013–2016 earthquakes with magnitudes Mw = 6.6–8.3 (Supplementary Materials Figure S7).

In the YuZ-5 well, we have revealed retrospectively two cases of the anomalous changes in the water-level before the earthquakes of December 5, 1997 with Mw = 7.8 and January 30, 2016 with Mw = 7.2 (Kopylova and Boldina, 2019; Supplementary Materials Figure S5).

The durations of hydrogeological precursors in different wells prior to individual earthquakes (T1) ranged from 4 to 39 weeks, i.e., from about 1 to 9 months, and do not show any relationship with earthquake magnitudes (Supplementary Materials Figure S2A). For the M-1 well, there is an increase in the lead time of the hydrogeochemical anomaly (T2) in the range 1–5 months with an increase in the magnitude of subsequent earthquake (Supplementary Materials Figure S2B).

The hypothetical mechanisms of the hydrogeochemical and hydrogeodynamic precursors in observation wells of the Kamchatka Peninsula were considered in previous publications and briefly presented in Supplementary Materials S2.

The expert councils for earthquake prediction have been working in Kamchatka Krai for many years providing official seismic forecasts based on seismological, geophysical, hydrogeological, and other types of observations (Chebrov et al., 2011; Chebrov et al., 2013). Observation data at the wells of the Petropavlovsk-Kamchatsky test site are also used in the practice of such expert councils. Our collaboration with the Kamchatka branch of the Russian Expert Council for Earthquake Forecasting and Seismic Hazard and Risk Assessment (KB REC) which determines the correspondence between the released forecasts and the occurrence of the actual earthquakes provides the unique possibility to demonstrate practical significance of the some types of HGPs for real-time forecasting of the Kamchatka earthquakes.

Long-term data were obtained on the occurrences of the precursory signal PS1 in water-level changes in the E-1 well. The retrospective forecasting 1996–2012 earthquakes on the base of PS1 according the approach (Gusev, 1974; Kopylova, 2001; Chebrov et al., 2011; Chebrov et al., 2013) is presented in Supplementary Materials Table S3.

When PS1 is detected in real time, the forecast is made for 1–2 months (Supplementary Materials Figure S8). The observational data and the timing of the forecast are shown in Supplementary Materials Figure S6.

In accordance with the KB REC assessments our forecasts made on base of PS1 in 2004–2016 were true in terms of the time, location, and magnitude of the six events with Mw = 5.3–7.2 (Figure 1A).

Relationship Between hydrogeological Precursors and Earthquake Parameters

When using HGP in individual well to predict earthquakes, it is necessary to know about the relationship between the HGP in that well and the parameters of subsequent earthquakes (magnitude, epicentral distance), as well as to estimate the expected seismic impact in the observation area.

We have analyzed the relationship between considered HGPs in individual wells and the parameters of the subsequent earthquakes (Figure 2). As the parameters characterizing the earthquakes, we considered the ratio between magnitude Mw and epicentral distance to the well (de). The value of the specific density of seismic energy in the wave (e) was used as a parameter of the earthquake impact in the area of the observation well. The e value is proportional to the square of the seismic wave velocity and can be applied as a metric for some co- and post-seismic processes such as soil liquefaction and undrained consolidation of sedimentary deposits (Wang and Chia, 2008; Wang and Manga, 2010). The e values were estimated by the formula logde = 0.48Mw−0.33loge−1.4 (Wang, 2007; Wang and Chia, 2008) and used to evaluate the range of e variations for the earthquakes preceded by the HGPs in the wells of the Kamchatka Peninsula. Previously in (Wang, 2007; Wang and Chia, 2008; Wang and Manga, 2010; Kopylova and Boldina, 2020), the e values were applied to assess co- and postseismic phenomena in ground- and surface waters. In this work, the e values are used to assess the possible seismic impact of earthquake in the observation area with manifestations of hydrogeological precursors.

FIGURE 2
www.frontiersin.org

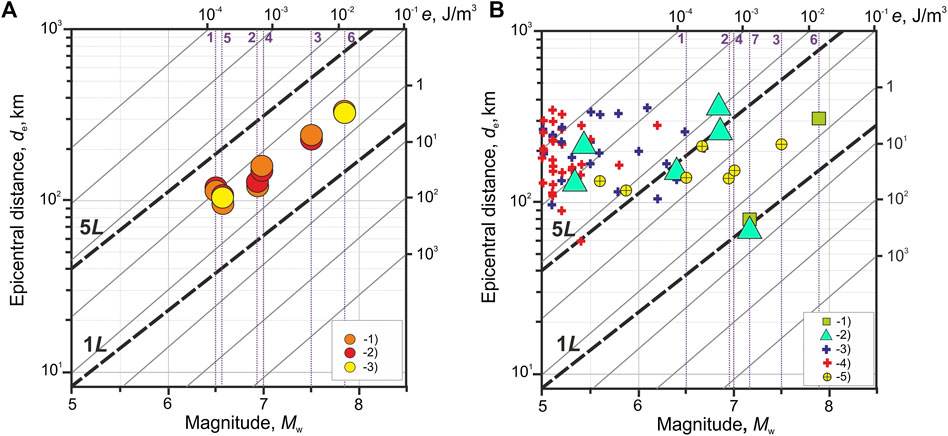

FIGURE 2. Distribution of earthquake hydrogeological precursors in the observation wells as function of the parameters of the subsequent earthquakes: magnitude Mw, epicentral distance de, and specific density of seismic energy e: (A) hydrogeological precursors in chemical composition of water in flowing wells (1) GK-1, (2) M-1, (3) G-1 (Supplementary Materials Table S2); (B) hydrogeological precursors in water-level changes in wells (1) YuZ-5, (2)–(5) E-1: (2) PS1, determined in real time with the issuance of a conclusion on a possible earthquake for KB REC; (3) 1996–2012 earthquakes with M ≥ 5.0, de ≤ 350 km preceded by retrospectively identified PS1 (Supplementary Materials Table S3); (4) 1996–2012 earthquakes with M ≥ 5.0, de ≤ 350 km not preceded by PS1, and (5) water-level decreases at an increased rate preceded the 1987–1996 earthquakes (Table 3 in Kopylova, 2001). Thin vertical dotted lines on the magnitude scale indicate earthquakes preceded by hydrogeological precursors in two to four wells, the earthquake numbers correspond to the numbers in Supplementary Materials Table S2. The lines 1L, 5L show one and five maximal linear sizes of the source.

The earthquakes with Mw = 6.5–7.8 before which there have been precursory anomalies in the groundwater chemical composition in two to three wells occurred at the epicentral distances de = 95–308 km, or 2.1–3.7 maximum linear sizes of earthquake sources according to (Riznichenko, 1976) (Figure 2A). During these earthquakes which were accompanied by the ground shaking with intensity I = 4.5–5.5 on MSK-64 scale (Supplementary Materials Table S2) the e values were 0.1–0.3 J/m3. Close values of e were obtained for the two earthquakes, before which a precursor appeared in water-level changes in the YuZ-5 well (Figure 2B).

As mentioned above, long-term data were obtained on the occurrences of the precursory signal PS1 in the E-1 well before earthquakes with M ≥ 5.0, de ≤ 350 km highlighted retrospectively (Figure 2B, Supplementary Materials Table S3). Figure 2B also shows 1996–2012 earthquakes with M ≥ 5.0, de ≤ 350 km before which PS1 did not appear for the period of retrospective analysis (red crosses). In the range of magnitudes M = 5.0–6.5, the PS1 signal appears in 44% of cases (blue crosses), whereas before earthquakes with Mw = 6.6–7.8, PS1 manifested itself almost always.

Before the six 2004–2016 earthquakes, PS1 was identified in real time and advanced forecasts were issued (Figures 1A, 2B). We believe that with pronounced manifestations of PS2 and PS1 in water-level changes in the E-1 well, as well as other types of considered HGPs, a seismic forecast is possible for the strongest earthquakes in the adjacent segment of the Kamchatka seismic focal zone. Such earthquakes can be characterized by the magnitudes Mw≥6.6, the de/L ratio below 5, and the e value above 0.1 J/m3 (Figure 2).

Conclusion

(1) Hydrogeological precursors manifesting themselves in the changes of chemical composition and pressure of groundwater at depths from hundreds of meters to a few first km are demonstrated on the case study from the Kamchatka Peninsula with a low population density and lack of industrial enterprises. The wells where hydrogeological precursors were detected are characterized by the absence of the influence of groundwater development and other anthropogenic factors which can disrupt the natural state of groundwater during the preparation of earthquakes. Unfortunately, in many cases when studying hydrogeological effects before earthquakes, an important aspect of the technogenic impact on the regime of observation wells is not sufficiently taken into account (King, 2018; King and Manga, 2018; Wang et al., 2018). When discussing the relatively long-term manifestations of hydrogeological precursors from urbanized and densely populated countries, it is necessary to consider technogenic factors in more detail, as well as climatic factors and their influence on the processes of groundwater filtration. Otherwise, ideas about the forms of hydrogeological precursors and their connections with the parameters of subsequent earthquakes may be distorted.

(2) A correlation was detected between the manifestations of hydrogeological precursors in considered wells and the parameters of the subsequent earthquakes (Figure 2). In the Kamchatka Peninsula, the hydrogeological precursors were mainly observed before the earthquakes with Mw = 6.6–7.8 at the epicentral distances of 80–300 km from the wells. These earthquakes caused ground shaking with intensity four to six on MSK-64 scale; seismic energy density during these events in the regions of the wells ranged from 0.1 to 4.5 J/m3. The HGPs were mainly observed in the near and intermediate field zones of the earthquake sources (de/L = 0.9–3.7). The data obtained on the HGPs manifestations can be useful in the study of the phenomena in the groundwater preceding strong earthquakes of other seismically active regions and other geophysical fields associated with changes in water pressure and physical properties of water-saturated rocks.

(3) In the case of the E-1 well, we revealed the increased sensitivity of fluid pressure during the preparation of the strong earthquakes which manifested itself in the more rapid water-level falls at an increased rate both before separate earthquakes (PS1 precursory signal) and before groups of the strong earthquakes (PS2 precursory signal). This indicates that during the preparation of strong (Mw ≥ 6.6) earthquakes, a decrease of water pressure in gas-saturated groundwater occurs over a period of time from weeks to several years. Such a process can occur with an increase in the capacity of water-bearing rocks, as well as due to phase transitions of gas and an increase in the density of groundwater in water-bearing rocks and in the wellbore.

(4) The retrospective analysis of the PS1 manifestations has shown that with the increase in the magnitudes of the predicted earthquakes from M ≥ 5.0 to Mw ≥ 5.8, the efficiency of PS1 for the seismic forecast increases from J = 1.4 to J = 2.4 (Supplementary Materials Table S3). This indicates that PS1 is a useful precursor of the strong earthquakes which may improve the forecasts of such earthquakes by a factor of 1.4–2.4 compared to random guessing. At the same time, the relatively low statistical estimates of the correlation between the PS1 and the subsequent earthquakes make the PS1 applicable for seismic forecasting only if combined with the other observation data and other precursors. The correlations between the other precursors and the subsequent earthquakes in Kamchatka are also low and not exceeding the values obtained for the PS1 (Serafimova and Kopylova, 2010; Chebrov et al., 2011; Chebrov et al., 2013). This highlights the need for developing new methods for analyzing of the prognostic data for increase the accuracy and reliability of earthquake forecasting. The data on the joint occurrence of different precursors before earthquakes from the archives of the expert councils may help much in providing more objective estimates of the efficiency of the precursors for seismic forecasting.

(5) Since 2001, an experiment has been conducted on the use of the PS1 precursor, and since 2012, together with the PS2 precursor, to predict earthquakes in real time by submitting forecasts to the KB REC. According to the KB REC conclusions, successful predictions of the location, time, and magnitude were made for six 2004–2016 earthquakes with Mw = 5.3–7.2 (Figures 1A, 2B).

We believe that progress in the study of hydrogeological and other types of earthquake precursors for seismic forecasting can be achieved with closer collaboration of specialists observing precursors with expert councils for earthquake prediction.

Author Contributions

All authors listed have made a substantial, direct, and intellectual contribution to the work and approved it for publication.

Funding

The study was funded by the Kamchatka branch of the Geophysical Survey of the Russian Academy of Sciences (KB GS RAS) with the partial participation of the Russian Foundation for Basic Research, grant 18-05-00337.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

The work was supported by Ministry of Science and Higher Education of the Russian Federation (Nº 075‐01304‐20) and the Russian Foundation for Basic Research under project 18‐05‐00337 “Typification and models of hydrogeoseismic effects of the earthquakes from water-level measurements in wells: case study of Kamchatka region.”

Supplementary Materials

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/feart.2020.576017/full#supplementary-material

References

Biagi, P. F., Ermini, A., Cozzi, E., Khatkevich, Y. M., and Gordeev, E. I. (2000a). Hydrochemical precursors in Kamchatka (Russia) related to the strongest earthquakes in 1988‒1997. Nat. Hazards 21, 263. doi:10.1023/A:1008178104003

CrossRef Full Text | Google Scholar

Biagi, P. F., Ermini, A., Kingsley, S. P., Khatkevich, Y. M., and Gordeev, E. I. (2000b). Groundwater ion content precursors of strong earthquakes in Kamchatka (Russia). Pure Appl. Geophys. 157, 1359. doi:10.1007/PL00001123

CrossRef Full Text | Google Scholar

Boldina, S. V., and Kopylova, G. N. (2017). Effects of the January 30, 2016, Mw = 7.2 Zhupanovsky earthquake on the water level variations in wells Yuz-5 and E-1 in Kamchatka. Geodin. Tektonofiz. 8 (4), 863–880. doi:10.5800/GT‐2017‐8‐4‐0321

CrossRef Full Text | Google Scholar

Chebrov, V. N., Saltykov, V. A., and Serafimova, Y. K. (2013). Identifying the precursors of large (M ≥ 6.0) earthquakes in Kamchatka based on data from the Kamchatka Branch of the Russian expert council on earthquake prediction: 1998-2011. J. Volcanolog. Seismol. 7 (1), 76–85. doi:10.1134/S074204631301003X

CrossRef Full Text | Google Scholar

Chebrov, V. N., Saltykov, V. A., and Serafimova, Y. K. (2011). Prognozirovaniye zemletryaseniy na Kamchatke. Po materialam raboty Kamchatskogo filiala Rossiyskogo ekspertnogo soveta po prognozu zemletryaseniy, otsenke seysmicheskoy opasnosti i riska v 1998‒2009 gg. (Forecasting earthquakes in Kamchatka. Based on the work of the Kamchatka branch of the Russian Expert Council on earthquake forecasting, seismic hazard and risk assessment in 1998‒2009). Moskva: Svetoch Plyus. [in Russian].

Google Scholar

Gusev, A. A. (1974). “Earthquake prediction based on seismicity statistics,” in Seismichnost’ i seismicheskii prognoz, svoistva verkhnei mantii i ikh svyaz’ s vulkanizmom na Kamchatke (Seismicity and Earthquake Prediction, Upper Mantle Properties and Their Relationship to Volcanism in Kamchatka). (Novosibirsk: Nauka), 109–119. [in Russian].

Google Scholar

Khatkevich, Y. M., and Ryabinin, G. V. (2006). Geochemical and ground water studies in Kamchatka in the search for earthquake precursors. Volkanologiya i seysmologiya 4, 34–42. [in Russian].

Google Scholar

King, C.-Y. (2018). Characteristics of a sensitive well showing pre-earthquake water-level changes. Pure Appl. Geophys. 175, 2411–2424. doi:10.1007/s00024-018-1855-4

CrossRef Full Text | Google Scholar

King, C.-Y., and Manga, M. (2018). Hydrological, geochemical and geophysical changes related to earthquakes and slow-slip events: introduction. Pure Appl. Geophys. 175, 2407–2409. doi:10.1007/s00024-018-1923-9

CrossRef Full Text | Google Scholar

Kopylova, G. N., and Boldina, S. V. (2020). Effects of seismic waves in water level changes in a well: empirical data and models. Izvestiya Phys. Solid Earth 56 (4), 530–549. doi:10.1134/S1069351320030039

CrossRef Full Text | Google Scholar

Kopylova, G. N., and Boldina, S. V. (2019). Hydrogeoseismological research in Kamchatka: 1977-2017. J. Volcanolog. Seismol. 13 (2), 71–84. doi:10.1134/S0742046319020040

CrossRef Full Text | Google Scholar

Kopylova, G. N., and Boldina, S. V. (2012). On the relationships of water-level variations in the E-1 well, Kamchatka to the 2008-2009 resumption of activity on Koryakskii volcano and to large (M ≥ 5) earthquakes. J. Volcanolog. Seismol. 6 (5), 316–328. doi:10.1134/S074204631205003X

CrossRef Full Text | Google Scholar

Kopylova, G. N., Boldina, S. V., Smirnov, A. A., and Chubarova, E. G. (2017). Experience in registration of variations caused by strong earthquakes in the level and physicochemical parameters of ground waters in the piezometric wells: the case of Kamchatka. Seism. Instr. 53 (4), 286–295. doi:10.3103/S0747923917040065

CrossRef Full Text | Google Scholar

Kopylova, G. N. (2006). Earthquake-induced water level changes in the YuZ-5 well Kamchatka. Volkanologiya i seysmologiya 6, 52–64. [in Russian].

Google Scholar

Kopylova, G. N., Lyubushin, A. A., and Boldina, S. V. (2019). Statistical analysis of precision water level data from observations in a seismoactive region: case study of the YuZ-5 well, Kamchatka. Seism. Instr. 55 (5), 507–523. doi:10.3103/S0747923919050086

CrossRef Full Text | Google Scholar

Kopylova, G. N., Sugrobov, V. M., and Khatkevich, Y. M. (1994). Variations in the regime of springs and hydrogeological boreholes in the Petropavlovsk polygon (Kamchatka) related to earthquakes. Volkanologiya i seysmologiya. 2, 53‒70. [in Russian].

Google Scholar

Kopylova, G. N., and Taranova, L. N. (2013). Synchronization signals in the variations of groundwater chemical composition in Kamchatka in relation to the strong (M W ≥ 6.6) earthquakes. Izvestiya Phys. Solid Earth 49 (4), 577–586. doi:10.1134/S106935131304006X

CrossRef Full Text | Google Scholar

Kopylova, G. N. (2001). Variations of water level elizovskaya 1 well, Kamchatka due to large earthquakes: 1987–1998 observations. Volkanologiya i seysmologiya. 2, 39–52. [in Russian].

Google Scholar

Riznichenko, Y. V. (1976). “The source dimensions of the crustal earthquakes and the seismic moment,” in Issledovaniya po fizike zemletryasenii (studies in earthquake physics). (Moscow: Nauka), 9–27. [in Russian].

Google Scholar

Roeloffs, E. A. (1988). Hydrologic precursors to earthquakes: a review. Pageoph 126, 177–209. doi:10.1007/bf00878996

CrossRef Full Text | Google Scholar

Serafimova, Y. K., and Kopylova, G. N. (2010). Intermediate-term precursors of large (M ≥ 6.6) Kamchatka earthquakes for the period from 1987 to 2004: a retrospective assessment of their information content for prediction. J. Volcanolog. Seismol. 4 (4), 223–231. doi:10.1134/S0742046310040019

CrossRef Full Text | Google Scholar

Skelton, A., Liljedahl‐Claesson, L., Wästeby, N., Andrén, M., Stockmann, G., Sturkell, E., et al. (2019). Hydrochemical changes before and after earthquakes based on long‐term measurements of multiple parameters at two sites in northern Iceland–a review. J. Geophys. Res. Solid Earth 124 (3), 2702. doi:10.1029/2018JB016757

CrossRef Full Text | Google Scholar

Thomas, D. (1988). Geochemical precursors to seismic activity. Pageoph 126 (2−4), 241–266. doi:10.1007/bf00878998

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, B., Liu, Y., Sun, X., Ma, Y., Zhang, L., Ren, H., et al. (2018). Hydrogeological and geochemical observations for earthquake prediction research in China: a brief overview. Pure Appl. Geophys. 175, 2541–2555. doi:10.1007/s00024-018-1885-y

CrossRef Full Text | Google Scholar

Wang, C.-Y., and Chia, Y. (2008). Mechanism of water level changes during earthquakes: near field versus intermediate field. Geophys. Res. Lett. 35, L12402. doi:10.1029/2008GL034227

CrossRef Full Text | Google Scholar

Wang, C.-Y. (2007). Liquefaction beyond the near field. Seismol Res. Lett. 78, 512–517. doi:10.1785/gssrl.78.5.512

CrossRef Full Text | Google Scholar

Wang, C.-Y., and Manga, M. (2010). Earthquakes and water. Lecture notes in Earth Sciences. Berlin: Springer. doi:10.1007/978-3-642-00810-8

Google Scholar

Keywords: precursor, earthquake, seismic forecast, observational well, water-level, Kamchatka Peninsula, groundwater chemical composition

Citation: Kopylova G and Boldina S (2020) Hydrogeological Earthquake Precursors: A Case Study From the Kamchatka Peninsula. Front. Earth Sci. 8:576017. doi: 10.3389/feart.2020.576017

Received: 24 June 2020; Accepted: 27 October 2020;
Published: 26 November 2020.

Edited by:

Giovanni Martinelli, National Institute of Geophysics and Volcanology, Italy

Reviewed by:

Jens Heinicke, Freiberg University of Mining and Technology, Germany
Ching-Chou Fu, Institute of Earth Sciences, Academia Sinica, Taiwan

Copyright © 2020 Kopylova and Boldina. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

*Correspondence: Galina Kopylova, gala@emsd.ru
