Mercury in Sediment Core Samples From Deep Siberian Ice-Rich Permafrost

www.frontiersin.orgClara Rutkowski1,2, www.frontiersin.orgJosefine Lenz1,3, www.frontiersin.orgAndreas Lang2, www.frontiersin.orgJuliane Wolter1,4, www.frontiersin.orgSibylle Mothes5, www.frontiersin.orgThorsten Reemtsma5, www.frontiersin.orgGuido Grosse1,6, www.frontiersin.orgMathias Ulrich7, www.frontiersin.orgMatthias Fuchs1, www.frontiersin.orgLutz Schirrmeister1, www.frontiersin.orgAlexander Fedorov8, www.frontiersin.orgMikhail Grigoriev9, www.frontiersin.orgHugues Lantuit1,6 and www.frontiersin.orgJens Strauss1*
  • 1Permafrost Research Section, Alfred Wegener Institute Helmholtz-Centre for Polar and Marine Research, Potsdam, Germany
  • 2Department of Geography and Geology, Paris Lodron University Salzburg, Salzburg, Austria
  • 3Water and Environmental Research Center, Institute of Northern Engineering, University of Alaska Fairbanks, Fairbanks, AK, United States
  • 4Institute of Biochemistry and Biology University of Potsdam, Potsdam, Germany
  • 5Department of Analytical Chemistry, Helmholtz-Centre for Environmental Research—UFZ, Leipzig, Germany
  • 6Institute of Geosciences, University of Potsdam, Potsdam, Germany
  • 7Institute for Geography, Leipzig University, Leipzig, Germany
  • 8Laboratory of Permafrost Landscapes, Melnikov Permafrost Institute Siberian Branch of the Russian Academy of Sciences, Yakutsk, Russia
  • 9Laboratory of General Geocryology, Melnikov Permafrost Institute Siberian Branch of the Russian Academy of Sciences, Yakutsk, Russia

We determine Hg concentrations of various deposits in Siberia’s deep permafrost and link sediment properties and Hg enrichment to establish a first Hg inventory of late Pleistocene permafrost down to a depth of 36 m below surface. As Arctic warming is transforming the ice-rich permafrost of Siberia, sediment is released and increases the flux of particulates to the Arctic shelf seas through thawing coasts, lakeshores, and river floodplains. Heavy metals within soils and sediments are also released and may increasingly enter Arctic waters and the biological food chain. High levels of mercury (Hg) have been reported from shallow soils across the Arctic. Rapid thawing is now mobilizing sediment from deeper strata, but so far little is known about Hg concentrations in deep permafrost. Here, forty-one samples from sediment successions at seven sites and of different states of permafrost degradation on Bykovsky Peninsula (northern Yakutian coast) and in the Yukechi Alas region (Central Yakutia) were analyzed for Hg, total carbon, total nitrogen, and total organic carbon as well as grain-size distribution, bulk density, and mass specific magnetic susceptibility. We show average Hg concentrations of 9.72 ± 9.28 μg kg−1 in the deep sediments, an amount comparable to the few previous Arctic studies existing, and a significant correlation of Hg content with total organic carbon, total nitrogen, grain-size distribution, and mass specific magnetic susceptibility. Hg concentrations are higher in the generally sandier sediments of the Bykovsky Peninsula than in the siltier sediments of the Yukechi Alas. The ratio of Hg to total organic carbon in this study is 2.57 g kg−1, including samples with very low carbon content. We conclude that many deep permafrost sediments, some of which have been frozen for millennia, contain elevated concentrations of Hg and the stock of Hg ready to be released by erosion is of significance for the Arctic ecosystem. The Hg mobilized may accumulate on the way to or in the shallow sea, and where it enters into active biogeochemical cycles of aquatic systems it may concentrate in food webs. Our study highlights the need for better understanding Hg stocks and Hg release from permafrost.

Introduction

Climate change and thus environmental transitions have an enormous impact on polar regions (Schuur et al., 2008; Jones et al., 2020) and their local populations (Ramage et al., 2021). This study focuses on a very sensitive part of the terrestrial Arctic: Ice-bearing deposits in Yedoma permafrost landscapes, tens of meters thick. Yedoma landscapes are characterized mostly by fine sandy to silty, ice-rich deposits of late Pleistocene age. They occur in areas that were not glaciated during the last ice ages and accumulated sediments for thousands of years (Kostyukevich, 1993; Grosse et al., 2013; Strauss et al., 2013). Syngenetic ice wedges and intrasedimentary ice are characteristic for Yedoma deposits (Grosse et al., 2013). The frozen sediment layers have preserved organic matter (OM) and associated contaminants, generally acting as an organic carbon (OC) sink (Lindgren et al., 2018; Walz et al., 2018).

Since the late 1970s, permafrost temperatures have increased between 0.5 and 2°C worldwide (Larsen et al., 2014; Biskaborn et al., 2019); the deep and ice-rich Yedoma permafrost from the late Pleistocene is suggested as a major source of greenhouse gas emission when it thaws (Schuur et al., 2015; Strauss et al., 2017). Besides climate relevant substances such as methane and carbon dioxide, other freeze-locked elements and compounds will also be released as permafrost degrades. Among these are nutrients (Beermann et al., 2015) but also harmful contaminants, such as heavy metals, including mercury (Hg).

Hg is a natural element of the lithosphere and its primary mechanism of mobilization and release to the environment is through volcanism, as well as via weathering and erosion of continental rock (Streets et al., 2011). Its distribution through the atmosphere and hydrosphere also allows its uptake in ecosystems. Such Hg can then be re-emitted (secondary emission) via soil respiration, biomass incineration, and oceans (gas exchange or as aerosolized droplets from sea spray-wind interaction) (Driscoll et al., 2013). Anthropogenic sources are more diverse but they have augmented the hemisphere-wide natural flux immensely (Pirrone et al., 2009; Streets et al., 2011) and Hg concentration in atmospheric deposition has increased threefold since industrialization (Driscoll et al., 2013). Hg deposition is usually in the form of inorganic Hg2+ complexes (Schroeder and Munthe, 1998; Xin et al., 2007). When Hg binds to OC, it is incorporated into the carbon cycle and can travel among several carbon pools. The storage of Hg in OC has increased by approximately 20% since pre-industrial times (Smith-Downey et al., 2010). Especially the Arctic tundra and its uptake of gaseous Hg0 during summer months is suggested to be a globally important Hg sink (Obrist et al., 2017). The role of plants in the accumulation of atmospheric Hg in permafrost soils has been stressed in a number of recent studies (Jiskra et al., 2019; Obrist et al., 2017; Olson et al., 2019). Non-vascular plants such as mosses and lichens have been shown to take up large amounts of atmospheric Hg (Olson et al., 2019). This looks to be one major explanation for the elevated Hg concentrations found in permafrost soils as compared with soils from lower latitudes (non-permafrost soils). The accumulation of Hg in permafrost soils has occured over the course of millennia (Obrist et al., 2017).

Organomercury compounds are liposoluble and penetrate biological membranes easily (Carneado et al., 2015). The most hazardous and neurotoxic form of organomercury is methylated Hg (MeHg) (Schroeder and Munthe, 1998), in particular CH3Hg+ (monomethylmercury). The methylation process is mainly driven by bacteria (biogenic) and occurs generally under reducing conditions that usually occur in wetlands, waterlogged sediments, coastal shallow water zones, and upper ocean layers (Driscoll et al., 2013). Water-saturated unfrozen soils in the Arctic permafrost region offer similar conditions. The increasing disposability of nutrients and the rise of microbial activities in thawing permafrost therefore lead to augmented methylation of the available Hg, particularly in water surroundings (MacMillan et al., 2015; St. Pierre et al., 2018). In light of the high toxicity of organomercury compounds (Ha et al., 2017) there is a need for improving our understanding of Hg pools to help constrain the hazard potential to human health posed by Hg liberation through arctic climate change.

Other studies (Burke et al., 2017; Obrist et al., 2017; Schuster et al., 2018) highlight the importance of elevated Hg concentrations in Arctic soils and thermokarst lake sediments, but to date insufficient data are available for the Russian Arctic (Lim et al., 2020), especially for deep deposits of the Yedoma landscape which degrades with ongoing climate warming. Current estimates of potential Hg release with ongoing permafrost thaw are based almost entirely on data from shallow (top one to three m) sediments (e.g., Schuster et al., 2018; Lim et al., 2020; Schaefer et al., 2020) but climate driven transformation processes in Yedoma regions affect also deeper sediment layers (Schirrmeister et al., 2020).

Our study aims to estimate Hg quantities in deep permafrost from a Yedoma-dominated landscape. The objective of this paper is a first examination of Hg at depth to enable a rough risk assessment in terms of future Hg release to Arctic ecosystems. We determine Hg in seven deep cores from two Siberian permafrost regions: 1) the Bykovsky Peninsula southeast of the Lena Delta near the city of Tiksi, and 2) the Yukechi Alas, 50 km southeast of the city of Yakutsk. Our set of cores includes permafrost at different stages of degradation, from varying sedimentary origins, and with differing periglacial properties. We explore: 1) if Hg concentrations in deep permafrost soils of Yedoma landscapes differ from those of shallow levels, and 2) to what extent permafrost landscape features (late Pleistocene permafrost vs. Holocene permafrost, lake or lagoon deposits vs. dry Alas or Yedoma deposits) show distinct Hg patterns.

Study Area

To enable comparison of different states of permafrost degradation in Holocene and late Pleistocene (104–105 years old) deposits, two study sites on the Lena River in Siberia, Russia were chosen (Figure 1A): the Bykovsky Peninsula to the north (Figure 1B) and the Yukechi Alas about 1,000 km further south (Figure 1C). Within each site, sediment cores from different permafrost landscape elements were selected and sampled (see also Supplementary Figure A).

FIGURE 1
www.frontiersin.org

FIGURE 1. Drilling location overview (A) and details of the study sites at Bykovsky Peninsula (B) and the Yukechi Alas in Yakutia (C); environmental sketch of study sites and different states of permafrost degradation in Siberia (D). The numbers indicate: 1) Yedoma upland: unfrozen zone in Yedoma permafrost (talik), 2) late Pleistocene Yedoma (frozen), 3) Alas basin: talik below thermokarst lake (unfrozen), 4) drained lake basin, 5) Thermokarst setting: talik below thermokarst lake (unfrozen), 6) lagoonal setting: talik below seawater-flooded thermokarst basins (unfrozen). The triangle symbols in Figures 1B,C indicate the location of the single drilling sites in the orthophotos.

Yukechi Alas

The Yukechi Alas is located within the zone of continuous permafrost and about 50 km southeast of Yakutsk, the capital of the Sakha Republic (Yakutia). The region of Central Yakutia is dominated by alluvial and lacustrine accumulation on the right bank of the Lena River (Figure 1A) (Soloviev, 1973). Large parts of the Central Yakutian lowland remained unglaciated during the late Pleistocene, allowing aggradation of massive silty and sandy deposits under cold conditions, forming Yedoma. Today, large syngenetic ice wedges up to 50–60 m in height underlie between 30 and 60% of the massive alluvial terraces (Kostyukevich, 1993; Brouchkov et al., 2004). Alas landscapes appear as result of thermokarst processes, where ground ice or frozen soil thaws extensively. This leads to permafrost degradation and surface deformation since the Holocene (Soloviev, 1973). Part (D) of Figure 1 shows some typical thermokarst landforms in Central Yakutia: Alas lakes (3) and drained Alas basins (4), surrounded by the older Yedoma landscape of mid to late Pleistocene age (2). The Yedoma landscape at the Yukechi study site also contains lakes, sometimes with thawed talik layers below (1) and vertical soil displacements caused by melting ice wedges (not numbered). The Lena River and shallow thermokarst lakes are the most important water sources for the local population because permafrost inhibits upwelling of ground water (Fedorov and Konstantinov, 2003). The Lena River and its tributaries are also the main sediment supplier of this area. The study site is at 200–220 m above sea level (a.s.l.) and local relief between Yedoma upland surfaces and the Yukechi Alas basin floors is 10–15 m. Several Alas generations with a depth of 8–10 m occur and are dominated by thermokarst lakes and flat plains (see Supplementary Figure B(A)). New lakes and depressions develop continuously as a result of active thermokarst processes (Fedorov and Konstantinov, 2003). Newly formed taliks (perennially unfrozen areas in the permafrost realm) below young thermokarst lakes in Yedoma uplands (Fedorov et al., 2014; Ulrich et al., 2017; Ulrich et al., 2019) are also indicative of ongoing thaw processes.

The Yukechi Alas is situated within the taiga biome with larch forests interspersed with pine and birch, a well-developed shrub layer (willows, alder, rose, various Ericaceae) and often well-developed moss layers dominating on Yedoma uplands. The studied alas itself has azonal grassland vegetation, in which non-vascular plants (mosses, lichens) play a minor role, except along the shores and in shallow parts of alas lakes. The regional vegetation has been influenced by anthropogenic clearing of forest and use of alas grasslands for pasture and agriculture during the 20th century (Crate et al., 2017) and a high natural fire frequency throughout the Holocene (Katamura et al., 2009). The current larch and pine forests and surface fire regime have been present in the region for at least 6,500 years (Katamura et al., 2009), and alas depressions have started to develop around the same time (Ulrich et al., 2017).

Bykovsky Peninsula

The Bykovsky Peninsula is located southeast of the Lena River Delta (Northern Yakutia). This area is also characterized by widespread Yedoma and thermokarst landscapes. The latter include brackish lakes close to the seashore and lagoons (Figure 1(D5,D6)). The peninsula is elongated in the NNW-SSE direction, is part of a late Pleistocene coastal plain, and represents a typical setting for the coastal lowlands of the Laptev Sea (Grosse et al., 2005). The local topography of the peninsula varies from 0 m up to 45 m a.s.l. (Schirrmeister et al., 2018) and the total length of the shoreline is about 150 km. Cliffs and low-lying thermokarst basins are the typical backshore coastal landforms. Thermokarst basins resulting from thawing of ice-rich permafrost cover about 46% of the peninsula (Grosse et al., 2005) and will prospectively transform into lakes and lagoons (see Supplementary Figure B(B)). Within the basins, ice-wedge polygonal structures can easily be detected from remote sensing imagery (Grosse et al., 2005; Schneider et al., 2009; Strauss et al., 2018). Some cliffs are relatively stable and covered by vegetation; others are near vertical, reaching tens of meters in height, and often expose large syngenetic ice wedges and ice-rich Yedoma deposits. In general, the deposits of the Bykovsky Peninsula are poorly sorted sandy silt (Schirrmeister et al., 2002; Strauss et al., 2018; Schirrmeister et al., 2020) with frequent intercalations of peat and paleosols (Lantuit et al., 2011). Many retrogressive thaw slumps and thermokarst basins indicate the degraded state of the permafrost (see Supplementary Figure B(C)). Subaquatic permafrost exists on and around the peninsula and undergoes complex thaw processes (Overduin et al., 2016). Recent transitions from thermokarst lakes to lagoons in this area and consequent talik dynamics are described by Angelopoulos et al. (2020).

This study site is situated in the tundra biome, with dwarf shrubs, sedges, grasses, and herbs growing above a well-developed moss layer. Lichens are present, but usually do not have a high cover. In contrast to the region around Yukechi Alas, the regional vegetation on Bykovsky Peninsula has not been subjected to anthropogenic land use and has been less impacted by fires throughout the Holocene (Nitze et al., 2018).

Materials and Methods

Sediment Cores and Subsampling

For this study, we investigated sediment cores from each of the landscape elements that are numbered in Figure 1D to gain insight into different permafrost degradation states. Winter fieldwork in the Yukechi Alas was conducted in March 2015. We drilled four sediment cores with a drilling rig (Geotechnika URB 4T) from lake ice or ground surface to depths between 19.80 and 22.35 m. For Hg analyses, we took five to seven subsamples from each core (Table 1). The YU-L7 sediment core (total length: 17.7 m) derives from a small residual Alas lake located within the Yukechi Alas basin (Figure 1(D3)). Here, we took five subsamples. Depth is given as depth below surface and includes lake depth. The sediment core starts at 2.30 m below the lake-ice surface (b.l.s.). Another five subsamples were taken from the YU-L15 sediment core (total length: 17.06 m) beneath a young thermokarst lake on late Pleistocene Yedoma deposits (Figure 1(D1)). The top of the sediment is at 4.40 m b.l.s. At 22.35 m YED-1 is the longest of all Central Yakutian cores. We drilled into the dry Yedoma surface surrounding the Yukechi Alas (Figure 1(D2)) and investigated seven subsamples of this core. The ALAS-1 sediment core came from the dry bottom of the Yukechi Alas center (Figure 1(D4)). This core has a total length of 19.80 m and five subsamples were taken. Except for YED-1, some core loss occurred in all cores where unfrozen sediment was encountered; e.g. in ALAS-1, material was lost in the upper part between 2.25 and 9.34 m below surface (b.s.). Detailed stratigraphic descriptions of the YU-L7 and YU-L15 cores are available in Jongejans et al. (2021); Ulrich et al. (2021). Detailed stratigraphic descriptions of the terrestrial cores can be found in Windirsch et al. (2020).

TABLE 1
www.frontiersin.org

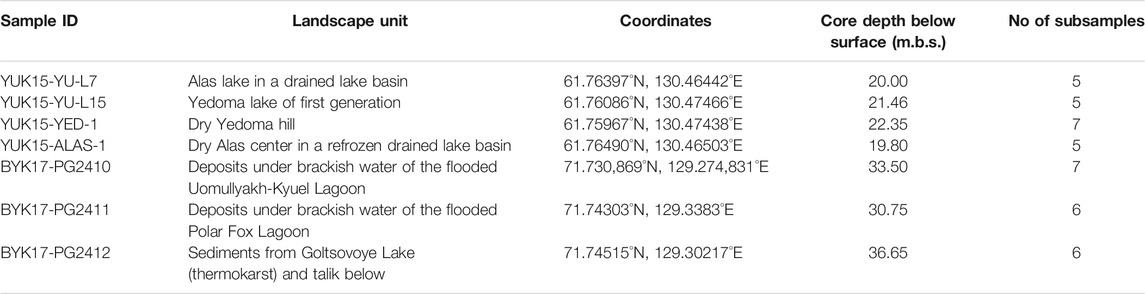

TABLE 1. Sedimentary cores, location detail, and corresponding landscape elements (Figure 2).

In April 2017, we drilled three 27.45–32.30 m long cores on Bykovsky Peninsula with an URB 4T drilling rig. Two of the cores originate from thermokarst lagoons (Figure 1(D6)), while the third originates from a thermokarst lake (Figure 1(D5)) (Strauss et al., 2018). PG2410 contains sediment from below the 1.20 m deep Uomullyakh-Kyuel Lagoon and is 32.30 m long. Here, we analyzed seven subsamples. PG2411, a sediment core from below the 3.30 m deep Polar Fox Lagoon, has a total length of 27.45 m and we took six subsamples. Uomullyakh-Kyuel Lagoon is a former thermokarst lake and due to coastal erosion is now part of the coastline. Polar Fox Lagoon is a partially drained thermokarst lake close to the coastline. A channel has developed allowing exchange with sea water (Angelopoulos et al., 2020). The third north Yakutian core, PG2412, is the longest of all cores and it comes from the thermokarst lake Goltsovoye. Its total length is 31.55 m and it starts at a depth of 5.10 m b.l.s. We also investigated six subsamples of this core. Figure 2 gives another schematic overview of all seven core locations, complemental to Figure 1.

FIGURE 2
www.frontiersin.org

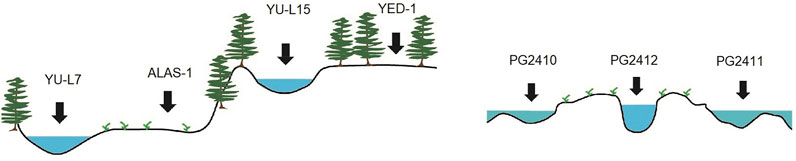

FIGURE 2. Schematic overview of coring locations (Table 1). Left: Yukechi Alas; bottom positions (YU-L7 and ALAS-1) below the dry Yedoma permafrost surface and top positions (YU-L15 and YED-1) with both terrestrial and thermokarst lake cores. Right: Bykovsky Peninsula; PG2410 and PG 2411 from lagoonal open water bodies, and PG2412 from a thermokarst lake.

The cores were cryolithologically described in the field, wrapped in foil, and stored frozen in thermo-boxes. We kept all core material frozen during transport and storage and cores were sampled at a temperature of −10°C in the cold chamber in Potsdam. We cut the cores in half using a band saw and cleaned, photographed, described, and sampled them approximately every 3 m except where no material was available or visible stratigraphic changes occurred. Sediment columns of 5–10 cm thickness were sampled for analyses and the center depth of each column is given as sample depth. To avoid contamination, nitrile gloves were used during subsampling and the outermost few millimeters of the sediment columns sampled were removed using a ceramic knife. The samples were stored in plastic sample bags, covered with lint-free cloth to avoid contamination and freeze-dried in a Zirbus Sublimator 3-4-5. Afterwards, we split the samples for homogenization with a planetary mill (FRITSCH pulverisette 5) in agate jars and non-destructive analyses, like determining grain-size distribution. In total, we took 41 samples. Further details on the stratigraphic successions and sampling procedures can be found in Strauss et al. (2018), on Goltsovoye Lake (PG2412) in Jongejans et al. (2020), and in Jenrich et al. (2021) for the lagoon locations (PG2410 and PG2411).

Biogeochemical Parameters

Soil Total Mercury

We determined the soil total mercury (STHg) in solid material by thermal decomposition, amalgamation and atomic absorption spectrophotometry using a Direct Mercury Analyzer (DMA-80; MLS GmbH). The solid samples are combusted at about 750°C under a flow of oxygen, and the Hg in the off-gases is trapped as amalgam on a gold sieve. In a subsequent step, Hg is released and its amount is determined by atomic absorption spectroscopy. IAEA 456, a marine sediment, was used as reference material, six times within two consecutive days of measurement. The detection limit of the most sensitive cuvette was <0.003 ng. For each sample, we measured STHg at least three times and up to six times if the results showed larger variations. Relative standard deviation of the replicates ranged from 0.4 to 11.7%, with a median of 3.0% and a mean of 3.7%.

Hg species (Hg0, Hg2+, CH3Hg+) were analyzed in three samples with higher Hg content using gas chromatography with atomic emission detection (GC-AED) as described in Frohne et al. (2012).

Carbon and Nitrogen

For the measurement of total carbon (TC) and total nitrogen (TN), we put 5.0–5.8 mg of the homogenized sample material into zinc capsules, added tungsten oxide for better combustion and put them in the catalytic tube of an element analyzer (Elementar Vario EL III). We used empty capsules for background detection and included reference standards every 30 measurements to ensure correct results. The device has a specific accuracy and a detection minimum of 0.1 wt%.

TOC was determined using pyrolysis, the thermo-chemical fission of organic compounds, with pure nitrogen (99.996%) as carrier gas and an Elementar varioMAX C Analyzer. We measured different glutamic acids as reference material as well as empty containers at the beginning and always after 30 measurements for background determination. We measured TC, TN, and TOC twice per sample and calculated total inorganic carbon (TIC) content as the difference between TC and TOC.

Sedimentological Methods

Dry Bulk Density

Bulk density ρb is the ratio of mass to volume of the dry sample and is a standard parameter for soil description. ρb of ice-saturated sediment was determined following Strauss et al. (2012) for all samples with a water content of more than 20 wt% (= “water saturated”).

Mass Specific Magnetic Susceptibility

The mass specific magnetic susceptibility (MS) is a frequently used stratigraphic parameter and allows detecting variations of magnetic minerals within sediment layers. We measured MS with a Magnetic Susceptibility Meter (Bartington Instruments MS2, Sensor Type MS 2B) on the freeze-dried samples with a frequency of 0.465 kHz. MS is given as x10−8 m3 kg−1.

Grain Size

The grain-size distribution is a central sedimentological parameter. In general, trace elements are expected to be enriched in finer sediments (e.g., Martin and Meybeck, 1979; Mwamburi, 2003). Prior to grain-size analyses, we removed all organic remains by using hydrogen peroxide. The samples were sieved for particles >1 mm and for analyzing the finer fraction a laser particle sizer (Malvern Mastersizer 3000) was employed and tetrasodium pyrophosphate was used for grain dispersal. Size distributions and other statistical parameters were calculated after Folk and Ward (1957) using GRADISTATv8 (Blott and Pye, 2001) for particles <1 mm; when particles >1 mm were included R studio was used.

Statistical Analyses

We carried out all statistical analyses using R studio (RStudio Team, 2020). To test a correlation between STHg and TOC, TIC, TN, clay content, silt content, sand content, and MS, we used the Spearman rank correlation coefficient (rs). This is a non-parametric procedure, not requiring a linear relationship between variables (Zar, 2005). The correlation is considered weak for rs < 0.3, moderate for 0.3 < rs < 0.5 and strong for rs = 0.5 or above. The decisive level of significance (α) was 0.01.

Our second research question implies two null hypotheses: There are no significant differences in STHg accumulation between Holocene and late Pleistocene landscape elements (H0,1) or between both study areas (H0,2). To test these, a Mann-Whitney U test for paired nonparametric data (Nachar, 2008) was performed. Here, a hypothesis is to be rejected when α exceeds 0.05.

Results

In addition to the specific descriptions below, we listed a full set of sedimentological and chemical results in the appendix and they are plotted for each core as multiplots (Supplementary Figure C). Throughout the following, the given variability measures are the standard deviation.

Biogeochemistry

Soil Total Mercury

The mean Hg concentration of all samples is 9.72 ± 9.28 μg kg−1. The minimum value of 0.86 ± 0.09 μg kg−1 was detected in YU-L15 (12.42 m b.s.), the maximum concentration of 34.52 ± 4.02 μg kg−1 in PG2411 (7.35 m b.s.). Concentrations clearly differ between the two study areas. Within each area there are no obvious patterns related to the landscape units studied.

At Yukechi, the arithmetic mean Hg concentration of all samples is 5.21 ± 3.66 μg kg−1. Below 5 m the STHg concentration shows a similar trend in cores YU-L7, YU-L15, and YED-1 (Figure 3) with decreasing concentrations from 25 to 10 m depth and then increasing above. ALAS-1 shows values in the same range, between 0 and 10 μg kg−1, but a slightly different pattern. We selected the cores to represent different landscape units and thus the similarity in Hg patterns shows no significant dependence on present day environment.

FIGURE 3
www.frontiersin.org

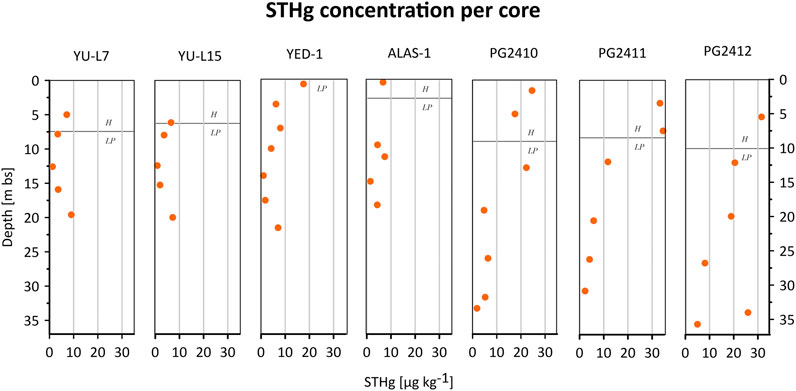

FIGURE 3. Soil total Hg concentration plotted against depth for all seven cores investigated. H, Holocene; LP, late Pleistocene. Further information on lithology (grain size, frozen or unfrozen) can be found in Supplementary Figure A.

With a mean of 14.95 ± 10.94 μg kg−1 the STHg concentration in sediments from the Bykovsky Peninsula is higher compared to Yukechi, with values up to 34.52 μg kg−1, and shows a wider range. Values generally increase towards the surface (up core; Figure 3). One sample from the lower part of PG2412 (33.85 m b.s.) shows a noticeably high STHg value. It originates from the vicinity of an organic rich deposit (wood remains; see Supplementary Figure A). Particularly in PG2411 an abrupt increase in STHg concentration above the transition of late Pleistocene sand to Holocene silt is apparent (see Figure 3 and Supplementary Figure A); the increase is less in PG2010 and PG2412.

The values plotted in Figure 3 display the mean of all STHg measurements per sample. The standard deviation ranged from 0.04 to 4.02 μg kg−1 (0.4–18.9%) but this deviation plots within the symbol size for most samples and is therefore not shown.

The Hg speciation analysis (Hg0, Hg2+, MeHg+) in three samples with relatively high Hg concentrations (all from the Bykovsky Peninsula) revealed that, as expected, all detectable Hg is in the form of Hg2+. Still, the presence of methylated species in regularly thawing near-surface layers of terrestrial cores (YED-1, ALAS-1) cannot be excluded.

Total Carbon, Total Nitrogen, and Total Organic Carbon

TC, TN, and TOC concentrations are listed in Table 2 (see also Supplementary Table A and Supplementary Figure C). Distinct differences in TC, TN, and TOC are visible between both study regions whereas environmental setting or state of permafrost degradation within a region seem less important. The general down core trends at Yukechi show decreasing values in the upper half and increasing values below, whereas the TC, TN, and TOC values decrease with depth in the cores from Bykovsky Peninsula. TN and TOC values for samples below detection limit (<0.1 wt%) were assumed to be 0.05 wt%. The trend of TIC with depth is less consistent within the study areas.

TABLE 2
www.frontiersin.org

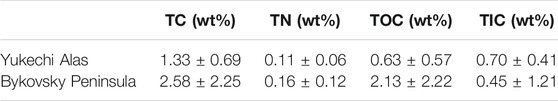

TABLE 2. Mean concentration of TC, TN, TOC, and TIC in the sediment samples from the Yukechi Alas (22 samples from 4 cores) and the Bykovsky Peninsula (19 samples from 3 cores).

Sedimentology

Lithology, Water Content, and Bulk Density

Detailed descriptions of sediment characteristics for Yukechi can be found in Jongejans et al. (2020); Windirsch et al. (2020); Ulrich et al. (2021). In brief, the sediment cores analyzed revealed different types of permafrost including Yedoma deposits (silty sediment from the late Pleistocene), thermokarst sediments, fluvial sediments (sandy sediments from the late Pleistocene and Holocene), lake/lagoon sediments, and alas deposits.

Sediments recovered by coring from the Yukechi Alas showed the following characteristics: Core YU-L15 reveals silty to silty-sand Ice-Complex deposits of late Pleistocene age (Ulrich et al., 2021). Sediments of the YU-L7 core were unfrozen when recovered and contain predominantly silt with clay and sand beds in places. Core YED-1 contains silty and sandy layers and was largely frozen when recovered. Part of an ice wedge is present between 7 and 10 m b.s. while the lowest meter of the YED-1 core is characterized by dense horizontal micro ice lenses. The ALAS-1 core is characterized by unfrozen silt to silty sand in the upper half and frozen silt below. The ALAS-1 core revealed a frozen organic layer more than half a meter thick at the top. Ice lenses up to 3 mm thick were found throughout the core.

Core PG2410 revealed three frozen layers. The upper 8 m consist of dark grey to black silt, with layers of coarse sand intercalated. The rest of the core contains greenish grey to medium grey sand with individual pebbles in the depth interval 9–14 m b.s. The second core from a lagoon, PG2411, contained prominent gravel up to 4 cm in diameter in a coarse-grained section between about 22 and 28 m b.s. Smaller pebbles can be found throughout. Detailed descriptions of the sediment characteristics of these two lagoon cores can be found in Jenrich et al. (2021). The mostly unfrozen sediment core PG2412 shows alternating fine, medium, and coarse sand layers, with pebbles in places. An organic layer with macroscopic wood remains was recovered between 34 and 35 m b.s. The range of water contents and mean dry bulk density (for water saturated samples only) are listed in Table 3.

TABLE 3
www.frontiersin.org

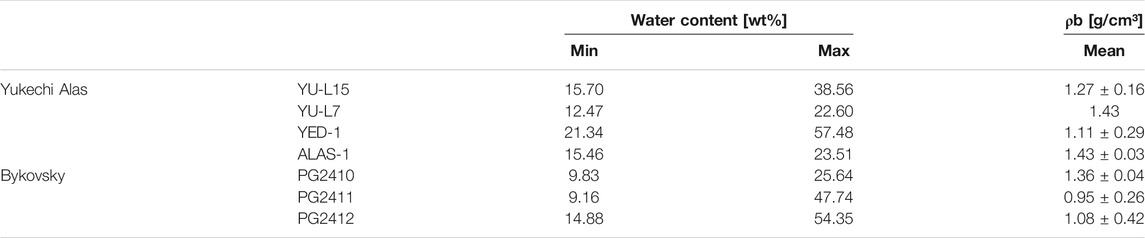

TABLE 3. Water content and dry bulk density for all water-saturated samples of the seven studied sediment cores. Note that water content represents ground-ice content in the frozen parts of all cores except YU-L7, which was completely unfrozen during drilling.

Mass-Specific Magnetic Susceptibility

MS values show similar trends in all cores from the Yukechi Alas with variable values throughout each core, but the general trend increases from the top to the middle of the cores and decreases from the middle to the bottom. The highest MS of all Yukechi cores was measured in the ALAS-1 core at a depth of 14.75 m b.s. with a value of 257 × 10−8 m³ kg−1, the minimum was 56 × 10−8 m³ kg−1 in YU-L7 (5.00 m b.s.).

At Bykovsky Peninsula most of the sediments of PG2410, PG2411, and PG2412 show a MS lower than 50 × 10−8 m³ kg−1. Maximum values occur in a depth range between 26.60 and 33.30 m b.s. The highest MS of 234 × 10−8 m³ kg−1 was measured in PG2410 at 33.25 m b.s.; the lowest MS was 20 × 10−8 m³ kg−1 in PG2412 (33.85 m b.s.).

Grain-Size Distributions

The fine fractions (<1 mm) of all samples show poor to very poor sorting and a dominance of silty to sandy grain sizes (see Supplementary Figure D; weight proportions of clay, silt, and sand, and fractions >1 mm are listed in Supplementary Table B). In sediment successions from Yukechi, sandy silt is predominant with mostly unimodal and poorly sorted size distributions. Sediment sequences from Bykovsky on average show coarser grain sizes, dominated by sand, more diverse (bi- to polymodal) size distributions, and very poor sorting. The Bykovsky cores also reveal fine layers with clay contents up to 18.5%, whereas the highest clay content in Yukechi sediments is only 9.2%. Particles >1 mm in diameter were found in all cores from Bykovsky, predominantly in PG2410 and PG2411 with >10 wt%; just one sample from Yukechi core YU-L7 contained larger clasts.

Statistical Mann-Whitney U test

The second research question implied two null hypotheses: There are no significant differences in STHg accumulation between Holocene and late Pleistocene landscape elements (H0,1) or between both study areas (H0,2). Based on the Mann-Whitney U test we reject both null hypotheses. The test for H0,1 revealed W = 223 and α = 0.01. The test for H0,2 resulted in W = 319 and α < 0.1.

Discussion

We sought to answer two concrete research questions: 1) Is there a difference in Hg concentration in deep permafrost soils of Yedoma landscapes compared to shallow levels? 2) To what extent can distinct permafrost landscape features (late Pleistocene permafrost vs. Holocene permafrost, lake or lagoon deposits vs. dry Alas or Yedoma deposits) be clearly distinguished in terms of their Hg enrichment?

First, we discuss both questions and then further aspects, particularly the relation of Hg to TOC, TN and sedimentation regime. Conclusive, we give an outlook to potentially initiated Hg dynamics in the Arctic with ongoing permafrost thaw.

Mercury Content Compared to Other Arctic Studies

We found detectable Hg concentrations in the deep permafrost deposits from Siberian Yedoma-characterized landscapes. The number of samples were limited in this study, however, we can expect them to be unaffected by anthropogenic Hg input. Most of our samples are of pre-industrial age, as derived from radiocarbon age determination by Jongejans et al. (2020), Windirsch et al. (2020) and Ulrich et al. (2021) (see also Supplementary Figure C). In our study, the STHg concentration ranges from 0.86 to 34.52 μg kg−1 with a mean of 9.72 ± 9.28 μg kg−1. The median is 6.38 μg kg−1. This amount is lower compared to that found in the investigation of Alaskan near-surface permafrost layers (upper 3 m) described by Schuster et al. (2018); those samples contained an average of 43 ± 30 μg kg−1 STHg, but were within the same order of magnitude as our samples. We have only a few subsamples from a similar depth because we looked more at deep deposits, so a direct comparison would be insufficient, but the sediment layers that are closest to the surface revealed also higher mean STHg concentrations in our study (17.64 ± 10.40 μg kg−1 in all subsamples from the uppermost 3.5 m). For comparison, 55 ± 11 μg kg−1 were found in near-surface peat cores from permafrost mires in the Stordalen area (Northern Sweden) and 66 ± 24 μg kg−1 in lake sediments from the same region (pre-industrial layers in both cases) (Rydberg et al., 2010). Munthe et al. (2007) found 2-5 fold higher Hg concentrations in recent lake sediment layers compared to historical ones in Scandinavia. However, our Yukechi cores also show similar STHg concentrations in the deepest layers compared to the near-surface samples, as Figure 3 shows. The uppermost section from the YED-1 land surface core contains the highest STHg of this core, while in ALAS-1 (also drilled from the land surface) this section is unremarkable. Based on our findings, we suggest that young layers on the land surface, relatively recently affected by atmospheric deposition, do not necessarily contain strikingly higher STHg concentrations.

Differences Between the Study Areas

In consequence of our rejected null-hypotheses, we report that there are differences in STHg concentration with respect to both geochronology and study location. However, the difference between the study areas is more pronounced than between the stratigraphical units as shown by the boxplots in Figure 4. The Holocene material from Yukechi is similar to the late Pleistocene material from Bykovsky in STHg, but much lower than Bykovsky’s Holocene layers. We cannot see clear differences in Hg concentrations between the different landscape elements within one study area. For example, the cores from the Yukechi Alas showed similar trends of Hg with depth, independent from whether they derived from a thermokarst lake, a dry alas basin, dry Yedoma surface or a first-generation lake in Yedoma remains (see Figure 3; Supplementary Figure C).

FIGURE 4
www.frontiersin.org

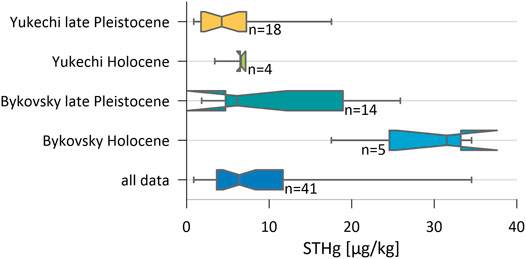

FIGURE 4. Distribution of the STHg concentration per study site; each site is divided into Holocene and late Pleistocene samples. The notches illustrate the 95% confidence around the median (middle line). A bigger confidence interval than the quartiles causes the ear-like features. The whiskers show the data range.

As noticed by e.g., Douglas et al. (2005), Hg enrichment in Artic areas close to the sea is elevated. Recent studies by St. Pierre at al. (2015) or Douglas and Blum (2019) show evidence for this in Arctic soils and snowpacks, respectively. They explain their findings, inter alia, with the springtime atmospheric Hg depletion events (AMDEs). Every year during springtime, the amount of gaseous elemental Hg (GEM) in the air is lower than usual, particularly along polar coasts. Involving oxidizing reactions with halogens, the GEM is rapidly deposited to the environment and therefore vanishes from the atmosphere (Steffen et al., 2008). As those photochemical processes with halogen are strongly linked to the Arctic open water areas, the soil is also characterized by higher Hg enrichment compared to Arctic inland areas (St. Pierre et al., 2015). Analogous to this, the Arctic coastal spring snowpack is also enriched in Hg until snowmelt. The majority of the GEM is re-emitted to the atmosphere earlier, but about 9–24% are further transported with spring runoff and, inter alia, deposited to the ground or uptaken by vegetation (Douglas and Blum, 2019). St. Pierre et al. (2015) also reported, that lichens in the Canadian Arctic were highly enriched in Hg compared to underlying soils. As other non-vascular plants (e.g., moss), lichens take up more Hg than vascular plants (Olson et al., 2019). Although the surface of Bykovsky Peninsula is not highly covered with lichens, they are more present there than in the Yukechi Alas region. Also, the moss layer on the North Yakutian peninsula is denser developed than in Central Yakutia, where the landscape is more anthropogenically influenced. Hg uptaken by non-vascular vegetation gets incorporated into the soil with ongoing sedimentation over thousands of years. This, together with the mentioned correlation of Hg and the proximity to Arctic open waters supports our findings of higher Hg concentrations in the North Yakutian sediment, close to the Laptev Sea. Interestingly the alas sediment core (ALAS-1) does not show distinctly lower Hg concentrations overall, although non-vascular plants play little to no role in the current vegetational cover. However, the uppermost and youngest investigated layer of the deposits is only half as concentrated in Hg than compared to the uppermost layer of the Yedoma core (YED-1) which derives from a more moss-dominated surrounding. In addition, according to Ulrich et al. (2017) and Katamura et al. (2009), the development of alas depressions as well as the current forest and grassland vegetation is younger than the rest of the investigated layers in both cores. Therefore, the vegetational influence to Hg enrichment might have changed over the last 6,500 years in the Yukechi Alas. Furthermore, natural wild fires occurred throughout the Holocene until today (Katamura et al., 2009; Glückler et al., 2021), which also leads to depletion of mercury in soil surface and vegetation.

Total Mercury/Total Organic Carbon Ratio

In modern literature, the ratio of STHg/TOC (RHgC) is used for a first rough estimation of the Arctic Hg reservoir. TOC data are available for several areas in the Arctic zone (e.g., Schuster et al., 2018; Lim et al., 2020) and it has been shown that Hg strongly correlates with OM (Sanei et al., 2012; Lim et al., 2019). Our data also show a strong positive correlation between STHg and TOC (rs = 0.78, p < 0.01).

Schuster et al. (2018) found a median RHgC of 1.6 μg Hg g C−1 in Alaskan Arctic shallow permafrost soils to a depth of three m. Therefore, they estimated the permafrost region of the Northern Hemisphere to contain twice as much Hg as all other soils, the atmosphere, and the ocean combined. Lim et al. (2020) suggest a lower value for the Northern Hemisphere Hg pool, based on studies in the Western Siberian lowlands. They calculated a lower median RHgC of 0.19 Gg Hg Pg C−1 for organic soils and 0.63 Gg Hg Pg C−1 for mineral soils.

We calculate a total RHgC mean for all samples of 2.57 μg Hg g C−1. This observation could lead to the assumption of a larger Arctic STHg pool (at least when including deeper permafrost deposits) than suggested by Schuster et al. (2018). Excluding all samples with TOC below detection limit (we assumed a value of 0.05 wt%), the mean RHgC becomes considerably lower, namely 0.77 μg Hg g C−1. Charbonnier et al. (2020) point out that this ratio must be interpreted carefully because post-depositional degradation of OM does not necessarily affect the Hg concentration, which could lead, in turn, to a misleadingly high STHg/TOC ratio. Giesler et al. (2017) also state that a higher RHgC value can indicate an increase in post-depositional OM decomposition, but that the latter is, in turn, also linked to the enrichment of Hg in soil as a by-product.

Because our two study sites show clear differences in STHg/TOC as well, we are skeptical about this method for a pan-Arctic Hg reservoir estimation. Across the cores from the Bykovsky Peninsula, the mean RHgC is 2.02 μg Hg g C−1 with a clearly visible correlation between Hg and TOC (Figure 5A); it is higher for the Yukechi study site (3.05 μg Hg g C−1), but with no correlation (Figure 5B). In general, we assume that OM decomposition, weathering, and biological activity are significantly reduced in the frozen Yukechi sediments, but the higher RHgC might also be caused by the higher number of samples from this study site with TOC below detection limit.

FIGURE 5
www.frontiersin.org

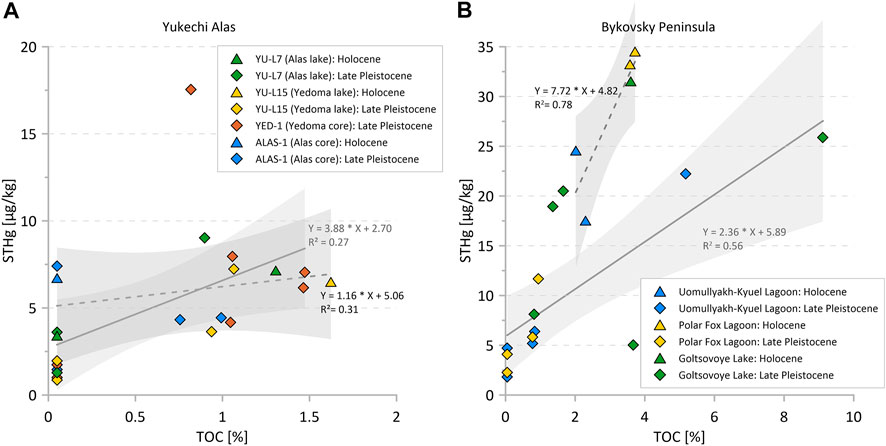

FIGURE 5. Plot of STHg vs. TOC, (A) for all samples from the Yukechi Alas with a RHgC of 3.05 μg Hg g C−1 but no clear correlation; (B) for all samples from the Bykovsky Peninsula. The correlation is positive with a RHgC of 2.02 μg Hg g C−1. The equations of the linear regressions and the R2 are given in color: Holocene is the black dashed line, late Pleistocene is grey.

Our number of samples and study sites is limited compared to the whole Arctic region. Nonetheless, if we combine our mean RHgC of 2.57 μg Hg g C−1 with the estimation of the OC pool in the Siberian Yedoma regions (211 Gt OC stored in the frozen deposits; Strauss et al. (2013)), we could estimate a total STHg pool of approximately 542 gigagram (1 Gg = 10⁶ kg = 1,000 t) in those areas. Lim et al. (2020) suggest a similar pan-Arctic permafrost Hg pool of 597 Gg (384–750 Gg) in the upper 3 m. Further studies could refine those findings.

Our statistical test revealed a non-significant weak negative correlation between STHg and TIC (rs = -0.18, p = 0.24). Therefore, we disregard TIC in our further discussion.

Sedimentation Regime as Potential Controlling Factor

Grain-size distribution reveals information about transport and sedimentation regimes and might allow conclusions about depositional conditions. Strauss et al. (2012) established an interpretation of grain-size distribution diagrams from Yedoma environments in terms of sedimentation regimes. Every peak in the curves is caused by a different deposition process. A sand maximum, for example, indicates a higher energy level during transport, because a certain energy level is needed to transport coarse particles. We found a distinct maximum in the sandy regime in all samples from the Bykovsky Peninsula and the Yukechi study site. The bi- to multi-modal grain-size distributions (see Supplementary Figure D) suggest that more than one process influenced sediment transport and deposition, which is typical for Siberia’s deep ice-bearing permafrost deposits that developed under a very cold and highly continental climate (e.g., Schirrmeister et al., 2011; Strauss et al., 2017). Based on grain-size distribution, the aeolian and alluvial/fluvial transport and depositional processes seem to dominate in these study areas, which is consistent with the findings of Strauss et al. (2012). Schirrmeister et al. (2020) support the hypothesis of polygenetic sedimentation regimes in those types of landscapes, involving alluvial, fluvial, and aeolian transport, in situ frost weathering, as well as post-depositional processes.

Water and air fluxes are also suggested to be the main transport media of Hg2+ from uplands (watershed area) to reducing zones (wetlands, coastal areas, etc.). Even if the transport by riverine fluxes might be small on a global scale, it can be a substantial pathway in coastal areas (Driscoll et al., 2013; Zolkos et al., 2020).

Although the material of the Bykovsky cores is sandier on average, it is also more poorly sorted and contains more clay. This has an impact on the STHg, as well. As Figure 6A shows, there is a positive correlation between STHg and clay content (rs = 0.58, p < 0.01). This is in accordance with most statements in literature about elemental deposition in sediments and can be explained by the increased specific surface area and the structural properties of clays (Whitney, 1975; Zonta et al., 1994) as well as ionic charge (clay´s net charge is often negative (Barton and Karathanasis, 2002) which allows binding to positive Hg ions, as for example Hg2+). On the contrary, the Spearman test revealed a weak but not significant correlation for STHg vs. silt content (0.3, p-value > 0.01) and a moderate negative correlation for STHg and sand content (−0.47, p-value < 0.1). Figure 6B shows that the correlation of mean grain size and STHg is negative exponential. In consequence, STHg increases with finer mean grain size, or higher clay content. This leads us to the statement that in the finer-grained and more organic-rich Holocene sediments, Hg is significantly enriched. The siltier sediment in Yedoma landscapes tends to contain less Hg. Still, we found comparable levels of Hg in late Pleistocene sediments, too, but always accompanied by elevated TOC levels.

FIGURE 6
www.frontiersin.org

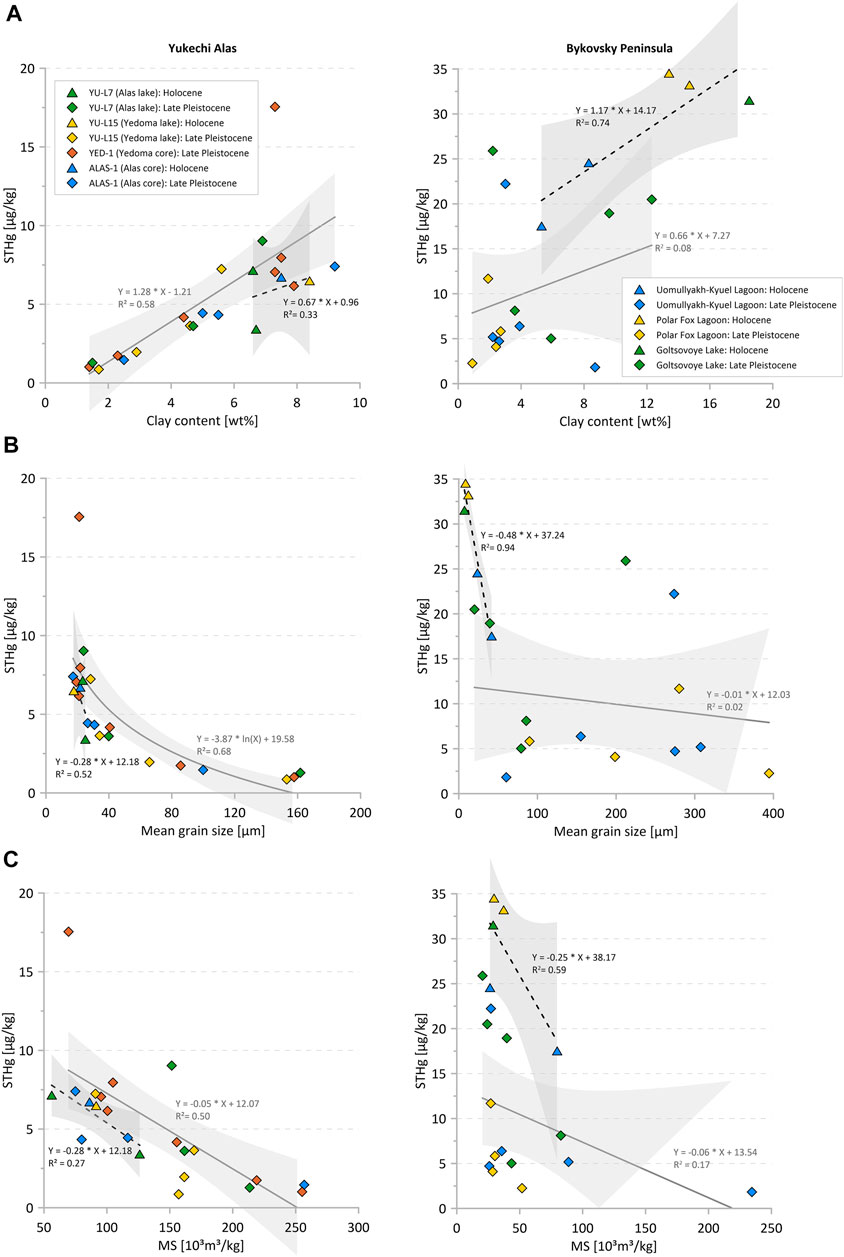

FIGURE 6. Correlation of STHg with (A) clay: A positive correlation occurs between clay content and STHg concentration; (B) mean grain size: The correlation between the mean grain size and STHg is clearer in the Yukechi Alas than on Bykovsky Peninsula, caused by sorting quality. Grain-size distribution is better sorted in the Yukechi Alas; (C) MS: The correlation here is negative in general but, again, clearer in the Yukechi Alas. The equations of the linear regressions and the R2 are given in color: Holocene is the black dashed line, late Pleistocene is grey. The legend given in (A) is the same in (B) and (C).

Our results showed that an enhanced MS (100 × 10−8 m³ kg−1 and above) is accompanied by relatively low STHg and vice versa (see Figure 6C). Spearman’s rank correlation coefficient with subsequent significance testing revealed a strong negative correlation of −0.71 (p < 0.01). The correlation between MS and heavy metal concentration (not only in Arctic regions) has already been discussed, by e.g., Hanesch and Scholger (2002); Schmidt et al. (2005); Wang and Qin (2005). These results indicate that the correlation of heavy metals with MS is variable, presumably dependent upon the minerals present. Because there are mostly anaerobic and thus reducing conditions in these predominantly deep permafrost deposits and additionally low signals for MS, less oxidized minerals might dominate here. In contrast, more oxidized minerals are expected to be found in samples with higher MS and thus under less reducing conditions (Mullins, 1977). This observation might suggest that less oxidized minerals (in a reducing Arctic environment) are associated with enhanced STHg concentration. Even though the reduction of Hg2+ results in volatile elemental Hg0, a loss of STHg via volatilization is only probable for topsoil layers interacting with the atmosphere. Nonetheless, because an enrichment of Hg or less degradation under anaerobic conditions is unlikely, we cannot give a reliable reason for the observed negative correlation of MS and STHg in this study without further investigations.

Correlation of Total Mercury and Total Nitrogen

TN was relatively low in general but comparable to what was observed in other Arctic studies (e.g., Lenz et al., 2013; Schirrmeister et al., 2013). Moreover, the TN concentration in sediment has been found to be positively correlated with carbon concentration (Faure, 1986), which we could also confirm in this study. Spearman’s rank correlation for TN vs. TC is 0.75, while for TN vs. TOC it is 0.87 (p < 0.01).

We found a strong linear positive correlation between TN and STHg (rs = 0.72, p < 0.01), but we cannot distinguish if there is a direct biochemical connection or if that observation can only be explained by the positive correlation of both TN and STHg with TC/TOC and clay content. A strong positive correlation of Hg and N in mineral soils and litter was reported from non-Arctic studies, e.g., in the Sierra Nevada by Obrist et al. (2009), but the authors also highlight that comparing the factors determining Hg contents across different sites is challenging. An analysis of nitrogen speciation would enable a deeper analysis and interpretation of TN and its composition.

Biogeochemical Dynamics of Mercury Potentially Initiated by Thawing Arctic Permafrost

We confirmed the positive correlation between Hg concentration and clay content for Arctic permafrost environments in this study, but above all, between Hg and TOC. Clay particles often have a net negative chemical charge (Barton and Karathanasis, 2002). For instance, in case of erosion, Hg is transported as particle-bound Hg2+. The interaction with TOC is more complex and has been discussed in the scientific literature already: Positive ions such as Hg2+ also bind to negatively charged OM components. Most Hg bound to soil organic matter (SOM) occurs with reduced sulfur groups (Giesler et al., 2017). Furthermore, SOM is considered to be a natural chelation agent for the biochemical process of organic acids binding metal ions (Sohalscha et al., 1967; Nowack and VanBriesen, 2005), which might also explain the coupling of soil carbon and Hg2+, but uncertainties still exist (Giesler et al., 2017). Nevertheless, the mineralization of SOM leads to the reduction of Hg2+ to Hg0 as a byproduct of soil respiration (Driscoll et al., 2013). Direct photolysis also leads to the reduction of Hg2+ to Hg0 (Ravichandran, 2004). Because Hg0 is volatile this causes re-emission to the atmosphere, at least from surface soil layers. The retention time of Hg in the atmosphere is about 0.5 to 1 year, so from there it can be redeposited globally or at least within the hemisphere (Driscoll et al., 2013).

At the same time, current permafrost thaw and active layer deepening results in increasing mineralization of freeze-locked OM, increasing microbial activity and vulnerability to erosional processes. As a consequence of this biogeochemical correlations, rapid, deep thaw of deposits in Yedoma environments releases significant amounts of OC and nitrogen (e.g., Kanevskiy et al., 2016; Fuchs et al., 2020). Hence, the release of significant Hg amounts into aquatic ecosystems via sediment transport is also likely. Under reducing conditions as for example in wetlands, coastal zones, and (nearly) water saturated permafrost deposits after thawing, bacterially mediated methylation processes occur, mostly driven by sulfate-reducing bacteria (Ullrich et al., 2001; Skyllberg et al., 2006). Methylation is a key step of the global Hg cycle in aquatic systems, particularly of inorganic Hg (mostly Hg0 or Hg2+) to MeHg+ (Ullrich et al., 2001). So even if the input of already methylated species like CH3Hg+ into the ocean via fluvial or erosional fluxes is relatively small (Driscoll et al., 2013), the potential of producing toxic Hg species in surface water and shallow ocean layers increases with the input of inorganic Hg as found in our samples. This is proven by e.g., Lehnherr et al. (2011) and Soerensen et al. (2016). In contrast to Driscoll et al. (2013); St. Pierre et al. (2018) confirmed already elevated aquatic MeHg concentration downstream of Arctic retrogressive thaw slump debris tongues and MacMillan et al. (2015) found significantly higher MeHg levels in Canadian thaw ponds on top of degrading ice wedges. In addition, due to climate change, the season for Hg methylation is extending, as annual thawing begins earlier and freezing starts later (Stern et al., 2012). MeHg is toxic for humans and animals, as it enters the central nervous system via the digestive tract (Ha et al., 2017) and accumulates along the food chain (Carneado et al., 2015). Human exposure is mainly through consumption of fish and other seafood, an important part of the traditional diet of Arctic communities (Duhaime et al., 2004). Thus, MeHg input to the polar ecosystem with ongoing permafrost thaw poses a significant hazard to local populations. In 2017, about 4.9 million people were living on permafrost soils with about 20% of these living on the coast (Ramage et al., 2021).

Dissolved organic matter (DOM) also plays an important role in transporting metal pollutants, because humic matter has redox properties that bind cations like Hg2+ to anionic OM (Tipping, 2002). Munthe et al. (2007) reported increased Hg levels in fish from lakes with higher DOM. It is likely that parts of OC in the investigated aquatic environments are present as DOM with a strong ionic binding to metal ions (Ravichandran, 2004).

Terrestrial inputs by sediment of degrading permafrost enriched with OM, are one of the major sources of particulate Hg into Arctic streams (Schuster et al., 2011; Sonke et al., 2018; St. Pierre et al., 2018; Lim et al., 2019; Zolkos et al., 2020), which contribute more than 10% of the global river discharge into the Arctic oceans (Zolkos et al., 2020). Mu et al. (2019) and Zolkos et al. (2020) investigated the average export of Hg by the major Arctic rivers from 2012–2015 and 2012–2017, respectively. Both found an annual Hg export to the Arctic Ocean of about 20,000 kg yr−1, of which 7,500 kg yr−1 (6,591 kg yr−1, respectively) are delivered by the Lena River. Furthermore, Lim et al. (2020) investigated a south to north transect in the Western Siberian lowlands and found that Hg concentrations in soil increased with latitude. Our findings confirm that. Thus it appears that those deposits with a higher Hg enrichment are also located closer to the oceanic ecosystem and also have a more direct impact on the oceanic ecosystem and thus further methylation processes.

To provide a rough risk assessment based on the findings in this study, we state the following: The amount of STHg found in this study is not alarmingly high (critical Hg concentration for contaminated soils is 1.5 mg kg−1 according to EU guidelines (Hein et al., 2011)). Still, we highlight that Arctic permafrost soils described in other studies contain more clay or more TOC (especially in relation to the TOC-poor Yukechi site) than our samples. Hence, we assume that higher Hg levels can be found in other permafrost regions of the Arctic with more TOC. Nevertheless, there is a natural background signal in the Arctic Ocean due to anthropogenic emissions coupled with exported MeHg, and it will be biomagnified through food webs.

Conclusion

The sediment cores from Siberian permafrost deposits in this study contained 9.72 ± 9.28 μg STHg kg−1 on average. Probably most of this STHg is inorganic Hg2+, but the formation of CH3Hg+ after thawing or entering the Arctic Ocean is expected. The mean STHg concentration in the samples from the Yukechi study site is 5.21 ± 3.66 μg kg−1, while the samples from the coastal area of Bykovsky contain nearly three times as much, namely 14.95 ± 10.94 μg kg−1. The trend of STHg versus depth was quite similar in all four cores from the Yukechi Alas. The upper half of the cores showed decreasing concentrations, with the lowest STHg in the middle and a downward increase in the lower half. In contrast, all three cores from the Bykovsky Peninsula exhibited decreasing concentrations with depth, but with higher values in the near-surface layers. Therefore, at first glance the difference seems distinct between both study sites, but not between the single cores. However, our plots and statistics show that the varying deposition phases (mainly distinguished by age, location, and grain size distribution) lead to differences in STHg concentrations as well. According to our data, Holocene thermokarst and lagoonal deposits contain more STHg than late Pleistocene fluvial sands, while late Pleistocene Yedoma deposits consist partially of STHg similar to that found in Holocene alas deposits but with a lower average.

Moreover, we found a correlation of STHg with MS (negative) and clay content, TOC, and TN (all positive). Although the samples from Bykovsky contained coarser sediments in general, they were also less sorted and therefore partly contained a higher concentration of clay compared to the samples from Central Yakutia. Associated with the higher clay content, the Hg concentration was also higher in the cores from Bykovsky. The state of the investigated sections of the cores (whether originally frozen or not) was not obviously decisive for elemental enrichment or conservation.

Based on our study, the increasing thermokarst processes and coastal erosion in Arctic permafrost regions will liberate the available Hg and very likely enable the increase of highly toxic CH3Hg+ in the terrestrial ecosystem, the Arctic Ocean, and the food chain. The amount of approximately 10 μg Hg kg−1 in the studied Central Yakutian permafrost deposits is not expected to lead to immense and alarming injections of the metal pollutant Hg into the environment. Nonetheless, with regard to our RHgC and the TOC levels from other studies, we suggest the Yedoma Hg pool contains about 542 Gg, but this value comes with significant uncertainties. Other Arctic studies revealed more TOC and TN in sediments. Due to the positive correlation of these indicators with STHg, the circum-Arctic pool might be even larger as our findings suggest.

Data Availability Statement

The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author.

Author Contributions

CR and JS designed the research and wrote the paper; CR performed research. JL, AL, JW and HL contributed towards ideas and data analysis and TR and SM contributed mercury analytics. JS, GG, MU, LS, AF, and MG participated in the expeditions to retrieve the cores. All co-authors commented on and contributed to the article.

Funding

This work is embedded into the CACOON project as a part of the Changing Arctic Ocean (CAO) program (#03F0806A, German Federal Ministry of Education and Research, BMBF). CR was supported by the University of Salzburg (“Stipendium für kurzfristige wissenschaftliche Arbeiten”), JL was supported by the National Science Foundation (NSF Grant #1500931), JW was supported by the German Research Foundation (DFG Research Grant No. WO 2420/2-1), GG was supported by the European Research Council (Starting Grant #338335). MU was supported by the German Research Foundation (DFG Grant No.: UL426/1-1). AF was supported by the Russian Foundation for Basic Research (ID-No. 18-45-140046). The Nunataryuk project (EU H2020, #773421) is acknowledged for fruitful discussion. We thank MPI Yakutsk for fieldwork assistance and UFZ Leipzig for their help with lab work. This work is part of the research focus “Permafrost BioGeoChemistry” at AWI Potsdam.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/feart.2021.718153/full#supplementary-material
