The bleaching limits of IRSL signals at various stimulation temperatures and their potential inference of the pre-burial light exposure duration

www.frontiersin.orgJingran Zhang1* www.frontiersin.orgBenny Guralnik2 www.frontiersin.orgSumiko Tsukamoto3 www.frontiersin.orgChristina Ankjærgaard4 www.frontiersin.orgTony Reimann5
  • 1School of Geography, Nanjing Normal University, Key Laboratory of Virtual Geographic Environment, Ministry of Education of China, Jiangsu Open Laboratory of Major Scientific Instrument and Equipment, Nanjing, China
  • 2Technical University of Denmark, Kongens Lyngby, Denmark
  • 3Leibniz Institute for Applied Geophysics, Hannover, Germany
  • 4Department of Health Technology, Technical University of Denmark, Roskilde, Denmark
  • 5Institute of Geography, University of Cologne, Cologne, Germany

Infrared Stimulated Luminescence (IRSL) techniques are being increasingly used for dating sedimentary feldspars in the middle to late Quaternary. By employing several subsequent stimulations at increasing temperatures, a series of post-IR IRSL (pIRIR) signals with different characteristics (stability and bleachability) can be obtained for an individual sample. It has been experimentally demonstrated that higher-temperature pIRIR signals are more stable, but they tend to exhibit larger residual doses up to few tens of Gy, potentially causing severe age overestimation in young samples. In this study we conducted comprehensive bleaching experiments of IRSL and pIRIR signals using a loess sample from China, and demonstrated that non-bleachable components in the IR (and possibly pIRIR) signals do exist. The level of such non-bleachable signal shows clearly positive correlation with preheat/stimulation temperature, which further supports the notion that lower temperature pIRIR are advantageous to date young samples and sediments especially from difficult-to-bleach environments. These results display a potential in constrain the pre-burial light exposure history of sediment utilizing multiple feldspar post-IR IRSL (pIRIR) signals. For the studied loess sample, we infer that prior to its last burial, the sample has received an equivalent of >264 h exposure to the SOL2 simulator (more than 2,000 h of natural daylight).


Luminescence dating is a widely established Quaternary dating method, which is typically used to quantify the amount of time elapsed since a sediment has been last exposed to sunlight (Rhodes, 2011). The method is based on interpolating the natural luminescence intensity onto a regenerated dose response in the laboratory, producing an equivalent dose (De) which is the dose the sample has received in nature. The post-IR IRSL (pIRIR) technique, including the two-step pIRIR (Thomsen et al., 2008; Thiel et al., 2011) and multi-elevated-temperature (MET) pIRIR (Li and Li, 2011; Fu and Li, 2013), has been developed based upon the conventional IRSL for dating various sedimentary feldspars. The stability and bleachability are two crucial properties of any luminescence signal to be used for reliable dating, and in the case of feldspar IRSL or pIRIR seem to be interrelated (Jain et al., 2012). The fading rate of pIRIR signals generally decreases with higher stimulation temperature (e.g., Thomsen et al., 2008; Thiel et al., 2011; Li and Li, 2011; Buylaert et al., 2012), however the more stable signals are also progressively difficult to bleach (e.g., Li and Li, 2011; Kars et al., 2014a; Colarossi et al., 2015). As a result, pIRIR signals may be unaffected by anomalous fading but raise concerns about potential age overestimation caused by the unbleachable component (residual), especially for young samples.

So far, the origin and underlying mechanism of this residual signal is still poorly understood. The bleachability and the subsequent residual dose of pIRIR signals has drawn intensive discussions about its effect on a reliable dose determination and whether it should be subtracted. In some cases, modern analogues or artificially bleached samples have also been employed to check the bleachability and any residual dose subtraction (e.g., Buylaert et al., 2011; Li and Li, 2011; Reimann et al., 2011; Fu et al., 2012). Buylaert et al. (2012) proposed a sample-independent characteristic residual of ∼4 ± 2 Gy for the pIRIR signal measured at 290°C (pIRIR290), as obtained from a finite intercept extrapolated from a group of samples with different burial doses. A commonly agreed opinion is that residual doses might be negligible for older samples but could cause severe age overestimation for young samples. Interestingly, Sohbati et al. (2012) and Zhang et al. (2015a) reported no significant unbleachable residual dose (<10 Gy) in both IR50 and pIRIR225 signals (after 4 h of SOL2 bleaching), although a positive correlation between the residual doses and the natural doses was noticed. Consequently, no residual correction has been applied for their ages. Conversely, Buylaert et al. (2013) observed no significant trend of residual doses (due to 4 h SOL2) against their corresponding natural doses, and adopted a mean residual dose of 12.6 ± 0.7 Gy to be subtracted from all natural Des. This difficult-to-bleach component of the pIRIR signal has been considered arising from thermal transfer (Buylaert et al., 2012, 2013). Kars et al. (2014a) carried out comprehensive bleaching experiments for feldspar by exposing samples in the solar simulator with a series of exposure time from 1 h to 11 days. They demonstrated that pIRIR signals measured at higher temperatures are increasingly harder to bleach but none of their bleaching curves reach a plateau within 11 days of solar simulator exposure. Later on, Colarossi et al. (2015) argued that there may be no unbleachable component of pIRIR signal based on the fact that both IR50 and pIRIR signals derived from pIRIR225 and pIRIR290 protocols display a monotonic decrease and do not reach a stable unbleachable limit within 14 days of solar simulator exposure, similar to that of Kars et al. (2014a). However, it is noteworthy that there is still a considerable amount of signal remaining even after 14 days exposure to the solar simulator especially for higher stimulation temperature (e.g., pIRIR290) in both studies. Furthermore, Kars et al. (2014a) demonstrated a tendency that the pIRIR signal of young samples bleached much slower than that of the older samples. Yi et al. (2016, 2018) carried out prolonged bleaching experiments (>80 days in solar simulator) for pIRIR290 of loess samples from northeastern and southeastern China. The pIRIR290 residual signals reached a plateau after ∼300 h exposure in both studies, and a constant residual corresponding to a dose of 4–6 Gy were observed. More recently, Cheng et al. (2022) investigated the bleachability of the single grain K-feldspar pIRIR signals and observed significant variations in residual doses (ranging from ∼1 Gy to up to ∼37 Gy after 40 h sunlight bleaching) among different grains from the same sample, that could cause additional scatter in De values.

Due to their differential bleaching rates, the comparison of feldspar IRSL and pIRIR ages with quartz OSL ages can be used to identify well bleached quartz (Murray et al., 2012), and even qualitatively determine the degree of bleaching (Reimann et al., 2015) helping to infer the transport history of various sediments. The development of rock surface exposure dating has allowed to quantify the amount of time that a rock surface has been exposed to sunlight, via utilizing the spatiotemporal evolution of the luminescence bleaching front within a solid (Sohbati, 2013). However, the exposure time of sediments to sunlight prior to their deposition is a relatively unexplored area (Reimann et al., 2015) where assumptions and speculations often dominate. The length of a sediment’s exposure to sunlight prior to its deposition is important especially in young samples, where incomplete signal bleaching has the greatest effect on the age of the sediment (resulting in age overestimation). Very often, “modern analogues” (e.g., sediment from a nearby active channel) are used to quantify the expected “residual dose” in the sample of interest (e.g., Buylaert et al., 2009; Reimann et al., 2012; Li et al., 2014); however, such an estimation is valid only if both the modern sediment and the sample of interest experienced the same depositional environments, which is often questionable. Another existing approach is to administer a laboratory bleach for an arbitrary amount of time, and assume that it resets the signal to the level that it experienced in nature (reviewed in Li et al., 2014). Nevertheless, the degree of sediment bleaching prior to deposition often remains unknown, and requires further investigation to prevent biased chronologies.

In this study, we measure multiple feldspar IR50 and pIRIR signals, and quantify their bleaching rates in the laboratory using SOL2. Through knowledge of an independent age of the same sample, we estimate pIRIR residual doses, and interpolate them onto a laboratory bleaching curve to obtain what we define as the equivalent bleaching time, Be. This measure then allows us to infer the pre-burial light exposure duration.

Materials and methods

One young loess sample (LUM-2941) from China was chosen to explore the bleaching limit of its IRSL signals (both IR50 and pIRIR) at various thermal treatment conditions. It was collected from the northern piedmont of the Qilian Mountain, northwestern China (Zhang et al., 2015a; 2015b), and has been dated using both quartz and polymineral fine grains. The quartz OSL dating yielded an age of 6.3 ± 0.4 ka (Zhang et al., 2015b). The corresponding feldspar fading-corrected ages ranged between 5.8 ± 0.1 ka for pIRIR150 and 7.2 ± 0.1 ka for pIRIR310 (Zhang et al., 2015a). The dose rates for quartz and feldspar age calculation are 4.31 ± 0.25 Gy/ka and 4.89 ± 0.26 Gy/ka, respectively.

In this study, 14 groups of subsamples (27 aliquots in each group) were bleached in a Hönle SOL2 solar simulator using the full spectrum light, with exposure time ranging between 1 min and 20 days. An extra group of subsamples was prepared without SOL2 bleaching to obtain the natural signal as a reference. All measurements were carried out with an automated Risø DA-15 TL/OSL reader equipped with 90Sr/90Y beta source. The feldspar signal of the samples was stimulated with an array of infrared light diodes emitting at 870 nm, and the luminescence was detected through a filter combination of Schott BG39 and Corning 7–59 in the blue-violet region. Modified single-aliquot regenerative dose (SAR) protocols described in Zhang et al. (2015a) were applied; the preheat temperatures varied between 180 and 340°C with 20°C interval and the second stimulation temperature was always 30°C lower than the preheat temperature (Table 1). The test dose was 1.72 Gy. Each data point is the average result of 3 aliquots.


TABLE 1. Modified SAR protocol for pIRIR measurements.

Since the IRSL of feldspar is based on the localized recombination of electrons to nearest neighbour holes, it is expected that the IR50 and pIRIR bleaching curves follow power law decay (e.g., Jain et al., 2012). Therefore all bleaching curves were fitted with


where I is normalized luminescence intensity after bleaching, A is a constant, t is the time, b is bleaching rate, and c is residual signal intensity.

Taking the independent age constraint of quartz OSL (6.3 ± 0.4 ka) as the true depositional age, the expected De of 30.8 ± 2.6 Gy was obtained for the sample. The fading corrected Des of the sample were calculated based on the fading corrected feldspar ages (Zhang et al., 2015a) using the R ‘Luminescence’-package (Dietze et al., 2013) according to the method of Huntley and Lamothe (2001). The difference between the fading-corrected Des and the expected De (Table 2) was termed “predicted residual dose”, and evaluated against the optical bleaching data using a reduced chi-square statistic (Bevington and Robinson, 2003).

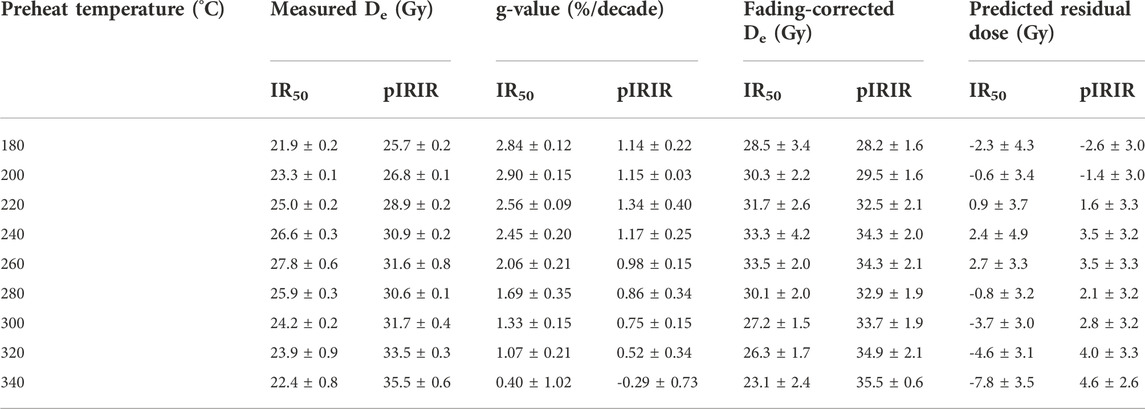

TABLE 2. The measured IR50 and pIRIR Des, g-values and the “predicted residual dose” (fading-corrected De minus expected De) at various temperatures. The measured Des were previously presented in Zhang et al. (2015a). The expected De of 30.8 ± 2.5 Gy is calculated from the quartz OSL age of 6.3 ± 0.4 ka (Zhang et al., 2015b).

Bleaching characteristics of feldspar IRSL signals

The luminescence intensity (Ln/Tn) of the IR50 (Figure 1A) and the pIRIR signals (Figure 1B) from all bleached subsamples was normalized to that of the natural subsamples (without bleaching) and plotted against SOL2 exposure time on a log-log scale. It is noteworthy that there is a kink exhibited for all bleaching curves at 1 hour exposure time, especially for pIRIR signals. It is because a new lamp in the solar simulator was used for the first five data points, referring to 1, 3, 5 min 10 and 20 min exposure time, as they were not included in the initial design of the experiment. Nevertheless, the general trend of these bleaching curves is not affected. As expected, the pIRIR signals bleach noticeably slower than their corresponding IR50 signals, which is in line with previous studies. As shown in Figure 1, after 1 min (0.017 h) bleaching, the remaining IR50 signals accounted for 6% of its natural signal intensity for the lowest temperature to up to 30% for the highest temperature, while all pIRIR signals are reduced to ∼35–40%, with a similar trend like the IR50 signals. The majority of the IR50 bleaching data shows a noticeably nonlinear trend on a log-log scale, asymptoting to a bleaching plateau after ∼10 h exposure with seemingly unbleachable signals of up to 14% of their initial intensity (e.g. preheat at 340°C). Conversely, the pIRIR bleaching data do not appear to reach a steady-state level after 480 h exposure in SOL2 solar simulator. These findings are in line with Kars et al. (2014a) and Colarossi et al. (2015).

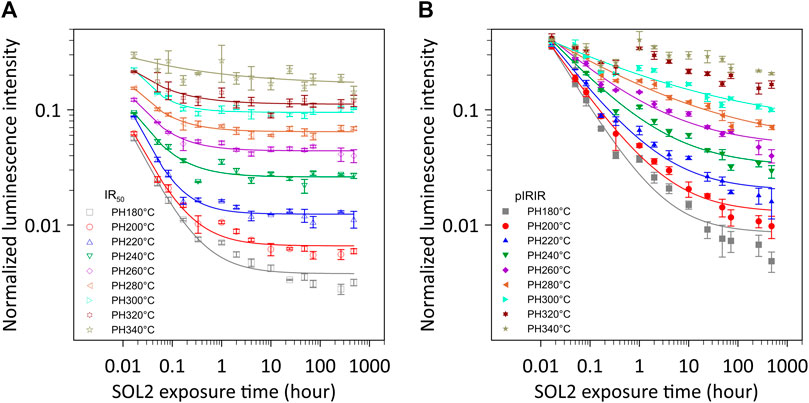

FIGURE 1. Normalized IR50 (A) and pIRIR (B) luminescence intensity under various preheat (stimulation) temperatures, plotted against SOL2 bleaching time. The pIRIR stimulation temperature is always 30°C below the preheat temperature. The bleaching curves were fitted with the Eq. 1.

The bleaching curves were fitted to Eq. 1 given above. The fitted decay rate (b) and relative residual intensity (c) normalized to the natural signal are plotted in Figure 2. It was difficult to accurately fit the decay rate for the IR50 signals, because the majority of the signals were bleached before 1 min (0.017 h) SOL2 exposure. The decay rate for the pIRIR signals shows a clear decreasing trend with increasing preheat (and stimulation) temperature (Figure 2A). The pIRIR bleaching curve for the two highest preheat temperatures could not be fitted to due to the scatter of the data. Nevertheless, Figure 2B indicates that the relative residual signal level, which increases with preheat temperature, is consistent between the IR50 and pIRIR signals for a same preheat temperature.

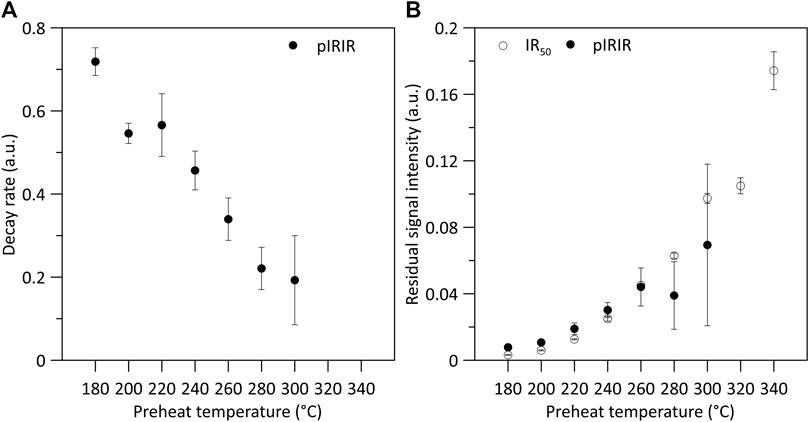

FIGURE 2. (A) The fitted decay rate of pIRIR signals, and (B) relative residual intensity normalized to the natural signal for both IR50 and pIRIR signals.

The preheat temperature dependence of the feldspar bleaching rate is in accordance with other studies (e.g., Li and Li, 2011; Lowick et al., 2012; Kars et al., 2014a; Colarossi et al., 2015; Reimann et al., 2015), and may be a result of increased distance between traps and recombination centres (e.g., Kars et al., 2014a). For both IR50 and pIRIR, more signal remains as the preheat temperature is raised (Figures 1A,B). The bleaching curve of IR50 after a 340°C preheat shows almost no clear decrease regardless of the exposure time. This may infer that the light-sensitive charges remaining after the SOL2 exposure have been further thermally removed during the high preheat and most of the detected signals might be originated from the thermal transfer of charge from light-insensitive traps to the IR-sensitive trap (Buylaert et al., 2011). The higher the temperature, the more charges could be thermally transferred. However, this does not explain the plateau at lower preheat temperatures (e.g.<200°C), at which thermal transfer should be minimal. An alternative explanation for the bleaching plateau may involve a competition between optical bleaching of the IR sensitive traps by SOL2, and repopulation of the same traps due to the UV component of the bleaching light (Ollerhead and Huntley, 2011). The equilibrium between optical de-trapping and UV trap refilling could be expected after prolonged exposure, resulting in constant trap concentrations and hence bleaching curve plateaus. However, this hypothesis can also be questioned, as it cannot explain the presence of a plateau in one young coastal sample (W-Zi2; 0.84 ka) from Kars et al. (2014a), which was optically bleached with the UV part of the spectrum filtered out.

Based on the above observations, we confirm the presence of a non-bleachable component in the IRSL signal, and the high likelihood of the same phenomenon occurring in the pIRIR signal, and their strong correlation with preheat (stimulation) temperature. In order to minimize the effect of the residual signal on age determination, our results provide additional experimental evidence, and further support the notion that young samples should preferably be dated using lower preheat and stimulation temperatures in the pIRIR measurement protocol (Madsen et al., 2011; Reimann et al., 2011; Reimann and Tsukamoto, 2012; Zhang et al., 2015a; Reimann et al., 2015) or using the pulsed IR50 signal (Tsukamoto et al., 2017).

Inference of the pre-burial light exposure duration utilizing multiple feldspar pIRIR signals

The raw (i.e. fading uncorrected) measured De values of the IR50 and pIRIR signals of sample LUM-2941 (Zhang et al., 2015a) are shown as triangles in Figure 3. Alongside these direct measurements, the corresponding fading corrected De values are shown as squares. Up to 260°C, both IR50 and pIRIR datasets are generally in agreement, showing an increase in De values as a function of preheat temperature; above 260°C, the pIRIR Des continue to increase, while the IR50 Des reverse the trend and decrease, resulting in a peak De at a preheat of 260°C. The peak shape discloses an expectable artefact at preheat temperatures >260°C, which has been demonstrated by the failed dose recovery test of this sample (Figure 4A in Zhang et al. (2015a)) at the preheat temperatures >260°C. This behaviour of the IR50 signals may be explained by trapping sensitivity change (Kars et al., 2014b). In the complete absence of residual doses, the fading corrected Des should have been the same as the expected De, given that the fading rate measurements and the applied model are both adequate. However, the fading corrected Des of both IR50 and pIRIR signals deviated from the expected value, and displayed a similar trend as the measured ones. As expected, the predicted residual dose increased with preheat temperature, up to 4.6 Gy (Figure 4). This is in line with our observations in Figure 1, that the bleachability of feldspar pIRIR signals deteriorates towards higher measurement temperatures; consequently, higher residual doses for higher preheats may be expected, regardless of whether the sample is well or poorly bleached. It is noteworthy that for both IR50 and pIRIR signals, negative predicted residual doses were generated, which is unrealistic. One possible cause for negative residual doses is the uncertainty on the quartz OSL age (6.3 ± 0.4 ka); if the youngest age of 5.9 ka would be adopted, the negative values of the predicted residual doses would disappear. Another contributing factor is the well-documented trapping sensitivity change of the IR50 signal at preheat temperatures >260°C (Kars et al., 2014b), which makes the IR50 data not comparable across the different temperature. In the remainder of the paper, we therefore focus only on the pIRIR signal, which is also of primary interest for dating applications.

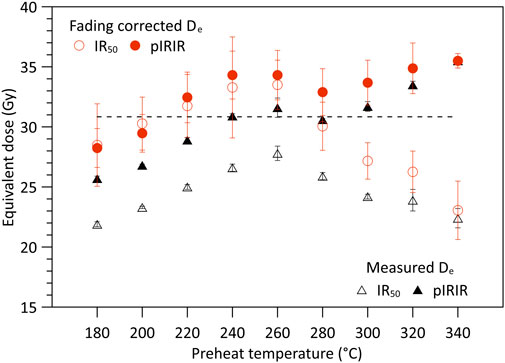

FIGURE 3. De values measured in the laboratory (triangles) and fading corrected Des according to Zhang et al. (2015a). The dashed line denotes the expected De calculated based on the quartz OSL age. The pIRIR310 De (preheat at 340°C) was not corrected as negative g-value was measured. The difference between the expected De and the fading corrected Des is termed “predicted residual dose”, and is further shown in Figure 4.


FIGURE 4. Predicted residual doses of the sample, corresponding to the differences between the fading-corrected Des and the expected De (30.8 ± 2.6Gy). The detailed data were presented in Table 2.

Since the dose response of the young sample is in its initial linear range, one can multiply the Ln/Tn depletion ratio of the bleaching experiments by the corresponding De of that pIRIR signal to obtain the remaining doses after different exposure times in SOL2. These are termed as “calculated residual dose”, and are plotted against the corresponding preheat temperature in Figure 5. Predicted residual doses (solid black diamond; cf. Figure 4) were superimposed onto the calculated residual doses for comparison. Figure 5 shows that the light exposure that this sample experienced prior to burial is probably longer than an equivalent of 4 h exposure in solar simulator that usually applied in residual test.

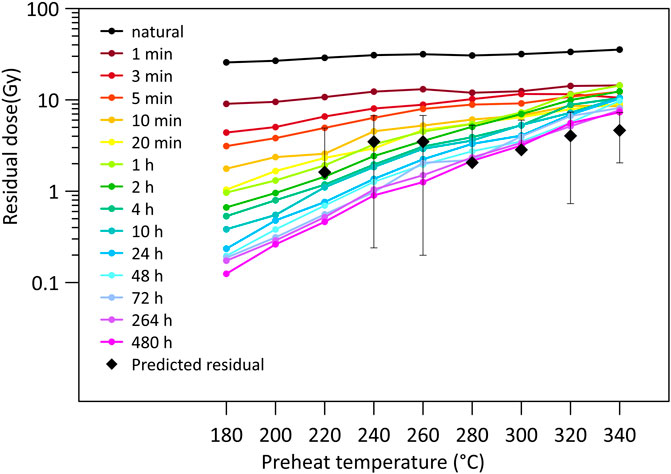

FIGURE 5. Predicted residual doses (solid diamonds; cf. Figure 4) superimposed onto the calculated residual doses from the laboratory bleaching experiments. The calculated residual doses refer to the remaining doses after different exposure times in SOL2. The uncertainties of the predicted residual doses were larger than the values themselves at preheat of 220, 280 and 300°C, so that the error bars on the negative direction cannot display on the log scale.

To estimate the probability of the bleaching time in nature prior to burial (Figure 6), we evaluated the goodness-of-fit of the predicted residual doses (black diamond in Figure 5) against observed residuals due to known bleaching times in the laboratory (coloured curves in Figure 5), using the reduced chi-square statistic. This enables us to translate the residual dose from the multiple luminescence signals into a Be value that the sample has likely experienced before its last depositional event. We treated the standardized difference between the observed and predicted residual doses at each of the nine temperatures as a random variable following a standard normal distribution. In this case the sum of squares of these differences will be itself a random variable following a Chi-square distribution with nine degrees of freedom. The bleaching degree is calculated as the integrated area under the upper tail of the probability density curve of the Chi-square distribution, that is, the larger the Chi-square random variable (i.e., the larger the sum of squares of the differences), the smaller the integrated area within the upper tail of the distribution and therefore the lower the degree of bleaching. When all 14 data points of various bleaching time were included, the probability (i.e., the degree of bleaching) showed an early peak at a bleaching time of 20 min (Supplementary Figure S1). We argued that the appearance of this peak is unrealistic for the following reason. As mentioned above, the bleaching results of the first five data points (i.e., with exposure times of 1, 3, 5, 10, and 20 min) were measured using a new lamp, that is, different from the remaining data points (i.e., the exposure times of 1, 2, 4, …, 480 h). As a consequence, a merger of the two sets of data will yield unexpected results. Accordingly, we excluded these five data point from Figure 6. We demonstrated that, for sample LUM-2941 collected from the northern piedmont of Qilian Mountains, when the laboratory exposure time exceeds 264 h, the corresponding bleaching degree is >95%. Since the intensity of SOL2 solar simulator is up to 9 times greater than daylight (Dr Honle Sol Sun simulation systems from Uvalight Technology Ltd, 1988), it means that this sample may experience more than two thousand hours daylight exposure prior to last burial in nature. This result implies that the use of standard residual subtraction (measured typically after 2–4 h bleach in SOL2; see Li et al., 2014) could lead to marked overestimation of the actual residual dose (264 h as in this study), leading to age underestimation which should be avoided.

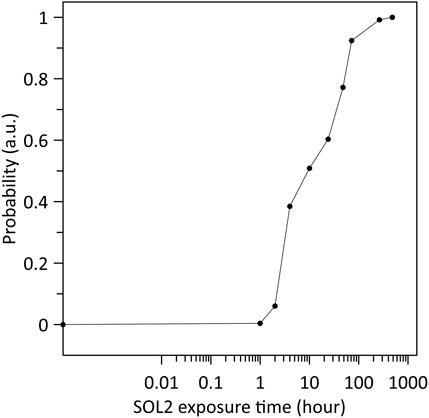

FIGURE 6. Probability of bleaching time prior to sedimentation, obtained by evaluating the goodness-of-fit of the predicted dose residuals against those from known bleaching times in Figure 5, using the reduced chi-square statistic.

According to the grain size analysis and process-related end-member (EM) modelling, Nottebaum et al. (2015) demonstrated that the dominant grain size fraction of the loess sample (LUM-2941) is coarse to fine silt fraction, which was classified as EM2 and EM3 population. The origin of EM2 and EM3 has been identified to be suspension during dust storm events from sandy and/or Gobi deserts surfaces located to the north of the Qilian Mountains, and constant long distance transport by westerlies, respectively. Both provenances are distant (>102 km) from the sampling locality. Regarding the possible travelling time during dust storms and trapping time before burial for such material, our reconstruction result, more than two thousand hours daylight exposure, is a plausible value, even though there is currently no other measure to validate or disprove it. Meanwhile, we are aware that our reconstruction is highly dependent on the availability of reliable age control, correct dose rate determination and accurate g-value measurements. Furthermore, the real sedimentological (transportation) process is rather complex, even for subaerial aeolian sedimentation. Such reconstruction of the Be value simplifies the nature process, during which the daylight exposure is dominant. And it is noteworthy that such interpretation is only an attempt and the value of Be is subject to slight difference in the way of calculation. At this stage of practice, the erosion-deposition cycles that the sediment may have experienced prior to the last exposure event have not been taken into consideration. Provided a sample had initially larger dose than the sample in this study (∼30 Gy), longer bleaching time would be required to bleach the signals down to the same level.

The bleaching experiments presented in this paper were significantly time-consuming, because a range of pIRIR signals was explored and exploited for the interpolation of predicted residuals onto the laboratory bleaching curves. The advantage of using multiple pIRIR signals to obtain the natural bleaching time is in the intersection of multiple signals with different bleaching characteristics, eventually providing greater confidence in the final result. For future applications, one might consider using fewer (or even a single) pIRIR signal at the expense of less certain knowledge of the bleaching history. Furthermore, the more recent study by Cheng et al. (2022) has demonstrated that the individual grains from the same sample are subject to significant variation in the bleachability, which may result in different residual doses for different grains. The exploration on single grain scale might provide further insight into the pre-burial light exposure history of sediment.


Our results demonstrate that there are non-bleachable components in the IR (and possibly pIRIR) signals, and that the level of this unbleachable signal positively correlates with the preheat/stimulation temperature. It’s noteworthy that the relative residual signal level is consistent between the IR50 and pIRIR signals for a same preheat temperature. It provides further support that lower temperature pIRIR are advantageous in reducing the contribution of residual signals (possibly induced by thermal transfer), especially when dating young samples and sediments from difficult-to-bleach environments. Taking advantage of results from our extensive bleaching experiments, we explore the pre-deposition bleaching (or transportation) history of the target sediments, based on observation that feldspar pIRIR signals obtained at different temperatures have different bleaching characteristics. Despite the challenges, limitations, and uncertainties in this approach, we were able to quantify the possible pre-depositional sunlight bleaching time for a loess sample under investigation. That pre-depositional time amounted to an equivalent of at least 264 h exposure in the solar simulator. Our attempt provides further proof-of-concept for the utilization of luminescence dating for photochronometry (Guralnik and Sohbati, 2019), which should particularly benefit the research of sedimentological processes and provenance.

Data availability statement

The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author.

Author contributions

JZ, ST, and BG contributed to conception and design of the study. JZ organized the database. BG performed the statistical analysis. JZ wrote the first draft of the manuscript. BG and CA rewrote part of the manuscript. All authors contributed to manuscript revision, read, and approved the submitted version.


JZ was financially supported by the NSFC (Grant No. 41701002) and the STEP (Grant No. 2019QZKK0205).


We thank all HAZARD participants for fruitful discussions on feldspar luminescence, and for feedback on work in progress. We are grateful to Li Yan and Peng Jun for their helpful comments and discussions in fading correction models and Chi square test. We appreciate very much the constructive comments from two reviewers.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at:
