Investigating Mazon Creek fossil plants using computed tomography and microphotography

1 Introduction

The Paleozoic Mazon Creek Lagerstätte is one of the richest fossil assemblages and many thousands of specimens preserved in sideritic concretions have been recovered from the Francis Creek Shale of the Carbondale Formation in the Illinois Basin, United States, which is of Moscovian (∼307–311 Ma), Middle Pennsylvanian age. The concretions preserve impressions, casts, and molds of a wide variety of organisms from a broad spectrum of estuarine marine to freshwater environments (Johnson and Richardson, 1966; Nitecki, 1979; Baird et al., 1985; 1986; Clements et al., 2019). The Mazon Creek biota includes many terrestrial animals and plant remains (e.g., Wittry, 2006; 2020) that were evidently washed into coastal and marine depocenters suitable for the formation of siderite concretions in the Mazonian delta (e.g., Cotroneo et al., 2016; McCoy et al., 2016; Clements et al., 2019). Fossils in the concretions exhibit exquisite preservation which reflects the early formation of the nodules prior to significant sediment compaction and decomposition. Fossil metazoans often have the remains of soft tissues preserved. Fossil plants often contain spores (e.g., Drinnan and Crane, 1994) and also have excellent details of external morphology, which is sometimes complemented by the preservation of anatomical details (Drinnan et al., 1990). Among the many metazoans from the deposit are fossil jellyfish, polychaete worms, and the “Tully Monster” (Tullimonstrum gregarium) (Johnson and Richardson, 1966; Richardson, 1966). The latter has been studied especially intensively and the quality of preservation provides information on the probable notochord and other structures, as well as eye pigmentation, which has engendered vigorous debate on the likely systematic affinities of this enigmatic organism (e.g., Clements et al., 2016; McCoy et al., 2016; 2020; Sallan et al., 2017).

Like the fossil invertebrates and vertebrates, the floral component of the Mazon Creek biota is also diverse (Darrah, 1969; Drinnan and Crane, 1994). It includes plant parts of lycopsids, sphenopsids, ferns, pteridosperms, cordaites, as well as fossils of uncertain relationship. The fossil assemblage is dominated by leaves of ferns, sphenopsids, and pteridosperms (Locatelli et al., 2016), with lycopsids as secondary contributors (Wittry, 2006; 2020). Fossil plants in the Mazon Creek sideritic concretions exhibit excellent 3D morphology but most studies of plants from these nodules have focused on their appearance in two-dimensions and what can be seen on the surfaces of casts and molds. The first plant fossil from the Mazon Creek flora to be reconstructed in 3D was Stephanospermum konopeonus Langford, a medullosan pteridosperm ovule (Drinnan et al., 1990). Using a combination of longitudinal splitting, transverse cutting, serial sectioning and peels, Drinnan et al. (1990) characterized the histology of the ovule and reconstructed its three-dimensional form. Advanced imaging techniques including μCT now provide the opportunity to conduct similar studies non-destructively and more efficiently (Sutton, 2008), but despite the recent widespread use of μCT for reconstructing the anatomy and systematics of Mesozoic and Cenozoic plants (e.g., Friis et al., 2007; 2014; Smith et al., 2009a; Smith et al., 2009b; Collinson et al., 2013; 2016; Manchester et al., 2019; 2022; Matsunaga et al., 2019; 2021; Shi et al., 2021; Smith et al., 2021), this state-of-the-art technology has been barely applied to Mazon Creek plant fossils. To our knowledge, the only Mazon Creek plant that has been studied using a combination of light microscopy and μCT scanning is the medullosan pteridosperm ovule Stephanospermum braidwoodensis Spencer et Hilton (Spencer et al., 2013), which is very similar to Stephanospermum konopeonus.

Here, we apply these, and other advanced visualization techniques to exceptionally well-preserved fossils of Tetraphyllostrobus Gao et Zodrow and Crossotheca Zeiller from the Mazon Creek flora to determine their structure and elucidate general principles for the study of Mazon Creek fossil plants using μCT scanning.

2 Materials and methods

The Mazon Creek fossil specimens studied here are housed in the paleobotanical collections of the Field Museum (FM). Three specimens recently identified as cf. Tetraphyllostrobus broganensis in Mazon Creek siderite nodules (Wittry, 2020) were examined in this study. Two (PP54628, PP58471) were scanned using a GE dual tube μCT scanner at the PaleoCT lab in the Department of Organismal Biology and Anatomy at the University of Chicago. The third (PP34514) was scanned using a Nikon XT H 225ST industrial μCT system with a Perkin Elmer 1620 X-ray detector panel and a tungsten reflection target at the University of Michigan, CTEES facility.

For PP54628 (Figure 1) both part and counterpart were scanned together separated by a thin piece of wrapping foam. The scan used a 240 kV micro-focus tube at 150kV and 250  μA at 500 m exposure timing, using filter of 0.5 mm Cu. Resolution of voxel x=y=z= 31.8520 μm with 1,200 projection images was achieved. For PP5847 (Figure 2) both part and counterpart were scanned as for PP54628, but a with 180 kV nano-focus tube at 150kV and 250  μA at 500 m exposure timing, using filter of 0.5 mm Cu. Resolution of voxel x=y=z= 20.8280 μm with 1600 projection images was achieved. PP34514 (Figure 3) was physically sectioned with a Hi-Tech Diamond 6″trim saw. Sections were scanned at 113kV and 105  μA at 500 m exposure timing, using filter of 0.5 mm Cu. Resolution of voxel x=y=z= 12.0 μm with 3,141 projection images was achieved. Anatomical details were obtained from acetate peels (Galtier et al., 1999) taken from the surfaces of individual sections and mounted on slides with Eukitt. Light photographs and microphotographs of acetate peels were obtained at the Field Museum. Macrophotography was with a digital Canon EOS R digital camera (MP-E 65 mm f/2.8 1–5x macro lens) attached to a Stackshot system, with the digital photographs merged using Helicon Focus software. Microphotography was with a ZEISS Axio Imager.A2 microscope using differential interference contrast (DIC) and a Jenoptik Gryphax NAOS digital camera.

FIGURE 1

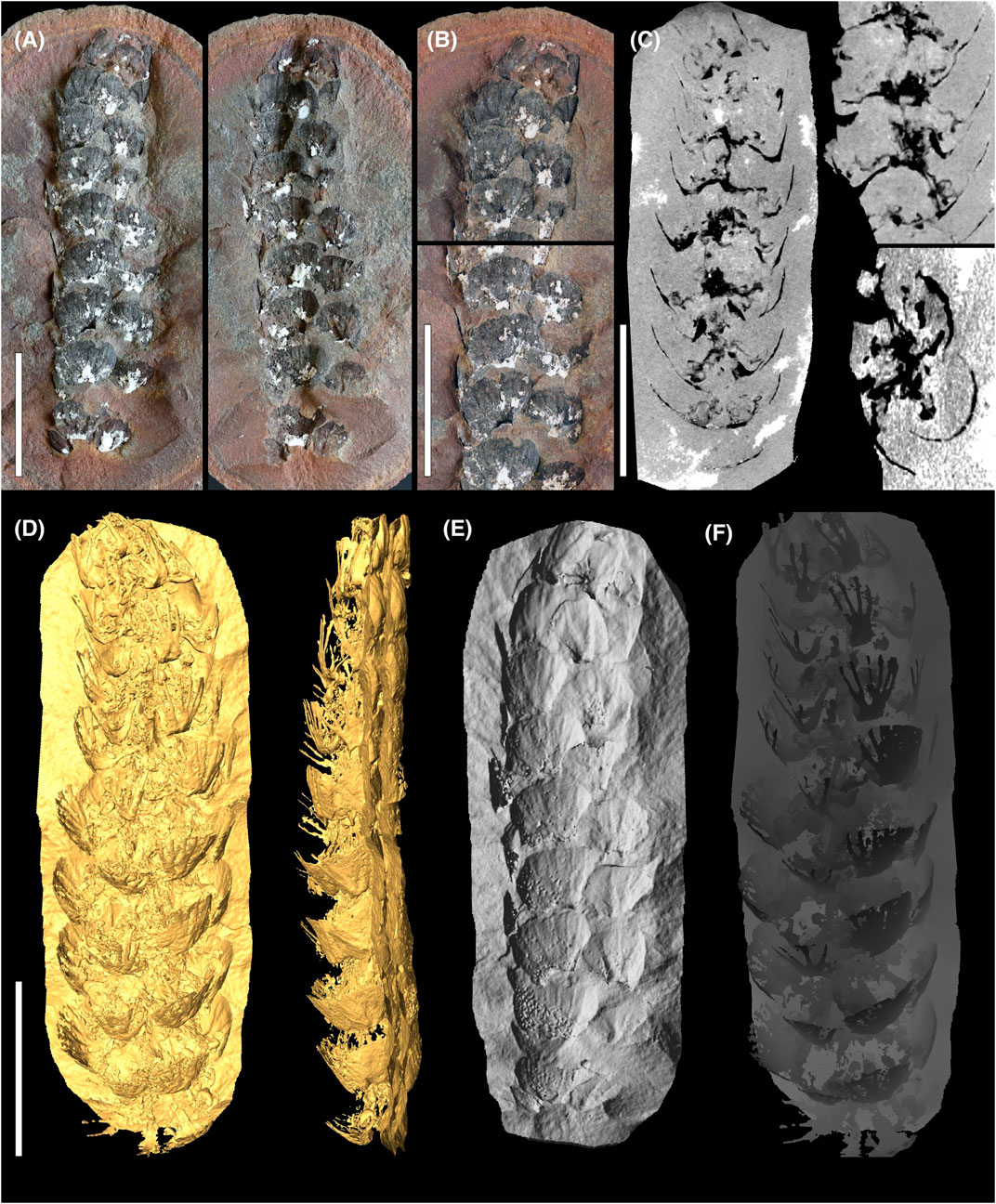

FIGURE 1. Strobilus of cf. Tetraphyllostrobus broganensis (PP54628). (A) Light photographs of part and counterpart of strobilus in a sideritic concretion. (B) Detail of top and middle portion of strobilus in A (left) showing two orthostichies that suggest a decussate arrangement of the sporophylls. Note the white patches of aluminosilicates on the surface of the strobilus. (C) Computed tomography images showing longitudinal (left and top right) and transverse (bottom right) sections. Note the V-shaped sporophylls in lateral view that are directed downwards proximally and upwards distally, and the curved sporophyll outlines in transverse section. (D) Reflective isosurface renderings showing buried surface of the strobilus in A (left) and a lateral view of that portion of the strobilus embedded in the matrix. Note four of six sporophylls in each apparent whorl which complement the pair of sporophylls visible on the surface in A (left). (E) Surface rendering from A (left) processed with MeshLab (shader: slicingplane) and highlighting the ribbed external surface of sporophylls. (F) Surface rendering from D (left) processed with MeshLab (shader: depthmap) showing the four buried sporophylls at each whorl. Scale bars: 10 mm.

FIGURE 2

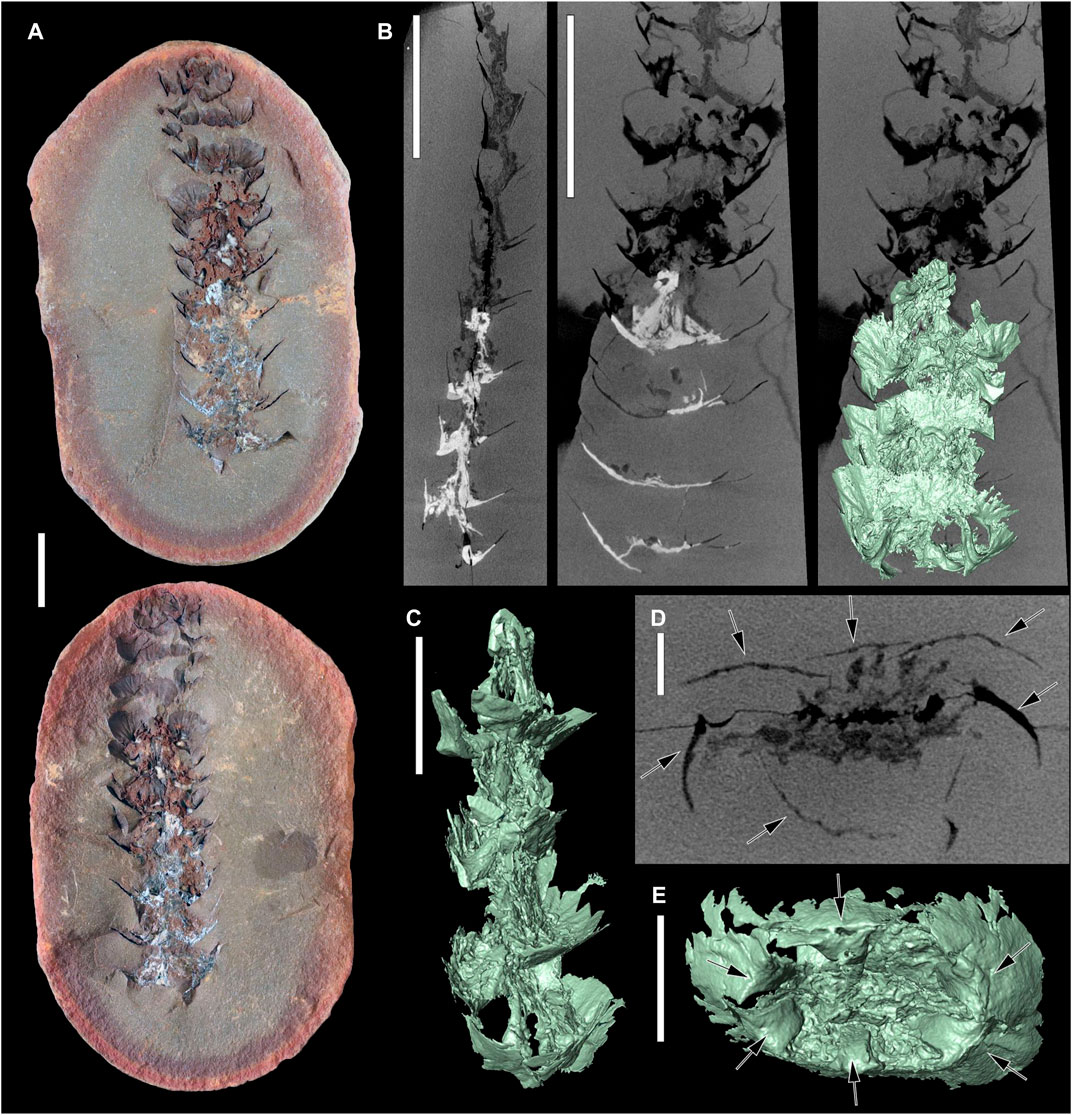

FIGURE 2. Strobilus of cf. Tetraphyllostrobus broganensis (PP58471). (A) Light photographs of part and counterpart of strobilus embedded in a sideritic concretion showing the variable mineralogical composition with predominantly iron oxides (upper half) and predominantly sulfide minerals (lower half). (B) Computed tomography images in lateral (left) and frontal (middle, right) sections showing the conspicuous mineralogical transition from predominantly iron oxides (upper half) to sulfide minerals (lower half). Note partial compression of strobilus in left image. Right image shows a superimposed isosurface rendering from the sulfide-rich zone. (C) Isolated isosurface rendering of sulfide-rich zone from B in lateral view showing V-shaped sporophylls in longitudinal section and the separation between successive whorls. (D) Computed tomography image in transverse section showing six sporophylls (arrows). (E) Basal view of surface rendering from C showing the broad proximal shafts of six sporophylls (arrows). Scale bars: 10 mm (A and B); 5 mm (C and E); 2 mm (D).

FIGURE 3

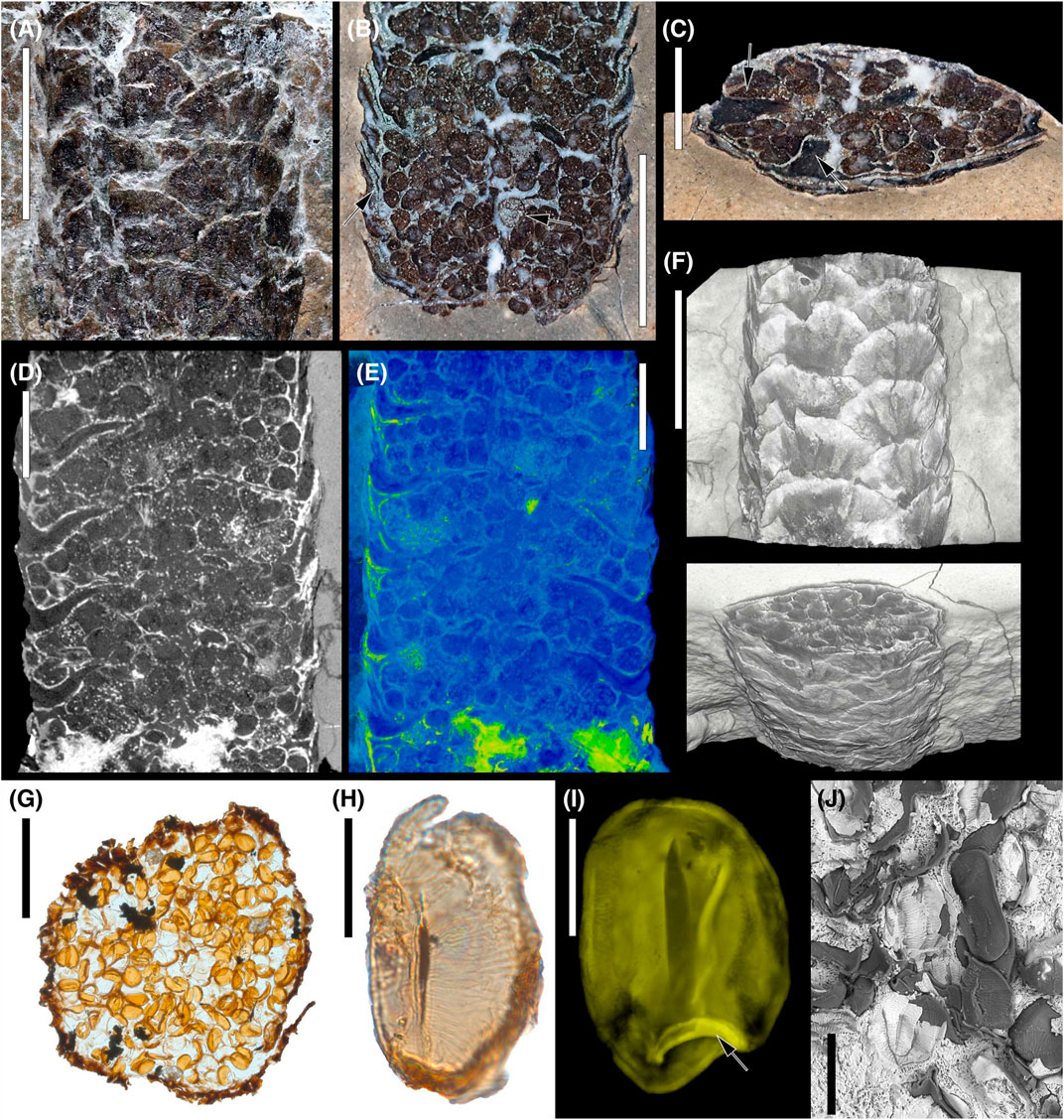

FIGURE 3. Strobilus and spores of cf. Tetraphyllostrobus broganensis (PP34514). (A) Light photograph of strobilus within sideritic matrix showing two orthostichies that suggest a decussate arrangement of the sporophylls. (B). Light photograph of strobilus in oblique longitudinal section showing spheroidal sporangia (arrows) each containing numerous spores. (C) Light photograph of strobilus in transverse section showing abundant spheroidal sporangia and the broad proximal shafts of two sporophylls (arrows). (D) Computed tomography image in oblique longitudinal section showing the V-shaped sporophylls with broad proximal shafts and numerous spheroidal sporangia. White and bright patches indicate areas of pyritization. (E) Volren image from D showing reflective differential composition of pyrite (light green) versus the rest of the strobilus (blue-purple). (F) Volren images in frontal and oblique views from A and C, respectively showing clear orthstichies of overlapping sporophylls. (G) Light micrograph of a peel of an isolated sporangium showing abundant spores. (H) Light micrograph (DIC) of a Columinisporites spore showing closely spaced ridges approximately perpendicular to the monolete suture. The longitudinal ridges paralleling the monolete suture are not visible. (I) Airyscan confocal image of monolete Columinisporites showing the spore wall, longitudinal monolete suture, very faint perpendicular ridges (left) and longitudinal and oblique folds (arrow) in the spore wall. (J) SEM image of several Columinisporites spores showing the characteristic, partially detached, laterally striate perispore. Scale bars: 5 mm (A, B and F); 2 mm (C–E); 200 μm (G); 40 μm (J); 20 μm (H, I).

The part and counterpart of Crossotheca (PP58059; Figure 4) were scanned together as for PP54628 and PP58471, but with a 180 kV nano-focus tube, at 150 kV and 250 μA at 500 m exposure timing, using filter of 0.2 mm Cu. Resolution of voxel x=y=z= 32.2230 μm with 1,800 projection images was achieved.

FIGURE 4

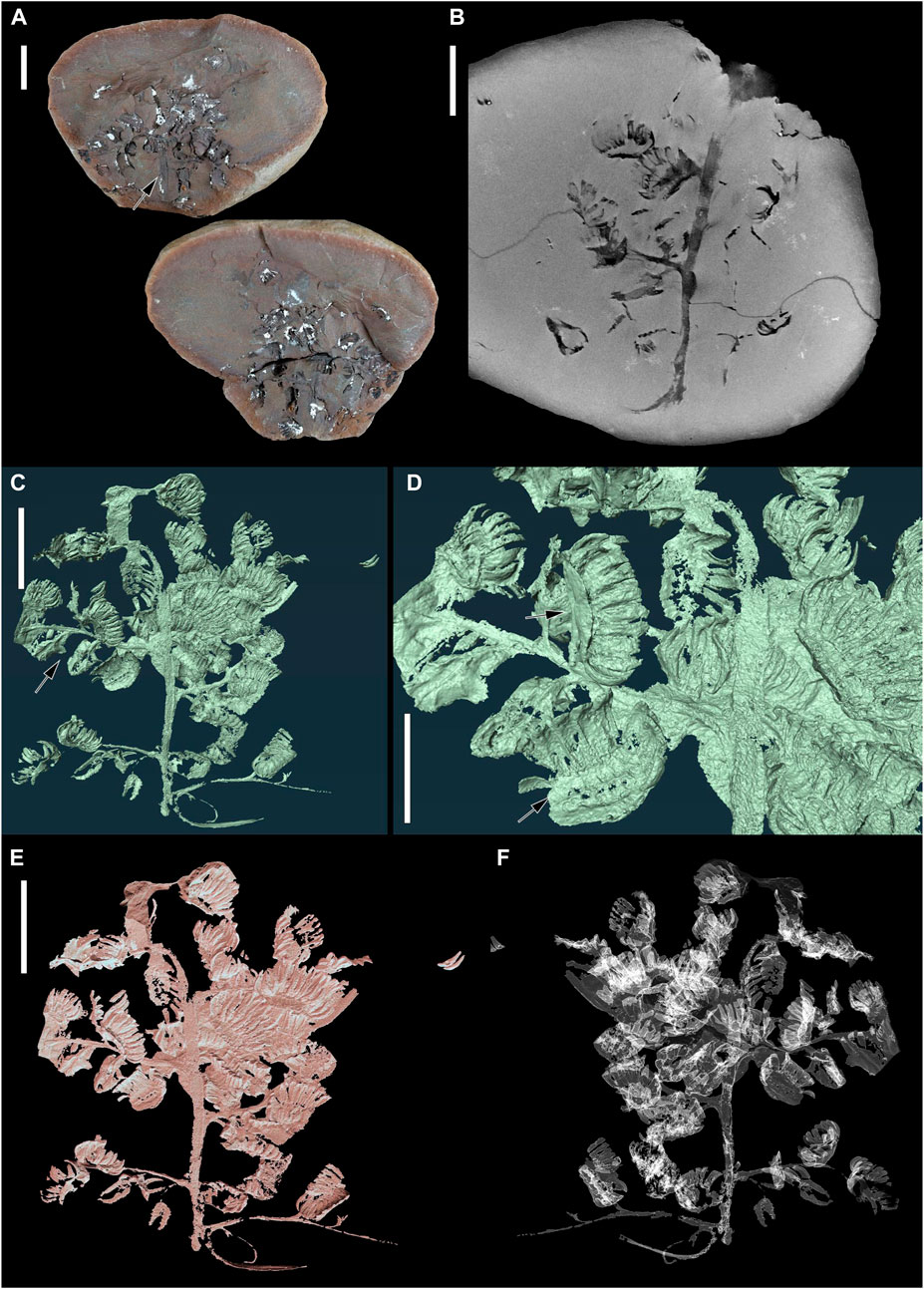

FIGURE 4. Branching axis cf. Crossotheca trisecta (PP58059). (A) Light photographs of part and counterpart in a sideritic concretion. Note the stout central axis (arrow) and white patches of aluminosilicates on surface of the fossil. (B) Computed tomography image showing the stout axis and two secondary axes with attached synangia. (C) Isolated virtual rendering showing the 3D architecture of the branching axis. (D) Detail from C (arrow) showing a synangia in lateral view attached to a simple lamina (upper arrow) and view from below showing the arrangement of the sporangia in two rows (lower arrow). (E) Virtual surface rendering from C processed with MeshLab (shader: radiancescaling, lit sphere effect). (F) Mirror image of virtual cast surface rendering from C processed with MeshLab (shader: x-ray). Scale bars: 10 mm (A, B, C, E and F); 5 mm (D).

The μCT volumes were visualized mainly using Avizo Software 3D 2022.1 (Thermo Fisher Scientific, Waltham, MA, United States). A volume thresholding tool in Avizo was used to demarcate the digitized 3D volume of the fossil specimens from the surrounding matrix of the concretion. Multiple functions were applied to the data to briefly evaluate the quality of the scans and the 3D preservation using volrens, isosurfaces, isosurface renderings, and volume renderings. An isosurface was first created to reconstruct the buried surface of the parts and counterparts (draw style: shaded) with the “back face” function selected. Once the desired surface models were achieved, each volume was exported as a .ply file for further analysis or visualization in MeshLab 2022.02 (Cignoni et al., 2008). Additional filters in MeshLab were helpful for removal of isolated surface fragments. MeshLab rendering-shaders functions, for example, depthmap, slicingplane, radiancescaling (lit-sphere effect), and x-ray were applied to improve the visualization of the surface models.

In-situ spores from the permineralized cone of specimen PP34514 (Figure 3) were examined directly on polished specimens attached to a stub and scanned at the National Museum of Natural History with a Zeiss EVO MA15 scanning electron microscope (EHT = 12 kv, WD = 7.5 mm, I probe = 1.2 nA, signalA = CZBSD). The spores were also imaged using a Zeiss LSM 980 with Airyscan 2 confocal superresolution microscope at the Smithsonian Tropical Research Institute. Images were taken at ×630 magnification (×63/NA 1.4 oil DIC) with fluorescence contrast, using 561 and 639 nm laser wavelengths and an intensity of 40% and 16% respectively. A total of 147 axial images were taken at 0.19 μm increments to capture the 3D morphology of each spore. Images were analyzed using Zeiss Zen 3.4.

To evaluate the response to μCT of specimens preserved in different minerals we acquired in situ and ex-situ elemental maps (Oxford Instruments AZTec) of the fossil concretions (Supplementary Material). In-situ and ex-situ Raman microspectroscopy was performed at FM with a WITec alpha 300 R system equipped with a 532 nm laser (Supplementary Material). Data was analyzed using WITec Project Plus software.

2 Results

2.1 Tetraphyllostrobus

Since its original description the systematic placement of Tetraphyllostrobus has been problematic. The genus was described based on approximately thirty compression specimens from the Late Carboniferous of Canada that were assigned to the only species of the genus, Tetraphyllostrobus broganensis Gao and Zodrow (Gao and Zodrow, 1990). The new morphological and anatomical information on the strobili and in situ spores of three specimens identified as cf. Tetraphyllostrobus broganensis in Mazon Creek siderite nodules (Wittry, 2020) confirms their assignment Tetraphyllostrobus. A detailed systematic and nomenclatural treatment of these fossils will be the subject of a separate study.

The three μCT scans of the Mazon Creek specimens of cf. Tetraphyllostrobus broganensis (Figures 1–3) all reveal excellent 3D preservation of the strobili. Some compaction of the original plant material is evident, but the visualizations reveal whorls of six sporophylls at each node (Figures 1C, F; Figures 2D, E) rather than pairs of sporophylls in a decussate arrangement, as was initially described based on the compression specimens of Tetraphyllostrobus (Gao and Zodrow, 1990). This aspect of the morphology is best seen in a combination of digital transverse sections (Figure 1C, 2D), isosurface images of the buried surface (Figure 1D), internal depth map visualizations (Figure 1F), and volume renderings (Figures 2B, C, E). The μCT data from all three strobili also show that each sporophyll has a V-shaped appearance in longitudinal section (Figures 1C, 2B, 3D). This results from the downward orientation of the proximal sporophyll stalk at an angle of ca. 45°, with the distal lamina then turned prominently upwards. The seemingly decussate organization of the sporophylls noted in compression fossils (Gao and Zodrow, 1990) is also apparent in the Mazon Creek specimens (Wittry, 2020) as two distinct orthostichies. This is a result of the facture plane that passes across the surface of the cone clearly exposing only two of the six sporophylls in each whorl (e.g., Figure 2B, left).

Specimen PP34514 shows excellent preservation of sporangia, which are well seen in both longitudinal and transverse sections (Figures 3B–E, G–J). DIC microscopy, Airyscan, and SEM all show that the spores in specimen PP34514 are attributable to the Carboniferous dispersed spore genus Columinisporites (Figures 3G–J) (Peppers, 1964). Isolated Columinisporites spores have been found in late Pennsylvanian deposits across the Illinois basin (Peppers, 1964; 1970), but this is the first in situ record in the Mazon Creek flora. The genus was described as an elliptical to reniform spore with sculpture characterized by several to numerous prominent ridges running roughly parallel to the long axis of the spore and a network of smaller (secondary) ridges extending approximately transverse to the longitudinal ridges (Peppers, 1964). This distinctive sculpture is in a layer external to the spore wall that is readily detached and is generally interpreted as a perispore (Taylor, 1986). Perispore remnants often remain attached to the spore wall.

The proximal monolete aperture is clearly visible with DIC and Airyscan imaging (Figures 3H, I). DIC also resolves the anastomosing network of transverse secondary ridges on the spore wall, although the primary ridges are not visible (Figure 3H). In the Airyscan images this transverse ornamentation is barely noticeable but a two-layered spore wall is visible (Figure 3I). SEM is the most effective for demonstrating the longitudinal ridges (visible as grooves in the micrograph) as well as the monolete apertures and secondary ridges (Figure 3J). SEM also clearly illustrates the detachable nature of the perispore, showing some portions embedded within the tissue of the sporangium and other portions adhering to the spore wall. Primary ridges appear as grooves, indicating that they are in negative relief, that is, the underside of the perispore is imaged. These observations support interpretations that view the perispore was derived from tapetal tissue as in modern ferns and sphenopsids (Wallace et al., 2011). The marked contrast in the SEM image between the spore wall (dark) and the perispore and embedding tissue (light) also points to compositional differences between the sporopollenin exine and the presumed tapetally-derived perisporial tissues.

2.2 Crossotheca

Crossotheca includes over a dozen described species of microsporangiate fertile units (Taylor et al., 2009; McLoughlin, 2021) that have been interpreted both as a lyginopterid pollen organ (Sellards, 1902; Darrah, 1937; Andrews and Mamay, 1948; Millay and Taylor, 1979) and the fertile frond of a eusporangiate fern (Danzé, 1955; Brousmiche, 1982).

The μCT scan of the nodule of cf. Crossotheca trisecta (Sellards, 1902; Wittry, 2020) provides an excellent illustration of the utility of combining digital sections (Figure 4B), virtual cast surface renderings (Figures 4C, D) with Meshlab processing (Figures 4E, F) for reconstructing complex 3D plant parts such as Crossotheca. The specimen is mainly preserved as a mold with some organic material remaining along the synangia walls (Figure 4A). This style of preservation allowed almost instantaneous reproduction of a virtual cast surface rendering, which is less time-consuming, and likely more accurate, than manual and interpretative standard segmentation techniques. The virtual cast surface renderings and MeshLab (Figures 4C–F) visualizations also reveal detailed external and internal morphological features of the synangia that are not clearly visible on the uneven surfaces of the concretion with standard reflected light microscopy (Figure 4D). Additional μCT scans of other Crossotheca specimens will be needed for more detailed assessment of the systematic affinities of these fertile units but the results presented here illustrate the potential of μCT scanning for the efficient analysis of the 3D structure in Crossotheca and similar specimens with complex morphologies from the Mazon Creek Lagerstätte.

2.3 Mineralogy of Mazon Creek plant concretions and computed tomography visualization

A recent study (Cotroneo et al., 2016), and the SEM chemical maps and in situ and ex-situ Raman microspectroscopy results presented here, confirm that the non-fossiliferous part of Mazon Creek concretions is mainly sideritic in composition, as has long been recognized. The four specimens analyzed reveal that the plant fossils often preserve a high-fidelity impression of their external surface, with the resulting void created by the loss of the original plant material infilled by various minerals that precipitate in the space. Based on these results, we group the minerals involved in a similar manner to Cotroneo et al. (2016) (Supplementary Material): 1) replacement by calcite and aluminosilicates (likely kaolinite, illite), 2) replacement by iron oxides, 3) replacement by sulfide minerals (e.g., sphalerite), and 4) pyritization with silicates and calcite present (Supplementary Table S1).

The three concretions containing Tetraphyllostrobus show that infilling minerals can either facilitate or obscure μCT visualization and 3D reconstruction of the original plant organ. In μCT images of strobilus PP54628 (Figure 1) mainly shows organic exterior walls with abundant aluminosilicates, which are visible as white patches on the surface of both part and counterpart of the concretion or bright areas with poor resolution (e.g., scattering artifacts) (Figure 1C). The organic exterior walls of the strobilus also display sufficient contrast for easy visualization in μCT images resulting in correspondingly less time-consuming and more straightforward renderings of complex 3D morphology (Figures 1D–F) than manual and exhaustive standard segmentation techniques (e.g., Matsunaga et al., 2021; Herrera et al., 2022).

Strobilus PP58471 (Figure 2) preserves thinner organic exterior walls than PP54628 (Figure 1), but there are distinct mineralogical domains in the upper and lower halves of the specimen. The upper half is mainly replaced by iron oxides while the lower portion is replaced mainly by sulfides (i.e., sphalerite). Other areas are empty, perhaps due to loss of the mineral infilling when the concretion was split or no infiltration of precipitates, for example, near the tips of the sporophylls. Both mineralogical domains (Figures 2B, D) exhibit good contrast in μCT images, but sulfides gave better conditions for creating and rapidly isolating 3D renderings using different volume threshold values and tools (Figures 2C, E).

Strobilus PP34514 (Figure 3) shows the greatest mineralogical diversity of the three Tetraphyllostrobus concretions. The central axis and sporophylls are primarily organic, whereas the sporangia appear filled with calcite and silicates. This specimen also presents various degrees of pyritization along the walls of the axis, sporophylls and sporangia, and there are also small pyrite crystals scattered throughout the strobilus. White patches of calcite crystals also fill the empty spaces in the strobilus and sporophylls, and also between sporangia. Overall, the predominantly organic nature of the strobilus provides good contrast in μCT images, but scattered pyritization results in disruptive scattering artifacts (Figure 3D). However, where small pyrite crystals occur along the edges of morphological features, they become helpful in recognizing sporophylls and sporangia in volren images (Figure 3E).

The branching system of cf. Crossotheca trisecta (PP58059) (Figure 4) is mainly preserved as a mold with some organic material remaining along the central axis and the walls of the synangia. The μCT images and renderings show excellent 3D preservation and minimal compressional deformation of synangia. As in the Tetraphyllostrobus strobilus PP54628 (Figure 1), white patches of aluminosilicates result in low resolution and poor contrast in CT images. However, the 3D preservation as a mold yields a high-fidelity impression of the external surface of the original plant organ facilitating the 3D rendering and isolation of the specimen from the sideritic matrix (Figures 4C, D). The surface models obtained with MeshLab (Figures 4E, F) also show the utility of 3D mesh processing software for visualizing complex 3D structures.

3 Discussion

Biomarkers and macromolecular biosignatures obtained with in situ Raman spectra studies on vertebrates, invertebrates, and coprolites from Mazon Creek have recently provided exciting results for reevaluating the affinity of problematic fossil organisms (McCoy et al., 2020) and the reconstruction of trophic relationships in this Carboniferous ecosystem (Tripp et al., 2022). Raman analyses showed the potential utility of this technique for recognizing the mineralogical composition of Mazon Creek fossil plants, but future biomarker analyses could also help elucidate the deep relationships among vascular plants and other unexplored trophic plant dynamic processes.

Approximately eighty plant taxa have been recognized from the Mazon Creek Lagerstätte, and there are more than 20,000 plant fossil specimens in the Field Museum collections. However, many of the plant taxa require careful structural analysis and systematic revaluation, including the specimens of Tetraphyllostrobus and Crossotheca studied here. A previous study by Drinnan et al. (1990) on ovules of Stephanospermum konopeonus demonstrated the potential for extracting high quality 3D information from plant fossils preserved in Mazon Creek ovules. More recently a study by Spencer et al. (2013) on a similar medullosan ovule, Stephanospermum braidwoodensis, showed that non-destructive μCT further enhanced the opportunities to develop 3D reconstructions of fossil plants preserved in siderite nodules. The current study on other kinds of plant fossils in Mazon Creek nodules further demonstrates the value of μCT scanning and the resulting visualizations for understanding the 3D structure of Paleozoic plants. However, the quality of results will be influenced by the composition of the minerals filling the voids left by the decomposing plant material, with calcite, aluminosilicates, iron oxides, sulfides, and pyrite all potentially involved. For 3D renderings of Mazon Creek plants, specimens with high amounts of organic preservation and more homogeneous mineralization should be prioritized, with sulfides preferred over iron oxides. Specimens in which the voids are filled in part by aluminosilicates are likely to give the least helpful results. Excellent preservation of spores studied with DIC, SEM, and Airyscan confocal super-resolution microscopy also provides useful high-quality information for the correct identification of in situ palynomorphs.

Data availability statement

The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.

Author contributions

FH designed the outline of this work. PRC initially studied and prepared specimen PP34514. FH, CLH, SYS, PAL, AIN, and MPD processed μCT, SEM, and Airyscan data. JW identified fossil specimens. FH, YZ, and PRH obtained elemental maps and conducted Raman microspectroscopy. FH wrote the manuscript and discussed the contents with CLH, SYS, PAL, AIN, JW, YZ, PRH, PRC, and MPD. All authors contributed to the article and approved the submitted version.

Funding

This work was funded by the Negaunee Integrative Research Center (to FH, MPD, and PRH) A. Susman (to FH), and the NSF grant 1802352 (The Pteridological Collections Consortium: An integrative approach to pteridophyte diversity over the last 420 million years) for the digitization of the Mazon Creek Flora at the Field Museum. MPD was supported by the Negaunee Integrative Postdoctoral Scientist Fellowship, Field Museum of Natural History.

Acknowledgments

The authors would like to thank Carlos Jaramillo at the Smithsonian Tropical Research Institute for providing the Airyscan confocal microscope and Zhe-Xi Luo for assistance with micro-CT scanning at University of Chicago. This study includes data produced in the CTEES facility at University of Michigan, supported by the Department of Earth and Environmental Sciences and College of Literature, Science, and the Arts. The authors would also like to thank Akiko Shinya and reviewers for their helpful comments.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/feart.2023.1200976/full#supplementary-material
