Developing a pedagogical evaluation framework for computational thinking supporting technologies and tools

Abstract

Frameworks for the evaluation of technological instructional tools provide educators with criteria to assess the pedagogical suitability and effectiveness of those tools to address learners’ needs, support teachers’ understanding of learning progress, and recognize the levels of achievement and the learning outcomes of the students. This study applied secondary document analysis and case study to identify five pedagogical indicators for teaching and learning computational thinking, including technology, pedagogical approaches, assessment techniques, data aspect, and teacher professional development. Based on the pedagogical indicators, this study proposed a computational thinking pedagogical assessment framework (CT-PAF) aimed at supporting educators with a strategy to assess the different technological learning tools in terms of pedagogical impact and outcome. Furthermore, three case-study instructional tools for teaching CT in K-12 were analyzed for the initial assessment of CT-PAF. Scratch, Google Teachable Machine, and the iThinkSmart minigames were marched to the underpinning characteristics and attributes of CT-PAF to evaluate the framework across the instructional tools. The initial assessment of CT-PAF indicates that the framework is suitable for the intended purpose of evaluating technological instructional tools for pedagogical impact and outcome. A need for expanded assessment is, therefore, necessary to further ascertain the relevance of the framework in other cases.

Introduction

The recent stride for data-driven society and automation has had an enormous impact on modern society. The impact can be seen in all segments of our society, such as work, education, economy, commerce, and leisure, and currently, we may not have enough data to assess the extent of the societal effects. Besides, the societal impact of the teaching and learning of computational thinking (CT) in the K-12 level of computing education is gradually gaining much-needed attention (Wong and Cheung, 2020). Knowledge of CT is crucial for children to gain an adequate understanding of how the world around them works and prepare for future roles in society, especially, since they are considered active users of the data-driven technologies (Toivonen et al., 2020). Most countries around the globe have included CT as part of the introduction to computer science education at the K-12 level (Hsu et al., 2019). According to Wing (2006), CT is a necessary skill for everyone. In addition to improved programming and data literacy skills, CT is a suitable medium to develop 21st-century skills (Lye and Koh, 2014; Agbo et al., 2019).

Although certain empirical evidence about the large-scale impact of CT pedagogical supporting technologies and tools is still absent in current literature, the interest and awareness to support K-12 pedagogy have gained a visible increase in the last decade (Burgett et al., 2015; Yadav et al., 2016; Kong et al., 2020; Huang and Looi, 2021). In a CT pedagogical framework proposed by Kotsopoulos et al. (2017), four key experiences were identified, which include unplugged, tinkering, making, and remixing. These pedagogical experiences reflect on teachers’ choices of pedagogical strategies and decisions on tools that will enhance learning experiences. Besides, student-centered pedagogical strategies such as problem-solving, open-ended tasks, project-based learning, group work and collaboration, inquiry-based learning, challenge-based learning, blended learning, flexible learning, and peer-to-peer learning were commonly adopted by teachers (Bower et al., 2017; Tucker-Raymond et al., 2021). Teachers have maintained positive experiences and deeper learning experiences are usually a result of student-led learning experiences, which are based on the active and engaging learning processes, pedagogical strategies, and a conducive learning environment (Adler et al., 2004).

Computational thinking pedagogical strategies are not new. They are usually adapted pedagogies to suit the teaching and learning of CT. Supporting technologies and tools play a crucial role in the application of CT pedagogical strategy and improved learning experiences. However, there is a need to set a standard and assessment strategy in place to address future research to understand the effectiveness of CT pedagogical supporting technology and tools (Kitalo et al., 2019). This paper is an initial step to addressing the lack of a pedagogical evaluation framework for understanding the impact of supporting technology and tools used in CT education.

A variety of evaluation frameworks have been studied, however, there is a lack of certainty about their operability and suitability to different instructional tools and evaluation objectives and the extent to which they are appropriate for teaching and learning CT topics across contexts. Fronza et al. (2017) used an agile software engineering-based framework principles and practices to map CT activities, however, contextual factors may hamper the application of the instructional tools in a multidisciplinary context. Besides, Kotsopoulos et al. (2017) identified the training of teachers as a challenge in the application of supporting tools in the teaching of CT. In addition, Gouws et al. (2013) recommended the need to have a CT test to evaluate students’ CT levels by the teachers. However, it is important not just to measure CT levels but also to provide a yardstick to support the teachers to make the right decisions regarding the instructional tools which are intended to facilitate CT instructions. Accordingly, this study develops a framework of pedagogical indicators (PIs) for CT to support the standardization of the pedagogical supporting technologies and tools of CT, particularly in computing education. The evaluation framework comprises three layers (goals, indicators, outputs) and five interwoven indicators that determine the application of the tools for relevant pedagogical purposes. The Computational Thinking Pedagogical Assessment Framework or CT-PAF (as it will be referred to from here on) endeavors to proffer a structure to analyze and understand the formal intangible design of pedagogical supporting tools relative to their perspicuous and embedded purposes in supporting the process of CT education. CT-PAF provides the initial stride to create a robust evaluation benchmark for teachers’ decision-making about the instructional tools that are designed to enhance students’ CT knowledge in K-12 contexts. The CT-PAF framework should not be assumed to be a conclusive and detached measurement instrument, nonetheless, as a proposition on how to construct the assessment of CT teaching aids in terms of their pedagogical impact and improving learning outcomes. Besides, this paper is meant to start a discussion on the creation of data-driven pedagogical technologies and tools that are meant to support the teaching and learning process in K-12 settings. Therefore, this work focuses on providing an answer to the following research question, what are the PIs to consider for developing a CT-PAF in the K-12 computing education context?

Literature review

Computational thinking is an age-long concept for problem-solving approach (Denning and Tedre, 2019). Although the definition of the term CT remains vague (Agbo et al., 2019), the importance of the definition as compared to the pedagogical contribution is being argued (Selby and Woollard, 2013). However, Wings defined the term CT as “an approach to solving problems, designing systems and understanding human behavior that draws on concepts fundamental to computing” (Wing, 2008, p. 3717). Other scholars attempt to contribute to the definition of CT since a consensus is not reached. For example, Denning (2007); Guzdial (2008), and Barr and Stephenson (2011) examined the term CT and gave various definitions based on their expert perspectives.

Features of computational thinking

Zhong and Liao (2015) described the characteristic features of CT. Their study suggests that broadly, CT is a conceptualization and not a computer programming. Thus, the steps for introducing CT include problem decomposition, pattern recognition, problem abstraction, and algorithm design (Csizmadia et al., 2015; Agbo et al., 2019). As depicted in Figure 1, a real-world complex problem can be turned into one that is easily understood by undergoing these fundamental steps of CT. First, problem decomposition allows for breaking down big and complex problems into smaller and manageable units that can be easily understood and solved (Valenzuela, 2018).

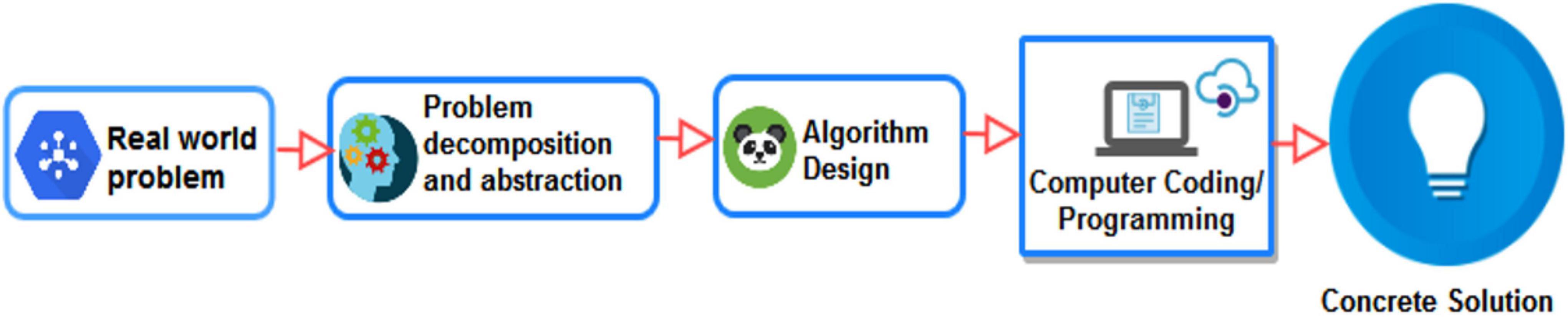

FIGURE 1

In addition, CT requires the skill of pattern recognition; the ability to map similarities, differences, and patterns that exist in the small sizes of decomposed problems is essential to solving a complex one. For example, students who are able to recognize patterns could make predictions (Valenzuela, 2018). Also, the same problem-solving technique can be applied to solve problems with the same pattern. The third step in the CT approach is problem abstraction, which helps to filter out non-essential parts of a problem, leaving the important aspects that aid understanding and are easy to solve. The last stage of CT is the algorithm design that gives step-wise approaches which emanate from the first three stages of CT to point toward implementing the solution.

Computational thinking in science, technology, engineering, art, and mathematics education

Overall, the concept of CT has been connected to the Science, Technology, Engineering, Art, and Mathematics (STEAM) education (Yadav et al., 2016). As discussed by Wing, CT is a kind of scientific thinking that applies; technological concepts toward solving complex problems; engineering thinking to design a complex system that functions in a constrained real-world scenario; mathematical approach to solving a real-world problem (Wing, 2008). Nowadays, the need to embed CT into STEAM education is being researched (Jona et al., 2014; Weintrop et al., 2014; Yadav et al., 2016). For example, Swaid (2015) presented in a study, a framework for bringing CT to STEM disciplines through the Historically Black Colleges and Universities Undergraduate Program (HBCU-UP) project. This author organized six workshops with hands-on labs in order to introduce CT elements to the STEAM educators.

Similarly, Sengupta et al. (2018) conducted a phenomenological study where they reviewed a set of studies conducted in partnership with K-12 STEAM teachers and students. For example, the authors explored the opportunity to integrate computational modeling and programming in K-12 science classrooms. Their study suggests that “agent-based programming and modeling can help students overcome conceptual challenges in understanding linear continuity” (Sengupta et al., 2018, p. 16). Additionally, there are growing studies on the use of autonomous and programmable robotics (Atmatzidou and Demetriadis, 2016; Eguchi, 2016; Chalmers, 2018) and games (Wu and Richards, 2011; Kazimoglu et al., 2012; Leonard et al., 2016) designed to teach STEAM education to make students acquire the 21st-century skills required for nowadays employment.

Evaluation frameworks in computational thinking

The study on evaluation framework has been conducted in different spectrums of disciplines, even recently. For example, in smart cities and transportation (Yan et al., 2020), in the Internet of Things (IoT) to evaluate IoT platform development approaches (Fahmideh and Zowghi, 2020), Web technology to evaluate the accessibility of web tools (Alsaeedi, 2020), learning analytic tools (Scheffel et al., 2015; Vigentini et al., 2020), in mobile learning (Ozdamli, 2012). However, in the case of CT, limited studies have been recorded (Wong and Cheung, 2020). Our search revealed that, for about a decade, scholars have proposed frameworks to evaluate CT from broader perspectives (Moreno-León et al., 2015; Román-González et al., 2019).

Earlier studies have made attempts to develop frameworks for CT. These frameworks are however developed to focus on specific aspects such as CT assessment technique, technology, or pedagogy approaches. Some of these studies include Román-González et al. (2017) which categorized CT assessment in K-12 as summative, formative-iterative, skill-transfer, perceptions-attitudes scales, and vocabulary assessment. Relatedly, Basso et al. (2018) discusses the non-technical skills (relational skills and cognitive life skills) that should be included in a comprehensive CT assessment framework. In the CT curriculum, Perković et al. (2010) proposed an interdisciplinary approach that allows the teaching of CT in different courses taught at the university level. This course-based CT framework was tested in three different aspects of courses, which include Scientific Inquiry Domain (SID) that introduces geospatial information processing; an Arts and Literature (AL) course about game design; and an animation course that focuses on 3-D modeling for gaming. Similarly, Gouws et al. (2013), developed a CT framework to be used for planning and evaluation of CT materials. The authors harnessed the characteristic features of CT such as transformation, abstraction, pattern recognition, and algorithm, to underpin their framework. According to the authors, a case study with Light-Bot shows that the CT framework is able to evaluate a CT resource by highlighting its strength and weakness.

Although some of these studies tried to evaluate CT based on the fundamental attributes regarding its objective of teaching problem-solving skills to students (Papadakis, 2021, 2022), there is a need to investigate how CT tools are performing in terms of providing the objectives for which it is developed. That is, paying close attention to the pedagogical aspect of the CT tools by mirroring it through a set of quality indicators to adjudge its efficacy. This aspect of the evaluation process is still missing from the literature, and we intend to fill this gap by proposing a pedagogical evaluation framework (CT-PAF) of quality indicators for CT tools. To the best of our knowledge, no existing frameworks have aggregated the factors or categorically highlighted the five indicators we identified in our work.

Methodology

Data sources

To address the research question in this study, we collected articles from Scopus and ACM databases to understand the kinds of approaches for CT pedagogy and assessment techniques that already exist. Because Scopus is one of the giant databases containing a huge number of scientific articles (Pranckutė, 2021) from the field of science including computer science (Agbo et al., 2021c), we consider it one of the useful sources to collect the data. In addition, other authors have argued that Scopus contains more distinct records (Singh et al., 2021) that can allow researchers to have a quick overview of scientific papers published in a specific field. In addition, most of the computing education interventions are published in ACM journals and conferences, and it publishes one of the widely read monthly communications where innovations are showcased (Blackburn et al., 2019).

Data search, inclusion, and exclusion procedure

For the data search, two main categories of keywords were used. The first is “computational thinking” and the second is “assessment framework OR evaluation framework.” These keywords were combined in the search menus of the databases as presented in Table 1. In the Scopus database, the search keywords were framed to query the fields containing article title, abstract, and keywords, whereas, in the ACM database, the query consists of all the fields.

The procedure used in the data collection and screening includes the four-phased activities of the PRISMA (preferred reporting items for systematic reviews and meta-analysis) by Moher et al. (2009) presented in Figure 2. The inclusion criteria include articles that were published in peer-reviewed outlets including journals and conferences, and articles written in the English language. Furthermore, we manually skimmed through the title and abstract of each article to judge its relevance and excluded articles we deem irrelevant to this study in terms of its focus. For example, some of the articles that focused on the evaluation of computer science education in general but not CT, in particular, were removed. In addition, articles that carried out CT assessment in other forms aside from using a concrete tool were removed. Besides, we also removed duplicate articles found in the outcome from the two databases.

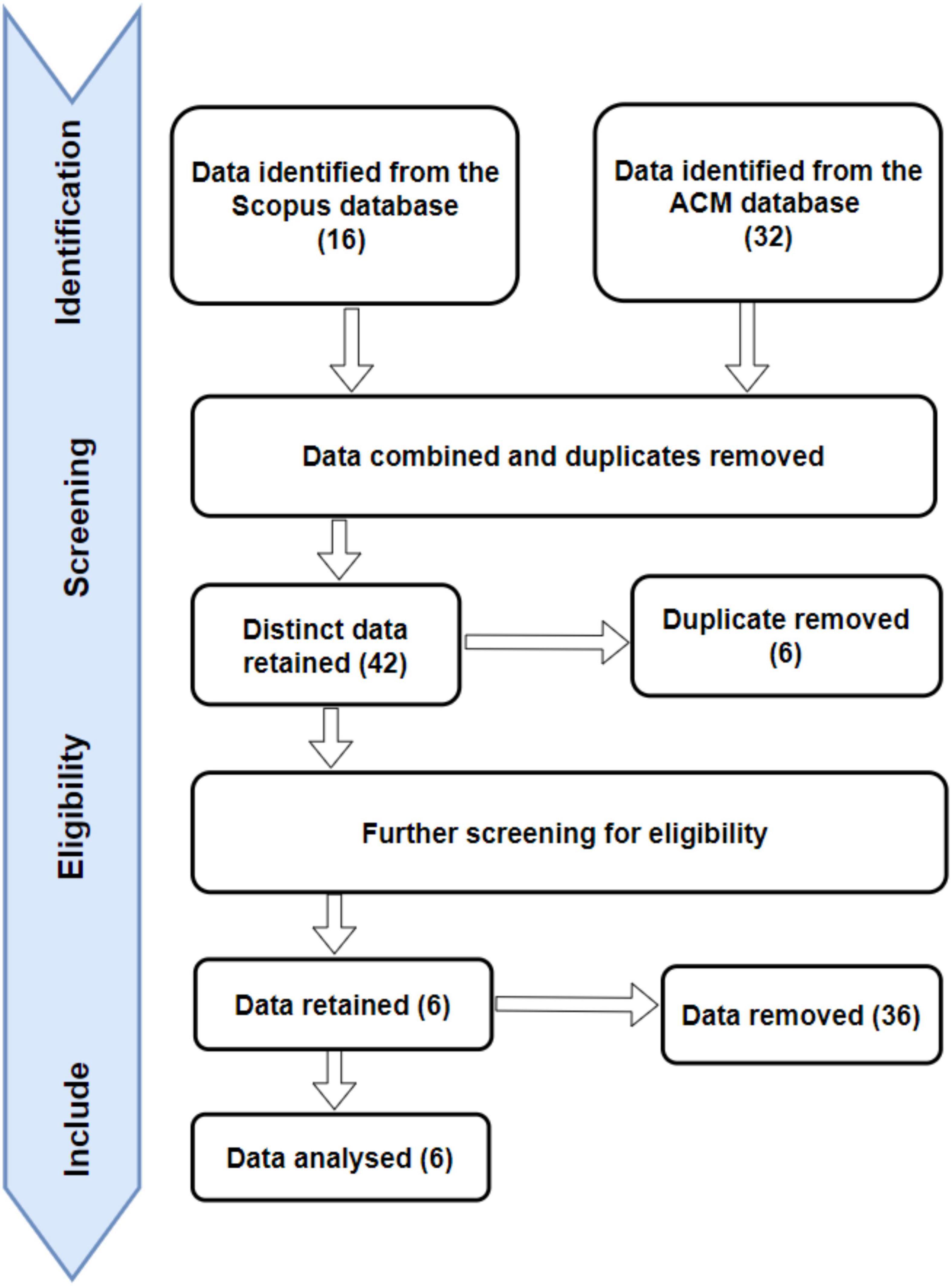

FIGURE 2

After the inclusion and exclusion criteria were applied, the data reviewed to gain insight into how CT assessments were conducted were 6. These articles guided the formulation of the CT-PAF PIs, which consist of the technology, pedagogy, assessment technique, data, and professional development. The authors read through each of the identified articles to understand its focus in terms of how evaluation of CT was conducted and to identify relevant indicators. Further information on how the analysis of these articles were conducted are presented in section “Findings: Toward an evaluation framework for computational thinking supporting technology and tools”, Table 2.

Findings: Toward an evaluation framework for computational thinking supporting technology and tools

This study examined the relevant indices to create an assessment framework useful for the evaluation of technological instructional tools in the context of CT in computing education. The evaluation frameworks of technological instructional tools offer educators criteria to assess the tool’s suitability to support the intended learning outcome, facilitate learning activities, recognize learners’ needs, and levels of achievement, facilitate reflection, and overall improve learning outcomes. Several frameworks are designed and developed for evaluating different technological learning platforms (Scheffel et al., 2015; Vigentini et al., 2020), tools (Park et al., 2010; Vigentini et al., 2020), and specifically pedagogies for CT (Kotsopoulos et al., 2017). Though studies have proposed the framework of CT, to the best of our knowledge, the development of a pedagogical framework to assess CT tools has not been established yet which is the aim of this study. Based on the literature review process outlined in section “Data search, inclusion, and exclusion procedure”, the articles identified (Table 2) in which this study is focused were examined and relevant indicators were identified and framed into the CT assessment framework. Our framework coined CT-PAF presented in Figure 3 comprises three layers which include goals, indicators, outcomes; and five indicators the layers (technology, pedagogical approaches, assessment techniques, data aspect, and teacher professional development, TPD).

FIGURE 3

Goals

Evaluation frameworks in educational scenarios enable a scientific and systematic approach to the assessment of important components of pedagogical processes. An effective and efficient instructional design process usually begins with defining the intended goals in a bid to maximize the student’s learning experiences Czerkawski (2014). The overarching goal of the assessment of CT is needed to understand the expectation of the educational stakeholders and create the much-needed synergy among the different PIs in the learning ecosystem. Usually, CT frameworks are rooted in constructivism theory, which holds the view that learning entails reconstruction rather than direct transmission of knowledge Papert (1980) and Papert and Harel (1991); and the social constructivism viewpoint consider social group constructing knowledge for each other Vygotsky (1978). Honebein (1996) opined that instructional designers of constructivist learning environments should consider seven pedagogical goals which inform essential characteristics for the goals in CT-PAF.

Indicators

The following section will highlight the indicators of the assessment framework.

Technology: Instructional tools

Innovations around novel technology development have been the cornerstone of any changes in the education sector. The instructional tools in the CT-PAF depict the technologies, instructional materials, and tools to facilitate the teaching and learning of CT. Based on our literature review, we found the following indicators are necessary to consider when assessing the pedagogical relevance of the technologies, instructional materials, and supporting tools: the intended purpose of the tool (referred to as the tool’s objectives), ease of use, ease of learning, satisfaction, perceived usefulness, recommendation, and activity classification. For example, educational tools must have a purpose that is expected to be derived from them and should support learning objectives which are usually derived from Bloom’s revised taxonomy of educational objectives (Krathwohl, 2002). The ease of use (EOU) of a system has been regarded as “the degree to which a person believes that using a particular system would be free of effort” (Davis, 1989). This study describes the ease of learning as the rate at which learning through CT tools is achieved without much effort. Lu (2014) study signifies that the perceived usefulness signifies the individual’s readiness to use information systems as a supporting tool. This, however, suggests that the usefulness of the learning tools can lead to satisfaction and critical reflection while navigating through the learning environment (Honebein, 1996; Kotsopoulos et al., 2017). The outcome of the technical indicator is a kind of learning support that can be achieved with the learning tools.

Pedagogical approaches

In this study, we categorize the pedagogical approaches which focus on teaching and learning using the supporting tools into four main aspects (learning theory, teaching methods, pedagogical experience, and pedagogical objectives). Each of the categories further has indicators to measure the impact on learning. Learning theory includes constructivism and social constructivism Vygotsky (1978); Papert (1980), and Papert and Harel (1991); teaching methods include interactive and participatory methods (Vartiainen et al., 2018); pedagogical experience includes unplugged, tinkering, making, and remixing (Kotsopoulos et al., 2017); pedagogical objectives include cognitive, psychomotor and affective (Krathwohl, 2002; Lajis et al., 2018). For the learning theory, we choose constructivism as the theory most appropriate to guide the use of the tools (Agbo et al., 2021d). According to Papert’s theory of constructionism, learners construct internal representations of their environment to develop knowledge (Papert, 1987). Besides, other Constructivist theorists posit that learning should be student-centered (Matthew et al., 2009) and encourages social interactions among students by taking part in constructing information actively for the fulfillment of the learning (Ozdamli, 2012). As regards the teaching method, interactive and participatory learning methods were selected (Vartiainen et al., 2018). The methods were purposefully chosen due to their peculiarity in that they create environments that provide children with opportunities to explore real-world phenomena in an interest-driven and inquiry-oriented manner (Vartiainen et al., 2018). For the pedagogical experiences, unplugged experiences are often first and foundational in learning CT because they require possibly the least amount of cognitive demand and technical knowledge (Kotsopoulos et al., 2017). One of the ways students can visualize and experience the process needed to complete a task is through unplugged experiences. The unplugged activities allow students to situate CT in a real life context (Curzon et al., 2014). During tinkering, students explore changes to existing objects and then consider the implications of the changes (Kotsopoulos et al., 2017) for example, tinkering is modifying existing computer programming code. Furthermore, to gain experiences, students must solve problems, make plans, select tools, reflect, communicate, and make connections across concepts. In other words, experiences can occur through computer programming. Lastly, remixing experiences as conceived by Kotsopoulos et al. (2017) involve sharing an object and embedding it within another object with the possibility to modify or adapt it in some way and/or to use it for substantially different purposes.

Assessment techniques

Assessment is an important indicator to consider in ascertaining whether a pedagogical process has been effective for the purpose it was designed. Assessment strategies may include self-assessment, diagnostic, or achievement tests, rating scales, and anecdotal techniques. According to Harrison (2010) self-assessment is an important element in the learning process. With self-assessment, students define suitable targets for their learning. While the different techniques exist, this study is interested in certain indicators for formative and summative assessment. Assessment helps in gauging the comparability, effectiveness, efficiency, and helpfulness of the pedagogical process as experienced by the learners. Van der Vleuten et al. (2017) described the assessment as a tool for learning. Assessment is seen to have value in helping to inform students’ learning, instead of just judging how well they have learned in a given period of time (Houston and Thompson, 2017). Formative assessment was attached to improvement of learning progress, whereas summative assessment was attached to making judgments about achievement at the end of a course.

Data aspect

The pedagogy of CT cannot exist without data Shabihi and Kim (2021) and Eloy et al. (2022), and led students to cultivate CT practices through data manipulations Kadijevich (2019). Being a data-driven topic, an enormous amount of learning data and learner traces are released in learning activities. The set of instructional goals, especially the ones under study may not be measurable without paying attention to learning data. The pedagogical supporting tools provide an avenue for data collection and classification (Carney et al., 2020). The data aspect of the supporting tools in CT-PAF concerns transparency, data standards, data ownership, data privacy, and ethics (Barr and Stephenson, 2011; Dagiene and Stupuriene, 2016). These are considered in the framework to contribute to the effectiveness of the use of the tool in ensuring the overarching goals are achieved. Ensuring data privacy using the supporting technologies and tools will help users feel safe experimenting with their own data Tabesh (2017). Besides, data standards are best practices that determine how different types of data should be formatted and what metadata and documentation need to be included while data ownership gives a clear responsibility about both the possession and distribution of the information Alsancak (2020). Ownership gives the user the power as well as control, whereas information includes not just the ability to access, create, modify, package, derive benefit from, sell, or remove data, but also the right to assign these access privileges to others Ata and Yıldırım (2020).

Teacher professional development

The role of the instructor is to guide students in the assimilation and construction of information (Wheeler et al., 2008). With this in mind, TPD is necessary to guarantee successful teaching and the development of competencies in the use of the instructional tools to achieve the set pedagogical objectives. The indicators put forward in this study to assess TPD as it concerns the pedagogical impact of teachers’ effort to support teaching CT are the availability, the implementation of training, training of educational stakeholders, and the organizational change that will lead to the overall development of the teacher.

Outcomes

The purpose of CT-PAF as an assessment framework is to obtain important evidence about both teacher and student performance and progress for using the supporting technologies in the process of teaching and learning CT. Besides, the outcome in the CT-PAF determines how the different indicators lead to the overall goal of the framework and permit exploration of the prospects to apply computing tools as a medium for teaching CT, Grover and Pea (2013). Particularly, students’ interest to create an appropriate assessment of their learning process is monitored through the outcome of the CT-PAF framework.

Cases – Scratch, iThinkSmart minigames for teaching computational thinking, and Google Teachable Machine for teaching machine learning

Case study 1: Scratch for teaching computational thinking

Computational thinking is a skill that “involves solving problems, designing systems, and understanding human behavior, by drawing on the concepts fundamental to computer science” (Wing, 2006). According to Bocconi et al. (2016) it is considered in many countries a key set of problem-solving skills that must be acquired and developed by today’s generation of learners. Repenning et al. (2016) states that CT tools aim to minimize coding overhead by supporting users through three fundamental stages of the CT development cycle: problem formulation, solution expression, and solution (execution/evaluation). Among the several CT tools, Scratch which Moreno-León et al. (2015) regarded as the most used programming language in primary and secondary education worldwide. Lye and Koh (2014) and Çatlak et al. (2015) described Scratch as a usable tool in teaching programming or ensuring that students acquire CT skills. It was further described as a free web-based programming tool that allows the creation of media projects, such as games, interactive stories and animations, connected to young peoples’ personal interests and experiences (Fagerlund et al., 2020).

Scratch is used in all levels of formal educational environments in K-12 schools (Meerbaum-Salant et al., 2013; Moreno-León et al., 2015) and even universities (Malan and Leitner, 2007) worldwide. Studies have explored the use of scratch in teaching CT in K-12. The study by Moreno-León et al. (2015) held workshops with students in the range from 10 to 14 years in 8 schools, involving over 100 learners. The result shows that at the end of the workshop, students increased their CT scores and, consequently, improved their coding skills. Oluk and Korkmaz (2016) study compared 5th graders’ scores obtained from Scratch projects developed in the framework of Information Technologies and Software classes. A high-level significant relationship was observed between students’ programming skills with Scratch and their CT skills. Scratch, besides supporting teachers in the evaluation tasks, is to act as a stimulus to encourage students to keep on improving their programming skills (Moreno-León et al., 2015). This study evaluates Scratch as a case study by measuring the tool in line with CT-PAF indicators (see Table 3).

Case study 2: Google Teachable Machine for teaching machine learning

According to Denning and Tedre (2019), machine learning (ML) can be considered a vital part of future computational skills. As a result, Mariescu-Istodor and Jormanainen (2019) opined that it is justifiable to include ML education as part of CT teaching agenda at the K-12 context. The concepts of ML and CT are emerging and essential in teaching with technology (Zhang et al., 2020). Zhang et al. (2020) designed a workshop with a teachable machine to teach CT using experiential learning models.

Teachable Machine is a web-basedtool for creating custom ML classification models without specialized technical expertise (Carney et al., 2020). There are several related tools such as machine learning for Kids and scratch nodes ML, and both tools works in similar fashion as Google Teachable Machine. For example, machine learning for kids is an educational tool that guides children through ML training (Lane, 2020); whereas scratch nodes ML enables children to create gesture classification models that integrate with Scratch (Agassi et al., 2019). There are also interactive machine learning (IML) tools such as Wekinator (Fiebrink, 2011) for creative practice. IML tools mostly target novice users without specific technical or domain expertise (Carney et al., 2020) such as crayons used for image classification (Fails and Olsen, 2003).

Carney et al. (2020) stated that teachable machine (TM) was created to help students, teachers, designers, and others learn about ML by creating and using their own classification models. Educators have found TM useful to introduce concepts of AI (UBC Geering Up, 2019). Payne (2019) has also used TM to teach AI Ethics Education, explaining concepts of bias, supervised learning in her MIT Curriculum. In another study, Carney et al. (2020) explored TM and found that it facilitates active learning of AI concepts. While administrators, educators, and students stated that there is a dearth of tools and activities to support active learning in AI. TM has also been explored in higher education, For instance, Shi (2019) used it to teach her machine learning for the Web students the basics of ML classification, and her students used it to make their own projects. Carney et al. (2020) used TM to explore how grad students from diverse disciplines can apply ML to their own domain. According to Carney et al. (2020), outcome from their study suggest that the tool can be useful not only to learn ML concepts but also as a resource for students’ creative projects, even with no prior ML experience. Table 4 presents the evaluation of GTM in line with CT-PAF.

Case study 3: iThinkSmart minigames

Acquiring CT skills through game-based learning is found to be a relevant approach for augmenting teaching and learning for both K-12 and college students (Agbo et al., 2021a,c; Hooshyar et al., 2021). In the last one-decade, educational minigames are increasingly utilized in the classroom to motivate students and enhance their learning experience (Huang, 2011; Van Borkulo et al., 2011; Agbo et al., 2021a). The iThinkSmart is a virtual reality application consisting of minigames (Tower of Hanoi, River Crossing, and Mount Patti Treasure Hunt) developed to facilitate CT education and problem-solving skills (Agbo et al., 2021b; Agbo, 2022). These minigames provide knowledge of CT by allowing players to visualize concepts such as problem decomposition, abstraction, and algorithmic design through interaction with the game elements. For example, the concept of divide and conquer and problem decomposition is visualized when playing the River Crossing puzzle, and players gain problem-solving skills by playing the game to unravel the puzzle. The evaluation of the iThinkSmart minigames through lens of CT-PAF is demonstrated in Table 5.

Conclusion

This study utilized secondary document analysis and case studies to identify five PIs for teaching and learning CT. The indicators include technology, pedagogical approaches, assessment techniques, data aspect, and TPD. Based on the PIs, a CT-PAF was proposed which aimed at supporting educators with strategies to assess the different technological learning tools in terms of pedagogical impact and outcome. Initial assessment of the framework was carried out with three case-study which include Scratch, Google Teachable Machine, and the iThinkSmart minigames. The evaluation of Scratch as a case study of visual programming tool for acquiring CT skills revealed that aside from the data aspects, it considerably fits into CT-PAF. While the pedagogical design and application in training seem to be well explored, the aspect of data security, standards, privacy, and ethics lacks sufficient evidence to show strong compliance with CT-PAF. However, it is worthy to note that the accessibility and usability features of Scratch are a positive development. Evaluating GTM based on CT-PAF shows that the technological learning tool fulfills the objective for which it was designed. This is ascertained in line with the indicators employed as seen in Table 4 but for the TPD which is an area that needs more attention as it relates to the passage of instruction through GTM. While more empirical evidence is needed to understand the potential of GTM and its pedagogical impact, some findings exist from recent studies. Toivonen et al. (2020) study found out that Google Teachable Machine is a feasible tool for K–12 education. Relatedly, von Wangenheim et al. (2020) developed an introductory course to teach the basics of ML and GTM was useful in teaching ML concepts. The research of Vartiainen et al. (2020) also shows that young children can engage in the exploration of machine learning-based technologies. The findings from the literature suggest that GTM supports teaching and learning. Regarding the evaluation of iThinkSmart minigames based on CT-PAF, the integration of learners’ assessment technique within the gameplay, which shows players’ CT competency seems a strong point among all the indicators. In addition, the evaluation shows that the pedagogical objectives of the minigames – hosted in the iThinkSmart application – were clearly defined to address specific learning goals of CT concepts. Contrarily, CT-PAF indicators such as data aspects that require integration of data analytics or data mining have not been explored in the iThinkSmart application. In addition, the tool still lacks an interface for teachers to explore their CT modules as minigames. Therefore, further improvement of the tool is required as exposed by its evaluation based on CT-PAF indicators in Table 5.

In conclusion, CT-PAF is the first step to implementing a robust assessment yardstick to help teachers in decision-making regarding instructional tools that are intended to improve the learning outcome within K-12 teaching contexts. The initial assessment of CT-PAF indicates that the framework is suitable for the intended purpose of evaluating technological instructional tools for pedagogical impact and outcome. Future research is necessary to assess and ascertain the relevance of the framework using other tools such as Wekinator, Lego, Blockly, and Lightbot, among others. In addition, an empirical study is needed to further validate the framework.
