Significant Increase in Nutrient Stocks Following Phragmites australis Invasion of Freshwater Meadow Marsh but Not of Cattail Marsh
Sarah Yuckin
Rebecca Rooney- Department of Biology, University of Waterloo, Waterloo, ON, Canada
Invasive species are a threat to biodiversity and can cause ecological degradation, however, well-established invasive species may serve valuable ecological functions. For example, in the Laurentian Great Lakes, where nutrient pollution is a major issue, highly productive Phragmites australis (European Common Reed) may provide a nutrient retention service. Yet there is a lack of research comparing carbon and macronutrient stocks in P. australis with resident plant communities, such as cattail and meadow marsh. We quantified the effect of P. australis invasion on carbon and macronutrient standing stocks in a freshwater coastal marsh by comparing the above- and belowground biomass, tissue nutrient concentrations, and annual nutrient standing stocks in marsh invaded by P. australis with cattail marsh (dominated by Typha spp.) and meadow marsh (dominated by Calamagrostis canadensis), which are being displaced by P. australis in Lake Erie coastal marsh. We conclude that the effect of P. australis invasion on carbon and macronutrient standing stocks is dependent on the plant community being replaced. The annual standing stock of carbon, nitrogen, phosphorus, and potassium are consistent between cattail marsh and P. australis-invaded marsh, though cattail marsh contains more magnesium (112% mean increase) and calcium (364% mean increase). In contrast, when P. australis replaces meadow marsh, the standing stocks of all measured nutrients and carbon increase significantly (103–188% mean increase). Our study highlights that plant invasions may create trade-offs between ecosystem services. In our case, the increase in nutrient standing stocks when P. australis invades meadow marsh should be weighed against the documented reductions in biodiversity and habitat value.
Introduction
Invasive species are considered a major threat to biodiversity and a driver of ecological degradation (Zedler and Kercher, 2005; Simberloff, 2011). Recent research, however, has found evidence that invasive species can provide ecological functions equal to or greater than those provided by native species (Norkko et al., 2012; Bertness and Coverdale, 2013; Grutters et al., 2015) and may even lead to increased local and regional biodiversity (Sax and Gaines, 2003). Recognition of the potential for invasive species to provide ecological functions has led to debate about whether conservation objectives should include the eradication of all invasive species (Schlaepfer et al., 2011, 2012; Vitule et al., 2012). It has been proposed that the decision to control invasive species should be made on a case-by-case basis through evaluation of the impact of a given invasive species on ecological function (Hershner and Havens, 2008; Hobbs et al., 2009; Davis et al., 2011).
Throughout North America, the invasive lineage of Phragmites australis (hereafter P. australis) is increasing in abundance and distribution (Catling and Mitrow, 2011). For example, in Lake Erie coastal marsh, P. australis took advantage of historically low lake levels during the 1990s (Tulbure et al., 2007; Tulbure and Johnston, 2010) and increased nutrient loading in the watershed (Croft and Chow-Fraser, 2007) to rapidly expand, primarily replacing cattail marsh (dominated by Typha spp.) and rare “Graminoid Coastal Meadow Marsh” (Imperiled [S2]; Ministry of Natural Resources Forestry, 2018; dominated by Calamagrostis canadensis) (Wilcox et al., 2003). These resident plant communities are naturally stratified by water depth with cattail marsh in deeper water (11–52 cm) and meadow marsh in shallower water (0–27 cm; Supplementary Materials 1), indicating the relatively broader niche of invasive P. australis.
Phragmites australis forms dense monocultures that replace resident plant communities (Keller, 2000; Mal and Narine, 2004; Tulbure et al., 2007) and can negatively affect wetland birds (Robichaud and Rooney, 2017), amphibians (Greenberg and Green, 2013), and turtles (Bolton and Brooks, 2010; Markle et al., 2018). The stem density of P. australis typically increases with age (Rooth et al., 2003), and while these negative effects on wildlife are reported from dense, established P. australis stands (e.g., 100 live stems m−2), some research suggests that at lower densities P. australis can provide habitat value (Meyer et al., 2010; Kiviat, 2013).
There is also evidence that P. australis invasion may affect nutrient and carbon cycling (Rothman and Bouchard, 2007; Windham and Ehrenfeld, 2013) as a result of high net primary production (Windham, 2001; Rothman and Bouchard, 2007; Duke et al., 2015), high rates of carbon assimilation (Farnsworth and Meyerson, 2003; Tho et al., 2016) and high nitrogen content in its foliar tissues (Findlay et al., 2002; Hirtreiter and Potts, 2012). Indeed, in its native range, P. australis is often used in constructed wetlands to remove nutrient pollution (Gumbricht, 1993; Bhatia and Goyal, 2014), suggesting it could provide an important water quality improvement function where it has invaded. Yet, despite the importance of carbon and macronutrients phosphorus, potassium, calcium, and magnesium (Ehrenfeld, 2010), research on P. australis invasion and its effects on nutrient stocks in freshwater coastal marsh has primarily focused on nitrogen (but see Findlay et al., 2002; Ouellet-Plamondon et al., 2004). In addition, prior work has focused on differences between Typha spp. and P. australis (e.g., Findlay et al., 2002; Farnsworth and Meyerson, 2003; Hirtreiter and Potts, 2012), ignoring critically imperiled meadow marsh, which differs markedly in vegetation diversity and physical structure from stands of P. australis and Typha spp.
Given that climate change and eutrophication are two immense environmental threats facing Lake Erie (Watson et al., 2016; Environment and Climate Change Canada and the U.S. Environmental Protection Agency, 2017; Jarvie et al., 2017) the capacity of a marsh plant, regardless of its origin, to take up and store carbon and macronutrients represents a critically important ecosystem function. With the limited success (Lombard et al., 2012; Quirion et al., 2018) and high costs (Martin and Blossey, 2013) of P. australis control in North America, quantifying the ecosystem functions provided by P. australis should inform decision makers considering whether to attempt its eradication.
We therefore sought to evaluate the influence of P. australis invasion on carbon and macronutrient standing stocks, including nitrogen, phosphorus, calcium, magnesium, and potassium. Further, we aimed to contrast this effect in areas where P. australis is displacing cattail marsh with areas where meadow marsh is being displaced. Thus, we compared standing crop above- and belowground biomass, tissue nutrient concentrations, and annual nutrient standing stocks in marsh invaded by P. australis with marsh dominated by Typha spp. or by C. canadensis (Canadian bluejoint grass). Because wetland plants can carry out luxury consumption of nutrients (Gumbricht, 1993 and references therein), we contrasted the three vegetation communities in two adjacent marshes, one with higher soil nutrients than the other. Because emergent vegetation may allocate more resources to aboveground biomass in deeper water (Wetzel and van der Valk, 2005; Duke et al., 2015), we also evaluated sites spanning a range in water depth. We hypothesized that, due to the high net primary production, foliar chlorophyll and nitrogen content of P. australis (Windham, 2001; Rothman and Bouchard, 2007; Duke et al., 2015), invaded areas would support higher carbon and nutrient standing stocks and tissue carbon and nutrient concentrations (Findlay et al., 2002; Hirtreiter and Potts, 2012). We also hypothesized that tissue concentrations and standing crop biomass would be greater in areas with more plentiful soil nutrients. Lastly, we hypothesized that standing crop biomass would be greater in deeper water.
Methods
Study Area
We conducted the study in freshwater coastal marshes within the Long Point peninsula (42° 34′ N, 80° 24′ W), a 35 km long sandspit formation located on the north shore of Lake Erie, Ontario. We sampled in the Big Creek National Wildlife Area and Long Point Provincial Park management units (Figure 1). The Long Point peninsula constitutes more than 70% of the remaining intact coastal marsh on the north shore of Lake Erie (Ball et al., 2003) and is designated as a Ramsar wetland and an UNESCO World Biosphere Reserve. Over the past 30 years, resident coastal marsh communities in this area have been increasingly replaced by invasive P. australis (Wilcox et al., 2003; Jung et al., 2017).

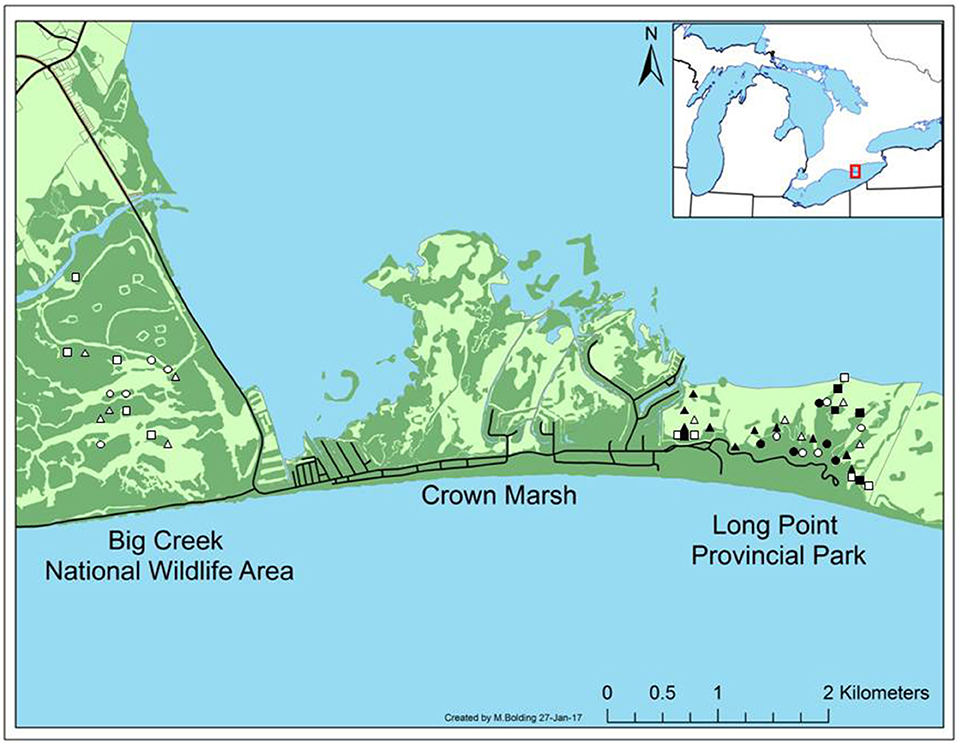

Figure 1. Study location in the Big Creek National Wildlife Area (42° 35′ N, 80° 27′ W) and Long Point Provincial Park (42° 34′ N, 80° 22′ W) management units of the Long Point peninsula. Circles are meadow marsh sites, squares are cattail marsh sites, and triangles are P. australis-invaded sites. Black symbols were sampled in 2017, white symbols were sampled in 2016.
Experimental Design
In 2016, we evaluated the influence of soil nutrient conditions by comparing carbon and macronutrient pools and tissue concentrations among three vegetation community types (P. australis-invaded marsh, cattail marsh and meadow marsh) between two regions of the Long Point peninsula that have differing soil nutrient levels (Table 1, Supplementary Materials 1). In this experiment, we measured nutrient concentrations in plant tissues, as well as above and belowground biomass from 15 sites in the Big Creek National Wildlife Area (higher nutrient environment) and 15 sites in the Long Point Provincial Park (lower nutrient environment; Figure 1). The Big Creek National Wildlife Area is located in a drainage basin that is 71.1% agricultural land cover (Essex Region Conservation Authority, 2013) and receives substantial amounts of phosphorus and nitrate from the Big Creek tributary; phosphorus levels within the marsh were above the Provincial Water Quality Objectives (>0.03 mg/L) although nitrate levels were below the Canadian Environmental Quality Guidelines (<2.93 mg/L; Essex Region Conservation Authority, 2013). In contrast, Long Point Provincial Park, which is approximately four kilometers away, is located on nutrient poor sand substrate. Regardless of vegetation community type, sites in the Big Creek National Wildlife Area consisted of taller, lower diversity plant communities growing in deeper water than sites in the Long Point Provincial Park (Table 1).
Table 1. Average site characteristics of meadow, cattail, and P. australis-invaded marsh, based on measurements from three quadrats per site.
In 2017, we evaluated the influence of water depth by comparing carbon and macronutrient pools and tissue concentrations among the same three vegetation community types spanning a gradient in lake water depth. In this experiment, we measured plant tissue levels and plant biomass in 20 sites in the Long Point Provincial Park (10 P. australis-invaded sites and 10 uninvaded sites: 5 shallower meadow marsh sites and 5 deeper cattail marsh sites). The invaded and uninvaded sites were selected to be paired by May water depth to span a common gradient (14–56 cm). Note we also measured water depth at each site in July because seasonal water depth changes could differ among vegetation community types.
In both experiments, we selected a focal species to represent each community to characterize nutrient stocks in the three vegetation community types. These focal species were P. australis, C. canadensis, and Typha spp. for the P. australis-invaded, meadow marsh and cattail marsh communities, respectively. This approach is justified by the low evenness of these communities, wherein 50% or more of total plant cover comes from the selected focal species (Figure 2). Notably, evenness in meadow marsh in the Big Creek National Wildlife Area was lower than in meadow marsh from the Long Point Provincial Park, with the C. canadensis comprising 80% or more of total plant cover in Big Creek vs. 59–65% in Long Point (Table 1).

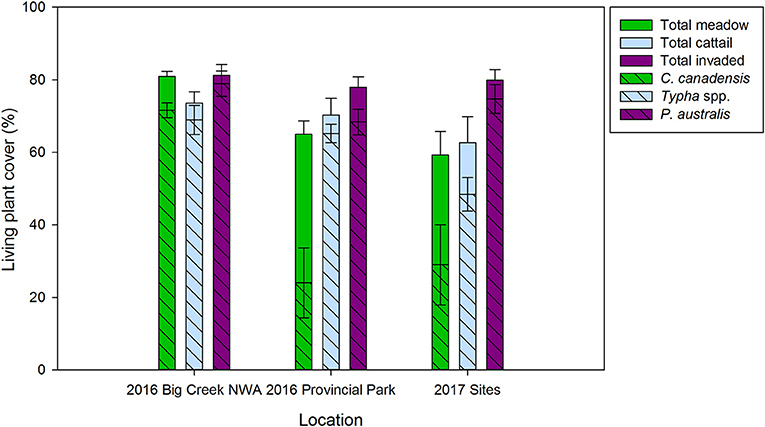

Figure 2. Comparison of mean total living plant cover and mean cover of the dominant focal species (C. canadensis, Typha spp., and P. australis, in meadow marsh, cattail marsh, and P. australis invaded marsh, respectively) in a higher nutrient (Big Creek) and lower nutrient (Long Point) environment. Bars from July 2016 average across five sites per nutrient environment, whereas sampling in 2017 in the Long Point Provincial Park covered a common gradient in water depth between resident communities [meadow (n = 5) and cattail (n = 5)] and P. australis invaded marsh (n = 10). Standard error bars shown.
Typha latifolia, Typha angustifolia, and Typha × glauca are known to occur in the Long Point area (Freeland et al., 2013), but due to hybridization and extensive back-crossing with parental species, they are not reliably separable in the field (Kirk et al., 2011). Based on morphological characteristics and growth form (Swearingen et al., 2012), we determined that the P. australis in our study was all the non-native European lineage rather than the native North American lineage. This assessment was supported by prior genetics work in our study area, which concluded that 90% of the P. australis stands tested were the non-native lineage (Wilcox et al., 2003).
Measuring Biomass and Leaf:Shoot Mass Ratios
To standardize the vegetation sampling time, we sampled above and belowground biomass during the period of peak seasonal aboveground biomass. Because this can vary year to year, we established the timing of peak aboveground biomass in 2016 and 2017 independently. To determine the timing of peak aboveground biomass we clipped all live rametes from three replicate 0.25 m2 quadrats in meadow, cattail and P. australis-invaded sites every 10 days during the growing season. Clipped tissues were air dried for 48 h and then weighed. Biomass plateaued around 16 August in 2016 and 22 July in 2017. At this time, we carried out extensive sampling of aboveground and belowground standing crop biomass.
Because all three focal species are rhizomatous perennials, we employed a modified soil ingrowth method (Neill, 1992) to restrict belowground biomass collection to the current season's growth. We removed soil cores (11.3 cm deep by 4.8 cm diameter) and replaced them with an artificial growth medium at each sampling location (Figure 1). This depth was selected to capture the peak rooting depth for each of the vegetation communities, though it likely did not capture all root and rhizome growth. Belowground biomass measurements in our study thus reflect the annual belowground biomass production within the upper 11.3 cm of soil.
In 2016, to compare the higher (Big Creek) and lower (Long Point Provincial Park) nutrient environments, we installed 5 replicate cores made of a mixture of sand and peat in early May at each site and retrieved them during peak aboveground biomass (August 16–19) for a 91–99 day incubation period. We then removed all roots, rhizomes, and shoots (live and dead) from the cores and oven dried them at 100°C for 48 h before weighing them to the nearest 0.01 g (Advanced Balance PB602-S, Mettler Toledo, ON, Canada).
In 2017 to evaluate the influence of water depth, we installed 7 replicate cores made of vermiculite at each sample site in Long Point Provincial Park, and then retrieved them during peak aboveground biomass (July 22–25) for a 60–65 day incubation period. This shorter incubation period was due to earlier onset of peak aboveground biomass in 2017. As in 2016, we removed, dried and weighed all roots, rhizomes, and shoots from the cores, but due to oven availability, the drying temperature in 2017 was reduced to 80°C. Though the 2 years were not directly compared, we note that the differences in incubation period and drying oven temperature did not result in a significant difference in belowground biomass when we compared Long Point Provincial Park samples collected in 2016 with those from 2017 (Tables S2a,b).
We measured the aboveground biomass from each vegetation community type following the same schedule as ingrowth core retrieval. At each site (Figure 1), we randomly deployed three 0.25 m2 quadrats and harvested all aboveground living tissues by clipping vegetation just above the sediment (including all plant species in a quadrat, not simply the focal species). We then dried and weighed all aboveground tissues following the same protocol as for belowground tissues.
In addition, in 2017, we determined the mass ratio of leaf tissues to stem tissues for the focal species at each sample site. Deploying a fourth 0.25 m2 quadrat randomly at each site, we harvested all the P. australis rametes from P. australis invaded sites, the Typha spp. rametes from cattail marsh sites, and the C. canadensis rametes from meadow marsh sites. We then separated the leaf and shoot tissues and dried these for 48 h at 80°C before weighing them to the nearest 0.01 g (Advanced Balance PB602-S, Mettler Toledo, ON, Canada). From the resulting data, we calculated the average leaf to stem mass ratio for each focal species.
Plant and Soil Nutrients
In August 2017, we revisited the 2016 sample sites that had the highest, median, and lowest total biomass from each plant community in Big Creek and Long Point (n = 18) and collected soil samples using a 11.3 cm deep corer. We dried the samples at 35°C for 1 week, and then sieved samples through a 2 mm screen to remove roots. We sent the sieved soil samples to the Agriculture and Food analytical services laboratory at the University of Guelph for determination of total nitrogen, total carbon, and plant available phosphorus, potassium, magnesium and calcium. Total nitrogen and carbon were measured using thermal conductivity detection, plant available phosphorus was extracted using sodium bicarbonate (Reid, 1998), and the other nutrients were extracted using ammonium acetate prior to measurement with mass spectrometry (Simard, 1993; Agriculture and Food Laboratory University of Guelph, 2017).
In July 2016, during peak aboveground biomass, we collected leaf, stem, and below ground tissues from our focal species in ten sites from each of the meadow marsh, cattail marsh, and P. australis-invaded marsh communities in Big Creek and Long Point Provincial Park. We oven-dried the tissues at 100°C for 48 h, homogenized and then submitted them to the Agriculture and Food Laboratory at the University of Guelph for measurement of total nitrogen and carbon (% dry weight), using thermal conductivity detection (Reid, 1998) and total phosphorus, potassium, magnesium and calcium (% dry weight), using mass spectrometry.
Nutrient Standing Stocks
Using the carbon and macronutrient concentrations for different tissue types, we estimated annual nutrient standing stocks (in g m−2) characteristic of the P. australis-invaded, cattail, and meadow marsh community types. To achieve this, we multiplied tissue nutrient concentrations (% dry weight) by the above and belowground biomass weights of the total community (g m−2 dry weight) and the leaf: stem and root: shoot mass ratios for the focal species. Note that this approach assumes all the plant biomass in a community has the same tissue nutrient levels and tissue mass ratios as the focal species. The validity of this assumption is greater for cattail marsh and P. australis-invaded marsh than for meadow marsh in Long Point Provincial Park (Figure 2). As a sensitivity analysis, we also estimated nutrient standing stocks (g m−2) of only the focal species in their respective communities, excluding biomass attributable to other co-occurring species. Based on this comparison, the assumption that all biomass in our samples came from the focal species did not sway our conclusions.
Statistical Analysis
To test for differences in aboveground biomass, belowground biomass, total biomass, and root: shoot mass ratios among P. australis-invaded, emergent cattail and meadow marsh habitats, we used general linear models. All the model forms we tested are defined in Table 2. To meet normality assumptions, we square-root transformed belowground biomass (g m−2) and root: shoot ratio, and log-transformed magnesium (g m−2) and calcium (g m−2). All general linear models were calculated using the “lm” function from the “stats” package (R Core Team, 2016). Even if interaction terms were non-significant, we retained them in our final models if the model itself had a good fit. To determine the best fit for the 2017 biomass response variable, we used the “AICc” function in the “MuMIn” package (Barton, 2018). Significant differences in response variable among treatments were determined at p <0.05, and we performed all statistical tests using R Studio (R Core Team, 2016). We interpreted the model fit to be strong at the arbitrary threshold where R2 ≥ 0.6.
Table 2. General linear model fit tests for 2016 and 2017 biomass response variables (g m−2 aboveground, belowground, total biomass, root: shoot), soil nutrient concentration (total carbon, total nitrogen and plant available phosphorus, potassium, magnesium, and calcium), tissue carbon and macronutrient concentrations (% dry weight of carbon, nitrogen, phosphorus, potassium, magnesium, and calcium), and carbon and macronutrient standing stock (g m−2 of carbon, nitrogen, phosphorus, potassium, magnesium, and calcium).
To test for the effect of soil nutrient availability on any differences in these response variables among vegetation community types, we used the 2016 samples to cross vegetation community type with soil nutrient level, comparing the high nutrient (Big Creek NWA) and low nutrient (Long Point Provincial Park) environments and included their interaction (Table 3).

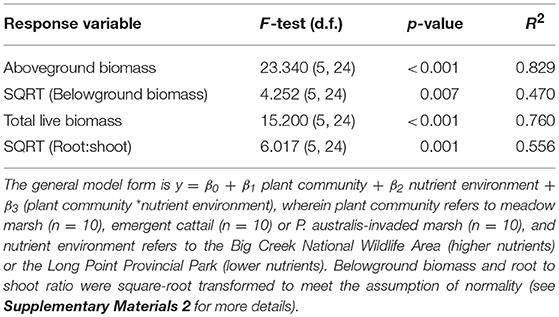

Table 3. Results of general linear model fit tests for the response variables aboveground, belowground, and total live biomass, as well as root:shoot ratio.
To test for an effect of water depth on any differences in these response variables among vegetation community types, we used the 2017 samples from Long Point Provincial Park to include water depth as a covariate (Table 4). Because the water depths measured at each site in May differed from the July measurements, we tested general linear models for each response variable using both measurement dates and selected the measurement date generating the lowest Akaike's Information Criterion (corrected for small sample size) as our final model.

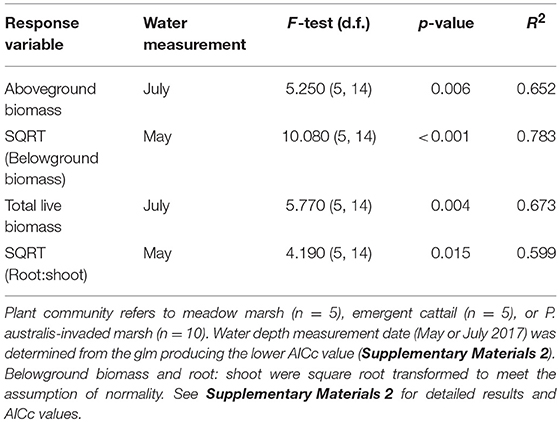

Table 4. Results of general linear model fit tests for biomass response variables, as predicted by y = β0 + β1 plant community + β2 water depth gradient + β3 (plant community * water depth gradient).
Next, we used a general linear model to test whether soil nutrients differed significantly between the Big Creek NWA and the Long Point Provincial Park, combining the three vegetation community types (Table 2). We also used general linear models to test whether differences in nutrient concentrations (% dry weight) among focal species (P. australis, Typha spp., and C. canadensis), plant tissue types (leaf, stem, and belowground tissue), and their interaction were significant (Table 2). Similarly, we used general linear models to test whether nutrient standing stocks (g m−2) differed among vegetation communities (meadow, cattail, and P. australis-invaded; Table 2).
Results
Biomass
The models predicting biomass measurements based on plant community (meadow, cattail and P. australis-invaded), nutrient environment (low and high) and their interaction provided a statistically significant fit (Table 3). There was no significant interaction between the effect of nutrient environment and plant community on any biomass response variable (Supplementary Materials 2). The higher nutrient environment produced significantly greater aboveground and total biomass, though nutrient environment evidenced no significant effect on belowground biomass or root:shoot ratio (Tables S2a–f). Regardless of the nutrient environment, aboveground and total biomass were greatest in P. australis-invaded communities, intermediate in cattail marsh, and lowest in meadow marsh (Figure 3). Differences in belowground biomass and root:shoot ratio among plant communities were not statistically significant (Tables S2d,f), though cattail marsh produced more belowground biomass on average than the other two communities (Figure 3).
Figure 3. Stacked bar graph indicating annual production as total live biomass, partitioned into aboveground (solid bars) and belowground (stripped bars) components. Bars contrast meadow marsh (green), cattail (blue) and P. australis-invaded plant communities (purple) in a higher nutrient (Big Creek NWA 2016) and lower nutrient (Long Point Provincial Park 2016) environment. Bars from Long Point Provincial Park 2017 average across a water depth gradient (14–56 cm water depth). Standard error bars shown. Note that belowground biomass is one growing season's production within the upper 11.3 cm of soil.
The models predicting biomass response variables based on plant community type (meadow, cattail and P. australis invaded), water depth, and their interaction all provided a reasonable fit with R2 ≥ 0.6 (Table 4). Interestingly, both aboveground and total biomass were best predicted by July 2017 water depth measurements, tending to increase with water depth, whereas the model fit for belowground biomass and root:shoot ratio was best using May 2017 water depths (Tables S2g–n). Both belowground biomass and root:shoot ratio evidenced a significant interaction effect for cattail marsh (Tables S2i–j,m,n). In water depths above 40 cm, cattail had significantly greater belowground biomass than P. australis invaded sites (Figure S3a), while meadow sites had the lowest belowground biomass at all water depths. Similarly, the root:shoot ratio of cattail sites was greater than the root:shoot of P. australis invaded sites at water depths >40 cm.
Given that P. australis invaded and resident plant community plots established in May 2017 were intentionally paired by water depth, it is not surprising that average May water depths were similar (36 cm ± 12 SD in P. australis-invaded, 37 cm ± 11 SD in resident plant communities; Figure S1a). Yet, when remeasured in July 2017, the average water depth of resident plant community sites had decreased to an average 29 cm (± 14 SD), whereas the average water depth for P. australis-invaded sites was unchanged from May values (36 cm ± 11 SD in July; Table S1a; Figure S1a).
Plant Morphology
Overall, there was little difference in leaf:stem ratio between P. australis (0.36 ± 0.10 SD) and C. canadensis (0.33 ± 0.08 SD). Typha spp., however, had a much higher leaf:stem ratio (0.90 ± 0.33 SD).
Soil and Plant Tissue Nutrient Concentrations
The models predicting soil carbon and macronutrient levels based on plant community (meadow, cattail and P. australis-invaded), the nutrient environment (low and high), and their interaction all provided a good fit with R2 ≥ 0.7 (Table 5). There were no significant interactions between the influence of wetland and plant community on any of the measured soil carbon and macronutrients (Supplementary Materials 2). All measured soil carbon and macronutrients, except potassium, were significantly higher in Big Creek NWA than in Long Point Provincial Park, regardless of plant community (Supplementary Materials 2). Averaging the two nutrient environments, for the most part we detected no significant difference in soil carbon or macronutrients among the plant community types (Supplementary Materials 2), although meadow marsh in the Long Point Provincial Park generally had the lowest levels (Supplementary Materials 4). Plant available calcium was an exception, being significantly higher in the soil collected from cattail marsh than meadow marsh in Long Point Provincial Park (Supplementary Materials 4).

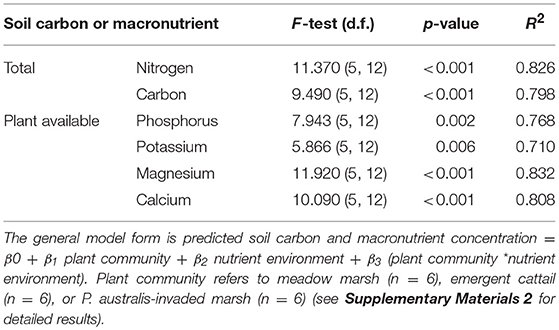

Table 5. Results of general linear model fit tests for soil nutrient content in the higher nutrient Big Creek National Wildlife Area and the lower nutrient Long Point Provincial Park sites.
The models predicting plant tissue carbon and macronutrient concentrations based on plant species (C. canadensis, Typha spp., or P. australis), tissue type (leave, stem, or roots and rhizomes) and their interaction provided a strong fit (R2 ≥ 0.8) for all macronutrients but not for total carbon (Table 6). This model also failed to predict nitrogen to phosphorus ratios (Table 6).
Table 6. General linear model fit test results for carbon and macronutrients in plant tissue and estimated standing stocks.
Generally, phosphorus, potassium and magnesium in plant tissues exhibited no interaction between plant species and tissue type (Supplementary Materials 2). These were lowest in the stem tissues and higher in the leaf and belowground tissues (Figure 4). Specifically, leaf tissue contained significantly higher phosphorus and potassium, while belowground tissues had significantly higher magnesium. In addition, phosphorus and potassium concentrations differed among plant species (Supplementary Materials 2). Phosphorus and potassium levels in plant tissues also differed among species: P. australis tissues contained significantly more phosphorus and potassium than C. canadensis and significantly more potassium than Typha spp. (Figure 4, Supplementary Materials 2).

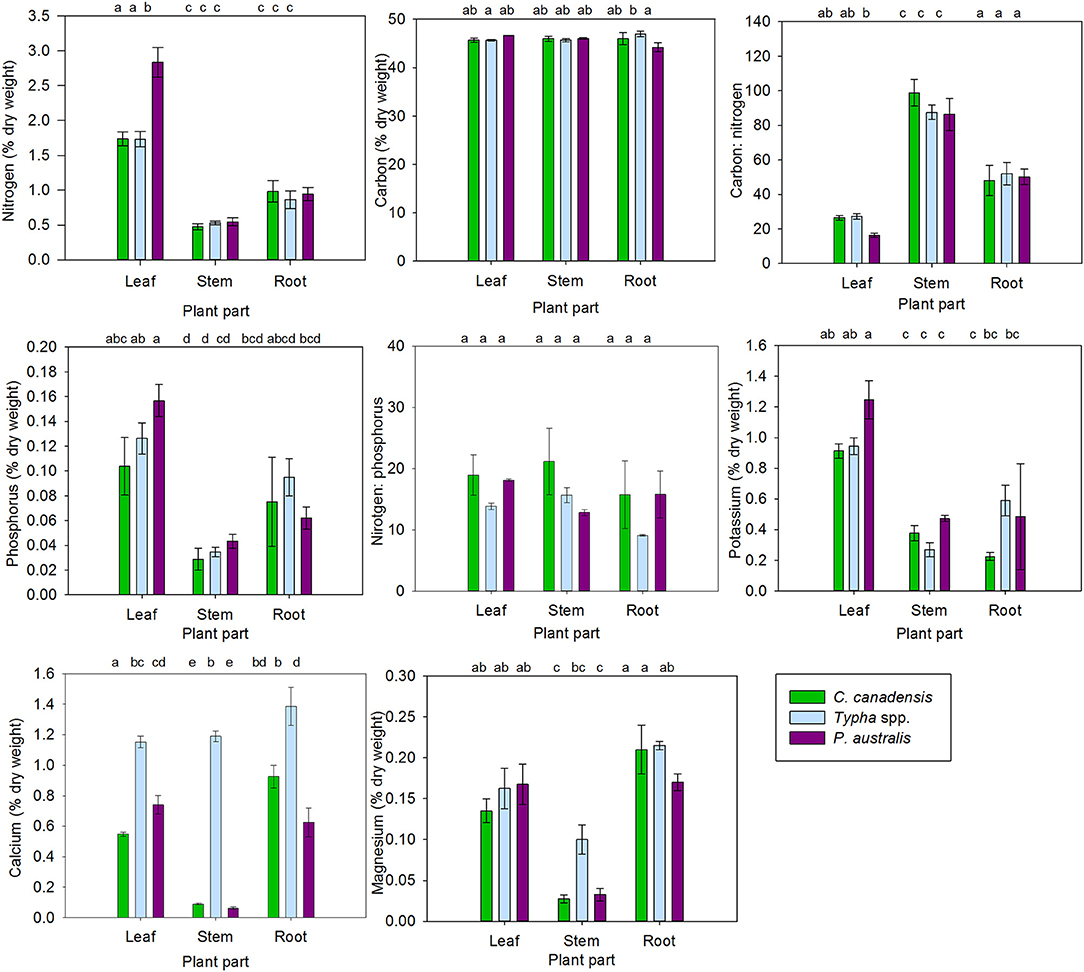

Figure 4. Carbon and nutrients (% dry-weight) in C. canadensis, Typha spp., and P. australis leaves, stems, and belowground tissues (called “Root” in plots for simplicity). Samples collected from meadow (n = 5/wetland), cattail (n = 5/wetland) and P. australis-invaded marsh (n = 5/wetland) in the Big Creek National Wildlife Area (n = 15) and the Long Point Provincial Park (n = 15) in August 2016. Note that this averages tissues from a relatively high nutrient environment (Big Creek) with tissues from a relatively low nutrient environment (Long Point). Error bars represent standard error. Letters above bars indicate significant differences in nutrient content between plant species and tissue type at p < 0.05 (Supplementary Materials 2).
Trends with carbon, nitrogen and calcium were more complex as they exhibited significant interactions between plant species and tissue type (Supplementary Materials 2). For example, Typha spp. contained significantly more carbon in its roots and rhizomes than its leaves, whereas the other species did not exhibit differences in carbon content among tissues (Figure 4). Nitrogen was much higher in P. australis leaf tissue than in C. canadensis or Typha spp. leaves, but there were no differences in the nitrogen concentration of stems and belowground tissue among species (Figure 4). Calcium concentrations in Typha spp. stem tissue was much higher than in C. canadensis or P. australis, but similar calcium concentrations were present in P. australis and Typha spp. foliar tissue and C. canadensis and Typha spp. belowground tissue (Figure 4).
Nutrient Standing Stocks
The models predicting annual nutrient standing stock (g m−2) for carbon and the five macronutrients based on plant community type (meadow, cattail, or P. australis-invaded marsh) provided a statistically significant fit (Table 6). Overall, the stocks of carbon, nitrogen, phosphorus and potassium were lower in meadow marsh, but were equivalent in P. australis-invaded and emergent cattail (Figure 5, Supplementary Materials 2). Stocks of calcium and magnesium were also lowest in meadow marsh but were lower in P. australis-invaded marsh than in cattail marsh (Figure 5). We compared analyses wherein carbon and nutrient standing stocks were estimated by assuming that all species in the plot were the focal species with estimates considering only the fraction of total biomass attributable to the focal species itself (estimates in Supplementary Materials 5), but the model results were unchanged.

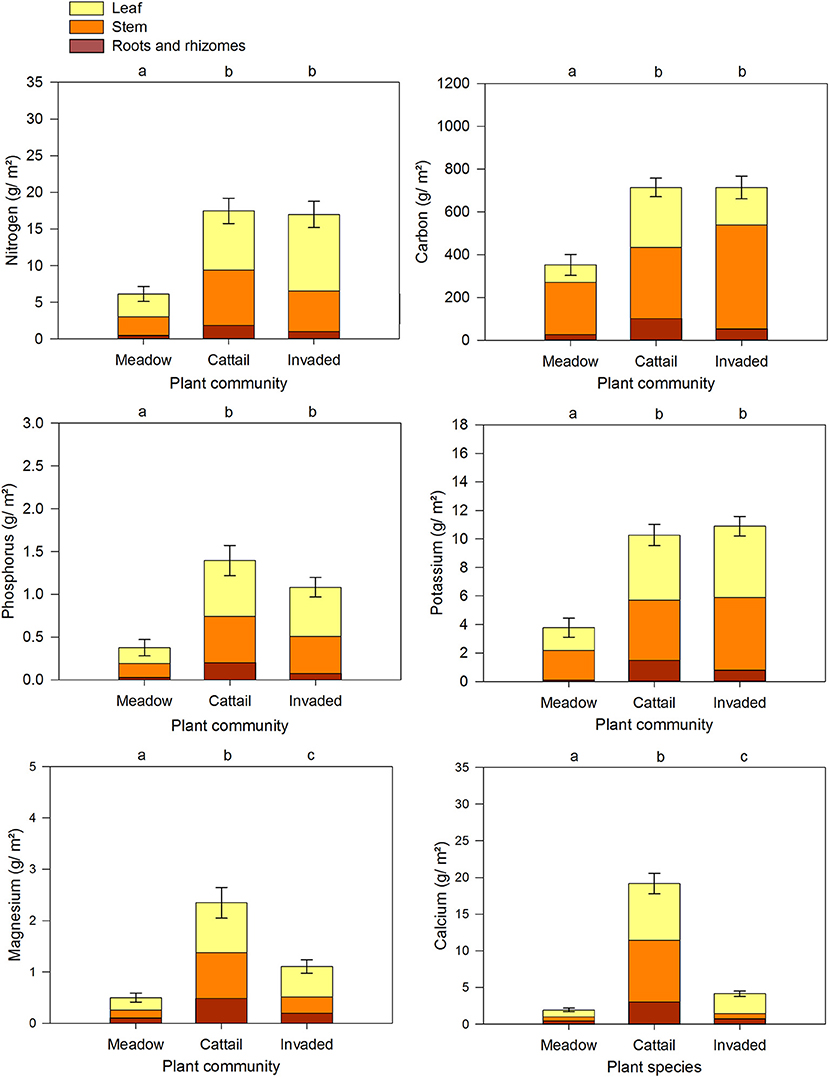

Figure 5. Estimated annual carbon and nutrient standing stocks in the three plant community types broken down by tissue type. The values combine 2016 samples from the Big Creek National Wildlife Area (n = 5 each from meadow, cattail, and P. australis-invaded marsh) and the Long Point Provincial Park (n = 5 each from meadow, cattail, and P. australis-invaded marsh) with the 2017 samples from Long Point Provincial Park (n = 5 meadow, n = 5 cattail, and n = 10 P. australis invaded sites). Error bars reflect standard error in total nutrient standing stock, summed from all tissues. Letters above bars indicate significant differences among plant community types at p < 0.05 (Supplementary Materials 2).
Discussion
Invasive species may provide valuable ecological services in invaded ecosystems (Kopf et al., 2017). In the Great Lakes, where nearshore eutrophication and climate change are two of the most pressing environmental threats, a wetland plant that enhances carbon and other macronutrient assimilation could be an asset, even if it is non-native in origin. Decisions about P. australis control should weigh the ecological costs and benefits of invasion (Hershner and Havens, 2008; Hobbs et al., 2009; Davis et al., 2011), but a lack of research comparing nutrient pools and fluxes in habitat invaded by P. australis with those in the cattail and meadow marsh that P. australis is replacing prevents such calculations. Our research addressed this gap, comparing annual plant production (above and belowground) and carbon and nutrient standing stocks in P. australis invaded marsh with values typical of the marsh types P. australis is replacing. Importantly, we also examined the effects of environmental conditions like nutrient availability and water depth, which can influence plant production and nutrient assimilation.
Outcome of Invasion Contingent on Community Being Replaced
Our most important result is arguably that when rare meadow marsh is replaced by P. australis, we see a major increase in plant biomass, carbon and macronutrient standing stocks. Yet, when P. australis replaces cattail marsh, little change in biomass, carbon or nutrient standing stocks takes place, despite significantly higher nitrogen and marginally higher phosphorus and potassium in P. australis leaves than in Typha spp. leaves. Indeed, the only significant difference in standing stocks between cattail marsh and P. australis-invaded marsh was that P. australis-invaded marsh had lower calcium and magnesium stocks. Our research thus emphasizes that the magnitude and direction of change in carbon and macronutrient standing stocks caused by plant invasion is contingent on the vegetation community that is being replaced. Phragmites australis invasion cannot simply be assumed to increase carbon and macronutrient assimilation in invaded coastal marsh, even on the basis of differences in tissue carbon and macronutrient concentrations.
To our knowledge, no other field studies have compared C. canadensis carbon and macronutrient concentrations to Typha spp. or P. australis tissues, nor carbon and macronutrient stocks in meadow, with those in cattail and P. australis-invaded marsh. A study by Kao et al. (2003) established that C. canadensis had a low ability to assimilate nitrogen and phosphorus pollutants compared to other wetland macrophytes (~7 g m−2 N, ~1 g m−2 P), suggeting that nutrient stocks may increase following P. australis invasion of C. canadensis dominated meadow marsh. Based on equivalent concentrations of carbon, phosphorus, and potassium in the tissues of C. canadensis and those of Typha spp. and P. australis measured in our study, this inferior nutrient assimilation is likely attributable to lower standing crop biomass in meadow marsh. Indeed, the aboveground biomass in meadow marsh reported in our study is similar to that reported in a greenhouse experiment (1,057 ± 12 g/m2; Ouellet-Plamondon et al., 2004), and lies well below the standing crop biomass values for cattail marsh and P. australis-invaded marsh.
Our conclusion that P. australis invasion in cattail marsh does not increase nutrient stocks conflicts with some published studies. For example, Findlay et al. (2002) reported that P. australis retained almost two times more nitrogen than Typha angustifolia in living aboveground biomass (Findlay et al., 2002). They concluded that P. australis had both a higher nitrogen tissue concentration and 50% more biomass production than T. angustifolia (Findlay et al., 2002). The discrepancy between Findlay et al. (2002)'s results and ours is likely due to a focus on different species of Typha. The Typha spp. dominating cattail marsh in our study could not be identified to species by their morphology and most likely comprised the hybrid Typha × glauca with varying degrees of backcrossing to parental T. angustifolia and T. latifolia (Freeland et al., 2013). Typha × glauca, like P. australis, is a highly productive, tall, clonal, non-native monocot that forms monocultures and can have a negative impact on native species diversity (Larkin et al., 2012). Consequently, the difference in nutrient assimilation by P. australis and cattail marsh reported by other authors might occur in study areas where T. angustifolia or T. latifolia are more common or when only foliar nitrogen stocks are examined (Findlay et al., 2002; Farnsworth and Meyerson, 2003; Hirtreiter and Potts, 2012).
Yet our conclusion regarding P. australis invasion of cattail marsh agrees with some recent field studies in the Great Lakes region (Rothman and Bouchard, 2007; Duke et al., 2015), potentially because the Typha spp. in these studies likely also included Typha × glauca. These studies reported wide ranges in aboveground biomass values that were similar to our observations (cattail: 1,661–2,930 g/m2 and P. australis-invaded: 1,522–3,378 g/m2; Rothman and Bouchard, 2007; Duke et al., 2015). This variation in aboveground biomass may be due to differences in water or nutrient regimes, which is why we repeated our comparisons in higher and lower nutrient environments as well as along a water depth gradient.
Outcome of Invasion Depends on Nutrient Environment and Water Depth
Invasive P. australis has been noted to allocate more resources to aboveground biomass in high nitrogen environments, which is believed to facilitate its spread in disturbed environments (Minchinton and Bertness, 2003). Such a response could contribute to its nutrient retention service: higher loading would trigger higher uptake, a desirable property. However, we observed that all focal species exhibited lower root:shoot ratios and higher biomass and nutrient tissue concentrations in the more nutrient rich Big Creek compared to the lower nutrient Long Point Provincial Park. This agrees with widespread studies concluding that increasing nutrient loads led to increased total biomass of vegetation, foliar nitrogen and phosphorus, and decreased root: shoot ratios (e.g., Powelson and Lieffers, 1992; Kvet et al., 2008; Rong et al., 2014; Caplan et al., 2015; Graham and Mendelssohn, 2016; Li et al., 2016). In fact, the largest difference in annual production between nutrient environments was observed in meadow marsh, not P. australis invaded marsh. Consequently, any nutrient retention benefit of P. australis invasion of meadow marsh would be minimized under high nutrient loading environments, which are the conditions under which increased nutrient stocks would be desirable. The difference in nutrient tissue concentrations between higher and lower nutrient environments could be due to either nutrient limitation in Long Point Provincial Park or luxury consumption in Big Creek NWA (e.g., Gumbricht, 1993). Regardless of mechanism, clearly nutrient loading will influence the degree to which P. australis invasion alters carbon and macronutrient pools in coastal marsh.
Water depth may also influence plant production and resource allocation to different tissue types, with consequences for carbon and macronutrient standing stocks. Depending on the plant species, standing crop biomass may increase, decrease or not change with water depth (e.g., Fraser and Karnezis, 2005; Miller and Zedler, 2013; Middleton et al., 2015). In a greenhouse experiment, Wetzel and van der Valk (2005) reported higher C. canadensis aboveground biomass in flooded conditions compared to well-watered and dry conditions, leading to our prediction that standing crop biomass for our focal species would increase with water depth. The response of P. australis biomass to water depth has been reviewed by Engloner (2009) who reported inconsistency that might be attributable to differences in water depth stability. In our study, the total biomass of P. australis and C. canadensis both increased with water depth, though a natural community turnover takes places between 30 and 40 cm of standing water (May measurements), where higher biomass cattail marsh replaces lower biomass meadow marsh. The relationship between cattail marsh standing crop biomass and water depth in our study is less clear, with aboveground biomass decreasing with water depth and belowground biomass increasing. In contrast, Duke et al. (2015) reported that Typha spp. aboveground biomass was positively related to water depth in a Great Lakes wetland. Our results also differ from previous studies that did not find a difference in belowground biomass between cattail and P. australis-invaded communities (Ouellet-Plamondon et al., 2004; Rothman and Bouchard, 2007). A major difference between our study and others examining below ground biomass in P. australis-invaded marhes (e.g., Farnsworth and Meyerson, 2003; Rothman and Bouchard, 2007) is that we used the in-growth core technique because our interest was in annual standing stocks, whereas other field studies typically used traditional soil core methods to measure total belowground standing crop biomass. Our approach would exclude any roots and rhizomes produced during previous seasons, and consequently yields lower estimates of belowground biomass than many other studies (e.g., Farnsworth and Meyerson, 2003; Ouellet-Plamondon et al., 2004; Rothman and Bouchard, 2007).
The mechanism driving the relationships between plant production and water depth are uncertain. Some studies suggest that differences in biomass allocation above or belowground may occur because of increased oxygen demands in rooting systems, greater availability of some nutrients in saturated soil, or higher nutrient uptake within the roots due to increased root length: root mass ratios (Rubio et al., 1995; Rubio and Lavado, 1999). It is also possible that plants may grow taller in deeper water to increase structural support or to access light. Regardless, we recommend that future studies examining nutrient stocks of wetland plants consider nutrient availability and water depths explicitly, as the total biomass production and allocation among tissues types is contingent on these two factors.
Less Well-Studied Nutrients: Calcium and Magnesium
A novel contribution of our work is that we considered elements beyond the commonly studied carbon, nitrogen and phosphorus. For example, calcium, and magnesium, despite their potential importance in nutrient cycling, receive much less attention in the literature (Ehrenfeld, 2010). Typha spp. had a higher concentration of calcium than the other focal species in all tissues and a higher concentration of magnesium in its stems. Consequently, the annual cattail nutrient standing stock of calcium and magnesium was significantly greater than in P. australis-invaded or meadow marsh. Though the difference in terms of magnesium was only one to two grams per meter squared, the difference in calcium standing stock was more pronounced: nearly 10-fold higher in cattail marsh than meadow marsh, for example. One possible explanation is that Typha spp. produces calcium oxalate raphide crystal bundles (Borrelli et al., 2011), which may be used for structural support, defense against herbivores, or produced as a metabolic end-product (Franceschi and Horner, 1980). In general, it appears that Typha spp. often accumulates high levels of calcium and magnesium (Olivares et al., 2002; Parzych et al., 2015). However, based on the similarity in soil calcium and magnesium concentrations, the activity of Typha spp. is not sufficient to deplete soil levels to a detectable degree. Nor is the distribution of Typha spp. restricted to areas with higher calcium or magnesium levels in the soil. This is somewhat surprising for calcium, as 19.2 g m−2 ± 4.5 SD calcium in standing stock in cattail marsh is not an insignificant concentration, given the soil concentration of 6.1 g kg−1 ± 2.0 SD (Supplementary Materials 4). The ecological consequences of these macronutrient differences between P. australis-invaded and cattail marsh communities require further study.
Scaling Up
Our study scaled up from carbon and macronutrient concentrations at the tissue-level to estimate annual vegetative standing stocks per meter-squared of wetland habitat. It is important not to base assessments of carbon assimilation and nutrient retention services solely on tissue concentrations, as different tissue types typically support different carbon and nutrient levels and the ratio of tissue types can vary substantially among species. This is exemplified in our work by the higher concentration of nitrogen in P. australis leaves being offset by the greater proportion of leaf tissues in Typha spp. such that their nitrogen standing stock estimates are equivalent. If we had relied only on tissue concentrations, we would have drawn the erroneous conclusion that P. australis invasion provided enhanced nitrogen and phosphorus assimilation, regardless of which community was being replaced.
Scaling-up from tissues to standing stocks does introduce uncertainty. In our study, C. canadensis is a less dominant component of its community compared with Typha spp. and P. australis (Table 1). Consequently, when scaling up from tissue concentrations to marsh-level annual standing stocks, meadow marsh estimates have greater uncertainty than estimates for the cattail and P. australis-invaded marsh. We do not believe that this assumption undermines our conclusions, however, as recalculating carbon and macronutrient stocks based only on biomass contributed by the focal species (i.e., excluding biomass contributed by non-focal species) did not change our general conclusions. Moreover, our conclusions are supported by obvious differences in relative canopy heights and total biomass, which were significantly lower in meadow marsh than in cattail and P. australis-invaded marsh.
The difference in carbon, nitrogen and phosphorus assimilation between meadow marsh and invaded marsh is not negligible. Scaled up to metric tons per hectare of invaded wetland, P. australis-invaded marsh has an annual standing stock of carbon that is 3.87 T ha−1 greater than meadow marsh (a 2-fold increase). Canada is implementing a carbon pricing system beginning in 2019 that would price one ton of CO2 or equivalent at $16 USD, and by 2,022 plans to increase that price to $39 USD/T CO2 (Goyal et al., 2018). After converting tons of carbon to CO2, every conversion of one hectare of meadow marsh to P. australis-invaded marsh would be worth $227.32 in 2019 and $554.10 in 2022. Currently, large portions of Lake Erie are invaded by P. australis, with invasion estimates ranging from 2,553 ha within Lake Erie coastal wetlands (Carson et al., 2018) to 8,233 ha invaded within 10 km of the American side of Lake Erie (Bourgeau-Chavez et al., 2013). Where P. australis replaced cattail marsh, this would yield no change in annual carbon stocks, but where it replaced the much rarer and biodiverse meadow marsh, we may have experienced a significant increase in carbon uptake.
While the overall amount of phosphorus in the annual vegetative standing stock of P. australis-invaded marshes is much smaller than the annual carbon standing stock, it still represents an almost 3-fold increase compared to meadow marsh (a difference of 0.01 T ha−1). If we assumed that 10% of the Lake Erie coastal marsh considered P. australis-invaded by Carson et al. (2018) and Bourgeau-Chavez et al. (2013) was formerly meadow marsh, the annual standing stock of phosphorus would only have increased by 2.0–6.4 T in total. This is notably less than the phosphorus output from smaller tributaries; for example, phosphorus output from Big Creek is about 19 T phosphorus year−1 (OMECC, 2017). Cleary, even a 3-fold increase in annual phosphorus stock is insufficient to make a meaningful contribution toward Lake Erie phoshorus load reduction targets, given that the current Great Lakes Water Quality Agreement between Canada and the United States of America has an interim target load for phosphorus of 11,000 T year−1 for Lake Erie (United States-Canada, 2013).
Phragmites australis invaded marshes also incorporate 3-fold more nitrogen into the annual vegetative standing stock than meadow marsh (an increase of 0.12 T N ha−1). Scaled up to the Lake Erie basin using the same estimates for the area of invasion, invasion of meadow marsh by P. australis would result in an 30.7–99.0 T increase in annual nitrogen standing stock. As with phosphorus, this is merely a drop in the bucket: nitrogen loading in Lake Erie was estimated at 136,000 T in 2002 (Robertson and Saad, 2013). Overall, despite extensive invasion by P. australis, increases in annual standing stocks of nitrogen and phosphorus are likely inconsequential for Lake Erie.
Nutrient Retention vs. Nutrient Standing Stocks
Importantly, our study focuses on the assimilation of nutrients into the vegetative standing stock of different plant communities during a single growing season but does not examine their long-term storage, which should ultimately determine nutrient retention services. In wetlands, nutrients taken up by macrophytes are quickly cycled by decomposition (Maltby and Barker, 2009). Long term retention of nutrients in plants varies by species and by nutrient. For example, P. australis litter and standing dead stems can decrease in nitrogen by approximately 40–60% and in phosphorus by 75–85% compared to the living tissue (Findlay et al., 2002). In contrast, T. angustifolia litter nitrogen concentration exceeds that of living tissues, whereas phosphorus in litter is 0–25% lower than in living tissues (Findlay et al., 2002). Calamagrostis canadensis litter can retain 70% of the nitrogen and 51% of the phosphorus it assimilated (Kao et al., 2003). This litter, typically shed by the plant each fall, then decomposes in the wetland at a rate usually dependent on the ratio of carbon to nitrogen and nitrogen to phosphorus (Enriquez et al., 1993). Because the fraction of carbon, nitrogen, and phosphorus retrieved by the plant from senescing tissues before they are shed as litter can vary among species, there could be differences in litter decomposition rates among our focal species, even though we observed no differences in carbon: nitrogen or nitrogen: phosphorus ratios among our focal species for any of the plant tissues. Importantly, our study did not address the speciation of carbon or nutrients in plant tissues. Obviously, differences in the extent or proportion of bioavailable inorganic fractions will have important ecological and biogeochemical ramifications. For example, Judd and Franceour (2019) found that ammonium in surface and pore water increased but nitrate did not change in marshes where invasive P. australis was controlled with herbicide. Though both of these forms of nitrogen are bioavailable to plants, increasing the dominance of ammonium over nitrate can lead to ammonium toxicity in plants and changes in soil pH. More, if nutrient storage in invasive P. australis is only temporary, all the nutrients assimilated by P. australis may be released back into the watershed during natural senescence and decomposition in the same manner as following herbicide-caused mortality, unless plant biomass is harvested and removed for disposal by wetland managers (Carson et al., 2018). We recommend that future work establish decomposition rates and nutrient fluxes from decomposing plant litter of our three focal species to further investigate the effects of P. australis invasion on carbon and nutrient cycling and retention services. This future work should partition total carbon and nutrient values into organic and inorganic fractions to better inform the biogeochemical consequences of changes in stock and tissue concentrations due to P. australis invasion.
Conclusion
Phragmites australis has the capacity to assimilate carbon and nutrients at an amount and rate equal to or greater than meadow marsh communities though not more than cattail marsh. In the case of carbon stocks, invasion may even yield an economic benefit, though increases in nitrogen or phosphorus stocks where meadow marsh was invaded were negligible compared to overall nutrient loading rates and are unlikely to ameliorate nearshore eutrophication. It is also important to recognize that annual carbon and nutrient stocks offer temporary storage, and an unknown proportion will be released following senescence and decomposition of plant litter.
We caution that, as suggested by Alldred et al. (2016), invasion by P. australis triggers a variety of opposing changes in wetland ecosystem services that reflect trade-offs among service types. A net assessment of the effects of P. australis invasion must also account for the resulting loss of plant biodiversity (Keller, 2000; Tulbure et al., 2007) and associated degradation of bird (Robichaud and Rooney, 2017) and turtle habitat (Markle and Chow-Fraser, 2018). In economic terms, replacing biodiverse and rare meadow marsh habitat with P. australis-invaded marsh could increase carbon stocks by 3.87 T ha−1 and under future carbon pricing could reflect about $550 USD ha−1 in carbon savings. Yet, P. australis invasion is a recognized threat to 25% of the 217 species at risk in Ontario (Bickerton, 2015), which exerts a much larger economic cost. For example, between 2012 and 2017, the Ontario Ministry of Natural Resources and Forestry, through the Species at Risk Stewardship Program, spent $89,826 USD on the threatened eastern hog-nosed snake (Heterodon platirhinos) alone, which makes use of meadow marsh habitat, but not P. australis-invaded marsh in our study area (Ministry of Natural Resources and Forestry, 2017). Thus, the funds allocated to species at risk conservation likely dwarf any benefits in increased carbon and nutrient stocks resulting from P. australis invasion. These trade-offs in ecosystem services need to be weighed to arrive at effective management decisions regarding species at risk (Hershner and Havens, 2008; Hobbs et al., 2009; Davis et al., 2011), but such a comprehensive analysis is too frequently impaired by knowledge gaps like the ones we addressed in this study.
Data Availability
The datasets generated for this study are available on request to the corresponding author.
Author Contributions
RR and SY designed the study. SY conducted the field and lab work. SY and RR analyzed the data and co-authored the manuscript.
Funding
This work was supported by NSERC Discovery 03846, the Ontario Ministry of Natural Resources and Forestry MNRF-W-(12)6-17, and Mitacs Accelerate IT07466 73027 in partnership with the Nature Conservancy of Canada. Funders had no role in study design, analysis, interpretation or reporting.
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Acknowledgments
This work could not have been completed without help from many volunteers and lab technicians; thank you Jacob Basso, Bailey Dhanani, Megan Jordan, Madison Brook, Taylor Blackwell, Lauren Koiter, and Calvin Lei. Map of our study area was created by Mathew Bolding and is used with permission. Thanks to Dr. Janice Gilbert, Dr. Merrin Macrae, Dr. Roland Hall, and Dr. Marcel Pinero for feedback on an early draft. Thanks also to two reviewers for their constructive comments.
Supplementary Material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fenvs.2019.00112/full#supplementary-material
