Calcium-Mediated Regulation Promotes the Biofilm Formation of Two Novel Pyridine-Degrading Bacteria

Introduction

Nitrogenous heterocyclic compounds (NHCs) such as pyridine and quinoline are toxic organic pollutants commonly found in wastewater from coal coking, gasification, and refining processes in coal chemical industries (Bai et al., 2010; Xu et al., 2015). Due to their high polarity, once released into the environment, they can spread quickly, and exert harmful effects on ecological systems and human health (Kaiser et al., 1996; Thomsen and Kilen, 1998; Bi et al., 2006). Furthermore, their stable structures make them highly resistant to conventional biological wastewater treatment employing common microorganisms (Liang et al., 2018). Therefore, bioaugmentation, which utilizes selected microorganisms capable of degrading these recalcitrant organic pollutants, is getting increasing attention and is regarded as an effective, and economically feasible solution (Herrero and Stuckey, 2015). For example, taken pyridine as a target pollutant, various bacteria belonging to the genus of Micrococcus (Sims et al., 1986), Rhizobium (Shen et al., 2015), Shinella (Bai et al., 2009), Paracoccus (Bai et al., 2008), and Pseudomonas (Mohan et al., 2003) have been isolated and used for degradation of pyridine in wastewater treatment. However, the application of the bioaugmentation strategy also faces many challenges. In particular, the inoculated bacteria often fail to colonize in the microbial community due to inhospitable conditions or intense competition from indigenous species (Raper et al., 2018). Fu et al. (2009) reported that the inoculated strain disappeared from a biological aerated filter (BAF) within 3 days and attributed it to its poor biofilm-forming ability. On the other hand, strategies that promote the formation of stable biofilms by the inoculated bacteria on carriers have been shown to improve the degradation of target pollutants in bioaugmented systems (Zhao B. et al., 2018; Yue et al., 2018). However, the existing knowledge of efficiently regulating bacterial biofilm formation is obscured especially in the field of wastewater treatment engineering.

Biofilms are well-organized microbial communities, in which cells adhere to biotic or abiotic surfaces and are covered by a self-secreted extracellular polymeric substances (EPS) matrix. They represent the most widespread lifestyle for microbes (Stoodley et al., 2002; Flemming and Wuertz, 2019). Compared to the planktonic lifestyle, biofilms provide a range of advantages for microbial cells to enhance the stability of community structures, and their resistance to unfavorable conditions or environmental shock loads by enhancing intercellular communication and cooperation (Jefferson, 2004; Flemming et al., 2016). Biofilm formation is a complex, multi-step process involving various self-regulated mechanisms, e.g., quorum sensing (QS) (da Silva et al., 2017), bis-(3′-5′)-cyclic dimeric guanosine monophosphate (c-di-GMP) signaling (Wu et al., 2015), and flagella and pili mediated motility (Van Houdt and Michiels, 2005), as well as multiple surface properties including hydrophilicity and surface charge (Renner and Weibel, 2011). Moreover, biofilm development is influenced by many environmental factors such as temperature, pH, nutrients, hydraulic shear force, osmotic pressure, and divalent cations (Rinaudi et al., 2006; Zhou et al., 2013; Gomes et al., 2014). Therefore, to promote biofilm formation of the inoculated bacteria in bioaugmented reactors, it is important to identify the most crucial ones from those intricate factors.

Calcium cation (Ca²⁺) has been widely recognized as the important second messenger in bacterial cells, participating in modulating many cellular activities and metabolic pathways (Dominguez et al., 2015; Parker et al., 2016). Many studies noted that calcium played non-negligible roles in the formation of bacterial biofilms, yet the effects varied widely in different bacterial species. For instance, calcium was found to stimulate cell-to-cell adhesion and biofilm establishment of Pseudomonas mendocina NR802 (Mangwani et al., 2014), Citrobacter werkmanii BF-6 (Zhou et al., 2016), Bacillus sp. (He et al., 2016), Flavobacterium columnare (Cai et al., 2019), and Vibrio fischeri (Tischler et al., 2018); but it was also shown to inhibit biofilm formation of Staphylococcus aureus (Shukla and Rao, 2013), and Vibrio cholerae (Bilecen and Yildiz, 2009). In these previous studies, calcium was found to alter cell surface charge and the electrical double layer (Marcinakova et al., 2010), elevate the production of extracellular proteins and polysaccharides (Mangwani et al., 2014; He et al., 2016), and enhance cationic bridging between bacterial cells via its interactions with EPS components such as extracellular DNA (eDNA) (Das et al., 2014). However, the specific mechanisms through which calcium mediates bacterial adhesion and subsequent biofilm formation remain inconclusive and even a subject of controversy. Moreover, the bacteria species ever studied are mainly model species or from clinical, food-related, plant-related, and marine environments. Thus, it necessitates investigating more bacterial strains from wastewater treatment plants.

In this study, we evaluated the effects of calcium on the biofilm establishment and architecture of two pyridine-degrading bacteria, Pseudomonas sp. ZX01 and Arthrobacter sp. ZX07. The underlying mechanisms of calcium-mediated regulation were also explored from the perspectives of initial cell-to-surface attachment, EPS production, and c-di-GMP signaling. The purpose of this study was to provide a fundamental understanding of the roles that calcium plays in regulating bacterial biofilm-forming behaviors, and practical guidelines for more efficient application of the two NHC-degrading strains in bioaugmented biofilm reactors.

Materials and Method

Chemicals

Tryptone and yeast extract were purchased from Oxoid (United Kingdom). 1% (w/v) crystal violet solution, phosphate buffered saline (PBS), and BCA Protein Assay Kit were purchased from Solarbio (China). The fluorescent dyes, SYTO9 and tetramethyl-rhodamine conjugates of concanavalin A (conA-T), were obtained from Invitrogen (United States). All the other conventional inorganic or organic chemicals used in the study were of analytical grade.

Bacterial Strains and Medium

Pseudomonas sp. ZX01 and Arthrobacter sp. ZX07, isolated from the activated sludge of a coking wastewater treatment plant, were chosen as the representative research objects, for they were Gram-negative and Gram-positive, respectively. The two strains could grow by taking pyridine as the sole carbon and nitrogen source and showed highly efficient pyridine-degrading abilities. Their 16S rRNA gene sequences can be obtained in GenBank database of NCBI with accession numbers MG760359 and MG760365. The main biochemical characteristics of the two strains were also summarized in Supplementary Table S1. Particularly, the motility of the two strains was tested using the method described in Supplementary Text S1. The Luria-Bertani (LB) medium (Sezonov et al., 2007) containing 10 g/L tryptone, 5 g/L yeast extract, and 10 g/L NaCl was used for bacteria enrichment and biofilm formation.

Biofilm Cultivation and Quantification

Microtiter plate biofilm formation assay (O'Toole, 2011) was used to culture and quantify biofilm with some modifications, for its advantages in accuracy, repeatability, and batch processing. Firstly, the bacterial strain was grown in LB medium at 37°C to middle exponential phase until OD₆₀₀ = 1.0 and washed twice with 0.9% NaCl. Then the harvested cells were resuspended in LB medium with a final OD₆₀₀ of 0.5. Next, 1 ml cell suspension was seeded in each well of 12-well polystyrene plates (Corning, United States) and incubated at 35°C for 24 h with a shaking speed of 150 rpm. The plates containing LB medium only were taken as the negative control. After incubation, the OD₆₀₀ of bacterial suspension in each well was measured to represent the planktonic cell growth. Then the suspension was discarded and each well was washed three times with sterile water to remove non-adherent cells. The 12-well plates were air-dried at 60°C for 1 h and 2 ml 0.1% crystal violet solution was added into each well to stain the attached biofilm cells for 25 min. Subsequently, the excess dye was rinsed off with sterile water. After drying at 35°C for 1 h again, 4 ml 95% ethanol was added into each well to redissolve the cell-bound crystal violet. Finally, 125 μl solution from each well was transformed to 96-well plates and OD₅₉₅ was determined using a microplate reader (BioTek Synergy, United States) to represent the biofilm biomass.

In the experiments studying the effects of Ca²⁺ on biofilm formation of the two strains, different concentrations of CaCl₂ (i.e., 1, 2, 4, 8, 16, 32, and 64 mM) were added into the medium. For each of the experimental conditions, the assay was performed in triplicate.

Bacterial Initial Attachment Assay

To investigate the effects of Ca²⁺ on bacterial initial attachment, the attachment of the two strains to the glass slides under different Ca²⁺ concentrations were analyzed according to Ramsey and Whiteley (2004) with modifications. Briefly, the bacterial cells in the middle exponential phase were diluted in 15 ml LB medium to a final OD₆₀₀ of 0.5; different concentrations of CaCl₂ (i.e., 1, 4, 16, 32, and 64 mM) were also added into the medium. The prepared bacterial culture was then poured into a 90 × 14 mm Petri dish in which a glass slide (75 × 25 mm; Jingan, China) was placed and incubated at 35°C for 1 h with a shaking speed of 90 rpm. After incubation, the glass slide was taken out and rinsed twice with PBS to remove non-adherent cells. Then the glass slide was put into a centrifuge tube with 25 ml 0.9% NaCl and vibrated intensely with a vortex mixer for 30 min to detach the cells. The number of the bacterial cells in the solution was determined using a standard plate counting method and normalized to the area of glass slides as the initial attachment index. All the assays were performed in triplicate.

EPS Extraction and Analysis

EPS was extracted from both planktonic cells and biofilms using a heating method following Bourven et al. (2011) with certain adjustments. The bacterial strain was firstly inoculated in 12-well plates as previously described. Then the suspension in each well was collected and centrifuged. The cell pellets were resuspended in 15 ml 0.9% NaCl and heated in 85°C water bath for 35 min. After filtration with 0.22 μm filters, the filtrate was collected as EPS from planktonic cells. The 12-well plate with biofilms was rinsed gently twice with sterile water and 1 ml 0.9% NaCl was added into each well of the plate. Then the plate was heat-treated and the suspensions in each well were combined. The resulting filtrate was considered EPS from the biofilms. Moreover, planktonic cells and biofilm cells on the filter were also dried and weighed.

The polysaccharide (PS) and protein (PN) content of the EPS were determined using the phenol-sulfuric acid method (Dubois et al., 1956) and the bicinchoninic acid (BCA) protein assay (Redinbaugh and Turley, 1986), respectively. The final concentrations of PN and PS were normalized by the weight of the planktonic or biofilm cells. The experiments for each condition were conducted in triplicate and each measurement was performed at least 3 times. Furthermore, the fluorescence excitation-emission matrix (EEM) analysis of the EPS from both biofilms and planktonic cells was performed using a HORIBA Aqualog spectrofluorometer. The details of EEM analysis were described in Supplementary Text S2.

Biofilm Observation by Confocal Scanning Laser Microscopy

The architecture and composition of biofilms formed by the two strains under different Ca²⁺ concentrations were analyzed using CLSM combined with a double staining method (Yu et al., 2016). Briefly, 700 μl of the bacterial suspension (OD₆₀₀ = 0.5) were inoculated in a µ-Slide chambered coverslip with four wells (ibidi, Germany) and cultured at 35°C at 90 rpm in a rotary shaker for 24 h. After incubation, the chambered coverslip was rinsed twice with PBS to remove planktonic cells. Then the cells and polysaccharides in the biofilms were stained with 10 μM SYTO9 and 200 μg/ml conA-T in the dark for 30°min, respectively. After washing with PBS, the chambered coverslip was observed by a CLSM system (Leica TCS SP8, Germany) and Z-stack two-dimensional images (scanned every 0.5 μm) were obtained from at least three random areas for each sample. The 3-D images were rebuilt using IMARIS software (V9.2.1; Bitplane, Switzerland) and analyzed using COMSTAT (Heydorn et al., 2000).

Intracellular c-di-GMP Extraction and Analysis

The intracellular c-di-GMP was extracted according to the method reported by Spangler et al. (2010). Briefly, the bacterial cells were cultured in 12-well plates to the late exponential growth phase under the same conditions as described above and harvested (5 ml culture volume) by immediate centrifugation at 4°C for the subsequent extraction. For each culture, the extraction was performed in triplicate. The relative quantitative analysis of c-di-GMP was conducted using a Dionex Ultimate 3000 UPLC system coupled to a TSQ Quantiva Ultra triple-quadrupole mass spectrometer (Thermo Scientific, United States). Moreover, 1 ml of the bacterial culture was collected and the cell pellet obtained by centrifugation was dissolved in 800 μl of 0.1 M NaOH. After being heat-treated at 95°C for 15 min, the protein content in the solution was determined using a BCA Protein Assay Kit. The final concentration of c-di-GMP (relative content) was normalized as peak area per mg of bacterial protein and presented as the ratio to the control group.

Statistical Analysis

All the experimental data in figures or tables were presented in the form of mean ± standard deviation. One-way ANOVA and multiple comparisons were also performed using SPSS software (V19.0; IBM, United States) to illustrate the results of different experimental conditions (i.e., Ca²⁺ concentrations). The appropriate statistical test method was selected from Fisher’s LSD test and Tamhane’s T2 test for multiple comparisons according to the homogeneity of variance. In general, a p-value of <0.05 was regarded as significantly different.

Results

Effects of Calcium on Biofilm Formation

The biofilm formation and planktonic bacterial growth in the presence of different concentrations of Ca²⁺ (0–64 mM) were monitored using the microtiter plate assay. As shown in Figure 1A, calcium, when added at sufficient concentration, and significantly promoted biofilm formation of Pseudomonas sp. ZX01. In the range of 0–8 mM, Ca²⁺ had little effect on the biofilm formation; while in the range of 16–64 mM, the biofilm biomass was increased sharply in a concentration-dependent manner. The maximum amount of biofilm biomass was observed in the presence of 64 mM Ca²⁺, which was 24.7 times that of the control (0 mM Ca²⁺). However, the addition of Ca²⁺ reduced the planktonic bacterial growth of ZX01 by 13.3–41.6%, and the minimum bacterial density was found in the presence of 4 mM Ca²⁺. Significantly increased biofilm formation by Arthrobacter sp. ZX07 was observed in the presence of exogenous calcium at a much lower Ca²⁺ concentration (2 mM) (Figure 1B); in addition, when Ca²⁺ concentration increased from 2 to 64 mM, the biofilm biomass increased in a more even manner; the biofilm biomass of ZX07 at 16, 32, and 64 mM Ca²⁺ was 24.4, 42.2, and 50.8 times as that of the control. These results indicated that calcium had a stronger promoting effect on ZX07 than ZX01. Furthermore, Ca²⁺ did not affect the planktonic growth of ZX07 at concentrations up to 8 mM but repressed planktonic growth by 8.4–30.2% at higher concentrations (16–64 mM).

FIGURE 1

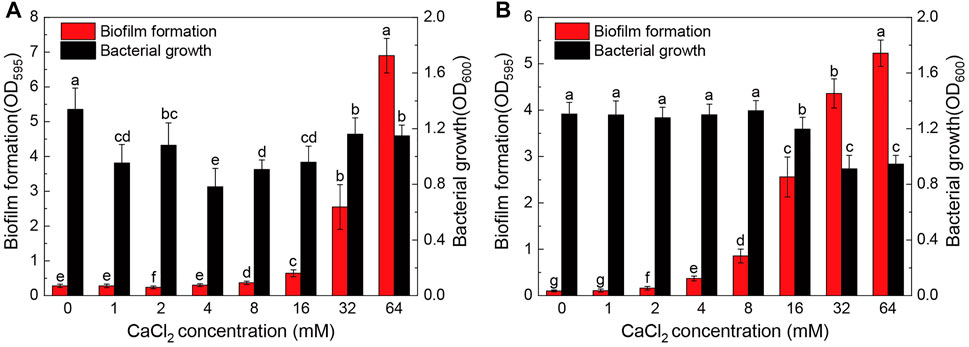

FIGURE 1. Biofilm formation and bacterial growth of Pseudomonas sp. ZX01 (A) and Arthrobacter sp. ZX07 (B) in 12-well microtiter plates when adding different concentrations of CaCl₂ into the medium. Bars represented mean ± standard deviation. Different lowercase letters labeled on the bars represented the significant difference (p < 0.05) according to the one-way ANOVA and multiple comparisons.

The effect of Ca²⁺ on biofilm formation can be clearly seen in digital photos of the 12-well microtiter plates (Figure 2). Figure 2A shows that ZX01 formed more biofilms at the center of the well bottom surface in the presence of 32 mM Ca²⁺; when Ca²⁺ concentration increased to 64 mM, the biofilms occupied the whole bottom of the wells, and the liquid/air/well wall 3-phase interface. Unlike ZX01, in the presence of 16, 32, and 64 mM Ca²⁺, the biofilms of ZX07 mainly appeared at the edge of the well bottom rather than the center (Figure 2B).

FIGURE 2

FIGURE 2. Digital photos of biofilms formed in 12-well microtiter plates by Pseudomonas sp. ZX01 (A) and Arthrobacter sp. ZX07 (B) when adding different concentrations of CaCl₂ into the medium. Cells in biofilms were stained using 0.1% crystal violet.

Effects of Calcium on Bacterial Initial Attachment

The effects of calcium on bacterial initial attachment were determined by measuring cell attachment on glass slides. Figure 3 presents the number of viable bacterial cells attached to the surface of the glass slide in 1 h. For Pseudomonas sp. ZX01, the highest initial attachment was found in the absence of Ca²⁺, which was 1.64 × 10⁶ CFU/cm² (Figure 3A). With increasing concentration of Ca²⁺, the initial attachment of ZX01 was significantly repressed; the initial cell attachment in the presence of 64 mM Ca²⁺ (8.36 × 10³ CFU/cm²) was two orders of magnitude lower than that of the control. As shown in Figure 3B, the initial attachment of Arthrobacter sp. ZX07 at 0 and 4 mM Ca²⁺ was significantly higher than that at 16 and 64 mM Ca²⁺. The lowest initial attachment was observed at a Ca²⁺ concentration of 64 mM (1.89 × 10² CFU/cm²), which was an order of magnitude lower than that of the control (2.21 × 10³ CFU/cm²). These results indicated that Ca²⁺ can inhibit the initial attachment of the two bacterial strains to positive-charged glass surfaces.

FIGURE 3

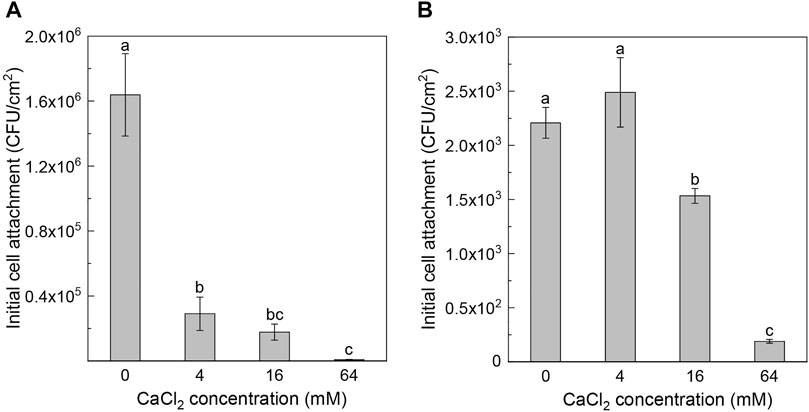

FIGURE 3. Effects of adding CaCl₂ on the initial cell attachment of Pseudomonas sp. ZX01 (A) and Arthrobacter sp. ZX07 (B) on glass substrate under shaking conditions. Bars represented mean ± standard deviation. Different lowercase letters labeled on the bars represented the significant difference (p < 0.05) according to the one-way ANOVA and multiple comparisons.

Effects of Calcium on EPS Expressions of Biofilm Cells and Planktonic Cells

The EPS composition of biofilm cells and planktonic cells in the presence of different concentrations of calcium was chemically analyzed. As presented in Figure 4A, both PN and PS content in the biofilm EPS of Pseudomonas sp. ZX01 responded to exogenous Ca²⁺ in a significant decreasing trend. Compared with the control, 16 and 32 mM Ca²⁺ could reduce the PN content by 19.4 and 24.8%, respectively; while in the presence of 64 mM Ca²⁺, the PN content (i.e., 30.5 mg/g biomass) was reduced even more sharply by 77.1%. Similarly, the PS content was decreased by 10.2–87.7% in a monotonic manner with the addition of Ca²⁺. The PN/PS ratio of biofilm EPS increased notably (from 2.08 to 3.87) in response to exogenous calcium. Nevertheless, the PN and PS content in the EPS of planktonic bacterial cells were practically unaffected by the addition of Ca²⁺, staying at around 65 and 30 mg/g biomass, respectively (Figure 4B). Regarding Arthrobacter sp. ZX07, the change in PN content in biofilm EPS (Figure 4C) was not statistically significant. However, high Ca²⁺ concentrations (16, 32, and 64 mM) reduced the PS content by 49.8–56.5%. Consequently, the PN/PS ratio of ZX07 biofilm EPS increased from 1.35 (the control) to 2.04 (64 mM Ca²⁺) with increasing Ca²⁺ concentrations. Like ZX01, the EPS components of planktonic ZX07 cells were not influenced by Ca²⁺ (Figure 4D).

FIGURE 4

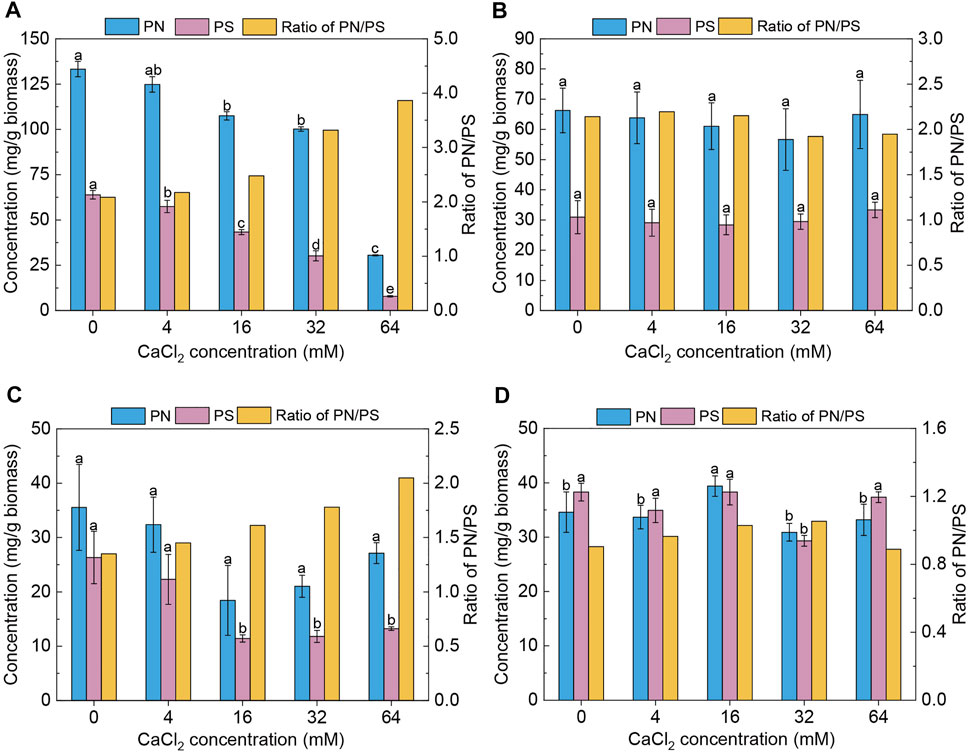

FIGURE 4. Effects of adding CaCl₂ on protein (PN) content, polysaccharide (PS) content, and the ratio of protein to polysaccharide (PN/PS) in the EPS of both biofilms and planktonic cells. (A,B) Biofilms and planktonic cells of Pseudomonas sp. ZX01 (C,D) Biofilms and planktonic cells of Arthrobacter sp. ZX07. Bars represented mean ± standard deviation of three replicates. Different lowercase letters labeled on the bars represented the significant difference (p < 0.05) according to the one-way ANOVA and multiple comparisons.

EEM fluorescence spectra were obtained to characterize the EPS composition. In general, EEM spectra could be divided into five regions: Regions I and II represent aromatic protein-like compounds; Region III represents fulvic acid-like compounds; Region IV represents microbial products such as tyrosine-like, tryptophan-like, and protein-like compounds; Region V represents humic acid-like compounds (Chen et al., 2003). Interestingly, the EEM peaks of the biofilm EPS and planktonic EPS in the absence or presence of Ca²⁺ are similar (Figures 5A–D), indicating that Ca²⁺ did not affect the compounds in EPS of Pseudomonas sp. ZX01. Specifically, the two peaks identified from the EEMs were EX/EM = 225/325 nm (Region I) and EX/EM = 275/325 nm (Region IV). In contrast, Ca²⁺ had remarkable influences on the EPS composition of Arthrobacter sp. ZX07. Without adding Ca²⁺, there were 3 peaks in the EEMs of both biofilm and planktonic EPS (Figures 5E,G): EX/EM = 220/350 nm (Region II), EX/EM = 280/350 nm (Region IV), and EX/EM = 325/390 nm (Region V). However, despite sharing the same two peaks in Region II and Region IV, the EEMs of biofilm EPS in the presence of 64 mM Ca²⁺ presented two different peaks locating at EX/EM = 360/450 nm (Region V), and EX/EM = 270/450 nm (Region V) (Figure 5F). Additionally, a different peak at EX/EM = 350/450 nm (Region V) appeared in the EEMs of planktonic EPS at 64 mM Ca²⁺ (Figure 5H). The above results suggested that exogenous calcium promoted ZX07 to produce certain humic acid-like compounds.

FIGURE 5

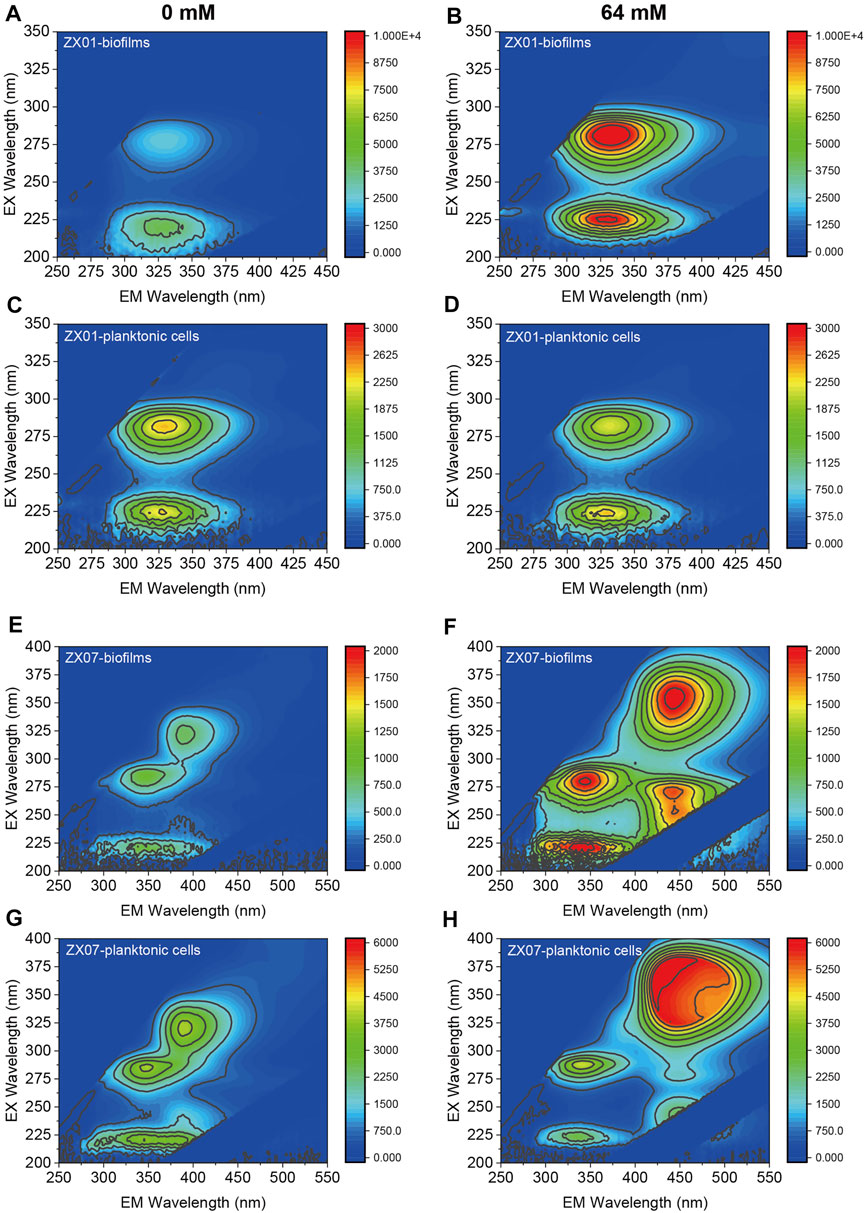

FIGURE 5. EEM fluorescence spectra of the EPS produced by both biofilms and planktonic cells. (A,B) Biofilms of Pseudomonas sp. ZX01 in the presence of 0 and 64 mM of CaCl₂ (C,D) Planktonic cells of Pseudomonas sp. ZX01 in the presence of 0 and 64 mM of CaCl₂. (E,F) Biofilms of Arthrobacter sp. ZX07 in the presence of 0 and 64 mM of CaCl₂ (G,H) Planktonic cells of Arthrobacter sp. ZX07 in the presence of 0 and 64 mM of CaCl₂.

Effects of Calcium on Biofilm Architecture

The architecture and topography of the biofilms of the two pyridine-degrading bacteria, formed on µ-Slide surfaces in 24 h, were examined by CLSM 3-D imaging (Figure 6). The green fluorescence signal represents bacterial cells, and the red signal represents PS in EPS. In the absence of Ca²⁺, few ZX01 cells adhered to the substrate and formed small aggregates (Figure 6A). Quantitative analysis of CLSM images (Table 1) showed very low average thickness and coverage of ZX01 biofilms at 2.06 ± 0.29 μm and 12.64%, respectively. At Ca²⁺ concentrations of 4 and 16 mM, many more ZX01 cells adhered to the surfaces and the cells were uniformly distributed; PS became clearly visible in biofilms. As a result, the surface coverage of ZX01 biofilms at 4 and 16 mM Ca²⁺ went up to 25.17 and 42.09%, respectively (Table 1). Intriguingly, when 64 mM Ca²⁺ was added, ZX01 formed dense and thick biofilms, in which the cells and EPS were distributed in a well-structured mode. The total biomass, average thickness, average coverage, and average colony size of ZX01 biofilms in this condition were all elevated by several times; and the sharp reduction of surface to biovolume ratio and roughness coefficient also suggest that more bacterial cells were aggregated in the form of biofilms. Similar trends were observed in the biofilms of Arthrobacter sp. ZX07 (Figure 6B): when the concentration of exogenous Ca²⁺ increased from 0 to 16 mM, more ZX07 cells were attached to the surfaces and the microcolonies became larger, but the distribution of the cells was not uniform; in the presence of 64 mM Ca²⁺, ZX07 developed extensive and mature biofilms, in which the cells were covered by large amounts of EPS. However, there was a notable difference in the influences of calcium on the biofilm architecture of ZX01 and ZX07. In the range of 0–16 mM, the average colony size of ZX01 biofilms was little affected by Ca²⁺; and the cells, stimulated by Ca²⁺, attached to the substrate in a separated pattern. In contrast, a significant increase in the average colony size was found in ZX07 biofilms, indicating that Ca²⁺ possibly promoted ZX07 cells to attach to those which had already colonized at the substrate. Therefore, it could be speculated that, for these two strains, the mechanisms inherent in the stimulatory effects of Ca²⁺ on biofilm development were different.

FIGURE 6

FIGURE 6. CLSM 3-D images of the biofilms formed by Pseudomonas sp. ZX01 (A) and Arthrobacter sp. ZX07 (B) in the presence of 0, 4, 16, and 64 mM of CaCl₂. The cells were stained green with SYTO9; the polysaccharides were stained red with conA-T; the yellow fluorescence represented the combination of cells and polysaccharides.

TABLE 1

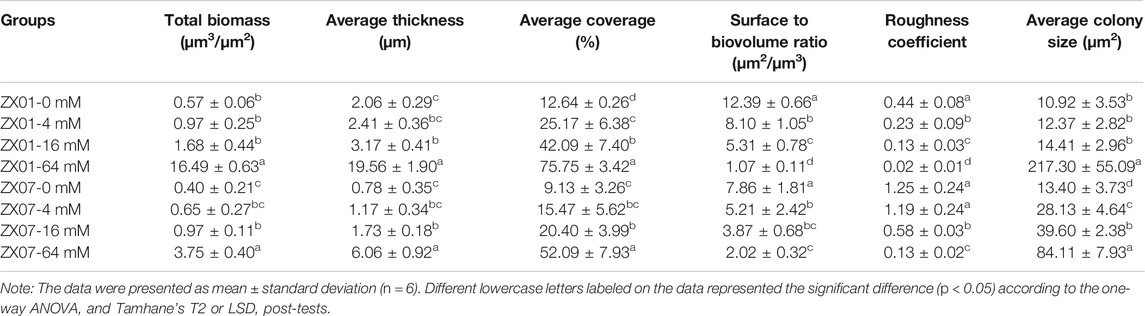

TABLE 1. Characteristics of biofilms formed by ZX01 and ZX07 under different calcium concentrations calculated from the CLSM images using COMSTAT.

Effects of Calcium on c-di-GMP Level

To address whether exogenous calcium influences the expression of the second messenger c-di-GMP, we analyzed the intracellular c-di-GMP level of the two pyridine-degrading bacteria at different Ca²⁺ concentrations. As exhibited in Figure 7A, after culturing for 24 h, the introduction of Ca²⁺ into the medium significantly elevated the c-di-GMP level in Pseudomonas sp. ZX01 cells. The relative content of c-di-GMP in the presence of 32 and 64 mM Ca²⁺ was 59.5 and 69.6% higher than that of the control. In regard to Arthrobacter sp. ZX07, the elevation of intracellular c-di-GMP level caused by Ca²⁺ was even more remarkable (Figure 7B). The relative content of c-di-GMP in ZX07 cells at 32 and 64 mM Ca²⁺ was 3.55 and 2.18 times that of the control.

FIGURE 7

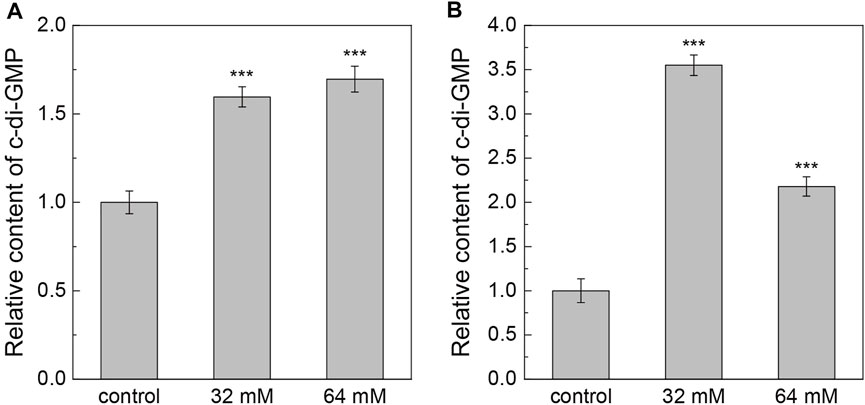

FIGURE 7. Effects of adding CaCl₂ on the relative content of intracellular c-di-GMP of Pseudomonas sp. ZX01 (A) and Arthrobacter sp. ZX07 (B). Bars represented mean ± standard deviation of three replicates. Symbols (***) labeled on the bars represented the significant difference (p < 0.001) with the control according to Student’s t tests.

Discussion

In this present study, the significant promotion of biofilm formation of two pyridine-degrading bacteria, Pseudomonas sp. ZX01 and Arthrobacter sp. ZX07, caused by calcium supplementation was clearly observed. Few cells of the two strains attached to the 12-well plates or µ-Slide coverslips in the absence of Ca²⁺ (Figures 1, 6), indicating they harbored very poor biofilm-forming abilities in their natural state. Hence, it might affect their performances in the bioaugmented biofilm reactors. However, when exposed to Ca²⁺ of a certain concentration range (8–64 mM for ZX01 and 2–64 mM for ZX07), the biofilm biomass formed by the two strains increased greatly in a monotonic and dose-dependent pattern. Mangwani et al. (2014) also reported a dose-dependent increase of P. mendocina NR802 biofilms due to the Ca²⁺ addition, but the concentration tested was limited in 5–20 mM. The biofilm formation of Sinorhizobium meliloti was elevated in a similar manner by the addition of 7–28 mM Ca²⁺ (Rinaudi et al., 2006). While Zhou et al. (2016) found that within a much larger range of Ca²⁺ concentration (3.125–800 mM), the biofilm formation of Citrobacter werkmanii BF-6 was enhanced notably, but the enhancement presented a non-monotonic trend (i.e., increasing firstly and decreasing afterward). Similarly, the biofilm-forming ability of the foodborne pathogen Cronobacter sakazakii showed an increase and subsequent decrease with the increasing Ca²⁺ concentration from 0 to 135 mM (Ye et al., 2015). These results suggested that the sensitivity of different bacterial species in response to exogenous calcium varied. Thus, when applying the calcium-mediated regulating strategy to control bacterial biofilm formation in medical, marine, agricultural, or environmental cases, it is important to understand the effects of calcium on the specific bacterial strain of interest due to the high diversity of bacteria.

A typical bacterial biofilm formation process can be divided into five steps: 1) initial cell-to-surface attachment, 2) irreversible adhesion via producing EPS, 3) proliferation and microcolony formation, 4) maturation of biofilms with complex structures, 5) biofilm aging with the dispersal of motile cells (Stoodley et al., 2002; Armbruster and Parsek, 2018). In the first step, bacterial cells sense and attach to the surface reversibly with the assistance of cell appendages (e.g., flagellum) after overcoming the electrostatic repulsion between the cell surface and the substratum (Renner and Weibel, 2011). Our results herein revealed that the presence of Ca²⁺ in the surrounding solutions significantly repressed the initial cell attachment of both ZX01 and ZX07 to the positive-charged glass surfaces (Figure 3). As widely known, bacterial cell surfaces are negatively charged (Soni et al., 2008), and thus Ca²⁺, as a divalent cation, can effectively neutralize the surface charge by interacting with ligands on the cell surfaces (Wang et al., 2019). Furthermore, in the light of electrostatic double layer compression theory, the increasing ionic strength of the solutions caused by exogenous Ca²⁺ will decrease the absolute value of the negative zeta potential of the bacteria cells (Chen and Walker, 2007; Bundeleva et al., 2011). Thus, when adding high concentrations of Ca²⁺ into the medium, the surface charge of the two bacteria would become less negative. This effect could bring both adverse and favorable consequences for initial cell-to-surface attachment, which depends on whether the surface charge of the substratum is positive or negative. For instance, another divalent cation, Mg²⁺, was validated to exhibit a stimulatory effect on the adhesion of Pseudomonas sp. strain B13 to negative-charged mineral surfaces (Simoni et al., 2000). However, in the case of extremely high ionic strength caused by calcium (e.g. 1,000 mM), the adhesion efficiency of bacterial cells to quartz surfaces, which were negative-charged, and could also be reduced due to the repulsive electrostatic forces (Chen and Walker, 2007). Apart from neutralizing surface charge, Ca²⁺ has been shown to initiate strong cation bridging interactions between high-affinity sites on cell surfaces and the conditioning film of substrata, and thereby facilitating the adhesion of P. aeruginosa cells to alginate-conditioned quartz surfaces (de Kerchove and Elimelech, 2008). Combined with our findings in the present study, it can be concluded that the impacts of Ca²⁺ on the initial cell-to-surface attachment were multi-faceted and substantially linked to physicochemical interactions, yet biological factors presumably played a minor role in this step.

During the next steps of biofilm formation, the bacterial self-secreted EPS consisting of PN, PS, nucleic acids, lipids, humic substances, etc., play more important roles in assisting cell-to-cell aggregation, and biofilm structure construction (Vu et al., 2009; Flemming and Wingender, 2010). Previous research regarding the effects of Ca²⁺ on EPS production mostly showed an enhancing impact. For example, adding an additional 10 mM Ca²⁺ in the medium could significantly promote Bacillus sp. cells to synthesize more PN and PS in EPS (He et al., 2016). Liu and Sun (2011) also offered evidence that the extracellular PN produced by microbial cells in sequential batch reactors increased notably when Ca²⁺ of 50 and 100 mg/L was added into the reactors, thereby enhancing bacterial aggregation to form granules. However, inconsistent with these findings, our study found that PN and PS content in biofilms formed by the two strains decreased in response to the increasing Ca²⁺ concentration (Figure 4), yet the biofilm biomass increased evidently. It means that in the presence of exogenous Ca²⁺, the cells of ZX01 and ZX07 could form more biofilms but require lower EPS production for each bacterial cell. In other words, a smaller amount of EPS would support larger biofilm structures with the assistance of Ca²⁺. This may be attributed to the cation bridge effect, i.e., Ca²⁺ can bind to the negatively charged functional groups in EPS, and consequently forming EPS-Ca²⁺-EPS bridges, which favors the construction of sophisticated biofilm structures (Sobeck and Higgins, 2002; Liu and Sun, 2011; Wang et al., 2019). In particular, functional groups such as carboxylic acid and phosphates in extracellular PS were known binding sites for Ca²⁺ (Astasov-Frauenhoffer et al., 2017); more recently, cationic bridging by Ca²⁺ between eDNA was also reported, which promoted bacterial aggregation and biofilm development of several strains including P. aeruginosa and S. aureus (Das et al., 2014). Therefore, the amount of EPS production per cell may not be a good predictor of the resulting biofilm biomass; Ca²⁺-mediated interactions among microbial cells and EPS can be highly efficient in forming a large biofilm structure.

The ratio of PN/PS in EPS is widely regarded as an important indicator of microbial cell-to-cell aggregating ability in biofilm or granular sludge formation processes. A higher PN content elevates the hydrophobicity of cell surfaces, thereby inducing strong hydrophobic interaction between microbial cells (Hou et al., 2015; Zhao Y. et al., 2018). Our experiments found that the PN/PS ratio in the biofilm EPS of ZX01 and ZX07 increased greatly in the presence of Ca²⁺ (Figure 4). This suggests that calcium-mediated promotion of biofilm formation of these two strains can also be attributed to the higher PN/PS ratio in EPS in addition to the cationic bridging effect of Ca²⁺. Furthermore, the regulatory effects of Ca²⁺ on multiple gene expressions and metabolic activities have been noted by many studies. Parker et al. (2016) indicated that exogenous Ca²⁺ could induce a substantial transcriptional alteration of the bacterial plant pathogen Xylella fastidiosa, including genes encoding cell attachment, motility, and PS secretion, which facilitated biofilm development. The supplementation of 400 mM Ca²⁺ also resulted in a more complex protein expression mode in both biofilms and planktonic cells of C. werkmanii BF-6 (Zhou et al., 2016). As demonstrated using EEM fluorescence spectra in our study, 64 mM Ca²⁺ caused a remarkable impact on the EPS expressions in both biofilms, and planktonic cells of ZX07, i.e., the production of humic acid-like compounds, while no significant changes were observed in those of ZX01. Past research has mentioned that due to the abundant ionizable functional groups such as carboxyl and phenolic hydroxyl, humic substances showed high affinities to interact with metal ions (e.g. Cu²⁺, Ca²⁺) and form complexes (Wang et al., 2015; Zhao et al., 2020). Hence, the occurrence of humic acid-like compounds in EPS might favor the formation of EPS-Ca²⁺-EPS bridges and elevate the biofilm-forming ability of ZX07.

The morphological phenotypes of mature biofilms were also altered by Ca²⁺-mediated regulation. As shown in the CLSM images and the COMSTAT analysis (Figure 6; Table 1), for both ZX01 and ZX07 biofilms, the increase of total biomass, average thickness, and average coverage, and the decrease of roughness coefficient were ascertained in response to the increasing Ca²⁺ concentration, consistent the results in other bacterial strains like C. werkmanii and Shewanella oneidensis (Zhou et al., 2016; Zhang et al., 2019). Interestingly, the average colony size of ZX01 and ZX07 exhibited quite different responses to the supplementary Ca²⁺ of relatively lower concentrations (i.e., 4 and 16 mM). Specifically, the microcolonies of ZX01 were more dispersed and homogeneous, while ZX07 unevenly developed its microcolonies which were like “rugged mountains”. To the best of our knowledge, this discrepancy might be attributed to the flagella-mediated motility. According to the SEM images of the two strains (Supplementary Figure S1), ZX01 possesses a cellular accessory structure resembling a polar flagellum, while the cell surface of ZX07 is quite smooth without any appendages. In addition, as verified using the motility tests, ZX01 had much stronger swimming motility and swarming motility, both propelled by flagella, than ZX07 (Supplementary Figure S2, S3). Existing evidence demonstrated that bacteria with higher motility tend to be more proficient in moving at the solid-liquid interface and attaching to an abiotic surface (O'Toole and Kolter, 1998; Van Houdt and Michiels, 2005), which was crucial in biofilm development. Therefore, with the assistance of flagella-mediated motility, ZX01 could migrate freely at the substratum and attach onto more sites of the surface, thereby producing more homogeneous biofilms facilitated by Ca²⁺; whereas the moving area of ZX07 was limited, and they tended to form microcolonies clinging to the cells that attached randomly to the surface, thus resulting in mountain-like biofilms. Moreover, the biofilm-forming positions of the two strains were also different (Figure 2), which might be still owing to their discrepant motilities. Hence, under the hydraulic shear force in the rotary 12-well plates, ZX01 cells with high motility were able to occupy the whole bottom to form biofilms, yet ZX07 cells with low motility were forced to settle at the periphery of the bottom. Taken together, it was inferred that Ca²⁺ and cell motility might exert a joint regulatory effect on bacterial biofilm formation. Regardless of cell motility, Ca²⁺ can indeed promote the bacteria to form more biofilms, but the motility still exerts influences upon the biofilm architecture.

Recently, the intracellular messenger c-di-GMP was found in many studies to play a global role in regulating the switch of bacterial lifestyle from planktonic state to biofilm-associated state (Valentini and Filloux, 2016; Jenal et al., 2017). By binding to various specific proteins (namely, effectors) in bacterial cells, c-di-GMP controls a wide range of cellular processes including virulence, motility, EPS production, biofilm formation, and dispersion, etc. (Chen et al., 2012). In particular, the intracellular level of c-di-GMP, which is the result of the synthesis by diguanylate cyclases (DGCs) and the degradation by phosphodiesterases (PDEs), is positively associated with the biofilm-forming tendency of bacteria (Ha and O'Toole, 2015). Herein, our study shows elevated intracellular c-di-GMP levels in both ZX01 and ZX07 in the presence of supplementary Ca²⁺, which was accompanied by enhanced biofilm formation (Figure 7). This seems to suggest a potential correlation between Ca²⁺ and c-di-GMP production, although few prior studies have found similar results. Parker et al. (2016) found that the expression of a gene involved in the synthesis of c-di-GMP, cgsA, in X. fastidiosa, exhibited a weak but non-significant increase in the presence of 4 mM Ca²⁺. Given the fact that Ca²⁺ is also an essential second messenger in bacterial cells (Dominguez et al., 2015), the little-known interaction of Ca²⁺ and c-di-GMP needs to be further investigated.

In summary, a proposed mechanism of the calcium-mediated regulation on the biofilm formation of the two pyridine-degrading bacteria was illustrated in Figure 8. Typically, bacterial cell-to-surface adhesion is driven by the electrostatic interaction, thus the negative-charged bacterial cells tend to adhere to a positive-charged material surface. The divalent Ca²⁺ can neutralize the surface charge of bacterial cells and further weaken their initial attachment to the positive-charged substratum. However, in the presence of Ca²⁺, the EPS composition of biofilms can be significantly altered, resulting in a higher PN/PS ratio which facilitates the irreversible attachment between bacterial cells. EPS-Ca²⁺-EPS bridges induced by exogenous calcium also increase the efficiency of EPS in binding cells and constructing biofilm structures. Moreover, the elevated intracellular c-di-GMP level is validated to account for the promotion of biofilm formation.

FIGURE 8

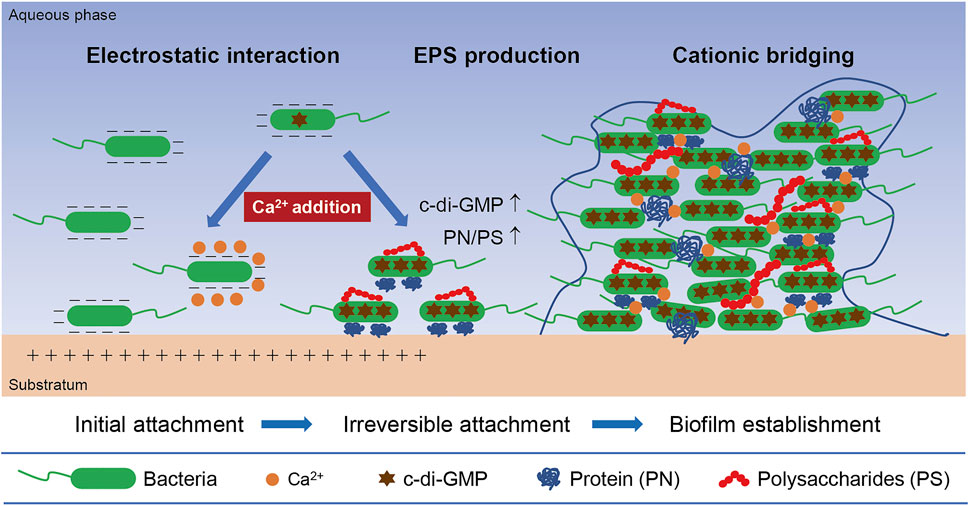

FIGURE 8. A conceptual illustration of the mechanisms inherent in the calcium-mediated regulation on bacterial biofilm formation.

Conclusion

This study comprehensively investigated the effects of Ca²⁺ on different biofilm developing stages of two newly isolated pyridine-degrading bacteria. The main conclusions are as follows: 1) the supplemented Ca²⁺ of 16–64 mM markedly promoted the biofilm formation of the two strains with insufficient biofilm-forming capacities; 2) by altering cell surface charge, Ca²⁺ influenced the initial cell-to-surface attachment of the two strains in the first step of biofilm formation; 3) in the presence of Ca²⁺, the relatively lower EPS production per cell in biofilms could bind more biofilm biomass, presumably attributed to the cationic bridging between Ca²⁺ and EPS; 4) the ratio of PN/PS in biofilm EPS of the two strains showed an increasing tendency in response to exogenous Ca²⁺, which favored cell aggregation and biofilm formation; 5) the intracellular c-di-GMP levels were elevated notably by the supplementary Ca²⁺, thereby driving the switch of the two strains from planktonic lifestyle to biofilm lifestyle. Collectively, these findings demonstrated the promising feasibility of facilitating bacterial biofilm formation onto engineering carriers with a Ca²⁺-based manipulation strategy, which will provide valuable guidance for the application of these pyridine-degrading strains into bioaugmented reactors.
