Biochemical Prospects of Various Microbial Pectinase and Pectin: An Approachable Concept in Pharmaceutical Bioprocessing
- 1Microbiology Research Laboratory, Post Graduate Department of Botany, Utkal University, Bhubaneswar, India
- 2School of Biological Sciences, AIPH University, Bhubaneswar, India
- 3Post Graduate Department of Biotechnology, Utkal University, Bhubaneswar, India
- 4Department of Biotechnology, North Orissa University, Baripada, India
Both pectin and pectinase are vitally imperative biomolecules in the biotechnological sector. These molecules are a feasible non-toxic contrivance of nature with extensive applicative perception. Understanding pectic substances and their structure, unique depolymerization, and biochemical properties such as a catalytic mechanism and the strong interrelationship among these molecules could immensely enhance their applicability in industries. For instance, gaining knowledge with respect to the versatile molecular heterogeneity of the compounds could be considered as the center of concern to resolve the industrial issues from multiple aspects. In the present review, an effort has been made to orchestrate the fundamental information related to structure, depolymerization characteristics, and classification of pectin as well as the types and biochemical properties of pectinase. Furthermore, various production methods related to the optimization of the product and its significant contribution to the pharmaceutical industry (either pectinase or derived pectic substances) are described in this article.
Over the past centuries, there has been a notable increase in the application of enzymes in various sectors of industry. This is because the enzymes could be used as a substitute for some toxic chemicals that were previously involved in food processing. On the other hand, the biotechnological approaches involving the identification of microbial enzymes, mechanisms of action, and scaled-up production are a critical challenge to the researchers (1, 2). Protein engineering, in addition to recombinant processes, is an approachable alternative to engineer recombinant enzymes that enhance the rate of action in various aspects. There have been number of microbe-borne enzymes (amylase, cellulase, glucosidases, invertase, keratinases, lactase, ligninase, lipase, penicillinase, protease, xylanase, etc.) developed and commercially popularized due to their highly significant action as well as economic feasibility (3, 4).
The enzyme pectinase has engrossed interest worldwide as a biological catalyst in various industrial processes. This enzyme breaks down pectin commonly found in the plant cell wall and, hence, is well-known for the commercial preparation of clear fruit juice, liquefaction and saccharification of plant biomass, paper making, as well as coffee and tea fermentation (5). Pectin is a structural acidic heteropolysaccharide rich in galacturonic acid with carboxyl groups esterified with the methanol. The acidic heteropolysaccharide is a major component in cereals, vegetables, and fruits. Pectic substances are high in molecular weight, biocompatible, non-toxic, anionic natural polysaccharides, and foremost constituents of the middle lamella and primary cell wall of plants (6). Pectinase possesses a complicated enzymatic system responsible for the degradation of pectic substances like pectinic acids, propectins, pectins, and pectic acids (7). According to the enzymatic nomenclature system, pectinase hydrolyses the pectin polymer more efficiently than other pectinase groups of enzymes. Moreover, their actions are also more specific as they belong to a heterogeneous group of enzymes named as polygalcturonase (PG), pectinesterase (PE), and pectin lyase (PL) (8). The primary chain of pectin partly comprises methyl esterified 1,4-D-galacturonan and a demethylated form of pectin which is also known as pectic acid (pectate) or polygalacturonic acid. Basically, the pectinase acts by splitting glycosidic linkages and converts the polygalacturonic acid into monogalacturonic acid (9).
Microorganisms and plants have a proven record of being the major sources of the pectinase enzyme. However, because of technical and commercial viability, pectinase generation from microbial sources is becoming a primary area of research interest (9, 10). Naturally, this enzyme plays a significant role in the metabolic activities of almost all living organisms right from the complex to very simple ones such as plants, animals, fungi, bacteria, and viruses (10). However, researchers are now focused on how to improve its efficacy with respect to various aspects by involving various biotechnological tools. Furthermore, scientists are also emphasizing enabling or modifying pectinase so that it could be of application in different bioprocessing industrial sectors (11, 12). Pectinolytic enzymes are employed in many industrial applications but are mainly utilized in food industries in specific operations such as the clarification of fruit juices and wines and the extraction of vegetable oils. They are also widely used in the processing and elimination of pectin, which is crucial in coffee and tea processing, macerating of plants and vegetable tissue, degumming of plant fibers, treatment of wastewater, bleaching of paper, and as an additive in the poultry feeding and textile industries (13, 14). The benefaction of pectinase is also distributed toward maintaining intestinal microbiota homeostatic balance by improving nutritional prebiotic values by processing plant-based foods (15). Enzymatic preparations of pectin are also implemented in various pharma-based industries for the development of low-methoxy pectin that is beneficial for diabetic patients (14, 16). Purified forms of pectinase, which are commercially isolated from different fungal species, have a great role in plant protoplast culture studies as they help to generate good yields of viable protoplast when treated with cellulose (17). However, like other enzymes, this one is also more activated during its commercial production at 30 to 50°C and a pH of 4.5 to 8.5, but the effectiveness is more specific to the source of particular microorganisms and other environmental factors (10).
Hence, due to market and economic demand, the detailed information about the structure, depolymerization properties, and classification of pectic substances as well as the types and biochemical properties of pectinase are collected from literature search and presented in the present review. In addition, the review also presents an overall idea about the different production methods of pectinase and pharmaceutical applications of both pectin and pectinolytic enzyme. Thus, it is hoped that the review article may support the building of conceptual knowledge on the protease enzyme and its substrate.
Production Methods of Selected Pectinase From Microorganisms
Naturally occurring pectinases are basically found in either plants or microorganisms, but their isolation and commercial production from microbial sources will meet the industrial needs through a large-scale production involving the fermentation process. The initial isolation and identification of selective microbes, screening of selective media, and production process either via flask culture or scale-up culture (fermentation process) are the critical tasks to optimize the individual enzymes. Moreover, the standardization of the substrate concentration optimization with respect to environmental factors is also a critical factor to postulate an effective function of pectinolytic enzymes. The significant contribution of these enzymes has drawn considerable attention from different biotechnologists worldwide to enhance their potentiality by adapting several recombinant strategies (18, 19). The commercialized pectinase enzymes are produced by either submerged fermentation (SmF) or solid-state fermentation (SSF) that varies in the use of selected fungus or bacteria (20–22). The SmF technique has been adopted since 1940s when the microorganisms were cultivated on liquid broth with constant agitation for the large-scale production of antibiotics and later widely applied in various industries for the production of a huge assortment of microbial metabolites (23, 24). On the other hand, the SSF is also applicable in various sectors for enzyme production where microorganisms are cultured on solid materials which are eco-friendly, cost-effective, and highly productive and have high biomass yield, dwindled proteolytic impact, higher resistance to catabolic repression, better product quality, etc. (25, 26). The selection or adaptation of a specific technique as well as a suitable medium depends on selected microorganisms, including some surrounding environmental factors for the optimization of pectinase production. Some significant contributions relating to selectable substrate-containing media and their production methods are listed in Table 1.

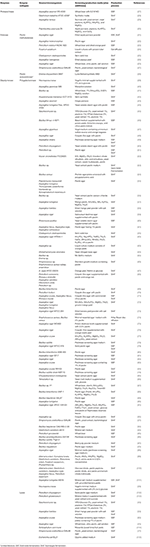

Table 1. List of various screening or production media and production processes for the discovery of specific pectinase enzymes.
Classification and Biochemical Properties of Pectinolytic Enzymes
Pectic enzymes are also known as pectinases or pectinolytic enzymes, which have the capacity to hydrolyze the various complex pectic substances. These enzymes are classified into three major types including protopectinases, esterase, and depolymerases, on the basis of their mechanism of action on pectin molecules and preferred substrates. Protopectinases is a group of enzymes that are responsible for the hydrolysis of the substrate protopectin and converting it to soluble pectin. Esterase is a class of enzymes that removes methoxyl and acetyl esters from pectin resulting in the formation of polygalacturonic acid. Depolymerases also contribute toward the breakdown of peptic substances by the cleaving of α-(1 → 4)-glycosidic bonds in D-GalA units either by hydrolysis or by trans-elimination (13, 106). However, the above system of classification is outdated, and most recently, the pectic enzymes are broadly separated as per the nature of action mechanism, primary substrate, and products that are narrated below and also schematically outlined in Figure 1.
Figure 1. Schematical representation of specific substrate, mode of action and end products of various pectinase [Inspired from Garg and Singh (107)].
Protopectinases (PPases) are also synonymous to pectinosinases, which interact with insoluble protopectin in the presence of water and converts it into simple and soluble pectin. The term was initially used around 1927 and recently popularized due to its importance in various sectors of industry like the production of pectin, single-cell protein, and protoplast (108, 109). More specifically, these enzymes could catalyze the protopectin by reacting at sites having three or more non-methylated GalA molecules and hydrolyzing the glycosidic bond (106, 110). Based on the catalytic action, these are categorized as type A PPase, which reacts with the polygalacturonic acid region or inner site of insoluble protopectin, whereas type B PPase responds at the site of polysaccharide chains or outside of the insoluble protopectin, which links the polygalacturonic acid chain and the cell wall components (110).
Type A PPase has also been reported in the culture filtrate of many yeasts like fungi such as Kluyveromyces fragilis IFO 0288, Galactomyces reessi, and Trichosporon penicillatum SNO 3, referred to as PPase-F, -L, and -S, respectively. The biological properties of all the three types of PPases are alike, possessing the same molecular weight of about 30 kDa. Further, it was found that all three types of enzymes were more optimum at pH 5.0. Among the three A types of PPases, only PPase-F is an acidic protein, while others are basic in properties. These enzymes play a vital role in the hydrolysis of polygalacturonic acid and also responsible for a decrease in viscosity with an enhanced rate of reduction in a certain reaction medium containing polygalacturonic acid. Similarly, PPase-N and -R were also identified from Bacillus subtilis IFO 3134 with 43 and 35 kDa protein, respectively, which help in transelimination reaction by splitting the glycosidic linkages at the region of protopectin. The enzymes were highly active at the same pH (8.0) and temperature (60°C) (111, 112). Type B PPases have been isolated from the pure culture of B. subtilis IFO 3134 and Trametes sunginea, which are also named as PPase-C and -T, respectively. In this case, different molecular weights of proteins like 30 (PPase-C) and 55 kDa (PPase-T) were detected along with different isoelectric points (PPas-C: 9.0; PPase-T: 8.1). As reported, these types of enzymes are abundantly found in agro-products like lemon, orange, hassaku, apple, burdock, carrot, radish, sugar beet, etc. where they particularly act on protopectin (109, 113).
Pectinesterases are the enzymes which help to separate methoxyl and acetyl residues from pectin, resulting in the formation of polygalacturonic acid. Pectinesterases from fungal sources work in a multi-chain mechanism by eliminating the methyl groups but in an arbitrary manner, whereas the pectinesterases from plant sources work in a single-chain mechanism, by targeting either the non-reducing terminal or that next to a free carboxyl group and then advancing in a linear fashion (114, 115). Pectinesterases are classified into two types as per the targeting functional groups, which are named as pectin methylesterase or pectinesterase and pectin acetylesterase. Pectin methylesterase works in single-chain mechanism by dividing the methyl ester group of pectin and thereby freeing methanol and converting pectin into pectate; but in this action, the length of the pectic chains are not reduced (116). Variably, the enzyme pectin acetylesterase catalyzes the hydrolysis of acetyl ester residues of pectin, resulting in pectic acid and acetate formation (110).
The screening and production of this category of enzymes have been done in maximum from microbiological sources as compared to plants and animals (112, 117). The rate of enzymatic action of pectinesterase on the viscosity of a solution containing pectin is almost negligible without the divalent cations like calcium (Ca2+), barium (Ba2+), and strontium (Sr2+). However, the maximum and effective involvement of Ca2+ ions is reported as either small- or large-scale preparations (118). Basically, some of the purified pectinesterases are targeted to the reducing end, whereas others are acting against the non-reducing end of the pectin. As per molecular characterization, most of the enzymes ranging from 22 to 90 kDa indicate a diversification of protein confirmations. However, these variations are organism-specific. Their work efficiency also varies with different pH levels and temperatures and ranges in pH from 5 to 11 and temperature from 40 to 70°C. However, it was depicted that fungal pectinesterases have a lower pH level for the optimization of products as compared to that of bacterial pectinesterases (13). The separation of various unique isoenzymes of pectin methylesterases have been achieved and characterized from different sources with respect to targeted functional groups (116, 119). The structural characterization of two pectin methylesterases such as PmeA and PmeB are well-studied from Erwinia chrysanthemi (120) and Erwinia chrysanthemi 3937 (121) and functionally found to be extracellular and outer membrane acting enzymes, respectively.
Among all pectinolytic enzymes, polygalacturonases (PGases) are the most studied and industrially applied enzymes due to their depolymerization specificity through the hydrolysis process. These enzymes are specifically interactive through hydrolysis and split the glycosidic linkage in the presence of water molecules across the oxygen bridge. Polygalacturonase loses its structural confirmation when it reacts with pectin, which may occur because of the target molecules of polygalacturonases that have free carboxylic groups. During interaction with substrates, the viscosity of the solution reduces to a greater extent with an increase of reducing end groups (112). Polygalacturonases are classified into three types (exopolygalacturonase, endopolygalacturonase, and rhamnopolygalacturonase) depending on their pattern of action. Exopolygalacturonase targets the terminal groups of the pectic molecule, which results in gradual lessening of chain length, whereas endopolygalacturonase attacks arbitrarily on all the chain links, which results in faster and more incisive consequences. However, rhamnopolygalacturonase catalyzes haphazardly within or at the non-reducing terminals of rhamnogalacturonan core chains (122, 123).
There are several important biochemical properties and modes of actions of polygalacturonases obtained from various microbial sources. Most of the polygalacturonase enzymes stimulate the rate of hydrolysis at an ideal pH ranging from 3.5 to 5.5 with a suitable temperature that ranges from 30 to 50°C. Several findings relating to various biochemical properties like molecular weight, pH, temperature, isoenzyme, isoelectric point, etc. are well-reported with respect to endopolygalacturonase in various bacterial and fungal species as compared to exopolygalacturonase and rhamnopolygalacturonase. As reported, almost all endopolygalacturonase as well as exopolygalacturonase enzymes are synthesized in acidic environmental conditions, whereas, some exopolygalacturonases are produced at high basic conditions (about pH 11.0) and by particular species including Bacillus licheniformis, Bacillus sp KSM-P410 and Fusarium oxysporum (13). Regarding rhamnopolygalacturonases, it was stated that the enzymes are more stable and efficiently work at pH 4.0 and a temperature of 50°C (124). At an average molecular weight of 38–65 kDa, the enzymes (for both exopolygalacturonases and endopolygalacturonases) are separated from various microbial sources (13). However, at a high molecular weight of 496 kDa, enzymes were also isolated from Kluyveromyces marxianus (125). Similarly, the protein having a molecular weight of 66 kDa is electrophoresed from the rhamnopolygalacturonase (124).
Lyases (also known as transeliminases) act by performing the trans-eliminative breakdown of pectate or pectinate polymers. The lyases typically split the glycosidic linkages at 4th carbon followed by the removal of a hydrogen atom from 5th carbon that results in an unsaturated product. On the basis of the substrates acted upon, lyases are classified into two major types, i.e., polygalacturonate lyase and polymethylgalacturonate lyase. However, they are further subdivided into five subtypes, namely, endo-polygalacturonate lyase, exo-polygalacturonate lyase, endo-polymethylgalacturonate lyase, exo-polymethylgalacturonate lyase, and oligo-D-galactosiduronate lyase as per their pattern of action (115). Polygalacturonate lyases (or pectate lyases) are further divided into two types depending on the pattern of action, i.e., endo-polygalacturonate lyases that work on the substrate in an unsystematic fashion, whereas exo-polygalacturonate lyases target the substrates from non-reducing terminal of pectic acid. In the same way, polymethylgalacturonate lyases (or pectin lyases) are also divided into two categories such as endo-polymethylgalacturonate lyases (that randomly act on the substrate pectin by cleaving α-1,4-glycosidic linkages and producing unsaturated methyloligogalacturonates) and exo-polymethylgalacturonate lyases (that degrade pectin by trans-eliminative cleavage but stepwise and produce unsaturated methylmonogalacturonates) (126, 127). The oligo-D-galactosiduronate lyases actively participate in the trans-elimination reaction at the terminal position of unsaturated digalacturonate that is initially produced by the action of pectate lyases and converted into unsaturated monogalacturonates (128, 129).
Microorganisms are the good sources for isolation of pectin lyases, but the biochemical properties of each isolated lyase are different. Polygalacturonate lyases or pectate lyases exclusively require Ca2+ ions for its activation. However, ions like Co2+, Mn2+, and Ni2+ are needed for activation of some cytoplasmic or intracellular lyases (126). It is reported that the polymethylgalacturonate lyases or pectin lyases do not require any metal ions for their activation, but arginine residues are found at the Ca2+ ion position as observed in the case of pectate lyases (130). Overall, both types of enzymes are efficient for working in an alkaline pH range of 7.5–10.0 and a temperature between 40 and 50°C. The molecular weights of lyases are ranging from 22 to 90 kDa, whereas the molecular weights of polymethylgalacturonate lyases were found to be 89 and 90 kDa in Aureobasidium pullulans LV-10 and Pichia pinus, respectively. For polygalacturonate lyases, the molecular weights of 55 and 74 kDa of proteins were reported in Yersinia enterocolitica and Bacteroides thetaiotaomicron, respectively. The isoelectric point of some lyases range from 5.2 to 10.7; however, others still need to be explored (13).
Structure and Depolymerization of Pectin
The naturally occurring pectins or pectic substances are chiefly composed of galacturonic acid (GalA)-rich polysaccharides in the form of covalently-linked structural motifs that include homogalacturonan (HG), xylogalacturonan (XGA), rhamnogalacturonan I (RG-I), and rhamnogalacturonan II (RG-II). However, the occurrences of HG are maximum (about 65%) in pectin (131, 132). About hundred GalA moieties are linked by α-D-1,4- bonds and form HG that is further modifiable by the process of methyl-esterification at C-6, or acetyl groups at O-2 and O-3. Similarly, XGA is an HG backbone, where 25–75% of the GalA units are substituted at C-3 with one xylose moiety and sometimes with a second xylose residue at C-4 (114, 132). RG-I is also a complex polymer which contributes 20–35% of pectin in recurring units of α-D-GalA-1 and 2-α-L-Rha-1-4-disaccharide. Sometimes, lateral chains contain fucose and glucuronic acids available mostly to create a more complex structure. RG-II is another structural domain of pectin where the GalA residue acts as the main chain bonded by α-D-1,4- bonds and substituted with a usual L-rhamnose or D-galactose and numerous atypical sugars and laterally conjugated by 12 different sugar molecules. Moreover, the pectin matrix properties are complicated due to the interaction of the structural domains of pectin between themselves and with other ionized organic and inorganic compounds (131–133).
Depolymerization of complex pectin and subsequent conversion into simpler forms, i.e., pectic oligosaccharides, is the center of attraction because these molecules are very large but less complex and heterogeneous in comparison to their parent compounds. Furthermore, the oligosaccharides are exploited for many vital applications like repressor of liver lipid accumulation, antioxidant and cancer cell proliferation inhibitor, anti-metastatic agent, angiogenesis inhibitor, antibacterial agent, and formation of prebiotics (134–137).
Degradation of pectin either by physical, chemical, or enzymatic methods is represented in Figure 2. Ultrasonication, high pressure treatment, radiation, and photolysis are some of the physical means used in degradation. In an aqueous solution of pH at about 3.5, the pectins are most stable, but at lower or higher pH, the methoxyl, acetyl, and neutral sugar groups are eliminated and the polymer backbone is cleaved. Chemically, the heteropolysaccharides can be degraded either by acid hydrolysis or base-catalyzed splitting of chains through the β-elimination reaction (138). The dissolution takes place at a glycosidic linkage next to an esterified GalA, as a result of which pectins with an elevated degree of methoxylation (DM) become extra susceptible to base-catalyzed reactions rather than pectin with a low DM. However, by acid hydrolysis (pH < 3.0), pectin hydrolyses with low DM are faster in comparison to pectin with high DM (139). Enzymatic degradation of pectin is gaining prime importance because it allows region-selective depolymerization under mild conditions. Due to the intricate molecular configuration of pectin, a wide range of enzymes are essential for the degradation of this polymer. These enzymes include polygalacturonase (PG) which degrades HG by hydrolyzing the glycosidic bonds and are categorized into two types, endo-PG and exo-PG (140). Lyases that include pectate lyase and pectin lyase catalyze the depolymerization of polygalacturonate and esterified pectin, respectively through β-elimination process in which a proton is removed and an unsaturated bond is formed between the C-4 and C-5 carbon atoms of the non-reducing terminal of pectin. PLYs in combination with Ca2+ degrade non-esterified pectin, and PEL in combination with Arg236 degrades methyl-esterified pectin (13). Some other residues of pectin such as acetyl, methyl, and feruloyl are separated by pectin methylesterase, acetyl esterase, rhamnogalacturonan acetyl esterase, and feruloyl esterase. The actions of these enzymes are imperative for the absolute degradation of pectin, as they enhance the action of other enzymes; for instance, the ability of PGs and PLYs to degrade pectin largely depends on the activity of PMEs (141, 142). The endorhamnogalacturonan hydrolase breaks -α-D-GalA-1,2-α-L-Rha linkages present in RG-I by hydrolysis, and rhamnogalacturonan lyase breaks -α-L-Rha-1,4-α-D-GalA linkages by β-elimination reaction. Accessory enzymes like rhamnogalacturonan rhamnohydrolase and ramnogalacturonan galacturonohydrolase break down oligosaccharides from the non-reducing terminal by an exo-attack (114). There are few more enzymes which also act on the adjacent chains of RG-I and RG-II such as endogalactanase, exogalactanase, α- and β-galactosidase, α-L-arabinofuranosidase, endoarabinase, and exoarabinase (143).
Figure 2. Involvement of different processes for depolymerization of various types of pectins [Inspired from Chen et al. (6)].
Structure and Classification of Other Pectic Substances
Pectic substances (including pectins) are complex heteropolysaccharides that contribute to the major elements of the middle lamellae and primary cell wall of higher plants. They play very diverse roles such as maintaining the integrity and coherence of plant tissues, acting as moisturizing or gluing agents in the cell walls, and also getting involved in the plant host-pathogen interaction (144, 145). In general, galacturonans and rhamnogalacturonans are two major chemical components in pectic substances, where the C-6 carbon of galactate is oxidized along with arabinans and arabinogalactans. The components produced are structurally heterogeneous and colloidal polymeric in nature, containing a large backbone of anhydrogalacturonic acid units (131). The carboxyl groups present in the GalA are partially esterified by methyl residues and moderately or totally neutralized by different ions such as sodium, potassium, and ammonium. The α-1,4-D-galacturonate units act as the principal chain and link about 2–4% of L-rhamnose units which are linked [β-(1 → 2) and β-(1 → 4)] to the galacturonate units. The side chains comprise simple carbohydrates that are arabinan, galactan, arabinogalactan, xylose, or fucose but vary in their composition and length. They are linked to the central chain through their C1 and C2 atoms (146). As per the nature of the molecular arrangements of pectic substances, the American Chemical Society have categorized them into four major groups namely protopectin, pectic acid, pectinic acid, and pectin (Figure 3) (147). The protopectin is a water-insoluble substance that acts as a cementing agent in the cell wall and, under hydrolysis, produces either pectin or pectic acid. Similarly, pectic acid (popularly known as pectate) is a polymer of galacturonans that contains a small number of methoxyl groups. Pectinic acid is a chain of polygaluturonates that mainly contains methylated galacturonate units. Pectin a polymeric substance with at least 75% of the carboxyl groups attached to the galacturonate units and is esterified with a methyl group (148).
Figure 3. Structure of various pectic substances [Inspired from Garg and Singh (107)].
Extraction and Purification Methods of Pectin
The growing requirements of pectin in pharmaceutical applications have accelerated the need for competent extraction processes. Commercially, these naturally occurring biomolecules can be extracted from the peels of citrus fruits by alcohol precipitation (149). In the extraction process, the recovery of pectins is vital at the industrial scale to endow with passable supply for the increasing need. At the commercial level, the hydrolyzation of proto pectin into pectin at elevated temperature using acid and subsequently precipitating by ethanol is conventionally employed (150). Limitations like lower yield, heterogenic changes in macromolecular and gelling properties, etc. have raised the urgency to find novel methods like microwave-assisted extraction, enzymatic extraction (polygalacturonase, hemicellulose, protease, cellulose, α-amylase, alcalase, microbial mixed enzymes, etc.), supercritical water extraction, ultra-high pressure treatment, ultra-high electric field treatment, and ultrasound extraction (151, 152). These advanced methods exhibit a large handling capacity, lower processing time, higher purity, a mild condition, and an energy-efficient and environment-friendly way of operation (150). However, for efficient purification, proper precipitation is required, which was achieved through alcohol precipitation with washing (149). Growing, investigation proved that the purification of pectins is efficiently attained through stepwise innovative methods like ethanol precipitation, ultrafiltration in combination with diafiltration, ultrafiltration, and metal precipitation (153).
Pharmaceutical Application of Microbial Pectinases and Derived Pectic Substances
In this modern era, various enzymes that are produced by microorganisms have been tremendously applied in different sectors of the industries that are directly or indirectly being used in day-to-day life. Enzymes are considered as the topmost biological tools due to their adjustable and specific catalytic properties owing to their increased applications in different biotechnological processes. Pectinases are one of the most significant industrial enzymes, and some of the notable contributions in pharmaceutical sectors are explained here.
Dietary or Nutritive Fiber Preparation
Humans are omnivorous and regularly consuming diversified foods that need to be properly digested in the digestive system. On the other hand, friendly microbes present in the gastrointestinal tract comprehend convolution to digest them due to the entry of foreign complex compounds in a regular fashion. For which, fermentable dietary fibers through pectinase could be helpful in modulating the internal enzymatic system for proper digestion and to improve the immune system by acting as natural prebiotics. In certain pharmaceutical products, depolymerized pectins can be directly used to increase the viscosity and volume of stool and are also prescribed against acute diarrhea and constipation. Moreover, fermented pectic substances are used in throat lozenges as a decongestant in the form of a demulcent and also used in combination with certain products for the wound-healing process. The pectic elements are used as medicated adhesives against the treatment of colostomy. Pectins, with the combination of sulfate, are used to reduce the clotting time and can be applied in place of heparin. A complex made up of degraded pectin along with iron is helpful for the treatment of iron deficiency anemia (154–156).
Essential oils from medicinal plants nowadays are widely adopted in both developed and developing countries due to their valuable medicinal properties against the treatment of different diseases including microbial infectious ailments, depression, anxiety, cancer, and wound healing with no or less side effects. Further, they are contributing a maximum role in cosmetics and perfume industries. However, the process of extraction through organic solvents might damage some important functional groups that are essential for healthcare benefits. To avoid this, most of the oil processing or pharmaceutical or cosmetic industry uses pectinase enzymes during the extraction process to destroy the emulsifying properties of pectin and promote the liquefaction of cell wall components, ultimately yielding a better volume of products. Moreover, the oils extracted through the enzymatic processes are enabled to retain the elevated concentration of phytocompounds like polyphenols, essential proteins, antioxidants, lipophilic bioactive compounds, and vitamin E with improving storage stability (157–160).
In tablet formulations, currently, pectin hydrogels are widely used as binding agents that act as a controlled releasing agent, which are mostly used in colon cancer treatments. Hydrolyzed pectin beads are formulated by adopting the ionotropic gelation method and are used as a sustained-release drug delivery system. The modulation of low-methoxy pectin by esterification or implementation of calcium pectinate gel beads in formulations also supports the administration of the drug. Basically, calcium pectinate is used because of the development of insoluble hydrophilic coatings which further interact with each other in the host cell and helps in the smooth release of targeted medicine (161, 162). Furthermore, a report also suggested the effectiveness and controlled release of oral formulations with compacting the pectic substances which were derived from orange and mango peels. These are having an excellent impact with functional polymers and have outstanding binding properties during the formulation of various tablets (163, 164).
Formulation for Lowering Blood Glucose and Cholesterol
Direct pectin and/or pectic substances as obtained from pectinase treatment through the fermented process from the peels of various fruits and vegetables are being considered as a fruitful composition in pharma-based products due to their high fiber content. Scientists have reported and claimed that pectin is partially helping to prevent and treat severe diseases like diabetes and obesity, but it totally depends on the nature of viscosity, molecular weight, and degree of esterification. It is predicted that the more soluble fibers help to enhance gut viscosity, thus minimizing the re-absorption of bile acids. As a result, there is an increment of the synthesis of bile acids from cholesterol that helps the poor circulation of blood cholesterol. Herbal formulations related to this were tried in both in vitro and in vivo models by taking the digested pectins from the peels of apple, citrus, soybean etc. (132, 165, 166).
Currently, the pharmaceutical industry emphasizes on different cosmetic-related beauty products due to the most emerging demand by youths. The increasing environmental pollutants and unhealthy living practices have raised serious health impacts, including a detrimental impact on skin health. The pectic products are efficiently mixed with other chemicals for cosmetics as well as other personal care products which are found to be effective against various skin ailments. It is known not only for being a good emulsifier for thickening and gelling the face cream but also for its complex nature of polysaccharides that contain certain anti-oxidative and anti-aging properties that are able to prevent skin damage. However, the rate of efficacy may vary as per the sources from where it is extracted or fermented by respective pectinase enzymes (167–169).
The microbial research has created an irreversible renaissance in the present era of innovations and cutting-edge research for finding the novel utility of microorganisms and their products, which is a sheer reality. It is concluded that the role of pectinases and/or pectins is found to be curiously recognizable in various industrial processes, with promising results. From the extensive research, it is clear that pectinolytic enzymes become the key imperative to innovate strategies for the significant development or improvement of enzymes relevant to industrial products. However, it is one of the key critical factors to ensure the cost viability for the production of these enzymes from selective microorganisms and implemented environmental conditions. As evidenced, the application of pectinase and derived pectic substances are least explored with respect to their application in pharmaceutical products. Therefore, it is urgently needed to strengthen and expand the usage of such valuable enzymes in the pharmaceutical industry. Further, the intervention of biotechnological aspects is critically needed for the development of a broad-spectrum pectinase with high catalytic affinities. Therefore, in-depth insights into a deeper understanding of the expression mechanism at the biochemical and molecular levels are essential.
SS and JR composed the first draft of the manuscript, whereas RK, HT, and SLS comprehensively edited the manuscript, which was then reviewed and edited by all authors.
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
One of us (JR) is thankful to the authority of AIPH University for providing the platform to write this article.
7. Kittur FS, Kumar ABV, Gowda LR, Tharanathan RN. Chitosanolysis by a pectinase isozyme of Aspergillus niger—a non-specific activity. Carbohydr Polym. (2003) 53:191–6. doi: 10.1016/S0144-8617(03)00042-0
9. Raju EVN, Divakar G. Production of pectinase by using Bacillus circulans isolated from dump yards of vegetable wastes. Int J Pharm Sci Res. (2013) 4:2615–2622. doi: 10.13040/IJPSR.0975-8232.4(7).2615-22
12. Xu Z, Cen Y, Zou S, Xue Y, Zheng Y. Recent advances in the improvement of enzyme thermostability by structure modification. Crit Rev Biotechnol. (2020) 40:83–98. doi: 10.1080/07388551.2019.1682963
15. Wilkowska A, Nowak A, Antczak-Chrobot A, Motyl I, Czyzowska A, Paliwoda A. Structurally different pectic oligosaccharides produced from apple pomace and their biological activity in vitro. Foods. (2019) 8:365. doi: 10.3390/foods8090365
16. Wu C, Pan LL, Niu W, Fang X, Liang W, Li J, et al. Modulation of gut microbiota by low methoxyl pectin attenuates type 1 diabetes in non-obese diabetic mice. Front Immunol. (2019) 10:1733. doi: 10.3389/fimmu.2019.01733
17. Chamani E, Tahami SK, Zare N, Asghari-Zakaria R, Mohebodini M, Joyce D. Effect of different cellulase and pectinase enzyme treatments on protoplast isolation and viability in Lilium ledebeourii Bioss. Not Bot Horti Agrobot. (2012) 40:123–8. doi: 10.15835/nbha4028055
19. Bharadwaj PS, Udupa PM. Isolation, purification and characterization of pectinase enzyme from Streptomyces thermocarboxydus. J Clin Microbiol Biochem Technol. (2019) 5:31. doi: 10.17352/jcmbt.000031
21. Guan Y, Wang D, Lv C, Zhang Y, Gelvic I, Ye X. Archives of microbiology: screening of pectinase-producing bacteria from citrus peel and characterization of a recombinant pectate lyase with applied potential. Arch Microbiol. (2020) 202:1005–13. doi: 10.1007/s00203-020-01893-0
22. Hasan R, Aktar N, Kabir SMT, Honi U, Halim A, Islam R, et al. Pectinolytic bacterial consortia reduce jute retting period and improve fibre quality. Sci Rep. (2020) 10:5174. doi: 10.1038/s41598-020-61898-z
28. Cavalitto SF, Hours RA, Mignone CF. Growth and protopectinase production of Geotrichum klebahnii in batch and continuous cultures with synthetic media. J Ind Microbiol Biotechnol. (2000) 25:260–5. doi: 10.1038/sj.jim.7000072
30. Zhang J, Zhao L, Gao B, Wei W, Wang H, Xie J. Protopectinase production by Paenibacillus polymyxa Z6 and its application in pectin extraction from apple pomace. J Food Process Preserv. (2017) 2017:e13367. doi: 10.1111/jfpp.13367
31. Joshi VK, Parmar M, Rana NZ. Pectin esterase production from apple pomace in solid-State and SmFs. Food Technol Biotechnol. (2006) 44:253—6. Available online at: https://www.ftb.com.hr/images/pdfarticles/2006/April-June/44-253.pdf
32. Mandhania S, Jain V, Malhotra SP. Culture optimization for enhanced production of microbial pectin methylesterase under submerged conditions. Asian J Biochem. (2010) 5:12–22. doi: 10.3923/ajb.2010.12.22
33. Gayen S, Ghosh U. Pectinmethylesterase production from mixed agro- wastes by Penicillium notatum NCIM. 923 in solid-state fermentation. J Bioremed Biodegrad. (2011) 2:119. doi: 10.4172/2155-6199.1000119
35. Bastos SC, Pimenta CJ, Dias DR, Chalfoun SM, Angelico CL, Tavares LS. Pectinases from a new strain of Cladosporium cladosporioides (Fres.) De Vries isolated from coffee bean. World J Agric Sci. (2013) 9:167–72. Available online at: http://repositorio.ufla.br/jspui/handle/1/4487
36. Patidar MK, Nighojkar A, Nighojkar S, Kumar A. Purification and characterization of pectin methylesterase produced in SSF by Aspergillus tubingensis. Br Biotechnol J. (2016) 12:1–10. doi: 10.9734/BBJ/2016/23632
37. Salehghamari E, Nasrollahzadeh Z, Tahmaseb M, Amoozegar MA. Pectinase enzyme from Streptomyces coelicoflavus GIAL86 isolated from Meyghan Salt Lake, Arak, Iran. Int J Aquat Biol. (2019) 7:106–11. doi: 10.22034/ijab.v7i2.481
39. Polizeli MDLTM, Jorge JA, Terenzi HF. Pectinase production by Neurospora crassa: purification and biochemical characterization of extracellular polygalacturonase activity. J Gen Microbiol. (1991) 137:1815–23. doi: 10.1099/00221287-137-8-1815
41. Soares MMCN, Da Silva R, Carmona EC, Gomes E. Pectinolytic enzyme production by Bacillus species and their potential application on juice extraction. World J Microbiol Biotechnol. (2001) 17:79–82. doi: 10.1023/A:1016667930174
42. Almeida C, Branyik T, Moradas-Ferreira P, Teixeira J. Continuous production of pectinase by immobilized yeast cells on spent grains. J Biosci Bioeng. (2003) 96:513–8. doi: 10.1016/S1389-1723(04)70142-5
44. Phutela U, Dhuna V, Sandhu S, Chadha BS. Pectinase and polygalacturonase production by a thermophilic Aspergillus fumigatus isolated from decomposting orange peels. Braz. J. Microbiol. (2005) 36:63–9. doi: 10.1590/S1517-83822005000100013
45. Radoi F, Kishida M, Kawasaki H. Endo-polygalacturonase in Saccharomyces wine yeasts: effect of carbon source on enzyme production. FEMS Yeast Res. (2005) 5:663–8. doi: 10.1016/j.femsyr.2004.09.006
46. Bayoumi RA, Yassin HM, Swelim MA, Abdel-All EZ. Production of bacterial pectinase(s) from agro-industrial wastes under SSF conditions. J Appl Sci Res. (2008) 4:1708–21. Available online at: http://www.aensiweb.com/old/jasr/jasr/2008/1708-1721.pdf
47. Pedrolli DB, Gomes E, Monti R, Carmona EC. Studies on productivity and characterization of polygalacturonase from Aspergillus giganteus submerged culture using citrus pectin and orange waste. Appl Biochem Biotechnol. (2008) 144:191–200. doi: 10.1007/s12010-007-8059-1
48. Rashmi R, Siddalingamurthy KR, Sneha G, Shabana S, Syama A, Radhika VS. Partial purification and biochemical characterization of extracellular pectinase from Aspergillus niger isolated from groundnut seeds. J Appl Biosci. (2008) 9:378–84.
50. Banu AR, Devi MK, Gnanaprabhal GR, Pradeep BV, Palaniswamy M. Production and characterization of pectinase enzyme from Penicillium chrysogenum. Ind J Sci Technol. (2010) 3:377–81. doi: 10.17485/ijst/2010/v3i4.10
51. Patil NP, Chaudhari BL. Production and purification of pectinase by soil isolate Penicillium sp and search for better agro-residue for its SSF. Recent Res Sci Technol. (2010) 2:36–42. Available online at: https://pdfs.semanticscholar.org/a640/845c165ae2090b36972eb7c3cbb506669724.pdf
54. Namasivayam E, Ravindar JD, Mariappan K, Jiji A, Kumar M, Jayaraj RL. Production of extracellular pectinase by Bacillus cereus isolated from market solid waste. J Bioanal Biomed. (2011) 3:070–5. doi: 10.4172/1948-593X.1000046
55. Banakar SP, Thippeswamy B. Isolation, production and partial purification of fungal extracellular pectinolytic enzymes from the forest soils of bhadra wildlife sanctuary, Western Ghats of Southern India. J Biochem Tech. (2012) 3:S138–43. Available online at: https://shodhganga.inflibnet.ac.in/bitstream/10603/81732/17/18_appendices.pdf
56. Chiliveri SR, Panda SH, Rao LV. Isolation and screening of polygalacturonase-producing Bacillus sp. Dyn Biochem Process Biotechnol Mol Biol. (2012) 6:123–6. Availbale online at: http://www.globalsciencebooks.info/Online/GSBOnline/images/2012/DBPBMB_6(SI1)/DBPBMB_6(SI1)123-126o.pdf
57. Ezugwu AL, Eze SOO, Chilaka FC, Anyanwu CU. Production and characterization of pectinases obtained from Aspergillus fumigatus in submerged fermentation system using pectin extracted from mango peels as carbon source. Plant Prod Res J. (2012) 16:30–6. Available online at: https://www.ajol.info/index.php/pprj/article/view/97922
58. Kumar YS, Kumar PV, Reddy OVS. Pectinase production from mango peel using Aspergillus foetidus and its application in processing of mango juice. Food Biotechnol. (2012) 26:107–23. doi: 10.1080/08905436.2012.670830
59. Oyeleke SB, Oyewole OA, Egwim EC, Dauda BEN, Ibeh EN. Cellulase and pectinase production potentials of Aspergillus niger isolated from corn cob. Bayero J Pure Appl Sci. (2012) 5:78–83. doi: 10.4314/bajopas.v5i1.15
60. Siddiqui MA, Pande V, Arif M. Production, purification and characterization of polygalacturonase from Rhizomucor pusillus isolated from decomposting orange peels. Enzyme Res. (2012) 2012:138634. doi: 10.1155/2012/138634
61. Anisa SK, Ashwini S, Girish K. Isolation and screening of Aspergillus spp for pectinolytic activity. Elect J Biol. (2013) 9:37–41. Available online at: https://ejbio.imedpub.com/isolation-and-screening-of-aspergillussppfor-pectinolytic-activity.php?aid=5973
62. Darah I, Haritharan W, Lim SH. Involvement of physicochemical parameters on pectinase production by Aspergillus niger HFD5A-1. J Pure Appl Microbiol. (2013) 7:2541–49. Available online at: https://microbiologyjournal.org/archive_mg/jmabsread.php?snoid=1534&month=&year
63. Maciel M, Ottoni C, Santos C, Lima N, Moreira K, Souza-Motta C. Production of polygalacturonases by Aspergillus section Nigri strains in a fixed bed reactor. Molecules. (2013) 18:1660–71. doi: 10.3390/molecules18021660
64. Martos MA, Zubreski ER, Combina M, Garro OA, Hours RA. Isolation of a yeast strain able to produce a polygalacturonase with maceration activity of cassava roots. Food Sci Technol. (2013) 33:332–8. doi: 10.1590/S0101-20612013005000047
65. Mehta SA, Rana M, Shaikh N, Patel N. Optimization of physiological parameters for pectinase production from soil isolates and its applications in fruit juice clarification. J Environ Res Dev. (2013) 7:1539–46. doi: 10.21275/ART20179549
66. Varghese LK, Rizvi AF, Gupta AK. Isolation, screening and biochemical characterization of pectinolytic microorganism from soil sample of Raipur city. J Biol Chem Res. (2013) 30:636–43. Available online at: http://www.jbcr.co.in/Current_Issue/Volume%2030%20%282%29%20July%20to%20December%202013%20B/Isolation-Screening-and-Biochemical.pdf
67. Gogus N, Hakguder Taze B, Demir H, Tari C, Unluturk S, Lahore MF. Evaluation of orange peel, an industrial waste, for the production of Aspergillus sojae polygalacturonase considering both morphology and rheology effects. Turk J Biol. (2014) 38:537–48. doi: 10.3906/biy-1308-47
68. Naveenkumar KJ, Thippeswamy B, Krishnappa M. Production and partial purification of fungal pectinases from Areca nut (Areca catechu L.) husk waste under SmF. Int J Adv Biotechnol Res. (2014) 5:188–201. Available online at: http://bipublication.com/files/IJABR-V5I2-2014-17.pdf
69. Osuigwe MJ, Nkem T, Emuebie OR, Isreal J, Kayode AF. Physicochemical factors influencing pectinolytic enzyme produced by Bacillus licheniformis under SmF. Nat. Sci. (2014) 12:110–6. Available online at: http://www.sciencepub.net/nature/ns1208/015_26385ns120814_110_116.pdf
70. Priya V, Sashi V. Pectinase enzyme production by using agrowastes. Int J Eng Sci Res Technol. (2014) 3:8041–6. Available online at: http://citeseerx.ist.psu.edu/viewdoc/summary?doi=10.1.1.683.7206
71. Thangaratham T, Manimegalai G. Optimization and production of pectinase using agro waste by solid state and SmF. Int J Curr Microbiol Appl Sci. (2014) 3:357–65. Available online at: https://www.ijcmas.com/vol-3-9/T.Thangaratham%20and%20G.Manimegalai.pdf
72. Udenwobele DI, Nsude CA, Ezugwu AL, Eze SOO, Anyawu C, Uzoegwu PN, et al. Extraction, partial purification and characterization of pectinases isolated from Aspergillus species cultured on mango (Mangifera indica) peels. Afr J Biotechnol. (2014) 13:2445–54. doi: 10.5897/AJB2014.13771
73. Barman S, Sit N, Badwaik LS, Deka SC. Pectinase production by Aspergillus niger using banana (Musa balbisiana) peel as substrate and its effect on clarification of banana juice. J Food Sci Technol. (2015) 52:3579–89. doi: 10.1007/s13197-014-1413-8
74. Jabeen A, Hanif QA, Hussain M, Munawar A, Farooq N, Bano S. Screening, isolation and identification of pectinase producing bacterial strains from rotting fruits and determination of their pectinolytic activity. Sci Lett. (2015) 3:42–5. Available online at: https://pdfs.semanticscholar.org/2958/941a1f96df9b6d3b1f205d10380e6a6571f1.pdf
75. Khatri BP, Bhattarai T, Shrestha S, Maharjan J. Alkaline thermostable pectinase enzyme from Aspergillus niger strain MCAS2 isolated from Manaslu conservation area, Gorkha, Nepal. SpringerPlus. (2015) 4:488. doi: 10.1186/s40064-015-1286-y
76. Ahmed I, Zia MA, Hussain MA, Akram Z, Naveed MT, Nowrouzi A. Bioprocessing of citrus waste peel for induced pectinase production by Aspergillus niger; its purification and characterization. J Rad Res Appl Sci. (2016) 9:148–154. doi: 10.1016/j.jrras.2015.11.003
77. Jaramillo PMD, Andreaus J, Neto GPDS, Castro CFDS, Filho EXF. The characterization of a pectin-degrading enzyme from Aspergillus oryzae grown on passion fruit peel as the carbon source and the evaluation of its potential for industrial applications. Biocatal Biotransform. (2016) 33:310–22. doi: 10.3109/10242422.2016.1168817
79. Anand G, Yadav S, Yadav D. Production, purification and biochemical characterization of an exo-polygalacturonase from Aspergillus niger MTCC 478 suitable for clarification of orange juice. 3 Biotech. (2017) 7:122. doi: 10.1007/s13205-017-0760-3
80. Jahan N, Shahid F, Aman A, Mujahid TL, Ul Qader SA. Utilization of agro waste pectin for the production of industrially important polygalacturonase. Heliyon. (2017) 3:e00330. doi: 10.1016/j.heliyon.2017.e00330
82. Abdullah R, Jafer A, Nisar K, Kaleem A, Iqtedar M, Iftikhar T, et al. Process optimization for pectinase production by locally isolated fungal strain using SmF. Biosci J. (2018) 34:1025–32. doi: 10.14393/BJ-v34n1a2018-39947
83. Dange VU, Harke S. Production and purification of pectinase by fungal strain in solid-state fermentation using agro-industrial bioproduct. Int J Life Sci Res. (2018) 6:85–93. Available online at: https://researchpublish.com/issue/IJLSR/Issue-4-October-2018-December-2018/3
85. Roy K, Dey S, Uddin MK, Barua R, Hossain MT. Extracellular pectinase from a novel bacterium Chryseobacterium indologenes strain SD and its application in fruit juice clarification. Enzyme Res. (2018) 2018:3859752. doi: 10.1155/2018/3859752
86. Carrasco M, Rozas JM, Alcaino J, Cifuentes V, Baeza M. Pectinase secreted by psychrotolerant fungi: identification, molecular characterization and heterologous expression of a cold-active polygalacturonase from Tetracladium sp. Microb Cell Fact. (2019) 18:45. doi: 10.1186/s12934-019-1092-2
87. Guo F, Li X, Zhao J, Li G, Gao P, Han X. Optimizing culture conditions by statistical approach to enhance production of pectinase from Bacillus sp. Y1. BioMed Res Int. (2019) 2019:1–10. doi: 10.1155/2019/8146948
88. Jadhav SR, Pathak AP. Production and characterization of a thermo-pH stable pectinase from Bacillus licheniformis UNP-1: a novel strain isolated from Unapdev hot spring. Ind J Geo Marine Sci. (2019) 48:670–7. Available online at: http://nopr.niscair.res.in/handle/123456789/47423
89. Koshy M, De S. Effect of Bacillus tequilensis SALBT crude extract with pectinase activity on demucilation of coffee beans and juice clarification. J Basic Microbiol. (2019) 59:1185–94. doi: 10.1002/jobm.201900321
90. Okonji RE, Itakorode BO, Ovumedia JO, Adedeji OA. Purification and biochemical characterization of pectinase produced by Aspergillus fumigatus isolated from soil of decomposing plant materials. J Appl Biol Biotechnol. (2019) 7:1–8. doi: 10.7324/JABB.2019.70301
91. Pagarraa H, Rahman RA, Rachmawaty Manas NHA. Screening of factors influencing exopolygalacturonase production by Aspergillus niger ATCC 120120 using two-level fractional factorial design. J Teknol. (2019) 81:73–80. doi: 10.11113/jt.v81.13638
92. Prasad B, Goyal S. Effects of carbon and process parameters on the production of pectinase by Aspergillus spp. isolated from rotten citrus fruits. Int J Innovat Biol Chem Sci. (2019) 12:1–10. Available online at: https://www.whitesscience.com/wp-content/uploads/woocommerce_uploads/2019/10/IJIBCS_12_1-10-1.pdf?
93. Zhang G, Li S, Xu Y, Wang J, Wang F, Xin Y, et al. Production of alkaline pectinase: a case study investigating the use of tobacco stalk with the newly isolated strain Bacillus tequilensis CAS-MEI-2-33. BMC Biotechnol. (2019) 19:45. doi: 10.1186/s12896-019-0526-6
94. Ahmed A, Ejaz U, Sohail M. Pectinase production from immobilized and free cells of Geotrichum candidum AA15 in galacturonic acid and sugars containing medium. J King Saud Univ Sci. (2020) 32:952–4. doi: 10.1016/j.jksus.2019.07.003
95. Amin F, Mohsin A, Bhatti HN, Bilal M. Production, thermodynamic characterization and fruit juice quality improvement characteristics of an exo-polygalacturonase from Penicillium janczewskii. Biochim Biophys Acta Proteins Proteom. (2020) 1868:140379. doi: 10.1016/j.bbapap.2020.140379
96. Arekemase MO, Omotosho IO, Agbabiaka TO, Ajide-Bamigboye NT, Lawal AK, Ahmed T, et al. Optimization of bacteria pectinolytic enzyme production using banana peel as substrate under SmF. Sci World J. (2020) 15:56–63. Available online at: https://www.scienceworldjournal.org/article/view/20220
97. El Garhy GM, Azzaz HH, Abd El Mola AM, Mousa GA. Fungal pectinase production optimization and its application in buffaloe's diets degradation. Int J Zool Anim. Biol. (2020) 3:000199. doi: 10.23880/izab-16000199
98. Khalil M, Khattak S, Ali Q, Qureshi JA, Malik A. Isolation and characterization of pectinase producing Aspergillus niger from orange. Int J Bot Stud. (2020) 5:45–8. Available online at: http://www.botanyjournals.com/archives/2020/vol5/issue2/5-1-55
101. Zehra M, Syed MN, Sohail M. Banana peels: a promising substrate for the coproduction of pectinase and xylanase from Aspergillus fumigatus MS16. Pol J Microbiol. (2020) 69:19–26. doi: 10.33073/pjm-2020-002
102. Molina SMG, Pelissari FA, Vitorello CBM. Screening and genetic improvement of pectinolytic fungi for degumming of textile fibers. Braz J Microbiol. (2001) 32:320–6. doi: 10.1590/S1517-83822001000400013
103. Piccoli-Valle RH, Passos FML, Passos FJV, Silva DO. Production of pectin lyase by Penicillium griseoroseum in bioreactors in the absence of inducer. Braz J Microbiol. (2001) 32:135–40. doi: 10.1590/S1517-83822001000200013
104. Mehmood T, Saman T, Irfan M, Anwar F, Ikram MS, Tabassam Q. Pectinase production from Schizophyllum commune through central composite design using citrus waste and its immobilization for industrial exploitation. Waste Biomass Valor. (2019) 10:2527–36. doi: 10.1007/s12649-018-0279-9
105. Zhen J, Tan M, Fu X, Shu W, Zhao X, Yang S, et al. High-level extracellular production of an alkaline pectate lyase in E. coli BL21 (DE3) and its application in bioscouring of cotton fabric. 3 Biotech. (2020) 10:49. doi: 10.1007/s13205-019-2022-z
109. Sakai T, Sakamoto T, Hallaert J, Vandamme EJ. Pectin, pectinase, and protopectinase: production, properties, and applications. Adv Appl Microbiol. (1993) 39:213–94. doi: 10.1016/S0065-2164(08)70597-5
110. Pedrolli AC, Gomes E, Carmona EC. Pectin and pectinases: production, characterization and industrial application of microbial pectinolytic enzymes. Open Biotechnol J. (2009) 3:9–18. doi: 10.2174/1874070700903010009
112. Whitaker JR. Microbial pectinolytic enzymes. In: Fogarty WM, Kelly CT, editors. Microbial Enzymes and Biotechnology. 2nd ed. London: Elsevier Science Ltd (1990). p. 133–76. doi: 10.1007/978-94-009-0765-2_4
115. Patidar MK, Nighojkar S, Kumar A, Nighojkar A. Pectinolytic enzymes-solid state fermentation, assay methods and applications in fruit juice industries: a review. 3 Biotech. (2018) 8:199. doi: 10.1007/s13205-018-1220-4
117. Vicente CSL, Nemchinov LG, Mota M, Eisenback JD, Kamo K, Vieira P. Identification and characterization of the first pectin methylesterase gene discovered in the root lesion nematode Pratylenchus penetrans. PLoS ONE. (2019) 14:e0212540. doi: 10.1371/journal.pone.0212540
119. Gummadi SN, Manoj N, Kumar DS. Structural and biochemical properties of pectinases. In: Polaina J, MacCabe AP, editors. Industrial Enzymes. Dordrecht: Springer (2007). p. 99–115. doi: 10.1007/1-4020-5377-0_7
120. Jenkins J, Mayans O, Smith D, Worboys K, Pickersgill RW. Three-dimensional structure of Erwinia chrysanthemi pectin methylesterase reveals a novel esterase active site. J Mol Biol. (2001) 305:951–60. doi: 10.1006/jmbi.2000.4324
121. Shevchik VE, Condemine G, Hugouvieux-Cotte-Pattat N, Robert-Baudouy J. Characterization of pectin methylesterase B, an outer membrane lipoprotein of Erwinia chrysanthemi 3937. Mol Microbiol. (1996) 19:455–66. doi: 10.1046/j.1365-2958.1996.389922.x
122. Kwon SJ, Son JH, Park KC, Oh HY, Kim PH, Byeon WH, et al. Structural dynamics and divergence of the polygalacturonase gene family in land plants. Nat Prec. (2008) 49:1–34. doi: 10.1038/npre.2008.1608.1
123. Yang Y, Yu Y, Liang Y, Anderson CT, Cao J. A profusion of molecular scissors for pectins: classification, expression, and functions of plant polygalacturonases. Front Plant Sci. (2018) 9:1208. doi: 10.3389/fpls.2018.01208
125. Barnby FM, Morpeth FF, Pyle DL. Endopolygalacturonase production from Kluyveromyces marxianus. I. Resolution, purification and partial characterization of the enzyme. Enzyme Microb. Technol. (1990) 12:891–7. doi: 10.1016/0141-0229(90)90028-O
126. Shevchik VE, Condemine G, Robert-Baudouy J, Hugouvieux-Cotte-Pattat N. The exopolygalacturonate lyase PelW and the oligogalacturonate lyase Ogl, two cytoplasmic enzymes of pectin catabolism in Erwinia chrysanthemi 3937. J Bacteriol. (1999) 181:3912–9. doi: 10.1128/JB.181.13.3912-3919.1999
128. Weber J, Olsen O, Wegener C, von Wettstein D. Digalacturonates from pectin degradation induce tissue responses against potato soft rot. Physiol Mol Plant Pathol. (1996) 48:389–401. doi: 10.1006/pmpp.1996.0031
129. Couri S, Terzi SC, Ribeiro BD, da Costa ACA, Farinas CS. Methods of determination of pectinase activity. In: Vermelho AB, Couri S, editors. Methods to Determine Enzymatic Activity. Sharjah: Bentham Science Publishers (2013). p. 3–26.
130. Mayans O, Scott M, Connerton I, Gravesen T, Benen J, Visser J, et al. Two crystal structures of pectin lyase A from Aspergillus reveal a pH driven conformational change and striking divergence in the substrate-binding clefts of pectin and pectate lyases. Structure. (1997) 5:677–89. doi: 10.1016/S0969-2126(97)00222-0
132. Lara-Espinoza C, Carvajal-Millán E, Balandrán-Quintana R, LópezFranco Y, Rascón-Chu A. Pectin and pectin-based composite materials: beyond food texture. Molecules. (2018) 23:942. doi: 10.3390/molecules23040942
133. Yapo BM, Lerouge P, Thibault JF, Ralet MC. Pectins from citrus peel cell walls contain homogalacturonans homogenous with respect to molar mass, rhamnogalacturonan I and rhamnogalacturonan II. Carbohydr Polym. (2007) 69:426–35. doi: 10.1016/j.carbpol.2006.12.024
134. Kang HJ, Jo C, Kwon JH, Son JH, An BJ, Byun MW. Antioxidant and cancer cell proliferation inhibition effect of citrus pectin oligosaccharide prepared by irradiation. J Med Food. (2006) 9:313–20. doi: 10.1089/jmf.2006.9.313
135. Olano-Martin E, Gibson GR, Rastall RA. Comparison of the in vitro bifidogenic properties of pectins and pectic-oligosaccharides. J Appl Microbiol. (2002) 93:505–11. doi: 10.1046/j.1365-2672.2002.01719.x
137. Xu Y, Dong Q, Qiu H, Ma CW, Ding K. A homogalacturonan from the radix of Platycodon grandiflorum and the anti-angiogenesis activity of poly-/oligogalacturonic acids derived therefrom. Carbohydr Res. (2011) 346:1930–6. doi: 10.1016/j.carres.2011.05.011
141. de Vries RP, Kester HC, Poulsen CH, Benen JA, Visser J. Synergy between enzymes from Aspergillus involved in the degradation of plant cell wall polysaccharides. Carbohydr Res. (2000) 327:401–10. doi: 10.1016/S0008-6215(00)00066-5
143. de Vries RP. Regulation of Aspergillus genes encoding plant cell wall polysaccharide-degrading enzymes; relevance for industrial production. Appl Microbiol Biotechnol. (2003) 61:10–20. doi: 10.1007/s00253-002-1171-9
148. Reddy L, Sreeramulu A. Isolation, identification and screening of pectinolytic fungi from different soil samples of Chittoor district. Int. J. Life Sci Biotechnol Pharm Res. (2012) 1:186–93. Available online at: http://www.ijlbpr.com/index.php?m=content&c=index&a=show&catid=116&id=400
149. Venkatanagaraju E, Bharathi N, Sindhuja RH, Chowdhury RR, Sreelekha Y. Extraction and purification of pectin from agro-industrial wastes. In: Masuelli M, editor. Pectins-Extraction, Purification, Characterization and Applications. IntechOpen (2019). p. 1–15. doi: 10.5772/intechopen.85585
151. Kute AB, Mohapatra D, Kotwaliwale N, Giri SK, Sawant BP. Characterization of pectin extracted from orange peel powder using microwave-assisted and acid extraction methods. Agric Res. (2020) 9:241–8. doi: 10.1007/s40003-019-00419-5
152. Picot-Allain MC, Ramasawmy B, Emmambux MN. Extraction, characterisation, and application of pectin from tropical and sub-tropical fruits: a review. Food Rev Int. (2020) 2020:1–31. doi: 10.1080/87559129.2020.1733008
153. Dranca F, Oroian M. Extraction, purification and characterization of pectin from alternative sources with potential technological applications. Food Res Int. (2018) 113:327–50. doi: 10.1016/j.foodres.2018.06.065
154. Srivastava P, Malviya R. Sources of pectin, extraction and its applications in pharmaceutical industry-an overview. Indian J Nat Prod Resour. (2011) 2:10–8. Available online at: http://hdl.handle.net/123456789/11534
156. Minzanova ST, Mironov VF, Arkhipova DM, Khabibullina AV, Mironova LG, Zakirova YM, et al. Biological activity and pharmacological application of pectic polysaccharides: a review. Polymers. (2018) 10:1407. doi: 10.3390/polym10121407
157. Ghazala I, Sayari N, Romdhane MB, Ellouz-Chaabouni S, Haddar A. Assessment of pectinase production by Bacillus mojavensis I4 using an economical substrate and its potential application in oil sesame extraction. J Food Sci Technol. (2015) 52:7710–22. doi: 10.1007/s13197-015-1964-3
158. Ribeiro SAO, Nicacio AE, Zanqui AB, Biondo PBF, de Abreu-Filho BA, Visentainer JV, et al. Application of enzymes in sunflower oil extraction: antioxidant capacity and lipophilic bioactive composition. J Braz Chem Soc. (2016) 27:834–40. doi: 10.5935/0103-5053.20150335
159. Liu C, Hao L, Chen F, Yang C. Study on extraction of peanut protein and oil bodies by aqueous enzymatic extraction and characterization of protein. J Chem. (2020) 2020:5148967. doi: 10.1155/2020/5148967
160. Mwaurah PW, Kumar S, Kumar N, Attkan AK, Panghal A, Singh VK, et al. Novel oil extraction technologies: process conditions, quality parameters, and optimization. Compr Rev Food Sci Food Saf. (2020) 19:3–20. doi: 10.1111/1541-4337.12507
165. Brouns F, Theuwissen E, Adam A, Bell M, Berger A, Mensink RP. Cholesterol-lowering properties of different pectin types in mildly hyper-cholesterolemic men and women. Eur J Clin Nutr. (2012) 66:591–599. doi: 10.1038/ejcn.2011.208
166. Jones M, Gu X, Stebbins N, Crandall P, Ricke S, Lee SO. Effects of soybean pectin on blood glucose and insulin responses in healthy men. FASEB J. (2015) 29:596.16. doi: 10.1096/fasebj.29.1_supplement.596.16
167. Bird K. Complex sugars from apple pectin may have anti-aging effects. CosmeticsDesign. (2011) Available online at: https://www.cosmeticsdesign.com/Article/2011/05/24/Complex-sugars-from-apple-pectin-may-have-anti-aging-effects
168. Anonymous. Find an ingredient- Pectin. Cosmeticsinfo. (2016) Available online at: https://cosmeticsinfo.org/ingredient/pectin-0
Keywords: biochemical properties, depolymerization, pectic substances, pectinase, pharmaceutical application, production method
Citation: Satapathy S, Rout JR, Kerry RG, Thatoi H and Sahoo SL (2020) Biochemical Prospects of Various Microbial Pectinase and Pectin: An Approachable Concept in Pharmaceutical Bioprocessing. Front. Nutr. 7:117. doi: 10.3389/fnut.2020.00117
Received: 05 May 2020; Accepted: 22 June 2020;
Published: 06 August 2020.
Edited by:Satyanarayan R. S. Dev, Florida Agricultural and Mechanical University, United States
Reviewed by:Akinbode A. Adedeji, University of Kentucky, United States
Tao Feng, Shanghai Institute of Technology, China
Copyright © 2020 Satapathy, Rout, Kerry, Thatoi and Sahoo. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Jyoti Ranjan Rout, firstname.lastname@example.org
