Abstract
Many commodities are abundantly produced around the world, including soybean, corn, rice sugarcane, cassava, coffee, fruits, and many others. These productions are responsible for the generation of enormous amounts of daily residues, such as cassava and sugarcane bagasses, rice husk, and coffee peel. These residues are rich sources for renewable energy and can be used as substrates for industrial interest products. Microorganisms are useful biofactories, capable of producing important primary and secondary metabolites, including alcohol, enzymes, antibiotics, pigments, and many other molecules. The production of pigments was reported in bacteria, filamentous fungi, yeasts, and algae. These natural microbial pigments are very promising because synthetic colorants present a long history of allergies and toxicity. In addition, many natural pigments present other biological activities, such as antioxidant and antimicrobial activities, that are interesting for industrial applications. The use of inexpensive substrates for the production of these metabolites is very attractive, considering that agro-industrial residues are generated in high amounts and usually are a problem to the industry. Therefore, in this article we review the production of microbial pigments using agro-industrial residues during the current decade (2010–2020), considering both submerged and solid state fermentations, wild-type and genetically modified microorganisms, laboratorial to large-scale bioprocesses, and other possible biological activities related to these pigments.
Introduction
Color has major importance in human activities. From traffic signals to arts and clothing, color has multiple cultural meanings. It is also central in interpreting edible items regarding their ingestion suitability, that is, if some food or beverage is fresh, ripe, safe, nutritional, or rotten (for instance, red vs. gray beef, green vs. yellow banana) (Sen et al., 2019).
In this sense, molecules capable of bestowing color to products (food products, in particular) are especially interesting from a technological standpoint. Such molecules are generally called pigments and comprise a variety of chemical structures able to absorb light in the visible range (400–700 nm wavelengths). By chemical definitions, soluble colored substances are called colorants, while insoluble colored substances are called pigments. Nevertheless, under a biological perspective, the colored substances are called pigments, irrespective of their solubility (De Carvalho et al., 2014).
Synthetic colorants have been facing market resistance starting from 1960s due to multiple reasons, including allergenicity, toxicity, teratogenicity, and carcinogenicity problems (Sen et al., 2019). In addition to that, multiple synthetic colorants depend on precursors that are petroleum-based, a non-renewable resource (Kumar et al., 2015). These restrictions, combined with an increased advertising desire to label products (majorly food) as natural, ecological, biological, or eco-friendly have sparked the study of biopigments (Babitha, 2009). Biological pigments are considered safe if they are non-toxic, non-allergenic, non-carcinogenic, and biodegradable (Sen et al., 2019).
Among biological pigment sources, microbes like bacteria, yeasts, molds, and algae are being targeted as ideal resources to be tapped. Microbial pigments are forefront in colorant development due to their independence from weather conditions, considerable assortment of shades, fast growth, and substrate-dependent cost effectiveness, characteristics considered to be superior in comparison to plant and animal-sourced pigments (Lopes et al., 2013; Panesar et al., 2015). Such advantages, combined with shifts in consumer preferences, have been responsible for a steep rise in the biopigment market, with natural colors expected to grow 7% annually as a category (De Carvalho et al., 2014; Sen et al., 2019).
Microbial pigments are especially interesting when one considers that the major cost regarding their production is related to microbes growth media. Thus, as a rule of thumb, low-cost medium translates into low-cost pigment (Panesar et al., 2015; Sen et al., 2019). Among such low-cost media, agro-industrial residues are being regarded as ideal substrates for microbial pigment production, serving as sources of carbon, nitrogen, and minerals (Lopes et al., 2013; Panesar et al., 2015; Sen et al., 2019).
The agro-industrial residues are defined as many different wastes from the food and agriculture industry. These residues include multiple plant-based materials, such as straws, stems, stalks, leaves, husks, shells, peels, lint, seeds, pulps, stubbles, bagasse, spent coffee grounds, brewer's spent grains, and some animal byproducts, including feathers and whey (Madeira et al., 2017; Venil et al., 2020a). The efficient transformation of these residues has become a central environmental issue in recent years, with great attention being given to energy generation (e.g., biodiesel production) (Vandamme, 2009). However, new materials, chemicals and valuable products in general are being obtained from agro-industrial waste, including pigments (Madeira et al., 2017). These added-value products are obtained from cheaper materials that otherwise would cause environmental damage, either directly (phenolic or via other toxic compounds) or indirectly (by changing nutritional aspects of the ecosystem, normally causing eutrophication).
Microbial pigments are already used for food and textile coloring, with proposed uses in candles, soaps, ballpoint, salmon, yogurt, and highlighter pens (Venil et al., 2013; Sen et al., 2019). The applications of microbial-derived pigments, however, are not restricted to coloring. Some of these compounds have additional properties, such as antioxidant, antiparasitic, antimicrobial, and anticancer (Venil et al., 2013, 2020a; Sen et al., 2019).
In this article, we review the current literature on microbial pigment production using agro-industrial residues as substrates, encompassing the last decade (2010–2020). Exceptions were made for cornerstone articles and chapters that were considered of major interest for the reader but were outside the selected timeframe.
Pigment-Producing Microorganisms
Microorganisms used in the production of biopigments include bacteria, yeasts, molds, and algae. The term “microbial pigments” is somewhat vague and can include some species that would not be considered de facto microorganisms (such as some filamentous fungi). In general, microbial pigment defines any non-plant, non-animal sourced biological pigment.
The microorganisms targeted for pigment production must satisfy a series of criteria: they should be non-pathogenic, non-toxic, able to use a wide range of carbon and nitrogen sources, able to give reasonable color yield, be tolerant to high salt concentration, be tolerant to variable temperatures and pH. They must also produce pigments that are easy to extract (Babitha, 2009; Kumar et al., 2015; Panesar et al., 2015; Venil et al., 2020a).
Biopigments can be classified based on chemical structure, with the main representatives being canthaxanthin, astaxanthin, prodigiosin, phycocyanin, violacein, riboflavin, β-carotene, melanin, and lycopene (Malik et al., 2012; Sen et al., 2019). All of them are currently used in the food industry (Sen et al., 2019). A variety of microbial pigments for which molecular identities were determined are shown in Table 1, along with synthesizing organism and pigment color. The molecular structure for some of the listed pigments is shown in Figure 1. For an updated list of macroscopic fungal pigments, please refer to Lagashetti et al. (2019).

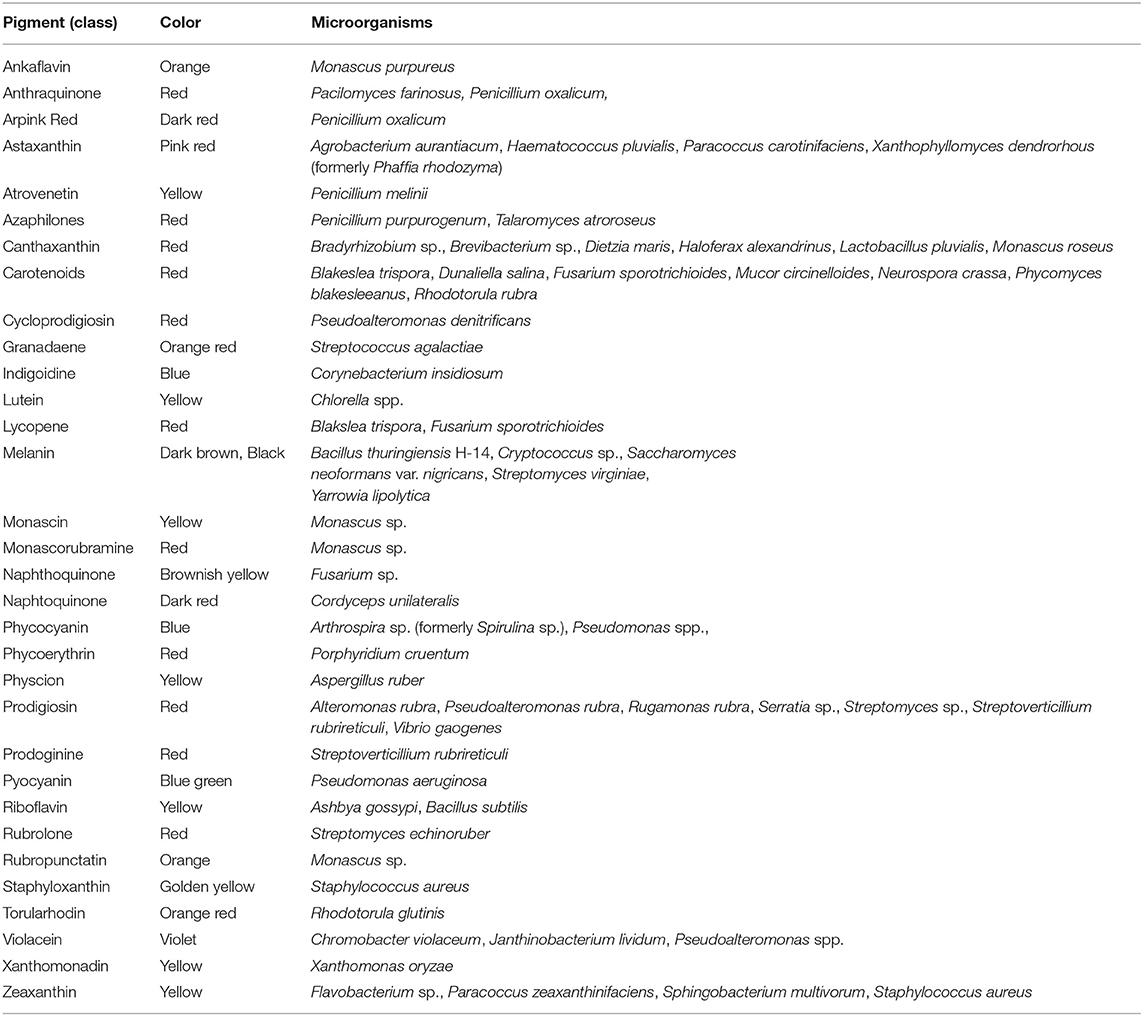

Table 1
| Pigment (class) | Color | Microorganisms |
|---|---|---|
| Ankaflavin | Orange | Monascus purpureus |
| Anthraquinone | Red | Pacilomyces farinosus, Penicillium oxalicum, |
| Arpink Red | Dark red | Penicillium oxalicum |
| Astaxanthin | Pink red | Agrobacterium aurantiacum, Haematococcus pluvialis, Paracoccus carotinifaciens, Xanthophyllomyces dendrorhous (formerly Phaffia rhodozyma) |
| Atrovenetin | Yellow | Penicillium melinii |
| Azaphilones | Red | Penicillium purpurogenum, Talaromyces atroroseus |
| Canthaxanthin | Red | Bradyrhizobium sp., Brevibacterium sp., Dietzia maris, Haloferax alexandrinus, Lactobacillus pluvialis, Monascus roseus |
| Carotenoids | Red | Blakeslea trispora, Dunaliella salina, Fusarium sporotrichioides, Mucor circinelloides, Neurospora crassa, Phycomyces blakesleeanus, Rhodotorula rubra |
| Cycloprodigiosin | Red | Pseudoalteromonas denitrificans |
| Granadaene | Orange red | Streptococcus agalactiae |
| Indigoidine | Blue | Corynebacterium insidiosum |
| Lutein | Yellow | Chlorella spp. |
| Lycopene | Red | Blakslea trispora, Fusarium sporotrichioides |
| Melanin | Dark brown, Black | Bacillus thuringiensis H-14, Cryptococcus sp., Saccharomycesneoformans var. nigricans, Streptomyces virginiae,Yarrowia lipolytica |
| Monascin | Yellow | Monascus sp. |
| Monascorubramine | Red | Monascus sp. |
| Naphthoquinone | Brownish yellow | Fusarium sp. |
| Naphtoquinone | Dark red | Cordyceps unilateralis |
| Phycocyanin | Blue | Arthrospira sp. (formerly Spirulina sp.), Pseudomonas spp., |
| Phycoerythrin | Red | Porphyridium cruentum |
| Physcion | Yellow | Aspergillus ruber |
| Prodigiosin | Red | Alteromonas rubra, Pseudoalteromonas rubra, Rugamonas rubra, Serratia sp., Streptomyces sp., Streptoverticillium rubrireticuli, Vibrio gaogenes |
| Prodoginine | Red | Streptoverticillium rubrireticuli |
| Pyocyanin | Blue green | Pseudomonas aeruginosa |
| Riboflavin | Yellow | Ashbya gossypi, Bacillus subtilis |
| Rubrolone | Red | Streptomyces echinoruber |
| Rubropunctatin | Orange | Monascus sp. |
| Staphyloxanthin | Golden yellow | Staphylococcus aureus |
| Torularhodin | Orange red | Rhodotorula glutinis |
| Violacein | Violet | Chromobacter violaceum, Janthinobacterium lividum, Pseudoalteromonas spp. |
| Xanthomonadin | Yellow | Xanthomonas oryzae |
| Zeaxanthin | Yellow | Flavobacterium sp., Paracoccus zeaxanthinifaciens, Sphingobacterium multivorum, Staphylococcus aureus |
Figure 1
Agro-Industrial Residues Used for the Production of Microbial Pigments
There is a need to explore novel strains of microorganisms and appropriate strategies for commercial production of microbial pigments (Nigam and Luke, 2016). Since synthetic culture media are usually expensive, the use of agro-industrial waste would be a profitable mean of reducing the production cost (Panesar et al., 2015). The Food and Agriculture Organization (FAO), in 2013, reported that 250 million tons of agro-industrial wastes are generated globally per year, during processing of different plant crops, mainly cereals, starchy roots, fruits, and other vegetables (Heredia-Guerrero et al., 2017).
Natural raw materials and by-products generated by industry are widely used as culture medium due to their low cost, once the components of the medium can represent from 38 to 73% of the total production cost (Panesar et al., 2015). Agro-industrial residues are untreated and underutilized, while being rich in nutrient components, such as carbohydrates, proteins, fibers, minerals, and vitamins. The utilization of this waste not only eliminates the disposal problems, but also the environment pollution (toxicity to aquatic life, pollution of surface and ground waters, altered soil quality, phyto-toxicity, odorous, and colored natural waters) and negative impact on human and animal health (Panesar et al., 2015; Zihare et al., 2018; Nayak and Bhushan, 2019). The environmental concern is related to the content of these wastes, since most of them include phenolic compounds that have toxic potential, in addition these wastes exhibit high value of biological oxygen demand, chemical oxygen demand, and other suspended solids that can be considered pollutant to the environment (Sadh et al., 2018; Venil et al., 2020a). Furthermore, plant cell walls found in the agro-industrial residues are composed of lignocellulose, a recalcitrant component, consisting of cellulose, hemicellulose and lignin, that can also be an environment pollutant (Sánchez, 2009). Recovery of high value-added components from the waste and their re-utilization as food additives or therapeutics are another interesting aspect to valorize these agro-industrial residues, we will not focus on this approach in the present review. For more information about this strategy, please refer to Nayak and Bhushan (2019). A representative scheme of the different steps for microbial pigment production using agro-industrial waste is proposed in Figure 2.
Figure 2
In this work we reviewed the literature from 2010 to 2020 and selected studies with the production of microbial pigments using agro-industrial residues (Table 2). We restricted our selection to focus on the microorganisms that can produce pigments in an inexpensive manner using agro-industrial residues that are alternatives to decrease the costs of production. During this decade, there were several works using waste as substrate, the sole substrate or supplemented with nutrients. The microorganisms more commonly used were fungi, both molds and yeasts. It is important to highlight some genera such as Monascus and Rhodotorula that were the most prevalent in these studies, especially Monascus purpureus, Rhodotorula glutinis, and R. mucilaginosa. Furthermore, carotenoids and Monascus-polyketides were thus the pigments commonly produced by these microorganisms.

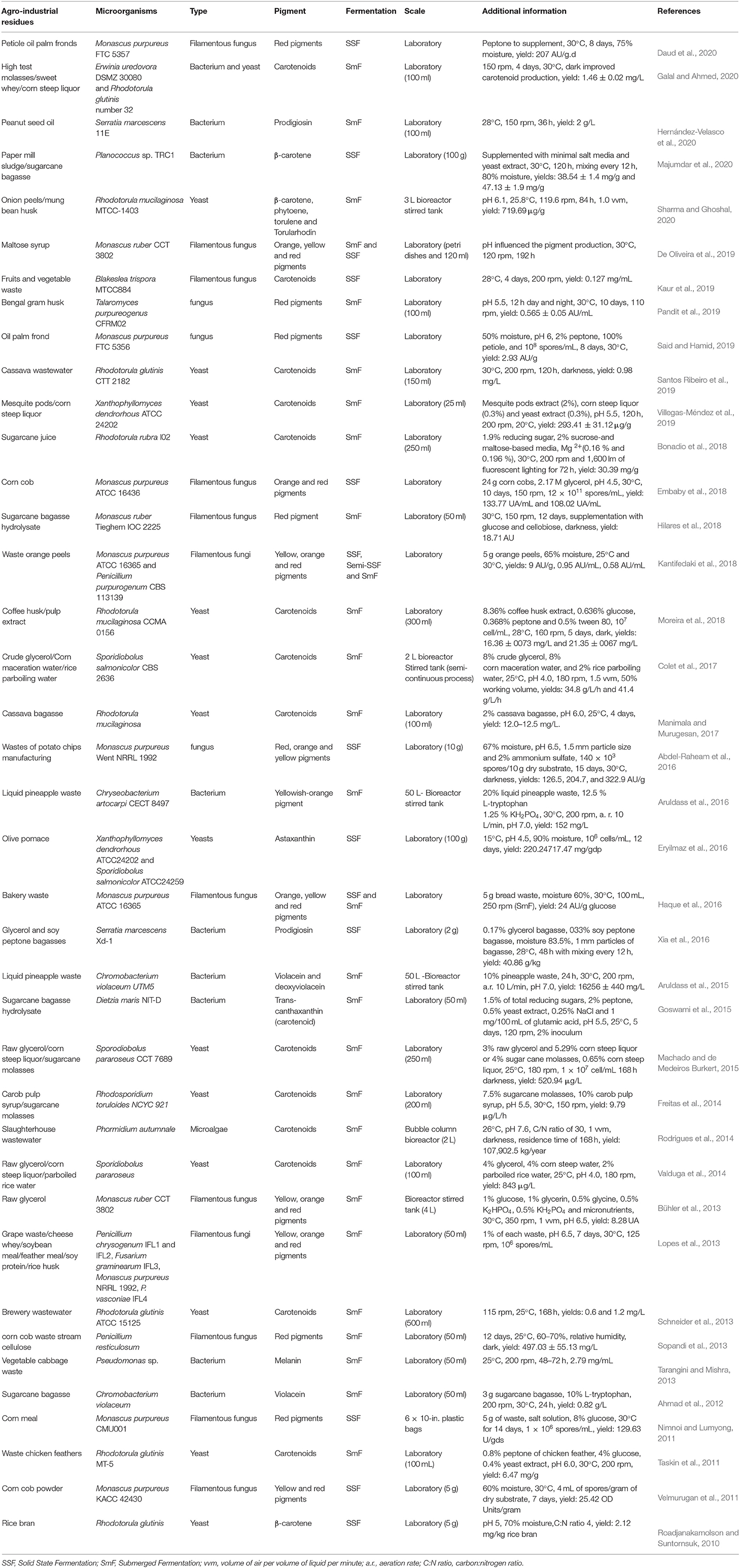

Table 2
| Agro-industrial residues | Microorganisms | Type | Pigment | Fermentation | Scale | Additional information | References |
|---|---|---|---|---|---|---|---|
| Petiole oil palm fronds | Monascus purpureus FTC 5357 | Filamentous fungus | Red pigments | SSF | Laboratory | Peptone to supplement, 30°C, 8 days, 75% moisture, yield: 207 AU/g.d | Daud et al., 2020 |
| High test molasses/sweet whey/corn steep liquor | Erwinia uredovora DSMZ 30080 and Rhodotorula glutinis number 32 | Bacterium and yeast | Carotenoids | SmF | Laboratory (100 ml) | 150 rpm, 4 days, 30°C, dark improved carotenoid production, yield: 1.46 ± 0.02 mg/L | Galal and Ahmed, 2020 |
| Peanut seed oil | Serratia marcescens 11E | Bacterium | Prodigiosin | SmF | Laboratory (100 ml) | 28°C, 150 rpm, 36 h, yield: 2 g/L | Hernández-Velasco et al., 2020 |
| Paper mill sludge/sugarcane bagasse | Planococcus sp. TRC1 | Bacterium | β-carotene | SSF | Laboratory (100 g) | Supplemented with minimal salt media and yeast extract, 30°C, 120 h, mixing every 12 h, 80% moisture, yields: 38.54 ± 1.4 mg/g and 47.13 ± 1.9 mg/g | Majumdar et al., 2020 |
| Onion peels/mung bean husk | Rhodotorula mucilaginosa MTCC-1403 | Yeast | β-carotene, phytoene, torulene and Torularhodin | SmF | 3 L bioreactor stirred tank | pH 6.1, 25.8°C, 119.6 rpm, 84 h, 1.0 vvm, yield: 719.69 μg/g | Sharma and Ghoshal, 2020 |
| Maltose syrup | Monascus ruber CCT 3802 | Filamentous fungus | Orange, yellow and red pigments | SmF and SSF | Laboratory (petri dishes and 120 ml) | pH influenced the pigment production, 30°C, 120 rpm, 192 h | De Oliveira et al., 2019 |
| Fruits and vegetable waste | Blakeslea trispora MTCC884 | Filamentous fungus | Carotenoids | SSF | Laboratory | 28°C, 4 days, 200 rpm, yield: 0.127 mg/mL | Kaur et al., 2019 |
| Bengal gram husk | Talaromyces purpureogenus CFRM02 | fungus | Red pigments | SmF | Laboratory (100 ml) | pH 5.5, 12 h day and night, 30°C, 10 days, 110 rpm, yield: 0.565 ± 0.05 AU/mL | Pandit et al., 2019 |
| Oil palm frond | Monascus purpureus FTC 5356 | fungus | Red pigments | SSF | Laboratory | 50% moisture, pH 6, 2% peptone, 100% petiole, and 108 spores/mL, 8 days, 30°C, yield: 2.93 AU/g | Said and Hamid, 2019 |
| Cassava wastewater | Rhodotorula glutinis CTT 2182 | Yeast | Carotenoids | SmF | Laboratory (150 ml) | 30°C, 200 rpm, 120 h, darkness, yield: 0.98 mg/L | Santos Ribeiro et al., 2019 |
| Mesquite pods/corn steep liquor | Xanthophyllomyces dendrorhous ATCC 24202 | Yeast | Carotenoids | SmF | Laboratory (25 ml) | Mesquite pods extract (2%), corn steep liquor (0.3%) and yeast extract (0.3%), pH 5.5, 120 h, 200 rpm, 20°C, yield: 293.41 ± 31.12 μg/g | Villegas-Méndez et al., 2019 |
| Sugarcane juice | Rhodotorula rubra l02 | Yeast | Carotenoids | SmF | Laboratory (250 ml) | 1.9% reducing sugar, 2% sucrose-and maltose-based media, Mg 2+(0.16 % and 0.196 %), 30°C, 200 rpm and 1,600 lm of fluorescent lighting for 72 h, yield: 30.39 mg/g | Bonadio et al., 2018 |
| Corn cob | Monascus purpureus ATCC 16436 | Filamentous fungus | Orange and red pigments | SSF | Laboratory | 24 g corn cobs, 2.17 M glycerol, pH 4.5, 30°C, 10 days, 150 rpm, 12 ×1011 spores/mL, yield: 133.77 UA/mL and 108.02 UA/mL | Embaby et al., 2018 |
| Sugarcane bagasse hydrolysate | Monascus ruber Tieghem IOC 2225 | Filamentous fungus | Red pigment | SmF | Laboratory (50 ml) | 30°C, 150 rpm, 12 days, supplementation with glucose and cellobiose, darkness, yield: 18.71 AU | Hilares et al., 2018 |
| Waste orange peels | Monascus purpureus ATCC 16365 and Penicillium purpurogenum CBS 113139 | Filamentous fungi | Yellow, orange and red pigments | SSF, Semi-SSF and SmF | Laboratory | 5 g orange peels, 65% moisture, 25°C and 30°C, yields: 9 AU/g, 0.95 AU/mL, 0.58 AU/mL | Kantifedaki et al., 2018 |
| Coffee husk/pulp extract | Rhodotorula mucilaginosa CCMA 0156 | Yeast | Carotenoids | SmF | Laboratory (300 ml) | 8.36% coffee husk extract, 0.636% glucose, 0.368% peptone and 0.5% tween 80, 107 cell/mL, 28°C, 160 rpm, 5 days, dark, yields: 16.36 ± 0073 mg/L and 21.35 ± 0067 mg/L | Moreira et al., 2018 |
| Crude glycerol/Corn maceration water/rice parboiling water | Sporidiobolus salmonicolor CBS 2636 | Yeast | Carotenoids | SmF | 2 L bioreactor Stirred tank (semi-continuous process) | 8% crude glycerol, 8%corn maceration water, and 2% rice parboiling water, 25°C, pH 4.0, 180 rpm, 1.5 vvm, 50% working volume, yields: 34.8 g/L/h and 41.4 g/L/h | Colet et al., 2017 |
| Cassava bagasse | Rhodotorula mucilaginosa | Yeast | Carotenoids | SmF | Laboratory (100 ml) | 2% cassava bagasse, pH 6.0, 25°C, 4 days, yield: 12.0–12.5 mg/L. | Manimala and Murugesan, 2017 |
| Wastes of potato chips manufacturing | Monascus purpureus Went NRRL 1992 | fungus | Red, orange and yellow pigments | SSF | Laboratory (10 g) | 67% moisture, pH 6.5, 1.5 mm particle size and 2% ammonium sulfate, 140 ×103 spores/10 g dry substrate, 15 days, 30°C, darkness, yields: 126.5, 204.7, and 322.9 AU/g | Abdel-Raheam et al., 2016 |
| Liquid pineapple waste | Chryseobacterium artocarpi CECT 8497 | Bacterium | Yellowish-orange pigment | SmF | 50 L- Bioreactor stirred tank | 20% liquid pineapple waste, 12.5 % L-tryptophan1.25 % KH2PO4, 30°C, 200 rpm, a. r. 10 L/min, pH 7.0, yield: 152 mg/L | Aruldass et al., 2016 |
| Olive pomace | Xanthophyllomyces dendrorhous ATCC24202 and Sporidiobolus salmonicolor ATCC24259 | Yeasts | Astaxanthin | SSF | Laboratory (100 g) | 15°C, pH 4.5, 90% moisture, 106 cells/mL, 12 days, yield: 220.24717.47 mg/gdp | Eryilmaz et al., 2016 |
| Bakery waste | Monascus purpureus ATCC 16365 | Filamentous fungus | Orange, yellow and red pigments | SSF and SmF | Laboratory | 5 g bread waste, moisture 60%, 30°C, 100 mL, 250 rpm (SmF), yield: 24 AU/g glucose | Haque et al., 2016 |
| Glycerol and soy peptone bagasses | Serratia marcescens Xd-1 | Bacterium | Prodigiosin | SSF | Laboratory (2 g) | 0.17% glycerol bagasse, 033% soy peptone bagasse, moisture 83.5%, 1 mm particles of bagasse, 28°C, 48 h with mixing every 12 h, yield: 40.86 g/kg | Xia et al., 2016 |
| Liquid pineapple waste | Chromobacterium violaceum UTM5 | Bacterium | Violacein and deoxyviolacein | SmF | 50 L -Bioreactor stirred tank | 10% pineapple waste, 24 h, 30°C, 200 rpm, a.r. 10 L/min, pH 7.0, yield: 16256 ± 440 mg/L | Aruldass et al., 2015 |
| Sugarcane bagasse hydrolysate | Dietzia maris NIT-D | Bacterium | Trans-canthaxanthin (carotenoid) | SmF | Laboratory (50 ml) | 1.5% of total reducing sugars, 2% peptone, 0.5% yeast extract, 0.25% NaCl and 1 mg/100 mL of glutamic acid, pH 5.5, 25°C, 5 days, 120 rpm, 2% inoculum | Goswami et al., 2015 |
| Raw glycerol/corn steep liquor/sugarcane molasses | Sporodiobolus pararoseus CCT 7689 | Yeast | Carotenoids | SmF | Laboratory (250 ml) | 3% raw glycerol and 5.29% corn steep liquor or 4% sugar cane molasses, 0.65% corn steep liquor, 25°C, 180 rpm, 1 ×107 cell/mL 168 h darkness, yield: 520.94 μg/L | Machado and de Medeiros Burkert, 2015 |
| Carob pulp syrup/sugarcane molasses | Rhodosporidium toruloides NCYC 921 | Yeast | Carotenoids | SmF | Laboratory (200 ml) | 7.5% sugarcane molasses, 10% carob pulp syrup, pH 5.5, 30°C, 150 rpm, yield: 9.79 μg/L/h | Freitas et al., 2014 |
| Slaughterhouse wastewater | Phormidium autumnale | Microalgae | Carotenoids | SmF | Bubble column bioreactor (2 L) | 26°C, pH 7.6, C/N ratio of 30, 1 vvm, darkness, residence time of 168 h, yield: 107,902.5 kg/year | Rodrigues et al., 2014 |
| Raw glycerol/corn steep liquor/parboiled rice water | Sporidiobolus pararoseus | Yeast | Carotenoids | SmF | Laboratory (100 ml) | 4% glycerol, 4% corn steep water, 2% parboiled rice water, 25°C, pH 4.0, 180 rpm, yield: 843 μg/L | Valduga et al., 2014 |
| Raw glycerol | Monascus ruber CCT 3802 | Filamentous fungus | Yellow, orange and red pigments | SmF | Bioreactor stirred tank (4 L) | 1% glucose, 1% glycerin, 0.5% glycine, 0.5% K2HPO4, 0.5% KH2PO4 and micronutrients, 30°C, 350 rpm, 1 vvm, pH 6.5, yield: 8.28 UA | Bühler et al., 2013 |
| Grape waste/cheese whey/soybean meal/feather meal/soy protein/rice husk | Penicillium chrysogenum IFL1 and IFL2, Fusarium graminearum IFL3, Monascus purpureus NRRL 1992, P. vasconiae IFL4 | Filamentous fungi | Yellow, orange and red pigments | SmF | Laboratory (50 ml) | 1% of each waste, pH 6.5, 7 days, 30°C, 125 rpm, 106 spores/mL | Lopes et al., 2013 |
| Brewery wastewater | Rhodotorula glutinis ATCC 15125 | Yeast | Carotenoids | SmF | Laboratory (500 ml) | 115 rpm, 25°C, 168 h, yields: 0.6 and 1.2 mg/L | Schneider et al., 2013 |
| corn cob waste stream cellulose | Penicillium resticulosum | Filamentous fungus | Red pigments | SmF | Laboratory (50 ml) | 12 days, 25°C, 60–70%, relative humidity, dark, yield: 497.03 ± 55.13 mg/L | Sopandi et al., 2013 |
| Vegetable cabbage waste | Pseudomonas sp. | Bacterium | Melanin | SmF | Laboratory (50 ml) | 25°C, 200 rpm, 48–72 h, 2.79 mg/mL | Tarangini and Mishra, 2013 |
| Sugarcane bagasse | Chromobacterium violaceum | Bacterium | Violacein | SmF | Laboratory (50 ml) | 3 g sugarcane bagasse, 10% L-tryptophan, 200 rpm, 30°C, 24 h, yield: 0.82 g/L | Ahmad et al., 2012 |
| Corn meal | Monascus purpureus CMU001 | Filamentous fungus | Red pigments | SSF | 6 ×10-in. plastic bags | 5 g of waste, salt solution, 8% glucose, 30°C for 14 days, 1 ×106 spores/mL, yield: 129.63 U/gds | Nimnoi and Lumyong, 2011 |
| Waste chicken feathers | Rhodotorula glutinis MT-5 | Yeast | Carotenoids | SmF | Laboratory (100 mL) | 0.8% peptone of chicken feather, 4% glucose, 0.4% yeast extract, pH 6.0, 30°C, 200 rpm, yield: 6.47 mg/g | Taskin et al., 2011 |
| Corn cob powder | Monascus purpureus KACC 42430 | Filamentous fungus | Yellow and red pigments | SSF | Laboratory (5 g) | 60% moisture, 30°C, 4 mL of spores/gram of dry substrate, 7 days, yield: 25.42 OD Units/gram | Velmurugan et al., 2011 |
| Rice bran | Rhodotorula glutinis | Yeast | β-carotene | SSF | Laboratory (5 g) | pH 5, 70% moisture,C:N ratio 4, yield: 2.12 mg/kg rice bran | Roadjanakamolson and Suntornsuk, 2010 |
Microbial pigments produced with agro-industrial waste and fermentation conditions (2010–2020).
SSF, Solid State Fermentation; SmF, Submerged Fermentation; vvm, volume of air per volume of liquid per minute; a.r., aeration rate; C:N ratio, carbon:nitrogen ratio.
Yeasts are unicellular and have high growth rates, which favor these microorganisms in the production of biopigments (Bhosale and Gadre, 2001). Yeasts are pigment producers considered as safer in comparison to filamentous fungi, due to the concerns about mycotoxin production by some of the latter. For instance, Monascus spp. is well-known for the production of citrinin, a nephrotoxic and hepatotoxic mycotoxin (Blanc et al., 1995). However, some genetic studies were published, currently modifying genes, eliminating non-essential genes of filamentous fungi in order to increase the production of pigment and decrease mycotoxin secretion (Lagashetti et al., 2019). In the case of Monascus, several techniques were performed to decrease the production of citrinin: changes in the nitrogen composition of the medium, the dissolved oxygen or the pH, as well as genetic alterations of the strains (Sen et al., 2019).
In the reviewed studies, some investigated the production of citrinin by Monascus strains. M. purpureus Went NRRL 1992 did not produce citrinin using potato waste in a solid-state fermentation. The mycotoxin detection was performed by thin layer chromatography (Abdel-Raheam et al., 2016). M. purpureus NRRL 1992 produced citrinin in potato dextrose agar, with mycotoxin production being evaluated by ESI-MS/MS (electrospray ionization tandem mass spectrometry). Nevertheless, the authors did not evaluate its production in the agro-industrial residues (Lopes et al., 2013). M. purpureus ATCC 16365 also produced citrinin in orange processing waste, however the authors did not demonstrate the methodology used in this study to detect citrinin (Kantifedaki et al., 2018). The detection of mycotoxin production by filamentous fungi is very important, considering the industrial production of pigments and it is a fundamental step to guarantee the safety of the final product.
Microorganisms from these studies were wild-type, and many of them were purchased from collection cultures or isolates. This fact is surprising due to the great advances regarding mutation techniques and heterologous expression with the purpose of obtaining strain improvement. Strain development is important because pigments produced by wild type strains are usually too low in quantity and take longer fermentation periods, making the process uneconomical (Sen et al., 2019). Due to the recent application of molecular techniques to improve pigment production, more studies will be probably published in a near future with recombinant strains grown on agro-industrial residues.
Regarding the wastes, pre-treatment is important for promoting breakdown of these residues, mainly formed by cellulose, hemicellulose and lignin. This breakdown will increase the availability of the nutrients from the substrate to the microorganisms. Various pre-treatment methods such as physical, chemical, biological (enzymatic), and combined are available (nee'Nigam et al., 2009). In the selected studies, the agro-industrial wastes were pre-treated (treated prior to use). Some examples of physical pre-treatment deal with paper mill sludge and sugarcane bagasse that are milled and sieved to achieve an uniform size of particles (Majumdar et al., 2020), as well as onion peels and mung bean husk (Sharma and Ghoshal, 2020), petiole oil palm fronds (Daud et al., 2020) and fruits and vegetable wastes (Kaur et al., 2019). Chemical treatments of the waste were performed in some studies. Bengal gram husk was pre-treated with hydrochloride acid, promoting an acid hydrolysis to improve the availability of the substrate (Pandit et al., 2019). Sugarcane bagasse was pre-treated under alkaline condition with sodium hydroxide and afterwards hydrolyzed with a commercial cellulase complex (Hilares et al., 2018). In this case there was the combination of a biological treatment. Bakery waste was also hydrolyzed with enzymes produced by Aspergillus awamori and Aspergillus oryzae before its use (Haque et al., 2016). In the majority of the studies, the agro-industrial wastes are used as carbon, nitrogen, and micronutrient sources by microorganisms. However, in some cases, the residues can be added as an inert support for the fermentation process, such as the bagasse used in the prodigiosin production by Serratia marcescens (Xia et al., 2016).
Brazil is one of the biggest agricultural commodity producers, since it is considered as the world's biggest producer of sugar, coffee, orange juice, and soybeans (Da Silva Vilar et al., 2019). In this review, 11 studies were performed in Brazil, due to the great availability of such residues in this country. Wastes used in these works were maltose syrup, cassava wastewater, sugarcane (juice, molasses, and hydrolyzed bagasse), solid coffee waste, crude glycerol, rice parboiling water, slaughterhouse wastewater, corn steep liquor (or corn maceration water), grape waste, cheese whey, soybean meal, feather meal, soy protein, and rice husk) (Table 2). In order to evaluate each residue as carbon and/or nitrogen source, Table 3 brings an average composition of the agro-industrial residues regarding carbon and nitrogen composition, according either to the works cited in this review or, in some cases to the composition obtained from other works, when this information was not available. It is important to highlight that this composition is variable, depending on the source of the waste; however, an average composition can be useful for planning new projects in this area.
Table 3
| Agro-industrial residue | Carbon-composition | Nitrogen-composition | References |
|---|---|---|---|
| Bakery waste | Starch (37.42 ± 0.032 g) | Proteins (14.72 ± 0.55 g) and other nitrogen sources (2.58 ± 0.97 g) | Haque et al., 2016 |
| Carob pulp syrup | Sugar (75 g L−1 reducing sugar) | ni | Freitas et al., 2014 |
| Carrot peel | Carbohydrates (2.98 ± 0.75 g) | Proteins (9.70 ± 0.25 g) | Chantaro et al., 2008 |
| Cassava wastewater | Carbohydrates (58.11 ± 2.13 g) | Total nitrogen (1.94 ± 0.08 g) | Santos Ribeiro et al., 2019 |
| Cheese whey | Lactose (77%) | Proteins (13%) | Lopes et al., 2013 |
| Coffee pulpand husk | Carbohydrates (17.10–13.38%) | Proteins (24.21–30.50%) | Moreira et al., 2018 |
| Corn cob | Cellulose (32.3–45.6 %), hemicellulose (39.8 %) | ni | Embaby et al., 2018 |
| Corn steep liquor | Sugar (0.1–11.0% glucose) | Total nitrogen (2.7–4.5%) | Liggett and Koffler, 1948 |
| Feather meal | ni | Protein (83.7%) | Lopes et al., 2013 |
| Grape waste | Carbohydrates (21%) | Proteins (10%) | Lopes et al., 2013 |
| High test molasses | Sugar (74–79%) | Low amounts (0.1%) | Murphy, 1984 |
| Liquid pineapple waste | Sugars (reducing sugar, glucose, sucrose, fructose) | ni | Aruldass et al., 2016 |
| Maltose syrup | Maltose and glucose (70.0 g L−1 maltose and 2.23 g L−1 glucose) | ni | De Oliveira et al., 2019 |
| Mesquite pods | Sucrose, glucose, fructose | ni | Villegas-Méndez et al., 2019 |
| Mung bean husk | Sugar (327.78 ± 2.08 mg/g) | Proteins (262.23 ± 3.59 mg/g) | Sharma and Ghoshal, 2020 |
| Olive pomace | Fatty acids (59.03% and 63.81%) | Proteins (2.43 ± 0.00%) to (3.87 ± 0.17%) and other nitrogen sources (0.39 ± 0.0%) to (0.62 ± 0.02%) | Wedyan et al., 2017 |
| Onion peels | Sugar (851.33 ± 4.62 mg/g) | Proteins 165.10 ± 5.13 mg/g) | Ifesan, 2017; Sharma and Ghoshal, 2020 |
| Orange peel | Cellulose (71.2 g/kg), hemicellulose (128 g/kg) | Crude protein (57.2 g/kg) | Ahmadi et al., 2015 |
| Papel mill sludge | Cellulose (62%), hemicellulose (15%) and lignin (20%) | ni | Majumdar et al., 2020 |
| Parboiled rice water | Present | Present | Valduga et al., 2014 |
| Peanut seed oil | Fatty acids (80% of these fatty acids are either oleic acid or linoleic acid) | ni | Rachaputi and Wright, 2015 |
| Petiole oil palm fronds | Cellulose (44%), hemicellulose (27.3%) and lignin (10.1%) | ni | Ikubar et al., 2018 |
| Rice bran | ni | Protein (114.2 g/kg) | Roadjanakamolson and Suntornsuk, 2010 |
| Rice husk | Cellulose (31.12%), hemicellulose (22.48%) and lignin (22.34%) | ni | Kumar et al., 2010 |
| Slaughterhouse wastewater | ni | Total nitrogen (128.5 ± 12.1 mg/L) | Rodrigues et al., 2014 |
| Soybean meal | Carbohydrates (35%) | Proteins (50%) | Lopes et al., 2013 |
| Soybean protein | Carbohydrates (12%) | Proteins (79%) | Lopes et al., 2013 |
| Sugarcane bagasse | Cellulose (32–34%), hemicellulose (19–24%) and lignin (25–32%) | ni | Haghdan et al., 2016 |
| Sugarcane juice | Sugar (19 g reducing sugar) | ni | Bonadio et al., 2018 |
| Sweet whey | Lactose (4.5%) | Proteins (0.8%) | Morr, 1989 |
| Wastes of potato chips | Starch (61.49%) | Low amounts of protein | Korish and El-Sanat, 2007 |
Average carbon and nitrogen composition of the agro-industrial residues.
ni, not informed.
Modes of Fermentation and Scale of Production
Traditional methods of microorganism isolation, culture and products extraction are now substituted by novel biotechnological techniques and strategies, via the advent of genetic engineering and fermentation technologies (Nigam and Luke, 2016). Different types of fermentation are used to produce pigments depending on the chosen strain and the type of pigment that will be extracted. Production of pigments by fermentation has a great number of advantages, including abundance of raw materials, absence of seasonal variation, cheaper production, easier extraction, perfectible yields, and procurement of biodegradable pigments (Venil et al., 2013; Charalampia et al., 2017). In addition, pigments produced by microorganisms through fermentation present higher stability to heat, to light exposure and pH variations, and are highly soluble in water (when compared to plant pigments) (Nigam and Luke, 2016). Some types of pigments are only produced by microorganisms (Dufossé, 2006) and the possibily of using industrially important species, such as Escherichia coli and Saccharomyces cerevisiae, to express these pigments heterologously are excellent alternatives (Venil et al., 2013).
Microorganisms produce pigments mainly by two types of fermentations processes: solid state fermentation (SSF) and submerged fermentation (SmF). In the SSF technique, the substrates are used by the microorganisms very slowly, and then the same substrate can be used for longer periods. This technique provides controlled release of nutrients during the process (Subramaniyam and Vimala, 2012). This type of fermentation is suitable to filamentous fungi and microorganisms that require low moisture content for their growth. Their growth as SSF mimic (Joshi and Attri, 2006). This technique is very effective in waste valorization due to the microorganism conversion of waste into value-added products with low power supply and high yield. Arikan and co-authors observed higher production of a yellow pigment by Aspergillus carbonarius using pomegranate pulp through SSF than SmF (Arikan et al., 2020). According to Carvalho et al. (2005), the majority of Monascus researchers observed pigment production varying from hundreds of absorbance units per mL culture medium, in SmF; in contrast thousands of absorbance units/g dry substrate was observed in SSF (Carvalho et al., 2005). In some cases, however, the higher production using SSF requires longer times of culture in comparison with SmF. The low energy to perform a SSF is due to the simplified bioreactors used in this type of fermentation, mainly when we compare some types of SmF bioreactors, such as stirred tank, that requires high energy consumption to maintain constant agitation during the process. In addition, it is considered an easy process, with minimal pretreatment of the waste being necessary (sometimes not needed at all) and generating less wastewater (Wang and Yang, 2007; Arun et al., 2020). Some of the common substrates used in SSF are wheat bran, rice and rice straw, fruit and vegetable waste, paper pulp, bagasse, and coconut coir (Panesar et al., 2015).
On the other hand, in SmF the substrates are consumed very rapidly, then it is possible to replace or supplement the culture media (fed batch or continuous culture strategies are necessary in some cases), or to use fast-growing microorganisms during the process (Subramaniyam and Vimala, 2012). It is important to highlight that in some cases supplementation of the medium in SSF is also needed, because of the poor nature of the substrate or low availability of the nutrients in the beginning of the bioprocess (substrates that are not pretreated, for example). This type of fermentation is commonly used for bacteria, due to their necessity of higher moisture in the fermentation process (Subramaniyam and Vimala, 2012). Some common substrates used in SmF are soluble sugars, molasses, fruit and vegetable juices, and sewage/wastewater (Panesar et al., 2015). Based on the data of this review (Table 2), the majority of the studies use SmF to produce pigments instead of using SSF. Solid-state fermentation systems could present some advantages because of the potential with natural substrates. Nonetheless, pigment production is performed commercially almost entirely in SmF (Sánchez-Muñoz et al., 2020). The main obstacles to SSF are the low amenability of the process to regulation, the heterogeneous fermentation conditions and the low reproducibility of the results. Moreover, some difficulties to scale-up may also appear, as well as often unfeasible determination of biomass or complicated product purification by downstream processes (Hölker and Lenz, 2005).
Agro-industrial residues decrease the costs of the fermentation process. Maximization of the pigment production while decreasing the production costs has been the goal of current techniques applied to produce microbial pigments at large scale. Medium optimization is especially important to maximize the production. Optimizing the medium includes controlling the conditions of the fermentation, such as temperature, pH, aeration, agitation, and media components. Process optimization techniques have used statistical experimental designs and response surface analysis with limited use of artificial intelligence (like genetic algorithms). Response surface methodology (RSM) is an effective approach for the process optimization in pigment production (Gharibzahedi et al., 2012; Sen et al., 2019).
Some studies reported in this review used statistical methodologies to optimize the production of pigments, with RSM being by far the most used. Sharma and Goshal optimized pH, temperature, and agitation conditions in the production of carotenoids by R. mucilaginosa (Sharma and Ghoshal, 2020). Embaby and co-authors used a three-step optimization, including RSM, to study the concentration of glycerol and inoculum size in the production of orange and red pigments by M. purpureus using corn cobs (Embaby et al., 2018). Aruldass and co-authors used RSM to optimize the production of yellowish-orange pigments by Chryseobacterium artocarpi. The authors used three independent variables: concentrations of liquid pineapple waste, L-tryptophan, and KH2PO4 (Aruldass et al., 2016). The production of astaxanthin by Xanthophyllomyces dendrorhous in olive pomace was optimized with RSM, testing temperature, moisture content and pH condition (Eryilmaz et al., 2016). Prodigiosin production by S. marcescens was optimized by RSM with three variables: glycerol bagasse, soybean peptone bagasse, and initial moisture content (Xia et al., 2016). Raw glycerol, steep liquor, and sugarcane molasses concentrations were tested in the optimization experiments of carotenoids production by Sporidiobolus pararoseus, as well as glycerol, corn steep liquor and parboiled rice water concentrations (Valduga et al., 2014; Machado and de Medeiros Burkert, 2015). Moisture, pH, and carbon-to-nitrogen ratio were evaluated in the carotenoids production by R. glutinis using rice bran (Roadjanakamolson and Suntornsuk, 2010). The Taguchi methodology was applied to optimize the production of carotenoids by Xanthophyllomyces dendrorhous, using four variables: concentrations of mesquite pods extract, corn steep liquor, yeast extract, and malt extract (Villegas-Méndez et al., 2019).
Another approach used in some studies is the optimization of one factor at a time (OVAT). For instance, the authors evaluated pH, temperature, and light on the carotenoids production by Planococcus sp. (Majumdar et al., 2020). Optimization of various factors such as pH, growth temperature, incubation time and the addition of nitrogen components was evaluated on the production of β-carotene by Blakeslea trispora (Kaur et al., 2019). Five operational factors such as the initial moisture content of oil palm frond, initial pH, supplementation of nitrogen source, the percentage of petiole to leaflet, and inoculum size were investigated on the red pigments production by M. purpureus (Said and Hamid, 2019). In the conventional approach OVAT, the conditions are optimized by changing one factor at a time while maintaining the other variables constant. This is a simple approach to implement and helps to choose the main variables. However, this methodology is time-consuming, because several experiments are necessary to study all the relevant conditions and also ignores the combined interaction(s) among the variables (Vishwanatha et al., 2010).
Variables that were most frequently evaluated in the optimization studies were pH, substrate concentration, and initial moisture. The pH is particularly important in the pigments production. pH of the medium plays an important role in activating key enzymes involved in pigment production and excretion by M. pupureus CCT3802, according to Orozco and Kilikian (2008). In addition, pH influences the color of the pigments. According to De Oliveira and co-authors, pH values close to neutrality lead to the formation of red pigments by Monascus sp. (De Oliveira et al., 2019). On the other hand, medium pH around 3 results in the production of yellow pigments by Monascus anka (Shi et al., 2015). Substrate concentration is considered as an important variable to study, in particular the nitrogen source is a key regulation factor. It has been consistently shown that selective nitrogen sources largely influence the composition of Monascus pigments and this variable correlates with pH of the medium (Shi et al., 2015), highlighting the importance of the statistical methodologies to study the interactions among variables. Moisture is also a significant variable in SSF systems. Adequate water content of the substrate facilitates the oxygen transport, promoting microorganism growth. Nevertheless, excessive water content may lead to the reduction of oxygen transfer and diffusion because of substrate agglomeration, lowering the porosity of the substrate and increasing the risk of contamination, since an advantage of SSF is to select microorganisms that grow under low water content (Said and Hamid, 2019). Indeed, some filamentous fungi and yeasts are capable to grow at a water activity (aw) of 0.61, the lowest aw value for growth of microorganisms (Grant, 2004).
Large scale production with high yields and low costs of production are the biggest challenges faced by industry. Recent developments in molecular biology could be crucial. The genes responsible for the synthesis of several pigments have been cloned and recombinant DNA technology would be an alternative to overproduction of pigments. With the advances in the gene technology, the scientists intend to create cell factories for the production of pigments using the heterologous expression of biosynthetic pathways from already known or novel pigment producers (Malpartida and Hopwood, 1984; Pfeifer and Khosla, 2001; Venil et al., 2013). Martínez and co-authors reviewed the recombinant production of melanin by Escherichia coli, Pseudomonas putida, and Streptomyces kathirae (Martínez et al., 2019). In another work, the authors deleted the 15-kb citrinin biosynthetic gene cluster in M. purpureus industrial strain KL-001, using CRISPR (Clustered Regularly Interspaced Short Palindromic Repeats)-Cas system, obtaining a mutant strain that did not produce the mycotoxin and also increased red pigment production in 2–5% (Liu et al., 2020). From a technical point of view, the vast majority of the studies reported in the present review, were at a laboratory scale. Nevertheless, certain pigments are in a more advanced stage of scaling up. Some studies used SmF bioreactors, such as stirred tank and bubble column (Bühler et al., 2013; Rodrigues et al., 2014; Aruldass et al., 2015, 2016; Colet et al., 2017; Sharma and Ghoshal, 2020). These more advanced studies are interesting, since they show the high potentialities of scaling up microbial pigments targeting a future industrial application.
Industrial scale synthesis of microbial pigments is mainly limited by the high costs of production, the co-production of toxins in some of these processes, and the resistance of the final product to extreme processes conditions, such as high temperature and extreme pHs (conditions that are found in industrial processes) (Narsing Rao et al., 2017). Some microbial pigments are produced industrially, such as β-carotene (Blakeslea trispora and Dunaliella salina) and lycopene (Blakeslea trispora), Monascus-derived pigments in Natural RedTM (Penicillium oxalicum), riboflavin (Aspergillus gossypii), phycocianin (Spirulina platensis), and astaxanthin (Paracoccus carotinifasciens and Haematococcus pluvialis) (Dufosse et al., 2014). The estimation of the universal food colorant market is anticipated to achieve 3.75 billion USD by 2022 (Venil et al., 2020b). Besides, the carotenoids (astaxanthin, betacarotene, canthaxanthin, lutein, lycopene, zeaxanthin) market in 2019/2020 is supposed to reach $1.5–1.8 billion with annual growth rate of 3.9% (Barredo et al., 2017; Venil et al., 2020a). The global demand for natural pigments, including microbial pigments is high and tends to grow exponentially in the next years.
Other Biological Activities of Microbial Pigments Produced With Agro-Industrial Waste
Microbial pigments not only add color, but they also have interesting biological properties such as antioxidant, antimicrobial, anticancer, immunoregulation, anti-inflammatory, antiproliferative, and immunosuppressive activities (among others) (Kirti et al., 2014; Manimala and Murugesan, 2014; Kumar et al., 2015; Sen et al., 2019; Muthusamy et al., 2020). Because of these pharmacological properties, there are many more advantages of using natural pigments over synthetic colorants (Venil et al., 2013).
The most common biological activities were antibacterial and antioxidant in the reviewed studies (Table 2). The antimicrobial activity of pigments can be a strategy to improve the source microbe ability of competing with other microorganisms (De Carvalho et al., 2014). The violet crude extract produced by Chromobacterium violaceum using liquid pineapple waste contains the pigments violacein and deoxyviolacein. This extract has antibacterial activity against Staphylococcus aureus ATCC 29213 and methicillin-resistant S. aureus (MRSA) (Aruldass et al., 2015). The extracted β-carotene produced by Planococcus sp. TRC1 using paper mill sludge and sugarcane bagasse was active against Bacillus subtilis, Salmonella enterica, Escherichia coli, and Proteus vulgaris. In addition, this pigment had antioxidant activity (Majumdar et al., 2020). Red pigment produced by Talaromyces purpureogenus using Bengal gram husk was active against B. cereus, B. subtilis, S. aureus, Micrococcus luteus, E. coli, Klebsiella pneumoniae, Listeria monocytogenes, and Salmonella typhimurium. The extracted pigment presented antioxidant activity and was non-toxic to the crustacean Artemia franciscana (Pandit et al., 2019). Carotenoids produced by R. mucilaginosa using solid coffee waste exhibited antioxidant and antimicrobial activities against pathogenic bacteria: Salmonella cholerasus, E. coli, S. aureus, and L. monocytogenes, as well as against toxigenic fungi like Aspergillus flavus, A. parasiticus, A. carbonarius, and A. ochraceus (Moreira et al., 2018). β-carotene produced by Blakeslea trispora using fruit and vegetable waste, astaxanthin produced by Xanthophyllomyces dendrorhous in olive pomace, and melanin produced by Pseudomonas sp. using cabbage waste, also presented antioxidant activity (Tarangini and Mishra, 2013; Eryilmaz et al., 2016; Kaur et al., 2019).
Conclusions and Challenges
The use of agro-industrial residues as substrate for microbial pigment synthesis is a green, sustainable way of solving a pollution problem while cutting costs in the production of added value assets. Besides reducing the carbon footprint, microbial pigments also satisfy a growing demand for natural colorants. The majority of these pigments are also vegan, circumventing the need for animal-based colors (dairy and poultry-waste based microbe production would not be vegan, however).
Considering the advantages of using microorganisms as pigment factories, there is a growing need for biodiversity sampling, in search for new molecular entities (including greater color variety). Not only that, but genetic engineering and synthetic biology approaches are expected to provide strains with increased productivity and tolerance to cultivation conditions. Brazil is an interesting place to bioprospect new microorganisms, due to its great natural biodiversity and its agriculture-based economy, providing a large variety of agro-industrial waste to be studied.
Besides the use of a strain that produces high yields of pigments in an inexpensive medium, the current and future challenges in this area are related to the safety of the final products, due to the mycotoxin co-produced by some of the microorganisms. Technologies to produce microorganisms with these characteristic are available and in some cases, they are not expensive, such as the new genome- editing methodology CRISPR. Another important approach is the stability of the natural pigments that are in some cases a problem for the final product. More studies about different modes of production are needed in order to find new pigments with high stability to be applied in different industries. Lastly, the use of agro-industrial residues needs to be more implemented in industries not only to decrease the costs of the production but also to execute a circular economy, that is an eco-friendly approach, extremely necessary in the current days.
The road is still long and largely unpaved for microbe-based biopigments, and as their use expands, so will the development of associated technologies with proportional cost reduction. In summary, the microbial pigment production using agro-industrial residues is a rare win-win scenario, in which “One man's trash is another man's treasure.”
Statements
Author contributions
All authors listed have made a substantial, direct and intellectual contribution to the work, and approved it for publication.
Acknowledgments
We would like to thank the Brazilian agency Conselho de Aperfeiçoamento de Pessoal de Nível Superior (CAPES) by the postdoctoral fellowship (FCL).
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
References
1
Abdel-RaheamH. E. F.FaragM. K. A.RagabW. S. M.RamadanE.-S. A.MahmoudN. M. (2016). Potato manufacturing wastes–a novel substrate for the production of natural pigments from Monascus purpureus. Assiut J. Agric. Sci. 47, 13–23. 10.21608/ajas.2016.505
2
AhmadW. A.YusofN. Z.NordinN.ZakariaZ. A.RezaliM. F. (2012). Production and characterization of violacein by locally isolated Chromobacterium violaceum grown in agricultural wastes. Appl. Biochem. Biotechnol.167, 1220–1234. 10.1007/s12010-012-9553-7
3
AhmadiF.ZamiriM. J.KhorvashM.BanihashemiZ.BayatA. R. (2015). Chemical composition and protein enrichment of orange peels and sugar beet pulp after fermentation by two Trichoderma species. Iran. J. Vet. Res. 16:25.
4
ArikanE. B.CanliO.CaroY.DufosséL.DizgeN. (2020). Production of bio-based pigments from food processing industry by-products (apple, pomegranate, black carrot, red beet pulps) using Aspergillus carbonarius. J. Fungi6:240. 10.3390/jof6040240
5
AruldassC. A.AzizA.VenilC. K.KhasimA. R.AhmadW. A. (2016). Utilization of agro-industrial waste for the production of yellowish-orange pigment from Chryseobacterium artocarpi CECT 8497. Int. Biodeterior. Biodegradation113, 342–349. 10.1016/j.ibiod.2016.01.024
6
AruldassC. A.VenilC. K.AhmadW. A. others (2015). Violet pigment production from liquid pineapple waste by Chromobacterium violaceum UTM5 and evaluation of its bioactivity. RSC Adv.5, 51524–51536. 10.1039/C5RA05765E
7
ArunK. B.MadhavanA.SindhuR.BinodP.PandeyA.ReshmyR.et al. (2020). Remodeling agro-industrial and food wastes into value-added bioactives and biopolymers. Ind. Crops Prod.154:112621. 10.1016/j.indcrop.2020.112621
8
BabithaS. (2009). Microbial pigments, in Biotechnology for Agro-Industrial Residues Utilisation, eds nee' NigamP. S.PandeyA. (Dordrecht: Springer), 147–162. 10.1007/978-1-4020-9942-7_8
9
BarredoJ. L.García-EstradaC.KosalkovaK.BarreiroC. (2017). Biosynthesis of astaxanthin as a main carotenoid in the heterobasidiomycetous yeast Xanthophyllomyces dendrorhous. J. Fungi3:44. 10.3390/jof3030044
10
BhosaleP.GadreR. V. (2001). Optimization of carotenoid production from hyper-producing Rhodotorula glutinis mutant 32 by a factorial approach. Lett. Appl. Microbiol.33, 12–16. 10.1046/j.1472-765X.2001.00940.x
11
BlancP.LaussacJ. P.Le BarsJ.Le BarsP.LoretM. O.PareilleuxA.et al. (1995). Characterization of monascidin A from Monascus as citrinin. Int. J. Food Microbiol.27, 201–213. 10.1016/0168-1605(94)00167-5
12
BonadioM. de P.FreitasL. A. deMuttonM. J. R. (2018). Carotenoid production in sugarcane juice and synthetic media supplemented with nutrients by Rhodotorula rubra l02. Brazilian J. Microbiol.49, 872–878. 10.1016/j.bjm.2018.02.010
13
BühlerR. M. M.DutraA. C.VendruscoloF.MoritzD. E.NinowJ. L. (2013). Monascus pigment production in bioreactor using a co-product of biodiesel as substrate. Food Sci. Technol.33, 9–13. 10.1590/S0101-20612013000500002
14
CarvalhoJ. C.de OishiB. O.PandeyA.SoccolC. R. (2005). Biopigments from Monascus: strains selection, citrinin production and color stability. Brazilian Arch. Biol. Technol.48, 885–894. 10.1590/S1516-89132005000800004
15
ChantaroP.DevahastinS.ChiewchanN. (2008). Production of antioxidant high dietary fiber powder from carrot peels. LWT-Food Sci. Technol. 41, 1987–1994. 10.1016/j.lwt.2007.11.013
16
CharalampiaD.AntoniosK. E.ConstantinaN.HaralabosK. C. (2017). Current trends and emerging technologies in biopigment production processes: industrial food and health applications. Int. J. Hortic. Agric. Food Sci. 1, 33–46. Available online at: https://www.academia.edu/35858011/Current_trends_and_emerging_technologies_in_biopigment_production_processes_Industrial_food_and_health_applications
17
ColetR.UrnauL.BampiJ.ZeniJ.DiasB. B.RodriguesE.et al. (2017). Use of low-cost agro products as substrate in semi-continuous process to obtain carotenoids by Sporidiobolus salmonicolor. Biocatal. Agric. Biotechnol.11, 268–274. 10.1016/j.bcab.2017.07.015
18
Da Silva VilarD.CruzI. A.TorresN. H.FigueiredoR. T.de MeloL.de ResendeI. T. F.et al. (2019). Agro-industrial wastes: environmental toxicology, risks, and biological treatment approaches, in Environmental Contaminants: Ecological Implications and Management, ed Naresh BharagavaR. (Singapore: Springer), 1–23. 10.1007/978-981-13-7904-8_1
19
DaudN. F. S.SaidF. M.RamuM.YasinN. M. H. (2020). Evaluation of bio-red pigment extraction from Monascus purpureus FTC5357. MSandE736:22084. 10.1088/1757-899X/736/2/022084
20
De CarvalhoJ. C.CardosoL. C.GhiggiV.WoiciechowskiA. L.de Souza VandenbergheL. P.SoccolC. R. (2014). Microbial pigments, in Biotransformation of Waste Biomass into High Value Biochemicals, eds BrarS. K.DhillonG. S.FernandesM. (New York, NY: Springer), 73–97. 10.1007/978-1-4614-8005-1_4
21
De OliveiraC. F. D.da CostaJ. P. V.VendruscoloF. (2019). Maltose syrup residue as the substrate for Monascus pigments production. Biocatal. Agric. Biotechnol.18:101101. 10.1016/j.bcab.2019.101101
22
DufosséL. (2006). Microbial production of food grade pigments. Food Technol. Biotechnol.44, 313–321. 10.1016/b978-0-12-809633-8.13091-2
23
DufosseL.FouillaudM.CaroY.MapariS. A. S.SutthiwongN. (2014). Filamentous fungi are large-scale producers of pigments and colorants for the food industry. Curr. Opin. Biotechnol.26, 56–61. 10.1016/j.copbio.2013.09.007
24
EmbabyA. M.HusseinM. N.HusseinA. (2018). Monascus orange and red pigments production by Monascus purpureus ATCC16436 through co-solid state fermentation of corn cob and glycerol: an eco-friendly environmental low cost approach. PLoS ONE13:e0207755. 10.1371/journal.pone.0207755
25
EryilmazE. B.DursunD.DalgiçA. C. (2016). Multiple optimization and statistical evaluation of astaxanthin production utilizing olive pomace. Biocatal. Agric. Biotechnol.7, 224–227. 10.1016/j.bcab.2016.06.012
26
FreitasC.ParreiraT. M.RoseiroJ.ReisA.da SilvaT. L. (2014). Selecting low-cost carbon sources for carotenoid and lipid production by the pink yeast Rhodosporidium toruloides NCYC 921 using flow cytometry. Bioresour. Technol.158, 355–359. 10.1016/j.biortech.2014.02.071
27
GalalG. F.AhmedR. F. (2020). Using of some agro-industrial wastes for improving carotenoids production from yeast Rhodotorula glutinis 32 and bacteria Erwinia uredovora DSMZ 30080. Microbiol. Res. J. Int.30, 15–25. 10.9734/mrji/2020/v30i130186
28
GharibzahediS. M. T.MousaviS. M.HamediM.KhodaiyanF.RazaviS. H. (2012). Development of an optimal formulation for oxidative stability of walnut-beverage emulsions based on gum arabic and xanthan gum using response surface methodology. Carbohydr. Polym.87, 1611–1619. 10.1016/j.carbpol.2011.09.067
29
GoswamiG.ChaudhuriS.DuttaD. (2015). Studies on the stability of a carotenoid produced by a novel isolate using low cost agro-industrial residue and its application in different model systems. LWT-Food Sci. Technol.63, 780–790. 10.1016/j.lwt.2015.03.017
30
GrantW. D. (2004). Life at low water activity. Philos. Trans. R. Soc. London359, 1249–1267. 10.1098/rstb.2004.1502
31
HaghdanS.RenneckarS.SmithG.D. (2016). Sources of lignin, in Lignin in Polymer Composites, eds FarukO.SainM. (Vancouver, BC: Elsevier), 1–11.
32
HaqueM. A.KachrimanidouV.KoutinasA.LinC. S. K. (2016). Valorization of bakery waste for biocolorant and enzyme production by Monascus purpureus. J. Biotechnol.231, 55–64. 10.1016/j.jbiotec.2016.05.003
33
Heredia-GuerreroJ. A.HerediaA.DominguezE.CingolaniR.BayerI. S.AthanassiouA.et al. (2017). Cutin from agro-waste as a raw material for the production of bioplastics. J. Exp. Bot.68, 5401–5410. 10.1093/jxb/erx272
34
Hernández-VelascoP.Morales-AtilanoI.Rodríguez-DelgadoM.Rodríguez-DelgadoJ. M.Luna-MorenoD.Ávalos-AlanísF. G.et al. (2020). Photoelectric evaluation of dye-sensitized solar cells based on prodigiosin pigment derived from Serratia marcescens 11E. Dye. Pigment.177:108278. 10.1016/j.dyepig.2020.108278
35
HilaresR. T.de SouzaR. A.MarcelinoP. F.da SilvaS. S.DragoneG.MussattoS. I.et al. (2018). Sugarcane bagasse hydrolysate as a potential feedstock for red pigment production by Monascus ruber. Food Chem.245, 786–791. 10.1016/j.foodchem.2017.11.111
36
HölkerU.LenzJ. (2005). Solid-state fermentation - are there any biotechnological advantages?Curr. Opin. Microbiol.8, 301–306. 10.1016/j.mib.2005.04.006
37
IfesanB. O. T. (2017). Chemical composition of onion peel (Allium cepa) and its ability to serve as a preservative in cooked beef. Int. J. Sci. Res. Methodol. 7, 1–10.
38
IkubarM. R. M.MananM. A.SallehM. M.YahyaA. (2018). Solid-state fermentation of oil palm frond petiole for lignin peroxidase and xylanase-rich cocktail production. 3 Biotech8:259. 10.1007/s13205-018-1268-1
39
JoshiV. K.AttriD. (2006). Solid state fermentation of apple pomace for the production of value added products. Nat. Prod. Rad.5, 289–296.
40
KantifedakiA.KachrimanidouV.MallouchosA.PapanikolaouS.KoutinasA. A. (2018). Orange processing waste valorisation for the production of bio-based pigments using the fungal strains Monascus purpureus and Penicillium purpurogenum. J. Clean. Prod.185, 882–890. 10.1016/j.jclepro.2018.03.032
41
KaurP.GhoshalG.JainA. (2019). Bio-utilization of fruits and vegetables waste to produce β-carotene in solid-state fermentation: characterization and antioxidant activity. Process Biochem.76, 155–164. 10.1016/j.procbio.2018.10.007
42
KirtiK.AmitaS.PritiS.Mukesh KumarA.JyotiS. (2014). Colorful world of microbes: carotenoids and their applications. Adv. Biol.2014:837891. 10.1155/2014/837891
43
KorishM.El-SanatS. (2007). Utilization of Potato-Chips Waste for Production of High Economic Value Products: I-Production of Baker's Yeast. Alexandria.
44
KumarA.VishwakarmaH. S.SinghJ.DwivediS.KumarM. (2015). Microbial pigments: production and their applications in various industries. Int. J. Pharm. Chem. Biol. Sci.5, 203–212.
45
KumarP. S.RamakrishnanK.KiruphaS. D.SivanesanS. (2010). Thermodynamic and kinetic studies of cadmium adsorption from aqueous solution onto rice husk. Brazilian J. Chem. Eng. 27, 347–355. 10.1590/S0104-66322010000200013
46
LagashettiA. C.DufosséL.SinghS. K.SinghP. N. (2019). Fungal pigments and their prospects in different industries. Microorganisms7:604. 10.3390/microorganisms7120604
47
LiggettR. W.KofflerH. (1948). Corn steep liquor in microbiology. Bacteriol. Rev. 12:297. 10.1128/BR.12.4.297-311.1948
48
LiuW.AnC.ShuX.MengX.YaoY.ZhangJ.et al. (2020). A dual-plasmid CRISPR/Cas system for mycotoxin elimination in polykaryotic industrial fungi. ACS Synth. Biol. 9, 2087–2095. 10.1021/acssynbio.0c00178
49
LopesF. C.TichotaD. M.PereiraJ. Q.SegalinJ.De Oliveira RiosA.BrandelliA. (2013). Pigment production by filamentous fungi on agro-industrial byproducts: an eco-friendly alternative. Appl. Biochem. Biotechnol.171, 616–625. 10.1007/s12010-013-0392-y
50
MachadoW. R. C.de Medeiros BurkertJ. F. (2015). Optimization of agroindustrial medium for the production of carotenoids by wild yeast Sporidiobolus pararoseus. African J. Microbiol. Res.9, 209–219. 10.5897/AJMR2014.7096
51
MadeiraJ. VJrContesiniF. J.CalzadoF.RubioM. V.ZubietaM. P.LopesD. B.et al. (2017). Agro-industrial residues and microbial enzymes: an overview on the eco-friendly bioconversion into high value-added products, in Biotechnology of Microbial Enzymes, ed BrahmachariG. (London: Elsevier), 475–511. 10.1016/B978-0-12-803725-6.00018-2
52
MajumdarS.MandalT.Dasgupta MandalD. (2020). Production kinetics of β-carotene from Planococcus sp. TRC1 with concomitant bioconversion of industrial solid waste into crystalline cellulose rich biomass. Process Biochem.92, 202–213. 10.1016/j.procbio.2020.01.012
53
MalikK.TokkasJ.GoyalS. (2012). Microbial pigments: a review. Int. J. Microb. Res. Technol. 1, 361–365.
54
MalpartidaF.HopwoodD. A. (1984). Molecular cloning of the whole biosynthetic pathway of a Streptomyces antibiotic and its expression in a heterologous host. Nature309, 462–464. 10.1038/309462a0
55
ManimalaM. R. A.MurugesanR. (2014). In vitro antioxidant and antimicrobial activity of carotenoid pigment extracted from Sporobolomyces sp. isolated from natural source. J. Appl. Nat. Sci.6, 649–653. 10.31018/jans.v6i2.511
56
ManimalaM. R. A.MurugesanR. (2017). Studies on carotenoid pigment production by yeast Rhodotorula mucilaginosa using cheap materials of agro-industrial origin. Pharma Innov.6:80.
57
MartínezL. M.MartinezA.GossetG. (2019). Production of melanins with recombinant microorganisms. Front. Bioeng. Biotechnol. 7:285. 10.3389/fbioe.2019.00285
58
MoreiraM. D.MeloM. M.CoimbraJ. M.dos ReisK. C.SchwanR. F.SilvaC. F. (2018). Solid coffee waste as alternative to produce carotenoids with antioxidant and antimicrobial activities. Waste Manag.82, 93–99. 10.1016/j.wasman.2018.10.017
59
MorrC. V. (1989). Whey proteins: manufacture. Dev. Dairy Chem. 4, 245–284.
60
MurphyN. F. (1984). Fermentation of high test molasses. J. Agric. Univ. Puerto Rico68, 33–44. 10.46429/jaupr.v68i1.7256
61
MuthusamyS.UdhayabaskarS.UdayakumarG. P.KirthikaaG. B.SivarajasekarN. (2020). Properties and applications of natural pigments produced from different biological sources-a concise review, in Sustainable Development in Energy and Environment, eds SivasubramanianV.PugazhendhiA.MoorthyI. (Singapore: Springer). 10.1007/978-981-15-4638-9_9
62
Narsing RaoM. P.XiaoM.LiW.-J. (2017). Fungal and bacterial pigments: secondary metabolites with wide applications. Front. Microbiol.8:1113. 10.3389/fmicb.2017.01113
63
NayakA.BhushanB. (2019). An overview of the recent trends on the waste valorization techniques for food wastes. J. Environ. Manage.233, 352–370. 10.1016/j.jenvman.2018.12.041
64
nee'NigamP. S.GuptaN.AnthwalA. (2009). Pre-treatment of agro-industrial residues, in Biotechnology for Agro-Industrial Residues Utilisation, eds nee' NigamP. S.PandeyA. (Dordrecht: Springer), 13–33. 10.1007/978-1-4020-9942-7_2
65
NigamP. S.LukeJ. S. (2016). Food additives: production of microbial pigments and their antioxidant properties. Curr. Opin. Food Sci.7, 93–100. 10.1016/j.cofs.2016.02.004
66
NimnoiP.LumyongS. (2011). Improving solid-state fermentation of Monascus purpureus on agricultural products for pigment production. Food Bioprocess Technol.4, 1384–1390. 10.1007/s11947-009-0233-8
67
OrozcoS. F. B.KilikianB. V. (2008). Effect of pH on citrinin and red pigments production by Monascus purpureus CCT3802. World J. Microbiol. Biotechnol.24, 263–268. 10.1007/s11274-007-9465-9
68
PanditS. G.RameshK. P. M.PuttananjaiahM. H.DhaleM. A. (2019). Cicer arietinum (Bengal gram) husk as alternative for Talaromyces purpureogenus CFRM02 pigment production: bioactivities and identification. LWT116:108499. 10.1016/j.lwt.2019.108499
69
PanesarR.KaurS.PanesarP. S. (2015). Production of microbial pigments utilizing agro-industrial waste: a review. Curr. Opin. Food Sci.1, 70–76. 10.1016/j.cofs.2014.12.002
70
PfeiferB. A.KhoslaC. (2001). Biosynthesis of polyketides in heterologous hosts. Microbiol. Mol. Biol. Rev.65, 106–118. 10.1128/MMBR.65.1.106-118.2001
71
RachaputiR. C. N.WrightG. (2015). Peanuts: overview, in Encyclopedia of Food Grains, eds WrigleyC.CorkeH.SeetharamanK.FaubionJ. (Oxford: Elsevier), 334–340. 10.1016/B978-0-08-100596-5.00038-X
72
RoadjanakamolsonM.SuntornsukW. (2010). Production of β-carotene-enriched rice bran using solid-state fermentation of Rhodotorula glutinis. J. Microbiol. Biotechnol. 20, 525–531. 10.4014/jmb.0809.0550
73
RodriguesD. B.FloresÉ. M. M.BarinJ. S.MercadanteA. Z.Jacob-LopesE.ZepkaL. Q. (2014). Production of carotenoids from microalgae cultivated using agroindustrial wastes. Food Res. Int.65, 144–148. 10.1016/j.foodres.2014.06.037
74
SadhP. K.DuhanS.DuhanJ. S. (2018). Agro-industrial wastes and their utilization using solid state fermentation: a review. Bioresour. Bioprocess. 5:1. 10.1186/s40643-017-0187-z
75
SaidF. M.HamidN. O. R. F. (2019). Natural red colorant via solid-state fermentation of oil palm frond by Monascus purpureus FTC 5356: effect of operating factors. J. Eng. Sci. Technol.14, 2576–2589.
76
SánchezC. (2009). Lignocellulosic residues: biodegradation and bioconversion by fungi. Biotechnol. Adv.27, 185–194. 10.1016/j.biotechadv.2008.11.001
77
Sánchez-MuñozS.Mariano-SilvaG.LeiteM. O.MuraF. B.VermaM. L.da SilvaS. S.et al. (2020). Production of fungal and bacterial pigments and their applications, in Biotechnological Production of Bioactive Compounds, eds VermaM. L.ChandelA. K. (Amsterdam: Elsevier), 327–361. 10.1016/B978-0-444-64323-0.00011-4
78
Santos RibeiroJ. E.da Silva Sant'AnaA. M.MartiniM.SorceC.AndreucciA.de MeloD. J.et al. (2019). Rhodotorula glutinis cultivation on cassava wastewater for carotenoids and fatty acids generation. Biocat. Agric. Biotechnol. 22, 1–8. 10.1016/j.bcab.2019.101419
79
SchneiderT.Graeff-HönningerS.FrenchW. T.HernandezR.MerktN.ClaupeinW.et al. (2013). Lipid and carotenoid production by oleaginous red yeast Rhodotorula glutinis cultivated on brewery effluents. Energy61, 34–43. 10.1016/j.energy.2012.12.026
80
SenT.BarrowC. J.DeshmukhS. K. (2019). Microbial pigments in the food industry—Challenges and the way forward. Front. Nutr.6:7. 10.3389/fnut.2019.00007
81
SharmaR.GhoshalG. (2020). Optimization of carotenoids production by Rhodotorula mucilaginosa (MTCC-1403) using agro-industrial waste in bioreactor: a statistical approach. Biotechnol. Reports25:e00407. 10.1016/j.btre.2019.e00407
82
ShiK.SongD.ChenG.PistolozziM.WuZ.QuanL. (2015). Controlling composition and color characteristics of Monascus pigments by pH and nitrogen sources in submerged fermentation. J. Biosci. Bioeng.120, 145–154. 10.1016/j.jbiosc.2015.01.001
83
SopandiT.WardahA.SurtiningsihT.SuwandiA.SmithJ. J. (2013). Utilization and optimization of a waste stream cellulose culture medium for pigment production by Penicillium spp. J. Appl. Microbiol.114, 733–745. 10.1111/jam.12110
84
SubramaniyamR.VimalaR. (2012). Solid state and submerged fermentation for the production of bioactive substances: a comparative study. Int. J. Sci. Nat. 3, 480–486.
85
TaranginiK.MishraS. (2013). Production, characterization and analysis of melanin from isolated marine Pseudomonas sp. using vegetable waste. Res. J. Eng. Sci.2, 40–46.
86
TaskinM.SismanT.ErdalS.KurbanogluE. B. (2011). Use of waste chicken feathers as peptone for production of carotenoids in submerged culture of Rhodotorula glutinis MT-5. Eur. Food Res. Technol.233:657. 10.1007/s00217-011-1561-2
87
ValdugaE.RibeiroA. H. R.CenceK.ColetR.TiggemannL.ZeniJ.et al. (2014). Carotenoids production from a newly isolated Sporidiobolus pararoseus strain using agroindustrial substrates. Biocatal. Agric. Biotechnol.3, 207–213. 10.1016/j.bcab.2013.10.001
88
VandammeE. J. (2009). Agro-industrial residue utilization for industrial biotechnology products, in Biotechnology for Agro-Industrial Residues Utilisation eds nee' NigamP. S.PandeyA. (Dordrecht: Springer), 3–11. 10.1007/978-1-4020-9942-7_1
89
VelmuruganP.HurH.BalachandarV.Kamala-KannanS.LeeK.-J.LeeS.-M.et al. (2011). Monascus pigment production by solid-state fermentation with corn cob substrate. J. Biosci. Bioeng.112, 590–594. 10.1016/j.jbiosc.2011.08.009
90
VenilC. K.DeviP. R.AhmadW. A. (2020b). Agro-industrial waste as substrates for the production of bacterial pigment, in Valorisation of Agro-industrial Residues–Volume I: Biological Approaches, eds Akmar ZakariaZ.BoopathyR.DibJ. R. (Switzerland: Springer), 149–162. 10.1007/978-3-030-39137-9_7
91
VenilC. K.DufosséL.Renuka DeviP. (2020a). Bacterial Pigments: sustainable compounds with market potential for pharma and food industry. Front. Sustain. Food Syst. 4:100. 10.3389/fsufs.2020.00100
92
VenilC. K.ZakariaZ. A.AhmadW. A. (2013). Bacterial pigments and their applications. Process Biochem.48, 1065–1079. 10.1016/j.procbio.2013.06.006
93
Villegas-MéndezM. Á.Aguilar-MachadoD. E.BalagurusamyN.MontañezJ.Morales-OyervidesL. (2019). Agro-industrial wastes for the synthesis of carotenoids by Xanthophyllomyces dendrorhous: mesquite pods-based medium design and optimization. Biochem. Eng. J.150:107260. 10.1016/j.bej.2019.107260
94
VishwanathaK. S.RaoA. G. A.SinghS. A. (2010). Acid protease production by solid-state fermentation using Aspergillus oryzae MTCC 5341: optimization of process parameters. J. Ind. Microbiol. Biotechnol.37, 129–138. 10.1007/s10295-009-0654-4
95
WangL.YangS.-T. (2007). Solid state fermentation and its applications, in Bioprocessing for Value-Added Products from Renewable Resources, ed YangS.-T. (Oxford: Elsevier), 465–489. 10.1016/B978-044452114-9/50019-0
96
WedyanM.HaniehB. A.Al HarahshehA. (2017). Chemical characterization of olive pomace in the northern region of Jordan. Bulgar. J. Agr. Sci. 23, 866–872. 10.20944/preprints201703.0150.v1
97
XiaY.WangG.LinX.SongX.AiL. (2016). Solid-state fermentation with Serratia marcescens Xd-1 enhanced production of prodigiosin by using bagasse as an inertia matrix. Ann. Microbiol.66, 1239–1247. 10.1007/s13213-016-1208-4
98
ZihareL.SpalvinsK.BlumbergaD. (2018). Multi criteria analysis for products derived from agro-industrial by-products. Energy Procedia147, 452–457. 10.1016/j.egypro.2018.07.045
Summary
Keywords
microbial pigments, biopigments, agro-industrial residues, biological activities, antimicrobial activity, antioxidant activity
Citation
Lopes FC and Ligabue-Braun R (2021) Agro-Industrial Residues: Eco-Friendly and Inexpensive Substrates for Microbial Pigments Production. Front. Sustain. Food Syst. 5:589414. doi: 10.3389/fsufs.2021.589414
Received
30 July 2020
Accepted
17 February 2021
Published
18 March 2021
Volume
5 - 2021
Edited by
Lourdes Morales-Oyervides, Universidad Autónoma de Coahuila, Mexico
Reviewed by
Samuel Bernardo, Autonomous University of Chihuahua, Mexico; Mireille Fouillaud, Université de la Réunion, France
Updates
Copyright
© 2021 Lopes and Ligabue-Braun.
This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Fernanda Cortez Lopes fernandacortezlopes@gmail.com; fernanda.cortez@ufrgs.br
This article was submitted to Sustainable Food Processing, a section of the journal Frontiers in Sustainable Food Systems
Disclaimer
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
