Using Mg Isotopes to Estimate Natural Calcite Compositions and Precipitation Rates During the 2010 Eyjafjallajökull Eruption

Abstract

Chemical weathering of silicate rocks is a key control on the long-term climate, via drawdown of atmospheric CO₂. Magnesium isotopes are increasingly being used to trace weathering, but are often complicated by several coincident fractionating processes. Here we examine Mg isotope ratios of waters stemming from beneath lava flows from the 2010 Eyjafjallajökull eruption. Travertine calcite was observed directly precipitating from these high-TDS (total dissolved solids) waters, and were also sampled. This system therefore provides the opportunity to study natural Mg isotope fractionation by calcite. Riverine δ²⁶Mg increase from −2.37 to +0.43% with flow distance, as isotopically light travertine precipitates (δ²⁶Mg = −3.38 to −3.94%). The solution Mg isotope ratios also co-vary with pH, calcite saturation indices and Sr/Ca ratios, strongly indicating that they are dominantly controlled by carbonate precipitation. Using experimental isotopic fractionation factors and the measured δ²⁶Mg values, we can predict the compositions of the precipitated travertines that are within uncertainty of the directly measured travertines. Hence, in some systems, Mg isotopes can be used to quantify carbonate precipitation.

Introduction

The chemical weathering of silicate rocks drives a key, and likely dominant, CO₂ removal process in the long-term carbon cycle (Walker et al., 1981; Berner et al., 1983; Berner, 2003). The chemical weathering of basaltic rocks, in particular, is thought to have a significantly greater influence on global atmospheric CO₂ concentrations than would be expected from their global extent, with estimates suggesting they are about an order of magnitude more efficient at CO₂ drawdown than a comparable area of felsic continental crust (Meybeck, 1987; Gaillardet et al., 1999; Dessert et al., 2003; Wolff-Boenisch et al., 2006). As such, studying basaltic weathering reactions provides the opportunity to understand globally significant processes.

Therefore, tracers that inform on weathering fluxes, rates or processes have been sought. Recently, attention has focussed on magnesium isotopes (Tipper et al., 2006b; Pogge von Strandmann et al., 2008; Foster et al., 2010; Higgins and Schrag, 2010; Teng et al., 2010; Tipper et al., 2012a; Opfergelt et al., 2014; Pogge von Strandmann et al., 2014), because Mg is one of the elements directly involved in CO₂ sequestration, via weathering of Mg-silicates which consumes protons and creates alkalinity and the precipitation of dolomite or high-Mg calcite in the oceans. In principle, Mg isotope behavior in the oceans is relatively simple, with continental weathering serving as the dominant Mg source, and hydrothermal removal, dolomite formation, and low-temperature clay formation all acting as sinks (Holland, 2005; Tipper et al., 2006b; Pogge von Strandmann et al., 2014). However, the study of global rivers has revealed a large range in dissolved Mg isotope ratios (Tipper et al., 2006a; Brenot et al., 2008; Pogge von Strandmann et al., 2008; Tipper et al., 2008, 2010; Wimpenny et al., 2011; Huang et al., 2012; Pogge von Strandmann et al., 2012; Tipper et al., 2012a,b; Liu et al., 2014), and it has become clear that, like all major elements, Mg and its isotopes are affected by a wide range of processes. The balance of carbonate to silicate in a catchment plays a significant role, with carbonates being isotopically lighter than silicates (Tipper et al., 2008; Pogge von Strandmann et al., 2014). The amount of Mg isotope fractionation during carbonate precipitation also appears to be dependent upon mineralogy (Immenhauser et al., 2010; Wombacher et al., 2011; Geske et al., 2012; Saulnier et al., 2012; Geske et al., 2015), organic vs. inorganic precipitation (Chang et al., 2004; Pogge von Strandmann, 2008; Saenger and Wang, 2014), precipitation rate (Mavromatis et al., 2013), fractionation mechanism (Buhl et al., 2007), and potentially speciation (Schott et al., 2016), resulting in a wide range in isotope ratios. In addition, Mg isotopic fractionation occurs due to the silicate weathering process itself, owing to both preferential incorporation and adsorption of Mg isotopes by secondary minerals (Pogge von Strandmann et al., 2008; Opfergelt et al., 2010, 2011; Huang et al., 2012; Pogge von Strandmann et al., 2012; Tipper et al., 2012a; Liu et al., 2014). Finally, the uptake of Mg by plants causes variable isotope fractionation (Black et al., 2006; Bolou-Bi et al., 2010, 2012).

To a great extent, the difficulty of interpreting the Mg system is enhanced because none of the above processes occur in isolation. In this study, however, there is that possibility. In 2010, the eruption of the Eyjafjallajökull volcano created a spring outlet from under the new lava flow. The water in this stream was shown to have extremely high total dissolved solids (Olsson et al., 2014), and travertine (calcite) was observed precipitating from these waters at several points downstream. It is therefore possible to examine Mg isotope fractionation occurring during precipitation of a single inorganic carbonate phase (travertine calcite). This precipitation occurs at rates far faster than other secondary mineral (e.g., clay) formation, consequently it is likely that calcite is the only Mg-bearing secondary phase forming. Here, we measure the Mg isotope composition of these waters and travertines, to determine isotope behavior during rapid natural calcite precipitation.

Samples and Settings

The 2010 Eyjafjallajökull flank eruption occurred after 18 years of seismic activity, and began from the Fimmvörðuháls ridge on the 20th March (Figure 1), and lasted until the 12th of April. Following this, an explosive summit eruption started on the 14th of April and finally ended in May 2012. It was this explosive eruption that gained international fame by shutting down European airspace from the 15th to 20th April 2010.

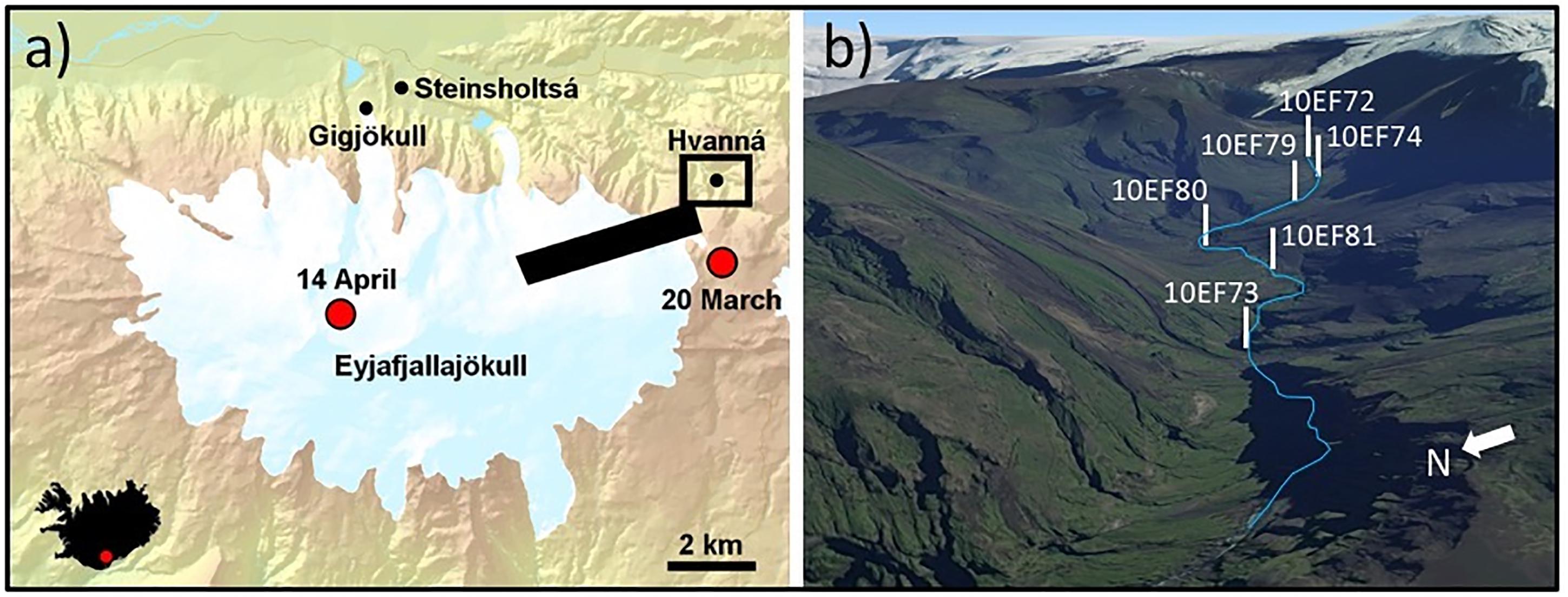

FIGURE 1

Olsson et al., 2014). (b) Detailed 3D map of sample area (background image from Google Maps).

The samples were taken from a spring emerging from under the alkali basalt lava of the 2010 Eyjafjallajökull flank eruption within 3 months of the eruption (October 2010). The water from the spring was then further sampled downstream (Olsson et al., 2014). While no travertine was observed at the point of emergence from under the lava, significant travertine precipitated downstream, which was also sampled.

Materials and Methods

The Eyjafjallajökull samples were collected as detailed in Olsson et al. (2014). Briefly, field measurements of temperature, conductivity and pH were made. Alkalinity titrations were determined within 24 h of sampling. Samples were filtered through 0.2 μm cellulose acetate filters, and stored in pre-cleaned vials. Elemental concentrations were determined by ICP-OES and ion chromatography.

Mg Isotope Ratios

Samples were purified using dilute HNO₃ as an eluent, using the AG50W X-12 resin, and analyzed on a Thermo Finnegan Neptune MC-ICP-MS at the Bristol Isotope Group (BIG) (Pogge von Strandmann et al., 2011, 2012), using a sample-standard bracketing method relative to the DSM-3 standard (Galy et al., 2003). Each sample was measured four separate times during an analytical procedure, repeat measurements being separated by several hours, but during the same analysis session. Each individual measurement consisted of 20 ratios (84 s total integration time), giving a total integration time of 336 s/sample for the total single analysis. Reported uncertainties (Table 1) are the 2sd of these four repeats. Inter-laboratory comparisons using this method of seawater [−0.82 ± 0.06%. 2sd, n = 26 (Foster et al., 2010)], silicate rock standards (Pogge von Strandmann et al., 2011; Teng et al., 2015), and low temperature carbonates, soils and river waters (Shalev et al., 2018) have been published. The long-term external analytical reproducibility for δ²⁶Mg, based on these standards, is ±0.07%. Standards analyzed during the analytical sessions for this study’s samples were seawater (δ²⁶Mg = −0.83 ± 0.04%, 2sd, n = 2) and BCS-CRM 513a limestone (δ²⁶Mg = −4.47 ± 0.03%, 2sd, n = 1), which are in agreement with published values (Foster et al., 2010; Shalev et al., 2018).

Results

Travertines

XRD analyses by Olsson et al. (2014) showed that calcite was the only crystalline phase in these travertine samples. The concentrations of several elements of the travertines analyzed in this study, including Ca, Mg, Si, and Al increase with flow distance. This also causes the Mg/Ca ratios to increase with flow distance from 8.7 to 11.8 mmol/mol (Olsson et al., 2014), which is a similar range to other inorganic calcites (Mucci, 1987; Busenberg and Plummer, 1989). Overall, these travertines have identical partition coefficients to experiments conducted on pure systems for most elements (Olsson et al., 2014).

The δ²⁶Mg values of the analyzed travertine are low, ranging from −3.94 to −3.38% (Table 1). These values are within the range of previously measured calcites (Chang et al., 2004; Pogge von Strandmann, 2008; Immenhauser et al., 2010; Wombacher et al., 2011; Mavromatis et al., 2013; Pogge von Strandmann et al., 2014). There is no clear trend with distance, or with elemental ratios such as Mg/Ca.

Riverine Samples

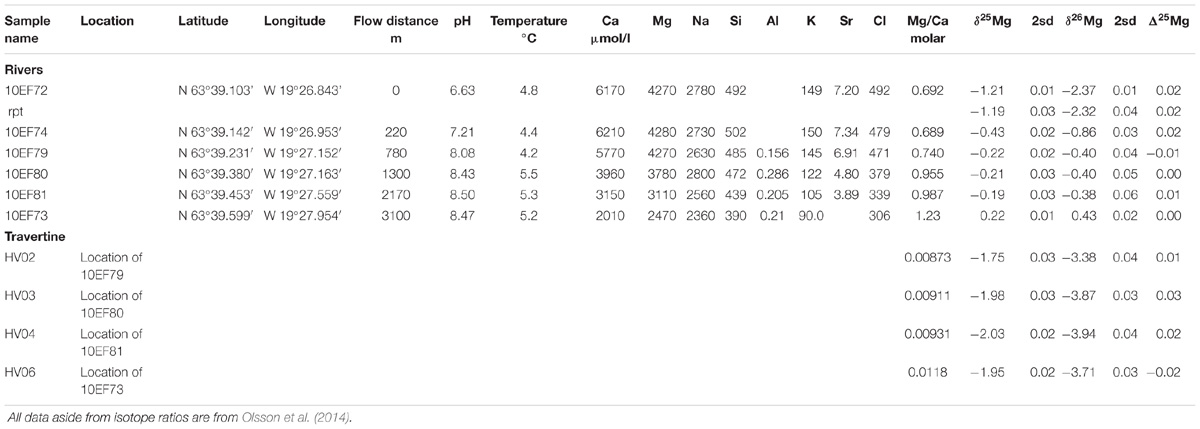

All sample analyses, locations and elemental data are given in Table 1, and also in Olsson et al. (2014). The pH of the waters exits the lava flow at 6.6, but increases to 8.4 within ∼1300 m, after which it remains approximately stable (Figure 2A). Most elemental concentrations in solution (Ca, Mg, Na, Si, K) also decrease with distance (Table 1). The individual relationships between the elements leads to Mg/Ca ratios increasing with distance, from 0.69 to 1.23 mol/mol (Figure 3A), i.e., two orders of magnitude higher than the corresponding travertines, which is expected from calcite partition coefficients (Mucci, 1987; Busenberg and Plummer, 1989; Olsson et al., 2014). Ca/Sr ratios decrease (from 857 to 810 mmol/mol), providing a strong indication that carbonates are precipitating along the flow-line (Figure 3B).

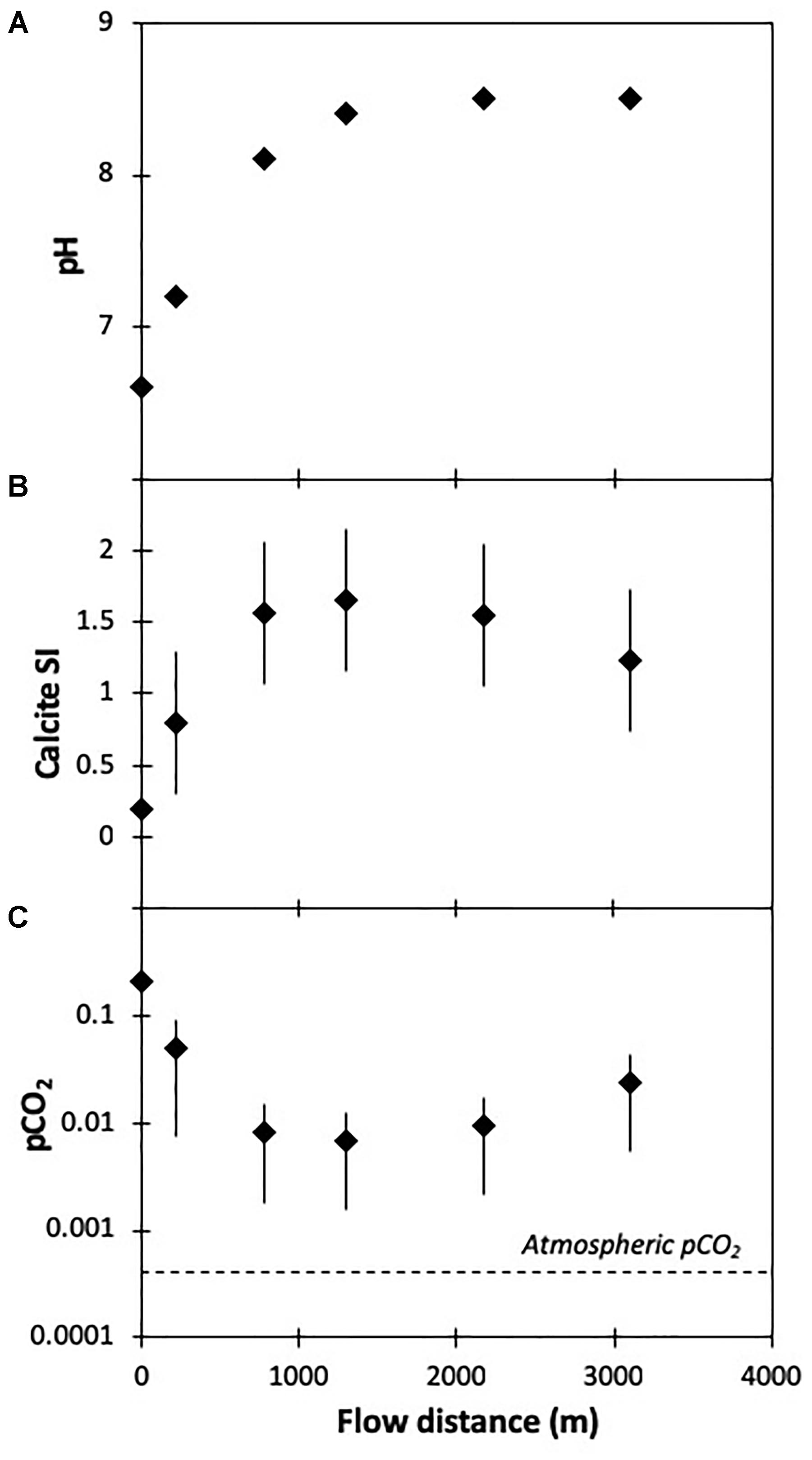

FIGURE 2

FIGURE 3

The dissolved δ²⁶Mg value at the spring outlet from the lava field is −2.37%, which is considerably lower than rivers or springs reported from other basaltic settings, although still over 1% higher than the travertines. This sample underwent repeated analysis through full chemistry, with both results within analytical uncertainty (Table 1). Springs from active lava fields have not been sampled before, but basaltic rivers have not been reported with δ²⁶Mg < −1% (Pogge von Strandmann et al., 2008; Huang et al., 2012; Pogge von Strandmann et al., 2012; Liu et al., 2014). No travertine was observed at this location, possibly because of limited degassing at that time, right after the water was exposed to the atmosphere, which resulted in relatively low supersaturation, precluding nucleation and growth of the calcite. Downstream from this sample, the δ²⁶Mg shifts to higher values with flow distance to +0.43% (Figure 4). Travertine, calcite, was observed precipitating at locations below the outlet site after prolonged degassing as reflected by the in situ partial pressure of the carbon dioxide (pCO₂, Figure 2C), as is also consistent with the high saturation state of the water with respect to calcite and decreasing Ca/Sr ratios with flow distance (Figure 2B).

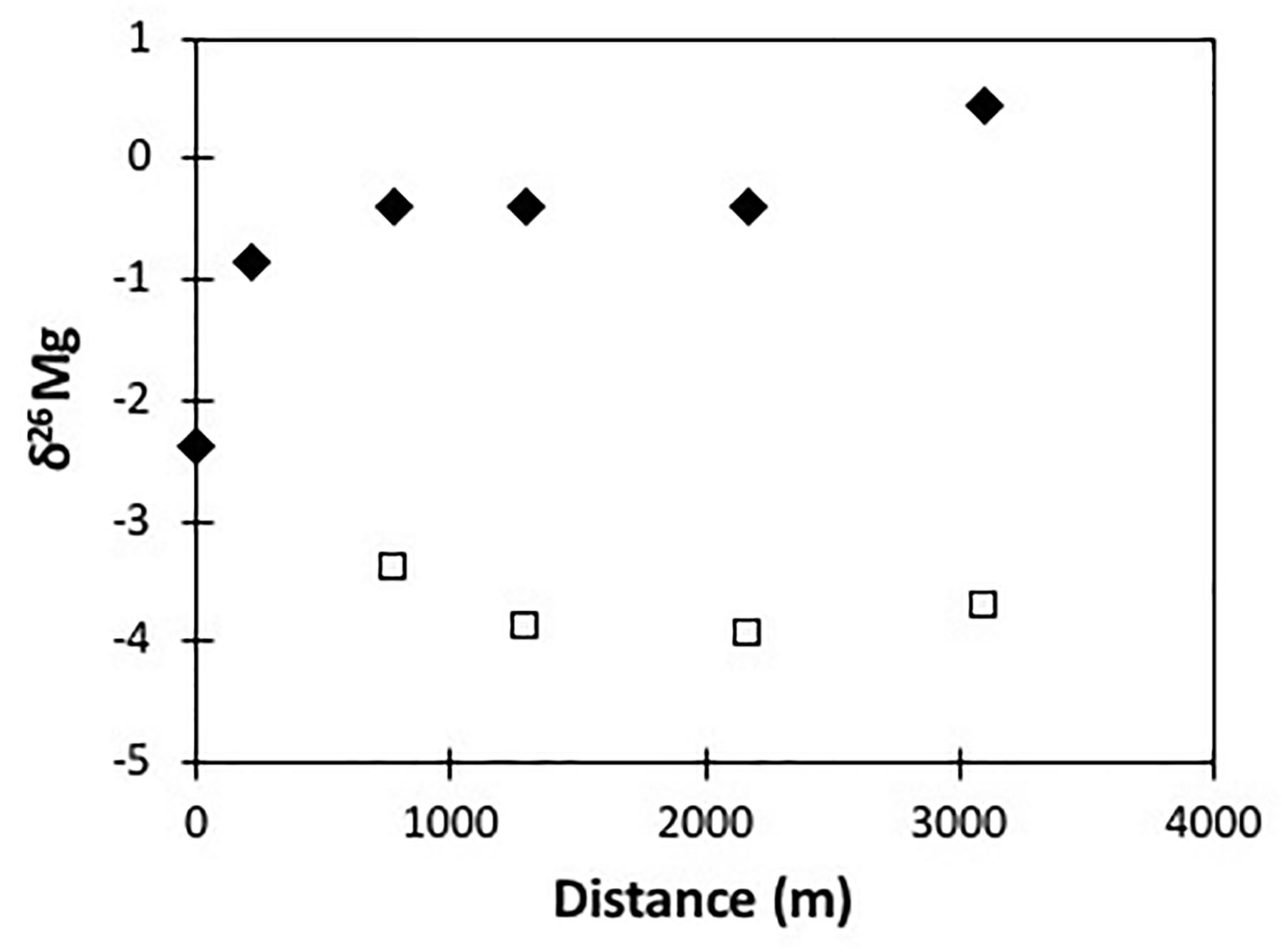

FIGURE 4

Calcite saturation states, calculated using the PHREEQC program (Parkhurst and Appelo, 1999) show the calcite SI rapidly increasing from 0.19 (i.e., within uncertainty of saturation) at the outlet, to ∼1.7 (i.e., heavily super saturated) by ∼1300 m of flow (Figure 2B) (Olsson et al., 2014). The uncertainty on the saturation index must take the uncertainty on the analyses into account, and then propagate them through the PHREEQC calculations. Using our Hanna pH meter’s certified accuracy (±0.1 pH units), analytical uncertainty on Ca concentrations, and a conservative ±10% on alkalinity titrations, this propagates to ±0.4–0.5 SI units. Uncertainty on temperature measurements is too small to cause additional significant error.

Discussion

Elemental Ratios

These samples provide the opportunity to examine Mg isotopes in complementary rivers and rocks. However, for the travertines and waters to be truly complementary, it must be determined that the sampled travertine was actually precipitating from these post-eruptive waters. This is confirmed because no travertine was observed at those locations before the eruption. Further, the travertine was observed to be actively precipitating during the sampling campaign (during which time the water chemistry was stable). Relatively shortly afterwards, as the water chemistry changed back to “normal,” the travertine started to dissolve again (Olsson et al., 2014). Further evidence that the waters and travertine are directly linked (and therefore can inform on paired fractionation) comes from the observation that the elemental partition coefficients between the sampled waters and travertine are identical to those determined in precipitation experiments conducted on pure systems (Olsson et al., 2014).

One of the key elemental ratios used for determining carbonate precipitation is Ca/Sr (e.g., Jacobson and Blum, 2000; Jacobson et al., 2015). Icelandic basalts have molar Ca/Sr ratios of ∼750–2000 (Gíslason et al., 1996; Jacobson et al., 2015), while Icelandic spar carbonates have considerably higher ratios of ∼6500 to 360,000 (Jacobson et al., 2015). It follows that the precipitation of calcite from solution will drive the Ca/Sr ratio of the solution to lower values than the initial basaltic ratio. The Eyjafjallajökull travertines have an average Ca/Sr ratio of 2500 ± 240 mol/mol, while the Ca/Sr of the river waters decreases almost linearly with distance from 857 to 810 mol/mol (Figure 3B). It is highly likely that this decrease is due to calcite precipitation, as other secondary minerals that affect both Ca and Sr, such as heulandite or stilbite have Ca/Sr ratios lower than basalt (Jacobson et al., 2015), and therefore their precipitation would drive solutions to higher values. Overall, this provides further evidence that calcite was actively precipitating from these waters when they were sampled.

Mg Isotopes

It is unknown exactly why the stream sample from directly beneath the lava flow is so isotopically light for Mg (−2.37%, Figure 4). Dissolved inorganic carbon (DIC) and Ca concentrations in that sample are very high, while the pH is up to ∼2 units lower than in downstream samples [33 mM, 6.2 mM and pH 6.6, respectively (Olsson et al., 2014)], and this is the only sample in which calcite is not highly supersaturated (SI calcite = 0.2 ± 0.5 – bearing in mind the uncertainty in such snap-shot derived saturation indices). This suggests that the light Mg isotope ratio is due to dissolved pre-existing subsurface carbonate and/or the infiltration of magmatic CO₂, where the former is known to be isotopically light (Li et al., 2012; Mavromatis et al., 2012, 2013; Saenger and Wang, 2014), and/or subsurface water-basalt interaction and precipitation of isotopically heavy Si-Al silicates (Wimpenny et al., 2010, 2014) and iron containing phases like ferrihydrite, also driving waters isotopically light. Further, hydrothermal waters generally act as an Mg sink, and hence removal processes could impart substantial isotopic fractionation.

The source spring at the base of the lava flow is approximately at saturation with respect to calcite (SI = 0.2 ± 0.5), and the saturation state and pH rise as the water flows downstream and releases CO₂ to the atmosphere, eventually leading to calcite precipitation (highest calcite SI = 1.7 ± 0.5). Continuous degassing and calcite precipitation down-stream lowers the in situ partial pressure of CO₂ in the water from 10^−0.5 bars in the source spring to 10^−2.6 bars 3.1 km downstream from the springhead (Figure 2C) (Olsson et al., 2014). As shown in Figure 4, dissolved δ²⁶Mg water values begin to increase as isotopically light travertine-calcite is deposited.

The initial increase in δ²⁶Mg is very rapid: after 220 m of flow, solution δ²⁶Mg has increased from −2.4 to −0.9%. By 780 m of flow, it has increased to −0.4%. Interestingly, this rapid increase is not matched by Mg concentrations or Mg/Ca ratios, which are stable for the first 780 m. However, the pH and pCO₂ change rapidly in that early section (Olsson et al., 2014). Thus, as pH increases, δ²⁶Mg increases with a strong linear correlation (Figure 5A). Equally, there are similar strong changes in the calcite SI and in Ca/Sr, which again show co-variation with the δ²⁶Mg of the river waters (Figure 5B), implying that it is the precipitation of calcite that is driving the Mg isotope ratios of the solutions isotopically heavy, and hence that Mg isotopes are useful tracers of carbonate precipitation processes in these waters.

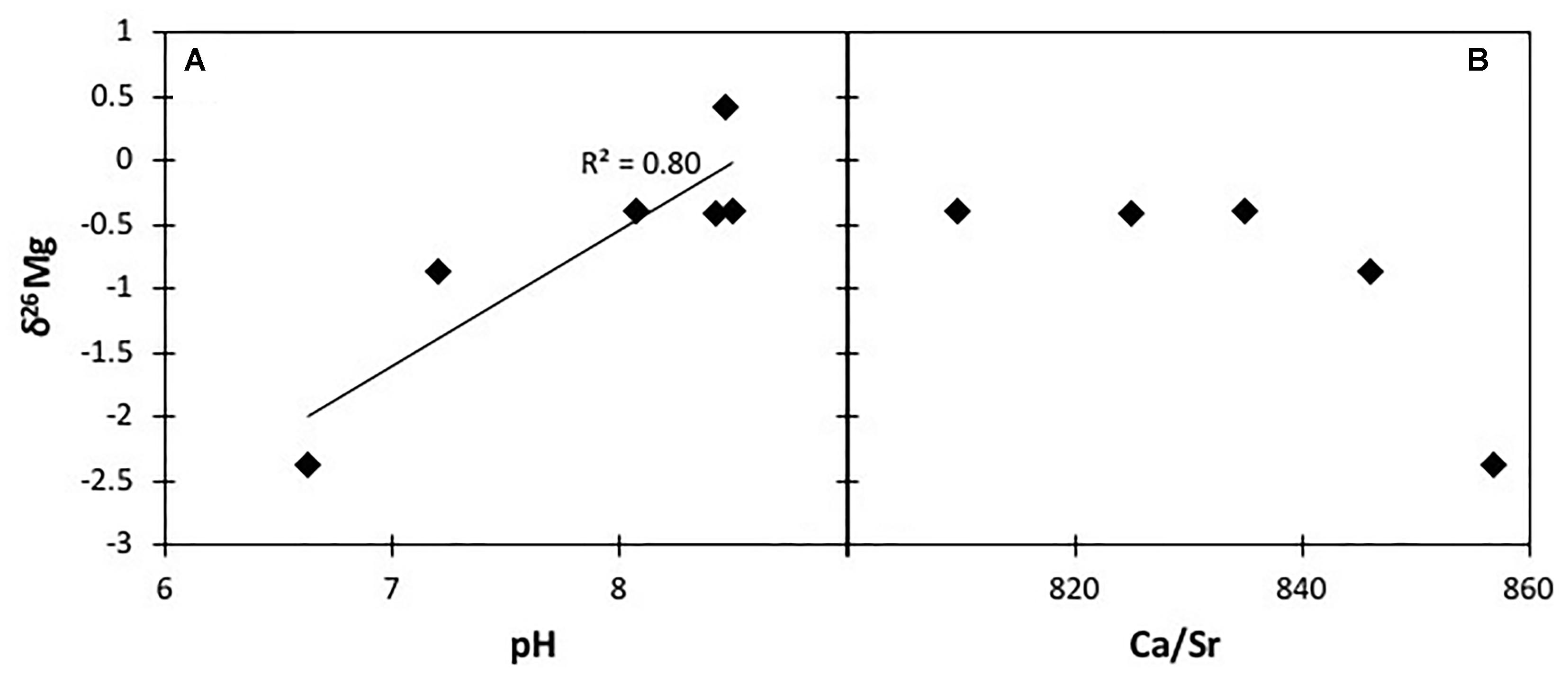

FIGURE 5

Modeling Calcite Precipitation Using Mg Isotopes

Given that the Eyjafjallajökull eruption provides the opportunity to examine a system that appears to be a natural laboratory for calcite precipitation, we can test whether dissolved Mg isotope ratios can be used to estimate the amount of carbonate that is precipitating. The average measured fractionation factor between the stream samples and their corresponding travertines is α = 0.9965 ± 0.00047 (Δ²⁶Mg_solid–soln = −3.53, with a range of −2.98 to −4.14), which is within the range determined by experimental studies (Mavromatis et al., 2013; Saenger and Wang, 2014). Using the starting composition of δ²⁶Mg = −2.37% (the composition of the stream emerging from the lava field), we can calculate the fraction of Mg remaining in solution relative to that precipitated in carbonates. For this we use a Rayleigh relationship, with the above fractionation factors, and the isotope composition of each stream sample.

where δ_i is the δ²⁶Mg composition of the initial solution, δ_s is the δ²⁶Mg composition of the same, and α is the fractionation factor (Pogge von Strandmann et al., 2012). This then assumes that 100% of Mg is in solution in the initial sample, and following this, the fraction decreases to a minimum of 51% at the furthest point along the stream flow, as increasing amounts of travertine are deposited.

The partition coefficient of Mg into calcite (i.e., the Mg/Ca value) also increases with both the saturation state of calcite and the precipitation rate (Mavromatis et al., 2013). Extrapolating this linear relationship of D_Mg–CC vs. Ω_calcite to the PHREEQC-calculated calcite saturation index of these rivers [0.2 ± 0.5 for the initial location, up to 1.66 ± 0.5 where travertine is precipitating (Olsson et al., 2014)], yields partition coefficients (D_Mg/Ca) between ∼0.008 for the initial location, up to ∼0.017. Interestingly, Mavromatis et al. (2013) have also shown that the fractionation factor between experimental calcite and fluid decreases with increasing precipitation rates (or partition coefficient). However, in our data, there is a wide spread in Δ²⁶Mg of ∼0.5% for a near-constant D_Mg value. In addition, our Δ²⁶Mg data do not fall along the same trend line. There are several possibilities as to why the experimental and observational data do not dovetail here, including effects by temperature (the Eyjafjallajökull samples formed at over 20°C lower temperatures than the experimental samples), pH (pH was higher by almost 2 units in the natural samples), or fluid composition. This may imply that more experimental work is required to understand any changing α values with precipitation rates, and are therefore not used in our modeling. There is also a postulated speciation effect on Mg isotope fractionation (Schott et al., 2016), implying that a pH increase will drive carbonate δ²⁶Mg lower. We have factored this effect into our model, but for the Eyjafjallajökull samples the effect on the final calcite Mg/Ca ratios is small (<5%) and within uncertainty (discussed below). The same study (Schott et al., 2016) also suggests an effect whereby declining alkalinity results in higher aqueous δ²⁶Mg values, of approximately −0.01%/mM alkalinity. Along the sample flowline here, this would cause the river δ²⁶Mg to change by ∼0.1%. Correcting for this would change the final Mg/Ca ratio by <3%. We have not factored this correction into our final calculations though, because the results of Schott et al. (2016) were the result of calculations rather than measured data, and in any case the effect is very small and within our uncertainty.

Calculation of the Mg/Ca in calcite using only their isotope composition and the partition coefficients (calculated directly when corresponding travertine deposits exist, otherwise using the average) yields ratios that are close to those actually measured (Olsson et al., 2014) (Figure 6 – we note here that Olsson et al. provide both EMPA and leaches of travertines, where Mg/Ca are virtually identical in both):

where [x] could either be [Mg] or Mg/Ca, depending on what partition coefficient (D) is used. The largest source of uncertainty is inherent in the experimental saturation vs. D_Mg/Ca relationship of Mavromatis et al. (2013), and this is factored into the uncertainty calculations for the travertine Mg/Ca. The uncertainties (Figure 6) are propagated from the analytical uncertainty, the (fixed) uncertainty on the saturation index (included in the partition coefficient D) and the published uncertainty on the fractionation factor, combined using standard error propagation (Ku, 1966). These uncertainties are approximately ±60% for the travertine Mg/Ca ratios. For the samples for which corresponding travertine exists, the median calculated [Mg] of the calcite is within a factor of 1.3–1.5 of that actually measured in the travertines, and all samples are within uncertainty of the measured Mg/Ca. Hence, this approach confirms that it is possible to determine the elemental composition of precipitated carbonate from the Mg isotope composition of stream waters.

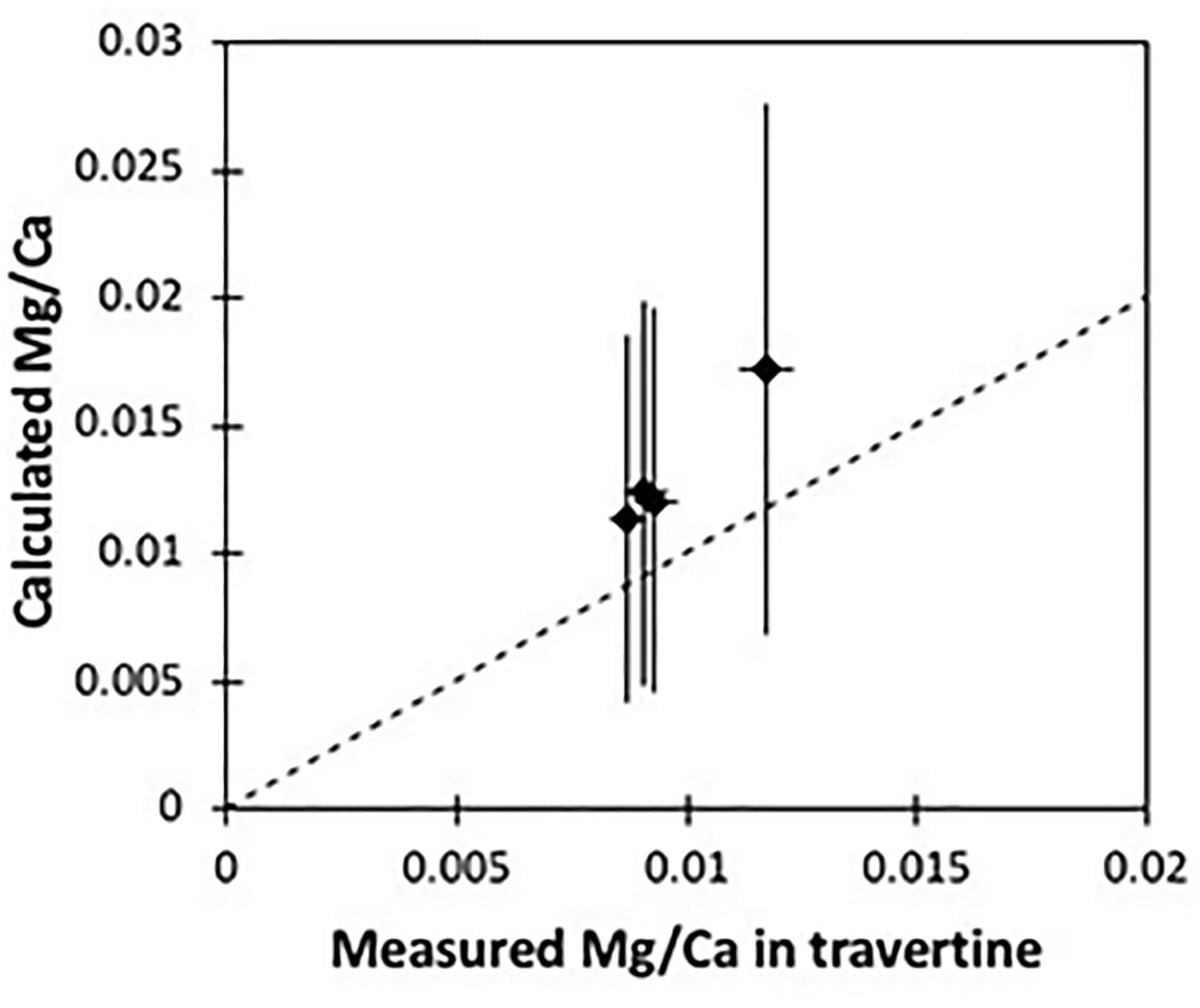

FIGURE 6

Further, if the water flow rate is known, the calcite precipitation rate can be calculated using the Mg partition coefficient into calcite. Olsson et al. (2014) determined the flow rate of 0.44 m³/s for sample 10EF74, sampled 220 m from the lava flow. The small drainage area this close to the source yields a runoff rate of ∼1.5 × 10¹¹ l/km²/yr, which translates to precipitation of ∼3200 t/yr calcite. Uncertainty on this estimate includes analytical uncertainty, and the error on the partition coefficient, runoff, and catchment area. Assuming that the latter two are ±10%, this yields a rate of 3200 ± 420 t/yr calcite. Based on PHREEQC modeling, Olsson et al. (2014) estimated that 9100 t/yr CaCO₃ precipitated, assuming that Ca only precipitated as calcite. Our estimate calculates that ∼35% of Mg in this sample precipitated into calcite, and this difference in usage efficiency (i.e., how much of dissolved cations are sequestered into calcite) likely causes the difference between our estimate and that of Olsson et al. (2014). Other estimates of volcanic-induced carbonate precipitation includes the 1996 eruption beneath Vatnajökull ice cap, which is estimated to have produced around 1.8 × 10¹⁰ mol of C, from which ∼1.1 × 10⁶ t was precipitated as carbonate in 35 days (Gislason et al., 2002), giving a rate of ∼1.15 × 10⁷ t/yr CaCO₃. During the 2002 glacial flood of the Skaftá River, 2.3 × 10⁵ t CO₂ was drawn down due to carbonate precipitation during the 7 day flood (Galeczka et al., 2015).

Overall, then, the 2010 Eyjafjallajökull eruption was relatively minor in terms of calcite precipitation, but this study does show that Mg isotopes can be used to estimate carbonate, and hence CO₂, precipitation in natural, or potentially artificial settings. A recent study has reported Mg isotope ratios in waters from the CarbFix mineral carbonation (artificial carbonate precipitation and CO₂ drawdown) experiment, also in Iceland (Oelkers et al., 2019). In this experiment, δ²⁶Mg values in the groundwaters become lower with time by ∼0.7%, which is interpreted as due to the formation of Mg-silicates. In other words, in the CarbFix groundwaters, Mg uptake by secondary silicates significantly outweighs uptake by carbonates, while in these Eyjafjallajökull samples the processes appear reversed. This is likely due to the overall precipitation rates: in Eyjafjallajökull, the carbonate precipitation rates are extremely fast due to the high TDS, and significantly outweigh the secondary silicate precipitation rates (Olsson et al., 2014). In CarbFix, TDS is significantly lower (Mg concentrations are 2–3 orders of magnitude lower), and carbonate precipitation rates are slower (years, rather than a few weeks). Hence it is possible that Mg isotopes can inform on either or both silicate or carbonate precipitation rates, depending on the setting, and in particular the kinetics of reaction.

Conclusion

This study analyzed Mg isotope ratios in river waters stemming from beneath a new lava flow from the 2010 Eyjafjallajökull eruption. Travertine carbonate was observed precipitating from these highly concentrated waters, and these travertines were also analyzed. The δ²⁶Mg of the waters increases with flow distance, in keeping with the precipitation of isotopically light calcite. The riverine Mg isotope ratios also co-vary with pH and calculated calcite saturation indices.

Given the presence of both complementary waters and calcite (i.e., the travertine was directly precipitating from these waters), and that the composition of the precipitated travertines has been measured, this study provides an opportunity to test whether calcite Mg/Ca compositions and precipitation rates can be estimated solely from their Mg isotope composition. The Mg/Ca ratios determined solely from Mg isotope ratios are within uncertainty of those directly measured in the travertines. The overall calcite precipitation rate (∼3200 t/yr) is ∼35% of that calculated for these samples from a PHREEQC model (Olsson et al., 2014). This is consistent with Olsson et al’s assumption that all Ca precipitated only as calcite, while calculations using Mg isotopes suggests that only 35% of dissolved Mg is incorporated into calcite.

Overall, then, this suggests that in scenarios where carbonate precipitation is strongly enhanced, such as volcanic eruptions, Mg isotopes can be used to estimate CO₂ draw down when other data are not available. This may also be possible in engineered CO₂ sequestration reactions, but will depend on the reactions kinetics of the carbonate compared to any secondary Mg-silicates.
