Abstract
Porphyry copper deposits are formed by aqueous fluids exsolved by differentiated, mantle-derived magmas variably mixed with crustal melts. Water is essential to form porphyry Cu mineralization, and this explains why these deposits are found only at convergent margin settings, where subduction has enriched the mantle source of magmas with slab-derived H2O. Intuitively, the more water occurs in the parental magmas of porphyry deposits, the more fertile the latter should be. Indeed, several studies have proposed that anomalously high H2O contents in the source basalt, resulting, for instance, from subduction of large-scale serpentinized fracture zones of the oceanic slab, could increase the fertility of magmas. However, no studies have ever quantified the effects of variable H2O contents on the fertility of parental basalts to form porphyry deposits. Here, using petrological modeling with a Monte Carlo approach, I show that the optimum amount of slab-derived H2O in fertile parental basalts is ∼2–6 wt%, which coincides with the measured range of H2O content in arc basalts. Lower and higher amounts of H2O in the parental basalt lead to less porphyry-fertile magmas. The lower fertility of H2O-poor parent basalt (i.e., <2 wt%) predicted by the model is understandable as the result of an overall lower amount of fluid that can be exsolved by the magmatic system once it reaches H2O saturation. In contrast, the decrease in the fertility of H2O-rich parental basalts (>6 wt%) predicted by the model is counterintuitive. The reason for the decreased fertility of parental basalts with >6 wt% H2O is that such H2O-rich magmas undergo fluid saturation, losing their fluid and metal cargo at deep crustal levels. Additionally, water saturation-induced crystallization of amphibole at these deep levels prevents such H2O-rich magmas from ascending to shallower crustal levels, where they can form porphyry deposits. The conclusion that arc basalts with normal H2O contents (∼2–6 wt%) are the most porphyry-fertile adds evidence to the hypothesis that intermediate-felsic magmas associated with porphyry Cu deposits are parented by arc basalts formed through normal subduction-related processes and that intracrustal and tectonic processes play the most relevant role in the modulation of Cu endowments of these deposits.
Introduction
Water is one of the essential ingredients to make porphyry copper deposits, together with Cu, Cu ligands (e.g., Cl– and HS–), and sulfur combining with Cu to form ore minerals (; ; Seward et al., 2014; ). A large body of literature has shown that the origin of the greatest majority of the water, Cu, and ligands in porphyry-type deposits is magmatic (e.g., ; ; ; ). Because Cu, ligands, and S have finite solubility in their carrying agent (H2O), the amount of water available to form a deposit is one of the main controls of the maximum metal endowment of a porphyry copper deposit (). The amount of available water, in turn, depends on the volume, composition, and pressure conditions of the silicate melt into which such water is initially dissolved ().
Porphyry copper deposits are typically associated with intermediate to felsic magmas with calc-alkaline to variably alkaline affinity in convergent margin settings (e.g., ; Sillitoe, 2010; ). In this geodynamic context, porphyry copper deposits occur in both syn-subduction (typical Andean- or Cordilleran-type porphyry deposits) and post-subduction (syn- or post-collisional, extensional) settings (; ). In both situations, primary basaltic melts, from which intermediate-felsic magmas associated with porphyry copper deposits derive, are considered to form by partial melting of a mantle metasomatized by H2O-rich fluids (supercritical or melts) of the subducted slab. Such slab-derived metasomatism can be either coeval with the magma generation process (which may then result in syn-subduction, Andean-type porphyries) or prior to the formation of magmas (which may result in post-subduction porphyries). Although the modalities of the melting of the metasomatized mantle may change in these two geodynamic settings (e.g., mostly flux melting of asthenospheric mantle in the syn-subduction case and influx of hot asthenosphere inducing partial melting of metasomatized lithospheric mantle in the case of post-subduction; ), the ultimate source of water in the primary basaltic melts formed in both situations above is the slab-derived H2O.
It is reasonable, therefore, to infer that the more slab-derived H2O there will be in the parental basalts, the more these can be considered fertile to form porphyry-type deposits. Indeed, the formation of porphyry-type deposits has been associated with anomalous water and metal fluxes from the dehydrating subducting slab, such as, for instance, from large-scale subducted fracture zones, such as the Mocha, Valdivia, and Grijalva fracture zones currently subducting off the coasts of Chile and Ecuador (e.g., ; Rosenbaum et al., 2005; ). These fracture zones are more intensely serpentinized than average oceanic crust and therefore, during subduction, could liberate higher amounts of slab-derived H2O, resulting in higher H2O contents in the primary basaltic melts (Rodríguez et al., 2007). Additionally, the crustal thickness of the overriding plate is believed to control the depth at which mantle melting occurs (Turner and Langmuir, 2015; ), which in turn may also modulate the water content of arc magmas (Turner et al., 2016; ). Arcs with thinner crust are thus predicted to be associated with primary basalts having lower water contents as compared with primary basalts generated under arcs emplaced onto thicker crust (Turner et al., 2016; ). Under this point of view, it might be worth investigating whether there is a link between this potential H2O enrichment in primary basalts associated with thick arcs and the observation that the largest porphyry Cu deposits are usually formed in arcs with very thick overriding plate crust (e.g., Central Andes).
On the other hand, porphyry Cu deposits are associated with intermediate-felsic magmas, which will inevitably upgrade the initial H2O content of the parent primary basalt, because H2O behaves as an incompatible element during magma differentiation. Therefore, the ultimate amount of H2O available in the magmas of intermediate-felsic compositions typically associated with porphyry Cu deposits will be controlled by the initial slab-derived H2O content of the parent melt, the degree and depth of its evolution, and, eventually, the amount of H2O provided by assimilated or partially melted lithologies at different crustal levels.
Here, I test through petrologic modeling the roles played by each one of the above H2O potential sources and upgrading mechanisms in order to define the optimal slab-derived H2O contents in the parental melt to generate H2O-fertile magmas for porphyry copper deposits. The conclusions of this study may help in understanding whether or not geodynamic and petrologic source processes leading to anomalous H2O enrichment in primary basalts parental to porphyry copper systems are a necessary step in the formation of such type of deposits.
Materials and Methods
Petrologic Modeling Background
The aim of this study is to provide, through petrologic modeling, constraints on the optimal H2O contents of primary arc basalts that are parental to intermediate-felsic magmas associated with porphyry copper deposits. Several studies have postulated the importance of large-scale oceanic fracture zones as feeders of increased H2O contents into the mantle wedge, which could result in anomalously H2O-rich basalts (Rodríguez et al., 2007), as the parents of magmas associated with porphyry copper deposits (e.g., ; Rosenbaum et al., 2005; ). However, such a question has never been addressed from a quantitative point of view. have carried out petrologic modeling of intracrustal magmatic systems parented by basalts with H2O contents (2–4 wt%), which can be considered as “normal,” according to results of that arc basalts contain 2–6 wt% H2O with an average of ∼4 wt%. Here, I model what are the effects of changing the H2O contents of the primary parental basalts over a wider range of values (0.1–12 wt%) on their fertility to form porphyry copper deposits.
Modeling is sub-divided into two parts because the H2O enrichment in the primary basalt is only the first step in generating H2O-fertile magmatic systems in arcs. The second step is the upgrading of the initial H2O content of the primary basalt that occurs through intracrustal evolution (e.g., fractional crystallization, mixing, and partial melting; see below) of the parent basalt. The first part (section “H2O Contents in Primitive Mantle-Derived Basalts”) models the permissible range of H2O contents of primary arc basalts. The latter are directly controlled by the H2O concentration in the mantle wedge, mantle-melt partition coefficient of water, mantle melt fraction, and temperature and pressure at which mantle melting occurs (). I have linked pressure and temperature together using the mantle wedge thermal model of in order to provide a more robust control of the water content of arc basalts based on a realistic mantle wedge thermal structure in a subduction zone environment.
The second part (section “H2O and Cu Amounts Exsolvable by Derivative Magmas”) models the amount of H2O that can be accumulated and later exsolved by magmatic systems during intracrustal evolution of primary basalts having a representative range of the initial H2O contents obtained in the first part of the modeling. Intracrustal evolution of the basalts is carried out using the thermodynamic parameters and average arc magma flux value of the hot zone model of , as detailed below. Because this part of the model is based on thermodynamic parameters and magma fluxes that are typical of syn-subduction zones, the overall model here presented and discussed applies to syn-subduction porphyry copper deposits. The lack of magma flux data in the post-subduction environment hinders, for the time being, extension of the model to post-subduction porphyry copper deposits.
I would like to highlight that, as for every model, this one is also aimed at providing first-order general constraints and that exceptions are obviously possible and likely for individual specific situations.
H2O Contents in Primitive Mantle-Derived Basalts
The H2O contents of basaltic partial melts of mantle peridotite have been calculated using Eq. 4 of
where is the H2O concentration in the mantle wedge, DH_2 O is the mantle-melt partition coefficient of water (allowed to range randomly between 0.006 and 0.01, a typical range of values according to ; Table 1), F is the mantle melt fraction (allowed to range randomly between 0.05 and 0.25, typical values of mantle wedge melting according to ; Table 1), T is temperature in°C, P is the pressure in GPa, and a, b, c, x, and y are constants with values of −5.1404654, 132.899012, 1120.66061, −221.34, and 536.86, respectively (Supplementary Data Sheets S1, S3). This equation, which is a re-formulation of the equation of , considers the combined effects of pressure and temperature on the partial melting of the mantle. Eq. 1 shows a dependence of on the P and T conditions of the mantle wedge. In order to get a realistic control by these parameters on , I have linked P and T together using the mantle wedge thermal model of (Supplementary Figure S1 in Supplementary Data Sheet S3). According to this model, the thermal structure of the mantle wedge changes systematically with increasing thickness of the crust of the overriding plate.

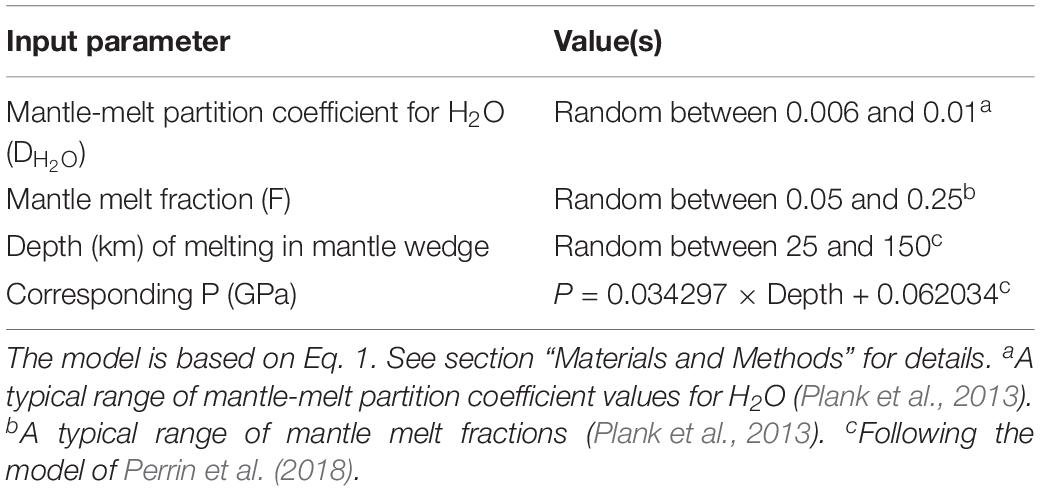

TABLE 1
| Input parameter | Value(s) |
| Mantle-melt partition coefficient for H2O (DH_2 O) | Random between 0.006 and 0.01a |
| Mantle melt fraction (F) | Random between 0.05 and 0.25b |
| Depth (km) of melting in mantle wedge | Random between 25 and 150c |
| Corresponding P (GPa) | P = 0.034297 × Depth + 0.062034c |
Values used for input parameters in the model of mantle melting.
The model is based on Eq. 1. See section “Materials and Methods” for details. aA typical range of mantle-melt partition coefficient values for H2O (). bA typical range of mantle melt fractions (). cFollowing the model of .
H2O and Cu Amounts Exsolvable by Derivative Magmas
Modeling of the H2O and associated Cu exsolvable by magmas derivative of primary basalts is carried out through a set of equations written in Excel (Supplementary Data Sheets S2, S3) to quantify, using a Monte Carlo approach (Table 2), the following main parameters: (i) the amounts of hybrid melt produced in the crust (melt productivity indicates the amount of hybrid melt accumulated divided by the amount of total intruded basaltic melt) through processes typical of hot zones as discussed in the main text (), (ii) their water contents (in solution, in excess, and exsolvable at the pressure of saturation), and (iii) the Cu contents in the exsolvable water at the pressure of saturation and the SiO2 composition of the hybrid melts produced within the crust. In the specific case, several thousands of Monte Carlo simulations were used to obtain the model results discussed in the text. Below I discuss in detail how the three main parameters above (i, ii, and iii) have been quantified in the model.

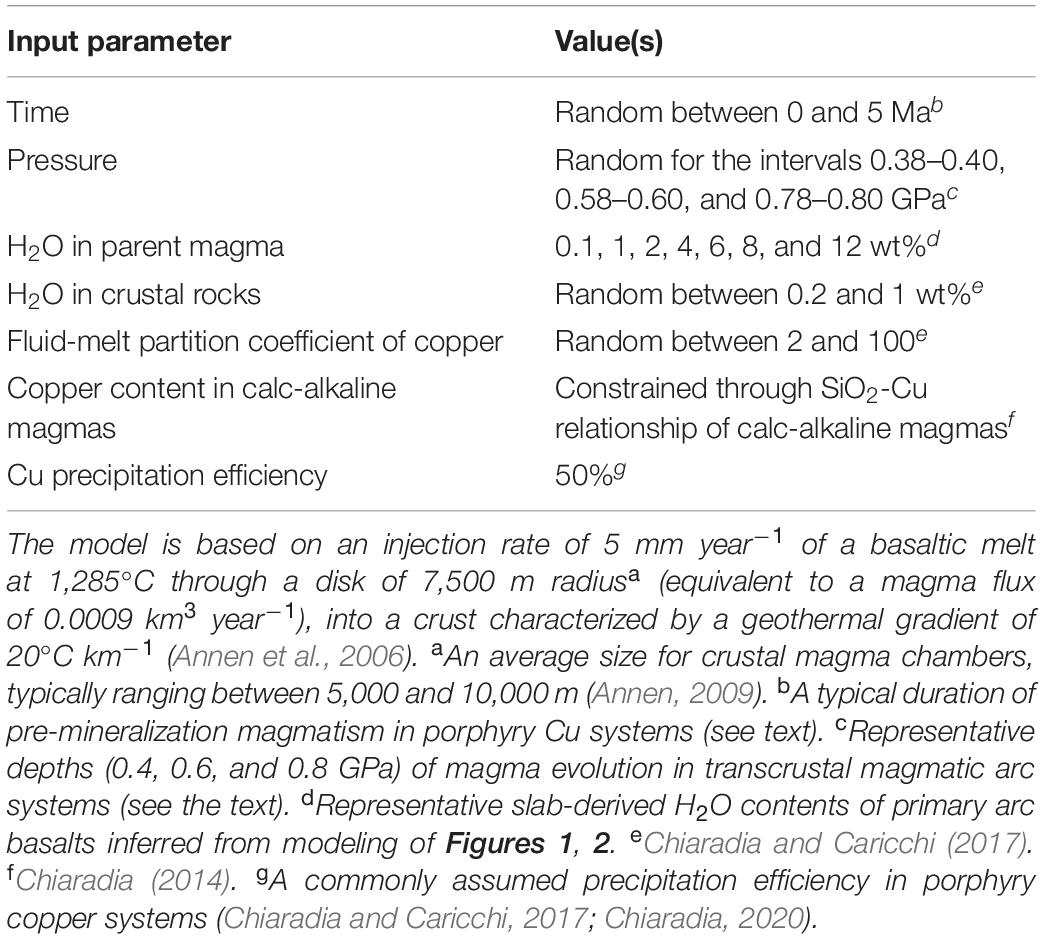

TABLE 2
| Input parameter | Value(s) |
| Time | Random between 0 and 5 Mab |
| Pressure | Random for the intervals 0.38–0.40, 0.58–0.60, and 0.78–0.80 GPac |
| H2O in parent magma | 0.1, 1, 2, 4, 6, 8, and 12 wt%d |
| H2O in crustal rocks | Random between 0.2 and 1 wt%e |
| Fluid-melt partition coefficient of copper | Random between 2 and 100e |
| Copper content in calc-alkaline magmas | Constrained through SiO2-Cu relationship of calc-alkaline magmasf |
| Cu precipitation efficiency | 50%g |
Values used for input parameters in the intracrustal evolution model.
The model is based on an injection rate of 5 mm year–1 of a basaltic melt at 1,285°C through a disk of 7,500 m radiusa (equivalent to a magma flux of 0.0009 km3 year–1), into a crust characterized by a geothermal gradient of 20°C km–1 (). aAn average size for crustal magma chambers, typically ranging between 5,000 and 10,000 m (). bA typical duration of pre-mineralization magmatism in porphyry Cu systems (see text). cRepresentative depths (0.4, 0.6, and 0.8 GPa) of magma evolution in transcrustal magmatic arc systems (see the text). dRepresentative slab-derived H2O contents of primary arc basalts inferred from modeling of Figures 1, 2. e. f. gA commonly assumed precipitation efficiency in porphyry copper systems (; ).
Melt Productivity
Melt productivity is quantified at different crustal depths using the model of , as implemented by and . In this model, basaltic magma is injected at a temperature of 1,285°C into the arc crust at a fixed average rate of 0.0009 km3/a, corresponding to a typical arc long-term average rate. Injection is allowed to occur at different crustal levels (from ∼5 km = 0.15 GPa to ∼30 km = 0.9 GPa) for time intervals up to 5 Ma (Table 2). The range of crustal depths (5–30 km) at which injection occurs corresponds to a typical range of mid to lower crustal thicknesses in continental arcs () and the duration of several Ma of injection is consistent with the evidence of more or less continuous multi-Ma magmatism (up to >5 Ma) occurring in several porphyry systems prior to the onset of mineralization (e.g., ; Stern et al., 2010; ). Continuous injection of mantle-derived basaltic melts results in cooling and fractionation of the basaltic melt and concomitant heating of the surrounding rocks (the thermodynamic parameters used in the model, such as density, specific heat capacity, specific latent heat, and thermal conductivity are those reported in Table 1 of ). Initially, cooling will continue until the solidus of the fractionating basalt is reached, but, after a certain time, due to continuous heating, the surrounding rocks will reach a temperature above the solidus of the lowest temperature derivative melt from the fractionating basalt. This means that some derivative melt (initially with the lowest possible solidus temperature, i.e., rhyolitic in composition) will no longer solidify. Due to continuous injection of basaltic melt from the mantle, this residual melt will mix with new coming basalt, producing a hybrid melt with intermediate composition. All this process will result in a growing mass of melt through time that is a hybrid result of the mixing of derivative melt from fractionating basalt, new coming basalt, and partial melt of the host rocks. This process is increasingly efficient at deeper crustal levels because host rocks are hotter at deeper injection levels (the model of uses a geothermal gradient of 20°C/km).
The curves of melt productivity have been parameterized from for both residual (Mresidual) and crustal melt (Mcrustal) fractions (Supplementary Figure S2 in Supplementary Data Sheet S3). The detailed equations of the parameterization of the residual and crustal melt fractions are reported in the caption of Supplementary Figure S2 in Supplementary Data Sheet S3.
H2O Concentrations in the Hybrid Melt
Melt productivity as determined above was coupled to H2O concentrations in the hybrid melt assuming slab-derived H2O contents of 0.1, 1, 2, 4, 6, 8, and 12 wt% in the mantle-derived basalt (Figures 1, 2) and a range between 0.2 and 1.0 wt% H2O in the amphibolitic (lower) to graywacke (upper) crust of the model (Table 2). A completely incompatible behavior of H2O during the hybrid melt accumulation process was assumed. The chosen range of slab-derived H2O contents in the mantle-derived basalts (0.1–12 wt%) is representative of the possible primary arc basalt H2O contents obtained through modeling (Figures 1, 2), whereas the H2O content range of the crust corresponds to typical contents of hydrous minerals in crustal lithologies (for instance, a 1.0 wt% content of amphibolitic crust corresponds to an amphibolite with 50% modal amphibole having a nominal H2O content of 2 wt%). VolatileCalc () was used to calculate water solubility in melts according to the pressure of accumulation and hybrid melt composition (Supplementary Figures S3–S5 in Supplementary Data Sheet S3). In order to take into account the effects of different pressures of accumulation on the results, simulations were carried out for narrow ranges of pressures corresponding to ∼0.4 (range 0.38–0.40), ∼0.6 (range 0.58–0.60), and ∼0.8 (range 0.78–0.80) GPa. These are representative pressures of magma evolution in transcrustal magmatic systems (e.g., ; ). This way, the H2O contents of the melts and the degree of H2O over- or undersaturation in the hybrid melts produced at these different crustal levels (pressures) and for different durations of injection could be determined. This allowed the determination of the amount of exsolvable H2O (i.e., dissolved in undersaturated magmas) and exsolved H2O (i.e., for H2O-saturated systems) associated with any specific hybrid melt produced after any injection time, at the crustal depths corresponding to ∼0.4, ∼0.6, and ∼0.8 GPa, for the different initial H2O contents above in the parent basalt.
FIGURE 1
FIGURE 2
Hybrid Melt SiO2 Content
In order to link the melt productivity of the model of to the SiO2 content, I used the relationship below (see also Supplementary Table S1 in Supplementary Data Sheet S3) between melt fraction (M) and SiO2 (in wt%), based on the mid-values of SiO2 for the fields of basalt, basaltic andesite, andesite, dacite, and rhyolite of the total alkali-silica diagram () and the mid-values of the melt fraction and the corresponding composition attributed by (e.g., Figure 8 of ).
In a bivariate plot, the two variables above are linked through the equation
The modeled SiO2 composition is used to determine the Cu contents in the modeled melts, as explained below.
Amounts of Cu in the Exsolvable Fluid
The amounts of Cu in the exsolvable fluid depend on the concentration of Cu in such a fluid. The latter depends on the Cu concentration in the melt and on the value of the fluid-melt partition coefficient, which determines how much Cu goes into the exsolvable fluid once the latter separates from the melt. For Cu concentrations in the hybrid melt, the SiO2-dependent Cu concentrations of continental arc magmas of were used. The SiO2-Cu relationship is best fitted by a second-order equation.
where Cu is in ppm and SiO2 in wt%. This equation expresses the covariation between median Cu and SiO2 values from thick arc magmas (>30 km) (Supplementary Figure S6). Since there is some scatter in the SiO2-Cu relationship (Supplementary Figure S6), all possible values within the upper and lower boundaries of this scatter have been considered and implemented in the Monte Carlo modeling. A conservative random variation of Cu fluid-melt KD values between 2 and 100 (; Table 2) was used for all types of hybrid melt produced to calculate the amount of Cu that partitions into the fluid phase exsolved or exsolvable from the melt.
Plotted Data
The data obtained from the intracrustal modeling and plotted in Figure 3 are median values of various parameters obtained from Monte Carlo simulations (i.e., exsolvable Cu, hybrid melt volume, exsolvable H2O, and exsolved Cu) for basalts with variable slab-derived H2O contents (slab-derived H2O in melt, wt%). Exsolvable Cu and H2O are the Cu and H2O amounts that can be potentially exsolved from the melts but have not been exsolved because melts produced in the simulations are H2O-undersaturated. Exsolved Cu is the Cu amount that has been exsolved by H2O-saturated magmatic systems throughout the periods of their accumulation. Hybrid melt volume is the volume of the melt produced in the hot zone process described above. Median values of the above parameters (expressed by the color dots in Figure 3) are calculated from several thousands of simulations returned by the model within the chosen narrow accumulation pressure intervals (i.e., 0.38–0.40, 0.58–0.60, and 0.78–0.80 GPa) and of injection time bins of ≤1 Ma (i.e., 0.37–1 Ma with median at ∼0.75, 1–2 Ma with median at ∼1.5, 2–3 Ma with median at ∼2.5, 3–4 Ma with median at ∼3.5, and 4–5 Ma with median at ∼4.5 Ma).
FIGURE 3
Model Limitations
The modeling concerning the determination of H2O concentrations in primary arc basalts (Figures 1, 2) is used to obtain a realistic input range to test the effects of variable initial H2O contents in arc basalts on their fertility toward porphyry Cu deposit formation (Figure 3). The “novelty” of this model is the coupling of the mantle H2O content dependence on pressure and temperature (Eq. 1) with a pressure-temperature covariation constrained by a realistic thermal structure of the mantle wedge (model of ; Supplementary Figure S1 in Supplementary Data Sheet S3). Such a model is nonetheless constrained only for a fixed slab dip of 60°. Most porphyry systems form in subduction zones with shallower subduction angles (e.g., ), and implementation of a mantle wedge thermal structure associated with such a shallower subduction would be beneficial to a more refined model.
The intracrustal model (Figure 3), which allows the modeling of the amounts of H2O and Cu exsolvable from intermediate-felsic magmatic systems, is based on the thermodynamic and magma flux parameters of . Application of this model to the evaluation of Cu and Au endowments of porphyry systems as well as the Sr/Y values of the associated magmatic systems has proved to be successful as shown by the reproducibility of real porphyry data by model results of and . I expect that the intracrustal modeling, which is the same as the one used by and , returns results that are consistent also in this case. Unfortunately, it is not possible to test this through real data because of the rarity (or absence) of primitive magmas in most magmatic systems associated with porphyry deposits and the lack of information on the H2O contents of such primary basalts in studies of porphyry-related magmatic systems. Focused studies on melt inclusions in mafic minerals (e.g., olivine) of magmatic systems associated with porphyry deposits should be carried out for this purpose in order to test the results of the model here presented.
Another limitation of the model here presented is that it cannot be applied to post-subduction porphyry systems for which no adequate magma flux data are currently available. Determining magma fluxes in the post-subduction environment would be necessary, adopting, for instance, the method proposed by , to understand whether intracrustal magmatic processes leading to the formation of porphyry Cu deposits in such an environment are similar or not to those of the syn-subduction porphyry systems.
Results
H2O Contents of Primary Basaltic Melts
Results of modeling of mantle melting and of H2O contents of primary arc basalt are reported in Figures 1, 2. Due to the model constraints used here (i.e., the dependency of the thermal structure of the mantle on the thickness of the crust of the overriding plate; ; Supplementary Figure S1 in Supplementary Data Sheet S3), increasing fractions of partial melting of the mantle wedge are associated with decreasing crust thickness, increasing T of the mantle wedge, increasing difference between the mantle wedge temperature (T) and the temperature (T0) of the solidus of the peridotite (T–T0), and increasing H2O content of the mantle wedge (Figure 1).
Figure 1 shows also the dependence on the above parameters of H2O concentrations in the basaltic melts resulting from different degrees of partial melting of the mantle. H2O contents of the basalts can reach very high contents (>12 wt%) only for low degrees of partial melting (<7.5%) and for the largest difference between the mantle temperature (T) and the peridotite solidus (T0) temperature (T–T0). Figure 2 shows that the slab-derived H2O contents of primary basalts display correlations with the initial H2O contents of the mantle wedge (Figure 2A), melt fraction (Figure 2B), and especially T–T0 (Figure 2C), whereas they are less clearly correlated with crust thickness (Figure 2D) and depth of melting of the mantle wedge (Figures 2E,F).
According to the model here presented, H2O contents in primary basaltic melts can range widely between 1.5 and ∼20 wt% (Figures 1, 2). This is in contrast with the rather homogeneous H2O contents (2–6 wt% with an average of ∼3.9 ± 0.4 wt%) measured in arc basaltic melts (). The latter are reported in Figure 1F for comparison and show a good agreement with the results of the model here presented (i.e., the greatest majority of the measured data plot at H2O contents between 2 and 6 wt% of the model). The homogeneous H2O of arc basalts (Figure 1F) might suggest a more restricted range of P-T conditions under which arc primary basalts effectively form compared with the broad range here simulated, or a subsequent re-equilibration of these melts through fractionation at shallower depths (; Turner and Langmuir, 2015). This latter point, however, seems to be at odd with extensive geochemical and thermobarometric evidence of magmatic evolution at significantly deeper crustal levels than the one needed for re-equilibration at ∼4 wt% H2O (i.e., ∼6 km) for many arc magmas, especially in continental arcs (; ; ; ; ).
Beyond these uncertainties, I will address below the question whether primary basaltic melts with broadly different slab-derived H2O contents (independently of the various parameters that may control these variations; Figures 1, 2) are differently fertile in terms of amounts of H2O deliverable to a magmatic-hydrothermal system potentially associated with a porphyry copper deposit.
Mantle or Crustal H2O in Porphyry Deposits?
A first observation is that, according to the above model, H2O in the hot zone intermediate-felsic magmas that ultimately feed the shallower magmatic-hydrothermal systems of porphyry copper deposits comes from the slab-derived H2O present in the mantle-derived basalt and from crustal H2O occurring in hydrous minerals of the crustal rocks into which the basaltic melt intrudes until it eventually partially melts them. Monte Carlo simulations of fertile magmatic systems (>5 Mt Cu at 50% efficiency, for initial H2O contents in the primary basaltic melts of 4 wt%) show that 80–95% of the exsolvable H2O from these magmatic systems at any time of their temporal evolution (0–5 Ma) and at any depth (5–30 km) is ultimately slab-related H2O of the residual magma derived from fractional crystallization of the mantle-derived basaltic melt and only 5–20% is crustal H2O from partial melting of a crustal lithology containing up to a maximum of 1 wt% H2O (e.g., amphibolite, amphibole-bearing pyroxenite, or amphibole-bearing gabbro containing up to 50% of amphibole with a putative H2O content of 2 wt%) (Figure 4). This shows that the slab-derived H2O content of the primary basaltic melt is the most important portion of the H2O ultimately forming the porphyry deposits and that crustal water (although it can be significant; ) is subordinate in the formation of these deposits (at least considering the average magmatic arc flux used in the model). Therefore, evaluating the effect of variable H2O contents of the primitive melts on the fertility of the derivative magma is justified.
FIGURE 4
have shown that the most fertile magmatic systems are those formed at mid to lower crustal levels (>0.4 GPa), during long accumulation times (>2.5 Ma). Such systems contain the highest amounts of H2O and are always H2O-undersaturated for the range of initial H2O (2–4 wt%) assumed in the primitive melts by . Their subsequent saturation may occur only at depths shallower (12–18 km) than those of their accumulation. This means that these magmas may ascend to these shallower crustal levels from where they start to liberate fluids and metals. Figure 3 shows results for initial H2O contents in the primary melt of 0.1, 1, 2, 4, 6, 8, and 12 wt% at three different pressures of magma accumulation (∼0.4, ∼0.6, and ∼0.8 GPa) in order to see the effects that lower and higher initial contents of H2O in the primary basalts, with respect to those (2–4 wt%) considered by , may have on the fertility of the derivative magma, typically associated with porphyry deposits. The three pressures chosen (∼0.4, ∼0.6, and ∼0.8 GPa) not only are representative of average depths of evolution in transcrustal magmatic arc systems (; ; see above) but also correspond to porphyry sub-fertile (∼0.4 GPa) and fertile (∼0.6 and ∼0.8 GPa) magmatic systems according to . Figure 3 shows the median values of exsolvable Cu (50% efficiency), melt volume, exsolvable water, and Cu lost with fluids at variable depths (∼0.4, ∼0.6, and ∼0.8 GPa) from more than ten thousand Monte Carlo simulations run for injection time bins of ≤1 Ma (0.37–1, 1–2, 2–3, 3–4, and 4–5 Ma) for an overall magma injection period of ∼0.37 to 5 Ma. Results show that, as already discussed by , the exsolvable Cu increases with increasing injection time and with injection depth (from ∼0.4 GPa sub-fertile to ∼0.6–∼0.8 GPa fertile magmatic systems; Figures 3A–C). Novel with respect to the results of , they also show that at any time and depth of the ranges here considered and especially for the most fertile systems (i.e., ∼0.6 and ∼0.8 GPa), the maximum exsolvable Cu is associated with initial H2O contents of the primary basalt between 2 and 6 wt%. For H2O contents <2 wt% and > 6 wt%, the median exsolvable Cu decreases and falls to significantly lower values (e.g., Figure 3C).
Discussion
The decreasing fertility of the most fertile (i.e., ∼0.8 GPa) derivative magmas of basalts with low initial H2O content (<2 wt%; Figure 3C) is intuitively understandable and is the likely reason why porphyry-type deposits occur only where primary basaltic magmas are derived from partial melting of a slab-metasomatized, hydrated mantle source. For comparison, MOR basalts contain much less initial H2O (<0.7 wt% with a mode at 0.25 wt%; e.g., ), and this content is not much upgraded through anhydrous mineral crystallization because there is limited magmatic evolution in such a geodynamic setting. The best model representation of this situation (Figure 3A) is that of the evolution of magmas at the shallowest pressure modeled (∼0.4 GPa) and for the shortest injection time (0.75 Ma). The exsolvable Cu under these conditions is virtually zero (green dots in Figure 3A).
In contrast, the decrease of the fertility of intermediate-felsic magmatic systems derived from basaltic primary magmas with high initial H2O contents (>6 wt%; Figure 3C) is less intuitive and requires an explanation. The reason for this is that the exsolvable Cu associated with a magmatic system in the model used here is the cumulative result of the processes of fractional crystallization, partial melting, and mixing between residual melts and partial crustal melts throughout the accumulation time at different crustal levels. More fertile systems are those that can grow larger in size, in terms of both magma and H2O amounts. Depending on the depth of formation of these magmatic systems and their evolving composition, H2O solubility changes, and the magmatic system will reach at some stage of its evolution the optimum conditions, i.e., maximum magma volume (Figures 3D–F), but, most of all, maximum contents of exsolvable H2O (Figures 3G–I) and thus maximum exsolvable Cu (Figures 3A–C). Conversely, magmatic systems that reach early H2O saturation will lose Cu with the excess H2O that is exsolving from the magma as the process of magma accumulation is still ongoing (Figures 3J–L). This strongly decreases the amount of available Cu for later exsolution at shallower crustal levels. It is unlikely that, coming from depths of several tens of km, these Cu-bearing fluids continuously exsolved during several Ma of magma accumulation are efficiently focused into a narrow rock volume at shallow depth to form an economic porphyry deposit. Additionally, geochronology data of porphyry deposits are not consistent with ore duration events of the same lengths (several Ma) as the magma accumulation periods in the continental crust (; ). The fluids exsolved at depth may also remain trapped in the magma at such deep crustal levels and form Cu-bearing sulfides once sulfide saturation occurs in the magma (; Wilkinson, 2013) due to continuous magmatic evolution (), thus contributing to the Cu-deficient chemistry of the continental crust (; ; ).
The bell-shaped curve of the exsolvable Cu versus slab-derived H2O initial contents in the primary basalts (Figures 3A–C) indicates that there is an optimum initial H2O content in the parental basalt that allows the magmatic systems to grow larger in size without reaching H2O saturation with consequent loss of H2O and Cu (Figures 3J–L). Figures 3A–C show that the peaks of exsolvable Cu in the simulations of the model are systematically lower (from ∼60 to ∼15 Mt Cu) and shift systematically to lower initial H2O contents of the primary basalt (from 4–6 to 2 wt%) with decreasing pressure of magma accumulation. This is due to the fact that the maximum porphyry fertility of the magmatic systems is the result of optimum tuning between two parameters: (i) the enhanced fertility promoted by deeper magma evolution (corresponding to higher magma and H2O volumes; ) and (ii) H2O contents in the primary basalt that must be not excessively high, which will promote early saturation of the melt with consequent deep loss of H2O and Cu (Figures 3G–L), nor excessively low, which will not exploit at best the positive pressure dependency of H2O solubility in silicate melt. The optimum H2O content for all magmatic systems, and especially for the most fertile ones (Figures 3A–C), is between 2 and 6 wt% from the model simulations, which, interestingly, coincides with the range of H2O contents measured in arc basaltic melts (). If the optimum 2–6 wt% content of primary arc basalts to form fertile magmatic systems deduced by the model here presented coincides with primary arc basalts measurements (), it remains to be clarified why modeling based on a plausible thermal structure of the mantle wedge () suggests the possibility of significantly broader H2O contents in primary arc basaltic melts (Figures 1, 2). Although the solution of this problem is beyond the scope of this investigation, a possible explanation is the fact that one of the most important parameters controlling mantle melting is the distance in the P-T space between the mantle temperature and the temperature of the peridotite solidus (T–T0) (; ; ; Ruscitto et al., 2010; ). If one considers mantle melting from the point of view of a small range of T–T0 values as considered to happen in arcs (e.g., ), H2O contents of the primary basaltic melts become broadly constant (for a given T-T0 interval) and independent of the depth of the mantle melting region, temperature, mantle wedge H2O content, and melting degree (Figure 5).
FIGURE 5
Another factor that is not accounted for in the model but may play a negative role for very H2O-rich primitive melts (>6 wt%) is that these melts will start to crystallize as soon as they reach H2O saturation at deep crustal levels (e.g., ), with their consequent “viscous death” (; ). In other words, these magmas will not be able to reach the shallower crustal levels from where they could eventually feed porphyry magmatic systems with the residual Cu and fluids that they still contain. This is a primary requirement for the formation of porphyry deposits as shown by geological and geophysical observations of large parental magma chambers at 10–15 km depth below the deposits (e.g., Sillitoe, 2010; ; Wilkinson, 2013).
The outcome of the modeling presented above is that anomalously high H2O contents in the primary basalts (e.g., associated with higher H2O flux of the mantle wedge or with low degrees of partial melting of the mantle wedge at deep levels) are not only not necessary for but also detrimental to the formation of the largest porphyry Cu deposits. The possibility that primary basaltic melts formed beneath thick arcs are H2O-richer than those formed beneath thin arcs (Turner and Langmuir, 2015; ; Figure 1A) could be an appealing hypothesis to explain the occurrence of the largest porphyry Cu deposits in thick crust of the overriding plate. However, according to the model discussed above, arc basaltic magmas with normal initial H2O contents (i.e., ∼2–6 wt%) are the most fertile to form porphyry Cu deposits, and H2O-richer primary basalts (independently from the various potential processes causing such H2O enrichment; Figures 1, 2) become significantly less fertile when they have H2O contents >6 wt%. This is one additional argument in favor of the hypothesis that porphyry copper deposits are formed by arc magmas that are normal in terms of initial H2O contents (this study), Cu contents (; ; ; ), and fO2 (). The results discussed above rather suggest that the occurrence of the Cu-richest deposits in thick arcs is controlled by other processes than an anomalously high initial H2O content in the primary basalts. Intracrustal evolution and the P-T conditions under which this occurs seem to be the main controlling factor for the formation of porphyry deposits (). Such intracrustal evolution is controlled by large-scale geodynamic parameters, such as the crustal thickness of the overriding plate (; ), the intracrustal stress conditions associated with the interaction between the subducting and overriding plates (Tosdal and Richards, 2001; ), and changes in the tectonic situation (; ; ; ), which may promote changes in the stress conditions within the crust that, ultimately, could be the most important factor controlling the formation of these deposits.
Statements
Data availability statement
The Monte Carlo-generated datasets for this study and detailed explanations on how to reproduce them can be found in the Supplementary Data Sheets S1–S3.
Author contributions
MC designed the research, performed the Monte Carlo simulations, wrote the manuscript, and drafted the figures.
Funding
This study was funded by the Swiss National Foundation (grant N. 200021_169032).
Conflict of interest
The author declares that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/feart.2020.00138/full#supplementary-material
