Abstract
Polygonal faults (PFs) have been widely found in over 100 sedimentary basins worldwide, mainly in marine setting on continental margins and intracratonic sedimentary basins. PFs are characterized by layer-bound minor normal faults arranged in polygonal patterns and multi-direction strikes, most of which were developed in fine-grained sediments rich in claystone. The genesis mechanisms of PFs have been recognized as non-tectonic, mainly including shear failure, syneresis, density inversion, low coefficients of friction and gravity sliding theory. Previous studies often regarded PFs as conduits playing a role in favouring fluid migration, which were also regarded as fluid source expelled during PF generation. However, some researchers proposed that the PF-bearing layer is generally impermeable and may act as a seal. To better understand the role of PFs in fluid migration and their contrition to the shallower hydrocarbon accumulation, a geophysical review of global PFs case studies is conducted in this paper. A comprehensive analysis is carried out based on abundant case studies, with key parameters analyzed including the PFs characteristics (e.g., buried depth, lithology, size, etc.), formation mechanisms of PFs, tectonic-sedimentary setting, and the spatial relationship of PFs, nearby major fluid migration pathways and high amplitude anomalies. The compilation of global PF case studies of shows that hydrocarbon fluids from the deep is more likely to migrate upward through normal big faults, gas chimneys or unconformities surface around PFs. In most cases, PFs play limited roles in fluid migration, such as in South China Sea where hydrocarbon accumulations have been observed under the PFs and the PF-bearing layer may act as a seal trapping the free gas underneath. Generally, the role of PFs in fluid migration should be determined through a comprehensive analysis of the characteristics of PFs, surrounding amplitude anomalies, hydrocarbon distribution, and even the sealing ability of PFs which needs further study. It is more likely that the PFs play a limited role in vertical fluid migration and related shallower hydrocarbon accumulation and distribution.
Introduction
Polygonal faults (PFs) are the network of layer-bound minor normal faults, which are generally characterized by polygonal planform geometry and variable strike directions (Lonergan et al., 1998a; Berndt et al., 2012; Laurent et al., 2012; Ding et al., 2013; Li et al., 2020). PFs were first found in the Lower Tertiary sediments in Belgium, but the polygonal planform pattern was not determined at the beginning due to the absence of 3D seismic data (Henriet et al., 1991). Cartwright (1994Ā ab) adopted the time slice technique to first characterize the planform pattern of the PFs in the North Sea Basin. Since then, PFs have gained attention as one of the most debated and mystical geological structures from researchers, and have been recognized in over 100 sedimentary basins worldwide till now (e.g., Seebeck et al., 2015; Ireland et al., 2021; Figure 1). PFs were proposed to be extensional non-tectonic in genesis occurring at comparatively shallow depth (Cartwright, 1994Ā ab, 2011). They are commonly featured by small fault throw (usually10-50Ā m), slight fault displacement (mostly< 100Ā m), steep in dip angles (typically 40ā70°), short horizontal extension in a single fault (commonly < 1500Ā m), and multi-direction strikes without preferential direction (Cartwright, 1994a, 2011; Cartwright and Dewhurst, 1998; He et al., 2010; Berndt et al., 2012; Ding et al., 2013; Figure 2). In addition to PFs, non-tectonic fractures can also occur in shale, formed during shale diagenesis and hydrocarbon generation and expulsion (Meng et al., 2021). This kind of fractures can occur at deeper depth, caused by the fluid pressure buildup, local stress distortion, and abrupt changes in matrix porosity and rock mechanical properties due to the intrinsic properties of shales. But they may be invisible in seismic due to their small scale and the resolution limitation of seismic data.

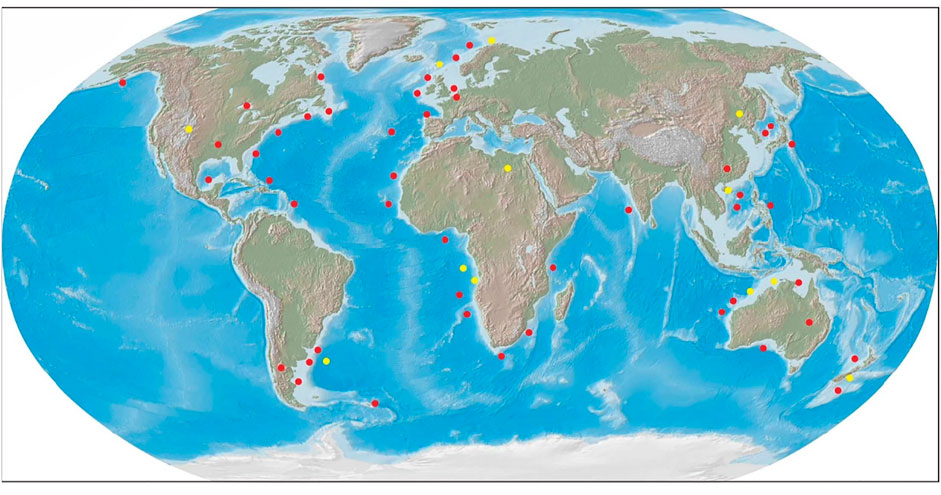

FIGURE 1
FIGURE 2
Previous studies often regarded PFs as dominant pathways for fluid migration, the presence of which was often interpreted to have facilitated vertical migration of oil and gas, therefore playing a vertical role in the shallower hydrocarbon accumulations (Larter et al., 2000; Gay et al., 2006; Hustoft et al., 2007; Ding et al., 2013; Alrefaee et al., 2018; Velayatham et al., 2021). For example, Alrefaee et al. (2018) mentioned that the PFs in the Northern Carnarvon Basin acted as the conduits for the hydrocarbon migration, and Ding et al. (2013) stated that the PFs in the Sanzhao sag of the Songliao Basin in China played a significant role in oil migration. However, no direct detailed evidence has been provided in these publications to prove the roles of PFs in facilitating vertical fluid migration. On the contrary, high amplitude seismic reflections indicating free gas distribution was observed underneath the PF-bearing layer in the continental margin of the South China Sea, suggesting that the PF-bearing layer may act as a seal and the PFs may not be favorable fluid migration conduits at present (Sun et al., 2010). After careful examination of lots of PF case studies, it has been recognized that the evidence for the role of PFs in fluid migration is not solid enough in most cases, and more comprehensive studies should be carried out to evaluate the role of PFs in fluid migration. In this paper we focus on the role of PFs in fluid migration by conducting an examination of enormous global cases of PFs, and key parameters are analyzed such as the genesis mechanism and characteristics of the PFs (e.g., buried depth, lithology, size, etc.), surrounding amplitude anomalies, hydrocarbon distribution and even the permeability of the faults and nearby sediment layers. Based on above analysis the general role of PFs in fluid migration is evaluated, as well as the contribution to the shallower hydrocarbon or gas hydrate accumulation.
Genesis Mechanisms of Polygonal Faults (PFs)
A compilation of the genesis mechanisms of PFs is summarized in this paper based on publications of global PF case studies, with five main mechanisms recognized including density inversion, gravity sliding theory, low coefficients of friction, syneresis, and shear failure (Table 1). āGravity sliding theoryā was first proposed by Higgs and McClay (1993), according to which the gravitational stresses produce a strong alignment of fault strikes during a downslope sliding of deposits (Cartwright et al., 1994Ā ab; Goulty, 2008). However, many PF-bearing layers are smooth with an extremely small dip of almost zero, suggesting that this theory may not explain the formation mechanisms of many PF cases (Cartwright et al., 2003; Goulty, 2008).
TABLE 1
| Genesis mechanisms | Description | Key study area | References |
|---|---|---|---|
| Density inversion | After drainage during compaction, the top and bottom of the mudstone becomes dense forming low permeable sealed layers. The water in the middle of the mudstone cannot be expelled, generating overpressure. When it is critically overpressured, hydraulic fractures may occur with faults and collapses forming at the top, leading to the formation of PFs. | North Sea Basin, | Henriet et al. (1988,1991) |
| Cartwright (1994a), Cartwright (1994b) | |||
| Lake Hope region, | Cartwright and Lonergan (1996) | ||
| Farafra Oasis of Western Desert of Egypt | Watterson et al. (2000) | ||
| Tewksbury et al. (2014) | |||
| Gravity sliding | Downslope gravitational collapse produces a strong alignment of fault strikes perpendicular to the direction of sliding towards the depoleft. | Outer Moray Firth of northern North Sea | Higgs and McClay (1993) |
| Clausen et al. (1999) | |||
| Low coefficients of friction | Low coefficients of friction can increase the displacement on localized fault surfaces and the concentrated stress around the dislocation loop may bound the slip zone. It may enable the outward propagation of the polygonal fault after initial slip which eventually coalesces with others into a polygonal fault system. | Eormanga Basin, | Goulty (2002) |
| Goulty and Swarbrick (2005) | |||
| North Sea Basin | Goulty (2008) | ||
| Syneresis | Syneresis occurs during the early stage of compaction and dewatering, and the three-dimensional contraction of smectite-rich gels favors the PF formation. This genesis mechanism is driven by the interparticle attractive forces between clay particles, and mainly occurs in layers composed of smectitic claystone and carbonate chalks. | Stable Subbasin, | Cartwright (1996) |
| Lonergan et al. (1998b) | |||
| North Sea Basin, | Hansen et al. (2004) | ||
| Wu et al. (2009) | |||
| Qiongdongnan Basin | Sun et al. (2010) | ||
| Han et al. (2016) | |||
| Shear failure | The conversion of opal-A to opal-CT reduces the bulk rock volume and induces differential compaction and shear failure during regional diagenetic processes of siliceous sediments. It is accompanied by stress changes, and therefore can cause PFs initiation. | VĆøring Basin, | Cartwright. (2011) |
| MĆøre Basin, | Davies and Ireland (2011) | ||
| Sanzhao Sag of Songliao Basin, | Ding et al. (2013) | ||
| Great South Basin | Li et al. (2020) |
A compilation of genesis mechanisms of polygonal faults in different study areas.
The ālow coefficients of residual frictionā mechanism was proposed by Goulty (2002), and it was proposed that the nucleated PFs can continue to grow by low coefficients of friction, creating compaction and repeated slip of sediments with increasing overburden stress (Goulty, 2008; Han et al., 2016). The mechanism of low friction coefficients along faults can only explain the formation of PFs after initial slip, but cannot account for fault nucleation (Goulty, 2002; Goulty and Swarbrick, 2005). In addition, this theory is not applicable for PFs developed in porous sandstones because shear band in sandstones is usually developed through a strain-hardening process that eventually weakens the strain (Antonellini et al., 1994; Aydin et al., 2006; Antonellini and Mollema, 2015).
āDensity inversionā was interpreted to be caused by the differential compaction between the underlying over-pressured low-density strata and the overlying normally pressured layer (Henriet et al., 1991; Cartwright, 1994Ā ab). It was often accompanied by shale flowage and hydrofracturing, during which processes the PFs were formed. For example, the PFs in the Lake Hope region of South Australia was interpreted to be triggered by gravitational instability of a low-density over-pressured layer at the bottom of the PF-bearing sequence (Watterson et al., 2000). This has been proved by experimental results as the pattern of ridges defining the polygon boundaries is consistent to the experimental spoke and hub patterns formed at the boundaries between viscous materials with density inversion. The ādensity inversionā theory has also been proved by Nicol et al. (2003), who proposed a density inversion model showing similar fault geometry, linkage and capture. However, this theory only suits the PFs developed in over-pressured low-density layers and cannot explain the PFs in normally pressured strata (Goulty, 2002; Ding et al., 2013).
āSyneresis mechanismā indicates the PF formation caused by dewatering contraction, probably due to spontaneous contraction of colloidal sediments which often occurs during early compaction (Dewhurst et al., 1999a; Dewhurst et al., 1999b; Berndt et al., 2012). This theory can better explain the map-view polygonal geometry as the small normal faults intersect with each other (Ding et al., 2013). The PFs found in the Tertiary strata of the North Sea is interpreted to be formed under this genesis mechanism (Dewhurst et al., 1999a). In this area, the lithology of the PF-bearing successions is dominantly composed of smectitic claystone and carbonate chalks, and the three-dimensional contraction of smectite-rich gels favors the PF formation, which is driven by the interparticle attractive forces between clay particles. At present the syneresis mechanism is widely accepted especially for PF occurrence areas rich in colloidal sediments.
āShear failureā, also known as āvolumetric contractionā, is regarded to be caused by a decrease in horizontal stress due to mineral-specific dissolution associated mostly with opal A-opal CT-quartz transitions during sediment diagenesis (Davies and Ireland, 2011; Laurent et al., 2012; Li et al., 2020). This mechanism has been widely adopted to explain the formation of PFs (Cartwright, 2011; Ding et al., 2013), such as in the Sanzhao Sag in East China, VĆøring Basin Offshore Norway and Great South Basin in New Zealand (Han et al., 2016; Li et al., 2020). However, the shear failure mechanism is not applicable for the PF formation in areas without biogenic silica and smectite, such as in the chalk layer of Cretaceous Khoman Formation near Farafra Oasis in the Western Desert of Egypt (Tewksbury et al., 2014).
Generally, no consensus on the genesis mechanism of PFs has been reached until present and it is possible that there are several different genesis mechanisms for the global PF occurrences which should be determined by the local lithological, diagenetic or stress conditions. āDensity inversionā, āsyneresisā and āshear failureā are the main formation mechanisms which are widely accepted as responsible for the formation of PFs in different areas. To determine the specific formation mechanism of PFs in certain areas, a comprehensive analysis should be carried out investigating key parameters such as lithology, pore fluid and strain conditions.
Sedimentary-Tectonic Setting of Polygonal Fault Development
PFs are layer-bound deformation structures mainly formed in shallow soft sediments of marine settings such as passive continental margins (Tewksbury et al., 2014; Seebeck et al., 2015; Turrini et al., 2017; Hoffmann et al., 2019; Velayatham et al., 2021), some intracratonic sedimentary basins and foreland basins (Cartwright, 2011; Morgan et al., 2015; Li et al., 2020; Figure 1). Some PFs have also been observed in lacustrine environment (Cartwright et al., 2004; He et al., 2010; Han et al., 2016). Most PFs were found in strata of fine-grained sediments (e.g., mudstone, shale, claystone, or carbonate chalk), younger than Middle Cretaceous period (Table 2; Hansen et al., 2004; Andresen and Huuse, 2011; Tewksbury et al., 2014; Yang et al., 2017; Alrefaee et al., 2018). However, Sun et al. (2010) and Hansen et al. (2004) stated that PFs may also occur in comparatively older pre-Cretaceous sediments, but they cannot be imaged clearly in seismic data probably due to the limitation of seismic resolution. A case study in Arches National Park in south-eastern Utah displayed the outcrops of PFs in the upper sandstone layer of the Middle Jurassic (Table 2), and the preservation of PFs in a comparatively older strata was probably due to their shallow burial depth in an uplifted erosional environment (Antonellini and Mollema, 2015).

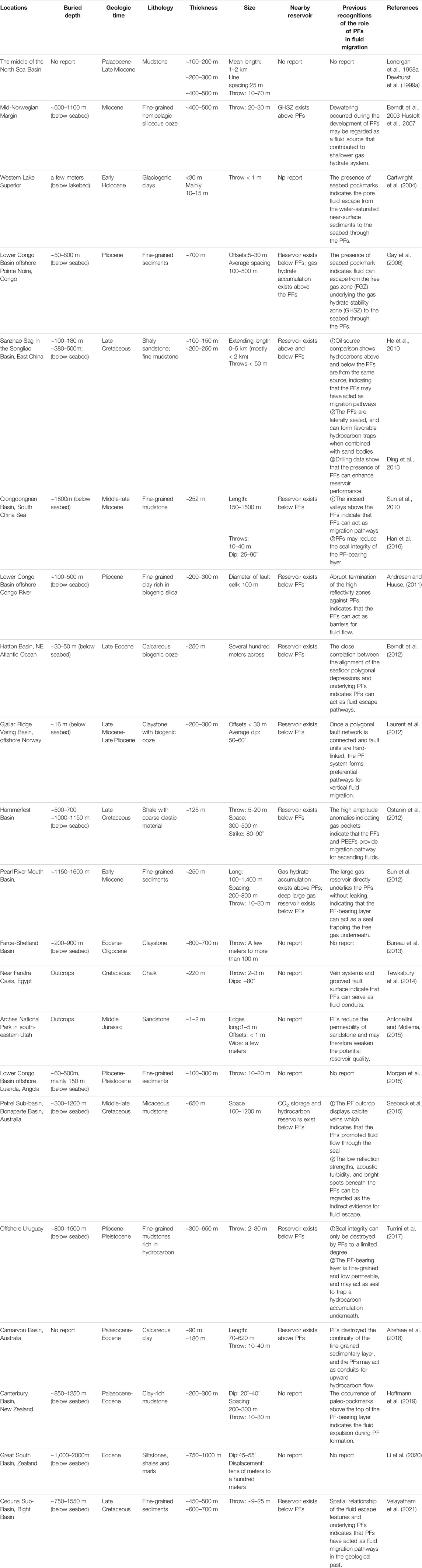

TABLE 2
| Locations | Buried depth | Geologic time | Lithology | Thickness | Size | Nearby reservoir | Previous recognitions of the role of PFs in fluid migration | References |
|---|---|---|---|---|---|---|---|---|
| The middle of the North Sea Basin | No report | Palaeocene-Late Miocene | Mudstone | ā¼100ā200Ā m | Mean length:1ā2Ā km | No report | No report | Lonergan et al., 1998a |
| ā¼200ā300Ā m | Line spacing:25Ā m | Dewhurst et al. (1999a) | ||||||
| ā¼400ā500Ā m | Throw: 10ā70Ā m | |||||||
| Mid-Norwegian Margin | ā¼600ā1100Ā m (below seabed) | Miocene | Fine-grained hemipelagic siliceous ooze | ā¼400ā500Ā m | Throw: 20ā30Ā m | GHSZ exists above PFs | Dewatering occurred during the development of PFs may be regarded as a fluid source that contributed to shallower gas hydrate system. | Berndt et al., 2003Hustoft et al., 2007 |
| Western Lake Superior | a few meters (below lakebed) | Early Holocene | Glaciogenic clays | <30Ā m | Throw < 1Ā m | Np report | The presence of seabed pockmarks indicates the pore fluid escape from the water-saturated near-surface sediments to the seabed through the PFs. | Cartwright et al. (2004) |
| Mainly 10ā15Ā m | ||||||||
| Lower Congo Basin offshore Pointe Noire, Congo | ā¼50ā800Ā m (below seabed) | Pliocene | Fine-grained sediments | ā¼700Ā m | Offsets:5ā30Ā m | Reservoir exists below PFs; gas hydrate accumulation exists above the PFs | The presence of seabed pockmark indicates fluid can escape from the free gas zone (FGZ) underlying the gas hydrate stability zone (GHSZ) to the seabed through the PFs. | Gay et al. (2006) |
| Average spacing | ||||||||
| 100ā500Ā m | ||||||||
| Sanzhao Sag in the Songliao Basin, East China | ā¼100ā180Ā m | Late Cretaceous | Shaly sandstone; fine mudstone | ā¼100ā150Ā m | Extending length | Reservoir exists above and below PFs | ā Oil source comparison shows hydrocarbons above and below the PFs are from the same source, indicating that the PFs may have acted as migration pathways | He et al., 2010 |
| ā¼380ā500m; (below seabed) | ā¼200ā250Ā m | 0ā5Ā km (mostly < 2Ā km) | ā”The PFs are laterally sealed, and can form favorable hydrocarbon traps when combined with sand bodies | |||||
| Throws < 50Ā m | ā¢Drilling data show that the presence of PFs can enhance reservoir performance. | Ding et al., 2013 | ||||||
| Qiongdongnan Basin, South China Sea | ā¼1800m (below seabed) | Middle-late Miocene | Fine-grained mudstone | ā¼252Ā m | Length:150ā1500Ā m | Reservoir exists below PFs | ā The incised valleys above the PFs indicate that PFs can act as migration pathways | Sun et al., 2010 |
| Throws: 10ā40Ā m | ā”PFs may reduce the seal integrity of the PF-bearing layer. | Han et al. (2016) | ||||||
| Dip: 25ā90° | ||||||||
| Lower Congo Basin offshore Congo River | ā¼100ā500Ā m (below seabed) | Pliocene | Fine-grained clay rich in biogenic silica | ā¼200ā300Ā m | Diameter of fault cell< 100Ā m | Reservoir exists below PFs | Abrupt termination of the high reflectivity zones against PFs indicates that the PFs can act as barriers for fluid flow. | Andresen and Huuse, (2011) |
| Hatton Basin, NE Atlantic Ocean | ā¼30ā50Ā m (below seabed) | Late Eocene | Calcareous biogenic ooze | ā¼250Ā m | Several hundred meters across | Reservoir exists below PFs | The close correlation between the alignment of the seafloor polygonal depressions and underlying PFs indicates PFs can act as fluid escape pathways. | Berndt et al. (2012) |
| Gjallar Ridge | ā¼16Ā m (below seabed) | Late Miocene-Late Pliocene | Claystone with biogenic ooze | ā¼200ā300Ā m | Offsets < 30Ā m | Reservoir exists below PFs | Once a polygonal fault network is connected and fault units are hard-linked, the PF system forms preferential pathways for vertical fluid migration. | Laurent et al. (2012) |
| VĆøring Basin, offshore Norway | Average dip:50ā60° | |||||||
| Hammerfest Basin | ā¼500ā700 | Late Cretaceous | Shale with coarse clastic material | ā¼125Ā m | Throw: 5ā20Ā m | Reservoir exists below PFs | The high amplitude anomalies indicating gas pockets indicate that the PFs and PEEFs provide migration pathway for ascending fluids. | Ostanin et al. (2012) |
| ā¼1000ā1150Ā m (below seabed) | Space: 300ā500Ā m | |||||||
| Strike: 80ā90° | ||||||||
| Pearl River Mouth Basin, | ā¼1150ā1600Ā m | Early Miocene | Fine-grained sediments | ā¼250Ā m | Long:100ā1,400Ā m | Gas hydrate accumulation exists above PFs; deep large gas reservoir exists below PFs | The large gas reservoir directly underlies the PFs without leaking, indicating that the PF-bearing layer can act as a seal trapping the free gas underneath. | Sun et al. (2012) |
| Spacing:200ā800Ā m | ||||||||
| Throw: 10ā30Ā m | ||||||||
| Faroe-Shetland Basin | ā¼200ā900Ā m (below seabed) | Eocene-Oligocene | Claystone | ā¼600ā700Ā m | Throw: A few meters to more than 100Ā m | No report | No report | Bureau et al. (2013) |
| Near Farafra Oasis, Egypt | Outcrops | Cretaceous | Chalk | ā¼220Ā m | Throw: 2ā3Ā m | No report | Vein systems and grooved fault surface indicate that PFs can serve as fluid conduits. | Tewksbury et al. (2014) |
| Dips: ā¼80° | ||||||||
| Arches National Park in south-eastern Utah | Outcrops | Middle Jurassic | Sandstone | ā¼1ā2Ā m | Edges long:1ā5Ā m | No report | PFs reduce the permeability of sandstone and may therefore weaken the potential reservoir quality. | Antonellini and Mollema, (2015) |
| Offsets: < 1Ā m | ||||||||
| Wide: a few meters | ||||||||
| Lower Congo Basin offshore Luanda, Angola | ā¼60ā500m, mainly 150Ā m (below seabed) | Pliocene-Pleistocene | Fine-grained sediments | ā¼100ā300Ā m | Throw: 10ā20Ā m | No report | No report | Morgan et al. (2015) |
| Petrel Sub-basin, Bonaparte Basin, Australia | ā¼300ā1200Ā m (below seabed) | Middle-late Cretaceous | Micaceous mudstone | ā¼650Ā m | Space | CO2 storage and hydrocarbon reservoirs exist below PFs | ā The PF outcrop displays calcite veins which indicates that the PFs promoted fluid flow through the seal | Seebeck et al. (2015) |
| 100ā1200Ā m | ā”The low reflection strengths, acoustic turbidity, and bright spots beneath the PFs can be regarded as the indirect evidence for fluid escape. | |||||||
| Offshore Uruguay | ā¼800ā1500Ā m (below seabed) | Pliocene-Pleistocene | Fine-grained mudstones rich in hydrocarbon | ā¼300ā650Ā m | Throw: 2ā30Ā m | Reservoir exists below PFs | ā Seal integrity can only be destroyed by PFs to a limited degree | Turrini et al. (2017) |
| ā”The PF-bearing layer is fine-grained and low permeable, and may act as seal to trap a hydrocarbon accumulation underneath. | ||||||||
| Carnarvon Basin, Australia | No report | Palaeocene-Eocene | Calcareous clay | ā¼90Ā m | Length: 70ā620Ā m | Reservoir exists above PFs | PFs destroyed the continuity of the fine-grained sedimentary layer, and the PFs may act as conduits for upward hydrocarbon flow. | Alrefaee et al. (2018) |
| ā¼180Ā m | Throw: 10ā40Ā m | |||||||
| Canterbury Basin, New Zealand | ā¼850ā1250Ā m (below seabed) | Palaeocene-Eocene | Clay-rich mudstone | ā¼200ā300Ā m | Dip: 20°ā40° | No report | The occurrence of paleo-pockmarks above the top of the PF-bearing layer indicates the fluid expulsion during PF formation. | Hoffmann et al. (2019) |
| Spacing: 200ā300Ā m | ||||||||
| Throw: 10ā30Ā m | ||||||||
| Great South Basin, Zealand | ā¼1,000ā2000m (below seabed) | Eocene | Siltstones, shales and marls | ā¼750ā1000Ā m | Dip:45ā55° | No report | No report | Li et al. (2020) |
| Displacement: tens of meters to a hundred meters | ||||||||
| Ceduna Sub-Basin, Bight Basin | ā¼750ā1550Ā m (below seabed) | Late Cretaceous | Fine-grained sediments | ā¼450ā500Ā m | Throw: ā¼9ā25Ā m | Reservoir exists below PFs | Spatial relationship of the fluid escape features and underlying PFs indicates that PFs have acted as fluid migration pathways in the geological past. | Velayatham et al. (2021) |
| ā¼600ā700Ā m |
A compilation of global case studies of PFs showing information on location, buried depth, geological time, lithology, thickness, size, related hydrocarbon reservoirs, and the role of PFs in fluid migration.
Hansen et al. (2004) used 3D seismic attribute maps to show the intersecting pattern between PFs and tectonic faults, suggesting that the propagation of PFs has been disturbed by the tectonic faults. Ostanin et al. (2012) also emphasized the tectonic impact on the growth of PFs, and the dominant strike direction of the PFs is consistent with the strike direction of the regional tectonic faults. Therefore, even though the PFs are non-tectonic, the tectonic influence on the growth and propagation of PFs cannot be ruled out. The development and distribution of PFs are primarily determined by the lithology of the PF-bearing layer and their buried depth, and the regional stress affects the propagation and dominant direction of both tectonic faults and PFs.
Characteristics of Polygonal Faults
Based on publications of global PF case studies, a compilation of PFs was carried out with key parameters analysed including PF locations, geological time, buried depth, lithology, thickness, size, related hydrocarbon reservoirs, and their interpreted roles in fluid migration (Table 2).
General Geometry and Location of the Polygonal Faults
PFs are often characterized by small fault throw (Figure 3A), small lateral extension and various displacement value (from a few meters to over 100Ā m), mainly developed in shallow-buried strata which are over 100Ā m thick and deposited after the Middle Cretaceous period (mainly Tertiary, Figure 3B, Figure 4B; Cartwright, 2007; He et al., 2010; Berndt et al., 2012; Ostanin et al., 2012; Li et al., 2020). They have neither dominant strike nor dominant tendency, existing as networks of minor normal faults (Watterson et al., 2000; Alrefaee et al., 2018; Figure 2). The throws of PFs developed in most of the PF areas are smaller than 50Ā m, such as in the Lower Congo Basin (10ā20Ā m, Morgan et al., 2015), in the Hammerfest Basin (5ā20Ā m, Morgan et al., 2015), in the Qiongdongnan Basin (10ā40Ā m, Han et al., 2016), and in the Near Farafra Oasis, Egypt (2ā3Ā m, Tewksbury et al., 2014). In addition, some PFs with larger throw of >100Ā m have also been found such as in the Faroe-Shetland Basin (Bureau et al., 2013). The extending length of PFs in most of the PF areas is generally smaller than 2Ā km, such as in the Northern Carnarvon Basin (70ā620Ā m, Alrefaee et al., 2018), in the North Sea Basin (1,000ā2000Ā m, Lonergan et al., 1998a), and in the Pearl River Mouth Basin (100ā1400Ā m, Sun et al., 2012).

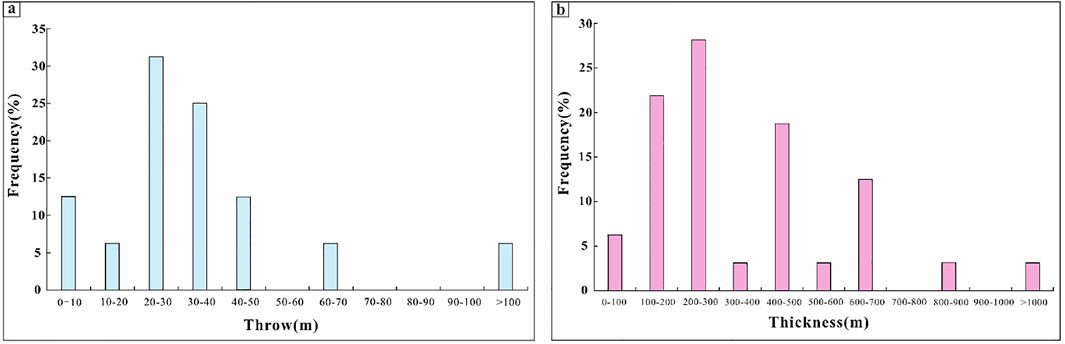

FIGURE 3

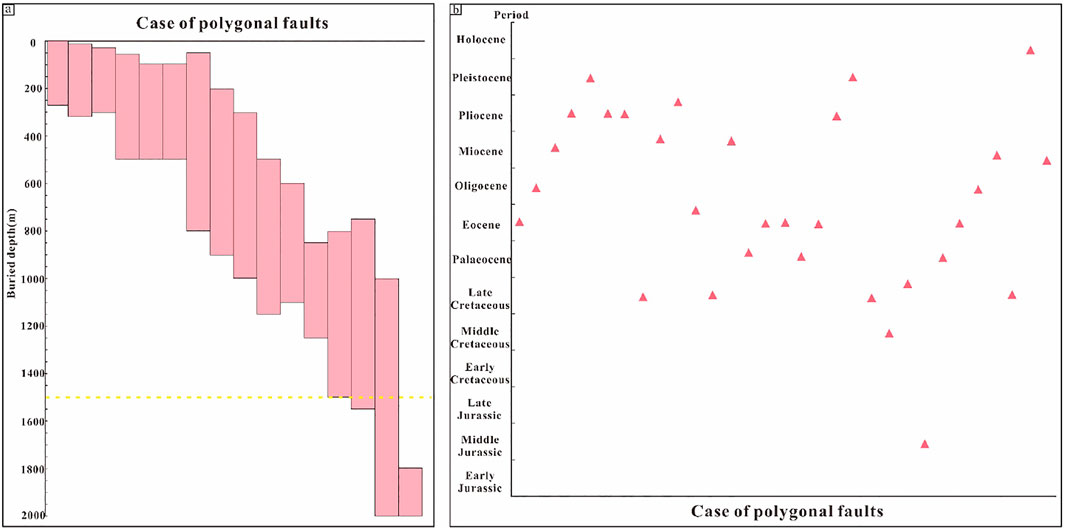

FIGURE 4
With the increase of burial depth, the dip angle of PFs decreases gradually, interpreted to be caused by compaction and flattening of the fault planes due to increasing vertical stress (Lonergan et al., 1998b; Stuevold et al., 2003; Shoulders et al., 2007). For example, some PFs from offshore Norway appear to have relatively steep dip angle of ā¼80° at the shallower level, but they show strongly listric at deeper depth with comparatively smaller dip angle of ā¼60° (Cartwright, 2011). PFs are layer-bound deformation structures mainly formed in shallow soft sediments of marine settings. Most of the PFs discovered worldwide are located at depth smaller than 1,500Ā m below the seabed (mbsb) with only a small proportion of PFs occur at depth ranging from 1,500 to 2000Ā mbsb, at which depth the early stages of compaction probably caused the initiation of PFs (Figure 4A). At even deeper depth, the PF-bearing layer experienced strong diagenesis which makes the PFs difficult to be imaged in seismic. What is more, small sized PFs have been found in a few meters below the present-day lakebed in the Western Lake Superior, with a thickness range of 10ā15Ā m and fault throw of < 1Ā m (Cartwright et al., 2004). Two outcrops of PFs have been observed in the Jurassic layers in the Arches National Park in south-eastern Utah and the Cretaceous layers in the Near Farafra Oasis, Egypt (Tewksbury et al., 2014Antonellini and Mollema, 2015). The layer-bound PFs are mainly developed in marine claystone, and therefore the thickness of the PF-bearing strata is mainly controlled by the sediment distribution deposited in certain sedimentary environment (Cartwright and Lonergan, 1997; Goulty, 2008). Most PFs around the world were developed in layers of < 700Ā m thick, with quite a few occurring in layers of only several meters thick (Table 2; Figure 3B). For example, the outcrops of PFs was observed in Arches National Park in south-eastern Utah, the layer thickness of which is < 2Ā m (Antonellini and Mollema, 2015).
Lithology of Polygonal Fault-Bearing Layer
PFs are usually found in layer-bound successions consisting mainly of fine-grained sediments (e.g., mudstone, shale, claystone, or carbonate chalk), which may be related with the genesis mechanism of PFs (Andresen and Huuse, 2011; Cartwright, 2011; Yang et al., 2017; Alrefaee et al., 2018; Ireland et al., 2021). āSyneresisā due to spontaneous contraction of colloidal sediments and āshear failureā caused by mineral-specific dissolution have been widely accepted to explain the PF formation mechanism in fine-grained sediments (Han et al., 2016; Li et al., 2020). Besides, small outcrops of PFs have been found in the Entrada sandstone strata of Middle Jurassic in the Arches National Park in south-eastern Utah (Antonellini and Mollema, 2015). Since sandstone are relatively coarser and permeable, genesis mechanisms such as āsyneresisā and āshear failureā cannot explain the PF formation in sandstone layers. The ādensity inversionā was proposed to account for the PF formation in the Entrada Sandstone (Antonellini and Mollema, 2015). The over-pressured sequences (Carmel Formation) is overlain by normally pressured layer (Entrada Sandstone), which caused accompanied shale flowage and hydrofracturing therefore leading to the formation of PFs in sandstones. In addition, the geometry, distribution and intensity of PFs are mainly determined by lithological features such as grain size, hardness, diagenesis, clay mineralogy and organic matter content (Dewhurst et al., 1999Ā ab; Hansen et al., 2004; Turrini et al., 2017). When the PF-bearing layer is homogeneous in thickness and lithology, faults cross cut each other uniformly at an angle of 60° (Cartwright, 2011; Li et al., 2020). Otherwise, the geometry of the PFs is featured by irregular polygons when the PF-bearing layer is heterogeneous in thickness and lithology, which represents the situation of most global PF cases.
Although most PFs occur in fine-grained sediments, their formation and characteristics are also affected by nearby coarse sand bodies density (Victor and Moretti, 2006; Shoulders et al., 2007; Liu et al., 2008; He et al., 2010). In the south-east area of the Sanzhao sag, the PFs are well developed in areas of smaller sand/layer thickness ratio and poor physical property. On the contrary, the PFs are sparsely developed in the northern area of Sanzhao sag where is featured by larger sand/layer thickness ratio and good physical property (He et al., 2010). The sand bodies overlying the PFs favour the discharge of fluids from the PF-bearing mudstone layer, inhibiting the formation of overpressure and therefore causing sparsely developed PFs.
Discussion
Previous Recognitions of the Roles of Polygonal Faults
According to previous studies, the presence of PFs has been proposed to play a role in both favouring fluid migration and as a fluid source during the early stage of PF generation (Hustoft et al., 2007; Sun et al., 2010; Tewksbury et al., 2014). Many researchers commonly believed that PFs facilitate fluid migration by generating more failures and destroying the integrity of fine-grained layers, and regarded PFs as dominant channels for fluid migration and re-migration (Ding et al., 2013; Seebeck et al., 2015; Han et al., 2016). For example, Laurent et al. (2012) has proposed that the PFs in Gjallar Ridge offshore Norway can act as preferential fluid migration pathways when they are connected closely. Alrefaee et al. (2018) interpreted the PFs in Northern Carnarvon Basin in Australia as the fluid migration pathways based on seismic imaging of the discontinuity of the fine-grained sediments. In the Sanzhao Sag of the Songliao Basin, the oil source comparison of hydrocarbon reservoirs above and below PFs shows that they were from the same source rock, and this was regarded as the evidence that PFs acted as the fluid migration pathways (He et al., 2010; Ding et al., 2013). According to Sun et al. (2010), the development of PFs in the fine-grained Huangliu Formation and Meishan Formation in Qiongdongnan Basin destroyed the sealing property and increased the permeability, resulting in the upward secondary migration of oil and gas from the lower hydrocarbon reservoir.
Considering the dewatering process during the initial period of PF formation, the PF-bearing layer may be a fluid source where fluids were expelled to nearby sediments. For example, the sediment dewatering during PF generation in the Kai Formation and the underlying Brygge Formation in Mid-Norwegian Margin were regarded as responsible for providing the fluid source for the gas hydrate formation in the shallower VĆøring margin (Berndt et al., 2003; Hustoft et al., 2007). PF generation is commonly associated with underlying troughs and overlying incised valleys, and it was proposed that the fluid produced by dewatering in the early stage of PFs formation may escape and migrate upward causing the troughs due to related consequent volume loss and subsequent collapse (Sun et al., 2010). The overlying incised valleys were caused by fluid escape which was expelled from underlying PF-bearing mudstone layer (Figure 5A).

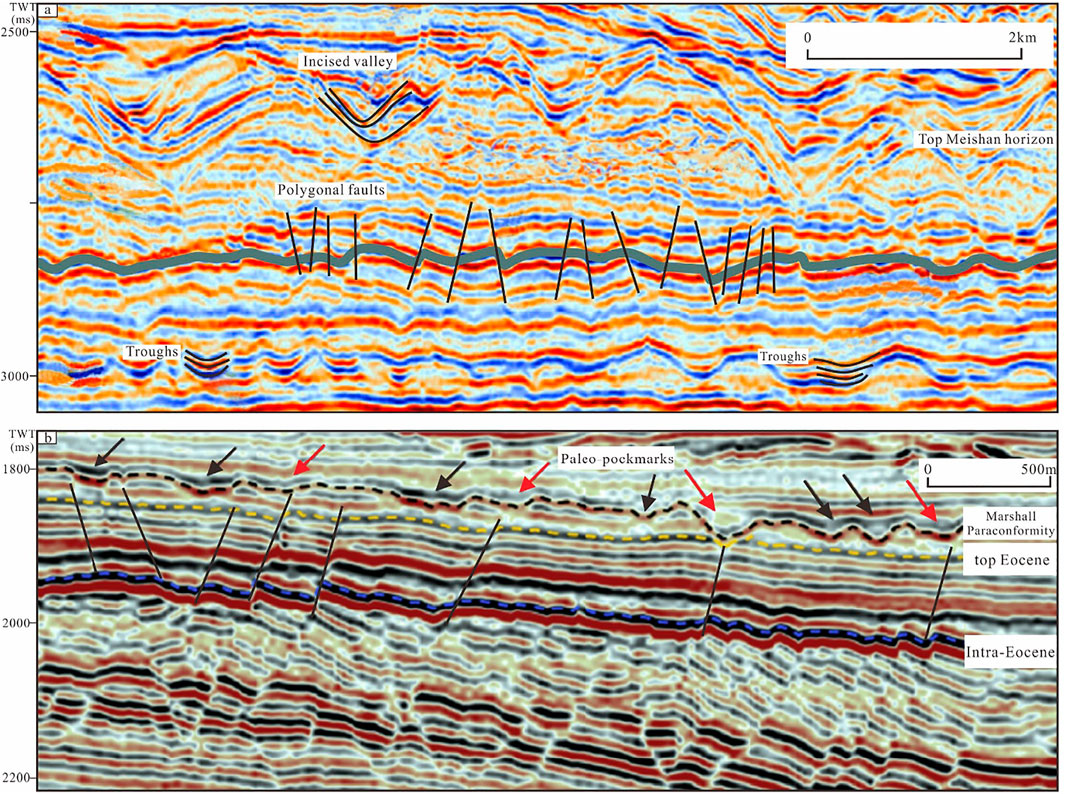

FIGURE 5
Sediment compaction and pore water drainage occur during PF formation, resulting in the formation of pockmark in Canterbury Basin (Berndt et al., 2003; Gay et al., 2004; Gay and Berndt, 2007; Goulty, 2008). But that is not the only factor for the pockmark formation because 6 out of 11 pockmarks are not spatially consistent with the PF locations (Figure 5B). Other possibilities cannot be excluded such as bottom currents and differential compaction. In addition, PFs are often laterally impermeable, which may prevent lateral fluid migration and may form fault-lithologic traps when combined with nearby sand bodies (He et al., 2010; Andresen and Huuse, 2011).
Implications for Hydrocarbon Accumulation
Previous studies often regarded PFs as fluid migration pathways for shallower hydrocarbon or gas hydrate accumulations (Ding et al., 2013; Alrefaee et al., 2018; Velayatham et al., 2021). However, other fluid conduits cannot be ruled out such as the major faults, gas chimneys unconformities surface, or lateral migration along permeable layers to the structural highs. According to Ostanin et al. (2012), the widely distributed PFs found in Hammerfest Basin within Campanian layers may act as pathways for vertical hydrocarbon migration. However, the localized high amplitude anomalies are more likely to be distributed along the Palaeocene-Early Eocene Faults and the major deep 1st order faults (Figure 6A). We propose that the hydrocarbon fluid from the deeper reservoirs may initially migrate along the 1st order faults and then continue to migrate along the PEEFs to form the high amplitude anomalies. These enhanced amplitude anomalies may be due to the presence of hydrocarbons or diagenesis effect, both of which are related to the fluid migration (O'Brien et al., 2005). Velayatham et al. (2021) proposed that the PFs in the Ceduna Sub-basin, offshore South Australia may act as fluid migration pathways due to the spatial association of the PFs with shallower pipes (Figure 6B). However, after careful examination of the seismic profiles and plan view maps in the Ceduna Sub-basin, it seems insufficient to determine the fluids that escaped along the pipes were from underneath PFs which provided the fluids (Velayatham et al., 2021). Other possibilities of fluid supply should not be excluded such the migration along the major deep faults or lateral permeable sedimentary layers. Based on comprehensive analysis of enormous global PF case studies, we propose that in most PF cases the PFs play very limited roles in facilitating vertical long-distance fluid migration.

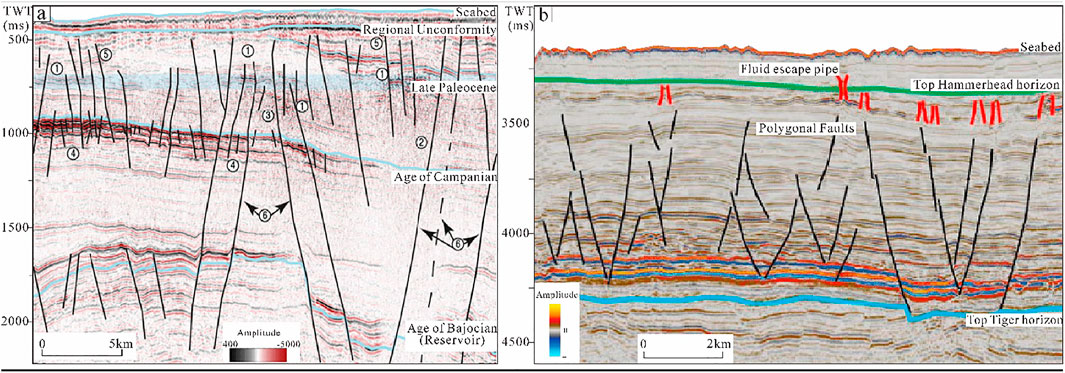

FIGURE 6
Many PFs occur in the fine-grained sediments layer of the Pearl River Mouth Basin in the northern South China Sea, but they may have played limited role in fluid migration (Sun et al., 2012; Yang et al., 2017). According to Sun et al. (2012) and Yang et al. (2017), the fluid migration system is mainly composed of gas chimneys and major large faults, and the enhanced seismic reflections representing shallow gas accumulation are mainly located on top of the gas chimneys (Figure 7). Meanwhile, the PF-bearing layer lacks local amplitude anomalies, and high amplitude gas reservoirs even exist underneath the PFs, both indicating that the PF-bearing layer should be impermeable at present and may hinder upward migration of the underlying fluids.

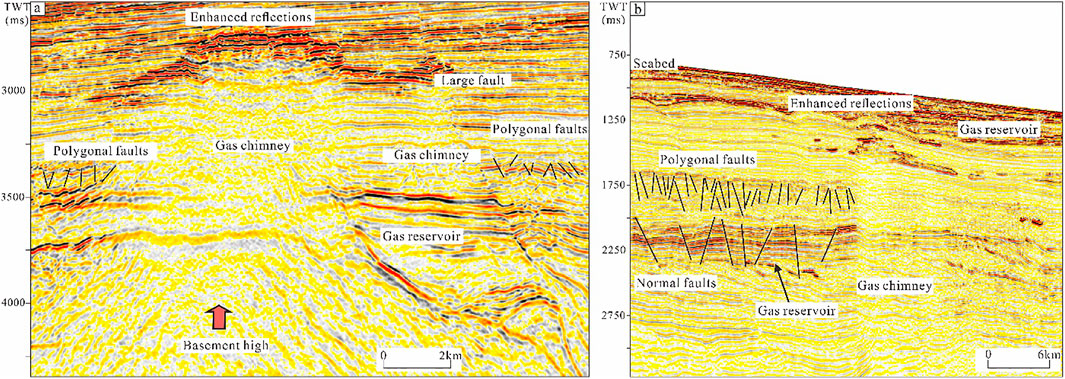

FIGURE 7
In the Lower Congo Basin, Gay et al. (2006) stated that the PFs allow deeper fluid migration to reach the seabed because of the upward deflection of the base of the gas hydrate stability zone (indicated by bottom-simulating reflector BSR in seismic), which was interpreted to be caused by a localized positive heat flow anomaly related to the PFs (Figure 8A). However, it has been noticed in this study that the deflection of the BSR solely appears around the chimney zone rather than throughout the whole PF-bearing layer. In the same area, Andresen and Huuse (2011) described the high reflectivity zone between the two PF-bearing layers which represents free gas accumulation. On the contrary, the vertical configuration of the free gas zone and the PF-bearing layer suggests the limited role of PFs as fluid migration conduits. It is more possible that the PF-bearing layer act as a seal trapping the free gas underneath. Additionally, localized high amplitude anomalies only exist along the gas chimney, indicating the positive role of gas chimney in fluid migration (Andresen and Huuse, 2011; Figure 8B,C). In this study, we interpret the high reflectivity zone between the two PF-bearing layers as sandstone-rich porous reservoir bodies which deposited as turbidite sandstone body in a background of fine-grained marine sediments. In this condition, good configuration of reservoir-seal led to the accumulation of free gas zone, with gas chimney being the major conduits transporting free gas from the deep. Considering the role of sandstone bodies as a barrier to PF propagation, the distribution and geometric attributes of PFs can be used to delineate sandstone bodies in the PF-bearing layer, which can be applied in date-poor areas (Jackson et al., 2014; Turrini et al., 2017).

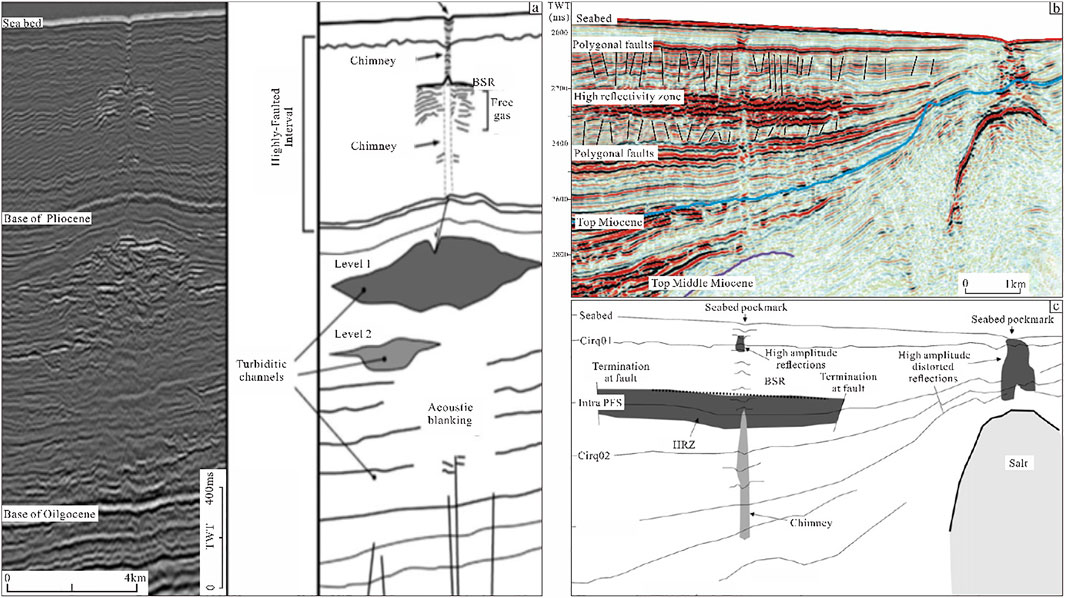

FIGURE 8
Sealing Ability of the Polygonal Faults
The activity of the PFs is intermittent which can last over several millions of years, and therefore the role of PFs in fluids migration may be spatially and temporally variable (Berndt et al., 2003; Gay and Berndt, 2007; Berndt et al., 2012). The integrity of a fine-grained seal can be destroyed by the initial dewatering of host sediments, slip activity of the PFs, or the reactivation of PFs due to the contraction during tectonic rifting period, which results in the transient fluid leakage (Gay et al., 2006; Gay and Berndt, 2007; Hustoft et al., 2007; Seebeck et al., 2015). However, the PFs should be inactive and therefore probably impermeable in a larger geological time-scale. Additionally, the PF-bearing layers are often composed of primarily very fine-grained smectitic claystones or carbonate chalks, with generally low permeability (<10ā17Ā m2) (Hibsch et al., 2003; Hansen et al., 2004; Tewksbury et al., 2014; Antonellini and Mollema, 2015).
It is widely acknowledged that the existence of PFs potentially increases the overall vertical permeability of fine-grained strata, slightly higher than the permeability of the host lithology (Evans et al., 1997; Gay et al., 2004; Faulkner et al., 2010; Ilg et al., 2012). However, this may not be large enough to allow fluid to flow smoothly through the PF-bearing layer. For example, the PFs in offshore Australia exist in the cap rock above the potential CO2 reservoirs (Seebeck et al., 2015), suggesting the role of the PF-bearing layer as a seal. In contrast, the presence of PFs in coarse-grained sediments (e.g. porous sandstones) may reduce the permeability of PF-bearing layer, probably due to the deformation bands with cataclasis (Antonellini and Mollema, 2015). For example, the permeability of deformation band with cataclasis of the PFs is ā¼10ā15Ā m2Ā at Arches National Park, while the permeability of deformation bands without cataclasis can reach 10ā14 to 10ā13Ā m2 in the same area (Antonellini et al., 1994).
To summarize, the PFs developed in the sealing strata of fine-grained sediments may have improved the permeability for certain degree, but were still not favourable for fluid migration. Alternatively, the presence of PFs may even improve the sealing ability over time when clay smeared along the fault surfaces (Lonergan et al., 1998a; Turrini et al., 2017). In addition, Cartwright et al. (2007) proposed that the rate of fluid migration through PFs is relatively low on geological time scales, and therefore the presence of PFs alone cannot cause extended leakage from deeper hydrocarbon reservoirs. Generally, the role of PFs in fluid migration may be limited due to the PF-bearing layers act more as seals in most of the global PF cases.
Conclusion
A geophysical review of global PFs case studies was conducted in this paper to better understand the role of PFs in fluid migration and their contrition to the shallower hydrocarbon or gas hydrate accumulation. Five main conclusions are made based on a comprehensive analysis of the geophysical characteristics of the PFs
Chen et al., 2011,
Davies et al., 2009,
Gay et al., 2007,
Shin et al., 2008,
Shin et al., 2010.
1. Three genesis mechanisms may account for the PF formation in most cases, including density inversion, syneresis and shear failure. A comprehensive analysis of lithology, pore fluid and strain conditions are needed to determine the specific PF formation mechanism for a specific study area.
2. PFs are non-tectonic and layer-bound, mainly developed in shallow-buried fine-grained strata of >100Ā m thickness and deposited after the Middle Cretaceous period. PFs are characterized by steep dip angles (40ā70°), multi-direction strikes, small fault throws (most <50Ā m), small lateral extensions (most < 2Ā km) and various displacement values (10ā100Ā m).
3. Examination of many case studies shows that the PFs may play a limited role in fluid migration based on the spatial relationship of the PFs, nearby major fluid migration pathways and high amplitude anomalies. On one hand, the PFs developed in the fine-grained strata may improve the permeability for certain degree, but may be not favourable for fluid migration. On the other hand, the presence of PFs may even improve the sealing ability when the clay smeared along the fault surfaces.
4. The sealing ability of PF-bearing layer can be destroyed by the initial dewatering of host sediments, slip activity of the PFs, or the reactivation of PFs, causing a transient period of fluid leakage. But in a larger geological time-scale, the PFs should be inactive and therefore probably impermeable.
5. Considering the limited role of PFs in fluid migration, it is proposed that the PFs may not contribute a lot to the shallower hydrocarbon or gas hydrate accumulation, and other major conduits are needed such as deep faults, gas chimneys, diapirs.
Statements
Author contributions
JY: Writing, Editing, Conceptualization, Methodology. YX: Software, Writing- Reviewing and Editing. ZY: Conceptualization, Supervision. SL and MW: Project administration, Investigation. SD: Data curation, Writing- Original draft preparation. YC and ML: Data curation, Writing- Reviewing and Editing.
Funding
This work was supported by Shandong Provincial Natural Science Foundation (ZR2019QD013), Foundation and key technology of marine gas hydrate trial production project (ZD2019-184-001), Fundamental Research Funds for the Central Universities (19CX02003A), and NSF of China (41406050).
Acknowledgments
Shandong Provincial Natural Science Foundation (ZR2019QD013), Foundation and key technology of marine gas hydrate trial production project (ZD2019-184-001), ā14th Five-Year planā forward-looking basic major science and technology project of CNPC (2021DJ4901), Fundamental Research Funds for the Central Universities (19CX02003A), and NSF of China (41406050) financially support this study.
Conflict of interest
ZY was employed by Engineering Technology Research Company Limited and China National Petroleum Corporation.
The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
