1 Introduction
Hydraulic fracturing was first developed in North America, resulting in a multi-stage horizontal well and multi-layer vertical well volume fracturing technology, and has been commonly used in reservoir reconstruction. However, hydraulic fracturing will cause a lot of waste of water resources, and the treatment of flowback fluids requires high cost (; ; ). Supercritical CO2 has attracted much attention due to its high mobility and low intermolecular interaction. Using CO2 fracturing can effectively avoid the above problems by show more effectively increase the reservoir pressure and reduce the damage to the reservoir (; ; ; ). However, CO2 fracturing needs a large number of supercritical CO2, which is expensive and not easily accessible.
Since the first application of CO2 fracturing technology in the United States in the 1980s, CO2 fracturing technology has entered a stage of rapid development (; ; ). A large number of CO2 pre-injection experiments during hydraulic fracturing have been carried out, and field applications have been carried out in oilfields, which have achieved good results in increasing production (; ). In 1990, CO2 sand fracturing, N2 foam fracturing and N2 fracturing were carried out in 15 gas wells in Kentucky, United States. The production data show that the cumulative gas production of CO2 sand fracturing wells in 37 months is 2 times that of N2 fracturing wells and 5 times that of N2 foam fracturing wells. In 2014, an oil well in Oklahoma was fractured by CO2. The daily oil production after fracturing was 2.7 t, and the oil production increased to 3.3 t/d after 1 month. CO2 fracturing technology has been applied in 25 wells of tight oil reservoir, and the average daily production of single well is 1.7 t higher than that of adjacent wells. But up to now, there is still a lack of discussion on the mechanisms of CO2 pre-injection to increase reservoir energy and production. Therefore, this paper aimed at investigating the interaction between pre-injected CO2 and the reservoir fluid/rock/energy, providing reference for further confirming the mechanism of enhancing production and improving the fracturing effect.
2 Effect of CO2 on rocks and fluids in reservoirs
The study on the interaction of injected CO2 with reservoir rocks and fluids is of great significance for fracturing and reservoir reconstruction using CO2. The influence of injected CO2 on reservoirs is mainly reflected in four aspects, namely, improving physical properties of matrix, influence on fluid, improving stimulation effect and increasing reservoir pressure.
2.1 Effect of CO2 on reservoir rocks
The improvement of reservoir properties by CO2 is mainly reflected in the influence of porosity and permeability of rock, the change of reservoir wettability, plugging removal, and inhibition of clay expansion.
2.1.1 Changes of porosity and permeability
On the one hand, when the CO2 dissolution mechanism dominates, the porosity and permeability of rock will increase with the injection of CO2. When rocks and reservoir water contact with CO2, CO2 aqueous solution will produce new pores or broaden primary pores in the dissolution of organic matter or minerals, and the dissolution will increase with the increase of temperature and immersion time (; ). conducted an experiment on the change of pore structure of shale reservoirs after immersion in CO2 aqueous solution for 24 h under simulated reservoir temperature/pressure conditions (80°C, 20 MPa), and the rock matrix sample was soaked for 24 h. A large number of dissolved pores appeared, the porosity was increased by 6.9%, and the permeability was increased from 0.23 to 2.98 . Experiments have proven that CO2 can greatly increase the porosity and permeability, which is beneficial to increase production after fracturing.
On the other hand, when CO2 adsorption expansion is dominant, CO2 injection will reduce rock porosity and permeability. The interaction of CO2, brine, and rock will form mineral crystals, which grow and precipitate in pores (; ). An experimental study by showed that the adsorption of CO2 in micropores may cause adsorption-induced swelling, thereby closing existing natural fractures and reducing fluid flow capacity. The change of pore structure is significantly affected by CO2, and it is necessary to conduct targeted research on shale in practical applications.
2.1.2 Change of wettability
CO2 can change reservoir wettability (; ). The injection of CO2 will form carbonate in the reservoir, and the acid reacts with the minerals in the reservoir to generate new minerals, thereby changing the wettability of the solid wall of the liquid phase. The strong hydrophilicity of the reservoir is conducive to improving the injectivity of subsequent water flooding, and thus improving the recovery efficiency. proved that after injection of CO2 into the reservoir, the wetting contact angle decreased and the hydrophilicity of the reservoir increased.
2.1.3 Deblocking and inhibiting clay swelling
In shale reservoirs, the reduction of the pH value of reservoir water can inhibit the expansion of clay. In carbonatite and sandstone, partial plugging can be relieved to restore oil well production. In the experiments by , the aqueous solution was slightly acidic owing to CO2 dissolution, and the formation water dissolved CO2 and interacted with the formation matrix to relieve plugging and inhibit clay swelling.
2.2 Effect of CO2 on fluid
The influence of CO2 on fluid is mainly reflected in the influence of extraction rate, density, expansion, gas solubility, surface tension, and irreducible water saturation.
2.2.1 Effect on mass transfer of oil
CO2 enhances the extraction capacity of crude oil (). It is difficult for CO2 to get miscible with crude oil at first contact, so pre-injection of CO2 can achieve multi-contact with oil, and the extraction effect of CO2 on crude oil is continuously enriched to realize the miscibility. CO2 has strong extraction ability for C2-C5 components of crude oil, but weak extraction ability for heavy components and methane. determined the extraction rate of crude oil by CO2 at different pressures. Results show that CO2 density was positively correlated with pressure. When the pressure reaches 40 MPa, the extraction rate can reach 85.2%. The experiment showed that CO2 significantly enhanced the extraction rate of crude oil, as shown in Figure 1A.

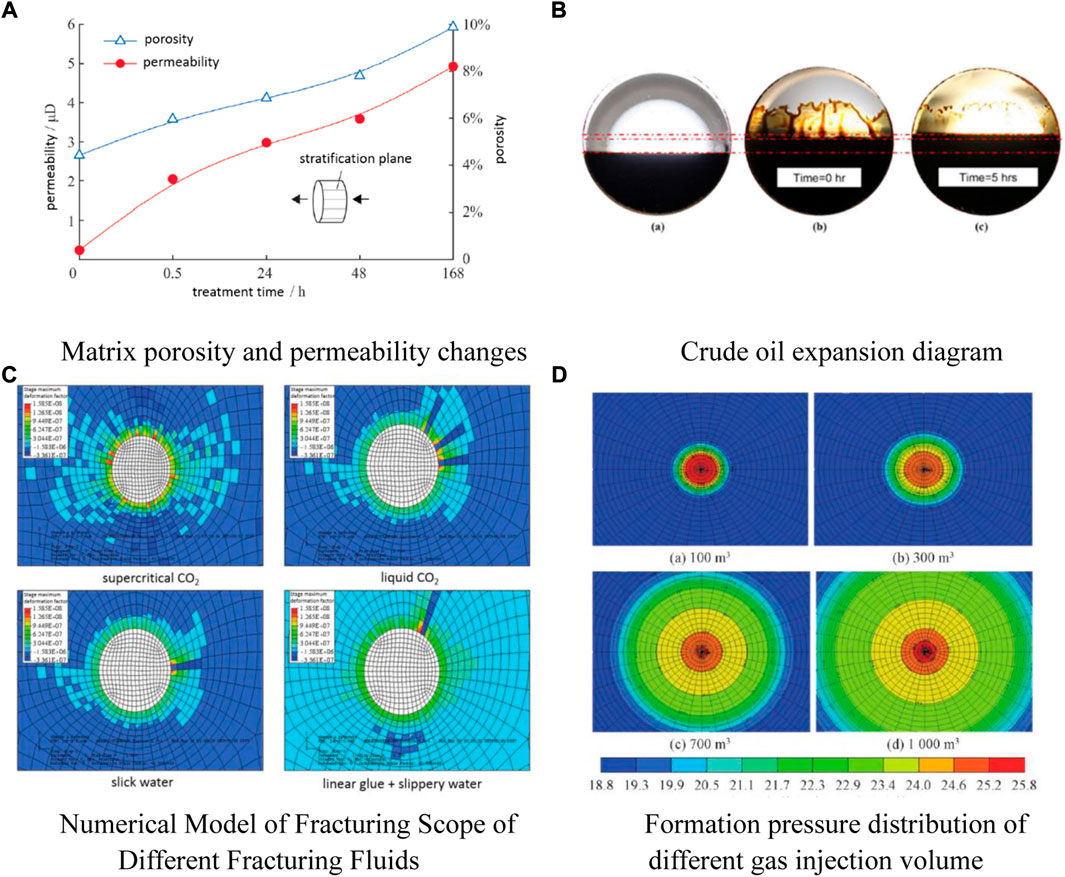

FIGURE 1
2.2.2 Effect on oil density
Dissolving CO2 in crude oil will increase the density of crude oil. With the increase of CO2 content, more supercritical CO2 contacts with crude oil, and the density of crude oil increases with the increase of CO2 content (). injected 45% mole fraction of CO2 into crude oil in the oil expansion experiment, and the oil density was increased by 8.78% from 0.7341 to 0.7986 g/cm3 at 20 MPa.
2.2.3 Effect on oil expansion
CO2 has a high expansion effect on crude oil. The specific volume, reservoir volume factor and compressibility coefficient of crude oil increase after CO2 injection, which increases the compressibility of crude oil and further improves the productivity of oil wells (), as shown in Figure 1B. conducted crude oil expansion experiment, and found that when the mole fraction of CO2 in crude oil was increased from 0 to 0.45%, the specific volume, reservoir volume factor, and compressibility coefficient of crude oil were increased by 2.53, 30.06, and 41.54%, respectively. Zhang et al. (2020) injected CO2 into crude oil, and the expansion coefficient of crude oil increased from 1.00 to 1.19 after adding 45% CO2. The above experiments have demonstrated that CO2 can significantly enhance the elastic energy of reservoir.
2.2.4 Effect on gas solubility
The injection of CO2 can effectively improve the gas solubility of crude oil. The higher the viscosity of crude oil is, the more obvious the viscosity reduction effect will be. Lower viscosity can increase its mobility, which is conducive to the production of crude oil. found that the average dissolved gas-oil ratio of the oil samples increased from 13.5 to 18.05, an increase of 4.52, accounting for 33.41% of the dissolved gas-oil ratio of total oil samples. The data show that CO2 injection into crude oil can effectively enhance the gas solubility of crude oil and improve the gas solubility of crude oil.
2.2.5 Effect on oil-water surface tension
CO2 can reduce the oil-water interfacial tension and reduce the viscosity of crude oil. CO2 was injected into the reservoir in advance and CO2 was contacted with crude oil many times, which improved the physical properties of crude oil, enhanced the mobility of crude oil and finally reached the miscibility. This will greatly reduce crude oil viscosity, improve displacement efficiency and increase production. The high-pressure PVT experiments conducted by showed that when the oil-water mixed solution was saturated with CO2, the interfacial tension can be reduced by about 33%. Reducing the surface tension can reduce the adhesion work that needs to be overcome to strip oil from the rock surface, making the oil adhered to the rock surface and pores easier to be extracted.
2.2.6 Effect on irreducible water saturation
Injecting CO2 increases irreducible water saturation (). With the injection of CO2, the dissolved gas volume of reservoir water increase. Some of the irreducible water that occupies the oil flow channel becomes mobile water, which makes the oil flow out and thus improves the recovery efficiency. conducted the reservoir water injection CO2 expansion experiment, and found that when the injection pressure was 27 MPa, irreducible water saturation increased from 36.3 to 41.11%.
2.3 Improving stimulated effect
Improving stimulated effect by CO2 is mainly reflected in reducing initiation pressure and increasing fracture complexity.
2.3.1 Reducing initiation pressure
Supercritical CO2 can reduce the rupture pressure of rocks. Since supercritical CO2 has good diffusion and permeability, supercritical CO2 fracturing reduces the effective stress of surrounding rock by increasing pore pressure, which makes the initiation pressure lower than hydraulic fracturing (; ; ; ), as shown in Figure 1C. analyzed the fracturing mechanism of supercritical CO2 fracturing based on the rock fracture criterion of linear elastic model. The calculated data indicated that the rupture pressure by using supercritical CO2 was reduced by 75.5%. experimentally demonstrated that the initiation pressure of supercritical CO2 fracturing rock is 15% lower than that of liquid CO2 under the same conditions, which is about half of that of hydraulic fracturing.
2.3.2 Increasing fracture complexity
Supercritical CO2 has the effect of slippage and diffusion, which makes its liquidity have certain nonlinear characteristics. CO2 can enter the tiny pores and fracture tips that water and fracturing fluid cannot enter during the propagation, promoting the opening of natural weak surface and increasing the complexity of fractures (; ; ; ). combined with physical simulation and numerical simulation, and found that the volume strain increment produced by supercritical CO2 fracturing is higher than that of hydraulic fracturing, the fracture conplexity and fracture surface roughness after fracturing are also larger, and the fracture morphology is more complex ().
2.4 Enhancing reservoir pressure
Injection of CO2 can effectively increase reservoir pressure, which is conducive to production. CO2 has strong injection, good diffusion, strong production-increasing effect, wide range of pressure spread. Equal velocity injection of liquid carbon dioxide and water, the pressure-increasing effect of CO2 injection is twice that of water injection (; ). found that with the increase of CO2 injection rate, the radius of miscible zone increased gradually. Due to the rapid propagation of CO2 pressure, the reservoir pressure increases rapidly, as shown in Figure 1D, and the pressure can be maintained above 29 MPa in the reservoir near the wellbore.
3 Conclusion and foresight
CO2 pre-injection during hydraulic fracturing can affect the physical properties of the reservoir, increase the porosity and permeability of the rock and improve the wettability of the reservoir, which is conducive to improving the subsequent water flooding injection capacity. CO2 injection enhances the flow capacity of crude oil by using the effect of CO2 injection on the fluid, making it easier for crude oil to be recovered. It also reduces initiation pressure, increases fracture complexity and increases formation pressure. Combined with water-based fracturing fluid, the fractures were further propagated and effectively supported.
At present, the mechanism of CO2 pre-injection during hydraulic fracturing on reservoir has not been comprehensive considered in the fracture propagation simulation and production dynamic simulation. In the future, all of the mechanism should be considered for the accuracy and efficiency of experimental and theory research.
