Three-dimensional seismic stability of locally loaded slopes under a rotational velocity field

Abstract

In practical engineering, slopes subjected to local loads, like footings of buildings, are common. This paper aims to give an insight into the effect of seismic force on the stability of locally loaded slopes. Numerical methods can be used to study this problem, but they require much computational time. Contrarily, limit analysis method is an approach to perform slope stability analysis with high computational efficiency. Thus, an accurate approach in mechanical points is proposed for this problem based on limit analysis method herein. In the framework of limit analysis, existing research about this problem used a kinematically translational velocity field. However, the velocity field of the locally loaded slope at failure is proved to be rotational possibly. Thus, to fill this gap, a 3D rotational velocity field is employed herein to obtain limit loads on the slope top, which improves the existing upper-bound solutions obtained by using the translational velocity field. The particle swarm optimization algorithm and the Nelder-Mead simplex algorithm are employed to search the global minimum of the upper-bound estimation of the limit load. Parametric analysis is performed and it shows that the limit load increases with the increase of a/H or the internal friction angle φ but decreases as the slope angle β or the length-to-width ratio (L/t) of the local load increases. Furthermore, the limit load is found to decrease with the increase of the seismic coefficient and it is proportional to the seismic coefficient.

Introduction

It is common to construct infrastructures, such as a building or a road, on the top of slopes in engineering practice. In this circumstance, they are prone to collapse when the stability of the slope is threatened. In some regions of the world, there are frequent seismic activities that have great adverse effects on slope stability. When an earthquake occurs, the buildings on the top surface of slopes are likely to collapse, resulting in huge losses (Song et al., 2021a; Song et al., 2021b; Song et al., 2021c; Song et al., 2021d). Thus, it is important to study the effect of seismic activities on the stability of locally loaded slopes.

Many papers have been devoted to the stability analysis of locally loaded slopes using various approaches. The slice method of limit equilibrium was used to study this problem by many scholars (Bishop, 1955; Morgenstern and Price, 1965; Spencer, 1967; Acevedo et al., 2021; Jiang et al., 2021). Using the limit equilibrium method, Azzouz and Baligh (1983) conducted circular arc limit equilibrium analysis and gave a set of charts for clay slopes bearing strip and square footings. The limit equilibrium method was also employed to provide solutions and design charts for this problem by many other scholars (Meyerhof, 1957; Saran et al., 1989). Recently, the finite element method has been widely adopted. Georgiadis (2010) employed the finite element method to investigate the undrained bearing capacity of strip footings on the top surface of slopes. The finite element method combined with a linear programming was used to compute the rigorous upper bounds of the collapse load by Sloan (1989). Leshchinsky (2015) used the discontinuity layout optimization (DLO) approach to investigate the bearing capacity of a footing on the crest of a c-φ slope. The DLO approach was also employed by Zhou et al. (2018) to study the bearing capacity and failure mechanism of locally loaded slopes.

However, the limit equilibrium method requires hypotheses about the inter-slice force, which may reduce the theoretical rigor, and the numerical method requires much computational time, which is of low efficiency. Compared with the methods introduced above, limit analysis method is equipped with a rigorous mechanics basis and high calculation efficiency. Therefore, it is studied by many scholars in recent years. The upper bound theorem of limit analysis states that an upper bound estimation of the force which drives the slope to collapse can be obtained by equating the total external work rate to the internal energy dissipation rate computed in a kinematically admissible velocity field (He et al., 2012; Khezri et al., 2016; Qin et al., 2020; Xiao et al., 2020; Zhang et al., 2022). There are many kinematically admissible 3D velocity fields that can be used in the upper bound analysis of slope stability, for instance, the cylindrical and spherical mechanism (Baligh and Azzouz, 1975), the 3D multi-blocks failure mechanism (Michalowski, 1989), and the 3D rotational failure mechanism (Michalowski and Drescher, 2009; Pan et al., 2017). Besides these mechanisms above, the mechanical mechanism at failure of granular materials, like soils, can also be derived from the view of the soil particle rearrangement (Bai et al., 2019; Bai et al., 2022). For example, based on the soil particle rearrangement, Bai et al. (2021) proposed a new coupled thermo-hydro-mechanical mechanism. Michalowski (1989) performed a 3D stability analysis of locally loaded slopes and provided a set of upper-bound solution using the 3D translational multi-blocks failure mechanism. However, this issue has never been studied using a 3D rotational failure mechanism since this scenario may concern a rotational velocity field of slope at failure. Nevertheless, the recent numerical investigation performed by Li et al. (2019) showed that, at failure, the velocity field of the locally loaded slope is rotational rather than translational, and the velocity field given by Li et al. (2019) is reprinted in Figure 1. Therefore, it is necessary to perform a 3D seismic stability analysis of locally loaded slopes based on a 3D rotational velocity field, which is the gap of the present research. In the framework of limit analysis, the widely used 3D rotational velocity field is the 3D rotational failure mechanism proposed by Michalowski and Drescher (2009). Thus, the 3D rotational failure mechanism is employed herein to perform a stability analysis of slopes subjected to local loads on the top surface.

FIGURE 1

Li et al. (2019)].

In the presented work, the 3D stability of slopes, subjected to seismic forces and local loads on the top surface, is investigated. The upper bound theorem of limit analysis is employed to calculate the critical limit load using the 3D rotational failure mechanism. To obtain the global minimum, the particle swarm optimization algorithm in combination with the Nelder-Mead simplex algorithm is adopted in searching for the least upper-bound solution. This paper extends the work of stability analysis of slopes subjected to local loads based on the 3D translational failure mechanism by Michalowski (1989) to that based on 3D rotational failure mechanism. To validate the present approach, the limit loads computed from the proposed approach are compared with the solutions of Michalowski (1989) and Zhou et al. (2018). A parametric analysis is provided at the end of this paper.

Problem description

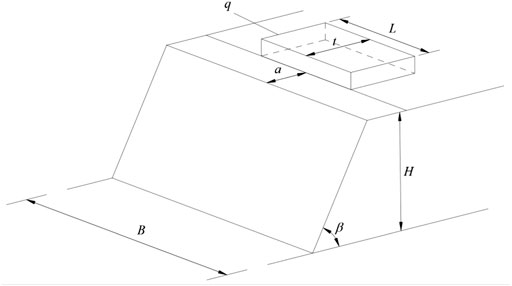

As shown in Figure 2, a slope subjected to vertical local loads on the top surface is considered. The angle of the slope is denoted by and the height by H. The soil in the slope body is regarded as a homogeneous and isotropic material, obeying the Mohr-Coulomb yield criterion. The cohesion and internal friction angle of the soil are denoted by c and , respectively. The vertical local load, a cause of slope failure, is uniformly distributed on the top of the slope. The width and the length of the locally loading region are denoted by t and L, respectively, and the distance between the local load and the crest of the slope is represented by a. To study the seismic stability of the slope, earthquake forces are considered in this paper and they are described by a seismic coefficient . The upper bound theorem of limit analysis is employed to calculate the upper bound of the limit load causing slope collapse. This issue was already studied by Michalowski (1989) using the 3D multi-block failure mechanism as a kinematically admissible velocity field in the absence of seismic forces. This paper extends the work of Michalowski (1989) by applying the 3D rotational failure mechanism as a kinematically admissible velocity field. The internal energy is only dissipated along the sliding surface, while the work rate of external forces includes those of the weight and the local load on the top surface. According to the upper bound theory of limit analysis, the upper bound of the limit local load can be found by equating the internal energy dissipation rate to the total external work rate.

FIGURE 2

In this problem, with the increase of a/t, the failure pattern will change from toe failure and face failure to Prandtl-type failure in which the failure surface extends to the bottom surface of slopes. The Prandtl-type failure cannot be studied by the 3D rotational failure mechanism. Therefore, only the toe failure and the face failure are in the consideration of this work, which is the limitation of the proposed method.

Upper bound seismic stability analysis of locally loaded slopes

Description of 3D rotational failure mechanism

The 3D rotational failure mechanism was firstly proposed by Michalowski and Drescher (2009) to study the stability of slopes. It is a classical 3D failure mechanism for slope stability analysis and inspired many subsequent researches (Gao et al., 2013; Yang and Pan, 2015). The geometry of the 3D rotational failure mechanism is sketched in Figure 3. It can be seen from Figure 3 that the shape of the 3D rotational failure mechanism is a curvilinear cone with an apex angle, a portion of which intersects the slope body (the sliding part). The symmetry plane of the failure mechanism contains two log-spirals whose equations are as followswhere OA= , OA’= , and is the angle between OA and the horizontal direction. In this work, both the toe failure and the face failure of slopes are in consideration. Thus the height of the failure mechanism, denoted by , should not be bigger than the slope height, H. The distance between the rotation center O and the center axis of cone is denoted by . The cross-section of the cone is a circle whose radius is denoted by R. The magnitudes of and R change at different values of and the expressions of them arewhere the expressions for and are reported in the Appendix A of this paper.

FIGURE 3

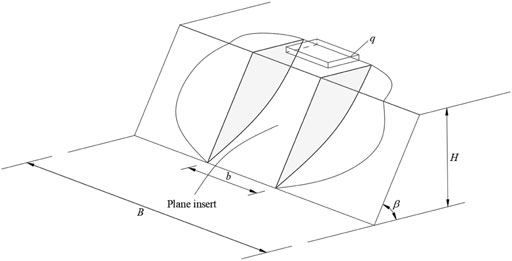

For the sake of the consistency with engineering practice, the 3D rotational failure mechanism is modified by splitting the halves of the 3D sliding body and placing a plane-strain insert between these two-halves, as shown in Figure 4. The width of the plane insert is denoted by b. It should be noted that the sum of the width of the two curved halves and the width of the plane insert, b, cannot exceed the slope width B. In addition, the width of the plane insert b is optimized together with the geometrical parameters determining the rotation center in the search for the best failure surface. In Figure 4, the local load q is symmetric about the symmetry plane of the failure mechanism. It should be noticed that the minimum width of the failure mechanism at the top surface of the slope, i.e., b, should not be smaller than the length of the local load, i.e., L, and, in other words, the constraint condition of should be enforced in the search of the optimal failure surface. The external work rate and internal energy dissipation rate of the two curved halves are calculated by complicated integrals, while those of the plane insert can be obtained by the product of b and those of the 2D situation.

FIGURE 4

Calculations of external work rate

To perform work rate calculations of external forces, a local coordinate system x-o-y is set up in the circular cross-section, as shown in Figure 3 and the original point o is the center of the circular cross-section. In this paper, the considered external forces include the gravity force, the seismic force and the vertical local load q on the top surface.

The work rate of gravity force includes two parts. The first one is the gravity force work rate done by the plane insert of the 3D rotational failure mechanism and the other one is that done by the two curved halves at the two ends of the failure mechanism. By integration, the expression of the gravity force work rate for the two curved halves is (Michalowski and Drescher, 2009):where is the angular velocity, and is the unit weight of the soil. , , , and are calculated from the following equations,

Angle is found from the geometrical relations

After the integration about and which is calculated analytically, and about that is performed numerically, Eq. 5 is converted to

The local load on the top of the slope is regarded as surface force whose work rate is obtained by performing integral over the intersecting region of the top of failure mechanism and the area where the load is distributed. For instance, when the failure mechanism gets through the right end point of the local load, as shown in Figure 3, the expression of the work rate of the local load is

The angle , the integral upper limit in the expression of , is found from the geometrical relationswhere is equal to , thus is involved in the expression of . The expression of is given in the Appendix A.

In this paper, the seismic force is regarded as a static inertia force and characterized by a coefficient , which is in the range of 0 and 0.2. Similar to the calculation of gravity force work rate, the seismic force work rate is also divided into two parts. The seismic force work rate for the two curved halves is,

After performing integration about and analytically, then Eq. 14 can be written as,where the expressions for ) is reported in the Appendix A of this paper.

The seismic force work rate of the plane insert can be expressed as,where the expressions for is reported in the Appendix A of this paper.

Thus the total external work rate can be expressed as.

Calculations of internal energy dissipation rate

The calculations of internal energy dissipation rate can be converted to integrals over the face of the slope and the top surface of the slope, which are denoted by and respectively. The expressions of the internal energy dissipation rate of the two curved halves is

Summing and leads to the internal energy dissipation rate of the two curved halves, i.e.

By substituting Eqs 15, 16 into Eq. 17, then Eq. 17 can be written as

Similarly, the internal energy dissipation rate of the plane insert can be derived as follows,

Similarly, summing and leads to the internal energy dissipation rate of the plane insert, i.e

By substituting Eqs 19, 20 into Eq. 21, then Eq. 21 can be written as

Therefore, the total internal energy dissipation rate of the 3D failure mechanism can be obtained by summing those of the rotational mechanism and the plane insert, i.e.,

For the sake of completeness, the expressions of and are given in the Appendix A of this paper.

Optimization of the limit load q

According to the upper bound theorem of limit analysis, equating the internal energy dissipation rate to the external work rate results in the upper bound estimation of the limit load. And its expression is as follows,

It is easily found that the upper bound of the local load in this study is a function of five parameters: . Each set of these parameters defines a kinematically admissible velocity field that is able to yield an upper bound estimation of the limit load. Thus the critical limit load can be obtained by cycling these parameters under the following constraint conditions until the least upper bound solution is obtained.where is the maximum width of rotation mechanism and B is the slope width. To find the global minimum of the limit load, the particle swarm optimization algorithm is firstly used to locate the region near the optimum point, followed by adopting Nelder-Mead simplex algorithm to search the global minimum using the solution from the particle swarm algorithm as the initial point. The obtained minimum upper bound solution is seen as the limit load and used to perform the following analysis.

Results and discussions

Comparisons

To validate the correctness of the proposed approach, the limit loads of 10 cases computed from the proposed approach are compared with the solutions of Michalowski (1989) in which the 3D multi-blocks translational failure mechanism is used to determine the limit load. In the calculations, and are fixed to 2.0 and 0, respectively. The results are given in Table 1. It can be seen from Table 1 that the upper-bound solutions of the limit load computed from the proposed method are lower than that of Michalowski (1989), the maximum difference only reaching 6.98%. This indicates that the proposed method improves the existing upper-bound solutions of limit loads provided by the 3D translational failure mechanism. The reason why the upper bound solutions computed from the 3D rotational failure mechanism is smaller than that of the 3D translational failure mechanism may be that the 3D rotational failure mechanism is more unfavorable to the stability of slopes and is closer to the real situation in practical engineering than the 3D translational failure mechanism.

Zhou et al. (2018) evaluated the bearing capacity and failure mechanism of strip footings placed on the top of 2D slopes, using the discontinuity layout optimization (DLO) approach. The DLO approach can automatically identify the critical layout of slip-lines and the corresponding least upper bound solution of the critical load. To further validate the present approach, the limit loads computed from the proposed approach are compared with the solutions of Zhou et al. (2018) for 10 cases. In the calculations, the magnitude of H/t and are set to 5 and 0, respectively. For a better comparison with their 2D work, the length of the local load is fixed to the slope width, i.e., L=B. The results are given in Table 2. It is seen that the presented solutions agree well with those of Zhou et al. (2018), and the maximum difference is 8.7% for case 7 in which , , and a/t=2.5. This shows the validation of the proposed method.

Parametric analysis

Several design charts are presented in Figure 5 to perform parametric analysis, each showing the limit load ratio ( is the limit load leading to slope failure and c is the cohesion of soil masses) as a function of a/H. In the calculation, the B/H ratio is set as three and the vertical load is distributed in a rectangular area (L/t=2). The soil cohesion is set to 20 kPa and the internal friction angle is set as 10 or 20 . The unit weight of the soil mass is equal to 20 kN/m³. Figure 5 indicates that the limit load ratio increases with the increase of a/H or the internal friction angle but decreases as the slope angle increases. It can be found by comparing Figures 5A,B that the growth rate of the limit load ratio with the increase of a/H is larger for =20 than =10 . For example, limit load ratio increases by 2.64 (from 2.96 for a/H=0.2 to 5.6 for a/H=0.4) for =10 and =30 , but the growth is equal to 11.26 (from 13.38 to 24.63) for =20 .

FIGURE 5

Figure 6 is presented to study the effect of the seismic force on the limit load. The limit load ratio is plotted as a function of the seismic coefficient in Figure 6. It can be found from Figure 6 that the limit load decreases with the increase of seismic coefficient , which is because the seismic force is an adverse effect on the slope stability and can reduce the bearing capacity of slopes. Another interesting fact is that the curves in Figure 6 are almost straight lines, indicating that the limit load is proportional to the seismic coefficient . Therefore, given some limit loads for some seismic coefficients, unknown limit loads for certain seismic coefficients can be obtained by linear interpolation.

FIGURE 6

Figure 7 is given for investigating the effect of the shape of the local load on the magnitude of the limit load. In Figure 7, the dimensionless limit load ratio () is shown as a function of the length-to-width ratio (L/t) of the local load. It can be seen from Figure 7 that the limit load decreases and gradually becomes stable with the increase of the L/t ratio. In the calculation, a/H and are set to 0.2 and 0.1 respectively, and is equal to 10 . The length of the local load L is less than the slope width B in the calculation.

FIGURE 7

Conclusion
