New cetacean fossils from the late Cenozoic of South Africa

Abstract

Marine sediments from the western coast of southern Africa record the origin of the Benguela Upwelling System, one of the most productive in the world. High productivity, in turn, is reflected in a diverse marine mammal fossil assemblage, comprising whales, dolphins and a phocid seal. Here, we describe new records of baleen whale (mysticete) fossils from the early Pliocene localities of Saldanha Steel, Milnerton and Langebaanweg, as well as several potentially younger specimens trawled from offshore sediments. The presence of the extinct rorquals Diunatans and Fragilicetus suggests biogeographical links with the eastern North Atlantic and, thus, potentially antitropical population structuring. The trawled specimens also include rorquals (e.g., the blue whale, Balaenoptera cf. musculus), as well as a right whale (Eubalaena) and a pygmy right whale (Caperea). The latter is the first fossil of this family every discovered in Africa, and only the seventh specimen to be reported worldwide.

1 Introduction

The Benguela Upwelling System (BUS) along Africa’s southwest coast supports one of the world’s most productive marine ecosystems (Ansorge and Lutjeharms, 2007). After originating during the Late Miocene, the BUS intensified during the early Pliocene (ca 5 million years, Ma), creating a nutrient-rich environment with a diverse marine mammal assemblage (Hendey, 1976; Hendey, 1981; Tankard and Rogers, 1978; Siesser, 1980; Siesser and Dingle, 1981; Govender et al., 2016; Govender, 2019; 2021). The latter inhabited a cold temperate coast featuring scattered islands during times of high sea level (Hendey, 1981; Erasmus, 2005; Roberts et al., 2011). Embayments and lagoons provided shelter, feeding opportunities and likely also breeding grounds, as suggested by the presence of pups and calves (Hendey, 1981; Govender et al., 2012; Govender et al., 2016; Govender, 2019; Govender, 2021).

Previous studies on the Mio-Pliocene marine mammals from western South Africa have revealed a phocid seal (Homiphoca capensis), sperm whales, beaked whales, dolphins, porpoises, right whales, rorquals, and even a grey whale (Hendey and Repenning, 1972; Muizon and Hendey, 1980; Govender et al., 2011; Govender et al., 2012; Govender et al., 2016; Govender, 2015a; Govender, 2015b; Govender, 2018; Govender, 2019; Govender, 2021). Together, the latter suggest links with the North Atlantic, the Mediterranean, and the eastern North and South Pacific (Govender, 2019; Govender, 2021). In addition, offshore finds hint at a diverse beaked whale assemblage, again reflecting high primary productivity (Bianucci et al., 2007).

Here, we further expand the regional Pliocene marine mammal record via new fossils from the localities of Saldanha Steel, Milnerton and Langebaanweg (“E” Quarry). In addition, we report specimens trawled from the seafloor off the Cape Peninsula and south coast (Figure 1A).

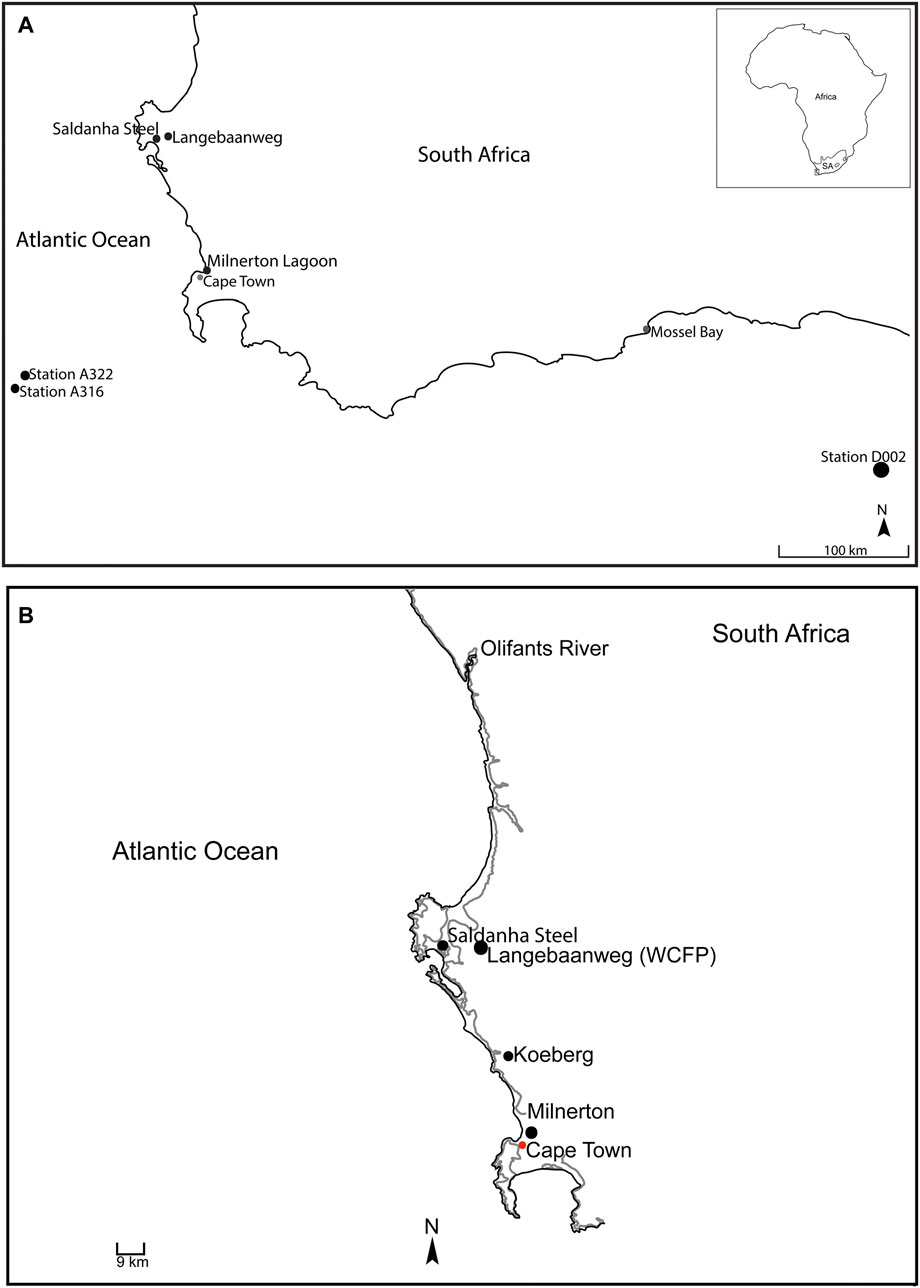

FIGURE 1

2 Geological/palaeoenvironmental setting

During the Mio-Pliocene, sea surface temperatures off the South African west coast changed from warm tropical to cold temperate (Siesser and Dingle, 1981; Pether et al., 2000). Intensification of upwelling created a nutrient-rich coastal environment characterised by moist onshore conditions, warmer offshore sea surface temperatures, and phosphorite formation (Siesser and Dingle, 1981; Tankard and Rogers, 1978).

Marine deposits recording this development occur at the fossil-rich Langebaanweg “E” Quarry, which straddles the Middle Miocene to early Pliocene (Hendey, 1981; Hendey, 1989; Roberts et al., 2011). The specimens described here were collected from the upper part of the Varswater Formation, which records a 30 m transgression and comprises the Langeberg Quartzose Sand (LQSM) and the Muishond Fontein Pelletal Phosphorite Members (MPPM) (Roberts et al., 2011). The latter was deposited in an embayment with a barrier bar between “E” Quarry and granitic offshore islands (Figure 1B; Tankard, 1974; Hendey, 1976; Smith and Haarhoff, 2006), and includes estuarine, marine and some river facies. Fossils from the LQSM and MPPM are mainly concentrated in lag deposits likely dating to the earliest Pliocene, 5.15 ± .1 Ma (Roberts et al., 2011).

In the vicinity of Saldanha Steel, fossiliferous shallow marine deposits occur in channel-like depressions possibly formed by the proto-Berg River (Rogers, 1980; Roberts, 1997). Pristine teeth belonging to coastal sharks suggest a low energy, possibly estuarine environment, but some specimens also show abrasion due to tidal reworking or secondary derivation from older deposits (Roberts 1997). The occurrence of phosphatised shark teeth plausibly locates Saldanha Steel in the upper Varswater Formation, tentatively implying an earliest Pliocene age (see above; Rogers, 1980; Roberts, 1997; Roberts et al., 2011). Warm-water species like Galeocerdo cf. cuvier, Carcharhinus leucas, C. obscurus and Carcharias cf. taurus suggest tropical conditions still notably warmer than today (Tankard, 1975; Hendey, 1981; Roberts, 1997; Kock, 2002). The presence of Isurus and Carcharhinusaltimus (including some juveniles) furthermore indicates an inshore environment crossed by deep channels (Kock, 2002).

At Milnerton, the MPPM extends to the mouth of the Diep River (Rogers, 1980; Rogers, 1982; Roberts, 2006; Avery and Klein, 2011). Cetacean fragments and a small terrestrial component (Gomphotherium, equid and rhinoceros remains) have been found at the Milnerton Lagoon mouth, with additional material of uncertain provenance occurring up to 200 m offshore (Avery, 1995). Like Koeberg, this area may have been the site of a temporary lagoon delimited by a barrier spit (Rogers, 1979).

Besides these onshore locations, Neogene offshore deposits occur along the entire coast except for a small gap west of the Agulhas Bank (Rogers, 1980; Dingle et al., 1983; Avery, 1995; Roberts et al., 2006). The overall sediment cover is thin and somewhat erratic, however, and seafloor exposures are limited (Wigley and Compton 2006). Phosphatised cetacean remains trawled from this area could date to the Mio-Pliocene, but plausibly also be as young as Pleistocene or even Holocene (Compton and Wiltshire 2009).

3 Materials and methods

Specimens from Saldanha Steel come from the first and second excavations in 1997 and were retrieved via sieving (Roberts, 1997). They are relatively well preserved, but all suffered some damage. At Milnerton, material was found either at the lagoon mouth or picked up from the beach in 1974 and again in late 1993 to early 1994 (from catalogues). Fossils from this area often show signs of rolling, abrasion, and breakage. Two periotics from Langebaanweg (“E” Quarry) were collected in 1968 (SAM-PQL-11680) and 1977 (SAM-PQL-54708), respectively; they are abraded and fragmentary, and only preserve the pars cochlearis.

Finally, all but one of trawled specimens were collected using a 15-foot beam trawl at stations A316 (34° 42S 16° 54′E; 1,500–1,580 fathoms = 2743.2–2889.5 m) and A322 (34° 36S 17° 00′E; 2743 m) of the RV Africana II routine cruise off the Cape Peninsula in December 1959 (Thandar, 1999). One specimen was collected from Station D002 (35° 01S 24° 60′E; 914 m) of the F. R. S. Africana Voyager III demersal cruise, which began at Cape Agulhas (20°E) in 1993 (Barange et al., 1998). All specimens are now housed in the Cenozoic Palaeontology Collections at Iziko South African Museum (SAM). Anatomical terminology follows Mead and Fordyce (2009) and Ichishima et al. (2021).

4 Systematic palaeontology

Cetacea Brisson, 1762

Mysticeti Gray, 1864

Balaenopteridae Gray, 1864

Balaenoptera Lacépède, 1804

Balaenoptera cf. musculus (Linnaeus, 1758)

Referred material. SAM-PQ-3082—right bulla lacking the posterior portion of the outer lip (Figures 2A–D; Table 1).

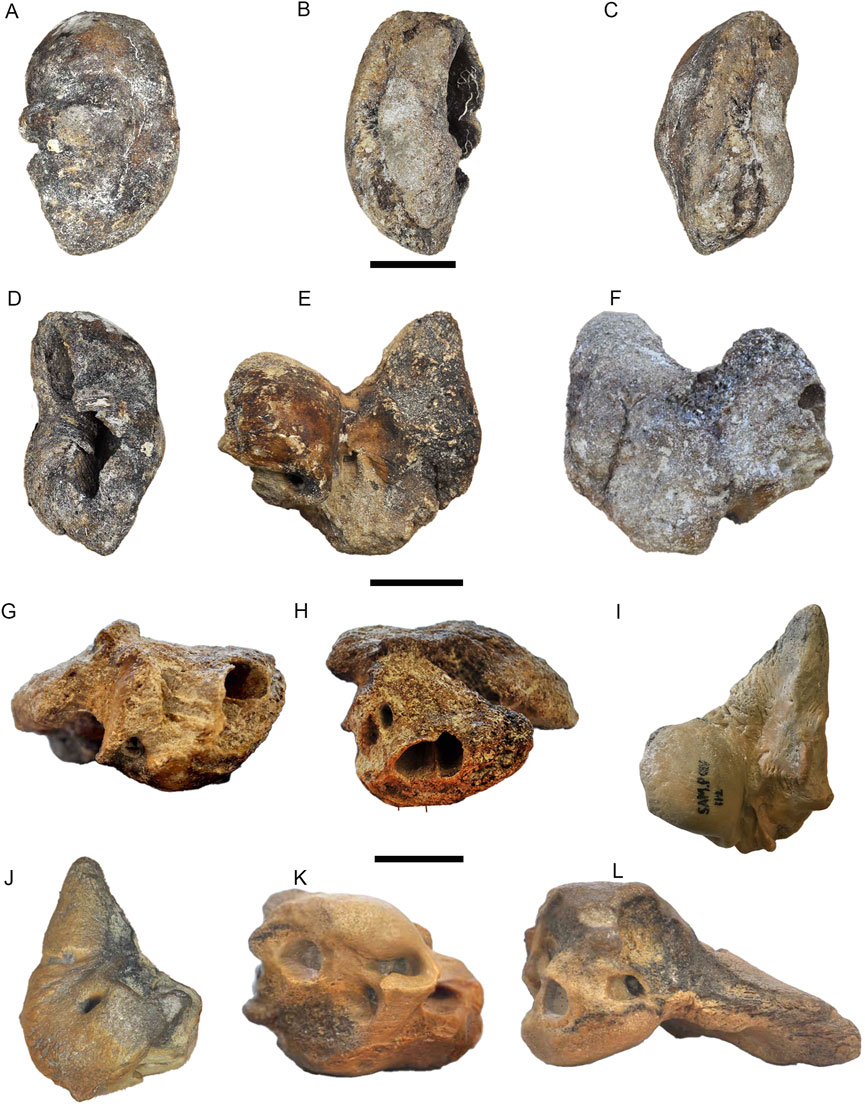

FIGURE 2

Locality and Horizon. Trawled, RV Africana II, 8 December 1959, Station A316.

Age. Unknown.

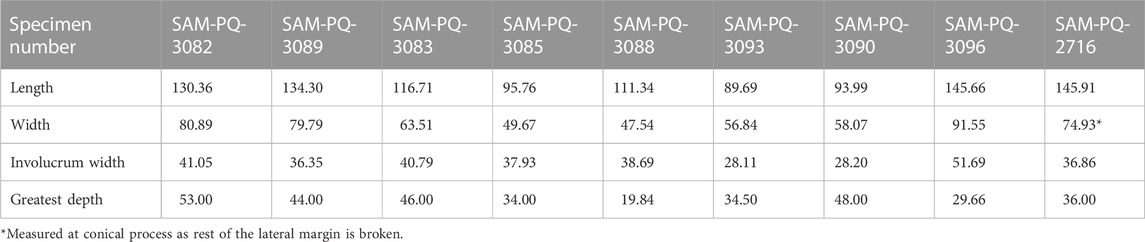

Description. In ventral view, the bulla is relatively long (130 mm; Table 1) and marked by a somewhat squared anterior border with a weakly developed anterolateral shelf. In dorsal view, the main ridge is moderately convex. The involucral ridge is notably retracted from both the medial and posterior margins, and anteriorly does not extend beyond the main ridge. The Eustachian outlet is relatively narrow. As far as can be told, the sigmoid process would have been positioned at the midline. In lateral view, the posterior rim of the tympanic cavity lies far forward of the posterior border of the bulla. In medial view, there is a relatively well developed inner posterior prominence which imparts a concave outline to the dorsal surface of the involucrum. The main ridge is prominent and elevated.

Comments. SAM-PQ-3082 closely matches B. musculus in its overall shape, retracted involucral ridge, weakly developed anterolateral shelf, centrally positioned sigmoid process, well developed posterior extension, and notable inner posterior prominence. It is, however, somewhat smaller than extant blue whales, with reported bulla lengths for the latter ranging from 134 to 146 mm (Ekdale et al., 2011). Among extant rorquals, a length of 130 mm is consistent with the upper size range of B. physalus and B. borealis. SAM-PQ-3082 differs from both, however, in having a marked inner posterior prominence, a less developed anterolateral shelf, an anteriorly retracted involucral ridge, and a more centrally positioned sigmoid process.

cf. Balaenoptera sp.

Referred material. SAM-PQ-3086—small left periotic showing signs of weathering (Figures 2E–H; Table 2).

Locality and Horizon. Trawled, RV Africana II, 10 December 1959, Station A322.

Age. Unknown

Description. In ventral view, the anterior process is bluntly triangular and somewhat thickened transversely. In medial view, the anterior process is triangular, pointed, and separated from the pars cochlearis by a broad embayment. The lateral tuberosity appears elongate, low, and rounded, but this may at least partially be an artefact of weathering. The pars cochlearis is elongated cranially, and dorsally bears a shallow promontorial groove. The posteromedial border of the pars cochlearis bulges posteriorly and partially obscures the cochlear window. The posterior cochlear crest appears indistinct, but this again may reflect weathering. In dorsal view, the proximal opening of the facial canal is approximately as large as the remainder of the internal acoustic meatus. The perpendicular crest is thin and deeply recessed. The apertures for the cochlear and vestibular aqueducts are slit-like and arranged en echelon. In posterior view, the cochlear window is separated from the aperture for the cochlear aqueduct.

Comments. SAM-PQ-3086 resembles Balaenoptera in having a thin and deeply recessed perpendicular crest, a notable degree of cranial elongation of the pars cochlearis, a broad-based lateral tuberosity, a proximal opening of the facial canal that is roughly as large as the remainder of the internal acoustic meatus, and a cochlear window that is distinct from the aperture for the cochlear aqueduct. It differs from other members of Balaenoptera and Megaptera in retaining a promontorial groove and in having a less pronounced lateral tuberosity; from Diunatans, Fragilicetus and Plesiobalaenoptera in having a thinner, recessed perpendicular crest; from Diunatans, Eschrichtius, Fragilicetus, Gricetoides, Marzanoptera, Plesiobalaenoptera and Protororqualus in having the cochlear window separated from the aperture for the cochlear aqueduct; from Archaebalaenoptera, Eschrichtioides, Eschrichtius, Gricetoides, Incakujira, Miobalaenoptera, Norrisanima and Parabalaenoptera in having a cranially less elongated pars cochlearis; and from Nehalaennia in having a shorter and blunter anterior process and lateral tuberosity in ventral view.

Diunatans Bosselaers and Post, 2010

Diunatans luctoretemergo Bosselaers and Post, 2010

Referred specimen. SAM-PQSS-223 (SAM-PQY-112)—incomplete right periotic (Figures 2I–L; Table 2).

Locality and horizon. Saldanha Steel, excavation, Dump 2/7.

Age. Early Pliocene (Zanclean).

Description. In ventral view, the anterior process is elongate and relatively thick with nearly parallel medial and lateral borders. In medial view, the anterior process is triangular, pointed, and bears a marked fossa for the attachment of the tensor tympani. The lateral tuberosity is bluntly triangular. The pars cochlearis is somewhat elongated cranially but remains longer than tall; its anterior portion remains attached to the anterior process. The posteromedial border of the pars cochlearis bulges posteriorly and partially obscures the cochlear window. The posterior cochlear crest is broadly triangular and points posteriorly. In dorsal view, the proximal opening of the facial canal is separated from the remainder of the internal acoustic meatus by an extremely robust perpendicular crest. The promontorial groove is shallow (partially due to weathering) but broad. In posterior view, the cochlear window is confluent with the aperture for the cochlear aqueduct. In lateral view, there is a cavity of unknown function or origin that may be related to the anteroexternal sulcus.

Comments. SAM-PQSS-223 resembles Diunatans luctoretemergo in having a robust and sharply triangular anterior process bearing a fossa for the tensor tympani, a confluent cochlear window and aperture for the cochlear aqueduct, a thick perpendicular crest, and a broad promontorial groove. It differs from Fragilicetus in having a more pointed anterior process in medial view and a more robust perpendicular crest; from Archaebalaenoptera, Balaenoptera, Eschrichtioides, Eschrichtius, Gricetoides, Incakujira, Marzanoptera, Megaptera, Miobalaenoptera, Norrisanima and Parabalaenoptera in having a cranially less elongated pars cochlearis; from Balaenoptera, Incakujira, Megaptera and Norrisanima in having a confluent cochlear window and aperture for the cochlear aqueduct; from Plesiobalaenoptera in having a more pointed anterior process and a shallower promontorial groove, and in lacking a clearly defined superior process and a sulcus for the facial nerve extending cranially from the proximal opening of the facial canal; from Nehalaennia in having a smaller lateral tuberosity in medial view; from Marzanoptera and Protororqualus in having a more pointed anterior process in medial view; and from Protororqualus in having a thicker perpendicular crest.

Fragilicetus Bisconti and Bosselaers, 2016

Fragilicetus sp.

Referred specimens. SAM-PQSS-224, PQMT-2800, SAM-PQL-54708—incomplete right periotics; SAM-PQMT-2063, SAM-PQ-3084—incomplete left periotics (Figures 3, 4A–H; Table 2).

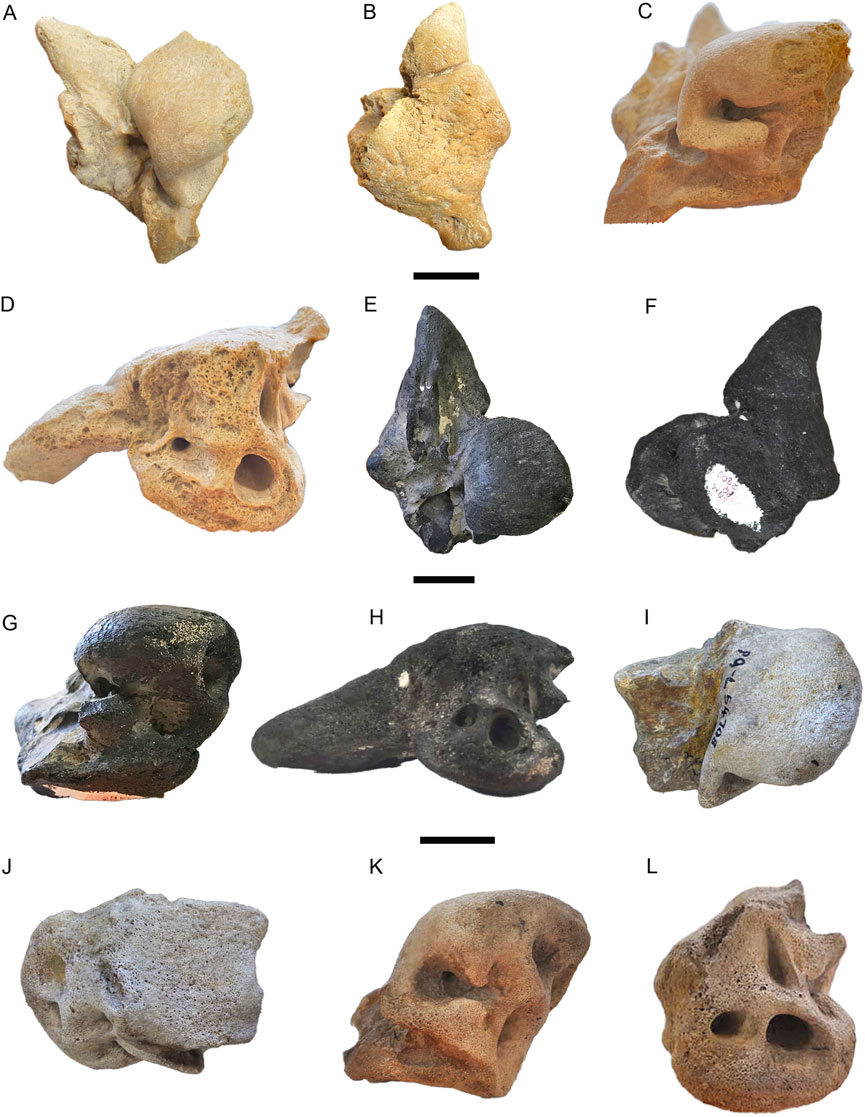

FIGURE 3

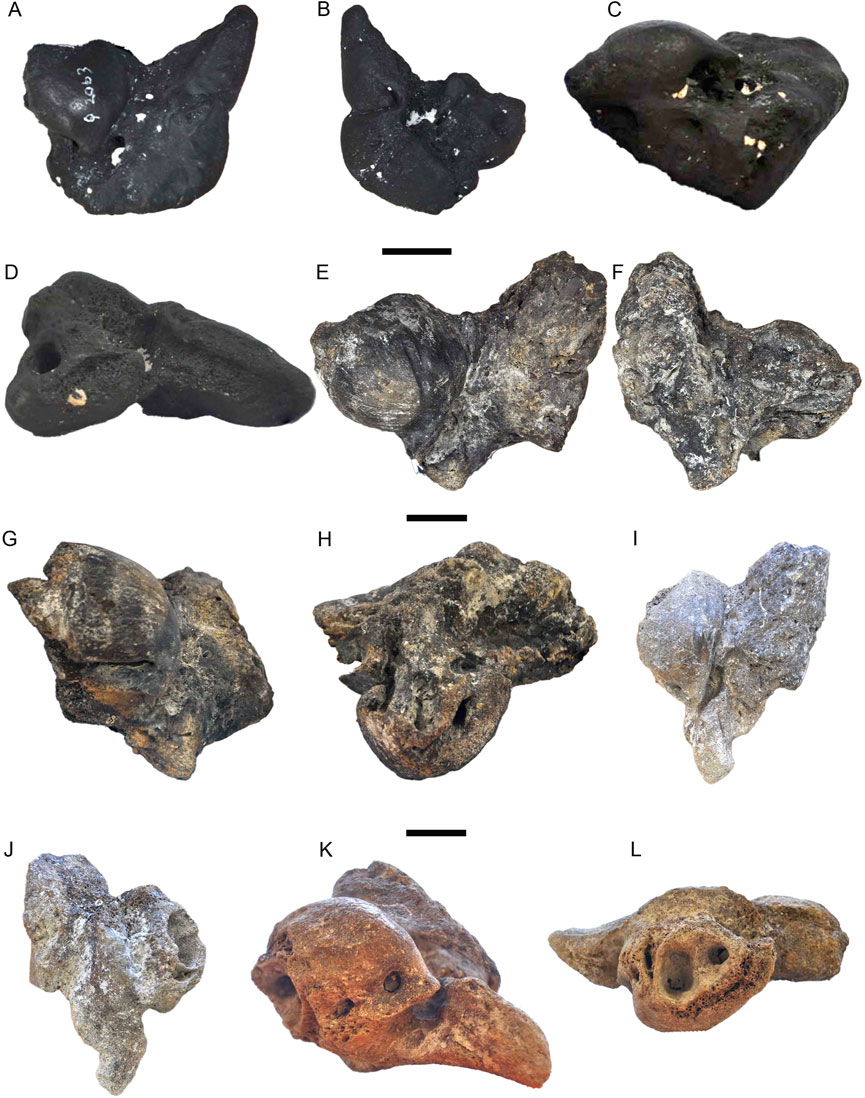

FIGURE 4

Locality and horizon. SAM-PQSS-224—Saldanha Steel, Dump 1; SAM-PQMT-2063—Milnerton Beach; SAM-PQMT-2800—Milnerton Lagoon, south of the river mouth; SAM-PQ-3084—trawled, RV Africana II, 8 December 1959, Station A316; SAM-PQL-54708—Bed 3aN, Dump 8, MPPM, Langebaanweg.

Age. SAM-PQ-3084—unknown; the remainder all date to the early Pliocene (Zanclean).

Description. In ventral view, the anterior process is elongate and pointed, and bears a distinct ridge for the insertion of the tensor tympani. The body of the periotic is slightly hypertrophied. In medial view, the anterior process is sharply pointed and bordered by a well-developed triangular lateral tuberosity. The pars cochlearis is somewhat elongated cranially but remains longer than tall; its anterior portion is detached from the anterior process. The posteromedial border of the pars cochlearis bulges posteriorly and partially obscures the cochlear window. The posterior cochlear crest is triangular and points directly posteriorly. In dorsal view, the proximal opening of the facial canal is separated from the remainder of the internal acoustic meatus by a robust perpendicular crest. In posterior view, the cochlear window is confluent with the aperture for the cochlear aqueduct.

Comments. The new specimens resemble Fragilicetus in having a confluent cochlear window and aperture for the cochlear aqueduct (in SAM-PQSS-224, SAM-PQMT-2063, SAM-PQMT-2800 and SAM-PQL-54708), a robust perpendicular crest, and an anterior process that is elongate, transversely compressed and bordered by a blunt lateral tuberosity in ventral view. They differ from F. velponi in having a more pointed anterior process in medial view and a triangular, rather than finger-like, posterior cochlear crest; from Archaebalaenoptera, Balaenoptera, Eschrichtioides, Eschrichtius, Gricetoides, Incakujira, Marzanoptera, Megaptera, Miobalaenoptera, Norrisanima, and Parabalaenoptera in having a cranially less elongated pars cochlearis; from Balaenoptera, Incakujira, Megaptera, and Norrisanima in having a confluent cochlear window and aperture for the cochlear aqueduct; from Archaebalaenoptera in having the anterior portion of the pars cochlearis clearly separated from the anterior process; from Diunatans and Plesiobalaenoptera in having a less globose pars cochlearis in ventral view, and in lacking a deeply excavated promontorial groove; from Nehalaennia in having a less globose pars cochlearis and blunter lateral tuberosity; from Parabalaenoptera in having a cranially less elongated pars cochlearis and a medially less excavated anterior process; from Marzanoptera, Miobalaenoptera and Protoroqualus in having a more pointed anterior process in medial view; and from Protororqualus in having a thicker perpendicular crest.

Balaenopteridae indet. A

Referred material. SAM-PQ-3094—left periotic; SAM-PQ-3095—right periotic (Figures 4I–L, 5A–D; Table 2).

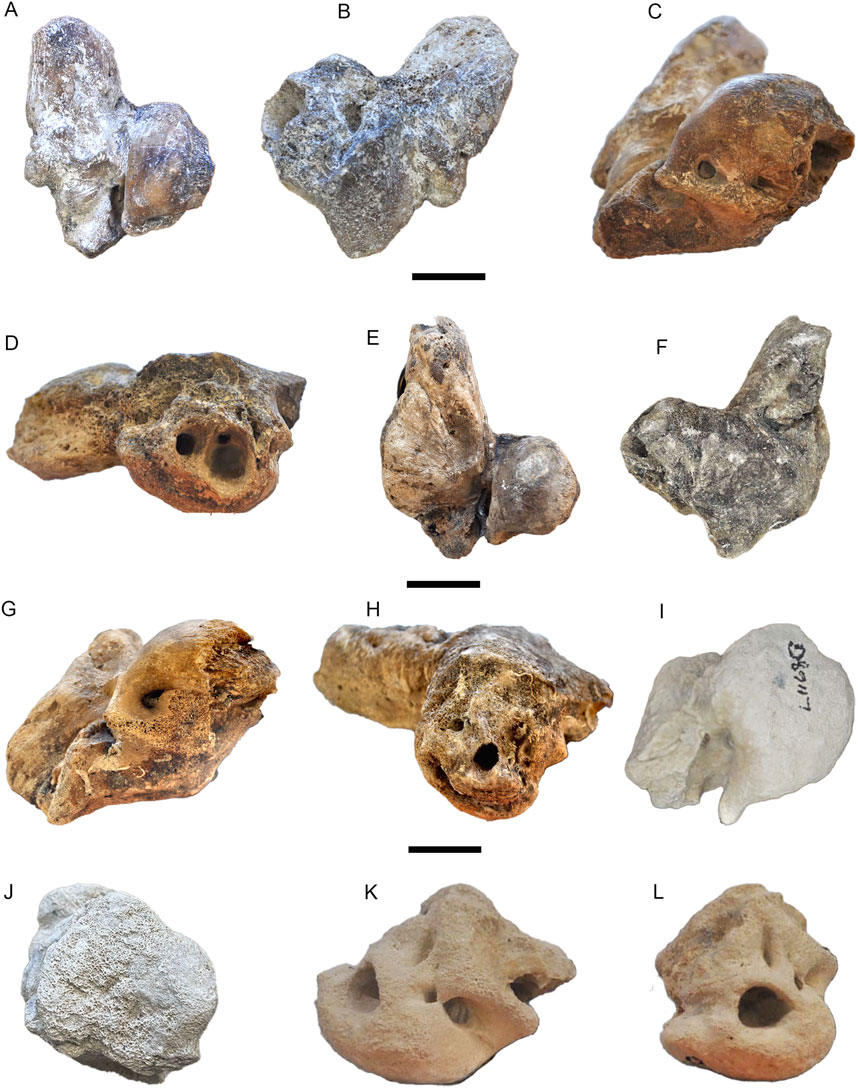

FIGURE 5

Locality and Horizon. Trawled, RV Africana II, 10 December 1959, Station A322.

Age. Unknown.

Description. In ventral view, the anterior process is short and thick, with a blunt and somewhat squared tip. The body of the periotic shows no sign of hypertrophy. In medial view, the anterior process is likewise somewhat squared and flanked by a short, knob-like lateral tuberosity. The pars cochlearis is slightly elongated cranially, largely thanks to the border of the internal acoustic meatus being raised into a sharp rim. There is a well-marked promontorial groove. The posterior cochlear crest is triangular and points directly posteriorly. In dorsal view, the perpendicular crest is relatively thin and slightly recessed into the internal acoustic meatus. The proximal opening of the facial canal is circular and approximately half the size of the remainder of the internal acoustic meatus. In posterior view, the cochlear window is circular and well separated from the aperture for the cochlear aqueduct.

Comments. SAM-PQ-3094 and 3095 resemble Balaenoptera in having a relatively thin perpendicular crest that is recessed into the internal acoustic meatus, and a cochlear window that is distinct from the aperture for the cochlear aqueduct. They differ from Balaenoptera in having a blunter anterior process, a pars cochlearis showing relatively little cranial elongation, a smaller lateral tuberosity, and a proximal opening of the facial canal that is notably smaller than the remainder of the internal acoustic meatus; from Diunatans, Fragilicetus, and Plesiobalaenoptera in having a thinner, recessed perpendicular crest; from Diunatans, Eschrichtius, Fragilicetus, Gricetoides, Marzanoptera, Plesiobalaenoptera, and Protororqualus in having the cochlear window separated from the aperture for the cochlear aqueduct; from Archaebalaenoptera, Balaenoptera, Eschrichtioides, Eschrichtius, Gricetoides, Incakujira, Marzanoptera, Miobalaenoptera, Norrisanima, Megaptera, and Parabalaenoptera in having a cranially less elongated pars cochlearis; from Nehalaennia in having a blunter anterior process and smaller lateral tuberosity in medial view; and from Protororqualus in having a circular cochlear window and a more crest-like rim of the internal acoustic meatus.

Balaenopteridae indet.

Referred material. SAM-PQ-3092—incomplete left periotic; SAM-PQ-3081, 3087, SAM-PQL-11680—incomplete right periotics; SAM-PQ-2716, 3083, 3089—incomplete left tympanic bullae; SAM-PQ-3085, 3088, 3093—incomplete right tympanic bullae (Figures 5E–L, 6, 7, 8A–H; Tables 1, 2).

FIGURE 6

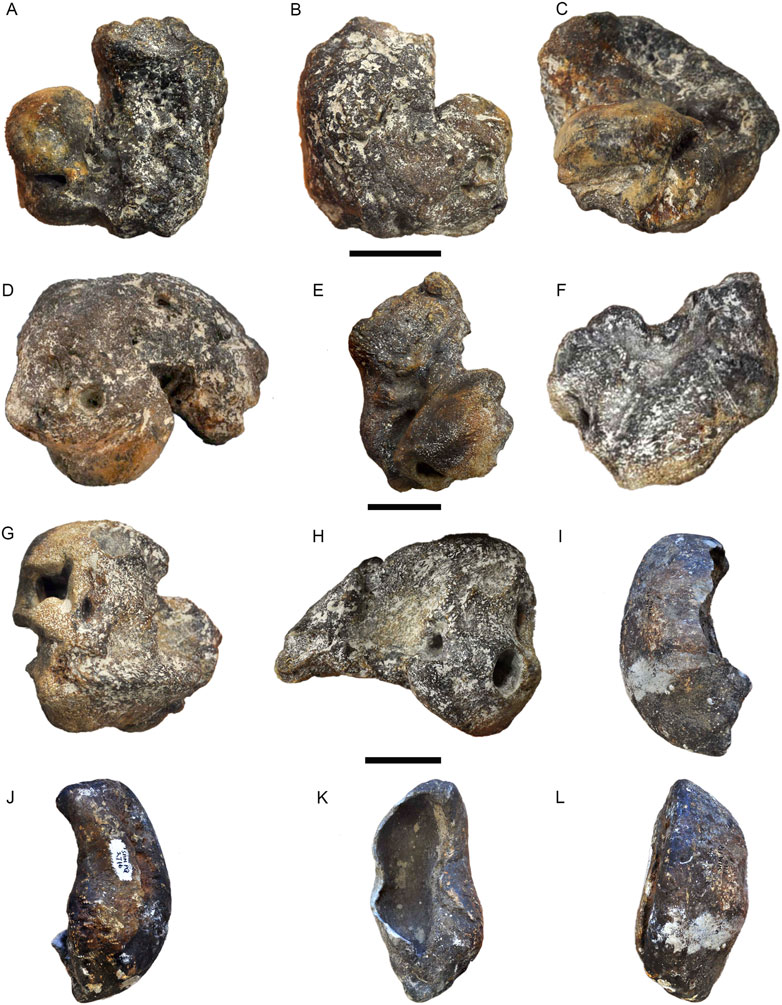

FIGURE 7

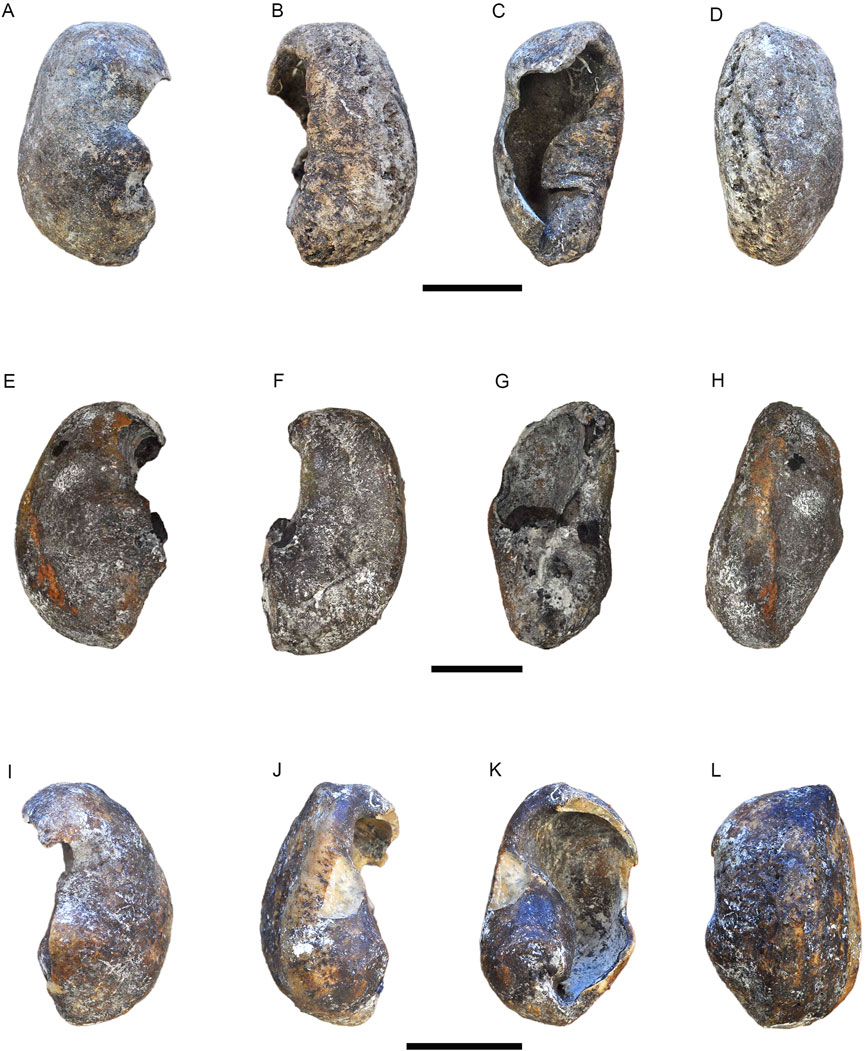

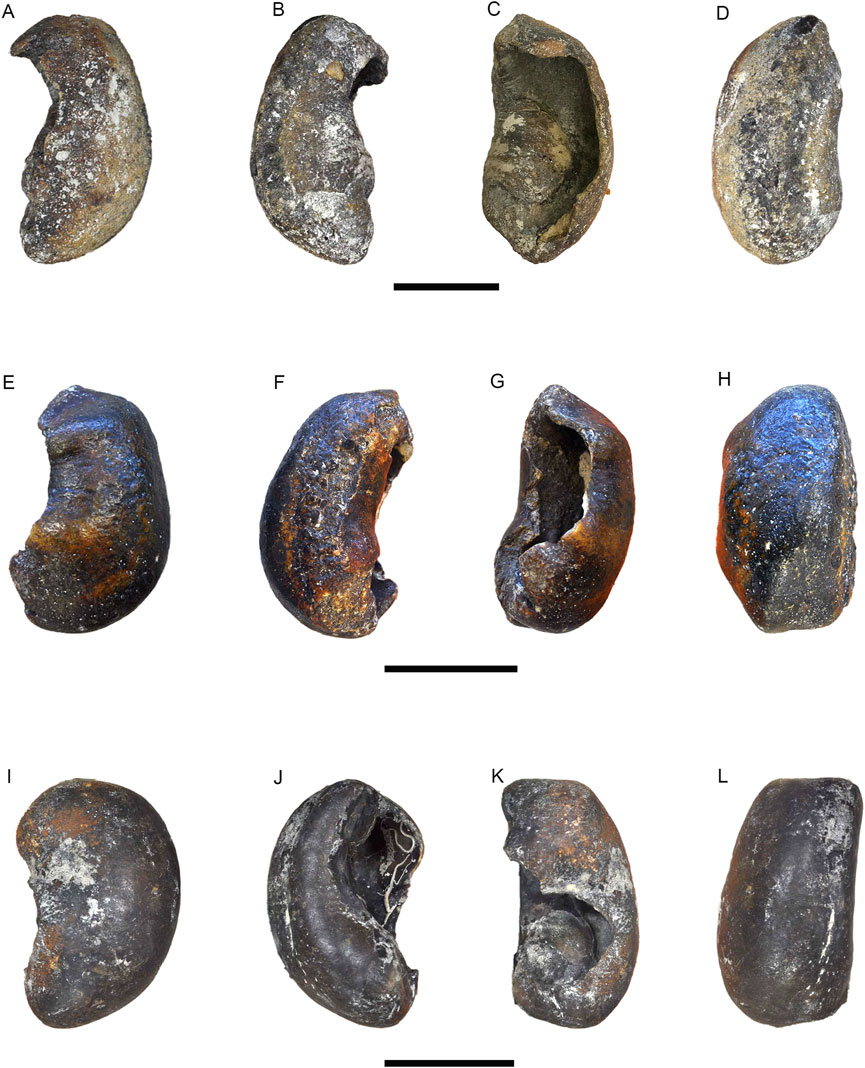

FIGURE 8

Locality and Horizon. SAM-PQ-3081, 3083, 3085—trawled, RV Africana II, 8 December 1959, Station A316; SAM-PQ-3087–3089, 3092 and 3093—trawled, RV Africana II, 10 December 1959, Station A322; SAM-PQ-2716—trawled, F. R. S. Africana, May 1993, Station D002, SAM-PQL-11680—“E” Quarry, Langebaanweg.

Age. SAM-PQL-11680—early Pliocene (Zanclean); the age of the remainder is unknown.

Description. The state of preservation of this material is variable, but all of the periotics except SAM-PQ-3081 have damaged anterior processes and lack the posterior processes, and the tympanic bullae lack the outer lip. In medial view, the pars cochlearis is somewhat cranially elongated but longer than tall and detached from the anterior process. In dorsal view, the proximal opening of the facial canal appears separated from the remainder of the internal acoustic meatus by a robust perpendicular crest, but details are obscured by the poor preservation of SAM-PQ-3092. In SAM-PQ-3087, the cochlear window is confluent with the aperture for the cochlear aqueduct. In ventral view, the tympanic bullae are broadly reniform and rounded transversely. In dorsal view, the main ridge is moderately convex and detached from the medially retracted involucral ridge. The involucral incisure is poorly developed. In medial view, the inner posterior prominence is low to indistinct, with no sign of a medial furrow.

Comments. The periotics resemble balaenopterids in having a cranially somewhat elongated pars cochlearis and differ from extant rorquals in having a robust perpendicular crest. The tympanic bullae resemble balaenopterids in their reniform shape, poorly developed inner posterior prominence, and medially retracted involucral ridge.

Cetotheriidae Brandt, 1872

Neobalaeninae Gray, 1873

Caperea Gray, 1864

Caperea sp.

Referred material. SAM-PQ-3090—incomplete left tympanic bulla (Figures 8I–L; Table 1).

Locality and Horizon. Trawled, RV Africana II, 10 December 1959, Station A322.

Age. Unknown.

Description. In ventral view, the anteromedial surface of the bulla is rounded transversely and lacks an anterolateral shelf. In dorsal view, the anterior margin of the bulla is squared, which in turn reflects the broad, rectangular Eustachian outlet. The main ridge is strongly convex. The involucral ridge extends to the posterior edge of the bulla but is retracted medially. The surface of the involucrum appears smooth with no obvious transverse creases. The medial margin of the involucrum gradually curves posterolaterally. In medial view, the anterior border of the bulla is notably squared and the dorsal surface of the involucrum appears flat with no inner posterior prominence.

Comments. SAM-PQ-3090 resembles Caperea in having squared anterior margins in dorsal and medial view, a broad Eustachian outlet, and a flattened dorsal margin of the involucrum with no inner posterior prominence. It differs from C. marginata in having a medially retracted involucral ridge and a gradually curving, rather than rectangular, medial margin of the involucrum in dorsal view. The absence of transverse creases on the involucrum also differs but could be a juvenile feature given the comparatively small size of this specimen (Ekdale et al., 2011).

Balaenidae Gray, 1821

Eubalaena Gray, 1864

Eubalaena sp.

Referred specimen. SAM-PQ-3096—incomplete right tympanic bulla (Figures 9A–D; Table 1).

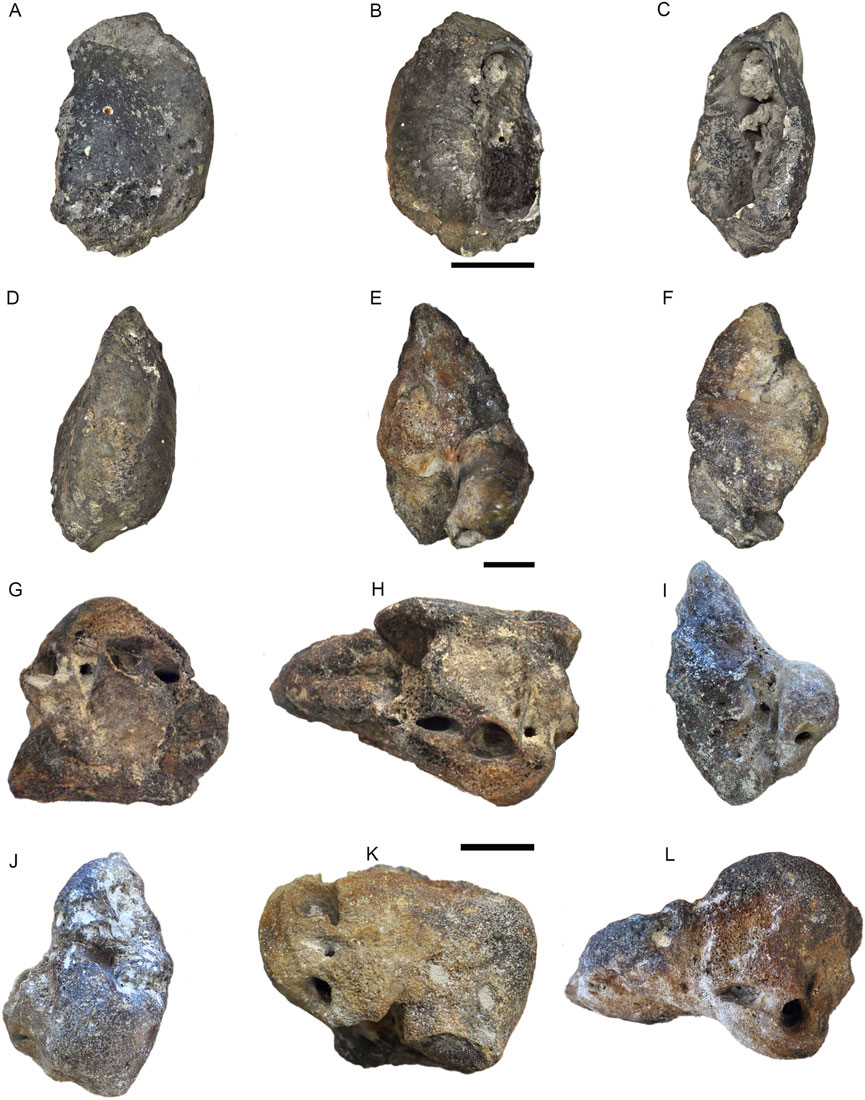

FIGURE 9

Locality and horizon. Trawled off southwest Cape coast.

Age. Unknown.

Description. In ventral view, the anteromedial surface of the bulla is notably concave transversely. There is no anterolateral shelf. In dorsal view, the anterior margin of the bulla is squared and almost perpendicular to the weakly convex main ridge. The Eustachian outlet is relatively narrow, whereas the involucrum is relatively broad throughout. The involucral ridge is neither medially nor anteriorly retracted. The dorsal surface of the involucrum bears numerous well-defined transverse creases. In medial view, the anterior border of the bulla is pointed. From its anterior margin, the involucrum gradually rises dorsally, levels out, and then steeply descends towards the posterior border of the bulla. There is no inner posterior prominence.

Comments. SAM-PQ-3096 resembles Balaena and Eubalaena in being relatively large (146 mm; Table 1), with the bullae of extinct balaenid genera like Antwerpibalaena, Archaeobalaena, Balaenella, Balaenula, Peripolocetus being ≥40 mm shorter. Differs from Balaena in having a less acutely pointed anteromedial corner in ventral view, a somewhat narrower anterior portion of the involucrum in dorsal view, and a more pointed anterior margin in medial view.

Mysticeti indet.

Referred material. SAM-PQ-3091, 3080—right periotics (Figures 9E–L; Table 2).

Locality and horizon. SAM-PQ-3080—trawled, RV Africana II, 8 December 1959, Station A316; SAM-PQ-3091—trawled, RV Africana II, 10 December 1959, Station A322.

Age. Unknown.

Description. In ventral view, the anterior process is slightly thickened and flanked by a blunt lateral tuberosity. In medial view, the anterior process is triangular and relatively smooth, with no depression or ridge for the attachment of the tensor tympani. The pars cochlearis is not cranially elongated and bears a well-marked promontorial groove. The cochlear window is flush with the remainder of the pars cochlearis. In dorsal view, the proximal opening of the facial canal is compressed transversely, smaller than the remainder of the internal acoustic meatus, and separated from the latter by a robust perpendicular crest. In SAM-PQ-3080, a circular hiatus Fallopii opens just anterior to the proximal opening of the facial canal; no such opening is evident in SAM-PQ-3091, but the anterior border of proximal opening of the facial canal is somewhat teardrop-shaped. The suprameatal area is broad and bordered by a low superior process. The aperture for the cochlear aqueduct is circular and neither arranged en echelon with that for the vestibular aqueduct, nor aligned with the proximal opening of the facial canal and the remainder of the internal acoustic meatus. In posterior view, the cochlear window is separated from the aperture for the cochlear aqueduct.

Comments. SAM-PQ-3080 and 3091 differ from balaenids in having a longer, triangular anterior process in medial view, and in lacking marked hypertrophy of the lateral tuberosity and body of the periotic; from balaenopteroids in having an aperture for the cochlear aqueduct that is circular and not arranged en echelon with that for the vestibular aqueduct; and from balaenopterids in lacking a cranially elongated pars cochlearis and recessed cochlear window in medial view. The broad suprameatal area, robust perpendicular crest, and transversely compressed proximal opening of the facial canal are reminiscent of cetotheriids, but there is no obvious alignment of the aperture of the cochlear aqueduct with the proximal opening of the facial canal and the remainder of the internal acoustic meatus.

5 Discussion

Biogeography. Modern marine mammals often either have large geographic ranges with pronounced population structuring, or form clades of closely related species separated by a geographic barrier (Yonezawa et al., 2009; Churchill et al., 2014; do Amaral et al., 2017; Holt et al., 2020). The warm waters of the tropics are perhaps the most notable driver of such patterns, with several temperate or cool-water species showing marked antitropicality (Davies, 1963). The biogeography of extinct marine mammals is usually hard to ascertain, owing to the scarcity of described material, time-averaging of fossil assemblages, and strong regional differences in research effort and rock availability (Uhen and Pyenson, 2007; Pyenson et al., 2009).

Notwithstanding these caveats, it seems noteworthy that the extinct rorquals Diunatans and Fragilicetus were first described from the Pliocene of the eastern North Atlantic (Bosselaers and Post, 2010; Bisconti and Bosselaers, 2016). Their presence in South Africa i) suggests a relatively large geographic range, consistent with that of most living rorquals; and ii) necessitates dispersal across the equator prior to the onset of Northern Hemisphere glaciation. Comparatively warm Pliocene conditions would likely have made the tropics hard to cross for many temperate animals. If so, both Diunatans and Fragilicetus could plausibly have exhibited some degree of antitropicality, as previously suggested for certain other extinct cetacean populations and/or species (Bianucci et al., 2016; Govender et al., 2016; Tsai et al., 2017; Bisconti et al., 2021).

Palaeoenvironment. Strengthening of the BUS during the Late Miocene to early Pliocene resulted in cooler temperatures and increased marine primary production along the coast (Dupont et al., 2009). The western margin of South Africa changed from sandy and rocky beaches to sheltered lagoons and embayments (Kensley, 1972; 1977; Pether, 1994; Siesser and Dingle, 1981; Smith and Haarhoff, 2006). This contrasts with the situation today, where the coast is open to the prevailing westerly winds and swells (Barendse and Best, 2014).

Deposition of the MPPM and equivalent strata took place during the 30 m high of the early Pliocene transgression (Hendey, 1981; Roberts et al., 2011). During this time, Saldanha Steel would have been in a shallow marine or estuarine environment (Roberts, 1997), whereas Milnerton was probably located further offshore with the occasional lagoon forming during regressions (Rogers, 1979; 1980). Similar conditions were likely encountered by Diunatans and Fragilicetus in the Pliocene North Sea, where fossils were deposited in a cool-temperate nearshore environment that was 30–50 m deep (see summary in Lambert and Gigase, 2007).

Fossil record of pygmy right whales. Neobalaenines have a largely obscure fossil record that has only recently been somewhat elucidated by finds from Peru, Japan, Italy, Australia and, perhaps, Argentina (Bisconti, 2012; Fitzgerald, 2012; Buono et al., 2014; Tsai et al., 2017; Marx et al., 2018). The tympanic bulla described here (SAM-PQ-3090) is the first pygmy right whale fossil ever reported from Africa, and only the seventh fossil described worldwide. Notably, five of these seven fossils come from the Southern Hemisphere, matching the exclusively southern distribution of living Caperea marginata (Kemper, 2014). Unfortunately, the uncertain age of SAM-PQ-3090 makes it impossible to say whether its presence reflects an ancient geographic pattern, or merely an old record of modern Caperea.

6 Conclusion

We report new records of the extinct Pliocene rorquals Diunatans and Fragilicetus from the west coast of South Africa. Both genera also once occurred in the Pliocene North Sea, suggesting large geographical ranges and, plausibly, antitropicality. Trawled specimens of uncertain age include further rorquals, as well as a right whale and the first pygmy right whale fossil from Africa.
