Due to a production error, there was a mistake in Table 3 as published. The table headings were incorrect. The corrected Table 3 appears below.

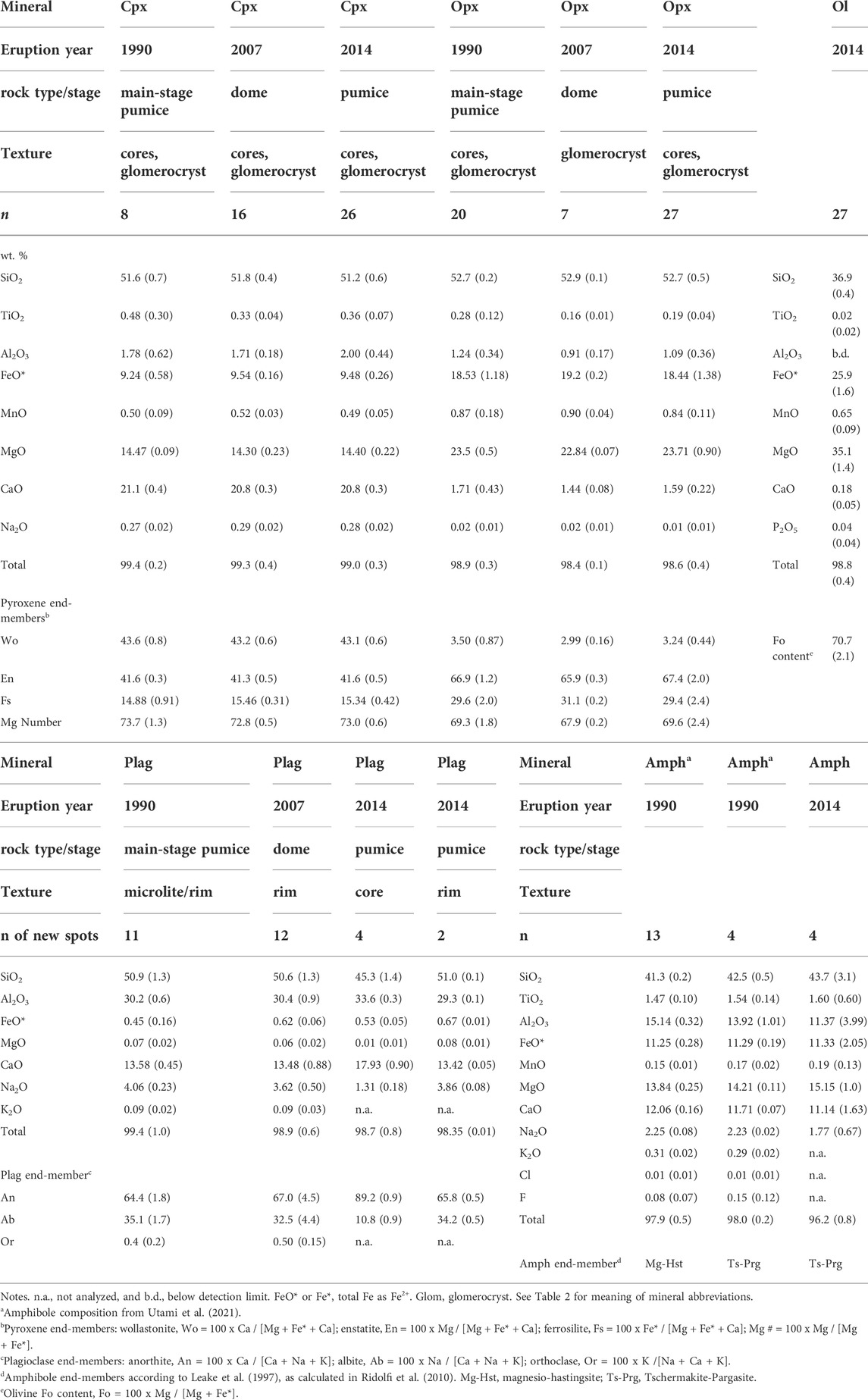

TABLE 3
| Mineral | Cpx | Cpx | Cpx | Opx | Opx | Opx | Ol | |
| Eruption year | 1990 | 2007 | 2014 | 1990 | 2007 | 2014 | 2014 | |
| rock type/stage | main-stage pumice | dome | pumice | main-stage pumice | dome | pumice | ||
| Texture | cores, glomerocryst | cores, glomerocryst | cores, glomerocryst | cores, glomerocryst | glomerocryst | cores, glomerocryst | ||
| n | 8 | 16 | 26 | 20 | 7 | 27 | 27 | |
| wt. % | ||||||||
| SiO2 | 51.6 (0.7) | 51.8 (0.4) | 51.2 (0.6) | 52.7 (0.2) | 52.9 (0.1) | 52.7 (0.5) | SiO2 | 36.9 (0.4) |
| TiO2 | 0.48 (0.30) | 0.33 (0.04) | 0.36 (0.07) | 0.28 (0.12) | 0.16 (0.01) | 0.19 (0.04) | TiO2 | 0.02 (0.02) |
| Al2O3 | 1.78 (0.62) | 1.71 (0.18) | 2.00 (0.44) | 1.24 (0.34) | 0.91 (0.17) | 1.09 (0.36) | Al2O3 | b.d. |
| FeO* | 9.24 (0.58) | 9.54 (0.16) | 9.48 (0.26) | 18.53 (1.18) | 19.2 (0.2) | 18.44 (1.38) | FeO* | 25.9 (1.6) |
| MnO | 0.50 (0.09) | 0.52 (0.03) | 0.49 (0.05) | 0.87 (0.18) | 0.90 (0.04) | 0.84 (0.11) | MnO | 0.65 (0.09) |
| MgO | 14.47 (0.09) | 14.30 (0.23) | 14.40 (0.22) | 23.5 (0.5) | 22.84 (0.07) | 23.71 (0.90) | MgO | 35.1 (1.4) |
| CaO | 21.1 (0.4) | 20.8 (0.3) | 20.8 (0.3) | 1.71 (0.43) | 1.44 (0.08) | 1.59 (0.22) | CaO | 0.18 (0.05) |
| Na2O | 0.27 (0.02) | 0.29 (0.02) | 0.28 (0.02) | 0.02 (0.01) | 0.02 (0.01) | 0.01 (0.01) | P2O5 | 0.04 (0.04) |
| Total | 99.4 (0.2) | 99.3 (0.4) | 99.0 (0.3) | 98.9 (0.3) | 98.4 (0.1) | 98.6 (0.4) | Total | 98.8 (0.4) |
| Pyroxene end-membersb | ||||||||
| Wo | 43.6 (0.8) | 43.2 (0.6) | 43.1 (0.6) | 3.50 (0.87) | 2.99 (0.16) | 3.24 (0.44) | Fo contente | 70.7 (2.1) |
| En | 41.6 (0.3) | 41.3 (0.5) | 41.6 (0.5) | 66.9 (1.2) | 65.9 (0.3) | 67.4 (2.0) | ||
| Fs | 14.88 (0.91) | 15.46 (0.31) | 15.34 (0.42) | 29.6 (2.0) | 31.1 (0.2) | 29.4 (2.4) | ||
| Mg Number | 73.7 (1.3) | 72.8 (0.5) | 73.0 (0.6) | 69.3 (1.8) | 67.9 (0.2) | 69.6 (2.4) |
| Mineral | Plag | Plag | Plag | Plag | Mineral | Ampha | Ampha | Amph |
| Eruption year | 1990 | 2007 | 2014 | 2014 | Eruption year | 1990 | 1990 | 2014 |
| rock type/stage | main-stage pumice | dome | pumice | pumice | rock type/stage | |||
| Texture | microlite/rim | rim | core | rim | Texture | |||
| n of new spots | 11 | 12 | 4 | 2 | n | 13 | 4 | 4 |
| SiO2 | 50.9 (1.3) | 50.6 (1.3) | 45.3 (1.4) | 51.0 (0.1) | SiO2 | 41.3 (0.2) | 42.5 (0.5) | 43.7 (3.1) |
| Al2O3 | 30.2 (0.6) | 30.4 (0.9) | 33.6 (0.3) | 29.3 (0.1) | TiO2 | 1.47 (0.10) | 1.54 (0.14) | 1.60 (0.60) |
| FeO* | 0.45 (0.16) | 0.62 (0.06) | 0.53 (0.05) | 0.67 (0.01) | Al2O3 | 15.14 (0.32) | 13.92 (1.01) | 11.37 (3.99) |
| MgO | 0.07 (0.02) | 0.06 (0.02) | 0.01 (0.01) | 0.08 (0.01) | FeO* | 11.25 (0.28) | 11.29 (0.19) | 11.33 (2.05) |
| CaO | 13.58 (0.45) | 13.48 (0.88) | 17.93 (0.90) | 13.42 (0.05) | MnO | 0.15 (0.01) | 0.17 (0.02) | 0.19 (0.13) |
| Na2O | 4.06 (0.23) | 3.62 (0.50) | 1.31 (0.18) | 3.86 (0.08) | MgO | 13.84 (0.25) | 14.21 (0.11) | 15.15 (1.0) |
| K2O | 0.09 (0.02) | 0.09 (0.03) | n.a. | n.a. | CaO | 12.06 (0.16) | 11.71 (0.07) | 11.14 (1.63) |
| Total | 99.4 (1.0) | 98.9 (0.6) | 98.7 (0.8) | 98.35 (0.01) | Na2O | 2.25 (0.08) | 2.23 (0.02) | 1.77 (0.67) |
| K2O | 0.31 (0.02) | 0.29 (0.02) | n.a. | |||||
| Plag end-memberc | Cl | 0.01 (0.01) | 0.01 (0.01) | n.a. | ||||
| An | 64.4 (1.8) | 67.0 (4.5) | 89.2 (0.9) | 65.8 (0.5) | F | 0.08 (0.07) | 0.15 (0.12) | n.a. |
| Ab | 35.1 (1.7) | 32.5 (4.4) | 10.8 (0.9) | 34.2 (0.5) | Total | 97.9 (0.5) | 98.0 (0.2) | 96.2 (0.8) |
| Or | 0.4 (0.2) | 0.50 (0.15) | n.a. | n.a. | ||||
| Amph end-memberd | Mg-Hst | Ts-Prg | Ts-Prg |
Summary of representative mineral compositions from the 1990–2014 eruptions.
Notes. n.a., not analyzed, and b.d., below detection limit. FeO* or Fe*, total Fe as Fe2+. Glom, glomerocryst. See Table 2 for meaning of mineral abbreviations.
Amphibole composition from Utami et al. (2021).
Pyroxene end-members: wollastonite, Wo = 100 x Ca / [Mg + Fe* + Ca]; enstatite, En = 100 x Mg / [Mg + Fe* + Ca]; ferrosilite, Fs = 100 x Fe* / [Mg + Fe* + Ca]; Mg # = 100 x Mg / [Mg + Fe*].
Plagioclase end-members: anorthite, An = 100 x Ca / [Ca + Na + K]; albite, Ab = 100 x Na / [Ca + Na + K]; orthoclase, Or = 100 x K /[Na + Ca + K].
Amphibole end-members according to Leake et al. (1997), as calculated in Ridolfi et al. (2010). Mg-Hst, magnesio-hastingsite; Ts-Prg, Tschermakite-Pargasite.
Olivine Fo content, Fo = 100 x Mg / [Mg + Fe*].
The publisher apologizes for this mistake. The original version of this article has been updated.
