Abstract
Under the promotion of exploration and development for shale oil and gas, marine shale has become a hotspot of fine-grained sedimentary studies in China. Paleo-environment reconstruction has always been an important aim, especially for black shale. Based on a large number of samples collected from Wufeng and Longmaxi Formations of two field sections in western Hubei and eastern Chongqing, this study compares the vertical variations in total organic carbon content, quartz/clay mineral value, and trace element compositions of these two profiles to reflect the paleo-environment changes from the latest Ordovician to the earliest Silurian. The results show that during the later Ordovician period, when Wufeng Formation deposited, the study area experienced a water depth change from relative deep facies to shallow marine, and paleo-redox changed from oxygen rich to anoxic, and even euxinic, followed by the content of oxygen increase. When the Guanyinqiao Bed deposited, the basin suddenly became shallower, and the deposition environment changed to be oxygen enriched for high water energy, circulating oxygen enriched. In the earliest stage Silurian, when the Longmaxi Formation formed, and the paleo-water also suffered several changes of sea level, and the paleo-environment also changed from anoxic to oxic. These changes can correspond to the third-forth order sequences well.
Introduction
Black shale is a kind of special sedimentary rock with enriched organic matter, which may contain shale oil and gas. With the outbreak of shale oil and gas revolution in the United States around 2010, black shale has become a hotspot of sedimentary studies in the world, especially in China (). The Fuling shale gas field in Chongqing City has produced more than 60 billion cubic meters of shale gas from January to November in 2020, which has become the largest shale gas field outside of North America (sinopecnews, 2020). Currently, researchers on shale or shale oil and gas mainly focus on hydrocarbon generation potential (Zou et al., 2010; ), sedimentary microfacies (; ; ; ), sedimentary environment (; Zhu, 2019), reservoir characteristics (; ; ), and preservation conditions (Guo, 2016; Gao et al., 2019) of the Qiongzhusi Formation of Lower Cambrian and Wufeng–Longmaxi Formations of the Upper Ordovician to the Lower Silurian in the Sichuan Basin of China.
Paleo-environmental reconstruction plays significant role not only in regional basin evolution research but also in global petrology study (Zhong et al., 2015; ). Both lacustrine and marine shales have been well studied with multiple proxies for paleo-environmental reconstruction. Some scholars have studied the paleo-environment of black shale, mainly focusing on lacustrine mudstone or shale. and discussed the relative changes in the water level of Zhangjiatan shale and Carboniferous–Permian coal shale in Ordos Basin by using Rb/K value and REE concentration; and Zhu et al. (2016) analyzed the paleo-water depth changes in lower Cretaceous lacustrine shale in Changling faulted depression of Songliao Basin and shale in Dongying sag of Bohai Bay Basin by using Fe/Mn and (Al + Fe)/(Ca + Mg) ratios, respectively. , , , and studied the paleo-environment variations according to the abundance and differentiation of planktonic foraminifera in the shelf marginal marine environment of black shale after Silurian; analyzed the paleo-environment of Silurian using the degree of negative Ce anomaly in Tarim basin; and calculated the paleo-water depth by planktonic foraminifera content in Yingqiong Basin and western South China Sea; pointed out that the paleo-water depth of blocky shale and parallel laminar shale were significantly deeper than that of nonparallel laminar shale by studying the shale of Wufeng–Lower Longmaxi Formation in the eastern margin of Sichuan Basin. Especially, the paleoproductivity and redox conditions of Wufeng–Longmaxi shale, determined by geochemical elements, can determine the thickness and quality of organic-rich shale, which has a certain impact on shale gas production (). Here we present a comprehensive study with multiple proxies of the black shales from two O–S boundary sections in western Hubei and eastern Chongqing for paleo-environmental reconstructions.
Geological setting
The region between western Hubei Province and eastern Chongqing City is located in the eastern Sichuan Basin. Its structure place belongs to the fold belt of eastern Sichuan province and is located in the transition zone of slot-block-type fold belt between western Hunan–Hubei Province and eastern Sichuan province (). In structure, the region between western Hubei Province and eastern Chongqing City mainly includes Fangdoushan anticlinorium, Shizhu synclinorium, Qiyueshan anticlinorium, and Lichuan synclinorium, including many anticlines (Figure 1).

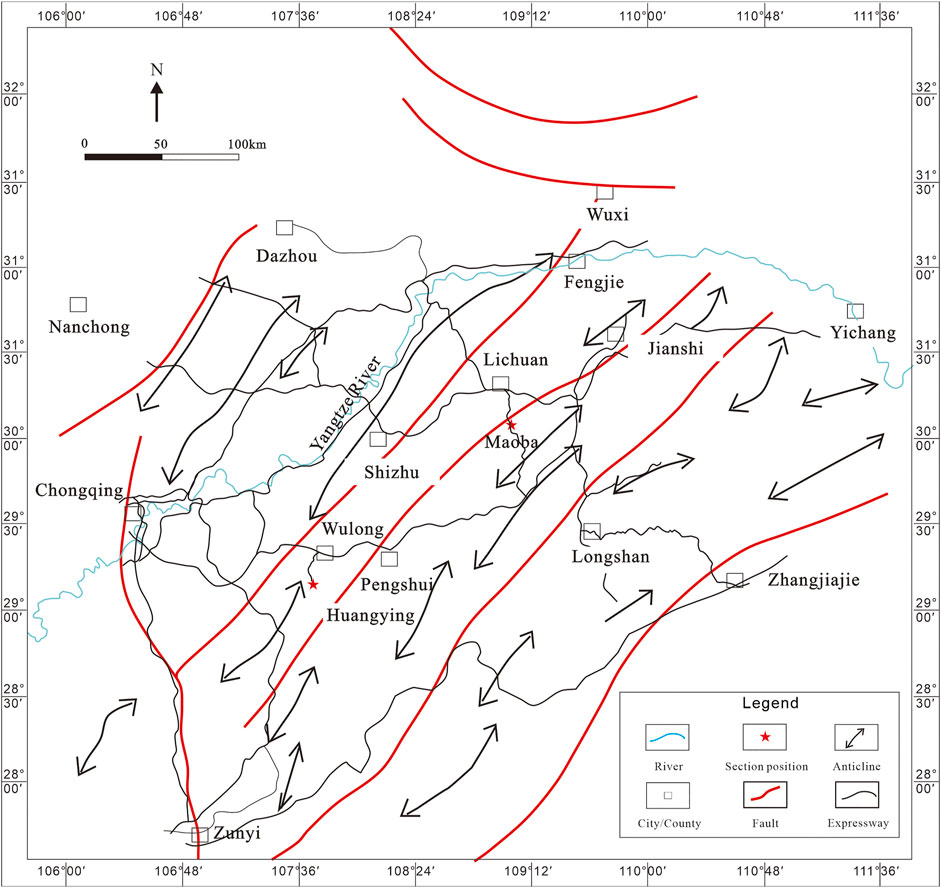

FIGURE 1
During the Late Ordovician to Early Silurian, the deposits in this area inherited the paleogeographic pattern since the Late Ordovician, showing the characteristics of foreland basin. In addition, the sedimentary environment was mainly shelf deposits in the area between western Hubei Province and eastern boundary of the City of Chongqing City, and the Wufeng–Lower Longmaxi Formation black shale was widely developed (Figure 2). Here, two well-exposed O-S boundary sections, located in Maoba town of Lichuan City and Huaying of Chongqing City, respectively, are studied. On the sections, the boundary succession is composed of the uppermost Linxiang Formation, Wufeng Formation, and basal Longmaxi Formation. The Wufeng Formation is mainly black carbonaceous shale, siliceous carbonaceous shale, and argillaceous shale, and rich in graptolite, while the basal Longmaxi Formation comprises gray black, gray carbonaceous shale, argillaceous shale with silty mudstone, with pyrite, and graptolite enriched (Figure 3). On the top of the Wufeng Formation, a set of black argillaceous limestone with abundant brachiopod fossils is formed, and named the Guanyinqiao Bed in China (). The Guanyinqiao Bed is significant for stratigraphic identification and correlation (Figure 4).
FIGURE 2
FIGURE 3

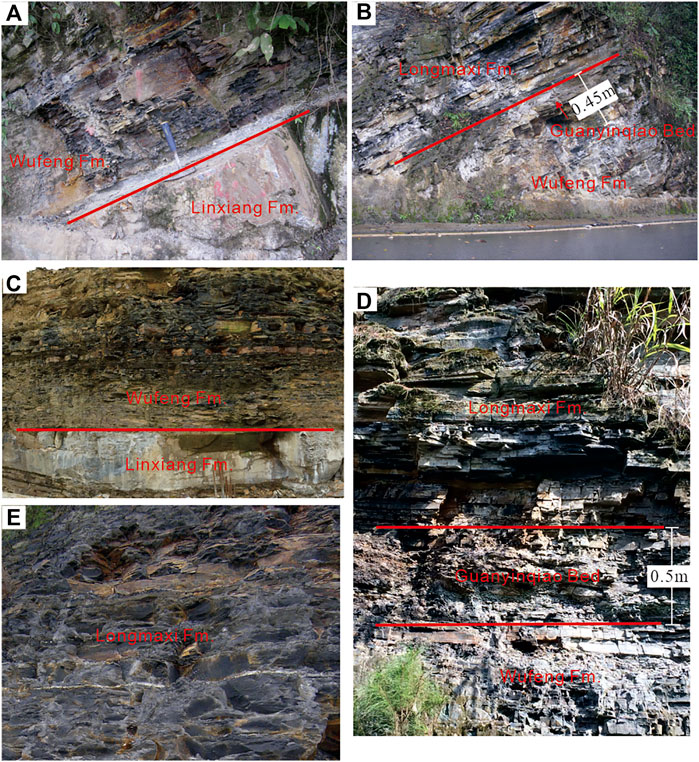

FIGURE 4
Materials and methods
The black rock series of the Wufeng–Lower Longmaxi Formation are common in the whole Yangtze block. Based on a comprehensive field survey in the region of western Hubei Province and eastern boundary of Chongqing City, two representative sections of Wufeng Formation–Lower Longmaxi Formation shale, with well exposure and relatively continuous deposition were chosen. Of these two sections, sedimentary features were recorded, shale samples were studied through coring during the field visit from various fresh cut sections along the Huangying village and Maoba town. Huangying section in Wulong county is measured at 30.41 m vertically, and 32 shale or mudstone samples were collected, whereas in total, 20.02-m thick shale was measured at the Maoba section, with 79 shale or mudstone samples collected.
In order to analyze the paleo-environment of black shale in the Wufeng–Lower Longmaxi Formation, a total of 111 fresh and representative black shale samples were used for geochemical analyses, which was carried out at the Geochemistry Laboratory of Yangtze University, Wuhan, China. The fresh samples were selected for crushing into grains less than 0.075 mm in diameter, and measured in the GB/T19145 2003 standard. Prior to analysis, samples for TOC were treated with acid (HCl) for 24 h to remove inorganic carbon. Meanwhile, those 79 fresh shale samples of the Maoba section were measured by X-ray diffraction method in the laboratory of Research Institute of Exploration and Development, Huabei Oilfield Company, for the whole-rock quantitative mineral analysis. The Ultima IV x-ray diffraction instrument in the laboratory was used according to the SY/T5163 2010 standard that was followed. The other 32 shale samples from Huangying section were tested by the Zhongyuan Oilfield Company laboratory. Representative shale samples (34) were chosen to be measured using the X Series II Plasma Mass spectrometer in Central and South China Mineral Resources Monitoring and Testing Center, Land and Resource Ministry, according to the GB/T14506.30–2010 standard, for test trace element (U, Th, V, Ni, Cr, Co) content.
Results
Lab analysis—total organic carbon content
The total organic carbon content (TOC) test results for 111 Wufeng–Lower Longmaxi Formation shales are summarized in Table 1. The overall shale’s TOC values for Wufeng Formation and Lower Longmaxi Formation in the Huangying section range from 3.26 to 5.43 wt%, and from 2.95 to 5.4 wt%, respectively, and the average values for those two beds are 4.36 and 4.28 wt% as shown in Table 1. Samples from the Guanyinqiao Bed of the Huangying section show organic matter richness of 1.21 wt%. For the Maoba section, the shale’s TOC values for Wufeng Formation and Lower Longmaxi Formation range from 0.25 to 3.2 wt%, and from 0.97 to 3.17 wt%, and the average values for those two beds are 1.61 and 2.48 wt%, respectively. Nevertheless, the TOC value of the Guanyinqiao Bed in the Maoba section is 2.64 wt%, higher than that of Huangying section.
TABLE 1
| Section | Formation/bed | No. of samples | TOC(wt%) | |
|---|---|---|---|---|
| Range | Average | |||
| Huangying | Wufeng Formation | 8 | 3.26–5.43 | 4.36 |
| Guanyinqiao Bed | 1 | 1.21 | - | |
| Lower Longmaxi Formation | 23 | 2.95–5.4 | 4.28 | |
| Maoba | Wufeng Formation | 24 | 0.25–3.27 | 1.61 |
| Guanyinqiao Bed | 1 | 2.64 | - | |
| Lower Longmaxi Formation | 54 | 0.97–3.17 | 2.48 | |
Summary of total organic carbon content (TOC) values from the results of analyzed samples of two section.
Mineral composition and content
In order to further study fine-grained rocks, it is necessary to divide the lithology lithofacies of shale. In recent years, the classification of shale lithofacies is mostly based on their color, size, structure, composition, heavy mineral percentage, fossil composition, fissility, and organic matter abundance, and so on. Here, the three terminal element method is used to classify the rock types. The lithology is divided based on the content of clay minerals, siliceous minerals and carbonate minerals, especially taking the content of brittle minerals in consideration, to be better suitable for the actual development in gas fields. The x-ray diffraction (XRD) result shows that the black shale in the Wufeng–Longmaxi Formations of Huangying section is mainly composed of quartz, potassium feldspar, plagioclase, calcite, gypsum, siderite, clay minerals, etc., while the minerals in Maoba section include quartz, potassium feldspar, anorthosite, pyrite, clay minerals, etc. In the whole, clay minerals include illite, chlorite, illite/montmorillonite interlayers, and minor amounts of kaolinite, among which illite dominates. Mostly, the shale in the study sections belongs to siliceous shale, and some belongs to argillaceous shale. The lithofacies of the Wufeng Formation shale in Huangying section is CM-1 and S, and the Lower Longmaxi Formation shale is mainly S-2, S-3, and some belongs to M-1 facies. For the Maoba section, both Wufeng Formation and the Lower Longmaxi Formation shale samples belong to S-3 and CM-1 (Figure 5), and the actual exploration results show that the favorable lithofacies for shale development are S-2 and S-3 lithofacies (). Also, a new index consisting of a ratio of the quartz and clay minerals (Q/C) is calculated in Figure 6.

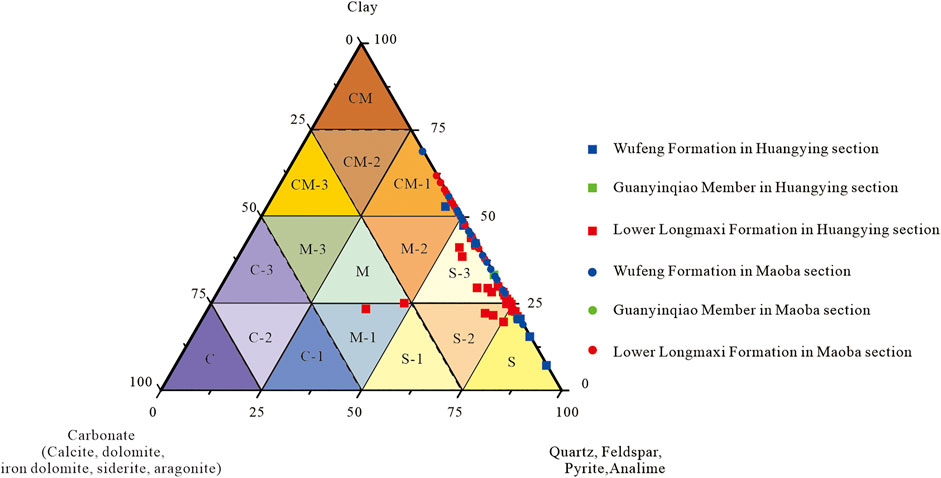

FIGURE 5

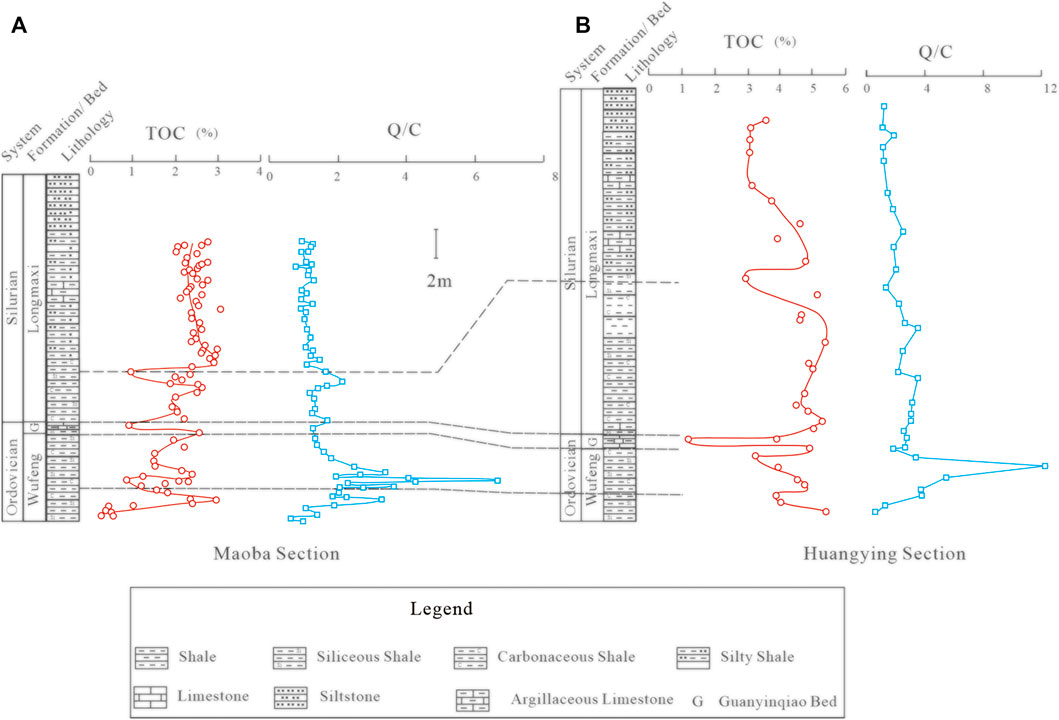

FIGURE 6
Trace elements content
It is generally believed that the variation in trace elements in sedimentary rocks is closely related to the composition of provenance area, exchange reaction, and diagenesis process in sedimentary environment (). Also, the occurrence and enrichment of elements in shale are closely related to the sedimentary environment of rocks. Representative shale samples’ (34) trace elements (U, Th, V, Ni, Cr, Co) test results show that the average values of the six types of trace elements for the Huangying section are higher than those of the Maoba section, with the exception of Th. At present, many paleo-environmental indicators have been established according to the changes in trace elements (or ratios) (; ; Zhu et al., 2002; ; ). When the U/Th ratio is higher than 1.25, the V/Cr is higher than 4.25, and the V/(V + Ni) is higher than 0.5, the sedimentary environment may be anaerobic. When the U/Th ratio is lower than 0.75, the V/Cr is lower than 2.0, and the V/(V + Ni) is lower than 0.45, the sedimentary environment may be oxygen rich. There was a sudden change in the Guanyingqiao Bed, especially in the Huangying section. The results show that when the Wufeng Formation is deposited, the study sections experienced paleo-redox change from oxygen rich to anoxic, and even euxinic, followed by an increase in the oxygen content. When the Guanyinqiao Bed deposited, the basin suddenly became shallower, and the paleo-redox changed to be oxygen enriched for high water energy, circulating oxygen enriched. In the earliest stage Silurian, when the Longmaxi Formation formed, the paleo-environment also changed from anoxic to oxic (Figure 7).

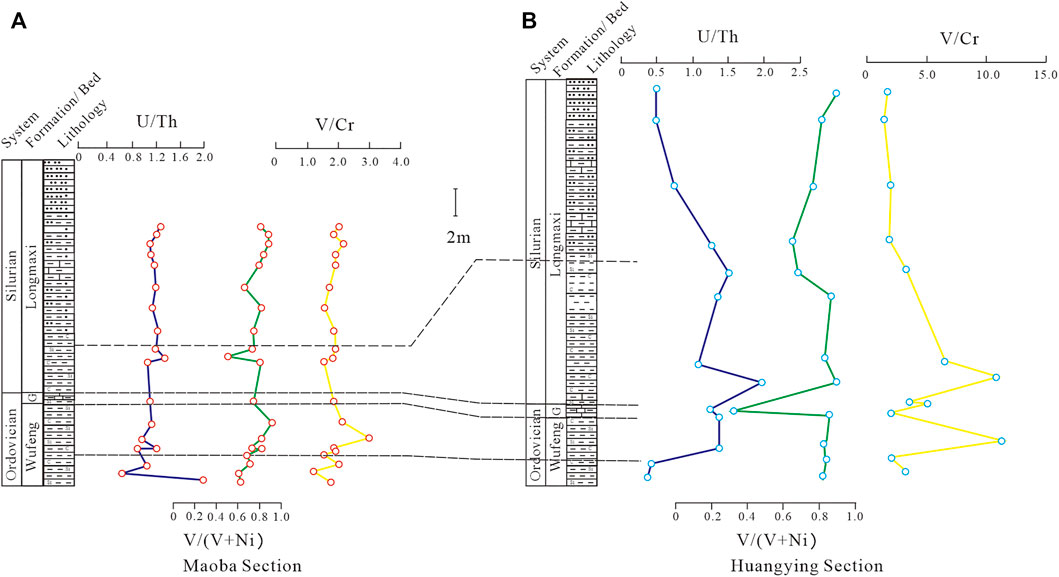

FIGURE 7
Discussion
At present, it is generally accepted that during the Upper Ordovician Wufeng Formation to Lower Silurian Longmaxi Formation, the upper Yangtze region was surrounded among the paleo-uplifts in Central Sichuan, Guizhou Province, and Xuefeng Mountain, forming a semi-occluded stagnant basin (). Additionally, the two sections in this study were located near one of the sedimentary centers. Also, the overall paleo-environment of black shale was semi-deep to deep water shelf, where the input of terrigenous materials, especially terrigenous clastic quartz, was less, resulting in most of the black shale being siliceous shale as shown in Figure 5, and most of the siliceous shale was of authigenic origin, including authigenic quartz transforming from organic remains, secondary over growth of terrigenous quartz transforming from clay minerals, and micron quartz particle transforming from clay minerals. and so on (). So, the total organic carbon content (TOC), quartz, clay minerals, and trace elements’ contents are essentially controlled by sedimentary environment, and their relative changes can be used as indicators to reflect sedimentary environment, especially paleo-water depth. Based on the high-density sampling of two field sections, this paper attempts to reveal the continuous variation of relative paleo-water depth.
The TOC in shale actually refers to the measured residual organic carbon in rocks, and its value reflects the hydrocarbon generation potential of rocks. The Silurian period was the most intense period of the crustal movement in Caledonian tectonic stage in geological history. The strong compression led to the expansion of the paleo-uplift area, which led to the forced transgression in the study area, and deposited a set of organic rich black shale sediments. proposed that there was a good correlation between TOC in sediments and paleo-water depth. So, we also draw the variation curve of TOC in these two sections to reflect changes in paleo-water depth. Larger values of TOC correspond to deeper water bodies and vice versa for deep water shelf environment.
The sections’ correlation map (Figure 6) shows that the TOC content changing the trend in the Maoba section is consistent with that of the Huangying section. As a whole, TOC content of the Guanyinqiao Bed is obviously smaller than that of the Wufeng Formation and Lower Longmaxi Formation, which is consistent with the previous research result that the main part of the Guanyinqiao Bed was shallow water sedimentation (Rong et al., 2011; ; Zhou et al., 2017). By comparing the two sections’ TOC content, the relative paleo-water depth of the strata experienced several cycles of deepening to shallowing (as shown in Figure 6). For the Guanyinqiao Bed, the paleo-water depth may suddenly and rapidly become shallower. Moreover, the average TOC content of the Huangying section in Chongqing is higher than that of the Maoba section in Lichuan, which may indicate that the water body in the Wulong area is deeper than that in the Maoba area in the lower part of the Wufeng Longmaxi Formation period.
proposed the parameter Q/C to reflect the change in relative paleo-water depth, especially suitable for deep-water shelf environment, where there is less input of terrestrial materials but strong biochemical effect. When Q/C increases, the water body becomes deeper and vice versa. In Figure 6, the variation trend of Q/C in the two sections is basically consistent, and the trends have good consistency with that of TOC content. Similarly, the Q/C of the Huangying section in Chongqing City is higher than that of the Maoba section in Lichuan City, which may indicate that the paleo-water depth in Chongqing area is deeper than that in Lichuan area since Late Cambrian to Early Silurian. This result is consistent with TOC content, which may indicate that the siliceous shale of the study section has a high content of biogenic quartz because the content of biological quartz is directly proportional to TOC (Figure 6).
It is shown that the trace elements’ changing trends of the two sections are basically similar (Figure 7). The vertical variation trends in U/Th, V/(V + Ni), and V/Cr of the two sections tend to be consistent. For one section, the variation trends in U/Th, V/Cr, and V/(V + Ni) are consistent with each other, too, and the paleo-redox changes are related with the paleo-water depth variations. During the later Ordovician period, when the Wufeng Formation deposited, the study area experienced a water depth change from relative deep facies to shallow marine, and paleo-redox changed from oxygen rich to anoxic, and even euxinic, followed by the increase in oxygen content. When the Guanyinqiao Bed deposited, the basin suddenly became shallower, and the deposition environment changed to be oxygen enriched for high water energy, circulating oxygen enriched. In the earliest stage Silurian, when the Longmaxi Formation formed, the paleo-water also suffered several changes in sea level, and the paleo-environment also changed from anoxic to oxic.
Through synthetic comparing and analyzing of the two sections, it is found that TOC, quartz/clay ratio (Q/C), and trace element ratios can reflect the changes in paleo-water change well, and the consistency among the three types of data is good, which can be used to verify with each other. The changing trends in those parameters might reflect the third–fourth-order sequence or system tract (): the strata from the Wufeng Formation, the Guanyingqiao Bed, and the Lower Longmaxi Formation are classified into two third-order sequences. The microfacies in the first sequence include the siliceous–argillaceous deepwater shelf, siliceous deep-water shelf, and calcareous–muddy shallow shelf microfacies. They mostly correspond to carbon-rich and high-silica lithofacies and high-carbon and high-silica lithofacies. The second sequence can be subdivided into the carbonaceous deepwater shelf, siliceous–argillaceous deepwater shelf, and some sandy–muddy deepwater shelf sediments, which correspond to the carbon-rich and high-silica lithofacies in the TST. In addition, the lower part in the HST is composed of muddy deepwater shelf, turbidite sand, and sandy–muddy deepwater shelf sediments that mainly correspond to high-carbon and high-silica lithofacies and high-carbon and medium-silica lithofacies. This can help to carry out fine stratigraphic correlation and be more reliable than a single parameter.
Mudstone and shale is one significant type of sedimentary rock, with the largest proportion of quartz content (). Quartz is the main component of the debris skeleton in shale, and its forming mechanism includes clastic quartz and authigenic quartz (). Also, the former study showed that quartz in the Wufeng Formation–Longmaxi Formation in South China had two sources, including eolian quartz input and authigenic quartz, and the latter one dominated (). Siliceous organisms decompose and absorb SiO2 from seawater, and when they die, the SiO2 is reentered into the aqueous solution or precipitate directly (). The clay mineral content decreases with the increase in transportation distance or water depth. The deeper the water is, the less the total content of clay minerals will be. In short, the Q/C may indicate the water depth to a certain degree. The quiet and deep-water shelf sedimentary environment, which is rich in silicon, provides a lot of silicon for the growth of siliceous organisms, and also plays a positive role in the burial and preservation of siliceous organisms after death. So, TOC and Q/C can show good consistency in siliceous shale.
The salty, alkaline seawater and the lower part of the stratified water body or below the sedimentary interface in reduction environment is conducive to the preservation of plankton organic matter and siliceous debris. Organic matter enriches in mudstone or shale (), and the organic matter combines with clay minerals; even some organic matter enters into the soil layers to form a very stable complex. Quartz and clay minerals are both important for the organic matter accumulation in shale. The contribution of quartz and clay minerals depend on the nature of shale. The organic matter is mostly associated with silicon, which is the most important form of marine source rock in South China. Traditionally, it was agreed that the TOC was increased with the clay minerals’ content. However, an opposite relationship was found between TOC and clay minerals in this study, and it is concluded that the TOC content was mostly contributed by the authigenic quartz, which is enriched and dominated in the study area.
At present, there are a few studies on the quantitative restoration of paleo-environment of black shale deposition at home and abroad. This paper proposes three indicators in trying to study the paleo-environment of the study area qualitatively, and the research results are basically consistent with the previous understanding, which also shows that these methods are reliable.
Conclusion
The lithofacies of the Wufeng–Longmaxi Formations shale in Huangying section include CM-1, S, S-2, S-3, and M-1, and the S-3 and CM-1 lithofacies dominate in the Maoba section. They both show good exploration prospects.
For the two sections, in the vertical changing trend comparison of TOC, Q/C, and trace element ratio, it was found that they have good consistency, and indexes can reflect the paleo-water depth and paleo-redox changes from the latest Ordovician to the earliest Silurian.
The vertical variation trends in U/Th, V/(V + Ni), and V/Cr of the two sections tend to be consistent. For a single section, the variation trends in U/Th and V/Cr are totally consistent with that of V/(V + Ni). Conclusively, for the deep-water shelf environment, larger values of TOC, higher Q/C correspond to bigger U/Th and V/Cr ratio, and the water is anoxic, or even euxinic. On the contrary, shallow water shelf environment with enriched oxygen is characterized by smaller values of TOC, lower Q/C, U/Th, and V/Cr ratio.
Statements
Data availability statement
The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.
Author contributions
XY supervised the work and wrote the paper. YH wrote part of the manuscript. XJ and ZL helped in collecting the fresh samples in the field. JM contributed to revising the paper. All authors contributed to this work.
Funding
The paper is supported by National Natural Science Foundation of China (grant nos. 41772094 and 41702116) and the Project of Excellent Young and Middle-Aged Scientific and Technological Innovation Team of Hubei Province universities (grant no. T201905).
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
