Characteristics and genesis of light oil in Tabei Area, Tarim Basin, Northwestern China

Abstract

Light oil is a high-quality crude oil. The formation and chemical composition of light oil is a matter of great concern to petroleum geologists. Yakela Field and Shunbei Field, which are located in Yakela and Shunbei regions, respectively, are the two main light oil fields in the Tabei uplift of the Tarim Basin. In order to identify the causative mechanism of light oils in these two fields, 17 crude oil samples were selected and analyzed by gas chromatography (GC) for saturated hydrocarbons and gas chromatography–mass spectrometry (GCMS) for saturated and aromatic biomarkers. Then, the compounds were measured via the mass spectrometry detector after GC separation. The molecular geochemical characteristics showed that the light oils in the two fields are sourced from similar marine source rocks deposited under weak oxidative and reductive environments. The maturity of crude oil in the Shunbei Field is higher than that in the Yakela Field. Simulation results of hydrocarbon generation history of source rocks in two fields showed that the formation mechanism of the two light oils is different. The light oil in the Yakela Field is directly generated by the source rock in the late oil-generating window. The crude oil in the Shunbei Field is formed by the deep burial and maturation of the crude oil generated in the early stage of the source rock.

1 Introduction

Light oil refers to crude oil with an API higher than 36° (Tissot and Welte, 1978). Compared to normal crude oil, light oil has a higher economic value (Thompson, 1983). Therefore, the formation and composition of light oil is a matter of great concern to petroleum geologists. Previous research suggests that light oils have multiple mechanisms of formation. The formation of light oil is mainly related to the type of parent material, the degree of thermal evolution, and the secondary alteration processes within the reservoir. Humic-type organic matter can produce a small amount of light oil (Snowdon and Powell, 1982; Thompson, 1983; Thompson, 1987). Sapropel-type organic matter can generate a certain amount of light oil in the high evolution stage. High-temperature thermal cracking can break the carbon chain of normal oil to form light oil. Gas invasion can separate short-chain hydrocarbons from normal crude oil to form light oil. Light oils formed by different formation mechanisms are often different (Zhang et al., 2011). In general, light oils formed by high-temperature thermal cracking of crude oil are often larger than those formed by other mechanisms (Zhang et al., 2021). Therefore, the identification of the genetic type of light oil is of great significance for the exploration (Thompson, 1983; Zhang et al., 2011).

The Tarim Basin is the largest petroleum-bearing basin in China. The Tabei uplift is the most abundant oil and gas zone in the Tarim Basin (Jia, 1997; He et al., 2016). There are various types of crude oil in the Tabei uplift, including heavy oil, normal oil, and light oil. Heavy oil accounts for the vast majority of crude oil in the uplift and is thought to be due to biodegradation (Yang et al., 2020; Gu et al., 2020). Light oil mainly exists in the southern Shunbei region and the northern Yakela region. Although previous studies have been carried out on the origin of light oil in the Tarim Basin, most of them are related to secondary alteration processes, such as gas washing and fractionation (Zhang et al., 2021). The genetic mechanism of light oil in the Shunbei and Yakela fields has not been systematically studied. In this study, the geochemical characteristics of light oil in these two fields will be systematically investigated in order to identify its causative mechanism. The study is of great significance for clarifying the genetic mechanism and identifying the source of light oils in the Tarim Basin and the discovery of new large-scale oil and gas fields.

2 Geological setting

The Tarim Basin, with an area of approximately 5.6×10⁵ km², is the largest petroliferous basin in China (Figure 1A). It is a typical superimposed basin in western China, consisting of Paleozoic cratons in the lower part and Mesozoic–Cenozoic foreland depressions in the upper part (Zhang et al., 2005; Lin et al., 2012; Liu et al., 2019). The basin is bounded by the Tianshan Mountains in the north, the Kunlun Mountains in the southwest, and the Altyn Mountains in the southeast. The first-level tectonic units in the basin include the Tabei uplift, Tazhong uplift, Kuqa depression, Northern depression, Southwest depression, and Southeast fault-uplift belt (Figure 1A) (Zhang et al., 2000; Chang et al., 2013). The Tarim Basin has a complex history of tectonic movements, which has experienced three major tectonic events in the late Caledonian, late Hercynian, and Yanshan–Himalayan periods (Jia, 1997; He et al., 2016). The sedimentary strata of Tarim Basin include the Sinian–Devonian marine sedimentary strata, the Carboniferous–Permian marine-continental transitional strata, and the Triassic–Quaternary terrestrial sedimentary strata (Figure 2) (Jia and Wei, 2002; Zhu et al., 2019). Organic-rich shale of the Lower Cambrian Yuertusi Formation (Є₁y) was widely developed in the Tabei uplift, which is the main source rock of the uplift (Cheng et al., 2020; Wang et al., 2021). The source rock was mainly composed of two types of organic facies, namely, planktonic algae in undercompensated basin and planktonic algae in evaporative lagoon. The source rock was widely distributed, with high organic matter abundance and maturity. The organic facies of source rocks in Shunbei Field and Yakela Field were mainly planktonic algae in undercompensated basin (Zhang et al., 2004; Zhu et al., 2018). The middle Ordovician Yijianfang Formation (O₂yj) and the upper Yingshan Formation (O_1-2y) are the main reservoirs in Shunbei Field (Cai and Li, 2008; Lu et al., 2017). The Lianglitage (O₃l) and Sangtamu (O₃s) Formations provide excellent regional cap rocks for the preservation of deep oil and gas accumulations (Figure 2) (Jiao, 2018). The lower Cretaceous Yageliemu Formation (K₁y) is the main reservoir, and the Xiaokuzibai Formation (E₂k) provide the cap rocks in Yakela Field (Dai et al., 2009; Li et al., 2016).

FIGURE 1

FIGURE 2

Zhu et al., 2019).

After decades of oil and gas exploration and development, several large deep oil and gas fields such as Tahe, Halahatang, and Tazhong oil fields have been discovered in Tabei uplift, Tazhong uplift, and other areas, with total oil and gas reserves of more than 1×10¹⁰ tons (7.3×10¹⁰ barrels) (Yang et al., 2020). Tabei uplift is one of the most enriched areas of oil and gas resources in Tarim Basin. The oil and gas properties in the Tabei uplift show regular spatial changes and generally show the characteristics of heavy in the north and light in the south (Zhu et al., 2019). Light oil reservoirs in both Shunbei and Yakela oil fields have been discovered in this area. (Figure 1B) (Gu et al., 2020).

Shunbei Field is located in the south of Tabei uplift and at the center of Tarim Basin. It is located between Awati Depression and Manjiaer Depression and is located in the “saddle” of relatively low structure (Ma et al., 2022). Yakela Field is located inside the Yakela uplift, which is a successional fault block uplift formed by Luntai and Yanan faults in the northern Tarim Basin. It was mainly formed in the late Hercynian period. Due to long-term uplift, the pre-Mesozoic strata suffered intense denudation and formed a complex buried-hill system (Dai et al., 2009; Luo et al., 2012).

3 Samples and methods

3.1 Sample selection and pretreatment

A total of 17 representative crude oil samples were selected for this study: 6 from Yakela Field and 11 from Shunbei Field in the Tabei area. (Figure 1B and Table 1). Samples of crude oil were sealed and refrigerated in dark brown glass bottles to prevent the loss of light components due to light and temperature increases. Crude oil samples of about 20 mg were dissolved by adding n-hexane, thoroughly shaken, and kept for 12 h. Asphaltene was obtained by filtering using cotton. Saturated hydrocarbon, aromatic hydrocarbon, and polar hydrocarbon fractions were obtained by filtration of alumina and silica gel using n-hexane, dichloromethane/n-hexane (2:1, v/v), and dichloromethane/methanol (93:7, v/v) as solvents, respectively.

3.2 Gas chromatography and gas chromatography–mass spectrometry analysis

Saturated hydrocarbons from the reservoir oils and reservoir extracts were firstly analyzed via gas chromatography (GC) using an Agilent 7890 A gas chromatograph fitted with a 25 m × 0.20 mm i. d. DB-5 column with a film thickness of 0.33 μm and using helium as carrier gas at a constant flow mode. The GC oven temperature was initially set to 60°C for 1 min, ramped from 60 to 310°C at 7°C/min, and then held at 310°C for 20 min. Separated n-alkane and isoprenoid compounds were then analyzed using the Agilent 5977B MSD mass spectrometry detector. Gas chromatography–mass spectrometry analysis of saturated and aromatic hydrocarbon biomarkers was performed on an Agilent gas chromatography–mass spectrometry 8,860 GC-5977B MSD gas chromatography mass spectrometer. The chromatographic column model was HP-5 quartz elastic capillary (60 m×0.32 mm×0.25 μm). Samples were injected in a pulsed splitless mode, the temperature of the injector was 300°C, the carrier gas was helium, the flow rate was 1 ml/min, the ionization energy was 70 eV, and the detection method was full scan (SCAN)/selected ion monitoring (SIM). The saturated hydrocarbon heating program condition was as follows: initial temperature of 50°C, maintained for 1 min, increased to 120°C at 20°C/min, increased to 310°C at 3°C/min, and maintained for 25 min. The heating program of aromatic hydrocarbon was as follows: the initial temperature was 80°C, increased to 310°C at 3°C/min, and held for 25 min. The separation of crude oil components, gas chromatography, and gas chromatography–mass spectrometry experiments were performed in the experimental research center of Wuxi research institute of petroleum geology of SINOPEC.

3.3 Basin numerical simulation

In this study, the numerical simulation of geological history and hydrocarbon generation history was mainly carried out using Petromod software. Prior to the simulation, parameters such as depth, lithology, deposition and denudation age, denudation thickness, sedimentary palaeowater depth, geochemical indexes of source rocks, and hydrocarbon-generation dynamics model were input. The TⅡ kerogen kinetic model by Dieckmann et al. (2000) was adopted for the hydrocarbon generation kinetics model, and other parameter data such as the stratigraphic, lithologic data, and eroded thickness were obtained from Northwest Oilfield Branch Company Ltd., SINOPEC. The terrestrial heat flow data were obtained from Li et al. (2010), and the thermal conductivity of rocks was obtained from Li et al. (2019).

4 Results and discussion

4.1 Geochemical characteristics of light oils

4.1.1 Sedimentary environment and source of parent material for crude oil

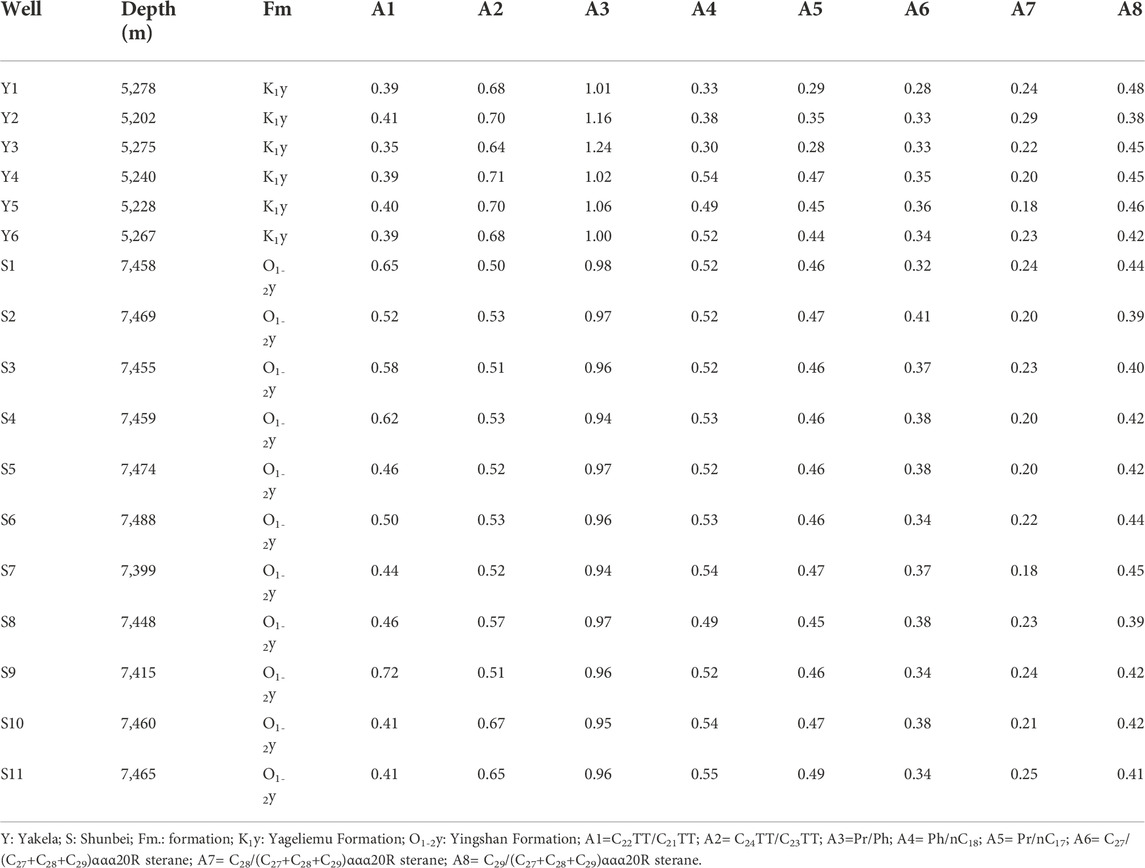

As for isoprenoids, the pristane/phytane (Pr/Ph) ratios of crude oils in Yakela Field range from 1.00 to 1.24, with an average of 1.08. The Ph/nC₁₈ ratio ranges from 0.30 to 0.54, with an average value of 0.43. The Pr/nC₁₇ ratio ranges from 0.28 to 0.47, with an average value of 0.38. However, the Pr/Ph value of crude oils in Shunbei Field is 0.94–0.98, with an average of 0.96. The Ph/nC₁₈ ratio was 0.49–0.55, with an average value of 0.53. The ratio of Pr/nC₁₇ was 0.45–0.49, with an average of 0.46 (Table 1). The Pr/Ph of crude oils in Shunbei Field is lower than those in Yakela Field, but the Ph/nC18 and Pr/nC₁₇ ratios are higher on the whole.

The most abundant sources of Pr and Ph are chlorophyll A in photosynthetic organisms and the phytological side chains of bacterial chlorophyll A and B in purple sulfur bacteria (Brooks et al., 1969; Powell and McKirdy, 1973). Previous studies show that Pr/Ph, Ph/nC₁₈ and Pr/nC₁₇ can be used to indicate the oxidative and reductive environments of source rock deposition, organic matter types, and oil maturities (Connan and Cassau, 1980; Peters et al., 2005; Hanson et al., 2000). In addition to the oxidative and reductive environment, the ratio is partly controlled by thermal maturity and source organic matter input (Peters et al., 2005). The Pr/Ph ratios of crude oils in Shunbei Field are less than 1, indicating an anoxic sedimentary environment. The Pr/Ph ratios of crude oils in Yakela Field are slightly greater than 1, indicating the sedimentary environment of weak oxidation (Peters et al., 2005; Didyk et al., 1978). The cross plot of Pr/nC₁₇ versus Ph/nC₁₈ (Figure 3A) indicates that both the oils in Yakela Field and Shunbei Field originated from the type II marine organic kerogen deposited in a weak reductive environment (Connan and Cassau, 1980).

FIGURE 3

Peters et al., 2005).

Representative m/z191 chromatograms of the saturated fraction are shown in Figure 4. Terpanes such as tricyclic terpanes (TT), pentacyclic terpanes, and C₂₄ tetracyclic terpanes can be detected in crude oil samples from both regions. The C₂₂TT/C₂₁TT ratios of crude oils in Yakela Field range from 0.35 to 0.41, with an average of 0.39. The C₂₄TT/C₂₃TT ratio range from 0.64 to 0.71, with an average value of 0.68. However, the C₂₂TT/C₂₁TT value of crude oils in Shunbei Field is 0.41–0.72, with an average of 0.52. The C₂₄TT/C₂₃TT ratio is 0.50–0.67, with an average value of 0.55 (Table 1).

FIGURE 4

The ratios of C₂₂TT/C₂₁TT and C₂₄TT/C₂₃TT can be used to identify the type of source rock for crude oils (Peters et al., 2005). Although terpanes with low carbon numbers tend to be formed in the high maturity stage of source rocks, previous studies have shown that these terpanes are more resistant to thermal maturation than hopanes (Peters, 2000; Alberdi et al., 2001). All samples showed that C₂₀ and C₂₃ tricyclic terpanes were dominant, and C₁₉ tricyclic terpanes were low (Figure 4). This is consistent with the traditional perception that C₂₃TT is dominant in marine crude oil as well as C₂₁TT/C₂₃TT<1. The cross plot of C₂₂TT/C₂₁TT vs. C₂₄TT/C₂₃TT (Figure 3B) indicates that both the oils in Yakela Field and Shunbei Field mainly originated from marine shales, although a marl and carbonate source cannot be completely excluded in Shunbei Field. (Peters et al., 2005).

Representative m/z217 chromatograms of the saturated fraction are shown in Figure 4. Steranes, such as regular steranes, can be detected in crude oil samples from both regions. The relative abundance of C₂₇, C₂₈, and C_2C9 regular steranes is often used to trace source rocks (Moldowan and Gago, 1986; Li et al., 2016). The C_27-29ααα-20R regular steranes of both regions show similar characteristics. Both of them exhibit a V-shape distribution and with the characteristics of the C₂₇ααα-20R and C₂₉ααα-20R dominant set (Figures 3C, 4). It indicated that the organic matter of crude oil in the study area may be mainly marine algae such as green algae in the early Paleozoic marine environment, and the crude oils in both fields were likely from the same set of source rocks (Grantham, 1986; Volkman, 1986; Volkman et al., 1998).

4.1.2 Maturity of crude oil in Shunbei and Yakela fields

The ratio of 17α(H)-22,29,30 trisnorhopane (Tm) and 18α(H)-22,29,30 trisnorhopane (Ts) is a commonly used biomarker parameter to reflect the maturity of crude oil (Peters et al., 2005). Because Ts has greater thermal stability than Tm, the ratio of Ts/(Ts+Tm) increases with the degree of thermal evolution (Peters et al., 2005). The studies show that the parameter has a very reliable effect in evaluating the maturity of crude oil from the same organic facies and is less affected by biodegradation in the process of migration, so it can accurately indicate the maturity change of crude oil from immature to mature stage (Seifert and Moldowan, 1978; Peters et al., 2005). Previous studies have also shown that the source rocks of the two fields have the same organic facies (Zhang et al., 2004; Zhu et al., 2018). The 18α-30-norhopane (C₂₉Ts) followed by C₂₉17α-hopane (C₂₉H) on m/z 191 mass chromatogram was identified using the advanced nuclear magnetic resonance (NMR) method (Moldowan et al., 1991). Similar to parameter Ts/(Ts+Tm), C₂₉Ts/(C₂₉Ts+C₂₉H) ratio is often used as a parameter reflecting the maturity of crude oil from the immature to mature stage (Fowler and Brooks, 1990). The Ts/(Ts+Tm) ratios of crude oils in Yakela Field range from 0.37–0.63, with an average of 0.52. The Ts/(Ts+Tm) value of crude oils in Shunbei Field range from 0.51–0.88, with an average of 0.67 (Table 2). The C₂₉Ts/(C₂₉Ts+C₂₉H) ratios of crude oils in Yakela Field range from 0.25–0.36, with an average of 0.31. However, the C₂₉Ts/(C₂₉Ts+C₂₉H) value of crude oils in Shunbei Field range from 0.31–0.49, with an average of 0.48 (Table 2). The intersection diagram can effectively classify the maturity of crude oil when evaluating oils from common source facies and depositional settings (Peters et al., 2005). Both fields belong to Tabei uplift, and their source rocks have similar lithology and organic facies (Zhang et al., 2004; Zhu et al., 2018). The cross plot of C₂₉Ts/(C₂₉Ts+C₂₉H) versus Ts/(Ts+Tm) indicates that the maturities of crude oils in both fields reach the mature stage, but there are differences between them. The crude oils in Yakela Field are generally in the mature stage, with Ts/Ts+Tm values between 0.3 and 0.7 (About 0.7%Ro-1.0%Ro) (Peters et al., 2005). The crude oils in Shunbei Field are in the mature and high mature stages, with the value of Ts/(Ts+Tm) greater than 0.7 (About 1.0%Ro) in most of the samples, and the max value reached 0.88 (About 1.3%Ro) (Peters et al., 2005) (Figure 5A). It indicates that the maturity of the latter sample is higher than that of the former.

FIGURE 5

N-alkanes in all crude oil samples in the study area are completely distributed, without obvious unresolved complex mixture (UCM) hump. Low carbon number n-alkanes (C₆-C₁₂) were not eliminated (Figure 4). At the same time, no 25-norhopane could be identified in all crude oil samples; it indicated that the crude oils from Shunbei Field and Yakela Field have not been subjected to biodegradation (Reed, 1977; Peters et al., 2005). The carbon preference index (CPI, the calculation equation is shown in Table 2) and odd–even dominance index (OEP, the calculation equation is shown in Table 2) can be used to make a preliminary assessment of the thermal maturity of crude oil, although the ratios can be affected by source and biodegradation. (Bray and Evans, 1961; Scalan and Smith, 1970). The CPI ratio of crude oils in Yakela Field ranges from 1.14 to 1.3, with an average of 1.18. The OEP ratio ranges from 0.97 to 0.99, with an average of 0.98 (Table 2). The CPI and OEP ratios of crude oils in Shunbei Field range from 1.11 to 1.29 and from 0.97 to 1.01, with an average of 1.20 and 0.98, respectively (Table 2). The CPI and OEP values of crude oils from the two fields are roughly the same. Both are close to 1, suggesting that they are thermal mature. However, Ts/(Ts+Tm) values showed that the maturity of crude oils from Shunbei Field is higher than that from Yakela Field. This result may be due to the fact that the crude oil maturity of the two fields has reached the maturity stage, so the values of the two fields are close to 1, leading to the insignificant difference between the values of CPI and OEP.

The isomerization of C₂₉5α,14α,17α(H)-steranes on C-20 increases the 20S/(20S+20R) ratio from 0 to an equilibrium value of about 0.5 (0.52–0.55, 0.9%Ro) with increasing maturity (Seifert and Moldwan., 1986). The parameter is suitable for the maturity evaluation of samples from the immature to mature stage (<0.9%Ro) and may be affected by the difference in organic phase, weathering, and biodegradation (Moldowan and Figo, 1986; Peters et al., 2005). The isomerization of 20S and 20RC₂₉ regular steranes at C-14 and C-17 sites increases the ββ/(αα+ββ) ratio from close to 0 to 0.7 (equilibrium value 0.67 to 0.71, 0.9%Ro) with increasing maturity (Seifert and Moldowan., 1986). The parameter is suitable for maturity evaluation from the immature to mature stage (<0.9%Ro) and is less affected by parent material input (Moldowan and Figo, 1986; Peters et al., 2005). The C₂₉ααα 20S/(20S+20R) ratios of crude oils in Yakela Field range from 0.55 to 0.58, with an average of 0.56. The C₂₉αββ/(ααα+αββ) ratios of crude oils in Yakela Field range from 0.56 to 0.63, with an average of 0.60 (Table 2). The C₂₉ααα20S/(20S+20R) and C₂₉αββ/(ααα+αββ) values of crude oils from Shunbei Field range from 0.52 to 0.60 and from 0.54 to 0.60, with the averages of 0.57 and 0.58 (Table 2). As displayed in Figure 5B, all the samples from two fields have C₂₉ααα20S/(20S+20R) sterane isomerization ratios reaching equilibrium values (0.52–0.55, 0.9%Ro), suggesting that the maturities reached 0.9%Ro according to Justwan et al. (2006). Although the values of all samples reached the equilibrium point, the values of the crude oils from Shunbei Field were slightly higher than those from Yakela Feild, indicating that the maturity of the crude oils from the two fields may be different. According to Peters et al. (2005), in the mature and high maturity stages (>1.0%Ro), the Ts/(Ts+Tm) is considered more reliable than C₂₉ααα20S/(20S+20R) in evaluating the maturity of crude oils when evaluating oils from a common source with a common source facies and depositional setting. Therefore, combined with Ts/(Ts+Tm) values, it is inferred that the maturity of crude oils in Yakela Field was in the mature stage and in the peak stage of hydrocarbon generation (About 0.9%Ro - 1.0%Ro), and the maturity of crude oils in Shunbei Field was in the mature and high mature stage, the present maturities of partial samples are greater than that of the peak oil generation stage (About 1.0%Ro - 1.3%Ro).

Alkylated dibenzothiophenes (DBTs), as heterocyclic compounds, are generally assigned to aromatic sulfur compounds. It mainly contains DBT and its C₁-∼ C₃-substituted alkyl derivatives, which usually exist in the aromatic fractions of crude oil or sediment (Hughes, 1984; Connan et al., 1986). Previous studies have proved that DBTs molecular parameters can be used to study the maturity of crude oil from the mature to high mature stage when evaluating oils from common source facies and depositional settings (Hughes, 1984; Redke et al., 1986). Especially Methyldibenzothiophene ratio MDR (4-/1-MDBT) is considered to be an effective maturity parameter for the maturity evaluation of samples from the mature to over mature stage (>0.8%Ro) (Connan et al., 1986; Chakhmakhchev et al., 1997; Radke et al., 1986; Luo et al., 2001). Alkylated dibenzothiophenes isomers with substituents show different thermal stability at different carbon sites of benzene ring. The isomer substituted by C-4(β) alkyl group is the most stable. C-1(α) alkyl–substituted isomers are the most unstable; The thermal stability of the isomers substituted at C-2 or C-3 is in the order between the two. Therefore, the descending sequence of thermal stability of alkyl DBTs isomers is C-4>C-2>C-3>C-1 (Budzinski et al., 1991). Therefore, as the maturity of crude oils increases, the value of 4-/1-MDBT will also increase (Chakhmakhchev et al., 1997; Luo et al., 2001). The 4-/1-MDBT ratio ranges from 8.64 to 14.00, with an average value of 11.48 in Yakela Field. However, the 4-/1-MDBT ratio ranges from 18.96 to 26.94, with an average value of 24.24 in Shunbei Field (Table 2). It suggested that the maturity of crude oils in Shunbei Feld and Yakela Feld is different, and the maturity of crude oils in Shunbei Field is higher than that in Yakela Field.

In this study, the values of 4-/1-MDBT of crude oil samples from the Shunbei Field are greater than those from the Yakela Field (Table 2). The equivalent vitrinite reflectance Rc (Rc=0.036×(4-/1-MDBT)+0.56) (Huo et al., 2008) of crude oil samples in the study were calculated (Table 2). The Rc values of crude oils in Yakela Field range from 0.87–1.06, with an average of 0.97. The Rc value of crude oils in Shunbei Field range from 1.23–1.53, with an average of 1.43. According to the data, the maturity of the crude oils from Shunbei Field is higher than that from Yakela Field (Figure 6). The calculated maturity of crude oils from Yakela Field was consistent with the maturity reflected by the other abovementioned parameters, while the maturity of the crude oils from Shunbei Field was slightly higher than that calculated by the other parameters. It may be caused by the low concentration of some biomarker compounds due to the high maturity of crude oil, and some early charging residual crude oil may have an impact on partially saturated hydrocarbon maturity parameters in Shunbei Field (Yang et al., 2021). On the other hand, the maturity calculated by the maturity parameter (4-/1-MDBT) can only be an approximate value (Peters et al., 2005; Huo et al., 2008), but on the whole, it can still reflect that the maturity of the crude oils of Shunbei Field is higher than that of Yakela Field.

FIGURE 6

To sum up, the crude oils from both Yakela Field and Shunbei Field were in the mature stage, but the parameters reflected the difference in maturity between them to varying degrees. The maturity of crude oils in Yakela Field is in the peak stage of hydrocarbon generation (About 0.9%Ro-1.0%Ro), while that in Shunbei Field has passed the peak stage of hydrocarbon generation (About 1.0%Ro-1.3%Ro, may be up to 1.53%Ro). The maturity of crude oils in Shunbei Field was higher than that in Yakela Field.

4.2 Formation mechanism of light oils

In this study, an approximately NE-SW profile was selected, passing Y1, A1, T1, and S1 Wells from north to south, covering Yakela Field and Shunbei Field (Figure 1). The actual downhole data show that the Lower Cambrian source rocks in Shunbei Field have a high degree of thermal evolution with %Ro over 2.5 at present (Figure 7). However, the thermal evolution degree of the source rocks near Yakela Field in the northern part of the profile is relatively low, with %Ro about 1.50–1.70 (Figure 7).

FIGURE 7

The hydrocarbon generation history of Lower Cambrian Yuertusi Formation source rocks widely distributed in the study area was simulated. The thermal evolution history of source rocks and the simulation results of hydrocarbon generation amount are shown in Figure 8. The hydrocarbon generation history results show that the source rocks in Shunbei Field reached the hydrocarbon generation threshold as early as before the late Caledonian (About 0.5%Ro) and reached the peak of hydrocarbon generation at the late Caledonian (About 1.0%Ro). The source rocks were in the main stage of oil generation from the late Caledonian to the early Hercynian, and from the late Hercynian to the Himalayan period were in the high maturity and over-maturity stage (Figure 8A). The simulation results of hydrocarbon generation amount of source rocks showed that the source rocks mainly generated hydrocarbon from before the late Caledonian to the early Hercynian (About 2.5 Mtons), and the amount of hydrocarbon generated from the late Hercynian to the present is small (About 0.3 Mtons) (Figure 8C). The source rocks near Yakela Field reached the threshold of hydrocarbon generation from late Caledonian to the early Hercynian (About 0.5%Ro) and reached the peak of hydrocarbon generation at the Himalayan period (About 1.0%Ro) (Figure 8B). The simulation results of hydrocarbon generation amount of source rocks showed that the source rocks mainly generated hydrocarbon at the late Hercynian (About 1.0 Mtons) and from the Himalayan period to the present (About 2.5 Mtons). (Figure 8D). These results indicated that the main hydrocarbon generation period of the source rocks in Shunbei Field is different from that of Yakela Field. The former mainly generated hydrocarbons from late Caledonian to early Hercynian, while the latter mainly generated hydrocarbons from the late Hercynian and Himalayan period to the present.

FIGURE 8

Therefore, the maturity of crude oils in Yakela Field is consistent with the degree of the thermal evolution of source rocks since the Himalayan period (Figures 8B and 5). However, the maturity of crude oils in Shunbei Field is higher than the degree of the thermal evolution of local source rocks during the peak of hydrocarbon generation (Figures 8A and 5). It indicates that the high-maturity crude oils in the two areas have different genetic models.

The genetic model of light oils in Shunbei Field is mainly through early oil generation, early charging, and then deep burial in the reservoir, with subsequent maturation cracking. The maturity of crude oils in the present reservoir (About 1.0%Ro-1.3%Ro, may be up to 1.53%Ro) is higher than the thermal evolution of source rocks in the main hydrocarbon generation stage (About 0.8%Ro-1.0%Ro). When the source rock evolved to the maturity corresponding to the present crude oils, it was already in the mature and high mature stage, and the amount of hydrocarbon generation was very small (About 0.3 Mtons). Therefore, the existing high-maturity crude oils cannot be directly generated by source rocks and should be the result of deep burial and maturation in the reservoirs.

The genetic model of light oils in the Yakela Field is mainly formed by the direct charging of late source rocks into reservoirs. The simulation results of hydrocarbon generation history show that the source rocks are in the window of hydrocarbon generation, and the amount of hydrocarbon generation has been high (About 2.5 Mtons) since the Himalayan period. The maturity of crude oils in the present reservoirs (About 0.9%Ro-1.0%Ro) is also consistent with the thermal evolution stage of source rocks in the main hydrocarbon generation stage. It also indicates that hydrocarbons generated from source rocks in this field were directly charged into the reservoirs during hydrocarbon generation and maintained the thermal evolution characteristics of the source rocks without the interference of subsequent geologic alteration processes such as deep burial and maturation such as the secondary thermal cracking.

5 Conclusion
