Analysis of displacement evolution characteristics of reverse-dip layered rock slope based on geological geometric partition

  • 1. College of Civil Engineering, Qilu Institute of Technology, Jinan, China

  • 2. Key Laboratory of Geohazard, Fujian Province, Fuzhou, China

  • 3. Key Laboratory of Geohazard Prevention of Hilly Mountains, Ministry of Natural Resources of China, Fuzhou, China

  • 4. School of Earth Science and Engineering, Hohai University, Nanjing, China

  • 5. College of Construction Engineering, Jilin University, Changchu, China

Abstract

To investigate the toppling displacement evolution characteristics of anti-dip rock slopes, the Xiaodongcao-Zhengjiadagou bank slope is taken as an engineering case, and firstly, the geological geometric distribution characteristics of the slope are obtained by superimposing the lithology, slope, and elevation raster layers of the slope through ArcGIS, and the geological partition with the largest area is the Lower Triassic Daye Formation, bottom elevation, and medium slope; based on the actual surface displacement monitoring data, the spatio-temporal evolution nephogram of toppling displacement of bank slope every half year is interpolated by Inverse Distance Weight method, and then the last displacement nephogram is assigned to the thousandth and superimposed with the geological geometric partition to obtain the displacement superposition characteristics. The results show that: the obvious zone of horizontal displacement deformation mainly occurs in the front and middle of the bank slope, mainly shear deformation, vertical displacement is primarily in the front and the back edge of the bank slope and the total displacement deformation is more similar to the horizontal displacement; the horizontal displacement value is larger than the vertical displacement value, the horizontal displacement deformation controls the overall deformation of the bank slope; through the analysis of the geometric superposition evolution of the anti-dip rock slope, the displacement superposition strong deformation zone is located at the boundary between the Triassic Jialingjiang Formation (T1j) and the Triassic Daye Formation (T1d).

1 Introduction

Southwest China is a region where landslide geological disasters occur frequently, and the analysis of the deformation characteristics of landslides is one of the essential aspects of landslide control (Bao et al., 2023). Especially when encountering complex geological conditions such as broken structural surface, weak interlayer and fault, the stability of landslide is greatly reduced (Wang et., 2022a; Wang et., 2022b; He et al., 2022).

Huang. (2012) studied some typical large-scale landslides in mainland China in the 20th century and developed a geomechanical model for large-scale toppling in anti-dip strata. Goodman and Bray. (1976) classified the damage mode of anti-dip slopes into three main types: bending damage, block damage, and bending-block damage. Liu et al. (2009), Liu et al. (2010) conducted a more in-depth study on overturning damage of rock slopes based on Goodman’s theory of rock slope damage. Chen et al. (2016) established a mechanical model and stability analysis method for bending and tipping damage of anti-dip rock slopes based on limit equilibrium theory. Shen et al. (2010) studied the rheological properties of red soft rock, and their results have important reference values for the design of anti-dip red soft rock slopes. Adhikary et al. (1997) conducted a series of model centrifugal tests to study the bending and tipping damage mechanism of jointed rock slopes. Alejano et al. (2010) used numerical analysis to analyze the damage mechanism of open pit mine. They interpreted the anti-dip stratified slope as a complex combination of tipping and cyclic damage. Bowa and Xia. (2018) proposed a technique for angular analysis of counter-tilted failure surfaces applicable to block tipping failure mechanisms, which can provide an accurate application for evaluating the instability of rock slopes with counter-tilted failure surfaces. Li et al. (2019) analyzed the width, and ridge number variation characteristics of the fast Fourier transform spectrum along the slope surface to reveal the internal damage characteristics of anti-dip rock slopes. Ning et al. (2019) conducted a simulation study on the evolutionary characteristics of toppling failure of anti-dip rock slopes and revealed the relationships between the surface peak ground acceleration, the horizontal depth of the failure plane, and slope displacement. Tao et al. (2019) used the superimposed cantilever beam theory and the maximum tensile stress strength criterion for brittle damage to derive a formula for calculating the vertical crack extension depth in reverse slope overturning damage by studying and analyzing the unstable damage mode of massive overturning damage of the southwest slope of the Changshanhao open-pit gold mine. Based on the similarity ratio theory, Zhu et al. (2020) developed a physical model to investigate in depth the damage mechanism of anti-dip layered slopes during excavation. Weng et al. (2020) proposed an innovative failure criterion for assessing the stability of anti-dip rock slopes, which outperforms the Mohr-Coulomb criterion at low normal stresses and is more relevant to reality. Xie et al. (2020) analyzed the evolution characteristics of toppling deformation of rock slopes from the perspective of the energy field. Dong et al. (2020); Dong et al. (2022) combined field monitoring data to simulate the excavation process of anti-dip rock slopes with the discrete element method and analyzed the influence of different factors on the slope. The results show that the scale and stability of the deformation zone of the anti-dip rock slope have a specific influence, and the lithology determines the failure mode of the toppling failure. Cheng et al. (2021) used a digital camera to take high-speed images of real-time deformation behavior of overturn-resistant rock slopes under external loads, analyzed the entire damage process of anti-dip rock slopes, and discussed in detail the ultimate damage modes of the anti-dip rock slopes with different joint angles. Ding et al. (2021) studied the characteristics and process of the flexural toppling of anti-dip rock slopes. They obtained the characteristics and mechanical mechanism of flexural toppling, as well as the zoning of the slope. Xu et al. (2022) used the discrete element method (DEM) to explore the failure of earthquake-induced large-scale anti-dip rock landslides. Ren et al. (2022) used the three-dimensional discrete element method to analyze the dynamic response to the seismic dynamic of the anti-dip rock slopes. Nie et al. (2022) conducted a study on the control of deformation damage of NPR structural cables on rocky slopes under excavation by using numerical simulation method, and revealed the control mechanism of NPR structural cables on rocky slope tipping deformation. They studied the amplification effect, the change in the Fourier spectrum, the failure mechanism, and the permanent displacement of the slopes under seismic action.

As this project is a typical anti-dip layered rock slope, it has attracted the attention of many experts and scholars. Cai et al. (2014) established the cantilever beam limit equilibrium calculation model and verified its correctness with the numerical software UDEC, and obtained that the damage zone of anti-dip stratified rock slope is determined by the foot of the slope, dip angle of the rock layer, and slope height. Gao et al. (2015) considered the Goodman-Bray method of calculating the stability of anti-dip rock slopes under the action of groundwater. Wei. (2015) used numerical software (UDEC) to study the variation rule of toppling deformation of anti-dip slopes with the thickness ratio of adjacent rock strata. Jiang et al. (2016) divided the damage of anti-dip rock slopes into three main stages: bending, bending cracking, and fracture cracking.

Many factors affect the tipping deformation of rocky slopes, and the research results also have specific reference values. Most scholars mainly analyze the overall stability of anti-dip rock slopes through theoretical analysis, physical model tests, and numerical simulation, and analyze the deformation evolution characteristics of rocky slopes as a whole (Gschwind et al., 2019; Martino et al., 2020; Wang et al., 2020; Tang et al., 2022; Liang et al., 2022; Zheng et al., 2022; Lei et al., 2022; Wang et al., 2020; Wang et al., 2023; Ren et al., 2023). However, the actual monitoring data show that the deformation evolution characteristics of anti-dip rock slopes vary significantly in different areas and have different geological geometric characteristics. Therefore, this paper takes the typical anti-dip rock slope as the research object. Based on field investigation, it takes the lithology, slope, and elevation of the rock slope as the characteristic geological factors and analyzes its spatial distribution characteristics (Wang et al., 2022; Wu et al., 2022). Based on the discrete actual displacement monitoring data, the evolution nephogram of toppling displacement of rock slope is obtained by Inverse Distance Weight method, and the Spatiotemporal evolution nephogram of displacement is superimposed with geological and geometric characteristics. This study explores the geometric characteristics of the anti-dip rock slope and its displacement superposition evolution characteristics, which can provide a reference for similar engineering examples.

2 Project overview

Xiaodongcao-Zhengjiadagou bank slope is located on the right bank of the upper reaches of Xixi River, Zhongliang Township, Wuxi County, Chongqing (Figure 1), 1.2Ā km from Zhongliang Reservoir (Figure 1), with the elevation of the bank slope ranging from 540Ā m to 1,183Ā m and the width of 700Ā m; the overall topography of the bank slope is steep, the slope aspect is 345°, the vegetation in the area is developed, the front part of the topography is steep, the topography slope angle is 45°–68°, and the back part of the topography is relatively gentle, the topography slope angle is 11°–18°, and the local section can reach 37°. The topographic characteristics of the bank slope are mainly controlled by lithology and geological structure. According to the field geological survey and engineering investigation, it is revealed that the rock mass of the bank slope is mainly composed of the Lower Triassic Jialingjiang Formation (T1j) and Daye Formation (T1d); among them, Jialingjiang Formation (T1j) is a medium-thick laminated dolomitic tuff, mainly distributed in the middle and front part of the bank slope, mainly subject to shear stress. The rock structure is relatively complete, but the local weathering is substantial. The Daye Formation (T1d) is a thin and medium-thick laminated marl tuff, mainly distributed in the middle and posterior part of the bank slope, which is in the area of obvious tensile stress during the bending and tipping deformation, so the rock structure is broken, and the bending and tipping deformation of the rock layer is obvious (Figure 2).

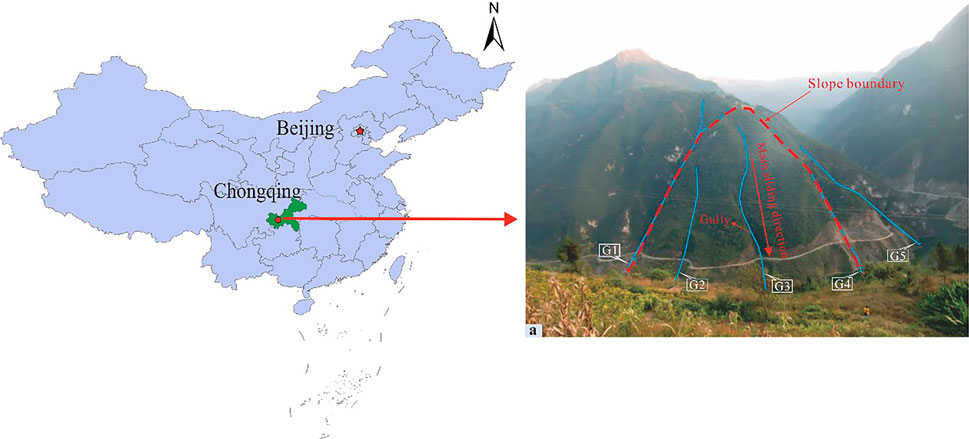

FIGURE 1

FIGURE 2

The surface displacement monitoring system mainly consists of 22 surface displacement monitoring points evenly distributed throughout the study area, including 17 monitoring points on the bank slope body and five outside the bank slope boundary; the surface displacement monitoring time was from December 2012 to December 2016. The monitoring system was divided into five transverse and three longitudinal profiles based on their arrangement characteristics. After the reservoir completion, the water level was raised by nearly 100Ā m compared with the original, and the deformation of the front and trailing edge of the bank slope was more pronounced. The surface of the trailing edge showed obvious pulling cracks, which seriously threatened the life safety of the downstream residents (Figure 3).

FIGURE 3

3 Analysis of bank geometric characteristics zoning

3.1 Analysis of geometric characteristics factor

The geometric characteristics of the bank slope area were analyzed by ArcGIS, and the distribution characteristics of stratigraphic lithology, slope, and elevation in the bank slope area were obtained. As can be seen from Figure 4, the front part of the bank slope is steep, except for the rear part, which is relatively gentle (0°–27°); most of the other areas have a slope angle greater than 44°, the slope body gully is developed, the gully is ā€œV"-shaped, with significant differences in topographic relief. The Lower Triassic Jialingjiang Formation (T1j) is located in the front to the middle of the bank slope, and the Daye Formation (T1d) is located at the rear edge of the bank slope.

FIGURE 4

3.2 Geometric characteristics superposition

The lithology, slope, and elevation raster layers were reclassified, and the lithology was assigned to the hundreds digit, slope to the tens digit, and elevation to the single digit by the Spatial Analyst tool of GIS. The geological geometry of the bank slope was performed according to the Jenks Natural Breaks Classification (Table 1), and the bank slope was finally divided into 35 characteristic partitions (Figure 5).

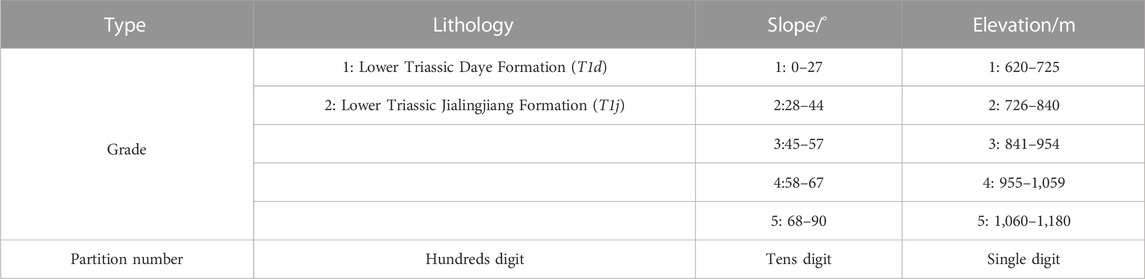

TABLE 1

TypeLithologySlope/°Elevation/m
Grade1: Lower Triassic Daye Formation (T1d)1: 0–271: 620–725
2: Lower Triassic Jialingjiang Formation (T1j)2:28–442: 726–840
3:45–573: 841–954
4:58–674: 955–1,059
5: 68–905: 1,060–1,180
Partition numberHundreds digitTens digitSingle digit

Bank slope geological zoning basis.

FIGURE 5

3.3 Analysis of geometric superposition characteristics

The geological geometric displacement superposition partition map can be divided into 35 characteristic partitions by GIS raster calculation, with a total area of 97039.01Ā m2. Among them, the characteristic partition area with an area greater than 2000Ā m2 accounts for 85.04% of the total area, and the largest characteristics partition is the 142nd (Figure 6).

FIGURE 6

4 Analysis of the evolutionary characteristics of displacement nephogram

The Inverse Distance Weight method was used to interpolate the displacement deformations of the bank slope surface monitoring points. The displacements were classified into nine categories by the Jenks Natural Breaks Classification. The horizontal displacement deformation nephogram, vertical displacement deformation nephogram, and total displacement deformation nephogram were interpolated every 6Ā months.

4.1 Analysis of the evolution of horizontal displacement nephogram

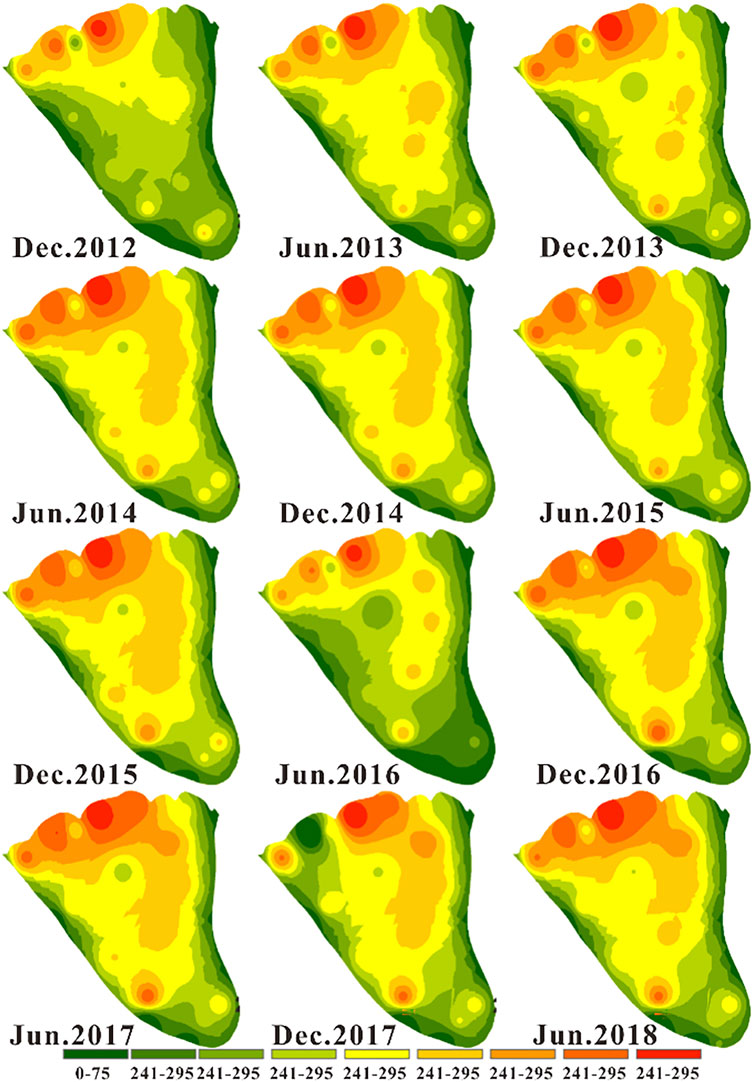

The temporal and spatial evolution nephogram of the horizontal displacement of the bank slope below (Figure 7) shows that the bank slope’s obvious area of horizontal displacement deformation mainly appears in the front and middle of the bank slope. The maximum horizontal displacement appears in the front of the bank slope, mainly distributed in a dotted shape and a strip distribution in the middle. With time, it can be seen from the evolution nephogram that the horizontal displacement deformation in the middle increases significantly and gradually expands to the right side, and the horizontal displacement on the right side of the middle is significantly larger than that on the left side. The area with horizontal displacement deformation greater than 150Ā mm is the obvious area of horizontal displacement deformation. As shown in Figure 8, the obvious area of horizontal displacement deformation increases and decreases with time, reaching a maximum of 20780.38Ā m2 in June 2016, and then the deformation of the middle displacement gradually weakens and changes to the right side of the front, gradually fading to point. The horizontal displacement of the middle strip deformation area and the front point deformation area alternately control the evolutionary law of tipping deformation of the anti-dip rock slope, where shear deformation mainly occurs.

FIGURE 7

FIGURE 8

4.2 Analysis of the evolution of vertical displacement nephogram

The temporal and spatial evolution nephogram of the vertical displacement of the bank slope below (Figure 9) shows that the obvious area of vertical displacement deformation mainly occurs in the front of the bank slope and the back edge of the bank slope. The maximum vertical displacement occurs in the middle area of the front of the bank slope and the trailing edge of the bank slope and is dotted. The vertical displacement change in the middle of the bank slope is the smallest. With time, the deformation of the front and back edges became more pronounced and gradually increased. The trailing edge of the bank slope mainly occurs in vertical deformation, corresponding to the evolution law of toppling deformation.

FIGURE 9

The vertical displacement of the front of the bank slope gradually increases overall. It gradually expands from the middle to the left and right sides, and the front middle of the bank slope and the change of vertical displacement on the left side is more evident than on the right side. The change of vertical displacement in the middle and rear part of the bank slope and the rear edge is more pronounced, with a point-like distribution, and gradually increases with time. The area with vertical displacement less than āˆ’80Ā mm is defined as the obvious area of vertical displacement deformation (Figure 10). In June 2016, the area of the strong deformation zone reached a maximum of 30592.39Ā m2. The evolutionary characteristics of the vertical displacement in the middle of the bank slope were not prominent, and the change in the right side of the middle was small; it showed the anti-dip evolutionary characteristics of the bank slope.

FIGURE 10

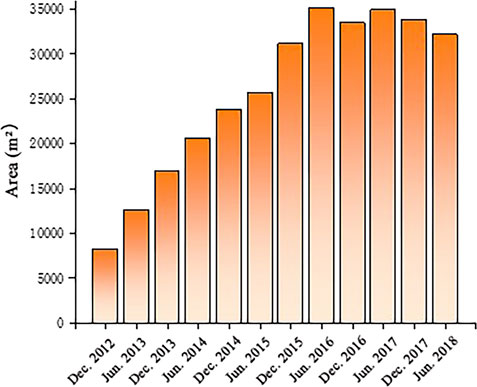

4.3 Analysis of the evolution of the total displacement nephogram

The temporal and spatial evolution nephogram of the total displacement of the bank slope below (Figure 11) shows that the total displacement and horizontal displacement deformation are relatively similar, with the maximum total displacement mainly occurring in the front of the bank slope, with a point-like distribution. With time, the total displacement deformation in the middle gradually increases. As can be seen from Figure 12, the area of the total displacement strong deformation zone reached a maximum of 35057.62553Ā m2 in June 2016 and expanded from the front to the middle of the bank slope, and the deformation of the right side of the middle was significantly more significant than the left side; the tipping deformation was dominated by horizontal displacement changes, and the horizontal displacement deformation was significantly more significant than the vertical displacement changes.

FIGURE 11

FIGURE 12

5 Analysis of displacement superposition characteristics

Based on geological geometric superposition, the horizontal displacement nephogram, vertical displacement nephogram, and total displacement nephogram of the later interpolation are assigned to the thousands digit, and the displacement geometric superposition characteristics partition based on the geological geometric partition is obtained. The displacement strong deformation zone and the most prone area of the bank slope are analyzed.

5.1 Analysis of geometric superposition characteristics of horizontal displacement

The horizontal displacement is reclassified into three categories 17Ā mm–103Ā mm as the weak deformation zone, 104–146Ā mm as the medium deformation zone, 147Ā mm–255Ā mm as the strong deformation zone, and the horizontal displacement is superimposed with geological geometry to get the horizontal displacement geometry superimposed characteristics zone, which is divided into 88 characteristics partitions (Figure 13).

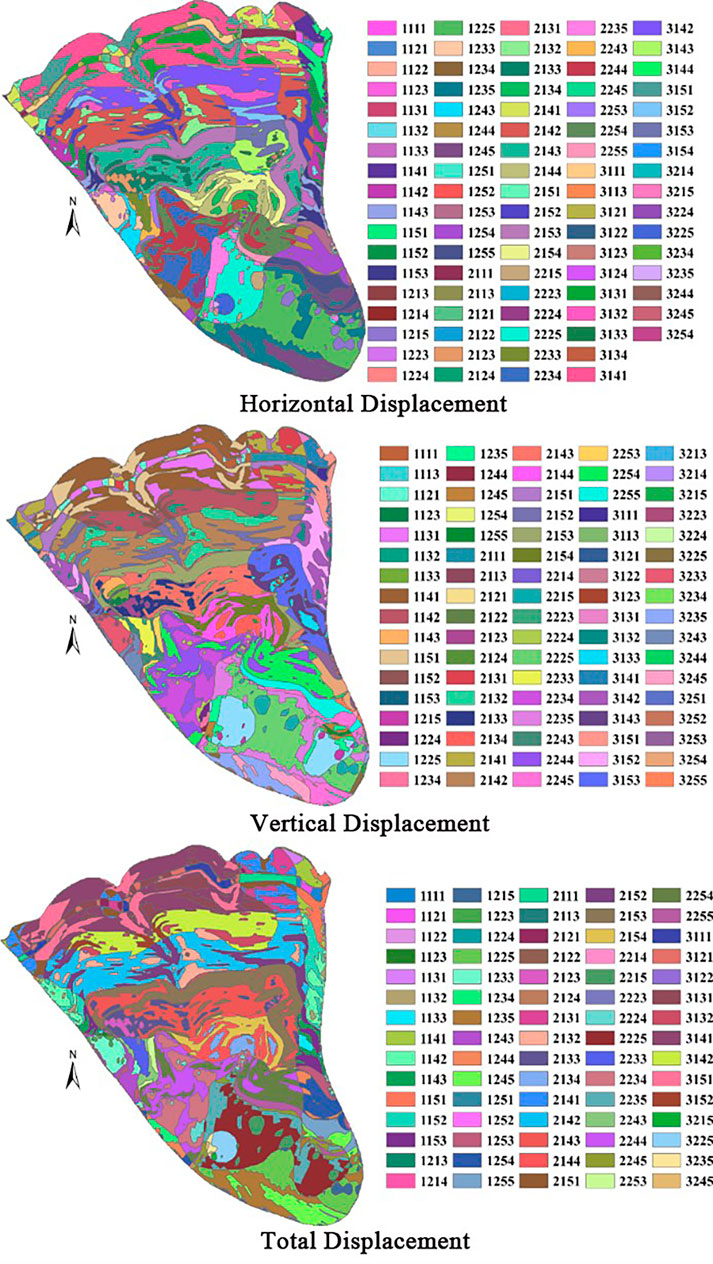

FIGURE 13

The area of each horizontal displacement geometric superposition characteristics partition was counted by GIS (Figure 14). The characteristics partition with a strong deformation area larger than 1,500Ā m2 was selected as the horizontal displacement strong deformation partition. Among them, the horizontal displacement strong deformation partition with the largest strong deformation area is the 141th partition, whose strong deformation area is 7,311.724Ā m2, accounting for 72.29% of the 141th partition. This characteristic partition is located in the Jialingjiang Formation (T1j), medium slope, and bottom elevation. The horizontal displacement-prone partition is the 154th partition, 97.95% of which is the strong deformation zone, and the strong deformation area is 1779.01Ā m2. This characteristic partition is located at the boundary between Jialingjiang Formation (T1j) and Daye Formation (T1d), high slope and medium elevation.

FIGURE 14

5.2 Analysis of geometric superposition characteristics of vertical displacement

The area of each vertical displacement geometric superposition characteristics partition was counted by GIS (Figure 15). The characteristics partition with a strong deformation area larger than 1,500Ā m2 was selected as the vertical displacement strong deformation partition. Among them, the vertical displacement strong deformation partition with the largest strong deformation area is the 141th partition, whose strong deformation area is 6,832.61Ā m2, accounting for 68.16% of the 141th partition. This characteristic partition is located in the Jialingjiang Formation (T1j), medium slope, and bottom elevation. The vertical displacement-prone partitions are the 154th and 14fourth, 100% of which are strong deformation zones. They are located at the boundary between Jialingjiang Formation (T1j) and Daye Formation (T1d), with a high slope and medium elevation.

FIGURE 15

5.3 Analysis of geometric superposition characteristics of total displacement

The area of each total displacement geometric superposition characteristics partition was counted by GIS (Figure 16). The characteristics partition with a strong deformation area larger than 1,500Ā m2 was selected as the total displacement strong deformation partition. Among them, the total displacement strong deformation partition with the largest strong deformation area is the 132nd partition, whose strong deformation area is 6,832.61Ā m2, accounting for 81.61% of the 132nd partition. This characteristic partition is located in the Jialingjiang Formation (T1j), medium slope, and bottom elevation. The total displacement-prone partition is the 235th partition, 96.21% of which is the strong deformation zone. This characteristic partition is located at the boundary between Jialingjiang Formation (T1j) and Daye Formation (T1d), high slope and medium elevation.

FIGURE 16

6 Conclusion

Based on the analysis of typical anti-dip layered rock slope cases, based on discrete surface displacement monitoring data and combined with different geological zones, this paper explores the real evolution law of toppling deformation in each zone. It can reference similar anti-dip slope monitoring, early warning, and prevention. The main results are as follows.

  • (1) The geometric characteristics overlay was obtained by superimposing geometric factors such as lithology, slope, and elevation of the bank slope strata through ArcGIS raster calculation. It was divided into 35 characteristics partitions with an area of 97039.01Ā m2. The characteristics partition with the largest superimposed area is the 142nd partition, located in the Lower Triassic Daye Formation, bottom elevation, medium slope.

  • (2) The analysis of evolution characteristics of horizontal displacement nephogram, vertical displacement nephogram, and total displacement nephogram shows that the obvious zone of horizontal displacement deformation mainly occurs in the front and middle of the bank slope and is dominated by shear deformation, the vertical displacement is mainly in the front of the bank slope and the back edge, the total displacement deformation is more similar to the horizontal displacement, the horizontal displacement value is larger than the vertical displacement value, and the horizontal displacement deformation controls the overall toppling deformation of the bank slope.

  • (3) Based on the geological geometric superposition, the displacement nephogram of the last interpolation is overlaid with it. The results show that: the strong deformation partition of horizontal and vertical displacement is the 141th partition, and the strong deformation zone of total displacement is the 132nd partition. The horizontal displacement-prone area is the 154th partition, the vertical displacement-prone area is the 154th and fourth partition, and the total displacement-prone area is the 235 partition.
