Abstract
The interaction between geomorphological and ecological processes plays a significant role in determining landscape patterns in glacier forelands. However, the spatial organization of this biogeomorphic mosaic remains unclear due to limited catchment-scale data. To address this gap, we used a multi-proxy analysis to map potential geomorphic activity related to surface changes induced by sediment transport on drift-mantled slopes and a glaciofluvial plain. High-resolution vegetation data were used to generate a catchment-scale map delineating vegetation cover and stability thresholds. The two maps were integrated, and an exploratory regression analysis was conducted to investigate the influence of geomorphic activity on vegetation colonization. The multi-proxy analysis resulted in an accurate mapping of catchment-wide geomorphic activity, with a validation accuracy ranging from 75.3% through field mapping to 85.9% through plot sampling. Through vegetation cover mapping, we identified biogeomorphic stability thresholds, revealing a mosaic of vegetation distribution. Distinct colonization patterns emerged across different geomorphic process groups, influenced by process magnitude and the time since the last disturbance event. The exploratory regression analysis showed that vegetation distribution is significantly affected by geomorphic processes. Based on the overlay of results regarding geomorphic activity and vegetation distribution, we suggest an age-independent framework that indicates four potential situations of biogeomorphic succession.
Introduction
Understanding ecosystem development is crucial for its prediction and management (Larsen et al., 2020; Viles, 2020). Central to this development is the interplay between abiotic and biotic elements, as seen in the nexus between geomorphic activity and vegetation dynamics (Viles, 1988; ; Viles, 2020).
Glacier forelands display a spectrum of geomorphic processes and diverse stages of vegetation succession, underscoring their value as exemplary study sites for biogeomorphic investigation (Matthews, 1992; ; ; ; Wojcik et al., 2021; ). Terrain that is freshly exposed after deglaciation provides vast amounts of unconsolidated sediment, which is intensively reworked (; Porter et al., 2019) during a transient phase termed paraglacial period (). Sediment reworking either stops when potential sediment sources are exhausted or sediments are stabilized through vegetation (; ; ). This process of stabilization is closely linked to soil formation, with the latter enhancing growth conditions for colonizing species while also being influenced by vegetation through the contribution of initial organic material by early colonizers (; ; Wietrzyk et al., 2018). During primary succession, plants first colonize bare substrates, leading to a progressive increase in vegetation cover and a higher diversity in plant composition (; ; ; ). Allogenic factors, including geomorphic activity, substrate availability, water and nutrient supply and autogenic factors, including propagule presence and facilitative processes, create a diverse mosaic of successional stages (Matthews, 1992; ; ; ). These stages manifest as vegetation patches with distinct sizes and compositions (Raffl et al., 2006; Marteinsdóttir et al., 2010).
Geomorphic activity is a potential disturbing factor for vegetation (Viles et al., 2008). The growth and spread of plants are limited by erosion and deposition processes through the destruction of biomass and by removing key resources (Matthews, 1999; Moreau et al., 2008), yet intermediate geomorphic activity can result in greater diversity (; ; Richards et al., 2002; Sitzia et al., 2016). Conversely, denser vegetation cover mitigates geomorphic activity (Marston, 2010; ; Ohler et al., 2023). The leaf canopy intercepts rainfall, diminishing its kinetic energy, while the root systems secure the substrate (; ; ).
The interaction of vegetation stabilizing sediment and geomorphic processes disturbing succession is conceptualized in the biogeomorphic succession model (; ). This model identifies stability thresholds represented by plant cover levels, wherein plants mitigate geomorphic process rates and stabilize terrain (; ; Ohler et al., 2023). Cover thresholds signal distinct phases of biogeomorphic succession (; ).
In high mountain environments, biogeomorphic studies have demonstrated the link between geomorphic activity and vegetation distribution at the plot scale, evident in landforms like solifluction lobes (), drift-mantled slopes (; ; ) and alluvial fans (). However, catchment-wide studies on this interplay are notably sparse (Renschler et al., 2007; ; ; Thoms et al., 2018), despite their importance for understanding long-term landscape evolution (Summerfield, 2005; ; Reinhardt et al., 2010). The limited research in this area can be attributed to the variability in geomorphic process intensities, challenges in obtaining comprehensive vegetation data for entire catchments, and the complexity of identifying appropriate proxies for geomorphic activity (; ).
This study aims to derive information on catchment-wide geomorphic activity and vegetation distribution and assess how geomorphic processes affect vegetation colonization dynamics. The Kaunertal Valley in Tirol offers optimal conditions for this study, with its well-documented glacier retreat stages, ongoing paraglacial adjustment, and observable primary succession patterns. Based on the assumption that a combination of methods is better suited for detecting various geomorphic processes, we employed a multi-proxy-analysis to produce a catchment-scale map of geomorphic activity. Catchment wide vegetation cover is based on high-resolution unmanned aerial vehicle (UAV) data (Zangerl et al., 2022) and categorized based on stability thresholds obtained in previous studies (). To examine the influence of geomorphic activity on vegetation distribution, we conducted an exploratory regression analysis that included information on abiotic site conditions. With this set of methods, we aim to answer the following research questions:
RQ1 To what extent does a multi-proxy analysis provide a reliable measure of geomorphic activity within a catchment-scale proglacial environment?.
RQ2 How do vegetation cover and stability thresholds change over time and vary among different geomorphic process groups?
RQ3 How does geomorphic activity impact vegetation distribution at the catchment scale?
Study area
The Kaunertal Valley is a north-to-south oriented valley located in the Eastern European Alps in Tyrol, Austria (Figure 1A). This study focusses ona cirque-like hanging valley located on the orographic left side, west of the Upper Kaunertal Valley (Figure 1B), which was selected for its clear catchment borders, minimized elevation gradient to simplify vegetation composition assessment, reduced anthropogenic pressure, and distinct glacier dynamics compared to the main valley downslope. The Gepatschferner glacier, the second-biggest glacier in Austria, covers the south of this hanging valley. The study catchment is ∼2 km2 and has an elevation gradient from 2,400 m a.s.l. to 3,200 m a.s.l. As part of the eastern Alps crystalline zone, the area is geologically homogeneous, with mainly para- and orthogneis (). One-third of the catchment was ice-covered during the Little Ice Age (LIA) maximum extent. Since then, the glacier in the hanging valley has retreated approximately 1,500 m. More recent and detailed retreat rates are available for the glacier snout located in the main valley. In the Kaunertal Valley, mean annual retreat rates of 50 m have been observed since the year 2000 with a maximum of 125 m in 2017 (). Remnants of moraines of advances and readvances for the years 1850, 1922 and 1982 allow a temporal classification of the area under investigation (Stocker-Waldhuber and Kuhn, 2019).
FIGURE 1
During paraglacial adjustment, two dominant landforms emerge: (I) Drift-mantled slopes, which are closely associated with features such as lateral and terminal moraines, talus slopes, and debris flow channels and fans. (II) Glaciofluvial plains, distinctly characterized by incised channels, outwash deposits, and bank accretion (). On drift-mantled slopes, sediment reworking predominantly arises from slope wash processes, including rill, interrill, and gully erosion, as well as debris flows (; ). On glaciofluvial plains, sediment reworking is mainly driven by bank erosion and fluvial deposition (; ; Morche et al., 2019). Rockfall activity is predominantly confined to steep bedrock outcrops at high elevations, as delineated in the rockfall activity mapping by Vehling et al. (2019). Despite permafrost occurring on all slopes in the study area, as modeled by , periglacial processes have limited significance in sediment denudation, with exceptions being dead ice melt near the current glacier extent and a distinct rock glacier in the western part of the study area. Additionally, there is no evidence of aeolian processes.
Associated moraine and till material is poorly sorted, with grain sizes ranging from silt to boulders, accompanied by weakly developed soils, including (skeletic) Leptosols in recently exposed areas and a combination of (skeletic) Regosols and Cambisols in terrain that had been exposed for a longer duration (Temme et al., 2016).
Climatically, the study area is defined as a central-alpine dry region (). The meteorological station at Weisssee (2,470 m. a.s.l.), 1.5 km west of the study area recorded a long-term mean annual air temperature of −0.05 °C (2007–2021) and mean annual precipitation rates ranging from 731 to 1,118 mm (data source: Tiroler Wasserkraft AG). Precipitation maxima occur during the summer months of July and August (). Due to snow cover, the growing season for vegetation extends from mid-May until October. The area is above the local tree line and vegetation cover shows typical patterns of primary succession. Dominant species are Cerastium uniflorum, Poa alpina and Veronica alpina for early successional stages, Salix herbacea, Poa alpina and Gnaphalium supinum for mid-successional stages and Nardus stricta, Cirsium spinosissimum and Poa alpina for late successional stages (outside LIA-extent). Local shepherds use the hanging valley for grazing purposes for two to 4 weeks each August season. The analysis focuses on areas where UAV-derived vegetation data is available (Figure 1A).
Materials and methods
Research design
In this study, geomorphic activity refers to the water-mediated transport of surface sediments on drift-mantled slopes and glaciofluvial plains, given the significant sediment reworking and its impact on disrupting primary succession. Consequently, all bedrock areas identified through geomorphic mapping were excluded from the results.
We employed a multi-proxy analysis, integrating GIS-based techniques like the Stream Power Index (SPI), adapted Sediment Accumulation Index (SAI), adapted Slope Denudation Index (SDI), and a Digital Elevation Model of Difference (DoD) (Table 1). This data informed the creation of a Geomorphic Activity Map (GAM) through a kernel density function, subsequently validated through geomorphic mapping and plot sampling (RQ1).

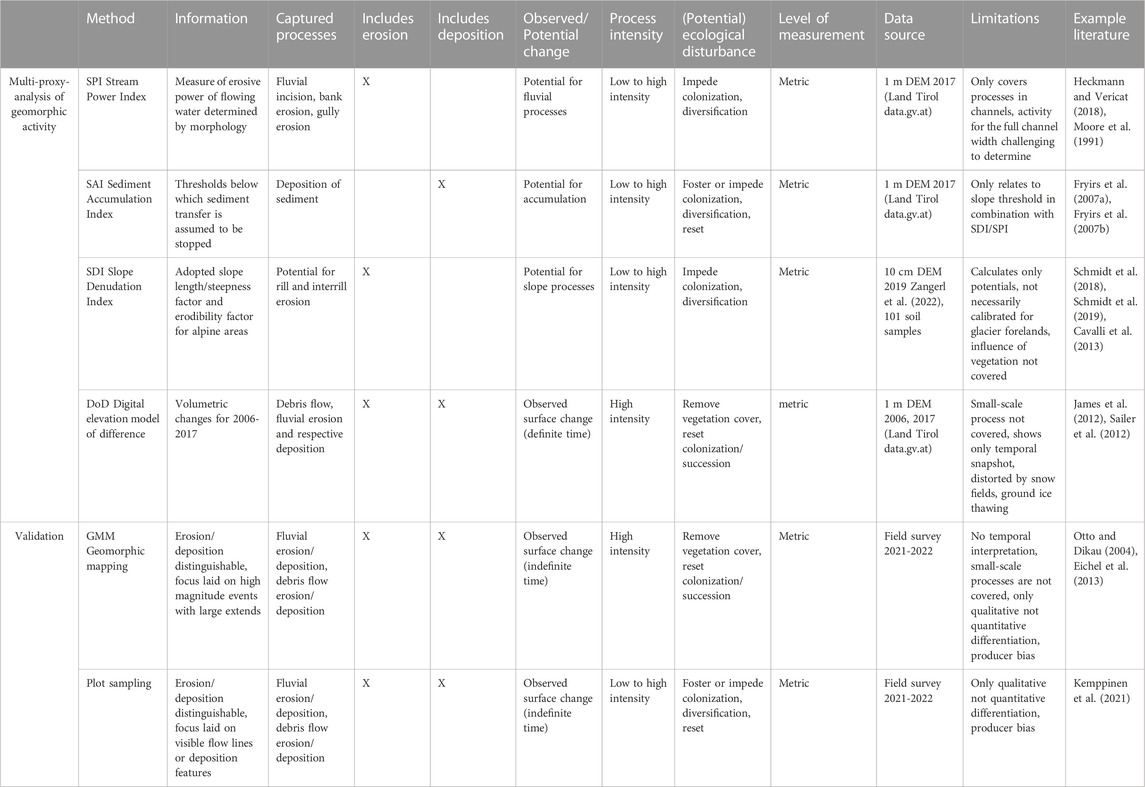

TABLE 1
| Method | Information | Captured processes | Includes erosion | Includes deposition | Observed/Potential change | Process intensity | (Potential) ecological disturbance | Level of measurement | Data source | Limitations | Example literature | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Multi-proxy-analysis of geomorphic activity | SPI Stream Power Index | Measure of erosive power of flowing water determined by morphology | Fluvial incision, bank erosion, gully erosion | X | Potential for fluvial processes | Low to high intensity | Impede colonization, diversification | Metric | 1 m DEM 2017 (Land Tirol data.gv.at) | Only covers processes in channels, activity for the full channel width challenging to determine | , Moore et al. (1991) | |
| SAI Sediment Accumulation Index | Thresholds below which sediment transfer is assumed to be stopped | Deposition of sediment | X | Potential for accumulation | Low to high intensity | Foster or impede colonization, diversification, reset | Metric | 1 m DEM 2017 (Land Tirol data.gv.at) | Only relates to slope threshold in combination with SDI/SPI | , | ||
| SDI Slope Denudation Index | Adopted slope length/steepness factor and erodibility factor for alpine areas | Potential for rill and interrill erosion | X | Potential for slope processes | Low to high intensity | Impede colonization, diversification | Metric | 10 cm DEM 2019 Zangerl et al. (2022), 101 soil samples | Calculates only potentials, not necessarily calibrated for glacier forelands, influence of vegetation not covered | Schmidt et al. (2018), Schmidt et al. (2019), | ||
| DoD Digital elevation model of difference | Volumetric changes for 2006-2017 | Debris flow, fluvial erosion and respective deposition | X | X | Observed surface change (definite time) | High intensity | Remove vegetation cover, reset colonization/succession | metric | 1 m DEM 2006, 2017 (Land Tirol data.gv.at) | Small-scale process not covered, shows only temporal snapshot, distorted by snow fields, ground ice thawing | , Sailer et al. (2012) | |
| Validation | GMM Geomorphic mapping | Erosion/deposition distinguishable, focus laid on high magnitude events with large extends | Fluvial erosion/deposition, debris flow erosion/deposition | X | X | Observed surface change (indefinite time) | High intensity | Remove vegetation cover, reset colonization/succession | Metric | Field survey 2021-2022 | No temporal interpretation, small-scale processes are not covered, only qualitative not quantitative differentiation, producer bias | Otto and Dikau (2004), |
| Plot sampling | Erosion/deposition distinguishable, focus laid on visible flow lines or deposition features | Fluvial erosion/deposition, debris flow erosion/deposition | X | X | Observed surface change (indefinite time) | Low to high intensity | Foster or impede colonization, diversification, reset | Metric | Field survey 2021-2022 | Only qualitative not quantitative differentiation, producer bias |
Description of methods for multi-proxy-analysis of geomorphic activity.
We processed high-resolution vegetation data to construct a catchment-scale map depicting vegetation cover and stability thresholds (RQ2). These two maps were subsequently harmonized, followed by an exploratory regression analysis aiming to scrutinize the impact of geomorphic activity on vegetation cover (RQ3).
A visual summary of the research design is presented in Figure 2.
FIGURE 2
Geomorphic activity based on a multi-proxy-analysis
SPI: Stream Power Index (SPI) is a measure of the potential erosive power of water (Moore et al., 1988). It is calculated as the product of slope angle and the upslope contributing area. SPI calculation was performed on DEM1 in ArcGIS Pro 2.7. The results were cross-checked with the GMM, and values exceeding the 90th percentile were classified as potentially exhibiting geomorphic activity.
SAI: Areas with a high potential for sediment accumulation were identified based on the sediment disconnectivity approach by . All contiguous pixels with a slope threshold <15°, directly connected to potential flow lines obtained in the SPI analyses, were classified as potentially geomorphologically active, as suggested by Nicoll and Brierley (2017).
SDI: SDI was used for estimating potential for sheet and rill erosion based on the erodibility of substrate and the slope position. The erodibility factor was calculated based on Schmidt et al. (2018, 2019), who adapted the parameter for steep alpine terrains. Substrate properties stem from topsoil samples collected at 101 sites Figure 1B), examined for fine sand, silt, and clay using a Retsch La-950 analyzer. Organic matter content was determined by loss on ignition. Stone cover (≥4 mm grain sizes) was gauged within 1x1m plots at sample locations, for adjusting the erodibility factor (Poesen and Lavee, 1994). Point calculations of erodibility were spatially interpolated with Empirical Bayesian Kriging (; ) in ESRI Arc GIS Pro 2.7 using four environmental covariates: elevation, aspect, curvature, and geomorphic process groups (). The slope position was based on the slope-length and slope-steepness (Moore et al., 1991) which were calculated in SAGA GIS 8.1.1 (), based on the alpine equation proposed by Schmidt et al. (2019) and using a 1 m Digital Elevation Model (DEM1; Land Tirol, data. tirol.gv.at). Maximal flow length was limited to 100 m, due to high infiltration, and an aggregated equation for steep slopes was applied (Schmidt et al., 2019). The results were cross-checked with the geomorphic mapping (GMM), and values above the catchment mean were classified as potentially exhibiting geomorphic activity.
DoD: To determine real surface changes, a DEM of Difference (DoD) was computed, utilizing DEM1 from the year 2006 with a vertical accuracy of 0.15 m and a 0.5 m resolution DEM (DEM05) from 2017 with a vertical accuracy of 0.1 m. Both datasets are based on LiDAR campaigns of the Federal Government of Tirol (Land Tirol, data. tirol.gv.at) and were resampled to 1 m grid size. Following Lane et al. (2003) and , we calculated a minimum level of detection of 0.18 m for the DoD. After visual inspection of the results, the minimum level of detection was raised to 0.4 m. This conservative approach aimed to minimize errors from insufficient vegetation filtering and subsequent distorting effects of growing shrubs. Based on the geomorphological field mapping, significant elevation changes resulting from rock glacier and dead ice thawing as well as glacier retreat were excluded from the DoD (Figure 5).
Data consolidation: The results from SPI, SAI, SDI, and DoD analyses (Figure 5) were normalized to a 0–1 scale. For each method, raster data were converted to point data by selecting only raster cells with classified activity. Each point retained the value calculated by its respective method. A smoothed raster for each method was then produced using kernel density estimation. Smoothing rasters is beneficial since the extent of geomorphic activity varies with varying magnitudes and frequencies throughout a landscape (). GMM detects activity if any of the four methods show activity within a 20 m radius. The radius choice results from aligning SPI, SAI, SDI, and DoD rasters with channel widths from the GMM using iterative adjustment. A weighted overlay of the four rasters combines data, factoring in method observation intensity, privileging higher values (e.g., SPI) in results. GAM results represent the probability of geomorphic activity within an area, ranging from 0 to 1. Increased probability arises from the alignment of multiple methods indicating activity in the same area and/or a single method exhibiting high intensities in an area.
Validation: The mapping of the glacier foreland geomorphology was conducted according to protocols outlined by Smith et al. (2013) and . Mapping was prepared by interpretation of orthophotos (Land Tirol - data. tirol.gv.at) and DEM1 derivatives. Based on GAM results, we randomly selected 100 plots deemed to be disturbed, and 99 plots deemed to be undisturbed. For locations with water, bedrock or ice surface, as well as inaccessible steep scree and bedrock slopes, we took predefined alternative sample locations. The preliminary mapping of the remotely-sensed data was verified through field mapping in summers 2021 and 2022 Landscape interpretation was supported by results published in . Glacier extents are based on , and were refined by field observations and supported by digital terrain representations. Processes and landforms were mapped, including areas of fluvial erosion and deposition, debris flow erosion and deposition, and active talus slopes. Plot based validation was done in 1x1 m plots, recording the presence or absence of geomorphic activity based on visible flow lines, accumulated sediment, and freshly eroded rock fragments. Validation plots included the 101 plots for soil sampling and additional 98 plots.
Mapping of vegetation cover
High-resolution distribution of vegetation is based on vegetation presence and absence with a resolution of 10 cm based on UAV-remote sensing orthoimages, classified with a random forest algorithm adopted from Zangerl et al. (2022). For this study, we aggregated this vegetation data to calculate cover thresholds at a 1 m scale. The percentage of vegetation cover within a 1x1 m area was classified to estimate the stage of biogeomorphic succession, which is associated with cover thresholds (Martin et al., 2010; ; ). Classes ranged from <35% cover (low stability, highly geomorphologically active), 35%–75% (moderately stable and active) and >75% (stable, inactive) based on .
Site conditions and exploratory regression
To determine the influence of GAM on vegetation cover, it was necessary to disentangle GAM from other site conditions. Additional site conditions, that affect plant growth, were collected: ground ice distribution is based on a model by Otto et al. (2020). Elevation as well as other DEM1 derivatives including slope angle, aspect, potential solar radiation (PSR), surface roughness (TRI, Moore et al., 1991) and topographic wetness index (TWI, ) data were derived using ArcGIS Pro 2.7 (data source Land Tirol, data. tirol.gv.at).
Exploratory regression analysis () was used to identify the factors among eight explanatory variables (elevation, slope, TRI, TWI, GAM, radiation, ground ice distribution, and terrain age) that influence vegetation cover. Regression outputs are ranked according to Pearson’s correlation coefficients. To distinguish between first-order influence of primary explanatory variables and the second-order influence of GAM, we examined residuals from the global ordinary least squares (OLS) regression. Residuals of the first order regression exceeding 1.5 standard deviations in the OLS model identified areas where GAM potentially influences vegetation cover. The contrast in GAM values within and outside these areas was statistically assessed through the Wilcoxon–Mann–Whitney test (Wilcoxon, 1947) using the R package ggpubr ().
Results
Multi-proxy-analysis of geomorphic activity
Geomorphic mapping revealed that fluvial processes predominated on the gently sloping glaciofluvial plains, particularly near the catchment’s outlet point. In contrast, debris flow and slope wash processes were observed on drift-mantled slopes, and rockfall activity was evident along the outer margins of the catchment, especially in proximity to the current glacier extent. These observations underscore the dominant processes responsible for sediment reworking (Figure 3).
FIGURE 3
In the southwest of the catchment, the glaciofluvial plain is mostly flat, consisting of a braided fluvial network with shallow, periodically active channels that alternate between erosion and deposition. Perennial flow starts between the 1850 and the 1922 terminal moraines, where a distinct 50-m-high step in the terrain divides the study area into an upper and a lower part. From here, the transport capacity of the channel increases, this is reflected by the deposition of larger blocks further downstream on the glaciofluvial plain. The step in the terrain also leads to active slope wash processes and the steep drift-mantled slopes.
On drift-mantled slopes in the southeast, debris flow channels, bordered by levees, lead to debris fans that reach near the outlet point. Channels are assumed active during snowmelt and intense rainfall events, linking the uppermost slopes to the cirque floor. A spectrum of channels, ranging from recently active ones characterized by unweathered deposits to abandoned channels showing signs of weathering and erosion, highlights the variability in local geomorphic activity over time. Due to the high transport capacity, deposited sediments cover large areas (Table 2).

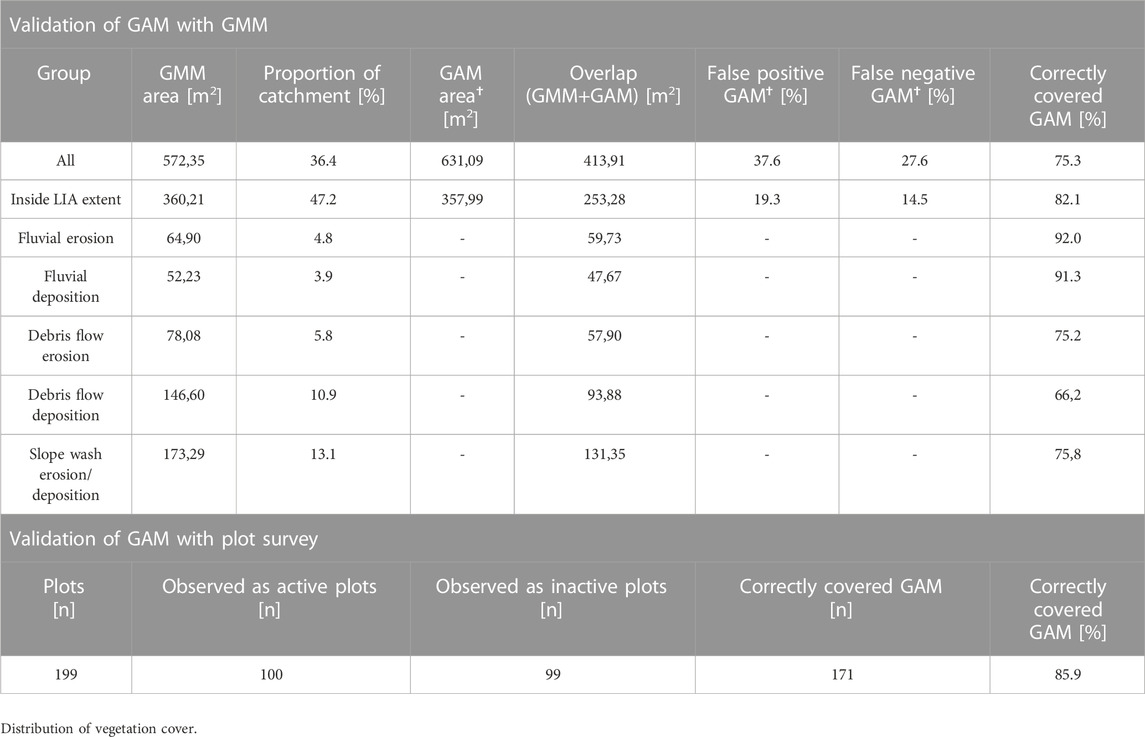

TABLE 2
| Validation of GAM with GMM | |||||||
|---|---|---|---|---|---|---|---|
| Group | GMM area [m2] | Proportion of catchment [%] | GAM area† [m2] | Overlap (GMM+GAM) [m2] | False positive GAM† [%] | False negative GAM† [%] | Correctly covered GAM [%] |
| All | 572,35 | 36.4 | 631,09 | 413,91 | 37.6 | 27.6 | 75.3 |
| Inside LIA extent | 360,21 | 47.2 | 357,99 | 253,28 | 19.3 | 14.5 | 82.1 |
| Fluvial erosion | 64,90 | 4.8 | - | 59,73 | - | - | 92.0 |
| Fluvial deposition | 52,23 | 3.9 | - | 47,67 | - | - | 91.3 |
| Debris flow erosion | 78,08 | 5.8 | - | 57,90 | - | - | 75.2 |
| Debris flow deposition | 146,60 | 10.9 | - | 93,88 | - | - | 66,2 |
| Slope wash erosion/deposition | 173,29 | 13.1 | - | 131,35 | - | - | 75,8 |
| Validation of GAM with plot survey | |||||||
|---|---|---|---|---|---|---|---|
| Plots [n] | Observed as active plots [n] | Observed as inactive plots [n] | Correctly covered GAM [n] | Correctly covered GAM [%] | |||
| 199 | 100 | 99 | 171 | 85.9 | |||
Validation of GAM (Geomorphic Activity Map) with GMM (Geomorphic Mapping) and plot survey.
Distribution of vegetation cover.
Bedrock outcrops dominate the higher elevated borders of the catchment in the southern and western parts, near the current glacier margin and on two small bedrock outcrops in the center of the catchment. Associated with these rock slopes are talus slopes, which show a sequence of erosional and depositional features. Talus slopes act as buffers for rockfalls from above, ensuring eroded rock fragments are retained on these slopes and do not extend to the glaciofluvial plain.
SPI values exceeding the 90th percentile indicate geomorphic activity within both perennial and episodic channel networks (Figure 4). SAI highlights geomorphic activity through sediment accumulation, predominantly on the glaciofluvial plain. SDI values surpassing the catchment average show geomorphic activity mainly on steep sediment-mantled slopes and the fluvial network spanning the glaciofluvial plain. DoD shows geomorphic activity through sediment accumulation in areas of fluvial deposition and some debris flow channels, as well as by detecting erosion fluvial channels, and less distinct in debris flow channels and steep sediment-mantled slopes.
FIGURE 4
The GMM indicates that 36.4% of the study area are geomorphologically active (Figure 3; Table 2). For the entire catchment, GAM accurately mapped 75.3% of this active area, and 82.1% within the LIA moraine (Figure 5). It correctly covered 92.0% of fluvial erosion and 91.3% of fluvial deposition. Debris flow erosion, observed on steep slopes and channels, was correctly identified on 75.2% of the area. Debris flow deposition had a marginally reduced accuracy with 66.2% coverage. GAM accurately represented slope wash processes, which include erosion and deposition on drift-mantled slopes, on 75.8% of the area. Validation of the GAM results through plot-based analysis showed that 85.9% of the presence or absence of geomorphic activity was correctly classified by the model. The GAM indicates the highest probability of geomorphic activity within the glaciofluvial plain and on steep drift-mantled slopes. This observation is in line with field mapping results with zones of increased potential activity in areas where fluvial erosion and deposition, slope wash activity and debris flow occurrence has been mapped.
FIGURE 5
Vegetation predominantly covers the central and northern areas of the study site. A vegetation gradient is evident, with low cover near the current glacier extent and maximal cover towards the cirque’s outlet (Figures 5A, B). Early colonizing plants create the first small (∼2 m2) patches of high vegetation cover close to the glacier margin. The first larger patches (∼100 m2) of high cover (>75%) occur about 50–80 years after glacier retreat. In areas that have been glacier-free for over 100 years, patches of vegetation significantly increase in size (∼5,000 m2) and number.
These patches predominantly exist on the glaciofluvial plain near periodic water sources. On terrains younger than 100 years, fluvial deposition areas first achieve a 35% vegetation cover (Figure 6C). In terrain aged between 100 and 170 years, certain areas of fluvial deposition surpass the 75% cover threshold. Beyond the LIA moraine, the periodically active sections of the glaciofluvial plain are densely vegetated, except for extensive sediment aggradation zones, which display limited to no vegetation.
FIGURE 6
Areas susceptible to debris flows start to exhibit vegetation cover above the threshold of 35% only outside the LIA boundary. Here, depositional areas of debris flows display high vegetation cover, with some areas surpassing the 75% thresholds. In general, areas affected by debris flow erosion exhibit considerably lower vegetation cover.
On drift-mantled slopes with signs of erosion and slope wash, vegetation is sparse on terrains younger than 100 years; these areas are mostly talus slopes linked to high-elevation rock outcrops. In terrains glacier-free for 100–170 years, slope wash is predominantly observed on moraine landforms. While vegetation becomes denser in these areas, regions beyond the LIA border primarily exceed the 35% cover, occasionally exceeding 75%.
Influence of abiotic factors including geomorphic activity on vegetation distribution
Elevation, solar radiation, and terrain age serve as primary explanatory parameters for understanding vegetation distribution (Model 7, adjusted R-squared = 0.47, AIC = 143161.6, VIF = 1.75). Two additional models, which have comparable explanatory power, include the same parameters as model 7 along with an additional parameter, one including GAM (model 12, adjusted R-squared = 0.46, AIC = 139393.99, VIF = 1.75) and one including TWI (model 10, adjusted R-squared = 0.46, AIC = 120484.19, VIF = 1.79). Due to the interrelatedness of input data, the results showed significant correlation between GAM and topographic wetness index (TWI) (p<0.001, R2=0.45). Higher elevation was negatively associated with vegetation distribution, while higher radiation and terrain age were positively associated. In addition, high results of both TWI and GAM were found to have a negative association with plant distribution. Results for 12 additional model combinations can be found in the (Supplementary Table S1). The low variance inflation factor values observed for each predictor variable in the models indicate that multicollinearity was not a significant issue. Spatial autocorrelation of model results was high, as indicated by Moran’s I of 0.88 and p < 0.001.
The residuals from Model 7 highlight areas where first order explanatory variables—elevation, solar radiation, and terrain age—do not account for the vegetation distribution (Supplementary Figure S6). Wilcoxon-Mann-Whitney showed significantly higher GAM values for areas with high positive (>1.5 standard deviations, p < 0.001; W = 1.32e+10, n1 = 25 852, n2 = 898 589) and high negative (<-1.5 standard deviations, p < 0.001; W = 1.07e+10, n1 = 19 612, n2 = 898 589) residuals.
Discussion
Multi-proxy-analysis of geomorphic activity
We combined a GIS-based approach of different proxies representing geomorphic activity to produce a geomorphic activity map (GAM).
Fluvial processes are best represented by the multi-response approach, which is explained by the fact, that all four proxies are able to depict processes occurring within channels and two of them are explicitly based on a flow algorithm, namely, SPI and SDI. GAM results indicate a high probability of geomorphic activity along fluvial flowlines, while the likelihood decreased towards the banks of the channel, which corresponds to peak erosion and transport capacity midstream (). While banks and floodplain are less likely to be affected, high-magnitude processes can still impact a broader cross-section of the channel (; ). Assessing channel width coverage for both fluvial and debris flow processes remains a significant hurdle in catchment studies (). Although our method provides a generalized way to determine channel width, it still captures the varying disturbance potentials of different magnitudes of fluvial events in relation to the channels cross profile.
The SDI highlighted activity zones on drift-mantled slopes due to the pronounced relief energy in these regions, but detailed representation posed difficulties for various reasons: (I) While slope wash processes are evident on talus slopes, they intersect with rockfall-induced erosion and deposition, particularly in the southwest where elevated rock outcrops influence these slopes (Vehling et al., 2019). (II) Erosion on drift-mantled slopes occurs in channels the resolution of our data cannot capture (). Erosional features’ spatial and temporal variability complicates this further (; ). (III) Sediment deposition on drift-mantled slopes contrasts with glaciofluvial plains, as sediment predominantly accumulates on steeper slopes (Vehling et al., 2019), which is not covered by SAI. (IV) Our data, capturing a singular topographic situation, emphasizes active debris flow channels, often neglecting dormant ones. The complexity of potential channels yields diffuse sediment in coalescing debris fans (), complicating the depiction of the entire range of channel activity and linked deposition.
The disparity between SAI and DoD values arises from the fact that SAI represents potential sediment accumulation areas based on process magnitudes observed in the DoD. This means that while SAI may depict sediment accumulation for magnitudes exceeding the DoD’s minimum detection level, it identifies areas most likely to experience sediment disturbance that the DoD does not account for. Despite these remaining challenges, the introduced multi-response method provides a catchment-wide identification of potential geomorphic activity. While numerous approaches can describe geomorphic processes with greater detail–ranging from qualitative descriptions (Otto et al., 2009; ) and surface change quantifications for specific landforms (; ; Morche et al., 2019), to modeling efforts on erosion (Meusburger et al., 2010), fluvial dynamics (), debris flows (), rockfall (), or sediment connectivity simulations ()—our method deliberately simplifies for broader applicability. While this approach may compromise on accuracy, it provides a comprehensive catchment-scale perspective, a view essential for discerning scale dependencies in biogeomorphic processes shaping the mosaic landscape of glacier forelands.
Integrating advanced numerical models related to debris flow and rockfall processes as well as different approaches to sediment accumulation on the glaciofluvial plain and drift-mantled slopes will be a valuable next step in refining the accuracy and broadening the applicability of this multi-response approach.
Distribution of vegetation cover
The observed mosaic of different levels of vegetation cover on smaller scales shows two key factors of allogenic influence: local site conditions that constrain plant growth and the perturbing effect of geomorphic activity (Wojcik et al., 2021). The observed large-scale gradient of increasing vegetation cover, terrain age, and elevation has been well-documented (Matthews, 1992; ; Raffl et al., 2006; ). However, traditional plot-based surveys often overlook the influence of geomorphic processes, as focus is laid on preferably stable plot locations (; ).
Initial patches of vegetation along fluvial channels represent locations of early colonizers that act as the nucleus for the next stage of plant growth (; Matthews and Vater, 2015). Specifically in areas of fluvial deposition, geomorphic processes provide resources such as water and fine sediment as a substrate for initial plant growth (Miller and Lane, 2018; ). This observed pattern is explained by the role of “geomorphic-pulses”—processes that provide resources, including water and fine-grain substrate, for early colonization (; Miller and Lane, 2018; Larsen et al., 2020). In these areas, periphyton, a submerged mixture of algae, microbes, and detritus, serves as potential pioneer organisms that facilitate subsequent colonization by vascular plants, a group of organisms, which is indicative for intermediate rates of fluvial processes (Roncoroni et al., 2019). With time, these patches gradually coalesce to form larger, more uniform areas of dense vegetation (). Once they exceed stability thresholds, they can effectively reduce small-scale sediment transport (; Ohler et al., 2023), which seems to first occur in proximity to flowlines on the glaciofluvial plain (Miller and Lane, 2018; ).
In contrast, debris flow areas reflect the importance of time since the last geomorphic disturbance for plant colonization (). In the debris flow channels we observed, varying levels of plant cover were evident. This variation in vegetation cover likely reflects the time since the last debris flow event in each respective channel, given the consistent topography. Abandoned channels can even serve as refuge habitats for plant colonization due to variations in soil moisture and grain size, as observed by (). Higher cover values in depositional portions of the debris flow network indicate that only few high magnitude events reach all the way to the lower areas of the fan (), exemplifying the importance of process magnitude in altering plant colonization.
In areas without debris flow processes, drift-mantled slopes exhibited a progressive increase in vegetation cover associated with terrain age and elevation. The absence of high-magnitude disturbance events, such as landslides, deep gully erosion, and rock avalanches, may facilitate gradual colonization (). This aligns with the notion that low to intermediate disturbances do not completely reset successional stages, allowing specialized species to adapt (Stawska, 2017; Wojcik et al., 2020; ) and biogeomorphic succession tends to follow an idealized shift from abiotic to biotic dominance.
Influence of abiotic factors including geomorphic activity on vegetation distribution
The exploratory regression analysis in this study supports the visual interpretation of the vegetation cover. The patchiness of succession is also shown by the spatial autocorrelation results of the OLS model, which show that adjacent locations are more similar in biotic and abiotic parameters (). Commonly terrain age, elevation, and greater exposure to sunlight are seen to have a landscape-scale influence on vegetation distribution (; Robbins and Matthews, 2018; ), which was supported by our results. Our exploratory regression analysis confirms the notion that disturbances caused by geomorphic activity as second order factor that either limit plant colonization, or provides necessary pulses after which colonization can intensify (Larsen et al., 2020), which is responsible for spatial heterogeneity in successional stages in our catchment (Wojcik et al., 2021).
Although our multi-proxy approach proved to be valuable for interpreting landscape patterns of vegetation distribution, the predictive power of GAM is limited for two reasons: (I) Vegetation cover can be high despite a high potential for geomorphic activity. For example, on the densely vegetated south facing slopes, which showed high geomorphic activity. Here, GAM represents potential geomorphic activity and does not provide information on the actual situation in the field. (II) Vegetation cover can be low in areas with limited resources despite low levels of geomorphic activity, for example, in areas with a young terrain age and a lack of nutrients (Schmidt et al., 2016).
Synthesis: A time-independent framework for understanding the relationship between geomorphic activity and vegetation distribution.
From a comprehensive catchment-wide analysis of geomorphic activity and plant cover distribution thresholds, several key observations emerge.
• High magnitude geomorphic processes, such as fluvial and debris flow processes can reset biogeomorphic succession.
• These processes occasionally interrupt the gradual transition from abiotic to biotic dominance during biogeomorphic succession. As a result, terrain age may not always be a reliable indicator. Instead, the time since the last significant disturbance becomes more relevant.
• Initial colonization opportunities might arise not only from periods of reduced disturbance but also from essential geomorphic pulses facilitating early colonization phases.
• Some regions, despite displaying no evident geomorphic activity, might maintain sparse vegetation due to resource limitations.
• In areas where topography indicates heightened geomorphic activity, dense vegetation could be indicative of historical slope stabilization by plant life.
Based on these observations Figure 7 offers a time-independent conceptual summary of the interaction between geomorphic activity and vegetation cover, featuring four potential situations derived from this study’s results and previous research on the topic (Matthews, 1992; Viles et al., 2008; ; ; Miller and Lane, 2018; Wojcik et al., 2021).
FIGURE 7
While the conditions of these scenarios are well understood, the framework allows assessment of biogeomorphic succession based on geomorphic activity and vegetation cover, irrespective of time, considering the spatial complexity at the catchment scale as demonstrated in this study. A simple overlay of GAM and the vegetation cover map allowed us to map the spatial distribution of the four situations in the research area (Figure 8), which is further illustrated using aerial snapshots as examples (Figures 8A–H). This spatial delineation of four stages in biogeomorphic succession provides a foundation for subsequent studies to delve deeper into the functional aspects of geomorphic processes and vegetation succession, enhancing our comprehension of their interplay.
FIGURE 8
Conclusion
In this study, we presented a first attempt to investigate catchment-scale geomorphic activity and its association with vegetation distribution on drift-mantled slopes and the glaciofluvial plain in a proglacial environment.
Our multi-proxy analysis represents an important step towards understanding the catchment-wide influence of geomorphic processes on plant colonization. The results suggest that geomorphic activity acts as a second-order determinant for vegetation distribution, contributing to the resulting spatial heterogeneity of colonization.
Our mapping of cover thresholds highlighted the significance of geomorphic pulses on the glaciofluvial plain. These pulses facilitate initial vegetation colonization. However, high-magnitude geomorphic processes, especially fluvial and debris flow processes, have the potential to reset established vegetation. We identified areas where stability thresholds were met, which can be associated with potential ecosystem engineering during the biogeomorphic succession.
The observations highlighted the challenges of interpreting biogeomorphic succession along a terrain age gradient at the catchment scale in glacier forelands, given the complex biogeomorphic mosaic observed. The introduced time-independent framework, focusing on the relationship between geomorphic activity and the stabilizing effect of vegetation, provides a systematic approach to examining biogeomorphic succession across diverse situations.
The methods employed represent a trade-off between the level of detail and the scale of observation. There is potential to improve the precision of mapping geomorphic activity, and it is essential to extend the spectrum of processes studied, including rockfall events. Beyond vegetation cover, a comprehensive understanding of successional stages should factor in vegetation composition.
