ORIGINAL RESEARCH article

Front. Earth Sci., 11 October 2024
Sec. Geoscience and Society
This article is part of the Research Topic Exploration, Development, and Protection of Earth’s Resources and Environment: Methods, Techniques, Applications, Prospects, Insights, and Problems View all 29 articles

The relationship between helium-rich gas and regional shale in the Sichuan Basin, Southwest China

Jianglin He,,,
Jianglin He1,2,3,4*Shuangjian Li,Shuangjian Li1,2Ankun Zhao,Ankun Zhao3,4Dong Wang,Dong Wang3,4Jian Gao,Jian Gao1,2Xiaolin Zhou,Xiaolin Zhou3,4Mohamed S. AhmedMohamed S. Ahmed5Zhenghe Wang,Zhenghe Wang3,4Lixia Zhu,Lixia Zhu3,4
  • 1State Key Laboratory of Shale Oil and Gas Enrichment Mechanisms and Effective Development, SINOPEC, Beijing, China
  • 2SINOPEC Key Laboratory of Geology and Resources in Deep Stratum, Beijing, China
  • 3Chengdu Center, China Geological Survey (Geosciences Innovation Center of Southwest China), Chengdu, China
  • 4Key Laboratory for Sedimentary Basin and Oil and Gas Resources, Ministry of Natural Resources, Chengdu, China
  • 5Geology and Geophysics Department, College of Science, King Saud University, Riyadh, Saudi Arabia

Despite over 60 years of helium development in the Sichuan Basin, the mechanism of helium enrichment remains poorly understood. Helium-rich gas is primarily found as gas composition analysis in the fields. This study explores the relationship between helium distribution and two regional shale formations (the Qiongzhusi and Wufeng-Longmaxi formation), basing on the spatial distribution of these shales, structural profiles, and reported helium concentrations. Our findings indicate a typical trend of helium enrichment within the Sichuan Basin, where helium concentrations generally increase from the basin margins toward its center. The R/Ra ratios in the natural gas are consistently below 0.1, indicating that the helium mainly originates from the granite basement. The Wufeng-Longmaxi Formation is absent from central to western parts of this basin. The hydrocarbon generation intensity of this shale is 3,627.26 m³/m2, which is 25,896.7 times greater than its helium generation intensity (0.14 m³/m2). Its helium capture time is short (237 Ma). There is no obvious correlation between the distribution of helium concentration and Wufeng-Longmaxi shale. The Qiongzhusi shale extends across the entire Sichuan Basin. Its hydrocarbon generation intensity is approximately 57 m³/m2, which is 267.4 times greater than its helium generation intensity (0.27 m³/m2). Beneath this shale, the Pre-Sinian granite exhibits a helium generation intensity exceeding 0.51 m³/m2, acting as the primary helium source rock in the basin. The helium capture time of Qiongzhusi shale is 435 Ma. Helium concentration increases as the burial depth of the Qiongzhusi shale decreases, and helium becomes isotopically lighter in the direction of fluid potential drop. This indicates that helium enrichment in the Sichuan Basin is predominantly influenced by the Qiongzhusi shale. From maximum burial depth to present, helium solubility in water has decreased by approximately 63.6% and 54.3% in the Wufeng-Longmaxi and Qiongzhusi shale respectively, suggesting that uplift processes contributed to helium degassing into gas reservoirs. The regional shale influenced the long-distance migration of helium, although faults can alter this pathway. Faults may either promote helium accumulation in shallow gas fields, such as the Jinqiu gas field, or lead to helium loss, as observed in the southeastern region of the Sichuan Basin.

1 Introduction

Helium (He) is an exhaustible natural resource (Wang et al., 2020) with the lowest melting and boiling points in the observable universe (Halford et al., 2022). It is considered an invaluable tracer to study a variety of physical processes and is essential in high-tech industry such as medical, aerospace, and atomic applications (Qin et al., 2023; Wang et al., 2023b). Annually, the decay of uranium (U) and thorium (Th) in the Earth’s crust is estimated to produce approximately 8 × 106 m3 of 4He (Wang et al., 2020). As scientific and technological advancements accelerate, global helium consumption has been increasing by 6% annually (Anderson, 2018; Wang et al., 2023b). It is projected that helium consumption may peak around 2030, at approximately 2.83 × 106 m3 per year (Mohr and Ward, 2014), potentially leading to a global shortage (Liu et al., 2023). As a result, there has been a surge in global interest in helium exploration and development (Hao et al., 2023). Major global helium reserves are concentrated in Qatar (101 × 108 m3), Algeria (82 × 108 m3), Russia (68 × 108 m3), and Canada (20 × 108 m3). In contrast, China’s helium resources estimated at 11 × 108 m3, representing only 2% of the global reserves (Wang et al., 2023b). Despite this, China’s helium demand continues to grow at an annual rate exceeding 10% (Anderson, 2018). Consequently, there has been a notable increase in the exploration and development of helium resources within China in recent years (Zhao et al., 2023a; Liu et al., 2024).

The Sichuan Basin, a prominent petroliferous region in China, hosts numerous natural gas fields and has accumulated extensive helium content and geochemical data throughout its development and production history. In 1964, helium-rich gas was first exploited in the Weiyuan gas field, located in the central part of the Sichuan Basin (Figure 1). In the Weiyuan gas field, the average helium concentration is about 1,598 ppm and helium reserve is estimated at 0.8 × 108 m3. It was the China’s sole commercially developed helium gas field at that time (Jia et al., 2022). Despite over 60 years of helium extraction from the Weiyuan gas field (Zhang et al., 2015), the mechanisms deriving helium enrichment in the Sichuan Basin remain poorly understood. Currently, helium-rich gas is primarily found through natural gas composition analyses, which obviously significantly restricts the exploration of helium (Liu et al., 2024).

Figure 1
www.frontiersin.org

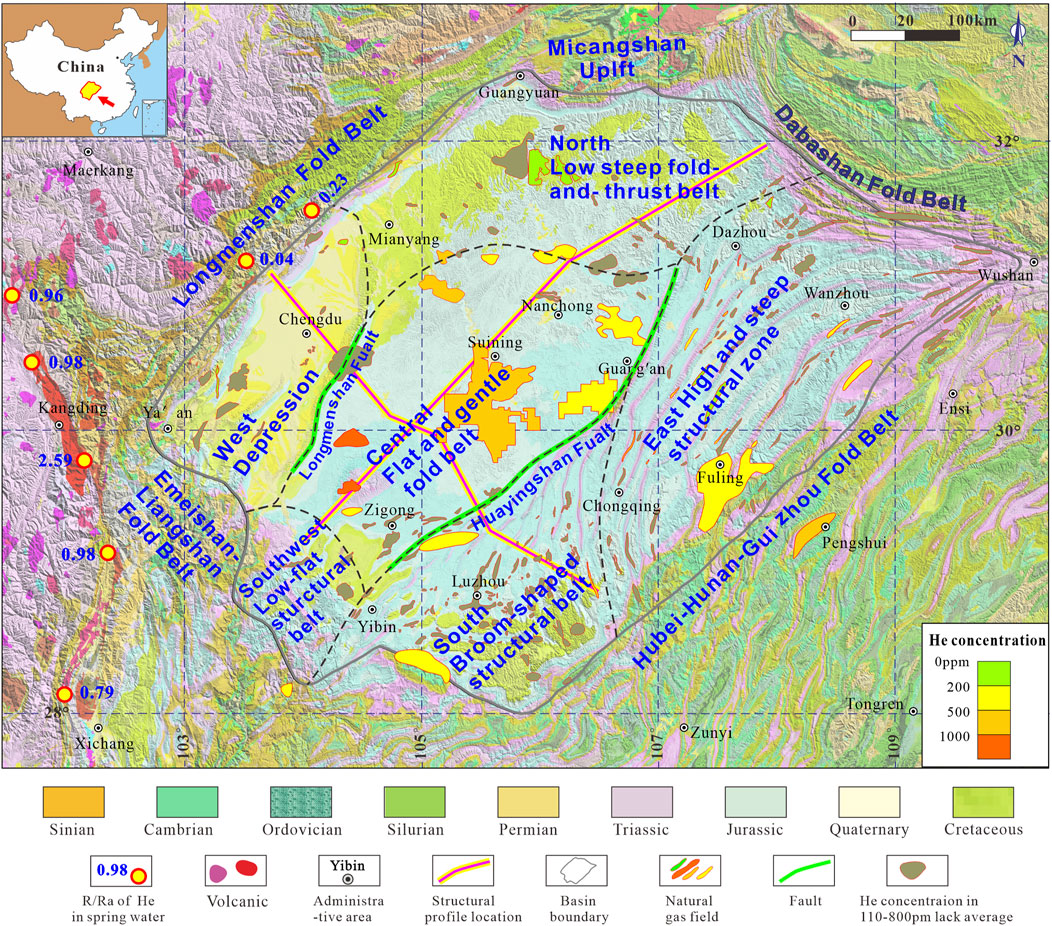

Figure 1. Location map showing the data points of R/Ra of He in spring waters as well as major structural elements in the Sichuan Basin (Du et al., 2006). Additionally, gas field, and the location of the structural profile (thick red/orange lines) presented in Figure 8 are also shown.

In recent years, advancements in understanding physical properties of helium and the geological conditions favorable for helium-rich gas deposits, have led to identify a strong correlation between helium enrichment and the presence of regional mudstone or gypsum layers (Tao et al., 2024). Studies have shown that organic-rich shales in the Sichuan Basin have higher concentrations of U and Th compared to granitic rocks (Meng et al., 2021), which has heightened interest in the potential helium reserves within these shales (Chen et al., 2023a; Nie et al., 2023; Liu et al., 2024; Zhang et al., 2024b). However, the relationship between the helium-rich gas distribution and regional shale formations in the Sichuan Basin remains partially unraveled.

In this study, the distribution of helium resources in the Sichuan Basin by compiling available data. The objectives of this study are: (1) to investigate the relationship between helium-rich gas and shale layers ofthe Qiongzhusi and Wufeng-Longmaxi formation in the Sichuan Basin, based on the burial depth, structural profiles, and the distribution of helium gas; and (2) interpret the mechanisms driving helium enrichment in the Sichuan Basin to offer valuable insights for predicting the presence of helium-rich gas.

2 Geological setting

The Sichuan Basin, situated on the western margin of the Yangtze Craton in southwestern China (Zhu et al., 2020), spans an area of approximately 180,000 km2 (Ma et al., 2007). This northeast-trending basin is bordered by the Longmenshan fold belt to the northwest, the Micangshan uplift to the north, the Dabashan fold belt to the northeast, the Hubei-Hunan-Guizhou fold belt to the southeast, and the Emeishan-Liangshan fold belt to the southwest (Figure 1). Based on basement configuration, the Sichuan Basin is divided into six regions (Liang et al., 2023): the West depression, the Southwest low-flat structural belt, the South broom-shape structural belt, the East high and steep structural zone, the North low steep fold-and thrust belt and Central flat, and the gentle fold belt (Figure 1). The basin originated as a late Mesozoic-Cenozoic foreland basin overlying an Ediacaran to middle Mesozoic passive margin and has experienced a complex tectonic and sedimentary history since the onset of the Chengjiang tectonic movement (ca. 700 Ma). This was followed by several significant tectonic events, including the Tongwan (ca. 570 Ma), Caledonian (ca. 439 Ma), Yunnan (ca. 270 Ma), Dongwu (ca. 256 Ma), Indosinian (ca. 205–195 Ma), Yanshanian (ca. 180–140 Ma), and Himalayan (ca. 80–3 Ma) movements (Liu et al., 2016).

The Sichuan Basin comprises a 6,000 to 12,000 m thick sedimentary succession ranging from the Ediacaran to the Cenozoic, which overlies a pre-Sinian Proterozoic basement. This basement lies beyond the resolution of seismic profiles but is inferred to be predominantly granitic, based on sparse outcrop evidence (Figure 2). From the late Sinian to late Triassic, the Sichuan Basin was mainly filled with marine strata. Subsequently, 3,000–4,000 m of continental siliciclastic rocks were deposited in the basin since the Late Triassic (Nansheng et al., 2021). The two organic-rich layers are wide spread in Sichuan Basin, which are the lower Cambrian Qiongzhusi Formation(Є1q) and upper Ordovician Wufeng Formation to the lower Silurian Longmaxi Formation (O3w-S1l). The dark shale of the Qiongzhusi Formation is about 50–450 m thick and is found across most of the Sichuan Basin (Nansheng et al., 2021). The Wufeng-Longmaxi shale is approximately 0–516 m thick in the southern and eastern parts of the basin (Qiu et al., 2022), but absent in the central and west Sichuan Basin (Liu et al., 2013).

Figure 2
www.frontiersin.org

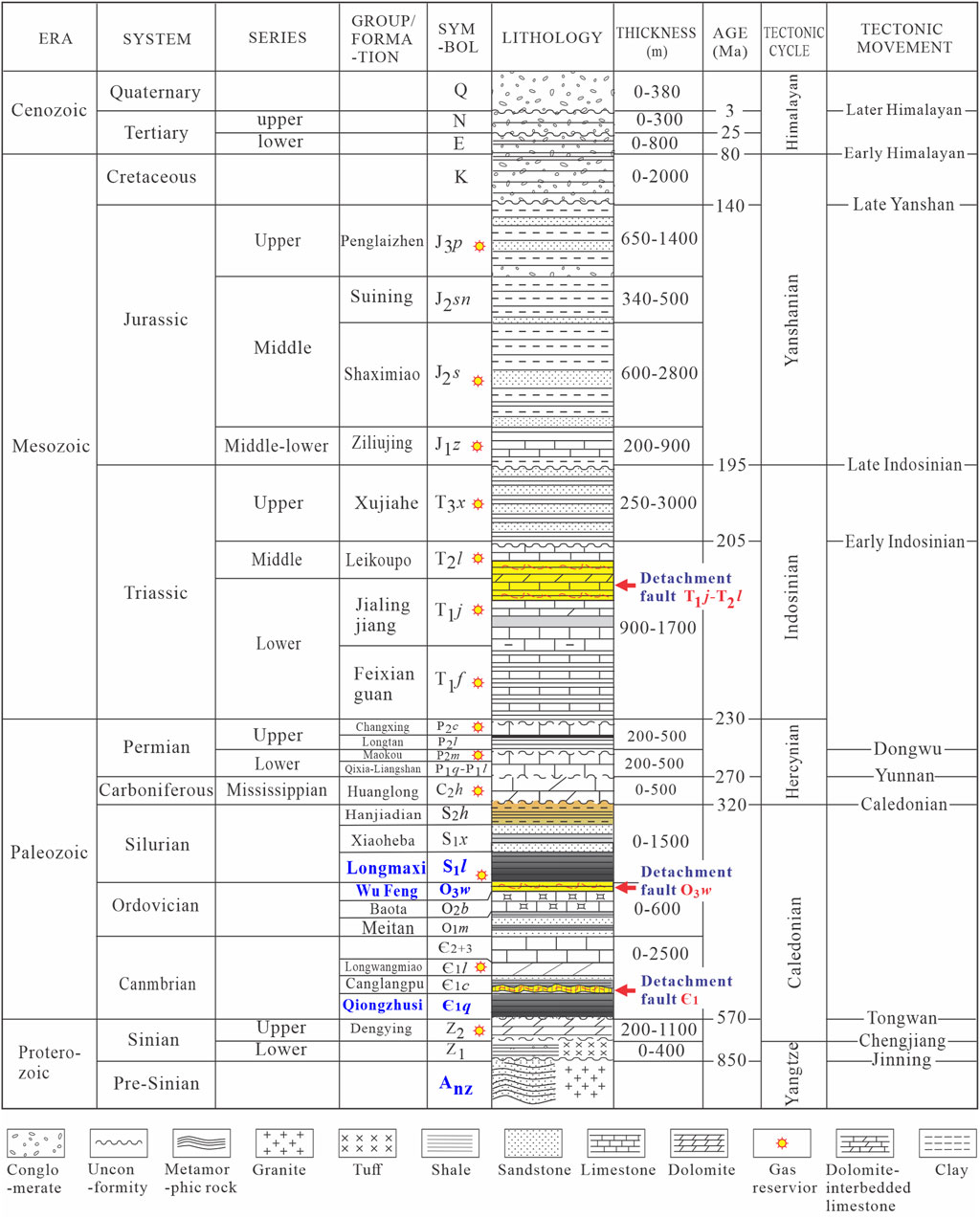

Figure 2. The lithological association of the Sichuan Basin and the position of three detachment faults in stratigraphic record of the basin (He et al., 2020).

Large amounts of gas and oil have been discovered in the Sichuan Basin, spanning more than 25 conventional and tight oil and gas-bearing layers (including 18 marine facies) and 2 shale gas-producing layers (Figure 2). From 1949 to 2019, over 6,487.8 × 108 m3 gas were produced (Zou et al., 2016). The Sichuan Basin currently holds the largest number of industrial oil and gas reservoirs found in China. The natural gas is mainly exploit out from the lower Cambrian Longwangmiao Formation and upper Sinian Dengying Formation. Notably, the Anyue gas field, the largest carbonate reservoir gas field in China, reported proven geological gas reserves of 1.17 × 1012 m3 in the Dengying Formation as of 2019.

Shale gas in the Sichuan Basin is mainly exploited from the upper Ordovician Wufeng Formation to lower Silurian Longmaxi Formation (O3w-S1l) (Gao et al., 2024), which accounts for over 95% of China’s shale gas production (He et al., 2018). Additionally, the remaining recoverable resources of shale gas in the basin are estimated to be about 33.19 × 1012 m3 (Jiang et al., 2023). In recent years, shale gas has also been discovered in the lower Cambrian Qiongzhusi Formation (Є1q), which is not only the mainly source rock for conventional natural gas in Longwangmiao Formation, but also with unconventional shale gas resource potential approximately 1.4 × 1012 m3 (Li et al., 2021).

3 The distribution of helium in natural gas

3.1 The horizontal distribution

The natural gas is exploited from over 25 distinct gas-bearing layers across different regions of the Sichuan Basin, with production layers varying by location (Figure 3; Table 1). In the North low steep fold and thrust belt, natural gas is mainly exploited from the upper Triassic Xujiahe Formation (T3x), lower Permian (P1), upper Permian Changxing formation (P2ch), and the upper Carboniferous Huanglong Formation (C2h). Helium concentration in the Xujiahe Formation (T3x) ranges from 70 ppm to 400 ppm, with an average of 140 ppm, while it is in the range of 10–290 ppm, with an average of 150 ppm in Permian strata. Helium concentration in the Huanglong Formation (C2h) is 370 ppm.

Figure 3
www.frontiersin.org

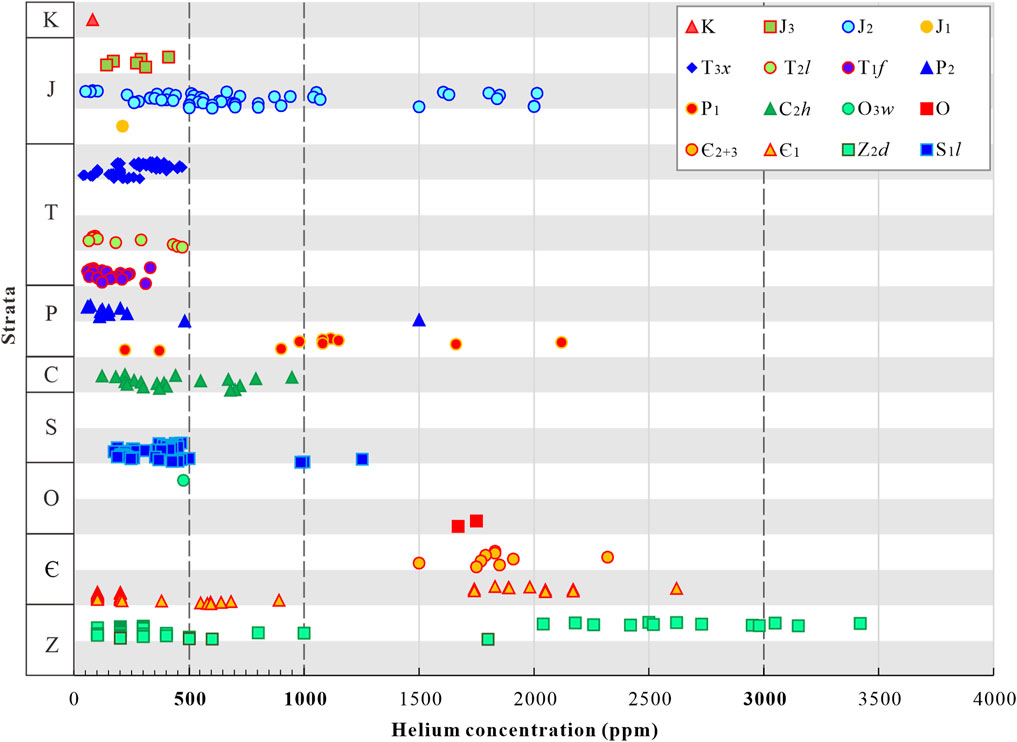

Figure 3. The helium concentration in the different formations.

Table 1
www.frontiersin.org

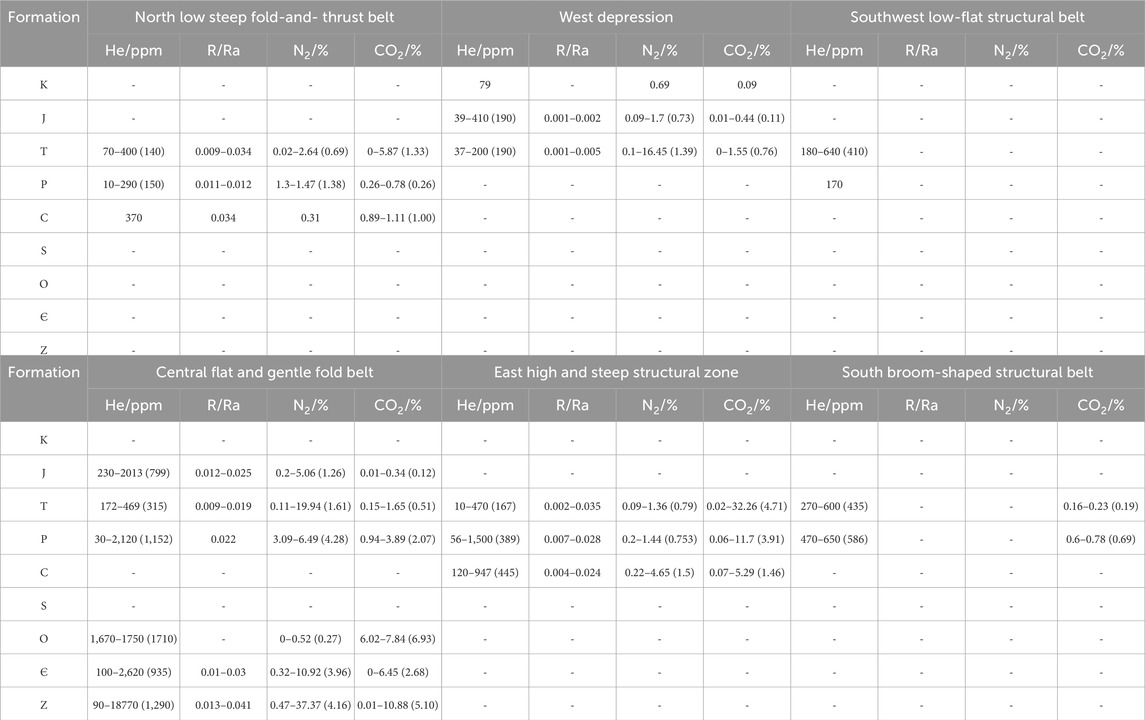

Table 1. The helium concentration in the gas field in different tectonic units and formations summarized from the Supplementary Material, Table 1.

In the West depression, natural gas is mainly exploited from Cretaceous, the Middle and upper Jurassic Suining Formation (J2sn) and Penglaizhen Formation (J3p), and the upper Triassic Xujiahe Formation (T3x). The helium concentration in Cretaceous is 79 ppm. For the Jurassic strata, helium levels range from 39 to 410 ppm, with an average of 190 ppm. In the Xujiahe Formation (T3x), helium concentrations range from 37 to 200 ppm, averaging 190 ppm.

In the Southwest low-flat structural belt, natural gas is mainly extracted from Triassic and Permian formations. Helium concentrations in the Triassic range from 180 to 640 ppm, with an average of 410 ppm. In the Permian, the helium concentration is around 170 ppm.

In the Central flat and gentle fold belt, natural gas is produced from almost all sedimentary strata (Table 1). Helium concentrations in the Jurassic range from 230 to 2013 ppm (average 799 ppm). The Triassic shows helium concentrations of 172–469 ppm (average 315 ppm). Helium concentration in Permian ranges from 30–2,120 ppm, (average 1,152 ppm), while the Ordovician contains helium concentrations of 1,670–1,750 ppm (average 1,710 ppm). The Cambrian and Sinian formations show helium concentration in the ranges of 100–2,620 ppm (average 935 ppm) and 90–18,770 ppm (average 1,290 ppm).

In the East high and steep structural zone, natural gas is mainly sourced from the upper Triassic Xujiahe Formation (T3x), Permian and the upper Carboniferous Huanglong Formation (C2h). Helium concentration in the Xujiahe Formation (T3x) ranges of 10–470 ppm (average 167 ppm), compared to 56–1,500 ppm (average of 389 ppm) for the Permian. Helium concentration in the Huanglong Formation (C2h) in the range of 120–947 ppm (average 445 ppm).

In the South broom-shaped structural belt, natural gas is mainly extracted from the lower Triassic Feixianguan (T1f) and Jialingjiang Formation (T1j), and the lower Permian Maokou Formation (P1m). Helium concentration in Triassic ranges from 270 to 600 ppm (average 435 ppm), while in the Permian helium concentration is in the range of 470–650 ppm (average 586 ppm).

Overall, helium-rich gas fields (≥500 ppm) are predominantly located in the Central flat and gentle fold belt (Wang et al., 2020). The helium concentration tends to increase from the periphery toward the center of the Sichuan Basin (Weiyuan), indicating that the central part of the basin is more favorable for helium enrichment.

In the Sichuan Basin, shale gas is primarily extracted from the Wufeng-Longmaxi Formation (O3w-S1l). In the southern part of the basin, helium concentrations in shale gas varies from 173 to 414 ppm (average below 300 ppm), as observed in the Weirong, Changning, and Zhaotong shale gas fields (Table 2). Other shale gas fields, such as those in Fuling, Weiyuan, and Fushun-Yongchuan, have an average helium concentration of approximately 400 ppm. In the eastern Sichuan Basin, helium concentrations are somewhat higher, with the Pengshui shale gas field exhibiting a concentration of about 993 ppm. Additionally, helium concentrations in the lower Cambrian Qiongzhusi shale (Є1q) are greater than those in the Wufeng-Longmaxi (O3w-S1l) shale, reaching up to 1,400 ppm. Overall, there is no distinct pattern in the distribution of helium across shale gas fields in the basin.

Table 2
www.frontiersin.org

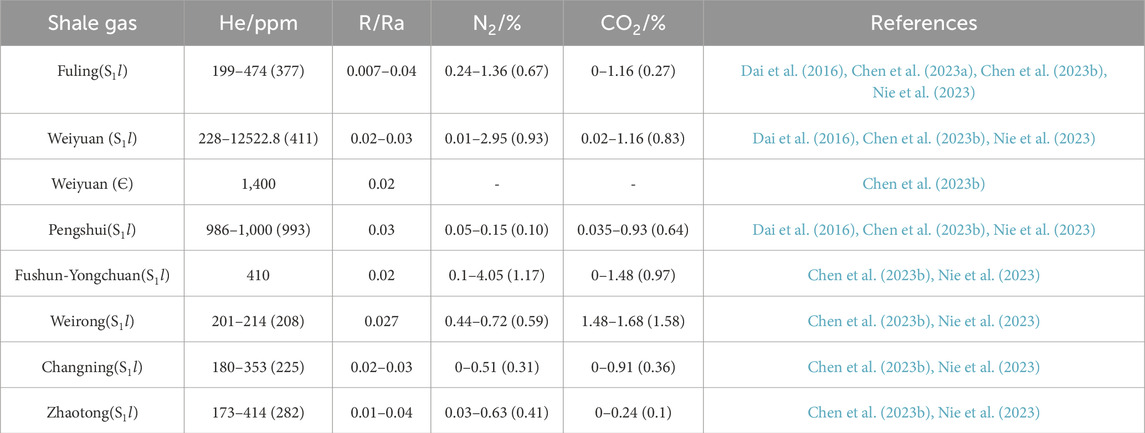

Table 2. The He, N2 and CO2 concentration and R/Ra in the different shale gas fields.

3.2 The vertical distribution

As shown in Figure 3, helium concentrations are highest in the Sinian Dengying Formation (Z2d) and lowest in the Cretaceous deposits. Vertically, there is a slight decrease in helium concentration upward, suggesting that helium primarily originates from deeper layers. High helium concentration layers (≥1,000 ppm) are predominantly found in the deeper strata, such as the Sinian, Cambrian, Permian, and a shallow layer (J2) in the Jinqiu gas field. These helium-rich layers are interbedded with helium-poor layers (<500 ppm), indicating that helium enrichment is influenced by factors beyond vertical diffusion, including other geological processes.

It has been proved that the gas in Dengying Formation (Z2d) originated from the Qiongzhusi shale (Є1q) (Zhu, 2006). While helium concentrations in the Cambrian are lower than in the Dengying Formation, they are higher compared to those in the Ordovician and middle-upper Cambrian gas reservoirs. This suggests that the Cambrian Qiongzhusi Formation may influenced helium enrichment in Sinian gas reservoirs. Conversely, gas from the Huanglong (C2h) and Maokou formation (P1m) originated from the Wufeng-Longmaxi shale (O3w-S1l) (Zhu, 2006). However, helium concentrations in the Wufeng-Longmaxi shale (O3w-S1l) are considerably lower than in the double layers, indicating that the influence of the Wufeng-Longmaxi shale on vertical helium diffusion is limited.

4 Source of helium

4.1 Resource identification initiative

Helium in natural gas is derived from three types of sources, as indicated by the 3He/4He ratio (R): (1) atmospheric helium, with R=1.4 ×10−6 (Ra), is mainly released through volcanic eruptions, magma degassing, and rock weathering (Wang et al., 2020; Chen et al., 2021); (2) mantle-derived helium, originated volatile compounds that entered the sedimentary crust along fault systems in tectonically active regions. This type of helium usually has a 3He/4He ratio greater than Ra (Wang et al., 2020). (3) crust-derived helium is radiogenic 4He produced by the decay of U, Th, and other elements in crustal rocks and minerals (Kennedy et al., 2002), and often shows a 3He/4He ratio of 0.02 Ra. If the R/Ra ratio exceeded 0.1, it indicates that mantle-derived helium constitutes more than 12% of the total helium (Zhao et al., 2023a).

In the Sichuan Basin (Figure 4A), the R/Ra ratio in gas fields varies from 0.002 to 0.05 (average 0.016). For shale gas, the R/Ra ratio ranges from 0.007 to 0.04 (average 0.015). All these values are below 0.1, indicating that the helium in the Sichuan Basin is predominantly crust-derived. However, mantle-derived helium has been reported in several hot springs in the western Sichuan Basin (Du et al., 2006), with R/Ra values ranging from 0.79 to 2.59 (Figure 1). Additionally, R/Ra ratios of 0.23 were observed in the Longmenshan Fold Belt (Du et al., 2006). The highest R/Ra value observed in gas fields is 0.05, as observed in the Xinchang and Xiaoquan gas fields, suggesting a minor contribution of mantle-derived helium in the western depression.

Figure 4
www.frontiersin.org

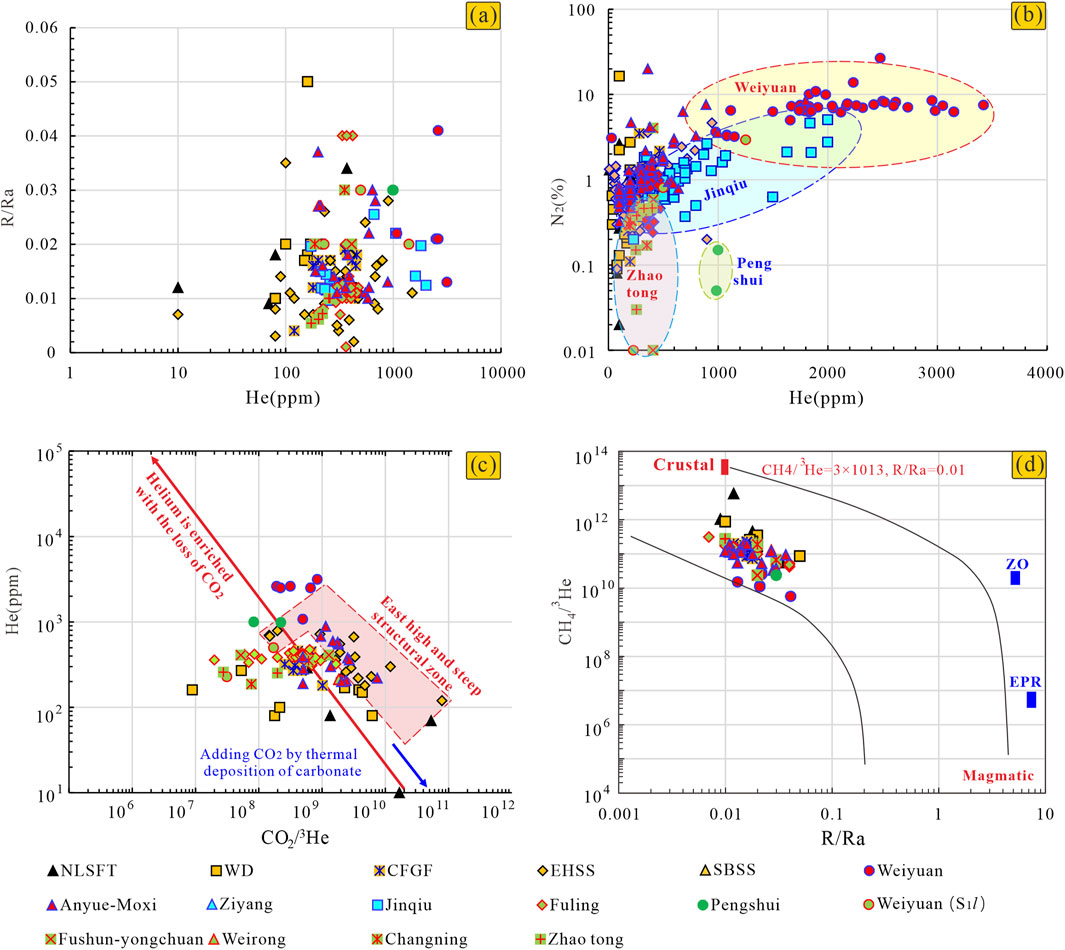

Figure 4. (A) The scatter diagram of R/Ra, (B) The scatter diagram showing the correlation between N2 and helium concentration, (C) The scatter diagram showing the correlation between CO2/3He and helium concentration, (D) The correlation between the CH4/3He and R/Ra, where EPR is East Pacific Rise, ZO is Zambales Ophiolite in the Philippines (Dai et al., 2017).

4.2 Origin of N2, CO2 and CH4

Nitrogen (N₂) in natural gas originates from several sources, including primordial nitrogen from the mantle, volcanic magma, radioactivity, the atmosphere, sedimentary organic matter, and clay minerals (Liu et al., 2006; Zhao et al., 2023a; Mansour et al., 2020; Mansour and Wagreich, 2022). Zhao et al. (2023a) indicated that N₂ in the central Sichuan Basin derived from sedimentary organic matter in argillaceous source rocks, with N₂ content being proportional to the maturity of the organic matter. Conversely, Wang et al. (2023b) suggested that the nitrogen is homologous with helium and that it originated from granite or the metamorphic rock basement of the basin. Hence, consequently, N₂ concentration is often used as an indicator of helium origin in natural gas.

In the Sichuan Basin, N₂ concentration varies widely, ranging from 0.01% to 37.37% (Figure 4B). For shale gas, N₂ concentrations range from 0.01% to 4.05% (average 0.65%). In contrast, N₂ concentrations in gas fields variy from 0.02% to 37.37% (average 2.39%). This indicates that N₂ is significantly more abundant in natural gas than in shale gas, suggesting that N₂ in the Sichuan Basin did not primarily originate from sedimentary organic matter in hydrocarbon source rocks.

In the Jinqiu gas field, natural gas predominantly comes from the Xujiahe Formation (T3x) (Liu et al., 2024). Despite the lower maturity of this gas compared to the shale gas in the Wufeng-Longmaxi Formation (O3w-S1l), N₂ concentrations in the Jinqiu gas field range from 0.2% to 5.06% (average 1.27%), which are higher than the average 0.65% observed in the Wufeng-Longmaxi shale. This provides further evidence that N₂ in the Jinqiu gas field is likely derived from granite or the metamorphic rock basement of the Sichuan Basin (Wang et al., 2023b), rather than from sedimentary organic matter.

In the Weiyuan gas field, N₂ concentrations range from 3.09% to 37.37%, (average 8.16%), which is notably higher than in other gas fields. This indicates that the N₂ in the Weiyuan gas field likely derived from the granite basement of the Sichuan Basin. Conversely, N₂ concentrations are lowest in the basin periphery, with values in the Pengshui, Zhaotong, and Changning shale gas fields being less than 0.63% (average 0.34%). This suggests that minimal N₂ in these areas is derived from the granitic basement of the Sichuan Basin.

Overall, it can be inferred that the source of helium differs between within and outside the Sichuan Basin. Within the basin, helium primarily originated from the granite basement of the Sichuan Basin, whereas in the basin periphery, helium sources differ, with minimal contribution from the basin basement.

It is accepted that both CO2 and low helium concentration (<200 ppm) are mantle-derived (Dai et al., 2017; Wang et al., 2023a). A R/Ra ratio greater than 2.0 can serve as an indicator for identifying CO₂ gas fields. As shown in Figure 4A, no samples in the Sichuan Basin have R/Ra ratios >0.1, and no CO₂ gas fields have been discovered in this region, indicating that helium in the Sichuan Basin is primarily crust-derived.

Globally, gases from mid-ocean ridge basalts exhibited a similar CO₂/³He molar ratio, averaging 2 × 10⁹. In eastern China, as the molar ratio of CO₂ to ³He decreases, helium concentration increases by three orders of magnitude in gas reservoirs (Wang et al., 2023b). Wang et al. (2022) concluded that the loss of CO₂ is the primary mechanism driving helium enrichment in gas reservoirs. CO₂ is deposited as carbonate veins when the partial pressure and temperature decrease as fluids migrate from deep to shallow layers. In the East High and Steep Structure Zone (Figure 1), the molar ratio of CO₂ to ³He decreases from 2 × 1011 to 2 × 10⁸, and helium concentrations increase proportionally with the loss of CO₂ (Figure 4C). This phenomenon is likely related to several deep faults in the East High and Steep Structure Zone (He et al., 2018), which facilitated the migration of deep-layer fluids to shallower layers.

Based on extensive CH₄/³He data from various global locations (Dai et al., 2008), it has been concluded that methane with CH₄/³He ratios ≤10⁶, ≥ 1011, and 10⁶-101⁰ are indicative may be of either organic or inorganic origin (Dai et al., 2017). As shown in Figure 4D, gas in the Sichuan Basin is close to the crustal end (CH4/3He = 3 × 1013, R/Ra = 0.01) (Ni et al., 2014), and is far from the abiotic values observed in geothermal fluids from the 21°N East Pacific Rise (EPR) (Dai et al., 2017) and gas seeps from the Zambales Ophiolite in the Philippines (ZO) (Abrajano et al., 1988). The highest CH₄/³He ratios are found in the North Low Steep Fold and Thrust Belt, ranging from 5.5 × 1011 to 5.8 × 101³, while the lowest CH₄/³He ratios are observed in the Weiyuan gas field, ranging from 5.6 × 101⁰ to 2.8 × 1011. The CH₄/³He ratio in the Anyue-Moxi gas field falls between these values. This suggests that some methane in the Weiyuan gas field has an inorganic origin (Dai, 2003). The proportion of inorganic methane increases from the North Low Steep Fold and Thrust Belt to the Weiyuan gas field in the Central Flat and Gentle Fold Belt, indicating that helium may accumulate with methane from the North Low Steep Fold and Thrust Belt to the Weiyuan gas field.

4.3 The source of noble gases

Generally, 20Ne in natural gas originates from the atmosphere and enters the crust through groundwater recharge (Byrne et al., 2021). 20Ne in crustal fluids rarely derived from crustal or mantle origins. However, 4He in the crust is primarily radiogenic (Ballentine and Burnard, 2002). In Weiyuan shale gas field, 20Ne concentrations range from 3.64 × 10−9 to 1.14 × 10−7, and there is a strong linear relationship with 4He concentration (R2 = 0.9428). A similar relationship is observed in the Jinqiu gas field(R2 = 0.85), suggesting that 20Ne and 4He may have similar migration processes, likely involving dissolution in groundwater and transport with water (Zhang et al., 2024a).

In contrast, this linear relationship is not evident in the Changning shale gas field (R2 = 0.123), indicating that helium may not primarily migrate with groundwater flow in this field (Figure 5A). The 4He/20Neratios in the Sichuan Basin, ranging from 3,951 to 67,228, are significantly higher than the atmospheric ratio of 0.32 (Liu et al., 2024). This suggests that atmospheric helium can be disregarded. Moreover, all data points fall within the range of crust-derived helium, with less than 0.5% mantle-derived helium (Liu et al., 2024) indicating that mantle-derived helium constitutes less than 0.5% of the total helium in the Sichuan Basin (Figure 5B).

Figure 5
www.frontiersin.org

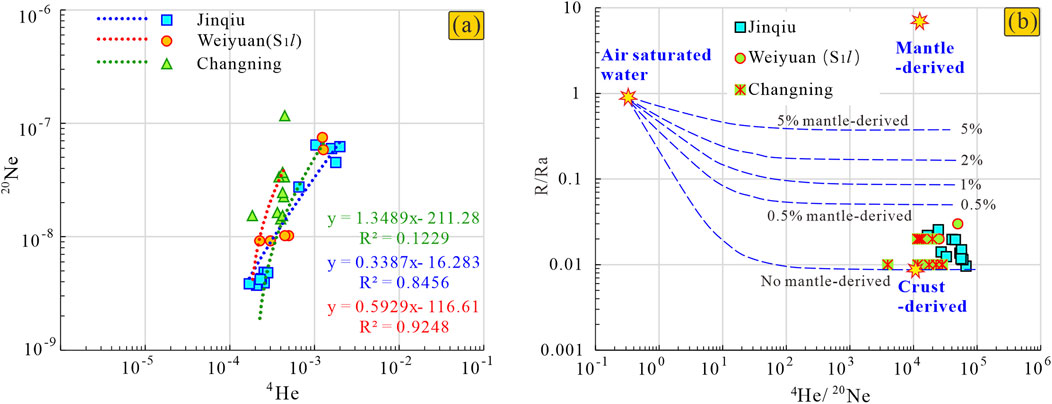

Figure 5. (A) The correlation between the 20Ne and 4He, (B) The scatter diagram of 4He/20Ne and R/Ra, showing the helium mantle-derived is less than 0.5%.

5 Helium generation condition

The primary source of helium in natural gas is attributed to the radioactive decay of U and Th in the underlying strata. The rate of radioactive decay is not affected by pressure or temperature. Instead, the amount of helium generated depends primarily determined on the concentrations of U and Th in the strata, as well as the age and volume of these strata (Brown, 2010; Liu et al., 2022).

The total helium generation can be estimated as follows:

QHe=ρHe×vrock×ρs×Trock(1)
ρHe=1.207×1013U+2.868×1014Th(2)

where, QHe is the amount of helium resource (m3),

ρHe is the helium generation intensity (m3/t),

vrock is the volume of the helium source rock (m3),

ρs is the density of the helium source rock (t/m3),

Trock is the age of the helium source rock (a),

[U] is the concentration of the U in the helium source rock (ppm),

[Th] is the concentration of the Th in the helium source rock (ppm).

The age of Wufeng-Longmaxi shale is estimated to be 442 Ma, according to the International Chronostratigraphic Chart 2023 (Chen et al., 2023a). The density of the Wufeng-Longmaxi shale ranges from 2.58 to 2.60 t/m3 (Guo, 2014b). Uconcentrations in this shale vary from 1.1 to 60.1 ppm, with an average 10.6 ppm (Meng et al., 2021). Th concentrations range from 1.02 to 137.5 ppm, with an average of 16.1 ppm. The thickness of organic-rich shale (TOC>2 wt%) is ranging from 20 to 70 m (Jiang et al., 2023). According to the formulas 1, 2, it can be calculated that, the helium generation intensity of Wufeng-Longmaxi shale is less than 0.14 m3/m2 (Table 3).

Table 3
www.frontiersin.org

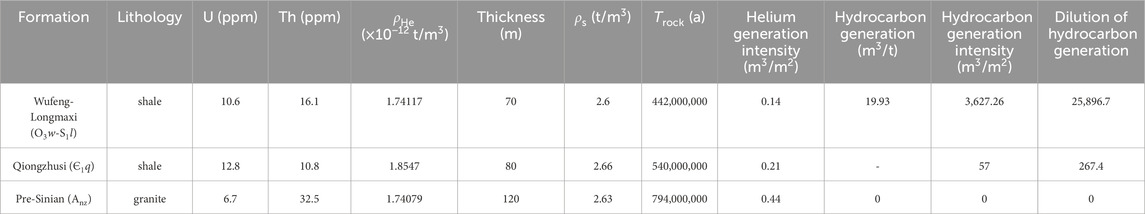

Table 3. The helium generation condition of Wufeng-Longmaxi shale, Qiongzhusi shale, and Pre-Sinian granite.

The age of the Qiongzhusi Formation is estimated to be 540 Ma (Chen et al., 2023a). Its density ranges from 2.54 to 2.66 t/m3. The concentration of U ranges from 2.3 to 30 ppm (average 12.8 ppm). Th concentrations range from 4.93 to 13 ppm (average 10.8 ppm) (Xiao et al., 2022). The thickness of Qiongzhusi shale generally ranges from 100 to 300 m, with organic-rich shale (TOC >2 wt%) exceeding 80 m in thickness found as a strip along the Mianyang-Zigong-Changning region (Figure 1). In most areas of the Sichuan Basin, the organic-rich shale of the Qiongzhusi Formation is less than 80 m thick (Jiang et al., 2023). According to the formulas 1, 2, it can be calculated that, the helium generation intensity of the Qiongzhusi shale is approximately 0.27 m3/m2 (Table 3).

U-Pb dating of the Pre-Sinian granite drilled in Weiyuan gas field (well W117) indicates an age of 794 ± 11 Ma (Gu et al., 2015). The density of this granite ranges from 2.63 to 3.07 t/m3 (Guo, 2014a). U concentrations in the granite range from 3.0 to 12.3 ppm, with an average of 6.7 ppm, while Th concentrations range from 21.8 to 49.1 ppm, with an average of 32.5 ppm (Gu et al., 2015). Although no wells have yet been drilled through the Pre-Sinian granite across the Sichuan Basin, the granite thickness is more than 120 m in wells W28 and W117, suggesting that it exceeds 120 m in thickness (Gu et al., 2015). Given that the crust thickness in the Sichuan Basin ranges from 40 to 45 km (Wang et al., 2017), the granite is likely several kilometers thick. For this analysis, we consider a thickness of 120 m. According to the formulas 1, 2, it can be calculated that, the helium generation intensity of the Pre-Sinian granite is at least 0.51 m³/m2 (Table 3). Therefore, it can be concluded that the Pre-Sinian granite is the primary source rock for helium in the Sichuan Basin.

6 Discussion

6.1 The spatial matching relationship between the helium and reginal shale layer

6.1.1 The coupling relationship between helium concentration and the shale layer

As shown in Figure 6, the Wufeng-Longmaxi shale is absent in the central to western parts of the Sichuan Basin. The burial center is located in the northeastern Sichuan Basin, where the burial depth of the Wufeng-Longmaxi shale exceeds 6,000 m, dipping toward the southwest. The shallowest area is near the Weiyuan gas field, with exposures in the core of the Huayingshan anticline in Guang’an city. In the deep (northeast Sichuan Basin) and shallow areas, there are gas fields with low helium concentrations (<200 ppm) as well as those with moderate helium concentrations (200–500 ppm). There is no obvious correlation between helium concentration in these gas fields and the spatial distribution of the Wufeng-Longmaxi shale. Meanwhile, the helium-rich gas fields (≥500 ppm) are located in areas where the Wufeng-Longmaxi shale is absent, suggesting that helium enrichment in the Sichuan Basin is not significantly controlled by the presence of the Wufeng-Longmaxi shale.

Figure 6
www.frontiersin.org

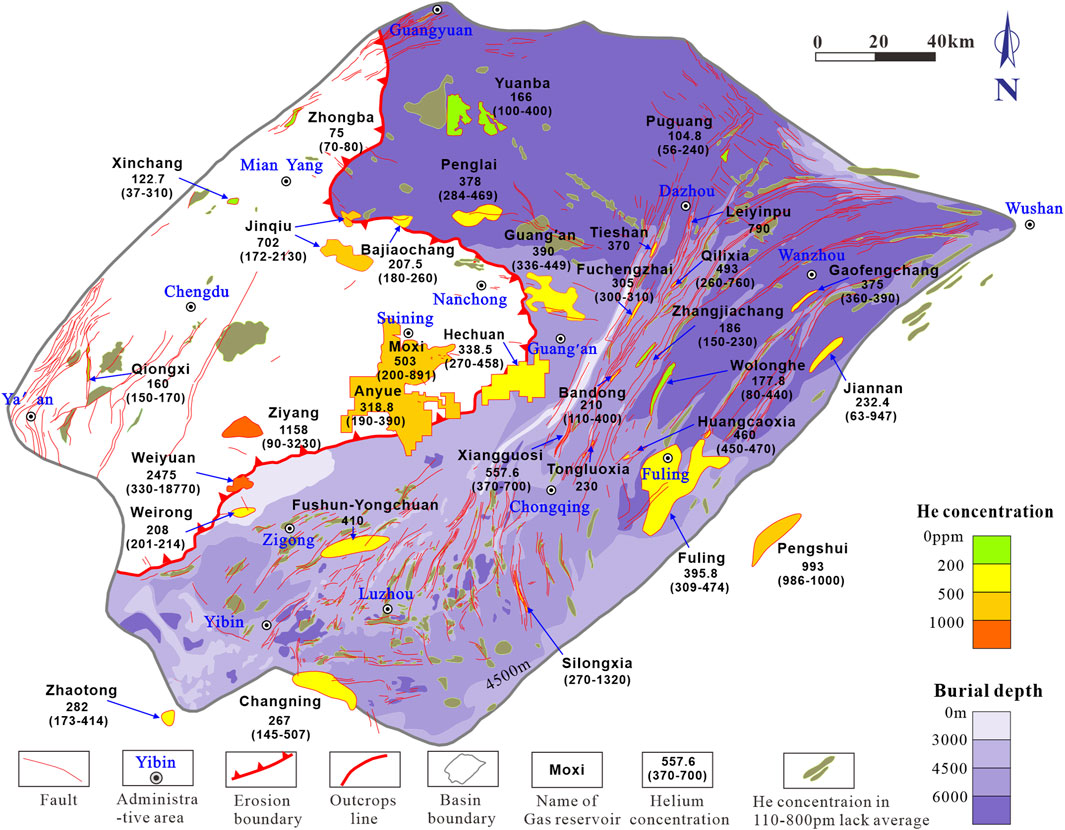

Figure 6. The burial depth map of Wufeng-Longmaxi shale and the distribution of natural gas.

As shown in Figure 7, there are three burial centers of the Qiongzhusi Formation within the Sichuan Basin, located near Mianyang city, the Puguang gas field, and the Zhangjiachang gas field, with maximum burial depths exceeding 10,000 m. In these centers, the gas fields are predominantly characterized by low helium concentrations (<200 ppm). As the burial depth of the Qiongzhusi Formation decreases toward the Weiyuan area, helium concentrations in the gas fields gradually increase. Prior to the peak helium concentrations in the Weiyuan gas field, the gas migration pathways were highly compatible with the regional dome structure formed by the Qiongzhusi shale. This indicates that helium enrichment in the Sichuan Basin is significantly controlled by the presence of the Qiongzhusi shale.

Figure 7
www.frontiersin.org

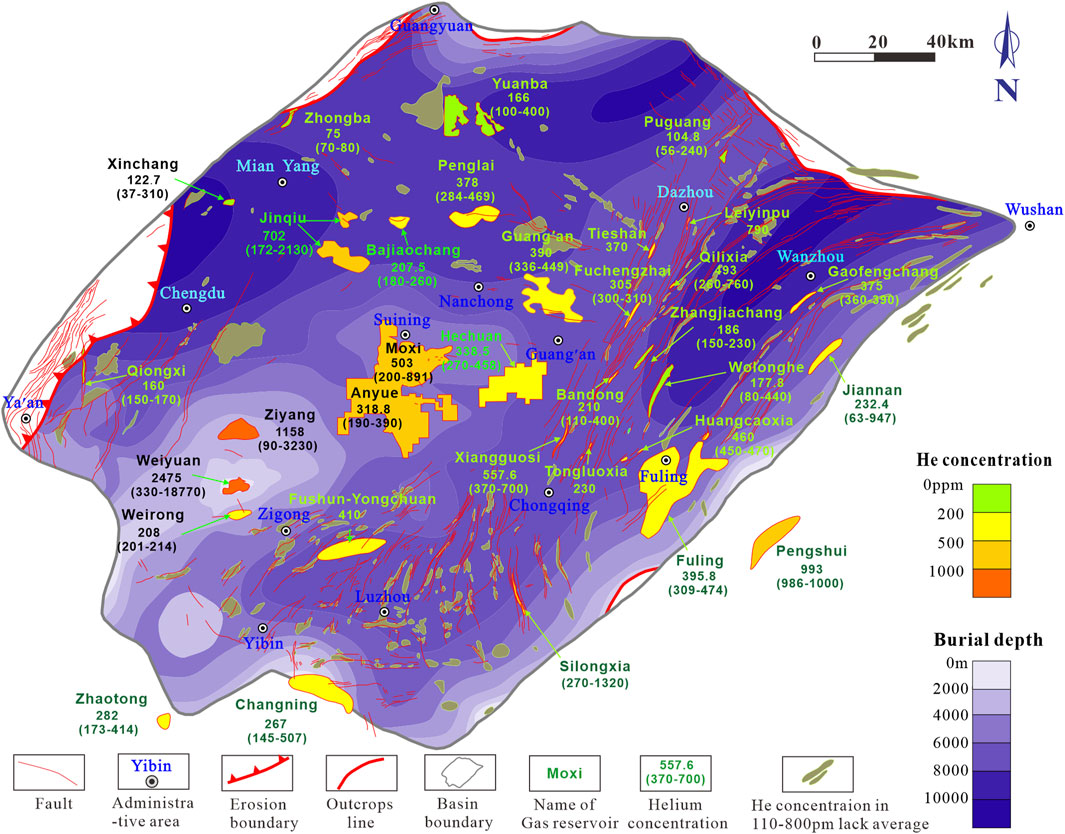

Figure 7. The burial depth map of Qiongzhusi shale and the distribution of natural gas.

The correlation between the helium concentration and the distribution of Qiongzhusi shale is clearly presented in the structural profiles too (Figure 8). In the NS-NE structural profile, as the Qiongzhusi shale becomes progressively shallower toward the southwest, helium concentrations increases from 166 ppm in the Yuanba gas field in the northeastern part of the basin to 503 ppm in the Moxi gas field, ultimately reaching a high enrichment of 2,475 ppm in the Weiyuan gas field. Similarly, in the NW-SE structural profile, helium concentrations also show a tendency to accumulate toward the Ziyang gas field, where they reach up to 1,158 ppm. In contrast, the gas fields in the West Depression and South Broom-Shaped Structural Belt re characterized by low helium concentrations. This trend is consistent with the accumulation patterns of oil and gas within the basin. However, in the southeastern region of the NW-SE structural profile, the presence of several steep-dip faults in the Qiongzhusi Formation being much flatter compared to the northwest region. This geological variation leads to a broader range of helium concentrations in the southeast, which are slightly higher than those in the northwest.

Figure 8
www.frontiersin.org

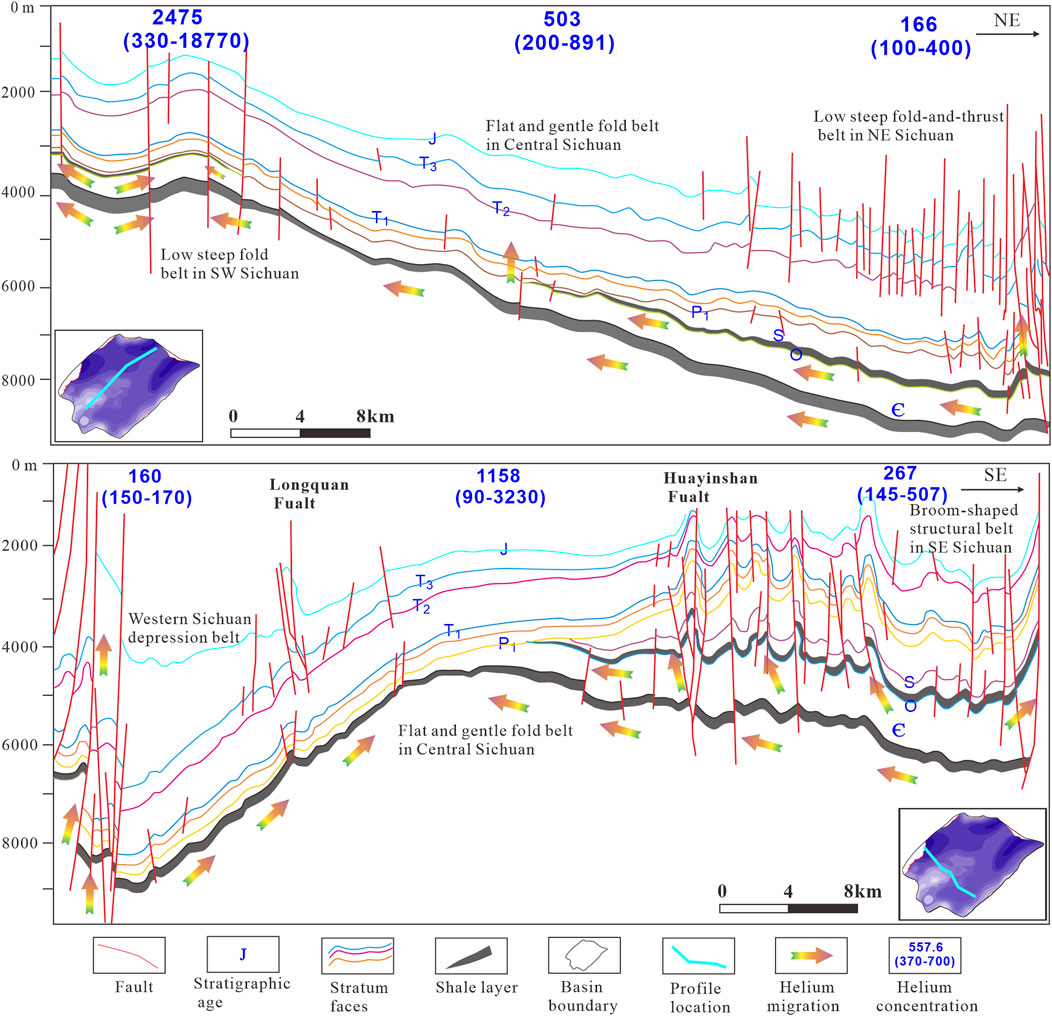

Figure 8. The structural profile in the NE and SE direction basing on the seismic tectonic interpretation and the wells. The distribution of sectional lines in the surface is showing in the Figure 1.

6.1.2 The coupling relationship between helium isotope and the shale layer

It is well established that Earth’s 3He is primordial, captured from the solar nebula during the planet’s formation (Tao et al., 2019). In contrast, 4He found in the Earth’s crust is predominantly radiogenic. As mentioned above, the helium in the Sichuan Basin is crust-derived, primarily originating from the Pre-Sinian granite. Therefore, in the absence of mantle-derived helium introduced via deep faults, the 3He/4He ratio in the Sichuan Basin would likely remain relatively uniform.

However, during migration, helium undergoes isotopic fractionation due to differences in the densities of its isotopes. Over long distances, this fractionation causes in an enrichment of the lighter isotope (3He) in the helium-rich gas fields. As shown in Figure 9A, the R/Ra ratio exhibits an increasing trend along the helium accumulation pathways in the north-south direction (from the Zhongba to Bajiaochang to Moxi to Weiyuan gas fields). Similarly, in the northeast-southeast direction (from Huangcaoba, Xiangguosi, Hechuan, Moxi to Weiyuan) (Figure 9B), the R/Ra ratio also increases along the helium accumulation paths. This indicates that helium becomes isotopically lighter in the direction of the fluid potential drop, a process clearly controlled by the Qiongzhusi shale.

Figure 9
www.frontiersin.org

Figure 9. (A) R/Ra ratios in the NS direction (Zhongba-Bajiaochang-Moxi-Weiyuan gas field), (B) In the NE-SE direction (Huangcaoba-Xiangguosi-Hechuan-Moxi-Weiyuan).

6.2 The influence of regional shale on the helium enrichment

6.2.1 Dilution of hydrocarbon generation

As mention above, the gas in Dengying Formation originated from the Qiongzhusi shale (Zhu, 2006). In the Weiyuan area, the helium concentration in the Dengying Formation ranges from 2040 to 18,770 ppm (average 3,330 ppm). This is significantly higher than the average helium concentration of 1,400 ppm in the Qiongzhusi shale, suggesting that helium is more favorably enriched in the gas reservoir than in its source rock. In contrast, in the Weiyuan shale gas field, helium concentrations in the Wufeng-Longmaxi shale range from 228 to 12,522 ppm (average 411 ppm), which is lower than in the Qiongzhusi shale. This indicates that helium is more favorably enriched in the deeper shale.

Based on solid bitumen in the Wufeng-Longmaxi shale, Tenger et al. (2020) estimated that the total volume of natural gas generated in situ ranges from 12.74 to 24.99 m³/t (average 19.93 m³/t). This suggests a hydrocarbon generation intensity of approximately 3,627.26 m³/m2, which is about 25,896.7 times greater than the helium generation intensity (Table 3). In comparison, rock physics simulations indicated that the total volume of natural gas generated in situ in the Qiongzhusi shale averages 57 m³/m2, Jiang et al. (2023), making the hydrocarbon generation intensity here is about 267.4 times greater than the helium generation intensity (Table 3). Moreover, since the Pre-Sinian granite has no hydrocarbon generation potential, meaning the dilution effect from hydrocarbon generation in the granite is almost negligible.

Therefore, the dilution effect of hydrocarbon generation is most pronounced in the Wufeng-Longmaxi shale, being approximately 96 times greater than that in the Qiongzhusi shale. This accounts for the lower helium concentration observed in the Wufeng-Longmaxi shale compared to the Qiongzhusi shale. Additionally, while the hydrocarbons in the Dengying Formation primarily originate from the Qiongzhusi shale, the helium mainly derived from the Pre-Sinian granite. The helium generation intensity in the Pre-Sinian granite is higher than in the Qiongzhusi shale, and the dilution effect from hydrocarbon generation is also weaker in the Pre-Sinian granite. As a result, the helium concentration in the Dengying Formation is exceeds that in its hydrocarbon source rock.

6.2.2 Helium exsolution with the uplift process

Previous studies proved that helium is least soluble in water at 30°C and pressures between 0.1 and 100 MPa (Abrosimov and Lebedeva, 2013; Li et al., 2017; Zhao et al., 2023b). At 30°C and 0.1 MPa, the solubility of helium in water is around 8.3 mL/L (8,300 ppm) (Abrosimov and Lebedeva, 2013), which is significantly higher than in air (5.24 ppm), natural gas (500–1,000 ppm) (Wang et al., 2020), and the commercially viable threshold in the USA (≥3,000 ppm) (Brennan et al., 2021). Below 30°C, helium solubility decreases with increasing temperature, while above 30°C, it increases, reaching about 9.8 mL/L (9,800 ppm) at 80°C- an 18% increase compared to its solubility at 30°C (Abrosimov and Lebedeva, 2013). Helium solubility in water rises significantly with increasing partial pressure, approximately tenfold from 0.1 to 10 MPa and ninefold from 10 to 100 MPa. At 80°C and 100 MPa, the helium solubility in water is about 8,376 mL/L (8,376,000 ppm) (Abrosimov and Lebedeva, 2013). Therefore, it is generally accepted that helium in deep layers is primarily dissolved in pore water (Li et al., 2017; Zhao et al., 2023a).

According to the burial history of well 202 in the Weiyuan gas field (Ge, 2019) (Figure 10), the Qiongzhusi shale reached the early mature stage of the oil window (Ro = 0.5%–0.7%) around 435 Ma. At this stage, biogenic gas was generated in the Qiongzhusi shale, facilitated the dissociation of helium from water at the gas-water interface, in accordance with Henry’s law (Li et al., 2017). In the aquifer, the buoyancy of helium bubbles is nearly 1,400 times greater than that in the gas layer, based on a water density of 1 kg/L, helium density of 0.125 g/L, and methane density of 0.716 g/L. The gas layer acts as a deceleration zone, slowing the vertical movement of gaseous helium. As a result, helium is more likely to accumulate in the shale gas layer. The estimated helium capture time for the Qiongzhusi shale is around 435 Ma.

Figure 10
www.frontiersin.org

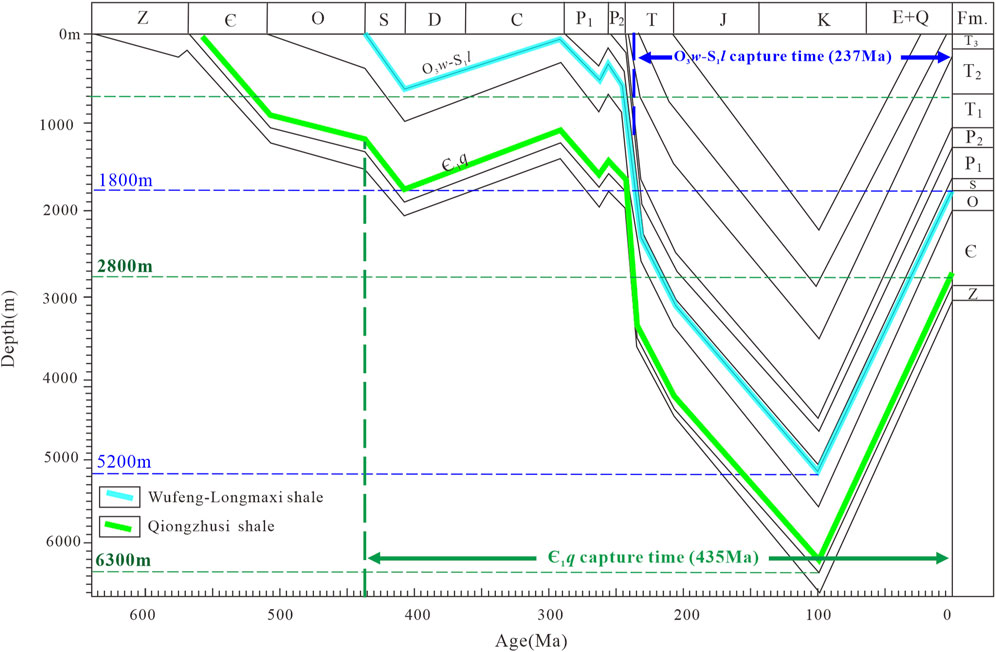

Figure 10. The burial history of Well 202 in the Weiyuan gas field modified from Ge (2019).

In contrast, the Wufeng-Longmaxi shale was uplifted to shallower layers by the late Carboniferous. During this uplift process, most of the helium dissolved in pore water likely escaped due to the decreased helium solubility as the strata rose. The Wufeng-Longmaxi shale reached early maturity (Ro = 0.5%–0.7%) around 237 Ma. Thus, the helium capture time for the Wufeng-Longmaxi shale is likely estimated at 237 Ma, significantly shorter than that of the Qiongzhusi shale. Consequently, the helium concentration in the aquifer beneath the Wufeng-Longmaxi shale is likely lower than in the aquifer beneath the Qiongzhusi shale.

Both the Qiongzhusi shale and Wufeng-Longmaxi shales reached their maximum burial depth during the mid-Cretaceous (approximately 100 Ma). Since then, both formations have been progressively uplifted to their current depths. The Qiongzhusi shale has been uplifted from 6,300 m to 2,800 m, leading to a reduction in hydrostatic pressure from 63 to 28 MPa, a decrease of about 35 MPa. Similarly, the Wufeng-Longmaxi shale has been uplifted from 5,200 to 1,800 m, with a corresponding pressure drop of approximately 34 MPa.

According to the Abrosimov and Lebedeva, 2013, helium solubility in water is linearly related to helium partial pressure at 80°C (R2 = 0.9977). Using linear interpolation, the helium solubility is estimated to be 5,499 mL/L at 63 MPa, 4,561 mL/L at 52 MPa, 2,513 mL/L at 28 MPa, and 1,660 mL/L at 18 MPa. This indicates that during the uplift process, helium solubility decreased by 2,985 mL/L in the Qiongzhusi shale and by 2,900 mL/L in the Wufeng-Longmaxi shale. This corresponds to a reduction in helium solubility in water by approximately 63.58% for the Wufeng-Longmaxi shale and 54.29% for the Qiongzhusi shale. These observations suggest that the uplift process facilitates the partial degassing of helium from pore water, allowing it to migrate into the gas phase.

At 80°C and 100 MPa, helium solubility in water is about 8,376 mL/L, which is 100 to 1,000,000 times greater than in natural gas (Abrosimov and Lebedeva, 2013). This high solubility makes water a significantly more efficient medium for transporting helium compared to. Additionally, deep faults often serve as pathways for fluids migrating from deeper to shallower layers. When these faults are intermittently open, deep-layer water can rapidly ascend to shallower depths. As the fluid pressure drops during this rapid ascent, a substantial amount of helium and hydrocarbons dissociate from the pore water, leading to t helium-rich gas at the surface. This phenomenon contributes to the observed occurrence of helium-rich gas at the wellheads of springs (Dai et al., 1994). For example, helium concentrations in associated gas at the hot spring wellhead in the Weihe Basin of Shanxi Province, China, can reach up to 9.23% (Jia et al., 2022).

In the Sichuan Basin, the distribution of helium-rich gas is closely linked to fault locations. Deep faults penetrating from deeper to shallower strata are found around the basin boundary, in the South Broom-Shaped Structural Belt, and in the East High and Steep Structural Zone (Figure 8). Helium from deep layers can migrate to shallower layers through these faults. Near the basin boundary, where there are no hydrocarbon traps, helium may escape to the atmosphere. However, in the South Broom-Shaped Structural Belt and East High and Steep Structural Zone, helium may be partially captured by gas reservoirs adjacent to these deep faults. The concentration of helium in these reservoirs varies, influenced not only by the spatial arrangement of faults and gas reservoirs, but also by other factors such as hydrocarbon dilution, helium source, and other geological characteristics.

In the Central flat and gentle fold belt, where few deep faults are observed (Figure 8), helium accumulation is primarily governed by the Qiongzhusi shale. In the deep layers beneath the Jinqiu gas field, a fault traverses the Qiongzhusi shale, potentially facilitating a pathway for some helium migration from beneath the shale to shallower traps. In contrast, in the Low Steep Fold-and-Thrust Belt, while many faults are observed in the shallow layers, they do not extend through the Qiongzhusi shale. As a result, helium migration to shallow layers is limited, and gas reservoirs in this region are characterized by lower helium concentrations.

6.3 The helium enrichment in central Sichuan basin

The relationship between helium-rich gas distribution and shale is typical in the central Sichuan Basin (Figure 11). In the Gaoshi-Moxi gas reservoir and Weiyuan gas reservoir, the reservoirs are interbedded with mudstone or shale layers. In the Gaoshi-Moxi gas reservoir, helium concentration decreases progressively upwards. In Member 2 of the Dengying Formation, helium concentrations range from 0.018% to 0.102%, while in Member 4, they range from 0.012% to 0.029%. Both are higher than the concentrations found in the Cambrian gas reservoir, which range from 0.005% to 0.008%. A similar pattern is observed in the Weiyuan gas reservoir, where helium concentrations are lowest in the Permian gas reservoirs.

Figure 11
www.frontiersin.org

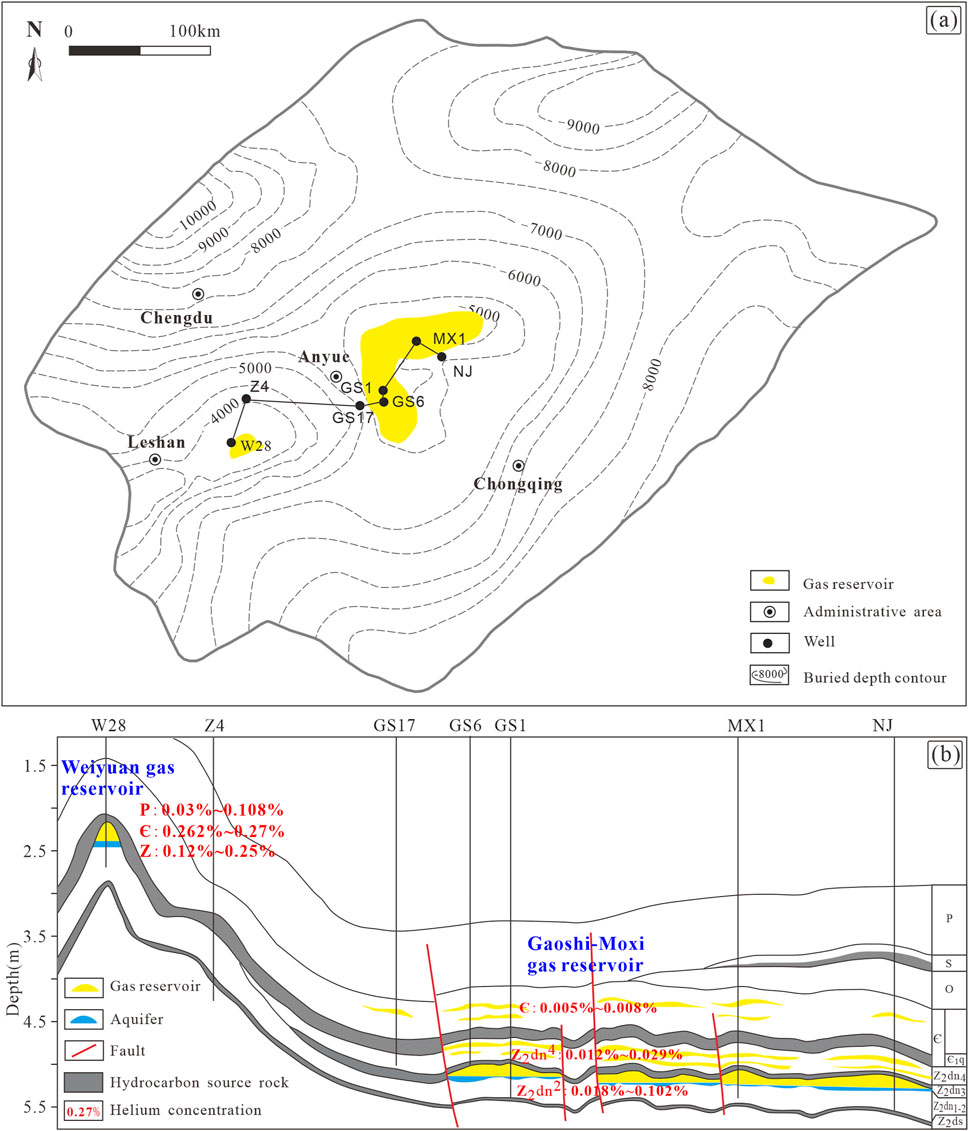

Figure 11. (A) The contour map of the Dengying Formation bottom and the distribution of the wells head, (B) the structural profile showing the distribution of gas reservoirs in the central Sichuan Basin, modified from Su et al. (2020).

Within a single gas formation, helium concentration tends to increase as burial depth decreases. For example, in the Dengying Formation, helium concentrations are only 0.012%–0.102% in the Gaoshi-Moxi gas reservoir but increase to 0.12%–0.25% in the Weiyuan gas reservoir. This pattern is consistent with the accumulation of hydrocarbons (Su et al., 2020) and is closely related to the solubility of helium in water. As shown in Figure 11, the burial depth of the Gaoshi-Moxi gas reservoir is about 2,500 m greater than that of the Weiyuan gas reservoir. Helium solubility in water increases significantly with increasing partial pressure, approximately ninefold from 10 to 100 MPa (Abrosimov and Lebedeva, 2013).

As fluids migrate from the Gaoshi-Moxi gas reservoir to the Weiyuan gas reservoir, the formation pressure decreases by more than 25 MPa, which lead to a notable drop in helium solubility in water. Consequently, some of the helium that was dissolved in the water is released and accumulated in the Weiyuan gas reservoirs. Regional shale layers facilitated the long-distance migration of helium alongside carrier gases. This migration help in partial offset the relatively low helium generation rates (liters produced annually per cubic kilometer of rock) (Li et al., 2017; Li et al., 2022), and contributing to systematic helium enrichment.

7 Conclusion

The helium distribution in the Sichuan Basin exhibits a typical enrichment trend from the basin margins toward the center, but within the Wufeng-Longmaxi shale gas fields, helium-rich and -poor layers are interbedded, suggesting that vertical diffusion is not solely controlled helium enrichment.

Natural gas samples across the basin have R/Ra ratios less than 0.1, while higher ratios in hot springs within the Longmenshan Fold Beltsugges that most helium is crust-derived, with only minor mantle contributions in the western depression. N2 concentrations are higher in gas reservoirs (0.02%–37.37%) compare to shale gas, with the lowest levels at the basin periphery, indicating the primary helium source is the granite basement.

The CO2/3He ratio decreases from 2 × 1011 to 2 × 108 in the East high and steep structure zone (Figure 1), indicating that deep faults facilitated helium migration to shallower layers. Helium accumulates with methane migration from the northern low-steep fold and thrust belt to the Weiyuan gas field. The absence of the Wufeng-Longmaxi shale in the central and western Sichuan Basin and its significant hydrocarbon generation compared to helium generation suggest its minimal impact on helium concentration. The Wufeng-Longmaxi shale is absent from central to western parts of the Sichuan Basin. Hydrocarbon generation intensity of this shale is about 3,627.26 m3/m2, which is 25,896.7 times bigger than its helium generation intensity (0.14 m3/m2). The dilution effect of hydrocarbon generation is significant in the Wufeng-Longmaxi shale. The helium capture time for this shale is about 237 Ma, which is short compare to the Qiongzhusi shale. No clear correlation is observed between helium concentration distribution and the presence of Wufeng-Longmaxi shale.

The Qiongzhusi shale, covering the entire Sichuan Basin, has a much lower dilution effect compared to the Wufeng-Longmaxi shale. The Pre-Sinian granite, underlying the Qiongzhusi Formation, is the main helium source rock with a longer helium capture time of about 435 Ma. Helium concentration in the Qiongzhusi shale increases with decreasing burial depth, and helium isotopic compositions become lighter with fluid potential drops, indicating that helium enrichment is largely controlled by the Qiongzhusi shale.

Post-burial uplift of about 3,400 m in the Weiyuan area has reduced helium solubility in water by 63.58% in the Wufeng-Longmaxi shale and 54.29% in the Qiongzhusi shale, facilitating helium degassing and migration into gas layers. Regional shale layers support long-distance helium migration, but faults can disrupt this process. The most promising exploration area for helium-rich gas is northeast of the Ziyang gas field, where shallow gas fields connected to deep angle faults through the Qiongzhusi shale are favorable for helium accumulation.
