Abstract
Dynamic evolution of hydrate filling and cementation effects significantly affects the mechanical behavior of gas hydrate-bearing sediments (GHBS). To analyze the strength and deformation characteristics of GHBS under varying effective confining pressures and hydrate saturations, we use the unified hardening model for clays and sands (CSUH model) as a framework. A compressive hardening parameter is introduced to describe the isotropic compression behavior. Additionally, cementation strength is incorporated to adjust the yield function, while state parameters are used to modify the potential strength. An elastoplastic constitutive model is developed to capture the strength, stiffness, dilatancy, and softening of GHBS. Based on the user-defined subroutine interface provided by ABAQUS and the modified Euler integral algorithm with error control, the user-defined subroutine (UMAT) is embedded in ABAQUS to implement the finite element model. Numerical solutions are obtained, and the accuracy of the model is verified by comparing theoretical solutions with experimental data, showing good agreement. The results demonstrate that the model accurately represents the stress-strain relations and shear dilatancy characteristics of GHBS under various conditions. Furthermore, the model effectively evaluates the mechanical responses of GHBS with different hydrate formation behaviors under various environmental loads. These findings provide a foundation for further engineering applications.
1 Introduction
Natural gas hydrates are extensively distributed in terrestrial permafrost regions, oceanic bottoms near continental margins, and deep-sea plains (). These hydrates are an important source of clean, efficient, and low-carbon fossil energy with vast reserves and high calorific value (). Marine gas hydrates that account for more than 95% of total hydrate resources () have enormous development potential and economic value. Trial production of hydrates has been carried out in countries such as the United States, Canada, Japan, and China, achieving several milestones in the industrialization process (). The monitoring results show that short-term trial production does not cause significant deformation of seabed strata (; ), but long-term production requires further examination of the potential destructiveness of reservoir deformation (; ). Therefore, fully clarifying the mechanism of soil deformation induced by hydrate decomposition and elucidating the deformation characteristics of gas hydrate-bearing sediments (GHBS) are of significant importance for the long-term safe and efficient exploitation of natural gas hydrates.
GHBS occurs in unsaturated, underconsolidated marine soils, exhibiting characteristics similar to loose soils or loose sand. It shares certain mechanical properties with conventional soils, such as high sensitivity (), high compressibility (), and high liquid and plastic limits (). However, the distinct phase transition properties of hydrates result in physical and mechanical characteristics of GHBS that differ from those of conventional soils, remolded soils, and conventional oil and gas reservoirs. Extensive research on the physical and mechanical properties of GHBS has been conducted through microscopic and macroscopic tests. It is indicated that hydrates tend to form in coarser sediment fractures () and gradually surround soil particles with increasing hydrate saturation (Sh) (). During depressurization, hydrates first decompose in sandy large pores, and the generated water moves to clay small pores and is converted to clay-bound water, causing changes in pore structure due to clay hydration expansion (). Hydrates affect the macroscopic mechanical properties of sediments primarily through filling and cementation effects. Depending on the geological environment, hydrates occur in various modes, such as pore-filling, grain-coating, and cementation (). The influence mechanisms of different hydrate occurrence modes on the macroscopic mechanical properties of sediments are not entirely identical (). However, the fundamental mechanism lies in the fact that the impact of hydrates on the macroscopic mechanical properties of sediments is primarily based on the individual effects of filling and cementation. The filling effect alters the compactness and interparticle friction properties of sediments (; ), affecting compressive hardening () and dilatancy (), while the cementation effect directly influences the strength and stiffness of sediments (). The classical constitutive models incorporate parameters like progressive damage () and strength degradation () to describe these features, leading to the development of various constitutive models for hydrate sediments, including non-linear elastic models (), critical state models (), and damage statistical models (; ). Additionally, due to the influence of hydrate formation and decomposition on the sediment pore connectivity and fluid distribution, multi-field coupling models such as the temperature-seepage-stress-saturation model (), the temperature-seepage-stress-saturation multi-field coupling model (), and the temperature-seepage-stress-chemical model (; ) have been established. These models provide a vital theoretical foundation for comprehensively understanding the complex characteristics of GHBS.
The established constitutive models enable the prediction of GHBS response characteristics under various conditions. Scholars have employed software such as TOUGH+Hydrate (), COMSOL (; ), TOUGH+MIXHYD (), and ABAQUS () to simulate processes such as depressurization mining, wellbore shear deformation, and hydraulic fracturing, which offers new theoretical insights into the optimization of hydrate extraction techniques and risk management. However, current studies often oversimplify the description of hydrate filling and cementation effects, face challenges in parameter determination, and involve complex computations with limited application in major commercial software.
In this paper, an elastoplastic constitutive model for GHBS is established to provide a more accurate theoretical foundation and computational results for the safe extraction of natural gas hydrates. First, the cementation strength is introduced into the unified hardening model for clay and sand (CSUH model) framework to describe its evolution law. State parameters are used to reflect the hydrate filling effect, adjusting the hardening behavior of GHBS, while cohesion strength is incorporated to describe the cementation effect, forming the basis of the elastoplastic constitutive model. Subsequently, the numerical integration algorithm of the model is developed, and a user-defined subroutine (UMAT) is implemented to integrate the model into the commercial finite element software ABAQUS. The accuracy and applicability of the model are validated by comparing theoretical solutions with experimental data. Finally, the comparison with experimental data confirms that the model effectively captures the hardening, softening, dilatancy, and contraction behaviors of GHBS, demonstrating its advantages in providing a more accurate theoretical basis for the safe extraction of natural gas hydrates.
2 Establishment of the constitutive model
2.1 Hardening of GHBS
The compressive hardening is the property of soil modulus to change with pressure during compression, which is essentially due to friction, sliding, and subsequent structural collapse between solid particles (). For soils containing exogenous components, significant changes in specific surface area and pore structure lead to variations in compressibility (). These microstructural changes further influence the compressibility of the soil, resulting in more complex mechanical responses. In the case of GHBS, during compression, the crushing and rearrangement of GHBS particles (; ) induce changes in the pore structure of the soil skeleton and specific surface area (). These microstructural alterations modify the compressibility of GHBS, causing its compression line in e-lnp space to deviate from an ideal linear form and exhibit a more complex curved characteristic, resembling the behavior of sand under specific conditions. The unified hardening model for clays and sands (CSUH model) introduced by incorporates a compressive hardening parameter, which is denoted as ps, to accurately depict the isotropic compression behavior of sands, clays, and structured soils. This model can also be used to characterize the compressive properties of GHBS ().
Based on these foundational studies, to comprehensively reflect the manifestation of micro-mechanisms in macroscopic compressibility, this study elucidates the normal consolidation line (NCL) expression for GHBS as expressed in Equations 1:where Z is the void ratio at an average normal stress of 1 kPa on the NCL, determining the NCL’s position in the e-lnp space; λ is the slope of the NCL’s asymptote; ps is the introduced compressive hardening parameter, indicating the curvature. When ps = 0, Equation 1 reverts to the conventional NCL expression for normally consolidated clay.
Hydrates alter the cementation degree and pore structure of sediments, thereby affecting the hardening property of GHBS (). The extent to which hydrates influence the hardening property of GHBS is closely related to the Sh. Depending on the storage form of hydrates (such as pore-filling, particle-coating, and cementing), ps can be expressed as a linear function of Sh () and an exponential relationship (; ), etc. To uniformly describe the compressibility of GHBS, this study assumes that ps and Sh satisfy a functional relationship:where ps0 is the compressibility parameter of sediments without hydrates; As and Bs reflect the degree of hydrate contribution to compressibility, which depend on hydrate morphology and are determined based on experimental data.
As the hydrostatic pressure increases from px0 to px, and by combining Equation 2 with the rebound properties of geotechnical materials, the expression for px is derived as:where is the plastic volume strain; cp= (λ-κ)/ (1 + e0), with κ being the slope of the overconsolidation compression line (OCL) in e-lnp space, and e0 is the initial void ratio.
2.2 Cementation characteristics of GHBS
Sandy soil exhibits a distinct critical state line (CSL). Given that the distance between the NCL and CSL is affected by the yield equation, the CSUH model employs the same yield surface equation as the modified Cambridge model, albeit with a modified expression for px. The yield equation is formulated as:
Laboratory experiments on GHBS indicate that its cementation strength should not be neglected (; ). Thus, this paper extends Equation 4 as:where pt represents the cementation strength of GHBS.
The cementation strength of GHBS is gradually decaying during the deformation process, accompanied by the rotation and slippage of skeleton particles and destruction of soil skeleton structure. With reference to the review of experimental test results of GHBS by , the initial cementation strength pt0 is formulated as an exponential relationship in Equations 6:where At and Bt are material constants characterizing cementation strength, describing the contribution of hydrates to the cementation strength of sediments, and are determined based on experimental data.
Referring to the research of , , and , it is assumed that the cementation strength pt decreases with increasing plastic shear strain, the pt and its increment dpt during shearing are given by:where a denotes the decay rate of cementation strength.
Substituting Equations 3, 7 into Equation 5 and employing as the compressive hardening parameter for yield surface. Within the CSUH model framework, the compressive hardening parameter is substituted with the unified hardening parameter H to characterize various soil properties. Consequently, the yield surface equation for the GHBS model is formulated in Equations 8:
2.3 Constitutive model of GHBS
The stress ratio η considering the dynamic cementation strength of GHBS is expressed in Equations 9:
The unified hardening parameter H is defined in Equations 10 based on :where Mf denotes the potential strength, indicating the strength variation of GHBS,where m represents the strength parameter; and ξ is the densification state parameter.
As illustrated in Figure 1, ξ represents the distance between the anisotropic compression line (ACL) and the critical state line (CSL), which is described in Equations 12:
FIGURE 1
The associated flow rule is adopted, and the dilation equation is expressed as:
2.4 Elastoplastic matrix
Based on elastoplastic theory, the elastoplastic matrix for GHBS is deduced in Equations 14:
Where the components are expressed as Equations 15:
with N in Equations 15 defined by Equations 16:where d corresponds to the dilation equation depicted in Equation 13; K and G are the bulk modulus and shear modulus, respectively, with K = E/[3 (1−2μ)] and G = E/[2 (1+μ)]; μ denotes poisson’s ratio; and Kp is the hardening modulus, which is expressed as:
3 Development and validation of the constitutive model
3.1 Modified euler integration algorithm process

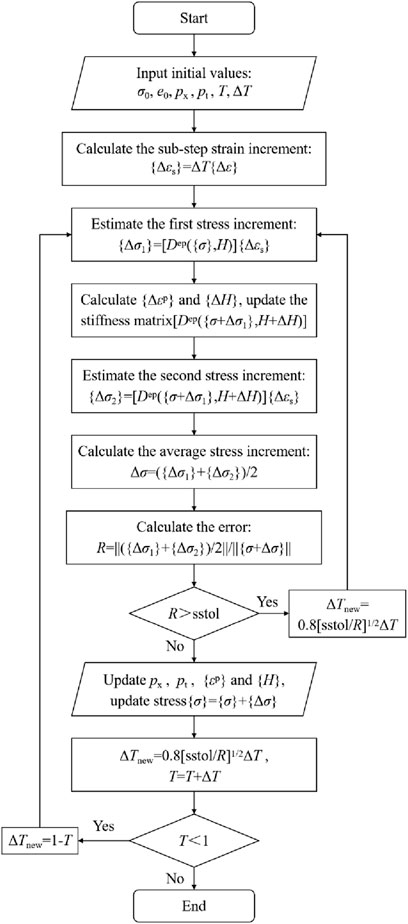

The numerical integration algorithm for constitutive model primarily consists of explicit and implicit integration methods. The explicit method is straightforward but lacks accuracy and computational efficiency. The implicit method performs better in terms of numerical stability, but requires the solution of implicit equations and has only first-order accuracy. To address these limitations,
introduced an enhanced Euler integration algorithm. This approach initially calculates an estimated value using the explicit Euler method, then calculates a corrected value using the implicit Euler method, and finally takes the average of two values as the final approximation. The difference between the estimated and corrected values is used to evaluate the error. If the error exceeds a predefined threshold, the step size is reduced; otherwise, it is increased. This strategy combines the simplicity of the explicit method with the stability of the implicit method. The UMAT subroutine for the constitutive model of GHBS is developed using modified Euler integration algorithm with error control. The computational procedure is as follows (see
Figure 2):
(1) Assume time T = 0 and time increment ΔT = 1, and determine the initial elastic stiffness matrix [De] based on the current stress under elastic loading.
(2) Determine the sub-step strain increment {Δεs} = ΔT{Δε}, perform the first stress increment estimation {Δσ1} = [Dep ({σ}, H)]{Δεs}, and calculate the plastic strain increment {Δεp} and the hardening parameter increment {ΔH}.
(3) Update the stiffness matrix [Dep ({σ+Δσ1}, H+ΔH)] based on the first estimated stress {σ+Δσ1}, and then calculate the second stress increment estimation {Δσ2} = [Dep ({σ+Δσ1}, H+ΔH)]{Δεs}.
(4) Calculate the average stress increment {Δσ} = ({Δσ1}+{Δσ2})/2.
(5) Calculate the error R = ||({Δσ1}+{Δσ2})/2||/||{σ+Δσ}||. If R > sstol, then reduce ΔTnew according to ΔTnew = 0.8 [sstol/R]^(1/2)ΔT and return to step (2). If R ≤ sstol, proceed to the next step.
(6) Update the stress {σ} = {σ}+{Δσ}, plastic strain increment {εp}, and hardening parameter {H}.
(7) Set T = T+ΔT. The time increment ΔTnew takes 0.8 [sstol/R]^ (1/2)ΔT. If T+ΔTnew > 1, then take ΔTnew = 1-T and return to step (2).
(8) When T = 1, the computation is completed, and the stiffness matrix, i.e., the Jacobian matrix, is updated.
FIGURE 2
3.2 Validation of the constitutive model
3.2.1 Parameter determination
The model constructed in this study includes 12 parameters, which can be categorized into two types, as follows:
(1) The first category consists of fundamental physical parameters, including λ, κ, Z, μ, M, and e0. Among them, λ and κ are fundamental parameters determined through isotropic compression (NCL) and unloading (OCL) tests; μ is the Poisson’s ratio; M is the critical state stress ratio; and e0 is the initial void ratio. These parameters are determined using the same method as the Modified Cam Clay model (MCC model).
(2) The second category includes characteristic parameters, where the hardening parameters ps0, As, and Bs are inverted based on Equation 2. The cementation parameters At and Bt can be calibrated by referring to the cohesion determination method of the Mohr-Coulomb model. The strength parameter m is determined according to Equation 11 by obtaining the state parameter at peak strength and deriving the mathematical relationship for m. For the cementation degradation rate a, since the cohesion degradation rate of GHBS under the same hydrate occurrence mode and shear rate is identical, only a single experimental result that closely matches the predicted results is required to determine the parameter a.
3.2.2 Model prediction
To validate the applicability of the model established in this paper, the analytical solution of the model and the numerical solution of a single element are compared with the laboratory experimental data of GHBS.
prepared GHBS samples with different Sh (Sh = 0, 27%–34%, 41%–45%) using Toyoura sand, with an initial porosity of 37.8% (corresponding to an initial void ratio of 0.6077). Triaxial shear tests were conducted at various effective confining pressures (σ3) of 0.5 MPa, 1 MPa, 2 MPa, and 3 MPa. The model developed in this paper is used for comparison, and the values of the model validation parameters are presented in Table 1.
TABLE 1
| Parameter | Value | Definition | |
|---|---|---|---|
| Miyazaki et al. | Hyodo et al. | ||
| λ | 0.08 | 0.146 | Slope of NCL line |
| κ | 0.01 | 0.0016 | Slope of OCL line |
| Z | 1.06 | 1.15 | Void ratio at p = 1 kPa |
| μ | 0.3 | 0.3 | Poisson’s ratio |
| M | 1.1 | 1.2 | Critical state stress ratio |
| e0 | 0.6077 | 0.67 | Initial void ratio |
| m | 2.43 | 3.71 | Dilatancy parameter |
| a | 209 | 0.6 | Decay rate of cementation strength |
| ps0 | 329 | 1.76 | Compressive hardening parameter of sediments without hydrate |
| As | 93.67 | 38.72 | Contribution degree of hydrate to compressibility |
| Bs | 0.47 | 0.95 | |
| At | 82.1 | 0.146 | Contribution degree of hydrate to cementation |
| Bt | 0.95 | 0.0016 | |
Model parameters.

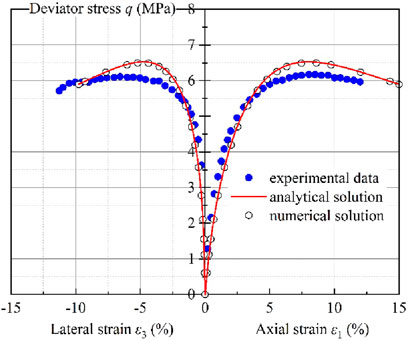

Figure 3 presents a comparison of experimental data, analytical solutions, and numerical solutions for sediments without hydrate (Sh = 0) under σ3 = 2 MPa. The analytical solutions are in good agreement with numerical solutions and agree well with the experimental data, indicating that the model accurately captures the strain hardening and softening behavior of sediments. This preliminary validation suggests that the model’s algorithm and programming are correctly implemented.
FIGURE 3

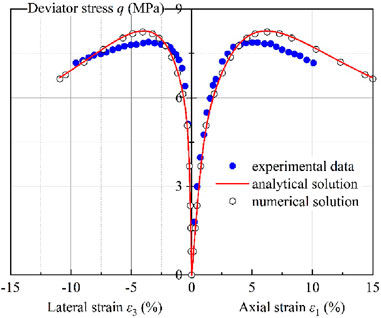

In the experiments on GHBS conducted by Miyazaki et al., the Sh of the samples ranged from 27% to 34% and from 41% to 45%. For simplicity, this study uses the average values of Sh = 30.5% and Sh = 43% for prediction and comparison. Figure 4 shows the comparison between experimental data (Sh = 27%–34%) and predicted data (Sh = 30.5%) at the same σ3 (2 MPa). The agreement between the analytical and numerical solutions further confirms the accuracy of UMAT subroutine. Compared with Figures 3, 4 exhibits more pronounced strain softening behavior, which is due to the fact that the hydrate changes the internal pore structure of sample and enhance the cementation strength of soil skeleton. This cementation strength decreases during shearing, resulting in more evident strain softening in GHBS.
FIGURE 4

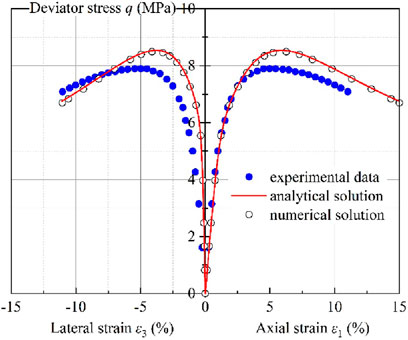

As observed in Figure 5, when the σ3 is fixed at 2 MPa, an increase in Sh further enhances the stiffness and strength of the GHBS. Both the initial stiffness and peak strength experience noticeable increases. Figure 5 also presents the analytical and numerical solutions, which are in high agreement but differ from the experimental data. This discrepancy is due to the fact that the actual experimental Sh values are between 41% and 45%, whereas the predictions use a fixed average value of Sh = 43%.
FIGURE 5
Figure 3–5 compare the experimental data, analytical solutions, and numerical solutions for GHBS with different Sh values under the same σ3 of 2 MPa. For sediments with the same Sh = 43%, the comparison curves of the results with effective confining pressures of 0.5 MPa, 1 MPa, and 3 MPa are illustrated in Figure 6–8, respectively.
FIGURE 6
FIGURE 7

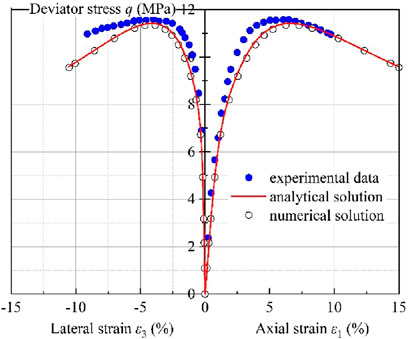

FIGURE 8

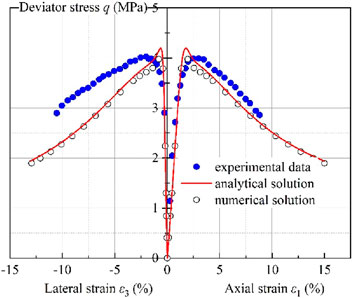

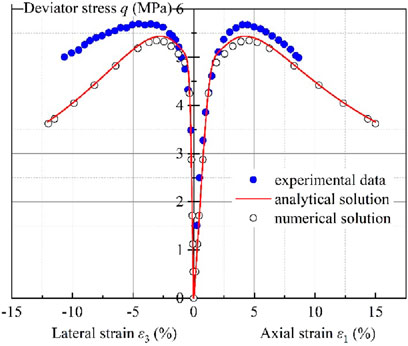

Figure 6 presents a comparison of the data at Sh = 43%. In the case of a lower σ3 of 0.5 MPa, the frictional strength between the particles is relatively small, the sample reaches the peak strength at smaller strains and experiences a rapid decline in strength. As depicted in Figure 7, as the σ3 increases to 1 MPa, the particle contact becomes denser, leading to an increase in the peak strength and its corresponding strain. As shown in Figure 8, the stress-strain curve becomes smoother as the σ3 further increase to 2 MPa, indicating that the larger the σ3, the more obvious the filling and cementation effects of hydrates. Figure 6–8 demonstrate that the analytical and numerical solutions are in agreement, and they exhibit good consistency with the experimental data, suggesting that the modified Euler integration algorithm with error control provides accurate and stable calculation results, validating the precision of the model and its algorithm.
To further validate the model’s applicability, comparisons are made with the laboratory experiments conducted by . They firstly prepared Toyoura sand samples with an initial void ratio of 0.67, and then produced samples with different Sh values. The shear test data for σ3 of 5 MPa and Sh values of 0, 24.2%, 35.1%, and 53.1% are presented in Figures 9, 10, respectively. The values of λ, κ, and M are given in a study by . Table 1 lists the parameters required for the model predictions in this study.

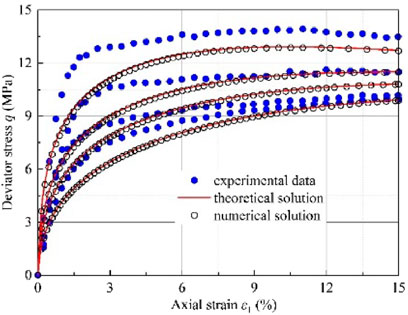

FIGURE 9
FIGURE 10
Observation of the experimental data, analytical solutions, and numerical solutions presented in Figure 9 reveals that the model accurately captures the stress-strain behaviors under varying Sh. As Sh increases, the peak deviatoric stress gradually increases while its corresponding strain decreases. The model accurately captures the key features of the experimental data, demonstrating its reliability and effectiveness in describing the mechanical behavior of GHBS.

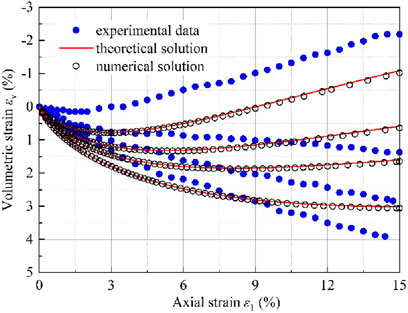

Figure 10 illustrates the prediction results of volume strain by the model, which match well with the experimental data, indicating a good match in the overall trend, despite some deviations. Furthermore, the model still demonstrates commendable computational accuracy and effectively captures characterize the deformation properties of GHBS at high Sh.
4 Conclusion
The application of the GHBS constitutive model in large commercial software is limited. This paper develops and establishes the GHBS constitutive model, investigating the mechanical characteristics of GHBS under varying hydrate saturations and confining pressures. The main work and conclusions are as follows:
(1) Using the CSUH model as a framework, an elastoplastic constitutive model for GHBS is developed. To account for the hydrate filling effect, a hardening parameter is introduced. Cementation strength is introduced to represent the cementation effect of hydrates. Additionally, state parameters are used to adjust potential strength, resulting in an elastoplastic constitutive model that considers both the hydrate filling and cementation effects.
(2) A modified Euler integration algorithm with error control is employed to program the UMAT subroutine for elastoplastic constitutive model. The subroutine is embedded in ABAQUS to compute numerical solutions for shear tests under various confining pressures and hydrate saturations.
(3) A comparative analysis of numerical simulations, experimental data, and theoretical solutions demonstrates that our model more comprehensively captures the effects of hydrate filling and cementation on sediment mechanical behavior. It also better accounts for complex mechanical properties, such as strength, stiffness, shear dilation, and softening.
For future research, we suggest optimizing algorithms and using hardware acceleration to reduce computational costs and improve the model’s practicality. Additionally, multi-field coupling effects (e.g., temperature-permeability-stress coupling) on GHBS should be considered, with further validation through field-scale experiments. These steps will enhance the application of the model in more complex geological conditions. Based on our current findings, these directions will contribute to a deeper understanding of GHBS.
