ORIGINAL RESEARCH article
Front. Earth Sci.
Sec. Earth and Planetary Materials
Volume 13 - 2025 | doi: 10.3389/feart.2025.1598049
Experimental Determination of HSS Model Parameters for Typical Zhengzhou Strata and Their Application in Shield Tunnel Construction
Provisionally accepted
- 1School of Civil Engineering, Zhengzhou University, Zhengzhou, China
- 2Zhengzhou Merto GroupCo.,Ltd., Zhengzhou, China
- 3Schoole of Civil Engineering, Zhengzhou University, Zhengzhou, China
- 4Shanghai Urban Construction Municipal Engineering(Group)Co.,Ltd., Shanghai, China
Select one of your emails
You have multiple emails registered with Frontiers:
Notify me on publication
Please enter your email address:
If you already have an account, please login
You don't have a Frontiers account ? You can register here

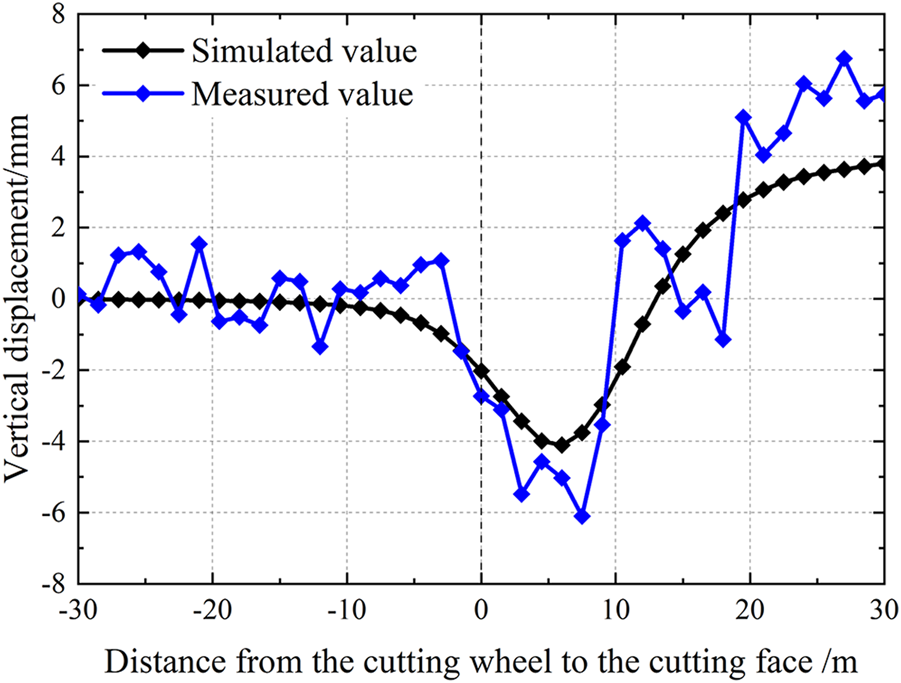

The hardening small strain (HSS) model can accurately capture the stress-related characteristics of soil during the small strain stage. This model has been widely used in calculating deformations for tunnels and excavations in sand and clay strata. However, research on the appropriate parameter values for silt remains insufficient. In this research, a series of laboratory tests were conducted to determine the parameters for the HSS model for strata typical of Zhengzhou. Subsequently, a threedimensional finite-element model was established based on the newly constructed Zhengzhou Metro Line 8 shield overpass the existing Line 2 to simulate the case of shield tunnel construction closely passing over an existing tunnel. To verify the applicability and accuracy of the HSS model, the simulation results were compared with actual measurement data. Based on the numerical simulation, a further analysis was conducted on surface settlement, stratified settlement of the strata, and the deformation of the existing tunnel during the construction. The results obtained using the HSS model were compared with the measured values, showing good agreement. This indicates that the HSS model is capable of effectively predicting deformation. The simulation results indicate that during the construction process, the strata first experienced settlement and then uplift. When the shield tail reached the monitoring section, the settlement of each stratum reached its maximum value. As the shield tail passed through the monitoring section, each stratum experienced a noticeable uplift. Additionally, the existing tunnel was primarily uplifted after the shield tail passed beyond it. Notably, the uplifting range and amount were greater at the tunnel's vault compared to the arch bottom. These findings provide a valuable reference for related shield passage projects in the Zhengzhou area and demonstrate the value of the HSS model parameters.
Keywords: HSS model, Tunnel engineering, Surface settlement, Existing tunnel, shield overpassing, Numerical calculation
Received: 22 Mar 2025; Accepted: 05 Jun 2025.
Copyright: © 2025 Pi, Zhang, Du and Zeng. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) or licensor are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
* Correspondence: Jingyao Zhang, School of Civil Engineering, Zhengzhou University, Zhengzhou, China
Disclaimer: All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
