Abstract
The analysis of chemical elements in the barks of trees is an alternative procedure to access spatial heterogeneity of traffic related air pollution. However, the role of tree species in the characterization of the variability of airborne pollution is poorly known. We present an observational study conducted in São Paulo, Brazil, based on the analysis of 498 trees from three common species: Tipuana tipu, Poincianella pluviosa, and Ligustrum sp. We considered ANCOVA models to compare the concentrations of Al, Fe, Zn, Cu, Mn, Ba, and S in the bark (periderm) of trees located close to streets with different levels of traffic intensity controlling for the extension of nearby green areas. The expected trend of increasing elemental concentration in the bark of trees located near streets with greater traffic intensity or close to smaller green areas was only fully evidenced by T. tipu. For instance, the concentrations of Zn, Fe, Al, and Ba increase by 200, 350, 230, and 280% respectively, for trees of this species located near arterial streets when compared to those observed near local streets. On the other hand, the concentrations of Zn, Fe, Al, and Ba are reduced by 41, 45, 50, and 30%, respectively, for trees located near green areas. For P. pluviosa, the capacity to suggest an association between the tree bark concentration of chemical elements with increasing levels of air pollution and presence of green areas was only fully observed for Zn and Cu. For Ligustrum sp., weaker and sometimes non-expected associations between bark concentrations of the chemical elements and either street classification or green area extension were observed. Our results indicate that the choice of species is a key element in the use of tree barks as a biomonitoring tool in urban landscapes. Species like T. tipu, with rough and highly porous bark, are the most appropriate for such purpose.
Introduction
Airborne pollution is a current problem in highly populated megacities such as São Paulo, Brazil, one of the largest in the world (World Urbanization Prospects, ). It has about 12 million inhabitants (IBGE, ) and a fleet of 8 million vehicles (DETRAN-State Department of Traffic of São Paulo, ) corresponding to almost 1 car for each 1.5 inhabitants. Currently, its citizens are exposed to an average annual concentration of 21.7 μg/m3 of PM2.5 (Cheng et al., ), mostly generated by vehicular traffic (Andrade et al., ). The characterization of spatial variability of airborne pollutant concentrations and source apportionment is a topic of major importance for studies designed to quantify their adverse effects on human health (Pope et al., ; Mauad et al., ; Pereira Filho et al., ; Baccarelli, ; Zanobetti et al., ; de Brito et al., ; Santos et al., ). The environmental heterogeneity observed within cities, including non-uniform distribution of traffic intensity and extension of green areas (Janhäll, ), demands high-resolution measurements of airborne pollution. Accessing the variability of air pollution in such complex urban environments requires a dense network of measuring devices, which are usually scarce in developing countries. In addition, many of the available monitoring sites only provide measurements of particulate matter concentration with no indication of the associated chemical composition.
As an alternative, biomonitoring methods are already used in many countries (Falla et al., ) to address variability of air pollution in large geographical areas (e.g., Kuik and Wolterbeek, ; Böhm et al., ). Tree barks have been recently used to evaluate a fine spatial distribution of chemical elements concentration (Guéguen et al., ; Ejidike and Onianwa, ), which increases with the levels of traffic intensity (Moreira et al., ). Such biomonitoring results may have an accuracy of 100 m (Carneiro et al., ). However, the complexity of air pollution in cities depends not only on its sources, but also on the filtering properties of green areas. Although generally neglected in biomonitoring studies, the presence and the size of green spaces are also important to understand and adequately characterize the dispersion and the concentration of air pollution. Several studies suggest that local air pollution is reduced by the presence of trees (Vailshery et al., ; Nowak et al., ; Janhäll, ; Jeanjean et al., ). Several factors are involved in the filtering and dispersion of air pollution by the presence of trees (Selmi et al., ). The main interaction is the dry deposition which is the mechanism by which vegetation removes air pollutants from the troposphere in non-precipitation periods. It depends on the combination of pollutants (e.g., gaseous/particles), surfaces (e.g., size; roughness; chemical nature), and microclimate (e.g., wind speed and direction; temperature; solar radiation; air turbulence; Selmi et al., ).
Despite the recent advances stemming from tree bark studies (Catinon et al., ; Perelman et al., ; Guéguen et al., ; Moreira et al., ), identification of tree species with better capacity to record the fine spatial variability of air pollution is still poorly known and constitutes an important research topic. Bark morphology is subject to a high degree of interspecific variability (Yunus et al., ; Junikka, ) with potential to influence the species ability to record airborne element concentrations (Szczepaniak and Biziuk, ). This issue is of special concern because some species might better suit the biomonitoring role than others.
The objective of this observational study is to compare different trees species via the concentrations of chemical elements in their barks with respect to their potential to discriminate traffic generated air pollution, controlling for the presence of green areas. In particular, we focus our attention on Al, Fe, and Cu, that are related to re-suspension of road dust, on Ba, Cu, and Zn, that are related to brake and tire wear and on Mn and S, that are related to fossil fuel emissions as indicated in Liu et al. (), de Almeida Albuquerque et al. (), and Hetem and Andrade (). These specific emission sources were also identified in São Paulo in the study conducted by Moreira et al. (). We considered three tree species, Poincianella pluviosa (DC.) L.P. Queiroz (former Caesalpinia pluviosa), Tipuana tipu (Benth.) Kuntze, and Ligustrum sp. L., to quantify their abilities to record the fine spatial variability of air pollution. These species were chosen because they are widely distributed in São Paulo and have different external bark morphologies.
Methods
Study site and species
Samples of tree barks of the three selected species were collected in a large region of São Paulo (Figure 1), which includes areas under the influence of no green spaces to large urban parks. São Paulo has a tropical to subtropical climate with a well-defined dry season from June to August. Mean temperature is 20.7°C, and annual precipitation is 1,545 mm. Overall, the main wind direction is southeast with an average speed of 2.6 m/s (refer to the Supplementary Material for a climate diagram and wind rose, Figure S1). This heterogeneous region includes residential and commercial areas, but no industrial activities. The automotive fleet in São Paulo is composed by cars (78.9%), motorcycles (16.3%), trucks (1.6%) and buses (2.7%) (Companhia de Engenharia de Tráfego, ).

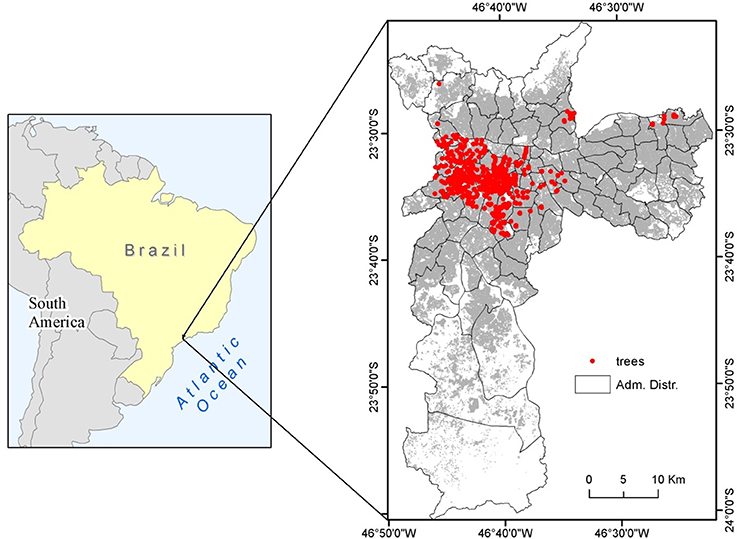

Figure 1
The distribution of the sampled trees is a consequence of the distinct density and heterogeneity of their location in each district of São Paulo; this explains the low number of trees selected in the eastern district. Both street trees and trees growing in parks were sampled in the vicinity of streets with different traffic intensities classified according to the city traffic authority (Companhia de Engenharia de Tráfego, ). This classification is based on street characteristics and on the importance of the traffic flow and consists of the following four categories in decreasing order of traffic intensity: Express, Arterial, Collector or Local. Given the existence of few trees located in the vicinity of Express streets, we combined the Express and Arterial categories. We also reclassified the trees originally placed near local streets into two groups: Local I, if their distances to streets with higher traffic intensity were <100 m and Local II, otherwise. We also classified the sampled trees according to the spatial proportion of green areas as: Inexistent/Very small (0–20% of green area cover), Small (20–40%), Medium (40–60%), and Dominant/Large (>60%) (Tarifa and Azevedo, ).
The sampled trees belong to the three most common tree species in São Paulo Tipuana tipu is an exotic species from Bolivia that was extensively planted in the middle of the twentieth century in São Paulo. It is also present in other Brazilian cities, as well as in other countries from South America (Breuste, ; Mazza et al., ; Teixeira, ), North America (Legumes, ), Africa (Kuruneri-Chitepo and Shackleton, ), Europe (Sashua-Bar et al., ; Soares et al., ), and Oceania (check the Supplementary Material for the map of species distribution based on herbaria records, GBIF, , Figures S2–S4). These trees are deciduous and they reach large sizes in São Paulo, with diameter at breast height (DBH) close to one meter and height of 20 m. Ligustrum sp. is also an exotic tree species from Asia, that is largely available in cities from different continents. These trees are usually smaller, with DBH up to 50 cm and height up to 15 m in São Paulo. Ligustrun sp. trees are evergreen in São Paulo. The only native species is Poincinella pluviosa, reaching DBH values up to 60 cm and height of up to 20 m.
Morphological characterization of the species bark
In order to support the discussion of the role of tree species in the results of biomonitoring studies using tree barks, we qualitatively characterized the external morphology of the studied species. Since the external bark morphology is a rather conservative characteristic (Junikka, ), we only evaluated major differences in bark macroscopic rugosity and microscopic cellular characteristics, not accounting for the effects of bark plasticity on the results. For this purpose, we selected similarly sized individuals of each species, with diameter at breast height (DBH) of about 30 cm, from which we collected 5 × 5 cm samples of the bark. These samples were analyzed by two different methods to qualitatively describe their macroscopic and microscopic bark characteristics. Rugosity was evaluated as the variation in surface depth. We used a stereomicroscope (Leica M205 FA) to create optical slices of the bark external surface and compute their depth profile (LAS software V 4.8) in three transects. These profiles represent the amplitude of variability of the surface depth. Then, we obtained a 5 × 5 mm sample to analyse the cellular characteristics of the bark surface using a scanning electron microscope (SEM, Zeiss Sigma VP). Before running the analysis, all samples were coated with gold to enhance contrast in the SEM images.
Bark sampling and preparation
The sample consisted of 498 trees (including 158 from Moreira et al., ) of which 193 trees were of the species T. tipu (38.9%), 228 trees were of the species P. pluviosa (45.6%) and 77 trees were of the species Ligustrum sp. (15.5%). Sampling occurred in the years of 2012, 2013, and 2014. The spatial distribution of the sampled trees according to species as well as to the different São Paulo districts is displayed in Figure 2. Sampling was conducted in the dry seasons (from June to August, when monthly precipitation is lower than 50 mm) in order to avoid rain washing and sample degradation by fungi. All tree barks were obtained with titanium tools to avoid contamination. From each selected tree, a portion of 8 × 8 cm of the periderm was collected from each quadrant of the trunk according to the cardinal points at a height of 1.5–2.0 m from the topsoil and these portions were pooled for analysis. The harvesting of bark in four sectors is a conservative approach to have a representative sample independently of the possible existence of a predominant wind direction or of other external factors that may create variations of environmental exposure along the trunk surface. Samples were placed in paper bags and stored in a cabinet under low humidity conditions until the analysis could be conducted. Information regarding tree geographical coordinates was also recorded.
Figure 2
The collected tree barks were first cleaned using a soft nylon dental brush to eliminate external materials such as dead insects, dust and lichens. The samples were obtained by grating the outermost 3 mm of the bark with a titanium tool (Wolterbeek and Bode, ). Each sample was then ground to powder using a vibratory micro-mill with agate mortar (Fritsch Pulverisette 0, Fritsch GmbH, Idar-Oberstein, DE). The powder was compressed by applying a pressure of 3.9 ton/cm2 to make a double layer pellet composed of 0.5 g of tree bark powder and 1 g of boric acid (H3BO3, p.a. ACS reagent).
Elemental analysis
The bark samples were submitted to an energy dispersive X-ray fluorescence spectrometer-EDXRF (EDX 700-HS, Shimadzu Corp., Kyoto, Japan). The pellets were irradiated with X-rays (source). The emitted fluorescent X-rays (secondary) have a unique wavelength and energy that characterizes each element contained in the sample. As the fluorescent X-ray intensity is a function of the concentration, quantitative analysis is performed by measuring the amount of X-rays of each element (Van Grieken and Markowicz, ). This technique was chosen due to its multi-element capability, sensitivity, easy sample preparation without sample digestion, accuracy of the results and analysis cost. The concentrations of Al, Fe, Zn, Cu, Mn, Ba, and S were recorded for having well-described sources in São Paulo (Moreira et al., ). These elements may be considered as proxies of the complex mixture generated by vehicular emissions. Although other elements were also measured via the EDXRF, their values were close to the limits of detection. The measurement parameters were: time (240 s), target (Rh, 5–50 kV _ 1–1,000 A) and Si (Li) detector in a vacuum atmosphere. The calibration curves were fitted via linear regression methods using specific parameters of the equipment to correct the matrix effects. A certified reference material [Peach Leaves #1547, National Institute of Standards and Technology (NIST), Gaithersburg, MD, USA] was also analyzed using the same procedure for quality control purposes (Table S1).
Statistical analysis
The distribution of elemental concentration was described via boxplots constructed by species, street classification and green area extension, as well as via tables with descriptive statistics. The association between element concentration in the tree barks and air pollution as measured via street classification, controlling for species, green area extension, diameter at breast height and sampling campaign was assessed by analysis of covariance (ANCOVA) models (Neter et al., ). Therefore, differences in the size of the trees and sampling campaign are accounted for with this model. An interaction term between species and street classification was included in the model to verify if the three species record different patterns of air pollution in their barks. Because residual analyses suggested coarse deviations from the usual Gaussian model assumptions, the data were reanalysed considering the logarithm of element concentration as response.
Non-significant (for α = 0.05) variables and interactions between variables were dropped from the initial model and predicted concentrations of the chemical elements for different street classifications by species and extension of green areas were computed via the final model equation. Bootstrap estimators of prediction standard errors (Efron, ) were considered. The model predicted values were used to compare the mean concentrations of the elements across streets with different traffic intensities for each species, controlling by the other factors. Detailed results are given for Zn in the main text because of space limitations, but all other results are presented in the Supplementary Material (Tables S3.1–S3.7).
Results
The three studied species have different external bark morphologies (Figure 3). Our qualitative analysis shows that Tipuana tipu has a relatively deeply furrowed bark consisting of a loose tissue where cells have their lumen exposed to the atmosphere. Not only the outermost layer of the cork has its lumen open to the outside environment, but it seems that this is also true for the lumen of few inner layers of cork cells. Neither P. pluviosa nor Ligustrum sp. have a striped bark like the former species, but they have different porosity characteristics. The analyzed portion of the bark of P. pluviosa is slightly more compact when compared to that of T. tipu. The cork cells of P. pluviosa are stacked and only the lumen of the outermost cells is exposed to the atmosphere. Cells of the bark of Ligustrum sp. are even more compactly arranged and their lumen is rarely exposed to the environment.
Figure 3
In general, the observed median concentration of Al, Fe, Zn, Cu, Mn, and Ba in the barks of T. tipu increased with their proximity to streets with higher traffic intensity, from Local II to Arterial (Figure 4). Only S did not show such a trend. In the barks of P. pluviosa, a similar pattern was observed for the median concentrations of Zn, Cu, and Ba. Ligustrum sp. was the only species for which the trends in the median tree bark concentrations were not as consistent as the trends observed for the other two species. For T. tipu, the median elemental concentrations of all elements but S tend to increase as the extension of nearby green areas extensions decrease from Dominant/Large to Very Small/Inexistent (Figure 5). For P. pluviosa the same pattern was observed for the median concentrations of all elements but S, Mn, and Ba. Such a trend was not detected for any element in the barks of Ligustrum sp.
Figure 4
Figure 5
Details on the distribution of the observed Zn concentration in T. tipu tree barks taking into account both street classification and the extension of green areas are shown in Table 1. Overall, the average and median values of Zn concentration decrease for trees located near Arterial to Local II categories, within each green area extension category. The highest values of the concentration of Zn are found in trees located near Arterial or Collector streets with Small to Inexistent green areas. On the other hand, the smallest values are found in the bark of trees located near Local II streets with Large to Dominant green areas. But these results do not take into account the possible role of other factors like tree size, differences of sampling campaigns, and driving conditions including speed and intensity of breaks use. These factors, however, were taken into account in the ANCOVA model to precisely define the variation of the elemental concentration attributed to traffic intensity and green area extension. The P-values corresponding to significance tests for the main effects and interaction terms of the ANCOVA models are displayed in Table 2. The interaction between species and street classification is significant for all elements. On the other hand, the effect of the sampling campaigns is significant for all elements but Zn, and DBH is only associated with the concentration of Cu, Mn and Ba. This result, along with an analysis of the boxplots, suggest different patterns of association between the element concentration and traffic intensity for the three species. In particular, T. tipu stands out as the species with the highest sensibility to changes in traffic intensity, followed by P. pluviosa. Ligustrum sp. is less sensible to changes in traffic intensity.
Table 1
| Green area classification | Street classification | N | Mean | Standard deviation | Minimum | Median | Maximum |
|---|---|---|---|---|---|---|---|
| Very small / Inexistent | Arterial | 20 | 208.3 | 95.3 | 50.9 | 201.7 | 482.2 |
| Collector | 6 | 124.2 | 53.9 | 43.5 | 134.5 | 196.1 | |
| Local I | 8 | 169.2 | 84.0 | 59.0 | 170.5 | 280.9 | |
| Local II | 2 | 120.2 | 121.9 | 34.0 | 120.2 | 206.4 | |
| Small | Arterial | 18 | 235.8 | 144.7 | 50.0 | 209.6 | 595.8 |
| Collector | 29 | 148.9 | 90.6 | 37.1 | 131.7 | 380.2 | |
| Local I | 10 | 134.2 | 81.9 | 46.7 | 118.4 | 297.7 | |
| Local II | 3 | 88.1 | 28.2 | 55.6 | 102.7 | 106.1 | |
| Medium | Arterial | 5 | 140.8 | 44.3 | 99.8 | 131.6 | 210.3 |
| Collector | 4 | 158.4 | 152.8 | 66.5 | 90.8 | 385.5 | |
| Local I | 7 | 117.1 | 50.0 | 22.1 | 135.4 | 170.9 | |
| Local II | 7 | 86.7 | 33.2 | 42.6 | 74.1 | 130.4 | |
| Dominant/Large | Arterial | 16 | 165.6 | 87.7 | 29.2 | 164.0 | 329.0 |
| Collector | 13 | 120.4 | 89.1 | 35.2 | 107.3 | 383.0 | |
| Local I | 23 | 57.0 | 39.3 | 20.1 | 42.5 | 182.3 | |
| Local II | 22 | 40.8 | 24.6 | 11.0 | 35.6 | 92.9 |
Descriptive statistics of Zn concentrations (mg kg−1) in the barks of Tipuana tipu according to green areas size and street classification.

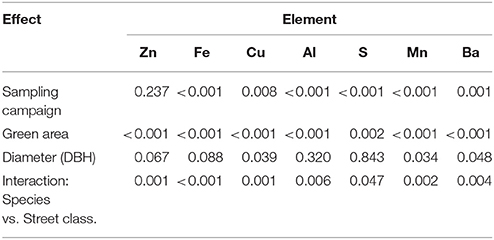

Table 2
| Effect | Element | ||||||
|---|---|---|---|---|---|---|---|
| Zn | Fe | Cu | Al | S | Mn | Ba | |
| Sampling campaign | 0.237 | <0.001 | 0.008 | <0.001 | <0.001 | <0.001 | 0.001 |
| Green area | <0.001 | <0.001 | <0.001 | <0.001 | 0.002 | <0.001 | <0.001 |
| Diameter (DBH) | 0.067 | 0.088 | 0.039 | 0.320 | 0.843 | 0.034 | 0.048 |
| Interaction: Species vs. Street class. | 0.001 | <0.001 | 0.001 | 0.006 | 0.047 | 0.002 | 0.004 |
P values for effects in analysis of covariance models.
The predicted mean concentrations of Zn from the ANCOVA models are shown in Table 3 (the predicted mean concentrations of Fe, Cu, S, Al, Mn, and Ba are available in the Tables S3.1–S3.6). These predicted means (adjusted for the mean DBH) were computed from the final model containing only significant effects. The results presented in Table 3 clearly show that the expected trend of decreasing mean element concentrations from streets with heavy traffic to local streets is more evident for T. tipu, corroborating the previous conclusions. In the bark of this species, the concentration of Zn increased by 200% from Local II to Arterial streets. On the other hand, it decreased by 41% from inexistent to large green areas. This trend is still present for P. pluviosa, in which the concentrations of Zn increased by 37% from Local II to Arterial streets, and decreased by 41% from inexistent to large green areas. Although the concentrations of Zn increased by 40% from Local II to Arterial streets, and decreases by 41% from inexistent to large green areas for Ligustrum sp., the prediction error is higher for this species.

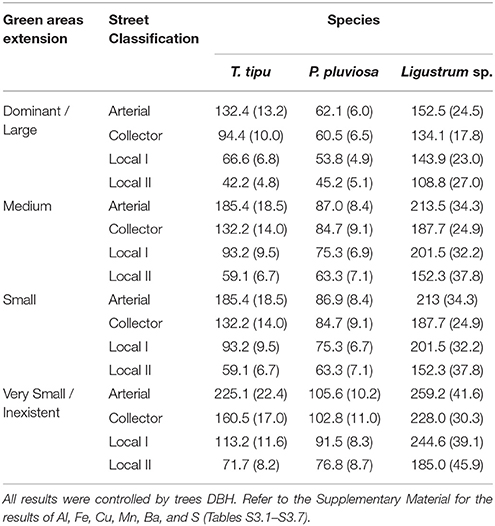

Table 3
| Green areas extension | Street Classification | Species | ||
|---|---|---|---|---|
| T. tipu | P. pluviosa | Ligustrum sp. | ||
| Dominant / Large | Arterial | 132.4 (13.2) | 62.1 (6.0) | 152.5 (24.5) |
| Collector | 94.4 (10.0) | 60.5 (6.5) | 134.1 (17.8) | |
| Local I | 66.6 (6.8) | 53.8 (4.9) | 143.9 (23.0) | |
| Local II | 42.2 (4.8) | 45.2 (5.1) | 108.8 (27.0) | |
| Medium | Arterial | 185.4 (18.5) | 87.0 (8.4) | 213.5 (34.3) |
| Collector | 132.2 (14.0) | 84.7 (9.1) | 187.7 (24.9) | |
| Local I | 93.2 (9.5) | 75.3 (6.9) | 201.5 (32.2) | |
| Local II | 59.1 (6.7) | 63.3 (7.1) | 152.3 (37.8) | |
| Small | Arterial | 185.4 (18.5) | 86.9 (8.4) | 213 (34.3) |
| Collector | 132.2 (14.0) | 84.7 (9.1) | 187.7 (24.9) | |
| Local I | 93.2 (9.5) | 75.3 (6.7) | 201.5 (32.2) | |
| Local II | 59.1 (6.7) | 63.3 (7.1) | 152.3 (37.8) | |
| Very Small / Inexistent | Arterial | 225.1 (22.4) | 105.6 (10.2) | 259.2 (41.6) |
| Collector | 160.5 (17.0) | 102.8 (11.0) | 228.0 (30.3) | |
| Local I | 113.2 (11.6) | 91.5 (8.3) | 244.6 (39.1) | |
| Local II | 71.7 (8.2) | 76.8 (8.7) | 185.0 (45.9) | |
Predicted Zn concentration means and standard errors (mg kg−1) based on the ANCOVA models.
The concentration of Fe is also strongly dependent on traffic intensity and green area extension as evidenced by T. tipu. In the bark of this species, the concentration of Fe increased by 350% from Local II to Arterial streets. On the other hand, it decreased by 45% from inexistent to large green areas. Aluminum is another element that showed relevant differences evidenced by the bark of T. tipu. The concentration of Al increased by 230% from Local II to Arterial streets, while it decreased by 50% from inexistent to large green areas. Such differences were also found for Ba, that increases by 280% from Local II to Arterial streets, while it decreases by 38% from inexistent to large green areas. Differences for Cu, Mn, and S are less evident, especially when analyzed in the barks of P. pluviosa and Ligustrum sp.
Discussion
Most urban agglomerations with more than 10 million inhabitants are currently found in developing countries (United Nations, ). These regions have high levels of urban air pollution (Baklanov et al., ) concentrating more than 80% of related deaths (Baklanov et al., ; WHO, ). In general, their urban landscapes are highly complex and the evaluation of the effect of air pollution on health outcomes must consider their inherent heterogeneity. Biomonitoring methods based on tree barks have been considered as an alternative and/or as a complement to field measurements (Falla et al., ) and to satellite image data (Van Donkelaar et al., ), which are highly cost restrictive specially for developing countries (Molina et al., ). We evaluate the role of tree species in low cost passive biomonitoring techniques designed to provide a higher spatial resolution of exposure to chemical elements composition required by environmental epidemiology (Pope et al., ; Bravo et al., ).
In this context, a higher element concentration is expected in trees located close to streets with high traffic intensity. This is especially true in São Paulo where most of the air pollution is generated by traffic (Moreira et al., ). Indeed, this is exactly the trend observed in the elemental concentration in the tree barks of this study. This trend is more evident for trees of the species T. tipu, as well as for few elements measured in P. pluviosa. Ligustrum sp., on the other hand, stands out as a species that is not reliable for biomonitoring studies based on tree barks. Element concentration in the barks of trees of this species does not discriminate between streets with different traffic intensities. These expected trends, which are usually higher in the barks of trees located in the vicinity of Arterial streets, were not observed for S in any species. Sulfur captured by tree barks in this study is mainly particulate and has a stronger interaction with tree surface (Yli-Pelkonen et al., ). The gaseous phase (SO2) is relatively negligible in São Paulo (Miranda et al., ). This odd trend is probably a result of the higher dispersion capability of S which is subject to long-range transportation (Masri et al., ).
In addition to traffic intensity, the presence of different extensions of green areas is also associated with the concentration of elements in tree barks. Indeed, air pollution is considerably lower in areas under the influence of vegetation, not only because of the filtering properties of leaves (Bolund and Hunhammar, ), but also because of the passive deposition on the surface of the plant body, aerodynamic dispersion properties of tree structure (Janhäll, ; Jeanjean et al., ) and higher wind speed and lower temperature (Kassomenos et al., ) in open green areas (Oliveira et al., ). Based on these properties, a decreasing element concentration in the tree barks along a gradient of increasing influence of green areas is expected. Once more, this is the trend observed with the barks of T. tipu for all studied elements but Mn and S. A similar result was found in the barks of P. pluviosa but not in the barks of Ligustrum sp. In fact, this species showed a rather unexpected result, with a higher concentration of elements in trees under the influence of medium sized green areas.
Our results point toward the importance of the choice of the appropriate species for biomonitoring studies based on tree barks. The biodiversity available in an urban environment like the one in São Paulo adds a complication to the problem of choosing the most appropriate species for this type of study (Falla et al., ). This choice must be based on the combination of spatial coverage and ability to distinguish between different levels of local air pollution. Geographic distribution is probably the main reason used for choosing a species (Böhm et al., ; Pacheco et al., ; Minganti et al., ). However, the effect of the interspecific morphology of barks on the results, although important (Sawidis et al., ), is generally poorly considered (e.g., Oliva and Mingorance, ) especially in studies whose goal is a fine characterization of urban air pollution.
Some species may not show differences in element concentrations where they actually exist or, even worse, may generate misleading results. The different abilities to detect spatial variability of air pollution seems to depend on the bark external morphology. In our study, the species specific bark morphologies ranged from a highly porous and rough bark on T. tipu to a rather smooth bark with low porosity on Ligustrum sp., while P. pluviosa shows intermediate bark characteristics. This gradient of qualitative features seems to be in accordance with the results of the ANCOVA model. However, a quantitative evaluation of the association between bark morphology and the ability to absorb the chemical elements under investigation was not the objective of the present study, and it is an interesting topic for further research. The lack of statistical significance of the results for Ligustrum sp. could be attributed to the smaller sample size, but there is no evidence that the results are biased by it. Providentially, T. tipu is an abundant tree species not only in cities of Brazil, but also in other cities including those in a few developing countries (Sashua-Bar et al., ; Kuruneri-Chitepo and Shackleton, ; Soares et al., ; Breuste, ; Mazza et al., ; Teixeira, ; Legumes, ). If local conditions do not influence the favorable characteristics of the external bark of this species, it may be used in biomonitoring studies in such localities. Similarly, to T. tipu, some Pinus spp. are usually regarded as good biomonitoring species because of their favorable bark characteristics (Oliva and Mingorance, ; Sawidis et al., ). These interspecific differences are clearly relevant when studying finer gradients of air pollution (Ejidike and Onianwa, ) like in our study.
Large-scale estimation or reconstruction of air pollution usually relies on remote sensing or land-use regression techniques. In both cases, the use of local data obtained from automatic stations and/or passive monitoring is required to validate and improve the simulations (Van Donkelaar et al., ). Air pollution data obtained from the analysis of element concentration in the bark of trees can be used as additional observational data in this context (Wolterbeek, ), either with a complementary role or even replacing traditional methods. The use of tree barks for biomonitoring purposes has few reported limitations. Despite the role of tree species, tree barks do not provide the temporal resolution required for acute exposure risk (Marć et al., ). Nonetheless, tree barks may be more suitable for studying long-term exposures (Catinon et al., ) usually related to chronic diseases. The specification of standard procedures (Marć et al., ) to account for the many sources of data noise, in addition to the choice of species, should be object of future research.
Conclusions
Tree barks are reliable biomonitors and this is the first study showing that they can be used to distinguish both traffic generated pollution and the filtering properties of green areas. Our results suggest that biomonitoring studies based on tree barks are strongly dependent on species. The choice of species with a rough and highly porous bark favors the discrimination of different levels of air pollution accounting for the complex landscape found within cities. Out of the studied species, T. tipu stands out as a reliable one for such studies. Fortunately, this species occurs in different cities around the world where they can be used in biomonitoring programs. The use of tree barks may complement or, whenever needed, replace local measurements used in studies based on satellite images or land-use regression.
Statements
Author contributions
TM, LA-L, GdS, CS, PdA, LB, JMS, PS, MS, and GL conceived the study. TM and LA-L sampled the trees and analyzed the chemical composition of the barks. GL analyzed the external bark morphology; GdS, CS, PdA, LB, and JMS analyzed the data. TM, LA-L, GdS, CS, PdA, LB, JMS, PS, MS, and GL contributed to the interpretation of the results. TM, LA-L, GdS, CS, PdA, LB, JMS, PS, MS, and GL wrote the manuscript.
Funding
Authors thank the São Paulo Research Foundation (FAPESP 13/21728-2) and Coordination for the Improvement of Higher Education Personnel (CAPES), from Brazil for financial support. The author TM is grateful for a fellowship from the Coordination for the Improvement of Higher Education Personnel (CAPES-1078178). LA-L is grateful for a fellowship from the São Paulo Research Foundation (FAPESP 2014/19201-9). GL is grateful for a fellowship from the São Paulo Research Foundation (FAPESP 2015/25511-3). JMS had partial financial support from Conselho Nacional de Desenvolvimento Científico e Tecnológico (CNPq-304126/2015). Authors also thank the valuable contribution of the reviewers.
Acknowledgments
The authors thank SVMA-SP for providing the permissions for sampling trees bark in the city.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fenvs.2018.00072/full#supplementary-material
