Abstract
Nano-sized particles are important components of the Earth biogeochemical system. However, in the Anthropocene, the human activities disturbed their natural cycle and increased their abundance by (i) affecting their emissions and releases; (ii) altering the environmental processes involving nanoparticles; and (iii) introducing anthropogenic nanoparticles (ANPs). Intentionally or unintentionally released, the occurrence of the anthropogenic particles in the environment is continuously rising. Both natural and anthropogenic nanoparticles are recognized as important carriers for trace elements and organic micropollutants and key modifiers of their transport, speciation, bioavailability, and effects in the environment. Nevertheless, currently they are considered separately, despite the necessity of more integrated, broader, and non-sectorial perspective taking together particles of different origins and various processes likely to generate and involve them. The present paper provides a perspective on the environmental processes involving anthropogenic and natural nanoparticles (NNPs) and discusses the role of human activities in nanoparticle cycling, as well as the necessity to bridge the divide between the NNPs and ANPs. The discussion will be supported by the examples of our own research to ask, if there is still a frontier between NNPs and ANPs?
Introduction
Nano-sized particles,1 naturally present in the Earth, move through different compartments (biosphere, lithosphere, atmosphere, and hydrosphere) within global biogeochemical cycle. They play an important, but not fully understood, role in the dynamics of the overall Earth system. However, human activities disturbed the cycle of natural nanoparticles (NNPs) by (i) affecting their emissions and releases; (ii) altering the environmental processes involving nanoparticles; and (iii) introducing anthropogenic nanoparticles (ANPs). Both incidentally released nanoparticles (INPs)2 and engineered nanoparticles (ENPs)3 form the pool of the ANPs. It is estimated that 1000s of Tg of NNPs, 1–10 Tg of INPs and less than 1 Tg of ENPs from different natural and anthropogenic sources co-exist and move annually between the Earth compartments (). Despite their small proportion of the total nano-sized particle mass, the amount of ENPs in the environmental compartments continues to increase with ever growing use of nano-enabled materials (). ENPs were recently considered within the frame of global anthropogenic cycling of elements, concluding that for elements such Ag, Al, Ce, Co, Cu, Fe, Ni, and Zn, ENPs had a minor impact on their cycling, whereas SiO2 ENPs represented 3–25% of mined Si (). However, such integrated Earth system approach has emerged only recently; NNPs and ANPs are thus in most cases considered separately. Only few examples can be found in the literature providing a comprehensive comparison of the behavior of NNPs and ENPs (; Wagner et al., 2014; ). Therefore, broader and integrated approach toward fate and impact of nano-sized particles in the environment would be useful for better understanding Earth systems biogeochemical dynamics. This requires considering nano-sized particles of different origins together with the various processes likely to generate and involve them.
Nanoparticle Cycling in the Environment

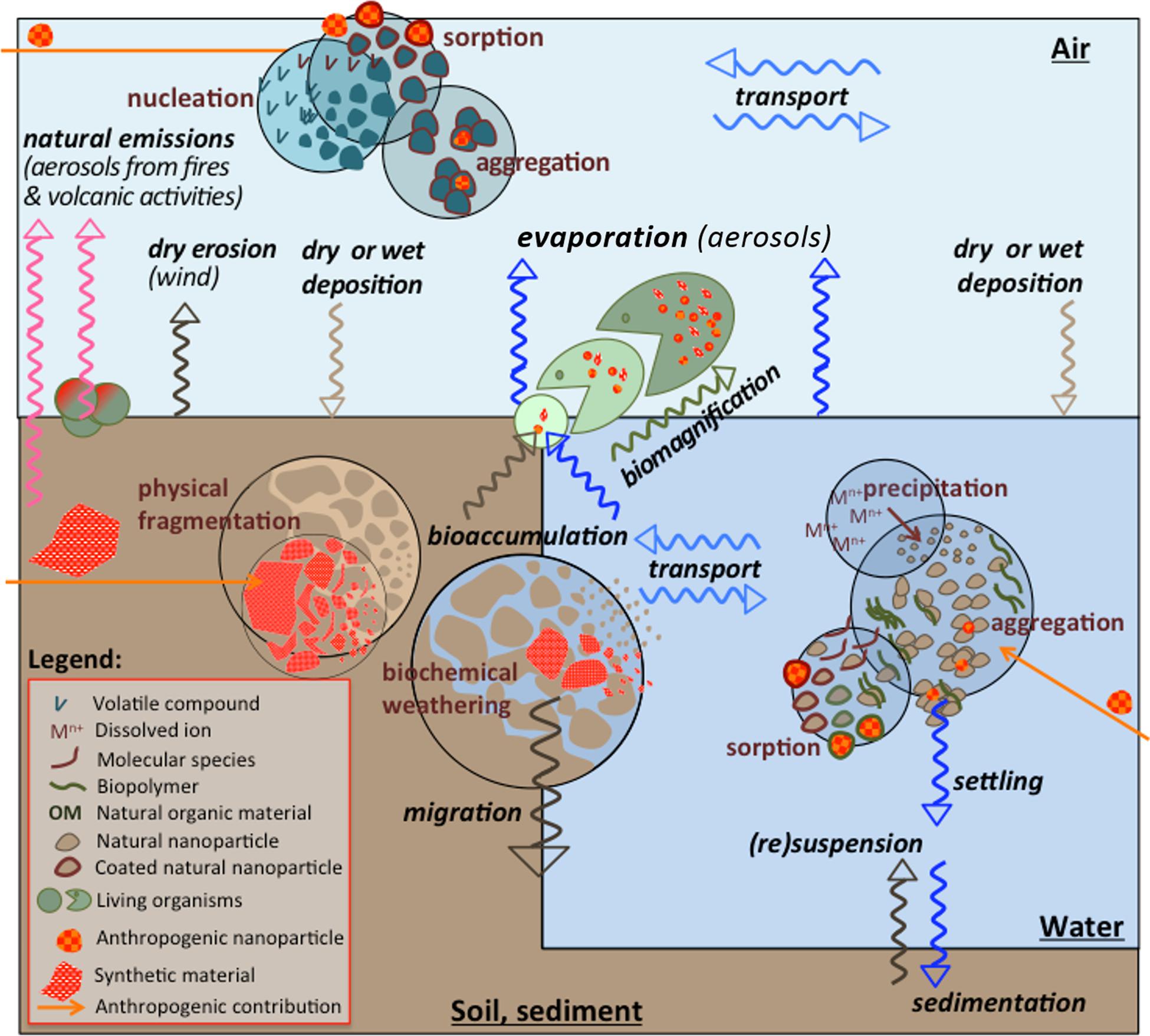

Natural nanoparticles are generated in different environmental compartments by various physical, chemical, and biological processes (Figure 1), such as (bio)chemical weathering of minerals, photo-oxidation, redox and precipitation reactions, (bio)mineralization, physical fragmentation, gas-solid nucleation in the atmosphere, etc. (). ANPs generation is a result of human-related activity or processes (e.g., combustion), due to the life cycle of products containing nanoparticles or accidental releases. Examples of such sources inherent for human activities include: (i) dust generation by various activities; typically mining, tillage, and demolition/construction. Atmospheric transport then constitutes a vector of long-distance transport (); (ii) atmospheric release and nucleation (); (iii) release of treated and untreated waste water (); and (iv) storage in an insufficiently confined area or spreading of sludge from sewage treatment plants (). Natural processes could also be responsible for the generation of the ANPs from different materials. For example, weathering of plastics could result in a formation of micro- and nano-plastics in waters and marine organisms (Ganesh Kumar et al., 2020; ).
FIGURE 1
Independently on their origin, the nano-sized particles interact with different abiotic and biotic components, via various interconnected processes leading to their transformation in the environmental compartments. Processes such as aggregation, sedimentation, biological accumulation, biomagnification, dissolution, chemical and physical alterations, etc., are common for both NNPs and ANPs (; Wagner et al., 2014; ). The nano-sized particles, regardless of their origin, participate in the same bio-physicochemical processes (Figure 1), which ultimate will determine their fate and impacts (, ). The fate and behavior of bare ENPs was similar to their natural counterparts with the same composition (; Wagner et al., 2014; ). Human activities also affect these processes by changing the surrounding physical and/or chemical conditions that govern them.
These processes depend on the multiple factors that can be grouped in three main categories intrinsic to: (i) nano-sized particles, including particle physicochemical speciation, size, shape, surface functionalization, etc.; (ii) environmental variables, including pH, water hardness, and alkalinity, presence and concentrations of different ligands from natural and anthropogenic origins, which may influence chemical and physicochemical speciation; and (iii) biological systems, including habitat, feeding pattern, etc. Abundant information on the environmental implications of ENPs can be found in recent review papers (; ; ; ; ).
It is out of the scope to provide a detailed overview on the fate and impact of the nano-sized materials in the environment. Hence, we make a parallel in some key properties and processes to consider toward bridging the gap between NNPs and ANPs.
Toward Bridging the Gap Between NNPS and ANPS
Whatever their origin, nano-sized particles are characterized by a greater fraction of atoms at the surface, which determine their enhanced surface energy and reactivity (). Purposely-made ENPs have controlled chemical composition, size, and properties. They therefore have less polydisperse character and some properties are enhanced as compared with NNPs. For example, due to their controlled surface structure and smaller sizes TiO2 ENPs have catalytic and redox properties that natural ones do not present (). In addition, the presence of persistent engineered coatings on the ENPs gives them properties which differ from the core material in terms of dissolution, stability and effects. Similarly to NNPs, the surface of ANPs is modified in the environmental and living systems, through the adsorption and desorption of organic and inorganic compounds of natural or anthropogenic origin. Such alterations can affect surface properties of nano-sized particles, hence their interactions with trace elements, organic micropollutants, colloids, surfaces, and biota (Wagner et al., 2014; Wang et al., 2015). Therefore, the pure synthetic identity of ENPs could also be questioned given their interactions with different naturally occurring compounds. The existence of “purely natural” NNPs is a source of interrogation insofar as the whole of the biosphere concerned by the processes of genesis and by materials/compounds qualified as natural are possibly affected by human activities. It would therefore be useful to consider that “altered” nano-sized particles involve both anthropogenic and natural components and thus would have more complex environmental fate and impact. Hereafter, we provide shortly two examples considering the interactions of the ANPs with naturally occurred compounds and of the NNPs with inorganic and organic pollutants.
Interaction of ANPs With Naturally Occurring Compounds
Interaction of ANPs with various naturally occurring compounds (e.g., humic acid, extracellular polymeric substances, peptides) results in a formation of eco-corona and gives them new surface properties (; ). This new “environmental identity” has a great influence on their fate by affecting their dissolution, aggregation/agglomeration, stability in the water column (; Wang et al., 2015; ), deposition to mineral surfaces (), attachment to biological surfaces and bioavailability (; ), and toxicity (; ). For example, natural organic matter was shown to reduce the toxicity of metallic nanoparticles to many organisms (Wang et al., 2016).
Similarly, in biological environment, ANPs interact with various biomolecules (e.g., proteins, peptides, DNA, RNA, lipids, etc.) and earn a new “biological identity” determining nanoparticle fate and effects within living organisms. For example, the antioxidant enzyme catalase formed a corona around AgNPs, and the released Ag together with AgNPs inhibited its enzymatic activity. However, AgNP–superoxide dismutase complex formation only slightly affected the protein conformation and had no impact on the enzymatic activity or AgNP dissolution (). It is currently accepted that the formed bio-corona represents “what the cell sees” (Walczyk et al., 2010). Hence, it plays a critical role in modulation of the biological reactivity and nano-sized particle induced responses in living organisms, which may be significantly distinct from the expected one exclusively driven by the primary ENPs synthetic identity.
Interaction of NNPs With Inorganic and Organic Pollutants
Due to their small size and large specific surface area, NNPs play a key role in the transport, speciation, and bioavailability, and thus the ultimate impact of trace elements (; Wilkinson and Lead, 2007; ), and organic micropollutants (). NNPs possess a near infinite array of possible compositions and sizes and include principally oxides and oxyhydroxides of iron, manganese, and aluminum and aluminosilicates; humic-like substances, various biopolymers synthesized and released by living organisms involving various proteins, nucleic acids, and polysaccharides (Wilkinson and Lead, 2007; ). Clear size dependence in a preferential binding of trace metals on NNPs was observed (Worms et al., 2010a, b). Following the adsorption of different inorganic and organic contaminants, the NNPs will acquire a new “anthropogenic identity,” which will have an important consequence for the pollutant availability and biological outcomes. For example, in the aquatic environment, NNPs reduce the bioavailability of the trace metals to various organisms, including bacteria, fungus, phytoplankton, daphnia, and fish, in direct proportion to the free metal ion concentrations (). NNPs could therefore play the role of Trojan horses for their associated pollutants and increase the trace metals bioavailability to filter feeders (e.g., clams, mussels, and oysters) (). Similarly, the adsorption of metallic pollutants on ENPs could result in their surface modification, which could change their properties and the way they interact with biota (; ).
Overall, despite the existing differences between NNPs and ANPs, similar properties and processes control their fate and effects in the environment. Therefore, process-oriented knowledge has a potential to lead to sound progress in the understanding the nano-sized particles dynamics in the multifaceted Earth (sub-) systems, and feedbacks with human activity.
Statements
Data availability statement
Publicly available datasets were analyzed in this study. Requests to access the data can be directed to gaetane.lespes@univ-pau.fr.
Author contributions
GL and VS took part in conceptualization, manuscript writing, and editing. SF drew the figure and took part in the manuscript writing. All authors read and agreed to the published version of the manuscript.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Footnotes
1.^Although still a question of debate, nano-sized particles definition used in the present paper involve any object (organic, inorganic, or organometallic) of nanometric size (or sub-micrometric size), which can be in dispersed form in a fluid (; ) and the small dimensions confer them peculiar physical and chemical properties that differ from larger objects made of the same material(s) (). Natural nanoparticle describes a sub-set of the colloidal phase.
2.^Incidental nanoparticles are produced as a result of any form of direct or indirect anthropogenic activity or process.
3.^Engineered nanoparticles are purposely designed and produced by humans. Usually defined as particles with a size between 1 and 100 nm ().
References
1
BaaloushaM.LeadJ.Ju-NamY.WildererP. (2011). Natural colloids and manufactured nanoparticles in aquatic and terrestrial systems.Treat. Water Sci.389–129. 10.1016/b978-0-444-53199-5.00053-1
2
BrarS. K.VermaM.TyagiR. D.SurampalliR. Y. (2010). Engineered nanoparticles in wastewater and wastewater sludge – Evidence and impacts.Waste Manag.30504–520. 10.1016/j.wasman.2009.10.012
3
ChinS.ParkE.KimM.BaeG.-N.JurngJ. (2011). Synthesis and photocatalytic activity of TiO2 nanoparticles prepared by chemical vapor condensation method with different precursor concentration and residence time.J. Coll. Interf. Sci.362470–476. 10.1016/j.jcis.2011.06.034
4
El HadriH.LespesG.CheryP.Potin-GautierM. (2016). Asymmetric flow-field flow fractionation-multidetection coupling for assessing colloidal copper in drain waters from a bordeaux wine-growing area.Anal. Bioanal. Chem.4061111–1119. 10.1007/s00216-013-7104-x
5
FaucherS.Le CoustumerP.LespesG. (2019). Nanoanalytics: history, concepts, and specificities.Environ. Sci. Pollut. Res.265267–5281. 10.1007/s11356-018-1646-6
6
Ganesh KumarA.AnjanaK.HindujaM.SujithaK.DharaniG. (2020). Review on plastic wastes in marine environment – Biodegradation and biotechnological solutions.Mar. Pollut. Bull.150:110733. 10.1016/j.marpolbul.2019.110733
7
GarnerK. L.KellerA. A. (2014). Emerging patterns for engineered nanomaterials in the environment: a review of fate and toxicity studies.J. Nanopart. Res.16:2503. 10.1007/s11051-014-2503-2
8
GarnerK. L.QinY.CucurachiS.SuhS.KellerA. A. (2018). Linking exposure and kinetic bioaccumulation models for metallic engineered nanomaterials in freshwater ecosystems.ACS Sustain. Chem. Eng.612684–12694. 10.1021/acssuschemeng.8b01691
9
GarnerK. L.SuhS.KellerA. A. (2017). Assessing the risk of engineered nanomaterials in the environment: development and application of the nanofate model.Environ. Sci. Technol.515541–5551. 10.1021/acs.est.6b05279
10
GigaultJ.GrasslB.LespesG. (2012). Size characterization of the associations between carbon nanotubes and humic acids in aqueous media by asymmetrical flow field-flow fractionation combined with multi-angle light scattering.Chemosphere86177–182. 10.1016/j.chemosphere.2011.10.009
11
HartlandA.FairchildI. J.LeadJ. R.ZhangH.BaaloushaM. (2011). Size, speciation and lability of NOM-metal complexes in hyperalkaline cave dripwater.Geochim. Cosmochim. Acta757533–7551. 10.1016/j.gca.2011.09.030
12
HochellaM. F.MogkD. W.RanvilleJ.AllenI. C.LutherG. W.MarrL. C.et al (2019). Natural, incidental, and engineered nanomaterials and their impacts on the Earth system.Science363:eaau8299. 10.1126/science.aau8299
13
IUPAC (2019). International Union of Pure and Applied Chemistry - Compendium of Chemical Terminology, Gold Book.Research Triangle Park, CA: IUPAC.
14
IvaskA.JugansonK.BondarenkoO.MortimerM.AruojaV.KasemetsK.et al (2014). Mechanisms of toxic action of Ag, ZnO and CuO nanoparticles to selected ecotoxicological test organisms and mammalian cells in vitro: a comparative review.Nanotoxicology857–71. 10.3109/17435390.2013.855831
15
JankovićN. Z.PlataD. L. (2019). Engineered nanomaterials in the context of global element cycles.Environ. Sci. Nano62697–2711. 10.1039/C9EN00322C
16
JoonasE.AruojaV.OlliK.KahruA. (2019). Environmental safety data on CuO and TiO2 nanoparticles for multiple algal species in natural water: filling the data gaps for risk assessment.Sci. Total Environ.647973–980. 10.1016/j.scitotenv.2018.07.446
17
JunY.-S.KimD.NeilC. W. (2016). Heterogeneous nucleation and growth of nanoparticles at environmental interfaces.Acc. Chem. Res.491681–1690. 10.1021/acs.accounts.6b00208
18
KellerA. A.LazarevaA. (2014). Predicted releases of engineered nanomaterials: from global to regional to local.Environ. Sci. Technol. Lett.165–70. 10.1021/ez400106t
19
KögelT.BjorøyØTotoB.BienfaitA. M.SandenM. (2020). Micro- and nanoplastic toxicity on aquatic life: determining factors.Sci. Total Environ.709:136050. 10.1016/j.scitotenv.2019.136050
20
LeadJ. R.BatleyG. E.AlvarezP. J. J.CroteauM. N.HandyR. D.McLaughlinM. J.et al (2018). Nanomaterials in the environment: behavior, fate, bioavailability, and effectsAn updated review.Environ. Toxicol. Chem.372029–2063. 10.1002/etc.4147
21
LeeS.-H.GordonH.YuH.LehtipaloK.HaleyR.LiY.et al (2019). New particle formation in the atmosphere: from molecular clusters to global climate.J. Geophys. Res. Atmos.1247098–7146. 10.1029/2018jd029356
22
LiM.LiuW.SlaveykovaV. I. (2020). Effects of mixtures of engineered nanoparticles and metallic pollutants on aquatic organisms.Environments7:27. 10.3390/environments7040027
23
LiuW.WormsI.SlaveykovaV. I. (2020). Interaction of silver nanoparticles with antioxidant enzymes.Environ. Sci. Nano10.1039/C9EN01284B
24
LouieS. M.TiltonR. D.LowryG. V. (2016). Critical review: impacts of macromolecular coatings on critical physicochemical processes controlling environmental fate of nanomaterials.Environ. Sci. Nano3283–310. 10.1039/C5EN00104H
25
LuomaS. N.RainbowP. S. (2005). Why is metal bioaccumulation so variable? Biodynamics as a unifying concept.Environ. Sci. Technol.391921–1931. 10.1021/es048947e
26
MauriceP. A.HochellaM. F. (2008). Chapter 5 nanoscale particles and processes: a new dimension in soil science.Adv. Agron.100123–153. 10.1016/s0065-2113(08)00605-6
27
MeierC.VoegelinA.Pradas del RealA.SarretG.MuellerC. R.KaegiR. (2016). Transformation of silver nanoparticles in sewage sludge during incineration.Environ. Sci. Technol.503503–3510. 10.1021/acs.est.5b04804
28
MortimerM.HoldenP. A. (2019). “Chapter 3 - fate of engineered nanomaterials in natural environments and impacts on ecosystems,” in Exposure to Engineered Nanomaterials in the Environment, edsMarmiroliN.WhiteJ. C.SongJ. (Amsterdam: Elsevier), 61–103. 10.1016/b978-0-12-814835-8.00003-0
29
NaaszS.AltenburgerR.KühnelD. (2018). Environmental mixtures of nanomaterials and chemicals: The Trojan-horse phenomenon and its relevance for ecotoxicity.Sci. Tot. Environ.6351170–1181. 10.1016/j.scitotenv.2018.04.180
30
Pulido-ReyesG.LeganesF.Fernández-PiñasF.RosalR. (2017). Bio-nano interface and environment: a critical review.Environ. Toxicol. Chem.363181–3193. 10.1002/etc.3924
31
SharmaV. K.FilipJ.ZborilR.VarmaR. S. (2015). Natural inorganic nanoparticles – formation, fate, and toxicity in the environment.Chem. Soc. Rev.448410–8423. 10.1039/C5CS00236B
32
SigmundG.JiangC.HofmannT.ChenW. (2018). Environmental transformation of natural and engineered carbon nanoparticles and implications for the fate of organic contaminants.Environ. Sci. Nano52500–2518. 10.1039/C8EN00676H
33
SlaveykovaV. I.LiM.WormsI. A.LiuW. (2020). When environmental chemistry meets ecotoxicology: bioavailability of inorganic nanoparticles to phytoplankton.CHIMIA74115–121. 10.2533/chimia.2020.115
34
SlaveykovaV. I.WilkinsonK. J. (2005). Predicting the bioavailability of metals and metal complexes: critical review of the biotic ligand model.Environ. Chem.29–24. 10.1071/en04076
35
von MoosN.BowenP.SlaveykovaV. I. (2014). Bioavailability of inorganic nanoparticles to planktonic bacteria and aquatic microalgae in freshwater.Environ. Sci. Nano1214–232. 10.1039/c3en00054k
36
von MoosN.SlaveykovaV. I. (2014). Oxidative stress induced by inorganic nanoparticles in bacteria and aquatic microalgae – state of the art and knowledge gaps.Nanotoxicology8605–630. 10.3109/17435390.2013.809810
37
WagnerS.GondikasA.NeubauerE.HofmannT.von der KammerF. (2014). Spot the difference: engineered and natural nanoparticles in the environment—release, behavior, and fate.Angewa. Chem. Intern. Edn.5312398–12419. 10.1002/anie.201405050
38
WalczykD.BombelliF. B.MonopoliM. P.LynchI.DawsonK. A. (2010). What the cell “sees” in bionanoscience.J. Am. Chem. Soc.1325761–5768. 10.1021/ja910675v
39
WangH.AdeleyeA. S.HuangY.LiF.KellerA. A. (2015). Heteroaggregation of nanoparticles with biocolloids and geocolloids.Adv. Coll. Interf. Sci.22624–36. 10.1016/j.cis.2015.07.002
40
WangZ.ZhangL.ZhaoJ.XingB. (2016). Environmental processes and toxicity of metallic nanoparticles in aquatic systems as affected by natural organic matter.Environ. Sci. Nano3240–255. 10.1039/C5EN00230C
41
WilkinsonK. J.LeadJ. R. (2007). Environmental Colloids and Particles. Behaviour, Separation and Characterisation.Chichester: John Wiley Sons, Ltd.
42
WormsI. A. M.SzigetiZ. A. G.DubascouxS.LespesG.TraberJ.SiggL.et al (2010a). Colloidal organic matter from wastewater treatment plant effluents: characterization and role in metal distribution.Water Res.44340–350. 10.1016/j.watres.2009.09.037
43
WormsI. A. M.TraberJ.KistlerD.SiggL.SlaveykovaV. I. (2010b). Uptake of Cd(II) and Pb(II) by microalgae in presence of colloidal organic matter from wastewater treatment plant effluents.Environ. Pollut.158369–374. 10.1016/j.envpol.2009.09.007
