Abstract
Introduction: Soil pollution directly impacts food quality and the lives of both humans and animals. The concentration of heavy metals in Egypt’s drain-side soils is rising, which is detrimental to the quality of the soil and crops. The key to reducing the detrimental effects on the ecosystem is having accurate maps of the spatial distribution of heavy metals and the subsequent use of environmentally sustainable remediation approaches. The objective of this work is to assess soil contamination utilizing spatial mapping of heavy metals, determine contamination levels using Principal Component Analysis (PCA), and calculate both the contamination severity and the potential for bioremediation in the soils surrounding the main drain of Bahr El-Baqar. Furthermore, evaluating the capacity of microorganisms (bacteria, fungi, and “Actinomycetes) to degrade heavy elements in the soil.
Methodology: 146 soil sample locations were randomly selected near the Bahr El-Baqar drain to examine the degree of soil pollution Ordinary Kriging (OK), method was used to map and analyze the spatial distribution of soil contamination by seven heavy metals (Cr, Fe, Zn, Cd, Pb, As, and Ni). Modified contamination degree (mCd) and PCA were used to assess the research area’s soil pollution levels. The process involved isolating, identifying, and classifying the microorganisms present in the soil of the study area. The study findings showed that variography suggested the Stable model effectively matched pH, SOM, and Cd values. Furthermore, the exponential model proved suitable for predicting Fe, Pb and Ni, while the spherical model was appropriate for Ni, Cr, and Zn.
Results: The study revealed three levels of contamination, with an extremely high degree (EHDC) affecting approximately 97.49% of the area. The EHDC exhibited average concentrations of heavy metals: 79.23 ± 17.81 for Cr, 20,014.08 ± 4545.91 for Fe, 201.31 ± 112.97 for Zn, 1.33 ± 1.37 for Cd, 40.96 ± 26.36 for Pb, 211.47 ± 13.96 for As, and 46.15 ± 9.72 for Ni. Isolation and identification of microorganisms showed a significant influence on the breakdown of both organic and inorganic pollutants in the environment. The study demonstrated exceptionally high removal efficiency for As and Cr, with a removal efficiency reached 100%, achieved by Rhizopus oryzae, Pseudomonas aeruginosa, and Bacillus thuringiensis.
Conclusion: This study has designated management zones for soil contamination by mapping soil pollutants, geo-identified them, and found potential microorganisms that could significantly reduce soil pollution levels.
1 Introduction
Soil plays a crucial role in supporting life on our planet. Approximately 95% of the world’s food supply is generated from soil, which also offers additional benefits such as biomass production, safeguarding natural resources, and conserving biodiversity (). The processes of soil degradation, because of industrial and agricultural activities, along with increasing urbanization, lead to a decline in soil functions and ecosystem services (; ). The heavy metals, such as Zn, Fe, Cu, Mo, and Mn, play essential roles in trace amounts for plants, animals, and microbes. However, an excessive concentration of heavy metals beyond the necessary minimum levels can be considered toxic and harmful to life, even though some are not required by plants. For instance, mercury (Hg), cadmium (Cd), and lead (Pb) are heavy metals that are not essential for living organisms. Therefore, the presence of these heavy metals can disrupt the life cycles of organisms (). Recent research indicates that toxic metal contamination is a significant issue that affects both rural and urban areas, having detrimental effects on ecosystem and environmental sustainability (). Soil contamination is a major global problem that endangers both human health and ecological health (). Over the past two decades, Egypt’s soils have been subjected to rising levels of soil contamination, which has reduced soil productivity and quality (; ). Potentially toxic metals (PTMs) are harmful pollutants because they can cause death, and bio-accumulation, and are not easily degradable (). Pollution has an adverse effect on plants and soils, which makes it extremely dangerous for food security. This immediately eliminates the beneficial bacteria in the soil, lowers the amount of organic matter in the soil, makes the soil unusable for agriculture, and causes an imbalance in soil nutrients impacts plant growth and the way plants interact with microorganisms, which in turn impacts the soil’s quality and crop yield (). Inhibiting enzyme activity, competing with necessary cations, and creating oxidative stress are only a few of the ways that an excess of PTMs stresses the soil biota (). Consequently, the entire life cycle of the plant, From the initial stage of seed germination to reaching maturity, the process is negatively impacted, resulting in decreased crop yields and compromised quality (). Numerous food, feed, and forage plants, often referred to as hyperaccumulators, exhibit strong resistance to metal stress and can absorb excessive potentially toxic metals (PTMs), subsequently transporting them to their above-ground parts (; ). The main source of soil pollutants is anthropogenic activity. According to (; ), Both organic and inorganic contaminants can move to the soil components through various pathways, such as the application of fertilizers and pesticides, inadequate wastewater disposal, the usage of plastics, as well as the combustion of fossil fuels. Remediation is very difficult and expensive after these pollutants have gotten into the soil matrix. Additionally, through the food chain, they can offer serious health hazards. Analyzing the spatial distribution of PTM concentration is the first step in improving soil pollution assessment (). This approach identifies contaminated regions and is a crucial step in risk management (). This has prompted the utilization of Geographic Information Systems (GIS) for the spatial distribution of potentially toxic metals (PTMs) in numerous soils all over the world (; ; ). Kriging is a potent geo-statistical technique during the examination of soil property spatial distribution and the integration of data into raster maps through spatial interpolation. To determine the spatial structure of soil variables, variograms and related metrics (nugget, sill, and range) are essentially used (; ). This technique’s fundamental application, ordinary kriging (OK), offers an accurate and optimal forecast (). By using a variety of variograms, OK replicates spatial variability and provides a range of map outputs while reducing the variation of prediction errors (). Numerous studies have been done so far to address the issue of soil contamination by creating workable risk assessment and remediation techniques. To solve this issue, researchers have investigated both biological and non-biological strategies. Various methods, including physical, chemical, and biological approaches, are available According to (), physical approaches include physically removing, washing, encapsulating, and electro-kinetically extracting contaminants from soil. To immobilize and lower the bioavailability of contaminants, chemical techniques such as soil precipitation and solidification are used (). To eliminate or change pollutants into less hazardous species, biological techniques use plants and microorganisms. Because they may reduce pollutants without creating secondary contaminants and are more cost-effective than physical measures, biological solutions are regarded as the most promising of these strategies (). Bioaugmentation is a well-established method for remediating heavy metal contamination in the environment. It involves introducing native and external microorganisms capable of with-standing and mitigating the toxic effects of heavy metals (; ). Micro-organisms native to the contaminated soil are isolated and then re-introduced into the same contaminated soil (). Fungi have emerged as a highly effective option for remedying heavy metal contamination due to their substantial biomass and adsorption capabilities. Additionally, they produce various extracellular metabolites, such as proteins and enzymes, and their biomass can serve as a valuable natural resource for treating industrial effluents (). Fungi contribute to the cleanup of heavy metal-contaminated environments through both metabolically active mechanisms like biomineralization, biotransformation, bioprecipitation, and bioaccumulation, as well as metabolically passive mechanisms such as biosorption (; ). observed that inoculation with an indigenous mycorrhizal fungus (Funneliformis geosporum) enhances soil quality and increases wheat yields, even in the presence of high concentrations of Zn, by reducing zinc accumulation in wheat plants. On the other hand, exogenous microorganisms are collected from locations external to the contaminated areas and introduced into the targeted contaminated area (). Various processes used for remediating heavy metals with the help of microbes include biosorption, bioaccumulation, bio-chelation, bio-digestion, biomineralization, and biotransformation as described by (). The selection of microorganisms depends on two main criteria: their ability to degrade the targeted pollutants and their capacity to endure and flourish in various environments. Microorganisms such as bacteria, fungi, yeast, actinomycetes, and algae exhibit resilience and adaptability across a wide range of conditions, allowing them to effectively eliminate heavy metals from polluted areas. This capability primarily arises from the composition of microbial cell walls, which consist of polysaccharides, lipids, and proteins. These components play a crucial role in binding metal ions through carboxylate, hydroxyl, amino, and phosphate groups, leading to the creation of non-toxic complex compounds according to (; ; ; ). According to (), Candida spherica has been identified as a producer of biosurfactants that exhibit high removal efficiencies, with removal rates of 95%, 90%, and 79% for iron (Fe), zinc (Zn), and lead (Pb), respectively. Furthermore, it has been discovered that C (). Vulgaris biomass serves as an exceptionally effective biosorbent for the removal of cadmium (Cd2+), copper (Cu2+), and lead (Pb2+) from a mixed solution containing 50 mg dm−3 of each metal ion. The removal efficiencies for these metals are notably high, reaching 95.5%, 97.7%, and 99.4%, respectively ().
This research aims to generate a spatial distribution of soil heavy metals and determine contamination levels, in the soils surrounding Bahr El-Baqar drain. Additionally, discover novel enzymatic biodegrading agents produced by various microorganisms, which have the potential to extract heavy metals from the soil.
2 Materials and methods
2.1 Description of the research location

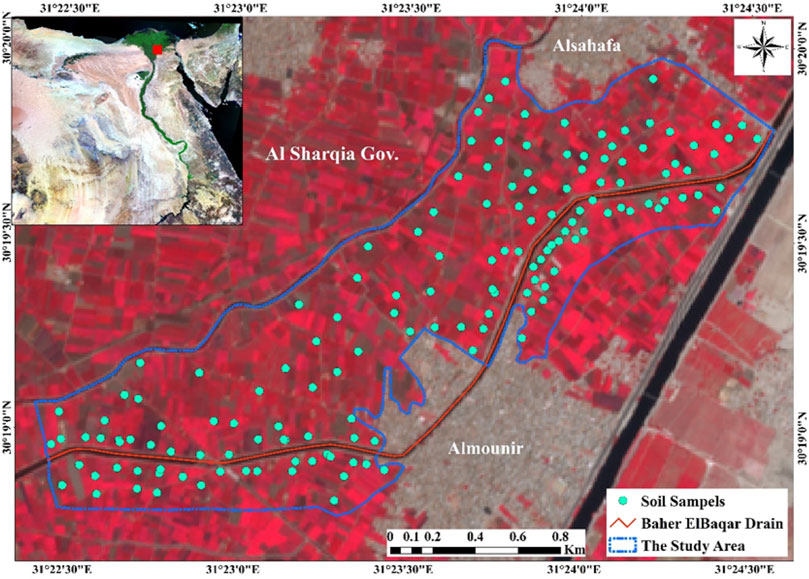

The investigated area is located south Al-shrkia Governorate adjacent Bahr El-Baqar’s drain. The drain collects the wastewater from Sharqia Governorate’s Belbeis and Qalubiya minor drains. El-Baqar’s main drain. Figure 1, showed latitudes 30° 18′47.05″ N to 30° 20′0.64″ N, and longitudes 31° 22′25.03″ E to 31° 24′35.84″ E. The area covers 294.67 ha. Two primary sources of irrigation are employed: water from the Bahr al-Baqar drain and groundwater. As for the soil in this region, it is primarily characterized by clay to sandy texture. The crop patterns in the region varied between wheat and clover, as well as tomatoes, strawberries, and peas. Sentinel-2A satellite data from October 2022 included a high-resolution image used to show the location of the study area.
FIGURE 1
2.2 Collecting of samples and lab analysis
Several 146 soil sample locations were randomly selected near the Bahr El-Baqar drain (Figure 1) to examine the degree of soil pollution. GPS has been used to keep track of each location’s coordinates. This involved grinding the samples, air-drying them, and sieving them through a 2 mm. Subsequently, the samples were subjected to analysis for electrical conductivity (EC) in soil paste extracts, pH levels, and soil organic matter (SOM). To assess the concentrations of Cr, Fe, Zn, Cd, Pb, As, and Ni, the samples, the entire quantities of these metals were extracted according to the guidelines provided by the United States Environmental Protection Agency (USEPA). This extraction process, known as Method 3052, entails acid digestion with microwave assistance, utilizing concentrated HNO3, HF, and HCl. The metal concentrations were determined using Inductively Coupled Plasma Optical Emission Spectroscopy (Thermo ICP-MS type iCAP-RQ), and each measurement was conducted three times.
2.3 Statistical analysis
The application of PCA aids in the identification of pollution sources. The statistical software package SPSS 28.0 is utilized to determine the existence of variance explained by each significant component and the number of significant factors by extracting their eigenvalues from the correlation matrix. Before conducting Principal Component Analysis (PCA), the Kaiser-Meyer-Olkin (KMO) test was employed to assess the sample’s suitability for each variable (). The resulting z-scores were subjected to Pearson’s correlation to investigate metal correlations in soils. The Kaiser-Meyer-Olkin measure of sample adequacy, Bartlett’s test of sphericity, Varimax rotation, and principal component (PC) approach were used in the factor analysis of the correlation matrix to find possible metal sources. Absolute loading values greater than 0.75 were considered highly significant, values between 0.75 and 0.5 indicated a moderate association, and values falling in the range of 0.49 to 0.30 suggested a weak association with the principal component and the PCs with eigenvalues >1.0 were the only ones taken into consideration ().
2.4 Kriging interpolation for studied variables
Utilizing the Kriging interpolation method, geostatistical studies were completed in ArcGIS 10.4 (36). The following semi-variogram models were employed with ordinary kriging (OK) (Eq. 1):
Where, (h) (h) represents the semivariance at a specified lag distance “h,” “N(h)” signifies the count of sample pairs at that particular lag distance, “Z (X_α)” denotes the value at a specific sample site, and “Z (X_α+h)” signifies the value at a sample site located at a distance “h” from the original location.
To establish spatial variation parameters, including the nugget (C0), partial sill (C), sill (C0 + C), and range (a), experimental semi-variograms are fitted using various models through the least square method. The nugget, which characterizes short-range variability, corresponds to the semi-variogram at a lag distance of zero. The sill, indicative of the overall sample variability, is the point at which the model flattens out. Range refers to the lag distance at which the sill is encountered (). To evaluate the accuracy and effectiveness of OK models, the study utilized the cross-validation technique, considering predictive errors such as mean error (ME), root mean square error (RMSE), mean standardized error (MSE), root mean square standardized error (RMSSE), and average standard error (ASE). Model selection was determined based on the following criteria: the lowest ME and MSE (approaching zero), identical RMSE and ASE values, and an RMSSE value close to one, indicating the most suitable model (; ). These errors’ mathematical expressions are as follows (Eqs 2–4):
In this context, “n” signifies the count of predicted values within a cluster of nearby soil samples, while “x_i” and “y_ denote the actual and predicted values, respectively. Additionally, “σM” stands for the standardized error of the predicted values.
2.5 Contamination factor (CF) and the modified degree of contamination (mCd)
According to (), the contamination factor (CF) serves as a measure to express the degree of contamination. This CF ratio is computed by dividing the concentration of each metal in the sediment by its corresponding background value. To assess the overall contamination of various heavy metals in each soil sample, a modified degree of contamination (mCd) was employed, as developed by (; ). The calculation of mCd involves the use of the following formulas (Eq. 5):n is number of studied elements.
The terms used to categorize the mCd are as follows:
mCd <1.5: Indicates negligible to very minimal contamination.
1.5 ≤ mCd <2: Implies a low level of contamination.
2 ≤ mCd <4: Signifies a moderate level of contamination.
4 ≤ mCd <8: Represents a substantial degree of contamination.
8 ≤ mCd <16: Reflects an exceptionally high degree of contamination.
16 ≤ mCd <32: Points to an extraordinarily high degree of contamination.
mCd ≥32: Corresponds to an extremely high level of contamination.
2.6 Isolation and grouping of microorganisms
2.6.1 Isolation
To extract microorganisms from soil samples, we initiated the process by combining precisely 10 g of soil with 90 mL of deionized water. For isolating bacteria, actinomycetes and fungi from effluent samples, we diluted 10 mL of the effluent with 90 mL of deionized water. Next, the mixture underwent vigorous shaking using an automated orbital shaker (Searchtech Nig Ltd.) at 180 rpm for 3 h. Subsequently, the resulting suspension underwent ten-fold serial dilution. Subsequently, we aseptically dispensed 0.1 mL aliquots from each of these dilutions (10−2, 10−3, 10−4, or 10−5) onto nutrient agar, starch nitrate agar and potato dextrose agar plates (for bacteria, actinomycetes and fungi, respectively) using the spread plate technique. These plates were incubated at 38°C for 24 h (for bacteria) and incubated at 28°C for 3–7 days (for actinomycetes and fungi) in an incubator. After the incubation period, the colonies that developed were sub-cultured to obtain pure samples for subsequent identification and grouping.
2.6.2 Grouping
Bacterial and actinomyctes isolates underwent meticulous identification through the assessment of their biochemical, physiological, and morphological traits, including detailed examination of colony morphology and the use of staining techniques. Following Bargey’s manual, this comprehensive approach facilitated precise characterization of bacterial species and actinomycetes. In contrast, fungal isolates were primarily identified using morphological methods, which involved observations of colony and microscopic morphology. Through careful scrutiny of these characteristics, fungal species were accurately distinguished and classified.
2.7 Microbial bioremediation of soil heavy metal
The evaluation of microbial remediation of heavy metals in soil employed a precise microbial culture technique. Initially, a targeted microorganism was introduced into heavily polluted soil. Subsequently, the soil underwent incubation under controlled conditions: 38°C for 48 h to facilitate bacterial activity and 28°C for 96 h to support fungal and actinomycetes growth. Following the incubation period, the concentration of remaining heavy metals was quantified using a spectrophotometer and compared against pre-injection levels. To ascertain the concentration of unabsorbed metal ions and gauge the effectiveness of microbial restoration, an atomic absorption spectrophotometer was employed. This methodological approach allowed for a thorough assessment of how microbial activity influenced the remediation of heavy metal contamination in soil, shedding light on the efficacy of bacterial and fungal processes in metal ion absorption and retention.
2.8 The percentage of heavy metal bioremediation
The determination of heavy metal loss percentage and bioaccumulation factor adhered to the methodology outlined by . Calculating the reduction in heavy metal content involved subtracting the initial concentration of heavy metals (measured at 0 h) from the final concentration (measured after 96 h). To assess the impact of microorganisms on heavy metal reduction, the amount of metal lost in a medium with microorganisms was compared to that in a medium lacking microorganisms. The bioaccumulation factor was calculated as the ratio of heavy metal content within the microorganism to the heavy metal content in the medium after 96 h. This comprehensive analysis provided insight into the efficacy of microbial activity in mitigating heavy metal contamination and elucidated the role of microorganisms in metal accumulation processes.
3 Results and discussion
3.1 Soil characteristics and heavy metals
Wastewater from urban areas, agricultural fields, and industrial facilities flows into the Bahr El-Baqar drain, resulting in soil contamination since this irrigation water source is low in the area. The total volume of drainage water in the Bahr El-Baqar drain is mixed by 40%, industrial sources contribute 2%, and agricultural sources contribute 58%, according to data from (; ; ). In total, the wastewater discharged into the Bahr El-Baqar drain amounts to 2,049,030 m3 day−1 (). Table 1 provides descriptive analysis data for the soil heavy metals: Cr, Fe, Zn, Cd, Pb, As, and Ni that were studied. The total content of chromium varied from 28.61 to 146.45, with an average of 77.29 ± 18.55 mg kg−1. The average content of iron was 19565.15 ± 4751.74 mg kg−1, varying from 6468.17 to 38526.67. The average total zinc concentration was 191.56 ± 112.231 mg kg−1, with a range varying from 51.31 to 931.22. The average total cadmium content is 1.48 ± 2.52 mg kg−1. Pb, As, and Ni total concentrations were 11.47–203.87, 164.933–267.544, and 21.296–82.143 mg kg-1, respectively. Except for Fe, all means of the heavy metals under study were greater than background values () (Table 1). All environmental media contain chromium, which is an element Referring to elements and minerals inherently occurring in the Earth’s crust. Although human activity releases significantly bigger amounts of chromium Releasing it into the atmosphere, the flow of continental dust. Is the main natural source (). The research area’s typical Fe content is lower than that of the upper earth crust on average () (Table 1). Although humans and plants both need zinc, excessive amounts of the metal can be dangerous (). Hence, it is vital to regulate the correct quantity in agricultural soils. It could cause problems with the immune system and digestive tract, among other immediate and detrimental effects. Furthermore, high zinc levels might hinder the absorption of copper, resulting in symptoms of copper deficiency ().

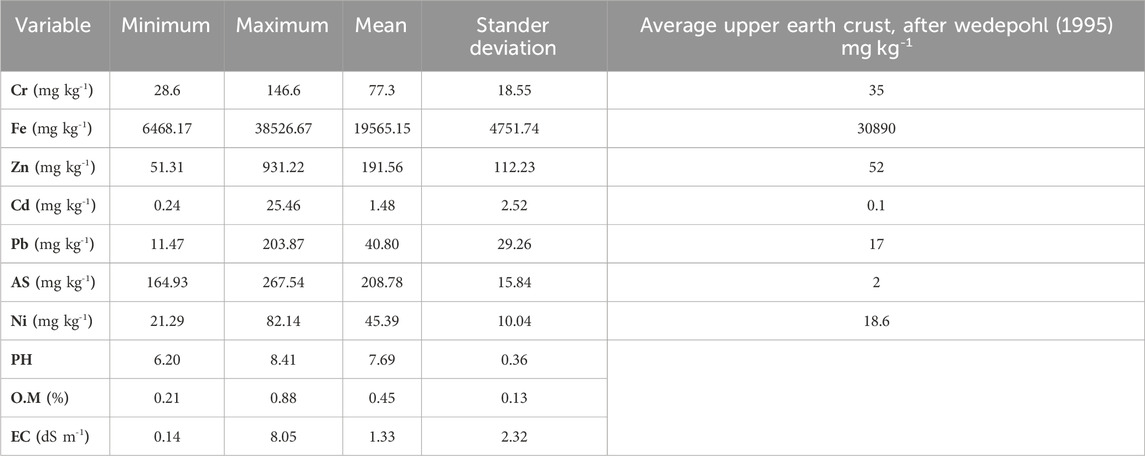

TABLE 1
| Variable | Minimum | Maximum | Mean | Stander deviation | Average upper earth crust, after wedepohl (1995) mg kg-1 |
|---|---|---|---|---|---|
| Cr(mg kg-1) | 28.6 | 146.6 | 77.3 | 18.55 | 35 |
| Fe(mg kg-1) | 6468.17 | 38526.67 | 19565.15 | 4751.74 | 30890 |
| Zn(mg kg-1) | 51.31 | 931.22 | 191.56 | 112.23 | 52 |
| Cd(mg kg-1) | 0.24 | 25.46 | 1.48 | 2.52 | 0.1 |
| Pb(mg kg-1) | 11.47 | 203.87 | 40.80 | 29.26 | 17 |
| AS(mg kg-1) | 164.93 | 267.54 | 208.78 | 15.84 | 2 |
| Ni(mg kg-1) | 21.29 | 82.14 | 45.39 | 10.04 | 18.6 |
| PH | 6.20 | 8.41 | 7.69 | 0.36 | |
| O.M(%) | 0.21 | 0.88 | 0.45 | 0.13 | |
| EC(dS m-1) | 0.14 | 8.05 | 1.33 | 2.32 |
Statistics of studies variables and recommended values of heavy metal concentrations for 146 samples.
The widespread use of herbicides, phosphate fertilizers, and sewage sludge has been linked to soil contamination with cadmium (Cd), as discussed in (). Considering that a substantial portion of this cadmium enters the human body via food sources that accumulate it from the soil, it becomes crucial to establish soil protection measures to preserve or enhance the existing conditions. This may include measures like restricting the use of phosphorus fertilizers with high cadmium content to prevent further contamination. While ingestion of dust and soil can also result in Pb exposure, the food chain is the main cause of exposure (). Even at relatively low lead levels, lead (Pb) can cause damage to the brain and nervous system, particularly in youngsters. As a result, a comprehensive assessment of the risk posed by lead in topsoil is required. Clayey soils are expected to contain higher concentrations of arsenic, which is generally believed to have a geological origin. But there’s a lot of anthropogenic arsenic pollution because there are more man-made than natural sources of arsenic released into the environment (). In addition, the primary sources of soil nickel (Ni) contamination stem from industries involved in metal plating, fossil fuel utilization, nickel mining, and electroplating. Besides, these human-induced origins, phosphate-based agricultural fertilizers, atmospheric deposition, inorganic fertilizers, sewage sludge, and various waste materials are used as soil amendments, adding to the potential sources of soil contamination (; ; ; ; ). On the other hand, soil pH plays a crucial role in influencing nutrient availability to plant roots, biological activity under varying soil conditions, and the activity of enzymes (; ). The pH contents varied between 6.20 and 8.40. The EC values across the study area exhibited significant variability, with an average of 1.33 ± 2.32 dS m−1, ranging from 0.14 to 8.05 dS m−1. The elevated EC levels observed in certain parts of the study region could be attributed to the high salinity of the groundwater. Arid regions, in particular, are known for typical phenomena such as soil salinization and alteration (). The long-term process of land salinization and sodification jeopardizes both agricultural crop productivity and environmental sustainability (; ; ; ).
3.2 Mapping and variography analysis
The variography as represented in Supplementary Table S1 showed that, pH, SOM, and Cd values were all fitted by the Stable model. Six properties were properly mapped by both the exponential and spherical models: Cr, Zn, and As for the spherical, and Fe, Pb, and Ni for the exponential. The nugget-to-sill ratio was employed to evaluate the spatial relationships. Dependency (SDC). If this ratio is less than 0.25, between 0.25 and 0.75, or more than 0.75, the SDC is considered strong, moderate, or weak (). The nugget-to-sill ratio of all the models’ parameters ranged from 0 to 0.70. Furthermore, all models exhibited a substantial spatial dependence (SDC) ranging from moderate to strong predictions, according to the data. In Figure 2, it is evident that the northern regions of the study area displayed the most elevated levels of heavy metal concentrations. According to the geographical distribution maps of those metals that were analyzed. These sites are near urban areas, where various forms of pollution affect drainage systems and irrigation channels (). For every parameter that was chosen, the MSE values were nearly equal to zero, but the RMSSE values were nearly equal to one. Nevertheless, ASE levels were low in every model that was produced.
FIGURE 2
3.3 Interpretation of PCA
There is positive correlation between studied metals. A shared origin could be suggested by the metals’ extremely positive connection (). SOM had a negative association with each of the variables, regardless of the strength of the connection. The overall concentrations of Cr, Fe, Cd, and Pb showed strong positive relationships with soil EC. Soil pH had a negative connection with every element (except from Fe and Cd), regardless of the strength of the correlation (Supplementary Table S2).

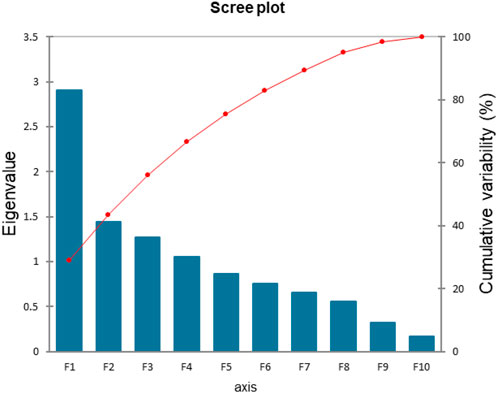

The soil sample was considered suitable based on a KMO value of 0.59. which was more than 0.5 (; ). With 146 observations and 10 variables, a PCA may be produced. Due to their eigenvalues being greater than 1, the first three Principal Components (PCs) were employed by Kaiser’s () technique, whereas the remaining PCs were disregarded (Supplementary Table S3; Figure 3). According to the findings, 56.45% of the variance can be explained by the first three PCs. The first PC1, responsible for 29.02% of the overall variance, demonstrates more pronounced positive correlations with Cr, Fe, Zn, Pb, As, and Ni, as indicated by the factor loadings. In contrast, the second PC2, which accounts for 14.41% of the total variance, is notably linked with pH and EC. Additionally, the PC3, correlated with SOM, contributes to 12.74% of the overall variance. The PCA displays the PC scores of the samples and the variable loadings.
FIGURE 3

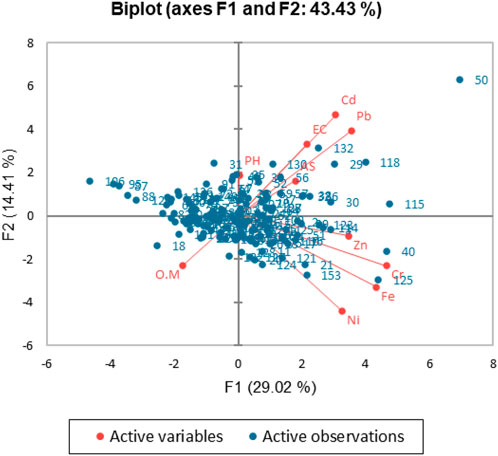

Figure 4 showed, the principal component analysis biplot of F1 (29.02%) and F2 (14.41%), rescaling the loadings plot and score plot to present them together on a single plot. The variables are depicted as arrows in the biplot arrows in the biplot, and the cosine of the angle formed by the arrows between each pair of variables determines the correlation between them. The correlation between variables is stronger when the angle between each pair of arrows is narrower (). A variable like SOM, though, was correlated negatively with other variables and was connected to them at a nearly 180° angle ().
FIGURE 4
3.4 Cluster analysis
When compared to other clusters, the observations in this cluster are similar to one another (; ). In this study, Agglomerative Hierarchical Clustering (AHC) was employed to categorize the data into three distinct clusters (Supplementary Figure S1). The dendrogram shown in Supplementary Figure S1 illustrates the distinctions among the three clusters., with each cluster possessing unique attributes. According to descriptive data presented in Table 2, there are 79 observations in the first cluster, 63 in the second, and 4 in the third. Except for As, the acquired data demonstrated significant differences on all heavy metals between the three clusters. However, there were no appreciable variations in pH, EC, or SOM between the three clusters. Data from soil types affected by heavy metals in El-Minia Governorate, Egypt, were successfully subjected to clustering analysis ().

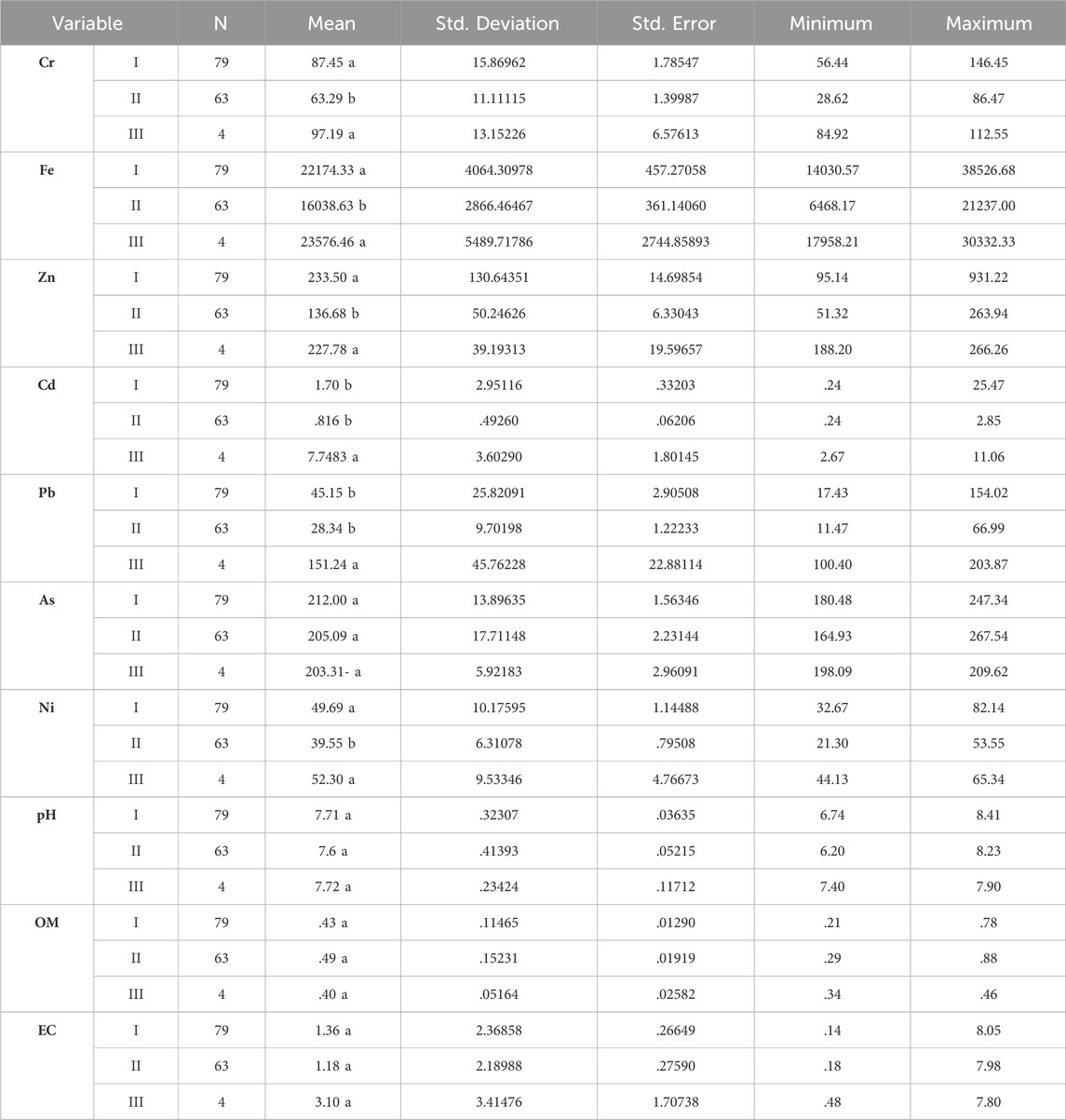

TABLE 2
| Variable | N | Mean | Std. Deviation | Std. Error | Minimum | Maximum | |
|---|---|---|---|---|---|---|---|
| Cr | I | 79 | 87.45 a | 15.86962 | 1.78547 | 56.44 | 146.45 |
| II | 63 | 63.29 b | 11.11115 | 1.39987 | 28.62 | 86.47 | |
| III | 4 | 97.19 a | 13.15226 | 6.57613 | 84.92 | 112.55 | |
| Fe | I | 79 | 22174.33 a | 4064.30978 | 457.27058 | 14030.57 | 38526.68 |
| II | 63 | 16038.63 b | 2866.46467 | 361.14060 | 6468.17 | 21237.00 | |
| III | 4 | 23576.46 a | 5489.71786 | 2744.85893 | 17958.21 | 30332.33 | |
| Zn | I | 79 | 233.50 a | 130.64351 | 14.69854 | 95.14 | 931.22 |
| II | 63 | 136.68 b | 50.24626 | 6.33043 | 51.32 | 263.94 | |
| III | 4 | 227.78 a | 39.19313 | 19.59657 | 188.20 | 266.26 | |
| Cd | I | 79 | 1.70 b | 2.95116 | .33203 | .24 | 25.47 |
| II | 63 | .816 b | .49260 | .06206 | .24 | 2.85 | |
| III | 4 | 7.7483 a | 3.60290 | 1.80145 | 2.67 | 11.06 | |
| Pb | I | 79 | 45.15 b | 25.82091 | 2.90508 | 17.43 | 154.02 |
| II | 63 | 28.34 b | 9.70198 | 1.22233 | 11.47 | 66.99 | |
| III | 4 | 151.24 a | 45.76228 | 22.88114 | 100.40 | 203.87 | |
| As | I | 79 | 212.00 a | 13.89635 | 1.56346 | 180.48 | 247.34 |
| II | 63 | 205.09 a | 17.71148 | 2.23144 | 164.93 | 267.54 | |
| III | 4 | 203.31- a | 5.92183 | 2.96091 | 198.09 | 209.62 | |
| Ni | I | 79 | 49.69 a | 10.17595 | 1.14488 | 32.67 | 82.14 |
| II | 63 | 39.55 b | 6.31078 | .79508 | 21.30 | 53.55 | |
| III | 4 | 52.30 a | 9.53346 | 4.76673 | 44.13 | 65.34 | |
| pH | I | 79 | 7.71 a | .32307 | .03635 | 6.74 | 8.41 |
| II | 63 | 7.6 a | .41393 | .05215 | 6.20 | 8.23 | |
| III | 4 | 7.72 a | .23424 | .11712 | 7.40 | 7.90 | |
| OM | I | 79 | .43 a | .11465 | .01290 | .21 | .78 |
| II | 63 | .49 a | .15231 | .01919 | .29 | .88 | |
| III | 4 | .40 a | .05164 | .02582 | .34 | .46 | |
| EC | I | 79 | 1.36 a | 2.36858 | .26649 | .14 | 8.05 |
| II | 63 | 1.18 a | 2.18988 | .27590 | .18 | 7.98 | |
| III | 4 | 3.10 a | 3.41476 | 1.70738 | .48 | 7.80 | |
Quantitative analysis of clusters.
3.5 Modified degree of contamination (mCd)

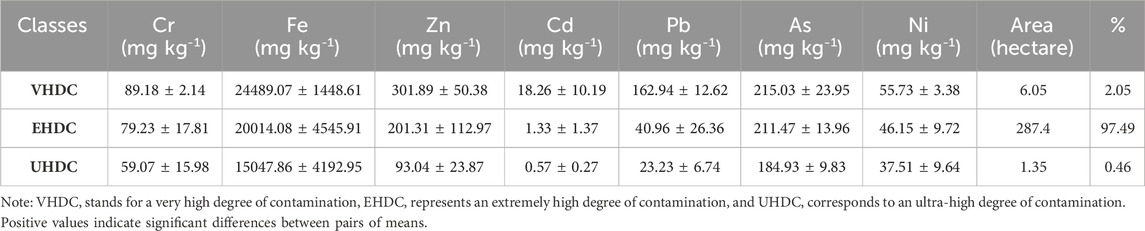

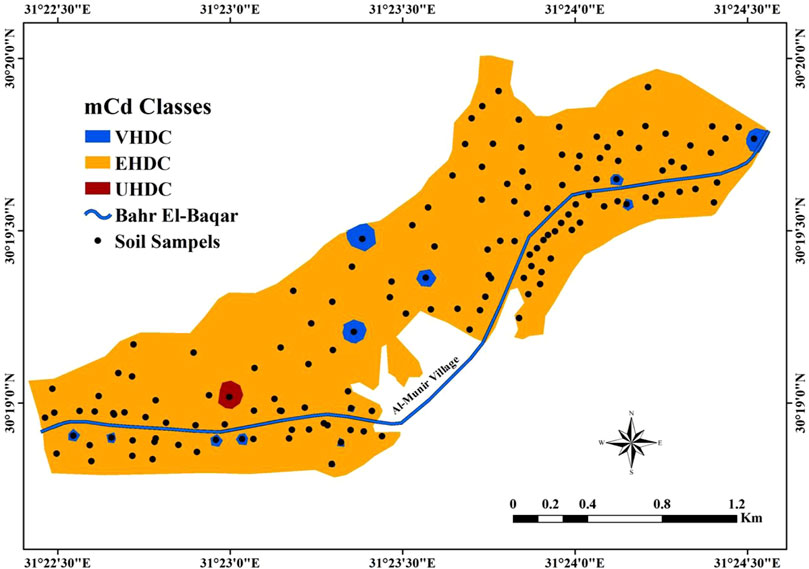

Table 3 and Figure 5 illustrate, there were three classifications of pollution in the research region. Most of the investigated region (97.49%) was EHDC, with average concentrations of heavy metals to this degree being 79.23 ± 17.81, 20014.08 ± 4545.91, 201.31 ± 112.97, 1.33 ± 1.37, 40.96 ± 26.36, 211.47 ± 13.96, and46.15 ± 9.72 for Cr, Fe, Zn, Cd, Pb, As, and Ni, respectively. Numerous forms of pollution are brought about by human activity in this field of study, including contamination from irrigation water sources and agricultural management (). Moreover, the extremely high degree only occupies 0.46 percent of the whole area.
TABLE 3
| Classes | Cr (mg kg-1) | Fe (mg kg-1) | Zn (mg kg-1) | Cd (mg kg-1) | Pb (mg kg-1) | As (mg kg-1) | Ni (mg kg-1) | Area (hectare) | % |
|---|---|---|---|---|---|---|---|---|---|
| VHDC | 89.18 ± 2.14 | 24489.07 ± 1448.61 | 301.89 ± 50.38 | 18.26 ± 10.19 | 162.94 ± 12.62 | 215.03 ± 23.95 | 55.73 ± 3.38 | 6.05 | 2.05 |
| EHDC | 79.23 ± 17.81 | 20014.08 ± 4545.91 | 201.31 ± 112.97 | 1.33 ± 1.37 | 40.96 ± 26.36 | 211.47 ± 13.96 | 46.15 ± 9.72 | 287.4 | 97.49 |
| UHDC | 59.07 ± 15.98 | 15047.86 ± 4192.95 | 93.04 ± 23.87 | 0.57 ± 0.27 | 23.23 ± 6.74 | 184.93 ± 9.83 | 37.51 ± 9.64 | 1.35 | 0.46 |
Classes of contamination entire investigated area.
Note: VHDC, stands for a very high degree of contamination, EHDC, represents an extremely high degree of contamination, and UHDC, corresponds to an ultra-high degree of contamination. Positive values indicate significant differences between pairs of means.
FIGURE 5
3.6 Isolation and identification of bacteria
The results showed that a total of 13 bacterial isolates were successfully obtained from contaminated soil samples as follows: 4 isolates from the soil irrigated with fresh water, 3 from soil irrigated with sewage water, 4 from soil irrigated with artesian water, and 2 from the sediment in-depth sewage (refer to Supplementary Table S4). These isolated bacteria were categorized into nine phenotypes based on their characteristics, such as colony shape, Gram stain, spore formation, presence of capsules, oxygen requirements, and motility. Besides their morphological, biochemical, and physiological traits. The results showed a nine bacterial species were identified as: Enterobacter cloacae, Bacillus cereus, Bacillus thuringeinsis, Pseudomonas aeurginosa, Pseudomonas veronii, Klebsiella pneumonia, E. coli, Staphylococcus aureaus, Staphylococcus saprophyticus.
3.7 Isolation and identification of fungi
The findings indicated that a total of 7 fungal isolates were successfully acquired from the contaminated soil samples. These isolates were distributed as follows: 3 isolates from soil irrigated with fresh water, 2 isolates from soil irrigated with sewage water, and 2 isolates from soil irrigated with artesian water (refer to Supplementary Table S4). Based on their morphological and cultural characteristics, the isolated fungi were categorized into three fungal species: Aspergillus fumigatus, Aspergillus versicolor, and Rhizopus oryzae (as shown in Supplementary Figure S2). The results obtained regarding the impact of fungi on soil pollutants align with prior research, confirming a negative correlation between cadmium and the abundance of both bacteria and fungi. Conversely, a positive correlation was observed between fungi and zinc. The influence of soil properties on fungal diversity was also evident. Therefore, it can be concluded that significant variations exist in the soil characteristics within this region. (; ).
3.8 Isolation and identification of actinomycetes
The results of actinomycete isolates revealed that a total of 9 isolates were successfully collected from the contaminated soil. These isolates were distributed as follows: 5 isolates from soil irrigated with sewage water, 1 isolate from soil irrigated with artesian water, and 3 isolates from sediments in deep sewage (refer to Supplementary Table S4). These isolates were categorized into four phenotypes based on characteristics such as colony shape, Gram stain, spore formation, presence of capsules, oxygen requirements, and motility. Additionally, the morphological, biochemical, and physiological characteristics as follow: Streptomyces sp., Actioplanes sp., Sporichthya sp. And Actinomyces sp. The findings indicated that Actioplanes sp. Is efficacious in reducing the levels of various heavy metals, including Cr, Zn, Fe, As, Cd, and Ni. Moreover, incorporating actinomycetes into the system enhances the complexity of the microbial network structure and strengthens the stability of the microecology around the plant’s roots. Additionally, the combined application of soil amendments and actinomycetes can promote plant growth (; ).
3.9 Microbial remediation of heavy metals
Many studies confirm that biological methods are effective in treating pollution. They have demonstrated that microorganisms, including bacteria, fungi, and algae, can remediate environments contaminated with heavy metals (; ). Among all microorganisms isolated in our study, Rhizopus oryzae and Actioplanes sp. showed highest removal for 5 different heavy metal, followed by Enterobacter cloacae and P. veronii showed removal for 4 different heavy metal, while E. coli, Staphylococcus aureaus and Actinomyces sp. Do not have any effect on one of heavy metal bioremediation as illustrated in Supplementary Table S4. Conversely, numerous microbial species, such as bacteria and fungi found in Bacillus, Pseudomonas, Streptomyces, Aspergillus, and Penicillium, possess substantial removal capabilities (; ; ). Escherichia coli K-12 exhibits the broadest capacity for absorbing various metal ions, with its outer membrane capable of absorbing over 30 different types of metal ions (). Rhizopus can uptake heavy metal ions such as Zn, Cu, Cd, and Pb, among others. This finding is consistent with () Thiobacillus can assimilate heavy metal ions, along with inorganic ions like sulfur (S), resulting in the formation of a precipitate when combined with metal ions, which can be subsequently separated from the soil ().
3.9.1 Percentage of heavy metal bioremediation

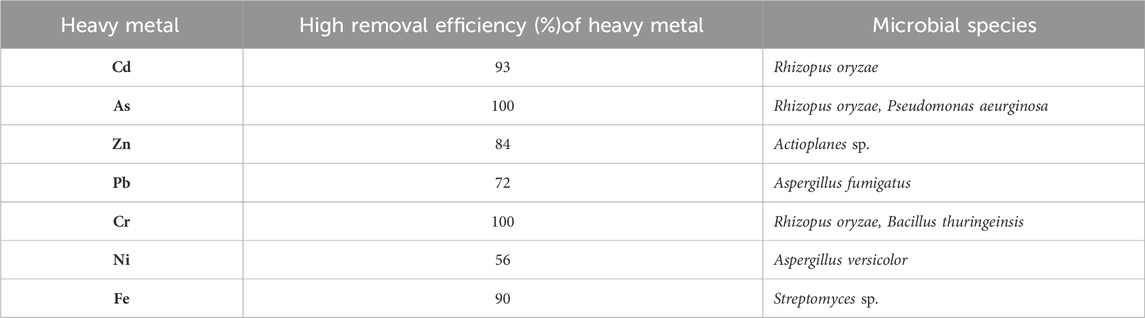

As presented in Table 4, the highest removal efficiency for heavy metals, such as and Cr, reaching 100%, was achieved by R. oryzae, Pseudomonas aeruginosa, and Bacillus thuringiensis. On the other hand, the lowest removal efficiency, 56%, was observed for the heavy metal Ni, and this was recorded for Aspergillus versicolor. These results demonstrate the remarkable efficacy of Rhizopus oryzae, P. aeruginosa, and Bacillus thuringiensis in removing heavy metals, particularly As and Cr, while highlighting the need for further investigation and optimization when dealing with Ni removal by Aspergillus versicolor ().
TABLE 4
| Heavy metal | High removal efficiency (%)of heavy metal | Microbial species |
|---|---|---|
| Cd | 93 | Rhizopus oryzae |
| As | 100 | Rhizopus oryzae, Pseudomonas aeurginosa |
| Zn | 84 | Actioplanes sp. |
| Pb | 72 | Aspergillus fumigatus |
| Cr | 100 | Rhizopus oryzae, Bacillus thuringeinsis |
| Ni | 56 | Aspergillus versicolor |
| Fe | 90 | Streptomyces sp. |
Determination of the highest heavy metal removal efficiency (%) related to the most potent microorganism.
4 Conclusion
This study proved that variography Analysis models are a useful tool for forecasting the heavy metals’ spatial distribution maps in the investigated area. Additionally, the fusion of AHC and PCA produced unique classification of the study region into three zones, each with distinct characteristics from one another in terms of heavy metal content and pattern. In addition, we looked at the potential of actinomycetes, fungi, and bacteria as microorganisms to lessen the consequences of different types of soil pollution. To carry out the process, the microorganisms found in the core of the study soil had to be isolated, identified, and classified. The study area was divided into three pollutant categories. The majority of the examined region (97.49%) was extremely high degree of contamination (EHDC). It raises a serious concern for the local ecosystems, every pollution level was higher than the threshold of its average concentration in the surface crust of the earth except for Fe. The separation and identification of microorganisms (fungi, bacteria, and actinomycetes) has been found to have a major impact on the decomposition of environmental contaminants, both organic and inorganic. The soil in the study area contained four phenotypes of actinomycetes, three fungal species, and nine bacterial species, according to the findings. Additionally, the investigation showed that R. oryzae, P. aeruginosa, and Bacillus thuringiensis were able to attain 100% removal efficiency for As and Cr, which is an extraordinarily high level of removal efficiency. In conclusion, defining management zones for soil contamination through the process of mapping soil pollutants, geographical identification, and then identifying the kinds of microorganisms capable of lowering soil pollution levels is a crucial and efficient aspect of precise management.
Statements
Data availability statement
The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding authors.
Author contributions
EM: Conceptualization, Methodology, Supervision, Visualization, Writing–original draft, Writing–review and editing. MJ: Data curation, Methodology, Software, Writing–original draft, Writing–review and editing. EH: Writing–original draft, Writing–review and editing. AE-A: Writing–original draft, Writing–review and editing. SN: Conceptualization, Writing–original draft, Writing–review and editing. NR: Resources, Validation, Writing–original draft, Writing–review and editing. AS: Writing–original draft, Writing–review and editing. MS: Writing–original draft, Writing–review and editing.
Funding
The author(s) declare that financial support was received for the research, authorship, and/or publication of this article. This paper was supported by the RUDN University Strategic Academic Leadership Program.
Acknowledgments
The authors would like to thank the National Authority for Remote Sensing and Space Science (NARSS) for funding the field survey laboratory analysis and remote sensing work.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Author disclaimer
The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fenvs.2024.1381409/full#supplementary-material
