Introduction
Toscana virus (TOSV) is a sandfly borne virus (genus Phlebovirus, family Phenuiviridae) which shows a wide distribution in the Mediterranean basin (). TOSV was first discovered from Phlebotomus perniciosus and P. perfiliewi sand flies in 1971 in Italy (). Since then TOSV has been isolated or detected in France, Spain, Portugal, Morocco, Algeria, Tunisia, Croatia, Greece, Turkey, Cyprus, and Corsica either from sand flies or human samples (). During the warm season, TOSV is recognized as one of the main causes of aseptic meningitis within endemic countries due to increased vector activity during the warm season. TOSV is the most pathogenic among the phleboviruses transmitted by sand flies; it can affect the central nervous system and cause meningitis and meningoencephalitis ().
Three distinct lineages of TOSV have been identified so far: A, B, and C, at the outset of this study, only lineage C had been identified in Croatia in the cerebral spinal fluid (CSF) of a patient presenting with meningitis (). Serological studies demonstrated that TOSV is circulating at a high rate in the islands and along the Adriatic coast of Croatia (). Serology does not discriminate between the three genetic lineages, the presence of TOSV strains belonging to lineages A and/or B had never been reported. In this study, sand flies collected in Croatia were tested for the presence of TOSV RNA and for subsequent identification of TOSV genetic lineages.
The Study
A total of 1,453 sand flies were collected from 5 locations in Croatia in July 2015 using modified CO2-CDC traps (Table 1). A total of 78 pools, each containing up to 30 insects, were analyzed according to location, sex, and date of trapping (Table 1). They were tested by real-time RT-qPCR for TOSV RNA (). Two pools, C63 and C64, were positive with respective Ct values at 22.5 and 35.3. Since sequence analysis of the corresponding PCR product did not allow to identify the lineage, two other PCR assays were used for partial sequencing of the nucleoprotein gene (, ). Colinearization of the two sequences obtained from pool C63 resulted in a 576-nt long sequence (GenBank acc no KY867756) (). From pool C64, only the Sandfly Fever Naples Virus (SFNV) nested PCR was positive and resulted in a 320-nt long sequence (GenBank acc no KY867757) ().

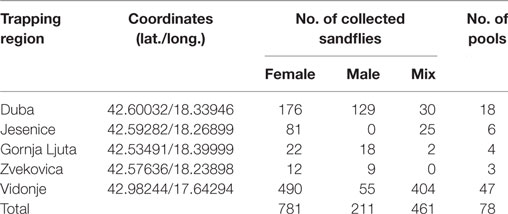

Table 1
| Trapping region | Coordinates (lat./long.) | No. of collected sandflies | No. of pools | ||
|---|---|---|---|---|---|
| Female | Male | Mix | |||
| Duba | 42.60032/18.33946 | 176 | 129 | 30 | 18 |
| Jesenice | 42.59282/18.26899 | 81 | 0 | 25 | 6 |
| Gornja Ljuta | 42.53491/18.39999 | 22 | 18 | 2 | 4 |
| Zvekovica | 42.57636/18.23898 | 12 | 9 | 0 | 3 |
| Vidonje | 42.98244/17.64294 | 490 | 55 | 404 | 47 |
| Total | 781 | 211 | 461 | 78 | |
Sandfly trapping regions and number of the collected sandflies.
Virus isolation was attempted by inoculating 50 µL of the homogenate supernatant onto Vero cells as previously described (). After six blind passages, TOSV was not isolated.
C63 and C64 sequences were aligned using CLUSTAL X (MEGA 6.06) with homologous sequences of other TOSV strains and selected phleboviruses belonging to the Sandfly fever Naples species obtained from GenBank (see Supplementary Material) (). Amino acid and nucleotide identities were calculated with the p-distance algorithm. Phylogenetic studies were performed using the neighbor-joining method in MEGA6 (Figure 1). The robustness of the nodes was tested by 1,000 bootstrap replications.
Figure 1
The two TOSV sequences were clearly different from each other with 3.8 and 16.5% genetic divergence at amino acid and nucleotide level, respectively. C63 sequence was grouped with the unique Croatian TOSV sequence (corresponding to the CSF sample of a patient presenting with TOSV meningitis in 2008) (); hence, C63 sequence was identified as belonging to the lineage C. Surprisingly, C64 sequence was most closely related to the sequence of TOSV strain 113/Nice (GenBank acc no KU204981) isolated from sand flies trapped in southeastern France, belonging to the lineage B. To the best of our knowledge, this is the first evidence that TOSV strains belonging to the lineage B are present in Croatia and probably more largely in the Balkan Peninsula.
Sand fly species from the TOSV positive pools were identified based on cytochrome b and cytochrome c oxidase subunit I as previously described (). C63 and C64 pools consisted exclusively of Phlebotomus neglectus (Table 2). These results are congruent with the results of a larger study which aimed at building a species inventory of sand flies in the Balkans (VectorNet project supported by ECDC/EFSA) (). Three sand fly species, P. neglectus, P. tobbi, and Sergentomyia minuta, were identified from exactly the same location with high dominancy of P. neglectus (Vidonje, Tables 1 and 2) in 2015 (Alten et al., unpublished data). P. perniciosus and P. perfiliewi are the most recognized vectors of TOSV. P. sergenti and P. longicuspis are also suspected TOSV vectors (). Here, we provide the first evidence of P. neglectus as a probable vector of TOSV. This is a very important finding since this species is present at high density in regions where other TOSV vectors are not present, particularly in the Balkan Peninsula, Eastern Europe, and Turkey. Confirmation of P. neglectus as a competent vector of TOSV would considerably increase the size of the exposed human populations.

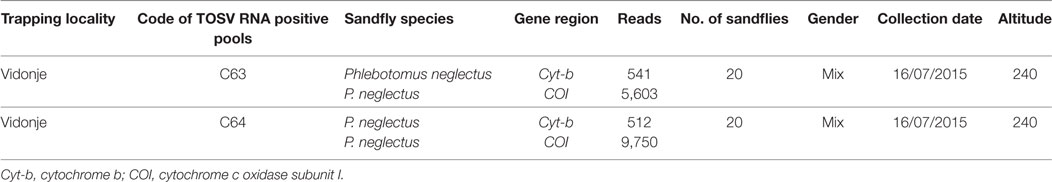

Table 2
| Trapping locality | Code of TOSV RNA positive pools | Sandfly species | Gene region | Reads | No. of sandflies | Gender | Collection date | Altitude |
|---|---|---|---|---|---|---|---|---|
| Vidonje | C63 | Phlebotomus neglectus | Cyt-b | 541 | 20 | Mix | 16/07/2015 | 240 |
| P. neglectus | COI | 5,603 | ||||||
| Vidonje | C64 | P. neglectus | Cyt-b | 512 | 20 | Mix | 16/07/2015 | 240 |
| P. neglectus | COI | 9,750 | ||||||
Toscana virus (TOSV) positive pools information.
Cyt-b, cytochrome b; COI, cytochrome c oxidase subunit I.
Our results demonstrated that the two TOSV lineages can cohabitate sympatrically within the study area showing no exclusion/interference of one virus by one another (Massilia/Toscana, Punique/Utique, Fermo/Toscana) (, ). The same vector species can transmit different types of viruses in the same area. P. neglectus is the vector of Corfou virus (), Balkan virus (), and TOSV in the same region (this study). Whether a single insect can be coinfected by two viruses is not proven, but is likely to happen and this could drive to the production of a recombinant or reassortant virus ().
With the assumption that only one insect in each pool is infected, the infection rate of TOSV in Croatia was 0.1% which is higher than rates observed in Tunisia (0.03%), Spain (0.05%), and Algeria (0.004%) (, ).
Despite the efforts, virus isolation was not obtained probably because of virion degradation during field collection. Due to the low viral load in pool C64 (Ct value 35.3) only the SFNV nested PCR was positive and resulted in a 320-nt long sequence. However, the length of the sequence did not affect neither the quality of the alignment nor the topology of the phylogenetic tree.
In Croatia, 37.5% of 755 healthy residents of the coastal regions and islands had TOSV IgG (). Accordingly, TOSV should be included in the repertoire of pathogens to be explored in patients presenting with neuroinvasive infections during the warm season.
In conclusion, this study showed that (i) strains of TOSV lineage B are present in coastal Croatia where they cocirculate with lineage C strains; (ii) P. neglectus is the most probable vector of both lineages of TOSV in the region, (iii) Croatia is, after France and Turkey, the third country where two lineages of TOSV are sympatric; (iv) physicians should consider testing patients who present with neuroinvasive infections in Croatia during the season of sand fly activity for TOSV.
Availability of Data and Materials
Sequences generated in this study are available in the GenBank database under the accession numbers KY867756 and KY867757.
Statements
Author contributions
NA performed the sample collection, administered experiments, and wrote the manuscript. BA, VI, FM, OK, and YO organized the sample collection and contributed to the manuscript. XL designed the experiments and contributed to the manuscript. RC designed the experiments and wrote the manuscript.
Funding
This work was supported by funds received from (i) VectorNet, a European network for sharing data on the geographic distribution of arthropod vectors, transmitting human and animal disease agents (Contract OC/EFSA/AHAW/2013/02-FWC1) funded by the European Food Safety Authority (EFSA) and the European Centre for Disease Prevention and Control (ECDC) (http://ecdc.europa.eu/en/healthtopics/vectors/VectorNet/Pages/VectorNet.aspx), (ii) the European Virus Archive goes Global (EVAg) project in the European Union’s Horizon 2020 research and innovation program under grant agreement No 653316 (http://global.european-virus-archive.com/). NA is a PhD student supported by a grant from Fondation Mediterranee Infection. The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.
Acknowledgments
The authors wish to thank Karine Almani for excellent technical assistance. The work of RNC was done under the frame of EurNegVec (TD1303) COST Action. NA is a PhD student supported by a grant from Fondation Mediterranee Infection.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Supplementary material
The Supplementary Material for this article can be found online at http://www.frontiersin.org/articles/10.3389/fpubh.2017.00336/full#supplementary-material.
References
1
CharrelRNGallianPNavarro-MariJMNicolettiLPapaASánchez-SecoMPet alEmergence of Toscana virus in Europe. Emerg Infect Dis (2005) 11(11):1657–63.10.3201/eid1111.050869
2
VeraniPCiufoliniMGNicolettiLBalducciMSabatinelliGColuzziMet alEcological and epidemiological studies of Toscana virus, an arbovirus isolated from Phlebotomus. Ann Ist Super Sanita (1982) 18(3):397–9.
3
AlkanCBichaudLde LamballerieXAltenBGouldECharrelRN. Sandfly-borne phleboviruses of Eurasia and Africa: epidemiology, genetic diversity, geographic range, control measures. Antiviral Res (2013) 100(1):54–74.
4
Punda-PolićVMoharBDuhDBradarićNKorvaMFajsLet alEvidence of an autochthonous Toscana virus strain in Croatia. J Clin Virol (2012) 55(1):4–7.10.1016/j.jcv.2012.06.006
5
Punda-PolićVJerončićAMoharBŠiško KraljevićK. Prevalence of Toscana virus antibodies in residents of Croatia. Clin Microbiol Infect (2012) 18(6):E200–3.10.1111/j.1469-0691.2012.03840.x
6
Pérez-RuizMCollaoXNavarro-MaríJMTenorioA. Reverse transcription, real-time PCR assay for detection of Toscana virus. J Clin Virol (2007) 39(4):276–81.10.1016/j.jcv.2007.05.003
7
LambertAJLanciottiRS. Consensus amplification and novel multiplex sequencing method for S segment species identification of 47 viruses of the orthobunyavirus, phlebovirus, and nairovirus genera of the family Bunyaviridae. J Clin Microbiol (2009) 47(8):2398–404.10.1128/JCM.00182-09
8
CharrelRNIzriATemmamSDelaunayPTogaIDumonHet alCocirculation of 2 genotypes of Toscana virus, southeastern France. Emerg Infect Dis (2007) 13(3):465–8.10.3201/eid1303.061086
9
AyhanNAltenBIvovicVMartinkovicFKasapOEOzbelYet alNucleotide. Accession No. KY867756, Toscana Virus Strain C63 Nucleocapsid Protein Gene, Partial CDS. Bethesda, MD: National Library of Medicine (US), National Center for Biotechnology Information (1988). Available from: https://www.ncbi.nlm.nih.gov/nuccore/KY867756
10
AyhanNAltenBIvovicVMartinkovicFKasapOEOzbelYet alNucleotide. Accession No. KY867757, Toscana Virus Strain C64 Nucleocapsid Protein Gene, Partial CDS. Bethesda, MD: National Library of Medicine (US), National Center for Biotechnology Information (1988). Available from: https://www.ncbi.nlm.nih.gov/nuccore/KY867757
11
AlkanCAllal-IkhlefABAlwassoufSBakloutiAPiorkowskiGde LamballerieXet alVirus isolation, genetic characterization and seroprevalence of Toscana virus in Algeria. Clin Microbiol Infect (2015) 21(11):1040.e1–9.10.1016/j.cmi.2015.07.012
12
TamuraKStecherGPetersonDFilipskiAKumarS. MEGA6: molecular evolutionary genetics analysis version 6.0. Mol Biol Evol (2013) 30(12):2725–9.10.1093/molbev/mst197
13
AyhanNVeloEde LamballerieXKotaMKadriajPOzbelYet alDetection of Leishmania infantum and a novel phlebovirus (Balkan virus) from sand flies in Albania. Vector Borne Zoonotic Dis (2016) 16(12):802–6.10.1089/vbz.2016.2002
14
European Centre for Disease Prevention and Control. VectorNet. (2014). Available from: http://ecdc.europa.eu/en/healthtopics/vectors/VectorNet/
15
Es-SetteNNourlilJHamdiSMelloukiFLemraniM. First detection of Toscana virus RNA from sand flies in the genus Phlebotomus (Diptera: phlebotomidae) naturally infected in Morocco. J Med Entomol (2012) 49(6):1507–9.10.1603/ME12042
16
CharrelRNMoureauGTemmamSIzriAMartyPParolaPet alMassilia virus, a novel phlebovirus (Bunyaviridae) isolated from sand flies in the Mediterranean. Vector Borne Zoonotic Dis (2009) 9(5):519–30.10.1089/vbz.2008.0131
17
RemoliMEFortunaCMarchiABucciPArgentiniCBongiornoGet alViral isolates of a novel putative phlebovirus in the Marche region of Italy. Am J Trop Med Hyg (2014) 90(4):760–3.10.4269/ajtmh.13-0457
18
RodhainFMadulo-LeblondGHannounCTeshRB. Le virus corfou: un nouveau Phlebovirusisolé de phlébotomes en Grèce. Ann Inst Pasteur Virol (1985) 136(2):161–6.10.1016/S0769-2617(85)80042-3
19
AyhanNAltenBIvovicVDvořákVMartinkovicFOmeragicJet alDirect evidence for an expanded circulation area of the recently identified Balkan virus (Sandfly Fever Naples Virus species) in several countries of the Balkan archipelago. Parasit Vectors (2017) 10(1):402.10.1186/s13071-017-2334-y
20
CollaoXPalaciosGde OryFSanbonmatsuSPérez-RuizMNavarroJMet alGranada virus: a natural phlebovirus reassortant of the sandfly fever Naples serocomplex with low seroprevalence in humans. Am J Trop Med Hyg (2010) 83(4):760–5.10.4269/ajtmh.2010.09-0697
21
FaresWCharrelRNDachraouiKBichaudLBarhoumiWDerbaliMet alInfection of sand flies collected from different bio-geographical areas of Tunisia with phleboviruses. Acta Trop (2015) 141:1–6.10.1016/j.actatropica.2014.09.009
