Autonomous Navigation of Quadrupeds Using Coverage Path Planning with Morphological Skeleton Map
Provisionally accepted
- Delft University of Technology, Delft, Netherlands
Select one of your emails
You have multiple emails registered with Frontiers:
Notify me on publication
Please enter your email address:
If you already have an account, please login
You don't have a Frontiers account ? You can register here

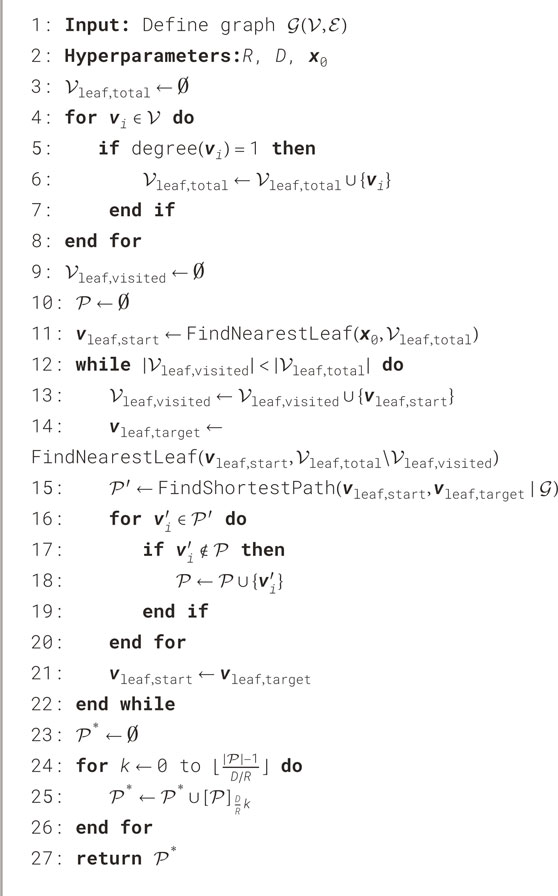

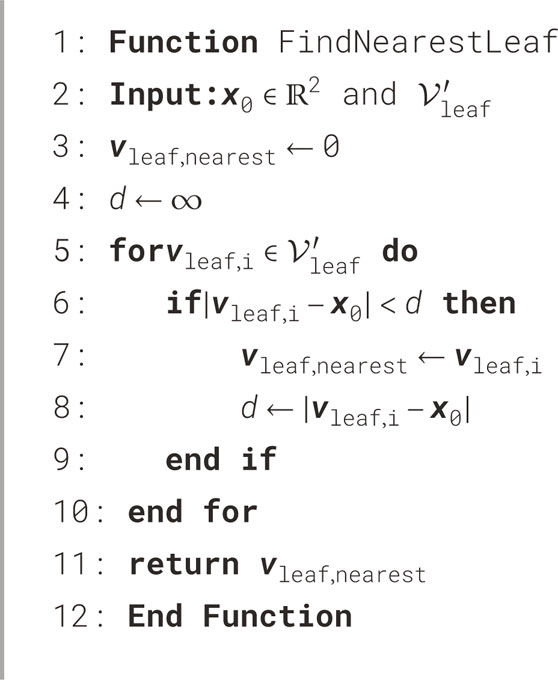

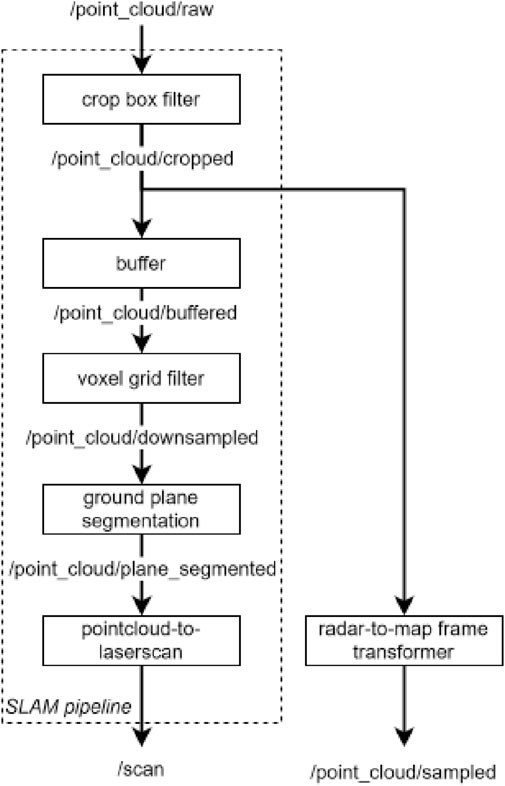

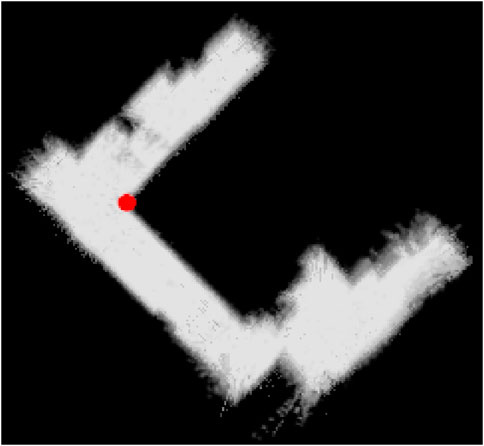

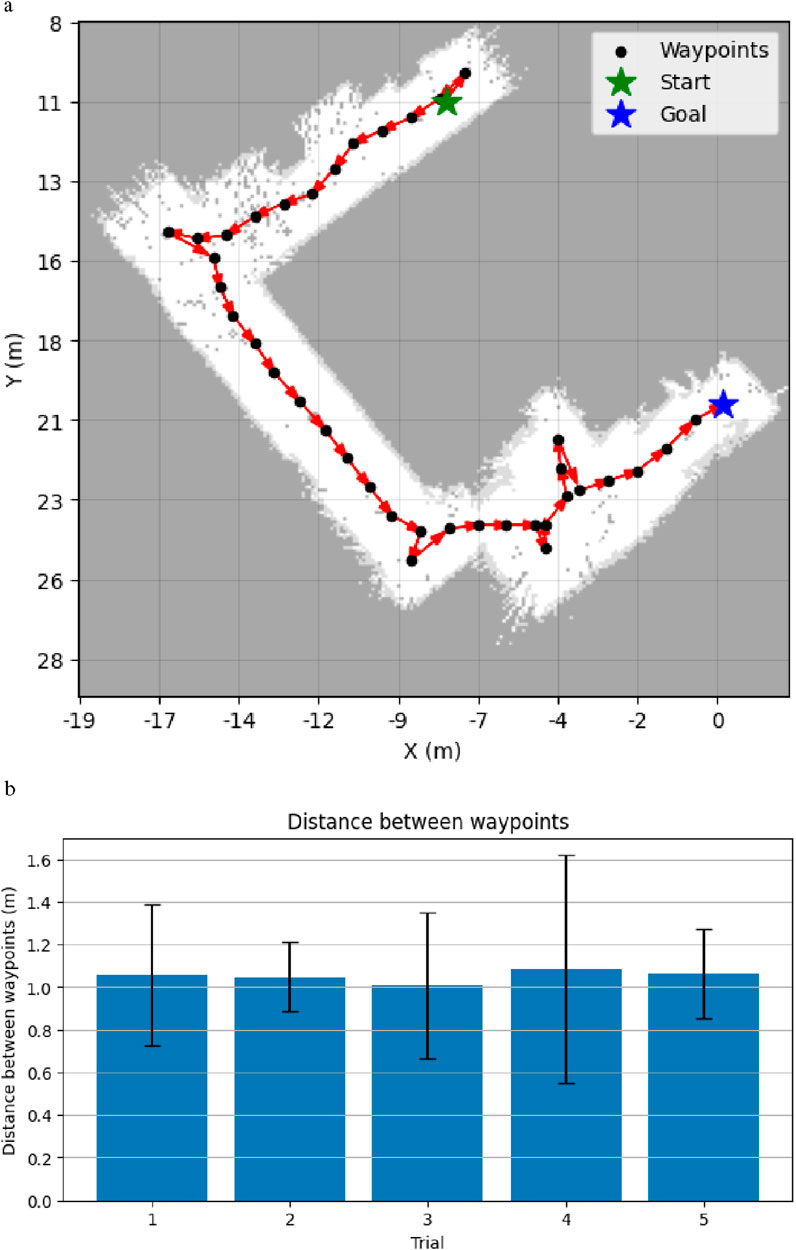

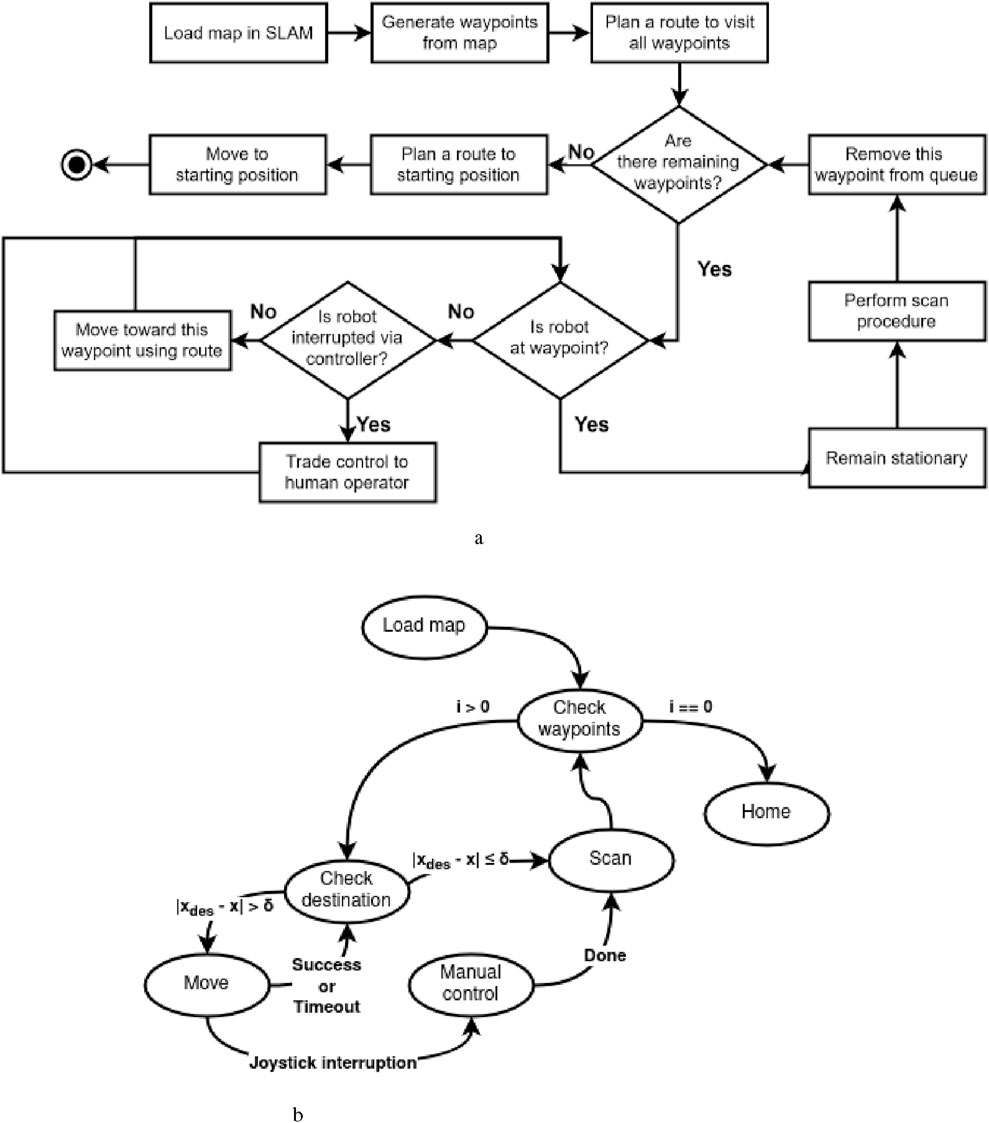

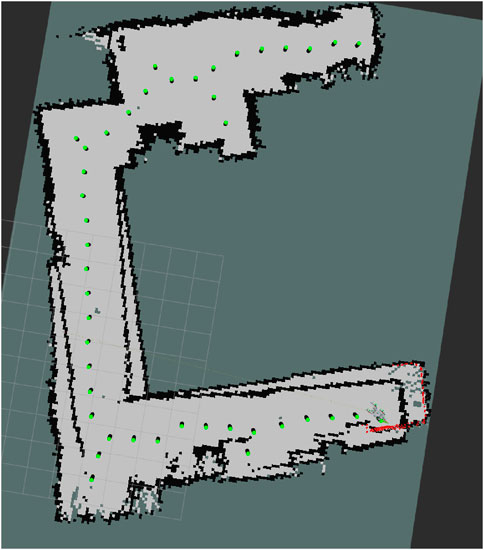

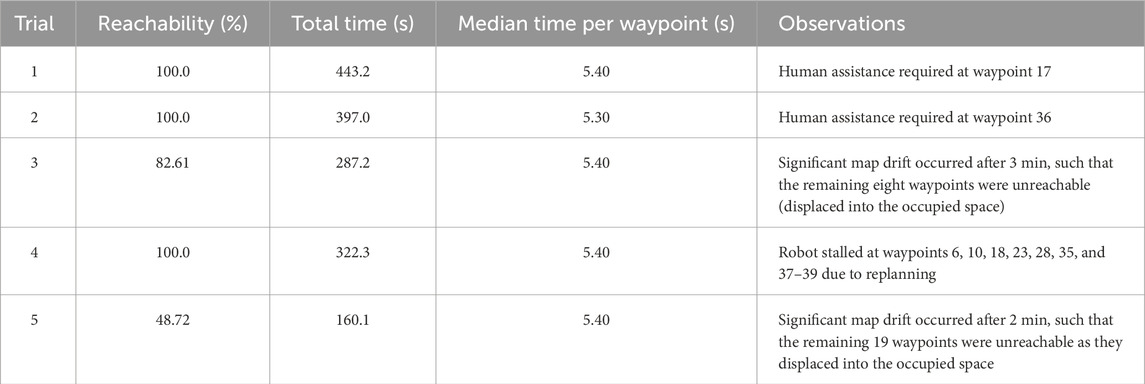

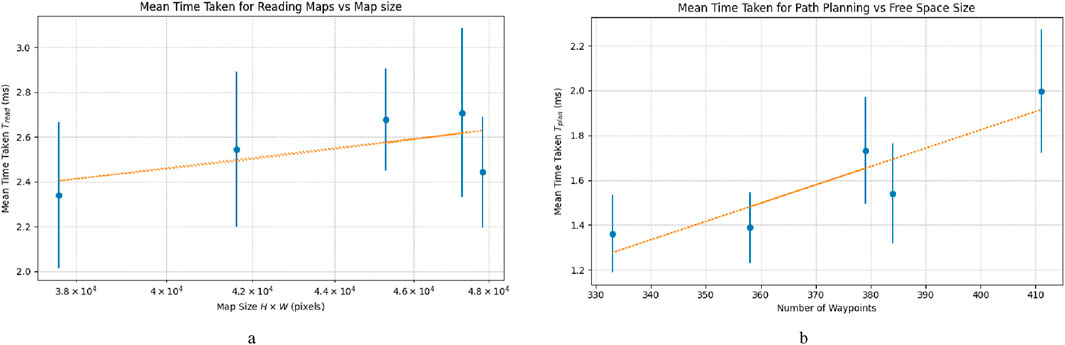

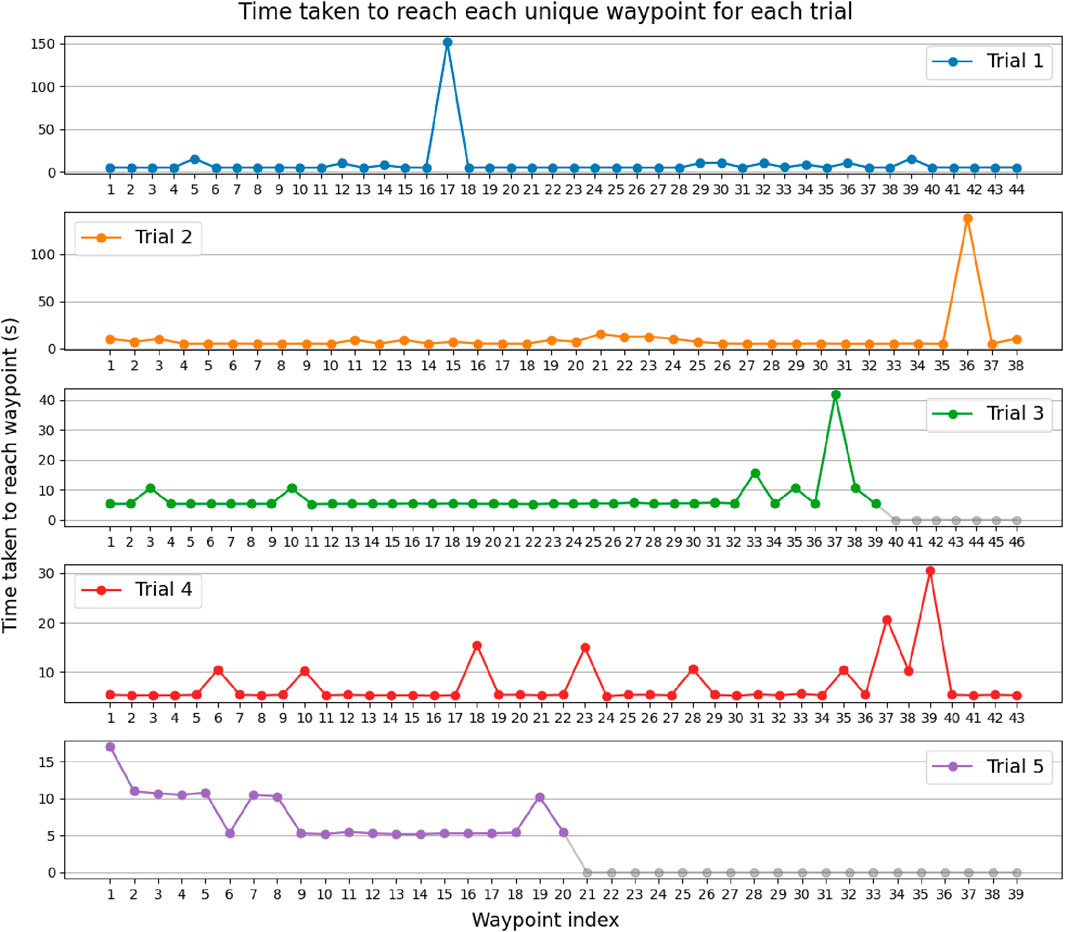

This paper proposes a novel method of coverage path planning for the purpose of scanning an unstructured environment autonomously. The method uses the morphological skeleton of the prior 2D navigation map via SLAM to generate a sequence of points of interest (POIs). This sequence is then ordered to create an optimal path given the robot's current position. To control the high-level operation, a finite state machine is used to switch between two modes: navigating towards a POI using Nav2, and scanning the local surroundings. We validate the method in a leveled indoor obstacle-free non-convex environment on time efficiency and reachability over five trials. The map reader and the path planner can quickly process maps of width and height ranging between [196,225] pixels and [185,231] pixels in 2.52 ms and 1.7 ms, respectively, where their computation time increases with 22.0 ns/pixel and 8.17 µs/pixel, respectively. The robot managed to reach 86.5 % of all waypoints over all five runs. The proposed method suffers from drift occurring in the 2D navigation map.
Keywords: Quadruped, Autonomous navigation, Unstructured environment, Coverage path planning, ROS 2
