Multi-Layer Robotic Controller for Enhancing the Safety of Mobile Robot Navigation in Human-Centered Indoor Environments
Provisionally accepted
Karameldeen Ibrahi Mohamed Omer*
Andrea Monteri- Marche Polytechnic University, Ancona, Italy
Select one of your emails
You have multiple emails registered with Frontiers:
Notify me on publication
Please enter your email address:
If you already have an account, please login
You don't have a Frontiers account ? You can register here

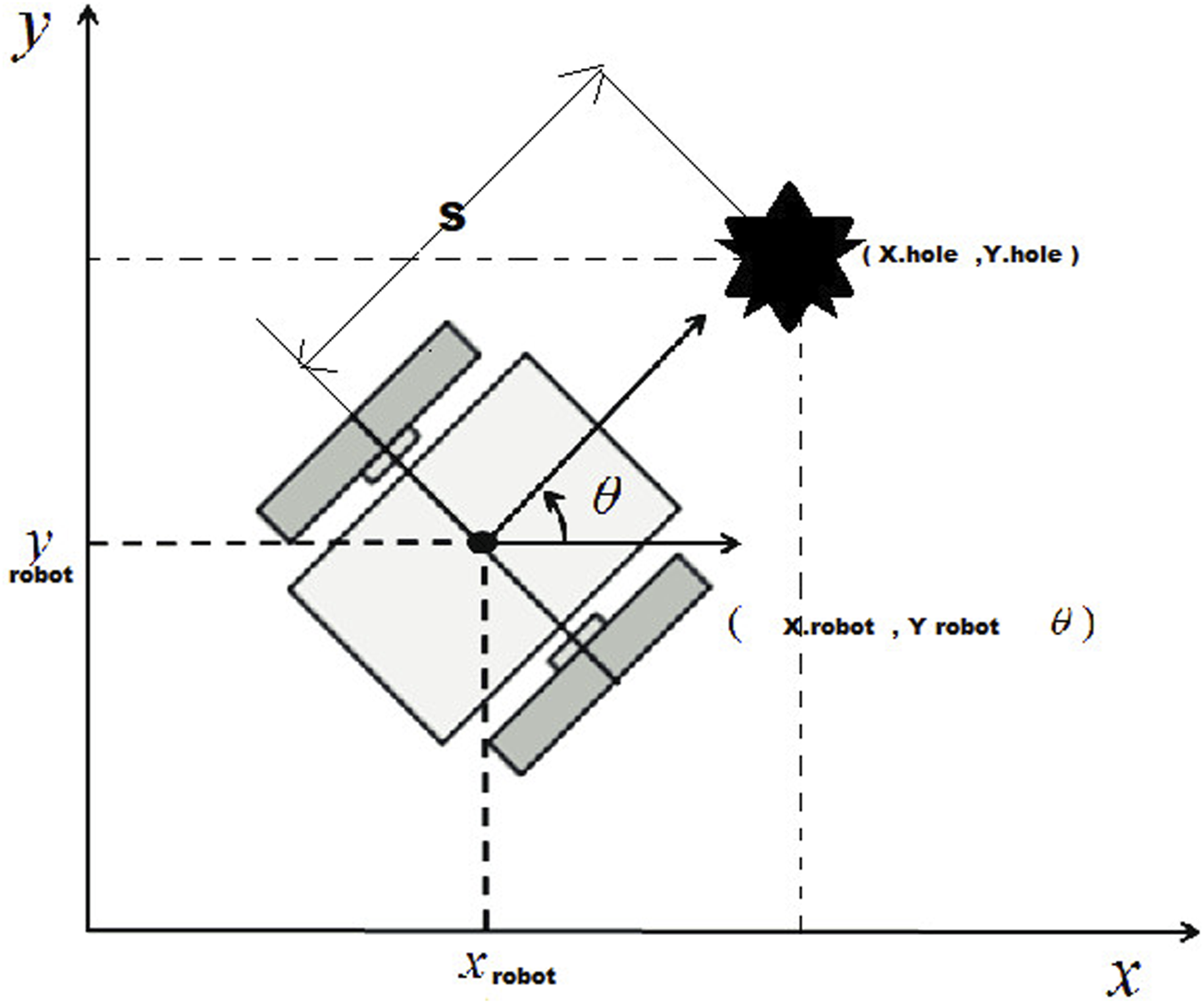

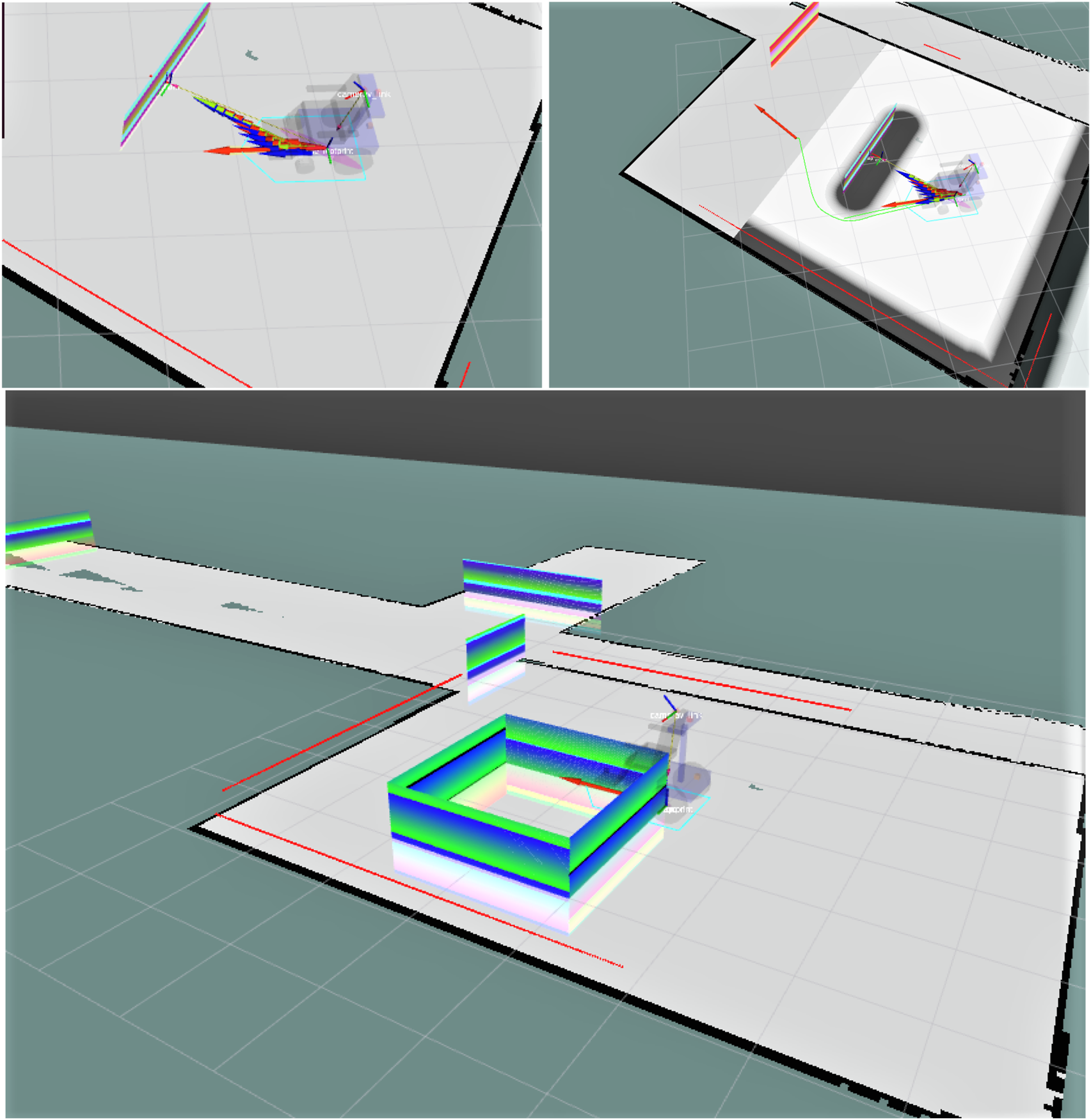

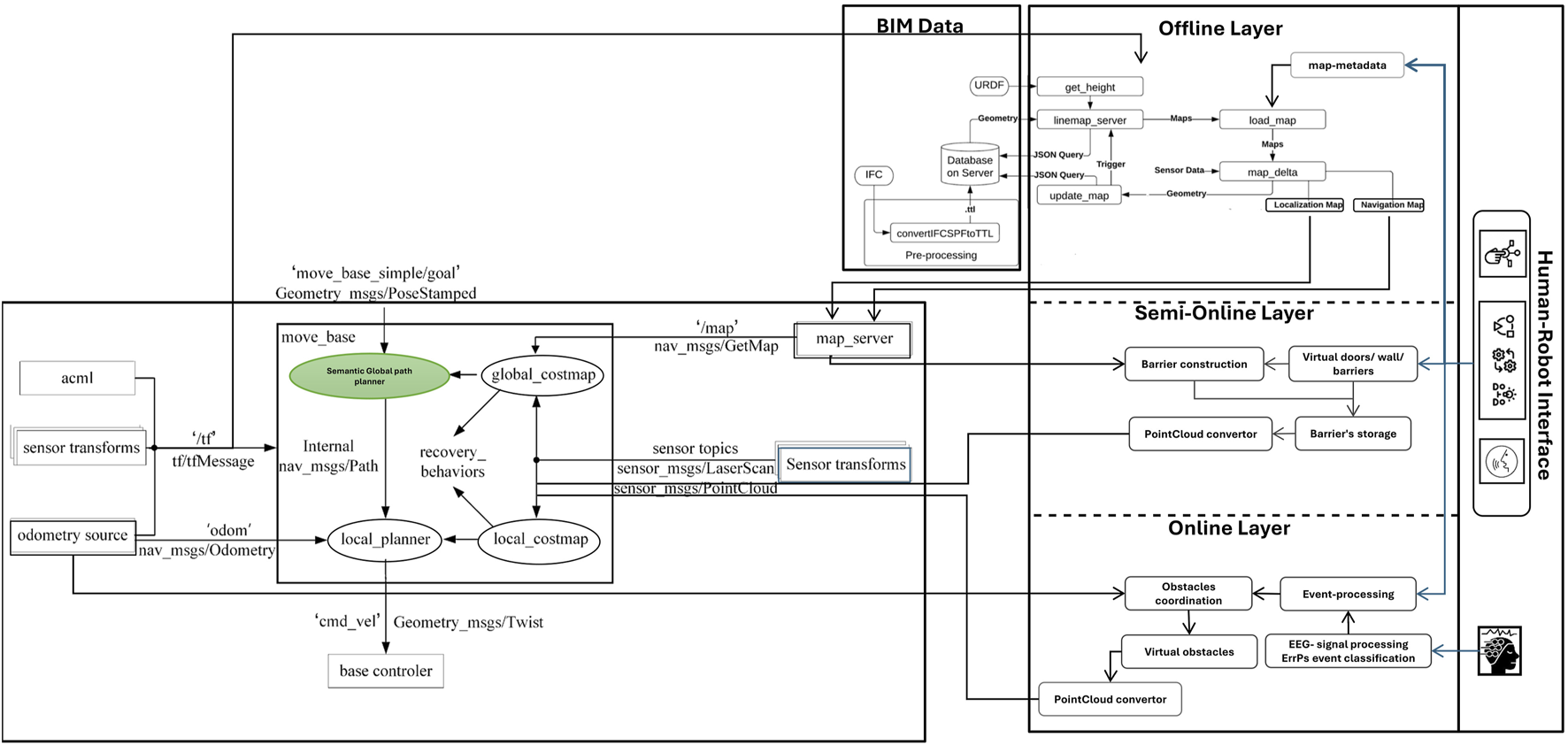

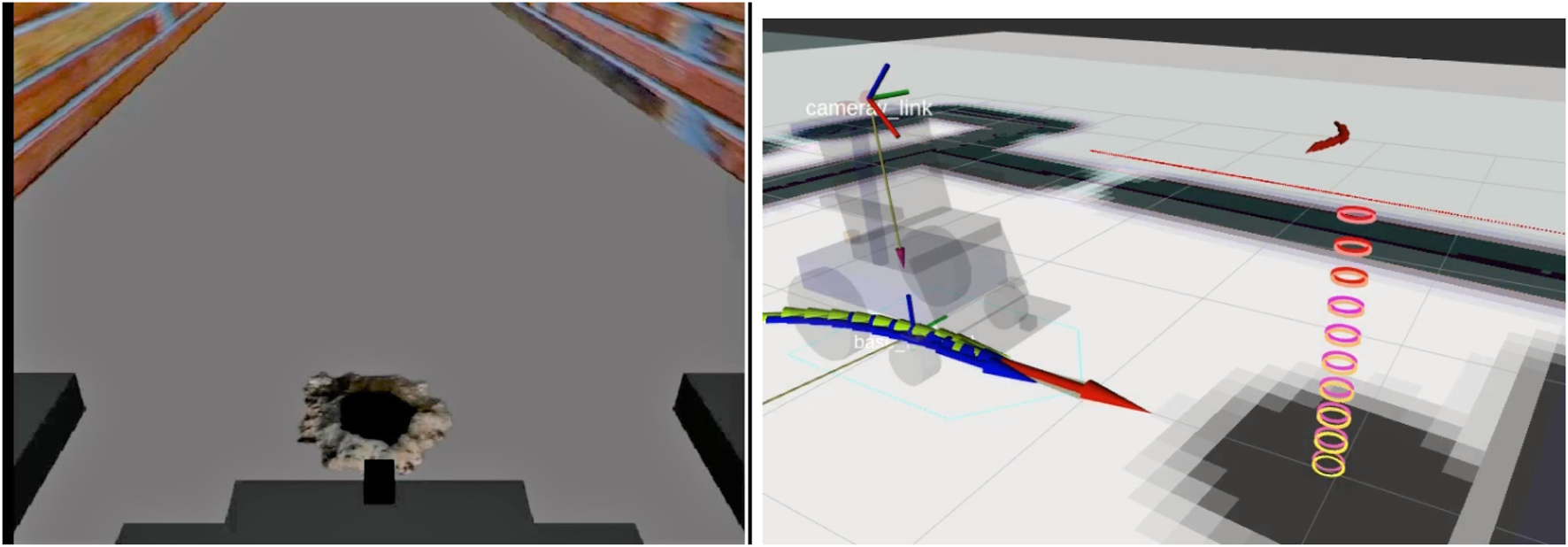

This research proposes a multi-layer navigation system for indoor mobile robots when they share space with vulnerable individuals. The primary objectives are increasing or maintaining safety measures and curtailing operational costs, emphasizing reducing reliance on intricate sensor technologies and computational resources. The developed system employs a three-tiered control approach, with each layer playing a pivotal role in the navigation process.The "online" control layer integrates a human-in-the-loop strategy, where the human operator detects missing obstacles or approaching danger through a user interface and sends a trigger to the robot's controller. This trigger enables the system to estimate the coordinates of the danger and update the robot's navigation path in real time, minimizing reliance on complex sensor systems.The "semi-online" control layer generates dynamic virtual barriers to restrict the robot's navigation in specific areas during specific times. This ensures the robot avoids hazardous zones that could pose temporary risks to the human or robot. For example, areas with temporary obstructions or potential danger, such as kids' play zones or during cleaning, are temporarily restricted from the robot's path, ensuring safe navigation without relying solely on real-time sensor data.The "offline" control layer centers around the use of semantic information to control the robot's behavior according to user-defined space management and safety requirements. By leveraging Building Information Models (BIM) as digital twins, this layer combines semantic and geometric data to comprehensively understand the environment. It enables the robot to navigate according to precise user requirements, utilizing the semantic context for path planning and behavior control. This layer obviates the need for a real-time sensor mapping process, making the system more efficient and adaptable to user needs. This research represents a significant step forward in enhancing the navigational capabilities of robots within human-centric indoor environments, with a core focus on safety, adaptability, and cost-effectiveness.
Keywords: Multi-tier robot controller, Autonomous navigation, human-in-the-loop, semantic mapping, Virtual barriers, Robot safety, Building information models (BIM), Robotic digital twins
