Original Research ARTICLE

Front. Chem., 03 August 2017 | https://doi.org/10.3389/fchem.2017.00057

Quantification of the Changes in Potent Wine Odorants as Induced by Bunch Rot (Botrytis cinerea) and Powdery Mildew (Erysiphe necator)

Angela Lopez Pinar1, Doris Rauhut2, Ernst Ruehl3 and Andrea Buettner1,4*
  • 1Department of Chemistry and Pharmacy, Emil Fischer Center, Friedrich-Alexander-Universität Erlangen-Nürnberg, Erlangen, Germany
  • 2Department of Microbiology and Biochemistry, Hochschule Geisenheim University, Geisenheim, Germany
  • 3Department of Grapevine Breeding, Hochschule Geisenheim University, Geisenheim, Germany
  • 4Department Sensory Analytics, Fraunhofer Institute for Process Engineering and Packaging IVV, Freising, Germany

Fungal infections are detrimental for viticulture since they may reduce harvest yield and wine quality. This study aimed to characterize the effects of bunch rot and powdery mildew on wine aroma by quantification of representative aroma compounds using Stable Isotope Dilution Analysis (SIDA). For this purpose, samples affected to a high degree by each fungus were compared with a healthy sample in each case; to this aim, the respective samples were collected and processed applying identical conditions. Thereby, the effects of bunch rot were studied in three different grape varieties: White Riesling, Red Riesling and Gewürztraminer whereas the influence of powdery mildew was studied on the hybrid Gm 8622-3. Analyses revealed that both fungal diseases caused significant changes in the concentration of most target compounds. Thereby, the greatest effects were increases in the concentration of phenylacetic acid, acetic acid and γ-decalactone for both fungi and all grape varieties. Regarding other compounds, however, inconsistent effects of bunch rot were observed for the three varieties studied.

Introduction

Botrytis cinerea and Erysiphe necator are two fungi responsible for two vineyard diseases with high negative commercial impact: bunch rot (B. cinerea) and powdery mildew (E. necator). However, B. cinerea may also positively impact wine quality under special climatic conditions producing noble rot; in the wake of this process, highly valued botrytized wines are achieved.

Numerous studies previously addressed the impact of these fungi on wine quality in general, however, less work focused on wine aroma quality specifically. Overall, most literature addressed the aroma of the three most important examples of sweet botrytized wines: Sauternes (Bailly et al., 2006, 2009; Sarrazin et al., 2007; Campo et al., 2008), Amarone (Genovese et al., 2007; Fedrizzi et al., 2011; Tosi et al., 2012), and Tokaji Aszú (Schreier et al., 1976; Miklosy et al., 2000, 2004; Miklosy and Kerenyi, 2004). On the other hand, the effects of the negative form of B. cinerea, i.e., bunch rot and sour rot have been addressed in only a few investigations (Zoecklein et al., 2000; Meneguzzo et al., 2006; Barata et al., 2011; Ky et al., 2012). Thereby, generation of earthy off-odors has been described as consequence of bunch rot and has been attributed to the appearance of geosmin, 2-methylisoborneol and 1-octen-3-one, amongst others (La Guerche et al., 2005, 2006, 2007).

On the other hand, powdery mildew infection was studied in relation to wine quality by analyzing classic oenological parameters, namely harvest yield, total soluble solids, color and acidity, and/or performing sensory tests (Pool et al., 1984; Gadoury et al., 2001; Stummer et al., 2003, 2005; Calonnec et al., 2004). Thereby it was observed that this disease may cause a reduction in harvest yield, but also lower total soluble solids content, a less intense juice color and higher acidity have been reported as negative side-effects. Furthermore, in some studies, powdery mildew was related to the generation of off-notes that were described as earthy, dusty and reminiscent of mushroom (Darriet et al., 2002; Stummer et al., 2005). To the best of our knowledge, the effects of powdery mildew on wine aroma composition have been studied by Aroma Extract Dilution Analysis (AEDA) only once (Darriet et al., 2002). This study showed that two of the most important odorants in must, produced of diseased grapes, 1-octen-3-one and (Z)-1,5-octadien-3-one, were enzymatically reduced during (wine) fermentation to less odorous compounds, namely 3-octanone, and (Z)-5-octen-3-one. In addition, an unidentified fishy-mushroom-like smelling odorous zone was detected. However, a direct comparison between powdery mildew-affected samples and their respective healthy controls is, to the best of our knowledge, not yet reported in literature.

The aroma body constitutes the primary quality factor of wine. Consequently, it is important to understand the parameters that influence aroma composition of this highly valued product. Well-established analytical approaches are at hand in modern aroma analysis to relate the odorant composition of wine to its sensory profile: Gas Chromatography-Olfactometry (GC-O) techniques allow the screening for the aroma active constituents amongst a large number of volatile compounds and ranking according to their relative intensities as is done e.g., by AEDA (Grosch, 2001). This strategy is commonly complemented by sensory evaluations and quantification of the main odorous constituents, as well as reconstitution experiments, especially when the aim is the confirmation of the complete aroma spectrum.

This article is based on our previous study where effects of bunch rot and powdery mildew on wine aroma have been evaluated by comparative AEDA and sensory tests (Lopez Pinar et al., 2017). Thereby, the aim of the present study is to validate the olfactometric observations by means of quantitative determinations.

Materials and Methods

Chemicals

Dichloromethane and anhydrous sodium sulfate were purchased from VWR (Darmstadt, Germany) whereas sulfuric acid and sodium carbonate were from Roth (Karlsruhe, Germany). The reference substances were obtained from the following suppliers: acetic acid, 2-phenylethanol, 3-methyl-1-butanol (isoamyl alcohol), hexanoic acid, phenylacetic acid, ethyl 2-methylbutanoate, γ-decalactone, γ-undecalactone, 2-methylbutanoic acid and 3-(methylthio)-propanal (methional) were from Sigma-Aldrich (Steinheim, Germany), butanoic acid and ethyl butanoate from Fluka (Steinheim, Germany), 2-methylpropanoic acid (isobutanoic acid) from SAFC (Steinheim, Germany), and 4-hydroxy-3-methoxybenzaldehyde (vanillin) from ABCR (Karlsruhe, Germany). The isotopically labeled standards were purchased from the following suppliers given in parentheses: 3,4-2H2-3-methyl-1-butanol (2H2−isoamyl alcohol), 1,3,4,5,6-2H5-2-phenylethanol, 3-(methyl-2H3-thio)-propanal (2H3-methional), 5,5,6,6-2H4-y-decalactone, 6,7-2H2-y-undecalactone (Aromalab, Freising, Germany), 6,6,6-2H3-hexanoic acid, 3,3,3-2H3-2-methylpropanoic acid (2H3-isobutanoic acid), and 2H6-ethanol (CDN Isotopes, Pointe-Claire, Quebec, Canada), 1,2-13C2-butanoic acid, α,β-13C2–phenylacetic acid, 13C1-acetic acid, and 4-hydroxy-3-methoxy-13C6−benzaldehyde (13C6-vanillin) (Sigma-Aldrich, Steinheim, Germany).

Synthesis of 2H5-Ethyl Butanoate and 2H5-Ethyl 2-Methylbutanoate

2H5-Ethyl butanoate and 2H5-ethyl 2-methylbutanoate were synthesized in the following way: [2H6]-ethanol (25 mmol, 1.30 g) and concentrated sulfuric acid (1 mmol, 0.098 g) were mixed with either butanoic acid (5 mmol, 0.44 g) to give 2H5-ethyl butanoate or 2-methylbutanoic acid (5 mmol, 0.51 g) to give 2H5-ethyl 2-methylbutanoate; the mixtures were stirred at 90°C for 2 h. To obtain the final products, 50 mL of sodium carbonate water solution (0.5 mol/L) were added, and the resulting mixtures were extracted thrice with 50 mL of dichloromethane. After vigorous shaking, the organic phase was separated from the aqueous phase using a separatory funnel. The combined organic phases were dried over anhydrous sodium sulfate. The products were concentrated using a R-114 rotary evaporator (Buechi, Essen, Germany) without application of vacuum at 50°C to a final volume of approximately 50 mL. The identity of the synthesized compounds was confirmed by mass spectrometry. For 2H5-ethyl butanoate the following data was obtained: MS-EI: 43 (100), 71 (91), 93 (68), 41 (49), 39 (48), 42 (41), 74 (31), 40 (27), 91 (23), 106 (15), 92 (14), 67 (12), 56 (11), 69 (11); MS-CI: 122 (100, M++1), 121 (18), 71 (10). For 2H5-ethyl 2-methylbutanoate the following data was obtained: MS-EI: 107 (100), 57 (87), 41 (48), 75 (37), 39 (26), 88 (19), 56 (18), 120 (17), 76 (12); MS-CI: 136 (100, M++1), 135 (21).

Wine Samples

The effects of bunch rot were studied in three grape varieties: White Riesling, Red Riesling and Gewürztraminer. In the case of powdery mildew, the hybrid Gm 8622-3 was analyzed. Sample selection and grape harvest procedures have already been described in our previous study (Lopez Pinar et al., 2016). In brief, samples affected by the fungus to a very high degree were compared with their respective healthy control. In each case, the pairs of samples were collected separately, but both were harvested and processed identically. The degree of fungal infection of the grape berries was visually assessed as described in our previous study (Lopez Pinar et al. (2016), providing photographs with representative examples of grapes affected with bunch rot and powdery mildew). Grapes were crushed, pressed in a pneumatic press and left to settle with 50 mg/L SO2 for approximately 24 h at 10°C, followed by filtering through filter paper. The grape musts were subsequently fermented at 17°C for 2–3 weeks in 20 L glass balloons by inoculation of the reactivated pure yeast culture (20 g/hL) Lalvin EC 1118 (Lallemand, Vienna, Austria). After fermentation, wines were racked and the content of SO2 was adjusted to achieve a final concentration of approximately 50 mg/L free SO2. Finally, samples were filled in brown glass bottles which were closed with screw caps. The wines were stored for approximately 1 year at room temperature. Residual sample material from opened bottles was kept at −80°C if required.

Determination of Basic Oenological Parameters

Residual sugar, titratable acidity and alcoholic content (v/v) were determined using a Winescan FT-2 Fourier Transform Infrared Spectrometer (FTIR) (Foss, Hillerød, Denmark) as described previously (Patz et al., 1999, 2004).

High Resolution Gas Chromatography–Mass Spectrometry (GC–MS)

Mass spectra were recorded using a 5975C MSD quadrupole system combined with a 7890A GC system (Agilent Technologies, Waldbronn, Germany). The instrument was equipped with a Gerstel CIS 4 injection system and a Gerstel MPS 2 auto sampler (Gerstel, Duisburg, Germany), and a DB-FFAP (30 m, 0.25 mm, film thickness 0.25 μm; J&W Scientific, Fisons Instruments, Mainz-Kastel, Germany) as the analytical capillary column. An uncoated, deactivated fused silica capillary column was used as precolumn (2–3 m, 0.53 mm). The carrier gas was helium and the flow rate was 1 mL/min. The temperature program used was as follows: the initial 40°C were held for 2 min, then the temperature was raised at 8°C/min until 240°C, and held for 5 min. Injection volume was 1 μL. EI-mass spectra were generated in full scan mode (m/z range 40–400) at 70 eV ionization energy. The scan rate was 3.94 scan/s.

Two-Dimensional High Resolution Gas Chromatography–Mass Spectrometry/Olfactometry (HRGC–GC–MS/O)

Two-dimensional gas chromatographic analyses were carried out for quantification of trace constituents and specifically for those compounds that could not be fully resolved due to interferences from coeluting substances during one dimensional GC-MS analysis (Table 1). The system consisted of two Varian 450-GCs (Varian, Darmstadt, Germany) combined with a Saturn 2200 MS (Varian). The first GC was equipped with a Gerstel multi-column switching system MCS 2 and connected to the second GC by a Gerstel cryo-trap system CTS 1 (Gerstel). The system was further equipped with a Gerstel CIS 3 injection system and Gerstel MPS 2 auto sampler (Gerstel). The analytical capillaries used were a DB-FFAP capillary (30 m, 0.32 mm, film thickness 0.25 μm; J&W Scientific) in the first oven and a Rxi®-5HT (30 m, 0.25 mm, film thickness 0.25 μm; Restek, Homburg, Germany) in the second oven. At the end of the capillary, the effluent was split between a sniffing port and a FID, or a MS, in the first and second oven, respectively, using two deactivated but uncoated fused silica capillaries (100 cm, 0.20 mm). Application of the samples to the GC system was performed at 40°C using the cold-on-column technique. The GC temperature programs were as follows: the initial 40°C were held for 2 min, then the temperature was raised at 8°C/min until 240°C (for DB-FFAP measurements) or 250°C (for Rxi®-5HT measurements) were reached; the final temperature was then held for 5 min. The flow rate of the helium carrier gas was 2.0 mL/min. The FID and the sniffing port were held at 240 and 260°C, respectively. Mass spectra were generated at 70 eV ionization energy in electron ionization (EI) mode (m/z range 30–300) or in the positive chemical ionization (CI) mode with methanol as the reactant gas (m/z range 35–300).

TABLE 1
www.frontiersin.org

Table 1. Parameters of the quantification method including isotopically labeled standards, selected ions, calibration factors, ionization mode, instruments on which the measurements were performed and volume (ml) of wine extracted to quantify the respective aroma compounds.

Quantification by Means of Stable Isotope Dilution Analysis (SIDA)

In the first step, the isotopically labeled compounds dissolved in dichloromethane were mixed to the wine samples containing the odorant at comparable concentrations, as determined in preliminary experiments. Volumes of wines employed in the analyses were 1, 5, and 60 mL, respectively, depending on the concentrations of the compounds in the wine samples (cf. Table 1). For subsequent extraction of the volatile compounds, wine samples were mixed with dichloromethane in the ratio 1:1 (v/v), or 1:5 (v/v) in case that the volume of extracted wine was only 1 mL. These mixtures were stirred for 1 h at room temperature, and then submitted to solvent assisted flavor evaporation (SAFE) (Engel et al., 1999). The obtained dichloromethane phases were separated in each case, and dried over anhydrous sodium sulfate. Finally, each extract was concentrated to a final volume of 100 μL at 51°C by means of Vigreux distillation followed by micro-distillation.

The selected ions of the labeled and unlabeled compounds were monitored by one- or two-dimensional GC-MS (cf. Table 1), and their intensities recorded in relation to each other. The absolute concentrations were then calculated based on these relative intensities and the amount of labeled standard that had been added in each case, and were corrected by using calibration factors obtained from the mixtures of labeled and unlabeled compounds (cf. Table 1) as described in Spitzer et al. (2013). Analyses were performed per triplicate in each case.

Statistical Analyses

The statistical significance of the effects of the two fungal diseases on the concentrations of the target aroma compounds was analyzed based on a comparison of the mean quantitative values from affected and unaffected samples using Student's t-test. Data were evaluated with regard to a significance level of p < 0.05 and p < 0.01.

Results

Basic Oenological Parameters

Three basic oenological parameters were analyzed: residual sugar, titratable acidity and alcoholic percentage (Table 2).

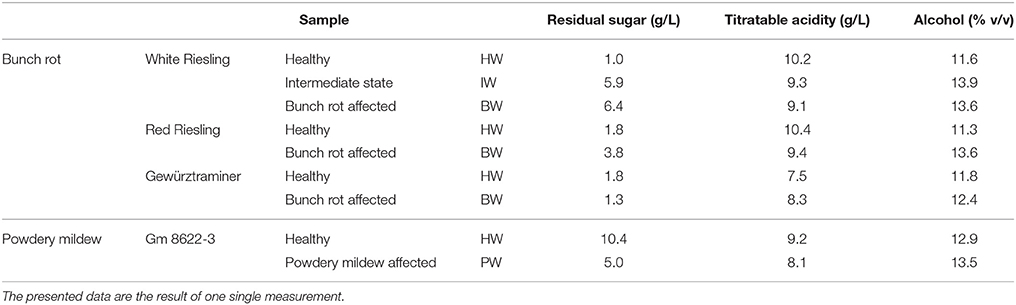

TABLE 2
www.frontiersin.org

Table 2. Some basic oenological parameters of the wine samples analyzed in the current study: grape varieties were White Riesling, Red Riesling, Gewürztraminer and the hybrid Gm 8622-3; grapes were grouped according to their health status in three groups: completely healthy, minor fungus infection and infected by Botrytis bunch rot or Powdery mildew, respectively.

Residual sugar was higher in the sample infected by bunch rot than in the corresponding healthy sample of the White Riesling and Red Riesling varieties, but in Gewürztraminer, residual sugar was moderately lower in the affected sample. In contrast to this, a much lower level of residual sugar was observed in the powdery mildew-affected sample.

Titratable acidity decreased moderately in the samples affected by bunch rot for White Riesling and Red Riesling. However, the Gewürztraminer sample again showed a different tendency with titratable acidity being higher in the affected sample. On the other hand, acidity in the powdery mildew-affected sample was lower than in the healthy sample.

Finally, the alcohol level was higher in all four fungi-affected samples in comparison to their respective healthy samples.

Quantification

In order to characterize the effects of both fungi on the concentration of the selected aroma compounds, wine samples affected to a high degree by bunch rot (BW) or powdery mildew (PW) were compared with healthy ones (HW) of the same variety. Each pair of samples was collected and processed under identical conditions. In case of White Riesling, an additional intermediate state of bunch rot-infection (IW) was included (Table 3). Target odorants were selected based on our previous study where the main changes in odorant profile with fungi infection were elaborated by means of aroma extract dilution analyses and odorant identification studies (Lopez Pinar et al., 2017). Thereby, marker substances representative for acids, esters, alcohols, lactones and aldehydes were selected.

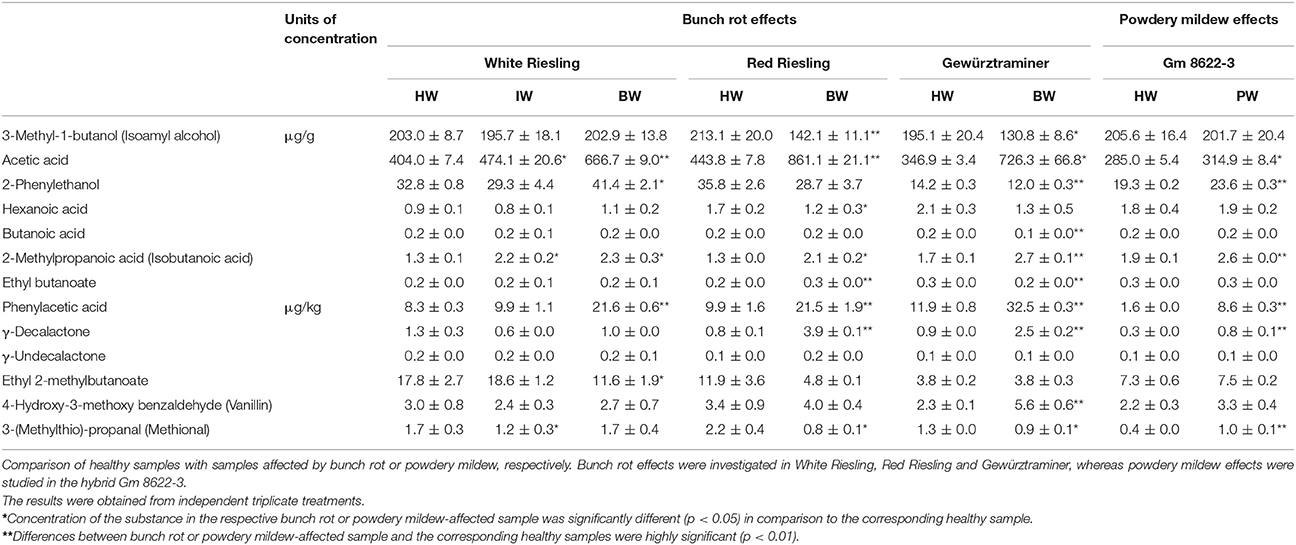

TABLE 3
www.frontiersin.org

Table 3. Results of the quantification experiments.

First, quantification experiments revealed that the most abundant odorants in the wine samples were isoamyl alcohol and acetic acid: both compounds were found in all samples at concentrations between 100 and 900 μg/g.

In the following, fungi effects on the respective odorant concentrations are presented. First and foremost, concentrations of phenylacetic acid and γ-decalactone were significantly increased (p < 0.01) by both fungi. Thereby, their concentrations in the fungi-infected samples increased by a factor of ~2–5 in comparison to the corresponding healthy samples. White Riesling was the sole exception where no significant change in γ-decalactone concentration was observed. In addition, acetic acid roughly doubled in concentration, in case of bunch rot infection (p < 0.05) whereas powdery mildew effects were only moderate (< factor 1.5).

Apart from that, vanillin concentration doubled in the Gewürztraminer bunch rot affected sample (p < 0.01). In contrast, its concentration remained unaffected in White Riesling and Red Riesling varieties and in the sample affected by powdery mildew.

In addition, the concentrations of methional were differently affected by both fungal infections. It was decreased (p < 0.05) by bunch rot in Red Riesling and Gewürztraminer, being lower by a factor of about 1.5–3. In contrast to this, its concentration was not affected in White Riesling variety. On the other hand, the concentration of methional doubled due to powdery mildew infection (p < 0.01).

The concentrations of several other compounds were also affected by both fungal diseases, but only moderately. Thereby, the changes described below were smaller than a factor of 2.

In the group of the cheesy smelling acids, inconsistent effects were recorded. Isobutanoic acid concentrations were higher (p < 0.05) in all four fungi-affected samples than in their corresponding healthy samples. In contrast to this, hexanoic acid concentrations decreased (p < 0.05) due to bunch rot infection, however, only in Red Riesling variety. Powdery mildew did not cause any significant effects on the concentration of this acid. Likewise, bunch rot induced a decline (p < 0.01) in butanoic acid in Gewürztraminer. Meanwhile, butanoic acid concentration was neither affected in the remaining bunch rot-affected samples nor in the sample affected by powdery mildew.

In the group of alcohols, isoamyl alcohol concentrations were lower (p < 0.05) in the Red Riesling and Gewürztraminer samples affected by bunch rot than in the corresponding healthy samples. In the White Riesling bunch rot-affected sample, however, the concentration did not vary from that in the healthy sample or in the sample infected to an intermediate state. Lastly, powdery mildew infection did not lead to any relevant differences in the concentration of this compound. Bunch rot effects on the concentration of 2-phenylethanol differed among the three varieties studied: it was increased (p < 0.05) in the White Riesling bunch rot-affected sample, unchanged in Red Riesling, and decreased (p < 0.01) in Gewürztraminer. In addition, a significant rise (p < 0.01) in concentration of this substance occurred in case of powdery mildew infection.

With regard to the ester substance group, variable results were obtained. Bunch rot led to an increase (p < 0.01) of ethyl butanoate in Red Riesling, a decrease (p < 0.01) in Gewürztraminer, whereas its concentration in White Riesling was not affected. Powdery mildew, on the other hand, caused no significant changes in the concentration of this compound. In addition, bunch rot caused a significant decrease (p < 0.05) of ethyl 2-methylbutanoate in White Riesling. However, significant effects on the concentration level of this substance were neither observed in the remaining varieties nor in the sample affected by powdery mildew.

Finally, γ-undecalactone was neither affected by bunch rot nor by powdery mildew.

Discussion

The influence of bunch rot on wine oenological parameters differed among the grape varieties studied: in Gewürztraminer bunch rot-affected sample, residual sugar was lower and titratable acidity higher than in the corresponding healthy sample. White and Red Riesling, however, showed the opposite trend. Moreover, alcoholic contents were higher in the samples affected by bunch rot in all three varieties, but the increase was less pronounced in Gewürztraminer. These variations may be directly linked to the different levels of total soluble solids (°Brix) in the corresponding grape musts (Lopez Pinar et al., 2016): in White and Red Riesling, °Brix were increased due to bunch rot infection by 25.6 and 26.7%, respectively. In Gewürztraminer °Brix only increased by 7.7%.

On the other hand, bunch rot and powdery mildew infection induced significant changes in the concentrations of most studied aroma compounds; nevertheless the majority of these changes was only in a range of about a factor 1.5–2.

Both fungal diseases caused a significant increase in acetic acid concentrations; thereby, bunch rot effects were more pronounced than the changes induced by powdery mildew. Generally, the content of this compound increases with the degree of oxidation and is also related to a higher production of the oxidative enzyme laccase induced by B. cinerea (Slomczynski et al., 1995; Pezet, 1998). Additionally, bunch rot and powdery mildew infected grapes are susceptible to secondary infections (Steel et al., 2013), such as acetic acid bacteria, which convert ethanol into acetic acid (Cleenwerck and De Vos, 2008; Raspor and Goranovič, 2008).

Moreover, isobutanoic acid concentration was increased in all fungi-affected samples. This compound is formed by deamination of branched amino acids (Lilly et al., 2006), being a metabolic strategy of the fungi to utilize nitrogen for their metabolism (Mencarelli and Tonutti, 2013). The same mechanism might be related to the remarkable rise in phenylacetic acid levels, which is likely to be related to the deamination of phenylalanine (Somers et al., 2005). Moreover, the higher content of phenylacetic acid may be part of a defense mechanism of the plant against fungal infections since this compound is known to be an auxin with a reported antifungal activity (Wightman and Lighty, 1982; Hwang et al., 2001). Indeed, it has been reported that fungal infections may cause a rise in auxin levels (Hare, 1966).

In addition, concentration of γ-decalactone increased significantly due to bunch rot and powdery mildew infection, being in agreement with previous reports of an increase of lactones caused by noble rot, thereby playing an important role in the aroma of the so called botrytized wines (Schreier et al., 1976; Miklosy and Kerenyi, 2004; Miklosy et al., 2004). However, an increase of lactones due to powdery mildew infection has, to the best of our knowledge, not been previously reported. On the other hand, the level of γ-undecalactone was not affected. The reasons for this differential effect are not clear as such pattern has not been reported before, but might be related to a differential metabolism of lactones with even carbon atom numbers.

Bunch rot effects on several aroma compounds from the esters and alcohols group varied among the varieties studied. These divergences cannot be directly related to simple relationships. Indeed, the formation of alcohols and esters in the course of fermentation is influenced by a complex combination of grape composition, yeast metabolism and winemaking conditions (Carrau et al., 2010; Antalick et al., 2015). Yeast strain and fermentation conditions were the same for all varieties in the present study; accordingly, the differences can only be due to different metabolic processes or differences in general infection susceptibility of the investigated varieties. Furthermore, bunch rot is mainly related to B. cinerea, but there might be other secondary infections involved (Steel et al., 2013). In this way, possible differences in the microbial flora may have caused these variations. Surely, this issue should be investigated in more detail in future studies.

To summarize our findings, this study aimed to complement the results obtained by olfactometric evaluations as reported in our previous publication (Lopez Pinar et al., 2017). Accordingly, the most relevant outcomes are briefly summarized in the following. The greatest effects were an increase of the concentrations of acetic acid, phenylacetic acid and γ-decalactone in the bunch rot-affected samples, which confirms the corresponding increases in their FD (flavor dilution) factors as observed via AEDA in our previous study. The concentration of phenylacetic acid was also increased by powdery mildew to a relevant extent which is in line with a higher FD factor in the affected sample. In comparison to that, y-decalactone concentration only roughly doubled due to powdery mildew infection, and this change was not mirrored in a relevant change in FD factor as it was not sufficiently pronounced. Commonly it needs to be stated that AEDA is an olfactory screening approach that may be prone to some variation, commonly in the range of about one or sometimes even two FD factors between individual sample runs. Accordingly, this example clearly demonstrates that AEDA can never fully replace absolute quantification experiments. Apart from that, aroma compounds may result in rather unpredictable sensory effects when being combined in mixtures and different ratios. Additive, synergistic and suppressive effects together with complex peripheral and perceptual modulation and processing steps may lead to sensory perceptions that are, at times, hard to directly correlate with the respective underlying odorants (Buettner and Beauchamp, 2010). Accordingly, future studies need to expand on these aspects if aiming at gaining a fundamental understanding of aroma changes induced by microbial processes as described in the current study.

Conclusion

Quantification of representative odor compounds confirmed the influence of bunch rot and powdery mildew on wine aroma. The main differences in the concentration of individual marker substances corresponded with differences as observed in the previous AEDA experiments (Lopez Pinar et al., 2017).

The most important changes caused by both types of infections were increases in the content of acetic acid, phenylacetic acid and γ-decalactone. Moreover, the quantification experiments confirmed the divergent effects of bunch rot on several other aroma compounds from the substance groups of alcohols and esters in the three varieties studied.

Future studies should address the potential influence of secondary infections and the impact of varying climatic conditions. In addition, it should be addressed how the specific susceptibility of a specific variety influences the degree of infection in relation to the associated changes in aroma and flavor profile.

Author Contributions

Each author has participated sufficiently in the work, intellectually or practically, to take public responsibility for the content of this article, including the conception, design, and conduct of the experiment and data analysis and interpretation. AL, DR, and ER were responsible for sampling. AL, DR, and ER carried out the practical work. AL, DR, and ER were responsible for data analysis. AB, AL, DR, and ER conceived the study, and AB, AL, DR, and ER participated in the design of the study. All authors contributed to the manuscript and approved the final version.

Funding

The project was funded by the Bavarian Research Foundation in the project 152-12.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

The reviewer YL and handling Editor declared their shared affiliation, and the handling Editor states that the process nevertheless met the standards of a fair and objective review.

References

Antalick, G., Seuklje, K., Blackman, J. W., Meeks, C., Deloire, A., and Schmidtke, L. M. (2015). Influence of grape composition on red wine ester profile: comparison between Cabernet Sauvignon and Shiraz cultivars from Australian warm climate. J. Agric. Food Chem. 63, 4664–4672. doi: 10.1021/acs.jafc.5b00966

PubMed Abstract | CrossRef Full Text | Google Scholar

Bailly, S., Jerkovic, V., Marchand-Brynaert, J., and Collin, S. (2006). Aroma extraction dilution analysis of sauternes wines key role of polyfunctional thiols. J. Agric. Food Chem. 54, 7227–7234. doi: 10.1021/jf060814k

PubMed Abstract | CrossRef Full Text | Google Scholar

Bailly, S., Jerkovic, V., Meuree, A., Timmermans, A., and Collin, S. (2009). Fate of key odorants in Sauternes wines through aging. J. Agric. Food Chem. 57, 8557–8563. doi: 10.1021/jf901429d

PubMed Abstract | CrossRef Full Text | Google Scholar

Barata, A., Campo, E., Malfeito-Ferreira, M., Loureiro, V., Cacho, J., and Ferreira, V. (2011). Analytical and sensorial characterization of the aroma of wines produced with sour rotten grapes using GC-O and GC-MS: identification of key aroma compounds. J. Agric. Food Chem. 59, 2543–2553. doi: 10.1021/jf104141f

PubMed Abstract | CrossRef Full Text | Google Scholar

Buettner, A., and Beauchamp, J. (2010). Chemical input–sensory output: diverse modes of physiology-flavour interaction. Food Qual. Pref. 21, 915–924. doi: 10.1016/j.foodqual.2010.01.008

CrossRef Full Text | Google Scholar

Calonnec, A., Cartolaro, P., Poupot, C., Dubourdieu, D., and Darriet, P. (2004). Effects of Uncinula necator on the yield and quality of grapes and wine. Plant Patol. 53, 434–445. doi: 10.1111/j.0032-0862.2004.01016.x

CrossRef Full Text | Google Scholar

Campo, E., Cacho, J., and Ferreira, V. (2008). The chemical characterization of the aroma of dessert and sparkling white wines (Pedro Ximénez, Fino, Sauternes, and Cava) by gas chromatography-olfactometry and chemical quantitative analysis. J. Agric. Food Chem. 56, 2477–2484. doi: 10.1021/jf072968l

PubMed Abstract | CrossRef Full Text | Google Scholar

Carrau, F., Medina, K., Fariña, L., Boido, E., and Dellacassa, E. (2010). Effect of Saccharomyces cerevisiae inoculum size on wine fermentation aroma compounds and its relation with assimilable nitrogen content. Int. J. Food Microbiol. 143, 81–85. doi: 10.1016/j.ijfoodmicro.2010.07.024

PubMed Abstract | CrossRef Full Text | Google Scholar

Cleenwerck, I., and De Vos, P. (2008). Polyphasic taxonomy of acetic acid bacteria: an overview of the currently applied methodology. Int. J. Food Microbiol. 125, 2–14. doi: 10.1016/j.ijfoodmicro.2007.04.017

PubMed Abstract | CrossRef Full Text | Google Scholar

Darriet, P., Pons, M., Henry, R., Dumont, O., Findeling, V., Cartolaro, P., et al. (2002). Impact odorants contibuting to the fungus type aroma from grape berries contaminated by powdery mildew (Uncinula necator); incidence of enzymatic activities of the yeast Saccharomyces cerevisiae. J. Agric. Food Chem. 50, 3277–3282. doi: 10.1021/jf011527d

PubMed Abstract | CrossRef Full Text | Google Scholar

Engel, W., Bahr, W., and Schieberle, P. (1999). Solvent assisted flavour evaporation-a new and versatile technique for the careful and direct isolation of aroma compounds from complex food matrices. Eur. Food Res. Technol. 209, 237–241. doi: 10.1007/s002170050486

CrossRef Full Text | Google Scholar

Fedrizzi, B., Tosi, E., Simonato, B., Finato, F., Cipriani, M., Caramia, G., et al. (2011). Changes in wine aroma composition according to botrytized berry percentage: a preliminary study on Amarone wine. Food Technol. Biotechnol. 49, 529–535.

Google Scholar

Gadoury, D., Seem, R., Pearson, R., and Wilcox, W. (2001). Effects of powdery mildew on vine growth, yield, and quality of concord grapes. Plant Dis. 85, 137–140. doi: 10.1094/PDIS.2001.85.2.137

CrossRef Full Text | Google Scholar

Genovese, A., Gambuti, A., Piombino, P., and Moio, L. (2007). Sensory properties and aroma compounds of sweet Fiano wine. Food Chem. 103, 1228–1236. doi: 10.1016/j.foodchem.2006.10.027

CrossRef Full Text | Google Scholar

Grosch, W. (2001). Evaluation of the key odorants of food by dilution experiments, Aroma models and omission. Chem. Senses 26, 533–545. doi: 10.1093/chemse/26.5.533

CrossRef Full Text | Google Scholar

Hare, R. C. (1966). Physiology of resistance to fungal diseases in plants. Bot. Rev. 32, 95–137. doi: 10.1007/BF02858657

CrossRef Full Text | Google Scholar

Hwang, B. K., Lim, S. W., Kim, B. S., Lee, J. Y., and Moon, S. S. (2001). Isolation and in vivo and in vitro antifungal activity of phenylacetic acid and sodium phenylacetate from Streptomyces humidus. Appl. Env. Microbiol. 67, 3739–3745. doi: 10.1128/AEM.67.8.3739-3745.2001

PubMed Abstract | CrossRef Full Text | Google Scholar

Ky, I., Lorrain, B., Jourdes, M., Pasquier, G., Fermaud, M., Geny, L., et al. (2012). Assessment of grey mould (Botrytis cinerea) impact on phenolic and sensory quality of Bordeaux grapes, musts and wines for two consecutive vintages. Aust. J. Grape Wine Res. 18, 215–226. doi: 10.1111/j.1755-0238.2012.00191.x

CrossRef Full Text | Google Scholar

La Guerche, S., Chamont, S., Blancard, D., Dubourdieu, D., and Darriet, P. (2005). Origin of (−)-geosmin on grapes: on the complementary action of two fungi, Botrytis cinerea and Penicillium expansum. Antonie Van Leeuwenhoek 88, 131–139. doi: 10.1007/s10482-005-3872-4

PubMed Abstract | CrossRef Full Text | Google Scholar

La Guerche, S., Dauphin, B., Pons, M., Blancard, D., and Darriet, P. (2006). Characterization of some mushroom and earthy off-odors microbially induced by the development of rot on grapes. J. Agric Food Chem. 2006, 9193–9200. doi: 10.1021/jf0615294

CrossRef Full Text | Google Scholar

La Guerche, S., De Senneville, L., Blancard, D., and Darriet, P. (2007). Impact of the Botrytis cinerea strain and metabolism on (-)-geosmin production by Penicillium expansum in grape juice. Antonie Van Leeuwenhoek 92, 331–341. doi: 10.1007/s10482-007-9161-7

PubMed Abstract | CrossRef Full Text | Google Scholar

Lilly, M., Bauer, F. F., Styger, G., Lambrechts, M. G., and Pretorius, I. S. (2006). The effect of increased branched-chain amino acid transaminase activity in yeast on the production of higher alcohols and on the flavour profiles of wine and distillates. FEMS Yeast Res. 6, 726–743. doi: 10.1111/j.1567-1364.2006.00057.x

PubMed Abstract | CrossRef Full Text | Google Scholar

Lopez Pinar, A., Rauhut, D., Ruehl, E., and Buettner, A. (2016). Effects of Botrytis cinerea and Erysiphe necator fungi on the aroma character of grape must: a comparative approach. Food Chem. 207, 251–260. doi: 10.1016/j.foodchem.2016.03.110

PubMed Abstract | CrossRef Full Text | Google Scholar

Lopez Pinar, A., Rauhut, D., Ruehl, E., and Buettner, A. (2017). Effects of bunch rot (Botrytis cinerea) and powdery mildew (Erysiphe necator) fungal diseases on wine aroma. Front. Chem. 5:20. doi: 10.3389/fchem.2017.00020

PubMed Abstract | CrossRef Full Text | Google Scholar

Mencarelli, F., and Tonutti, P. (2013). Sweet, Reinforced and Fortified Wines: Grape Biochem, Technol and Vinification. Hoboken, NJ: Wiley.

Google Scholar

Meneguzzo, J., Rizzon, L. A., Miele, A., and Ayub, M. A. Z. (2006). Effect of Botrytis cinerea on the composition of Gewürztraminer wine. Ciênc. Tecnol. Aliment. Campinas 26, 527–532. doi: 10.1590/S0101-20612006000300007

CrossRef Full Text | Google Scholar

Miklosy, E., Kalmar, Z., and Kerenyi, Z. (2004). Identification of some characteristic aroma compounds in noble rotted grape berries and Aszu wines from Tokaj by GC-MS. Acta Aliment. 33, 215–226. doi: 10.1556/AAlim.33.2004.3.2

CrossRef Full Text | Google Scholar

Miklosy, E., Kalmar, Z., Polos, V., and Kerenyi, Z. (2000). Study of volatile aroma components in young Tokaji Aszu wines by GC-MS. Chromatographia 51, S305–S308. doi: 10.1007/BF02492823

CrossRef Full Text | Google Scholar

Miklosy, E., and Kerenyi, Z. (2004). Comparison of the volatile aroma components in noble rotted grape berries from two different locations of the Tokaj wine district in Hungary. Analyt. Chim. Acta 513, 177–181. doi: 10.1016/j.aca.2003.11.087

CrossRef Full Text | Google Scholar

Patz, C.-D., Blieke, A., Ristow, R., and Dietrich, H. (2004). Application of FT-MIR spectrometry in wine analysis. Analyt. Chim. Acta 513, 81–89. doi: 10.1016/j.aca.2004.02.051

CrossRef Full Text | Google Scholar

Patz, C.-D., David, A., Thente, K., Kürbel, P., and Dietrich, H. (1999). Wine analysis with FTIR spectrometry. Die Wein Wiss. 54, 80–87.

Google Scholar

Pezet, R. (1998). Purification and characterization of a 32-kDa laccase-like stilbene oxidase produced by Botrytis cinerea. FEMS Microbiol. Lett. 167, 203–208. doi: 10.1111/j.1574-6968.1998.tb13229.x

CrossRef Full Text | Google Scholar

Pool, R. M., Pearson, R. C., Welser, M. J., Lakso, A. N., and Seem, R. C. (1984). Influence of powdery mildew on yield and growth of Rosette grapevines. Plant Dis. 68, 590–593. doi: 10.1094/PD-69-590

CrossRef Full Text | Google Scholar

Raspor, P., and Goranovič, D. (2008). Biotechnological applications of acetic acid bacteria. Crit. Rev. Biotechnol. 28, 101–124. doi: 10.1080/07388550802046749

PubMed Abstract | CrossRef Full Text | Google Scholar

Sarrazin, E., Dubourdieu, D., and Darriet, P. (2007). Characterization of key-aroma compounds of botrytized wines, influence of grape botrytization. Food Chem. 103, 536–545. doi: 10.1016/j.foodchem.2006.08.026

CrossRef Full Text | Google Scholar

Schreier, P., Drawert, F., Kerenyi, Z., and Junker, A. (1976). Gaschromatographisch-massenpektrometrische untersuchung flüchtiger inthaltssoffe des weines. Z. Lebensm. Unters. Forsch. 161, 249–258. doi: 10.1007/BF01105811

CrossRef Full Text | Google Scholar

Slomczynski, D., Nakas, P., and Tanenbaum, S. W. (1995). Production and characterization of Laccase from Botrytis cinerea 61-34. App. Env. Microbiol. 61, 907–912.

PubMed Abstract | Google Scholar

Somers, E., Ptacek, D., Gysegom, P., Srinivasan, M., and Vanderleyden, J. (2005). Azospirillum brasilense produces the auxin-like phenylacetic acid by using the key enzyme for indole-3-acetic acid biosynthesis. App. Env. Microbiol. 71, 1803–1810. doi: 10.1128/AEM.71.4.1803-1810.2005

PubMed Abstract | CrossRef Full Text | Google Scholar

Spitzer, J., Klos, K., and Buettner, A. (2013). Monitoring aroma changes during human milk storage at +4°C by sensory and quantification experiments. Clin. Nutr. 32, 1036–1042. doi: 10.1016/j.clnu.2013.01.015

PubMed Abstract | CrossRef Full Text | Google Scholar

Steel, C. C., Blackman, J. W., and Schmidtke, L. M. (2013). Grapevine bunch rots: impacts on wine composition, quality, and potential procedures for the removal of wine faults. J. Agric. Food Chem. 61, 5189–5206. doi: 10.1021/jf400641r

PubMed Abstract | CrossRef Full Text | Google Scholar

Stummer, B. E., Francis, I. L., Markides, A. J., and Scott, E. S. (2003). The effect of powdery mildew infection of grape berries on juice and wine composition and on sensory properties of Chardonnay wines. Aust. J. Grape Wine Res. 9, 29–39. doi: 10.1111/j.1755-0238.2003.tb00229.x

CrossRef Full Text | Google Scholar

Stummer, B. E., Francis, L., Zanker, T., Lattey, K. A., and Scott, E. S. (2005). Effects of powdery mildew on the sensory properties and composition of Chardonnay juice and wine when grape sugar ripeness is standardised. Aust. J. Grape Wine Res. 11, 67–76. doi: 10.1111/j.1755-0238.2005.tb00280.x

CrossRef Full Text | Google Scholar

Tosi, E., Fedrizzi, B., Azzolini, M., Finato, F., Simonato, B., and Zapparoli, G. (2012). Effects of noble rot on must composition and aroma profile of Amarone wine produced by the traditional grape withering protocol. Food Chem. 130, 370–375. doi: 10.1016/j.foodchem.2011.07.053

CrossRef Full Text | Google Scholar

Wightman, F., and Lighty, D. L. (1982). Identification of phenylacetic acid as a natural auxin in the shoots of higher plants. Physiol. Plant. 55, 17–24. doi: 10.1111/j.1399-3054.1982.tb00278.x

CrossRef Full Text | Google Scholar

Zoecklein, B. W., Williams, J. M., and Duncan, S. E. (2000). Effect of sour rot on the composition of white riesling (Vitis vinifera L) grapes. Small Fruits Rev. 1, 63–77. doi: 10.1300/J301v01n01_08

CrossRef Full Text | Google Scholar

Keywords: Stable Isotope Dilution Analysis (SIDA), γ-decalactone, acetic acid, phenylacetic acid

Citation: Lopez Pinar A, Rauhut D, Ruehl E and Buettner A (2017) Quantification of the Changes in Potent Wine Odorants as Induced by Bunch Rot (Botrytis cinerea) and Powdery Mildew (Erysiphe necator). Front. Chem. 5:57. doi: 10.3389/fchem.2017.00057
