Original Research ARTICLE

Front. Chem., 20 December 2018 | https://doi.org/10.3389/fchem.2018.00632

Catalytic and Photocatalytic Nitrate Reduction Over Pd-Cu Loaded Over Hybrid Materials of Multi-Walled Carbon Nanotubes and TiO2

Cláudia G. Silva*, Manuel F. R. Pereira, José J. M. Órfão, Joaquim L. Faria and Olívia S. G. P. Soares
  • Laboratory of Separation and Reaction Engineering-Laboratory of Catalysis and Materials (LSRE-LCM), Faculdade de Engenharia, Universidade do Porto, Porto, Portugal

TiO2 and carbon nanotube-TiO2 hybrid materials synthesized by sol-gel and loaded with 1%Pd−1%Cu (%wt.) were tested in the catalytic and photocatalytic reduction of nitrate in water in the presence of CO2 (buffer) and H2 (reducing agent). Characterization of the catalysts was performed by UV-Vis and fluorescence spectroscopy, X-ray diffraction, temperature programed reduction, N2 adsorption, and electron microscopy. The presence of light produced a positive effect in the kinetics of nitrate removal. Higher selectivity toward nitrogen formation was observed under dark condition, while the photo-activated reactions showed higher selectivity for the production of ammonium. The hybrid catalyst containing 20 %wt. of carbon nanotubes shows the best compromise between activity and selectivity. A mechanism for the photocatalytic abatement of nitrate in water in the presence of the hybrid materials was proposed, based in the action of carbon nanotubes as light harvesters, dispersing media for TiO2 particles and as charge carrier facilitators.

Introduction

Nitrate is a naturally occurring ion that is part of the nitrogen cycle, in which nitrogen species are switched between organisms and the environment. The increasing use of inorganic nitrogenous fertilizers, the disposal of wastes (mainly from oxidation of nitrogenous waste products in human and animal excreta) and changes in land use are the main causes accounting for the progressively increasing levels of this pollutant in groundwater supplies. Nitrate ion (NO3) is the stable form of combined nitrogen for oxygenated systems and is potentially hazardous for humans, since it can be transformed into nitrite in the human body, which may cause the blue baby syndrome, being also a precursor of carcinogenic nitrosamines (Kapoor and Viraraghavan, 1997). Moreover, it may cause the eutrophication of rivers and lakes. The maximum contaminant level in drinking water of nitrogen species as nitrate, nitrite, and ammonium is 50, 0.5, and 0.5 mg/L, respectively (EU Water Framework Directive1).

The removal of nitrate from water constitutes a great challenge to safeguarding drinking water resources of suitable quality. In this context, a great effort has been put in the development of water technologies capable to address the environmental and health concerns. Conventional methods are based in physical-chemical treatment processes (reverse osmosis, ion exchange, and electrodialysis) and biological denitrification.

Heterogeneous catalytic systems like catalytic and photocatalytic reduction of nitrate have been shown to be promising processes compared to conventional treatments (Sá et al., 2009; Soares et al., 2011a, 2014; Luiz et al., 2012; Shand and Anderson, 2013). Catalytic nitrate reduction occurs by consecutive and parallel reactions where nitrate is reduced to nitrite, which is converted to ammonium, as undesired by-product, and to nitrogen, as desired product. The main issue of this process is the selectivity toward nitrogen, which is often compromised. Bimetallic catalysts composed by a noble metal (Pd, Pt, or Rh) and a promoter metal (Cu, Sn, or In) supported on different materials are the most used for catalytic hydrogenation of nitrate (Soares et al., 2009; Calvo et al., 2010; Marchesini et al., 2010; Wada et al., 2012), although monometallic catalysts also present some activity depending on the support (Barrabés et al., 2010; Anderson, 2011; Devadas et al., 2011). Pd-Cu catalysts are normally the most efficient, Pd-Sn and Pd-In also presenting good performances (Martínez et al., 2017). In the case of photocatalytic reduction, besides the type of metal catalysts, several other conditions such as the catalyst support, the pH of the solution, the irradiation source, nature of the reducing agent or electron donor (hole scavenger) also affect the performance of the process. H2 and CO2 are usually used in catalytic reduction reactions, in which H2 serves as reductant and CO2 as buffer (Prusse et al., 2000). In the case of the photo-assisted catalytic process, oxalic acid, formic acid, or methanol are the most used hole scavengers (Zhang et al., 2005; Doudrick et al., 2013).

Titanium dioxide-based materials are the most widely used catalysts for the photocatalytic reduction of nitrate, the bimetallic Pd-Cu/TiO2 and Pt-Cu/TiO2 being the ones showing most promising results. On the other hand, Pd-Cu catalysts supported on carbon materials and also in metal oxides are the most used for nitrate catalytic reduction. TiO2-based catalysts are normally highly active for nitrate removal, yet, due to their capacity to drive hydrogenation, low nitrogen selectivity is reached (Sá et al., 2005). It has been reported that the activity of Pd-Cu bimetallic catalysts supported on carbon materials was higher than the same Pd-Cu catalyst supported on a metal oxide, such as TiO2, Al2O3, SiO2, or ZrO2, at the same operating conditions, due to their surface chemistry and higher metals dispersion (Sakamoto et al., 2006; Soares et al., 2011a). Moreover, the coupling of carbon nanotubes with TiO2 has proved to induce a positive effect in the activity and selectivity of Pd-Cu catalysts for the catalytic reduction of nitrate into N2 (Soares et al., 2011a).

Following the previous findings, in the present work we explored the synergies between carbon nanotubes (CNT) and titanium dioxide in both catalytic and photocatalytic reduction of nitrate in water. For that purpose, hybrid materials of TiO2 with different CNT contents, and loaded with 1%Pd and 1%Cu (wt.%) were evaluated as catalysts. Hydrogen and carbon dioxide were used as reducing and pH buffer agents, respectively. The materials were tested under the same experimental conditions, the only difference between the two processes being the introduction of a near-UV to visible light source in the case of the photocatalytic reactions.

Experimental

Catalysts Preparation

Multi-walled carbon nanotubes synthesized by catalytic decomposition of CH4 were purchased from Shenzhen Nanoport Co. Ltd (purity > 95%, diameter < 10 nm; length = 5–15 μm). TiO2 and CNT–TiO2 composite catalysts were prepared through an acid-catalyzed sol–gel procedure, as described elsewhere (Silva and Faria, 2010). Briefly, TiO2 was prepared by dissolving Ti(OC3H7)4 (Aldrich 97%) in ethanol. The solution was magnetically stirred for 30 min, and then nitric acid (Fluka 65%) was added.

For the composite catalysts preparation, a certain amount of CNT was added to the Ti(OC3H7)4 ethanol solution. The mixture was kept stirring until a homogenous gel was formed. The gel was left aging in air for 5 days. The resulting material was then crushed into a fine powder (particle size < 100 μm). The powders were calcined at 400°C under a flow of N2 for 2 h to obtain TiO2 or CNT–TiO2 hybrid materials. Catalysts were labeled as XCNT–TiO2, where X (5, 10, 20, 50, 70, and 90) corresponds to the weight percentage of CNT in the material.

The monometallic (Pd) and bimetallic (Pd-Cu) catalysts were prepared by incipient wetness impregnation and co-impregnation, respectively. Briefly, aqueous solutions containing the proper mass of the corresponding salts [PdCl2, Alfa Aesar 99.9%; Cu(NO3)2, Riedel-de Haen 99%] were added dropwise to TiO2 and CNT-TiO2 materials. In the case of the bimetallic catalyst, the materials were co-impregnated with a solution containing both precursor salts. The palladium and copper contents were fixed at 1%Pd-1%Cu and 1%Pd (weight percentages). After impregnation, the metal-loaded materials were dried in an oven at 100°C for 24 h. Then, the catalysts were heat treated under a nitrogen flow at 200°C for 1 h. At the end of this period, the gas stream was switched to hydrogen for 3 h to promote metals reduction. Finally, the materials were left to cool down to room temperature under a nitrogen flow.

Catalysts Characterization

Powder X-ray Diffraction (XRD) analysis was performed on a Philips X'PertMPD diffractometer (Cu-Ka = 0.15406 nm). The Brunauer-Emmett-Teller (BET) specific surface area (SBET) was determined from N2 adsorption-desorption isotherms at 196°C, in a Quantachrome Nova 4200e apparatus. Temperature programmed reduction (TPR) was carried out in an AMI-200 (Altamira Instruments) system. The H2 consumption was followed by a thermal conductivity detector (TCD) and by a mass spectrometer (Dymaxion 200 amu, Ametek). Transmission electron microscopy (TEM) micrographs were obtained using a LEO 906E microscope operating with an accelerating voltage of 120 kV. Diffuse reflectance (DR) UV-Vis spectra of the powder samples were recorded on a JASCO V-560 UV-Vis spectrophotometer, equipped with an integrating sphere attachment (JASCO ISV-469). The reflectance spectra were converted by the instrument software (JASCO) to equivalent absorption Kubelka–Munk units. Steady-state photoluminescence (PL) spectra were recorded at room temperature on a JASCO FP-8300 spectrofluorometer equipped with a 150 W Xe lamp. The morphology and elemental mapping of the materials was obtained by SEM/EDXS analysis using a FEI Quanta 400FEG ESEM/EDAX Genesis X4M instrument.

Catalytic and Photocatalytic Nitrate Reduction Experiments

The catalytic and photocatalytic experiments were carried out in a glass cylindrical reactor. Initially, 190 mL of deionised water and 100 mg of catalyst were fed into the reactor. When used, a gas mixture of H2 and CO2 [1:1 flow rate = 200 cm3 (STP) min−1] was passed through the reactor to remove the dissolved oxygen; CO2 acts as pH buffer (pH = 5.5). A Heraeus TQ 150 medium pressure mercury vapor lamp (λexc = 254, 313, 365, 436, and 546 nm) was used as radiation source. The lamp was located axially in the reactor and held in a quartz immersion tube. A DURAN® glass jacket was used as water circulating cooling system (temperature maintained at 25°C) and as a filter for cutting-off low wavelength UV lines and letting pass radiation in the near-UV to visible light range (λexc ≥ 365 nm). Before turning illumination on, the solution was magnetically stirred in the dark for 15 min. After that period, 10 mL of a nitrate solution, prepared from NaNO3 (Sigma-Aldrich 99%), was added to the reactor, in order to obtain an initial NO3 concentration of 100 mg L−1. The first sample was taken out just before the light was turned on, in order to determine the initial nitrate concentration in solution. The catalytic (dark) experiments were carried out under the same experimental conditions, but in the absence of light.

Samples were withdrawn regularly from the reactor, and centrifuged before determination of NO3, NO2, and NH4+ concentrations. NO3 and NO2 were simultaneously determined by HPLC using a Hitachi Elite Lachrom system equipped with a diode array detector. The stationary phase was a Hamilton PRP-X100 column (150 × 4.1 mm) working at room temperature, under isocratic conditions. The mobile phase was a solution of 0.1 M NaCl:CH3OH (45:55). The concentration of NH4+ was determined by potentiometry.

Palladium and copper leaching was assessed after each experiment by atomic absorption spectrometry (UNICAM 939/959), the absence of metals (within the experimental error) being confirmed for all the cases.

Reproducibility tests were performed for selected experiments, the results being in agreement with a maximum error of about 2.5%. NO3 conversion and the selectivity to NO2 and NH4+ were calculated as described elsewhere (Soares et al., 2014).

Results and Discussion

Catalysts Characterization

XRD patterns of neat CNT, Pd-Cu/TiO2, and Pd-Cu/20CNT-TiO2 are displayed in Figure 1. Typical (002) and (100) diffraction lines are evident in the XRD pattern of CNT. XRD analysis of TiO2 and CNT-TiO2 composites revealed that only anatase phase is present in neat TiO2 and composite catalysts. The XRD patterns of the Pd-Cu loaded CNT–TiO2 materials are very similar to the one of Pd-Cu/TiO2, with the CNT contribution hardly been identified. The Cu and Pd phases were not detected by XRD, which must be related to the low metal percentages (1%wt.). Anatase crystallites of 8.5 nm average size were found for neat TiO2, as determined by the Scherrer equation and confirmed by TEM (Figure 2a). The sizes of the anatase crystallites present at the composite catalysts decreased with increasing carbon content, suggesting that CNT may act as dispersing medium for TiO2 particle precursors during the crystallization process (Table 1).

FIGURE 1
www.frontiersin.org

Figure 1. X-ray diffraction patterns of neat CNT (i), Pd-Cu/TiO2 (ii), and Pd-Cu/20CNT-TiO2 (iii).

FIGURE 2
www.frontiersin.org

Figure 2. TEM micrographs of TiO2 (a), 5CNT-TiO2 (b), 20CNT-TiO2 (c), and 70CNT-TiO2 (d) loaded with 1% Cu and 1% Pd (wt. %). The arrows indicate the presence of metal nanoparticles.

TABLE 1
www.frontiersin.org

Table 1. Surface area, carbon content, and dimensions of the anatase crystallites of TiO2 and CNT-TiO2 composites.

The BET surface areas (SBET) of TiO2 and CNT-TiO2 materials are listed in Table 1. Materials with lower carbon content, namely 5CNT–TiO2 and 10CNT–TiO2 composites, showed surface areas lower than the ones estimated through the mass composition of the composites (SBET, calc) and even lower than for neat TiO2. These results indicate that the presence of low amounts of CNT induces the formation of big TiO2 crystallite agglomerates, therefore decreasing the surface area of the composite catalyst (Figure 2b).

With the carbon content increasing up to 20% (20CNT–TiO2), the presence of a larger amount of CNT seems to prevent TiO2 particles from agglomerating, thus increasing the surface area, which was even higher than the calculated (SBET, calc). This was confirmed by TEM (Figure 2c), where TiO2 particles of very small dimensions can be observed surrounding the sidewalls of CNT. In the case of the composite with similar amounts of TiO2 and CNT phases (50CNT-TiO2), the values for SBET and SBET, calc were similar. Nevertheless, a further increase on the amount of CNT revealed to have a detrimental effect on the surface area of the resulting composites. A decrease in the SBET in relation to the calculated values of 15 and 40% was observed for 70CNT-TiO2 and 90CNT-TiO2 materials, respectively, which may be attributed to the formation of CNT bundles decreasing the accessible surface area, as could be visualized by TEM for 70CNT-TiO2 (Figure 2d). Due to the low amount of metals used, the textural properties of the metal-loaded catalysts remained practically unchanged compared to the pristine supports. The presence of metal particles of very small dimensions (lower than 10 nm) loaded on the TiO2-based materials could be observed by TEM (Figure 2).

SEM-EDXS analysis of Pd-Cu/TiO2 (Figure 3a) and Pd-Cu/20CNT-TiO2 (Figure 3b) revealed that Pd and Cu nanoparticles are well dispersed in the catalysts, with no apparent prevalence of one of the metals.

FIGURE 3
www.frontiersin.org

Figure 3. SEM-EDX analysis of Pd-Cu/TiO2 (a) and Pd-Cu/20CNT-TiO2 (b) with the respective elemental mapping for Pd, Cu, Ti, and O in the selected regions (dashed rectangle).

The carbon content of the CNT-TiO2 composites determined by TG analysis (CTG) agrees fairly well with the nominal percentage, indicating negligible gasification of CNT during the calcination step (Table 1).

Figure 4 shows the TPR profiles for both TiO2 and 20CNT-TiO2 materials, which were obtained before heat-treating the metal salt-loaded supports. Both materials show a reduction peak centered at 150°C, assigned to the reduction of Cu oxides promoted by the presence of Pd (Soares et al., 2011a). The thermal treatment under H2 should produce Pd and Cu particles in the reduced form, i.e., Pd0 and Cu0 (Soares et al., 2010, 2011a). Similar results were obtained for the remaining CNT-TiO2 composite materials.

FIGURE 4
www.frontiersin.org

Figure 4. TPR profiles of Pd-Cu loaded on TiO2 (A) and on 20CNT-TiO2 (B).

DR UV-Vis analysis of Pd-Cu/TiO2 (Figure 5A) shows the TiO2 characteristic absorption band at wavelength below 400 nm, a band peaking at c.a. 480 nm attributed to the presence of Pd and a broad absorption band rising from 550 nm due to the occurrence of Cu species (López et al., 2009; Wu et al., 2009; Soares et al., 2014).

FIGURE 5
www.frontiersin.org

Figure 5. (A) Diffuse reflectance UV-Vis spectra of Pd-Cu-loaded TiO2 (i); 5CNT-TiO2 (ii); 10CNT-TiO2 (iii); 20CNT-TiO2 (iv); 50CNT-TiO2 (v); CNT (vi); (B) PL spectra of neat TiO2 (i), Pd-Cu/TiO2 (ii) and Pd-Cu/20CN-TiO2 (iii).

As expected, the presence of CNT led to a rise of light absorption in the visible spectral region, increasing with the CNT content on the composite catalysts up to a CNT load of 50 wt.%. This behavior has been attributed not only to the capacity of CNT to absorb visible light but also to an increment of surface electronic species availability and mobility in the composite catalysts due to the introduction of CNT, as already reported in previous studies (Silva and Faria, 2010; Dai et al., 2014). A further increase in the CNT content did not produce any effect on the optical absorption of the composite materials. Moreover, the absorption peaks of the metal species could not be identified in the UV-Vis spectra of the composite materials, which may be attributed to a higher dispersion of the metal particles when supported on the composite materials.

The photoluminescence (PL) spectra were performed for having an insight in the behavior of light-generated electronic species in photocatalysts, since PL emission results from the recombination of electrons and holes. The PL emission spectra of the pure neat TiO2 and Pd-Cu loaded TiO2 and 20CNT-TiO2 materials excited at 280 nm are shown in Figure 5B. The PL signal observed for neat TiO2 can be attributed to the transition of electrons from the oxygen vacancies to TiO2 valence band (Tahir et al., 2017). After loading TiO2 with Pd and Cu, an increase in the PL intensity was observed in the range from 330 to 400 nm, which may be attributed to the higher availability of photoexcited electrons in the bimetallic catalyst. Yet, a decrease in the PL signal intensity in the 400–525 nm range is observed, meaning that electron-hole recombination was decreased by the presence of the metal nanoparticles. Pd-Cu/20CNT-TiO2 shows a very significant decrease in the PL intensity as compared with bare and metal loaded TiO2, indicating highly efficient inhibition of charge carriers recombination and suggesting the existence of electronic synergies between the metals and the hybrid CNT-TiO2 material (Zhang et al., 2012).

Catalytic and Photocatalytic Nitrate Reduction

TiO2 and CNT-TiO2 composites loaded with 1%Pd and 1%Cu (wt.%) were used for catalytic and photocatalytic reduction of nitrate in aqueous suspensions. Monometallic Pd-TiO2 was used for comparison purposes. H2 and CO2 were continuously added to the reaction media, acting as reducing agent and pH buffer, respectively. The materials were tested under the same experimental conditions, the only difference between the two processes being the introduction of a near-UV to visible light source in the case of the photocatalytic reactions.

The performances of the different catalysts for the (dark) catalytic reduction process are presented in Figure 6A. Very low nitrate conversion (4%) was achieved using the monometallic Pd-TiO2 catalyst, the presence of Cu being fundamental for the reaction to occur. Moreover, as expected, it can be observed that the support has a crucial influence on the performance of the bimetallic catalysts.

FIGURE 6
www.frontiersin.org

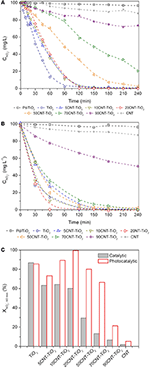

Figure 6. Nitrate concentration (CNO3-) during catalytic (A) and photocatalytic (B) reactions. Pd/TiO2 refers to the monometallic catalyst while all other results refer to Pd-Cu bimetallic catalysts. Nitrate conversion at 60 min (XNO3,60 min) using Pd-Cu loaded materials (C).

In the case of the catalytic reduction process, Pd-Cu/TiO2 was the most efficient catalyst in terms of the kinetics of nitrate removal, with total nitrate conversion being achieved at the end of 90 min of reaction. Similar kinetic behavior was observed for nitrate reduction reactions using the composite materials with a CNT load (Y) of 5, 10, and 20%, leading to total nitrate removal at the end of 120 min of reaction. For higher CNT loads, a progressive detrimental effect in the kinetics of nitrate removal has been observed. Nitrate conversions of 95, 79, and 27% have been obtained at the end of 240 min when using composites with Y = 50, 70, and 90%, respectively. For the Pd-Cu/CNT catalyst only 12% nitrate removal was achieved at the end of the catalytic run.

In general, the presence of light promotes a positive effect in nitrate removal (Figure 6B). As in the case of the (dark) catalytic process, the simultaneous presence of Pd and Cu was a sine qua non condition for nitrate conversion to occur. The composite material with the lowest CNT content (Y = 5%) produced a decrease in the efficiency of nitrate abatement compared to Pd-Cu/TiO2. Yet, a further increase in the CNT load up to Y = 20% lead to a rise in the rate of nitrate removal. For the composites with higher CNT content (Y = 50, 70, and 90%) a progressive loss in the efficiency toward NO3 conversion was observed.

The conversion of nitrate at 60 min of reaction was calculated in order to get a better understanding of the effect of CNT load in the kinetics of NO3 removal by both catalytic and photocatalytic routes (Figure 6C). It is notorious that the amount of CNT plays a role in the efficiency of the composite materials. As already mentioned, composite materials underperformed TiO2 in catalytic nitrate reduction with a decrease in the nitrate conversion with increasing CNT load. Yet, for the photocatalytic process a positive effect was observed using 10CNT-TiO2 and, in particular, 20CNT-TiO2 comparing with the experiments using TiO2 as support. On the other hand, the bimetallic catalyst supported on 20CNT-TiO2 promotes total conversion of nitrate at 60 min of reaction. Reutilization tests were performed using Pd-Cu/20CNT-TiO2 and Pd-Cu/TiO2 under catalytic and photocatalytic conditions. In both cases the results indicate that the performance of the catalysts was maintained within 5% variation over 3 consecutive runs.

Figure 7 shows the nitrite and ammonium profiles during catalytic and photocatalytic reactions using Pd-Cu loaded TiO2, CNT, and 20CNT-TiO2 catalysts. Residual amounts of NO2 and NH4+ were produced using Pd-Cu/CNT during both catalytic and photocatalytic processes. When Pd-Cu/TiO2 was used as catalyst, nitrite is partially transformed into ammonia during the reaction, which is accumulated in the aqueous media. It was found that for the catalytic process, the formation of nitrite and conversion into ammonium is slower than for the photocatalytic process. Also, lower amounts of ammonia were produced in the presence of light, using Pd-Cu/TiO2 and Pd-Cu/CNT, meaning a higher selectivity of the photocatalytic process toward N2 formation.

FIGURE 7
www.frontiersin.org

Figure 7. (A) NO2 and (B) NH4+ concentrations as a function of time during nitrate reduction over Pd–Cu loaded TiO2 (● and ○), 20CNT-TiO2 (■ and □ ) and CNT (▲ and △) under dark catalytic (solid symbols) and photocatalytic (open symbols) conditions.

For the reactions using Pd-Cu/20CNT-TiO2 higher amounts of NO2 were found during the catalytic and photocatalytic reactions, which were completely depleted at the end of 180 and 60 min of reaction, respectively (Figure 7A). Yet, contrarious to what was observed for the reactions using Pd-Cu/TiO2 and Pd-Cu/CNT, the use of the metal-loaded 20CNT-TiO2 catalyst under irradiation lead to the formation of higher amounts of ammonia when compared to the catalytic process (Figure 7B).

Catalytic and Photocatalytic Nitrate Reduction Mechanisms Using CNT-TiO2 Catalysts

As described above, nitrate reduction over CNT-TiO2 hybrid materials behave very differently in dark conditions and under irradiation. Although the photo-assisted process provide a quicker depletion of NO3, the selectivity toward N2 is greatly affected by the use of CNT-TiO2 hybrid materials as Pd-Cu supports (Figure 8).

FIGURE 8
www.frontiersin.org

Figure 8. Nitrate conversion (XNO3) and nitrite, ammonium and nitrogen selectivity (SNO2,SNH4+,SN2) using Pd-Cu loaded TiO2 and CNT-TiO2 catalysts after 4 h of catalytic (A) and photocatalytic (B) reactions.

In the case of the catalytic reduction process, an increase in N2 selectivity is observed with increasing CNT content up to 20 wt.%. A further increase in the amount of CNT led to a progressive decrease in the selectivity toward N2 formation (Figure 8A). On the other hand, the photocatalytic reduction of NO3 using CNT-TiO2 catalysts appeared to be more selective for the reduction of nitrate into ammonia (Figure 8B).

It is well accepted that during the (dark) catalytic reduction over bimetallic catalysts, using hydrogen as reducing agent, NO3 is converted into NO2 according to a redox reaction on the promoter metal (Cu). The role of the noble metal is to activate hydrogen, reducing the promoter metal, completing the catalytic cycle (Epron et al., 2001; Soares et al., 2011b; Zhang et al., 2013), being also active for the NO2 reduction.

In the case of the photocatalytic process using metal-loaded TiO2, the mechanism generally proposed is based on the role of metal nanoparticles as electron sinks. Since the Fermi levels of noble metals are lower than that of TiO2, the photo-excited electrons can be transferred from the conduction band of the semiconductor to the metal nanoparticles deposited on its surface, being then available for NO3 reduction (Kominami et al., 2005; Anderson, 2012; Soares et al., 2014). Hole scavengers are generally used, acting as sacrificial electron donors, avoiding electron-hole recombination. Yet, in the present work, no scavengers were added to the reaction medium.

The role played by CNT in CNT-TiO2 hybrids has been discussed in previous works reporting the use of this type of materials as photocatalysts for environmental applications (Silva and Faria, 2010; Silva et al., 2015; Zeng et al., 2015; Yang and Park, 2017). CNT may act as adsorbent, as dispersing medium for TiO2 nanoparticles, it may span light absorption into the visible and may retard electron hole recombination. Although the surface area of the hybrid materials increased with CNT content, the first is not likely to be the most important effect, since no significant adsorption was observed whether the catalyst used. TEM images of CNT-TiO2 hybrids show that CNT promote the dispersion of TiO2 avoiding particle agglomeration (Figure 2). Moreover, the introduction of CNT increased the absorption of the resulting materials in the visible range, as shown by the UV-Vis spectra (Figure 5A), and lead to a decrease in the electron-hole recombination (Figure 5B).

Based in our findings, and considering the operation conditions used in this study, the following photocatalytic reaction mechanism is proposed. Since the irradiation source emits in the near UV to visible range, it is expected that TiO2 and CNT could be photoexcited simultaneously (Figure 9, steps 1 and 1*).

FIGURE 9
www.frontiersin.org

Figure 9. Schematic representation of the photocatalytic reduction of nitrate over Pd–Cu/CNT-TiO2 catalysts in the presence of H2 and CO2, under near UV to visible light irradiation.

After charge separation, electrons are transferred to Pd and Cu nanoparticles that are supported over TiO2 and also over CNTs (Figure 9, steps 2–4), as observed by TEM (Figure 2). Photogenerated electrons may reduce both nitrate and nitrite adsorbed on Cu and Pd, respectively (Figure 9, steps 5–7). On the other hand, positively charged holes may migrate from TiO2 to the CNT phase, where, in the absence of sacrificial electron donors, water can be oxidized to H+ and HO (Figure 9, steps 8 and 9). Hydroxyl radicals may indirectly re-oxidize byproducts to NO3 (Tugaoen et al., 2017), while CO2•-, which can be generated from the reduction of CO2 (used as pH buffer) by available electrons, may play a role as reducing mediator (Zhang et al., 2005; Sá et al., 2009). The higher selectivity toward NH4+ production obtained using CNT-TiO2 catalysts when irradiated may be rationalized by the excess of H+ in the reaction medium, resulting from step 9 in Figure 9. Yet, no direct correlation between the CNT load in the hybrid materials and the selectivity toward NH4+ could be found (Figure 8B), which may derive from the complexity and simultaneity of the reactions involved in the mechanism of the photocatalytic process.

Although the photocatalytic process appears more advantageous in terms of kinetics of nitrate removal, the (dark) catalytic reactions using CNT-TiO2 hybrid materials revealed to be more selective toward N2 formation. Nevertheless, the possibility of using this type of materials may be envisioned as a cleaner route for the production of ammonia, comparing with the conventional fossil fuel based process (Yamauchi et al., 2011; Hirakawa et al., 2017).

Conclusion

TiO2 and CNT-TiO2 loaded with 1%Pd−1%Cu show high catalytic activity in the dark and under near UV to visible light irradiation, in the presence of H2 and CO2. The presence of light promotes faster NO3 conversion, due to the higher availability of reducing species. Carbon nanotubes induce to a positive effect in the selectivity of the catalytic reduction process toward N2 formation. In the case of the photocatalytic process, the hybrid materials lead to an increase in the yield of the reduction of NO3 to NH4+, due to the high availability of H+. The efficiency of the hybrid materials depends on the CNT load, the best performing material being that composed by 20 wt.% of carbon nanotubes. In the case of the dark catalytic process, the synergic effect observed by the introduction of CNT in the TiO2 matrix is mainly ascribed to the action of the carbon phase as dispersing medium to metal oxide particles, while under irradiation, CNT produce an increase in the efficiency of charge separation and mobility in the composite material.
