Frontiers in Chemistry

Chemical and Process Engineering

Review ARTICLE

Front. Chem., 05 June 2019 | https://doi.org/10.3389/fchem.2019.00392

Recent Advances in Power-to-X Technology for the Production of Fuels and Chemicals

  • Biomass Technology Laboratory (BTL), Department of Chemical and Biotechnological Engineering, Université de Sherbrooke, Sherbrooke, QC, Canada

Environmental issues related to greenhouse gas emissions are progressively pushing the transition toward fossil-free energy scenario, in which renewable energies such as solar and wind power will unavoidably play a key role. However, for this transition to succeed, significant issues related to renewable energy storage have to be addressed. Power-to-X (PtX) technologies have gained increased attention since they actually convert renewable electricity to chemicals and fuels that can be more easily stored and transported. H2 production through water electrolysis is a promising approach since it leads to the production of a sustainable fuel that can be used directly in hydrogen fuel cells or to reduce carbon dioxide (CO2) in chemicals and fuels compatible with the existing infrastructure for production and transportation. CO2 electrochemical reduction is also an interesting approach, allowing the direct conversion of CO2 into value-added products using renewable electricity. In this review, attention will be given to technologies for sustainable H2 production, focusing on water electrolysis using renewable energy as well as on its remaining challenges for large scale production and integration with other technologies. Furthermore, recent advances on PtX technologies for the production of key chemicals (formic acid, formaldehyde, methanol and methane) and fuels (gasoline, diesel and jet fuel) will also be discussed with focus on two main pathways: CO2 hydrogenation and CO2 electrochemical reduction.

Introduction

After COP21, most countries on the planet decided to commit to act on their Green House Gases (GHG) emissions in order to cope for the possible threats that could represent climate changes. From all nations around the world, a small handful decided not to pledge specific reductions or control over their emissions up to 20301. However, reducing GHG (Table 1) may represent a far more ambiguous challenge than it seems because of the significant consumption of energy that is being made. In addition, such tendency is actually increasing proportionally with the portion of the globe's population reaching for the middle class (Dulal et al., 2011).

TABLE 1
www.frontiersin.org

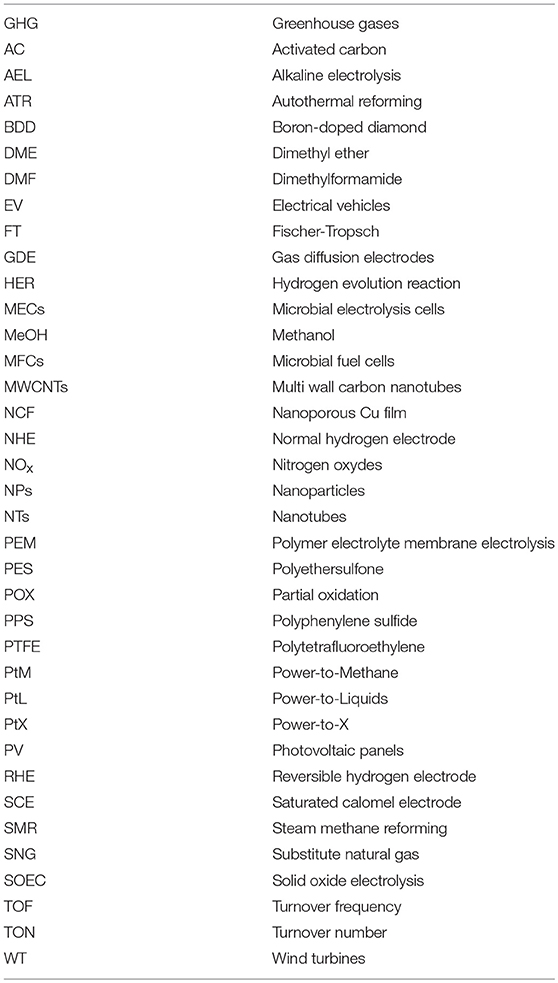

Table 1. List of acronyms.

Energy is considered one of the most important fundamental requirement for human survival and therefore, making this transition represents colossal modifications in our systems (The European Commission Directorate General for Energy, 2013; Overland, 2016). Energy is used to produce electricity, heat, cold, and a large amount of it is used as well for transportation, ranging from individual cars to planes, trains and boats (Thorin, 2014).

When specifically aiming at transportation fuels, the world demand is absolutely gigantic (2.5 billion tons of oil equivalent) (BP Energy Economics, 2018) although options are available and increasingly implemented around the world. In countries where green electricity is abundant (such as in some portions of Canada, namely Quebec), the opportunity for implementation of a larger pool of electric vehicles certainly has advantages (Ministère des Transports du Québec, 2015). Electric vehicles (EV) however, are still constrained by their capacities, limiting their widespread distribution in locations where population is largely distributed on a wide territory (Egbue and Long, 2012; Quak et al., 2016; Vassileva and Campillo, 2017). Other initiatives can include the production of biofuels from renewable carbon sources or biofuels. The latter are usually classified in three different “generations” where the first generally involves the utilization of ethanol (produced from grain or sugar-rich plants) as oxygenate in gasoline and fatty acid methyl ester (biodiesel) as a partial replacement for diesel (Alalwan et al., 2019). The second generation is usually related to the utilization of non-edible sugars (such as cellulose) as a sugar source to replace the contested first-generation feedstocks (Alalwan et al., 2019). Significant efforts have also been dedicated in converting all sorts of residual carbon sources such as waste plastics, MSW, residual agricultural and residual forest biomass to alkanes through techniques such as pyrolysis, gasification and liquefaction which all share their opportunities and challenges (Corma et al., 2011; Galadima and Muraza, 2015; Das and Tiwari, 2018; Kassargy et al., 2018). While it might be challenging for one of the previously mentioned option to cope for all the demand in transportation over the next decade, combining different opportunities may lead to good results and in term significantly reduce GHG emissions. Natural gas (NG) also represents a finite opportunity for the transportation sector since natural gas could represent a significant source of carbon (Fortis, 2018; Rego de Vasconcelos and Lavoie, 2018; Thiruvengadam et al., 2018) although the latter is still fossil based it is generally considered as a more sustainable option than classical oil (Rego de Vasconcelos and Lavoie, 2018; Thiruvengadam et al., 2018) and could share part of demand in a nearby future. NG can be used directly in some engine or can be transformed to gasoline, diesel and jet fuel through reforming and Fischer-Tropsch synthesis.

Transitioning from classical electricity production to sustainable models also represents its share of challenges (Lazkano et al., 2017). In opposition to traditional approaches such as nuclear, gas or coal power, renewable electricity production system such as photovoltaic panels (PV) and wind turbines (WT) is constrained by the alternating flux of electricity produced. While the production is optimal during some peak periods, the latter don't often fit with the demand, which makes of relying on these sole options a rather risky option, especially if such sustainable options are to be implemented in large cities. Other sources of renewable electricity such as hydroelectricity represents a never-ending flow of current and in some specific cases (such as in Quebec, Canada), the quantity of green electricity produced exceed the local demand which could eventually represent opportunities for other locations2. However, transportation of electricity over large distances is actually costly in light of the significant losses that are encountered over long distances2,3. In addition, some of the production facilities generating this renewable electricity are already in remote locations on the globe, which in turn involves significant losses as a starter. Hence, green electricity, either flowing or peaking, is constrained by storage, which has become over the years a significant source of concern for industry and governments, unavoidably transferring to academia (Lazkano et al., 2017).

Mechanical storage of electricity has been known for decades and options as simple as using peak energy to pump water in an elevated basin to release it during peak hours have been investigated and even implemented (Steinmann, 2017). Such options, although simple, requires a suitable landscape as well as being criticized for their efficiency (Steinmann, 2017). Batteries are also widely spread across the globe and are omnipresent in our lives going from cell phones to computer and of course, electric cars (Huang, 2018). Although originating from a historical technology, battery have been improving over the years both on efficiency and size, without forgetting their price, which is still accessible to the average consumers (Child et al., 2018). It goes without saying that batteries will have their place in the upcoming mixed-energy system where we are heading, however some of the best technologies actually on the market relies on lithium ions which in turn still represents a finite element (Child et al., 2018; Huang, 2018). Recuperation of ion has become a major concern in this field (Huang, 2018) although still far from solving another big challenge, which would be to produce a battery big enough to sustain a full large-scale city (Tervo et al., 2018).

Batteries allow the conversion of electrical energy toward chemical energy, playing on the redox functionalities of ions in solution. However, other opportunities do exist for chemical storage of renewable energy and are now referred as Power-to-X technologies (Sternberg and Bardow, 2015; Vázquez et al., 2018). As the name implies, the concept evolves around converting power (electricity) to chemicals (X), which could be very diversified hence the utilization of the “X.” The most well-known technology for the production of chemicals out of electricity is water electrolysis producing hydrogen and oxygen. Hydrogen produced through electrolysis has been acclaimed as one of the optimally sustainable fuel since its combustion leads only to the production of water, which involves minimal impact on GHG emissions (Carmo et al., 2013; Buttler and Spliethoff, 2018; Chi and Yu, 2018). Production of hydrogen through electrolysis is still limited in many cases by issues related to cost and storage (Carmo et al., 2013; Buttler and Spliethoff, 2018; Chi and Yu, 2018).

PtX technologies can also involve carbon-based structures which would make them more compatible to the existing infrastructure both for transportation and for large-scale energy production. One especially abundant carbon-based feedstock suitable for PtX technologies is carbon dioxide (CO2), which in turn is also the actual focus of the worldwide climate change efforts (Sternberg and Bardow, 2015; Vázquez et al., 2018). Using electrocatalytic systems or through the utilization of hydrogen as reducing agent, CO2 can now be used for the production of simple C1 molecules such as methanol (Frese, 1991; Bellotti et al., 2017) and methane (Manthiram et al., 2014; Stangeland et al., 2017). Reports from open literature shows as well that PtX technologies could eventually lead to the production of gasoline (Wei et al., 2017), diesel (Han et al., 2017), and even jet fuel (Schmidt et al., 2016). Hence, these technologies would at the same time allow storage of renewable energy, while reducing carbon dioxide emissions at the source AND producing liquid transportation fuels.

In this work, the different advances in Power-to-X technologies are investigated and discussed involving both situations where electricity is used directly to reduce carbon dioxide to chemicals up to technologies relying on the utilization of hydrogen for the reduction of carbon dioxide into a commodity that would be easier to implement into the existing worldwide infrastructure. Despite the fact that these technologies in some cases may not be entirely competitive with classical fossil fuels, they still represent an unavoidable pathway toward sustainability and only by promoting the development of these technologies can we ever hope to balance the impact of our society on the environment. The following sections will present the recent advances in the technologies for hydrogen production from renewable energy as well as the developments in the production of key chemicals, such as formic acid, formaldehyde, methanol, methane, and alkanes via Power-to-X technology.

Hydrogen

Hydrogen (H2) is a key element for the production of value-added products such as methanol, formic acid, formaldehyde and liquid fuels out of CO2. Methane can also be used to the same purpose. However, using H2 would be preferable from an economical point of view since it allows the direct production of chemical and fuels, in opposition to CH4, which allows the production of syngas (Kondratenko et al., 2013). H2 is also an important and versatile energy vector with a low heating value (LHV) of 119.9 MJ/kg, which is more than two times higher than the LHV of methane (Baykara, 2018).

This molecule is not available in pure state in the environment and requires to be synthesized. The main pathway currently employed at industrial scale for hydrogen production is a well-established process called steam methane reforming (SMR) in which natural gas (or other fossil fuel) is reacted at high temperature (>700°C) with water vapor to produce hydrogen in the presence of a metal-based catalyst (Equation 1) (Ferreira-Aparicio et al., 2005). This process has a conversion efficiency range of 65–75% (Abdalla et al., 2018; Baykara, 2018).

CH4+H2OCO+3H2   ΔH298K=206 kJ/mol    (1)

Partial oxidation (POX) and autothermal reforming (ATR) are also processes used for hydrogen production from fossil fuels. In the POX process, hydrocarbons are reacted with steam and oxygen at varying concentrations to produce hydrogen (Equation 2). In opposition to SMR, such technology can be operated without a catalyst. However, very high temperatures are required (>1000°C) in order to get a hydrocarbon conversion. Also, a lower H2/CO around 2 is obtained. This process has been reported to have an efficiency around 50% (Baykara, 2018).

CH4+12O2CO+2H2        ΔH298K=-38 kJ/mol    (2)

The autothermal reforming (ATR) is a combination of SMR and POX. In this process, the energy released during the POX step is used to cope to the endothermic part of the SMR step. This process is also operated at high temperatures generally between 950 and 1,100°C (Lavoie, 2014; Rego de Vasconcelos and Lavoie, 2018) and has an efficiency around 60–75% (Abdalla et al., 2018). None of these three processes produce pure hydrogen since carbon monoxide (CO) is also produced at a H2/CO ratio varying between 2 and 3. Thus, a second step involving a water-gas shift reaction (Equation 3) is required in order to convert the carbon monoxide into hydrogen.

CO+H2OCO2+2H2        ΔH298K=-41 kJ/mol    (3)

Hydrogen at a 97% purity can also be produced from coal gasification, where the Koppers-Totzek process is the leading technology (Baykara, 2018). In this process, a entrained flow gasifier is used to convert the carbon into a gas mixture composed of methane, hydrogen and carbon monoxide at temperatures around 1,600–1,900°C, temperature of which usually enhances the reaction rates4.

The “hydrogen economy” concept, where H2 is used as an energy vector, is however not new and was first mentioned in the 70's after an oil crisis (Ball and Weeda, 2015). However, mainly due to the low price of fossil fuels along with the high costs and technical challenges related to the use of renewable resources, fossil fuels remained the primary resource for hydrogen production. During the last few years, the interest in the topic has risen again mainly due to climate change issues showing the need to develop other energy scenarios as well as to progress on materials and renewable power generation (Hansen, 2015). However, in light of the actual environmental concerns, the advantages of using H2 as energy vector is still highly dependent on how it is produced (Ball and Weeda, 2015). There are different approaches currently under investigation for the sustainable production of H2, water electrolysis being the most promising one, which will be discussed in the following section. Other approaches to sustainably produce H2 are biomass electroreforming and the use of microorganisms in a bio-electrochemical approach. Table 2 summarizes the key operational parameters as well as the main advantages and disadvantages of each technology.

TABLE 2
www.frontiersin.org

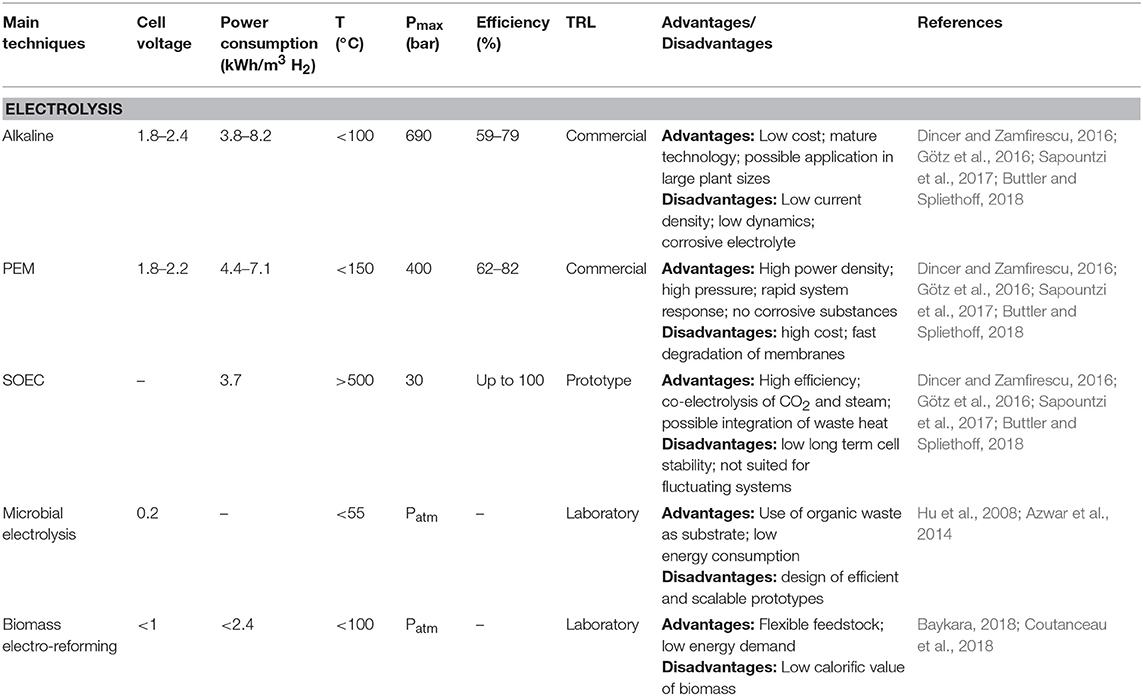

Table 2. Comparison between different processes for hydrogen production.

Water Electrolysis

Water electrolysis is the best known electrochemical process for producing hydrogen using renewable electricity (Dincer and Zamfirescu, 2016) and it will play a crucial role on the development of the hydrogen economy and of the PtX technology since it produces high-purity hydrogen suited not only for applications, such as metallurgical, fine chemicals and aerospace industry but also for hydrogen filling stations. This technology allows onsite H2 production from renewable energy, contributing to the use of H2 as an energy storage medium (Chi and Yu, 2018) as well as to the use of renewable H2 on the production of chemicals and fuels via PtX technology.

There are three main electrolysis technologies used for hydrogen production classified according to the electrolyte (Figure 1): alkaline water electrolysis (AEL), polymer electrolyte membrane electrolysis (PEM) and solid oxide electrolysis (SOEC). AEL is already a mature technology with commercial large-scale systems. PEM systems are also commercially available but only for small scale hydrogen production while SOEC is still at prototype stage. These technologies are compared in Table 2. The following topics will briefly discuss the recent advances in each technology as well as their potential for PtX applications.

FIGURE 1
www.frontiersin.org

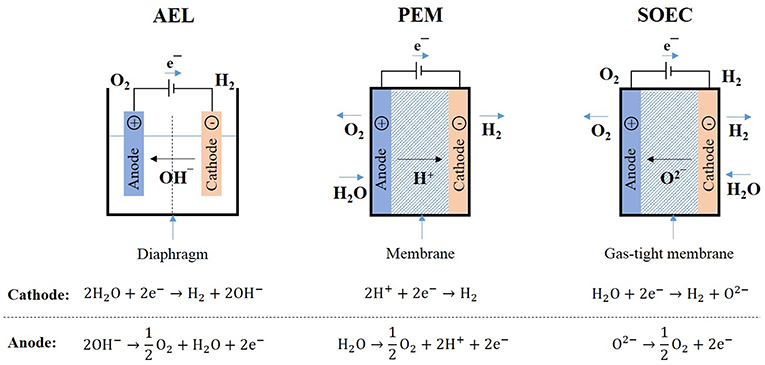

Figure 1. Technologies for water electrolysis.

Alkaline Electrolysis (AEL)

Alkaline electrolysis is the most mature and reliable electrolysis technology and has been used at commercial MW-scale for decades with stacks currently available up to 6 MW (1,400 Nm3/h) (Carmo et al., 2013; Götz et al., 2016). This technology relies on the use of two electrodes immersed in a liquid alkaline electrolyte, usually KOH or NaOH solution, and separated by a diaphragm, which avoids the mixture of the product gases (Figure 1). Electrons flow from the anode to the cathode, where they are consumed by H+ ions to form H2. Hydroxide ions (OH) are then transferred through the alkaline electrolyte solution from the cathode to the anode, where they are oxidized into oxygen and water (Zeng and Zhang, 2010). High purity H2 (up to 99.9%) can be obtained with this technology (Buttler and Spliethoff, 2018). O2 is also produced with purity in the range of 99–99.8%, which can be increased to 99.999% using catalytic purification (Buttler and Spliethoff, 2018). The electrolyte concentration usually varies between 25 and 30 wt.% for working temperatures in the range of 70–100°C and for typical pressures between 1 and 30 bars (Coutanceau et al., 2018). This type of electrolyser can either operate at atmospheric or high pressure, with high-pressure electrolysers operating up to 690 bar (Table 2) (Dincer and Zamfirescu, 2016). The production of pressurized hydrogen is particularly interesting due to its higher energy efficiency when compared to H2 pressurization after production, which is usually required to further use the hydrogen produced or for direct grid injection (Götz et al., 2016). According to Voitic et al. (2015), H2 needs to be compressed up to 500 bars for transportation purposes as well as filling stations. Moreover, the gas compression along with the transportation and storage of hydrogen represent a significant cost in the hydrogen production chain (Voitic et al., 2015). Nevertheless, pressurized electrolysers have lower efficiency and produce lower purity hydrogen when compared to atmospheric pressure electrolysers (Götz et al., 2016).

The main advantages of using AEL systems are the readily availability, the durability (55,000–120,000 h) as well as the use of mature stack components (Schmidt et al., 2017). This technology has also the advantage of low capital costs when compared to PEM and SOEC, having investments costs around 800–1,500 €/kW and maintenance costs of 2–3% of the annual investment costs (Buttler and Spliethoff, 2018). Some PtG plants rely on AEL for H2 production. The Audi e-gas plant, the world's biggest PtG plant, produces H2 with three AEL with a total power of 6 MW5 (Lambert, 2018). Similarly, the BioCatProject, which is a partnership between companies, such as Electrochaea, Audi and Hydrogenics, is currently developing a PtG plant using a 1 MW AEL electrolyser for H2 production6 (Götz et al., 2016).

Despite being a well-stablished technology, AEL has a few drawbacks, such as low partial load range and limited current density, which have a negative impact on the hydrogen production costs (Carmo et al., 2013; Schmidt et al., 2017). AEL electrolysers also have a limited dynamic operation, which renders them difficult to adapt to variable renewable energy sources, such as solar and wind power (Chi and Yu, 2018) and decrease the system efficiency as well as the gas purity (Schmidt et al., 2017).

Recent studies on AEL electrolysis have mainly focused on the development of new diaphragm and electrode materials to improve the performance of the system (Coutanceau et al., 2018). The development of new diaphragm materials have taken into consideration features, such as performance, cost and health hazard (Ohmori et al., 2007). Asbestos was initially used as diaphragm. However, it has been replaced by other materials, such as polytetrafluoroethylene (PTFE), reinforced polyethersulfone (PES) membranes, glass reinforced polyphenylene sulfide (PPS) compounds, nickel oxide layer on a mesh with titatinum oxide and potassium titanate, especially due to its health risks (Rashid et al., 2015; Coutanceau et al., 2018). The electrode shape, composition and electronic properties have also been studied aiming to enhance and stabilize the electrode activity. Modifications on the electrode surface, such as addition of slits and holes, have shown to help the dissemination of gas bubbles, which are one of the major causes for extra ohmic losses (Zeng and Zhang, 2010). Nickel is the most used electrode material due to its high activity and stability in alkaline media and it has been used in commercial systems (Zeng and Zhang, 2010; Coutanceau et al., 2018). Addition of iron has proved to increase the stability of nickel electrodes by preventing the formation of nickel hydride phase at the surface of the electrode. Noble metals, such as platinum (Pt) and ruthenium (Ru) are also used as electrocatalysts and are known to improve the activity for the oxygen evolution reaction (Zeng and Zhang, 2010). In summary, the electrode activity can be improved by using different transition and/or noble metals as well as alloys and physical modifications of the electrode can improve gas removal and decrease the ohmic losses. Further studies are still required to reduce the overpotential of the two half reactions, to improve the electron and ionic transfer as well as to reduce the ohmic losses.

Polymer Electrolyte Membrane Electrolysis (PEM)

In this type of electrolyser, the two half-cells are separated by a proton exchange membrane, often made of Nafion polymer (Figure 1). Water is split into oxygen (O2), protons (H+), and electrons. H+ are then transferred from the anode to the cathode through the proton exchange membrane and electrons flow from the anode to the cathode via external direct current (DC) power source. Protons and electrons then recombine at the cathode to produce hydrogen (H2) (Martinson et al., 2014). The polymer electrolyte membrane has the role of lowering the gas crossover, providing high proton conductivity and allowing high pressure operations as well as Faraday efficiency close to 100% (Carmo et al., 2013; Ogawa et al., 2018). Since the gas crossover is limited in this type of electrolyser, high purity hydrogen can be produced. Using proton exchange membranes instead of liquid electrolytes allows a quick response to the power input and hence the use of a wide range of power input (Carmo et al., 2013). The systems are usually operated at temperatures lower than 150°C and with typical pressures between 20 and 50 bar (Table 2). High pressure systems can work up to 400 bar (Dincer and Zamfirescu, 2016). This technology has become very promising for H2 production due to its compact design, high efficiency and high H2 output pressure (Chi and Yu, 2018). It also provides a better coupling with intermittent systems as compared to AEL and SOEC technologies (Götz et al., 2016), making it a good candidate for PtX applications. Due to the its potential, companies, such as Siemens, Proton OnSite, Hydrogenics, AREVA H2Gen etc., have invested in development of this technology (Bessarabov and Millet, 2018). A recent joint venture between Enbridge and Hydrogenics has taken this technology one step further in a 2.5 MW Power-to-Gas facility. The Markham Energy Storage facility built in Canada uses a 1.25 MW PEM electrolyser to produce H2 that can further be stored, shipped directly to refueling stations or to industrial and commercial customers7 (Core, 2018). Air Liquide has also recently announced the construction in Canada of a 20 MW PEM electrolyser for zero-carbon hydrogen production using Hydrogenics technology. This unit will be the world's largest PEM electrolyser8.

The major drawbacks of this technology are related to the high costs of materials and components that need to resist the low pH conditions as well as the high over voltages (Carmo et al., 2013). These conditions lead to the use of expensive titanium-based components as well as of noble metals-based electrocatalysts, such as platinum and iridium (Götz et al., 2016; Chi and Yu, 2018). According to Buttler and Spliethoff (2018), investment costs for these systems vary between 1,400 and 2,100 €/kW while the maintenance costs represent 3–5% of the annual investment costs.

Literature on PEM electrolysis is not abundant. However, the possibility of coupling this technology to intermittent renewable energy has led to an increase of the number of studies in the topic, which have focused on the reduction of the high costs related to this technology and more specifically on the design and synthesis of electrocatalysts. Few studies have also focused on the improvement of materials for current collectors and separator plates (Carmo et al., 2013). The replacement of noble metals-based electrocatalysts as well as decreasing the noble metal content are approaches current under investigation. Transition metals-based materials, such as molybdenum sulfide, cobalt sulfide, nickel-molybdenum alloys, iron, and cobalt phosphates etc., have been investigated as promising low cost alternatives to noble metals electrocatalysts (Di Giovanni et al., 2016). Addition of low cost oxides, such as SnO2, Nb2O5, and TiO2 to noble metals-based electrocatalysts, such as IrO2 and RuO2, has also been reported aiming to reduce the noble metal loading while maintaining similar catalytic and electronic conductivity properties (Datta et al., 2013). Finally, different synthesis methods have also being investigated to enhance the catalysts performance as well as to reduce the precious metal loading (Chourashiya and Urakawa, 2017). In summary, in order to this technology to achieve large scale, challenges related to the use of expensive catalysts and to low corrosion resistance and high cost collector and separator plates still need to be overcome (Carmo et al., 2013).

Solid Oxide Electrolysis (SOEC)

In this technology, the solid oxide electrolysis cell operates at high temperatures (700–1,000°C), reducing the equilibrium cell voltage and thus the electricity demand to lower than 4 kWh/Nm3 H2 (Table 2) (Götz et al., 2016). SOEC electrolysis is in fact the reverse process occurring in a fuel cell (Hansen, 2015), where H2O (steam) reacts at the cathode with electrons from an external power source, producing H2 and oxygen ions which are transported through a gas-tight membrane to the anode, where oxygen ions combine to form O2 and liberate electrons (Figure 1). Hydrogen is produced in this process at high Faraday efficiency around 100% (Ogawa et al., 2018). Another advantage of this technology is the possibility of heat integration with exothermic processes, such as methanol production. Heat released from these processes can be used to heat the steam to the temperature of the SOEC process (Buttler and Spliethoff, 2018). SOEC systems also offer the possibility of flexible operation between electrolysis and fuel cells. Since H2 produced through this process could be later reconverted in electricity using a fuel cell, this technology could represent an opportunity to store renewable electricity surplus generated by wind or solar power, for example. SOEC also presents the capacity of co-electrolysis of CO2 and steam for syngas production, which can be later converted into value-added products, such as liquid fuels. This capacity of co-electrolysis renders this technology very attractive for Power-to-X applications.

Contrarily to AEL and PEM, which are already at commercial level, SOEC is still at prototype stage and parameters, such as lifetime, cycling stability and pressurized operation still need to be validated (Buttler and Spliethoff, 2018). The major drawbacks preventing this technology from reaching large scale is the fast material degradation and thus low stability (Buttler and Spliethoff, 2018) related to the high temperature used and to long-term operation. Studies have proven that this degradation can be limited when the current density is low (<1 Acm−2). Hence, recent studies have focused on improving the stability of materials at high current densities (Ogawa et al., 2018).

Electrode materials must be ionic and electronic conducting in order to facilitate electron and mass transport as well as to allow the migration of O2− species (Coutanceau et al., 2018; Arunkumar et al., 2019). In general, electrode materials consist of mixed oxides with perovskite structure. Ni-YSZ (yttria-stabilized zirconia) and LSM (lanthanum strontium manganite) are the most used materials for cathode and anode, respectively (Moçoteguy and Brisse, 2013; Ogawa et al., 2018). LSM has a coefficient of thermal expansion close to the one of the electrolyte, stabilizing the electrolysis cell. Moreover, LSM has very low chemical reactivity with YSZ, increasing the lifetime of the material (Moçoteguy and Brisse, 2013). Double perovskites, fluorites and metals have also been studied (Arunkumar et al., 2019). Mixing different oxides at different amounts has shown to improve activity and stability of the materials. Adding Co3O4 to LSM-BCZYZ, for example, significantly improve the electrode processes and enhances the current density under a certain voltage (Li et al., 2013). Mixed ion-electron conducting electrodes, such as lanthanum strontium copper ferrite and lanthanum strontium cobalt ferrite have also been used to improve the ionic conductivity property of electrodes (Moçoteguy and Brisse, 2013).

Electrolytes are generally composed by zirconia-based materials doped with CaO, MgO, Sc2O3 as well as rare-earth oxides. However, the most used electrolyte is yttria-stabilized zirconia (YSZ) due to its good ionic conductivity and mechanical properties (Hansen, 2015). La1−xSrxGa1−yMgyO2.85 (LSGM) has been identified as a promising electrolyte material due to its high ion conductivity that can be five times higher than that of classical YSZ. However, further investigation is still needed to prove the durability of this material (Moçoteguy and Brisse, 2013).

The flexibility regarding the operation mode of this technology, the possibility of CO2 and steam co-electrolysis as well as the higher energy efficiency of SOEC when compared to AEL and PEM has led major companies to invest in the development of SOEC. Sunfire, for example, has recently investigated this possibility by developing a SOEC module in a demonstration project at Salzgitter Flachstahl GmbH aiming to evaluate the potential of the module for energy balancing and load management. The module has a hydrogen production capacity of 40 Nm3/h and with an input power of 150 kW. The electrical efficiency of the system is higher than 80%. The system can also be reversed into fuel cell with an output power of 30 kW (Berkeley, 2017). Haldor Topsoe9, Fuel Cell Energy10 and Toshiba11 have also worked on the development of this technology.

Other Approaches

Biomass Electroreforming

Biomass electroreforming for hydrogen production has gained increased attention due to its renewable character and to the flexibility of the feedstock. Different feedstock, such as energy crops and forestry and agricultural residue, can be used. In this process, organic compounds originated from biomass, such as alcohols and sugars, are oxidized in aqueous media coproducing hydrogen in the cathode of the electrolysis cell. The advantages of this process are the use of much lower temperatures (<100°C) then the classical routes (steam reforming and partial oxidation) and the production of high-purity hydrogen (Coutanceau et al., 2018). This process is also less energy-intensive than traditional water electrolysis process (Gutierrez-Guerra et al., 2015). Gutierrez-Guerra et al. (2015) compared the performance of the electrochemical reforming of ethanol with the classical catalytic reforming of ethanol. They reported that the electrochemical reforming process provided pure hydrogen in a single step while the catalytic process required additional steps. Moreover, the energy consumption and the amount of feedstock material were lower for the electrochemical process. Caravaca et al. (2013) investigated the hydrogen production from the electrochemical reforming of a bio-ethanol/water solution at 80°C in a PEM electrolyser. They showed that the electrochemical reforming of bio-ethanol led to the production of hydrogen and that the PEM electrolyser could perform for long operation times (6 h).

Microorganisms

Bio-electrochemical systems use microorganisms to catalyze the oxidation-reduction reaction at the cathodes and anodes. These systems are divided into Microbial Fuel Cells (MFCs) and Microbial Electrolysis Cells (MECs). In both processes, the bacteria decompose the organic material at the anode and hydrogen is produced at the cathode. However, additional electricity is required to the MEC system in order to supress the production of methane and oxygen, which lower the selectivity to H2 (Baykara, 2018). Despite the promising aspects of this technology, the design of efficient and scalable prototypes are still pending (Azwar et al., 2014).

CO2 Derived Chemicals

PtX technologies can be used to produce value-added chemicals and fuels from CO2 through two main approaches: CO2 hydrogenation (Figure 2) and CO2 electrochemical reduction (Figure 3).

FIGURE 2
www.frontiersin.org

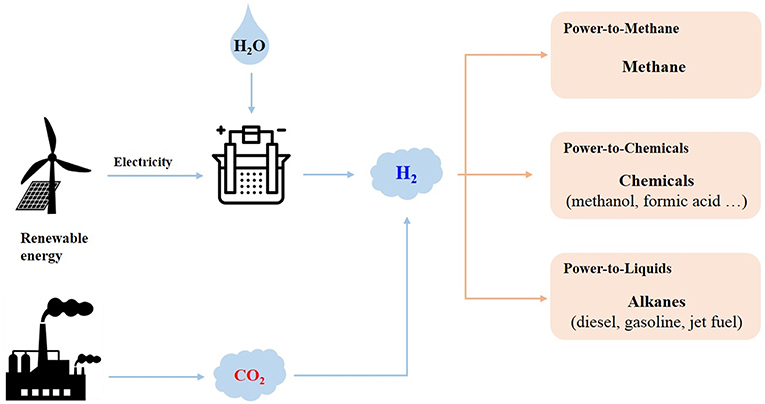

Figure 2. Power-to-X via CO2 hydrogenation.

FIGURE 3
www.frontiersin.org

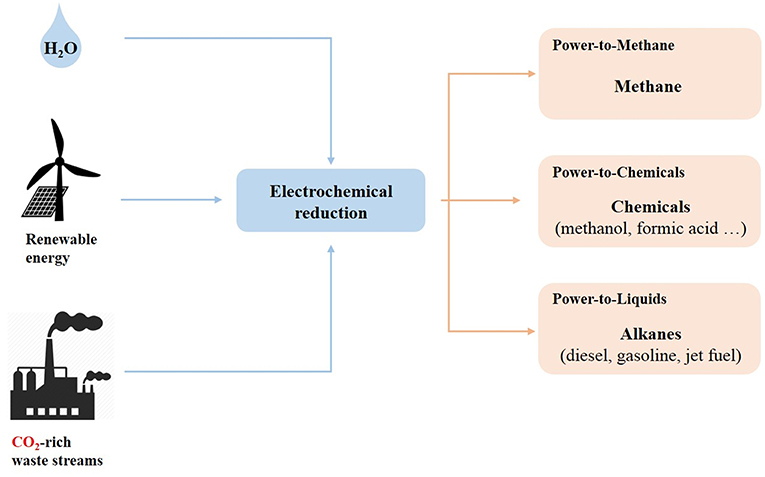

Figure 3. Power-to-X via electrochemical reduction.

CO2 hydrogenation process (Figure 2) is performed in two steps, first of which, H2 is produced using renewable energies, such as solar, wind and hydro through process, such as water electrolysis. In the second step, the H2 produced is used to convert the CO2 issued from industrial processes or power plants, for example. This approach has gained increased attention due to its fast kinetics when compared to other approaches such as electrocatalysis and photocatalysis, and to its flexibility (Li et al., 2018b). However, this technology still faces some challenges, in particular the sustainable hydrogen production. As presented in the section Water Electrolysis, water electrolysis is the main technology investigated for sustainable hydrogen production. However, improvements in efficiency and cost reduction are still required to overcome technical and economic barriers to its commercialization (Götz et al., 2016). Finally, integration of the different steps of the technology (CO2 capture, water electrolysis and CO2 hydrogenation) is also still an issue.

CO2 electrochemical reduction (Figure 3) is a more recent and less advanced approach when compared to CO2 hydrogenation. In this process, CO2 reduction is connected to an oxidation reaction (usually the water oxidation), where water is oxidized in O2, protons (H+) and electrons (e) at the anode. Then, the electrons flow to the cathode where they combine with CO2 to form different reduced products, such as methanol, methane and formic acid. In this case, renewable electricity is used to convert CO2 directly into fuels and chemicals, which represents a great potential for renewable energy storage and for lowering the GHG emissions into the atmosphere. In addition to its environmental advantages, the electrochemical reduction of CO2 can be performed at ambient temperature and pressure and can lead to the desired products only by adjusting some parameters such as the electrocatalyst, the operating potential and the electrolyte (Zhang and Zhang, 2017). Furthermore, the systems used with this processes are compact and could easily be scaled-up (Chen and Liu, 2018), leading the technology close to the demonstration phase (Reis Machado and Nunes da Ponte, 2018). However, considerable challenges such as high overpotentials, the slow kinetics of CO2 electroreduction, and poor product selectivity could slow down the use this technology at large scale (Kortlever et al., 2015; Chen and Liu, 2018). In addition, the direct electrochemical reduction of CO2 generates many different products, depending mainly on the reaction medium and on the catalyst (Albo et al., 2015). Hence, the development of electrocatalysts, allowing an efficient and selective reduction of the CO2 is essential for the development of this technology at large scale.

Among the many useful chemicals that can be synthesized directly from CO2, methane, methanol, alkanes, formic acid and formaldehyde, have a strategic use in the chemical industry, either as platform chemicals and/or for the production/storage of energy. The following topics intend to investigate the recent advances in the synthesis of the chemicals using both CO2 hydrogenation and CO2 electrocatalytically reduction.

Formic Acid

Formic acid (HCOOH) is one of the main products that can be produced from CO2 reduction having a market value around 500–900 US$/mt HCOOH (Huang et al., 2018) as well, it is considered as a C1 building block and can also be used as a fuel in formic acid fuels cells (DFAFCs) (Mura et al., 2012; Kortlever et al., 2015; Huang et al., 2018). Its production is expected to reach 760 Mt by 2019 (Huang et al., 2018). Formic acid is also considered as one of the most promising and safest liquid hydrogen carriers (Onishi et al., 2018) with a hydrogen content of 52 g/L, whose release from formic acid is favored at room temperature (ΔG° = −32.8 kJ/mol) (Singh et al., 2016). The most common industrial process for formic acid production involves a two-step process, in which methyl formate is synthesized from methanol and carbon monoxide in the first step (Equation 4) and then, methyl formate is hydrolyzed into formic acid in the second step (Equation 5) (Singh et al., 2016; Huang et al., 2018). However, production of formic acid in the second step is not thermodynamically favorable.

CH3OH+COCH3COOH    ΔHr=-29 kJ/mol    (4)
CH3COOH+H2OHCO2H+CH3OH   ΔHr=+16.3 kJ/mol    (5)

Formic acid can also be chemically synthesized by several other processes, such as oxidation of biomass, CO2 hydrogenation, CO2 electrochemical reduction, CO2 reduction by biocatalysts and also as a by-product of acetic acid production (Singh et al., 2016). This review will focus only on CO2 hydrogenation and on the CO2 electrochemical reduction.

CO2 Electrochemical Reduction

As showed in Equations (4) and (5), the equilibrium toward formic acid production is unfavorable in the classical process, leading to the investigation of other possible processes to the direct synthesis of formic acid. The electrochemical reduction of CO2 gained increased attention in the last decades due to its environmental advantages as well as its potential to directly convert CO2 into formic acid. However, as for all CO2 electrochemical reduction processes, high overpotentials and low product selectivity are the main bottlenecks for the development of this process (Reis Machado and Nunes da Ponte, 2018).

Thus, the development of less energy-intensive electrocatalysts is of importance to lower the overpotentials as well as to increase the selectivity to formic acid (Benson et al., 2009). Hori (2008) investigated the capability of different metals, such as Pb, Hg, Tl, In, Sn, Au, Ag, Zn, Pd, Ga, Cu, Ni, Fe, Pt, Ti to electrochemically reduce CO2 to formic acid. They found that the product distribution was deeply dependant on the metal electrodes. Pb, Hg, Tl, In, Sn, Cd, and Bi showed to be very efficient catalysts for the electrochemical reduction of CO2 in formic acid with Faradaic efficiencies up to 99.5%. However, they required very negative overpotentials around −2.0 V vs. saturated calomel electrode (SCE) to reach good product selectivity (Hori, 2008). Pt and Pd showed improved selectivity to formic acid, however, they also catalyzed the hydrogen evolution reaction (HER), a side reaction to CO2 reduction that lowers the Faradaic efficiency toward the formic acid production. CO poisoning is also a problem for Pt electrodes since the CO formed during the CO2 reduction covers the platinum surface, reducing the performance of the catalyst. However, Kortlever et al. (2015) reported that a palladium-platinum catalytic system reduced CO2 to formic acid using very low overpotentials, starting from −0.05 V vs. reversible hydrogen electrode (RHE) at pH = 6.7. Nevertheless, the main challenge remains to avoid the CO poisoning.

Since sulfur poisoning has been reported to be a considerable issue for HER catalysts it could be beneficial for competitive reactions. Thus, Huang et al. (2018) studied the influence of sulfur dopants in the performance of copper catalysts, aiming to limit the HER during CO2 electrochemical reduction to formic acid. They showed that a copper-based catalyst, doped with 2.7 wt.% of sulfur, exhibited a formate current density 46 times higher than the undoped catalyst. The sulfur-doped catalyst showed a faradaic efficiency of 75% during 12 h, while its structure was shown to play a role in the selectivity to formic acid. Kumar et al. (2017) evaluated the performance of Sn-based catalysts on the CO2 electrochemical reduction and they proved that a nanoporous and high-density grain boundary structure is an important factor to increase the selectivity and the rate of formic acid production from CO2 electroreduction. The SnO2 porous nanowires synthesized showed a CO2-to-HCOOH efficiency of 56%, being one of the most performing catalysts reported for this process.

Biocatalysts have also been used for the production of formic acid from CO2 electrochemical reduction, presenting higher selectivity than conventional metal electrodes. Hwang et al. (2015) investigated the use of different Methylobacteria as a whole-cell biocatalysts for the electrochemical conversion of CO2 to formate. They found that the Methylobacterium extorquens AM1 had a high capability to convert CO2 by suppling electrons, producing 60 mM of formate without requiring any additional hydrogen supply. However, the synthesis was relatively slow, taking 80 h to produce the 60 mM of formate with 1.9 g of the catalyst. Similarly, Le et al. (2018) investigated the performance of the Shewanella oneidensis MR-1 due to it powerful electron transfer system. With an optimization of the S. oneidensis MR-1 growth, up to 136.84 mM of formate was produced after 72 h. The reaction rate was 3.8 mM h−1 g−1, being almost 10 times faster when compared to the values previously obtained by Hwang et al. (2015).

CO2 Hydrogenation

The actual industrial process for formic acid production from methanol and carbon monoxide (Equations 4 and 5) emits around 3,100 kg of CO2 for each ton of formic acid produced. CO2 hydrogenation to formic acid (Equation 6) has gained increased attention since it could reduce the greenhouse gases emissions related to the formic acid production (Gunasekar Hariyanandam et al., 2016) by a 10-fold, especially if coupled with a hydrogen production process using renewable energy, such as electrolysis. Moreover, this process has become a significant milestone to consolidate formic acid as a reversible hydrogen storage carrier (Singh et al., 2016). The hydrogenation of CO2 in gas phase is not entropically favored though, since it involves the conversion of two gaseous reactants into liquid products (Wang et al., 2015; Gunasekar Hariyanandam et al., 2016). However, the reaction is favorable in aqueous medium (Equation 7).

CO2(g)+H2(g) HCOOH(l)      ΔG298K=32.8 kJ/mol    (6)
CO2(aq)+H2(aq) HCOOH(aq)      ΔG298K=-4 kJ/mol    (7)

Hence, the selection of the medium (solvents, water) is of crucial importance since it can allow for the reaction to be more thermodynamically favorable (Wang et al., 2015; Gunasekar Hariyanandam et al., 2016; Singh et al., 2016). In addition, basic additives, such as trimethylamine and ammonia are often used to shift the equilibrium toward formic acid production (Wang et al., 2015; Gunasekar Hariyanandam et al., 2016; Álvarez et al., 2017). Noble metals homogeneous catalysts are more commonly used in this process due to their promising catalytic performances. Noble metals, such as Ruthenium (Ru), Rhodium (Rd), and Iridium (Ir) have shown excellent catalytic results and transition metals, such as Nickel (Ni), Copper (Cu), and Iron (Fe) have also been investigated despite their lower activity due to their lower cost compared to the nobles metals (Wang et al., 2015; Gunasekar Hariyanandam et al., 2016; Álvarez et al., 2017).

Tanaka et al. (2009) studied the performance of a Ir(III)-PNP pincer complex in aqueous KOH medium for the hydrogenation of CO2 to formic acid. At 120°C and 6 MPa, the catalyst was very performant, leading to a high TOF of 73,000 h−1 for 48 h. They also showed that the use of a stronger base (KOH instead of K3PO4) could increase formic acid yield from 60 to 70%, confirming the strong role of the base in the reaction. Liu et al. (2015) developed an efficient Ir complex containing imine-diphosphine ligands for CO2 hydrogenation. The catalyst exhibited a TOF of 450,000 h−1 at 140°C for 20 h in a 5 M KOH medium. The catalytic performance of the Ir complex was attributed to the C = N bond of the ligand that acted as an acceptor of H2 that further led to the production of formate. Munshi et al. (2002) studied the influence of different bases and alcohols on the rate of supercritical CO2 hydrogenation using RuCl(OAc)(PMe3)4, a ruthenium trimethylphosphine complex. The results revealed that the selection of the appropriate amine and alcohol have a great influence on the rate of the reaction. The use of pentafluorophenol as alcohol and triethylamine as base at 50°C and 19 MPa for 20 min led to a TOF for formic acid production of 95,000 h−1. The pentafluorophenol alcohol, for example, could have acted either as a hydrogen donor or as a proton donor, favoring the hydrogenation reaction. To the best of our knowledge, Filonenko et al. (2014) developed a ruthenium complex catalyst that has showed the best results for formic acid production. They investigated the performance of a Ru-PNP-pincer catalyst in a batch reactor at 120°C and 2.7 MPa for 1 h using dimethylformamide (DMF) as solvent and 1,8-diazabicyclo[5.4.0]undec-7-ene (DBU) as base and obtained a TOF for formic acid production of 1,100,000 h−1. In agreement with the finding of Tanaka et al. (2009), they stated that strong bases play an important role in this reaction by affecting the rate determining step of the reaction. When a strong base is used, the initial H2 recombination is the rate-determining step.

Despite their excellent catalytic performances for hydrogenation of CO2 into formic acid, these homogeneous catalysts are difficult to separate from the products at the end of the reaction and the amount of CO2 actually hydrogenated per unit of time is still low, hindering their use at large scale (Gunasekar Hariyanandam et al., 2016; Álvarez et al., 2017). Moreover, these homogeneous catalysts may also promote the reverse reaction, in which the formate produced can be transformed back into CO2 and H2 (Gunasekar Hariyanandam et al., 2016). To cope with the problematics related to homogeneous catalysts, studies were recently published on the use of heterogeneous catalysts for the hydrogenation of CO2.

Umegaki et al. (2016) were the first to study the performance of ruthenium (Ru) nanoparticles (unsupported catalyst) in the hydrogenation of supercritical CO2 into formic acid. The reaction was carried out at 353 K and 13 MPa for 3 h in a mixture of water and trimethylamine. They observed that the metallic nanoparticles were very active and stable during the test, leading to a TOF of formic acid of 2,117 h−1. The stability of the catalyst was attributed to the fact that the nanoparticles maintained their metallic state after the test.

The influence of ruthenium-based catalysts doped on different supports, such as MgO, Al2O3, and activated carbon (AC) was studied by Hao et al. (2011). Each support was doped with 2 wt.% Rh and the hydrogenation tests were performed at 353 K and 13.55 MPa in the presence of ethanol as solvent and triethylamine as base, which were added to extract the formic acid, increasing the reaction rate. The Ru/AC and the Ru/Al2O3 catalysts showed good catalytic performances with turnover numbers (TON) of 10 and 91, respectively. The catalytic performance of the catalysts was attributed to the presence of hydroxyl groups on the surface of the catalysts that increased the adsorption of CO2. The higher yield of formic acid obtained with the Ru/Al2O3 catalyst compared to the Ru/AC was in fact due to its greater number of hydroxyl groups. The MgO support was chosen for its strong basic sites, eliminating the need of using basic additives that need to be neutralized and separated from the product at the end of the reaction. However, no formic acid was produced in the presence of this catalyst, probably due to the absence of hydroxyl groups on its surface as well as the high pH of the solution that lead to the formation of inactive RuO2 species. Similarly, Zhang et al. (2018) obtained a good catalytic performance of a Ru-based catalyst doped on an alumina support. They investigated the performance of the Ru-PPh3/Al2O3 catalyst as well as the presence of additives and solvents in the CO2 hydrogenation to formic acid reaction in a batch reactor at 80°C and 12 MPa for 1 h. The catalyst showed a high turnover frequency of formic acid of about 751 h−1 in a mixed solution of ethanol, triethylamine and water and in the presence of KH2PO4 and PPh3 as additives. They reported that the high TOF obtained was related to the use of PPh3 as proton donor, KH2PO4 as proton source and trimethylamine as basic additive, increasing the conversion of CO2.

Su et al. (2015) studied the performance of different heterogeneous palladium-based catalysts doped on different supports. In this work, all catalysts were doped with 5 wt.% of palladium (Pd) and the best hydrogenation results were obtained at 20°C for 1 h in a 1 M NH4HCO3 medium. They showed that the CO2 hydrogenation test performed at 2.7 MPa with the Pd/Al2O3 catalyst resulted in a TOF of 278 h−1 while the hydrogenation test, performed at 5.5MPa with the Pd/AC (activated carbon) nanocatalyst, showed a TOF as high as 1,103 h−1. The main reasons for the difference in the performance of both catalysts was the localized higher H2 concentrations on the surface of the activated carbon-based catalysts as well as a higher Pd dispersion that favored the hydrogenation reaction.

Formaldehyde

Formaldehyde (CH2O) is currently used in about 50 industrial process as building block for the production of daily life products, such as paints, cosmetics, resins, polymers, plastics etc (Heim et al., 2016; Zhang et al., 2017). It is mainly produced via the energy and cost-intensive Formox process in which methanol is partially oxidized at 300–400°C (Equation 8) (Heim et al., 2016). Methanol used in the process is produced from syngas, which in turn is produced from steam reforming of natural gas (Heim et al., 2016). More than 35% of the world methanol production is actually used for formaldehyde production (Heim et al., 2017). The drawbacks of this process are high temperatures and energy-intensive compression and purification steps, affecting the overall economics of the process.

CH3OH+12O2HCHO+H2O      ΔH298K=-159 kJ/mol    (8)

Since CH2O is a hydrogen-rich molecule, it has a great potential to be used as a liquid hydrogen carrier, capable of delivering high-purity H2 in a hydrogen fuel cell (Heim et al., 2017). Moreover, it could be even more interesting as liquid hydrogen carrier than methanol since formaldehyde reforming process is much less energy intensive than methanol reforming (Heim et al., 2017). However, in order to produce H2 with a low carbon footprint, formaldehyde has to be produced more sustainably. There has been recent efforts for developing new processes for sustainably producing formaldehyde, such as CO2 hydrogenation, electrochemical and enzymatic approaches. However, the literature on this subject is relatively scarce, especially when heterogeneous catalysts are considered. The main findings on the formaldehyde production via CO2 reduction will be detailed in the following sub-sections.

CO2 Electrochemical Reduction

Very few reports from the open literature related the electrochemical reduction of CO2 to formaldehyde. Nakata et al. (2014) reported the highest Faradaic efficiency to formaldehyde obtained through CO2 electroreduction up to date. The authors investigated the CO2 reduction using Boron-doped diamond (BDD) electrodes in various electrolytes, such as methanol and seawater. When seawater was used as electrolyte, relatively low formaldehyde yield of 36% was obtained due to impurities in the seawater and to the narrow potential window in water. On the other hand, a Faradaic efficiency of 75% to formaldehyde was obtained at −1.5 V (vs. Ag/AgCl). When a glassy carbon electrode was used, a Faradaic efficiency of only 15% was obtained in the same conditions. The performance of the BDD electrodes was attributed to the presence of sp3-bonded carbon, while glassy carbon has large amounts of sp2-bonded carbon, resulting in low Faradaic efficiencies. Furthermore, BDD electrodes presented very good stability over 20 h, while the surface of the glass carbon electrode dramatically changed after 20 h of electrolysis, highlighting the potential of the BDD electrodes to formaldehyde production via CO2 electrochemical reduction.

CO2 Hydrogenation

Similarly to the electrochemical reduction, there are only few reports in the literature on CO2 hydrogenation to formaldehyde using heterogeneous catalysts (Heim et al., 2017). Lee et al. (2001) studied the production of formaldehyde via CO2 hydrogenation over a PtCu/SiO2 catalyst at 423 K and 600 kPa and varying the H2/CO2 feed ratio between 3 and 20. The authors reported that the rate of formaldehyde production increased considerably with increase of the H2/CO ratio, ranging from 0.21 × 10−4 mol min−1 gcat-1 at H2/CO = 3–0.87 × 10−4 mol min−1 gcat-1 at H2/CO = 20. Conversely, the rate of methanol production greatly decreased with an increase of the H2/CO ratio. These results led the authors to conclude that the relative concentration of surface hydrogen on the catalyst play a major role in the selective production of formaldehyde. For comparative purposes, Cu/SiO2 catalyst was also tested in the same conditions. However, in this case, when a H2/CO = 20 was used, the formaldehyde production was negligible. The authors concluded that Pt played an important role in the adsorption of hydrogen, which would then migrate to the copper surface, promoting the CO2 hydrogenation into formaldehyde.

Chan et al. (2018) recently reported the production of formaldehyde from CO2 hydrogenation in aqueous solution, using formic acid as intermediate of the CO2 hydrogenation process. The performance of the Pt-Cu/γ-Al2O3, Pt-Ni/γ-Al2O3, Ru-Cu/γ-Al2O3, and Ru-Ni/γ-Al2O3 catalysts was evaluated at 70 bar and at a temperature range of 298–363 K. The authors reported that the conversion of formic acid into formaldehyde is possible, despite not been thermodynamically favored, with Pt-Cu/γ-Al2O3 being the catalyst with the highest formic acid conversion and formaldehyde yield (≈6 mmol L−1 gcat-1). However, all the formic acid converted was not transformed into formaldehyde. The authors suggested that this could be related to the thermal decomposition of formic acid. However, they did not evaluate the formation of other products to confirm this hypothesis.

Methanol

Methanol (CH3OH) is one of the main commodities produced worldwide, with a price around 470 USD per metric ton (2018, Methanex)12. It is also an important feedstock in the chemical industry for the production of olefins, dimethyl ether and liquid fuels, thus becoming an interesting alternative to fossil fuels (Goeppert et al., 2014; Dang et al., 2018). Moreover, CH3OH is a liquid energy carrier, being easier to handle and transport than gases and solid materials (Onishi et al., 2018).

Methanol is currently produced at commercial scale from fossil fuel-based syngas in a two-step process. In the first step, syngas with a H2:CO ratio close to 3:1 is produced from steam reforming of natural gas (Equation 1). Then, after adjusting the H2:CO ratio to around 2:1, the syngas is converted into methanol using copper-based catalysts (Equation 9) (Olah et al., 2009; Albo et al., 2015).

CO+2H2CH3OH         ΔH298K=-90.7  kJ/mol    (9)

One of the simplest ways to sustainably obtain liquid products from CO2 is the production of methanol mainly electrochemically and through hydrogenation (Goeppert et al., 2014), two pathways that will be detailed in the following sections.

CO2 Electrochemical Reduction

As for most of the CO2 electrochemical reactions reported in this work, the development of catalysts able to selectively produce methanol still represents a challenge to be overcome. Copper and copper-based electrodes have proved to be one of the most performing materials for the electrochemical conversion of CO2 into alcohols, including methanol (Albo et al., 2015). Frese (1991) was one of the first to investigate the CO2 reduction to methanol over copper surfaces. The authors showed that an anodized Cu foil could successfully reduce CO2 into methanol using a 0.5 M KHCO3 as solution and −1.9 V (vs. SCE) at a rate as high as 10−4 mol cm−2 h−1. Faradaic efficiency for CH3OH reached about 240%. Efficiencies higher than 100% were obtained since the theoretical analysis considered six-electron reduction of CO2 to CH3OH and H2O and the HER also occurred. Similarly, Le et al. (2011) obtained a methanol production rate of 43 μmol cm−2 h−1 and Faradaic efficiency of 38% in 0.5 M KHCO3 using cuprous oxide thin films at −1.1 V (vs. SCE). The authors showed that this rate of methanol production as well as the Faradaic efficiency were much higher than those obtained with air-oxidized (0.9 μmol cm−2 h−1) and anodized (1.5 μmol cm−2 h−1) copper electrodes, suggesting that Cu (I) species might play a key role in the electrode activity and selectivity to methanol. Malik et al. (2016) studied the efficiency of multi wall carbon nanotubes (MWCNTs) impregnated with CuO2 to reduce CO2 into methanol, due to their excellent structural and electrical properties, making them good candidates for electrochemical applications. The authors reported that the MWCNTs acted as active sites for CO2 conversion as well as traps for electrons, increasing the rate of conversion of intermediates into methanol. Also, CuO2 loadings varying between 10 and 50 wt.% were investigated. 30% CuO2-MWCNTs catalyst showed the best catalytic performance, achieving 38% of Faradaic efficiency to methanol at −0.8 V (vs. Ag/AgCl) in a 0.5 M NaHCO3 medium. CuO2 loadings (higher than 40 wt.%) led to an agglomeration of the CuO2 particles and overall larger crystallite sizes, decreasing the surface area of the catalyst and the number of active sites.

The use of copper alloys have also been investigated, since it may enhance the electrochemical CO2 reduction to CH3OH. Actually, most of the industrial catalysts currently used for methanol production are composed of Cu-Zn mixed oxides, highlighting the synergetic effect of the metals to improve methanol production (Frese, 1991; Albo et al., 2015). Watanabe et al. (1991) evaluated the capacity of Cu-Ni, Cu-Sn, Cu-Pb, Cu-Zn, Cu-Cd, and Cu-Ag alloys to electrocatalytic reduce CO2 into methanol in a 0.05 M KHCO3 aqueous solution. They observed that the product distribution was dependant on the copper alloy. While a Cu-Ni alloy produced CH3OH and HCOOH, Cu-Sn, and Cu-Pb enhanced the production of HCOOH and CO. A Faradaic efficiency to methanol of 10% was obtained with the Cu-Ni alloy at −0.4 V (vs. Ag/AgCl) while no CH3OH was formed when pure Cu or Ni were used alone even when a wide potential range from −0.5 to −1.5 V was considered. They concluded that this difference in the catalytic performance was related to a mechanism involving the introduction of hydrogen atoms on the alloy surface by Ni sites. Jia et al. (2014) also investigated the performance of copper-based alloys. The authors prepared Cu-Au alloys through electrochemical deposition with a nanoporous Cu film (NCF) as template. The Cu63.9Au36.1/NCF alloy showed a Faradaic efficiency of methanol of 15.9%, which was around 19 times higher than that obtained with pure Cu. In fact, the Cu-Au alloy favored not only the CO2 reduction reaction but also the CO reduction, improving the overall conversion of CO2 into methanol.

Kuhl et al. (2014) further investigated the CO2 electrocatalytic reduction over different metals, such as Au, Ag, Zn, Cu, Ni, Pt, and Fe. Experiments were carried out in 0.1 M KHCO3 electrolyte and at different voltages varying between −1.6 and −0.4 V (vs. RHE). The best results were obtained with Au, presenting almost 100% of Faradaic efficiency to methanol. On the contrary, Fe showed to be inefficient for methanol production under these conditions, presenting 100% of current efficiency to methane production, instead of methanol. The other metals were able to produce both methanol and methane. The authors reported that one of the main parameters that influences the selectivity to methanol or methane is the oxophilicity (capacity to adsorb oxygen) of the catalyst surface. Au, metal with the lowest oxophilicity among the metals investigated, produced only methanol whereas Fe, metal with the highest oxophilicity, produced only methane.

Since the hydrogen evolution reaction (HER) competes with the CO2 reduction (hence lowering the Faradaic efficiency of the CO2 reduction reaction), Olah and Prakash (2010) investigated the possibility of using the HER as an advantage. The authors used a 0.1 M KHCO3 aqueous solution as electrolyte and water was electrolyzed while CO2 was reduced at an Au cathode at −3.2 V (vs. Ag/AgCl), producing syngas with a H2:CO ratio close to 2:1. They showed that the total Faradaic efficiency for H2 and CO was close to 100%. The syngas produced could then be converted into methanol using the same process that is currently used at industrial scale (Equation 9). The advantages of this process are the high Faradaic efficiencies for syngas production, absence of a purification step since no impurity is present and production of valuable high-purity oxygen at the anode (Olah et al., 2009).

Ru and RuO2 have also shown to be promising materials to for the electrocatalytic reduction of CO2 due to their high electrical conductivity, high electrochemical stability, intermediate hydrogen overpotential and capacity to reversibly adsorb hydrogen for CO2 reduction (Qu et al., 2005). Bandi (1990) reported that electrodes composed of 35% Ru and 65% TiO2 presented current efficiencies for methanol production as high as 24% when polarized near the equilibrium potential of hydrogen evolution in solutions of 0.2 M Na2SO4 saturated with CO2. The results led the authors to conclude that the first electron transfer is the rate-determining step in electrochemical reduction of CO2 on oxide surfaces at low pH. Finally, the authors suggested that the methanol efficiency could be improved by changing the oxide composition and preparation parameters. Qu et al. (2005) investigated the electrochemical CO2 reduction properties of RuO2/TiO2 nanoparticles (NPs) and nanotubes (NTs). RuO2/TiO2 NTs showed a Faradaic efficiency for CH3OH of 60.5% at −0.8 V (vs. SCE) in 0.5 M NaHCO3, which was about 20% higher than that obtained with RuO2/TiO2 NPs. The authors reached similar conclusions to Malik et al. (2016), suggesting that the surface structure of the nanotubes composite had an important role for achieving high efficiency and selectivity to the desired products. Table 3 summarizes the performance of different catalysts for CO2 electrochemical reduction into CH3OH reported in the literature.

TABLE 3
www.frontiersin.org

Table 3. Summary of different electrocatalysts used for electrocatalytic reduction of CO2 in methanol.

CO2 Hydrogenation

The most direct way to produce methanol from CO2 via a PtX process is the catalytic hydrogenation showed in Equation (10):

CO2+3H2 CH3OH+H2O   ΔH298K=-49.2  kJ/mol    (10)

The reaction takes place at 250–300°C and 50–100 bars usually in the presence of CuO/ZnO/Al2O3 catalysts (Jadhav et al., 2014; Bellotti et al., 2017). In this process, hydrogen is produced by water electrolysis ideally using renewable energy, as presented in section Water Electrolysis, and then combined with CO2 waste streams to produce methanol, in a classical Power-to-Methanol process.

Recent process simulations and techno-economic studies have focused on the efficiency of Power-to-Methanol processes and on its comparison with the classical routes (Table 4). Rihko-Struckmann et al. (2010) investigated the idea of capturing the CO2 from power plants to produce energy storage media, such as H2 and methanol. They considered a H2 production from water electrolysis and the methanol production from a Power-to-Methanol technology at 220°C and 5 MPa. They achieved a high CO2 conversion of about 97%. However, they concluded that the exergetic efficiency of the system using hydrogen as storage medium was higher than the one including methanol. The main advantage of using methanol as chemical storage system would be, however, its simple and cost-efficient storage. Hank et al. (2018) evaluated the economic feasibility of a methanol plant with a methanol production capacity of 4–10 kt/y using CO2 and hydrogen as feedstock. The hydrogen used in the process was produced via a PEM water electrolyser with an electricity consumption of 4.76 kWh/m3 H2. They concluded that the feasibility of the process strongly depended on the costs of electricity and of H2 production, on the price of the CO2 (considering the carbon taxes) as well as on the dynamics of the methanol reactor including the necessity of H2 storage. They also concluded that locations with high availability and low cost production of renewable energy will play an important role on the development of Power-to-Methanol technologies in the next few years. Bellotti et al. (2017) compared the economic feasibility of three different plant sizes for methanol synthesis from hydrogen, produced by water electrolysis, and carbon dioxide, sequestrated from power plants. They concluded that in the case of large plant sizes with a methanol production around 50 kt/y considerable amounts of CO2 (71.6 kt/y) would be sequestrated. However, due to the high cost of the plant, oxygen selling would be mandatory to get economically feasible results. Koytsoumpa et al. (2018) showed that a large-scale methanol plant with a methanol production of 50–100 kt/y would require 1.01 MWhth per ton of CH3OH of thermal energy and 9.74 MWhe/t CH3OH of electric energy. The techno-economics are highly influenced by the final methanol price, the fuel and chemical market as well as the energy and fuel directives. Kourkoumpas et al. (2016) performed a techno-economic evaluation of the Power-to-Methanol concept using CO2 from lignite-fired power plants and H2 from water electrolysis. They concluded that the Power-to-Methanol concept is more competitive when large scale plants, low electricity, low CO2 costs and high operating time for both H2 and methanol plants are considered.

TABLE 4
www.frontiersin.org

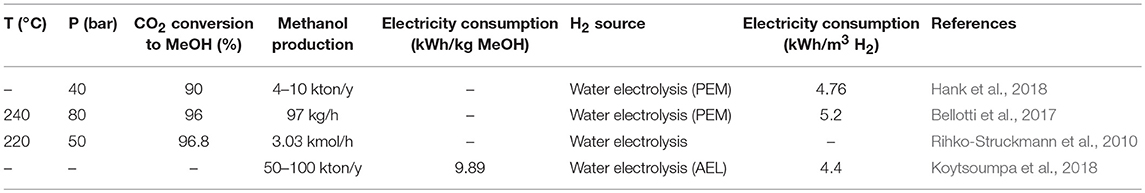

Table 4. Summary of some of the process simulations and techno-economic studies about Power-to-Methanol reported in the literature.

A few Power-to-Methanol plants are actually already in operation and projects aiming at building pilot and demonstration plants are currently being developed. The European Commission has launched the MefCO2 project aiming to demonstrate the economic feasibility of the Power-to-Methanol technology in a modular intermediate scale and to adapt it to varying plant sizes and gas composition. The technology could later be adapted to work with the existing biomass combustion and gasification system streams, for example, aiming in this case the production of electric/thermal energy instead of chemical synthesis1314 (Koytsoumpa et al., 2018). Mitsui Chemicals built a pilot plant in 2008 for methanol production from CO2 and H2 obtained from water photolysis with a capacity of 100 tons of CH3OH per year. Their objective is to use the methanol produced as raw material to the synthesis of olefins and aromatics15 (Pérez-Fortes et al., 2016). Carbon Recycling International (CRI) has taken the technology one step further since the company developed an emission-to-liquid technology in which CO2 captured from flue gas of a geothermal power plant and H2 produced from water electrolysis using renewable energy are used to produce renewable methanol. The George Olah plant recycles 5.5 thousand tons of CO2 per year, releasing 90% less CO2 than the use of a comparable amount of energy from fossil fuels16.

Methane

Methane (CH4) is one of the most important energy vectors of our society, being used to produce heat, electricity and value-added chemicals. Methane is mainly obtained through natural gas, a fossil fuel source with very low cost (≈ 3.13 USD/GJ—December 2018)17. If produced in a sustainable way, CH4, also called substitute natural gas (SNG), has also a great potential for reducing the GHG emissions, since it can be more readily used than renewable H2, for example. Indeed, SNG can be injected directly into the natural gas grid, benefiting of the existing natural gas facilities (Götz et al., 2016). Power-to-Methane (PtM) technology has shown to be a promising pathway for a sustainable production of methane, using CO2 and renewable energy to produce SNG. Among the different existing routes for PtM, catalytic CO2 hydrogenation (methanation) has been extensively investigated and demonstration plants are already in operation in different countries. CO2 electrochemical reduction route is still at lab-scale validation stage. However, the results obtained over the last few years have highlighted the promising aspects of this route.

CO2 Electrochemical Reduction

One of the possible ways to sustainably produce fuels (such as methane from CO2) is by an electrochemical reduction of CO2. Thermodynamically, CO2 can be electrochemically reduced to CH4 with a standard potential of +0.17 V vs. RHE (Peterson and Norskov, 2012). However, since hydrogen evolution reaction (HER) is thermodynamically possible at 0 V (vs. RHE), both reactions will be in competition at all negative potentials (Peterson and Norskov, 2012). The low CO2 solubility in water (0.03 M, 25°C and 1 atm) is also a remaining challenge. So, studies are still needed to improve CO2 solubility and to develop catalysts able to improve selectivity to methane and to reduce the high potentials required. Alternative approaches to CO2 electrochemical reduction, such as photo irradiation, use of ionic liquid electrolytes and use of biological microorganisms have also been treated elsewhere (Kondratenko et al., 2013; Machado et al., 2018) and are not the focus of this section.

Hori et al. (1994) pioneered experimental works on the comprehension of CO2 electrochemical reduction by heterogeneous catalysts. The authors performed CO2 reduction tests at 18.5°C in a 0.1 M KHCO3 medium using different metals, such as Cu, Au, Ag, Zn Pd, Cd, Ni, Pt, etc. They proved that methane could be obtained by CO2 electrocatalytic reduction on metal surfaces and that the choice of the metal of the electrode had an impact of the products selectivity. The only metal investigated that presented a relatively high Faradaic efficiency to CH4 (33.3%) was copper at −1.44 V vs. normal hydrogen electrode (NHE). Pd, Cd, and Ni also produced CH4 but with Faradaic efficiencies lower than 3%, mainly due to the HER occurring as side reaction. The good performance of copper was attributed to the fact that CO2 is intermediately reduced to CO, before being reduced to methane (and other hydrocarbons and alcohols). When other metals, such as Ni and Pt were used, the CO was adsorbed on the surface of the electrodes, preventing its further reduction into hydrocarbons and alcohols.

To the best of our knowledge, the best CH4 Faradaic efficiency obtained up to date on copper electrodes was obtained by Manthiram et al. (2014). The authors compared the performance of copper nanoparticles supported on glassy carbon (n-Cu/C) with classical copper foils. The electrochemical tests were performed in a two-compartment electrochemical flow cell separated by a Selemion membrane and in a 0.1 M NaHCO3 electrolyte. A Faradaic efficiency for CH4 of 76% was obtained using n-Cu/C (−1.35 V vs. RHE), which was significantly higher than the Faradaic efficiency of 44% obtained with the classical copper foil. The good performance of the n-Cu/C catalyst was attributed to the formation of nanoscale aggregates on the n-Cu/C upon polarization, exposing its catalytic sites to methanation. On the other hand, in copper foils highly connected networks of fused particles are formed upon polarization, leading to less exposed catalytic sites.

The electrolyte concentration as well as the local pH have also shown to have great influence on the selectivity of the CO2 electrochemical reduction. It has been proved that the methane formation depends on proton concentrations, being favored when acidic or neutral solutions are used. Thus, the effect of the electrolyte can be directly linked to the local pH. Varela et al. (2016) investigated the effect of the concentration of the electrolyte in controlling the selectivity of the CO2 electroreduction on copper. KHCO3 electrolyte solutions were used with concentrations varying between 0.05 and 0.2 M KHCO3. The highest concentrations of electrolyte favored the selectivity to methane. CH4 Faradaic efficiency of ≈ 70% at −1.43 V (vs. NHE) was obtained when a 0.2 M KHCO3 solution was used, due to its higher buffer capacity. The authors hypothesized that concentrated KHCO3 solutions had a higher buffer capacity and favored the electron/proton couple transfer, resulting in a higher methane (and H2) production. On the other hand, methane formation was less favored in diluted KHCO3 solution with low buffer capacity, due to the low concentration of protons close to electrode surface.

Issues related to the low CO2 solubility in water often leads to mass transfer limitations for large current densities. To overcome such problem, Hara et al. (1995) performed CO2 reduction using gas diffusion electrodes (GDE). Electrolysis experiments were carried out at 30 atm in a stainless steel autoclave using a 0.5 M KHCO3 aqueous electrolyte and a gas diffusion electrode containing Pt electrocatalysts. The Pt catalyst layer was directed toward the CO2 gas phase while the gas diffusion layer faced the aqueous electrolyte. Methane was produced with a Faradaic efficiency of 34.8% at a −1.92 V (vs. Ag/AgCl). However, when the order of the layers was inversed (Pt catalyst layer facing aqueous electrolyte), negligible amounts of methane were produced, mainly due to the contact between the water and the Pt catalyst, favoring the hydrogen evolution reaction.

Also aiming to improve CO2 solubility, Kaneco et al. (2002) investigated the electrochemical reduction of CO2 to methane at low temperatures in methanol, since it is a better solvent for CO2 as compared to water. Experiments were performed in a H-type cell with a Nafion 117-type ion exchange membrane as diaphragm using Cu electrodes. The authors reported a CH4 Faradaic efficiency of 58% at −2.0 V (vs. Ag QRE). The authors further investigated the use of different sodium salts (NaNO3, NaH2PO4, NaHCO3, NaCl, NaBr, NaI, NaF, Na2SO4, NaSCN, NaClO4, and CH3COONa) to further increase the CO2 solubility in methanol (Kaneco et al., 2006). The electrolysis tests were performed at 243 K using Cu electrodes. The authors reported that for all the sodium salts tested, CH4 Faradaic efficiencies ≥ 43.4% were obtained, 70.5% being the highest efficiency obtained using NaClO4. These results were attributed to the fact that the sodium salts depressed the hydrogen evolution reaction that competes with the CO2 reduction, thus increasing the methane formation.

CO2 Hydrogenation

Power-to-Methane (PtM) can also be achieved by combining water electrolysis for H2 production with methanation process in a two-step process. In the first step, H2 is produced using renewable energy, such as solar and wind power. In the second step, CO2 is hydrogenated in a methanation process to produce methane (Equation 11). Since the substitute natural gas (SNG) produced has high purity, it can be injected directly into the natural gas grid, stored or used in natural gas facilities (Götz et al., 2016), allowing this technology to connect the electrical and gas grids in a single system, procuring great flexibility to the balance of the grid (Bailera et al., 2017).

CO2+4H2CH4+2H2O   ΔH298K=-164.9 kJ/mol           (11)

Methanation can be done either biologically or catalytically. However, the focus of this section will be on catalytic methanation, since it is (to the best of our knowledge) the most advanced technology. Catalytic methanation (Equation 11) is an exothermic reaction usually performed between 200 and 550°C and at pressures up to 100 bar. Due to its exothermicity, temperature control inside the reaction is an issue that can lead to thermodynamic limitations and catalyst deactivation by sintering (Götz et al., 2016). Therefore, different reactors types, such as fixed bed, fluidized bed, three-phase and structured reactors have been used to improve the efficiency of the process. Adiabatic fixed-bed reactor is the most commonly studied reactor type and is actually employed by companies such as Sasol, Linde, Haldor Topsoe etc., for the production of SNG from coal or naphtha (Schaaf et al., 2014; Götz et al., 2016). However, catalysts must be resistant against sintering due to the large temperature range they have to support because of the adiabatic mode (Götz et al., 2016). Usually, there are at least two fixed bed reactors connected in series for a good control of the reaction temperature, which is done by recirculating the reactor outlet gas stream and by intermediate gas cooling steps (Schaaf et al., 2014). Fluidized bed reactor is the second reactor type most commonly studied where the methanation reactions occur in a fluidized catalyst bed, improving heat and mass transfer during the reaction and thus the control of the process. Nevertheless, abrasion and entrainment of catalyst bed particles are some drawbacks of this type of reactor (Schaaf et al., 2014).

The catalyst has also a significant impact on the efficiency of the methanation process and Nickel-based catalysts are commonly used to this purpose due to their high activity and low cost (Ghaib and Ben-Fares, 2018). However, they impose limits to the methanation process, such as operating temperatures that must be kept between 200 and 550°C since potentially highly toxic nickel compounds can be formed at 200°C and catalyst deactivation by sintering and coking can occur above 550°C (Schaaf et al., 2014). So, studies have been carried out on catalyst development, aiming at synthetizing more performing and temperature-resistant catalysts. Bacariza et al. (2019) investigated the effect of the zeolite structure on the performances of Ni-based catalysts for CO2 methanation. Commercial available USY, BEA, ZSM-5 and MOR zeolites ion-exchanged with Na+ and Cs+ and impregnated with 15 wt.% Ni were tested at temperatures ranging from 250 to 450°C and GHSV of 43,000 h−1. The authors concluded that the performance of the catalysts was intimately related to the structure of the zeolites. USY zeolite showed the best catalytic performance with CO2 conversions of about 70% and CH4 selectivity close to 100%. The good catalytic performance was attributed to its weak interaction with water, which has an inhibitory role in the reaction, and to the high dispersion of the Ni particles over the catalyst surface. BEA zeolite led to the highest Ni particles dispersion and thus presented similar catalytic performances to the USY zeolite. Also, the catalytic performance of the BEA zeolite was improved when its hydrophobicity was increased by increasing its Si/Al ratio. Finally, ZSM-5 and MOR zeolites presented the lowest Ni dispersion, leading to lower methane selectivity around 60–70%.

Hydrotalcite materials have also been investigated due to the possibility of receiving high amounts of active phase while keeping high metal dispersion (Frontera et al., 2017), favoring CO2 conversion and preventing the catalyst deactivation. Abate et al. (2016) compared the performance of Ni-Al/hydrotacilte catalysts with a classical Ni/Al2O3 catalyst both doped with 75 wt.% Ni. The Ni-Al/hydrotacilte presented the best catalytic performance with a CO2 conversion of 85% and CH4 selectivity of about 85% at 275°C, while the Ni/Al2O3 commercial catalyst presented a CO2 conversion of around 80% and CH4 selectivity of about 75% at the same temperature. The difference in the catalytic performances was attributed to a higher nickel dispersion and a higher metal surface area of the Ni-Al/hydrotacilte catalyst. Similar results were obtained by He et al. (2014). The authors compared the performance of a Ni-Al/hydrotacilte catalyst with a Ni/Al2O3 catalyst both doped with 78 wt.% of Ni. Ni-Al/hydrotacilte catalyst presented a better catalytic performance with CO2 conversion of 82.5% and CH4 selectivity of 99.5% at 350°C, which was also attributed to a high nickel dispersion.

Noble metals have also been extensively investigated due to their good catalytic performance for CO2 methanation at low temperatures and good resistance to carbon formation (Frontera et al., 2017; Qin et al., 2017). Karelovic and Ruiz (2012) studied the performance of Rh/γ-Al2O3 catalyst with Rh content varying between 1 and 5 wt.% at a temperature range of 50–200°C. They reported that selectivity to methane was about 100% in all conditions investigated. They also reported that the turnover frequency (TOF) of methane formation decreased as the Rh dispersion decreased (increase in Rh content) in a temperature range of 135–165°C. However, the TOF was independent of the Rh dispersion in a higher temperature range (185–200°C). Swalus et al. (2012) investigated the effect of mechanically mixing Rh/γ-Al2O3 with Ni/activated carbon (AC) catalyst, a catalyst widely used for hydrogenation reactions. The objective was to verify the synergetic effect of the two catalysts in the CO2 methanation reaction. The reactions were performed at 125°C and 2 bar. The authors reported a higher methane production (9.5 μmolCH4/gcat) when both catalysts were used compared to when only Rh/γ-Al2O3 (6.8 μmolCH4/gcat) or Ni/AC (0 μmolCH4/gcat) was used. Since no new structures were formed when the catalysts were mixed, the synergy was attributed to the cooperation between the two catalysts during the reaction. Rh/γ-Al2O3 was highly efficient for adsorbing CO2 while Ni/AC was able to adsorb high quantities of H2. These two properties together improved the CO2 conversion and the CH4 formation. The authors suggested the hydrogen species would migrate from the surface of the Ni/AC toward the Rh/γ-Al2O3, reacting with the adsorbed CO2 to produce CH4. Basic promoters, such as K, Ba and CeO2 have also been studied to enhance the performance of the catalysts by modifying the surface basicity, the metal-support interaction as well as the metal dispersion. All these parameters would lead to a better activity, stability and resistance to extreme conditions of the catalysts (Ghaib and Ben-Fares, 2018).

As previously presented, there has been a lot of work on the different steps of the Power-to-Methane process, such as electrolysis and CO2 methanation. However, a lot of work still need to be done on the integration of these steps. Different countries, especially in Europe, driven by the need to increase the share of renewable energy started research projects to provide proof of concept to the Power-to-Methane technology. There are a few plants using this technology that are already in operation and others that are still been developed. A non-exhaustive list of these plants and projects is provided in Table 5.

TABLE 5
www.frontiersin.org

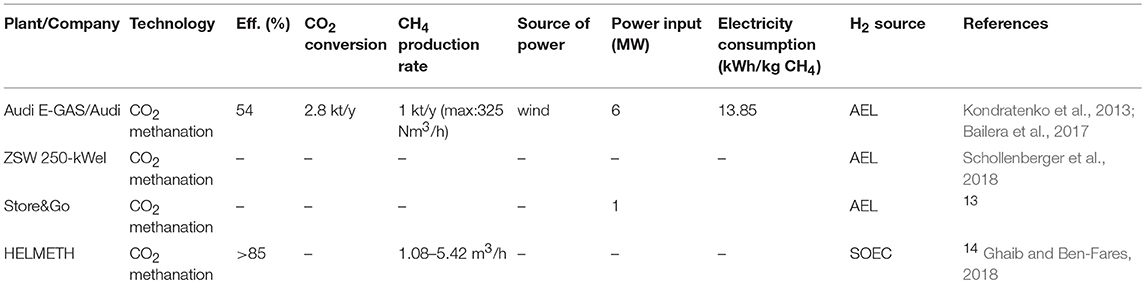

Table 5. Summary of the PtM plants current in operation and of the PtM projects being developed.

The largest Power-to-Methane facility in the world is the 6 MW Audi e-gas plant. In this plant, hydrogen is produced by alkaline electrolysers using wind power. The source of the CO2 is the biogas from the EWE Biogas GmbH & Co. KG biomethane plant. The methane production is limited to 1,000 t/y due to availability of the renewable energy. However, the maximum methane production capacity of the plant is 325 Nm3/h (Bailera et al., 2017).

ZSW launched in 2012 a Power-to-Methane demonstration plant composed by a 250-kWel alkaline high-pressure electrolyser, a CO2 methanation unit and a process control system18 (Ghaib and Ben-Fares, 2018). In this plant, two different reactor types (tube bundle and plate reactors) can be operated separately or in combination. Also, a membrane gas processing stage is used to enrich the methane in the product gas and to recycle the hydrogen-rich gas (Schildhauer and Biollaz, 2016).

The Store&Go project funded by the European Union developed a metallic honeycomb-like carrier-based reactor aiming at overcoming the issues related to removing and reutilizing the heat from the methanation reactor (Schollenberger et al., 2018). The proof of concept was done at laboratory scale. The technology was scaled up to a 1MW SNG plant, which started its operations in 201819.

The HELMETH project, co-financed by the European Union and by the Fuel Cells and Hydrogen Joint Technology Initiative, aims at determining the conditions for an economic feasibility of the Power-to-Gas process and at demonstrating the technical feasibility with conversion efficiency >85%20. (Ghaib and Ben-Fares, 2018). The innovation of this project is the thermally integration of a high temperature electrolysis (SOEC) with methanation. The heat released during the methanation process will be used to vaporize the water that will be fed to the electrolyser, helping balancing the endothermal and exothermal process and allowing a better energy-efficiency storage of the renewable energy14.

Despite the key role that this technology might play in the future energy sector, further studies are still needed to validate the whole system as well as to overcome main drawbacks, such as low efficiency and high costs (Götz et al., 2016).

Alkanes

The transportation sector is one the sectors having the largest GHG emissions in many countries. In Canada, for example, the transportation sector accounted for 25% (173 Mt CO2eq) of the total national emissions21, showing the critical need to displace the fossil fuels used in the sector to effectively reduce the GHG emissions of the country. Electric cars represent a promising alternative, however, these technologies are not yet optimized for long distance trips and are still unfit for heavy transportation. Biofuels have also been considered as a promising approach, though its use has raised a lot of questions regarding the amounts that can really be produced to significantly reduce the GES emissions from this sector (Schmidt et al., 2018). The challenge is even bigger when it comes to the aviation sector, since there is not yet a reliable substitute to the fossil-based jet fuel. The Power-to-Liquids (PtL) technology could represent a huge opportunity to produce a replacement fuel without the issues related to the biomass feedstock and that could actually reduce the emissions from the transportation sector, especially the aviation sector.

Fischer-Tropsch and methanol are the two main production pathways to produce alkanes through PtL technologies (Figure 4). To fit with the Fischer-Tropsch pathway, CO2 first is converted to CO via a reverse water-gas shift reaction (RWGS) and H2 is produced through water electrolysis (Schmidt et al., 2016). H2 and CO are then used in a classical Fischer-Tropsch synthesis to produce hydrocarbons that can be upgraded to fuels such as gasoline, diesel and jet fuel. There are several upgrading processes that are already widely employed for upgrading crude oil to jet fuel that could also be applied in the PtL, such as hydrocracking, isomerization and distillation (Schmidt et al., 2016). In the methanol pathway, H2 produced from water electrolysis, and CO2 (or CO) are used in the synthesis of methanol as an intermediate. Methanol can be then converted to fuels through further steps already used at industrial scale, such as DME synthesis, olefin synthesis, oligomerization, and hydrotreating (Schmidt et al., 2016).

FIGURE 4
www.frontiersin.org

Figure 4. Power-to-Liquids (PtL) technology.

To the best of our knowledge, there is no known reports relating the direct electrochemical reduction of CO2 into long chain hydrocarbons. Most of the CO2 hydrogenation studies focus on the synthesis of short-chain products, such as methane, methanol, formic acid etc., as presented in the previous sections. Nevertheless, recent studies reported the successful production of gasoline, diesel and jet fuel either via FT pathway or via MeOH pathway (Figure 4). The following sections will present a few recent studies on the production of these alkanes via CO2 hydrogenation.

Gasoline

Gasoline (C5-C11 hydrocarbons) is one of the most important transportation fuel used worldwide. Besides the classical production through petroleum refining, it can be synthesized via Fischer-Tropsch (direct route) or via methanol as intermediate (indirect route). This section will present the recent advances on gasoline production through these two pathways.

Wei et al. (2017) recently reported the production of gasoline via direct CO2 hydrogenation over a multifunctional Na–Fe3O4/HZSM-5 catalyst. Hydrogenation tests were performed in a fixed-bed reactor at 320°C and 3 MPa. The catalysts exhibited high selectivity to C5-C11 of 78%, very low selectivity to methane and CO (<10%) and high stability over 1,000 h of time on stream (TOS). The authors concluded that the Fe3O4 sites enabled the RWGS reaction while the zeolite sites favored the oligomerization/aromatization and isomerization. Moreover, the gasoline fraction was composed mainly by isoparaffins and aromatics, having a positive impact on the octane number. The authors further reported that the composition of C5-C11 could be tuned by using the zeolites with different topologies. HZSM-5 produced 61% of aromatics in the gasoline fraction while HMCM-22 produced mainly paraffins (≈46%). Despite the high selectivity of the catalysts, CO2 conversion reached only 22%.

Wang et al. (2016) investigated the production of C5+ isoalkanes, which can be used as gasoline additive, over a Fe-Zn/zeolite core-shell catalysts prepared by cladding method. Different zeolites (HZSM-5, Hbeta, HY) were investigated in order to verify the influence of their structure in the CO2 hydrogenation reaction at 340°C and 5 MPa for 2 h. Fe–Zn–Zr@HZSM-5–Hbeta double-zeolite shell catalyst with a HZSM-5/Hbeta ratio of 4 showed the highest isoalkanes/total hydrocarbons ratio (83.1%). These results were attributed to the synergistic effect of the HZSM-5 that promotes the production i-C5+, with Hbeta zeolites that favors the formation of i-C4. However, CO2 conversion was very low (around 14%). The authors also reported that the cladding method used for the preparation of the catalysts was very promising due to its simplicity and low cost, being suitable for use at large scale.

Gao et al. (2017) investigated the performance of a bifunctional catalyst containing partially reducible metal oxides (In2O3) and H-form Zeolite Socony Mobil-5 for the conversion of CO2 into liquid fuels using methanol as intermediate. The catalysts showed a high selectivity gasoline-range hydrocarbons (C5+) of 78.6% along with very low methane selectivity of 1% for over 150 h of TOS at 340°C and 3 MPa. The authors reported that the oxygen vacancies on the In2O3 activated the CO2 and the H2, producing methanol. Then, a C-C coupling occurs in the zeolite pores, converting methanol to C5+ hydrocarbons via a hydrocarbon-pool mechanism. As for all the studies presented up to date on the PtL for gasoline production, CO2 conversion was also very low around 13%.

Diesel

Diesel is the main transportation fuel used nowadays for heavy transportation. However, the literature related to CO2 hydrogenation into diesel is very scarce. Recently, Han et al. (2017) proposed a new path for direct CO2 conversion into liquid fuels with renewable hydrogen produced via solar water splitting. CO2 hydrogenation was performed at 300°C and 10 bar over a new Cu-Fe catalyst, which exhibited excellent catalytic performances with 65% selectivity to C5+ liquid hydrocarbons and only 2–3% methane selectivity. The authors reported that the main products of the reaction cover the gasoline (C5-C11) and diesel range (C12-C21), the product distribution being very similar to the one observed in CO-FT over iron-based catalysts. The performance of the catalyst was attributed to the swift reduction and selective carburization form of the Hagg iron carbide formed, which is actually the active phase for the production of long-chain hydrocarbons in the CO2 hydrogenation process.

One of the most significant studies is the CO2-to-diesel process developed by Audi in partnership with Sunfire, generating a carbon-neutral diesel fuel, called e-diesel. The process is performed in three main steps. In the first step, H2 is produced from high-temperature water electrolysis using renewable energy. Then, H2 reacts with CO2 (from a biogas facility) under high pressure and high temperature, producing long-chain hydrocarbons, called blue crude. In the final step, the blue crude is refined into e-diesel similarly to the fossil crude oil refining process22. The company started the production of e-diesel in 2015 and has produced more than three tones of blue crude up to date23.

Most of the data reported in the literature about CO2 hydrogenation into diesel-like fuels are actually related to the production of dimethyl ether (DME), which is considered a greener alternative to traditional diesel fuels due to its lower NOx emissions, near-zero smoke, less carbon particulates and less engine noise (Wang et al., 2009; Álvarez et al., 2017; Li et al., 2018a). The MeOH pathway is the main route investigated, being used either in a two-step process in which MeOH is produced from CO2 hydrogenation in the first step (Equation 10) after what MeOH is dehydrated in a second step (Equation 12), or in a single-step process, in which both steps are done simultaneously in the same reactor (Wang et al., 2009; Li et al., 2018a).

2CH3OHCH3OCH3+H2O     ΔH298K= -23.4 kJ/mol    (12)

Since CO2 conversion could be thermodynamically limited at low pressures if MeOH is not continuously removed from the reaction medium, its further conversion into DME in a single step process is preferred (Álvarez et al., 2017). So, studies for catalyst development for this process have focused on the synthesis of bifunctional catalysts capable of performing both reactions (Equations 10 and 12) in a single reactor. In general, catalysts used for each reaction separately are combined in a single bifunctional catalyst, which is synthesized by homogenous mixing of both catalysts, by sequential arrangement or even by homogenous mixing and grinding followed by pelletizing (Roy et al., 2018). It is widely accepted that a simple homogenous mixing results in more performing catalysts, since they maintain their initial properties (Roy et al., 2018). Copper and Zinc-based catalysts, for example, have been intensively investigated for the CO2 hydrogenation into methanol (see section CO2 Hydrogenation), first step of the process. ZnO is responsible for adsorbing CO2 while Cu adsorbs H2. The second step (MeOH dehydration) is favored by acid catalysts, such as alumina and zeolites (An et al., 2008). So, An et al. (2008) regrouped the functions of both catalysts in a bifunctional catalyst prepared by a physical mixture of CuO-ZnO-Al2O3-ZrO2 and HZSM-5 for the CO2 hydrogenation into DME in a single-step process. Reaction temperature and pressure varied between 483 and 543 K and 2 and 5 MPa, respectively. The best catalytic results were obtained at 543K and 5 MPa with CO2 conversion of about 27% and DME selectivity of 15.8%, proving that the authors could successfully synthesize DME from one-step CO2 hydrogenation. Similarly, Wang et al. (2009) investigated the performance of CuO-TiO2-ZrO2/HZSM-5 mixed oxides catalyst for producing DME from CO2 hydrogenation in a one-step process. The catalyst with a Ti/Zr ratio of 50/50 presented the best catalytic performance with DME selectivity of 47.5% (yield = 7.41%) and CO2 conversion of 15.6%. The results were attributed to the higher reducibility of this catalyst. Despite the advances on DME synthesis from CO2 hydrogenation over the last few years, low CO2 conversions and low DME selectivity and yield remain a bottleneck of this process.

Jet Fuel

Since there is no current alternative to fossil jet fuels, the Power-to-Liquids (PtL) technology could represent a huge opportunity to produce a replacement aviation fuel capable of effectively reducing the emissions from the aviation sector (Schmidt et al., 2018). The synthetic paraffinic kerosene produced from this process, for example, can be blended up to 50% to jet fuels (Schmidt et al., 2016).

There isn't yet a proof-of-concept of an integrated Power-to-Jetfuel technology. However, the individual steps have already high technological maturity level. Many big industrial actors have been developing this technology. Shell in partnership with other actors created the SOLAR-Jet consortium aiming to demonstrate a carbon-neutral pathway for producing jet fuel using solar energy24. The project explored the solar-thermochemical redox cycles between 2011 and 2015 and produced the world's first sample of solar thermochemical kerosene from H2O and CO2 at laboratory scale. The Sun-to-Liquid project created in 2016 succeeded the first project and aims to design, fabricate, and experimentally validate a large scale complete solar fuel production plant25.

Carbon Engineering's pilot Air to Fuels has successfully produced biocrude from CO2 and water in 2017. In this project, CO2 is captured from the air, purified and thermo-catalytically reacted with H2 produced from water electrolysis with renewable energy (solar PV), to produce the biocrude26. However, their major challenge is upgrading the biocrude into jet fuel. A commercial validation of the integrated technology is expected by 2021.

Carbon Recycling International's George Olah Renewable Methanol Plant in Svartsengi (Iceland) was completed in 2012 and produces 5 million liters of methanol per year. The plant uses hydro and geothermal energy for producing H2 from water electrolysis, which is then reacted with CO2 from flue gases to produce methanol. The methanol (vulcanol) produced can then be blended with gasoline for automobiles or used as intermediate in the production of fuels that could potentially be suitable as synthetic jet fuel (Schmidt et al., 2018).

Conclusions

Power-to-X technology has gained increased attention since it tackles issues related to the production of carbon neutral fuels from CO2 and to the storage of renewable energy. The PtX technology includes two main steps: H2 production through water electrolysis using renewable energy and CO2 hydrogenation to chemicals and fuels. Alternatively, CO2 can be directly reduced into useful products via electrochemical reduction also using renewable energy.

Among the different methods for sustainably producing H2, water electrolysis is the main process investigated since it allows the production of high-purity hydrogen from renewable energy and water. AEL, PEM and SOEC are amongst the three most popular technologies for water electrolysis currently being investigated. Among the latter, AEL has the lower investments and maintenance costs and is the most mature, being already commercialized at MW scale. However, coupling it with variable renewable energy could be very challenging due to its long start-up preparation. On the contrary, SOEC is very promising when coupling with renewable energy is considered. Moreover, SOEC systems exhibits a great potential for coupling with exothermic processes as well as for CO2 and water co-electrolysis, but considerable progress is still required to get this technology to a next level. PEM exhibits strategic advantages related to high efficiency and short time response, being the most promising for PtX applications. The competitiveness of electrolysis in comparison to the other H2 production technologies should increase in the next few years due to the increase in the production of electrolysers as well as on the number of academic and industrial research projects related to this technology. Despite the important advances achieved in the past years, improvements in efficiency as well as cost reduction of electrolysis processes are still required in order to overcome technical and economic barriers to the successful commercialization of PtX.

The second step of the PtX process is the CO2 hydrogenation into chemicals and fuels either via a Fischer-Tropsch pathway or using methanol as intermediate (MeOH pathway). The CO2 hydrogenation process is more advanced than the other possible processes, such as CO2 electrochemical reduction, and it may benefit from the existing infrastructure of the classical Fischer-Tropsch process. The main researches on this process focus on the development of more efficient catalysts capable of withstanding the harsh reaction conditions and to selectively produce the desired products. Companies, such as Audi, Carbon Recycling International and ZSW have successfully built and operated PtX commercial plants for the production of methane and methanol.

Alternatively, CO2 can be directed converted into chemicals and fuels through the CO2 electrochemical reduction coupled with renewable energy. Contrarily to the CO2 hydrogenation process, this approach is still being developed at laboratory scale. The main drawbacks that hinders the scale up of this approach is the very low selectivity to the desired products, low efficiency as well as the high overpotentials required. Considerable technical and catalytic advances have yet to be achieved in order to get this technology to a larger scale.

Further development of the PtX technology will mainly require a decrease in the capital costs as well as an improvement of process efficiencies, especially electrolysis, leading to a reduction of the actual high production costs of fuels and chemicals produced through this technology. Validation of the different steps at large scale is also required. Despite the increase in the number of research projects in the area in partnership with industries, data related to the scale-up of the different steps of the technology is still missing. Finally, the integration of these steps to validate the whole PtX process is mandatory to help the technology reach higher technology readiness levels.

Author Contributions

BRV and J-ML both contributed to defining the relevant topics and to the writing of the manuscript.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Footnotes

1. ^https://treaties.un.org/pages/ViewDetails.aspx?src=TREATY&mtdsg_no=XXVII-7-d&chapter=27&lang=en

2. ^https://www.cbc.ca/news/canada/where-canada-s-surplus-energy-goes-1.1109321

3. ^http://www.betaengineering.com/high-voltage-industry-blog/transmitting-electricity-at-high-voltages

4. ^https://www.britannica.com/topic/coal-utilization-122944/Gasification#ref623926

5. ^https://www.audi.com.au/au/web/en/models/layer/technology/g-tron/power-to-gas-plant.html

6. ^http://biocat-project.com/

7. ^https://www.hydrogenics.com/2018/07/16/north-americas-first-multi-megawatt-power-to-gas-facility-begins-operations/

8. ^https://industry.airliquide.ca/air-liquide-invests-worlds-largest-membrane-based-electrolyzer-develop-its-carbon-free-hydrogen

9. ^https://blog.topsoe.com/how-can-electrolysis-of-water-help-to-produce-fuel-for-your-future-car

10. ^https://www.fuelcellenergy.com/storage/

11. ^https://www.toshiba-energy.com/en/hydrogen/rd/#rd02

12. ^https://www.methanex.com/our-business/pricing

13. ^http://www.mefco2.eu/mefco2.php,

14. ^https://cordis.europa.eu/project/rcn/193453_en.html

15. ^https://www.mitsuichem.com/en/release/2008/080825e.htm

16. ^http://carbonrecycling.is/george-olah/

17. ^https://www.nasdaq.com/markets/natural-gas.aspx)

18. ^https://www.zsw-bw.de/en/research/renewable-fuels/topics/power-to-gas.html

19. ^https://www.storeandgo.info/press-media/

20. ^http://www.helmeth.eu/index.php/technologies/methanation-process

21. ^https://www.canada.ca/en/environment-climate-change/services/environmental-indicators/greenhouse-gas-emissions.html

22. ^https://www.audi-mediacenter.com/en/press-releases/fuel-of-the-future-research-facility-in-dresden-produces-first-batch-of-audi-e-diesel-352

23. ^https://www.sunfire.de/en/company/news/detail/sunfire-produces-sustainable-crude-oil-alternative

24. ^http://www.solar-jet.aero/page/about-solar-jet/objectives.php

25. ^https://www.sun-to-liquid.eu/

26. ^http://carbonengineering.com/about-a2f/

References

Abate, S., Barbera, K., Giglio, E., Deorsola, F., Bensaid, S., Perathoner, S., et al. (2016). Synthesis, characterization, and activity pattern of Ni–Al hydrotalcite catalysts in CO2 methanation. Ind. Eng. Chem. Res. 55, 8299–8308. doi: 10.1021/acs.iecr.6b01581

CrossRef Full Text | Google Scholar

Abdalla, A. M., Hossain, S., Nisfindy, O. B., Azad, A. T., Dawood, M., and Azad, A. K. (2018). Hydrogen production, storage, transportation and key challenges with applications: a review. Energy Convers. Manag. 165, 602–627. doi: 10.1016/j.enconman.2018.03.088

CrossRef Full Text | Google Scholar

Alalwan, H. A., Alminshid, A. H., and Aljaafari, H. A. S. (2019). Promising evolution of biofuel generations. Subject review. Renew. Energy Focus 28, 127–139. doi: 10.1016/j.ref.2018.12.006

CrossRef Full Text | Google Scholar

Albo, J., Alvarez-Guerra, M., Castaño, P., and Irabien, A. (2015). Towards the electrochemical conversion of carbon dioxide into methanol. Green Chem. 17, 2304–2324. doi: 10.1039/c4gc02453b

CrossRef Full Text | Google Scholar

Álvarez, A., Bansode, A., Urakawa, A., Bavykina, A. V., Wezendonk, T. A., Makkee, M., et al. (2017). Challenges in the greener production of formates/formic acid, methanol, and DME by heterogeneously catalyzed CO2 hydrogenation processes. Chem. Rev. 117, 9804–9838. doi: 10.1021/acs.chemrev.6b00816

PubMed Abstract | CrossRef Full Text | Google Scholar

An, X., Zuo, Y., Zhang, Q., Wang, D., and Wang, J. (2008). Dimethyl ether synthesis from CO2 hydrogenation on a CuO - ZnO - Al2O3-ZrO2/HZSM-5 bifunctional catalyst. Ind. Eng. Chem. Res. 47, 6547–6554. doi: 10.1021/ie800777t

CrossRef Full Text | Google Scholar

Arunkumar, P., Aarthi, U., Rengaraj, S., Cha, S.-W., and Babu, K. S. (2019). Review on solid oxide electrolysis cell: a clean energy strategy for hydrogen generation. Nanomater. Energy 8, 1–73. doi: 10.1680/jnaen.18.00009

CrossRef Full Text | Google Scholar

Azwar, M. Y., Hussain, M. A., and Abdul-Wahab, A. K. (2014). Development of biohydrogen production by photobiological, fermentation and electrochemical processes: a review. Renew. Sustain. Energy Rev. 31, 158–173. doi: 10.1016/j.rser.2013.11.022

CrossRef Full Text | Google Scholar

Bacariza, M. C., Maleval, M., Graça, I., Lopes, J. M., and Henriques, C. (2019). Power-to-methane over Ni/zeolites: influence of the framework type. Microporous Mesoporous Mater. 274, 102–112. doi: 10.1016/j.micromeso.2018.07.037

CrossRef Full Text | Google Scholar

Bailera, M., Lisbona, P., Romeo, L. M., and Espatolero, S. (2017). Power to Gas projects review: lab, pilot and demo plants for storing renewable energy and CO2. Renew. Sustain. Energy Rev. 69, 292–312. doi: 10.1016/j.rser.2016.11.130

CrossRef Full Text | Google Scholar

Ball, M., and Weeda, M. (2015). The hydrogen economy - Vision or reality? Int. J. Hydrogen Energy 40, 7903–7919. doi: 10.1016/j.ijhydene.2015.04.032

CrossRef Full Text | Google Scholar

Bandi, A. (1990). Electrochemical Reduction of Carbon Dioxide on Conductive Metallic Oxides. J. Electrochem. Soc. 137, 2157. doi: 10.1149/1.2086903

CrossRef Full Text | Google Scholar

Baykara, S. Z. (2018). Hydrogen: a brief overview on its sources, production and environmental impact. Int. J. Hydrogen Energy 43, 10605–10614. doi: 10.1016/j.ijhydene.2018.02.022

CrossRef Full Text | Google Scholar

Bellotti, D., Rivarolo, M., Magistri, L., and Massardo, A. F. (2017). Feasibility study of methanol production plant from hydrogen and captured carbon dioxide. J. CO2 Util. 21, 132–138. doi: 10.1016/j.jcou.2017.07.001

CrossRef Full Text | Google Scholar

Benson, E. E., Kubiak, C. P., Sathrum, A. J., and Smieja, J. M. (2009). Electrocatalytic and homogeneous approaches to conversion of CO2 to liquid fuels. Chem. Soc. Rev. 38, 89–99. doi: 10.1039/b804323j

PubMed Abstract | CrossRef Full Text | Google Scholar

Berkeley, L. (2017). Sunfire SOEC steam electrolysis module for Salzgitter Flachstahl. Fuel Cells Bull. 2017, 12. doi: 10.1016/s1464-2859(17)30269-9

CrossRef Full Text | Google Scholar

Bessarabov, D., and Millet, P. (2018). “The PEM water electrolysis plant,” in PEM Water Electrolysis, B. Pollet (San Diego, CA: Academic Press), 1–31.

Google Scholar

BP Energy Economics (2018). BP Energy Outlook 2018 Edition.

Google Scholar

Buttler, A., and Spliethoff, H. (2018). Current status of water electrolysis for energy storage, grid balancing and sector coupling via power-to-gas and power-to-liquids: a review. Renew. Sustain. Energy Rev. 82, 2440–2454. doi: 10.1016/j.rser.2017.09.003

CrossRef Full Text | Google Scholar

Caravaca, A., De Lucas-Consuegra, A., Calcerrada, A. B., Lobato, J., Valverde, J. L., and Dorado, F. (2013). From biomass to pure hydrogen: electrochemical reforming of bio-ethanol in a PEM electrolyser. Appl. Catal. B Environ. 134–135, 302–309. doi: 10.1016/j.apcatb.2013.01.033

CrossRef Full Text | Google Scholar

Carmo, M., Fritz, D. L., Mergel, J., and Stolten, D. (2013). A comprehensive review on PEM water electrolysis. Int. J. Hydrogen Energy 38, 4901–4934. doi: 10.1016/j.ijhydene.2013.01.151

CrossRef Full Text | Google Scholar

Chan, F. L., Altinkaya, G., Fung, N., and Tanksale, A. (2018). Low temperature hydrogenation of carbon dioxide into formaldehyde in liquid media. Catal. Today 309, 242–247. doi: 10.1016/j.cattod.2017.06.012

CrossRef Full Text | Google Scholar

Chen, R., and Liu, Y. (2018). “Catalysis of CO2 electroreduction,” in Electrochemical Reduction of Carbon Dioxide—Fundamentals and Technologies, eds J. Qiao, Y. Liu, and J. Zhang (Oakville: CRC Press), 155–227. doi: 10.1201/b20177-5

CrossRef Full Text | Google Scholar

Chi, J., and Yu, H. (2018). Water electrolysis based on renewable energy for hydrogen production. Chinese J. Catal. 39, 390–394. doi: 10.1016/S1872-2067(17)62949-8

CrossRef Full Text | Google Scholar

Child, M., Bogdanov, D., and Breyer, C. (2018). The role of storage technologies for the transition to a 100 % renewable energy system in Europe. Energy Procedia 155, 44–60. doi: 10.1016/j.egypro.2018.11.067

CrossRef Full Text | Google Scholar

Chourashiya, M. G., and Urakawa, A. (2017). Solution combustion synthesis of highly dispersible and dispersed iridium oxide as an anode catalyst in PEM water electrolysis. J. Mater. Chem. A 5, 4774–4778. doi: 10.1039/c6ta11047a

CrossRef Full Text | Google Scholar

Core, R. (2018). Hydrogen for Energy Storage and Transportation at Scale. Available online at: https://www.energy.gov/sites/prod/files/2018/08/f54/fcto-h2-scale-kickoff-2018-7-del-core.pdf. (accessed December 23, 2018).

Google Scholar

Corma, A., Torre, O., De Renz, M., and Villandier, N. (2011). Production of High-Quality Diesel from Biomass Waste Products. Angew. Chemie Int. Ed. 50, 2375–2378. doi: 10.1002/anie.201007508

PubMed Abstract | CrossRef Full Text | Google Scholar

Coutanceau, C., Baranton, S., and Audichon, T. (2018). “Hydrogen production from water electrolysis,” in Hydrogen Electrochemical Production, ed B. Pollet (San Diego, CA: Academic Press), 17–62. doi: 10.1016/b978-0-12-811250-2.00003-0

CrossRef Full Text | Google Scholar

Dang, S., Yang, H., Gao, P., Wang, H., Li, X., Wei, W., et al. (2018). A review of research progress on heterogeneous catalysts for methanol synthesis from carbon dioxide hydrogenation. Catal. Today 330, 61–75. doi: 10.1016/j.cattod.2018.04.021

CrossRef Full Text | Google Scholar

Das, P., and Tiwari, P. (2018). The effect of slow pyrolysis on the conversion of packaging waste plastics (PE and PP) into fuel. Waste Manag. 79, 615–624. doi: 10.1016/j.wasman.2018.08.021

PubMed Abstract | CrossRef Full Text | Google Scholar

Datta, M. K., Kadakia, K., Velikokhatnyi, O. I., Jampani, P. H., Chung, S. J., Poston, J. A., et al. (2013). High performance robust F-doped tin oxide based oxygen evolution electro-catalysts for PEM based water electrolysis. J. Mater. Chem. A 1, 4026–4037. doi: 10.1039/c3ta01458d

CrossRef Full Text | Google Scholar

Di Giovanni, C., Reyes-Carmona, Á., Coursier, A., Nowak, S., Grenèche, J. M., Lecoq, H., et al. (2016). Low-Cost Nanostructured Iron Sulfide Electrocatalysts for PEM Water Electrolysis. ACS Catal. 6, 2626–2631. doi: 10.1021/acscatal.5b02443

CrossRef Full Text | Google Scholar

Dincer, I., and Zamfirescu, C. (2016). “Hydrogen production by electrical energy,” in Sustainable Hydrogen Production, eds I. Dincer and C. Zamfirescu (Cambridge: Elsevier), 99–161.

Google Scholar

Dulal, H. B., Brodnig, G., and Onoriose, C. G. (2011). Climate change mitigation in the transport sector through urban planning: a review. Habitat Int. 35, 494–500. doi: 10.1016/j.habitatint.2011.02.001

CrossRef Full Text | Google Scholar

Egbue, O., and Long, S. (2012). Barriers to widespread adoption of electric vehicles: an analysis of consumer attitudes and perceptions. Energy Policy 48, 717–729. doi: 10.1016/j.enpol.2012.06.009

CrossRef Full Text | Google Scholar

Ferreira-Aparicio, P., Benito, M. J., and Sanz, J. L. (2005). New trends in reforming technologies: from hydrogen industrial plants to multifuel microreformers. Catal. Rev. 47, 491–588. doi: 10.1080/01614940500364958

CrossRef Full Text | Google Scholar

Filonenko, G. A., Van Putten, R., Schulpen, E. N., Hensen, E. J. M., and Pidko, E. A. (2014). Highly efficient reversible hydrogenation of carbon dioxide to formates using a ruthenium PNP-pincer catalyst. ChemCatChem 6, 1526–1530. doi: 10.1002/cctc.201402119

CrossRef Full Text | Google Scholar

Fortis, B. C. (2018). Clean Growth Pathway to 2050 Contents. Fortis, BC.

Google Scholar

Frese, K. W. (1991). Electrochemical reduction of CO2 at intentionally oxidized copper electrodes. J. Electrochem. Soc. 138, 3338–3344.

Google Scholar

Frontera, P., Macario, A., Ferraro, M., and Antonucci, P. (2017). Supported catalysts for CO2 methanation: a review. Catalysts 7, 1–28. doi: 10.3390/catal7020059

CrossRef Full Text | Google Scholar

Galadima, A., and Muraza, O. (2015). Waste to liquid fuels: potency, progress and challenges. Int. J. Energy Res. 39, 1451–1478. doi: 10.1002/er.3360

CrossRef Full Text | Google Scholar

Gao, P., Li, S., Bu, X., Dang, S., Liu, Z., Wang, H., et al. (2017). Direct conversion of CO2 into liquid fuels with high selectivity over a bifunctional catalyst. Nat. Chem. 9, 1–6. doi: 10.1038/nchem.2794

PubMed Abstract | CrossRef Full Text | Google Scholar

Ghaib, K., and Ben-Fares, F. Z. (2018). Power-to-Methane: a state-of-the-art review. Renew. Sustain. Energy Rev. 81, 433–446. doi: 10.1016/j.rser.2017.08.004

CrossRef Full Text | Google Scholar

Goeppert, A., Czaun, M., Jones, J. P., Surya Prakash, G. K., and Olah, G. A. (2014). Recycling of carbon dioxide to methanol and derived products-closing the loop. Chem. Soc. Rev. 43, 7995–8048. doi: 10.1039/c4cs00122b

PubMed Abstract | CrossRef Full Text | Google Scholar

Götz, M., Lefebvre, J., Mörs, F., McDaniel Koch, A., Graf, F., Bajohr, S., et al. (2016). Renewable Power-to-Gas: a technological and economic review. Renew. Energy 85, 1371–1390. doi: 10.1016/j.renene.2015.07.066

CrossRef Full Text | Google Scholar

Gunasekar Hariyanandam, G., Park, K., Jung, K. D., and Yoon, S. (2016). Recent developments in the catalytic hydrogenation of CO2 to formic acid/formate using heterogeneous catalysts. Inorg. Chem. Front. 3, 882–895. doi: 10.1039/c5qi00231a

CrossRef Full Text | Google Scholar

Gutierrez-Guerra, N., Jimenez-Vazquez, M., Serrano-Ruiz, J. C., Valverde, J. L., and de Lucas-Consuegra, A. (2015). Electrochemical reforming vs. catalytic reforming of ethanol: a process energy analysis for hydrogen production. Chem. Eng. Process. Process Intensif. 95, 9–16. doi: 10.1016/j.cep.2015.05.008

CrossRef Full Text | Google Scholar

Han, Y., Jeong, Y., Park, H., Young, W., Hye, Y., Hee, S., et al. (2017). Carbon dioxide Fischer-Tropsch synthesis: a new path to carbon-neutral fuels. Appl. Catal. B Environ. 202, 605–610. doi: 10.1016/j.apcatb.2016.09.072

CrossRef Full Text | Google Scholar

Hank, C., Gelpke, S., Schnabl, A., White, R. J., Full, J., Wiebe, N., et al. (2018). Economics & carbon dioxide avoidance cost of methanol production based on renewable hydrogen and recycled carbon dioxide – power-to-methanol. Sustain. Energy Fuels 2, 1244–1261. doi: 10.1039/C8SE00032H

CrossRef Full Text | Google Scholar

Hansen, J. B. (2015). Solid oxide electrolysis—a key enabling technology for sustainable energy scenarios. Faraday Discuss. 182, 9–48. doi: 10.1039/c5fd90071a

PubMed Abstract | CrossRef Full Text | Google Scholar

Hao, C., Wang, S., Li, M., Kang, L., and Ma, X. (2011). Hydrogenation of CO2 to formic acid on supported ruthenium catalysts. Catal. Today 160, 184–190. doi: 10.1016/j.cattod.2010.05.034

CrossRef Full Text | Google Scholar

Hara, K., Kudo, A., and Sakata, T. (1995). High Efficiency Electrochemical Reduction of Carbon Dioxide under High Pressure on a Gas Diffusion Electrode Containing Pt Catalysts. J. Electrochem. Soc. 142, 57–59.

Google Scholar

He, L., Lin, Q., Liu, Y., and Huang, Y. (2014). Unique catalysis of Ni-Al hydrotalcite derived catalyst in CO2 methanation: cooperative effect between Ni nanoparticles and a basic support. J. Energy Chem. 23, 587–592. doi: 10.1016/S2095-4956(14)60144-3

CrossRef Full Text | Google Scholar

Heim, L. E., Konnerth, H., and Prechtl, M. H. G. (2016). The prospecting shortcut to an old molecule: formaldehyde synthesis at low temperature in solution. ChemSusChem 9, 2905–2907. doi: 10.1002/cssc.201601043

PubMed Abstract | CrossRef Full Text | Google Scholar

Heim, L. E., Konnerth, H., and Prechtl, M. H. G. (2017). Future perspectives for formaldehyde: pathways for reductive synthesis and energy storage. Green Chem. 19, 2347–2355. doi: 10.1039/c6gc03093a

CrossRef Full Text | Google Scholar

Hori, Y. (2008). “Electrochemical CO2 reduction on metal electrodes,” in Modern Aspects of Electrochemistry 42, ed C. G. Vayenas (New York, NY: Springer-Verlag), 89–189. doi: 10.1007/978-0-387-49489-0

CrossRef Full Text | Google Scholar

Hori, Y., Wakebe, H. H. I., Tsukamoto, T., and Koga, O. (1994). Electrocatalytic process of CO selectivity in electrochemical reduction of CO2 at metal electrodes in aqueous media. Electrochim. Acta 39, 1833–1839.

Google Scholar

Hu, H., Fan, Y., and Liu, H. (2008). Hydrogen production using single-chamber membrane-free microbial electrolysis cells. Water Res. 42, 4172–4178. doi: 10.1016/j.watres.2008.06.015

PubMed Abstract | CrossRef Full Text | Google Scholar

Huang, B. (2018). Recycling of lithium-ion batteries: recent advances and perspectives. J. Power Sources J. 399, 274–286. doi: 10.1016/j.jpowsour.2018.07.116

CrossRef Full Text | Google Scholar

Huang, Y., Deng, Y., Handoko, A. D., Goh, G. K. L., and Yeo, B. S. (2018). Rational design of sulfur-doped copper catalysts for the selective electroreduction of carbon dioxide to formate. ChemSusChem 11, 320–326. doi: 10.1002/cssc.201701314

PubMed Abstract | CrossRef Full Text | Google Scholar

Hwang, H., Yeon, Y. J., Lee, S., Choe, H., Jang, M. G., Cho, D. H., et al. (2015). Electro-biocatalytic production of formate from carbon dioxide using an oxygen-stable whole cell biocatalyst. Bioresour. Technol. 185, 35–39. doi: 10.1016/j.biortech.2015.02.086

PubMed Abstract | CrossRef Full Text | Google Scholar

Jadhav, S. G., Vaidya, P. D., Bhanage, B. M., and Joshi, J. B. (2014). Catalytic carbon dioxide hydrogenation to methanol: a review of recent studies. Chem. Eng. Res. Des. 92, 2557–2567. doi: 10.1016/j.cherd.2014.03.005

CrossRef Full Text | Google Scholar

Jia, F., Yu, X., and Zhang, L. (2014). Enhanced selectivity for the electrochemical reduction of CO2 to alcohols in aqueous solution with nanostructured Cu-Au alloy as catalyst. J. Power Sources 252, 85–89. doi: 10.1016/j.jpowsour.2013.12.002

CrossRef Full Text | Google Scholar

Kaneco, S., Katsumata, H., Suzuki, T., and Ohta, K. (2006). Electrochemical reduction of CO2 to methane at the Cu electrode in methanol with sodium supporting salts and its comparison with other alkaline salts. Energy Fuels 20, 409–414. doi: 10.1021/ef050274d

CrossRef Full Text | Google Scholar

Kaneco, S., Yabuuchi, M., Katsumata, H., Suzuki, T., and Ohta, K. (2002). Electrochemical reduction of CO2 to methane in methanol at low temperature. Fuel Chem. Div. Prepr. 47, 71–72.

Google Scholar

Karelovic, A., and Ruiz, P. (2012). CO2 hydrogenation at low temperature over Rh/-Al2O3 catalysts: effect of the metal particle size on catalytic performances and reaction mechanism. Appl. Catal. B Environ. 113–114, 237–249. doi: 10.1016/j.apcatb.2011.11.043

CrossRef Full Text | Google Scholar

Kassargy, C., Awad, S., Burnens, G., Kahine, K., and Tazerout, M. (2018). Gasoline and diesel-like fuel production by continuous catalytic pyrolysis of waste polyethylene and polypropylene mixtures over USY zeolite. Fuel 224, 764–773. doi: 10.1016/j.fuel.2018.03.113

CrossRef Full Text | Google Scholar

Kondratenko, E. V., Mul, G., Baltrusaitis, J., Larrazábal, G. O., and Pérez-Ramírez, J. (2013). Status and perspectives of CO2 conversion into fuels and chemicals by catalytic, photocatalytic and electrocatalytic processes. Energy Environ. Sci. 6, 3112–3135. doi: 10.1039/c3ee41272e

CrossRef Full Text | Google Scholar

Kortlever, R., Balemans, C., Kwon, Y., and Koper, M. T. M. (2015). Electrochemical CO2 reduction to formic acid on a Pd-based formic acid oxidation catalyst. Catal. Today 244, 58–62. doi: 10.1016/j.cattod.2014.08.001

CrossRef Full Text | Google Scholar

Kourkoumpas, D. S., Papadimou, E., Atsonios, K., Karellas, S., Grammelis, P., and Kakaras, E. (2016). Implementation of the Power to Methanol concept by using CO2 from lignite power plants: techno-economic investigation. Int. J. Hydrogen Energy 41, 16674–16687. doi: 10.1016/j.ijhydene.2016.07.100

CrossRef Full Text | Google Scholar

Koytsoumpa, E. I., Bergins, C., and Kakaras, E. (2018). The CO2 economy: review of CO2 capture and reuse technologies. J. Supercrit. Fluids 132, 3–16. doi: 10.1016/j.supflu.2017.07.029

CrossRef Full Text | Google Scholar

Kuhl, K. P., Hatsukade, T., Cave, E. R., Abram, D. N., Kibsgaard, J., and Jaramillo, T. F. (2014). Electrocatalytic Conversion of Carbon Dioxide to Methane and Methanol on Transition Metal Surfaces. J. Am. Chem. Soc. 136, 14107–14113. doi: 10.1021/ja505791r

PubMed Abstract | CrossRef Full Text | Google Scholar

Kumar, B., Atla, V., Brian, J. P., Kumari, S., Nguyen, T. Q., Sunkara, M., et al. (2017). Reduced SnO2 porous nanowires with a high density of grain boundaries as catalysts for efficient electrochemical CO2-into-HCOOH conversion. Angew. Chem. Int. Ed. 56, 3645–3649. doi: 10.1002/anie.201612194

PubMed Abstract | CrossRef Full Text | Google Scholar

Lambert, M. (2018). Power-to-Gas: Linking Electricity and Gas in a Decarbonising World?

Google Scholar

Lavoie, J.-M. (2014). Review on dry reforming of methane, a potentially more environmentally-friendly approach to the increasing natural gas exploitation. Front. Chem. 2, 1–17. doi: 10.3389/fchem.2014.00081

PubMed Abstract | CrossRef Full Text | Google Scholar

Lazkano, I., Nøstbakken, L., and Pelli, M. (2017). From fossil fuels to renewables: the role of electricity storage. Eur. Econ. Rev. 99, 113–129. doi: 10.1016/j.euroecorev.2017.03.013

CrossRef Full Text | Google Scholar

Le, M., Ren, M., Zhang, Z., Sprunger, P. T., Kurtz, R. L., and Flake, J. C. (2011). Electrochemical reduction of CO2 to CH3OH at copper oxide surfaces. J. Electrochem. Soc. 158, 45–49. doi: 10.1149/1.3561636

CrossRef Full Text | Google Scholar

Le, Q. A. T., Kim, H. G., and Kim, Y. H. (2018). Electrochemical synthesis of formic acid from CO2 catalyzed by Shewanella oneidensis MR-1 whole-cell biocatalyst. Enzyme Microb. Technol. 116, 1–5. doi: 10.1016/j.enzmictec.2018.05.005

PubMed Abstract | CrossRef Full Text | Google Scholar

Lee, D., Kim, D., and Kim, S.-W. (2001). Selective formation of formaldehyde from carbon dioxide and hydrogen over PtCu/SiO2. Appl. Organomet. Chem. 15, 148–150. doi: 10.1002/1099-0739(200102)15:2<148::aid-aoc104>3.0.co;2-n

CrossRef Full Text | Google Scholar

Li, J., Wang, L., Cao, Y., Zhang, C., He, P., and Li, H. (2018a). Recent advances on the reduction of CO2 to important C2+ oxygenated chemicals and fuels. Chinese J. Chem. Eng. 26, 2266–2279. doi: 10.1016/j.cjche.2018.07.008

CrossRef Full Text | Google Scholar

Li, S., Yan, R., Wu, G., Xie, K., and Cheng, J. (2013). Composite oxygen electrode LSM-BCZYZ impregnated with Co3O4 nanoparticles for steam electrolysis in a proton-conducting solid oxide electrolyzer. Int. J. Hydrogen Energy 38, 14943–14951. doi: 10.1016/j.ijhydene.2013.09.082

CrossRef Full Text | Google Scholar

Li, W., Wang, H., Jiang, X., Zhu, J., Liu, Z., and Guo, X. (2018b). A short review of recent advances in CO2 hydrogenation to hydrocarbons over heterogeneous catalysts. RSC Adv. 8, 7651–7669. doi: 10.1039/C7RA13546G

CrossRef Full Text | Google Scholar

Liu, C., Xie, J. H., Tian, G. L., Li, W., and Zhou, Q. L. (2015). Highly efficient hydrogenation of carbon dioxide to formate catalyzed by iridium(iii) complexes of imine-diphosphine ligands. Chem. Sci. 6, 2928–2931. doi: 10.1039/c5sc00248f

PubMed Abstract | CrossRef Full Text | Google Scholar

Machado, A. S. R., Nunes, A. V. M., and da Ponte, M. N. (2018). Carbon dioxide utilization—Electrochemical reduction to fuels and synthesis of polycarbonates. J. Supercrit. Fluids 134, 150–156. doi: 10.1016/j.supflu.2017.12.023

CrossRef Full Text | Google Scholar

Malik, M. I., Omar, Z., Atieh, M., and Abussaud, B. (2016). Electrochemical reduction of CO2 to methanol over MWCNTs impregnated with Cu2O. Chem. Eng. Sci. 152, 468–477. doi: 10.1016/j.ces.2016.06.035

CrossRef Full Text | Google Scholar

Manthiram, K., Beberwyck, B. J., and Alivisatos, A. P. (2014). Enhanced electrochemical methanation of carbon dioxide with a dispersible nanoscale copper catalyst. J. Am. Chem. Soc. 136, 13319–13325. doi: 10.1021/ja5065284

PubMed Abstract | CrossRef Full Text | Google Scholar

Martinson, C. A., Van Schoor, G., Uren, K. R., and Bessarabov, D. (2014). Characterisation of a PEM electrolyser using the current interrupt method. Int. J. Hydrogen Energy 39, 20865–20878. doi: 10.1016/j.ijhydene.2014.09.153

CrossRef Full Text | Google Scholar

Ministère des Transports du Québec (2015). Propelling Québec Forward with Electricity—Transportation Electrification Action Plan 2015–2020. Gouvernement du Québec, Ministère des Transports du Québec.

Google Scholar

Moçoteguy, P., and Brisse, A. (2013). A review and comprehensive analysis of degradation mechanisms of solid oxide electrolysis cells. Int. J. Hydrogen Energy 38, 15887–15902. doi: 10.1016/j.ijhydene.2013.09.045

CrossRef Full Text | Google Scholar

Munshi, P., Main, A. D., Linehan, J. C., Tai, C. C., and Jessop, P. G. (2002). Hydrogenation of carbon dioxide catalyzed by ruthenium trimethylphosphine complexes: the accelerating effect of certain alcohols and amines. J. Am. Chem. Soc. 124, 7963–7971. doi: 10.1021/ja0167856

PubMed Abstract | CrossRef Full Text | Google Scholar

Mura, M. G., De Luca, L., Giacomelli, G., and Porcheddu, A. (2012). Formic acid: a promising bio-renewable feedstock for fine chemicals. Adv. Synth. Catal. 354, 3180–3186. doi: 10.1002/adsc.201200748

CrossRef Full Text | Google Scholar

Nakata, K., Ozaki, T., Terashima, C., Fujishima, A., and Einaga, Y. (2014). High-yield electrochemical production of formaldehyde from CO2 and seawater. Angew. Chem. Int. Ed. 53, 871–874. doi: 10.1002/anie.201308657

PubMed Abstract | CrossRef Full Text | Google Scholar

Ogawa, T., Takeuchi, M., and Kajikawa, Y. (2018). Analysis of trends and emerging technologies in water electrolysis research based on a computational method: a comparison with fuel cell research. Sustainability 10, 1–24. doi: 10.3390/su10020478

CrossRef Full Text | Google Scholar

Ohmori, T., Tachikawa, K., Tsuji, K., and Anzai, K. (2007). Nickel oxide water electrolysis diaphragm fabricated by a novel method. Int. J. Hydrogen Energy 32, 5094–5097. doi: 10.1016/j.ijhydene.2007.07.055

CrossRef Full Text | Google Scholar

Olah, G. A., Goeppert, A., and Prakash, G. K. S. (2009). Chemical recycling of carbon dioxide to methanol and dimethyl ether: from greenhouse gas to renewable , environmentally carbon neutral fuels and synthetic hydrocarbons. J. Org. Chem. 74, 487–498. doi: 10.1021/jo801260f

PubMed Abstract | CrossRef Full Text | Google Scholar

Olah, G. A., and Prakash, G. K. S. (2010). Electrolysis of Carbon Dioxide in Aqueous Media to Carbon Monoxide and Hydrogen for Production of Methanol. Washington, DC.

Google Scholar

Onishi, N., Laurenczy, G., Beller, M., and Himeda, Y. (2018). Recent progress for reversible homogeneous catalytic hydrogen storage in formic acid and in methanol. Coord. Chem. Rev. 373, 317–332. doi: 10.1016/j.ccr.2017.11.021

CrossRef Full Text | Google Scholar

Overland, I. (2016). Energy: the missing link in globalization. Energy Res. Soc. Sci. 14, 122–130. doi: 10.1016/j.erss.2016.01.009

CrossRef Full Text | Google Scholar

Pérez-Fortes, M., Schöneberger, J. C., Boulamanti, A., and Tzimas, E. (2016). Methanol synthesis using captured CO2 as raw material: techno-economic and environmental assessment. Appl. Energy 161, 718–732. doi: 10.1016/j.apenergy.2015.07.067

CrossRef Full Text | Google Scholar

Peterson, A. A., and Norskov, J. K. (2012). Activity descriptors for CO2 electroreduction to methane on transition-metal catalysts. J. Phys. Chem. Lett. 3, 251–258.

Google Scholar

Qin, Z., Zhou, Y., Jiang, Y., Liu, Z., and Ji, H. (2017). “Recent advances in heterogeneous catalytic hydrogenation of CO to methane,” in New Advances in Hydrogenation Processes—Fundamentals and Applications, M. T. Ravanchi (Rijeka: Intech), 57–82. Available online at: https://cdn.intechopen.com/pdfs/52449.pdf

Google Scholar

Qu, J., Zhang, X., Wang, Y., and Xie, C. (2005). Electrochemical reduction of CO2 on RuO2/TiO2 nanotubes composite modified Pt electrode. Electrochim. Acta 50, 3576–3580. doi: 10.1016/j.electacta.2004.11.061

CrossRef Full Text | Google Scholar

Quak, H., Nesterova, N., and Van Rooijen, T. (2016). Possibilities and barriers for using electric-powered vehicles in city logistics practice. Transp. Res. Procedia 12, 157–169. doi: 10.1016/j.trpro.2016.02.055

CrossRef Full Text | Google Scholar

Rashid, M. M., Al Mesfer, M. K., Naseem, H., and Danish, M. (2015). Hydrogen production by water electrolysis: a review of alkaline water electrolysis, PEM water electrolysis and high temperature water electrolysis. Int. J. Eng. Adv. Technol. 4, 80–93.

Google Scholar

Rego de Vasconcelos, B., and Lavoie, J.-M. (2018). Is dry reforming the solution to reduce natural gas carbon footprint? Int. J. Energy Prod. Manag. 3, 44–56. doi: 10.2495/eq-v3-n1-44-56

CrossRef Full Text | Google Scholar

Reis Machado, A. S., and Nunes da Ponte, M. (2018). CO2 capture and electrochemical conversion. Curr. Opin. Green Sustain. Chem. 11, 86–90. doi: 10.1016/j.cogsc.2018.05.009

CrossRef Full Text | Google Scholar

Rihko-Struckmann, L. K., Peschel, A., Hanke-Rauschenbach, R., and Sundmacher, K. (2010). Assessment of methanol synthesis utilizing exhaust CO2 for chemical storage of electrical energy. Ind. Eng. Chem. Res. 49, 11073–11078. doi: 10.1021/ie100508w

CrossRef Full Text | Google Scholar

Roy, S., Cherevotan, A., and Peter, S. C. (2018). Thermochemical CO2 hydrogenation to single carbon products: scientific and technological challenges. ACS Energy Lett. 3, 1938–1966. doi: 10.1021/acsenergylett.8b00740

CrossRef Full Text | Google Scholar

Sapountzi, F. M., Gracia, J. M., Weststrate, C. J. K. J., Fredriksson, H. O. A., and Niemantsverdriet, J. W. H. (2017). Electrocatalysts for the generation of hydrogen, oxygen and synthesis gas. Prog. Energy Combust. Sci. 58, 1–35. doi: 10.1016/j.pecs.2016.09.001

CrossRef Full Text | Google Scholar

Schaaf, T., Grünig, J., Schuster, M. R., Rothenfluh, T., and Orth, A. (2014). Methanation of CO2–storage of renewable energy in a gas distribution system. Energy. Sustain. Soc. 4, 1–14. doi: 10.1186/s13705-014-0029-1

CrossRef Full Text | Google Scholar

Schildhauer, T. J., and Biollaz, S. M. A. (2016). Synthetic Natural Gas from Coal, Dry Biomass, and Power-to-Gas Applications. Hoboken, NJ: John Wiley & Sons, Inc.

Google Scholar

Schmidt, O., Gambhir, A., Staffell, I., Hawkes, A., Nelson, J., and Few, S. (2017). Future cost and performance of water electrolysis: an expert elicitation study. Int. J. Hydrogen Energy 42, 30470–30492. doi: 10.1016/j.ijhydene.2017.10.045

CrossRef Full Text | Google Scholar

Schmidt, P., Batteiger, V., Roth, A., Weindorf, W., and Raksha, T. (2018). Power-to-liquids as renewable fuel option for aviation: a review. Chemie Ing. Tech. 90, 127–140. doi: 10.1002/cite.201700129

CrossRef Full Text | Google Scholar

Schmidt, P., Weindorf, W., Roth, A., Batteiger, V., and Riegel, F. (2016). Power-to-Liquids–Potentials and Perspectives for the Future Supply of Renewable Aviation Fuel. Dessau-Roßlau: German Environment Agency.

Google Scholar

Schollenberger, D., Bajohr, S., Gruber, M., Reimert, R., and Kolb, T. (2018). Scale-up of innovative honeycomb reactors for power-to-gas applications—the project store & go. Chem. Ing. Tech. 90, 696–702. doi: 10.1002/cite.201700139

CrossRef Full Text | Google Scholar

Singh, A. K., Singh, S., and Kumar, A. (2016). Hydrogen energy future with formic acid: a renewable chemical hydrogen storage system. Catal. Sci. Technol. 6, 12–40. doi: 10.1039/c5cy01276g

CrossRef Full Text | Google Scholar

Stangeland, K., Kalai, D., Li, H., and Yu, Z. (2017). CO2 methanation: the effect of catalysts and reaction conditions. Energy Procedia 105, 2022–2027. doi: 10.1016/j.egypro.2017.03.577

CrossRef Full Text | Google Scholar

Steinmann, W. (2017). Thermo-mechanical concepts for bulk energy storage. Renew. Sustain. Energy Rev. 75, 205–219. doi: 10.1016/j.rser.2016.10.065

CrossRef Full Text | Google Scholar

Sternberg, A., and Bardow, A. (2015). Power-to-what?—environmental assessment of energy storage systems. Energy Environ. Sci. 8, 389–400. doi: 10.1039/C4EE03051F

CrossRef Full Text | Google Scholar

Su, J., Yang, L., Lu, M., and Lin, H. (2015). Highly efficient hydrogen storage system based on ammonium bicarbonate/formate redox equilibrium over palladium nanocatalysts. ChemSusChem 8, 813–816. doi: 10.1002/cssc.201403251

PubMed Abstract | CrossRef Full Text | Google Scholar

Swalus, C., Jacquemin, M., Poleunis, C., Bertrand, P., and Ruiz, P. (2012). CO2 methanation on Rh/γ-Al2O3 catalyst at low temperature: “In situ” supply of hydrogen by Ni/activated carbon catalyst. Appl. Catal. B Environ. 125, 41–50. doi: 10.1016/j.apcatb.2012.05.019

CrossRef Full Text | Google Scholar

Tanaka, R., Yamashita, M., and Nozaki, K. (2009). Catalytic hydrogenation of carbon dioxide using Ir (III)-pincer complexes. J. Am. Chem. Soc. Commun. 131, 14168–14169. doi: 10.1021/ja903574e

PubMed Abstract | CrossRef Full Text | Google Scholar

Tervo, E., Agbim, K., Deangelis, F., Hernandez, J., Kim, H. K., and Odukomaiya, A. (2018). An economic analysis of residential photovoltaic systems with lithium ion battery storage in the United States. Renew. Sustain. Energy Rev. 94, 1057–1066. doi: 10.1016/j.rser.2018.06.055

CrossRef Full Text | Google Scholar

The European Commission Directorate General for Energy (2013). World Energy Scenarios. London: World Energy Council.

PubMed Abstract | Google Scholar

Thiruvengadam, A., Besch, M., Padmanaban, V., Pradhan, S., and Demirgok, B. (2018). Natural gas vehicles in heavy-duty transportation—a review. Energy Policy 122, 253–259. doi: 10.1016/j.enpol.2018.07.052

CrossRef Full Text | Google Scholar

Thorin, E. (2014). “Basics of energy,” in Reference Module in Earth Systems and Environmental Sciences (Elsevier Inc.), 1–2.

Google Scholar

Umegaki, T., Enomoto, Y., and Kojima, Y. (2016). Metallic ruthenium nanoparticles for hydrogenation of supercritical carbon dioxide. Catal. Sci. Technol. 6, 409–412. doi: 10.1039/c5cy00994d

CrossRef Full Text | Google Scholar

Varela, A. S., Kroschel, M., Reier, T., and Strasser, P. (2016). Controlling the selectivity of CO2 electroreduction on copper: the effect of the electrolyte concentration and the importance of the local pH. Catal. Today 260, 8–13. doi: 10.1016/j.cattod.2015.06.009

CrossRef Full Text | Google Scholar

Vassileva, I., and Campillo, J. (2017). Adoption barriers for electric vehicles: experiences from early adopters in Sweden. Energy 120, 632–641. doi: 10.1016/j.energy.2016.11.119

CrossRef Full Text | Google Scholar

Vázquez, F. V., Koponen, J., Ruuskanen, V., Bajamundi, C., Kosonen, A., Simell, P., et al. (2018). Power-to-X technology using renewable electricity and carbon dioxide from ambient air: SOLETAIR proof-of-concept and improved process concept. J. CO2 Util. 28, 235–246. doi: 10.1016/J.JCOU.2018.09.026

CrossRef Full Text | Google Scholar

Voitic, G., Nestl, S., Lammer, M., Wagner, J., and Hacker, V. (2015). Pressurized hydrogen production by fixed-bed chemical looping. Appl. Energy 157, 399–407. doi: 10.1016/j.apenergy.2015.03.095

CrossRef Full Text | Google Scholar

Wang, S., Mao, D., Guo, X., Wu, G., and Lu, G. (2009). Dimethyl ether synthesis via CO2 hydrogenation over CuO–TiO2-ZrO2/HZSM-5 bifunctional catalysts. Catal. Commun. 10, 1367–1370. doi: 10.1016/j.catcom.2009.02.001

CrossRef Full Text | Google Scholar

Wang, W. H., Himeda, Y., Muckerman, J. T., Manbeck, G. F., and Fujita, E. (2015). CO2 hydrogenation to formate and methanol as an alternative to photo- and electrochemical CO2 reduction. Chem. Rev. 115, 12936–12973. doi: 10.1021/acs.chemrev.5b00197

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, X., Yang, G., Zhang, J., Chen, S., Wu, Y., Zhang, Q., et al. (2016). Synthesis of isoalkanes over a core (Fe-Zn-Zr)-shell (zeolite) catalyst by CO2 hydrogenation. Chem. Commun. 52, 7352–7355. doi: 10.1039/C6CC01965J

PubMed Abstract | CrossRef Full Text | Google Scholar

Watanabe, M., Shibata, M., and Katoh, A. (1991). Design of alloy electrocatalysts for reduction—improved energy efficiency, selectivity, and reaction rate for the CO2 electroreduction on Cu alloy electrodes. J. Electroanal. Chem. Interfacial Electrochem. 305, 319–328.

Google Scholar

Wei, J., Yao, R., Wen, Z., Fang, C., Guo, L., Xu, H., et al. (2017). Directly converting CO2 into a gasoline fuel. Nat. Commun. 8, 1–8. doi: 10.1038/ncomms15174

CrossRef Full Text | Google Scholar

Zeng, K., and Zhang, D. (2010). Recent progress in alkaline water electrolysis for hydrogen production and applications. Prog. Energy Combust. Sci. 36, 307–326. doi: 10.1016/j.pecs.2009.11.002

CrossRef Full Text | Google Scholar

Zhang, B., and Zhang, J. (2017). Rational design of Cu-based electrocatalysts for electrochemical reduction of carbon dioxide. J. Energy Chem. 26, 1050–1066. doi: 10.1016/j.jechem.2017.10.011

CrossRef Full Text | Google Scholar

Zhang, L., Zhao, Z.-J., and Gong, J. (2017). Nanostructured materials for heterogeneous electrocatalytic CO2 reduction and related reaction mechanisms. Angew. Chem. Int. Ed. 56, 11326–11353. doi: 10.1002/anie.201612214

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhang, W., Wang, S., Zhao, Y., and Ma, X. (2018). Hydrogenation of CO2 to formic acid catalyzed by heterogeneous Ru-PPh3/Al2O3 catalysts. Fuel Process. Technol. 178, 98–103. doi: 10.1016/j.fuproc.2018.05.024

CrossRef Full Text | Google Scholar

Keywords: Power-to-X, renewable electricity, chemical storage, CO2 electrochemical reduction, CO2 hydrogenation

Citation: Rego de Vasconcelos B and Lavoie J-M (2019) Recent Advances in Power-to-X Technology for the Production of Fuels and Chemicals. Front. Chem. 7:392. doi: 10.3389/fchem.2019.00392

Received: 13 February 2019; Accepted: 16 May 2019;
Published: 05 June 2019.

Edited by:

Heqing Jiang, Qingdao Institute of Bioenergy and Bioprocess Technology (CAS), China

Reviewed by:

Aniruddha Pramod Kulkarni, Commonwealth Scientific and Industrial Research Organisation (CSIRO), Australia
Minghua Huang, Ocean University of China, China

Copyright © 2019 Rego de Vasconcelos and Lavoie. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

*Correspondence: Bruna Rego de Vasconcelos, bruna.rego.de.vasconcelos@usherbrooke.ca
