Mini Review ARTICLE

Front. Chem., 20 March 2020 | https://doi.org/10.3389/fchem.2020.00137

In-situ Spectroscopic Techniques as Critical Evaluation Tools for Electrochemical Carbon dioxide Reduction: A Mini Review

  • 1CSIR-Central Electrochemical Research Institute, Karaikudi, India
  • 2Howard P. Isermann Department of Chemical and Biological Engineering, Rensselaer Polytechnic Institute, Troy, NY, United States

Electrocatalysis plays a crucial role in modern electrochemical energy conversion technologies as a greener replacement for conventional fossil fuel-based systems. Catalysts employed for electrochemical conversion reactions are expected to be cheaper, durable, and have a balance of active centers (for absorption of the reactants, intermediates formed during the reactions), porous, and electrically conducting material to facilitate the flow of electrons for real-time applications. Spectroscopic and microscopic studies on the electrode-electrolyte interface may lead to better understanding of the structural and compositional deviations occurring during the course of electrochemical reaction. Researchers have put significant efforts in the past decade toward understanding the mechanistic details of electrochemical reactions which resulted in hyphenation of electrochemical-spectroscopic/microscopic techniques. The hyphenation of diverse electrochemical and conventional microscopic, spectroscopic, and chromatographic techniques, in addition to the elementary pre-screening of electrocatalysts using computational methods, have gained deeper understanding of the electrode-electrolyte interface in terms of activity, selectivity, and durability throughout the reaction process. The focus of this mini review is to summarize the hyphenated electrochemical and non-electrochemical techniques as critical evaluation tools for electrocatalysts in the CO2 reduction reaction.

Introduction

Driving chemical reactions using “green” electrons is expected to likely play a key role in attaining sustainable energy conversion and storage technologies in the future (Blanco and Modestino, 2019). Catalysts utilized for electrochemical conversion reactions are anticipated to be inexpensive, stable in harsh acidic and alkaline conditions, poised with active centers (for absorption of the reactants, intermediates formed during the reactions), porous, and electrically conducting material to facilitate the flow of electrons (Rasul et al., 2019; Xu et al., 2019). Also, a good electrocatalyst should have low overpotential, high current density with high selectivity, and excellent durability during the course of the electrochemical reaction. The structure, composition of the electrocatalysts, electrolyte, and binders play pivotal roles in determining the above parameters necessary for successful fabrication of an electrochemical device for real-time largescale industrial applications (Kotrel and Bräuninger, 2008; Zeng and Li, 2015; Franzen et al., 2019). Generally, the most commonly investigated energy conversion reactions such as oxygen evolution (OER) (Sapountzi et al., 2017; Zhang et al., 2018), oxygen reduction (ORR) (Dai et al., 2015; Shao et al., 2016), hydrogen oxidations (Skúlason et al., 2010; Durst et al., 2014); hydrogen evolution reactions (HER) (Eftekhari, 2017) are found to be efficient on precious metals or oxides. On the contrary, electrochemical reduction of CO2 (CO2RR) has been found to occur efficiently on copper-based catalysts (Sen et al., 2014), but the reaction is highly complex involving multiple electrons and proton transfer to form multiple products (Raciti and Wang, 2018). In comparison to the OER, HER, and ORR processes, the CO2RR is more energy consuming. CO2 is a linear molecule in which two oxygen atoms are covalently doubly bonded to a single carbon atom. The bonding energy of C=O (EC = O) of 187 (2 × 93.5) kcal/mol is much greater than the bonding energies of O=O (EO = O) of 116 (2 × 58) kcal/mol and C-C (EC−C) of 145 (2 × 72.5) kcal/mol. As a result, CO2 is chemically inert; hence its activation requires high energy (Qiao et al., 2016). In general, CO2RR is found to occur with adsorption of CO2 on a catalytic surface followed by the formation of CO2 anion radical (CO2-). The intermediates and products (both gas and liquid) are found to vary based on the electrocatalytic surface, electrolyte (aqueous and non-aqueous), and the applied potential. For example, employing aqueous electrolyte leads to the formation of diverse products ranging from alcohols, aldehydes and formic acid, whereas CO2RR in non-aqueous electrolyte leads to the formation of CO and oxalate (Oh et al., 2014; Qiao et al., 2016; König et al., 2019; Yu et al., 2019). Technologies for the reduction of carbon foot print are imperative to counter the global warming caused due to CO2 emissions from burning of fossil fuels and industrial production of diverse chemicals. The world is expected to emanate 40 Gt/year of CO2 into the atmosphere. Thus, it will be vital even if a small fraction of globally produced CO2 is captured and utilized for the society in various ways. The thermodynamically stable molecule should be considered as a cheaper source of raw materials for sustainable production of fuels, chemicals, polymers etc. (Alper and Yuksel Orhan, 2017). Even though there are a plethora of reports on the utilization of CO2 to value added fuels and chemicals, converting CO2 in bulk for chemical synthesis is still very exigent, with very few commercial ventures world over. For example, Liquid Light has setup a plant for a two-step conversion of CO2 to ethylene glycol. Mantra has designed reactors for single step conversion of CO2 to formic acid. Lanzatech uses biological means to convert CO2 to alcohols. Mitsui Chemicals in Japan has anticipated the launch of a commercial plant with a capacity of 600,000 t/years for CO2 to methanol conversion. Linde has also launched a dry reforming plant for syn-gas production. Evonik have developed a process for CO2 conversion to carbonates. The possibility of converting this abundant waste to useful products has created an avenue of interest from the perspectives of both sustainable energy and environmental decontamination. Chemical fixation of CO2 to value products might symbolize an attractive way of reducing emissions of CO2 to the atmosphere. Using CO2 as a feedstock could be considered a potential replacement for fossil fuels and their derivatives, such as natural gas, carbon monoxide, syn-gas, methanol, and long chain hydrocarbons. Even though the market for some chemicals such as formic acid is relatively small, the market could be augmented by utilizing these products as precursors/building blocks for manufacturing other bulk chemicals such as ethanol. It is important to consider that the source of H2 to react with CO2 to attain various products should be carefully chosen. To engineer affordable electrochemical energy devices, researchers are investigating the possibilities of employing alternate catalysts based on first row transition metals/oxides and metal-free heteroatom-doped carbon allotropes for the aforementioned reactions (Li et al., 2016; Gao et al., 2017a; Cui et al., 2018; Tang et al., 2019). Although the present electroanalytical techniques combined with the ex-situ diffraction, microscopic and spectroscopic techniques could give an estimate of the activity, selectivity, and durability of the electrocatalysts, it may not be sufficient to understand the mechanistic details of the electrochemical reaction at the electrified electrode-electrolyte interface (Jiang et al., 2018; Zhu K. et al., 2019). In the quest to replace noble metal catalysts, the most critical issue is to identify and mimic the role of active centers on alternate catalysts proficiently. Recent advances in the theoretical concepts on electrocatalysis through computational methods such as density functional theory (DFT) calculations and molecular modeling has led to efficient screening of the electrocatalyst (Cao et al., 2013; Eslamibidgoli et al., 2016). On the other hand, sophisticated in-situ techniques for online monitoring of electrode-electrolyte interface by combining the electro-analytical tools with the specially designed spectroscopic, microscopic and chromatographic techniques has led to the identification of the compositional, structural/morphological deviations and the intermediates or products formed during the course of the electrochemical reactions (Bandarenka et al., 2014; Ye et al., 2016; Surca et al., 2017). These hyphenated techniques can provide valid experimental substantiation to tackle central issues in catalysis: (a) identification of active sites; (b) geometrical configuration of the reactants and the intermediates on the surface of the catalysts; (c) adsorption and desorption energies of reactants and intermediates; (d) reaction pathways; (e) selectivity toward specific product; (f) local pH at electrode-electrolyte interface in the case of aqueous electrolyte; (g) effect of electrolyte; and (h) stability of the electrocatalyst (Dahn and Mao, 1999; Christensen and Hamnett, 2000; Li et al., 2012; Handoko et al., 2018; Narayanan et al., 2019). Keeping in mind the key factors to be addressed for efficient synthesis and identification of electrocatalysts, this mini-review will focus on important in-operando characterization techniques pertinent to CO2RR.

Reaction Mechanism of CO2RR

In aqueous electrolyte systems, CO2 reduction yield a variety of C1 and C2 products. The retention of the CO2 anion radical on the electrode surface controls the C-C coupling to obtain higher carbon products. The various reaction pathways are shown schematically in Figure 1. The surface adsorbed CO2 molecule accepts an electron when the polarization potential is sufficiently negative to rise the energy of highest occupied molecular orbital (HOMO) of the electrocatalyst above the lowest unoccupied molecular orbital (LUMO) of CO2. The single electron reduction of CO2 to CO2-. occurs at a potential of −1.9V vs. the standard hydrogen electrode (SHE) (Reaction-2) (Yu et al., 2019). The CO2 anion radical intermediate (CO2-.) is highly reactive and, together with a proton from the electrolyte and an electron, produces the most common product formate (HCOO) (Reaction-3′) (Cheng et al., 2016). The competing HER in aqueous electrolytes limits the Faradaic efficiency of CO2RR (Ooka et al., 2017). The increase in dissolved concentration of CO2 will increase the interaction of CO2 with electrode and reduces the extent of HER, hence elevated pressures of CO2 is ideal to increase CO2RR Faradaic efficiency. The p-block metals such as In, Sn, Hg, Pb, and its oxides have been found to be selective toward formate production (Yu et al., 2019). The other two-electron reduction product of CO2, namely CO, can be obtained in an aqueous system through a carboxyl intermediate formed when the proton attacks the CO2-. through the oxygen atom (Reaction-3), the carboxyl intermediate subsequently reacts with another proton and an electron to produce CO and H2O (Reaction-4) (Yu et al., 2019). Hori et al. reported a study showing the variation in the obtained products when CO2RR occurs on different metal surfaces in different electrolytes (Hori et al., 1994). Their report suggests that the stability of adsorbed CO2-. plays a crucial role in deciding the product selectivity. The metal surfaces, such as Cu, Au, Zn, Pd, and Ni hold the adsorbed CO2-. strongly to produce CO preferentially, whereas the metal surfaces that weakly adsorbs CO2-. leads to the formation of HCOOH/ HCOO. The multiple electron reduction products require thermodynamically less energy, but the process is far more complicated and is limited in terms of kinetics of the reaction. Cu based electrodes are the only reported electrocatalyst with the ability to form C2 products (Hori et al., 1997). The mechanisms of these complicated reactions are not very certain; it is proposed that the initially formed CO undergoes further reduction, leading to the formation of different types of intermediates and products. The adsorbed *CO on the electrode surface, reacts with H+ and e to form *CHO intermediate (Reaction-5) which undergoes subsequent reduction by taking up protons and electrons in each step, generating *CH2O, *CH3O (Reaction-6) (Sun et al., 2007; Qiao et al., 2016). Further reduction of *CH3O produces CH3OH when a proton reacts with O of *CH3O (Reaction-8), while CH4 is produced when a proton attacks the C atom of *CH3O instead, and the O atom is combined with two other protons and is removed out as H2O (Reaction-7). An alternate pathway is also possible, where the CO reacts with 4H+ and 4e to generate *CH2 intermediate (Reaction-5′) and a H2O molecule. This *CH2 intermediate will get further reduced to CH4 (Reaction-7′) or dimerizes to give C2 products (Reaction-6′) (Grosjean et al., 2017; Sun et al., 2017; Handoko et al., 2018; Yin et al., 2019; Yu et al., 2019).

FIGURE 1
www.frontiersin.org

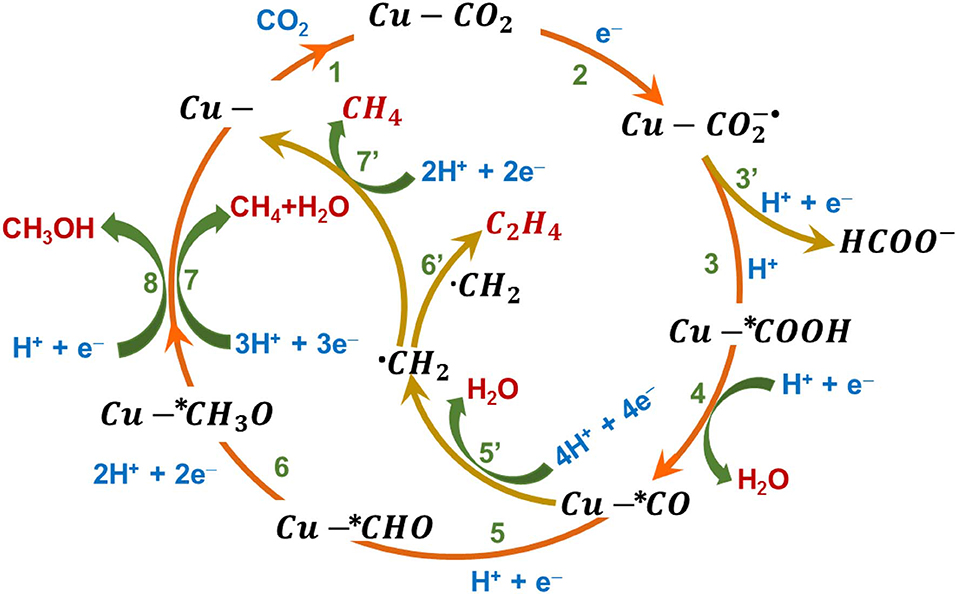

Figure 1. Electrochemical reaction pathways of CO2 reduction in aqueous electrolyte system on a Cu model surface.

CO2RR in a non-aqueous electrolyte system is limited with few products but has the added advantages of high CO2 solubility and no competing HER, which increases the Faradaic efficiency of the process far above than aqueous systems. Similar to the aqueous system, initially formed reactive species is the CO2-. anion radical. This anion radical either reacts with dissolved oxygen to produce carbonate or undergoes a disproportionation reaction with a neutral CO2 molecule to generate CO and CO3-. The increased formation of carbonate beyond a limit of CO2 partial pressure can be due to this disproportionation reaction, where there is an enhanced interaction of CO2-. with neutral CO2 molecules (Sullivan et al., 1993; Angamuthu et al., 2010; Qiao et al., 2016; Yu et al., 2019). The dimerization of the CO2-. in the optimum CO2 pressures produces oxalate as the major product.

The bulk properties of the electrode and electrolyte are not always sufficient to describe the reaction and chemical species in the electrode/electrolyte interface. The polarized electrode or the catalyst surface may behave different from the bulk; the unique structure of the interface is the key factor in all electrochemical reactions. The practical difficulty in characterizing the interface during the electrochemical reaction has limited the knowledge on the electrochemical changes taking place on the electrode surface. Hence electrochemists are investigating the possibilities of employing in-situ spectro-electrochemical techniques to support the electrochemical measurements. The intermediates formed in the CO2RR have been trapped and studied using various in-situ spectro-analytical techniques. The online monitoring of live changes happening on the electrode surface and analyzing the electro generated intermediates and products during the electrochemical CO2 reduction is inevitable to elucidate mechanistic pathways of this complex reaction.

In-situ Techniques for Electrochemical Co2 Reduction

Infrared Spectroscopy

Infrared (IR) spectroscopy is a powerful analytical tool for monitoring the changes in the chemical bonding of the catalyst. Vibrational modes of chemical bonds that produce difference in the dipole moment during stretching and bending can absorb infrared radiation. IR absorption analysis can provide vital information regarding the structural coordination of the intermediates formed during the reaction (Smith, 2011). Different methods have been employed for the IR absorption measurements on solid samples. The four usual modes of measurements are transmission, diffuse reflectance, attenuated total reflection (ATR) and reflection-absorption, among this ATR mode of measurement is ideal to study electrode surface (Yajima et al., 2004). ATR mode makes use of an ATR crystal made of IR transparent high refractive material. The incident IR radiation with a suitable angle of incidence is reflected at the internal face of the crystal, and the evanescent wave that penetrates the crystal face will interact with the working electrode fabricated as a thin film on the flat face of the cell window (Zhu S. et al., 2019). This wave irradiates the chemical species formed on the vicinity of the electrode surface. ATR working mode with metal electrodes like, Au, Pt has the advantage of surface enhanced IR absorption (SEIRA) which can increase the sensitivity of the method to detect molecules even in trace amounts (Neubrech et al., 2017). Papasizza and Cuesta studied the electrochemical reduction of CO2 using ATR-SEIRAS measurements on a gold electrode surface (Papasizza and Cuesta, 2018). Their results proved the formation of electrogenerated (adsorbed) *CO, and also differentiated the CO adsorbed from a CO-saturated electrolyte solution and that produced electrochemically. The study also provided insights into the coordination modes of CO on the Au surface with the observation of separate vibrational bands for linearly coordinated CO (COL) around 1,910 cm−1 and a shoulder band observed around 1,750 cm−1 corresponding to the bridge coordinated CO (COB). The study reported the formation of only a COL related band during initial stages and the subsequent formation of a COB related band occurring only after ~7 min of initiation, which proves that the coordination of electrogenerated CO to the Au surface is through the linear mode. A study from Ito (Oda et al., 1996) showed the electrochemical reduction of CO2 and adsorption of CO on a polycrystalline Cu and Ag. They observed the presence of linearly coordinated CO formed during the electrochemical reduction of CO2 on both Cu and Ag. They investigated the desorption of CO from the metal surfaces on positive potential sweep and found that the CO desorption was observed from Ag, but not from Cu, which proves the strong adsorption of CO on Cu (not strong enough to be poisoning) than Ag. This result supports the mechanism that higher carbon products formed on Cu is because of the reduction of electrochemically formed adsorbed CO. Wuttig et al. also carried out research on the adsorption of CO on Cu but at varying pH of the electrolyte. They observed an increase in the coverage of adsorbed CO at alkaline pH, notably from pH 6.9–10.1, and a decrease in the coverage at pH higher than 10.1. This finding was related to the observation that the reduction of CO2 to higher-order hydrocarbons was generally facile in alkaline media, and that the electrogenerated adsorbed CO further reduces to produce hydrocarbon products (Wuttig et al., 2016).

In addition to the type of metal used as electrocatalysts, studies by Iwasita et al. showed that the activity and selectivity toward CO2RR also strongly depend on the orientation of electrocatalytic surface. Studies on Pt surfaces have shown that Pt(110) is the most active, followed by Pt(100) and Pt(111) surfaces (Rodes et al., 1994a,b,c). The differences in the activity were attributed to differences in the type of adsorbed species. In highly active Pt(110) surface, linearly-bonded CO and traces of multibonded CO, with bands at around 2,056 and 1,817 cm−1, were observed as the major adsorbates, while the Pt(100) surface showed mainly multibonded CO. No bands in the frequency region 2,100–1,800 cm−1 related to the formation of CO-like species was observed on Pt(111).

Advancements in the ATR-SEIRAS technique over the years have led to studies involving the real catalytic systems apart from the model electrode surfaces such as Au, Pt, Ag. Jiang et al. reported a study of CO2RR on a Li electrochemically tuned ZnO nanoparticle catalytic system using ATR-SEIRAS. The setup consisted of the catalyst coated on Au under-film on top of a Si ATR crystal (Jiang et al., 2017). Results showed that the catalyst was selective toward CO production with a Faradaic efficiency ~91%, as measured through gas chromatographic analysis. They observed negative intensity peaks ~2,345 and ~1,520–1,544 cm−1 which corresponded to the consumption of adsorbed CO2a and the depletion of carboxyl intermediate *COO, respectively. No peak featuring the adsorption of CO in the region 1,850–2,200 cm−1 was identified, which showed that as produced CO immediately desorbed from the Zn surface. The ATR-IR results show that CO is formed through the carboxyl intermediate (*COO), as the consumption of *COO was evident from its negative peak intensity. Another study on the Pd/C catalytic system observed the formation of *CO, *OCHO, and *COOH intermediates (Gao et al., 2017b). Gong et al. studied the role of surface hydroxyls present on the SnOx catalyst toward electroreduction of CO2. Using ATR-SEIRAS, they observed the formation of H2CO3 on the surface of the catalyst with peaks at 1,498 and 1,435 cm−1. Their results showed that an intermediate percentage of surface hydroxyl could promote the adsorption CO2 as H2CO3 through hydrogen bonding, and that H2CO3 was found in equilibrium CO2. Higher surface coverage of hydroxyls, on the other hand, has a detrimental effect on the efficiency, as it reduces the number of available active sites for CO2RR (Deng et al., 2019). Bicarbonate ions in electrolyte solutions are considered to play the role as a proton source and pH buffer. However, through in-situ fast ATR-SEIRAS measurements on a Cu surface along with isotopically labeled electrolyte species, Zhu and coworkers showed that bicarbonate ions are the primary CO2 source and mediators instead of the free CO2 during CO2RR (Zhu et al., 2017). They observed the formation of a CO intermediate with a peak at 2,070 cm−1 in an Ar-saturated KHCO3 solution. Given that Cu-H bonds also have characteristic peaks in the same spectral region, they confirmed that the band indeed corresponded to surface-bonded CO through measurements with isotopically labeled KT13CO3. As expected, they observed a red-shift of the peak of ~50 cm from 2,070 to ~2,022 cm−1 consistent with harmonic oscillator model. Comparative measurements were performed in 12CO2-saturated KH12CO3 and 12CO2-saturated KH13CO3 solutions. In 12CO2-saturated KH12CO3, a broad absorbance peak corresponding to 12CO at ~2,040 cm−1 was observed that blue shifted with time to ~2,060 cm−1 along with a negative increase in the absorbance peak at 2,343 cm−1, corresponding to the depletion of solution 12CO2. In KH13CO3 solution, the formation of the absorbance peak at ~1,992 cm−1 that blue shifted with time confirmed the formation of CO. Concurrently, they observed a negative increase in the absorbance peak at 2,277 cm−1 corresponding to the depletion of 13CO2 instead of the 12CO2 at 2,343 cm−1. This observation provided a direct evidence for bicarbonate as the source for the CO2RR. The formation of 13CO2 was attributed to the equilibrium between H13CO3- and water and its subsequent consumption via electrochemical reduction to form 13CO. The authors also noted the formation of a peak corresponding to 12CO at ~2,040 cm−1 with time that indicated the gradual increase in the H12CO3- at the interface due to the depleting H13CO3- and the formation of new bicarbonate ions from free solution 12CO. Their experiment clearly proved that CO2 is not directly diffusing from the bulk to the electrode surface, instead it is in equilibrium with bicarbonate ions which supplies the CO2 through following reaction at the interface:

yes

This work provided important insights into the molecular pathway of CO2RR on Cu surfaces. Kas et al. summarized that in-situ IR techniques are vital probing techniques to expound the reaction mechanisms of chemical and electrochemical CO2RR, as the technique can provide extremely valuable information on the nature of reaction intermediates, the significance of double layer effects in manipulating the activity and selectivity, and the nature of the species causing deactivation of the electrocatalysts (Kas et al., 2019).

In addition to the above IR-based techniques, the intermediates of CO2RR have also been probed using in-situ techniques such as surface-enhanced Raman spectroscopy (SERS) and UV-Vis absorption. An excellent and a more in-depth review of these results can be found in Pérez-Rodríguez et al. (2018).

X-Ray Based Techniques

X-Ray Absorption Spectroscopy

Optical techniques could be well-supported by X-ray techniques in probing the catalyst surface during the course of the electrochemical reaction. In recent years, researchers have exploited X-ray absorption spectroscopy for catalytic studies (Rehr et al., 2010; Singh et al., 2010; Nelson and Miller, 2012). Though X-ray absorption is not very sensitive to lighter elements, it is instrumental to explore the changes happening at the active catalytic sites during the course of catalytic reaction by comparing the X-ray intensities before and after impinging the electrode surface. Key advantages of XAS include the possibilities of measuring accurate particle size of the electrocatalysts and the ability to prod atomic-level structural information on extremely small and complex catalysts (Singh et al., 2010; Dutta et al., 2018; Wang et al., 2019). XAS can provide valuable information on the oxidation state, local coordination environment, and the electronic structure of the material (Bergmann and Roldan Cuenya, 2019). Direct detection of adsorbed species on the catalyst surface is not possible but it can make a difference in the coordination environment of the catalytic sites, and the changes may be reflected in the spectrum (Choi et al., 2017). XAS works based on the principle that, when an incident X-ray radiation having energy greater than the binding energy of core level electrons hits the material, the core level electrons are excited in to the vacuum, producing a strong absorption edge in the spectrum (Handoko et al., 2018; Wang et al., 2019). The changes in the valence electron environment will reflect on the binding energy of core electrons, and thus the chemical changes around an atom can be monitored. All XAS spectra contain four regions: (1) The “pre-edge” region where the incident X-ray energy is less than the binding energy of core electrons. The electrons will not excite to the vacuum level, however some unwanted transitions to higher unfilled or partially filled orbitals take place, which appears as the minor features in the flat region before the strong absorption edge; (2) When the X-ray energy is enough to excite core level electrons in to the unbound states, sudden strong absorption in the spectrum is observed and is called as the X-ray absorption near edge structures (XANES); (3) The region slightly higher in energy than the edge, containing weak absorption humps formed due to the multiple scattering of ejected low energy photoelectrons by the first and higher coordination shells, termed as near edge X-ray absorption fine structure (NEXAFS); and (4) The X-ray energy region starts around 50 eV extended up to 1,000 eV above the edge forms the extended X-ray absorption fine structures (EXAFS). As the energy of ejected electron in this region is much higher, they will undergo scattering (predominantly single scattering) with nearest neighboring atoms. EXAFS region features information on the bond length and the coordination of atoms (Bunker, 2010). EXAFS analysis with an incident angle at 45° can penetrate into the sample >10 μm, and, in order to make it more sensitive toward the surface features, a grazing angle mode can be used (Firet et al., 2019). XAS measurements can usually be done in three different ways using (1) Transmission mode, which measures the difference in the intensity of absorbed and transmitted X-ray radiation. Concentrated homogeneous samples can be measured in this mode. (2) Florescence mode, where intensity of the emitted X-rays from the elements are measured. Because of the self-absorption effect, diluted samples are recommended, particularly for non-homogenous samples; and (3) Photoelectron mode, where, apart from measuring the intensities of X-rays, this third mode measures the energies of ejected photoelectrons. Since the mean free path of the ejected electrons is small, this mode is quite surface sensitive, while the other measurement modes are sensitive to the bulk (Wang et al., 2019).

Wu et al. studied the Zn-porphyrin systems for the electrochemical CO2RR to CO through XAS measurements (Wu et al., 2017). Their in-situ XAS analysis showed no characteristic changes to the Zn oxidation state, but dissimilarities were observed in the EXAFS region of Zn, which were attributed to the reduction of the porphyrin ligand or the coordination of molecules to the Zn center. The study proposed that porphyrin ligand act as the redox center for the CO2RR. Weng et al. reported the selective electrochemical CORR to methane using a copper (II) pthalocyanine catalyst. In-situ XAS study proved that the Cu nanocluster like structures formed act as the catalytic reactive sites (Weng et al., 2018). Their XAS measurements revealed the reversible change in the oxidation state of Cu center. The EXAFS analysis displayed the reversible coordination environment around the Cu atom between the forward and reverse scans. Since XAS is not limited to structural examinations, the XAS signs could be used to build the three-dimensional chemical tomography of electrocatalyst during the electrochemical reaction, which may provide insights on the stability of the electrocatalyst.

Genovese et al. performed an in-operando XAS study on the variation of catalytic activity of CO2RR on Fe-N/C (pyridine-like N functionalized carbon) and Fe-O/C (carboxylic O) functionalized carbon) catalysts. The Fe-N/C catalyst showed excellent CO2RR activity with ~61% and ~36.5% Faradaic efficiency toward CH3COOH and HCOOH, respectively, whereas the catalyst Fe-O/C was found to be ~95% efficient toward hydrogen evolution. Investigation with operando XAS revealed that Fe2+ is stabilized against further reduction to Fe0 by the N-dopants. Since this stabilization was not found due to the non-availability of N atoms, Fe-O/C catalyst displayed total reduction to Fe0 making it active toward HER rather than CO2RR (Genovese et al., 2018). XAS was also employed to investigate the formation of nano-electrocatalytic systems. Roberts et al. investigated the electrochemical generation of copper nanocube catalyst that is active for the electroreduction of CO2 to ethylene. The Cu- K edge XAS analysis identified the formation of Cu2O intermediate, with the transformation of Cu2O to Cu(II)-carbonate/hydroxide species when the potential was increased anodically. Both the Cu(I) and Cu(II) species reduce to metallic Cu during the cathodic polarization. The Cu2O and Cu(II)-carbonate/hydroxide derived metallic Cu-nanocubes showed similar activity toward CO2RR, suggesting a low significance of the precursor used for the preparation of metallic Cu for its activity toward CO2RR (Eilert et al., 2016). Velasco-Vélez et al. hyphenated XAS and in situ micro-reactors, which unraveled the variation in the complex electronic structure of the copper oxide catalysts at various stages. It was identified that the surface and bulk properties of the copper oxide catalysts are subjugated by the development of copper carbonates on the cupric oxide surfaces. This led to passivation of the catalyst by impeding the charge transport resulting in formation of CO, and subsequently followed by hydrogenation into C1 and C2 products (Velasco-Vélez et al., 2019). Grosse et al., studied the chemical state and the catalytic selectivity of Cu nanocubes during electrochemical CO2RR and using XAFS coupled with wave-let transform and found that no Cu2O species remain after 1 h of CO2RR either at the surface or in sub-surface regions (Grosse et al., 2018).

An operando EXAFS study by Firet et al. on the Ag catalysts demonstrated the crucial role played by weakly bonded atomic oxygen present on the Ag surface for the high CO2 reduction reactivity toward CO, which prior XPS studies were unable to reveal due to the facile desorption of weakly bonded oxygen under the ultrahigh vacuum conditions used during XPS measurements (Firet et al., 2019). Roldan et al., studied the interface electrochemistry of SnO2NPs@rGO catalyst for CO2RR. Sn K edge XANE measurements were performed at different cathodic potentials. Results showed that at −1.15 V (vs. Ag/AgCl), the Sn retains its original (IV) oxidation state. Upon further stepping down at −1.5 V, the white line intensity of Sn K edge absorption was found to decrease, and which continued to decrease with further decrease in potential up to−1.7 V. Decrease in the white line intensity was followed by the shift of K edge absorption from 29,205 eV (at −1.15 V) to 29203.6 at –1.55 and 29202.7 eV at –1.70 V. Their measurement values indicated that theSnO2NPs@rGO is stable at −1.15 V and was found to gradually reduce to lower oxidation states at higher negative polarizations. Further study with EXAFS measurements supported the above observations. EXAFS spectra at −1.55 V showed an additional peak corresponding to the Sn-Sn back scattering in the metallic Sn, and the intensity of this peak was found to increase at −1.70 V, also the spectral signatures corresponding to Sn-O bond was found to decrease. EXAFS measurements together with the recorded XANES spectra confirm the reduction of SnO2NPs@rGO catalyst to metallic Sn during the cathodic bias above −1.15 V. This result is crucial in the catalysis of electrochemical CO2 reduction as the Sn(II) oxidation state is the active species for the CO2 reduction to yield formate, and the metallic form of Sn is active for HER. The group has further extended and supported their study with the insights from operando-Raman spectroscopy which is far more sensitive toward the surface of the catalyst (Dutta et al., 2018).

Near Ambient Pressure X-Ray Photoelectron Spectroscopy

X-ray photoelectron spectroscopy (XPS) is one of the finest analytical methods to investigate the composition and electronic structures of solid materials. XPS analysis normally employs ultrahigh vacuum (UHV) conditions; this imposes the practical limitation to make use of the technique in real time analysis of catalytic surfaces during the course of reaction. Hence the most XPS characterizations have been done ex-situ on the immersed electrode surfaces before and after the electrochemical reaction (De Bruijn et al., 1992; He et al., 2001; Kónya et al., 2001). With modern advancements, specialized XPS systems can operate today at relatively higher pressures. The near-ambient pressure XPS (AP-XPS) reduces the challenges inherent in ex-situ studies and allows characterization of the catalyst under working conditions (Temperton et al., 2019; Zhong et al., 2019). In an XPS experiment, the X-ray radiation is irradiated on the sample, and the energy of ejected photoelectron is measured using an electron energy analyzer. Einstein's photoelectric equation is applied to calculate the binding energy of the ejected electron from the energy of incident X-ray radiation. As the ejected photoelectrons are of low energy, only those from the outer atomic layers are spotted without energy loss, making the XPS studies constricted to the surface of the material (Handoko et al., 2018; Zhong et al., 2019). Erenet al., investigated the Cu single crystals to explore the effect of surface planes in electrochemical CO2 reduction. The study particularly focused on the interaction of CO2 with (111) and (100) planes of Cu metal. The measured O1s spectrum showed two peaks corresponding to the dissociated surface atomic oxygen and oxygen of CO2- species, and the C1s spectrum displayed the peaks corresponding to hydrocarbon and CO2- entities (Eren et al., 2016). Combined investigation with scanning tunneling microscopy (STM) have shown that the surface atomic oxygen coverage is high on the Cu (100) plane along with a small coverage of CO2-, which confirmed that the CO2 dissociation is active on the Cu (100) plane, which is known to have lower planar density and four-fold adsorption sites compared to the (111) plane that is more coordinatively saturated with three-fold type adsorption sites. Yu et al. performed operando XPS studies on ceria toward CO2RR in a solid oxide fuel cell (Yu et al., 2014). The results revealed that during positive bias the CO32-concentration increase, which is accompanied by Ce3+/Ce4+ redox changes, followed by the reduction of CO32- by Ce3+ to yield CO, and O2− ions. The increase in the steady-state concentration of CO32- implied that the coordination of CO2 on the ceria surface to form a CO32- intermediate precedes as the rate limiting step. Permyakova et al., carried out XPS studies on the oxidation state of Cu2O during the electrochemical reduction of CO2. Analysis showed a complete reduction of Cu2O present on the surface (Permyakova et al., 2019).

Summary and Outlook

Electroreduction of CO2 is one of the most sought-after energy conversion reactions, as it can yield useful organics such as formic acid, methane, methanol and dimethyl ether at near ambient conditions. CO2 sequestration is one solution, but it is likely to have an energy-intensive cost. The key challenge in finding appropriate electrocatalysts for the reduction of CO2 is essential since the evolution of H2 and reduction of CO2 take place in parallel. The activity of an electrocatalyst toward electrochemical reduction of CO2 cannot be measured through comparative voltammetry alone. Consequently, the interpretation of electrochemical data by itself can be ambiguous and misleading. Therefore, electrochemical CO2 reduction to CO2-combined with optical and X-ray techniques would provide insights on the influence of the electronic and geometric effects, making it possible to deduce how intermediate products in the reduction of carbon dioxide, such as carboxylic acid and carbon monoxide, will interact with the surface of a newly proposed catalyst and thereby provide the means for predicting the catalyst's performance.
