Abstract
Seismic exploration of deep oil/gas reservoirs involves wave propagation in high-pressure media. Acoustoelasticity with the third-order elastic constants can account for nonlinear strain responses due to stresses of finite magnitude. Since current seismic exploration depends primarily on P waves, further development in prospecting technology to handle deep reflection data will benefit from the ability to decouple the elastic waves from high-pressure deep formations. We decouple the first-order velocity-stress acoustoelasticity equations for wave propagation under isotropic (confining) and anisotropic (uniaxial and pure shear) prestress conditions. A rotated staggered-grid finite-difference (RSG-FD) method is used to solve the decoupled acoustoelasticity equations with an unsplit convolutional perfectly matched layer (CPML) absorbing boundary. Numerical examples demonstrate the significant impact of prestressed conditions on seismic responses in both phase and amplitude. The stress-induced seismic anisotropy with orthotropic characteristics is strongly related to the orientation of prestresses. We compare the coupled and the decoupled wavefields to validate the proposed decoupling method. Investigation of the influence of prestresses on the acoustoelastic decoupling illustrates that the isotropic prestress does not affect the decoupling, but the anisotropic prestresses significantly affect the decoupling accuracy.
Introduction
Deep oil/gas exploration has become a rapidly growing area of research, which challenges seismic techniques by deep high-pressure reservoirs for wave propagation. Longitudinal (P) and shear (S) waves can be received separately in seismic exploration (Pugin and Yilmaz, 2019), but with the mainstream technology depending primarily on P waves. The incident longitudinal wave will not only generate transmitted and reflected P waves but also cause transmitted and reflected shear waves. The coupling of longitudinal and transverse waves makes the whole wavefield complex (Chang et al., 1986). The decoupling of P and S waves is important for subsequent seismic imaging (Yan and Sava, 2008).
Deep high-pressure formations are mainly due to overburden pressures and tectonic stresses. The drilling fluid (or drilling mud) also causes a hydrostatic prestress near a borehole (Sinha and Kostek, 1996). Wave propagation in high-pressure formations can be described by the acoustoelasticity theory (Pao et al., 1984) that is an extension of the classical elasticity theory by relating elastic moduli to prestresses (or residual stresses) in solids. The theory has been used to account for stress-induced velocity variations in rocks (e.g., Johnson et al., 1989; Meegan et al., 1993), therefore providing the potential to understand the acoustic response to in-situ stresses (Sinha and Kostek, 1996; Huang et al., 2001; Zharnikov et al., 2022; Zuo et al., 2022). The plane-wave analysis of wave propagation in a prestressed homogeneous medium (Pao et al., 1984) demonstrates that the wave velocity varies linearly with stress but the wavefront is still isotropic under the confining condition, whereas the uniaxial and pure-shear prestress conditions lead to seismic anisotropies in velocity and wavefront. In this study, we aim to develop an acoustoelastic decoupling method of P and S waves for wave propagation in prestressed media. We also need reliable numerical simulations to validate the decoupling accuracy by comparing the coupled and decoupled acoustoelastic waves under different prestress conditions.
Great progress has been made in the field of elastic wave decoupling. Aki et al. (2002) separate longitudinal and transverse waves in an isotropic medium by Helmholtz decomposition that is adopted by most scholars (e.g., Dellinger and Etgen, 1990; Sun et al., 2001; Sun et al., 2004). The method assumes that the wavefield is composed of the gradients of both irrotational and divergence-free fields. The former denotes the longitudinal potential function obtained by applying a divergence operator to the wavefield, whereas the latter expresses the transverse potential function obtained by applying a curl operator to the wavefield. Alkhalifah (1998, 2003) proposes a decoupled acoustic wave equation by setting the vertical S-wave velocity to zero in the dispersion relationship for vertical transversely isotropic (VTI) and orthorhombic anisotropic media. The same dispersion relation can be applied to different variants of systems of coupled second-order acoustic VTI wave equations (e.g., Zhou et al., 2006; Du et al., 2008; Fowler et al., 2010) for the convenience of numerical implementation. Despite being accurate kinematically, the amplitude behavior of these equations differs in inhomogeneous media. Duveneck et al. (2008) present a different approach by setting the shear wave velocity to zero for obtaining acoustic VTI wave equations, wherein no other approximations except the acoustic VTI approximation itself are involved.
To validate the proposed decoupling method for wave propagation in prestressed media, we need numerical simulations using various methods, such as finite-difference (FD), finite-element, and pseudo-spectral methods (Igel et al., 1995; Carcione, 1999). FD numerical simulations of elastic wave propagation have been extensively studied over the past decades. A comprehensive review and mathematical details are discussed by Carcione (2007). The standard staggered-grid (SSG) FD operators (Virieux, 1986) may cause instability problems in prestressed media, whereas the rotated staggered-grid (RSG) FD (Saenger et al., 2000; Saenger and Shapiro, 2002) can improve numerical stabilities because no averaging of elastic moduli is required in an elementary cell. The presented numerical scheme is based on the RSG-FD and is implemented by an eighth-order (for the space derivatives) and second-order (for the time derivatives) operators.
In this study, we formulate the decoupled acoustoelastic equations of the first-order velocity-stress form under different prestress conditions based on the acoustic approximation (Duveneck et al., 2008). Unlike the use of the VTI constitutive equations, the stress-induced isotropic and anisotropic wavefields are treated separately based on the acoustoelastic constitutive relation. The RSG-FD method is employed to solve both the coupled and decoupled acoustoelastic equations with the CPML absorbing boundary (Komatitsch and Martin, 2007; Martin and Komatitsch, 2009). Three typical states of prestress (confining uniaxial, and pure-shear) are investigated with the corresponding simplified stiffness matrices to simulate the coupled and decoupled wavefields.
Methodology
Acoustoelasticity equation
With the 3rd-order (or high-order) elastic constants, the theory of acoustoelasticity for solids is developed by considering three configurations: the stress-free natural state, prestress-induced static deformation, and wave-induced dynamic deformation. The detailed formulation (Pao et al., 1984) is briefly described in Supplementary Appendix SA, and the equation of motion Supplementary Equation SA1 can be written as the first-order velocity-stress equationwhere and are particle velocities and stress, respectively; and represent the effective acoustoelastic constants, t denotes time. The resulting acoustoelastic stiffness matrices (see Supplementary Equation SA11) can be rewritten as follows:where are third-order elastic constants (3oeCs) (Green, 1973), and represent the three additional coefficients introduced by the acoustoelastic strain energy function (Winkler and Liu, 1996). For convenience, we set the y-direction of the model to infinity, so that the three-dimensional case is simplified to a 2D plane strain problem. With Eq. 2 and the Cartesian tensor notation with the x- and z-coordinates, we rewrite Eq. 1 as a system of first-order partial differential equations which is amenable for finite-difference simulations,
The nonlinear effect of predeformation is introduced by the second-order effective acoustoelastic constants . Eq. 3 reduces to the elastic wave equation when no static stress is applied.
Decoupled acoustoelasticity equations under confining stress
For this case, the stress field is isotropic under the confining stress , with the same stress and strain in all the directions. The principal strain components can be expressed as
Substituting Eq. 4 into Eq. 2 leads to a stiffness matrix under confining stress,
It is not difficult to find that . By substituting Eq. 5 into Eq. 3, and applying some transformations, we obtain
In order to construct the decoupling equations, the new mixed wavefield variables , the pure P-wavefield variables and the pure S-wavefield variables are introduced into Eq. 6. These velocities are interrelated according to the separation equations,
The velocities and can be expressed as (Pao et al., 1984)
We set in Eq. 6, that is, , then the decoupled P-wave equations in the first-order velocity-stress form are obtained,
Similarly, we set in Eq. 6, that is, , then the decoupled S-wave equations of the first-order velocity-stress form are obtained,where, and are the velocity components of P- and S-wavefield respectively; , are the stress components associated with the P- and S-wavefields, respectively; are the velocity components of the mixed wavefield. Eqs 10,11 can be reduced to the classical elastic wave equation when no prestress is applied.
Thus, in a homogeneous and isotropic medium, the acoustoelastic wavefield (or vector elastic wavefield) can be decomposed into two parts, a pure longitudinal wave, and a pure transverse wave. The pure P-wave and pure S-wave can be extracted by separately taking the divergence and rotation of the wavefield. The P-wavefield is an irrotational field, that is ; the S-wavefield is a divergence-free field, that is, . In the following, we analyze the divergence of the S-wave in Eq. 11 and the rotation of the P-wave in Eq. 10. For the S-wave case, in Eq. 11, we find
It can be seen from this that the second-order partial derivative of with respect to time is zero, that is, the first-order partial derivative of with respect to time is a constant, so is either a constant or a linear function of time. From the wave motion characteristics, one infers that can only be a constant with respect to time. At the same time, it is known from the zero initial condition of solving the wave equation that should be equal to zero, so the S-wavefield in Eq. 11 is a divergence-free field. In the same way, it can be shown that , that is, the longitudinal wavefield is an irrotational field. Therefore, theoretically, we can get the acoustoelastic wave mixed wavefield , P-wavefield and S-wavefield , and , that is, to achieve acoustoelastic wave field separation in confining stress condition.
Decoupled acoustoelastic equations under the uniaxial stress and the pure shear stress
For the uniaxial case, the stress field is anisotropic under the uniaxial stress . The principal strain components can be expressed as
The corresponding stiffness matrix becomes
The principal strain components for the pure shear prestress becomeyielding the following stiffness matrix,
Based on the Voigt notation (Supplementary Equation SA8), the matrix form of the acoustoelasticity constitutive equations in 2D can be explicitly written as (Thomson, 1986),
Because , Eq. 17 simplifies to
Following the notation for seismic anisotropy introduced by Thomson (1986), we introduce two stress-induced anisotropy parameters and in the two-dimensional case
Thomsen’s (1986) anisotropy parameter reflects the intrinsic anisotropy of the formation, but parameters introduced here reflect the type and magnitude of the prestress on the formation, which is determined by the overburden formation pressure or regional tectonic stress. Anisotropic prestress causes the “closure” of micro-cracks in some direction, so that a preferred orientation is induced which makes it anisotropic (Sinha and Kostek, 1996).
Next, we apply the acoustic approximation, i.e., setting , in the elastic tensor. Consequences of this approximation are discussed in Alkhalifah (1998, 2000) and in Grechka et al. (2004). Applying the acoustic approximation considerably simplifies the elastic tensor for 2D media. Straightforward substitution of the relations (Eqs. 8,9 into Eq. 16, after setting , yields
Based on Eq. 21, we obtain the decoupled P-wave equations under the anisotropic (uniaxial and pure shear) stress field,where , and are all related to anisotropic prestresses, Eq. 22 can also be reduced to the classical elastic wave equation when no prestress is applied.
Matrix equations and time-discretization under isotropic (confining) stress field
Adding an external force term on the right-hand side that acts as a source term, we obtain the discrete form of the first-order velocity-stress acoustoelastic equations under isotropy (confining) stress field,where Eqs 23–25 respectively represent the coupled acoustoelasticity equations, the decoupled pure P-wave acoustoelasticity equations and the pure S-wave acoustoelasticity equations, denote the components of the external body forces, and are the external stress forces (Carcione et al., 2019). The set of equations can be combined into a matrix equation aswhere the matrix of Eq. 23 is given byand the source vector is (Carcione et al., 2019)
The matrix corresponding to Eq. 24 is given byand the source vector is
The matrix corresponding to Eq. 25 is given byand the source vector is
For the second-order accuracy in time, we have the time difference formulations of the coupled acoustoelastic equations Eq. 33, the decoupled pure P-wave acoustoelastic equations Eq. 34 and the pure S-wave acoustoelastic equations Eq. 35
Matrix equations and time-discretization under the anisotropic (uniaxial and pure shear) stress field
The first-order velocity-stress P-wave equations under the anisotropic (uniaxial and pure-shear) stress field are as follows,
The matrix is given byand the source vector is
For the second-order accuracy in time, we have
Numerical examples
In this section, we calculate coupled and decoupled wavefield snapshots under various prestressed conditions. The RSG-FD numerical method (Saenger et al., 2000; Saenger and Shapiro, 2002) with the CPML absorbing boundary (Komatitsch and Martin, 2007; Martin and Komatitsch, 2009) is applied to the coupled and decoupled acoustoelastic equations for wavefield snapshots. The implementation of RSG-FD is detailed in Supplementary Appendix SB. The general form Eq. 1 for the acoustoelastic stiffness tensor can be simplified for these specific loading modes. The RSG-FD scheme has eighth-order accuracy in space and second-order accuracy in time.

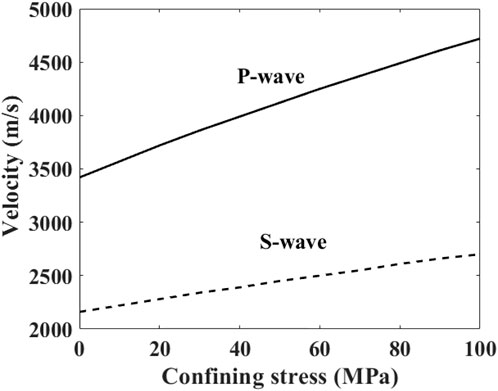

At present, the measurement of the third-order elastic constants is only achieved via ultrasonic laboratory experiments (Winkler and Liu, 1996; Huang et al., 2001). That is why we choose to replicate ultrasonic experiments in our numerical simulation. The first numerical example is shown for an isotropic and homogeneous rock sample (807×807) mm with the bulk (K), shear (μ) moduli, and density (ρ) set to 5, 10 GPa, and 2,140 kg/m3, respectively, with the third-order elastic constants (A, B, C) = (−1,000, −500, −500) GPa. We set the grid size to 10–3 m and use a time step of 10–7 s to satisfy the stability condition for RSG-FD. For the source loading, we follow the method by Carcione et al. (2019) to apply a vertical force located at the center of the model domain with the time history,with the central frequency = 1 MHz, and is a delay time.
Decoupled acoustoelastic simulation under confining prestress

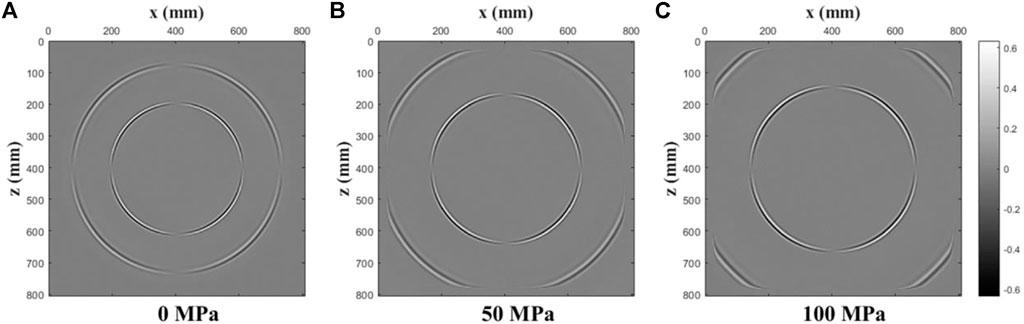

For this case, the stress field is isotropic under the confining stress P, with the same stress and strain in all directions. Figure 1 shows the velocity versus prestress curve under confining stress. Wavefield snapshots are calculated with increasing confining stresses, as shown in Figures 2–4 for the x-component of the particle velocity at t = 0.1 ms. Different confining pressures correspond to different subsurface depths, for example, 100 MPa corresponds to a depth of about 10 km under confining stress conditions, which is in line with our exploration goals for deep and ultra-deep formations.
FIGURE 1
FIGURE 2
FIGURE 3
FIGURE 4

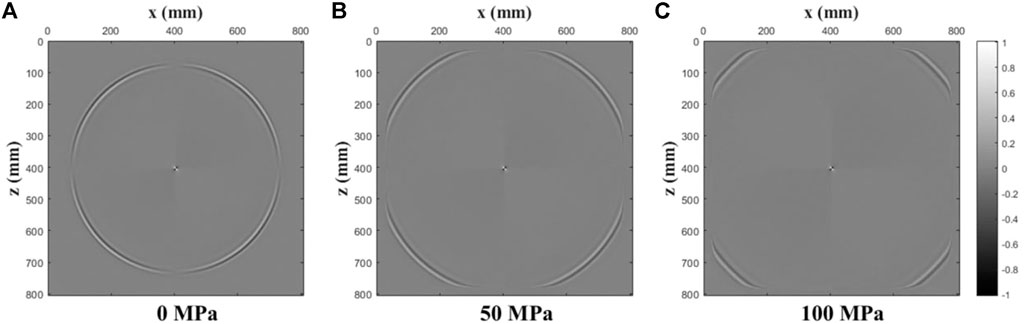

We see that the stress-induced velocity variations are isotropic (circular wavefront), with the amplitude along the wavefront changes in accordance with the characteristics of a vertical force source. Figure 5 shows the single shot records of three wavefields under increasing confining stresses. From the simulation results shown in Figures 2–5, we observe that this scheme can completely separate the pure P-wave and the pure S-wave from the mixed wavefield, thus realizing the decoupling of acoustoelastic wavefield. The simulation results also show that the CPML boundary conditions completely eliminate boundary reflections once the waves hit the border of the model domain, and we only spend 20 grid points to realize this boundary condition. We have to mention that there is a point in the center of the decoupled pure P- and S-wavefield snapshots, because close to the source the elastodynamic wavefield has nearfield terms for which the Helmholtz decomposition does not work (Aki et al., 2002).
FIGURE 5

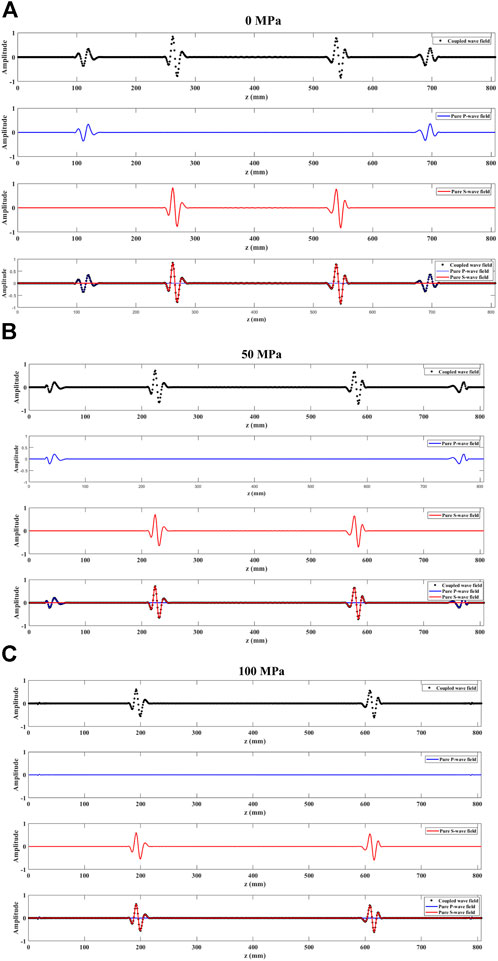

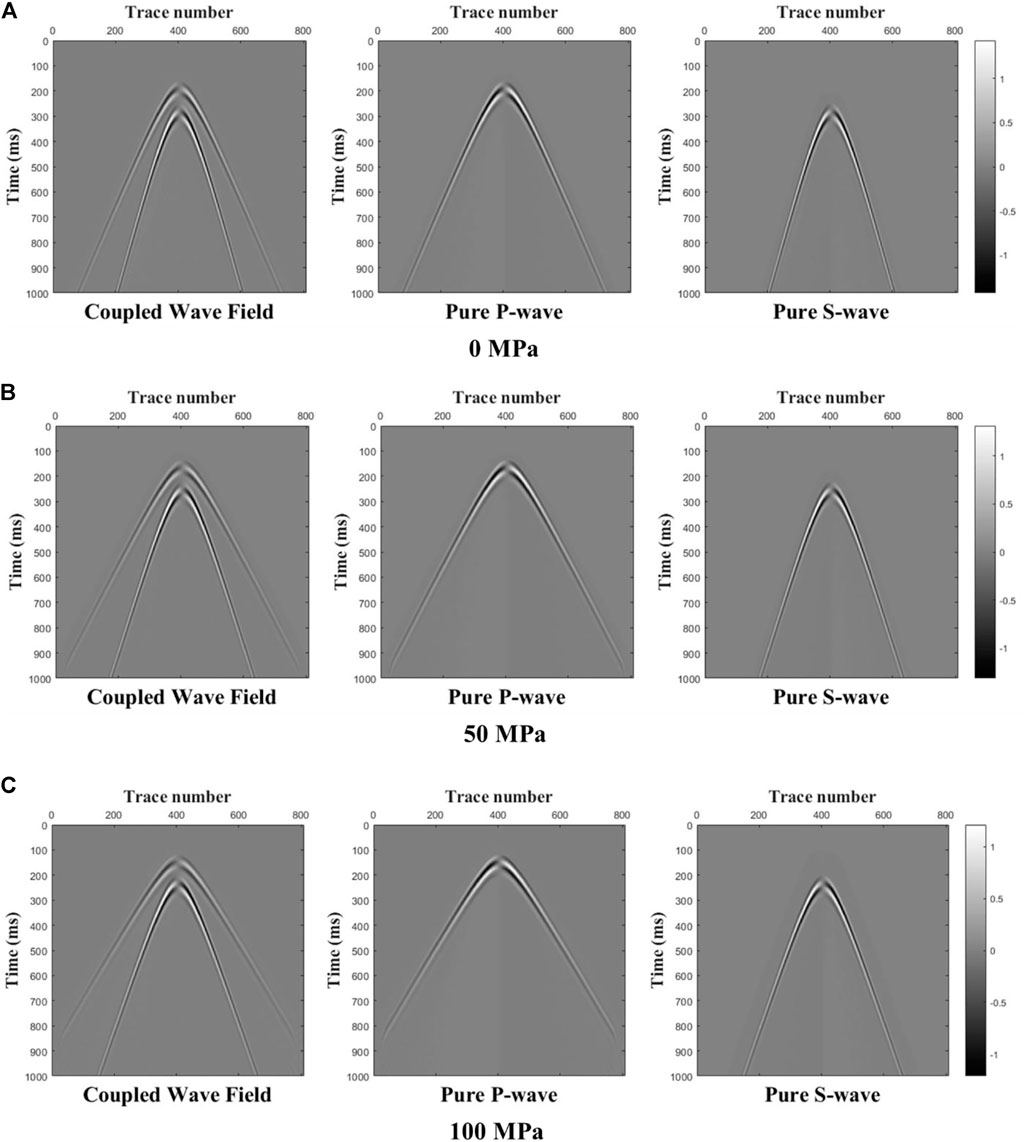

In order to verify the correctness of our decoupling, we take a trace (x = 250 mm) from the wavefield snapshot to compare the travel time, amplitude, and phase of the decoupled wavefield and the coupled wavefield. The result is shown in Figure 6. It is not difficult to observe that under different confining pressures, the traveltime, phase and amplitude of the decoupled pure P- and S-wavefield and the coupled wavefield perfectly coincide with each other.
FIGURE 6
Decoupled acoustoelastic simulation under uniaxial prestress

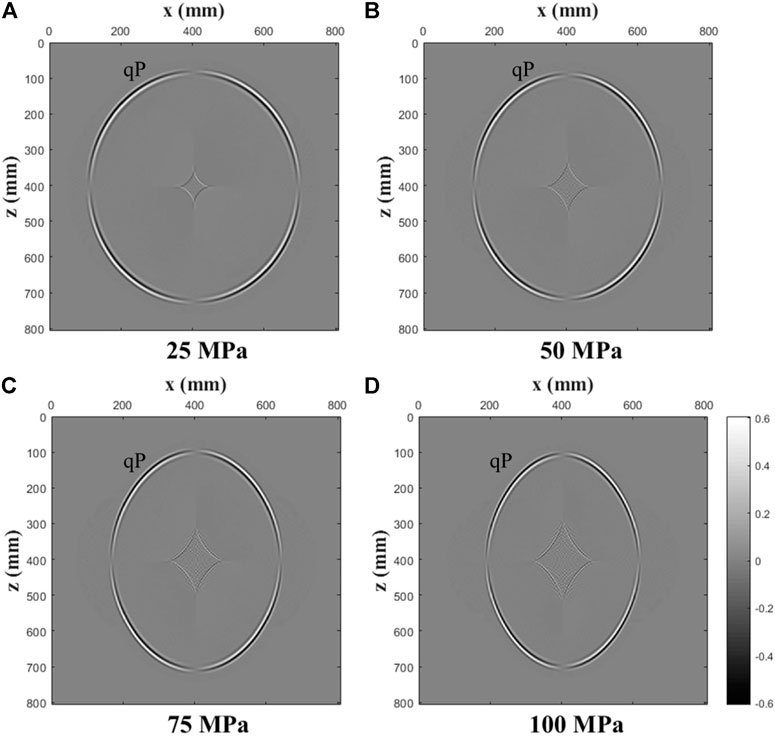

Figures 7, 8 show the wavefield snapshots with increasing uniaxial stresses for the x-component of the particle velocity at t = 0.1 ms. The magnitude of uniaxial prestress can resemble different formation pressures. Figure 7 is the coupled wavefield snapshot, and Figure 8 is a snapshot of the qP-wavefield after decoupling. In Figure 7, with increasing uniaxial stresses, the P- and S-waves are gradually coupled together, with the wavefronts of qP- and qS-waves becoming more elliptical due to the anisotropy of velocities. In Figure 8, we see the decoupled qP-waves, which are roughly the same shape as the qP-waves before decoupling under small stress. However, in the case of high prestress, the two shapes differ from each other. This difference comes from the difference between stress-induced anisotropy and intrinsic anisotropy (Prioul et al., 2004). We also observe shear wave artifacts in the decoupled P-wavefield, but in the context of imaging, these do not seem to cause problems (Duveneck et al., 2008).
FIGURE 7
FIGURE 8

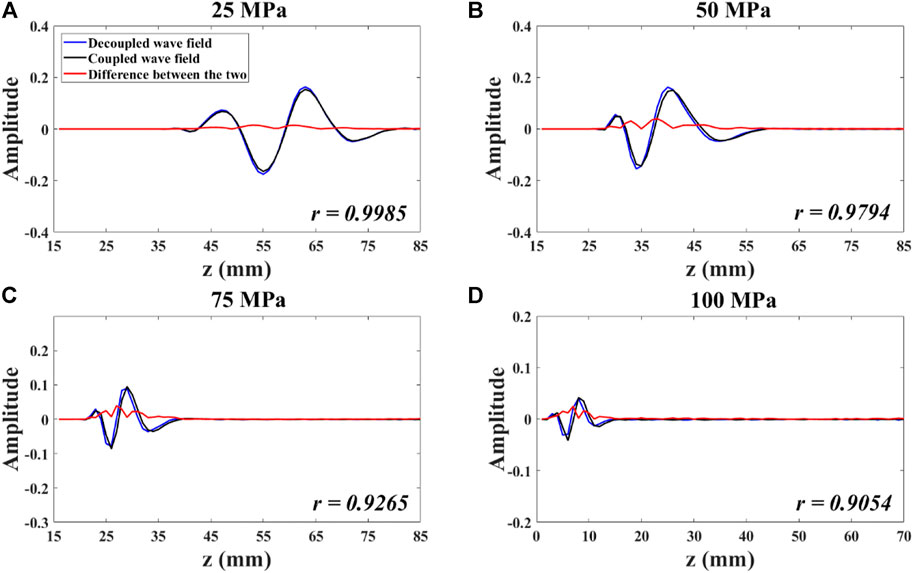

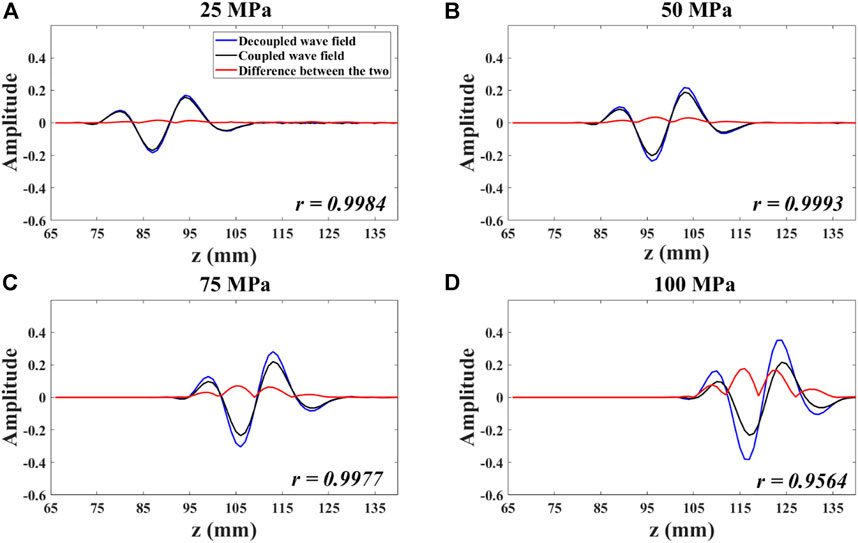

In order to detect the effect of decoupling, we take a trace (x = 350 mm) from the wavefield snapshot to compare the travel time, amplitude, and phase of the decoupled wavefield and the coupled wavefield. The result is shown in Figures 9,10. is a selected part of Figure 9, the red line represents the absolute value of the difference between the two wavefields, and r represents the correlation coefficient between the two wavefields. Obviously, as the uniaxial prestress increases, although the travel times of the qP-waves in the two wavefields fit very well, the amplitude values gradually deviate, that is, the decoupling quality gradually deteriorates. The acoustic approximation is no longer accurate due to the increasingly stronger anisotropic velocity field resulting from the increasing stress-induced anisotropy. But the correlation coefficient of the two curves remains at above 90%, which reflects that this decoupling method is very reliable, even under high anisotropic prestressed conditions.
FIGURE 9
FIGURE 10
Decoupled acoustoelastic simulation under pure shear prestress

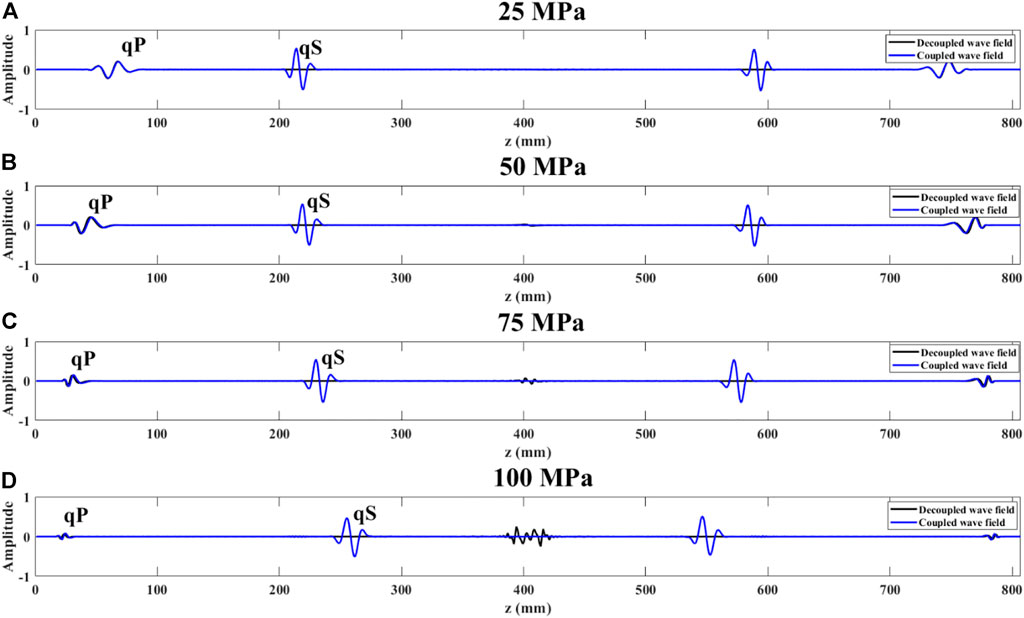

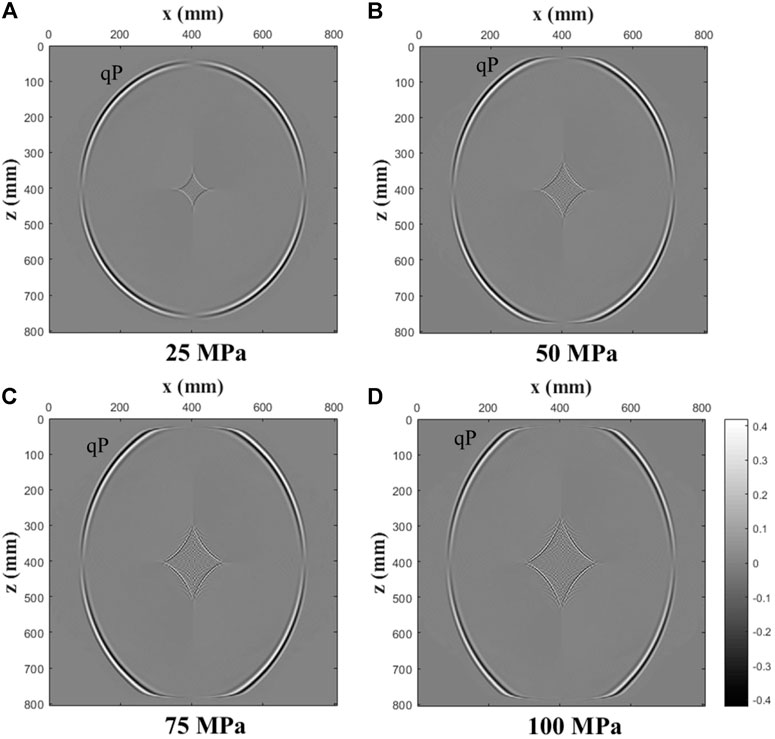

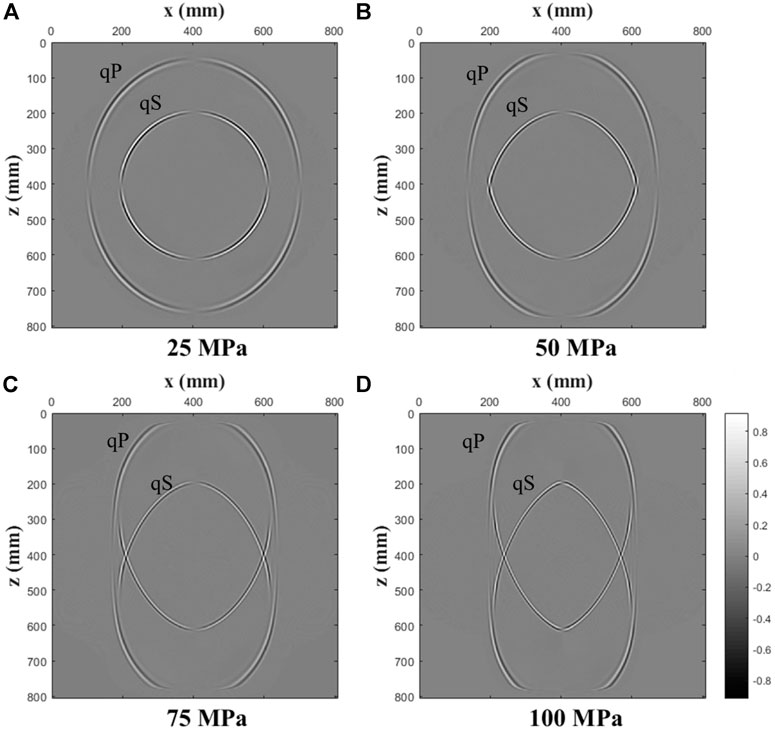

Figures 11, 12 show the coupled and decoupled qP wavefield snapshots with increasing uniaxial stresses for the x-component of the particle velocity at t = 0.1 ms. The magnitude of pure shear pressure corresponds to different geological tension and compression effects. In Figure 11, similar to the case of uniaxial stresses, the wavefronts become more and more elliptical with increasing pure shear stresses. In Figure 12, we also see that as the pressure increases, the diamond-shaped area gradually increases and the decoupling quality gradually deteriorates, similar to the uniaxial case. In order to detect the effect of decoupling, we also take a trace (x = 320 mm) from the wavefield snapshot to compare the travel time, amplitude, and phase of the decoupled wavefield and the coupled wavefield. The result is shown in Figures 13,14 is a selected part of Figure 13.
FIGURE 11
FIGURE 12
FIGURE 13
FIGURE 14
Decoupled acoustoelastic simulation for a three-layer model
The three-layer model, separated by a plane interface, is presented to investigate the reflection/transmission at the interface under the three different cases of loading prestress. This model serves as a test for the applicability of the proposed wavefield separation technique in a heterogeneous medium. Figure 15 is the schematic diagram of the three-layer model (900 * 900) mm, the source is at the center of the model. The upper-medium has the same properties as used in the previous simulations. The middle layer has K = 7.5 GPa, μ = 15 GPa, the third-order elastic constants (A, B, C) = (−1,250, −750, −750) GPa, and ρ=2000 kg/m3. The bottom layer has K = 10 GPa, μ = 20 GPa, the third-order elastic constants (A, B, C) = (−1,500, −1,000, −1,000) GPa, and ρ=2000 kg/m3. Consider an interface between two elastic media indicated by the + and − superscripts. The boundary condition at the interface requires the continuity of tractions and displacements. These conditions are written aswhere represents the unit normal to the interface. Einstein’s summation convention for repeating indices is assumed.
FIGURE 15

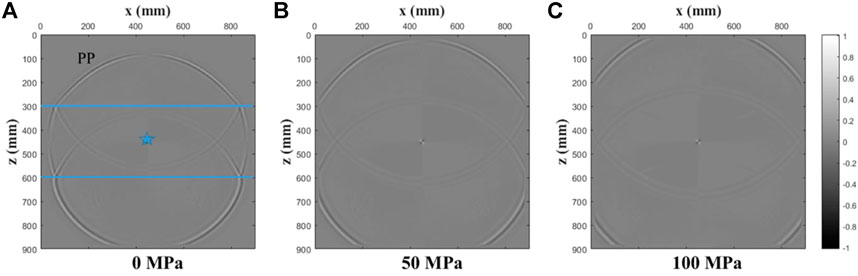

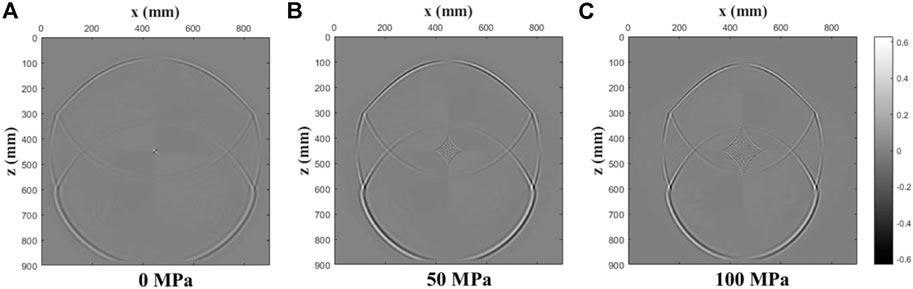

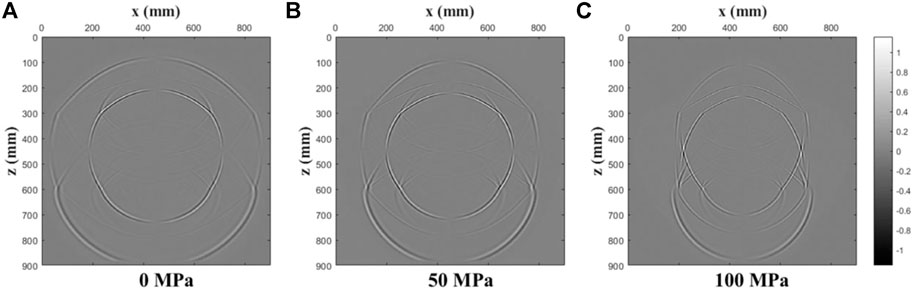

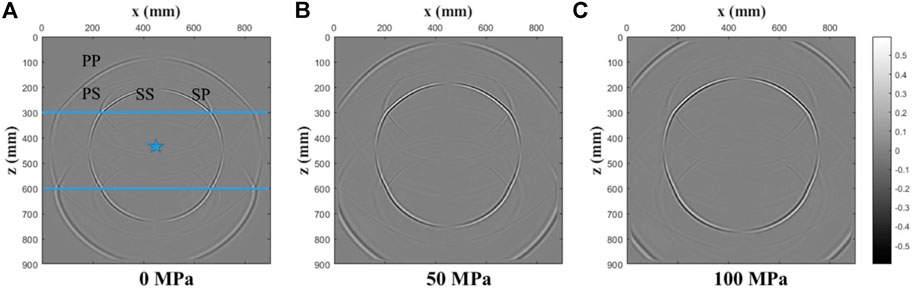

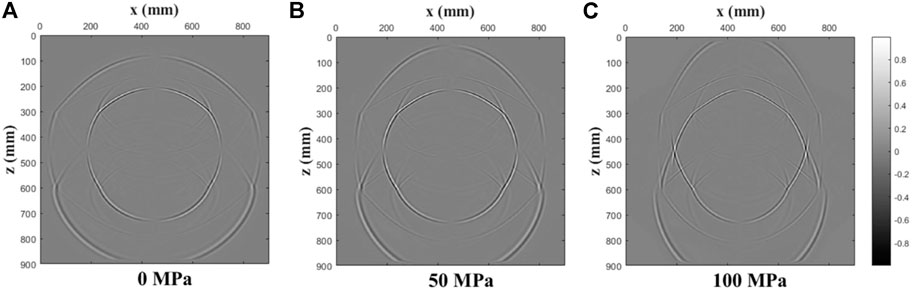

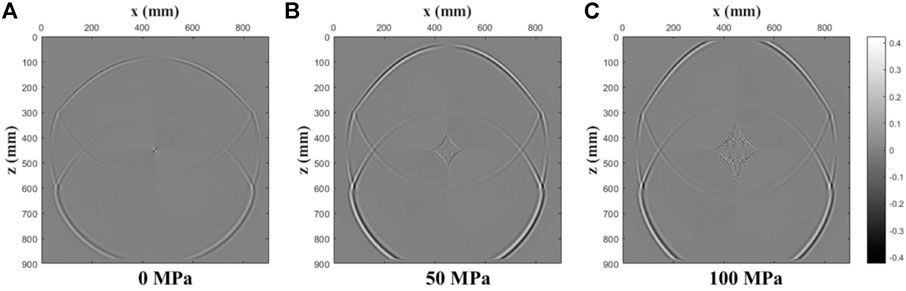

Figures 16–21 show the x-component of the particle velocity snapshots at t = 0.1 ms under three different prestress conditions: confining stress, uniaxial stress, and pure shear stress. All the wave types of reflection/transmission shown in the figure can be observed from these snapshots. This illustrates that the stress-induced velocity anisotropy is strongly related to the orientation of prestresses. The coupled wavefield contains rich information such as direct P waves, PP reflected waves, PS converted waves, and transmitted waves; The P-wavefield separated from the coupled wavefield contains direct P-waves and PP reflections and other longitudinal wave components. Due to the relatively weak amplitude, it is not easy to distinguish various wave phenomena in the mixed wavefield. Through the decoupling of the acoustoelastic wavefield, the transmission and reflection of the P- wave on the interface are made clearer, so we obtain a more concise wave field. This will not only help us understand wave propagation in complex media but also get clearer seismic records in different pre-stressed formations. Other wavefield characteristics are the same as those in the one-layer case, and will not be repeated here.
FIGURE 16
FIGURE 17
FIGURE 18
FIGURE 19
FIGURE 20
FIGURE 21

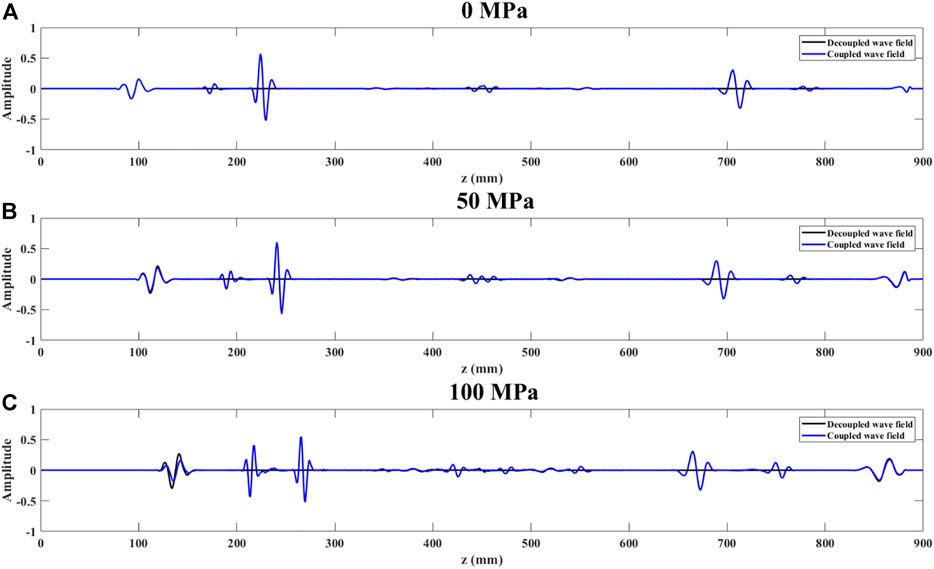

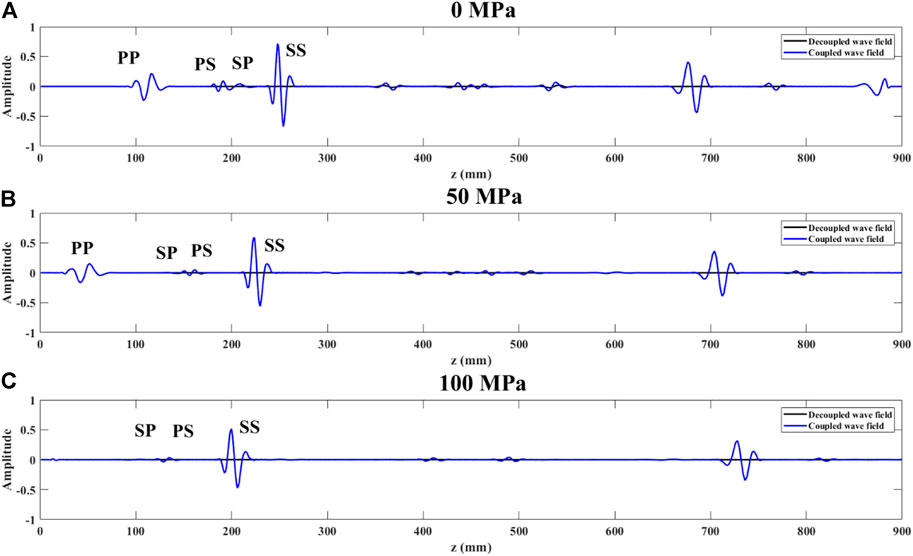

Figures 22–24 show the records of x = 300 mm in snapshots for various stresses. Similarly, under confining stress conditions, pressure does not affect the decoupling effect, and the PP waves of the two wavefields match perfectly. However, under uniaxial and pure shear stress fields, prestress will affect the quality of decoupling and will be discussed later.
FIGURE 22
FIGURE 23
FIGURE 24
Discussion
The decoupling scheme under anisotropic prestresses is formulated by applying the acoustic approximation (Duveneck et al., 2008) to acoustoelasticity equations. From the comparison of coupled and decoupled wavefields in traveltime and amplitude, the scheme is reliable even under the strong anisotropic prestress. There exists a diamond-shaped area in the center of the modeling domain where the source is located. As discussed, e.g., by Grechka et al. (2004), this is a well-known problem of source-generated shear waves which are regarded as artifacts for P-wave modeling. These qS-wave artifacts are usually suppressed, for example, by placing the source in the isotropic part of the model (Duveneck et al., 2008). Alternatively, we can partly eliminate artifacts in numerical simulations by assuming no prestress around the source to make the near-source region isotropic.
Stress-induced anisotropy depends largely on anisotropic prestress loading (Sinha and Kostek, 1996). As indicated by Alkhalifah (2000), the kinematic error of decoupling becomes larger as the anisotropy increases, implying that the decoupling becomes worse. This is why anisotropic prestresses affect the accuracy of decoupling approximations. However, for the acoustoelasticity decoupling, this error appears mainly in amplitude based on the numerical simulations presented in this study. Intrinsic anisotropies in rocks generally result from the alignment of grains and microstructures making up the rock matrix. Particularly, prestress causes the “closure” of microcracks (Sayers, 2002), inducing preferred orientation that makes rocks anisotropic. Knowledge of stress-induced anisotropy can predict the distribution of wave velocities in formations as accurately as possible. Therefore, the introduction of stress-dependent anisotropy into wave equations can give an efficient modeling strategy. It has important implications for seismic AVO and geomechanical applications.
Conclusion
The theory of acoustoelasticity results from the third-order elasticity with a cubic term of the strain energy function. It describes wave propagation in prestressed media by relating wave velocities to prestresses. We formulate the first-order velocity-stress decoupled acoustoelasticity equations that are solved by the RSG-FD numerical method with the CPML absorbing boundary. Numerical simulations are conducted for a homogeneous medim and a triple-layer model, respectively, under three typical states of confining, uniaxial, and pure-shear prestress conditions. We investigate the effect of prestress conditions on the decoupling accuracy.
Numerical examples show that the proposed decoupling scheme yields a good kinematic P-wave approximation to the acoustoelasticity equations, implying its potential applications in seismic imaging and inversion under prestress conditions. Under the confining pressure, the acoustoelasticity equations can be decopled into pure P- and S-wave equations through the Helmholtz decomposition, resulting in a complete separation of longitudinal and transverse wavefields in both amplitude and traveltime. Under the anisotropic prestress conditions (uniaxial and pure-shear), the decoupled and coupled wavefields match well in amplitude and traveltime at low pressures. However, when the pressure is too high, we see certain deviations in amplitude and phase, but the decoupling accuracy is still reliable because of the high correlation coefficient of these two wavefields. We also observe shear wave artifacts in the decoupled P wavefield. For a three-layer model under the same prestress conditions, the decoupled P wavefield includes direct, reflected, and transmitted P waves only, where various converted S waves are removed.
