Abstract
Since its formation, the Earth has cooled from molten magma to the present layered structure. The liquid and molten substance in the interior of the Earth continuously solidifies, radiating heat to the outer space and causing changes in the pressure and density inside the Earth. Constrained by the rigid lithosphere, the change in density decreases the pressure at the bottom of the crust, and thereby supports the rigid lithosphere. Under the effect of gravity, there is an increased interaction between tectonic plates, which leads to local stress accumulation. Eventually, this stress exceeds the strength of the rock and makes the mechanical structure of the crustal lithosphere unstable. This process is iterative, and the Earth continuously adjusts to new mechanical equilibria by releasing the accumulated stress through geological events such as earthquakes. In this study, using three sets of observations (Global Positioning System data, length of day data, and the latent heat of Earth solidification), we show that these observations are consistent with the aforementioned assumption that the solidification of liquid cause changes in density and volume in the Earth’s interior. Mechanical analyses indicate that liquid solidification in the interior of the Earth leads to decrease in the Earth’s volume. This increases the intensity of plate interactions, which leads to the movement of large plates, triggering geological events such as earthquakes. Thus, it is determined that liquid solidification in the Earth’s interior is the main source for the movement of plates.
Introduction
The Earth has evolved from a molten state (magma ocean) to today’s layered structure via large-scale cooling and solidification (Elkins-Tanton, 2012). The cooling and solidification continue as the Earth keeps evolving and emitting energy (46 ± 3 TW, as estimated from the current global heat flow) (Lay et al., 2008). The difference between then and now is that the early magma ocean might have solidified faster. These contents of the Earth’s core go through molten-solid transitions at physical conditions (pressure and temperature) that change according to the thermodynamics and evolution of the Earth. Solidification is a universal and crucial phenomenon, and it leads to noticeable changes in density accompanied by heat release and volume contraction (Dziewonski and Anderson, 1981; Massonne et al., 2007; Sakamaki et al., 2010; Hirose et al., 2013). Global magmatism, reaching a rate of 25.8–33.6 km3 yr−1, is caused due to magma solidification at the shallow Earth (Wilson, 2007). At deep Earth, the inner core grows at a rate of 0.5–2.4 mm yr−1 due to crystallization of molten iron (Labrosse et al., 2001; Ohta et al., 2016; Bono et al., 2019). Released latent heat is a key heat source that influences the processes such as inner core growth and the geodynamo. Thus, solidification governs the thermodynamics of the Earth (Buffett et al., 1992; Buffett, 2000). The lithosphere, the topmost layer of the Earth, is a poor conductor of heat, and it is mechanically rigid and brittle (Shimada and Cho, 1990; Rychert and Shearer, 2009; Whittington et al., 2009). It operates like a ceramic outer shell, constraining the ductile mantle beneath it. The energy released by the solidification of melts in the Earth powers the dynamics of the Earth’s lithosphere and plate tectonics. The liquid–solid conversion in the Earth’s interior is a continuous process, and it leads to continuous heat dissipation to the outer space. Under the law of conservation of mass, the change in density due to solidification reflects a volume change, which eventually leads to the geometric variation of the Earth.
Modern space geodesy techniques have revealed that the Earth’s geometry is continuously changing and is not constant. Geodetic studies employing the data obtained from various techniques, such as Global Positioning System (GPS), Satellite Laser Ranging (SLR), Very Long Baseline Interferometry (VLBI), and Doppler Orbitography and Radiopositioning Integrated by Satellite (DORIS), suggest that the current rate of change of the Earth’s radius spans from −4.0 to 1.3 mm yr−1. Because of this, it is unclear whether the Earth is expanding or contracting and also difficult to determine the extent of the change (Huang et al., 2002; Sun et al., 2006; Wu et al., 2011; Zhu et al., 2013). The paleomagnetic data indicate that the radius of the ancient Earth was 0.99–1.12 times of that of the present radius in the late Paleozoic and early Mesozoic Era (Cox and Doell, 1961; Ward, 1963). Another evidence of the varying nature of the Earth’s geometry is the Earth’s rotation rate, which has been observed to fluctuate in the interdecadal and longer periods as recorded based on the values of length of day (LOD). The changes in LOD are associated with the change of the Earth’s moment of inertia and impacts of large earthquakes (Stephenson and Morrison, 1984; Chao and Gross, 1987; Holme and De Viron, 2013).
The liquid and molten substance inside the Earth continues to solidify with the latent heat release and volume and density changes. Heat radiates to the surface via conduction, convective, radiation, and so on, and the volume change macroscopically manifests as volume contraction of the Earth. The volume contraction causes the tectonic plates to squeeze together, making them move under the influence of gravity, which in turn leads to various geological events. The traditional plate motion driving force model (mantle convection, slab pull, and ridge push) (Forsyth and Uyeda, 1975; Bott, 1991; Bokelmann, 2002a; Bokelmann, 2002b; van Summeren et al., 2012) has some limitations, as it cannot reasonably explain the plate motion cycle (Sun, 2019). Herein, we propose that the solidification of the Earth drives the dynamics of the Earth’s crust and gives rise to the volume variation of the Earth, and this theory is verified via the analyses of GPS data, LOD observations, and global heat flow estimates.
Theory Validation
Global Positioning System Data Analysis

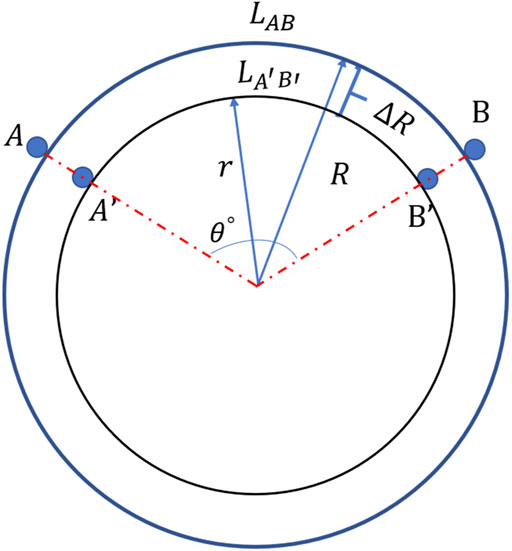

The solidification of molten substance leads to changes in the internal volume, and it macroscopically manifests as the collapse of the Earth’s volume. If this happened, akin to a deflating balloon, the Earth’s radius would decrease, thereby decreasing the distance between the corresponding points on the Earth’s surface. When the Earth is considered a standard sphere, there is a definite relationship between the reduction of the Earth’s radius and any changes in distance between the two points on the surface, as shown in Figure 1.
FIGURE 1

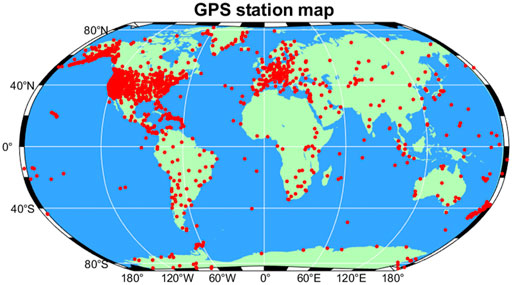

Herein, variations in the radius and volume of the Earth are derived from the GPS data of 2,674 ground-based receivers during 1995–2019. A detailed site information is presented in Figure 2. These GPS data, recorded by NASA and processed by the Jet Propulsion Laboratory, provide the time series of longitude, latitude, and altitude of the individual sites over time (Heflin, 1994). The relationship between the change in distance of two receivers and the change in the Earth’s radius is given using Eq. 1:where (Figure 1). is the current radius of the Earth (= 6,371 km), and is the distance between the two receivers. The Haversine formula (Eq. 2) is used to calculate the distance between the two receivers (Josiah, 2010):where , and denote the latitudes of two points, and denotes the difference in their longitudes.
FIGURE 2

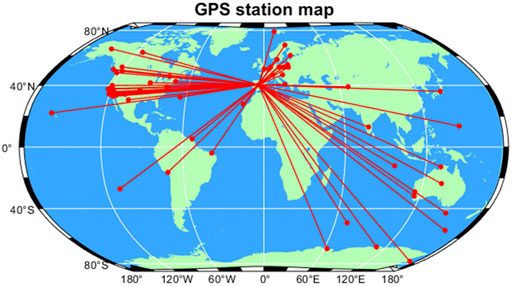

The data are processed by a self-written Python code. The arc length between any two stations on the Earth is calculated. Then, the relation between the annual radius change of the Earth and the change in the arc length between the two sites is given using Eq. 3:where is the -th year of calculation, is the total number of years, denotes the -th pair of sites, is the total number of in year , and are the arc distance of the -th pair at the beginning of the -th year and the end of -th year, respectively. By using the error propagation law and GPS positioning error estimation, the accuracy estimate of the annual radius variation of the Earth can be obtained, and the average relative error is 15%.
During data processing, the data from sites whose observation time was less than 12 months for any year are omitted. To reduce errors caused by certain geological factors at close range, only those points are considered for which the distance is ≥100 km. For example, taking the calculation of 1995, we draw a diagram of one of the points (VILL) as shown in Figure 3. According to the longitude and latitude information of each station, the change of distance between the two sites with time is obtained, and the corresponding change in radius is determined. The average of the change in the Earth’s radius for 1995 is obtained by traversing the distances among all the points, and the value is −2.4 ± 0.27 mm.
FIGURE 3

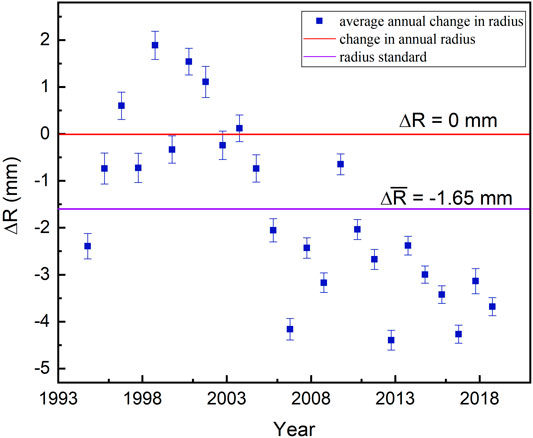

A total number of 14 million calculations are carried out for , and 25 annual average radius changes from 1995 to 2019 are derived, among which, 20 results are negative, as shown in Figure 4. The annual average is −1.65 ± 0.25 mm yr−1, which corresponds to a volume decrease of −841.60 ± 127.5 km3 yr−1.
FIGURE 4
Latent Heat of Earth Solidification
The global heat flow is estimated to be 46 TW, and it mainly comprises radiogenic heat and heat from the core and mantle (Lay et al., 2008). The most accessible integrative energy for the planet is the total amount released at the surface. However, there may be uncertainties in the present-day energy budget. Specifically, there is considerable uncertainty in the radiogenic concentrations (Gessmann and Wood, 2002; Murthy et al., 2003) and the present-day mantle and core secular cooling rates (Lay et al., 2008; Herzberg et al., 2010). Although geoneutrino detectors promise new constraints in the near future (Araki et al., 2005; Dye, 2012), macroscopically, the Earth’s internal temperature distribution is constant, and secular cooling can be neglected over a short period of time. The results of Chang ’e-5 samples research showed that the characteristics of kreep-potassium enrichment in the basalt were formed in the late magmatic period, thus ruling out the main hypothesis that this moon mantle source region is rich in radioactive thermogenic elements (Hu et al., 2021; Li et al., 2021; Tian et al., 2021). The world’s uranium deposits do not overlap with the geothermal anomalies. This suggests that there is not a lot of radioactive material in the Earth’s crust. Thus, radioactive heat may not be a major source of heat loss on the Earth.
According to the thermal evolution of the Earth, the latent heat released from solidification of molten substance is considered an important heat source on the Earth. Herein, to simplify the calculation, the total energy budget of the Earth is assumed to comprise only latent and crustal radiogenic heat. The latent heat released from solidification of the Earth is calculated using Eq. 4:where is the total heat flow, is the latent heat of the mantle and crust, is the latent heat of the core, and is the radioactive heat from the Earth’s crust (from direct sample sources). The volume change caused by solidification is calculated using Eq. 5:where is the mass of solidified substance, stands for and , respectively, is the specific latent heat, and are the densities of melts and solids, respectively. The specific values are shown in Table 1.

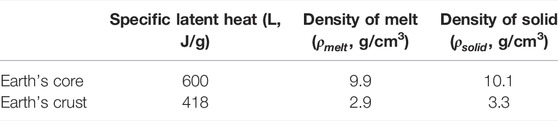

TABLE 1
| Specific latent heat (L, J/g) | Density of melt (, g/cm3) | Density of solid (, g/cm3) | |
|---|---|---|---|
| Earth’s core | 600 | 9.9 | 10.1 |
| Earth’s crust | 418 | 2.9 | 3.3 |
Values of the specific latent heat and densities of the melt and solid used for latent heat analysis (Ohtani and Maeda, 2001; Suzuki and Ohtani, 2003; Massonne et al., 2007; Sakamaki et al., 2009; Zhang et al., 2014; Zhang et al., 2020).
When TW (Stacey and Loper, 2007), the mass of the solidified iron alloy is 1.6 × 1014 kg yr−1, and it corresponds to . corresponds to the amount of solidification in the core. Because of the uncertainty of the radioactive heat in the mantle and core and the nonoverlap between uranium deposits and geothermal anomalies around the world, we consider the crustal radioactive heat from the direct rock samples as the entire radioactive heat, omitting other radioactive heat for the time being. Thus, is assumed to be 7 TW (Lay et al., 2008), and we get TW. The mass of the magma solidified at the shallow Earth is 2.7 × 1015 kg yr−1, which corresponds to a volume change of −120 km3 yr−1 and a radius change of . Overall, the heat flow of the Earth is in agreement with a shrinkage of −120.24 km3 yr−1 in the Earth’s volume. This process considers the total solidification rather than the net solidification. However, if melting is also considered when computing the contributions of the crystallization process, it will make the calculation more complex and the volume changes involved may be smaller.
Analysis of Diurnal Length Variation

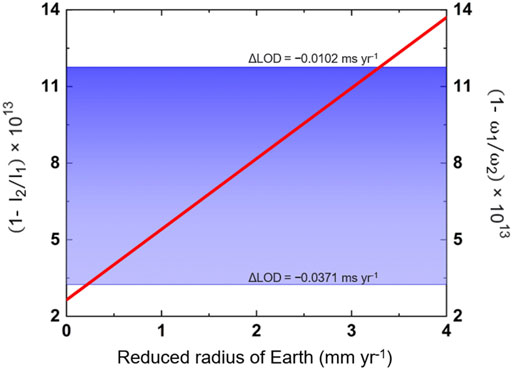

The variation of the Earth’s moment of inertia is calculated using the LOD data and angular momentum conservation. Based on occultation and solar and lunar eclipses, the long-term average change rate of LOD in the last 1,000 years is determined to be approximately −0.01 (Stephenson and Morrison, 1984). The LOD variation associated with large earthquakes is estimated to be approximately 0.0102 , and the direct LOD observation suggests a rate of −0.0371 (O'Connell and Dziewonski, 1976).
When the conservation of angular momentum is achieved, the variation in LOD manifests as the variation of the radius (Eq. 6):where is the mass of the Earth, is its radius, and are its moment of inertia and angular velocity, 1 and 2 denote the first state of the Earth with a radius of 6,371 km and the second state where the Earth’s radius is decreased by an annual average radius change, respectively. The moment of inertia of the Earth is calculated by dividing it into several shells and approximating the integral with respect to by summation, as shown in Eq. 7:where is the moment of inertia of each layer and are calculated using Eqs 8, 9:where is the average variation of LOD. Herein, the Earth is divided into 638 shells, each with a thickness of 10 km and a homogeneous density distribution. The moment of inertia of the ith shell is calculated using Eq. 10:where and are the inner and outer radii of ith shell, respectively, and is its mass, which is calculated as . The density of each shell is obtained using the PREM model (Dziewonski and Anderson, 1981). The total moment of inertia of the Earth in the first state is . For the second state, the annual average radius change for the Earth’s core is set to at the topmost outer core in accordance with the latent heat analysis and that for the Earth’s crust is a variable . The inner and outer radii of shells in the second state ( and ) are less than that in the first state owing to change in the Earth’s radius. The moment of inertia of the 348th shell (the first shell is the center of Earth) at the topmost outer core where the radius is 3,471 km is calculated using Eq. 11:where . The moments of inertia of shells from 349th to 637th are calculated using Eq. 12:where and . The moment of inertia of the last shell (638th) is calculated using Eq. 13:
The total moments of inertia of the Earth in the first and second states are quite similar due to minute changes in the radius, and thus, and are introduced for comparison in Figure 5. When the angular momentum conservation is realized, the radius change is −0.2 to −3.3 mm yr−1, which corresponds to a volume change of −111 to −1,676 km3 yr−1.
FIGURE 5
Summary
The annual average volume variation of the Earth obtained from the analysis of GPS data, LOD observations, and global heat flux estimates are −841.60 km3 yr−1, −120.24 km3 yr−1, and −111 to −1,676 km3 yr−1, respectively, and these are in good agreement with each other. The values are on the same order of magnitude but with some differences, which can be attributed to the uncertainty of global heat flux estimates and the specific latent heat reported in previous studies. The density profile of the Earth and density of iron under high pressure and high temperature are also likely sources of uncertainty. Moreover, the GPS tracking stations are sparsely distributed in some regions, which could have led to the gaps in data. Nevertheless, these results are sufficient for validating the theory of solidification-driven dynamics of the Earth.
Mechanical Analysis

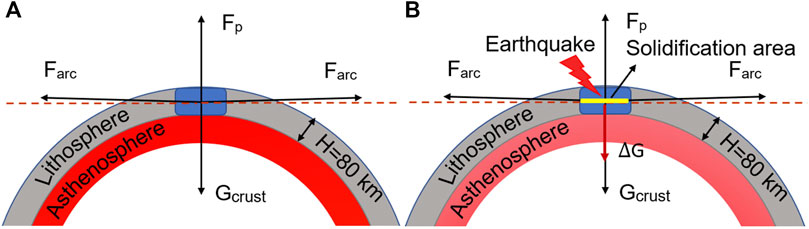

The molten substance in the Earth’s interior continues to solidify. When the volume change at the shallow Earth due to solidification accumulates, after a specific peak value is reached, the pressure changes because of which the rigid lithosphere become mechanically unstable and eventually fails, decreasing the Earth’s radius and volume. The volume shrinkage increases the influence of gravity on the crust, triggering a pressure drop at the bottom of the lithosphere and a large-scale fracture and dislocation of the overlying strata, which induces geological events such as earthquakes. This is similar to the elastic bucking load that an ordinary spherical shell model can bear under external pressure. The Earth’s crust is thus simplified by a spherical shell model, and the ultimate load of the spherical shell is calculated. For a spherical shell, the ultimate load is only 70% of the ideal case because of the accuracy, and the ultimate load that can sustain under external pressure is calculated using Eq. 14 (Pan and Cui, 2010),where and are Young’s modulus and Poisson’s ratio of crustal rocks, is the mean thickness of the crust (30 km), and is the mean radius of the sphere (6,371 km). For most crustal rocks, values of Poisson’s ratio are between 0.2 and 0.3 (Hyndman, 1979; Zandt and Ammon, 1995; Wang, 2009). Herein, an average value of 0.25 is selected to simplify the calculation. For most crustal rocks, values of Young’s moduli vary in the range 20–100 GPa (Wang, 2009); we selected the maximum and minimum values to get a range. Therefore, according to the crustal temperature and pressure conditions at different depths (≤30 km), we obtained MPa.
The results show that the limit load of the overlying crust is small and much less than the stress caused by self-weight (. However, it can exist stably because of the support of the lower shell. When the magma solidifies, more magma diffuses up to occupy the newly available volume, which decreases the density and pressure and increases the influence of gravity on the crust, as shown in Figure 6. Eventually, for the new shell to reach mechanical equilibrium, the builtup strain is released in the form of earthquakes and other geologic activities. The pressure change caused by the increase of gravity of the solidified magma is calculated using Eq. 15:where is the gravitational constant, is the mass of the solidified magma, and is the solidified area. Since the stress accumulated by magma solidification is released by earthquakes, herein, we assume that the area of solidified magma is equal to the area of the earthquake’s hardest-hit area. The relationship between the radius and intensity in the worst-hit area is given using Eq. 16 (Bath, 2013):where is the maximum intensity, is the intensity of the site located at distance from the epicenter, and is the mean focal depth. The maximum intensity can be obtained from the magnitude (Båth, 1975) using Eq. 17:
FIGURE 6
Taking the hardest-hit area of Mw 8 earthquake as an example, the results show that the pressure change is 1.84–5.51 MPa, and it decreases with increasing depth. As shown in Figure 7, the pressure variation within a depth of 30 km exceeds the ultimate load of the crust. Small changes in the interior can cause the mechanical structure of the Earth’s crust to break down, and when the strain is beyond the strength limit of the crust, geological movements such as earthquakes are triggered. This finding is consistent with the depth and frequency of the shallow earthquakes.
FIGURE 7
Discussion and Conclusion
Based on the analysis of the GPS data, changes in the total volume and radius of the Earth are determined, and these changes demonstrate that the Earth is undergoing contraction at an average rate of 1.65 mm yr−1. The change in the radius causes changes in the moment of inertia of the Earth, which increases the Earth’s rotation speed. This can explain the physical phenomenon of the change in the Earth’s speed and the change in LOD. The change of the Earth’s radius is mainly attributed to the solidification of molten substance in the Earth’s interior, and this liquid–solid transformation is the main power source for geodynamics. The abovementioned phenomena and principles can be extended to other planets whose structures are similar to that of the Earth, that is, planets on which the liquid–solid transformation of the inner material is not yet complete.
The pressure-volume work (), as a result of solidification, is a critical energy source for geodynamics and earthquakes. At the shallow Earth (10 km), W = ∼2.3 TW. For major earthquakes (Mw > 7), W = ∼2 TW (Kanamori, 1978). Therefore, the estimated energy from the pressure–volume work is sufficient to generate earthquakes, and the remaining energy contributes to power plate tectonics and other geologic movements. At the Earth’s core, W = ∼1 TW, which contributes to the geodynamic processes.
Based on the previous discussion, earthquakes can be predicted based on the energy provided by solidification and the energy required for earthquakes. The expectation of energy of earthquakes from Mw to can be calculated using Eq. 18:where is the expected value of the energy released by earthquakes from Mw to , is the energy released by an Mw x earthquake, and is the probability density function of earthquakes (derived from the Gutenberg–Richter relationship). The frequency of earthquakes of a certain magnitude range within a period is thus calculated using Eq. 19:where is the pressure–volume work at the shallow Earth. If more sufficient LOD and GPS data are available, the volume change of the Earth can be calculated more accurately, which will enable precise earthquake prediction.
In conclusion, the Earth has been going through a nonlinear solidification process since the magma ocean stage, which has been accompanied by the release of latent heat and volume contraction. Our analyses based on the GPS data, LOD observations, and heat flux estimates demonstrate that the current rate of change of the Earth’s volume is −841 km3 yr−1. The decrease in the Earth’s internal volume reduces the pressure at the bottom of the crust and rock layers. Under the action of gravity, the interactions between the crustal plates intensify, which makes the mechanical structure unstable. Our mechanical model shows that the decrease of pressure (1.84–5.51 MPa) is greater than the ultimate load (0.37–1.85 MPa) that most of the Earth’s crust can bear. Therefore, volume shrinkage leads to stress buildup followed by mechanical failure, which manifests as earthquakes and powers the geodynamics of the crust. The findings of this study reveal the connection between the liquid–solid transformation inside the Earth and geodynamics and provides a new perspective for predicting earthquakes.
Statements
Data availability statement
The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author.
Author contributions
DH contributed to conception of the study; DH and XL designed the study; XL and MT collected the data and performed the analysis; XL wrote the first draft of the article; DH and XL revised the article. All authors contributed to manuscript revision, read, and approved the submitted version.
Acknowledgments
The authors would like to thank all the reviewers who participated in the review, as well as MJEditor (www.mjeditor.com) for providing English editing services during the preparation of this manuscript.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
References
1
ArakiT.EnomotoS.FurunoK.GandoY.IchimuraK.IkedaH.et al (2005). Experimental Investigation of Geologically Produced Antineutrinos with KamLAND. Nature436 (7050), 499–503. 10.1038/nature03980
2
BathM. (2013). Introduction to Seismology. Basel: Birkhäuser.
3
BåthM. (1975). Seismicity of the Tanzania Region. Tectonophysics27 (4), 353–379. 10.1016/0040-1951(75)90004-9
4
BokelmannG. H. R. (2002b). Convection-driven Motion of the North American Craton: Evidence from P-Wave Anisotropy. Geophys. J. Int.148 (2), 278–287. 10.1046/j.1365-246X.2002.01614.x
5
BokelmannG. H. R. (2002a). Which Forces Drive North America?Geol30 (11), 1027–1030. 10.1130/0091-7613(2002)030<1027:wfdna>2.0.co;2
6
BonoR. K.TardunoJ. A.NimmoF.CottrellR. D. (2019). Young Inner Core Inferred from Ediacaran Ultra-low Geomagnetic Field Intensity. Nat. Geosci12 (2), 143–147. 10.1038/s41561-018-0288-0
7
BottM. (1991). Ridge Push and Associated Plate interior Stress in normal and Hot Spot Regions. Tectonophysics200 (1-3), 17–32. 10.1016/0040-1951(91)90003-B
8
BuffettB. A. (2000). Earth's Core and the Geodynamo. Science288 (5473), 2007–2012. 10.1126/science.288.5473.2007
9
BuffettB. A.HuppertH. E.ListerJ. R.WoodsA. W. (1992). Analytical Model for Solidification of the Earth's Core. Nature356 (6367), 329–331. 10.1038/356329a0
10
ChaoB. F.GrossR. S. (1987). Changes in the Earth's Rotation and Low-Degree Gravitational Field Induced by Earthquakes. Geophys. J. Int.91 (3), 569–596. 10.1111/j.1365-246X.1987.tb01659.x
11
CoxA.DoellR. R. (1961). Palæomagnetic Evidence Relevant to a Change in the Earth's Radius. Nature189 (4758), 45–47. 10.1038/189045a0
12
DyeS. (2012). Geoneutrinos and the Radioactive Power of the Earth. Rev. Geophys.50 (3), 1–19. 10.1029/2012RG000400
13
DziewonskiA. M.AndersonD. L. (1981). Preliminary Reference Earth Model. Phys. Earth Planet. Interiors25 (4), 297–356. 10.1016/0031-9201(81)90046-7
14
Elkins-TantonL. T. (2012). Magma Oceans in the Inner Solar System. Annu. Rev. Earth Planet. Sci.40, 113–139. 10.1146/annurev-earth-042711-105503
15
ForsythD.UyedaS. (1975). On the Relative Importance of the Driving Forces of Plate Motion. Geophys. J. Int.43 (1), 163–200. 10.1111/j.1365-246X.1975.tb00631.x
16
GessmannC.WoodB. (2002). Potassium in the Earth’s Core?Earth Planet. Sci. Lett.200 (1-2), 63–78. 10.1016/S0012-821X(02)00593-9
17
HeflinM. (1994). GNSS Time Series. Available: https://www.frontiersin.org/about/author-guidelines (Accessed May 20, 2021).
18
HerzbergC.CondieK.KorenagaJ. (2010). Thermal History of the Earth and its Petrological Expression. Earth Planet. Sci. Lett.292 (1-2), 79–88. 10.1016/j.epsl.2010.01.022
19
HiroseK.LabrosseS.HernlundJ. (2013). Composition and State of the Core. Annu. Rev. Earth Planet. Sci.41, 657–691. 10.1146/annurev-earth-050212-124007
20
HolmeR.De VironO. (2013). Characterization and Implications of Intradecadal Variations in Length of Day. Nature499 (7457), 202–204. 10.1038/nature12282
21
HuS.HeH.JiJ.LinY.HuiH.AnandM.et al (2021). A Dry Lunar Mantle Reservoir for Young Mare Basalts of Chang'e-5. Nature600, 49–53. 10.1038/s41586-021-04107-9
22
HuangL.-r.MaZ.-j.ZhuJ.-x. (2002). The Newest Observational Evidence on Asymmetrical Deformation of the Earth. Acta Seimol. Sin.15 (2), 210–213. 10.1007/s11589-002-0010-5
23
HyndmanR. (1979). Poisson’s Ratio in the Oceanic Crusta Review. Developments in Geotectonics15, 321–333. 10.1016/B978-0-444-41851-7.50022-4
24
JosiahR. (2010). Distance Calculation Using Haversine Formula. Available: https://www.mathworks.com/matlabcentral/fileexchange/27785-distance-calculation-using-haversine-formula (Accessed August 18, 2021).
25
KanamoriH. (1978). Quantification of Earthquakes. Nature271 (5644), 411–414. 10.1038/271411a0
26
LabrosseS.PoirierJ.-P.Le MouëlJ.-L. (2001). The Age of the Inner Core. Earth Planet. Sci. Lett.190 (3-4), 111–123. 10.1016/S0012-821X(01)00387-9
27
LayT.HernlundJ.BuffettB. A. (2008). Core-mantle Boundary Heat Flow. Nat. Geosci1 (1), 25–32. 10.1038/ngeo.2007.44
28
LiQ.-L.ZhouQ.LiuY.XiaoZ.LinY.LiJ.-H.et al (2021). Two-billion-year-old Volcanism on the Moon from Chang'e-5 Basalts. Nature600, 54–58. 10.1038/s41586-021-04100-2
29
MassonneH.WillnerA.GeryaT. (2007). Densities of Metapelitic Rocks at High to Ultrahigh Pressure Conditions: What Are the Geodynamic Consequences?Earth Planet. Sci. Lett.256 (1-2), 12–27. 10.1016/j.epsl.2007.01.013
30
MurthyV. R.Van WestrenenW.FeiY. (2003). Experimental Evidence that Potassium Is a Substantial Radioactive Heat Source in Planetary Cores. Nature423 (6936), 163–165. 10.1038/nature01560
31
O'ConnellR. J.DziewonskiA. M. (1976). Excitation of the Chandler Wobble by Large Earthquakes. Nature262 (5566), 259–262. 10.1038/262259a0
32
OhtaK.KuwayamaY.HiroseK.ShimizuK.OhishiY. (2016). Experimental Determination of the Electrical Resistivity of Iron at Earth's Core Conditions. Nature534 (7605), 95–98. 10.1038/nature17957
33
OhtaniE.MaedaM. (2001). Density of Basaltic Melt at High Pressure and Stability of the Melt at the Base of the Lower Mantle. Earth Planet. Sci. Lett.193 (1-2), 69–75. 10.1016/S0012-821X(01)00505-2
34
PanB.CuiW. (2010). An Overview of Buckling and Ultimate Strength of Spherical Pressure hull under External Pressure. Mar. Structures23 (3), 227–240. 10.1016/j.marstruc.2010.07.005
35
RychertC. A.ShearerP. M. (2009). A Global View of the Lithosphere-Asthenosphere Boundary. Science324 (5926), 495–498. 10.1126/science.1169754
36
SakamakiT.OhtaniE.UrakawaS.SuzukiA.KatayamaY. (2010). Density of Dry Peridotite Magma at High Pressure Using an X-ray Absorption Method. Am. Mineral.95 (1), 144–147. 10.2138/am.2010.3143
37
SakamakiT.OhtaniE.UrakawaS.SuzukiA.KatayamaY. (2009). Measurement of Hydrous Peridotite Magma Density at High Pressure Using the X-ray Absorption Method. Earth Planet. Sci. Lett.287 (3-4), 293–297. 10.1016/j.epsl.2009.07.030
38
SchultzR. A. (1993). Brittle Strength of Basaltic Rock Masses with Applications to Venus. J. Geophys. Res.98 (E6), 10883–10895. 10.1029/93JE00691
39
ShimadaM.ChoA. (1990). Two Types of Brittle Fracture of Silicate Rocks under Confining Pressure and Their Implications in the Earth's Crust. Tectonophysics175 (1-3), 221–235. 10.1016/0040-1951(90)90139-Y
40
StaceyF. D.LoperD. E. (2007). A Revised Estimate of the Conductivity of Iron alloy at High Pressure and Implications for the Core Energy Balance. Phys. Earth Planet. Interiors161 (1-2), 13–18. 10.1016/j.pepi.2006.12.001
41
StephensonF. R.MorrisonL. V. (1984). Long-term Changes in the Rotation of the Earth : 700 B.C. To A.D. 1980. Phil. Trans. R. Soc. Lond. A.313 (1524), 47–70. 10.1098/rsta.1984.0082
42
SunF.-P.ZhuX.-H.WangR.LiJ.-T. (2006). Detection of Changes of the Earth's Volume and Geometry by Using GPS and VLBI Data. Chin. J. Geophys.49 (4), 900–906. 10.1002/cjg2.910
43
SunW. (2019). The Magma Engine and the Driving Force of Plate Tectonics. Chin. Sci. Bull.64 (28-29), 2988–3006. 10.1360/n972019-00274
44
SuzukiA.OhtaniE. (2003). Density of Peridotite Melts at High Pressure. Phys. Chem. Minerals30 (8), 449–456. 10.1007/s00269-003-0322-6
45
TianH.-C.WangH.ChenY.YangW.ZhouQ.ZhangC.et al (2021). Non-KREEP Origin for Chang'e-5 Basalts in the Procellarum KREEP Terrane. Nature600, 59–63. 10.1038/s41586-021-04119-5
46
van SummerenJ.ConradC. P.Lithgow-BertelloniC. (2012). The Importance of Slab Pull and a Global Asthenosphere to Plate Motions. Geochem. Geophys. Geosyst.13 (2), a–n. 10.1029/2011GC003873
47
WangQ. (2009). Seismic Velocities, Anisotropy, Hysteresis and Poisson's Ratio of Ultrahigh Pressure (UHP) Metamorphic Rocks. Quebec: École Polytechnique de Montréal.
48
WardM. A. (1963). On Detecting Changes in the Earth's Radius. Geophys. J. Int.8 (2), 217–225. 10.1111/j.1365-246X.1963.tb06285.x
49
WhittingtonA. G.HofmeisterA. M.NabelekP. I. (2009). Temperature-dependent thermal Diffusivity of the Earth's Crust and Implications for Magmatism. Nature458 (7236), 319–321. 10.1038/nature07818
50
WilsonB. M. (2007). Igneous Petrogenesis a Global Tectonic Approach. Berlin: Springer Science & Business Media.
51
WuX.CollilieuxX.AltamimiZ.VermeersenB. L. A.GrossR. S.FukumoriI. (2011). Accuracy of the International Terrestrial Reference Frame Origin and Earth Expansion. Geophys. Res. Lett.38 (13), a–n. 10.1029/2011GL047450
52
YangL.FengX.SunY. (2019). Predicting the Young's Modulus of Granites Using the Bayesian Model Selection Approach. Bull. Eng. Geol. Environ.78 (5), 3413–3423. 10.1007/s10064-018-1326-2
53
ZandtG.AmmonC. J. (1995). Continental Crust Composition Constrained by Measurements of Crustal Poisson's Ratio. Nature374 (6518), 152–154. 10.1038/374152a0
54
ZhangY.HouM.LiuG.ZhangC.PrakapenkaV. B.GreenbergE.et al (2020). Reconciliation of Experiments and Theory on Transport Properties of Iron and the Geodynamo. Phys. Rev. Lett.125 (7), 078501. 10.1103/PhysRevLett.125.078501
55
ZhangY.SekineT.HeH.YuY.LiuF.ZhangM. (2014). Shock Compression of Fe-Ni-Si System to 280 GPa: Implications for the Composition of the Earth's Outer Core. Geophys. Res. Lett.41 (13), 4554–4559. 10.1002/2014GL060670
56
ZhuX.SunF.WangR. (2013).Study on the Earth’s Volume Change by Using Space Observed Technology.” in China Satellite Navigation Conference (CSNC) 2013 Proceedings, Wuhan, May 15–17 (Berlin, Heidelberg: Springer), 15–24.
