Stratigraphic Characteristics and Sediment-Filling Process of the Early Permian Fengcheng Formation in the Northwestern Margin of the Junggar Basin, Northwest China
- 1Xinjiang Oilfield Company, PetroChina, Karamay, China
- 2Turpan-Hami Oilfield Company, PetroChina, Hami, China
- 3State Key Laboratory of Oil and Gas Reservoir Geology and Exploitation, Chengdu University of Technology, Chengdu, China
- 4Department of Mineral and Rocks, King Abdul-Aziz University, Jeddah, SaudiArabia
- 5Centre of Exploration Targeting, The University of Western Australia, Crawley, WA, Australia
- 6Research Institute of Petroleum Exploration and Development, PetroChina, Beijing, China
The Permian Fengcheng Formation in the Mahu sag of the Junggar Basin is a crude oil reservoir and source rock. However, its stratigraphic characteristics, the boundary marks of the three members (lower, middle, and upper), and the sediment-filling processes are unclear. This study presents the sedimentary systems and sediment-filling processes in an intracontinental rift basin of this area using sedimentary-faces analysis, sequence stratigraphy, well logs, and two-dimensional seismic interpretations. The results show that the Fengcheng Formation consists of three third-order sequence stratigraphy (SQf1, SQf2, and SQf3). The lowest member of the Fengcheng Formation is composed of gray to dark gray thin middle layers of tuff, lacustrine dolomitic mudstone, and argillaceous dolomite near the depocenter. Tuff, siltstone, a small amount of fan–delta glutenite, volcanic breccia, and basalt are present near the fault zone. The logging curve is characterized by a high gamma-ray (GR) value, high amplitude, wavelength growth, and medium frequency. Near the depocenter, the middle member of the Fengcheng Formation comprises gray and gray–black thin layers of lacustrine muddy dolomite and dolomitic mudstone and thin sandstone and mudstone interbedded between tuff and gravel near the orogenic belt. The logging curve displays high-to-low GR values, high amplitude, short wavelength, and high frequency. The upper member of the Fengcheng Formation is not characterized by lesser tuffaceous and dolomitic components but by an increased fan–delta sandy content. Next, the bottom of the upper member is composed of lacustrine mudstone and siltstone interbedded between dolomitic mudstones; whereas, the top of the upper member is dominated by fan–delta coarse sandstone and sandy conglomerate. The logging curve shows low GR values, small amplitude, and continuous stability. The sediment-filling process of the Fengcheng Formation is controlled by fault activity. Overall, the lower and middle members of the Fengcheng Formation expand during the sediment-filling process of the lake basin of the Mahu sag; whereas, the upper member contracts. The strong uplift of the Horst near the Baiquan and Mahu orogenic belts led to an increase in provenance supply, resulting in a contraction of the southwestern margin of the lake basin during the sedimentation period from lower member to upper member of Fengcheng Formation.
Junggar Basin is a large petroliferous superimposed basin in northwest China (Cao et al., 2006; Jia et al., 2010; Zhang et al., 2010; Zhang et al., 2015; Li, 2022). The Permian delta sandstone, shore–shallow lacustrine, and semideep lacustrine mudstone developed in the Junggar Basin are the most critical reservoirs and source rocks, respectively (Gong et al., 2018; Gong et al., 2020). The volume of Permian oil and gas resources ranks first among all strata in the Junggar Basin. The Mahu sag, in the northwestern margin of the Junggar Basin, is a hydrocarbon-rich sag with the highest organic-matter content (Lei et al., 2014; Fang et al., 2019). The alkaline lacustrine sediments of the early Permian Fengcheng Formation in the Mahu sag are important source rocks for forming Karamay–Wuerhe and Mahu oil fields at the northwestern margin of the basin (Lei et al., 2005; Kuang and Qi, 2006; Zhang, 2013; Ouyang et al., 2018; Li et al., 2020; Tang et al., 2020). A detailed study of oil and gas exploration indicates that the Fengcheng Formation is a high-quality source rock and reservoir, forming conventional structural lithologic and unconventional tight/shale oil reservoirs (Wei et al., 2018; Zhi et al., 2019). Zhi et al. (2021) presented the orderly coexistence and accumulation models for conventional and unconventional hydrocarbons in the Lower Permian Fengcheng Formation. The Fengcheng Formation is divided into three members based on different lithologic assemblages (Cao et al., 2015), the characteristics of the sedimentary environment, and the development of the reservoir, tectonics, volcanism, and genesis of the rock, which are well documented (Xian, 1985; Niu et al., 2009; Liu et al., 2013; Gong et al., 2014). Chen et al. (2010) attempted to establish the sequence-division scheme of the Permian in the Wuxia area, in the northwest margin of the Junggar Basin, using a comprehensive analysis of well-seismic and -framework sequence. However, stratigraphic sequences and sediment-filling processes of the Fengcheng Formation are poorly understood.
The division of these three members is important for accurate stratigraphic correlation and refined exploration. This study presents a detailed stratigraphic framework for the Fengcheng Formation based on core observation, logging curve, and seismic data. The objective of this study is to determine the stratigraphic characteristics and sedimentary-filling process of the early Permian Fengcheng Formation.
2 Geological Setting
The Junggar Basin, located in northern Xinjiang, China (Figure 1A) (He et al., 2004a), is an important part of the Central Asian Orogenic Belt (Shi et al., 2017; Pei et al., 2018; Zhang et al., 2020). It is located at the junction of Kazakhstan, Siberian, and Tarim Blocks (Figure 1B) (He et al., 2018). The basin is a late Paleozoic, Mesozoic, and Cenozoic superimposed basin (Cao et al., 2006; Zhang et al., 2010; Jin., 2011; Lu et al., 2019). The triangular Junggar Basin demonstrates an east–west extension, a width, and an area of ca. 700, 370, and 1.3 × 105 km2, respectively. It is surrounded by the Zaire and Hala’alate mountains to the northwest; the Altai, Qingggelidi, and Kelamaili mountains to the northeast; and the Yilin Block, Biergen, and Bogda mountains to the south (Figure 1C). The Mahu sag is a second-order structural unit in the Junggar Basin, located at the northwest margin of the Junggar Basin (Figure 1C). The Mahu sag is a gentle-slope structure with monocline tilting to the southeast. Kebai (Karamay–Baikouquan) and Wuxia (Wuerhe–Xiazijie) fault zones are the main factors controlling the distribution and variation of the Permian–Triassic stratigraphic units (He et al., 2004b; Yu et al., 2016; Liang et al., 2020). The southeast slope belt of the sag is adjacent to the Shiyingtan uplift, Yingxi sag, Sanquan uplift, Xiayan uplift, and Dabasong uplift, from north to south (Gong et al., 2019) (Figure 1D).
FIGURE 1. Geological background of the study area. (A) the location of the Junggar Basin in China. (B) the location of the study area in the Central Asian orogenic belt. (C) the tectonic unit of Junggar Basin and the location of Mahu sag. (D) Geological background and distribution of drilling and seismic profiles in Mahu sag (modified from Feng et al., 2019; Liang et al., 2020; Tang et al., 2020, Tang et al., 2021a).
Since the late Carboniferous, after the southwestern part of the Central Asian orogenic belt was amalgamated, the Junggar Basin experienced multistage intraplate tectonic deformation (Hendrix et al., 1992; Carroll et al., 1995; Han et al., 2010; Wang et al., 2018). Thus, the Mahu sag has changed from an early Permian syn-rift basin to a middle Permian postrift basin, and the sedimentary range has expanded, ending with the tectonic inversion, from the late Permian to early Triassic (Tang et al., 2020, 2021a, b, c). The basement of the Mahu sag is a late Carboniferous arc-basin system (Li et al., 2016; Tang et al., 2020). The Carboniferous strata are sequentially overlain by the Permian Jiamuhe (P1j), Fengcheng (P1f), Xiazijie (P2x), lower Wuerhe (P2w), upper Wuerhe (P3w), Triassic Baikouquan (T1b), Karamay (T2k), and Baijiantan (T3b) Formations (Figure 2). The maximum thickness of the sedimentary center of the Mahu sag is more than 6,000 m. The Lower Permian Fengcheng Formation is the sedimentary response to the syn-rift II stage (Tang et al., 2021a). From the bottom to the top, the Fengcheng Formation of the Lower Permian can be divided into three members: the lower (P1 f 1), middle (P1 f 2), and upper members (P1 f 3). The P1 f 2 is dominated by mafic-intermediate volcanic rocks, coarse clastic rocks, organic-rich mudstones interbedded with dolomitic mudstones, tuffs, ignimbritic flows, and uniform organic-rich mudstone interval with interbedded tuff (He et al., 2018). The P1 f 2 is characterized by organic-rich mudstones and dolomitic mudstones with turbidite sandstones (Zhang et al., 2018). Next, the P1 f 3 contains mudstones with interbedded dolomitic mudstones in the lower part and terrigenous clastic rocks in the upper part (Cao et al., 2015).

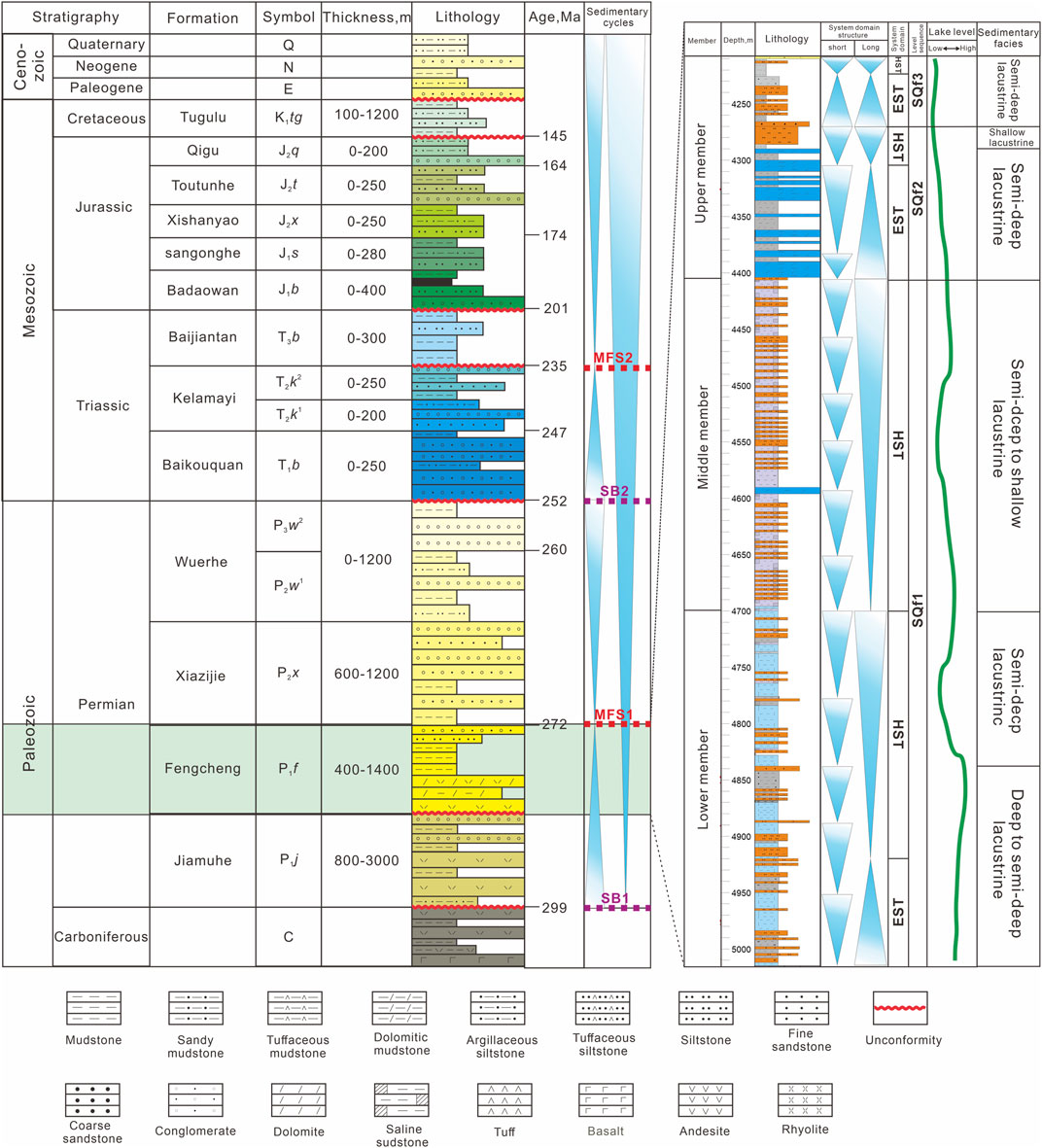

FIGURE 2. Stratigraphic framework of the Paleozoic to Cenozoic in the Mahu sag (right) and lithologic column, sequence, and sedimentary facies of Fengcheng Formation in Fn7 well (left); SB, sequence boundary; MFS, maximum flooding surface (modified from Cao et al., 2015; Liang et al., 2020; Huang et al., 2021).
3 Materials and Methods
Investigation of the sedimentary characteristics, sequence stratigraphy, and filling process of the Fengcheng Formation is based on the analysis of two-dimensional (2D) seismic data, well logging, and core descriptions obtained from the Xinjiang Oil Company, PetroChina (Figure 1D for the location). Moreover, the seismic lines that were studied covered most of the western margin of the Mahu sag. The 2D seismic profiles (SE-trending 110 km and NE-trending 290 km) demonstrated a record length of 7,500-m two–way travel. Therefore, penetration and resolution in all profiles are sufficient to image the Fengcheng Formation, representing our target. In addition, in this study, data from ten boreholes were combined and applied.
Sequence-boundary identification is the first step in the study of sequence stratigraphy (Vail, 1988). The base level is an important basis for forming depositional sequences, and a stratigraphic sequence corresponds to a cycle of change in stacking patterns, recorded as variation in lithological characteristics and logging curves (Catuneanu et al., 2009). In most cases, a single study of the sequence is insufficient for determining the sequence interface. Therefore, critically integrating data from various sources is necessary (Zheng et al., 2000; Zheng et al., 2001). Moreover, unlike subaerial basins, no outcrops are found in the Mahu sag, and the sequence stratigraphic surfaces, such as weathering crusts, cannot be easily observed. Therefore, the stratigraphic sequence framework was determined by tracing and comparing the sequence boundaries based on the variations of logging curves (Van Wagoner et al., 1990; Miller et al., 2013; Zhu et al., 2017; Zou et al., 2020; Zou et al., 2021) and the contact relationships from cuttings and seismic data interpretation. Moreover, sedimentary facies are inferred from the observation of the drill cuttings and interpretation of the logging curves.
4.1 Stratigraphic Correlation
The Fengcheng Formation demonstrates an unconformable contact with the P1j. The P1j is composed of pyroclastic rock, andesite, and sandstone at the bottom and sandstone at the top, respectively (Figure 2). The overlying strata of P1f is the P2x. P1f exhibits an unconformable contact with P2x. Next, the P2x is a set of gray–brown and brown–gray glutenite with a small amount of gray, brown–gray mudstone and sandstone.
The drilling of the Fengcheng Formation is distributed in the western margin of the Mahu sag, including the Xiazijie (wells X76, X88, X77, and X201), Fengcheng (wells Fn7, Fn4, Fn1, and Fn7), Baiquan (Bq1), and Mahu areas (wells B872 and Mh085) (Figure 1D).
The P1 f 1 is composed of a gray, dark gray thin layer of tuff, dolomitic mudstone, and argillaceous dolomite near the sedimentary center; whereas, near the orogenic belt, tuff and siltstone are interbedded between thin layers glutenite, volcanic breccia, and basalt. Moreover, their logging curve shows high natural gamma ray (GR) and amplitude values, wave growth, and medium frequency (Figure 3).

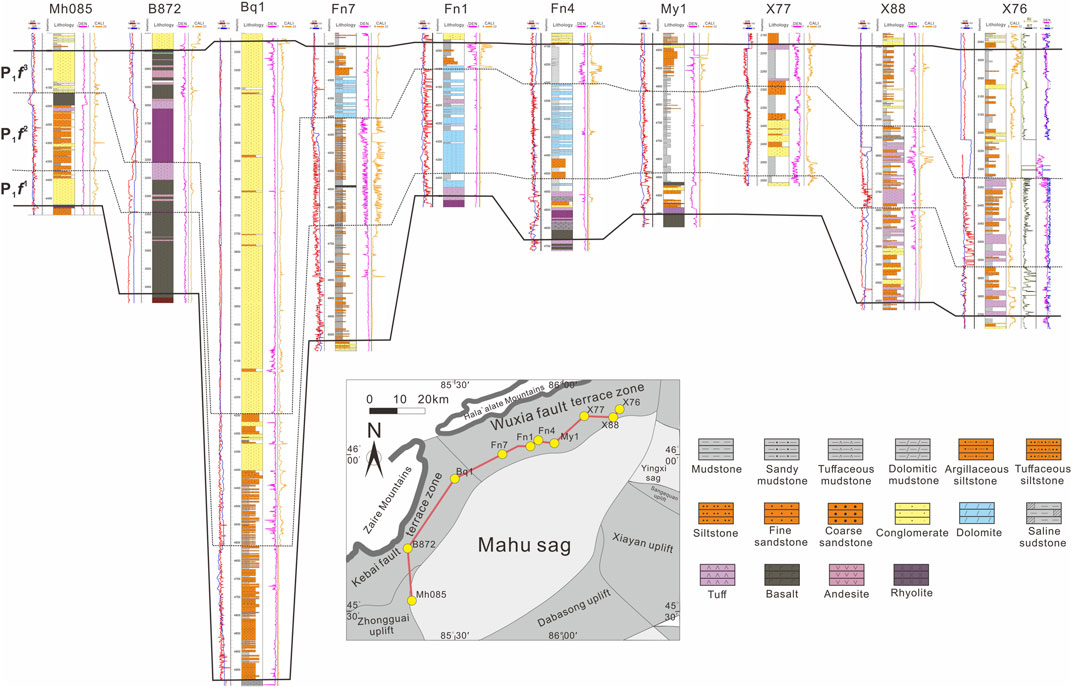

FIGURE 3. Stratigraphic correlation of Lower Permian Fengcheng Formation in the western margin of Mahu sag. Wells X77, x88, and x76 are located in the Xiazijie area; wells My1, Fn4, Fn1, and Fn7 are located in the Fengcheng area; well Bq1 is located in the Baiquan area; wells B872 andMh085 are located in the Mahu area; GR, natural gamma-ray; SP, spontaneous potential; DEN, density; CALI, borehole diameter; RT, true formation resistivity.
The P1 f 2 is composed of deep gray and gray–black thin layers of muddy dolomite and dolomitic mudstone near the sedimentary center. Near the orogenic belt, it contains thin sandstone and mudstone interbedded between tuff and gravel. The logging curve of these rocks displays the following features: high-to-low GR values, high amplitude, short wavelength, and high frequency (Figure 3).
Next, the tuffaceous and dolomitic components of the P1 f 3 decrease; whereas, the sandy content increases. The bottom of the P1 f 3 is composed of mudstone and siltstone interbedded between dolomitic mudstone, whereas, its top is coarse sandstone and sandy conglomerate. The logging curve shows a low GR value, small amplitude, and continuous stability (Figure 3).
4.2 Sedimentary-Facies Analysis
During the sedimentation period of the Fengcheng Formation, the Mahu sag experienced complex tectonic activity, strong volcanic activity, and consequently formed various lithofacies. According to petrological characteristics and sedimentary structure, the sedimentary facies of the Fengcheng Formation are divided into two: lacustrine and fan–continental delta facies. Next, the lacustrine facies can be divided into semideep lake to deep lake and shore–shallow lake subfacies. The fan delta can be divided into fan–delta front subfacies and fan–delta plain subfacies.
4.2.1 Semideep Lake–Deep Lake Subfacies
The main lithofacies of semideep lake–deep lake subfacies are dark gray mudstone, gray–black mudstone, and gray–white dolomitic siltstone (Figures 4A–C). Semideep lake–deep lake subfacies are distributed in the Fengcheng area. Next, fossilized plant leaves can be seen in the dark gray mudstone (Figure 4A). In the F001 well, fissures in dolomitic mudstone are developed, and most of them are invaded by a high concentration of heavy oil (Figure 4B). In Fn1, light and dark dolomitic siltstone and dolomitic strip filling can be seen on the boundary. Moreover, the local light part under the invasion surface denudates the dark part, and the dark part contains more dolomitic lenses (Figure 4D).

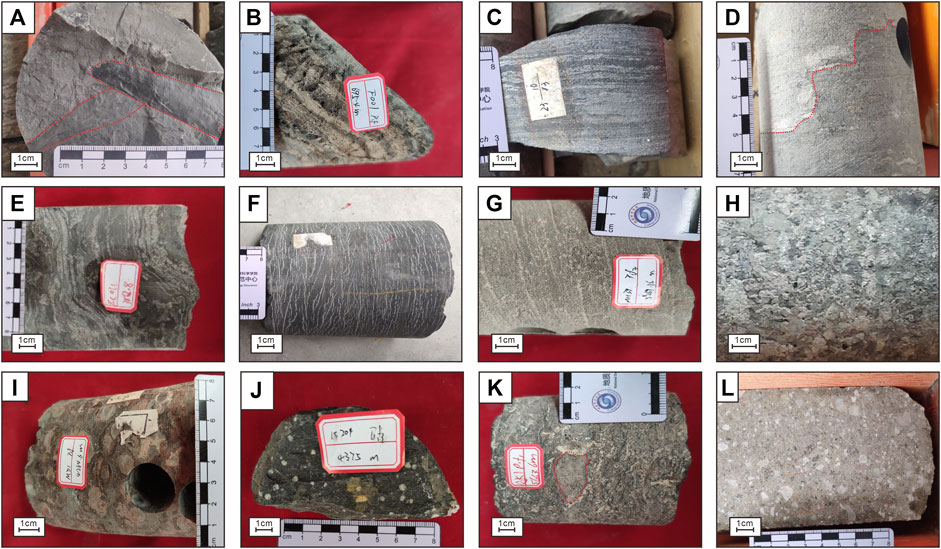

FIGURE 4. Core photos of different lithology of Fengcheng Formation. (A) mudstone, plant leaf fossils can be seen on the cross section, well Mh39 at 5,269.68 m. (B) bituminous dolomitic mudstone with developed fractures and invaded by high concentration heavy oil, well F001 at 696.65 m. (C) fine sandy migmatite with a slightly thicker grain size and thin calcareous layer, well Fn1 at 4,421.85 m. (D) dolomitic siltstone, dolomitic strip filling can be seen on the boundary, local light under-invasion surface denudation dark top, dark part contains more dolomitic lenses, well Fn1 at 4,327 m. (E) dolomitic mudstone, see the crumpled structure. The dolomite is clumpy and irregularly laminated, well Fn011 at 3,862.8 m. (F) Fine sandy migmatite, well Fc011 well at 3,862.8 m. (G) tuffaceous gravel sandstone, well Fc011 well at 3,862.8 m. (H) breccia, well Bq5 at 3,575.4 m. (I) dark gray lava with accretionary volcanic gravel average particle size 1 cm, maximum particle size 2 cm, undeveloped stomata, well Md1 at 4,269 m. (J) basalt, undeveloped pores, and cryptocrystalline structure, well K204 at 4,375.0 m. (K) dolomitic gravel sandstone, coring depth, see the crumpled structure, well Ak1 at 5,666.8 m. (L) tuffaceous volcanic breccia, containing a large number of angular light-colored volcanic debris, well B872 at 3,250 m.
4.2.2 Shore–Shallow Lake Subfacies
The shore–shallow lacustrine subfacies are distributed in most Mahu sag areas. The lithology is gray–white dolomitic mudstone, light gray–green fine sandy mixed rock, and gray–green mudstone. Next, soft-sedimentary deformation and folded structures are found in dolomitic mudstone (Figure 4E). Thin calcareous layers are present in gray–green fine sandy migmatite (Figure 4C). The gray–green mudstone contains several calcareous horizontal layers (Figure 4F). Wave sand ripple bedding, slump deformation structure, and antigrain sequence cycles are common in sand bodies.
4.2.3 Fan–Delta Facies
The fan delta refers to the fan body advancing from the adjacent mountain area to the stable water body, developed near the synsedimentary fault in the margin of the depression. The fan–delta front facies are composed of sandy conglomerate and dolomitic sandstone. The dolomitic sandstone exhibits a crumpled structure. Next, dolomite is clumpy and irregularly laminated. The grinding cycle of gravel is insufficient, and the gravel sorting is medium (Figure 4K). The subfacies rock types of fan–delta plain include fine, massive, and tuffaceous sand conglomerates (Figure 4H).
4.2.4 Volcanic Facies
The volcanic rocks of P1 f 1 and P1 f 2 members are developed in the Mahu sag, containing massive molten gray breccia tuff, basalt, and volcanic breccia. The dark gray lava contains proliferated volcanic gravel, with an average particle size of 1 cm and a maximum particle size of 2 cm, with undeveloped pores (Figure 4I). The basalt demonstrated undeveloped stomata and a cryptocrystalline structure (Figure 4J). The surface section of the core was half-filled with white calcite. Light gray tuffaceous volcanic breccia contains several angular light volcanic debris, demonstrating a matrix-support characteristic (Figure 4L).
4.3 Seismic Interpretation
Sections A and D–G are distributed from northwest to southeast, perpendicular to the extensional direction of the Mahu sag and the strike of the Kebai Fault (Figure 1D). Sections B and C are distributed in the northeast direction (Figure 1D).
The physical characteristics of sandy conglomerate, dolomitic sandstone, dolomitic mudstone, and volcanic rocks in the Fengcheng Formation are different, and they demonstrate apparent reflection characteristics in the seismic profiles (Figure 5). Different sedimentary facies correspond to different lithologic assemblages. Therefore, combined with the logging curve, we identify four kinds of sedimentary facies on the seismic profile (Figure 5). The reflection characteristics of subfacies’ seismic profiles in fan–delta plain are medium and weak amplitude, poor continuity, and disorderly reflection of medium and high frequencies (Figure 5). Next, the fan–delta front facies show low GR value, low true formation resistivity (RT) value, and straight curve in the logging facies. The seismic reflection of fan–delta front facies exhibits strong amplitude, good continuity, and medium- and low-frequency layered reflection (Figure 5). Volcanic rocks show good continuity, strong low-frequency reflection, and significant lateral differences in seismic profile (Figure 5).

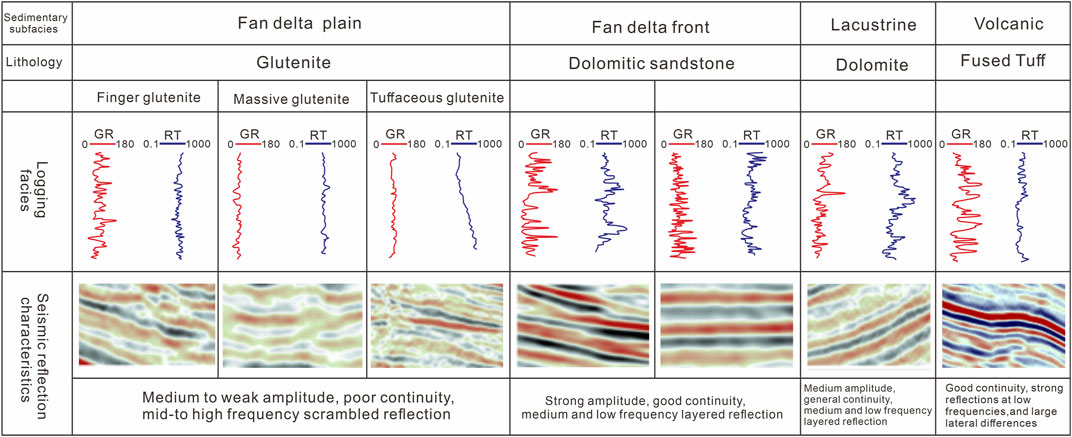

FIGURE 5. Characteristics of lithofacies seismic reflection and logging curve of Fengcheng Formation; GR, natural gamma curve; RT, true formation resistivity.
Next, Section A is located north of the sag, extending from the Wuxia Fault to the entire Mahu sag up to the Xiayan uplift and extending 60 km. This section can identify the Permian strata in the study area and every member of the Fengcheng Formation. Figure 6 shows the whole profile shape of the Fengcheng Formation, which deepens from the orogenic belt to the depression. Moreover, currently, the strata of the Fengcheng Formation are deformed by faults. The three members of the Fengcheng Formation overlap and pinch out layer by layer to the west edge of the lake basin, from top to bottom. The distribution of P1 f 3 is the most extensive, followed by P1 f 2 and P1 f 1, respectively.

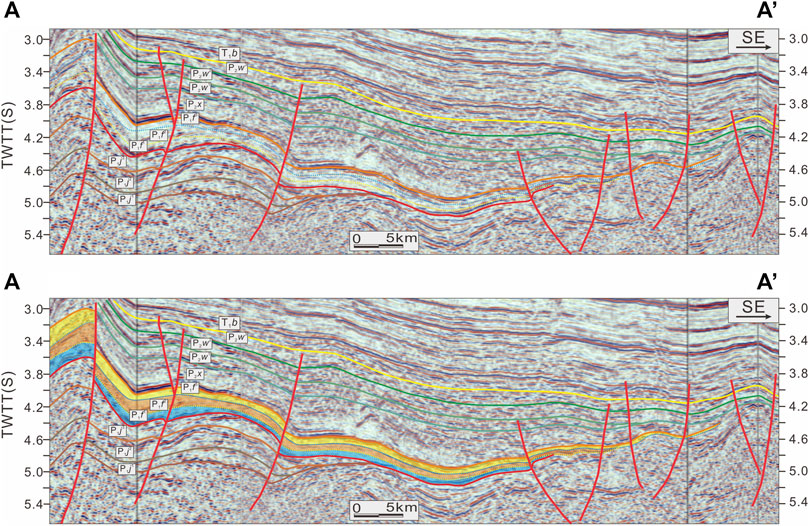

FIGURE 6. Stratigraphic and structural interpretation of the seismic reflection section (A). See Figure 1D for the location.
Section B (Figure 7) extends south to north along the sag’s western margin and extends 80 km. This shows that the Fengcheng Formation in the north of the sag is thicker than that in the south. In addition, it also shows that the thickness of P1 f 2 is more significant than those of P1 f 1 and P1 f 3.

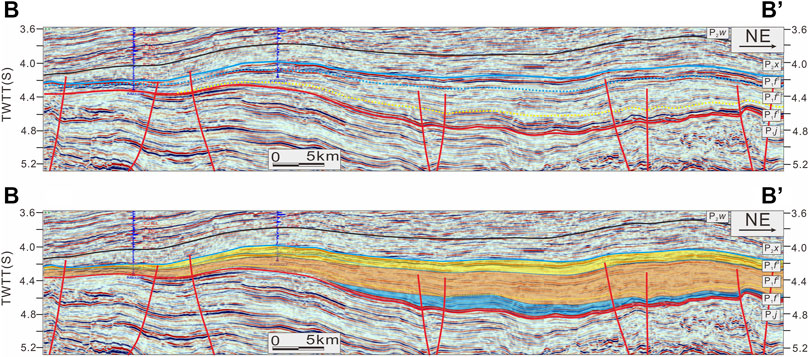

FIGURE 7. Stratigraphic and structural interpretation of the seismic reflection section (B). See Figure 1D for the location.
Next, Section C is located in the Fengcheng area of the sag. Glutenite accumulates near the fault zone, and the range of lacustrine facies decreases from the P1 f 1 to P1 f 3 (Figure 8), showing the process of lake regression.

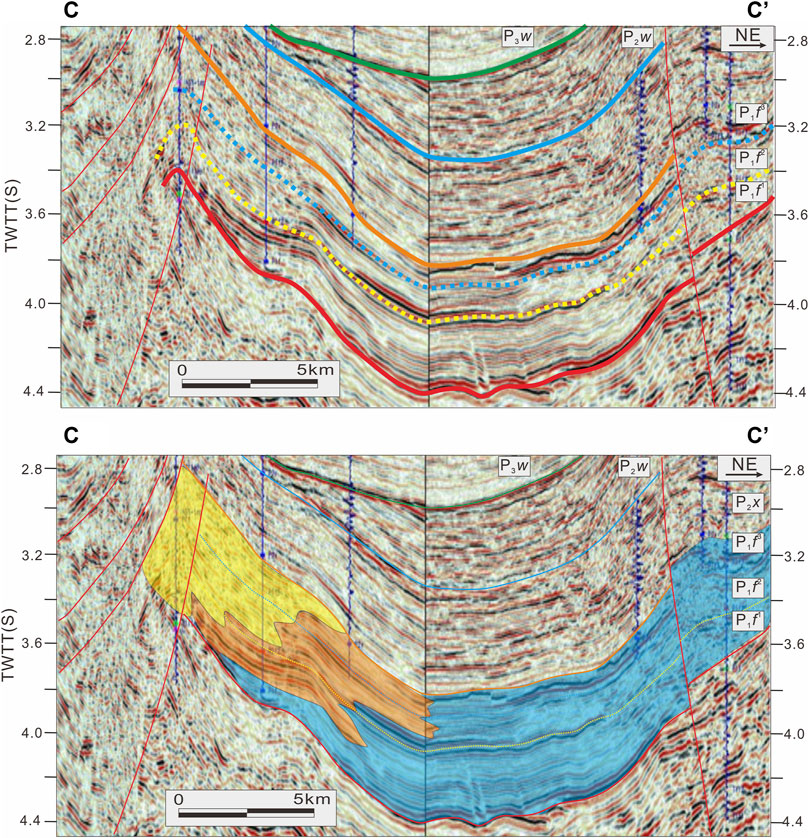

FIGURE 8. Stratigraphic and structural interpretation of the seismic reflection section (C). See Figure 1D for the location. The legend is the same as Figure 9.
Then, Sections D, E, and F are located in the Huangyangquan fan in the central Mahu sag (Figure 1D) and identify the Fengcheng Formation fan–delta inner–front sand conglomerate, fan–delta outer–front sand gravel, and shallow lake–semideep lacustrine dolomitic shale (Figure 9). Section G is located in the south of the sag, which can identify the glutenite in the inner front of the fan delta, glutenite in the outer front of the fan delta, and dolomitic mudstone of the shore–shallow lake (Figure 10). The sedimentary thickness of the south of the sag is thinner than that of the north, and the sand–conglomerate range of the inner front of the fan delta in the P1 f 3 expands in the later stage. In addition, it shows that the outer-front dolomitic sandstone is covered with lacustrine mudstone (Figure 10).

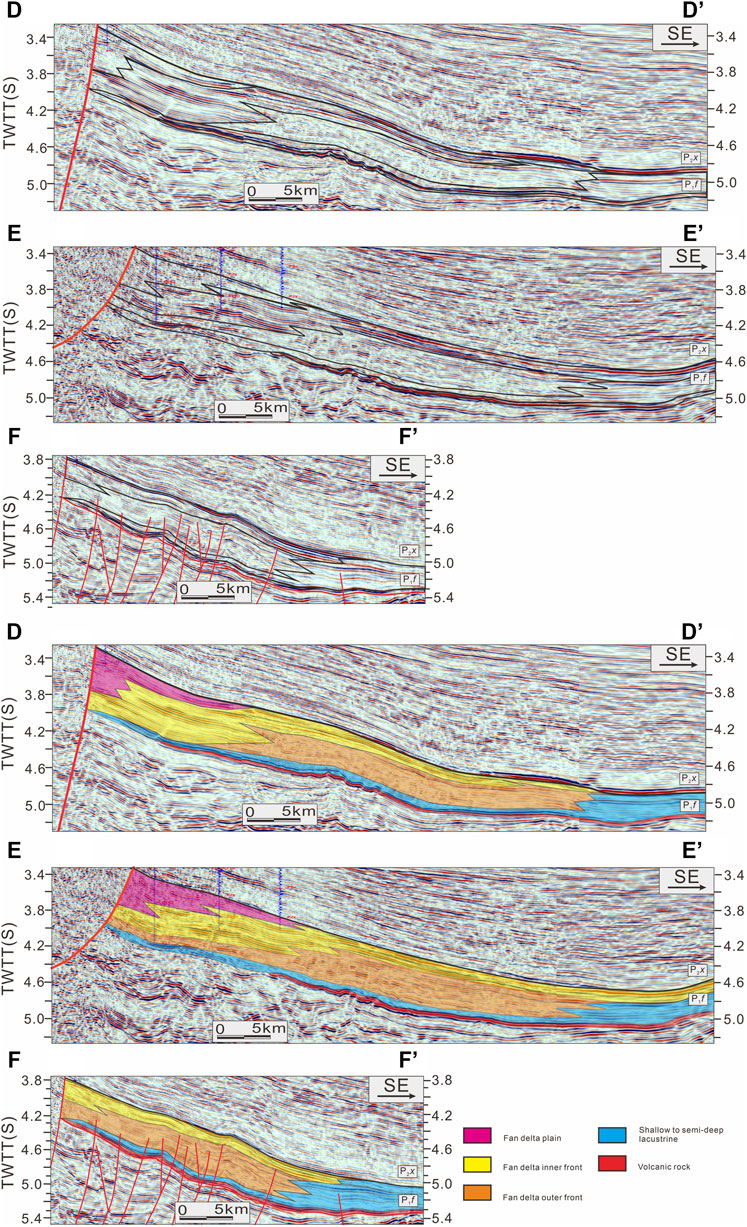

FIGURE 9. Stratigraphic and structural interpretation of the seismic reflection section (D–F). See Figure 1D for the location.

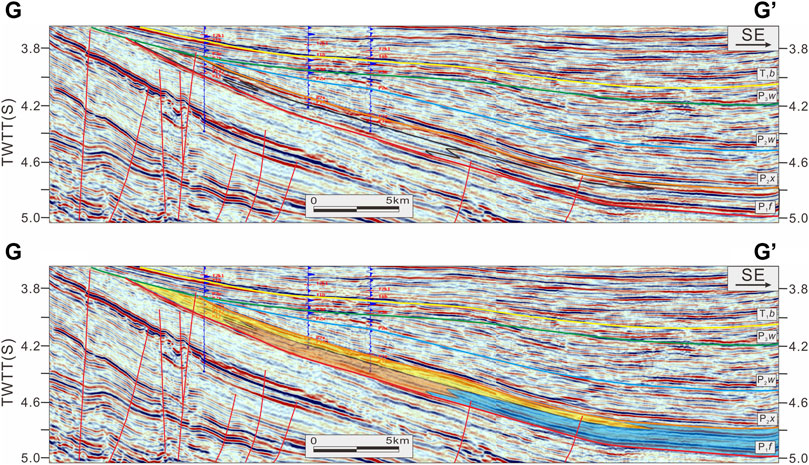

FIGURE 10. Stratigraphic and structural interpretation of the seismic reflection section (G). See Figure 1D for the location. The legend is the same as Figure 9.
4.4 Sequence Stratigraphy
4.4.1 Sequence Boundaries
The sequence boundary is defined by the contact relationship, which is revealed by the core, logging curve, and seismic profiles (Figure 11). Sequence boundary 1 (SB1) is the regional conformity between the P1 f 2 and P1 f 3 members of the Fengcheng Formation (Figure 11). SB1 appears at the bottom of the P1 f 3, where large-scale alkaline evaporates and fan deltas are developed. The overall shape of the basal unconformity SB1 in the seismic profiles indicates a half-graben structure with NE–SW trending master faults (Figure 6). Sequence boundary 2 (SB2) is in the P1 f 3.

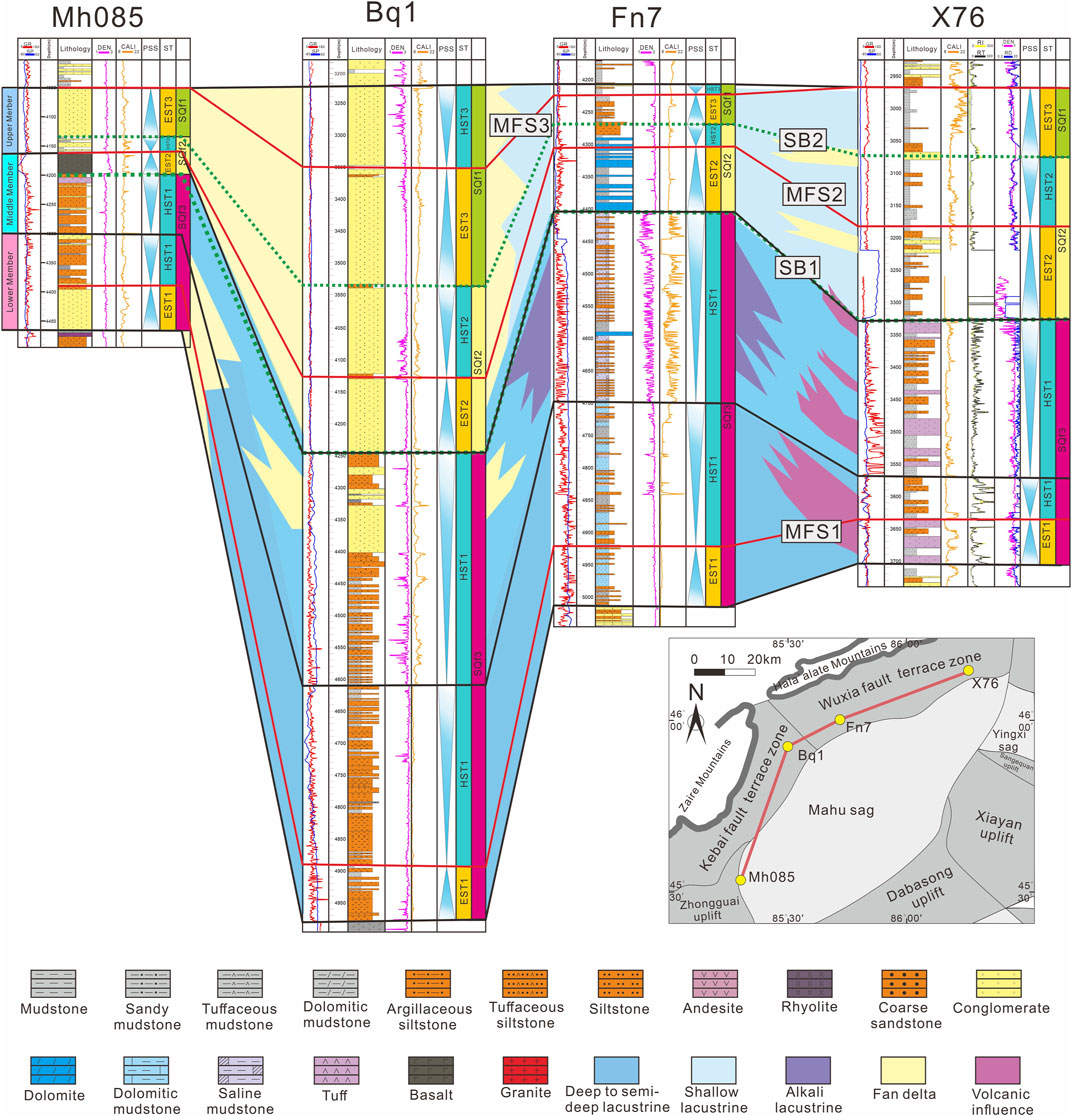

FIGURE 11. The sequence stratigraphic connecting sections of wells X76, Fn7, Bq1, and Mh085 and the location of the well is shown in Figure 1D; PSS, parasequence set; ST, systems tract; EST, expansion system tract; HST, high-stand system tracts.
The maximum flooding surfaces divide a backstepping retrogradational sequence pattern at the base from a progradational sequence pattern at the top (Catuneanu et al., 2009). Three maximum flooding surfaces (MFS) can be traced throughout the area, and they form the upper boundary for the transgressive system tracts (Figures 11–13). MFS is placed at the maximum GR response.

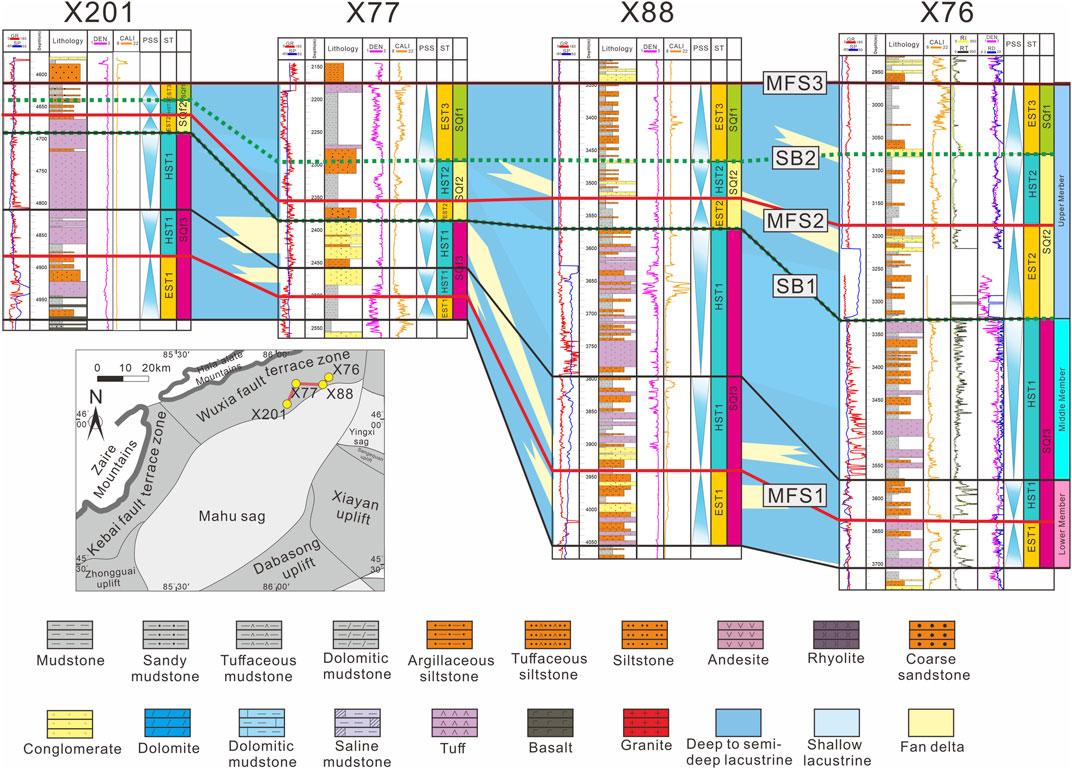

FIGURE 12. The sequence stratigraphic connecting sections of wells X201, X77, X88, and X76 and the location of the wells is shown in Figure 1D.

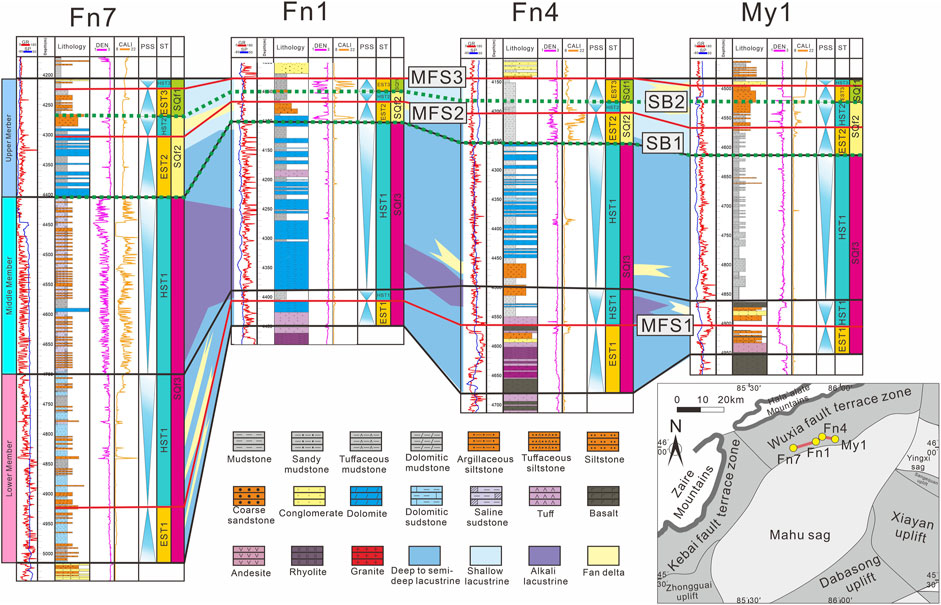

FIGURE 13. The sequence stratigraphic connecting sections of wells Fn7, Fn1, Fn4, and My1 and the location of the wells is shown in Figure 1D.
4.4.2 Sequence Stratigraphy Framework
The SQf1 is further divided into one expansion system tract (EST1) and two high-stand system tracts (HST1). The SQf2 and SQf3 are further divided into an expansion system tract (EST2 and EST3) and a high-stand system tract (HST2 and HST3).
EST1 is bounded above by MFS1. EST2 is bounded above and below by MFS2 and SB1, respectively. EST3 is bounded above and below by MFS3 and SB2, respectively (Figures 11–13). This unit comprises a retrogradational and fining-upward succession. In SQf1, EST1 is deposited in semideep lacustrine facies in the Xiazijie, Fengcheng, and Baiquan areas; whereas, fan–delta front facies are in the Mahu area. Then, SQf2, SQf3, EST2, and EST3 are deposited as shallow lacustrine facies in Xiazijie, Fengcheng and the fan–delta facies in the Mahu and Baiquan areas. The units show lateral thickness variation, with the most significant thickness on the slope of the Fengcheng area.
HST1 is bounded below by MFS1 and above by SB1. HST2 is bounded below by MFS2 and above by SB2. HST3 is bounded below by MFS3 (Figures 11–13). HST1 is progradational, with a coarsening upward trend. In SQf1, HST1 is deposited near the alkaline lake, and more alkaline evaporite is distributed in the Fengcheng and Baiquan areas. The Xiazijie and Mahu areas are dominated by fan–delta front facies deposits. In SQf2 and SQf3, HST2 and HST3 are typical lacustrine deposits in the Fengnan and Xiazijie areas and thick fan–delta plain–facies deposits in the Baiquan and Mahu areas.
5.1 Sedimentary Evolution and Paleogeography
Through complete lithofacies’ description and interpretation, stratigraphic sequence framework, and 2D seismic–reflection profile identification, we draw new lateral and vertical sedimentary-facies evolution maps of P1 f1, P1 f2, and P1 f3 in the Mahu sag (Figure 14). In addition, the potential provenances and transport routes of the Mahu sag were traced through previous provenance studies (Tang et al., 2020). These provide necessary sedimentary face variations for the sedimentary-filling process described in this study.
FIGURE 14. Palaeogeographic evolution of the Fengcheng Formation (modified from Tang et al., 2020). (A) Palaeogeographic evolution of the Lower Member of Fengcheng Formation. (B) Palaeogeographic evolution of the Middle Member of Fengcheng Formation. (C) Palaeogeographic evolution of the Upper Member of Fengcheng Formation.
During the sedimentary period of P1 f in the Xiazijie area, the lithology into pyroclastic deposits. P1 f 1 is composed of tuff, followed by tuffaceous mudstone and siltstone. These sedimentary characteristics indicate that the Xiazijie area was in an evaporated shore–shallow lacustrine environment during the P1 f 1. Next, volcanic activity was reduced as reflected in the decreased amount of tuff. At the beginning of P1 f 2, the sedimentary grain size was reduced, and the content of tuffaceous rocks increased, indicating that the lake level rose, and volcanic activity increased. In P1 f 3, little tuff and more sandy conglomerate is found, indicating that volcanic activity almost stopped, and the fan delta expanded. In the Xiazijie area, the provenance appears to be the Hala’alate mountains and volcanic materials in the Luliang uplift (Lu, 2018).
In the Fengcheng area, the bottom of P1 f1 contains limestone, mudstone, and sandstone, and the top of P1 f1 contains interbedded dolomitic mudstone and sandstone. This reflects that the P1 f1 is a semideep lake–deep lake environment with weak hydrodynamics and weak volcanic activity. In P1 f 2, alkaline lacustrine deposits and salt-bearing mudstones reflect a dry climate, with low-lake levels and high salinity that encouraged the formation of unique alkaline minerals. These alkaline minerals may be affected by deep hydrothermal fluids (Chang et al., 2016; Zhang et al., 2018; Tang et al., 2020). P1 f 3 consists of lacustrine dolomite in the early stage and terrigenous clastic rock in the late stage, reflecting the decrease of lacustrine facies and the development of fan delta. It can be seen from Sections B (Figure 7) and C (Figure 8) that the Fengcheng area is the sedimentation center.
The Baiquan area is close to the Kebai fault zone and is located at the edge of the sedimentary lacustrine basin. P1 f1 is composed of dolomitic sandstone and a small amount of dolomitic mudstone. At the bottom of P1 f 2, interbeds of cloud sand and mudstone are found, and the top is tuffaceous coarse sandstone. P1 f 3 is a thick sandy conglomerate. Therefore, in P1 f 1, the Baikouquan area is shore–shallow lacustrine facies. P1 f 2 volcanic activity developed, and fan deltas began to develop. P1 f 3 fan delta developed further. This is consistent with the change in sedimentary facies interpreted using the seismic profile. In Sections C–G (Figures 8–10), lacustrine deposits are deposited at the bottom of P1 f 1, and a large area of lacustrine facies is transformed into fan–delta front facies within a short time. From P1 f 2 to P1 f 3, the fan–delta outer-front developed into the fan–delta inner front. In P1 f 3, Sections D and E (Figure 9) develop fan–delta plain facies near the fault zone. Moreover, the provenance of the Baiquan area likely originated from the West Junggar block and Zaire mountains.
In the Mahu area, P1 f 1 is deposited in shallow lacustrine facies. The tuffaceous sandy conglomerate is developed during the early stage, and tuffaceous mudstone is developed in a low-energy environment. During the P1 f 2 period, volcanic activity was frequent, and pyroclastic rocks were abundant. Volcanic rocks were developed at the top of P1 f 2 in wells Mh085 (Figure 3). Therefore, the volcanic activity was intense during the deposition of upper P1 f 2. During the deposition of P1 f 3, the volcanic activity ceased, and the lake level dropped. The deposition is characterized by the fan–delta facies. Section G (Figure 10) shows that the sedimentary process of the Mahu area is similar to that of the Baiquan area. Thus, the fan delta was developed in the southern sag during the deposition of P1 f 2 and P1 f 3.
In summary, the P1 f1 deposition center was between the Baiquan and Fengcheng areas, and the lake reached its maximum depth. During this period, volcanic activity was frequent, and volcanic material provided part of the source. The fluvial delta deposits on the eastern slope originated from the Luliang uplift and flew through the river toward the center of the Mahu sag (Tang et al., 2021a). Next, during the deposition of P1 f 2 and P1 f 3, provenance increased in the southern Mahu and Baiquan areas, and fan deltas with a considerable thickness were developed (Figure 11). This provenance may come from the Zaire mountains.
5.2 Sediment-Filling Process and Sedimentary Model
Sections A and B (Figures 6 and 7) reflect the architecture of the Fengcheng Formation in the Mahu sag, which is deposited from the West Junggar terrane to the lake (Figure 1D). The distribution of the Fengcheng Formation in the north is controlled by paleogeomorphology and faults, and the depocenter is in the Fengcheng area of the Mahu sag. Moreover, the east–west seismic profile reveals that the characteristics of multiple half-graben structures in the lower Permian strata are pronounced (Figure 6). Unidirectional and single boundary faults control these structures. Next, the activity of the northwest-trending marginal–fault system in the late Permian led to the tectonic inversion of rift-related depressions in the early Permian (Liang et al., 2020). The half-graben structure and faulting style revealed by the seismic profiles (Figure 6), the paleogeographic reconstruction in the stratigraphic sequence framework (Figure 11), and the identification of soft-sediment deformation structures indicate that the early Permian Mahu sag was a rift basin (Yu et al., 2016; Liang et al., 2020; Tang et al., 2020, Tang et al., 2021a).
Figure 11 shows that P1 f 1 is a set of lacustrine deposits with its depocenter in the Fengcheng area, and only a small part of P1 f 1 was deposited in a fan–delta environment in the southern Mahu sag (Figure 15A). In P1 f 2, the range of the lacustrine facies continues to expand (Figure 15B), and the area of the lake basin reaches the maximum (Figure 11). Tang et al. (2020) proposed that most of the soft-sediment deformation structures in P1 f 2 are caused by frequent earthquakes, indicating basin-bounding normal fault activities in the depocenter, creating maximal accommodation. Next, geochemical data and alkaline minerals show that the P1 f 2 member of the Mahu sag is an alkaline lake basin with high salinity (Gong et al., 2014; Cao et al., 2015; Zhang et al., 2018). At the beginning of the deposition of P1 f 3, the range of lacustrine facies shrinks, and the Xiazijie and Fengcheng areas are shore–shallow lacustrine deposits. The Baiquan and Mahu areas were the fan–delta facies’ deposits, and the lake basin began to shrink (Figure 15C).

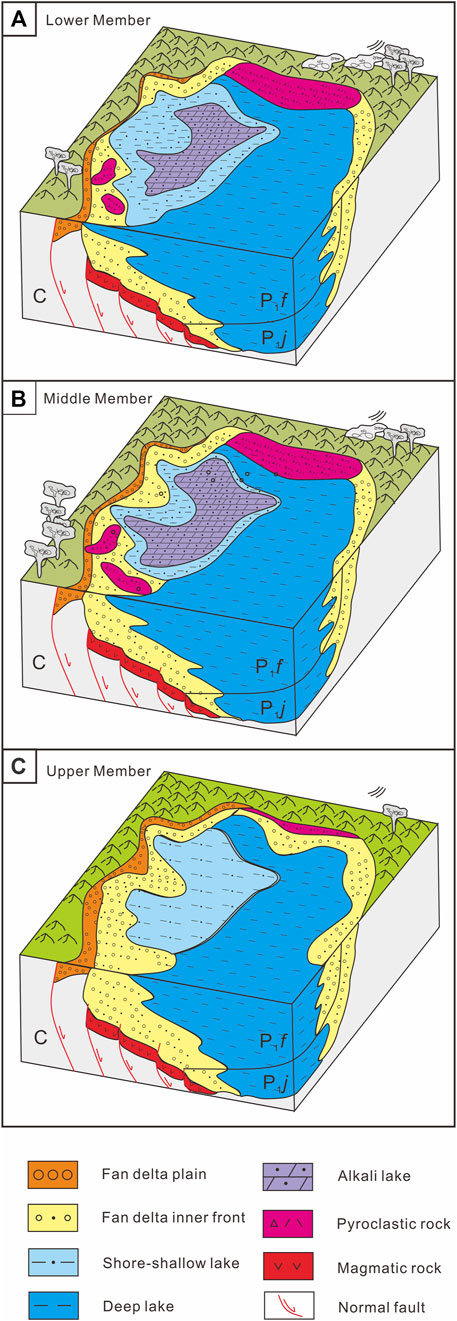

FIGURE 15. (A) Sedimentary-filling model map of the Lower Member of Fengcheng Formation. (B) sedimentary-filling model map of the Middle Member of Fengcheng Formation. (C) sedimentary-filling model map of the Upper Member of Fengcheng Formation.
During the syn-rift stage of a rift basin, due to gravity isostasy, the continuous subsidence of the half-graben will lead to the uplift of the horst, increasing the sedimentary supply from the proximal horst sources (Chao et al., 2021). Based on the detrital zircon U–Pb chronology of the Fengcheng Formation, Tang et al. (2021c) demonstrated a transition from distant axial provenance areas to proximal lateral horsts in West Junggar during the syn-rifting processes in the Mahu sag. Next, Sections C–F (Figures 8 and 9) in the Baikouquan area and Section G (Figure 10) in the Mahu area show different filling processes in the margin of the basin. In the Baiquan area, fan–delta sequences accumulate toward the depocenter in the Mahu sag (Figures 8 and 9). The rock grain size became coarser and evolved from lacustrine facies to fan–delta front facies in P1 f 1 and P1 f 2 and finally to fan–delta plain facies in P1 f 3, suggesting that the rate of sedimentary supply is higher than subsidence, which is consistent with the filling processes in the margin of a rift basin.
Therefore, the sediment-filling process of the Fengcheng Formation is controlled by fault activity. The Fengcheng Formation experienced a lake-basin expansion during the deposition of P1 f 1 and P1 f 2 and a shrinkage stage during the deposition of P1 f 3 (Figure 15).
The Fengcheng Formation consists of three third-order sequence stratigraphy (SQf1, SQf2, and SQf3). The SQf1 is divided into one expansion system tract (EST1) and two high-stand system tracts (HST1). The SQf2 consists of EST2 and HST2. The SQf3 consists of EST3 and HST3. In SQf1, EST1 was deposited in semideep lacustrine facies in the Xiazijie, Fengcheng, and Baiquan areas. Fan–delta front facies are in the Mahu area, HST1 is deposited near the alkaline lake, and more alkaline evaporite is distributed in the Fengcheng and Baiquan areas. The Xiazijie and Mahu areas are dominated by fan–delta front facies deposits. In SQf2 and SQf3, EST2 and EST3 were deposited as shallow lacustrine facies in Xiazijie and Fengcheng and fan–delta facies in the Mahu and Baiquan areas; HST2 and HST3 are typical lacustrine deposits in the Fengcheng and Xiazijie areas and thick fan–delta plain–facies deposits in the Baiquan and Mahu areas.
The deposition center was between the Baiquan and Fengcheng areas. During the sedimentary period of P1 f 1 and P1 f 2, volcanic activity was frequent, and volcanic material provided part of the source. During the deposition of P1 f 2 and P1 f 3, provenance increased in the southern Mahu and Baiquan areas and developed fan delta.
The sedimentary-filling model of the Fengcheng Formation in Mahu sag is controlled by the fault. Next, the lake basin of the Mahu sag experienced a sedimentary-filling process from the expansion of P1 f 1 and P1 f 2 to the contraction of P1 f 3. Sedimentary supply rate at the margin of Mahu sag is higher than subsidence, which is consistent with the filling processes at the margin of a rift basin.
