Assessing named entity recognition by using geoscience domain schemas: the case of mineral systems

Named Entity Recognition (NER) is crucial for accurately extracting and classifying specialized domain terms from textual data. This study introduces the Schema for Mineral Systems (SMS), designed through domain characterization, word disambiguation, taxonomy development, and expert input to refine NER approaches in geosciences. SMS, featuring nine geological and five general entity classes, enhances the precision of term identification in mineral system texts. Utilizing domain-specific dictionaries and schema-linked annotations, the schema facilitates the distinct recognition of unique terms, underscored by iterative expert validation to refine NER accuracy. Applied to iron and lithium deposit corpora in Western Australia, SMS highlights the challenges and effectiveness of context-specific schemas in specialized knowledge extraction and accurate entity recognition within complex domains.

1 Introduction

Named Entity Recognition (NER) has evolved significantly since Grishman and Sundheim, (1996) foundational work, where NER was defined as “the task of identifying and classifying proper names in text into predefined categories,” such as Persons, Organizations, Locations, Dates, and Times. NER’s importance has been recognized in various fields, including geosciences, where it helps in the automatic extraction and classification of geological terminology from unstructured scholarly literature and reports. A critical component of developing NER systems is the use of text corpora—large, structured sets of texts used for linguistic analysis and model training. Corpora provide empirical data essential for refining lexical and grammatical theories, as well as supporting the development of Natural Language Processing (NLP) models (Biber et al., 1998).

In the context of geosciences, the adoption of Information Extraction (IE) technologies has played a vital role in automating knowledge discovery and reducing the need for manual intervention. Angeli et al. (2015) emphasize that IE technologies have been instrumental in extracting valuable information from large datasets, which is particularly relevant for managing the vast amount of unstructured data in the geoscience domain. With the advent of advanced Machine Learning (ML) and NLP techniques, especially with models like BERT (Devlin et al., 2018) and GPT-3 (Brown, 2020), NER tasks have enhanced capabilities in capturing language context and semantics. Building on these technological advancements, it is recognized that specific challenges exist in geological text processing, such as ambiguity and variability in the analysed text (Huber and Klump, 2015; Qiu et al., 2019). Ambiguity can arise from poorly written text or a lack of sufficient context, making it difficult for NER models to capture meaning successfully. Variability relates to subtle but important differences between domains (for example, terms like ‘formation’ or ‘basin’). They recognise the need to develop flexible and scalable models tailored to the unique characteristics of the geoscience domain. To address these challenges, the use of structured frameworks such as ontologies has emerged as a crucial strategy for establishing and defining relationships among concepts within a specific domain. Ontologies like OntoGeonous (Lombardo et al., 2018), GeoCore (Garcia, 2020) and the GeoScience Ontology (GSO) (Brodaric and Richard, 2020) illustrate how these frameworks enable systematic NER and contextual understanding in the field of geosciences. OntoGeonous integrated semantic technologies for geologic mapping across various geological concepts (Mantovani et al., 2020). GeoCore’s structured approach enabled categorization and retrieval of geoscientific information, demonstrating how well-defined ontological frameworks can facilitate semantic consistency across diverse datasets. GSO, developed in Canada, exemplifies a structured representation of key geoscience knowledge through a three-layer framework, enabling comprehensive representation and customization for specific requirements. Despite this advancements, there are downsides in fully capturing the dynamic and complex nature geosciences. For example, Babiae et al. (2023) illustrates in the case of mineral systems that even well-designed ontologies are not suitable for direct application in NER tasks without substantial transformation and adaptation. These ontologies also are not readable accessible for the public research. OntoSimilarly, GeoCore and GSO faced challenges in integrating knowledge with data usage and adapting to emerging terminologies across various geological sub-schemas (cf. sub-disciplines and sub-categories used elsewhere). Problems arise when updating ontologies, as geoscience is constantly evolving. Incorporating new subschemas requires expert validation and periodic revisions to include new interdisciplinary terms that often do not fit into existing categories, complicating integration efforts. Additionally, reliance on foundational frameworks creates difficulties in adapting to new terminology and connecting with other domain-specific ontologies, resulting in a labor-intensive process (Garcia, 2020; Brodaric and Richard, 2020). Addressing these challenges, Qiu et al. (2023) introduced a geological domain ontology with over 50,000 terms across twenty-three sub-categories, representing a significant step forward in enhancing NER in geosciences. Their research classifies geological entities into six main types, including geological time and structures, facilitating systematic labeling of academic literature in Chinese language.

Schemas form the core structure of these ontologies enabling the organization of data, the definition of relationships between words, and the recognition of domain-specific terminology. The development of effective schemas for NER in geosciences has been highlighted by Ma (2022) and further explored by Wang et al. (2022) who discussed the use of schemas in structuring geoscientific data, stressing the importance of having clear objectives and focused classification types relevant to the field. Despite these advancements, a significant challenge in achieving optimal NER precision in geosciences, is the need for large annotated corpora verified and validated by experts (Villacorta et al., 2024).

Geoscience-specific controlled vocabularies, hosted by commissions and national or state surveys, exist for many concepts, such as stratigraphic rank (Cox and Richards, 2015) and lithology, further supporting the organization and standardization of geoscientific data. These controlled vocabularies provide an ontological framework emphasizing the importance of clarity and consistency in communication within specialized topics like mineral exploration (Lindsay et al., 2024), further illustrating the need for domain-specific tools and frameworks in NER tasks.

While significant progress has been made in NER for geosciences, comprehensive, ontology-driven approaches remain a critical challenge. Such approaches are essential for enhancing the capabilities of automated annotation systems and for effectively exploring the intricate relationships between geological entities. To contribute to addressing this challenge, building geological knowledge graphs offers a new approach to structuring complex geoscience texts and provides a practical visual analysis of the insights from geoscience papers (Zhou et al., 2021). Addressing these gaps offers an opportunity to broaden the scope of NER research to encompass a wider variety of entities and relationships, thereby increasing its relevance and applicability to geoscience research and exploration.

This study aims to contribute to these ongoing efforts on improving NER by analyzing the use of specialized geological schemas tailored for this field. Building on prior research in corpora creation, this research explores avenues for achieving a semantic understanding of geoscientific language. Specifically, our research focuses on the development and application of three distinct geological schemas: OzRock, GeoIElite_rev, and SMS, applied to corpora concerning iron and lithium mineral deposits in Western Australia. This approach exemplifies ML applications in geological contexts and contributes to the understanding and processing of geoscientific language, targeting a notably underexplored area in geosciences. The primary objectives are to enhance geoscientific data processing and knowledge representation, thereby optimizing the extraction of information from geoscientific texts. Such improvements are crucial for facilitating more efficient knowledge discovery and data management within the field.

In the following sections of this article, we will show that assessing NER in the geoscience domain enables more reliable results consistent with geological reasoning. Accordingly, adhering to the methodologies outlined in this paper provides a practical approach to assess the effectiveness of NER in this intricate field.

2 Methodology

This section outlines the creation of a domain-specific schema, emphasizing its key role in enhancing NER and classification. Developing such a schema is connected to addressing specific research questions for understanding complex domain issues, and schemas are more effective when they are aligned with the domain’s processes and when they can capture lexical entities and their semantic relationships. In response to the identified gaps within existing ontological frameworks as discussed in the introduction, we are including the process of adapting these frameworks into a functional schema tailored specifically for the NER system for this paper. This adaptation involved customization to align vocabularies with the unique lexical and semantic challenges presented by texts on mineral systems, ensuring the final schema could effectively support entity recognition and classification. The exploration of the OntoLex-Lemon model—the primary mechanism for representing lexical data on the Semantic Web, demonstrates how detailed semantic relationships, context-specific usage, and multilingual representation can be effectively captured (McCrae et al., 2017). This model defines lexical concepts with metadata about usage contexts, capturing nuanced differences in word usage across domains and languages, including specialized terms. Through two use cases, representing multilingual dictionaries and the WordNet Collaborative Interlingual Index, McCrae et al. (2017) illustrate how the model addresses complex linguistic structures and domain-specific terminology. Such a semantic approach when designing the ontological framework is reinforced by Bikaun et al. (2024) who developed a schema for the maintenance domain. It focuses on maintenance work, order texts generated by technicians during engineering tasks, primarily describing equipment conditions. Their schema is structured around critical questions, such as ‘who is performing what action on what component, and why?’ For instance, ‘who?’ refers to a technician, ‘what action?’ could be ‘replacing,’ ‘what component?’ could be ‘a broken alternator bolt,’ and ‘why?’ would be ‘due to failure.’ By organizing the schema around these questions, Bikaun et al. (2024) emphasize the importance of a question-driven design in improving information extraction and knowledge representation. This approach ensures technical robustness and relevance to research objectives, leading to more precise and meaningful entity recognition outcomes while avoiding the ambiguity that arises from non-specific constraints, such as excessive class options that confuse AI systems when selecting the correct class in a given context.

2.1 Steps to create a schema in a specialized domain

Adhering to the methodology proposed by Lamparter et al. (2004) and incorporating the insights provided by Qiu et al. (2023), the procedure entails the following stages:

• Domain Characterization: This involves identifying and defining the scope and relevant concepts within the specific domain to ensure comprehensive coverage and precision in entity recognition. Collaboration with domain experts to capture the intricacies of the selected field and create annotation guidelines and a domain ontology are considered.

• Word Disambiguation: This step is crucial for distinguishing between multiple meanings of terms, which is common in technical fields like geoscience. It involves deciding the most appropriate meanings and improving clarity in entity recognition to ensure that the schema accurately reflects the intended connotation of terms. This potentially reduces ambiguity and enhances precision in domain-specific entity classification.

• Taxonomy Creation: Develop a hierarchical organization by identifying and structuring the domain’s classes, entities, and relations. This taxonomy forms the backbone of the schema, facilitating systematic classification and information retrieval (Figure 1). It requires defining parent-child relationships, attribute hierarchies, and cross-references among entities. The taxonomy should be flexible enough to accommodate new findings and scalable to manage large datasets. Tools like ontology editors can assist in visualizing and managing this complex structure.

• Identification of Other Relations: Beyond hierarchical classifications, capturing complex interactions within the analysed data is essential for accurately representing the nuances of geological information. This step involves identifying and defining relational attributes that illustrate how different entities interact or influence one another, including temporal relationships, spatial dependencies, and causal links. These relations enrich the schema, allowing for more dynamic querying and analysis of geoscientific data. The approach of Qiu et al. (2023) in leveraging a knowledge graph to capture these intricate relationships can serve as a model for this process.

Figure 1

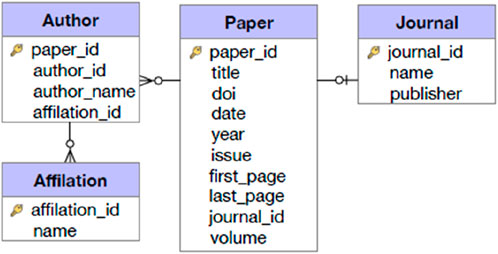

Figure 1. Typical academic papers database schema (from Guo et al., 2024).

2.2 Tools and libraries

The following tools are common in these kinds of applications:

• NLTK (Natural Language Toolkit): This library is used for text tokenization, particularly for breaking down the extracted text from PDF documents into individual sentences (Loper and Bird, 2002). It is widely recognized for its extensive collection of text-processing libraries suitable for tokenization, parsing, and classification tasks.

• Pdfplumber and Pdfminer: These libraries are employed to extract text from PDF files. pdfplumber (Singer-Vine, 2020) offers robust capabilities for extracting text, tables, and other data from PDFs, while pdfminer (Shinyama and Guglielmetti, 2014) handles exceptions related to PDF parsing errors.

• Flair: This library is popular for its good performance when training and applying the NER model for specialized domains (Akbik et al., 2019). Flair provides a simple interface for training and applying state-of-the-art sequence taggers, such as NER models.

• Pandas: A data manipulation and analysis library used here to load and handle annotated datasets from CSV files (McKinney, 2010). Pandas is essential for managing and preprocessing structured data efficiently.

• Scikit-learn: This library provides ML and statistical modelling tools, including the confusion_matrix and classification_report functions used to evaluate the NER model’s performance (Pedregosa et al., 2011). These functions are fundamental for generating performance metrics that offer insights into the model’s accuracy and error rates.

• Matplotlib and Seaborn: These libraries are utilized for data visualization, specifically for plotting the confusion matrix. Matplotlib is a versatile plotting library, while Seaborn builds on Matplotlib by providing an interface for creating informative statistical graphics.

2.3 Validation and performance evaluation

The validation process evaluates the suitability of schemas when combined with the NER model for recognizing and classifying specific domain entities. This aims to assess NER model performance and identify areas for improvement. It also helps to identify common misclassifications of the NER algorithm and understand the underlying reasons for these errors. Key steps of this process are:

• Annotation and Benchmarking: These involve manually annotated benchmark datasets. These datasets contain specific-domain entities that experts annotate (verify) for correct classification using the selected schema. They serve as a reference for evaluating the performance of the NER models.

• Evaluation Using Confusion Matrices: The model’s predictions must be compared to the benchmark dataset to visualize the correspondence between the NER model’s predictions and the verified dataset categories. The visual representation helps identify areas where the model performed well and struggled when classifying entities. Darker diagonal cells in the matrices indicate correct predictions, while lighter, non-diagonal cells highlighted misclassifications.

• Weighted F1 score: This is an evaluation metric that combines precision and recall assessing the performance of NER systems, especially in scenarios where class distribution may be uneven or complex (Tjong Kim Sang and De Meulder, 2003). Unlike the standard F1 score, the weighted F1 score calculates the F1 score for each class and then takes a weighted average based on the number of instances of each class. This ensures that the score reflects the model’s performance across all entity classes, not just the most frequent ones.

2.4 Script pipeline

The application starts by converting PDF documents into corpora and then applies a pre-trained NER model to finalize evaluating its performance using a confusion matrix and classification report. It includes the following parts (Figure 2):

• Pre-processing: The script begins by extracting text from PDF files located in a specified directory on the virtual environment (workspace). The pdfplumber library is used to open and read the text from each PDF. The text is then tokenized into sentences using nltk.sent_tokenize, which facilitates subsequent processing by the NER model. This step converts the raw textual data into a format the model can process (Villacorta and Lindsay, 2023).

• NER: A pre-trained NER model (best-model.pt), previously obtained using an annotated dataset on a domain-specific corpus, is loaded using the Flair library to recognize entities relevant to the geosciences.

• Sentence Extraction: Sentences are extracted from the PDF files stored in the workspace for further processing. Using pandas, an annotated dataset (validated by experts) containing manually labelled sentences is loaded from a CSV file. These annotations serve as a benchmark for evaluating the model’s predictions.

• Entity Classification: The NER model is applied to each sentence from the annotated dataset. The model identify terms and assigns entity labels for each sentence.

• Evaluation: The evaluate function compares the previously identified entity labels to the true labels in the annotated dataset. It calculates and prints a classification report, which includes precision, recall, and F1-scores for each entity class. A confusion matrix is also generated to visually represent the model’s performance. This step is essential for assessing the model’s accuracy.

Figure 2

Figure 2. Pipeline of the NER process.

3 Case study: comparing the efficacy of the NER Flair model using geological schemas and geoscience papers on iron and lithium deposits in Australia

This section outlines the creation of the Schema for Mineral System (SMS), designed from a controlled vocabulary for mineral exploration. This schema incorporates the critical components of mineral systems unifying cross-discipline geoscientific concepts to capture various physical processes and spatial-temporal elements associated with the formation of economically viable mineral resources (Lindsay et al., 2024). By using SMS we illustrate the benefits of domain-specific ontological approaches and ML tools for entity recognition and classification of complex terminology. In this study, we use the SMS to structure corpora derived from academic literature related to iron and lithium deposits and to assess the NER of mineral systems terminology. Following the method explained in Section 2, while any kind of question can guide schema development, they need to specifically focus on the ‘what’, ‘how’, ‘when’, or ‘why’ of geological processes and phenomena, rather than broad, no-process-oriented questions. For example, general ‘who’ questions are not relevant here, as our schema is centered on natural processes rather than human actions. Considering that, three specific questions were selected to benchmark our schema design and evaluate its effectiveness in capturing relevant terminology (geological entities) in the context of the mineral deposits we have chosen:

• “What are the important tectonic processes for lithium-bearing deposits?”;

• “What are the important structures for iron deposits in Western Australia?”;

• “What are the important mineralogical associations for iron and lithium deposits in Australia?”

These questions, serving as benchmarks rather than research inquiries, set specific objectives for the schema. By assessing how accurate the schema identifies and classifies terms related to these questions, we can have an approximation on its ability to cover essential terminology (critical geological concepts relevant to mineral systems), as well as the contextually appropriateness of the selected entity classes.

The tools summarized on Section 2.2 were integrated into the EASI Hub high-performance cluster (Woodcock et al., 2018), which has a Tesla V100 GPU, a high-performance processor designed specifically for deep learning and parallel computing tasks. The complete script with usage instructions is included in Supplementary Appendix 1.

3.1 Training of the Flair NER model

In this study, Flair was employed to read geological corpora using three geological schemas: OzRock (Enkhsaikhan, 2021), GeoIElite_rev (Villacorta et al., 2024), and SMS. Flair’s effectiveness in domain-specific applications is well-documented across diverse fields such as the biomedical sector for extracting entities like diseases and genes (Patel, 2020), the legal field for identifying statutes and case law (Mathis, 2022), and the business sector for recognizing financial entities like organizations and currencies (Bhattacharya, 2023). The training process involved fine-tuning the Flair NER model on annotated datasets associated with OzRock, GeoIElite_rev and SMS. Each of these schemas was selected for its characteristics wich make them adequate within geoscientific text processing. OzRock offers a comprehensive overview of general geological entity classes and serves as the baseline for understanding common geological terms and categories relevant to mineral exploration (Enkhsaikhan, 2021). GeoIElite_rev was developed to delve deeper into specialized geological entity classes and focuses on processing academic papers concerning iron deposits in Western Australia. It enhances the granularity of geological classifications beyond the foundational OzRock. Complementing these, the SMS schema was developed by the research group involved on writing this paper to address the most complex and nuanced aspects of geoscientific terminology, particularly those associated with mineral systems. The training process involved fine-tuning the Flair NER model on annotated datasets corresponding to these schemas.

3.1.1 Datasets

- Iron and lithium deposits in Western Australia hold considerable economic and environmental importance, influencing global markets, particularly in steel production and battery manufacturing domestically and internationally (Angerer et al., 2015; Perring et al., 2020; Greim et al., 2020). Western Australia’s geological setting and tectonic development are prospective for these deposits and thus worthwhile for scientific investigation. This study explores academic literature about these deposits within the framework described here using three geoscience schemas: OzRock, GeoIElite_rev, and SMS.

- OzRock (Enkhsaikhan, 2021) was generated from a corpus of hundreds of documents and is focused on mineral exploration. In this dataset, the geological entities are categorised into six types (Table 1). For our research, the OzRock Evaluation set, the annotations based on which comprise 83,838 sentences and 3,238 entities, was utilized as a schema to train Flair NER to produce a customized NER model for the geoscience domain. This model enabled recognition of geological classes from the explored geoscience papers related to iron and lithium deposits. This dataset, publicly available on GitHub (https://github.com/majiga/OzROCK), was already annotated by domain experts, allowing us to utilize it directly for model training without additional annotation. The wide coverage and extensive representation of general geological entities provided a robust base for the model to learn from well-defined classes.

- GeoIElite_rev (Villacorta et al., 2024) was developed to compare other geological classes with those included in OzRock. It was constructed from concepts detailed in 20 PDF papers focused on iron deposits (list of papers in Supplementary Appendix 2). This dataset encompasses eighteen distinct entity classes (Table 2) and required manual annotation to ensure its entity classes were appropriately applied to this project. The annotation count for GeoIElite_rev includes 5,400 sentences and 5,028 entities.

- SMS: The Schema for Mineral System (SMS) was developed to evaluate NER within the domain of mineral systems literature. Following the steps indicated in Section 2, the SMS schema was defined collaboratively with geoscientists, and defines complex mineral systems terminology through literature review. Critical entities and relationships were identified, and a hierarchical taxonomy was created to organize the schema’s 14 classes (Table 3), providing flexibility to accommodate updates for large datasets. After several discussions, subject matter experts selected nine from the twenty-four geological classes defined to be part of this schema. These include the specific terminology associated with the selected questions considered as relevant. Additionally and following the methodology outlined by Ding et al. (2021), specific categories such as Country, Province/State, and City were consolidated into a single class, GPE (Geopolitical Entity), to address context-based ambiguities. Additionally, general domain classes, such as Person-Scholar (PS), were included to capture mentions to researchers (for example, geologists, biologists, and palaeontologists) and ensure the semantics are understandable to the machine. Similarly to the case of GeoIElite, this dataset required manual annotation to ensure it was appropriately applied this project. The annotations count is 910 sentences and 832 entities.

Table 1

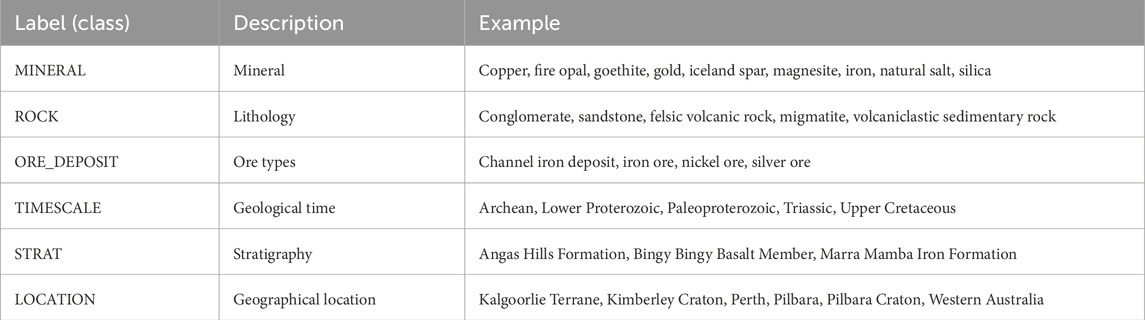

Table 1. Description of OzRock entity types (Enkhsaikhan (2021).

Table 2

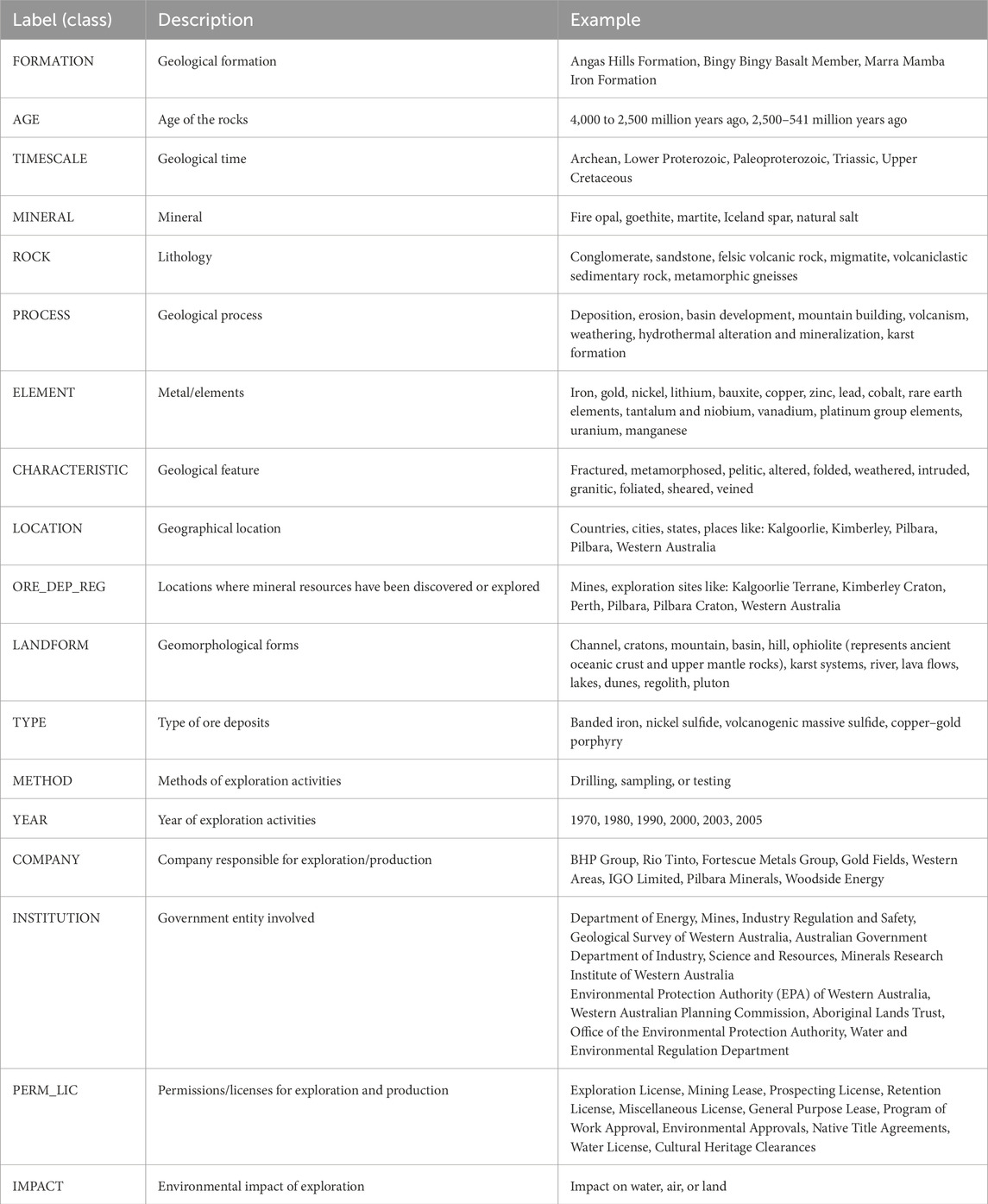

Table 2. Description of GeoIElite_Rev entity types (Villacorta et al., 2024).

Table 3

Table 3. Description of SMS entity types.

3.1.2 Training process

The training process involved fine-tuning the Flair NER model individually for each geological schema resulting in three distinct best-model.pt files, each tailored to its specific entity classes. For each schema, the model was loaded and fine tuned on its respective annotated dataset, integrating each schema’s structured vocabulary to specialize in recognizing terms relevant to each schema. For instance, the SMS schema emphasized classes like TECTONIC_SETTING, critical for analyzing mineral systems, while the OzRock schema covered broader geological categories like MINERAL and ROCK. This structured approach enabled the model to differentiate and contextualize geological terms according to each schema’s focus, ensuring tailored recognition capabilities across the three different geological datasets.

3.2 Validation and performance evaluation

The validation process for the geological schemas used in this project involved testing the Flair NER model on our annotated datasets. These annotations were performed by subject matter experts consisting of the co-authors of this paper along with additional colleagues from CSIRO Minerals Resources. Their expertise delivered a rich depth of knowledge necessary for accurately tagging geological entities in the corpora.

The methodology for annotation was jointly developed by the authors of this paper. Given the logistical challenges of working in different locations and the limitations of open-access annotation tools, which were not suitable for handling large corpora, we as annotators, opted for a more flexible approach. Annotations were made directly within online Google Sheets documents, which facilitated easy access editing. This approach allowed for real-time collaboration, ensuring all annotators could participate effectively despite geographical disparities.

The expert-validated annotations and the Flair NER model’s predicted classifications were continuously compared using the collaborative Google Sheets documents as online platform. This setup ensured a dynamic and responsive validation process, allowing for immediate expert inputs and adjustments.

To visually represent the accuracy of classifications, confusion matrices were generated. These matrices showcased the alignment between the model’s predictions and the expert-validated categories, highlighting any discrepancies and common misclassifications. The evaluation also included calculating weighted F1 scores, providing a detailed measure of the model’s precision and recall, particularly for handling the diverse and occasionally rare classes within the SMS schema. This metric was crucial for assessing the nuanced performance of the NER system across different geological terminologies.

4 Results

The comparison of F1 scores across the OzRock, GeoIElite_rev, and SMS schemas reveal significant variations in performance (Figures 3–8). Figures 3, 5, 7 present Flair NER confusion matrices and F1 scores for the three geoscience schemas applied to iron deposit literature. These matrices utilize a blue palette to indicate the count of predictions made by the model, with darker shades of blue representing higher frequencies of classifications within each category. Similarly, Figures 4, 6, 8 use the same visual representation for the analysis of lithium deposit research papers. The following results provide insights into the strengths and limitations of each schema and highlight areas for further enhancement. Previous research (Villacorta et al., 2024) indicated that increasing the number of papers does not improve the F1 score. Hence, we compared schemas based on different class types and numbers. Note in the figures that an ‘O’ was used to indicate tokens that do not belong to any entity like “by” or “and”.

Figure 3

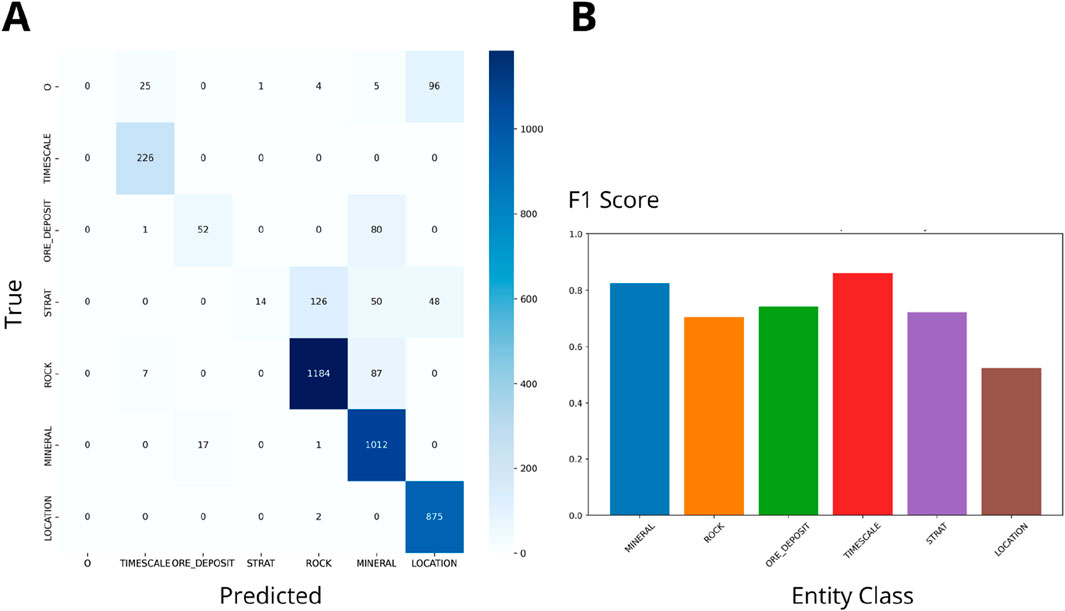

Figure 3. (A) Ozrock Confusion matrix (Wgt F1: 0.72). (B) F1 scores for NER on Iron Deposits Datasets by class.

Figure 4

Figure 4. (A) Ozrock Confusion matrix (Wgt F1: 0.71). (B) F1 scores for NER on Lithium Deposits Datasets by class.

Figure 5

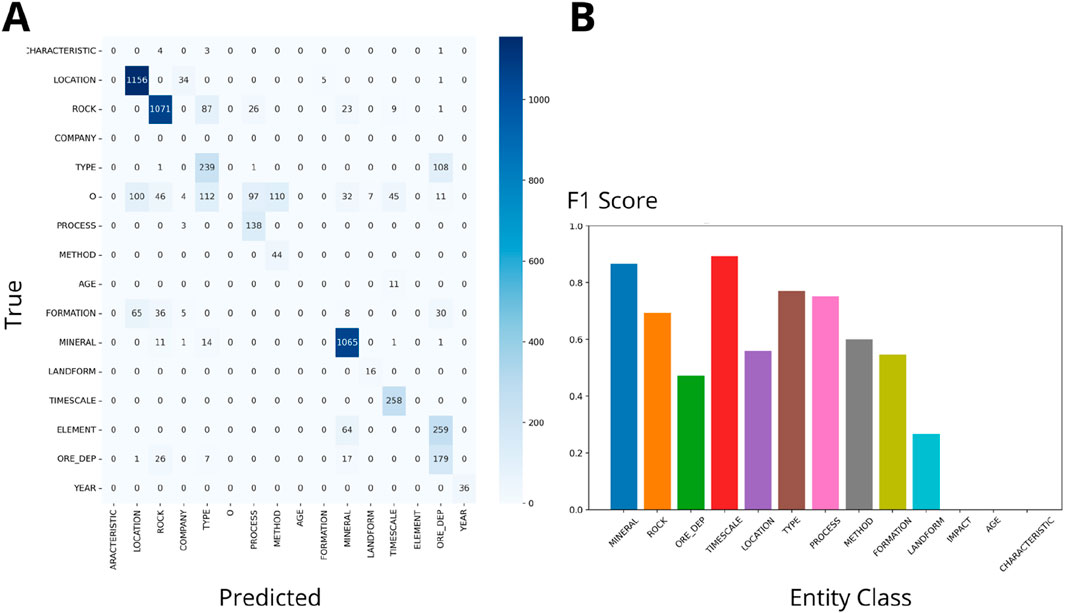

Figure 5. (A) GeoIElite_rev Confusion matrix (Wgt F1: 0.69). (B) F1 scores for NER on Iron Deposits Datasets by class.

Figure 6

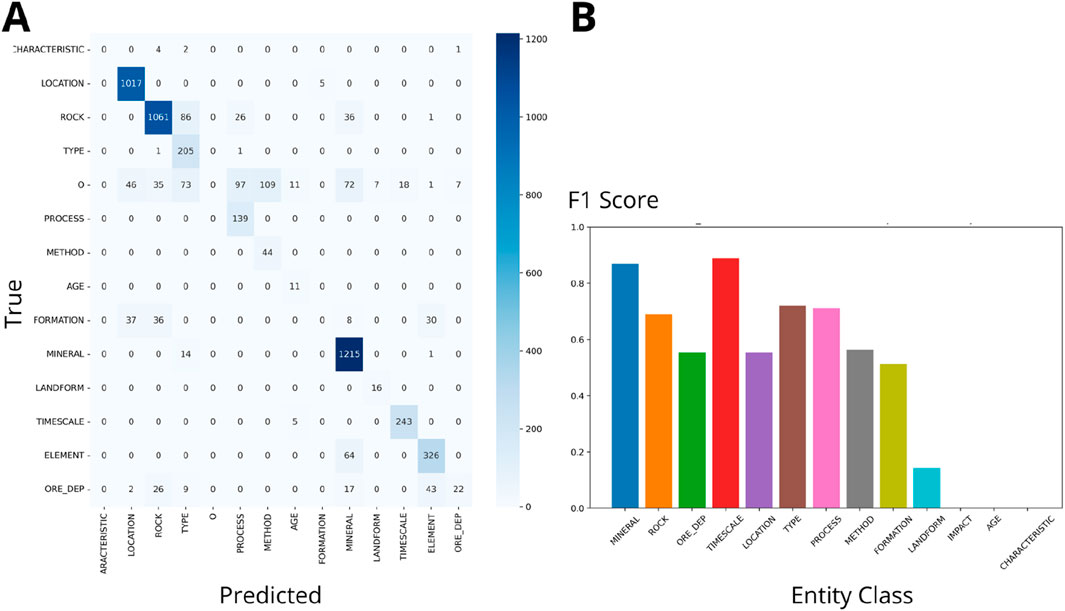

Figure 6. (A) GeoIElite_rev Confusion matrix (Wgt F1: 0.70). (B) F1 scores for NER on Lithium Deposits Datasets by class.

Figure 7

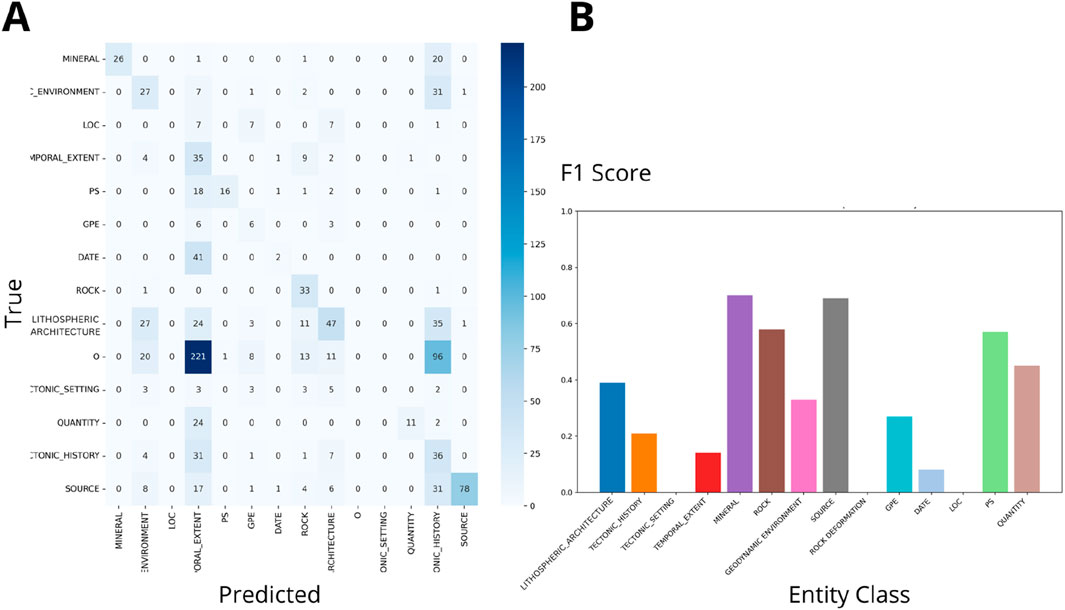

Figure 7. SMS (A) Confusion matrix (Wgt F1: 0.27). (B) F1 scores for NER on Iron Deposits Datasets by class.

Figure 8

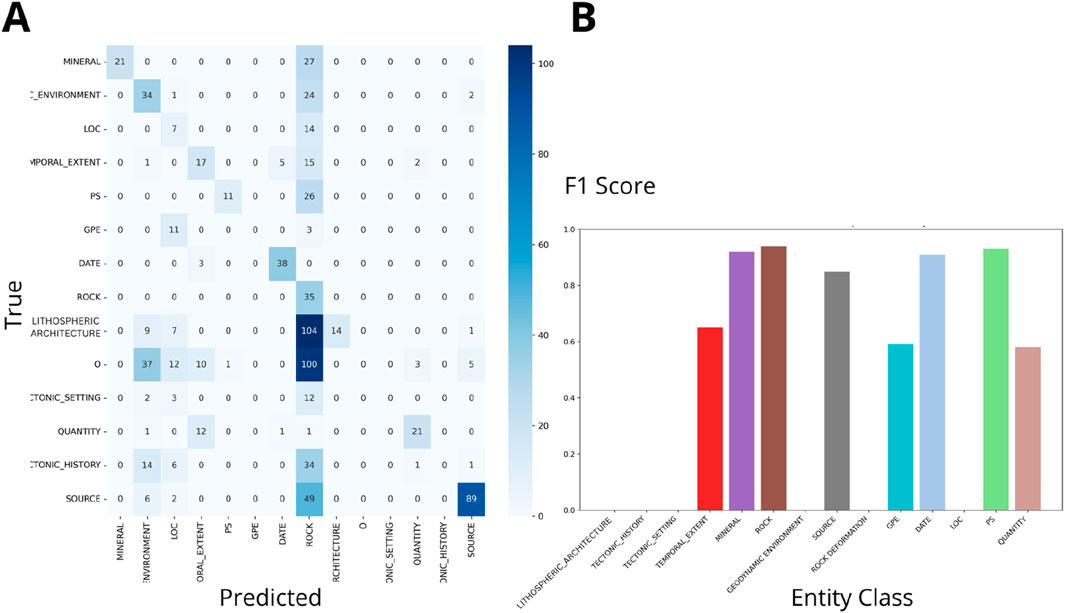

Figure 8. SMS (A) Confusion matrix (Wgt F1: 0.34). (B) F1 scores for NER on Lithium Deposits Datasets by class.

4.1 Dataset comparisons

• OzRock (Figures 3, 4) confusion matrices and F1 score bars show that it performs robustly in identifying entity classes like “MINERAL”, “ROCK”, and “ORE_DEPOSIT”. The high weighted F1 scores (0.72 and 0.71) indicate better precision and recall balance than the other schemas in categorizing geological terms.

• GeoIElite_rev (Figures 5, 6) presents slightly lower weighted F1 scores of 0.69 and 0.70. This result suggests moderate effectiveness, due to the schema’s expansive inclusion of diverse entity types, which might introduce complexity in accurately tagging less distinct classes such as “PROCESS” and “METHOD”.

• SMS (Figures 7, 8) depicts a considerable drop in weighted F1 scores to 0.27 and 0.35, indicating challenges in entity recognition.

4.2 Entity class performance

• The F1 scores across different entity classes reveal that core geological categories (“MINERAL”, “ROCK”, “TIMESCALE”) consistently achieve higher accuracy.

• Lesser-defined classes, such as “PROCESS”, “METHOD” and “IMPACT”, demonstrate lower F1 scores.

5 Discussion

5.1 Challenges and limitations

The limitations of NER models in recognizing annotated geological classes and its misclassification patterns are closely tied to the complexity of geoscientific terminology, the challenges in design and annotating geological schemas and the difficulties of ensuring high-quality annotations. These factors impact model performance and highlight the need for continuous refinement of schemas and training datasets.

5.1.1 Schema classes selection

While the detailed processes involved in the development and application of the SMS schema are outlined in the case study section, it is crucial to emphasize the broader implications of our findings here. The use of the SMS schema shows the critical need for ontological resources in geosciences that are not only scientifically rigorous but also adaptable to the evolving landscape of geological research. The encountered challenges highlight the importance of developing frameworks that can be easily updated and refined to accommodate new scientific insights and terminologies.

The selection of geological classes in the SMS schema was guided by their relevance to characterizing iron and lithium deposits, illustrates a targeted approach to ontology design. For instance, the inclusion of LITHOSPHERIC_ARCHITECTURE and TECTONIC_SETTING helped to understand the formation of iron deposits, such as banded iron formations (BIFs), which are influenced by regional tectonic activity and large-scale lithospheric processes. This specificity in class selection is crucial for enhancing the precision of NER tasks in complex domain like geosciences, where the accuracy of terminology recognition directly impacts the quality of data extracted from scholarly texts.

Similarly, the MINERAL and ROCK classes are key terms for both deposits, as they determine the feasibility of extraction by directly influencing the concentration and accessibility of valuable minerals. For lithium pegmatites, minerals like spodumene and lepidolite are pivotal for extraction viability, while the mineralogy and composition of iron banded formations play a critical role in determining the grade and recoverability of iron. Additionally, TEMPORAL_EXTENT aids in understanding the timeframes of geological processes critical to the formation of these deposits.

The analysis of confusion matrices and F1 scores for the SMS schema (Figures 7, 8) reveals that while classes such as LITHOSPHERIC_ARCHITECTURE and GEODYNAMIC_ENVIRONMENT were recognized with reasonable accuracy, others like TEMPORAL_EXTENT and TECTONIC_SETTING experienced significant misclassification. These findings highlight the challenges in distinguishing closely related or complex classes, particularly in geosciences, where terms often have nuanced and overlapping meanings. Overly detailed categories could possible have overwhelmed the Flair model, underscoring the importance of schema simplicity and specificity in achieving accurate NER performance.

The model demonstrated higher performance for schemas with general categories, as reflected by the higher F1 scores for MINERAL and ROCK in the tree geoschemas. However, the low F1 scores for SMS suggest that a more nuanced definition of certain classes is necessary to capture the complexity of mineral system vocabularies. As noted by Qiu et al. (2019), an effective schema starts with a focused set of terms that are representative of the domain-specific entities. Although the SMS schema was tailored to address geological questions related to lithium pegmatites and iron deposits in Western Australia, the results indicate that further refinement is required.

The findings suggest that the challenge lies not only in the number of classes but also in selecting foundational and contextually relevant ones. Expert input and iterative validation are critical to ensure the schema maintains classification consistency and accurately reflects geoscientific terminology, ultimately improving NER performance for specialized domains.

5.1.2 Annotation

Annotating large corpora for geoscience NER presents considerable challenges due to the need for substantial manual efforts. Automated tools, such as Python-based packages and specialized NER models like Flair, offer potential solutions; however, the complexity of automatic annotation and expert validation remains significant (Villacorta et al., 2024; Bikaun et al., 2022). This study corroborated the major challenge when validating annotations across extensive geological datasets. Despite efforts to comprehensively verify the annotations in a corpus of twenty papers, only one was fully annotated and validated due to time constraints and the lack of specialized annotators. This partial validation served as a foundation for automating the annotation of the rest of the corpus. The automated process faced limitations; the Flair NER model recognized only a subset of the annotated classes. The weighted F1 scores for the SMS dataset were 0.27 and 0.34 for both datasets (iron and lithium deposits), indicating variability in the model’s performance across different entity types. Specifically, the confusion matrices revealed that classes such as ‘DATE’ and ‘PS’ achieved high accuracy with minimal misclassifications (accuracy of 0.98 and 0.96, respectively). The geological classes like ‘TECTONIC SETTING’ and LITHOSPHERIC ARCHITECTURE’ are often misclassified (Figures 7, 8).

In addressing these challenges, Qiu et al. (2023) implemented a systematic approach to annotation and validation in the geological domain. Their annotation platform allowed input from domain experts, categorizing entities into six main types. Using a specialized Python-based annotation tool, it was facilitated manual annotation and iterative consistency checks, achieving a high level of annotation consistency and expert involvement enabling the authors to construct large-scale, high-quality corpora in the Chinese language. To mirror Qiu et al.’s efforts, we can adopt a similar approach in the future by developing domain-specific annotation guidelines in collaboration with experts. Additionally we can utilize specialized tools such as INCEpTION, an open-source platform that supports collaborative and interactive annotation in general domains (Klie et al., 2018). Implementing this approach, with automated checks and expert validation, can potentially produce high-quality data for training and validating NER models in geoscience, significantly improving their accuracy and reliability.

5.2 Misclassification cases

The analysis of the SMS schema’s misclassification patterns reveal three primary types of misclassification: overlap due to complex terminology, context dependency, and the underrepresentation of rare classes. Figures 7, 8 provide a detailed visual representation of these misclassification patterns. Several factors contribute to this misclassification, including the complexity and variability of language in the corpus, nuanced distinctions between similar classes, and potential inconsistencies in initial manual annotations. Addressing these challenges requires refining iterative annotation schemas, improving ML algorithms, and potentially expanding the manually validated sample size to improve the model’s accuracy and coverage.

5.2.1 Overlap due to complex terminology

Certain classes, such as LITHOSPHERIC_ARCHITECTURE and TECTONIC_SETTING, have nuanced meanings that the model struggled to capture without expert guidance. For example, as seen in Figure 9, terms like “Yilgarn” were misclassified as LITHOSPHERIC_ARCHITECTURE instead of LOC (Location), likely because they refer to geological regions. This demonstrates the model’s difficulty in distinguishing between geological structures and geographic regions, where context plays a significant role. Another notable example is TECTONIC_SETTING, which was occasionally misclassified as ROCK (confusion matrices 7A, 7B) due to overlapping terminology with geological formations, as shown in Figure 9. This frequent overlap, exemplified by terms such as ‘continental collision,’ which may reference both tectonic settings and rock-associated processes, highlights a significant challenge in AI: the generation of spurious concept relationships or hallucinations. Jiang et al. (2024) emphasize that such errors in entity recognition can propagate through subsequent stages of analysis, compounding inaccuracies in data interpretation. To address this issue, further refinement of our schema is essential. By enhancing its capacity to distinguish between closely related terms, and incorporating advanced AI techniques that apply deep contextual analysis, we can improve the accuracy of entity recognition.

Figure 9

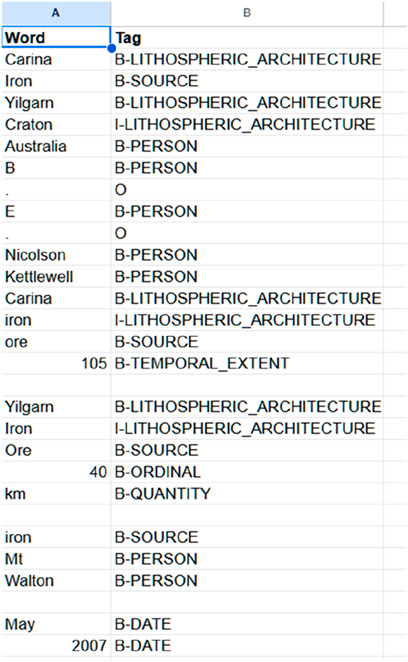

Figure 9. Automatic annotation using as base the SMS schema, highlighting misclassification of geological entities.

5.2.2 Context dependency

The Flair NER model’s limited capacity to incorporate contextual cues significantly complicates its handling of context-dependent classes within the SMS dataset. For instance, as depicted in Figure 9, the terms “Iron” and “Ore” frequently receive the label ‘SOURCE’ instead of the more appropriate ‘MINERAL’ or ‘ROCK’, contingent upon the surrounding textual context. This inadequacy in context processing not only underscores the model’s struggle with polysemous terms but also impacts its ability to deliver precise geological classifications. The inclusion of an additional class category like ‘ELEMENT’ has potential to enhance the model’s discernment of such nuances. However, the fundamental resolution involves not just technological enhancements but also rigorous expert validation to ensure the accuracy and consistency of labeling, critical in the domain of geosciences where the exactitude of each term holds substantial implications. Further, the misclassification of terms like ‘TECTONIC_SETTING’, which might be incorrectly annotated due to overlapping or ambiguous context, can severely distort the geological interpretations essential for addressing specific research inquiries, such as understanding relevant tectonic processes. This limitation is crucial because accurate classification directly influences the integrity and utility of data used in determining geological dynamics, which are foundational to mineral exploration and geological mapping strategies. Orellana et al. (2020) and Hu et al. (2024) emphasize the importance of enhancing NER systems’ contextual comprehension to mitigate AI-induced misinformation and improve the reliability of information extraction processes. They advocate for the adoption of advanced NLP strategies to deepen the contextual understanding of NER models, which would enhance their precision and recall. This is crucial as these metrics are essential for validating the effectiveness of entity recognition and classification within complex, domain-specific datasets.

5.2.3 Rare classes

Rare classes in the SMS dataset, such as PROCESS, METHOD, and IMPACT, demonstrated lower F1 scores, highlighting the challenges of limited representation in training data. The SMS dataset, with only 91 sentences and 832 entities, provided insufficient data for these classes, resulting in reduced generalization capability. For comparison, the OzRock dataset, which contained 83,838 sentences and 3,278 entities, offered broader coverage and higher F1 scores for general classes like ROCK and MINERAL (Figures 3, 4). However, even within OzRock, nuanced or less frequent classes were more prone to misclassification. The disparity in performance between these datasets highlights how insufficiently diverse or narrowly scoped training data can lead to suboptimal model performance, particularly for complex or infrequent classes. Integrating broader datasets and continuous expert feedback into the training process can help address these shortcomings by enhancing the diversity and representativeness of the training data, thus reducing the incidence of AI-induced errors and improving the overall reliability of the model.

5.3 Future research

The limitations of automated recognition with the SMS schema highlights the need for diverse, representative training datasets, refined schemas to capture domain-specific nuances, and model adaptations to address the complexities of geological terminology and context, enhancing entity extraction accuracy. Increasing the number of annotated examples for rare classes, expanding the diversity of training data, and enhancing model adaptability to context would improve classification accuracy and the utility of NER models in geoscientific research.

Using advanced techniques such as few-shot learning (Hofer et al., 2018) can improve NER model’s ability to recognize less frequent or underrepresented classes. Few-shot learning is a ML technique that allows NER models to generalize with a limited number of labelled examples which is common in specialized domains like geoscience. Liu et al. (2022) have been pioneers exploring few-shot learning in geosciences. They used GeoBERT and Few-shot learning approach for recognizing long geological terms using a minimal amount of annotated datasets. They fine-tuned a pre-trained model using a geological domain thesaurus achieving an F1 score of 0.80.

Additionally, a continuous feedback loop, where domain experts validate and refine the model’s outputs, can help improve its accuracy and reliability over time. This aligns with our previous findings (Villacorta et al., 2024), which highlighted the importance of schema training data diversity in enhancing NER model performance in geosciences. Specifically, it was noticed that GeoIElite achieved a modest F1 score compared to OzRock, which performed better due to its broader linguistic diversity and the inclusion of hundreds of documents. The narrower scope and fewer entity classes in GeoIElite contributed to its lower scores. The analysis suggested that limited annotated data scope, as seen with GeoIElite, hinders robustness. Expanding the diversity and context of annotated data can improve contextual recognition. Additionally, Flair’s performance tends to decline with an increasing number of entity classes, while F1 scores indicate that corpus size (7 PDFs vs. 20 PDFs) has a limited impact on overall NER accuracy. Misclassifications, particularly between geological entities such as ‘ORE_DEPOSIT’ and ‘MINERAL,’ emphasize the need for schema refinement. This can be addressed by ensuring that classes are well-defined and distinct, or in some cases, merging similar classes to reduce ambiguity and improve classification accuracy. Models with a generalized LOCATION class (GeoIElite_rev, OzRock) show different F1 scores, suggesting that class generalization may impact model accuracy. Expert validation which is reflected in the annotated dataset is crucial for creating schemas due to the challenges of integrating automated tools. Future research will focus on expanding and diversifying the annotated datasets to cover additional geological subdomains and terminology.

Large language Models (LLMs) like GPT-4, BERT, and others have shown significant potential in processing and analyzing geoscientific texts (Touvron et al., 2023). These models, trained on vast amounts of diverse data, can capture complex language patterns and contextual nuances, making them well-suited for handling the specialized terminology and varied contexts found in geoscientific literature. LLMs offer opportunities for processing geoscientific texts, some examples are GeoBERT (Liu et al., 2022) which promises improvemed NER tasks in geology; GeoGalactica (Lin et al., 2023), which was fine-tuned using geoscience-specific data to improve knowledge extraction, document classification, and question answering, and the use of LLM in analyzing climate-related questions (Bulian et al., 2023), enhancing understanding of environmental changes. However, their effectiveness vary significantly based on the specificity of the training data and the domain-specific challenges they are tailored to address. To fully harness their potential in geosciences, ongoing efforts are needed to increase the diversity and representativeness of training datasets, refine domain-specific schemas and ontologies, and develop ML techniques to enhance model performance with minimal data.

Moreover, collaboration with domain experts is essential to validate and improve model outputs, ensuring that LLMs can provide accurate, reliable insights in geoscientific research. The challenges and limitations of LLMs are that they may struggle with rare or underrepresented geological terms or concepts if the training data lacks diversity. This limitation can lead to incomplete or inaccurate entity recognition. While LLMs are powerful, they may still face challenges in generalizing across different geological contexts, particularly when encountering less common terms or unique geological formations or acronyms in geoscience contexts. As observed in previous discussions, this can result in a model that recognizes only a subset of the relevant geological classes as observed in this research. Yet, applying LLMs in geosciences requires significant computational resources, particularly when fine-tuning models on domain-specific data, which can be considered a limiting factor for smaller research teams or projects with constrained budgets.

While the initial phase of the project focused on the steps for implementing schemas, future developments of the SMS plan to integrate relational attributes, such as temporal relationships and spatial dependencies. Capture more complex relationships within geological entities, will enhance contextual recognition in this specialized domain. Also is planned to investigate how the mentioned LLM can be fine-tuned and integrated with our developed schemas to improve entity recognition accuracy and reduce errors related to context misinterpretation and ambiguous terminologies.

6 Conclusion

This research highlights the potential and current limitations of automated annotation tools using open-access NER models, tailored for geoscience literature. The introduction of the Schema for Mineral Systems (SMS) has provided insights into the classification and recognition of geological entities, particularly emphasizing the schema’s capability to detail the nuanced aspects of complex mineral systems.

Our findings demonstrate that while schemas such as OzRock and GeoIElite_rev establish essential frameworks for geological entity recognition, they occasionally fall short in capturing the more detailed and subtle geological features that SMS excels in identifying. However, our results also highlight a critical challenge: the detailed and comprehensive nature of SMS, while beneficial, can sometimes introduce complexities that hinder the effectiveness of NER systems. This intricacy necessitates significant fine-tuning and expert validation to achieve reliable performance.

The analysis of confusion matrices and performance evaluations from the datasets reveals a stark contrast in the effectiveness of different schemas. OzRock and GeoIElite_rev showed robust performance in general geological categorization, whereas SMS, despite its detailed approach, showed variability in its effectiveness, particularly struggling with classes that require deep contextual understanding or are less represented in the training data.

From this study, it is evident that achieving optimal NER performance requires a balance between schema detail and simplicity. Future research should thus focus on refining schema definitions to ensure they capture essential geological nuances without overwhelming the NER systems. Incorporating diverse and high-quality training data, along with leveraging advanced machine learning strategies such as few-shot learning and domain-specific language models, will be crucial in enhancing the precision and utility of NER systems for geoscientific applications.

Continued collaboration with domain experts is imperative to ensure the relevance and accuracy of schema classifications. Such partnerships are vital for aligning the schemas with evolving geological concepts and maintaining the high standards necessary for automated knowledge extraction from geoscientific literature.

Data availability statement

The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author.

Author contributions

SV: Conceptualization, Data curation, Formal Analysis, Investigation, Methodology, Project administration, Visualization, Writing – original draft, Writing – review and editing, Validation. ML: Methodology, Resources, Supervision, Validation, Writing – review and editing, Conceptualization, Project administration. JK: Conceptualization, Supervision, Writing – review and editing. KG: Writing – review and editing, Methodology, Validation. EG: Writing – review and editing, Validation. HM: Writing – review and editing, Validation.

Funding

The author(s) declare that financial support was received for the research and/or publication of this article. This research was funded by the CSIRO ResearchPlus Science Leader program.

Acknowledgments

The authors express their gratitude to Mario Iglesias and Marta Sośnicka for their assistance in annotating the SMS dataset. We appreciate Ryan Noble’s insightful feedback on entity class classification and Behnam Sadeghi’s contributions to the manuscript’s approach. Thanks are also to Andy Wilkins and Tadro Abbot for their thorough review within the CSIRO peer review system. We are grateful to the Executive Director of the Geological Survey of Western Australia for granting K Gessner and E Gray the permission to participate in this study, which was pivotal for our research. Marta Sośnicka deserves additional acknowledgment for her comprehensive review and input on the practical applications of our findings in mineral exploration research. A special thanks to the journal reviewers, Dr. Antony Mamuse and Dr. Feng Han, for their constructive feedback and thoughtful suggestions, which greatly contributed to improving the quality of this article.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Generative AI statement

The author(s) declare that Generative AI was used in the creation of this manuscript. To assist in editing the manuscript and enhancing its readability. AI is not credited as an author of the manuscript; it was solely utilized for summarizing text and reducing redundancy. All content edited with the help of Generative AI has been verified for factual accuracy and checked for plagiarism.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/feart.2025.1530004/full#supplementary-material
