ORIGINAL RESEARCH article

Front. Earth Sci., 16 July 2025

Sec. Solid Earth Geophysics

Volume 13 - 2025 | https://doi.org/10.3389/feart.2025.1601134

Seismic first break picking based on multi-task learning

Zhongpo Zhang
Zhongpo Zhang*Jing YangJing Yang
  • R&D Center of Science and Technology, Sinopec Geophysical Corporation, Nanjing, China

Introduction: Seismic first break (FB) picking helps us with near surface tomography, microseismic detection among other tasks. Using image semantic segmentation (ISS) networks to do so has been a hot topic in recent years, and multi-task learning has also demonstrated excellent data representation capabilities in several areas.

Methods: To improve accuracy, we combine the FB picking task with the seismic data reconstruction task, and propose an enhanced FB picking training method based on multi-task learning network. Specifically, we use two decoding branches of the same size in the network, which are the ISS decoding branch for the FB picking task, and the seismic feature learning decoding branch for the reconstruction task. The introduction of the seismic feature learning decoding branch will further help the network encoder to extract seismic effective features more efficiently, which will improve the accuracy of the ISS decoding branch, and ultimately improve the accuracy of the FB picking. During the training process, we use different loss functions for different decoding branches, and guide the network fitting through joint loss. In addition, we randomly add noise as well as random elimination to the seismic data to simulate the low SNR trace sets and bad traces that may exist in seismic data acquisition, and discuss the impact of different cases on the training results.

Results and discussion: The experimental results show that this method achieves more accurate FB picking results than the existing single-branch ISS methods, with an average picking error as low as 3.08 ms in the field data, and the percentage of traces with a picking error higher than 15 samples is as low as 0.03%, which is far superior to the network methods such as UNet, STUNet, SegNet, and Res-Unet, and effectively realizes the overall high-quality FB picking.

1 Introduction

Seismic exploration is a geophysical method that utilizes the propagation characteristics of seismic waves to detect underground structures. It is widely applied in mineral resource exploration (Malehmir et al., 2012), oil and natural gas prospecting (ZHAO, 2008), geothermal resource assessment (Maćkowski et al., 2019; Mondol, 2010; Wright et al., 1985), and groundwater investigation (Haeni, 1986). As a crucial step in seismic data processing, the accuracy of seismic first break (FB) picking directly impacts subsequent procedures, such as static correction, near-surface velocity modeling and noise suppression (Mondol, 2010; Coppens, 1985; Socco et al., 2010; Saragiotis et al., 2013). Consequently, the advancement of this technology has garnered sustained attention from both academia and industry.

As exploration scales continue to expand, the number of seismic source shots and geophones recorded in seismic surveys is increasing rapidly. Consequently, the seismic traces requiring processing often reach tens of thousands or even exceed one hundred thousand, posing a significant challenge to achieving efficient and accurate seismic FB picking. Although manual picking methods offer high accuracy, they are inefficient, labor-intensive, and inadequate for handling large-scale exploration data. Over the past few decades, researchers have developed various automated FB picking methods, including the energy ratio method (Coppens, 1985; Lee et al., 2017), cross correlation method (Molyneux and Schmitt, 1999), fractal dimension method (Boschetti et al., 1996; Sabbione and Velis, 2010), and image edge detection method (Luo et al., 2018; Mousa et al., 2011). However, under complex geological conditions, these methods often struggle to maintain picking accuracy when processing low-quality data, thereby limiting their effectiveness in practical applications. In recent years, with the rapid advancement of artificial intelligence technology, intelligent methods have been widely applied in seismic data processing (Jiao and Alavi, 2020; Mousavi and Beroza, 2023; Jia and Ma, 2017). This technology is expected to further enhance the automation of FB picking, improve accuracy and computational efficiency, and meet the demands of increasingly complex geological exploration. Consequently, the development of intelligent FB picking methods with high efficiency and accuracy has become a focal point of research (Yuan et al., 2018; Harsuko and Alkhalifah, 2024).

With the rise of deep learning, this cutting-edge technology—which employs neural network models to fit complex nonlinear mappings—has garnered significant attention, leading numerous researchers to adopt it across various fields (LeCun et al., 2015; Guo et al., 2016; Shinde and Shah, 2018; Wang X. et al., 2024). Since seismic data preprocessing tasks (e.g., seismic FB picking, seismic data denoising, etc.) are often regarded as signal processing or image analysis tasks, and such tasks are the main areas where deep learning techniques are applied, various types of deep learning-based seismic FB picking methods have emerged. In terms of data dimensionality, some researchers proposed 1-D single-channel FB picking methods based on fully convolutional networks (Wu et al., 2019; Zhu and Beroza, 2019; Loginov et al., 2022). These methods achieve high-precision results in high signal-to-noise ratio (SNR) data but fail to capture FB correlation information from neighboring traces and perform poorly on large-scale complex datasets. Compared to 1-D single-trace FB picking, 2-D multi-trace deep learning methods, which frame FB picking as an image semantic segmentation (ISS) task, exhibit superior noise immunity and picking accuracy. By incorporating the spatial information of neighboring traces’ FBs, these methods enhance performance in complex datasets. Consequently, many researchers have explored convolutional network-based architectures such as UNet and its variants (Hu et al., 2019; CHEN et al., 2021; Zwartjes and Yoo, 2022), SegNet (Yuan et al., 2022), as well as Transformer-based models like STUNet (Jiang et al., 2023) and StorSeismic (Harsuko and Alkhalifah, 2022) for multi-trace seismic FB picking. Furthermore, 3-D multi-trace seismic FB picking method based on ISS networks was also proposed (Han et al., 2021; Jiang et al., 2024). In addition to variations in data dimensionality, researchers have explored different types of network models, such as graph neural network-based FB picking method (Wang et al., 2024a) and Bayesian network-based FB picking method (Wang et al., 2024b). Extensive experiments on both simulated and field data have demonstrated that neural network-based seismic FB picking methods outperform traditional automatic approaches. Moreover, since seismic data are often stored in a 2-D format, numerous studies have focused on 2-D multi-trace FB picking methods utilizing ISS networks (Zwartjes and Yoo, 2022; Xu et al., 2021).

Initially, due to hardware limitations and training efficiency constraints, most neural network models were designed for end-to-end mapping within a single encoding-decoding framework, making it challenging to achieve multi-branch, multi-task synchronous training and inference. In addition to variations in data dimensionality, researchers have explored different types of network models. For example, Wu et al. used a multi-task learning network for the realization of airborne transient electromagnetic denoising and inversion (Wu et al., 2022). Ovcharenko et al. achieved low-frequency extrapolation and elastic model building from seismic data through multi-task learning (Ovcharenko et al., 2022). Shan et al. and Deng et al. realized multi-parameter forward modeling of 2-D as well as 3-D magnetotelluric through multi-task learning (Shan et al., 2021; Deng et al., 2025). The above studies demonstrate that multi-task learning can improve a network model’s ability to capture data features, leading to better performance while imposing only a limited increase in network size. Most existing deep learning-based seismic FB picking studies adopt a single-task learning framework, with limited research on applying multi-task learning to this problem. To address this gap, we introduce multi-task learning into the seismic FB picking task and incorporate a seismic feature learning decoding module into the ISS-based FB picking network to enhance the feature extraction capability of the original encoding module. Specifically, the network model consists of two decoding branches of equal size: one for FB picking via image semantic segmentation and the other for data reconstruction in seismic feature learning. We believe that incorporating the seismic feature learning decoding branch will encourage the network encoder to extract effective seismic features more efficiently, thereby enhancing the accuracy of image semantic segmentation decoding and ultimately improving FB picking precision. To simulate low signal-to-noise ratio trace sets and bad traces in seismic pickups, we introduce random noise and randomly remove seismic data, then analyze the impact of different scenarios on the results. During training, we employ distinct loss functions for each decoding branch and optimize the network using a joint loss approach. Experimental results indicate that the proposed method outperforms existing single-branch image semantic segmentation approaches, achieving an average picking error as low as 3.08 m. Notably, the method maintains a high zero-error picking ratio, while the percentage of traces with a picking error exceeding 15 samples is as low as 0.03% —significantly outperforming networks such as STUNet, SegNet, and Res-UNet, effectively achieving high-quality FB picking. Furthermore, the lightweight double-decoding convolutional network exhibits low computational complexity, resulting in shorter training time and higher inference efficiency.

2 Methods

With the widespread adoption of deep learning across various fields, the multi-trace seismic FB picking method based on image semantic segmentation has demonstrated strong noise immunity and significant practical engineering value. As illustrated by the workflow in Figure 1, deep learning-based seismic FB picking consists of three main steps: data preprocessing, labeling and dataset generation, network training and inference. Data preprocessing focuses on formatting and sizing seismic data for network input. Labeling and sample pair generation define the calibration method for FBs and the structure of data sample pairs, playing a crucial role in enabling the network to efficiently recognize FB features. The network training and inference stage involves selecting the network architecture and optimizing training and inference strategies, which directly impact the accuracy of FB picking. In this paper, we propose an efficient and systematic approach for all three steps. High-precision seismic FB picking is achieved through linear correction, pre- and post-mask calibration, and a lightweight double-decoding convolutional network based on multi-task learning. The following section provides a detailed description of the proposed method, covering network principles, data preprocessing, and labeling.

Figure 1
www.frontiersin.org

Figure 1. Flowchart of multi-trace seismic first break picking based on deep learning.

2.1 Network

The double-decoding convolutional network for seismic FB picking proposed in this paper is illustrated in Figure 2. The overall design follows the classical UNet architecture (Ronneberger et al., 2015), which is widely recognized for its stability and efficiency in computer vision tasks. The network is primarily composed of an encoding part and a decoding part. In the encoding part, each downsampling stage comprises two convolutional operations with a (3, 3) kernel and (1, 1) strides, followed by two ReLU activation functions and a max-pooling operation. Each downsampling stage reduces the feature map size while increasing the number of feature channels. The reduction in feature map size facilitates long-range feature interactions within the data, whereas the increased number of channels enhances the network’s ability to extract deeper feature representations. A downsampling stage can be mathematically expressed as follows:

xout=MaxPool2×2ReLUConV3×3ReLUConV3×3xin(1)

where xin and xout represent the input and output data, respectively; MaxPool denotes the max-pooling operation; ConV denotes the convolution operation; and the subscript n × n indicates the size of the convolutional kernel or the pooling stride.

Figure 2
www.frontiersin.org

Figure 2. Schematic diagram of double decoding convolutional network and data input and output.

The network’s decoding stage consists of Decoder A and Decoder B, each corresponding to a distinct task. Decoder A serves as the image semantic segmentation branch, while Decoder B functions as the seismic feature learning branch. Each decoding branch comprises four identical upsampling stages, where each stage includes a transposed convolution operation with a (4, 4) kernel and (2, 2) strides, followed by a ReLU activation function. Each decoding branch employs skip connections via channel concatenation to fuse features from the downsampling path with those from the corresponding upsampling path, facilitating interactions between shallow image textures and deep abstract features. Through these operations, each upsampling stage increases the feature map size while reducing the number of feature channels, gradually restoring the original data dimensions. Mathematically, one upsampling stage in each decoding branch can be expressed as Equation 2:

yout=ReLUCatEi,TansConV4×4yin(2)

where yin and yout represent the input and output data, respectively. TransConV denotes the transposed convolution operation, Ei represents the feature map from the corresponding downsampling stage, and Cat refers to the channel concatenation operation. while the subscript n × n maintains the same definition as in Equation 1.

Notably, despite the distinct task characteristics of different branches, their respective downstream tasks lead to diverse output styles. This encourages the encoding part of the network to extract more effective and abstract data features. With the above encoding and decoding network architecture, a nonlinear mapping relationship between seismic data and feature masks can be constructed. The image semantic segmentation branch ultimately applies a Sigmoid function to normalize the data within the range (0, 1), producing a single-trace binary FB mask. This branch employs the Binary Cross-Entropy (BCE) function to compute the loss. As a widely used loss function in binary image semantic segmentation tasks, Binary Cross-Entropy (BCE) is easy to implement and enables efficient training (Ruby and Yendapalli, 2020). It is mathematically defined as follows:

BCE Loss=i=1Wj=1HGij×lgPij+1Gij×lg1Pij(3)

where Gij represents the ground truth value of a sample point in the feature map, Pij denotes the corresponding predicted value from the network, and W and H indicate the width and height of the data map, respectively.

The seismic feature learning decoding branch normalizes the data within the range (−1, 1), producing a single-channel reconstructed seismic output. The reconstruction of seismic data in this branch is formulated as a regression task, where the Mean Squared Error (MSE) function is used to compute the loss by measuring the squared differences between predicted values and ground truth labels. The MSE loss is mathematically defined as follows:

MSE Loss =1Ni=1Nyixi2(4)

where N represents the total number of data; x represents the true value; and y represents the network predicted value.

Combining Equations 3,4, the final joint loss function is as follows:

Loss =αBCE Loss +βMSE Loss (5)

where α and β represent the weights of different loss functions, and we will train the network by joint loss.

2.2 Data preparation and labeling

Deep learning is a data-driven approach that utilizes large-scale datasets to address various pattern recognition problems. In supervised learning, properly designing training sample pairs enables the network to efficiently establish complex nonlinear data mappings. Existing deep learning-based seismic FB picking methods treat seismic data as images and feed them into neural networks. However, with the continuous advancement of seismic exploration, the size of acquired seismic data has increased significantly. Directly inputting the entire dataset into the network for FB picking imposes high hardware demands, prompting the development of various data cropping techniques (Xu et al., 2021; CHEN et al., 2021; Jiang et al., 2023).

In this study, the linear correction method is applied. The seismic signals recorded by each trace are adjusted by adding a time increment corresponding to its respective shooting distance. This process aligns all FB times to approximately the same range, thereby significantly reducing the temporal sample dimension of the data. As shown in Figure 3, the temporal sample dimension of the original data is reduced by applying linear correction and cropping non-FB regions. Compared to previous cropping methods, the linear correction-based approach enables the entire shot data to be fed into the network while preserving a global perspective. The linear correction is defined by the Equation 6:

Δt=miv(6)

where v represents the slope of the line connecting the FB at the near and far sources of the original seismic record, mi denotes the shot-receiver distance for geophone i, and Δt denotes the time increment applied to the seismic signal recorded by the geophone.

Figure 3
www.frontiersin.org

Figure 3. Schematic before and after linear correction.

After the seismic data size is significantly reduced in the time dimension through linear correction, mask labeling is then applied. We employ a commonly used labeling method that classifies seismic wave signals into two categories: pre-FB and post-FB, as shown in Figure 4. This method is used to label the seismic data as positive (1) and negative (0) samples.

Figure 4
www.frontiersin.org

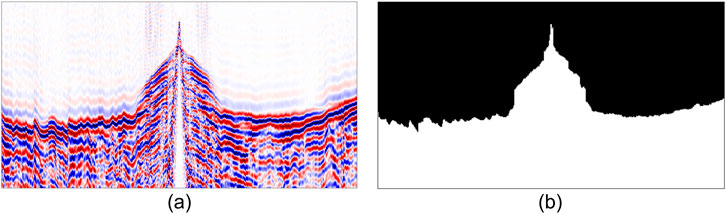

Figure 4. Mask labeling method. (a) Seismic data. (b) labeling method, label the pre-FB and post-FB of the seismic data as positive and negative samples.

3 Experimentation

3.1 Experimental environment and data

The experimental hardware environment consists of an Intel i7-14700 KF processor and a NVIDIA RTX 4090D GPU, with the PyTorch framework used for training. The network hyperparameters are set as follows: the RAdam optimizer is used (Liu et al., 2020), the batch size is 16, the initial learning rate is 0.0002, and the maximum number of training epochs is 130. In this study, 434 shot records of 2-D seismic exploration data acquired in North China are used for field experiments. The data are sampled at 4 m intervals, with each shot record containing 480 traces and 256 time samples after linear correction. All the experiments are randomly divided into training set, validation set and test set according to the ratio of 70%, 20% and 10%, respectively. The training set is used to train the network, the validation set assesses the model’s fitting performance during training, and the test set independently evaluates the FB picking performance of each network.

3.2 Evaluation of indicators

In this study, the accuracy of FB picking for each network is evaluated by comparing the predicted mask plots and analyzing quantitative metrics. In terms of quantitative evaluation, the mean sample point error (mSPE) between the predicted mask and the ground truth label provides a clearer comparison of each network’s FB picking performance. Additionally, analyzing the distribution of errors across different ranges helps to assess the strengths and weaknesses of each network. The mean time error (mTE) between the final prediction and the actual FBs offers a more intuitive understanding of the error range in practical applications. Additionally, the computational complexity and inference time of each network are also critical factors. The computational complexity of the network is measured using the GitHub open-source toolkit pytorch-OpCounter library (Zhu, 2018), and inference time is determined by evaluating the number of data samples processed per second under the same hardware environment. The mSPE and mTE can be mathematically defined as Equations 7, 8:

mSPE=1Ni=1Npigi(7)
mTE=mSPE×t(8)

where N represents the total number of seismic traces recorded in the shot set, p denotes the network-predicted FB sample time, g corresponds to the actual FB sample time in the labeled map, and t indicates the time interval between seismic samples. The unit of mSPE is pixel (px), and the unit of mTE is ms.

3.3 Results and analysis

To evaluate the performance of the proposed FB picking method on field data, three shot records from the test set are randomly selected for analysis. The results are compared with those of existing single-task methods, including UNet, STUNet (Jiang et al., 2023), SegNet (Yuan et al., 2022), and Res-UNet (Zwartjes and Yoo, 2022). The performance comparison of these FB picking models with the proposed method is illustrated in Figure 5. In each figure, the white masked area represents the time after FB picking, while the gray non-masked area corresponds to the time before FB picking. Red pixels represent the manually labeled actual FBs, identified by professional interpreters. Green pixels indicate the predicted FBs for the given method, while blue pixels highlight instances where the predicted FBs are entirely correct (0 sample point error). The predicted FBs for each method are obtained from the boundaries of the binary mask before and after the FB, with the threshold conventionally set to 0.5.

Figure 5
www.frontiersin.org

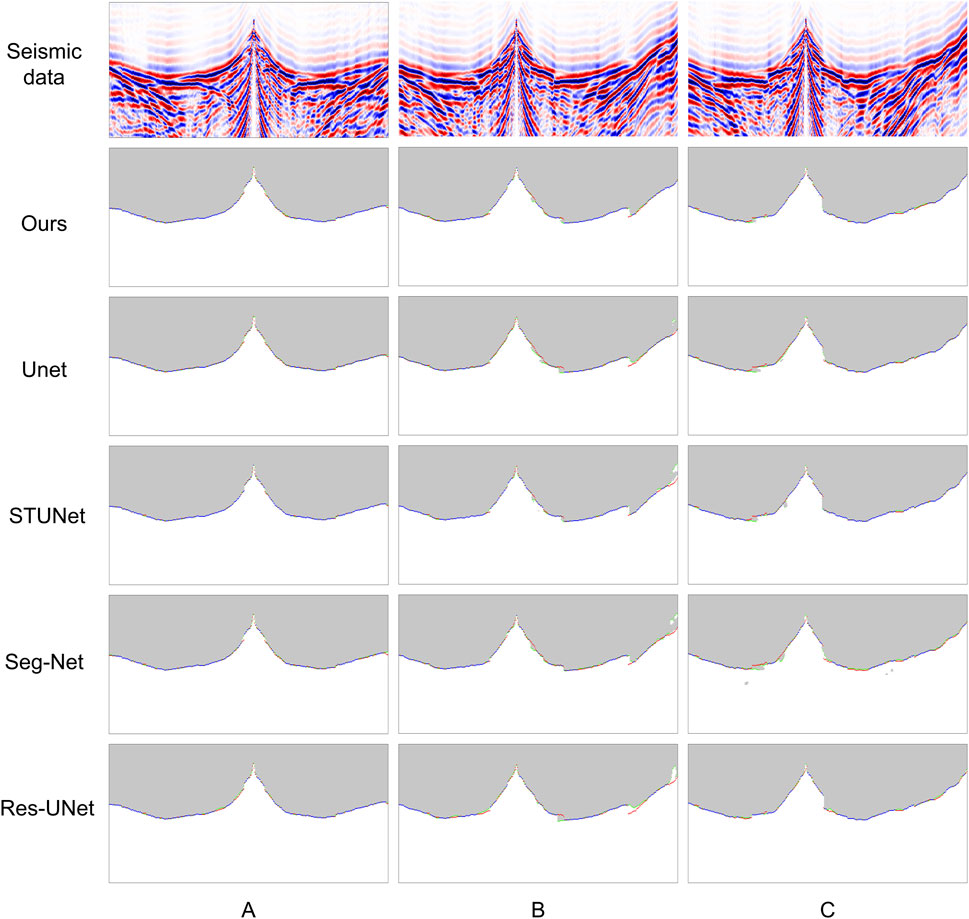

Figure 5. Comparison results of the mask map output by each network method. Red pixels indicate ground truth FBs, green pixels indicate the predicted FBs for the given method, while blue pixels highlight instances where the predicted FBs are entirely correct (0 sample point error).

As observed in Figure 5, the proposed method achieves superior FB picking results in most cases. In shot set A, where FB time variations are more gradual, our method achieves nearly perfect FB picking, exhibiting high continuity and accuracy. In shot sets B and C, which contain traces with insignificant FBs, the single-task UNet, SegNet, and Res-UNet fully convolutional segmentation networks exhibited poor FB picking performance, as indicated by the discontinuities in their predicted masks. In contrast, our method accurately picks FBs in regions with inconspicuous FBs at data boundaries, benefiting from the training of the seismic feature learning decoding branch. Additionally, it demonstrates high precision in identifying FB regions, as shown in Figures 6, 7. As shown in Figures 57, the proposed double-decoding multi-task seismic FB picking method effectively mitigates mask discontinuity and boundary ambiguity present in other methods, thereby enhancing the accuracy of FB predictions.

Figure 6
www.frontiersin.org

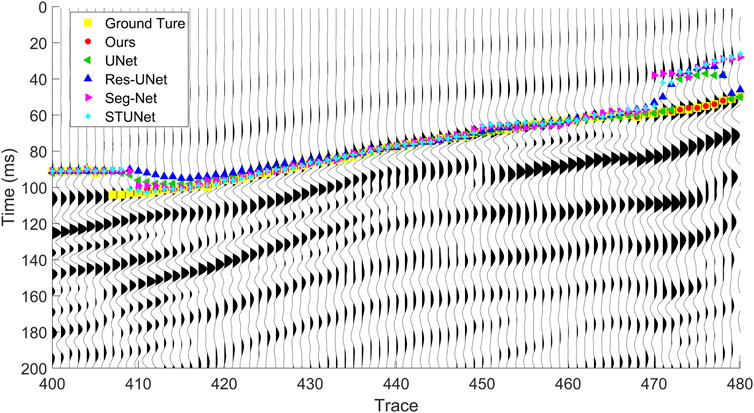

Figure 6. Comparison of FB picking across networks for test set data B. (No.400 traces to No.480 traces localized data).

Figure 7
www.frontiersin.org

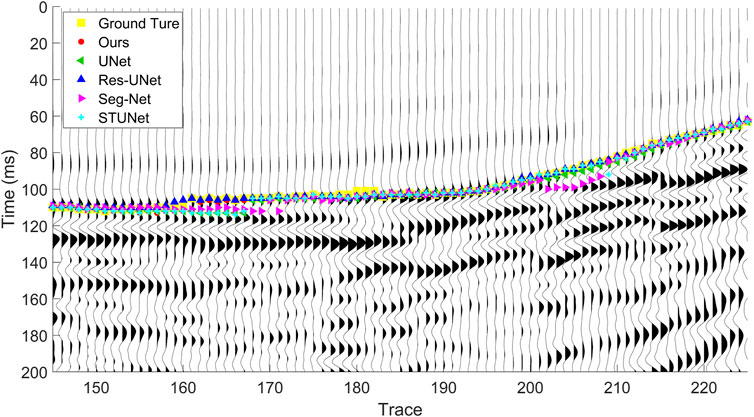

Figure 7. Comparison of FB picking across networks for test set data C. (No.145 traces to No.225 traces localized data).

Table 1 presents the error distribution statistics across different sample point error intervals in the test set for each method. As shown in the table, our method achieves the best performance in the ratio of sample point error <= five px, reaching 98.27%, followed by single-task Res-UNet, STUNet, UNet, and SegNet in descending order. Notably, for errors exceeding 15 pixels, the multi-task learning-based FB picking method achieves an exceptionally low error rate of just 0.03%, significantly outperforming the other methods. This further demonstrates that the double-decoding architecture enhances the network’s feature learning capability, thereby improving the accuracy of final FB picking.

Table 1
www.frontiersin.org

Table 1. Percentage of different sample point error ranges for each method.

Table 2 presents a comparison of the numerical results for each method in the test set. As shown in the table, our method achieves the lowest average sample error and average time error, measuring 0.77 pixels and 3.08 m, respectively. Moreover, the average time error is reduced by 38.9%, 4.9%, 31.8%, and 13.4% compared to single-task UNet, STUNet, SegNet, and Res-UNet, respectively. Since our double-decoding convolutional network is built upon the classical UNet architecture, it exhibits low computational complexity (2.97 GMac) compared to fully convolutional networks (FCNs) such as STUNet, SegNet, and Res-UNet. Additionally, it demonstrates superior training efficiency, requiring only 37.1 min, and achieves a high inference speed of 59.3 inferences per second. It can be easily deployed in real-world engineering applications.

Table 2
www.frontiersin.org

Table 2. Comparison of numerical results for each method.

Analyzing the feature maps from the encoder part of the network facilitates a deeper understanding of the characteristics and advantages of multi-task learning. As our proposed network adopts a double-decoding architecture based on the classical UNet, so we compare it with the classical single encoder UNet to evaluate the impact of multi-task learning on feature extraction. A shot from the test set was randomly selected as input, and we extracted the output feature maps at different encoding stages for each network model, as illustrated in Figure 8. To facilitate comparison, we performed channel-wise averaging on the feature maps at each encoding stage and standardized the image size. As observed, for shallow feature maps (down1 to down3), the results produced by the classical UNet and our method are relatively similar. However, in the deeper feature maps (down4 and down5), the features extracted by the single encoder UNet become more abstract and show noticeable deviations from the structure of the original seismic data. In contrast, the feature maps extracted by our multi-task learning network are more complete and concrete, better preserving the structural information of the original seismic data. This is attributed to the structural constraints imposed by the seismic data reconstruction decoding branch, which significantly enhances the model’s ability to perform structural modeling in deeper encoding stages. These results indicate that, with the assistance of the reconstruction decoding branch, the network achieves superior performance in both deeper feature extraction and global representation.

Figure 8
www.frontiersin.org

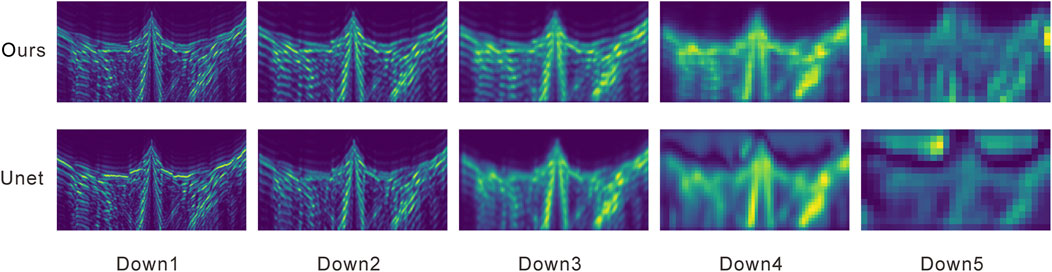

Figure 8. Comparison of feature maps at different encoding stages of the network. Down1 to Down5 represent the encoding stages from shallow to deep.

3.4 Ablation experiments

To further evaluate the effectiveness of the seismic feature learning decoding branch introduced by multi-task learning, we conducted ablation experiments on the contribution of each loss term in the joint loss function. The experimental results are presented in Table 3. Referring to Equation (5), we observe that when the loss ratio α for the image semantic segmentation decoding branch and β for the seismic feature learning decoding branch are set to 0.4: 0.6 and 0.5: 0.5, the mSPE reaches its optimal value of 0.77 px. However, among other loss ratio configurations, the setting α: β = 0.4: 0.6 yields the best performance. Furthermore, when α and β are reversed in two paired control experiments (e.g., Group 1 vs Group 5, Group 2 vs Group 4), the seismic feature learning decoding branch with a higher loss ratio yields better metric results. This further demonstrates the positive role of the decoding branch, as its inclusion enhances the feature extraction capability of the encoder, thereby improving the accuracy of the FB picking task. Furthermore, we conducted an experiment where the loss weight of the seismic feature learning branch was disregarded (α: β = 1: 0). The results show that, without the guidance of the seismic reconstruction loss, the overall performance is comparable to that of the single decoder UNet, with different metrics showing mixed superiority.

Table 3
www.frontiersin.org

Table 3. Ablation experiments with different loss weight thresholds.

To further investigate the impact of loss weight configurations on the data reconstruction task, we computed the Structural Similarity Index Measure (SSIM) under various α: β settings. The highest reconstruction accuracy was achieved when α: β = 0.4: 0.6, yielding an SSIM of 0.9992, followed by the 0.5: 0.5 and 0.3: 0.7 configurations. And when α: β = 1: 0, the loss from the seismic feature learning decoding branch does not contribute to the network weight updates, resulting in poor reconstruction performance, with an SSIM of only 0.1161. This trend is generally consistent with the ranking of other evaluation metrics, indicating a strong synchronization between the data reconstruction and FB picking tasks during joint training.

Finally, we conducted an ablation experiment on input seismic data by introducing different levels of noise and bad traces. Noise was simulated by adding 5% Gaussian noise to the original traces, while bad traces were generated by zero-padding the original traces, ensuring that noisy and bad traces did not overlap. This process is commonly considered a form of data enhancement during training, enhancing the network’s ability to extract features from seismic data. Through this ablation experiment, we examine its potential benefits under multi-task learning. The results, presented in Table 4, indicate that different levels of noisy and bad traces lead to optimal performance in different metrics. When no noisy or bad traces are present, the mSPE and the ratio of sample point error > 15 px achieve the best results. However, when the noisy and bad traces each account for 10%, the ratio of sample point error <= 10 px achieves the best results, and when the noisy and bad traces each account for 15%, the ratio of sample point error <= five px achieves the optimal results. And for the data reconstruction task, a higher degree of noisy and bad traces leads to lower SSIM results, which is to be expected. These results suggest that the data augmentation method introduced in multi-task learning can further enhance specific metrics. However, its overall effectiveness should be evaluated based on the primary task objective.

Table 4
www.frontiersin.org

Table 4. Ablation experiments with different noise levels and different numbers of bad traces.

4 Conclusion

In this study, we integrate the seismic FB picking task with the seismic data reconstruction task and propose an enhanced training method based on a multi-task learning network. The network’s feature extraction capability is enhanced by a newly introduced seismic feature learning decoding branch for data reconstruction, which improves deep abstraction modeling and, in turn, enhances the accuracy of the semantic segmentation branch for FB picking. We also analyze the effect of the loss weighting ratio between tasks and identify the optimal balance. Additionally, we introduce random noise and selectively remove seismic traces to simulate low-SNR and poor-quality data, and analyze their impact on the results. Experimental results show that the proposed method outperforms existing single-branch semantic segmentation methods across multiple metrics, yielding more accurate FB picking results. Specifically, it achieves an average picking error of just 3.08 m on field data, with only 0.03% of traces exceeding a picking error of 15 samples—significantly outperforming UNet, STUNet, SegNet, and Res-UNet. These results highlight the method’s effectiveness in achieving high-quality FB picking. Moreover, the lightweight dual-decoding convolutional network proposed in this study demonstrates low computational complexity, fast training, and high inference efficiency, suggesting its potential applicability to higher-dimensional data and real-world engineering applications.

Data availability statement

The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.

Author contributions

ZZ: Writing – review and editing, Supervision, Writing – original draft, Funding acquisition. JY: Visualization, Validation, Writing – review and editing.

Funding

The author(s) declare that financial support was received for the research and/or publication of this article. This research was funded by China Petroleum & Chemical Corporation Project: Continuous Optimization and Upgrade of Autonomous Node Acquisition System Software and Hardware. Grant Number: P24110.

Conflict of interest

Authors ZZ and JY were employed by Sinopec Geophysical Corporation.

Generative AI statement

The author(s) declare that no Generative AI was used in the creation of this manuscript.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/feart.2025.1601134/full#supplementary-material
