An Alkaline Protease-Digestion of Silkworm Powder Enhances Its Effects Over Healthspan, Autophagy, and Mitochondria Function in a Rotenone-Induced Drosophila Model

Introduction

Since silk moths were bred by humans starting 5,000 years ago, they have provided silk fibers for making fabrics and their pupae have been a source of high-quality proteins and fats for humans for a long time (1). In addition, silkworm eggshells, excrements, larval molts, Bombycis Corpus cum Batryticatus, and silk moth extracts have been used as traditional Oriental medicines for treating various diseases, such as diabetes, hypertension, fever, stroke, and cerebral infarct (2). Since the 1990s, investigations supporting the scientific bases for various health improvement effects of silkworms and their byproducts have been attempted. As a result, the various health-promoting effects of silkworms and their byproducts recorded in ancient traditional Oriental medicine books for many years have been supported through preclinical and/or clinical studies in recent years. Representative effects include the hypoglycemic effect of freeze-dried 5th instar 3rd-day silkworms (3–5), the sexual function-enhancing effect of male silk moth extracts (6), and the memory enhancement effect of silk Fibroin protein hydrolysates (7, 8). Recently, a processing method has been developed that makes it possible to consume mature silkworms containing enlarged silk glands (9, 10). After the 5th instar on the 3rd-day, silkworms start to develop silk glands. The 5th instar 7th- or 8th-day silkworms, known as mature silkworms, have degenerated internal organs and enlarged silk glands filled with silk fiber proteins (9). Therefore, mature silkworms must have various health improvement effects originating from their diverse functional nutrients (2). In fact, steamed and freeze-dried mature silkworms, also known as HongJam, have been reported to have memory enhancements in mild cognitive impairment rodent models (11, 12), preventing the onset of rotenone-induced loss of motor control (13–15), gastrointestinal protection (16, 17), liver function improvement (18), skin whitening (19), and promotion of the lifespan and healthspan (10, 13, 14).

Since Drosophila has an anatomically separated brain, evolutionarily conserved important signal transduction pathways in its genome, short lifespan, and established various research methods for measuring locomotor ability, it has been used as an important animal model for investigating aging and longevities (20, 21). Healthspan was applied for the first time in the study of aging using the Caenorhabditis elegans model, and the most relevant to healthy aging of C. elegans is mobility (22). Similarly, Drosophila also needs to fly or walk to survive, so the most important factor for healthy aging is locomotor ability (13, 14, 23, 24). Therefore, maintenance of voluntary locomotor ability has been used as the most important factor in determining the healthspan of C. elegans (22) and Drosophila (10, 13, 24). In previous studies, we have shown that Drosophila fed with HongJam showed promotion of lifespan and healthspan (10, 13, 14).

Parkinson’s disease (PD) is a progressive degenerative disorder of the central nervous systems caused by genetic defects and/or environmental risk factors in humans. Behavioral symptoms of PD are including slowness of movement, tremor, rigidity, and difficulty with walking. The pathological hallmark of PD is the death of dopaminergic neurons in human brains (25). Among various animal models for PD, Drosophila has been used for investigating molecular and cellular mechanisms underlying PD caused by genetic defects or environmental risk factors. For example, null mutations of Parkin, DJ-1, or LRKK2 in Drosophila faithfully replicated behavioral symptoms and loss of dopaminergic neurons in brains. In addition, rotenone or paraquat known to cause PD in humans also induced PD in Drosophila (26, 27). The molecular etiologies observed in PD patients and animal models included abnormalities in unfolded protein response (UPR), autophagy, mammalian target of rapamycin, and mitochondrial function (28, 29). In previous studies, we have shown that Drosophila fed with HongJam showed prevention of the onset of rotenone-induced loss of motor control (10, 13, 15). However, it is not still investigated whether HongJam can enhance UPR, autophagy, Target of rapamycin (Tor), and mitochondrial functions in Drosophila.

While we analyzed the nutritional compositions and health enhancement effects between HongJam produced with various pulverization methods, we found that the health enhancement effects of HongJam depended on the sizes of particles and recovery rates (9, 30, 31). Even though smaller HongJam particles gave rise to more effects, the currently available pulverization method for generating approximately 1 μm-sized HongJam particles induced the loss of quite an amount of HongJam particles because of mechanical defects (19).

HongJam consists of approximately 70% crude proteins, 15% crude fatty acids, 3% crude ash, and 2% phytochemicals and vitamins (10, 19, 30, 32). Recently, the Fibroin in silk fibers could reportedly be hydrolyzed by food-grade proteolytic enzymes (33). The FoodPro^® alkaline protease (FP^® AP) was efficiently used to hydrolyze the silk fiber Fibroin. Thus, we investigated whether digesting HongJam with FP^® AP can enhance healthspan promotion and rotenone-induced loss of motor control prevention effects of HongJam.

Materials and Methods

Rearing Mature Silkworms and Producing HongJam

White-Jade and Golden-Silk varieties of Bombyx mori were raised on mulberry leaves at the campus of the National Institute of Agricultural Science (NIAS), Wanju-gun, Jeolla-buk do, South Korea. HongJam, also known as steamed and freeze-dried mature silkworms, was produced as previously published (9, 30). Voucher specimens of White-Jade HongJam (WJ) and Golden-silk HongJam (GS) were deposited in the Bombyx mori Quality Maintenance and Storage Laboratory, Division of Industrial Insect and Sericulture, NIAS, Wanju-gun, Jeollabuk-do, South Korea.

Digestion of HongJam With a Food-Grade Protease

A previously published protocol was used (34). In brief, to prepare enzymatically digested WJ (WJD) and GS (GSD), 150 g of WJ or GS was mixed with 75 ml of FP^® AP (DuPont Industrial Biosciences, Brabrand, Denmark). After dH₂O was added to the mixtures to make 1 L of solution, an enzyme digestion was performed in a rotary stirrer at 55°C for 24 h. The FP^® AP was deactivated by boiling at 90°C for 10 min. WJD and GSD were harvested and separated with supernatants and precipitates by centrifuging at 13,000 rpm for 10 min. The supernatants and precipitates were freeze-dried, and the weight ratio of dried supernatants to precipitates was 7:3.

Size Exclusion Chromatography of Various Samples

To determine the biophysical characteristics of samples, size exclusion chromatography was performed using an AKTA fast protein liquid chromatography system (AKTA FPLC, GE Healthcare, Chicago, IL, United States) equipped with a Superose™ 6 10/300 column (GE Healthcare) equilibrated with 0.1 M phosphate buffer (pH 7.2, 150 mM NaCl). A gel filtration standard markers kit (protein molecular weight 12.4∼200.0 kDa, Merck KGaA, Darmstadt, Germany) was used to calibrate a Superose™ 6 10/300 column. The void volume (Vo) of the Superose™ 6 10/300 column was 7.5 ml. The ratios of elution volume/Vo of 200, 150, 66, 29, and 12.4 kDa protein standards were 1.988, 2.095, 2.174, 2.399, and 2.537, respectively. Radio immuno-precipitation assay (RIPA) buffer (10 mM Tris-HCl, pH 8.0, 1 mM EDTA, 0.5 mM EGTA, 1.0% NP-40, 1.0% sodium deoxycholate, 0.1% SDS, 140 mM NaCl, Merck) containing Halt™ protease inhibitor cocktail (ThermoFisher Scientific, Waltham, MA, United States) was used to extract proteins from samples. 0.3 ml (5.0 mg/ml) of samples were injected into AKTA FPLC and then separated for 70 min with a flow rate of 1.0 ml/min. UV absorbance changes at 215, 254, and 280 nm were monitored to reveal amounts of digested peptides, other bio-molecules with ring structures, and proteins, respectively, in samples.

Drosophila Lifespan and Healthspan Assays

The Canton-S strain of Drosophila melanogaster obtained from the Bloomington Drosophila Stock Center (Indiana University, Bloomington, IN, United States) was used to test whether the lifespan and healthspan of Drosophila supplemented with WJ, WJD, GS, or GSD were altered. Drosophila was raised with normal feed [Nf (1.0 L dH₂O, 7.7 g agar, 62.4 g dried yeast, 40.8 g corn starch, 84.0 g glucose, 13.0 ml molasses, and 12.5 ml mold inhibitor)] or HongJam feeds containing 6.24 g of WJ, WJD, GS, or GSD in Nf. The life expectancy and healthspans were investigated as previously published (10, 13, 24). The healthspan in Drosophila was defined as the period with voluntary movement ability in previous reports.

To examine the effects of GSD supernatant (GSDsup) and GSD precipitate (GSDpepc) on Drosophila lifespans and healthspans, 6.24 g of GSDsup or GSDprec was mixed with Nf to make GSDsup feed (GSDsupf) or GSDprec feed (GSDprecf). The Drosophila were raised with Nf, GS feed (GSf), GSD feed (GSDf), GSDsupf, or GSDprecf, and the numbers of live flies and active flies were counted as previously published (10, 13, 24).

Assays for Activities of Mitochondrial Complexes I∼IV

The activities of mitochondrial complexes (MitoCom) I∼IV in 5-, 10-, 15-, or 20-day-old Drosophila reared with Nf, GSf, or GSDf were measured as previously published (11, 12). Ten Drosophila adults were ground in mitochondria lysis buffer (0.25 M sucrose, 5 mM Tris-HCl, 2 mM EGTA, and 1% BSA, pH 7.4), and then the debris was removed by three layers of medical gauze (Dae Han Medical Supply Co. LTD, Chuncheon-si, South Korea). Filtered lysates were centrifuged at 150× g for 5 min at 4°C and the supernatants were collected and then centrifuged at 900× g for 10 min at 4°C to collect the mitochondrial pellets. The pellets were resolved with 200 μl of lysis buffer and then divided into two tubes: one tube containing 155 μl for MitoCom I∼III and the other tube containing 45 μl of a mitochondrial sample with 5 μl of 10 mM n-D-β-D maltoside for MitoCom IV. All activities of MitoCom I∼IV were normalized by using the activities of Drosophila reared with Nf.

Chemical Susceptibility Assay for Drosophila

After treatment with various signal transduction pathway modulators, the changes in the survival rates of Drosophila reared with diverse feeds were investigated to elucidate the signaling altered by GS or GSD. Dithiothreitol [DTT, an endoplasmic reticulum (ER) stress inducer, Merck], fipronil [a gamma-aminobutyric acid A-type receptor (GABA_A-R) channel blocker, Tokyo Chemical Industry], H₂O₂ (an oxidative stress inducer, Merck), LiCl (an autophagy inducer, DaeJung), and 3-methyladenine (3-MA, an autophagy inhibitor, Merck) were used to modulate various signal transduction pathways. Drosophila were reared with various feeds containing GS, GSD, GSDsup, or GSDprep, and then one hundred adults (50 females and 50 males) were exposed to various signal transduction modulators mixed with 1.5% agar with 0.5 M sucrose and incubated at 28.0 ± 1.0°C. The numbers of live flies were counted every 3 days, and then those live flies were transferred to new tubes containing fresh feed with modulators.

Real-Time Quantitative PCR Protocol

The expression changes of 36 genes related to the unfolded protein response (UPR), autophagy, and the target of rapamycin (Tor)/AKT/phosphatidylinositol 3-kinase (PI3K) were investigated by performing real-time quantitative PCR (RT–qPCR). In addition, the expression changes of six gustatory receptors (Gr), Gr64af, were investigated. The heads and bodies of 7- or 15-day-old adult flies were collected to extract the total RNA using TRIzol reagents according to the manufacturer’s protocol. After the quality of the total RNA was determined using the A260/A280 and 28S rRNA/18S rRNA ratios, DNase I (Promega, Madison, WI, United States) was used to remove genomic DNA contaminants, and then cDNA was synthesized using Superscript IV (Thermo Fisher Scientific). The DNA sequences of the oligomers and PCR conditions are listed in Supplementary Table 1. RT-qPCRs using SYBR green master mix (Thermo Fisher Scientific) were performed using an ARIA MX RT-PCR machine and software (Agilent, Santa Clara, CA, United States). Three biological replications were performed for each analysis. The previously published 2^–ΔΔCT method was used to quantify the relative expression levels of the genes.

Gene-to-Gene Interaction Analysis

The STRING database (DB)¹ (35) was used to perform a gene-to-gene interaction analysis of differentially expressed genes (DEGs) in the heads and bodies of 7- or 15-day-old Drosophila.

Survival Analysis for Rotenone-Induced Drosophila Model

To investigate the effects of GS, GSD, GSDsup, or GSDprec on the onset and progression of rotenone-induced loss of motor control in a Drosophila model, Nf-, GSf-, GSDf-, GSDsupf-, or GSDprecf-reared Drosophila were treated with 0.2 M rotenone in 0.1% dimethyl sulfoxide (DMSO), 1.5% agar, and 0.5 M sucrose (Dae-Jung). One hundred age-matched adult Drosophila (50 females and 50 males) were collected and then exposed to 0.2 M rotenone. For the controls, Nf-, GSf-, GSDf-, GSDsupf-, or GSDprecf-reared Drosophila were exposed to only 0.1% DMSO in 1.5% agar and 0.5 M sucrose. The number of live Drosophila was counted every 3 days. Kaplan-Meier survival analyses were performed as described below.

Determining the Phytochemicals in GS, GSD, GSDsup, and GSDprec

To quantify the amounts of flavonoids or polyphenolic compounds in various samples, the samples were mixed with 80% methanol (MeOH, vol/vol) and then shaken for 90 min at 150 rpm using a rotary shaker (IS971R, Jeio Tech, DaeJeon, South Korea). Mixed solutions were centrifuged to obtain their supernatants. Following filtration with a syringe filter (0.2 μm pore size, Sartorius AG, Gottingen, Germany) to remove small debris, the amounts of total phenolic compounds and flavonoids were measured as previously published (11, 14, 36). The amounts of phytochemicals in GSD, GSDsup, and GSDprec were normalized by using those of GS.

Antioxidant Activity Assays

The antioxidant activities of GS, GSD, GSDsup, and GSDprep were examined by performing a 1,1-di-phenyl-2-picryl-hydrazyl (DPPH) assay and a ferric-reducing ability of plasma (FRAP) assay as previously published (11, 14, 36). The antioxidant activities in GSD, GSDsup, and GSDprec were normalized by using those of GS.

Statistical Analysis

For comparing mitochondrial activities, amounts of phytochemicals, and antioxidant activities, one-way analysis of variance (ANOVA) and Tukey’s honestly significant difference (HSD) post-hoc analysis were performed using Microsoft Excel for Windows 10 (Microsoft, Redmond, WA, United States) as previously published (11, 12). All results were presented as the mean ± the standard error of the mean.

Kaplan-Meier survival estimations were performed to draw the survival or locomotor ability curves of Drosophila fed with different feeds or treated with various chemicals. In addition, Cox proportional hazard regression analyses and the log-rank tests were performed to obtain hazard ratios (HRs) and 95% confidential intervals (CIs), and p-values, respectively. Kaplan-Meier survival estimations, the log-rank tests, and Cox proportional hazard regression analyses were performed using the R program (version 4.0.3; The R Foundation) as previously published (12, 37).

Results

Digestion of HongJam With a Food-Grade Protease Altered Its Biophysical Characteristics

The size exclusion chromatograms of RIPA extracts of GS, GSD, GSDsup, or GSDprec revealed unique biophysical characteristics of samples (Supplementary Figure 1). The chromatogram of a RIPA extract of GS had two separate parts (Supplementary Figure 1A). The size of the 1st part was smaller than that of the 2nd part. In contrast, the chromatogram of a RIPA extract of GSD showed the tiny 1st part and the large 2nd part (Supplementary Figure 1B). In addition, the chromatograms of a RIPA extract of GSDsup showed a unique pattern. The narrow and pointed 1st part appeared close to the large 2nd part (Supplementary Figure 1C). This unique chromatogram of GSDsup suggested that digestion of HongJam with a food-grade protease might cause digestion of high molecular weight proteins to low molecular weight peptides. The chromatogram of a RIPA extract of GSDprec differed from others. The 1st part was larger than those of other samples (Supplementary Figure 1D). This result indicated that peptidoglycans, major components of larval cuticles, might be digested by a food-grade protease, and decomposed high molecular weight molecules were released from GSDprec while extracting with a RIPA buffer. The unique chromatograms of samples might ensure the quality of the samples.

Further Extension of Healthspan in Drosophila Supplemented With GSD

The lifespans and healthspans of Drosophila reared with WJf, WJDf, GSf, or GSDf were compared with those of Nf-reared Drosophila (Figure 1). All the Drosophila reared with WJf, WJDf, GSf, and GSDf showed a statistically significant decrease in HRs (Figures 1A,B). Compared with Nf-reared Drosophila, the HRs of GSf-, GSDf-, WJf-, or WJDf-reared Drosophila were 0.240, 0.296, 0.306, or 0.258, respectively. However, there was no significant difference between the various HongJam feed-reared groups. When the life expectancy was converted into the average lifespan, the average lifespan of Nf-reared Drosophila was 16.56 days, while the average lifespans of GSf-, GSDf-, WJf-, or WJDf-reared Drosophila were 25.14 days (51.8% up), 25.47 days (53.8% up), 44.4% to 23.91 days (44.4% up), or 24.99 days (50.9% up), respectively (Figure 1C).

FIGURE 1

Figure 1. The life expectancy and healthspan of Drosophila reared with various feeds. (A) The lifespans of Drosophila reared with GS feed (GSf), GSD feed (GSDf), WJ feed (WJf), or WJD feed (WJDf) were extended compared with that of Normal feed (Nf)-reared Drosophila. (B) When the life expectancy of Drosophila reared with GSf, GSDf, WJf, or WJDf was compared with that of Nf-reared Drosophila, the hazard ratios (HRs) were significantly reduced (p < 0.005). (C) Compared to Nf-reared Drosophila, the average lifespans of GSf-, GSDf-, WJf-, or WJDf-reared Drosophila were increased. (D) Compared with Nf-reared Drosophila, the voluntary locomotor abilities of GSf-, GSDf-, WJf-, or WJDf-reared Drosophila were significantly increased. The period of Drosophila retained voluntary locomotor ability was defined as the healthspan. (E) The HRs of GSf-, GSDf-, WJf-, and WJDf-reared Drosophila were significantly reduced (p < 0.005). (F) The healthspans of GSf-, GSDf-, WJf-, or WJDf-reared Drosophila were significantly increased. (G) The ratios of life expectancies and healthspans were higher in GSDf-, GSf-, and WJf- but lower in WJDf-reared Drosophila than in Nf-reared Drosophila.

When the locomotion ability was examined to calculate the healthspan of Drosophila, we found that the locomotion ability of GSf-, GSDf-, WJf-, or WJDf-reared Drosophila was significantly increased compared to that of Nf-reared Drosophila. The HRs of GSf-, GSDf-, WJf-, and WJDf-reared Drosophila were significantly decreased to 0.527, 0.542, 0.542, and 0.553, respectively, compared to those of Nf-reared Drosophila (p < 0.005, Figures 1D,E). In previous studies, the healthspan of Drosophila was defined as the point at which 50% of the individuals had locomotor ability (10, 13, 14). Although the healthspan of Nf-reared Drosophila was only 11.9 days, those of GSf-, GSDf-, WJf-, or WJDf-reared Drosophila were extended to 15.6 days (69.6% up), 18.2 days (98.2% up), 15.6 days (69.6% up), or 13.5 days (46.7% up), respectively (Figure 1F).

As the ratio of healthspans to life expectancies increased, the period of suffering from disease decreased (22, 38), so this ratio is one of the important factors to confirm health promotion. The ratio of the healthspan to the average lifespan of Nf-reared Drosophila was 55.6%, whereas that of GSf-, GSDf-, or WJf-cultured Drosophila increased up to 62.1, 71.6, or 65.2%, respectively. However, that of WJDf-reared Drosophila decreased to 54.0% (Figure 1G). The ratio of healthspan/life expectancy was deteriorated in WJD compared to WJ. These results showed that GS and GSD were more effective at increasing the healthspan than WJ and WJD. Thus, further research was conducted using GS and GSD.

Enhancement of MitoCom I∼IV Activities in Drosophila by GS and GSD

In previous studies, we showed that Drosophila and mice fed GS showed enhanced mitochondrial function (11, 12). Thus, we investigated whether the activities of MitoComs I∼IV in Drosophila reared with GSf or GSDf were different from those of Nf-reared Drosophila. The MitoCom I activities were highest in GSf-reared Drosophila from Day 5 to Day 15 but in GSDf-reared Drosophila on Day 20 (Supplementary Figure 2A). Similarly, the MitoCom II activities were highest in GSf-reared Drosophila from Day 5 to Day 15. On Day 20, GSf- and GSDf-reared Drosophila had significantly higher MitoCom II activities than Nf-reared Drosophila (Supplementary Figure 2B). The activity of MitoCom III was highest in GSf-reared Drosophila on Day 5 and Day 15, and GSDf-reared Drosophila had the highest activity on Day 10. On Day 20, both GSf- and GSDf-reared Drosophila showed higher activity than Nf-reared Drosophila (Supplementary Figure 2C). The activity of MitoCom IV in GSf- and GSDf-reared Drosophila was significantly higher on Day 10 than that in Nf-reared Drosophila. On the other days, GSf-reared Drosophila had the highest MitoCom IV activity (Supplementary Figure 2D).

These results suggested that the enhanced activities of MitoCom I∼IV might be in part the molecular basis for the extended life expectancy and healthspans in GSf- and GSDf-reared Drosophila.

GS and GSD Spatiotemporally Differentially Regulate Autophagy, Tor, and UPR Signaling

In previous studies, we showed that the onset and progression of rotenone-induced loss of motor control in Drosophila was prevented by GS. UPR, autophagy, mTor signaling, and mitochondrial function were shown to be involved with longevities and loss of motor control (28, 29). Thus, we investigated the DEGs in the heads and bodies of 7- or 15-day-old Drosophila reared with Nf, GSf, or GSDf.

In comparison with the expression of genes in the heads of 7-day-old Nf-reared Drosophila, the expression of 11 or 6 genes in the heads of 7-day-old GSf-reared Drosophila was significantly reduced or increased, respectively (Supplementary Table 2). Five out of 7 DEGs (Atg1, Atg2, Atg4a, Atg5, and Hsc70-4) associated with autophagy signaling or 6 DEGs (Atf6, Gp93, Grp170, crc, Hsc70-3, and Xbp 1) in UPR signaling were downregulated, while the expression of AKT1 in Tor signaling and three Grs (Gr64d, Gr64f, and Gr64e) were upregulated compared with those of Nf-reared Drosophila (Figure 2A). Similarly, compared with the body of 7-day-old Nf-reared Drosophila, the expression of 15 genes decreased and only one increased in the body of 7-day-old GSDf-reared Drosophila (Supplementary Table 2). Eight DEGs in autophagy signaling (Atg1, Atg4, Atg5, Atg7, Atg8a, Atg12, Atg13, and Hsc70-4), one DEG in Tor signaling (Pi3K59F), and 6 DEGs in UPR signaling (Atf6, crc, Gp93, Hsc70-3, PEK, and Xbp1) were all downregulated, and only Gr64e was upregulated (Figure 2B). When comparing GSf- and GSDf-reared Drosophila, two DEGs in autophagy signaling (Atg2 and Atg7) were upregulated, and 2 DEGs in Tor signaling (Pi3K59F and Akt1), UPR signaling (Xbp1 and PEK) and Grs (Gr64d and Gr64f) were downregulated (Figure 2C). More DEGs were found in the bodies of 7-day-old Drosophila reared with GSf or GSDf than in Nf-reared Drosophila (Supplementary Table 2 and Figures 2D–F). Compared with Nf-reared Drosophila, 19 down- and three upregulated DEGs were observed in GSf-reared Drosophila. Eight out of 10 DEGs in autophagy signaling (Atg1, Atg2, Atg4a, Atg5, Atg8a, Atg13, Hsc70-4, and Hsc70-5), one DEG in Tor signaling (foxo), all six DEGs in UPR signaling (crc, Gp93, Hsc70-3, Ire1, PEK, and Xbp1), and two out of three Grs (Gr64d and Gr64f) were downregulated (Figure 2D). By contrast, more DEGs were upregulated in GSDf-reared Drosophila than in Nf-reared Drosophila. Three out of six DEGs in autophagy signaling (Atg1, Atg13, and Hsc70-4), one out of two Tor signaling (foxo), one out of three DEGs in UPR signaling (Xbp1), and one out of five DEGs in Grs (Gr64d) were downregulated (Figure 2E). When GSf- and GSDf-reared Drosophila were compared, three out of seven DEGs in autophagy signaling (Atg6, Atg12, and Hsc70-5), two DEGs in Tor signaling (foxo and S6k), all four UPR signaling (Atf6, crc, Gp93, and Ire1), and four out of five DEGs in Grs (G64b, Gr64c, Gr64e, Gr6f) were upregulated. Except for the Grs, the DEGs showed very strong intra- and inter-signaling interactions (Figures 2A–F).

FIGURE 2

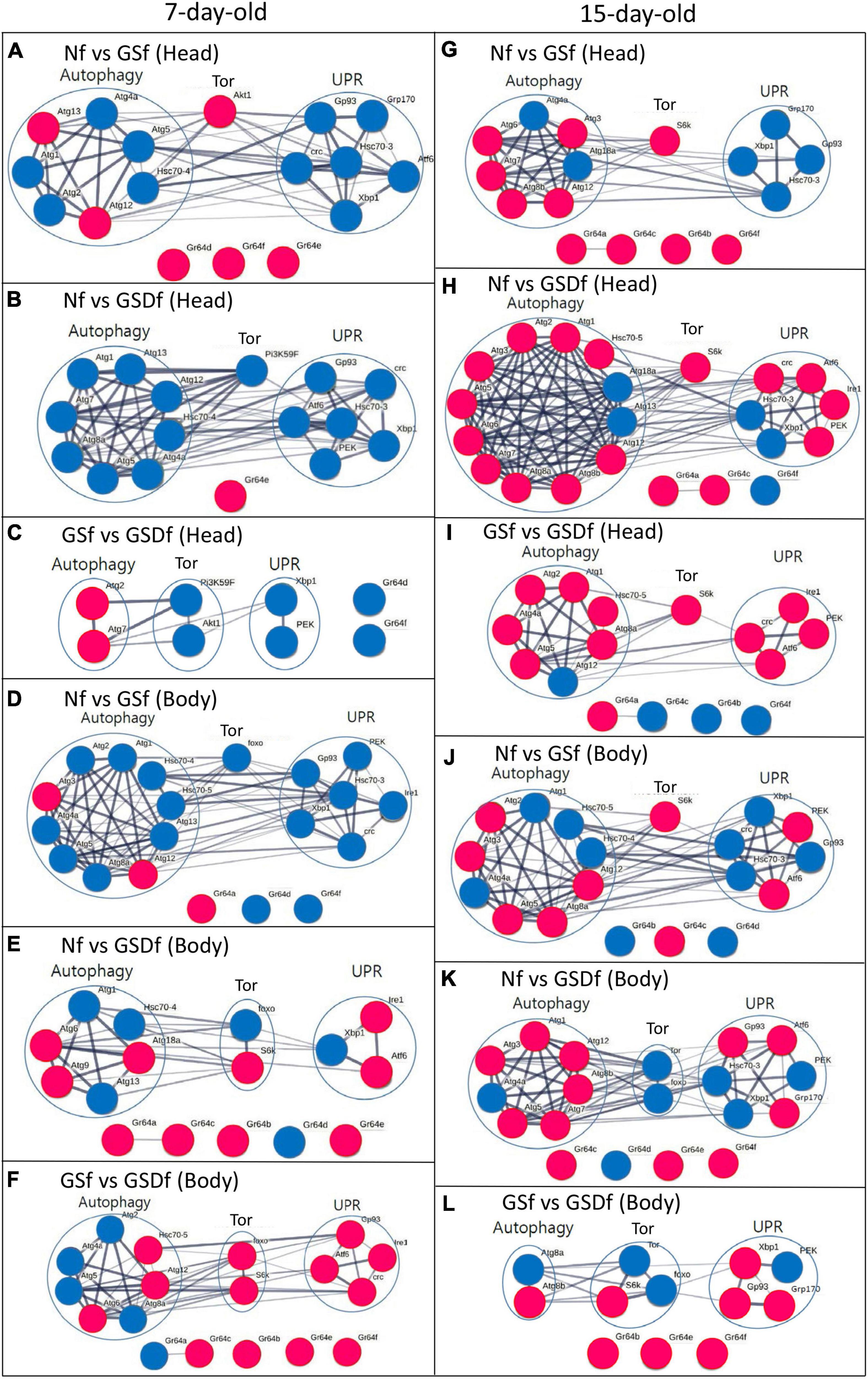

Figure 2. Results of gene-to-gene interaction analysis of differentially expressed genes (DEGs) in autophagy-, Unfolded protein response (UPR)-, and Tor-signaling in the heads and bodies of 7- or 15-day-old Nf-, GSf-, and GSDf-reared Drosophila. Red circles indicate upregulated DEGs, while blue circles indicate downregulated DEGs. DEGs in the heads of 7-day-old GSf- (A) or GSDf-reared Drosophila (B) compared with those of Nf-reared Drosophila. DEGs in the heads of 7-day-old GSDf-reared Drosophila compared with those of GSf-reared Drosophila (C). DEGs in the body of 7-day-old GSf- (D) or GSDf-reared Drosophila (E) compared with that of Nf-reared Drosophila. DEGs in the heads of 7-day-old GSDf-reared Drosophila compared with those of GSf-reared Drosophila (F). DEGs in the heads of 15-day-old GSf- (G) or GSDf-reared Drosophila (H) compared with that of Nf-reared Drosophila. DEGs in the heads of 15-day-old GSDf-reared Drosophila compared with those of GSf-reared Drosophila (I). DEGs in the bodies of 15-day-old GSf- (J) or GSDf-reared Drosophila (K) compared with those of Nf-reared Drosophila. DEGs in the bodies of 15-day-old GSDf-reared Drosophila compared with that of GSf-reared Drosophila (L).

The expression patterns of DEGs in the heads and bodies of 15-day-old Drosophila reared with GSf or GSDf compared to those of Nf-reared Drosophila were different from those of 7-day-old Drosophila (Supplementary Table 3 and Figures 2G–L). Compared with the heads of 15-day-old Nf-reared Drosophila, five out of seven DEGs in autophagy signaling (Atg3, Atg6, Atg7, Atg8b, and Atg12), one DEG in Tor signaling (S6k), and all four Grs (Gr64a, Gr64b, Gr64c, and Gr64f) were upregulated, while all four DEGs in UPR signaling (Hsc70-3, Grp170, Gp93, and Xbp1) were downregulated (Figure 2G). More DEGs were revealed when GSDf-reared Drosophila was compared with Nf-reared Drosophila (Figure 2H). Ten out of 12 DEGs in autophagy signaling (Atg1, Atg2, Atg3, Atg5, Atg6, Atg7, Atg8a, Atg8b, and Atg12), one DEG in Tor signaling (S6k), and four out of six DEGs in UPR signaling (Atf6, crc, Ire1, and PEK) were upregulated in the heads of 15-day-old GSDf-reared Drosophila. When GSf- and GSDf-reared Drosophila were compared, six out of seven DEGs in autophagy signaling (Atg1, Atg2, Atg4a, Atg5, Atg8a, and Hsc70-5), one DEG in Tor signaling (S6k), all four DEGs in UPR signaling (Atf6, crc, Ire1, and PEK), and one out of four DEGs (Gr64a) in Grs were upregulated (Figure 2I). When the expression of genes in the body of 15-day-old GSf-reared Drosophila was compared with that of Nf-reared Drosophila, five out of nine DEGs in autophagy signaling (Atg2, Atg3, Atg5, Atg8a, and Atg12), one DEG in Tor signaling (S6k), two out of six DEGs in UPR signaling (Atf6 and PEK), and one out of three DEGs in Grs (Gr64c) were upregulated (Figure 2J). In the case of GSDf-reared Drosophila, one out of seven DEGs in autophagy signaling (Atg4a), two DEGs in Tor signaling (Tor and foxo), three out of six DEGs in UPR signaling (Hsc70-3, PEK, and Xbp1), and one out of four DEGs in Grs (Gr64d) were downregulated (Figure 2K). In addition, when GSf- and GSDf-reared Drosophila were compared, one out of two DEGs in autophagy signaling (Atg8b), one out of three DEGs in Tor signaling (S6k), three out of four DEGs in UPR signaling (Gp93, Grp170, and Xbp1), and all three DEGs in Grs (Gr64c, Gr64e, and Gr64f) were upregulated (Figure 2L). Except for the DEGs in the Grs, there were strong intra- and inter-signaling interactions among DEGs (Figures 2G–L).

Taken together, the DEG analysis results showed that GS and GSD had different spatiotemporal effects on the heads and bodies of 7- and 15-day-old Drosophila. Since GSDf-reared Drosophila had more up-regulated DEGs in autophagy and UPR signaling than GSf-reared Drosophila, the functional nutrients in enzyme-digested GSD might be more easily absorbed than those in GS, resulting in enhancing autophagy and UPR signaling in 15-day-old Drosophila.

GS and GSD Alter the Susceptibility of Drosophila to Modulators of Various Signal Transduction Pathways

Drosophila reared with GSf and GSDf showed significantly extended life expectancies and healthspans (Figure 1). To investigate which signal transduction pathways were altered, we investigated the alteration of sensitivities in Drosophila to the modulators of various signal transduction pathways (Table 1).

TABLE 1

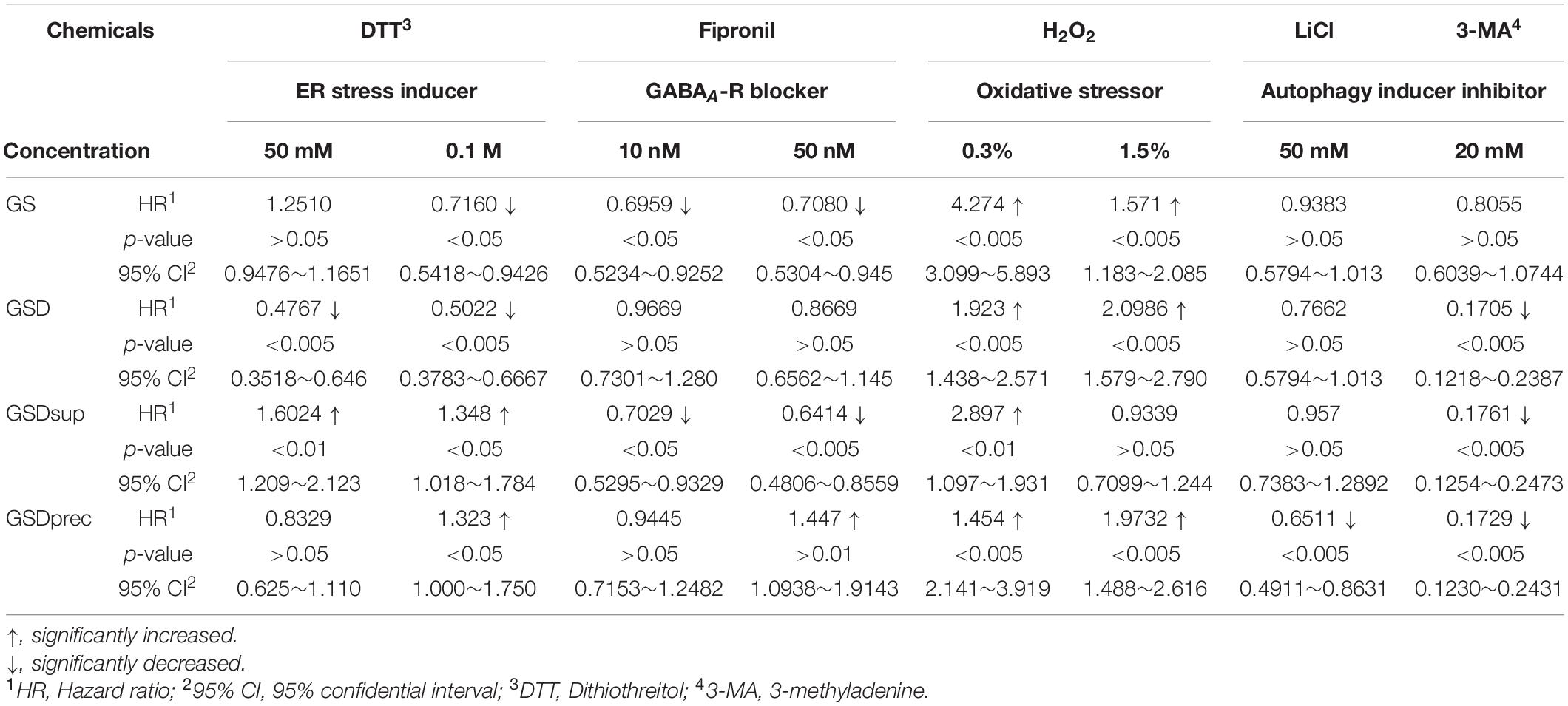

Table 1. Altered susceptibility of GS feed (GSf)-, GSD feed (GSDf)-, GSD supernatant feed (GSDsupf)-, and GSD precipitate feed (GSDprecf)-reared Drosophila to various signal transduction pathway modulators.

After the Drosophila were treated with the ER stress inducer DTT at 50 and 100 mM in GSf-, GSDf-, GSDsupf-, and GSDprecf-reared Drosophila, the survival rate was compared to that of Nf-reared Drosophila (Table 1). When GSf-reared Drosophila were exposed to DTT, HR (0.7160, p < 0.05) was significantly reduced only when exposed to 100 mM DTT. The HRs of GSDf-reared Drosophila exposed to 50 mM (0.4767, p < 0.005) or 100 mM DTT (0.5022, p < 0.005) were significantly reduced. However, GSDsupf-reared Drosophila exposed to 50 mM (1.6024, p < 0.005) and 100 mM DTT (1.348, p < 0.05) showed significantly increased HRs. In addition, GSDprecf-reared Drosophila exposed to 100 mM DTT only showed a significantly increased HR (1.323, p < 0.05).

Drosophila reared with various feeds showed altered HRs when exposed to 10 nM or 50 nM of the GABA_AR blocker fipronil (Table 1). The HRs of GSf-reared Drosophila exposed to 10 nM (0.6959, p < 0.05) or 50 nM fipronil (0.7080, p < 0.05) were significantly reduced. Although the HRs of GSDf-reared Drosophila exposed to fipronil did not show any difference from those of Nf-reared Drosophila, GSDsupf-reared Drosophila exposed to 10 nm (0.7029, p < 0.05) or 50 nm fipronil (0.6414, p < 0.005) showed significantly reduced HRs. By contrast, GSDprecf-reared Drosophila showed a significantly increased HR when exposed to 50 nm fipronil (1.447, p < 0.01).

For the oxidative stressor H₂O₂, the HRs of 0.3% (4.274, p < 0.005) or 1.5% H₂O₂ (1.571, p < 0.05)-exposed GSf-reared Drosophila were significantly increased. Similarly, the HRs of 0.3% (1.454, p < 0.005) or 1.5% H₂O₂ (1.9732, p < 0.005) were significantly increased in GSDf-reared Drosophila. However, GSDsupf-reared Drosophila only showed a significantly increased HR when exposed to 0.3% H₂O₂ (2.897, p < 0.01).

When exposed to the autophagy inducer 50 mM LiCl, the HR (0.6511, p < 0.005) of GSDprecf-reared Drosophila was significantly reduced. By contrast, when exposed to the autophagy inhibitor 20 mM 3-MA, the HRs of GSDf- (0.1705, p < 0.005), GSDsupf- (0.1761, p < 0.005), and GSDprecf (0.1729, p < 0.005) were significantly reduced.

Taken together, these results suggested that the signal transduction pathways affected by GS and GSD might be different. Nevertheless, consistent with the DEG analysis results, GSD-, GSDsup-, and GSDprec-reared Drosophila revealed enhanced resistance to an autophagy inhibitor.

Preventing the Onset of Rotenone-Induced Loss of Motor Control in GSf-, GSDf-, GSDsupf-, and GSDprecf-Reared Drosophila

Rotenone is a widely used natural plant protection agent that is extracted from the roots of Derris spp., Lonchocarpus spp., Tephrosia spp., and Mundulea spp. Although rotenone is widely used in eco-friendly or organic farming, an important side effect observed in humans and animals exposed long-term to rotenone is loss of motor control because this compound is a MitoCom I inhibitor (39). In previous studies, we showed that GS could prevent the onset and progression of rotenone-induced loss of motor control in Drosophila (13, 14). Thus, we tested whether GSD, GSDsup, or GSDprec could prevent the onset and progression of loss of motor control in Drosophila (Figure 3). In addition to GSf-reared Drosophila (HR = 0.61), the HRs of GSDf- (0.48), GSDsupf- (0.34), and GSDprecf-reared Drosophila (0.53) were significantly reduced (p < 0.001, Figures 3A,B). Compared with that of Nf-reared Drosophila (19.15 days), the average lifespans of GSf-, GSDf-, GSDsupf-, and GSDprecf-reared Drosophila were 22.69 days (18.5% up), 23.34 days (21.9% up), 25.75 days (34.5% up), and 23.89 days (24.8% up), respectively (Figure 3C). When Drosophila was exposed to 0.2 M rotenone, compared with Nf-reared Drosophila, the HRs of GSf- (0.61), GSDf- (0.53), GSDsupf- (0.41), and GSDprecf-reared Drosophila (0.69) were significantly reduced (p < 0.001, Figures 3D,E). Compared with that of Nf-reared Drosophila exposed to 0.2 M rotenone (11.58 days), the average lifespans of GSf-, GSDf-, GSDsupf-, or GSDprecf-reared Drosophila exposed to 0.2 M rotenone were 13.4 days (15.7% up), 13.98 days (20.7% up), 15.46 days (33.5% up), and 13.04 days (12.6% up), respectively (Figure 3F). This result suggested that GSDsupf-reared Drosophila exhibited the superior prevention effect of rotenone-induced loss of motor control.

FIGURE 3

Figure 3. Prevention of the onset and progression of rotenone-induced loss of motor control by GS, GSD, GSDsup, or GSDprec. (A) The lifespans of GSf, GSDf, GSDsupf, or GSDprecf-reared Drosophila were extended compared with that of Nf-reared Drosophila. (B) In comparison with Nf-reared Drosophila, the HRs of Drosophila reared with GSf, GSDf, GSDsupf, or GSDprecf were significantly reduced, when they were not treated with rotenone. (C) The average lifespans of GSf-, GSDf-, GSDsupf-, or GSDprecf-reared Drosophila were more promoted than that of Nf-reared Drosophila. (D) When Drosophila was exposed to 0.2 M rotenone, the lifespans of GSf, GSDf, GSDsupf, or GSDprecf-reared Drosophila were extended compared with that of Nf-reared Drosophila. (E) The HRs of GSf-, GSDf-, GSDsupf-, and GSDprecf-reared Drosophila were significantly reduced. (F) The average lifespans of GSf-, GSDf-, GSDsupf-, and GSDprecf-reared Drosophila were more promoted than that of Nf-reared Drosophila.

More Total Phenolic Compounds and Antioxidant Activities in GSD and GSDsup

To investigate the effect of FP^® AP treatment on the quantity and antioxidant activity of phytochemicals and small molecules present in GS, 80% MeOH extracts of GS, GSD, GSDsup, and GSDprec were used. There were non-significant differences in the total flavonoid amounts in the 80% MeOH extracts (GS = 100.0 ± 9.07%, GSD = 106.7 ± 8.57%, GSDsup = 96.3 ± 5.79, GSDprec = 98.8 ± 3.90, p > 0.05, Figure 4A). By contrast, the relative total phenolic compounds of GSD (278.7 ± 2.25%), GSDsup (295.0 ± 4.06%), and GSDprec (245.7 ± 2.01%) were significantly increased compared to those of GS (100.0 ± 0.43%) (p < 0.005, Figure 4B).

FIGURE 4

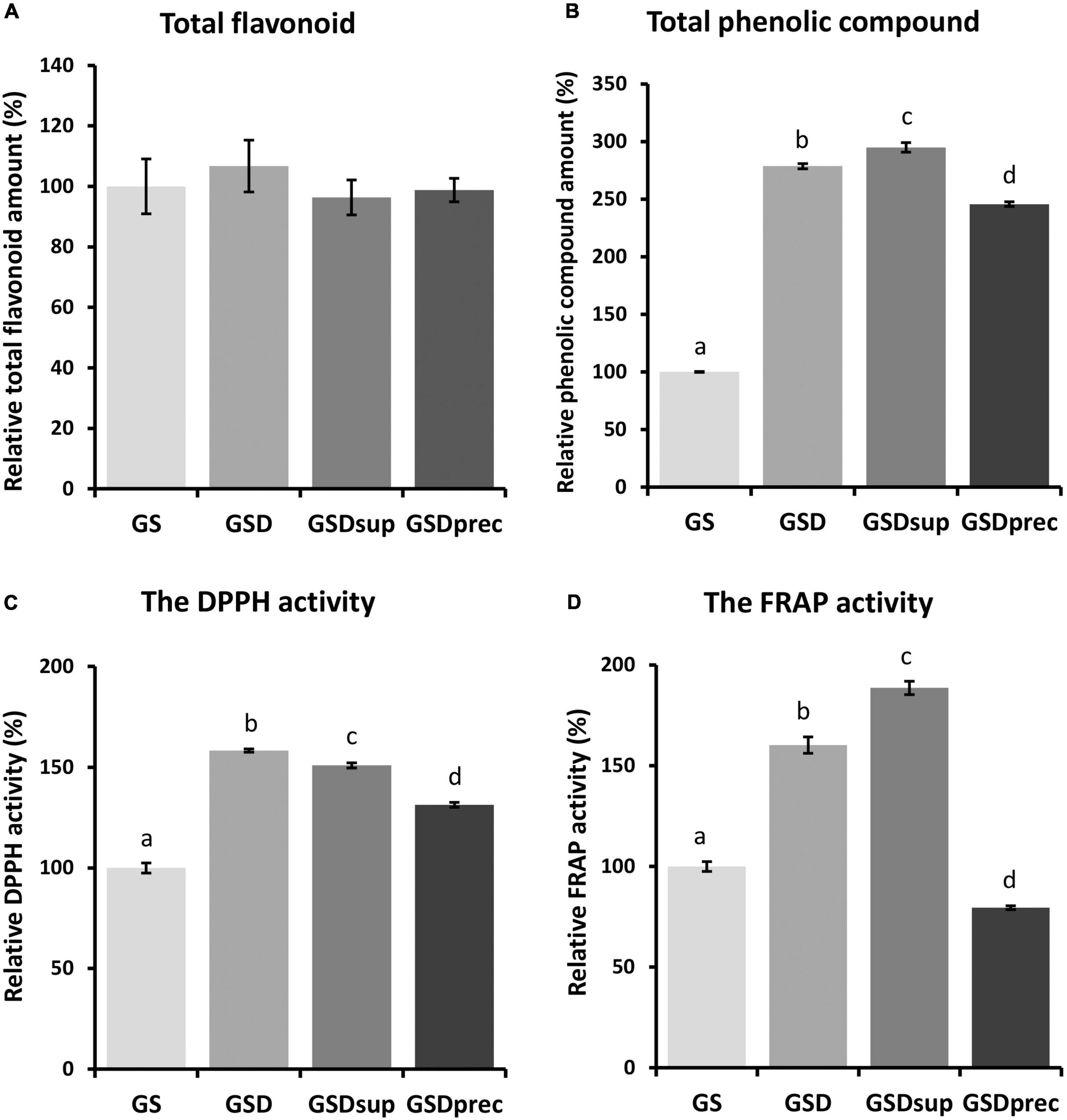

Figure 4. The amounts of phytochemicals and antioxidant activities of 80% methyl alcohol (MeOH) extracts of GS, GSD, GSDsup, and GSDprec. (A) There were non-significant differences in the amounts of total flavonoids among the 80% MeOH extracts of GS, GSD, GSDsup, and GSDprec [F_(3,19) = 0.38698, p = 0.76]. (B) There were significant differences in the amounts of total phenolic compounds among the 80% MeOH extracts of GS, GSD, GSDsup, and GSDprec [F_(3,19) = 1229.14, p = 4.0 × 10^{– 19}]. (C) There were significant differences in the 1,1-di-phenyl-2-picryl-hydrazyl (DPPH) radical scavenger activities among the 80% MeOH extracts of GS, GSD, GSDsup, and GSDprec [F_(3,19) = 261.98, p = 8.3 × 10^{– 14}]. (D) There were significant differences in the ferric-reducing ability of plasma (FRAP) activities among the 80% MeOH extracts of GS, GSD, GSDsup, and GSDprec [F_(3,19) = 304.9, p = 2.5 × 10^{– 14}]. The letters above the error bars represent significant differences as determined by one-way ANOVA and Tukey’s HSD post-hoc test.

The antioxidant effects of the GS, GSD, GSDsup, and GSDprec extracts were examined by using DPPH and FRAP assays. The DPPH radical scavenging activity was significantly increased with GSD extract (158.3 ± 0.82%), GSDsup extract (150.9 ± 1.30%), and GSDprec extract (131.3 ± 1.23%) compared with GS extract (100 ± 2.54%) (p < 0.005, Figure 4C). By contrast, the FRAP activities were significantly increased in the GSD extract (160.2 ± 4.05%) and GSDsup extract (188.6 ± 3.27%) but decreased significantly with the GSDprec extract (79.4 ± 0.91%) compared to the GS extract (100.0 ± 2.49%) (p < 0.005, Figure 4D). These results suggest that the increased antioxidant effect observed in the GSD extract is probably due to the increased phenolic compounds in the GSDsup extract. In addition, the increased amount of total phenolic compounds and antioxidant effect in GSD, GSDsup, and GSDprec compared to GS (Figure 4) might be used together with FPLC chromatograms (Supplementary Figure 1) to assure the quality of the samples.

Discussion

More than 1,900 species of edible insects worldwide are consumed as food and feed that supplies protein and lipids (40–42). Compared to traditional livestock, edible insects called mini-livestock have epidemiological advantages for use as foods and feeds, because there are no common infectious disease pathogens between insects and humans or vertebrates. By contrast, feeding livestock with the same or other species byproducts is known to cause severe diseases that can be transmitted to humans. More than 60% of human diseases originate from vertebrate animals, including domestic livestock, pets, and wild animals (43). Therefore, edible insects can be used as a portion of major food and feed sources to cope with infectious diseases that threaten humanity now and in the future. Furthermore, in addition to being used as food or feed, certain edible insects may have special health-promoting effects. One of the most important examples is the mulberry silkworm, the longest-reared mini-livestock by humans (1, 2). Prior to the 1990s, silkworm pupae, a byproduct of the process of producing silk fibers from cocoons, were primarily used as protein and fat sources. By scientifically investigating the health-promoting effects of various sericulture products mentioned in ancient Oriental medical documents since the 1990s, various health enhancement effects of silkworm products have been revealed (1, 2, 42). People can eat meats, poultry, fish, eggs, etc., which are products of traditional livestock without any aversion. However, there are great preference differences among people for edible insects. Thus, research has been conducted toward producing edible insects as general food, health functional food, or food for special medical purposes after reducing aversion due to shape or smell through various treatment processes rather than the raw materials (2).

The advantage of silkworms compared to other edible insects is that their body wall is very thin and soft, so they can be consumed whole by steaming and freeze-drying (9). In previous studies, we have shown that the size of the final powder is related to the health-promotion effects of HongJam. When a hammer mill, a natural stone roller mill, or an air-jet mill were used, the average size of the final powders that could be obtained was approximately 120 μm, 10 μm, or 1 μm, respectively (9, 30, 31). Although there was a significant difference in the health-promotion effects and contents of nutrients between HongJam powder sizes of 120 μm and 10 μm (30), there was no significant difference in the contents of nutrients between HongJam powder sizes of 10 μm and 1 μm (19). The reason that there were no differences in the health-promotion effects and the nutritional compositions between HongJam powder sizes of 10 μm and 1 μm is probably that the powders containing fatty acids are lost because of the mechanical characteristics of an air jet mill used for pulverizing. These results suggested it is necessary to develop a method of making the size of HongJam powders smaller without the loss of certain nutrients or transforming them into a form that might be easily absorbed by humans or animals. Therefore, the most important contribution from this study was providing the molecular and biochemical evidence of how the treatment of food-grade protease enhances the health-promotion effects of HongJam powder with a size of 10 μm.

Interestingly, we found that the effect of food-grade protease treatment on HongJam was different depending on the silkworm variety when comparing the healthspan-promoting effect. There was no difference in the healthspan-promoting effect between WJ and WJD made with the white-colored cocoon silkworm variety, while a significant healthspan-promoting effect was present in GSD compared to GS made with the yellow-colored cocoon silkworm variety (Figure 1). In a previous study, we reported that GS had a superior memory improvement effect in mild cognitive impairment rodent models compared to WJ (11). Since we reported that the memory improvement effect in the mild cognitive impairment model by GS was due to the enhancement of mitochondrial functions, the enhancement of mitochondrial functions of GS- and GSD-reared Drosophila was compared in this study (Figure 2). However, unexpectedly, there was no significant difference in the mitochondrial function-enhancing effect between GS and GSD. These results suggested the possibility that the healthspan-promoting effect of GSD can be achieved by activating certain signal transduction pathways in addition to mitochondrial function enhancement. To support this hypothesis, we conducted a study on the signal transduction mechanisms related to healthspan promotion or disease inhibition, such as Tor, autophagy, and UPR signaling (44). As expected, we confirmed that the expression of autophagy- and UPR-associated genes increased more in GSDf-reared Drosophila (Figures 3, 4). This result was further reinforced by the increased resistance of GSDf-, GSDsupf-, and GSDprecf-reared Drosophila to the autophagy inhibitor 3-MA (Table 1).

Another important finding from this study was that GSDsup had an excellent inhibitory effect on the onset of rotenone-induced loss of motor control compared to GS, GSD, or GSDprec (Figure 3). The reason this result is important is that, for proteases, large molecular weight–proteins that make up silk fibers, such as Fibroin, may be degraded into small molecular weight peptides, and phytochemicals that are strongly bound to the silk fibers may be dissociated and then rapidly absorbed into the body, resulting in excellent healthspan promotion and inhibition of the onset of rotenone-induced loss of motor control. Consistent with our hypothesis, we confirmed in this study that GSDsup had the highest total polyphenol content and antioxidant activity (Figure 4) and more small molecular weight peptides than GS, GSD, or GSDprec (Supplementary Figure 1). In addition, we have shown that digestion of freeze-dried 5th instar 3rd-day larval powders with food-grade proteases increased small molecular weight peptides in the previous study (33), supporting our results.

Interestingly, recent studies have reported that phytochemicals in food inhibit the onset of PD by activating autophagy signaling (29, 45–47). In a previous study, we reported HongJam contains significant amounts of phytochemicals such as rutin, quercetin, isoquercetin, kaempferol, and astragalin (14, 36). Since quercetin glycosides (47), kaempferol (45, 48), or astragalin (49) are reported to have inhibitory effects on the onset of PD in rodent models and/or cellular models, it is speculated that various types of functional nutrients with small molecular weights present in GSDsup are more rapidly absorbed into the body and delivered to the brain, thereby exhibiting excellent inhibitory effects during the onset of rotenone-induced loss of motor control.

In summary, the reason GSDsup was more effective in healthspan promotion and prevention of the onset of rotenone-induced loss of motor control compared to other samples is that GSDsup may contain more free phytochemicals and small molecular weight peptides that enhance autophagy signaling and mitochondrial function of Drosophila than other samples. Nevertheless, further clinical and preclinical researches are needed to confirm the prevention or treatment of PD through activation of autophagy signaling by phytochemicals or other small molecular weight molecules in GSDsup.

Data Availability Statement

The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author/s.

Author Contributions

LXM, S-KK, Y-YJ, and PN performed experiments, analyzed data, and made Figures 1–4, Table 1, and Supplementary Data. A-YK, K-YK, and N-SK provided HongJam, performed experiments, and wrote manuscript. YHK designed and conceived experiments, got funded, analyzed data, and wrote manuscript. All authors reviewed the manuscript and approved the submitted version.

Funding

This work was carried out with the support of the Rural Development Administration, Republic of Korea (No.: PJ0156592022, Title: Development of materialization technology utilizing sarcopenia prevention and/or improvement effects of HongJam)

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fnut.2022.808295/full#supplementary-material
