The Potential of Microextraction Techniques for the Analysis of Bioactive Compounds in Food
- 1CQM—Centro de Química da Madeira, Universidade da Madeira, Funchal, Portugal
- 2Departamento de Tecnología Química y Ambiental, Escuela Superior de Ciencias Experimentales y Tecnología, Universidad Rey Juan Carlos, Madrid, Spain
- 3Departamento de Química, Faculdade de Ciências Exatas e da Engenharia, Universidade da Madeira, Funchal, Portugal
For a long time, the importance of sample preparation and extraction in the analytical performance of the most diverse methodologies have been neglected. Cumbersome techniques, involving high sample and solvent volumes have been gradually miniaturized from solid-phase and liquid-liquid extractions formats and microextractions approaches are becoming the standard in different fields of research. In this context, this review is devoted to the analysis of bioactive compounds in foods using different microextraction approaches reported in the literature since 2015. But microextraction also represents an opportunity to mitigate the environmental impact of organic solvents usage, as well as lab equipment. For this reason, in the recent literature, phenolics and alkaloids extraction from fruits, medicinal herbs, juices, and coffee using different miniaturized formats of solid-phase extraction and liquid-liquid microextraction are the most popular applications. However, more ambitious analytical limits are continuously being reported and emergent sorbents based on carbon nanotubes and magnetic nanoparticles will certainly contribute to this trend. Additionally, ionic liquids and deep eutectic solvents constitute already the most recent forefront of innovation, substituting organic solvents and further improving the current microextraction approaches.
Foods of plant-based origin (fruits, vegetables, legumes, whole grains, spices, and beverages) constitute a natural bioresource of phytochemical secondary metabolites—-polyphenols (flavonoids and non-flavonoids), vitamins, terpenes, carotenoids, capsaicinoids, glucosinolates, polyunsaturated fatty acids, among others. These metabolites exhibit powerful antioxidant (in scavenging free radicals that can easily react with nucleic acids, lipids, proteins and enzymes, causing tissue injury), anti-atherogenic, anti-inflammatory, antimicrobial, and antiproliferative properties, which protect us from degenerative diseases such as cancer (1, 2), aging (such as Alzheimer's and Parkinson's) (3), and cardiovascular disease (3, 4), longevity and assure good health (5). In addition, some of these bioactive metabolites are pigments (anthocyanins, flavones, carotenoids) which confer the typical color of foods and therefore can be isolated to be used as colorants in the food industry instead of the potentially harmful artificial colorants (butylated hydroxytoluene, tert-butyl hydroquinone, and butylated hydroxyanisole). In turn, the antioxidants are used to improve and increase the preservation, food shelf life, food quality and safety, and more recently as active ingredients in smart food packaging. Apart from the above mentioned field, secondary metabolites are also extensively being used in (i) pharmaceutical (antioxidant, anti-inflammatory and neuroprotective agents); (ii) cosmetic industry, as sun protectors, antiaging, anti-inflammatory and healing agents; and (iii) environmental applications as metal chelators, natural dyes (theaflavin) and biosorbents (anthocyanins- and tannins-based) (6). In recent years, scientific and industrial interest in bioactive compounds has increased considerably, supported by the growing and growing demand of consumers for foods that promote health and prevent certain diseases, namely those etiologically related to oxidative stress (7). These metabolites are not fundamental for the organism's vital processes, for their development and growth, but they can act as modulators of several important biological activities and functions giving them preventive properties of certain age-related pathologies and metabolic disorders.
Polyphenols—These secondary metabolites are notably recognized by their antioxidant activity. In plants, polyphenols stand out for their physiological and morphological importance, being used as a defense mechanism against oxidative stress, preventing damage to the DNA, protecting plants from UV radiation and aggression by parasites and predators (8). However, the enormous interest that these secondary metabolites have aroused in the international scientific community is related not only to their potential industrial applications but due to their beneficial effects on human health. Indeed, significant preventive potential in the development of chronic diseases mediated by oxidative stress including cardiovascular diseases (CVDs), cancer, type 2 diabetes mellitus, obesity, and neurodegenerative diseases (NDDs), is associated with polyphenols (8–10). According to chemical structure, polyphenols can be grouped into two categories: flavonoids and non-flavonoids. Flavonoids constitute the most important and abundant group, having a common structure of C6-C3-C6 diphenylpropanes consisting of 2 aromatic rings normally linked by an oxygenated heterocycle of 3 carbon atoms (11). This group of polyphenols can be subdivided into several subclasses represented by flavonols, flavones, flavanones, isoflavones, flavonoids and anthocyanins. The non-flavonoids group include as main subclasses phenolic acids, stilbenes, lignans and tannins.
Biogenetically, the synthesis of polyphenols involves a relatively complex network of secondary metabolic pathways that include the phenylpropanoid pathways through which phenolic acids are synthesized and the xiquimic acid pathway, where mainly flavonoids, tannins and stilbenes are formed.
The main precursors are the phenylalanine from the shikimate pathway and malonyl-CoA from the acetate pathway.
Vitamins—are found in a wide variety of fruits and vegetables, are reported as powerful dietary antioxidants with the potential to prevent heart, chronic inflammatory and neurodegenerative diseases (12). It has been shown that vitamin C could inhibit the oxidation of the complex formed between the low-density lipoproteins (LDLs) and proteins, contributing to reducing atherosclerosis, conserving the cardioprotective properties. Vitamin E prevents HDL from lipid oxidation and protects LDLs, DNA, and polyunsaturated fatty acids from oxidative damage. It, moreover, plays a role in the modulation of the immune response, hemoglobin biosynthesis, and stabilization of the structure of membranes.
Carotenoids—Located in subcellular organelles (plastids), mainly associated with proteins in the chloroplasts, carotenoids are naturally occurring pigments found in plants, fungi, algae, and bacteria, generally C40 tetraterpenes/tetraterpenoids formed from eight C5 isoprenoid units (13, 14). Consumption of carotenoids has been associated with a range of functions in human health, including a reduced risk of age-related macular degeneration and cataract (15). In addition to beneficial effects on eye health, by absorbing specific wavelengths of light, carotenoids also produce improvements in cognitive function and cardiovascular health, by blocking the formation and oxidation of LDLs, and may help to prevent some types of cancer, by limiting the abnormal growth of cells (16, 17). The most abundant carotenoid found in human serum is lycopene (carotenoid pigment responsible for the red color), found in high amounts in tomatoes, recognized as the most effective antioxidant among all the carotenoids.
Glucosinolates—are a large group of sulfur- and nitrogen-containing glucosides, which are abundant plant secondary metabolites, with nutritional effects and biologically active compounds found principally in the plant order Brassicales and related families of vegetables like broccoli, Brussels sprouts, and kale, which impart a characteristic pungent aroma and bitter taste. Therefore, they are frequently consumed as a normal part of the human diet (18, 19). Scientific studies support that consumption of glucosinolates, and their derivatives are associated with a preventive anticancer effect, namely of the lungs and alimentary tract, together with increased activity of detoxifying enzymes and resultant decreases in DNA damage (20).
Bioactive Compounds in Disease Prevention
Plant-based foods rich in bioactive compounds could be used as functional ingredients for providing many health benefits. Several epidemiological studies related unhealthy dietary behaviors (malnutrition, tobacco, alcohol, physical inactivity) with chronic diseases such as cancer, type 2 diabetes, and cardiovascular diseases, which are leading causes of death in developed countries.
A diet rich in bioactive compounds, namely by the consumption of fruits, vegetables/legumes and spices, has a preventive action in the development of neurodegenerative diseases due to its ability to influence and modulate various cellular processes, such as signaling, proliferation, apoptosis, redox balance and differentiation (21, 22). It was demonstrated by Sarubbo et al. (23) that anthocyanins improve the function of hippocampal-dependent memory, preventing neurodegeneration by decreased levels of inflammatory biomarkers such as NF-kB, TNF-α, IL-1β, ROS, and RNS, reducing neuronal apoptosis through Bax, cytochrome c, caspase 3 and PARP-1 and increasing the levels of proteins such as Akt, GSK3β and BCL-2. Specifically, apigenin, one of the major polyphenolics in citrus fruit, parsley and celery, and quercetin, which is abundantly found in onions, green tea and apples, showed a potent anti-aggregating β-amyloid (Aβ) activity reducing the formation of amyloid plaques that are at the origin of the symptoms associated with Alzheimer's disease (23).
Moreover, some bioactive compounds can act in different phases of the cell cycle, repairing DNA damage and promoting cell apoptosis of the damaged cells to prevent carcinogenesis (24). Some bioactive compounds interfere with cancer initiation, promotion, and progression steps, modulating different enzymes and receptors in signal transduction pathways related to cell proliferation, differentiation, apoptosis, inflammation, angiogenesis, and metastasis. In addition, they also exert their preventive effect in decreasing resistance to multiple therapies and help regulate hormones and growth factors. They prevent DNA oxidative damage and modulate the immune system response (25). When combined with therapeutic agents such as Paclitaxel and Doxorubicin, some of the polyphenols allow for a decrease in the dose of the drug, thus decreasing the side effects of chemotherapy. The bioactive compounds are also associated with protective effects on the cardiovascular system (26). In addition to their antioxidant and anti-inflammatory activity, several mechanisms evidence these effects, namely those related to the lowering of blood pressure, the improvement of endothelial function, the inhibition of platelet aggregation and LDLs oxidation, also related to the prevention of the formation of atherosclerotic lesions, and with the enzymatic modulation expressed, for example, in the regulation of redox enzymes, thus contributing to reducing the risk of cardiovascular diseases. Flavonoids and catechins are the polyphenols that exert the most significant effect in reducing the risk of cardiovascular incidents. The flavonoids help to delay the development of atherosclerotic plaque and atherosclerosis by reducing endothelial dysfunction. In addition, flavonoids will interact with the membrane modifying its fluidity. Catechins help in smooth blood circulation since they can reduce the accumulation of cholesterol and its oxidation products in the walls of arteries. Moreover, they function as antiatherogenic agents by blocking oxidized LDLs-induced endothelial apoptosis. Figure 1 provides an simplified overview of the main classes of food bioactive compounds and targeted diseases. Several in vitro and in vivo assays have been developed to evaluate the antioxidant activity of several plant-based foods rich in bioactive compounds (27, 28). These assays have demonstrated the importance of secondary metabolites such as phenols, flavonoids, carotenes, among others, with verified antioxidant activity for the prevention of degenerative disorders. The most common in vitro assays include 2,2-diphenyl-1-picrylhydrazyl radical (DPPH) assay; total radical trapping antioxidant parameter (TRAP) assay; oxygen radical absorbance capacity assay (ORAC); reducing power assay; ferric reducing-antioxidant power (FRAP); superoxide radical scavenging activity, determination of phenol content by the Folin–Ciocalteu method; and total flavonoid content. The in vivo assays include total flavonoid content; reduced glutathione (GSH) assay; glutathione peroxidase (GPx) assay; glutathione-S-transferase (GSt) assay; glutathione reductase (GR) assay; and superoxide dismutase (SOD) assay. A huge amount of high-resolution analytical methodologies, from chromatographic techniques (29, 30) to nanobiosensors (31, 32) constitute powerful analytical tools that might be applied in food analysis, able to cope with a large number of analytes in food matrices, including those responsible for bioactive potential. The selection of the analytical technique depends mainly on the chemical nature, properties and required robustness and sensitivity of the target analytes to be determined.

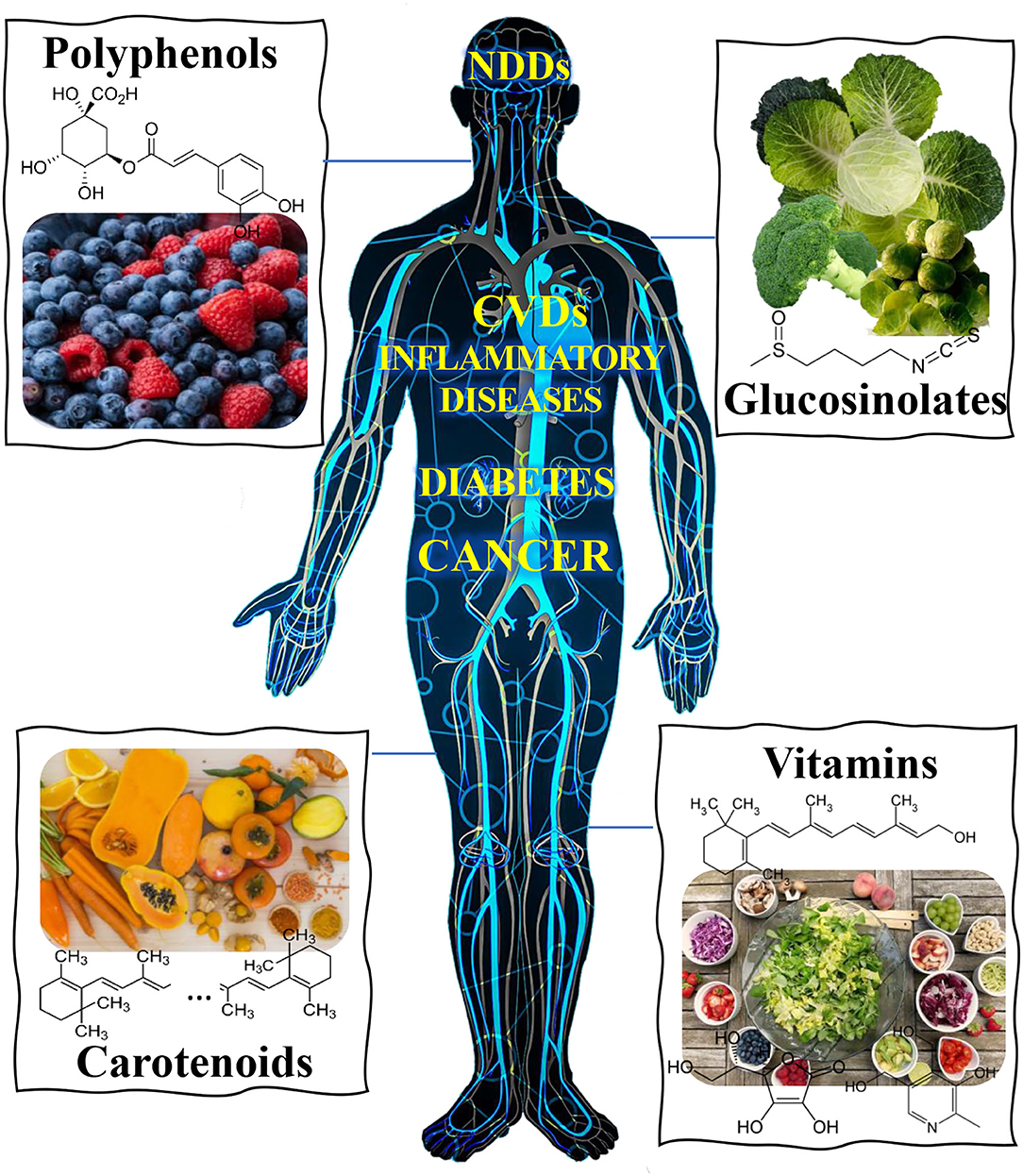

Figure 1. Overview of main classes of food bioactive compounds and reported activity against different human diseases, namely neurodegenerative (NDDs), cardiovascular (CVDs) and inflammatory diseases, cancer, diabetes, etc.
Samples Extraction in Food Analysis
Importance of Sample Extraction in Food Samples
Food samples are extremely complex matrices, as they present a wide variety of compounds in their composition, such as proteins, fats, sugars, salts, vitamins, additives, etc., with different polarity, size and chemical properties. For this reason, the determination of a specific bioactive compound in a food sample is not an easy task, since its extraction and detection can be hampered due to the interferences caused by the rest of the components present in the food matrix (33). These matrix interferences usually have a negative impact on important analytical parameters, such as the limits of detection and quantification, the accuracy, and the precision, leading to low sensitivity and selectivity in the analysis (34). Consequently, food samples, in general, cannot be analyzed directly. Instead, they must undergo a proper extraction procedure before the instrumental analysis. Therefore, in food analysis, it is of utmost importance to carry out a sample extraction that enables clean-up, selective extraction, purification and even pre-concentration of the target analytes, to facilitate and enhance their following instrumental analysis (35) (Figure 2). Indeed, sample extraction is one of the most critical steps of any sample preparation technique. The main aim of sample extraction is to minimize the sample complexity and eliminate most matrix interferences. This can be obtained through the isolation, purification and pre-concentration of the analytes of interest in a matrix, while simultaneously turning them into a form compatible with the instrument used for their subsequent analysis. This step often involves a chromatographic technique (e.g., high performance liquid chromatography – HPLC, or gas chromatography, GC) coupled to a powerful detector (normally mass spectrometry (MS) or ultraviolet (UV) detectors) (36). The extraction of a specific analyte depends on several parameters, like its solubility, the mass transfer between the sample and the solvent, and the matrix interferences. Moreover, the nature of the sample also plays an important role. In this sense, liquid food samples can be directly extracted with a suitable solvent. However, solid food samples require a previous preparation step before extraction to improve the efficiency of the process, which involves reduction of the sample particle size (grinding) for better mass transfer and, normally, a drying step to decrease the moisture (as it may reduce the extraction efficiency). Often freeze drying, or lyophilization, is applied to solid samples before grinding, particularly when they present high levels of water content. These procedures are also important to homogenize the sample and ensure that each aliquot is representative of the whole sample composition, therefore avoiding biased results of food composition in the analyte of interest. As we will discuss below, as extraction approaches are evolving to sophisticated microextraction procedures requiring progressively lower sample amounts, sample homogenization is becoming critical to obtain reproducible results. After these operations, the solid powder can be extracted with a suitable solvent (solid-liquid extraction, SLE) obtaining a sample extract solution that can further be treated as a liquid sample (37) (Figure 2).

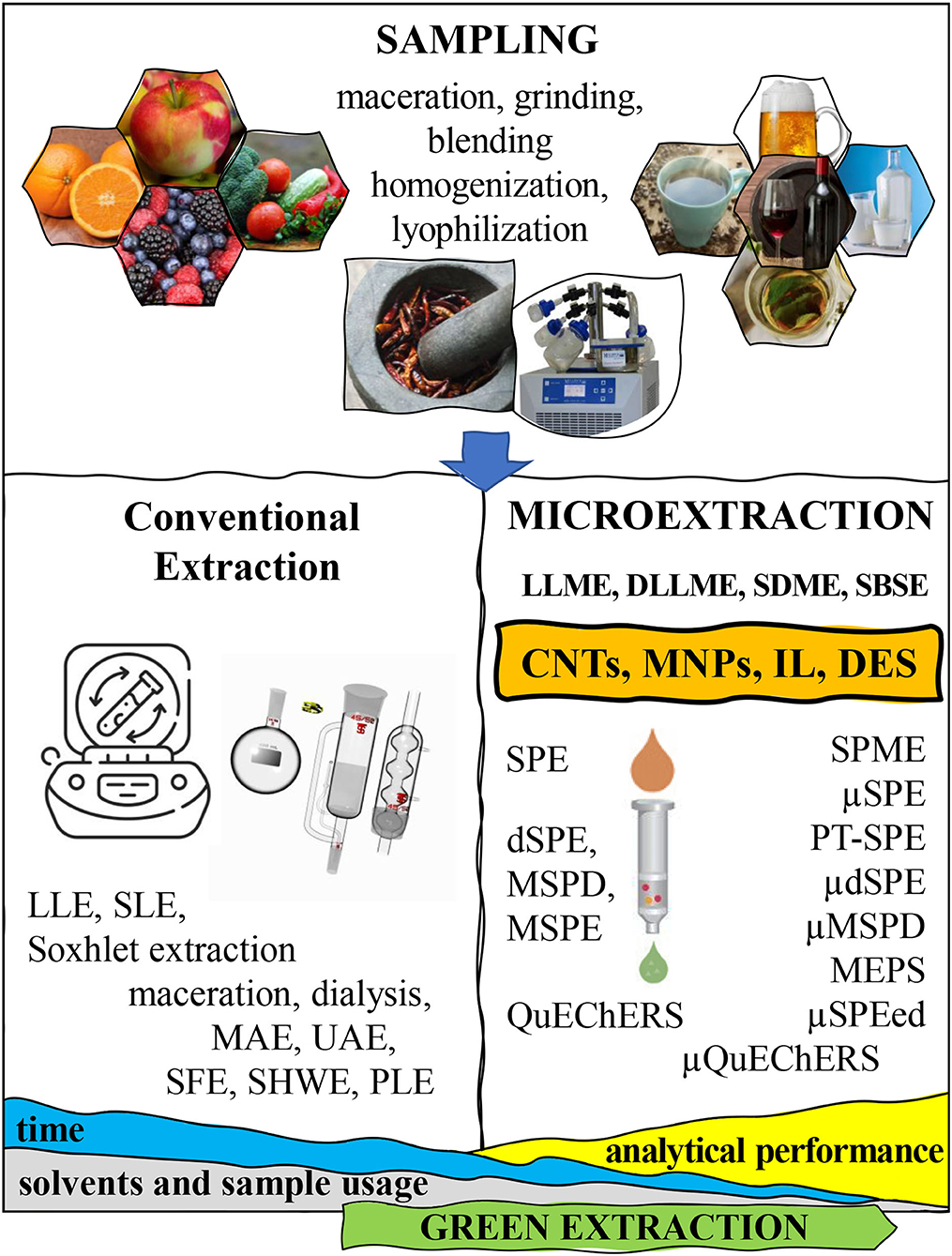

Figure 2. Overview of the most relevant steps in the extraction layout of food samples, from sampling to microextraction of the target analytes.
Conventional Sample Extraction Approaches
Solvent-based extraction techniques, such as liquid-liquid extraction (LLE), Soxhlet extraction, maceration, membrane extraction (dialysis), microwave-assisted extraction (MAE), ultrasound-assisted extraction (UAE), supercritical fluid extraction (SFE), super-heated water extraction (SHWE) and pressurized liquid extraction (PLE), have been traditionally applied to the extraction of bioactive compounds from food samples (37–39). These techniques are based on the contact of the sample (liquid or solid) with a suitable solvent. However, these solvent-based techniques do not achieve selective extraction of the analytes, besides providing insufficient clean-up of the samples. For these reasons, in the last decades, the combination of solvent-based procedures with sorbent-based extraction techniques has aroused special interest in the extraction of food samples, due to the higher extraction capacity and selectivity achieved (40). The sorbent-based extraction techniques are based on sorption processes that enable the selective extraction of the analytes from the matrix by their retention in a sorbent material with specific and related characteristics, allowing the purification and concentration of the analytes at the same time. Accordingly, in the extraction of food samples, there is usually a first step involving the contact of the sample with an organic solvent under different conditions (pressurized, assisted, etc.) to obtain a sample extract, which is afterwards purified in the next step by a suitable sorbent-based extraction technique. In the case of liquid samples, they can be directly purified with the sorbent material. In this context, solid-phase extraction (SPE) is the main sorbent-based extraction technique and has become the extraction procedure of choice in the food field, replacing the classic LLE, due to its selectivity and versatility (37). Moreover, the great variety of sorbent materials available to perform sorbent-based extractions (e.g., reversed-phase, ion-exchange, mixed-mode, molecularly imprinted polymers, magnetic nanoparticles (MNPs), multiwalled carbon nanotubes (MWCNTs), metal-organic frameworks, etc.) offers a wide range of possibilities to achieve selective extraction of analytes with different chemical properties. This has opened in the last years new research lines focused on the development of new sorbent materials designed with specific characteristics depending on the type of analytes, so a better extraction efficiency and suitable clean-up can be achieved (33–36, 40–42).
Different Solvent- and Sorbent-Based Formats for the Extraction of Food Samples
For many years, the conventional extraction techniques LLE and SPE have been popular choices for the extraction of food samples. However, LLE presents some inherent drawbacks, such as large volumes of organic solvents, limited ability to extract polar compounds, long time consumption, etc. Consequently, SPE is preferred in food analysis, as it provides better extraction efficiency and requires less consumption of organic solvents than LLE (43). Nevertheless, since the first appearance of the SPE, other sorbent-based procedures based on the SPE extraction principle have been proposed over the last decades, such as dispersive SPE (dSPE), matrix solid-phase dispersion (MSPD) and magnetic SPE (M-SPE). The difference between the SPE and these techniques lies basically in how the sorption process between the analytes and the sorbent is carried out. For instance, in SPE and MSPD the sorbent material is packed in an extraction cartridge, whereas in dSPE and MSPE the sorbent is dispersed in the sample solution. In the case of MSPD, the sorbent is previously dispersed and blended with the sample, and then the mixture is packed in the cartridge, while in SPE only the sorbent is packed in the cartridge. On the other hand, any type of sorbent can be used in dSPE, but in MSPE, only MNPs can be employed. In general, these sorbent-based techniques arose to improve SPE, by reducing the number of steps, decreasing the volume of organic sorbents, enhancing the sorbent-analyte interaction, and making easier the extraction procedure (33, 41, 42).
Emergent Microextraction Approaches for Food Analysis
The current trend in sample extraction is to perform sustainable procedures that fulfill the Green Analytical Chemistry (GAC) requirements, which mainly involve using minimal amounts of solvents and samples, carrying out fewer steps in the procedures and reducing the waste generation (43, 44). This way, more cost-effective and environmentally friendly extraction procedures can be achieved. This can be accomplished by the miniaturization of the extraction procedures. Accordingly, the conventional sorbent-based extraction procedures have been scaled down and applied to the extraction of bioactive compounds in food samples. For instance, the miniaturization of SPE has been carried out for the extraction of flavanones from citrus fruits (45), miniaturized dSPE has been applied to the extraction of p-coumaric acid and p-hydroxybenzoic acid from fruit juices (46), miniaturized MSPD was used to extract different polyphenols from olive fruits (47) and flavonoids have recently been extracted from different food items by miniaturized dSPE (48). Likewise, the QuEChERS (Quick, Easy, Cheap, Effective, Rugged and Safe) strategy first developed in 2003 (49), which involves simultaneous extraction and clean-up of samples, has also been successfully miniaturized and applied to the extraction of 12 polyphenols in baby foods (50). Nonetheless, in the past decades, several microextraction methods based on SPE and LLE have emerged with new configurations and formats intending to improve the drawbacks of conventional extraction procedures and address some key challenges, such as the need to use lower sample volumes and perform quicker analysis. In this sense, LLE has been the axis to develop different solvent-based microextraction methods, including liquid-liquid microextraction (LLME), dispersive liquid-liquid microextraction (DLLME), single-drop microextraction (SDME), liquid-liquid-liquid microextraction (LLLME) and hollow-fiber liquid-phase microextraction (HF-LPME). On the other hand, sorbent-based extraction techniques have evolved beyond the SPE principle, leading to the design and development of more innovative extraction formats and devices, such as solid-phase microextraction (SPME), stir-bar sorptive extraction (SBSE), microextraction by packed sorbent (MEPS), μSPEed® and pipette-tip SPE (PT-SPE). These microextraction techniques are increasingly being proposed as an alternative to conventional extraction procedures in food analysis, as they enable “greener” approaches that meet the GAC requirements. Figure 2 offers an overview of the context of microextraction as an evolution from sampling to emergent microextraction approaches. To organize their discussion, selected examples of the analysis of bioactive compounds in foods involving microextraction were primarily divided according to the physical state of the sorbent used in the retention of the target analytes. This results, in a simplistic way, in microextraction approaches using solid sorbents, like exposed solid sorbents (SPME), packed sorbent particles (μSPE, pipette-tips SPE, MEPS, μSPEed), or dispersed sorbent particles (QuEChERS, dSPE, MSPD), described in more details in Table 1. In turn, Table 2 is devoted to applications involving a liquid sorbent, like different formats of miniaturized LLE (μLLME, μDLLME, μSDME). The use of ionic liquids (ILs) and deep eutectic solvents (DES) as extraction solvents is being successfully applied to different formats of microextraction and will be also discussed.
Solid-Phase Microextraction and Related Formats
SPME is certainly one of the most popular extraction methodologies and despite it has been introduced three decades ago, it continues to be an important reference in what concerns microextraction approaches. Often, its usage in food analysis relates to flavor composition, namely the characterization of the volatiles organic compounds (VOCs) that define the aroma of different fruits, like mangoes (51) and tangerines (52). Many of these VOCs are bioactive compounds with promising properties, as thymol identified in tangerines cultivated in Madeira Island (52). The same authors used a related methodology, needle-trap microextraction (NTME) to identify many bioactive VOCs in lemons also grown in the same geography (56). Unlike SPME, NTME is an exhaustive approach that allows a deeper and broader coverage of the volatile composition of different samples, exhibiting improved detection limits and reduced sampling time and volume (117). Moreover, this format allows sampling and storage in the same device (needle trap) for much longer times than SPME, from days to weeks, depending on the type of the target VOCs (117). This makes NTME suitable for sampling procedures distant from the laboratory facilities where the gas chromatography mass spectrometry (GC-MS) analysis is performed. But in contrast to NTME, SPME has been also used to analyze non-volatile bioactive compounds, as phenolics in juices and wines (54, 55). Related with this, Shou and collaborators have been proposed different approaches merging pipette tip microextraction with SPME (PT-SPME) for the quantification of important bioactive flavonoids and alkaloids in different Traditional Chinese Medicine preparations (53, 57). The comparisons made with conventional extractions approaches LE and SPE, clearly point to the potential of the methodologies proposed, namely in what concerns to the higher analytical performance they allow (Table 1). Phenolic compounds are one of the most widespread groups of bioactive compounds and different SPME approaches have been also used to quantify several of these compounds in wines and fruit juices (54, 55, 118) (Table 2).
Micro Solid-Phase Extraction and Related Formats
Taking into consideration the success and widespread use of SPE, its miniaturization and downscale is a logical consequence of the adoption of GAC requirements, namely in what concerns the usage of organic solvents, which are greatly reduced in the transition from SPE to μSPE. Moreover, the ease of use, time of extraction, availability, and automatization potential, contribute to the success of μSPE as well as different approaches developed. In the traditional concept of μSPE using a sorbent entailed between two fritzes in a syringe tube, as well as in the PT-SPE, that uses instead a pipette tip, new sorbent particles have been successfully reported, for instance, to extract gallic acid (GA). Also known as 3,4,5-trihydroxybenzoic acid, this is a low molecular triphenolic compound widely present in different plants and able to elicit a myriad of bioactive effects in the human body [reviewed in Choubey et al. (119)]. For this reason, its quantification in foodstuffs is very important and, in this aspect, the microextraction approaches reported by Hao et al. (58) and Arabi et al. (61) are very relevant. Hao et al. (58) developed a novel surface imprinting polymer based on magnetic carbon nanotubes (M-CNTs) to extract GA from pomegranate rinds samples, while Arabi et al. (61) reported the use of pipette tip SPME (PT-SPME) using molecularly imprinted silica monolithics to extract the same phenolic acid from juices. Related to this, Khajeh et al. (116) proposed an electrokinetic approach for the simultaneous extraction of GA and caffeine from coffee which is very promising but needs further improvement to lower the extraction times to acceptable values (50 h to achieve 95% extraction, only 20% target analytes extraction after 5 h). The use of molecular imprints obtained against specific analytes elicits more efficient extractions, as reported for estradiol extraction from milk using a PT-SPE approach (62) (Table 2). Another type of sorbent particle, the mesoporous molecular sieve Santa Barbara Amorphous 15 (SBA-15), has been also used with success in μSPEs formats to extract flavanones from citrus fruits (45) and triterpenoid saponins from TCM (63). MEPS and μSPEed formats are very interesting forms of SPE miniaturization in which the sorbent particles are tightly packed inside a BIN (MEPS) or cartridge (μSPEed) and operated in different formats, including hand-held automatic syringes able to control the solvent flow. This allows pressure-driven extractions which are considerably more efficient than conventional SPEs [reviewed in Pereira et al. (120)]. The more recent μSPEed approach uses even lower submicron sorbent particles (3 μm) and a controlled pressure-driven one-way valve that forces the sample through the sorbent particles in a single direction. Overall, these updates to MEPS configuration make μSPEed even more powerful for a broad range of applications, preferentially involving samples with low viscosity to avoid clogging the sorbent containers (120). For this reason, most of the MEPS and μSPEed applications reported so far involve liquid samples or solid samples that suffer a previous solvent extraction or dilution to decrease viscosity. Among the most recent and notable MEPS and μSPEed applications reported in the literature in food analysis, we can find the extraction of phenolic acids in tea (67) and baby food (66) and furanic derivatives in sugarcane honey (Tables 1, 2).
Microextraction Formats Involving the Dispersion of the Sorbent
A popular approach to microextraction involves the blending of the sorbent with the sample matrix to facilitate the retention of the target analytes in the sorbent particles. This is the extraction principle in MSPD, dispersive SPE (dSPE) and related formats, which then diverge in the form as the sorbent particles and retained analytes are recovered. Often this is achieved by packing in columns, or simply in SPE tubes, to which vacuum is applied, or by centrifugation, followed by the target analytes elution in a suitable elution solvent. In this type of extractions applied to the extraction of bioactive compounds in food lies, the miniaturization to lower the different reagent and particles requirements seems inevitable, as reported to the extractions of phenolics from plant extracts (72) and juices (68). The use of magnetic nanoparticles in the extraction process constitute another important improvement because a simple magnet can be used to isolate the sorbent particles and retain analytes by decantation. This approach has been used to extract different flavonoids from tea and wines (60) and it is being incorporated in other formats to simplify the experimental design of the extraction process, but also the efficiency and selectivity of the methodology. This was achieved, for instance, by coupling magnetic particles with molecular imprinting, as reported in the extraction of different phenolic compounds from fruits and juices (58, 59). But eventually, the major innovation in microextraction of bioactive compounds in food analysis is the use of new and more efficient sorbents, allowing greater retention capacities, as a 2D-ultrathin Ni/Co-NO3 layered double hydroxide nanosheet (46) or graphene nanoplatelets (71) to extract phenolic acids from fruit juices and plant preparations. Also, carbon nanofibers (CNFs) were reported to extract phytohormones and ginsenosides (69).
Microextraction Formats Using Liquid Sorbents
In simple terms, conventional LLE involves the transference (extraction) of analytes present in a liquid sample to an organic and immiscible solvent to which the analytes have more affinity. This usually involves agitation (by mixing, vortexing, etc.) to facilitate the extraction, followed by centrifugation to separate and recover the phase containing the extracted analytes. Often, LLE uses large volumes of organic solvents and consequently generate a large volume of toxic wastes difficult to manage. The miniaturization of LLE contributes to mitigating these problems and several improvements at this level have been proposed. Amini and Hashemi (81), for instance, proposed an LLME approach to extract caffeine from tea and coffee using considerably fewer volumes of organic solvents than conventional LLE. In turn, Shalash et al. (82) reported an LLME using vortex to facilitate the extraction of phenolics from honey, ice tea, and coffee drinks. In the dispersive LLE (DLLE), the organic solvent usually forms micelles in the liquid phase containing the target analytes that increase considerably the extraction efficiency and similarly to LLME, several DLLME approaches have been reported in the literature to extract bioactive compounds from foods, like phenolics (95), vitamin E (98), phytosterols (97) or flavonols, organosulfurs and inulin (99, 100). Related to DLLME, single-drop microextraction (SDME) seems to be also a very efficient extraction procedure, allowing a great preconcentration factor as the volume of the extraction solvent is limited to a single drop. In the original instrumental configuration of SDME, the drop of the extracting (immiscible) solvent is controlled by a microsyringe (or pipette) that loads and withdraw the drop from the solution. This format is not easy to automatize and is often performed with non-commercial devices. However, Jahromi et al. (105) proposed an SDME using magnetic ILs (M-ILs), dispersing the single drop of the solvent containing the M-ILs in the sample solution and recovering it back using a magnet. Using this approach, the authors reported a methodology with a LOD of 0.43 nM for the analysis of AA in orange juice. Liquid-phase microextraction is another interesting approach involving microextraction in liquid phases. The HF-LPME is eventually the most popular approach of this type of microextraction, but recent reports propose other type of containers in which the microextraction of the target analytes occurs, as well as the use of DES. Gao et al. (111), for instance, immobilized the extraction solvent mixtures on a permutite surface to form oil-in-salt double membranes to extract active alkaloids from a TCM powder. In turn, Wang et al. (112) used a protected ballpoint tip to perform a similar oil-in-salt microextraction (IOS-LPME) of the phenolic lignans magnolol and honokiol, that constitute the main primary active ingredients of a TCM. Finally, Zhang et al. (110) reported deep eutectic solvent-based HF-LPME to extract cinnamic acid derivatives in TCM. Floating solidification microextraction (FSME) is an elegant variation of LPME involving the solidification of the extracting phase. Upon the extraction procedure, the enriched phase containing the extracted analytes is fast frozen and easily separated from solution by decantation. Then it is melted at RT and the target analytes re-extracted with MeOH and recovered by centrifugation. This approach has been successfully used to extract important bioactive compounds from different food matrices (Table 2).
Microextraction Approaches Using Ionic Liquids
The use of ILs in microextraction holds great potential due to their unique “green” properties including thermal stability, re-usage, high reaction efficiency and selectivity at room temperature and ability to dissolve both organic and inorganic compounds (121). For these reasons, ILs are being used in a growing number of applications, like the one referred above using magnetic ILs to extract AA (105). But the future of ILs belongs to the DES, a less toxic and even more ecofriendly subclass of ILs that are easier and cheaper to obtain (122, 123). DES provide a network of hydrogen bond acceptor (HBA) and hydrogen bond donor (HBD) that favor the dissolution process of target analytes (122) and their utility in the microextraction process is not restricted to their use as extraction solvent. DES are also useful to modify and improve the extraction efficiency and selectivity of other sorbents like nanoparticles and silica; to facilitate the dissolution or digestion of solid samples; and to act as elution solvent (123, 124). On top of this, there are natural occurring DES (NADES), that are even more interesting and promising in microextraction, particularly as substitutes of the conventional organic solvents. Bakirtzi et al. (93), for instance, assayed several NADES and showed that they were non-toxic, renewable, and exceptionally efficient solvents for polyphenol recovery from medicinal plants. This higher efficiency is very important because there are many compounds present in plant composition, that despite their important bioactivities, are present in so low concentrations that they remain unidentified (125). Phenolics are certainly one of such family of compounds and for this most of the reports in the literature using DES and different microextraction approaches applied to food matrices have phenolic compounds as target analytes (86, 89, 90, 93, 94, 104, 125). In this context, the work reported by Majidi and Hadjmohammadi (48, 70) combining magnetic nanoparticles and DES in a dSPE format to extract morin, quercetin and kaempferol from different foods is particularly inspiring for other demanding applications envisaging target analytes in very low concentrations in the respective samples (Table 1). Further details of the experimental conditions used in this, and other reports involving DES are available in Tables 1, 2.
Other Microextraction Approaches
In this section were included microextraction formats involving different mechanisms of retention of target analytes. This is the case of the salting-out mechanism behind the popular QuEChERS extraction. In principle, this would not be considered a microextraction approach considering the different salt and solvent volumes required. However its miniaturization, μQuEChERS, only requiring a fraction of the original recipe of QuEChERS, has been successfully optimized for the extraction and simultaneous determination by UHPL-UV analysis of 12 polyphenols in different baby food samples (50). Similarly, it is relevant to point recent salting-out liquid-liquid extraction (SALLE) approaches able achieve great improvements in the extraction and subsequent analysis of important bioactive compounds. This is the notable examples of the SALLE approach proposed by Park and Jung (79) to extract isoflavones from soy milk, which is 100 times faster than the conventional methodologies used with the same objective. Additional examples to extract naringenin from juices (78) or matrine alkaloids from TCM (80) are described in more detail in Table 1. The use of electric potential in sample microextraction is another format that has been reported for the analysis of bioactive compounds in food. Khajeh et al. (116) proposed a hollow fiber-electrokinetic extraction approach (HF-EKE) for the simultaneous extraction of GA and caffeine from coffee. This is a simple and promising approach but still requires further improvement to lower the extraction times to acceptable values (50 h to achieve 95% extraction, only 20% target analytes extraction after 5 h).
Final Remarks and Outlook for Future Formats and Applications
In this review, the most recent and innovative microextraction approaches used to extract bioactive compounds from food samples have been presented and their potential and contribution to the whole analytical layout discussed. The major challenges many innovative microextraction approaches must face include their broad application in terms of suitable samples and target analytes, but mainly in terms of potential for their production and distribution across the scientific community. Beyond the analytical aspects, a successful microextraction application needs to be consistently produced and distributed at a commercial level, allowing its usage across different labs and comparison of the results obtained. In this context, the adoption of DES to substitute many conventional organic solvents holds great potential because can be readily used with the sampling and microextraction formats available, not requiring the adoption of new methodologies or acquisition of laboratory materials or instruments and will certainly improve the analytical performance of the currently used methodologies. In contrast, microextraction approaches involving custom sorbents, like MIPS, CNTs and CNFs, despite the superior analytical performance they may allow, will be adopted only if they become commercially available. In turn, MNPs still require additional studies involving their regeneration and durability without affecting the performance of the extraction process. Beyond the type and sorbents feasibility, the microextraction format is also an important aspect to consider, namely the simplicity of the operation mode and the possibility for and easier migration from manual to automatic modes. In this point, miniaturized SPE formats, like μSPEed, will continue to benefit from using traditional formats, but their potential can certainly be further enhanced with the adoption of even more efficient sorbent particles. Eventually, the adoption of DES in the μSPEs formats will make microextraction even more efficient, boosting analytical performance to fulfill the challenges that food analysis involves.
