Collisionless magnetic reconnection in space plasmas

  • 1International Space Science Institute Bern, Bern, Switzerland
  • 2Geophysics Department, Munich University, Munich, Germany
  • 3Department of Experimental Space Research, Space Research Institute, Austrian Academy of Sciences, Graz, Austria

Magnetic reconnection, the merging of oppositely directed magnetic fields that leads to field reconfiguration, plasma heating, jetting and acceleration, is one of the most celebrated processes in collisionless plasmas. It requires the violation of the frozen-in condition which ties gyrating charged particles to the magnetic field inhibiting diffusion. Ongoing reconnection has been identified in near-Earth space as being responsible for the excitation of substorms, magnetic storms, generation of field aligned currents and their consequences, the wealth of auroral phenomena. Its theoretical understanding is now on the verge of being completed. Reconnection takes place in thin current sheets. Analytical concepts proceeded gradually down to the microscopic scale, the scale of the electron skin depth or inertial length, recognizing that current layers that thin do preferentially undergo spontaneous reconnection. Thick current layers start reconnecting when being forced by plasma inflow to thin. For almost half a century the physical mechanism of reconnection has remained a mystery. Spacecraft in situ observations in combination with sophisticated numerical simulations in two and three dimensions recently clarified the mist, finding that reconnection produces a specific structure of the current layer inside the electron inertial (also called electron diffusion) region around the reconnection site, the X line. Onset of reconnection is attributed to pseudo-viscous contributions of the electron pressure tensor aided by electron inertia and drag, creating a complicated structured electron current sheet, electric fields, and an electron exhaust extended along the current layer. We review the general background theory and recent developments in numerical simulation on collisionless reconnection. It is impossible to cover the entire field of reconnection in a short space-limited review. The presentation necessarily remains cursory, determined by our taste, preferences, and knowledge. Only a small amount of observations is included in order to support the few selected numerical simulations.

1. Introduction

Magnetic reconnection in plasmas—sometimes also spelled reconnexion—was proposed as early as in 1946 as a possibly viable physical process [1] which could trigger the enormous energy release of ΔW ~ 1025 − 1026 J in a single solar flare. Evidence for the truth of this suggestion has accumulated over the decades (for a general older reference cf. e.g., [2, 3], for recent arguments based on observation and theory). It is also believed that reconnection is responsible for the spectacular disturbances in Earth's magnetosphere, substorms (as for recent evidence cf. e.g., [4]) and magnetic storms, causing aurorae and being a last chain element in hazardous space weather events. More recent observations in the solar wind, at the magnetopause and in the magnetosphere, have been reviewed by Paschmann [5] and Paschmann et al. [6]. Reconnection is considered as being one of the main mechanisms of transforming magnetic energy stored in electric current sheets into kinetic plasma energy, the counterpart of the magnetic dynamo, which may happen allover in astrophysics and also in laboratory plasmas.

Giovanelli's proposal was revived one decade later (in a 1957 conference talk by Sweet [7]) and was given its fluid theoretical physical justification by Parker [8] who defined a so-called (stationary) reconnection rate as the Alfvénic Mach number

yes

of the (Giovanelli-)Sweet-Parker model as the ratio of velocity Vin of plasma inflow into the reconnection region to the Alfvénic outflow velocity VA from the reconnection region. From material flux conservation this rate equals the ratio of thickness d of the reconnection layer to its length LSP. More generally, a reconnection rate would be the amount of magnetic flux ΔΦ/Δt = (d/dt) ∫ |ΔB| · dF = −∮ Erec · ds that is exchanged in the merging of the oppositely directed magnetic fields |ΔB| = |B21 − B1| across the surface of contact dF of the fields, with circumference s, within a reconnection time Δt = τrec = Vin/d. Normalizing to stationary flux, (ΔB)LSPd, and Alfvénic outflow time, τA = LSP/VA, reduces it to the Mach number yesSP, respectively, the ratio d/LSP which, in the Sweet-Parker model Equation (1), with current density J, is expressed as the inverse square root of the Lundqvist number,

S=μ0σLVADA/Dσ,  L=LSP    (2)

which is the dimensionless ratio of the respective Alfvén and collisional diffusivities,

DA=VA2τA,  Dσ=(μ0σ)1.    (3)

In this model the reconnection rate is a constant. Erec is the induction electric field equivalently generated in the reconnection process (for further discussion see below). The Alfvén speed VA=B/μ0miN is given in terms of magnetic field strength B, plasma density N, and ion mass mi. L is the length along the magnetic field B over that reconnection occurs, in this case L = LSP, and σ = ϵ0ω2e/ν is the homogeneous electrical conductivity of the plasma expressed in terms of electron plasma ωe=e2N/ϵ0me and binary collision frequencies ν, respectively. e is elementary charge, and me electron mass. τA = L/VA is the time an Alfvén wave needs to travel the distance L along B. In fully ionized plasma the collision frequency ν ≃ ωe/Nλ3D refers to Coulomb collisions between ions and electrons. It is given in terms of the thermal fluctuation level Wth = ϵ0〈|Eth(k)|2〉/eNTe3D of plasma oscillations. λD is the Debye length. In collisionless plasmas, ν → 0; otherwise, when wave-particle interactions are taken into account, ν → νa is replaced by some anomalous collision frequency νa ≃ ωe (Ww/NTe), with plasma wave saturation level Ww = ϵ0〈|Ew(k)|2〉/2. Here, Eth(k), Ew(k) are the respective spontaneously emitted amplitudes of electric field fluctuations at temperature T, and the unstably excited wave spectral amplitudes, both being functions of wavenumber k. The angular brackets indicate averaging with respect to space-time and spectral distribution. In weakly ionized plasmas, collisions with neutrals, as well as other processes like charge exchange, excitations, recombination etc., must in addition be taken into account.

Since inflow speeds Vin are naturally small (not at least for the reason of avoiding the formation of shock waves, though there is not any reason to assume that reconnection could not also take place inside shocks!) and conductivities σ are very high in dilute high temperature plasmas like those expected in solar flares—theoretically, here, for vanishing collision frequencies, σ → ∞—making S a very large number, Sweet-Parker reconnection rates turn out very small; moreover, for finite resistivity they lead to elongated reconnection regions. Physically this is so, because all plasma and magnetic flux tubes in Sweet-Parker reconnection have to cross the current layer before flowing out from it along L = LSP. Therefore, LSP is necessarily very long, about as long as the entire current sheet.

In order to develop a feeling for the scales, consider two examples: the solar corona and Earth's magnetospheric tail. In the solar corona we have N ~ 1015 − 1016 m−3, B ~ 10−3 − 10−2T, Te ~ 200 eV, yielding VA ≈ 106 ms−1. Assuming Coulomb collisions and L ≈ 107 − 108 m for the current sheet length, the Lundqvist number becomes S ~ 1012, and the Alfvén time τA ≈ 10 − 100 s. This yields yesSP ~ 10−6. This is very small. Expressed as typical reconnection time one has τrec ~ τAS ≈ 107 − 108 s, much longer than a typical explosion time of a flare, which is estimated to ~ 103 s.

In the magnetotail we have N ~ 10−6 m−3, B ~ 10−8 T, 0.3 < Te < 1.0 keV [9], VA ~ 2 × 104 ms−1. With length L ~ 6 × 106 m and assuming Coulomb collisions, the Lundqvist number becomes S ~ 108 − 109. Thus, yesSP ≈ 10−5 − 10−4, as well very small. With these numbers, the typical reconnection time is τrec ≈ 105 s, compared to a substorm growth time of ~ 600 s, again far away from any reality.

For these reasons Petschek [10] modified the Sweet-Parker model of reconnection to account for a finite electrical conductivity only in a narrow region of space. This small high-resistive reconnection site locally affects just a narrow flow channel of length L = LP. In order to deviate the flow and fields outside the reconnection site, it becomes the source of four slow shocks (in more sophisticated models like that of Sonnerup [11], a whole compound of additional discontinuities) forming separatrices through which all remaining flow can pass outside the resistive reconnection site (in particular, in the collisionless regime of interest here, Liu et al. [12, 13], reported the formation of such compounds in collisionless particle-in-cell simulations; cf. the simulation section below). During passage of these shocks (or compounds of discontinuities), this external flow enters the domain of the fast flow that is ejected from the reconnection site. In this way, the plasma inflow becomes accelerated into a plasma jet without ever having crossed the resistive spot. Accounting for this modification, the square root S → ln S in the Sweet-Parker reconnection rate is replaced with the logarithm of S, yielding substantially higher reconnection rates

yes

Applied to solar flares this yields a reconnection efficiency yesSP ~ 10−2 of 1% and much better reconnection times which are only one order of magnitude too long. In the magnetosphere one would have yesSP ~ 0.1 corresponding to a reconnection efficiency of 10% and grossly not unreasonable reconnection times.

Since Petschek reconnection rates yesP depend logarithmically on σ, their range of variation is very narrow. They are about constant, close to being independent of the properties of the interacting flows. Vasyliunas [14] has shown that, in the collisionless case, the maximum Petschek reconnection rate can be expressed more precisely as

yes

In this expression the inertial length λe = ce plays the role of an “inertial resistivity.” Here the rate appears on both sides but can be considered on the right of being practically constant. The Petschek reconnection rate is then determined by the ratio Le. Of course, the limitation on yesP < 1 implies that L/e > λe/yesP is still substantially larger than the inertial length, also in the Petschek model. This leads to the following scaling of the lengths of the reconnection region for the Sweet-Parker and Petschek models:

LSP  >LPλe.    (6)

Refinements of Petschek's flow model have been provided by Sonnerup [11] and several others who added more discontinuities to the slow shock in order to smooth the flow transition from the inflow to the outflow region (as shown in Figure 1 for Sonnerup's extension). Erkaev et al. [15], matching an incompressible steady-state external symmetric Petschek solution to the diffusion region, obtained an expression for the reconnection rate which incorporates both the Sweet-Parker and Petschek regimes. Petschek's model in this case reduces to the limit of a highly localized resistivity.

FIGURE 1
www.frontiersin.org

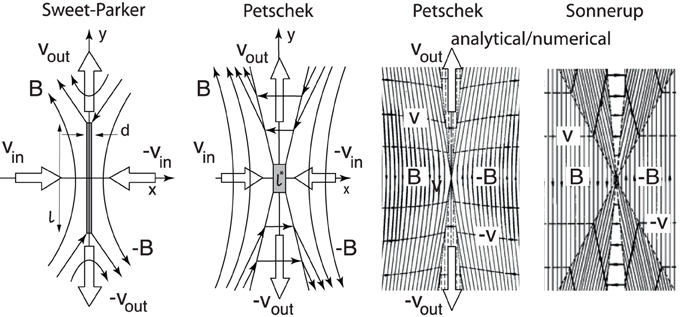

Figure 1. The two basic fluid models of reconnection. Left: Sweet-Parker's long thin current sheet model with all plasma flow across the sheet. Center: Petschek's small (unspecified) diffusion region/slow shock model. The proposed slow shocks are the four separatirces emanating from the corners of the diffusion region of lengths ℓ* in this figure. Right: The semianalytical solutions of Petschek's and Sonnerup's extension of Petschek's model which includes another discontinuity. (data from Vasyliunas [14], courtesy American Geophysical Union).

The formation of slow shocks during reconnection was question already early on by Syrovatskii [1618] who argued that, in fluid theory at low resistivity, plasma motion near the X point should prevent the localization of the diffusion region required in Petschek's model. Rather long structured current sheets (of Sweet-Parker type) should form whose length is determined entirely by the external boundary conditions. This conjecture has been confirmed by Biskamp [19] in numerical fluid simulations showing the formation of a reverse current near the reconnection site which prevents slow shock formation at small resistivity. Only for highly (presumably anomalously) resistive systems, where large current densities at the X point are avoided, Petschek-like slow shock formation becomes probable [20]. Krauss-Varban et al. [21] showed that the separatrices do not obey Rankine-Hugoniot conditions of slow shocks. Yin et al. [22, 23] have revived the idea of slow shocks as being a consequence of kinetic Alfvén waves generated in a plasma by ion-ion beam interaction. Under such conditions these authors found in particle-in-cell simulations that the electron temperature anisotropy caused by acceleration of electrons in the parallel electric field of the kinetic Alfvén wave leads to formation of highly oblique slow shocks at low electron β conditions which apply outside the reconnection site, a case barely realized in the accessible space plasma. Recent particle-in-cell simulations have not confirmed the formation of slow shocks either; they instead show the formation of separatrices emanating from the localized reconnection site due to particle effects absent in Petschek's and Sweet-Parker's models producing clusters of discontinuities [12, 13]. These latter findings are strongly supported by spacecraft observations in solar wind reconnection exhausts analyzed by Teh et al. [24] to reconstruct the discontinuities, finding no evidence for slow shocks rather than compounds of discontinuities. The transitions from the exhaust to the region outside interpreted as discontinuities turned out to be composites of various kinds of discontinuities all located in the same spatial domain and exhibiting properties of slow and intermediate modes.

Formally, the reconnection rate may also be represented as ratio Erec/E of a reconnection electric field Erecj/σ inside the reconnection “diffusion” region to the external convection field E ~ VinB. In the Sweet-Parker model with diffusion region width d, current density jB0d, and formally Erec = −VrecB, one has Vrec ≈ (μ0dσ)−1VAd/LSP. Equation (2) gives LSP/dS. Thus, VrecVA/S, yielding for ErecE:

yes

This field is directed along the current sheet. Since d/LSP « 1 and d/LSP ≈ tanθSP ~ θSP is the opening angle of the accelerated outflow cone, this field is almost parallel to the magnetic field, as indicated by the suffix ‖, albeit only adjacent to the small diffusion region around the X point where it represents an equivalent parallel electric field E that is generated in the reconnection process by annihilation of some magnetic flux. Its effect is the acceleration of the reconnected plasma along the current sheet away from the reconnection site. In the Petschek model a similar expression holds when replacing S → (8/π)ln(yesALPe). There, however, the parallel electric field E is mainly directed along the pair of separatrices emanating from the X point. It eliminates the plasma from this region and causes a narrow density depletion which is typical for a separatrix. Outside the difusion region only the reconnection field Erec remains and is by no means anymore parallel to the field; rather it points in the direction of the current and is sustained by the generalized Ohm's law. Boozer [25] recently proved mathematically that magnetic field lines preserve their identity only when the electric potential difference ΔU = ∫L0dsE(s) ≡ 0 vanishes identically along a field line, which is another expression for the fact that reconnection, i.e., violation of this condition that causes ΔU ≠ 0 and leads to field line reorganization and change of field line identity, can happen only if and if a net parallel electric field E is generated by the physical process of reconnection along the length L of the reconnection site. According to Boozer [25] this violation is most probable in three dimensions which are most sensitive to dependence on initial conditions; it causes field line entanglement.

Here, an important comment is in place. Both the Sweet-Parker and Petschek models assume implicitly that the reconnection process is self-regulatory in the sense that reconnection determines the inflow velocity. This frequently leads to confusion, for it applies only to plasmas at rest. If all quantities, including the length L of the reconnection region, are prescribed, with the exception of Vin, then the reconnection rate does indeed fix Vin. In the Sweet-Parker model this is the diffusion speed into the reconnection region based on the conductivity of the plasma. Similar for Petschek's model. Hence, these models just provide scaling relations and no real physical processes.

On the other hand, if two plasmas encounter each other, which is the usual case in nature, in solar flares, at the magnetopause, in the magnetotail and many other places, then the inflow velocity Vin is prescribed. Both models leave no or little freedom in this case. Given the inflow velocity, magnetic field, and conductivity (or inertial length) fixes the reconnection rate and just determines the lengths of the reconnection sites.

Unlike its physical mechanism which, even today, more than half a century after its theoretical investigation by Giovanelli, Sweet, Parker and Petschek, still remains to be poorly, at least incompletely and unsatisfactorily understood, the very picture of reconnection is simple and quite suggestive as a profound change of magnetic topology. In this picture, reconnection consists in the merging of two oppositely directed magnetic field lines—or, better, flux tubes containing oppositely directed magnetic fluxes. The contacting oppositely directed magnetic fluxes annihilate along their common meeting length L. Their excess magnetic energies are transformed into kinetic energy of the plasma, which becomes both heated and accelerated. The heating and acceleration can be understood as the transition from a state of higher, i.e., simpler order to a state of higher disorder, i.e., a more complicated (or turbulent) order accompanied by thermalization. The higher initial order consists in the presence of a well-defined current layer of width d which initially separates the oppositely directed undisturbed flux tubes. When the current layer is disturbed in some location with the two flux tubes getting into mutual contact, spontaneous annihilation sets on, and the current layer becomes locally disrupted by the breaking-through and merging/reconnecting magnetic field lines/flux tubes as schematically shown in Figure 2. In this process the magnetic fields reorganize in a new way that is subject to its own dynamics depending on the global magnetic field configuration and local plasma properties. It it important to understand that this dynamics may be very different for unlike initial settings.

FIGURE 2
www.frontiersin.org

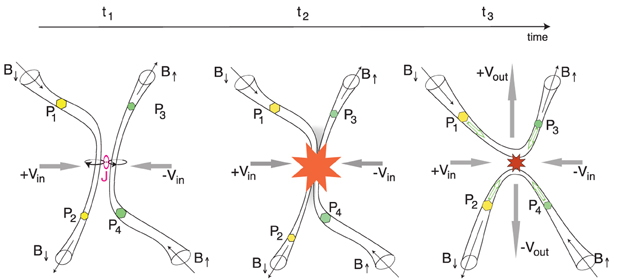

Figure 2. Schematic of the interaction of two flux tubes of different radii leading to reconnection when approaching each other with inflow speed Vin. The tubes carry magnetic fields B, B that, over a certain length along the flux tubes, are oppositely directed. When the tubes approach each other at time t1, a narrow current layer of length with current density J occurs between them. Once contacting at time t2, the antiparallel fluxes annihilate (as indicated symbolically by the red star). The excess magnetic energy is consumed in the reorganization of the magnetic fields into two new, heavily kinked flux tubes at time t3, as well as in heating of the plasma inside the volume of contact (small red star). The magnetic stresses stored in the kinked tubes relax by accelerating the plasma that is attached to the tubes attributing it an outflow velocity Vout > Vin in the orthogonal direction. As a by-product, the reorganization of the tubes enables the initially separated different plasmas P1 and P3 and P2 and P4 to mix by moving along the reconnected tubes (open green arrows).

In each case, when reconnection takes place in one or the other way, a certain amount of magnetic excess energy is released. Initially, the excess energy was stored in the magnetic configuration in either of the equivalent forms of anti-parallel magnetic topology, current density of the current layer that separates the antiparallel fields, or the energy in the plasma flow which transports the antiparallel magnetic field toward each other until reconnecting. These forms correspond to different views of the reconnection process as either magnetic energy release, transverse current instability and pinching/filamentation (most easily understood physically when realizing that parallel currents attract each other and, therefore, an extended current sheet might readily decay to form a chain of current filaments), or head-on penetration of counter streaming magnetized plasmas causing magnetic boundary layers, plasma mixing and turbulence. Of these views, however, the change in magnetic topology as result of reconnection is the most intuitive, and for this reason one may speak of magnetic energy release even though the source of energy, as for instance in solar wind-magnetosphere interaction, may be found in the mechanical energy of counter-streaming plasma flows.

The amount of released magnetic energy can be estimated easily from the antiparallel magnetic field components B, B. Since electrodynamics (in the absence of magnetic monopoles and magnetization currents) from ∇ · B = 0 categorically requires continuity of the magnetic field, only equal amounts of antiparallel magnetic fields, i.e., magnetic flux density will be annihilated, and one may write B = −B = ΔB. The available magnetic energy density is thus wrec = 2(ΔB)20. Multiplying with the volume yesB = πL(R21 + R22) of the two reconnecting flux tubes of radius R1, R2 and common length of contact L (with L being equal to the above mentioned length of the reconnection region along the antiparallel fields), the total released energy becomes Wrec = 2π(R21 + R22)LB)20. With this energy released during reconnection time τrec, the reconnection power becomes yesrec = Wrecrec. Conversely, the action exerted on the plasma is of order yesrec = Wrecτrec. Part of it is used to fractionally heat the plasma, increasing plasma temperature and causing particle acceleration, part is stored in the magnetic stresses due to the newly generated curvature of the reconnected magnetic fields. Relaxation and stretching of the bent magnetic flux tubes gives rise to bulk plasma jetting by adding momentum to the magnetically frozen plasma component. The latter processes are complex and involved and require a kinetic treatment. Any fluid or, in particular, magnetohydrodynamic theory, which ignores the different dynamics of the electron and ion components, does not cover them properly.

This simple and intuitive topological picture has been applied by Dungey [26] to geometrically describe the generation of the observed plasma convection patterns in Earth's magnetosphere by merging the antiparallel components of the geomagnetic and interplanetary (solar wind) magnetic fields at the dayside boundary of the magnetosphere, the magnetopause. After this merging the solar wind convectively transports the merged magnetic flux tubes downtail along the magnetopause. This field line motion stirs the plasma inside the magnetosphere. Subsequent dis-connection of the geomagnetic field from the interplanetary field and re-connexion of the two separate sections of the geomagnetic field in the center of the tail continuously restores the original geomagnetic field configuration.

Dungey's model superseded any other model of diffusive coupling becoming the canonical paradigm of magnetic energy release by reconnection. This paradigm found its application wherever oppositely directed magnetic fields in plasmas come into contact in space, astrophysics, and also in the laboratory. The widespread application of this topological reconnection model is reflected in the large number of reviews, starting with Vasyliunas [14], which are available in the published literature (for two recent reviews the reader is directed to Zweibel and Yamada [27], Yamada et al. [28]), books (for a purely MHD treatment see, e.g., [3, 29], for a mostly mathematical exercise) and book chapters on reconnection (for instance in: [3032]).

The present review focusses on collisionless reconnection in space. It follows a more physical approach trying to keep balance between theory and observation. Observations are taken mainly from space plasmas for the reason that the scales of space plasmas are large enough to be considered approximately smooth. Laboratory plasmas [28] have the advantage that experiments can be set up at well-controlled initial conditions; their disadvantages consist in the small scales and high dimensionality of any laboratory installation which unavoidably demands dealing ab initio with magnetically complex configurations, presence of boundaries, incomplete ionization, neutral gas effects, temperature gradients, inhomogeneities, and non-negligible initial resistivity. They are thus difficult to analyze. Space plasmas, in the regions of interest (solar corona, solar wind, magnetopause, magnetotail), are collisionless, large scale, with boundaries being located fairly remote; in many cases they are very close to two-dimensionality, are sufficiently uniform magnetically as well as thermodynamically. Their problems consist in their high time-variability, the impossibility of preparing a controlled initial state, and last not least, the relatively sporadic availability of data. Their main deficiency is that they are subject to passive point-like observations only taken in small regions of space and at stochastically distributed times when the spacecraft incidentally passes close to a reconnection site. The point-like character of the observations is imposed by the miniscule scale of the spacecraft in comparison to all spatial scales in dilute space plasmas. Though at first glance this seems of advantage, the high time variability of space plasmas together with the notorious low instrumental resolution and the enormous amount of data flow generally inhibit any wanted high space-time mapping. Nevertheless, over the last four decades of the unmanned space-flight age large amounts of observational data have been collected and accumulated which, already at the present time, allow drawing a preliminary though by far not ultimate picture of collisionless reconnection.

2. Fluid Models of Reconnection

Reconnection, understood as the dynamics of magnetic fields in electrically conducting media is a problem of electrodynamics. Since, in fluids, the reorganization of magnetic fields naturally proceeds on diffusive time scales τrec ~ τσ » ω−1e much longer than the oscillation periods, ω−1em < ω−1e, of free electromagnetic waves, these processes are comparably slow, even for maximum diffusivity Dσ ~ DA. Thus, any relativistic effect on the fields can be neglected, and the equations reduce to the induction equation for the electric, E, and magnetic, B, fields, completed by Ampère's law:

Bt=×E,  ×B=μ0J(E),    (8)

where J(E) is the current density in the—reconnecting—current sheet in question. Its current density shall be determined from the dynamics of the differently charged components of the plasma as function of the self-consistent electric field under the boundary condition that the magnetic fields sufficiently far outside the current layer are directed antiparallel. From the induction equation, the magnetic field is trivially free of any magnetic charges, ∇ · B = 0, which implies that magnetic field lines cannot be broken in no case and at no time; they are always continuous and must be closed either at finite distance or at infinity. At a later occasion we will return to this important point in relation to reconnection as, so far, it has never ever been properly addressed.

2.1. Generalized Ohm's Law

All fluid physics is contained in Ohm's law J(E). Its MHD version is J = σ(E + V × B), with V the fluid velocity. In ideal MHD σ → ∞, implying E = −V × B. The field is forever frozen to the fluid, and there is no reconnection. Moreover, the induction equation tells that an initially non-magnetic plasma in the current sheet can by no means become magnetized unless magnetization currents flow at it boundaries. Reconnection thus requires that the current sheet itself is magnetized. Otherwise the magnetic field decays exponentially over one electron skin-depth (inertial length) λe from its boundary toward the center of the current sheet thus keeping a current sheet of thickness d > 2λe free of magnetic field. In resistive MHD with σ finite, the field becomes E = −V × B + J/σ, and the above two equations are combined into the induction-diffusion equation for the magnetic field

B/t=×(V×B)+Dσ2B    (9)

Applying its stationary version dimensionally to a plane current sheet under the condition of continuity of flow just reproduces the reconnection rate of the Sweet-Parker model due to resistive diffusion of the magnetic field, a slow process. Moreover, MHD is valid only on scales larger than the ion gyroradius ρi outside the ion inertial region λi that is centered on the current sheet. Thus, even though one may speak about the diffusion of the field into the current sheet, the process of reconnection itself lies outside of MHD. MHD merely covers the post-reconnection effects of collisionless reconnection on scales > ρi > λi.

The simplest generalized collisionless Ohm's law is provided by two-fluid theory. It is essentially the electron equation of motion which, with μ = mi/me the mass ratio, can be rewritten (cf. e.g., [33]):

E+V×B=σa1·J+(eN)1[ J×B·(Pe+μPi) ]                    +(ϵ0ωe2)1{ tJ+·[ JV+VJe(ΔN)VV ]}                    (eN)1[ (FeμFi)pmf ]    (10)

as an expression for the electric field E in the plasma frame moving with velocity V ≈ Vi (the ion frame). The first term on the right accounts for a possible tensorial anomalous conductivity σa. We added a ponderomotive force term—indexed pmf. All terms on the right enter Faraday's law and produce a substantially more involved induction equation than Equation (9). Application of the curl operation makes all irrotational contributions vanish, leaving just the rotational terms contributing to the inductive electric and magnetic fields. Since V × B freezes the plasma to the magnetic field, the surviving terms in Ohm's lay may violate the frozen-in concept contributing to diffusion of plasma against the magnetic field and causing reconnection in a current sheet. A reconnection theory can be based on each of the terms.

It is instructive to consider each of the terms separately. In collisionless reconnection, the first term is non-zero only when the plasma develops an anomalous resistance. This requires a separate investigation which we delay to the end of this section.

2.1.1. “Hall” reconnection

The induction equation with only the Hall term included becomes

Bt=×(v×B1eNJ×B).    (11)

Near the reconnecting current sheet electron and ion motions decouple almost completely on the inertial scale of the ions. Consider the ratio of ion gyro-radius rci = vii to ion inertial length λi = ci. Inertial effects dominate the ion motion when βi = r2gi2i > 1. Ions decouple from the magnetic field. Electrons remain magnetized, perform gyrations and cross-electric field drifts, while being convected into the current layer with velocity E × B/B2. They constitute the Hall current [34]

JH=eNvE=(eN/B2)E×B.    (12)

which flows in the ion inertial region outside the electron inertial region and thus outside the current center, implying that it is primarily not involved into the reconnection process itself. Its maximum is located inside but close to the separatrices emanating from the reconnection X point, and it vanishes along the boundary of the electron diffusion region at distance λe from the center of the current layer.

The Hall conductivity tensor JH = σH · E has only two components and is antisymmetric, with element σH = − eN/B corresponding to a Hall resistivity ηH = −B/eN. In the presence of an (isotropic) anomalous conductivity, the Hall conductivity becomes σH, a = σH/(1 + σ2H2a). For large σa » σH this reduces to σH. In the presence of large anomalous resistance, σa«σH, and the conductivity is isotropic with σH, a ≈ σa. This Hall resistance is an inductive blind resistance and plays no role in the generation of heat. The Hall current evolves mainly in the absence of binary (Coulomb) collisions and, assuming that anomalous resistance is negligible, has been taken as evidence for collisionless reconnection in Earth's magnetotail [3537]. It has been reclaimed also for the magnetopause [38] of providing evidence for the existence of an electron diffusion layer there. Though an electron diffusion layer is reasonable and is supported by other observations, the claim of a Hall magnetic field and current system is to be taken with care because the Hall magnetic field in these particular observations is stronger than the main field almost everywhere which is inconsistent with the fact that Hall currents are secondary effects and, therefore, their field must necessarily be weak at any location.

It may be noted that Sonnerup’s [11] realization of the Hall effect near a reconnection site has been repeated also by other groups (e.g., [39]). Hall currents near a reconnection site generate a Hall magnetic field in the direction of the current flow perpendicular to the symmetry plane of the external magnetic field but parallel to the current and the convection electric field E. This Hall field has quadrupolar structure and, though necessarily being weaker than the external magnetic field, introduces a guide field into reconnection [40], opening the possibility of accelerating electrons along the guide field in the direction anti-parallel to the convection electric field. This is shown in Figure 3.

FIGURE 3
www.frontiersin.org

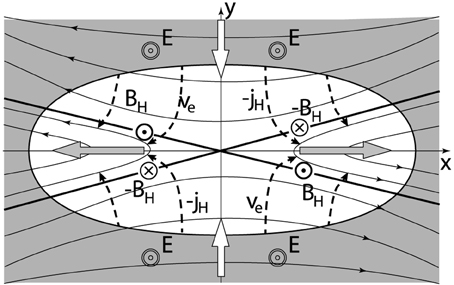

Figure 3. Geometry of the Hall effect the X-line in collisionless reconnection. The white region is the domain r ≲ λi from the X-line accounting for a potential asymmetry between the inflow and outflow direction which elongates the region into the outflow direction. Electron (dashed lines) performing an inward E × B-drift. Hall currents JH are centered on the separatrices forming four half-loops. They generate the quadrupolar Hall magnetic field BH. Open arrows show the inflow at low speed Vin and the outflow at high speed Vout. The convection electric field points out of the plane. Ions are accelerated in this field out of the plane thereby contributing to the sheet current. This contribution effectively causes a broadening of the current layer.

Since Hall currents are a source of free energy with perpendicular scales comparable to the transverse scales of kinetic Alfvén waves, the reconnection site is a natural source region of kinetic Alfvén waves. In addition, Hall currents serve as sources of various plasma instabilities like the electrostatic modified-two stream instability or the electromagnetic Weibel instability [41]. Otherwise Hall currents do not directly contribute to the excitation of reconnection. This is contrary to what has sometimes been claimed by the defenders of Hall reconnection. However, particle in cell simulations [42, 43] of electron-positron pair plasmas have convincingly demonstrated that fast reconnection takes violently place under non-Hall conditions; in pair plasmas Hall currents are (trivially) absent since m = m+me and, consequently, electron and positron diffusion regions coincide. These conclusions have been confirmed by subsequent similar simulations [44] using substantially smaller particle numbers and less resolution but arriving at the same result (cf. also Karimabadi et al. [45, 46], anticipating these results in hybrid simulations when removing the J × B-Hall term, and considering the reconnection rate for both uniform and localized (anomalous) resistance; in both cases fast reconnection rates have been obtained).

An important side product of the Hall currents is provided by the necessity of current closure. Such closure proceeds preferably along the separatrix magnetic field with the field-aligned current carried by electrons (e.g., [39, 47], and others). The field-aligned currents also contribute to the guide field; this is, however, a second-order effect. The main function of the field-aligned current is to couple the reconnection site to its external environment, possibly giving rise to important secondary effects far away from the reconnection region. In the magnetosphere such effects are observed as aurorae during substorms, particle precipitation, chains of electron holes, excitation of near-Earth plasma instabilities and electromagnetic radiation. In the solar atmosphere they serve as sources for solar radio emissions like, for instance, Type III bursts.

2.1.2. Pressure-driven reconnection

Since no steep gradients neither in density nor temperature are expected near the reconnection site, the pressure term in a weakly inhomogeneous plasma contributes only when the pressure tensor is highly anisotropic or contains non-diagonal elements. If at all, contribution will come only from the electron pressure term Pe which, in the center of the current layer, may develop inhomogeneity and possibly even electron-viscosity, generating non-diagonal elements. The latter, in particular, have been attributed to be important drivers of reconnection (cf. e.g., [48], and references to earlier papers of the same authors therein).

In collisionless plasmas non-diagonal pressure tensor elements can occur as the result of finite-Larmor radius effects, argued to be preferentially caused on the meandering electron component in the current sheet that is trapped between the oppositely directed magnetic fields where performing so-called “Speiser orbits” (cf. e.g., [49]). Non-diagonal pressure tensor elements have the character of viscosities in the electron fluid (similar effects hold also for ions on a much larger scale in the “ion diffusion region” but are of little interest or effect on the short electron scales in collisionless reconnection for, inside the electron diffusion region of radius ≲ λe from the center of the reconnecting current sheet ions are clearly completely non-magnetic and finite-Larmor-radius effects are negligible here). It is, however, not completely clear whether non-diagonal pressure terms based on physical effects will indeed be generated at a reconnection site. All wave-particle interaction-based non-linear plasma effects that might generate viscosities here are probably too weak though Divin et al. [50, 51] proposed that electron acceleration near the reconnection site indeed forms non-diagonal electron pressure terms. The opinions are ambiguous on this matter. Numerical particle-in-cell simulations [52] do indicate that it is indeed the pressure tensor effect which takes responsibility for collisionless reconnection. Karimabadi et al. [53] demonstrated that electron temperature anisotropies have a strong destabilizing effect on the current layer and magnetic reconnection.

The case is a bit obscured by the imprecise definition of the main axes of the pressure tensor near a reconnection site. Pressure anisotropy P, P refers to the magnetic field which changes direction by 180° across the current sheet. The natural reference system is thus not that of the magnetic field but that of the current sheet instead, centered at current maximum. In this frame of reference the collisionless pressure tensor has of course all nine components, provided it has maintained some anisotropy PP. Accounting for the three different non-diagonal elements in this geometric representation of the tensors, pure anisotropic pressure effects will naturally become important. The decision about the role of pressure needs clarification of which frame of reference has to be considered as basic in reconnection and how pressure anisotropy either is generated or maintained in the electron diffusion region. In fact, simulations seem to confirm that both is the case thus, apparently, supporting pressure-driven reconnection in collisionless plasma configurations to be a general, possibly even the canonical mechanism in collisionless non-forced reconnection. Support to this conclusion has been given by recent work [54] who derived an electron-frame “dissipation measure” to identify the location and extent of the electron diffusion region. This measure is the unrecoverably dissipated Joule energy, the scalar quantity

Wed=Γe[ J·(E-B×Ve)e(NiNe)E·Ve ],    (13)

given here in Lorentz covariant form with Γe=1/1Ve2/c2 the bulk electron Lorentz factor. The last term is not necessarily zero because in the reconnection region electric fields arise partly due to charge separation. Non-relativistically Γe = 1. Since energy is frame dependent, transformation to the ion frame yields simply NeWed = NiWid as the relation between electron and ion dissipation measures. Similarly, transformation to the bulk MHD-frame defines the MHD-dissipation measure Wmhd = Wed(1 + μ)/(1 + μNi/Ne). These quantities are useful in mapping the dissipation region both in measurements as in simulations thus identifying the physical reconnection site. Observations [54] support this measure in symmetric reconnection settings like in the magnetotail. In non-symmetric reconnection, however, the measure seems not as useful, as has been discussed by Pritchett [55].

2.1.3. Inertial reconnection

The time dependent inertial term can be expressed as Einert ≈ σ−1inertJ through the “inertial conductivity” σinert = ϵ0ω2eτinert. The time τinert is the time of change of the current. This time is usually long compared with the period of plasma oscillations. In the magnetotail with density N ~ 106 m−3 one has σinert ≈ 5 × 10−3τinert S. Therefore, moderately fast current oscillations could well contribute to inertial resistivity providing sufficient inertial diffusivity for reconnection. Using it in the Sweet-Parker model one can show that current sheets of thickness of the ion inertial length d ~ λi become of length L~mi/meλi. The reconnection rate is then found of order

yes

Here yesA < 1 competes with the smallness of the mass ratio, but the inertial reconnection rate is nevertheless large compared with yesSP.

2.1.4. Causes of the reconnection electric field

It is instructive to ask for the role of the reconnection electric field Erec. This is most simply seen in two dimensional reconnection. From Ohm's law—neglecting turbulence and ponderomotive terms—one has (with ∇ ≡ ∇x + ∇z) for ErecEy:

Erec=(Ve×B)y(eNe)1(xPe,xy+zPe,yz)         (me/e)(t+Ve·)Vey    (15)

where we work in the X point frame. We explicitly wrote out the only two remaining non-diagonal electron pressure terms (neglecting ion pressure). These are combinations of P, P. Otherwise, the non-diagonal elements may also have been produced by finite-gyro-radius effects causing non-gyrotropy (as argued in [49, 53, 56]). Erec is determined by the divergence of the electron pressure, i.e., the electron-viscous contribution, which in the X point frame is non-zero in an extended region around the X point. Moreover, an inertial term contributes as well but is important only in the electron diffusion region where inertia comes into play, with the time derivative being of lesser importance. Erec(x, z) must depend on space such that the rotation ey × ∇Erec ≠ 0 contributes to the two magnetic components Bx, Bz.

Pritchett [57], in an important paper, investigated the separate contributions of these terms in two-dimensional non-forced simulations, finding that electron pseudo-viscosity and inertia both contribute to Erec, compensating for the convection term. Their contributions are located in the electron diffusion region and have a pronounced spatial dependence. They are responsible for the breaking of the frozen-in state of electrons here. This gives support to the view that, in anisotropic plasma, collisionless reconnection is indeed made possible by electron pseudo-viscosity (see also [49]), aided by non-linear electron inertia (the non-linear term in the inertial contribution to Equation 15). Apparently (except for the ponderomotive term) all other terms in the induction equation provide minor corrections. One may even go further in concluding that any resistive reconnection is probably unrealistic. Resistive dissipation in a plasma will always be secondary to the simple electron pressure effects which generate electron pseudo-viscosity on the electron inertial scale. Reconnection proceeds, presumably, always on the micro-scale of the electron skin depth.

2.1.5. Flows, turbulence, ponderomotive effects

Ohm's law Equation (10) contains the flow velocity, density, current and magnetic field. These quantities can be understood as composed of slowly variable mean values 〈V〉, 〈J〉, 〈N〉, 〈B〉 and turbulent fluctuations vδV, δJ, δN, δB) changing on much faster time and shorter spatial scales. In a mean-field theory of reconnection, the non-linear terms in Ohm's law then contribute additional correlation terms which, when violating the frozen-in condition, can also become sources of turbulent reconnection. This is known from (collisional) dynamo theory where the correlations give rise to αΩ-dynamo action. Here they provide a collisionless fluid means of driving reconnection (see, e.g., [58]). Similar effects are provided by the ponderomotive term.

Expressions for the ponderomotive force for different plasma models are found in the literature. For two-fluid plasmas Lee and Parks [59, 60] and Biglari and Diamond [61] derived some simplified forms. In contrast to the above fluid turbulence, ponderomotive forces account for the slow variability of plasma turbulence. They account for the role of kinetic effects on fluid scales. Reconnection theory has only recently begun implicitly including fluid and plasma turbulence in simulations [6265].

2.2. Anomalous Effects

Of the above noted possible causes of reconnection of particularly interest are all those which may contribute by effects in plasma which are not covered by a simple two-fluid theory. These are effects due to heating and its reaction on reconnection as well as those which generate anomalous resistance, anomalous viscosity or other anomalous effects like current bifurcation (first observed by Ronov et al. [66, 67]), broadening and “disruption” (recently reported to occur in laboratory experiments and simulations by Jain et al. [68]). Since non-linearity comes in at this place (cf. e.g., [69], for an example referring to the nonlinear evolution of the lower-hybrid instability causing current bifurcation), these effects are more difficult to treat and, in principle, require a numerical investigation via particle or Vlasov simulations.

2.2.1. Critical transition length scale

Uzdensky [70] pointed out that Coulomb processes may come into play via heating the plasma. We know since Sonnerup [34] that, except for finite Larmor radius effects causing ion and electron viscosity on the respective relevant scales λie [53, 71], reconnection is basically collisionless whenever the current layer thickness d < λi drops below the ion inertial length. In the Sweet-Parker model, with mean free path λm = ve/ν of electrons (ve=2Te/me is the non-relativistic thermal electron speed) and βe = 2μ0NTe/B2, we have d = yesSP, PL < λi. This yields an upper limit on yes for reconnection being collisionless. Thus, should it happen that the length L of reconnection along the antiparallel fields drops below Lcl, reconnection went collisionless. Clearly, this depends on some process which is hidden in the electron mean free path and therefore depends on the mechanism which generates collisions.

The collision frequency is proportional to the fluctuation level Ww/NTe of the scattering plasma waves. This allows expressing Lcl quite generally through the Debye length λD and Ww:

LclλD(NTe/Wwmeβe/mi)    (16)

Under pressure balance one has in the current layer βe + βi ≈ 2βe = 1. The particular case of binary Coulomb collisions holding for the Sweet-Parker model gives LSP,clλD(NλD3mi/meβe). This latter expression scales as LSP, clB(Te/N)3/2. One concludes that electron heating and dilution of plasma may increase the critical scale until reconnection becomes collisionless. Uzdensky [70] has argued that in the solar corona LSP, cl ~ L about coincides with the lengths of loops providing evidence for a heating mechanism which keeps the corona at marginal transition between collisionless and collisional reconnection.

In contrast, in the magnetotail we have λD ~ (6-10) m, Nλ3D ~ 108, βe + βi = 1, 3βe ≲ βi < 10βe [9], thus βe ~ 1/6. With these numbers we find LSP, cl ~ 109 − 1010 m. This indicates that, for the parameters in the magnetosphere, Sweet-Parker reconnection is indeed close to the claimed marginality. However, the scale where marginality would set on is much larger than any magnetospheric scale and, in particular, much larger than any observed longitudinal scale of the reconnection region. This lets one doubt in the meaning of LSP, cl also in the solar corona.

In order to bring the Sweet-Parker critical length in the magnetosphere down to observed reconnection scales of < 10 RE Earth radii, the energy density of plasma waves should satisfy the condition

3×105λD/Nβe<Ww/NTe1.    (17)

Inserting for the tail then yields that the fluctuations must reach an energy density of Ww/NTe>103T2/N1. Here T2 = Te/(100 eV), N1 = N/(1 cm−3). Such wave fluctuation levels require extraordinarily strong plasma wave excitation reaching far into the highly non-linear regime. Wave intensities such high have not been observed, not even under extremely disturbed magnetospheric conditions.

A condition for Petschek-like reconnection similar to Equation (16) reads LP, cl ≲ 30λi. This condition is easier to satisfy, which indicates that Petschek-like reconnection based on some localized anomalous resistivity is not quite as unreasonable as Sweet-Parker reconnection under nearly collisionless conditions.

2.2.2. Anomalous fluid effects

Lacking a resistivity under collisionless conditions in plasma, the importance of anomalous effects as a possible reason for anomalous resistance has early attracted attention. We already made use of Sagdeev's formula in Equation (17). Before returning to it we note that, formally, an anomalous conductivity can be defined for each of the terms in Equation (10) by simply defining some equivalent conductivities. This does not make sense for the Hall term, however. But the contribution of the pressure term, for instance, to the electric field could be written as EP = −σ−1P · J = −(eN)−1∇ · [Pe + (me/mi)Pi]. Multiplying from the left with the current density, one obtains a tensor equation J · σ−1P · J = (eN)−1J · {∇ · [Pe + (me/mi)Pi]} which, for given pressure and with J = ∇ × B0, can formally be inverted to find the pressure induced contribution to conductivity. One immediately sees that the right-hand side is the projection of the pressure tensor divergence onto the direction of the current. Similar games can be played at the other terms in Ohm's law. This procedure brings the right-hand side of Ohm's law into the conventional form σ−1tot · J with equivalent tensorial resistivity σ−1tot = σ−1a + σ−1H − σ−1P + σ−1inert + σ−1(jV + Vj) − σ−1pmf. Though this is a formal representation only, it shows that the different terms in Ohm's law may contribute to an equivalent resistance each in its way. Except for σ−1a, which is a really anomalous resistance based on microscopic interactions, all other terms in σ−1tot are macroscopic contributions to Ohm's law lacking the quality of anomalousness. They just refer to fluid conditions. This assertion applies also to the ponderomotive terms in Equation (10) for they contain just the slowly variable effects of waves in the momentum exchange between waves and the plasma fluid. The microscopic interactions which cause the ponderomotive forces are not included here.

With this philosophy in mind, Ohm's law becomes an equation for the current density J. Once it has been inverted, it enables one to estimate the dissipated energy Wed = J · E = E · σtot · (E + V × B) which is the energy that is available in reconnection for heating and acceleration in the dissipation region by all the processes contributing to the right-hand side of Ohm's law. Conversely, providing the current density and electric field can be unambiguously measured, Wed can directly be determined.

Another anomalous fluid effect arises if the velocity and current exhibit low frequency fluctuations according to V = V0 + δV, J = J0 + δJ. The zero-order fields are mean fields V0 = 〈V〉, J0 = 〈J〉, and the averages of the fluctuations vanish 〈δV〉 = 〈δJ〉 = 0. In this case the non-linear terms contribute to Ohm's law in similar ways as known from dynamo theory. Ohm's law provides the link between dynamo theory and reconnection, with reconnection becoming driven by fluid and current turbulence [58] and interacting with dynamo effects providing merging in dynamo theory and enabling collisionless reconnection. Though it is clear that turbulence affects the dynamo, it is not clear whether it really causes reconnection. The scales of fluid turbulence are longer than any microscopic plasma scales. On those scales electrons should remain frozen to the magnetic field. Vice versa, onset of reconnection and the resulting tearing-mode turbulence will necessarily affect any ongoing dynamo by either speeding it up or braking it. In collisionless plasma one might suggest that reconnection-caused turbulence and anomalous resistivity will rather support the dynamo. On the other hand, in a recent mean field MHD model with the pmf in a turbulent Ohm's law [72] simulations seem formally to indicated that this kind of turbulence may drive reconnection, even explosively. Since this model is MHD it implies large scales; therefore its physical reality remains unclear.

2.2.3. Anomalous collisions

Microscopic non-linear interaction can become a means of generating reduced electrical conductivities via the interaction of particles with self-consistently excited plasma waves. A spectrum of such waves may retard the electrons from their ballistic free flight motion due to scattering in the self-generated wave fields. The retardation is the cause of a fake friction exerted by the waves on the particles. It results in real though anomalous (not based on binary interaction between particles) collision frequencies and contributes to an anomalous resistivity. Such a resistivity is necessarily anisotropic as it depends on the natural anisotropy of the plasma waves.

The idea goes back to Sagdeev (cf. his early reviews [73, 74]) who realized the equivalence between the scattering of electrons in thermal fluctuations of Langmuir waves in Coulomb interaction and scattering in unstably excited ion-acoustic wave spectra which we noted in the Introduction. Sagdeev [73] favored ion-acoustic waves as the agents of anomalous collisions in non-magnetic, and electron-cyclotron waves in magnetized plasmas. However, in the magnetized reconnecting current layers like Earth's magnetotail or magnetopause, neither ion-acoustic waves nor Buneman modes [75, 76] don't grow, because Ti > Te there, and electron drifts Ve < ve are below electron thermal speeds. Also current-driven electron-cyclotron modes are stable in the extremely weak magnetic field in the current sheet.

Some anomalous collision frequencies for various current driven plasma instabilities have been calculated by Liewer and Krall [77] and Davidson and Krall [78]. These papers favor the lower-hybrid drift instability for reconnection [79, 80]. It grows in plasma density gradients of a magnetized plasma. Its source is the relative diamagnetic drift VdiVde of charged particles, with Vdj = |∇ ln N|(Tj/eB), giving rise to a net diamagnetic current J = |∇ N|(TiTe)/B. It has no threshold except Ti = Te and is thus universally present. It drives the lower-hybrid drift instability (as well as a relative of it, the modified-two-stream instability).

Such density gradient exist at the boundary of the current sheet and also at the boundary of the electron diffusion region while the magnetic field is weak and electrons are weakly magnetized. The lower hybrid drift instability scatters the drifting particles reducing the relative perpendicular diamagnetic velocity between electrons and ions, stabilizing via heating the cooler plasma component. By Sagdeev's argument, it indeed yields high anomalous collision frequencies of the order of the lower-hybrid frequency

νaωlh=(ωi2+Ωi2)/(1+ωe2/Ωe2)    (18)

In weak magnetic fields with β = βe + βi > 1 this collison frequency is the geometric mean between the electron and ion cyclotron frequencies ωlhΩeΩi=me/miΩe. In stronger magnetic fields ωlh ≃ ωi, while in very strong fields ωlh ≃ Ωi. Unfortunately, due to depletion of the diamagnetic drift in weak magnetic fields, this instability is heavily damped in the high-β conditions encountered in the center of the current layer and the ion diffusion region and should thus be of little value in driving reconnection, though it certainly affects the Hall and field aligned current system in the ion diffusion region causing ion heating and electron acceleration along the magnetic field here. Observations of wave spectra [81, 82] do not support its importance though measurements in magnetopause crossings [83, 84] seem to provide evidence for its excitation even though lacking sufficiently high resolution for locating the waves to either the ion or electron diffusion regions. This argument may, however, be revised if a strong magnetic guide field is overlaid over the antiparallel fields and current layer. The physics then becomes quite different. Moreover, Fujimoto and Shinohara [85] report modification of the electric convection field due to non-linear evolution of the lower hybrid instability in the ion diffusion region. The additional inductive electric field component accelerates electrons to sustain a thin electron current layer which readily goes unstable with respect to tearing modes. It thus remains undecided whether or not the lower hybrid instability is directly involved into driving collisionless reconnection.

Anomalous collision frequencies require the excitation of some kind of plasma waves. The problem consists in the identification of the most effective instability and its saturation level. Most attempts rely on the lowest order interaction, i.e., quasilinear saturation, which is believed to provide the strongest quasi-stationary wave spectrum. However, wave–wave interactions and strong non-resonant wave-particle interactions may reduce the quasilinear level and deplete the expected anomalous collisions.

3. Kinetic Reconnection Theory

In view of the complexity (complicated geometry, all kinds of fluid aspects like flows, vortices, boundary layer effects etc., involvement of various modes of plasma instabilities and wave-particle interactions, coupling of the reconnection site along the magnetic field to other remote plasma conditions etc.) of the reconnection problem there is little chance for analytical results. Pioneering work on the stability of a current layer concentrated on the tearing instability [86, 87]. Relevant analytical work terminated already in the seventies with papers by Schindler [88] on the theory of substorms and fundamental work by Galeev and Zelenyi [89, 90], followed by Lembege and Pellat [91]. The former work (see also [92, 93]) attributed the stability of the two-dimensional magnetotail current sheet solely to the ion-tearing mode, reducing the problem to the solution of a Grad-Shafranov equation for the only surviving component of the magnetic vector potential A = . Birn et al. [94] extended this approach to three dimensions.

In contrast to this quasi-fluid theory, Galeev and Zelenyi [89, 90] solved the full kinetic stability problem of a two-dimensional current layer with overlaid normal magnetic field including the difference between electron and ion dynamics. The assumption of a normal magnetic field component Bz ≠ 0 applies, for example, to the magnetotail, where the magnetic field is tied to the body of the Earth. It therefore remains to be weakly dipolar in spite of the extended current sheet. These authors provided a perturbation theoretical solution of the resulting Schrödinger equation for A in the presence of the self-consistent non-vanishing electric potential.

The key idea in this theory is to include the adiabatic oscillatory motion of non-magnetized ions that are trapped in the current sheet and oscillate between the two oppositely directed magnetic fields thereby contributing to Landau damping while electrons remain magnetic due to the presence of the weak normal magnetic field component. From the electrodynamics wave equation for the vector potential A = in the presence of a very low-frequency first order current perturbation δJ = ∑j qj ∫ dv3fj(v) this yields an effective potential term in the equation for the only non-zero component A of the perturbed vector potential

A(z/d)[(kd)2+U(z/d)]A(z/d)=0,UU0+U1=μ0j=e,iqjd3vvyδfj(v),    (19)

where δf is the first order variation of the particle distribution function obtained from the linearized Vlasov equation, and qj = ±e. Through the Vlasov equation, δfj[A] is itself a functional of the vector potential A. Linearization reduces the functional dependence to linear proportionality δfjA. The Schrödinger-like Equation (19) has been solved by perturbation technique (e.g., [89, 90, 95]) assuming U1 being small, and U0 = −2cosh−2(z/d) forming a smooth potential well centered at z = 0. To first perturbation order one obtains the condition

d(z/d)[ U1e+U1i ]=2kd[ (kd)21 ].    (20)

for the potential disturbance U, which yields a dispersion relation for the wave number k tearing mode. The growing tearing mode is a long wavelength k2d2 < 1 mode. It causes pinching of the current into filaments forming “tears” (or plasmoids) containing closed field lines separated by magnetic X points with reconnected fields.

3.1. Initial Equilibrium

Any kinetic theory, whether analytical or numerical simulations, requires the assumption of an initial equilibrium state. This, in a completely magnetized plasma containing an extended two-dimensional sheet current of width d has been obtained by Harris [96] under the assumption that the plasma is in thermal equilibrium obeying a Maxwell-Boltzmann distribution function. The equilibrium consists of a very simple shape B = B0 tanh(z/d) of the only available x-component of the magnetic field B = Bx^ which vanishes at the current center z = 0 changing sign here when crossing from negative to positive z values. The asumed pressure balance imposes an external β = 1 everywhere. The sheet current maximizes in the current center: J = Jyŷ = μ0(B0/d)cosh−2(z/d)ŷ. With these definitions, index j = e, i, and v2 = v2x + v2z, the stationary particle distribution becomes

Fj(z,v)=(mj2πTj)  32  N0cosh2(z/d)exp{ mj2Tj[ v2+(vyVj)2 ] }  .    (21)

N0 is the particle density in the current sheet center, and Vj is the contribution of species j to the current drift speed along ŷ. It constitutes the current via Jy(z) = eN(z)(ViVe). As initial condition, this distribution function lies also at the base of most particle-in-cell and Vlasov particle simulations of collisionless reconnection. Whether it is experimentally justified, is an undecided question. Observations suggest (e.g., [97]) that the ion distributions belong to the type of κ-distributions exhibiting long non-thermal tails produced in collisionless wave-particle interactions (see [98] for the microscopic derivation). Such distributions still satisfy the Vlasov equation but are typical for collisionless plasmas. They represent quasi-stationary states far away from thermal equilibrium (e.g., [99101]) which replace the Boltzmann distribution with parameter κ[Ww] a functional of the wave energy density. They naturally account for an initial background of particles of higher energy (for a recent review of the dynamics of particles in current sheets cf. [102]).

One should note that these are two-dimensional equilibria assuming a flat infinitely extended current sheet of thickness d. Such sheets must be distorted in some way in order to undergo reconnection. In addition to the stable equilibrium current sheet distortions require a mechanism and an initial magnetic fluctuation level to start from. The distortion then selects some wave number range from this fluctuation level which becomes unstable and grows. Such magnetic fluctuation levels have only recently been calculated, for instance for the Weibel mode [41], assuming particular plasma response functions in an unmagnetized plasma [103107] which applies approximately to the very center of the current layer. Felten and Schlickeiser [103] recently reported a strongly damped isotropic mode which provides the highest level of magnetic thermal noise in an unmagnetized plasma. All these modes generate a fluctuating magnetic background from which other modes like the tearing may chose to grow. The spontaneous instability which is made responsible for reconnection is, however, the magnetized collisionless tearing instability (for collision dominated plasmas first proposed by Furth et al. [108]). Preliminary thermal magnetic fluctuation levels for this mode have been provided by Kleva [109] in tokamak geometry, but no full thermal fluctuation theory is available yet.

3.2. Collisionless Tearing Mode: Analytical Theory

Calculation of the contributions of electrons and ions in the above tearing dispersion relation can be done in either the absence (e.g., [95]) or presence of residual Coulomb (e.g., [110]) or anomalous collisions. The electron contribution is from oscillations of trapped electrons inside the electron inertial length, ions contribute non-magnetically via Landau damping from the entire ion diffusion region. In the absence of collisions the trapped electron contribution, integrated over the cyclotron oscillations in the current sheet, is ~(c/VeA)2me/mi[1(kve/ω)2], where VeA is the electron-Alfvén speed in the weak magnetic field normal to the current sheet. The expression in the brackets contains the ratio of electron thermal speed to tearing mode phase velocity. Adding ion-Landau damping completes the effective potential in Equation (19). The total potential consists of a well with a hump in its center being formed by ion Landau damping and the additional rigidity of electrons in the normal magnetic field. The tearing, for becoming unstable, has to overcome both these humps, i.e., for being able to perform an oscillation in the main effective potential well it must manage to tunnel the central hump. In the absence of collisions and a normal magnetic field, the growth rate γT = Im ω has been given in [89] for the electron tearing mode as γeT = 2kveπ−1/2(re/d)3/2(1 − k2d2)/kd. Including both contributions from ions and electrons and a non-zero normal magnetic field (cf. also [90, 91, 95, 111, 112]), the tearing instability needs to satisfy the following condition on the normal magnetic field Bz0:

k3d3(1k2d2)(1+θ)<Bz0B0<(1k2d2)(1+θ)πθ(rid)32    (22)

where ri = vii is the ion gyroradius in the main field, θ ≡ Ti/Te, and (kd)2 < d/ri ≲ 1 has been assumed (see also [113]). Violation of this condition stabilizes the tearing mode. The upper limit is due to the residual magnetization of electrons. The stronger Bz0 the higher is the electron magnetization and consequently the hump in the potential well. When the size of the island reaches the current thickness, i.e., kd ~ 1, then the tearing mode stabilizes because electron magnetization becomes too strong. This is the theoretically maximum possible size of the tearing islands. On the other hand, this is also the size at which strong non-linear effects are expected to come into play. The combination of both limits implies a meta-stability of the tearing mode which has been applied to the stability of Earth's magnetotail during substorms [90, 95, 102, 110, 114]. Recent extended three-dimensional simulations [6365, 115117] suggest that in three dimensions this inference for tearing stabilization may be invalid. The tearing mode in three dimensions is more easily destabilized due to oblique effects. Also, already in two dimensions, transient electron dynamics destabilizes the tearing mode at higher electron temperatures which may be caused by energy dissipation and heating [118120] and/or embedding of the thin current sheet with a naturally present ion pressure anisotropy into a thick plasma sheet [114, 121, 122].

The lower limit is provided by ion Landau damping. It can be overcome by the presence of a sufficiently strong magnetic field Bz normal to the current sheet. Therefore, the tearing mode will not grow spontaneously when the normal magnetic component vanishes. The current sheet is metastable awaiting the evolution of an increase in Bz over the lower bound in the above equation in order to grow. This lower bound depends on the tearing mode wavelength. Preference is given to long-wavelength tearing modes. Moreover, in Earth's magnetotail we have 3 < Ti/Te < 10 [9, 123] with the most frequent values in the range of T1 ~ (3 to 5)Te. Hence, the lower bound is the fraction 1/6 of that in a plasma with Te ~ Ti.

This linear theory of tearing mode growth does not yet account for a large number of additional effects such as weak collisions which contribute to a collision integral in the Vlasov equation and may both stabilize and destabilize the tearing mode further [110]. In addition, the dynamics of electrons and ions in the plasmoids plays another essential role when the size of the plasmoids reaches the thickness of the current layer. These particles,oscillating in the plasmoids, are trapped in the plasmoids only for limited times and can be lost when passing the weak magnetic field in the X points, an effect which non-linearly contributes to tearing growth because of heating ions and effectively decreasing the number of ions which contribute to Landau damping. If this happens, it has been shown (cf. e.g., [95]) that the tearing mode might enter a regime of explosive growth. The estimated time for this effect is of the order of τexpl ~ 10τtear, with τtear the linear growth time of the collisionless tearing mode.

Inclusion of collisions requires definition of the structure of the Boltzmann-collision integral in the Vlasov theory. In the simplest way this is done by assuming a BGK structure of the collision term. This leads to a modification of the Galeev-Zelenyi theory [110]. Collisions, whether weak or strong, help breaking the frozen-in state of the electrons. So one expects that they diminish the stabilizing effect of magnetized electrons in the current sheet which is introduced by both normal magnetic components and also guide fields, which we have not yet discussed here. Since, however, the theory strongly depends on the assumptions of the structure of the collision term and the form of the anomalous resistance, i.e., the kind of waves which are responsible for generation of νa, this is a difficult task which can barely be treated in sufficient generality by analytical means, in particular, because wave turbulence is genuinely anisotropic, the collision frequency will also become anisotropic. Moreover, anomalous collisions depend on the wave modes and through it on the distribution function which makes the problem non-linear to a higher degree. The obvious way out is to switch to numerical simulations. This way has been gone since the early seventies. It is thus not surprising that, though the Galeev and Zelenyi [89, 90] solution was intriguing, until recently [124] it has found less attention in the literature than it deserved. It was readily superseded by numerical simulation techniques. Most recent three-dimensional simulations [65, 116, 124] do, however, surprisingly indicate that the idea of explosive reconnection and the evolution of multiply structured X points [90, 95] may have been quite realistic. The three-dimensional investigation does, in addition, reveal that the above theory has to be corrected in two points: changes in topology due to the inclusion of the third dimension, and a different asymptotic limit for the growth rate which in three dimension has a pronounced dependence on the angle with respect to the magnetic field. The tearing mode in this case is oblique. The asymptotic tearing mode growth rate was given by Daughton and Roytershteyn [124] as

γtearΩi=1+θπμ(riθd)3(1k2d2)By0Bx0,    (23)

with By0 the initial guide field. The growth rate decreases with increasing θ = Ti/Te and d/ri, and is limited to waves with kd < 1. Companion three-dimensional simulations demonstrate, however, a much more complicated evolution of reconnection. This will be discussed below in relation to guide and normal field reconnection.

3.3. Guide Fields

Another property of interacting plasmas in nature is their magnetization state. Frequently currents flow along a superimposed guide magnetic field which can be both weak and very strong. Such guide field reconnection has different properties. If the fields are weak, as is the case when self-generated quadrupolar Hall magnetic fields overlay over the external field in the ion inertial region, ions are accelerated in the ion inertial region and cause broadening of the current layer. If the electron inertial region at the center of the current layer remains free of such guide fields, reconnection is going on there in the sublayer of the gross current flow.

If, on the other hand, the guide field points in the direction of the current and is externally applied—as is the case at the magnetopause—completely different effects set on. The guide field magnetizes the electrons to some degree thereby setting a threshold on the onset of reconnection. However, the presence of the guide field along the current, together with the external electric field which is also directed along the current, allows for acceleration of the electrons antiparallel to the electric field. This acceleration can become strong enough to excite the Buneman instability which has two effects: it causes anomalous resistance, heating of the bulk electron component, and it produces chains of electron holes along the guide field. Similar effects may already occur for Hall magnetic fields as well.

Electron holes have a number of consequences. They structure the plasma in electric field-free regions and localized region of strong electric fields. They split the electron distribution into trapped and passing particles. They cause further heating of the plasma, generate cold electron beams and possibly radiation, transforming a strong current layer into a source of plasma waves and radiation, which might become of interest in astrophysical application. Strong guide fields, on the other hand, result mainly in these effects. Though reconnection takes also place in this case, it is restricted to the weak current-generated magnetic field and does not dissipate the energy of the strong field. Below, guide field reconnection will be discussed in connection with numerical simulations of reconnection under various conditions.

4. Simulation Studies

Since analytical theories of the complete complexity of reconnection are unmanageable, the proper and efficient approach is via numerical simulations. Simulations started in the mid-seventies where there were based mainly on MHD. Particle simulations were for a while inhibited by the necessity to include at least two spatial dimensions and thus large particle numbers. These remained intractable by the then available computer capacities. Two-dimensional particle-in-cell simulations became available to large extent in the nineties. Now, almost every decade, computational progress is made stepwise by increasing particle numbers, simulation boxes, more sophisticated asymmetric set ups, boundary conditions, flows, and including, recently, the highly desired three dimensions.

4.1. Preliminaries

Contrary to early belief, reconnection is a microscopic plasma process capable of breaking the frozen-in condition prescribed by the electrodynamic induction equation in a moving collisionless plasma. This breaking depends on the microscopic properties of the plasma in the current layer and its vicinity. It occurs in the so-called electron diffusion region centered at the current sheet and being of width de ~ λe (see Figure 4). It is questionable whether any MHD theory could properly describe the reconnection process; MHD applies only to the magnetic configuration and plasma flow on scales > λi exceeding the ion inertial length after reconnection has happened. Birn et al. [125], comparing kinetic and MHD simulations, interpreted the results as equivalent with the only difference of a lower MHD reconnection rate, i.e., longer time to reach the “same final state” However, recent three-dimensional macro-to-microscopic scale simulations (cf. [65], for a most recent review) completely vindicated these claims. Reconnection took place exclusively on the electron scale. In this section we briefly review the recent achievements.

FIGURE 4
www.frontiersin.org

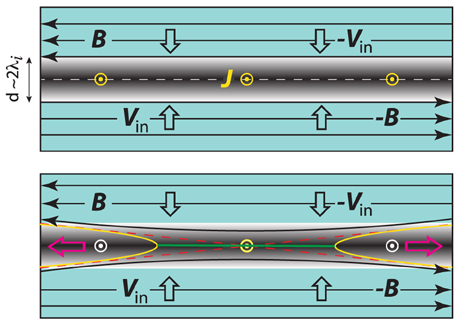

Figure 4. Top: Initial state of a two-dimensional thin current sheet J separating two antiparallel fields in a completely magnetized plasma. The width is of the current sheet is d ~ 2λi. Open arrows show the plasma inflow from both sides before reconnection sets on. Bottom: During reconnection the current sheet breaks off, and an X point is formed (indicated by the two dashed red separatrices). Connected field lines are shown in yellow forming plasmonds to both sides and producing two plasma jets (red arrows). The thin green line across the X point shows the extension of the electron diffusion region. In the normal direction it is just two λe. along the current sheet its extension is much longer, possibly of the order of a few ion inertial lengths. In this region electrons are heated and jetted away from the X point to become two electron jets. These jets disappear at the end of the electron diffusion region where ions take part in the acceleration.

A general problem of any simulation is the initiation of reconnection. In most simulations this is artificially done imposing a disturbance in the center of the current sheet and box. It has turned out that the best approach is to impose an initial weak X point [126, 127], an effective approach in both two and three dimensions. Even a weak initial disturbance is, however, already a non-linear disturbance and thus skips all the interesting physics which causes reconnection to start by itself. Such an approach makes sense if one is rather interested in applications, for the reconnection events encountered in nature are without exception well developed have for long left the initial growth phase. A shortcoming of this approach remains. Since the initial perturbation is necessarily large it skips any possible state where the reconnection process levels non-linearly out at smaller amplitude than the initial disturbance. This approach therefore misses an entire class of fast but weak reconnection events. In those simulations without an initial disturbance (e.g., three-dimensional simulations performed in [128]) onset of reconnection is due to sufficiently large numerical fluctuations which either fake an anomalous collision frequency or (in really collisionless settings like those in [53, 57]) start from scratch, or an initial as well as possible defined thermal level. Unfortunately numerical fluctuations are not localized, and thus those simulations belong rather to the class of a low but finite homogeneous resistivity in the entire simulation box than to really collisionless conditions where anomalous resistances are caused self-consistently by collisionless wave-particle interactions. The two-dimensional simulations by Pritchett [57] without initial disturbance gave no indication of a saturation at low reconnection amplitudes. This provides confidence in the abbreviated approach of flux perturbation.

The most urgent challenges on the numerical simulation of magnetic reconnection by particle-in-cell codes in near-Earth space for the first decades of the 21. Century have been laid down in a widely referenced paper by Birn et al. [129]. They concern among others the identification of the reconnection process in the electron inertial layer, the structure of the electron diffusion region, asymmetric reconnection, forced reconnection, and as main challenges three-dimensional reconnection (including simulation-technical problems) and the transition to macroscopic effects. In the following we very briefly review the state of the art until about 2010 before referring to new evolutions that started in the past 5 years.

4.2. Absence of Guide Fields

This is the class of the overwhelming majority of published simulations in two- and, to a lesser extend, also in three-dimensional reconnection. The majority of simulations are of course two-dimensional in space, applying either periodic conditions, which implies the simulation of two antiparallel current sheets, i.e., doubling the simulation box. Otherwise open boundary conditions are used where plasma can readily escape and is thus lost. In the former case the simulation is valid only as long as the two sheets do not affect each other. In the latter case plasma flows freely out of the box and is either replaced or not. Limits are reached when the plasmoids generated reach the boundary, the current sheets start interacting (which is advantageous for investigating interacting current sheets, however) or when the plasma becomes locally too strongly diluted by jetting away from the X point. Any results depend highly on the settings and thus may differ considerably, in many cases they are incomparable which makes drawing conclusions about the general validity difficult.

4.2.1. Pair plasmas—no hall reconnection

Natural pair plasmas don't exist in near-Earth space. In reconnection theory they just serve for the most simple particle arrangement and simulation model. Because memi in pair plasmas, the Hall effect is naturally absent, allowing for checking non-Hall reconnection. This was done first by Jaroschek et al. [42, 43] in a three-dimensional fully relativistic electromagnetic particle-in-cell simulations with open boundary conditions in x and periodic boundary conditions in z and y. The simulation was repeated with the only emphasis on the non-Hall aspect in a strongly simplified two-dimensional mini-set-up [44]. The relativistic treatment becomes necessary in a proper simulation in order to account for retardation, correct local charge neutralization, and to resolve the Debye scale. This is done by starting from the Jüttner distribution function which properly accounts for the relativistic tail on the Boltzmann distribution (no bulk streaming is included in order to avoid non-reconnection shock formation and unwanted relativistic effects). Reconnection was ignited by imposing a weak initial disturbance of the current sheet.

A two-dimensional cut through the pair simulation box is shown on the left in Figure 5 demonstrating that reconnection does indeed evolve. It, moreover, evolves on a very fast time scale and does not lead to Sweet-Parker reconnection. Several X points form rapidly and, most important, strong quasi-stationary inductive electric fields are generated at the plasmoid edges. Such electric fields have also been found recently in non-pair plasma simulations but were first observed here. They play a key role in particle acceleration in reconnection.

FIGURE 5
www.frontiersin.org

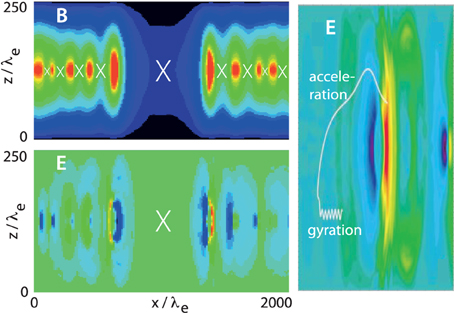

Figure 5. Three-dimensional simulation of non-Hall reconnection in a pair plasma of high resolution in a large domain simulation data taken from Jaroschek et al. [42]. Top: Magnetic flux in color representation (only relative scales are given here). Contours indicate the magnetic topology. Several X point are generated separated by plasmoids (red blobs), indicating evolution of a tearing mode. The initial reconnection region dominates all secondary X points. These have their own dynamics. Note that the horizontal extension (length of the diffusion region) is several times its vertical extension indicating jetting. Bottom: Electric fields (red is positive, blue negative). Strong fields evolve around the plasmoids causing electron-positron acceleration. Plasma jetting occurs around each X point thus leads to competition, jet braking and deviation. In this 3-dimensional simulation the X points have finite extension perpendicular to the plane shown. Right: Orbit of one selected accelerated electron in the electric field near the first right plasmoid. Originally the electron performs a meandering oscillatory gyration in the current sheet between the two opposing magnetic fields until feeling the reconnection electric field, picking up energy and enlarging its gyroradius. At the end of the orbit shown it just enters the strong field on the backside of the plasmoid to become further accelerated.

The pair reconnection shown in Figure 5 is dominated by one main X point that expands rapidly up to a final length scale roughly ten times the width of the initial current layer ℓ ~ 10de. This scale is determined not only by the expansion of the main X point but also by the reaction of the secondary X points and plasmoids. Each of them ejects quasi-symmetric pair plasma jets into both horizontal directions. The jets interact with the neighboring X points, braking their the expansion and thereby shortening the extension of the jets. This is the reason for the diffusion layer of the main X point to terminate at a shorter scale, while all secondary diffusion regions are much narrower.

Figure 5 shows slices in the xz plane. The simulations were three-dimensional, however, permitting to infer about the extension of the reconnection site into y-direction. The finding was that the width of the reconnection site in y was of the order of λe, the inertial scale in these simulations. Limitations in particle number and computer time did not allow to extend the box such that no information could be gathered about the further evolution of the reconnection site in y. However, some interesting inferences were drawn on wave excitation and particle acceleration (see the respective paragraphs below).

Daughton and Karimabadi [130] performed similar pair plasma simulations applying various box sizes between 75 × 75λe and 103 × 103λe (the latter growing out of numerical noise, compared to the simulations of Jaroschek et al. [42] reproduced in Figure 5 being large-scale in the normal direction) also using open boundaries. Formation of many X points and plasmoids of different sizes was found. The focus was on the initial evolution of the tearing mode, determination of growth rates, interaction of plasmoids, and formation of the diffusion region. The main conclusion of this study is that pair plasmas in these simulations never reached a final steady state reconnection regime, in agreement with the findings of Jaroschek et al. [42]. The evolution of the tearing mode is highly dynamic with formation of an elongated unstable current layer which decays into a long series of plasmoids ejected along x and mutually interacting. Average reconnection rates remain fast and are insensitive to the size of the system. The authors conclude that pressure tensor effects cannot prevent the elongation of the current layer in pair plasmas thus inhibiting the final stationary state.

4.2.2. Electron-proton plasmas

Plasmas in Earth's environment consist of electrons and ions. Particle-in-cell simulation studies of collisionless reconnection in electron-proton plasmas are ubiquitous both in symmetric and non-symmetric current sheet configurations with or without guide fields. Depending on the set-up and the focus of the subsequent analysis they show a large variety of effects. Reviews of the achievements on various aspects (onset, Hall fields, current structure, field and current topology, bifurcation, dissipation, heating, acceleration, wave generation etc.) before 2010 is found, for instance, in [28, 64, 110, 132137]. Here we just summarize some of the most interesting insights before turning briefly to the most recent investigations.

4.2.2.1. Hall fields. An important finding in particle-in-cell simulations was the confirmation of the difference between electron and ion dynamics near the current sheet center leading to the generation of Hall currents and fields, as predicted [34]. Figure 6 shows an example of the fully developed magnetic field structure in a two-dimensional simulation of a thin current sheet with the background magnetic field exhibiting the typical X point-separatrix-plasmoid topology. The quadrupolar Hall field By is along y out of or into the plane. In the dark blue regions By is positive, in the white regions negative. Hall fields maximize just inside but along the separatrices and at the outer plasmoid boundaries where the Hall electrons turn around. Added are confirmation measurements in the Earth's magnetotail [37]. The top panel shows the bulk velocity-field reversal typical for plasma jetting away from the X point. The bottom panel contains the magnetic out-of-plane field (By) exhibiting the plus-minus sequence expected of a Hall field near the X point. One may note that in these observations the Hall field undulates around a finite stationary guide field of 6 nT amplitude.

FIGURE 6
www.frontiersin.org

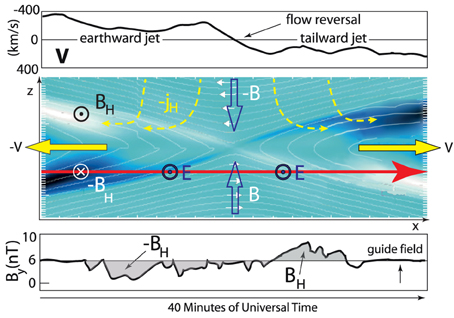

Figure 6. Hall fields, observation and simulation. Central panel: Two-dimensional simulation of reconnection including different electron and ion dynamics (data taken from Vaivads et al. [131]). Shown is only the magnetic field with background field lines drawn in thin white. Dark blue regions indicates positive Hall-By, white regions negative Hall-By. The Hall fields concentrate along and inside the separatrices and boundaries of the two plasmoids where the Hall electrons (dashed yellow lines) turn away from the X point. Hall fields twist the original magnetic field. They can be considered as self-generated magnetic guide fields in the ion diffusion region. Such guide fields embedded into the convection electric field Ey (black circles) may accelerate electrons out of the plane thereby strengthening the current in the ion diffusion region. Open arrows show convective inflow, yellow arrows outward jetting of plasma. Top panel: Plasma velocity measured along the spacecraft orbit (long red arrow in the central panel) in Earth magnetotail during a substorm reconnection event. Flow reversal is seen during passage near the X point indicating the two plasma jets emanating from X. Bottom panel: Measured out-of-plane (Hall) magnetic field during the flow reversal event exhibiting the antisymmetric geometry of the Hall field (data (schematized) after original measurements of Øieroset et al. [37]). Note the presence of a weak (6 nT) magnetic guide field in y direction.

The pronounced differences in electron and ion flows in the ion inertial (diffusion) region has been nicely confirmed in particle-in-cell simulations [138] as shown in a summary plot in Figure 7. The left part of this figure shows the usual ion jetting away from the X point, also clearly indicating that only a small fraction of the ion flow is passing the X point. At the boundaries of the ion jet discontinuities develop where the ion flow suddenly turns around. These are the separatrices. Electron jetting sets on only inside the electron diffusion region which, in these simulation, has been artificially widened by assuming a small mass ratio such that λie = 5. The lower panels show the profiles of the jet and current velocities. Due to the large ion inertia, ion jet speeds barely reach half an Alfvén speed. Electron jetting in the narrow central region comes close to two Alfvén speeds thus carrying most of the jet current. Similarly, ion current velocities are decelerated in the X point region, while electron speed become completely deflected from positive to negative velocities, an effect of reconnection, such that the reconnection current in the X point region is carried almost solely by the electrons. Pritchett [139] also included the third dimension with open boundary conditions in order to investigate the extent of the electron diffusion layer and distortion of its two-dimensional symmetry. No such distortion was detected except for the evolution of an electric component Ez that is required by pressure balance. These conclusions are valid in the absence of guide fields. When guide fields are included (see the corresponding section on guide field reconnection below) the Hall fields become distorted, asymmetric and compressed. This has been demonstrated by Daughton and Karimabadi [140] and Karimabadi et al. [141]. A thorough comparison between different theory based simulations (hybrid, Hall-MDH and non-Hall hybrid, where the Hall term is removed) has been undertaken by Karimabadi et al. [45, 46] focussing on ion-kinetics. Reconnection was found to be independent on the Hall effect even in these ion-kinetic simulations (including an anomalous resistivity) thereby anticipating strictly Hall-free simulation results [42]. Including the Hall effect reconnection turns becoming asymmetric, and the X line grows in the direction of electron drift with current carried by electrons.

FIGURE 7
www.frontiersin.org

Figure 7. Particle-in-cell simulations with small mass ratio mi/me = 25 (simulation data after Pritchett [138] courtesy American Geophysical Union). Top panels: Velocities near the X line. Left: Left half (negative x) of space for ion velocity. Ions flow in from positive and negative z before becoming diverted to negative x by jetting from reconnection site in a region of width in z proportional to λi. Right: Right half (positive x) of space for electron velocity. Electron inflow continues across the ion inertial region until close to the center of the current sheet mapping the electron Hall current flow. In the current sheet center the electron velocity turns around by close to 180° to participate in the plasma jetting (in this half plane into positive x) in a region of width proportional to λe. Bottom: Jetting and currents exhibiting different ion and electron dynamics. Left: Electron and ion jetting velocities. Ion mass flow in jets barely reaches 0.5 VA. Electron jetting comes up to ~ 1.7 VA. Right: Current speeds indicate deceleration for the ions at the X point. Electron velocities are inflected such that the current in the center is carried about solely by electrons.

Hall fields were observationally inferred first by Fujimoto et al. [35], followed in this sequence by Nagai et al. [36] and Øieroset et al. [37], all in Earth's magnetotail. They represent self-generated guide fields. Only along the separatrices they approach the electron diffusion region near the X point. Since the convection electric field Ey is also along y, it acts as a guide-field-aligned electric field for the Hall electrons which are magnetized in the background field ± Bx. For this reason electrons become accelerated in Ey in the direction opposite to Ey. This acceleration amplifies the current in those domains where the Hall magnetic field is remarkable, an effect that leads to current bifurcation outside the reconnection site in the ion diffusion region. Bifurcation was observed first in [66] and [142, 143] in Earth's magnetotail current sheet. Though several different mechanisms have been proposed to produce current bifurcation (cf. e.g., [69, 144147] and others), one possibility is its ion-diffusion-region nature.

4.2.2.2. Asymmetric reconnection effects. Most cases of reconnection occur in interaction of plasmas with unlike properties. Such reconnection is non-symmetric. A famous example is reconnection between the interplanetary (solar wind) magnetic field and the geomagnetic at Earth's magnetopause. In contrast symmetric reconnection like that in the tail of the magnetosphere is a rare case.

Theoretically one expects that asymmetric reconnection affects mainly the weaker magnetic field side than the high field side. This was demonstrated in asymmetric simulations under conditions prevalent at the magnetopause [148]. Figure 8 gives an impression on the non-forced asymmetric case with no guide field imposed. The most interesting effect is probably that the strong-field magnetosphere remains well separated from the distorted region by a slightly deformed but stable magnetopause which itself is adjacent to two legs of the separatrix system. The two newly formed plasmoids and the X point lie entirely on the weak field side. In contrast to the symmetric case, on the highly disturbed weak-field side just one dipolar Hall current system ±BH evolves along the outer edges of the two plasmoids (shown in violet and orange). The second (lower) Hall dipole is completely suppressed as there is no electron inflow from below. Electrons and ions flow in from the top and become diverted into jets along the magnetopause. This is shown in the lower part of Figure 8.

FIGURE 8
www.frontiersin.org

Figure 8. Non-forced non-guide field particle-in-cell simulations of asymmetric magnetopause reconnection with (Top) Hall field BH in color coding overlaid on background field (simulation data after Pritchett [148] courtesy American Geophysical Union). The fat green line is the magnetopause which separates the magnetosheath from the undistorted magnetosphere. The magnetopause remains intact except for having been pushed down from its original position at z = 0 to roughly −z = −1 (in units of λi) and slightly distorted. The magnetopause coincides approximately with the inner separatrix. Only two large Hall field vortices develop on the magnetosheath side. Bottom panels: Ion (left) and electron (right) bulk flows on the magnetosheath side develop (only half spaces are shown). Jetting of electrons is restricted to a narrow domain only along the magnetopause.

Partial support to these simulations has been given by magnetopause observations of reconnection events [38, 149]. Observations should show jetting and Hall field signatures only outside though close to the magnetopause. The zero-field crossing should be asymmetrical if in agreement with the non-guide field simulation. In this point the observations disagree since the magnetic field is close to symmetry and one leg of the Hall field seems to lie inside the magnetosphere. This discrepancy with the simulations might possibly have been caused by not having recognized the presence of a finite guide field which should be subtracted from the data. Recently Malakit et al. [150] found that asymmetry in reconnection is responsible for another way of contributing to reconnection electric field generation.

4.2.3. Electron diffusion region

Structure and extension of the electron diffusion region has attracted interest since this point had been made first by Daughton et al. [151] and Fujimoto [152] and was investigated by simulations [153, 154] who identified several scales in the diffusion region: an inner diffusion region and an electron outflow region or electron “exhaust.” Observations in space are difficult to perform. They have become available only recently [155].

The width of the electron diffusion region equaling the electron skin depth applies to the direction perpendicular to the current sheet. The length ℓ of the electron diffusion region is, however, a priori undefined along the current sheet and, in the absence of reconnection, can in principle be as long as the two-dimensional current sheet itself, for the electrons are in the absence of a guide field, by definition, unmagnetized in its center. Once reconnection has set on, however, a weak normal component of the magnetic field Bz perpendicular to the current sheet is generated—a process called “(re-)dipolarization.” Bz is strictly zero in the reconnection X point as well as in the center of each plasmoid of the X point-plasmoid (“magnetic island”) chain constituting the tearing mode. Outside, this component re-magnetizes the electrons. Hence, in plasmoids the length of the electron diffusion region is a fraction of the extension of the plasmoid along the current sheet, i.e., the wavelength of the tearing mode. The length ℓ of the diffusion region in the X point is less well defined. It is not identical to the extension of the Joule dissipation region defined earlier in Equation (13) [54] which is the inner region in [154], the region of unrecoverable Joule heating. It also includes the length of the electron jetting or exhaust which depends only weakly on the presence of the non-magnetic ions but includes some energy transfer from electrons to ions resulting in ion heating. This is shown in observations of electrons at the geotail reconnection site and in accompanying simulations in Figure 9, both referring to symmetric reconnection conditions (without or with only weak guide fields).

FIGURE 9
www.frontiersin.org

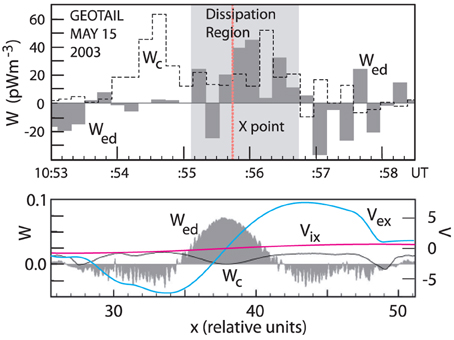

Figure 9. Determination of the energy dissipated in the magnetospheric tail current sheet during ongoing reconnection from observations of Geotail (observations and simulation data taken from Zenitani et al. [156] courtesy of American Geophysical Union). Top: Geotail data of electron energy W vs. universal time UT. The gray histogram is the dissipated electron energy Wed determined from the measurements. Wc is the convection energy. The vertical red line shows the time of crossing the location of the X point as estimated from the magnetic and plasma profiles when passing the current sheet. The electron dissipation region is indicated by gray shading. The dotted histogram shows for comparison the convective energy term in Ohm's law. Bottom: Accompanying particle-in-cell simulations for the observational conditions. Shown are the mean electron (blue) and ion (red) velocities as well as the simulated dissipated and convection energies Wed (gray shading) and Wc (almost unaffected black curve) along a cut through the X point in the center of the current sheet. The dissipated energy is positive in the dissipation region, where it maximizes thus indicating electron heating/acceleration. Acceleration of electrons into formation of two quasi-symmetric electron jets in opposite x-directions is indicated by the blue curve. Note that the electron jets extend substantially out from the dissipation region until becoming braked and assuming the same speed as the ions. Here the quasineutral plasma jets are born. Weak braking starts already soon after the electron jets have left the dissipation region indicating interaction with the ion fluid already here. Energy transfer from electrons to ions is indicated by negative dissipation energies Wed. Since no effect is seen in the ion bulk flow the dissipated electron jet energy goes into ion heating.

The theoretical definition of ℓ can be based on the gyroradius of electrons in the normal field Bz in the reconnection region: re(Bz, x) ≳ λe(z). This, however, is a highly variable quantity, because Bz increases with distance from the X point until ultimately becoming comparable to the external field B0. Moreover, electrons are strongly heated during reconnection. In addition, magnetic stresses accelerate them into a fast electron jet of super-electron-Alfvénic speed. Both effects increase the electron gyroradius in the Bz field. The pure electron jet ceases once ions become involved. Then ion inertia retards the jetting electrons, and a quasi-neutral reconnection plasma jet forms. The length of the electron jet must be at least 12λi(0)~43λe(0), where the inertial lengths are based on the density in the current center. This is then also the theoretical one-sided maximum length of the diffusion region. The total extension of the electron diffusion region therefore becomes roughly the order of ~ 100 λe. This value can be larger since the electron density in the diffusion region decreases due to outflow. If the decrease is a factor of 10, then the total length of the exhaust can become several 100 λe or several 10 λi.

Shay et al. [154] determined a scaling ∝μ−3/8λi of the extension of the electron sheet current (inner dissipation region) along x, indicating the shrinking of the length of the electron current layer to ~ λi at a realistic mass ratio. Their estimate is based on the competition between the Lorentz force vxBz of the electrons in the Bz field and the reconnection electric field Erec. At the point where these two become of equal magnitude, the electron current vanishes and reverses sign outside. Karimabadi et al. [64] provided arguments for an extension of the order of ~ 2.5λi based on a comparison between the electron and ion based diffusion (reconnection) rates and the distinction between the fields Be, Bi upstream of the electron and electron dissipation regions, respectively. The electron exhaust can be longer. Karimabadi et al. [153] found elongations of up to several tens of λi depending on convective plasma outflow and the non-ideal divergence of the electron pressure tensor (thereby supporting the importance of the latter). Such lengths are in overall agreement with observations in the magnetosheath [157].

Le et al. [158, 159] showed that trapping of electrons in the X point geometry allows to separate between trapped and passing particles. The trapping is mediated by the finite reconnection electric potential field along the field lines, not by magnetic mirroring. This potential, as was shown above, is the result of reconnection but is, at the same time, generated by the particle anisotropy which leads to non-diagonal terms in the pressure tensor. Preliminary confirmation of the pressure anisotropy was provided via numerical simulations [160] and made complete by the kinetic derivation of the pressure anisotropy [161] accompanied by extended simulations. Earlier simulations [57] had already shown the various contributions to the reconnection electric field being localized in the electron diffusion region as a consequence of the pressure anisotropy produced by the reconnection process. The analytical asymptotic expressions for the pressure in the high-density low-field case applicable to reconnection are similar to the heat-flow suppressed CGL expressions

PeP0π6(NN0)3(B0B)2,  PeP0NBN0B0    (24)

These expressions hold in any local frame along the magnetic field. Transforming them into the X point frame generates the wanted non-diagonal pressure tensor elements. Hence, in the electron diffusion layer both effects are closely related. Electron trapping in the reconnection electric field causes pressure anisotropy, and pressure anisotropy causes the non-diagonal elements responsible for reconnection. It should, however, be noted that the pressure anisotropy depends on the presence of a guide magnetic field [161]. It disappears if the guide field become too weak. In the simulations of Pritchett [57] the pressure anisotropy was given. Hence non-guide field reconnection requires an initial anisotropy that is not generated by the reconnection process. In this case, however, an initial weak normal magnetic field will do the same service as a guide field. Moreover, the Hall field in the ion diffusion region which plays the role of a weak guide field [40] may generate an anisotropy outside the reconnection site by similar processes; once this anisotropy is produced, it will be transported by the convective flow into the X point.

A recent detailed analysis of three-dimensional reconnection [55] in an asymmetric setting with weak field on one side and strong field on the other side of the current layer, a scenario that applies to the conditions at the magnetopause, partially disqualifies the generality of the dissipation measure of Zenitani et al. [54]. Strong electron current layers and intense dissipation are found widely distributed and not to coincide with the region of largest dissipation measures around the X line in this case for the reason that in three dimensions a turbulent drag term −〈δNδE〉 caused by wave fluctuations makes a large and not negligible contribution to the electric field and thus to dissipation. It is of interest at the separatrices where wave fluctuations maximize. This conclusion is also strongly supported by the recent symmetric three-dimensional simulations of Liu et al. [116] and Roytershteyn et al. [63].

Recent high-resolution simulations in three spatial dimensions [116] following [153] and [154] have been used to further investigate the structure of the electron diffusion region. The interesting new feature found was that the current Jy in the electron diffusion region, where it is carried mainly by electrons, splits into two or more thin tilted current layers. This splitting is different from the Hall induced one proposed above as it restricts to the electron diffusion region. Its provisional explanation is that oblique tearing modes evolve in three dimensions which may form chains as predicted by Galeev [95] in the kinetic case. Such narrow layers indicate the evolution of turbulent reconnection structures. Figure 10 shows a combination of the two-dimensional [57] and three-dimensional [116] simulation results on the electron diffusion layer. In both cases the dissipation and generation of E takes place here. The three-dimensional case shows in addition the splitting of the single electron current layer into three distinct layers.

FIGURE 10
www.frontiersin.org

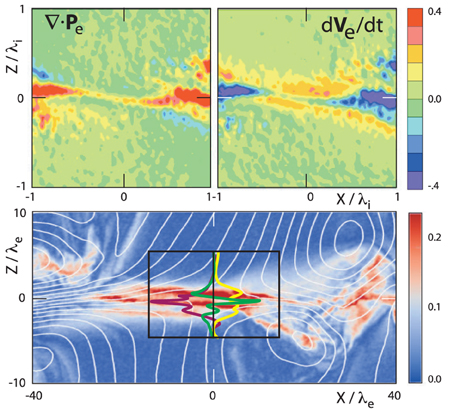

Figure 10. Structure of the electron diffusion region. Top: Contributions of the electron pressure tensor (left) and inertial terms (right) to the generation of the reconnection electric field and dissipation centered in the X point frame (after Pritchett [57] courtesy American Geophysical Union). The pressure tensor elements contribute mostly away from the X point near the plasmoids. Note the spiral form of the region. The non-linear inertial term contributes near the X point above and below the symmetry line (all relative units given in the colour bar). Bottom: Three-dimensional simulation (data from Liu et al. [116]) showing the complicated spatial distribution of the electron current (from white to red; relative units in color bar) splitting into three distinct layers and twisted layers. Overlaid (transparent black box) are vertical profiles through the center (along the vertical black line) of the parallel electric field E (yellow) and its contributions (non-linear inertial term green and divergence of pressure tensor dark red), all in relative units with amplitudes in the interval [−5,5%]. White lines are three-dimensional magnetic field contours in two-dimensional cut exhibiting the complicated flux rope structure generated in three-dimensional reconnection.

The Polar spacecraft observations of the electron diffusion region near the magnetopause (reported in [155]) were taken at relatively large Mach numbers of > 1.5, finding the electron diffusion region located asymmetrically shifted to the low density high flow side. They identified a large pressure anisotropy > 7, according to our knowledge favorable for reconnection driven by pseudo-viscous pressure effects, and non-gyrotropy of electrons and indicating that the electrons were at least partially demagnetized. These observations are not in contradiction to the simulational results [148] of asymmetric reconnection.

4.2.4. Waves

An important question is which plasma waves do and to what degree do they participate in reconnection. Reconnection is an instability, whether forced or not; it grows out of some initial state and thus is accompanied by waves. In the non-guide field, reconnection has been brought into relation to the generation of whistlers that are localized at the reconnection site. In the guide-field case, it is believed that kinetic Alfvén waves take over instead, at least simulations seem to suggest this difference [57, 162].

There is a simple reason for this difference which is barely mentioned in the literature. In no-guide field simulations electrons are magnetized in the non-magnetic ion diffusion region. Hence, under conditions when electron anisotropies are produced, whistler waves can be excited on the ion diffusion region scale and below, propagating at speed close to the electron Alfvén velocity. These may form large amplitude quasi-localized waves which structure the electron outflow region and also radiate along the separatrices. In a sufficiently strong guide field (as discussed in [162]) ions become involved by re-magnetization. Since the transverse scale of the ion diffusion region is still of the order of λi, this scale is just the typical transverse scale of kinetic Alfvén waves with kλi ~ O(1). Therefore, a spectrum of short transverse wavelength kinetic Alfvén waves takes over in structuring the exhaust region if only the guide field is not too weak, even though there is no principle reason for that the waves should not be excited also in the absence of guide fields since the active inertial ion scale is identical to the transverse wavelength and could thus be in resonance with kinetic Alfvén waves. Transferring energy from the drifting electrons is the source feeding the waves.

Kinetic Alfvén waves propagate obliquely to the magnetic field. Their dispersion relation is ωkAw = ±(kvii)(kVA)α, with ion cyclotron frequency Ωi = eB0/mi, θ ≡ Ti/Te, and α=(1+θ)/[2θ+βi(1+θ)]. The transverse wave-electric field can, in the ion diffusion region, stochastically heat ions in the perpendicular direction. The parallel wave-electric field component accelerates or heats the electrons parallel to the field. The latter process is of particular interest. The parallel electric field is expressed through the potential Φ and δBx, the wave magnetic field, as

E(k)=ikΦθ=2ikkkyαθTeδBx(1+θ)2eβi    (25)

The normalized spectral energy density yes that is available per electron for heating is obtained by integration with respect to time over the wave frequency

yes

It is expressed in terms of the normalized magnetic spectral wave-energy density yesδB = 〈 |δBx|2〉/B20. Under conditions in the magnetotail during substorms kinetic Alfvén waves, by this parallel wave power, are probably responsible for the acceleration of electrons along the separatrices for closing the Hall current system in the ion diffusion region. There, it is the kinetic Alfvén wave spectrum which transports the field-aligned currents from the tail reconnection site into the ionosphere. Recently, kinetic Alfvén waves have been revived as also contributing to plasma mixing during reconnection [163].

The three-dimensional pair-plasma non-Hall simulations with open boundaries in x performed in [42] showed strong electrostatic wave activity outside the X point diffusion region in the xy plane including the third dimension. These waves propagate in oblique direction causing density ripples above and below the X point. In the pair plasma, the waves are the equivalent of lower-hybrid-drift waves in the current density gradient in electron-proton plasmas and have a similar effect in scattering the plasma particles. Non-linearly they evolve to large amplitudes and cause structuring of the current, generating of anomalous resistance, and accelerating particles along the magnetic field into field-aligned beams. These beams are similar to the electron fluxes which close the Hall current system along the separatrices in electron-proton reconnection, in pair plasma they are of different nature, i.e., contributing to tail formation on the pair distribution functions. The waves do not necessarily cause field-aligned current flows as no Hall current system requires any closure. Moreover, though wave activity was remarkable, its visible heating effect on the distribution was small and did not have any profound effect on the reconnection process itself.

Lower-hybrid (drift) waves are the main mode which is known to be generated in the ion diffusion region plasma gradient. At short wavelength it is purely electrostatic and related to whistlers, at long wavelength it is electromagnetic. These waves have been predicted long time ago to be of importance in reconnection [80, 164, 165]. However, as has been discussed earlier, observations show [83, 84] that they are of very weak amplitude in the vicinity of reconnection sites and in simulations do barely appear in the electron diffusion region, in spite of the relatively strong density gradients at its boundaries. Presumably they play little role in reconnection other than in accelerating electrons outside the diffusion region near the separatrices. However, importance has been attributed to their non-linear evolution of being capable of causing current bifurcation (see Figure 11) [63, 69, 144] and, by modulating the electric field and flow, affecting the reconnection rate. In the realistic mass-ratio (μ = 1836) simulations of lower-hybrid waves by Daughton et al. [69], no anomalous resistance effect was observed.

FIGURE 11
www.frontiersin.org

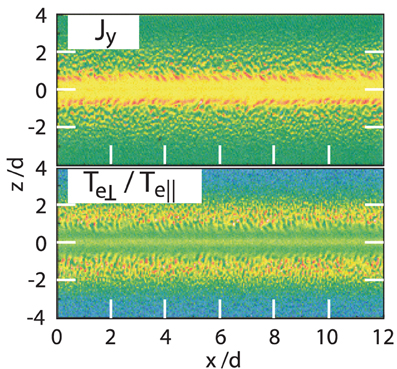

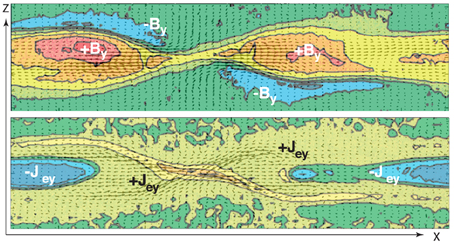

Figure 11. Bifurcation of a thin current layer caused by the lower-hybrid-drift instability (simulation data taken from Daughton et al. [69] with permission from American Physical Society). Top: Sheet current strength color coded (highest intensity red, lowest green). The initial current was concentrated at z/d = 0. After evolution of the lower-hybrid drift instability it has split into two current layers separated by about one initial layer half-width d indicating lower-hybri-ddrift instability mediated current bifurcation. The bifurcated current is structured in x by the lower-hybrid wavelength. Bottom: Electron temperature anisotropy Te⊥/Te caused in current bifurcation. The anisotropy is positive and concentrated mainly on the bifurcated current. A weak anisotropy is attributed to the original current center. Lengths are measured in halfwidths d.

Roytershteyn et al. [117] investigated excitation of lower-hydrid drift waves in the high and low θ = Ti/Te regimes in three-dimensional reconnection, finding that, in support of the earlier findings [69], in the high regime long wavelength lower hybrid waves are substantial near the X point, strong enough to have an effect on the electric and flow fields and causing dissipation and, most important, break-off of the electron current layer. By the above equation, yesE ∝ θ−4 in this case, suggesting, however, that the effect in the magnetotail is small. This case is, anyway, not realized at the magnetopause and also not in the tail. In both cases Ti > Te, conditions to which the asymmetric three-dimensional simulations by Pritchett [55] apply who found strong excitation of lower-hybrid waves in the steep density gradient on the low density magnetospheric side (see, e.g., Figure 8). The waves had the expected lower-hybrid polarization with electric field highly oblique to the magnetic field. They formed very-large amplitude localized patches along the separatrix.

Lower-hybrid waves in magnetopause crossings related to reconnection had been occasionally observed at their high frequency whistler tail [84] and on the low-frequency branch [83]. Mozer et al. reported a large statistics of THEMIS observations of lower-hybrid drift waves in magnetopause reconnection having large amplitudes but otherwise no effect in causing drag. The latter conclusion is true since the waves do not occur in the electron diffusion region near the X point as confirmed by the simulations. At the separatrix the amplitudes and the effect of waves may be underestimated due to spacecraft resolution and smearing out the localized wave patches. Much earlier investigations [81, 82] had already ruled out their importance in generating anomalous diffusion at the magnetopause, even when localized.

Finally, the Weibel instability [41] is another mode that could be of importance in contributing to the spectrum of waves near the reconnection site. This was mentioned first in [141]. It is a purely magnetic quasi-stationary ω ≈ 0 mode. If it can be excited, it contributes to the formation of seed X points in the current layer which serve as initial disturbances in causing reconnection. A possible scenario refers to the acceleration of electrons along a guide field [167] producing the required temperature anisotropy of the electrons for excitation of the Weibel mode in the current sheet.

4.3. Guide Field Reconnection

Guide fields do arise naturally in interaction of asymmetric plasmas (as suggested in [71]) for only the exactly anti-parallel field components do merge and annihilate each other. Tilted magnetic fields therefore carry guide fields. Eastwood et al. [168] recently summarized their effect on the diffusion region.

Including a guide field leads to profound changes of the reconnection process. A guide magnetic field parallel or anti-parallel to the sheet current acts stabilizing on reconnection once the guide field becomes strong. This is a consequence of the magnetization of the electrons by the guide field which enforces the frozen-in condition. In addition, guide fields cause a tilt of the X line against the z axis, i.e., the normal to the Harris layer. The upright X becomes an italic X. They also tilt the Hall field geometry and favor one leg of the Hall current. This was demonstrated first by Karimabadi et al. [71] and confirmed [139], [140], [151] in open system simulations. An example is shown in Figure 12.

FIGURE 12
www.frontiersin.org

Figure 12. Guide field reconnection. Top: Ion velocity (arrows) overlaid by the out-of-plane magnetic component of the magnetic field [simulation data after 138, courtesy American Geophysical Union]. This field includes the guide field Byg and the self-consistent Hall field. The guide field causes an asymmetry in the field and ion flows. The diffusion region becomes tilted. Bottom: The highly asymmetric electron flow pattern overlaid by the out-of-plane electron current Jey which is opposite to the out-of-plane electron flow. Yellow-to-red colors indicate positive, blue-to green colors negative values. The electron current is mainly in + y direction along the induction electric field. It is highest along the yellow-red diagonal, indicating that it has been accelerated along the reconnection amplified convection electric field.

Evolution of reconnection depends strongly on the strength of the imposed guide field. This has been investigated by Daughton and Karimabadi [140] and Karimabadi et al. [141] who indentified three different guide field regimes, depending on a critical magnetic field strength Bc/B0=ri/2d(θ/μ)1/4. For weak and strong guide fields By < Bc, respectively, By ≳ 3Bc, the intermediate regime is Bc < By ≲ 3Bc. In the strong regime, the tearing mode growth rate decays as γtear ∝ (By/B0)−2/3 indicating the stabilizing effect of strong guide fields. In the weak regime the effect of the guide field is small. In the intermediate regime, the fastest growing tearing mode grows in oblique direction (within an angle of 6° to 10°). In this regime the tearing mode becomes the drift-tearing mode being modified by the diamagnetic drift of electrons magnetized in the guide field. This mode has finite frequency comparable to the electron drift frequency. Two unstable modes ± kx exist, localized on the resonant surfaces on opposite sides of the current sheet, which indicates that a full theory requires a three-dimensional treatment. Moreover, the presence of a guide field has an important effect on the quadrupolar structure of the Hall magnetic field [46, 140]. It not only distorts the Hall field, introducing an asymmetry, but compresses the spatial range of the Hall field down to the electron gyro-scale. This Hall field structure survives into the non-linear regime of the tearing mode. Karimabadi et al. [141], for realistic mass ratio μ, found that non-linear saturation of the tearing mode in the presence of guide fields is determined by two effects: electron non-gyrotropy and development of electron pressure anisotropy. In absence of guide fields (anti-parallel case) electrons become non-gyrotropic and anisotropic. Parallel heating of electrons causes a tearing saturation amplitude (tearing island half-width in terms of electron gyro-radii re) of Δtear/re ~ 3. This process dominates over saturation at singular layer thickness due to electron trapping. The latter becomes important only when Weibel-modes or turbulence are excited causing pitch angle scattering. Guide fields allow only for the electron trapping mechanism leading to saturation at very low amplitudes Δtear ~ 1.8re in the strong regimes, and Δtear ~ (2red)1/2 in the intermediate regime, where re is the electron gyroradius in the guide field.

Guide fields allow for a number of other important effects: due to the magnetization of electrons in guide fields, they introduce the whole spectrum of magnetized electron plasma modes, if only conditions can be generated which drive one or the other mode unstable. Guide fields thus open up the gate to excitation of electron whistlers and electrostatic electron cyclotron waves if the electron pressure becomes anisotropic, a situation which is quite realistic under various conditions like forcing of the current sheet and has been observed in simulations (see below). The density gradient also causes excitation of electron drift waves. Some of these waves are known to produce anomalous resistivity and may thus contribute to plasma heating, dissipation weakly supporting reconnection. If electrons are accelerated along the guide fields, which is expected in the presence of convection electric fields, the Buneman instability [75] can be excited either leading to anomalous resistivity and plasma heating, or allowing for the growth of chains of electron holes found in simulations (cf. e.g., [169171]). These simulations inferred the presence of electron holes near the reconnection site finding two kinds of electron holes: genuine “slow” Buneman instability-driven holes and “fast” holes attributed to lower-hybrid-drift waves. The latter family of holes indicates hole generation away from the electron diffusion region near the separatrices. It may be related to the non-linear lower-hybrid wave evolution reported in [69]. Without proof Che et al. [170] suggested the holes of being caused by electron trapping in the parallel lower-hybrid wave-electric field and afterwards evolving non-linearly into holes and transported away with the fast parallel phase speed of the lower-hybrid waves.

Electron holes are local concentrations of electric potential drops along the guide magnetic field due to charge separation between trapped and passing electrons. Their occurrence in relation to substorms and reconnection was supported by observations in the magnetosphere [172], in the laboratory [173], and in one-dimensional Vlasov simulations [174] of electron hole formation based on electron distributions obtained from the symmetric numerical simulations of reconnection in presence of a magnetic guide field [57]. The latter simulation demonstrated that the simulated electron distribution functions inside the electron diffusion layer and exhaust region are consistent with electron hole formation during reconnection. They thereby confirm the assumption made earlier that electron acceleration by the reconnection electric field in the electron diffusion region is strong enough to exceed the Buneman threshold for instability and non-linear evolution of the Buneman instability which results in the formation of electron holes. Electron holes give rise to further violent local acceleration; by cooling the passing electron component, electron holes may generate bursts of fast cool electron beams which result in the excitation of Langmuir waves and non-fluid plasma turbulence. For all these reasons, recent simulation research favors guide-field reconnection in two or three dimensions.

4.3.1. Forced reconnection

So far we considered the case of spontaneous reconnection when a sufficiently thin current sheet spontaneously pinches and decays into a number of current braids located in the centers of a chain of plasmoids separated by magnetic X points of weak magnetic fields. We noted that in this case the Parker idea applies that the plasma is sucked in into the X point reconnection site.

The philosophy changes when reconnection is driven by a continuous inflow of plasma into the current layer. This case is analytically almost intractable and requires a numerical treatment which will be discussed below. One, however, immediately realizes that the simple definition of reconnection rates being identified with the Mach numbers breaks down in this case, simply because the inflow and Alfvén speeds are both prescribed under these conditions. Continuous plasma inflow forces the current sheet to digest the excess plasma and magnetic fields. This can happen only by violent reconnection and plasma ejection from the X points.

One of the first full-particle kinetic investigation of forced reconnection was reported by Birn et al. [125] who exposed the Harris current sheet to a temporary inflow of plasma from both sides. Such an inflow is produced by imposing a cross-magnetic electric field (here for a limited time). It results in a compression of the initial current sheet causing current thinning. This study, called “Newton Challenge,” did however, not lead to any profound insight. It seemed to demonstrate that all kinds of simulations would lead to about the same reconnection rates, except for the MHD codes where the rates were much less. But the amount of reconnected flux at the final state was about the same.

This has by now changed profoundly having been superseded by more sophisticated two-dimensional forced simulation [52] in which an external cross-magnetic electric field was imposed at the boundaries above and below a symmetric electron-proton Harris current sheet for a temporally limited time. This field is modeled as Ey(x, t) = E0yf(t)[cosh(xxe)]−2, with f(t) a free function of time and ΔxE the range of the electric disturbance in x. It causes a spatially varying inflow of magnetic flux that compresses the initially assumed thick Harris current sheet. The simulations assume low mass ratios mi/me = 25 and 100. Initiating of reconnection is not done artificially. Instead it is waited until it sets on by itself which happens due to both thinning of the current layer due to inflow and numerical noise. This causes significant delay of reconnection, however. The main finding is that an electron temperature anisotropy T ~ 1.1T develops readily, and an electron current layer evolves below the ion inertial scale. These effects lead to reconnection based on non-diagonal pressure tensor elements in thin current layers, significantly different from the case of an isotropic Harris layer. Of course, quadrupolar Hall-By are as well generated. The reconnection rate is Ey ~ 0.1 VAB0 indicating fast reconnection which persists until the flows interact with their neighboring images, independent of the two low mass ratios. Mass ratio effects come into play at the stage when plasmoid formation takes place slowing down further reconnection. Thus, forced reconnection proceeds through two stages: fast initial and slow plasmoid formation.

4.3.2. Finite normal fields and dipolarization

The early kinetic theory [90, 176] stressed the importance of the presence of a residual normal magnetic field component Bz in reconnection. Such a component is natural in magnetospheres where the magnetic fields are anchored in the central object, a planet like Earth or Jupiter or a Star. Simulations of reconnection in presence of finite Bz have recently been performed under forced reconnection conditions (a first attempt was published by Pritchett [177], as an extension of the forced simulations) and, most importantly, for an about realistic ion-to-electron mass ratio mi/me = 1600 [175]. Open boundary conditions were imposed in x. Forcing of reconnection was achieved by switching on a uniform external cross-B electric field for a brief period of the order of one ion-gyro period to both sides of the Harris current layer. This causes continuous thinning (compression) of the current layer until reconnection initiates. The initial Bz > 0 was organically included into the simulation from beginning in modeling the residual geomagnetic northward dipole field component similar to analytic theory [90].

There are several stages in this simulation which deserve mentioning. As in the above non-Bz simulation of forced reconnection [52] reconnection was not ignited. This caused again an about mass-ratio independent comparably long waiting time of Ωit ~ 25 until onset of reconnection, the time of propagation of the electric disturbance from the boundary into the current sheet and formation of the ~ 2λe-thick electron current sheet and density increase by 20% in the current sheet center. Afterwards the reconnection rate increased steeply. The rate in this driven case is significantly higher than in non-forced reconnection, where the canonical value always obtained is ~ 0.1, here being ~ 0.2. Sitnov and Swisdak [178] and Sitnov et al. [179], in a larger particle-in-cell simulation set up, recently confirmed the results of Pritchett [52] on the formation of dipolarization fronts. They further investigated their dynamics and dependence on forcing, finding that, after displacement of the fronts from the X line, several new X lines may form in the current sheet behind the front when the forcing is not switched off but continues. This may lead to steady production an ejection of dipolarization fronts from a current layer.

The high-mass ratio runs show the initial evolution of a distortion of the normal magnetic component during the thinning phase with Bz evolving a sinusoidal shape with negative Bz in the distorted x range. The final Bz shape during fast reconnection is quite regular. In the negative Bz region electrons lose magnetization, and thus reconnection is augmented by demagnetization here. This causes steeping of the Bz profile which resembles experimentally observed so-called dipolarization fronts during reconnection in the magnetospheric tail [180183]. Figure 13 shows the evolution of Bz in the simulation with realistic mass ratio for four times. The final quasistationary profile of Bz as function of x forms a steep ramp of nearly symmetric positive and negative amplitudes being localized in space. This profile moves into left direction as a dipolarization front implying that locally at its location the magnetic field has become more dipole-like than it was initially. This is the result of the forced reconnection to which the initial current layer was exposed. Another important observation is that the electron outflow speed substantially exceeds those of outflows in non-forced non-Bz simulations. In the realistic mass-ratio simulation they reach flow velocites of Vout ~ 18 VA thus forming fast electron jets which survive until distances of the order ~ 5λi (in this simulation) away from the X line where the electron jets merge with the ion outflow. This distance may become even longer in larger simulation set-ups.

FIGURE 13
www.frontiersin.org

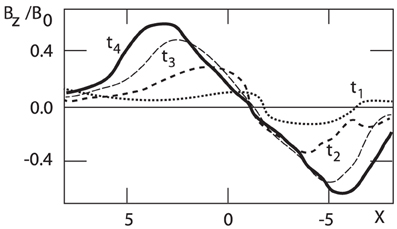

Figure 13. Evolution of ‘dipolarization fronts’ in forced reconnection simulation with finite Bz > 0 shown for four consecutive times. These fronts move to the left in the direction of Earth [schematized, simulation data after 175, courtesy American Geophysical Union].

The reconnection electric field E near the X line evolves a quadrupolar structure at normal distance |z| ~ 0.8 λe and extends over a parallel distance |x| ~ λi to both sides of the X line. More informative is the structure of the field components Ex, Ez which both maximize along the separatrices and have dipolar structure. Hence the separatrix regions are the strongest carriers of electric fields. Here the acceleration of particles is strongest. Calculation of the parallel electric potential can be done along the field lines from a given x to the end of the simulation box. Figure 14 gives an impression of the field aligned potential in color code for the inner part of the simulation region. The parallel potential maximizes along the separatrices but exhibits a certain asymmetry which is due to the presence of the finite Bz field and its evolution. This potential field is responsible for electron acceleration. Below is the total electric potential shown. It exhibits a quasi-sinusoidal structure around the X point but is clearly asymmetric in x caused by the positive initial Bz.

FIGURE 14
www.frontiersin.org

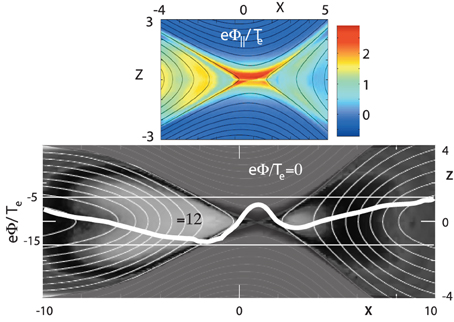

Figure 14. Finite normal magnetic field component. Bottom: Gray scale image of the total electric potential in a real mass ratio mi/me = 1600 two-dimensional simulation of forced reconnection [after 175, courtesy American Geophysical Union]. The potential is normalized to thermal energy. It varies between the values 0 and −15. The fat white line is the potential along z = 0 showing a minimum of about −7 in the X point and maximizing at around −15 at the earthward plasmoid boundary. Top: Normalized parallel potential in the inner region around X point in color coding. The potential is asymmetric in z and in x maximizing at the separatrices and in the boundary of the earthward plasmoid. This potential is responsible for generation of field aligned currents and acceleration of electrons along the field. Asymmetry is caused by the finite Bz.

4.3.3. Large three-dimensional systems, flux ropes, turbulence

This final section reviews some most recent simulation results obtained with extremely large simulation set ups allowing for following the evolution of tearing modes in three dimensions up to mesoscopic scales. It had already been suggested [45, 130, 140, 153] that oblique evolution of the tearing mode in guide field systems would require a full three-dimensional treatment of reconnection under collisionless conditions. Indications of the importance of the third dimension were also seen in pair plasma simulations including a narrow three-dimensional extension of the simulation box [42]. However, extensions to three dimensions and larger scale have become available only recently by supercomputer technology. Such simulations have been reported in [62], [63] and were summarized in [64, 65]. The extended three-dimensional meso-scale simulations [62] with realistic mass ratio μ = 1836 confirm the importance of formation of electron layers in the center of the plasma sheet during reconnection. These layers readily form, as described above for two-dimensional simulations, during the initial phase and are responsible for field line merging/reconnection in the electron diffusion layer. As before they are caused by the divergence of non-diagonal pressure tensor elements and electron inertia also in three-dimensional simulations with the remarkable difference that in extended three dimensions with guide fields the electron layers are warped and much shorter than in two-dimensional simulations. Helical magnetic structures are formed and organize in flux ropes rather than the two-dimensional chains of new magnetic islands. Thus, three-dimensional reconnection is dramatically different from two-dimensional reconnection in thin current sheets. The cause of the destruction of long electron layers is the magnetic shear that is produced by instabilities which evolve due to the available freedom in the third dimension which allows for the organization of the magnetic field into twisted ropes. Three-dimensional flux ropes have recently been observed [184] in the magnetotail. The initial Harris layer breaks completely off at the best consisting subsequently of short skewed pieces only after reconnection has structured the field into ropes (as can be seen in Figures 3 and 4 of Daughton et al. [62]).

In general, when complicated magnetic structures evolve due to some unspecified reason (interacting flows, fluid instability, turbulent cascades etc.), it is clear that thin current layers are produced. This will always happen when the field is not a priori forcefree. If such thin current layers evolve, tearing modes will become excited spontaneously, and collisionless reconnection sets on. This is the case in pre-existing turbulence resulting, for instance, from Kelvin-Helmholtz instability in shear flows at the contact of two interacting plasma streams (as a possible site of reconnection predicted 30 years ago in [185, 186], when the formation of narrow flow, current and magnetic vortices had been observed in the nonlinear evolution of the Kelvin-Helmholtz instability). Another possibility is that field lines displace chaotically (cf. e.g., [187]) which, presumably, is the normal case in three dimensions.

On the other hand, in three dimensions current layers have sufficient freedom to themselves evolve into narrow warped structures during reconnection resembling turbulence as found in simulations [62] where the reconnection layer decayed into many “turbulent” flux ropes forming short and chaotically distributed electron diffusion regions. This suggests that between reconnection and turbulence obviously exists a close relation which in retrospect is not surprising. If narrow current layers evolve in turbulence, they will undergo current and magnetic field rearrangement, which is necessarily accompanied by reconnection, thereby dissipating the stored energy and contributing to the turbulent cascades at reconnection scales ~ λe typical for the electron diffusion region. The electron inertial length becomes the relevant turbulent dissipation scale, which is far less than any of the meso-scale fluid scales but still much longer than the microscopic atomic dissipation scales. Karimabadi et al. [65] recently reviewed three-dimensional simulations of turbulence including reconnection spanning the regime from mesoscales of fluid turbulence to the scales of the electron diffusion region. Their finding is that the turbulent cascade indeed generates current sheets in plasma of scales down to the electron skin depth which, through reconnection, causes the expected plasma heating and reorganization of current filaments and magnetic fields. In a series of impressive figures zooming in from mesoscales to microscales they demonstrate the warping of a current sheet at the edge of a turbulent vortex until it folds and cascades down to the electron scale showing the generation of tearing mode structures and rearranging magnetic fields. The observed turbulent heating is primarily due to parallel electric fields associated with reconnection in the thin current sheets, indicating that reconnection is the dominant dissipation and for the first time identifying the dissipation process in truly collisionless plasma turbulence. In addition generation of various plasma modes was found, kinetic Alfvén waves and several types of coherent structures like the mentioned flux ropes on larger scales and electron holes on shorter scales. Leonardis et al. [115] analyzed such simulations to infer about the presence of intermittent multifractal structures as indication of self-organization of the turbulence. Recently, Karimabadi et al. [188] reviewed the consequences of these findings in view of their application to astrophysical turbulence and the driving of reconnection by external turbulence. Spacecraft observations suggest that reconnection and turbulence are indeed closely related. Reconnection in the turbulent magnetosheath was reported in thin current layers observed [189] and suggested triggering reconnection onset [190]. It is also expected to take place in the turbulent heliosheath plasma, the region between the termination shock and heliopause.

4.4. Acceleration of Charged Particles

Acceleration of charged particles during collisionless reconnection has become a hot topic in recent years. It has been known for long that reconnection ejects about symmetric quasi-neutral plasma jets which since the first in situ identification of reconnection [191] have been taken as the unambiguous canonical signature of ongoing reconnection. These jets are but slow quasi-neutral plasma streams confined to the narrow plasma outflow region from the X point outside the electron diffusion region that asymmetrically surrounds the X point. We already mentioned that electrons are also ejected from the X point region to both sides forming extended electron jets in the inner diffusion region and giving rise to “electron exhausts” of narrow opening angle and extension of several λi along the current layer, much longer than the electron skin depth, until matching the ions and ultimately slow down to become members of the above mentioned canonical slow neutral plasma reconnection flows. These jet electrons are much faster than the quasi-neutral flow, being of the order of or faster than the electron Alfvén speed. Their existence implies that electrons and ions at those distances from the X point couple together in their motion while inside the electron diffusion region the dynamics is mainly that of the electrons. Particle acceleration thus refers separately to electrons and ions. In addition, electrons become accelerated by the reconnection-caused electric fields and also by lower-hybrid waves along the separatrices where they may contribute to the formation of electron holes and where they may cause further acceleration and beam formation.

4.4.1. Electron acceleration

The realization that collisionless reconnection is basically determined by electron dynamics has recently lead to interest in acceleration of electrons up to high energies in reconnecting current sheets. Observations of high energy electrons were first reported in evident relation to reconnection in the geomagnetic tail [192]. There, electron energies reach up to ~ 300 keV, far above any ambient tail-electron temperature which is of the order of mere 0.3 ≲ Te ≲ 1 keV. These energetic electrons form high energy tails on the electron distribution function. The 1000 times higher than thermal energy make them of considerable interest for astrophysical systems. For obvious reasons it is unlikely that these energies can be obtained by acceleration in a single X point in reconnection in the geomagnetic tail. Direct acceleration would require unreasonably strong electric fields that can hardly be sustained in the comparably weak reconnecting tail-magnetic fields of typical strength of several nT only and reconnection scales of the order of the electron skin depth. Reconnection-produced chains of electron holes, as have been observed in the mentioned particle-in-cell simulations [171] and in space [172], can probably be ruled out of being responsible for the high observed energies, though they have also been invoked as a viable mechanism (cf. the discussion in [171]). Sophisticated simulations of electron holes [193] confirm electron heating in electron hole formation by a factor of less than ten, insufficient to explain the high observed energies. More interesting is the barely mentioned formation of the residual high energy electron beams (see the discussion in the electron hole section above) which result from selective cooling of the original hole-passing current electrons by the chain of holes. The reported beam energies may reach a factor of 100 times the original electron temperature. This is still below the observed upper limits, though further acceleration of some selected electrons by very long hole chains would not be unreasonable.

Current interest in acceleration has instead focussed on two directions. Jaroschek et al. [42, 43] demonstrated (in two widely ignored papers) the formation of high energy tails on the particle distribution function in three-dimensional simulations of pair plasma reconnection. A typical trajectory of an accelerated high energy tail particle projected onto the xz plane in these simulations is shown on the right in Figure 5. Initially the particle located in the current sheet performs its meandering Speiser orbit, gyro-oscillating in the space between the antiparallel magnetic fields until becoming picked up by the reconnection electric field and gaining energy. This field accelerates the particle (electron, positron) up to a gyroradius of the size of the entire width of the current layer and plasmoid. Passing the plasmoid, it becomes just weakly decelerated, but when re-entering the rear side of the plasmoid further acceleration in the electric field heats the particle up again, lifting it up and augmenting its energy. During the long time the particle needs to jump ballistically from plasmoid to plasmoid until reaching the boundaries of the box it is in this way accelerated non-stochastically. All particles of similar kind finally add up to an extended tail on the distribution function (Figure 15). This tail obeys a substantial section exhibiting a quasi-power law shape which is exponentially cut-off at its high energy end where the most energetic particles accumulate to form a beam-like bump. The acceleration process is limited by the geometric size of the box with its open ends in x direction. These simulations were preformed with one current sheet only carefully avoiding interaction between the two antiparallel currents in the symmetric simulation set-up in z.

FIGURE 15
www.frontiersin.org

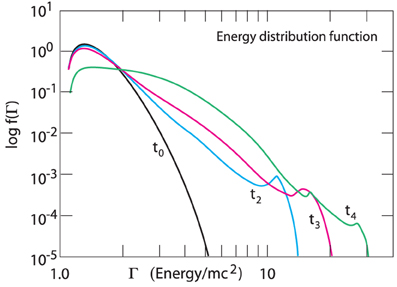

Figure 15. Evolution of a high energy tail on the initial particle distribution function in pair plasma simulations of three-dimensional reconnection [schematized, simulation data after 42]. Three of four equally space consecutive simulation time snapshots of the relativistic distribution function f(Γ) are shown. The black distribution at time t0 is the relativistic Jüttner equilibrium distribution. The gradual generation of a high energy tail by interaction of the charged particles with the reconnection electric field is seen during the evolution of the distribution from time t0 to t4. The final distribution (not shown) at time when the particles reach the end of the box has evolved up to Γ ~ 80, indicating strong particle acceleration. The distributions exhibit an intermediate region of quasi-power law f(Γ) ~ Γs, with index 3 < s ≲ 4, followed by a steep high energy cut-off. Note the formation of a (weak though statistically significant) high energy bump.

The second kind of simulations relies on inclusion of a multitude of parallel-antiparallel current sheets. In periodic settings one already has two current sheets available for studying the long time behavior until the reconnection-produced plasmoids start interacting. Usually at this time the simulation is stopped. However, in view of investigation of acceleration, plasmoid interaction attracts considerable interest, probably coming close to what happens in real nature in systems where many current sheets are generated. Such systems form behind shocks or also in turbulent plasmas. This kind of acceleration with two antiparallel current layers has been intensely investigated in [194]. In the plasmoid interaction scenario (see also [195, 196]), the electrons in the two closely adjacent current sheets, when moving along the magnetic field enclosing a plasmoid, start feeling the mirror field of the adjacent plasmoid which is produced in reconnection in the mirror current sheet. The resulting mirror field configuration causes trapping of electrons between the plasmoids in the two adjacent reconnection sites and strong particle acceleration in the combination of the two reconnection electric fields and also by the relative motions of the plasmoids, a process much simpler than acceleration in the chain of plasmoids of one single reconnection line and obviously leading to even stronger acceleration.

A similar scenario was applied in [197] who extended the [42] simulations to the inclusion of up to 10 adjacent, fully relativistic current sheets ([198] including also radiative losses). Their findings indicate that well defined power law ranges are produced in the acceleration of the electrons when interacting with the many current sheet reconnection sites. The distributions exhibit sections of power law shape f(Γ) ~ Γs with power law index in the range of 3 < s ≲ 4 resulting from the two-dimensional simulations (cf. Figure 15). The ultimate spectral cut-off is generated mainly by the particle losses from the simulation box.

In view of astrophysical application and generation of synchrotron emission, Cerrutti et al. [199, 200] refer to electrons performing Speiser orbits across the reconnecting current layer in their two-dimensional simulations of ultra-relativistic pair plasma reconnection. This problem closely resembles that of Jaroschek et al. [42, 43] where the cross current layer motion of the particles can also be seen as Speiser-like and comprehensive particle distributions have been used to determine the synchrotron emission spectrum with focus on gamma-ray afterglow. Cerutti et al. [199, 200] include, in addition, radiation damping through the radiation damping force in the equation of motion. Damping at high energies quenches the emission of synchrotron radiation.

4.4.2. Accleration of ions

Proton acceleration comparable to the acceleration of electrons has not been observed during reconnection events in the magnetotail, as was explicitly stated in [192]. This lack of observations raises the question whether ions can become substantially accelerated during reconnection. The problem of ion acceleration in current sheets and reconnection has been addressed first in [201] and further explored in [50], [202], [203], and others, who attributed acceleration to direct electric field acceleration along the X line in combination with quasi-adiabatic acceleration in the magnetic mirror geometry during reconnection under conservation of a (quasi-adiabatic) invariant in Bz/Bx field geometry approximately conserved for particles which already possess a sufficiently high energy. Zelenyi et al. [203] argued that the ion energy that can be achieved is limited to the trapping time interval by escape of accelerated ions as a result of increasing gyroradius. The theory reproduces measurements by the Imp spacecraft of energetic ion spectra reaching well into the several 100 keV energies and being of power law shape and thus tentatively attributed to acceleration during reconnection. This and some other reconnection related mechanisms for ion acceleration has recently been (uncritically) compiled in a long review on acceleration [132]. Still, the opinions about ion acceleration in reconnection, i.e., in direct relation to reconnection, are controversial. As pointed out above, Øieroset et al. [192] in their observations of reconnection related particle acceleration explicitly decline ion acceleration, which makes sense in view of our recent knowledge about the size of the electron diffusion region. Since ion acceleration requires already fairly high energy ions, it is unlikely that such ions will be trapped around the small electron diffusion region. This makes further ion acceleration unlikely, at least in a small one or few magnetic-islands long reconnection system like the magnetotail. However, in large systems of multi-current layers like the heliosheath or astrophysical systems the Bulanov-Zelenyi mechanism might well work. There, energetic ions may oscillate many times between different stochastically distributed islands and X lines picking up energy in a stochastic process as has been discussed under extreme conditions ([204] see below for a critical assessment).

The question of ion acceleration remains to be of vital interest less for the magnetosphere and interplanetary space than in view of observed high energy cosmic ray spectra. These are believed to be generated in relativistic shock acceleration but suffer from the serious problem that shock acceleration requires the presence of a substantial amount of pre-accelerated high energy ion populations (for a review of relativistic shocks and related acceleration the reader may consult [205], where it had been suggested that post shock acceleration might include the interaction of many adjacent turbulent current sheets in a large domain possibly undergoing reconnection). In fact, ion acceleration near a single current sheet is probably weak for the reason that the plasmoids formed have no strong effect on the non-magnetized ion dynamics in thin collisionless current sheets, a strong argument against the mechanisms [102, 132] discussed above. This might be different in fat sheets. In the thin sheet, ion-diffusion-region ions can become accelerated along an externally present sufficiently strong forcing convection field. In this case the ions gain energy over the distance of about twice the ion inertial length. This pick-up energy is of the order of ~2e|Eyi. In the magnetotail this energy may reach at the very best a few 100 keV only, an energy irrelevant for cosmic rays and marginally relevant only for injection into the radiation belts which adiabatic acceleration during substorm and, for the innermost radiation belt, other nucleonic processes explain sufficiently well.

The arguments that shocks may self-consistently produce their own seed population are widely spread among different models referring to shock surfing, shock ramp instabilities, so-called Bell instability and their variants, upstream plasma instability and turbulence and others more, but are not completely convincing. Reconnection in the turbulent post-shock plasma has thus been proposed as a possible agent of generating the seed ion population.

Sironi and Spitkovsky [206] recently performed simulations of pair plasma acceleration behind ultra-relativistic shocks including reconnection in a multitude of current layers in the post-shock flow. Though simulations of this kind do not explicitly refer to ions, the results are nevertheless applicable to infer about ion acceleration for the reason that in ultra-relativistic shocks all particles move at about common velocity v = c, and at high Lorentz factors (energies) Γ ~ 103 mass differences are less important. Sironi and Spitkovsky [206] found that reconnection in the turbulent current sheets behind the shock may indeed provide a seed population of electron-positron pairs for further shock-acceleration if injected into the Fermi process. Reconnection in the post shock region seems to generate a very flat power law spectrum of pairs close to the extreme marginally allowed slope s ~ 1.5 (implying complete inhibition of any heat fluxes), being much flatter than the slope found in the simulations [42, 43, 197] of a single and many current layers. This spectrum does, however, not extend up to infinite energies but obeys a cut-off at Γc = Γ0Σ1/(2−s) where Γ0 is the initial Lorentz factor, and Σ = β−1tot, with βtot the total-plasma-to-magnetic energy ratio (including thermal and kinetic energies). Some of the accelerated energetic pair particles are capable to escape back into the upstream shock region where, after coupling to the flow and returning to the shock, they become additionally accelerated in the ordinary Fermi mechanism when bouncing back and forth across the shock. The final spectrum is found to obey a steeper slope of s ~ 2.5 (now naturally allowing for heat fluxes but ruling out higher moments) which extends to high energies of the order of cosmic rays.

A non-relativistic statistical theory of particle bouncing between merging (interacting) plasmoids (magnetic islands) was recently developed [204] in view of the role of reconnection in particle acceleration in the heliosheath behind the termination shock in order to explain the anomalous cosmic ray spectrum. Drake et al. [204] give arguments for an omnidirectional ion energy spectral distribution obeying the marginal extremely flat power law fi) ~ ϵ−1.5i corresponding to non-relativistic velocity distributions f(v) ~ v−5 in presence of a self-consistent fire-hose criterion. This theory is based on complete suppression of heat flux which observations seem to justify being applicable to the heliosphere and have been claimed to be typical for the anomalous cosmic ray component in interplanetary space.

Such extremely flat power law distributions form the high-energy tail of so-called κ-distributions which at this flatness categorically require absence of any heat flux in the collisionless system. They are the flattest power laws allowed under extreme conditions [98101] by fundamental physical requirements (particle number and total energy conservation) independent of which mechanism causes the spectrum. They can thus not be taken as typical for acceleration by reconnecting current layers. Any mechanism which suppresses the heat flow will do. Distribution functions in other systems (solar flares, magnetosphere) obey much steeper energy distributions. The extreme power laws of the anomalous cosmic ray component might, however, indeed have been caused in acceleration in the highly extended turbulent heliosheath which is believed to consist of a chain of a multitude of current layers, presumably undergoing multiple reconnection. Here, any distribution of energetic particles interacting with a myriad of plasmoids might have sufficient time to evolve until reaching the final extremely flat power law shape. In any case investigation of particle acceleration is of vital importance not only for space but in particular for astrophysics.

5. Conclusions and Outlook

The picture of collisionless reconnection is on the verge of gradually rounding up. During the last decade computational capacities have grown enormously enabling high resolution and large scale numerical simulations even in three dimensions (for a collection of the most recent results the reader is referred to the review [65]). In addition, the availability of ever more sophisticated spacecraft-borne instrumentation as well as multi-spacecraft experiments in near-Earth space, have produced large amounts of high resolution observations and data input allowing for gradually more reliable tests of existing models and theories of reconnection. By now, it has been unambiguously confirmed that, at least in all space plasmas accessible to spacecraft, reconnection is collisionless. Collisionless reconnection turned out being one of the farthest reaching plasma processes causing magnetic re-configuration and relaxation. It causes conversion of magnetically stored energy into plasma heating and particle acceleration. It enables rapid mixing of plasmas in all collisionless regions where other diffusion models are completely ruled out. Here it provides the basic mechanism of dissipation of excess energy accumulated in complex magnetic configurations, respectively, electric currents and plasma flows, which are the two equivalent views of electromagnetic energy storage.

Simulations, observations and measurements combined with numerical particle-in-cell simulations have unambiguously confirmed that any collisionless reconnection takes place in very thin current sheets the active region of which is on the electron inertial scale |z| ~ λe «< L. This scale is microscopic compared to all geometrical scales L in space and presumably also in astrophysical plasmas. Collisionless reconnection is thus driven primarily by electron dynamics. Reconnection is rather a kinetic plasma than a fluid process, even though it can be formally attributed to the additional non-collisional terms occurring in the generalized Ohm's law which cause breaking the frozen-in condition. Daughton and Roytershteyn ([124], recently investigated transition from collisionless to collisional reconnection in terms of the Lundqvist number S dependence on the ratio of the Sweet-Parker length LSP to ion gyroradius ri, finding the Sweet-Parker range below S ≲ 104 and, at larger LSP, plasmoid mediated collisional MHD reconnection virtually extending the collisionless into the collision regime.) Of these terms the crucial ones have been identified to be the divergence of the electron pressure tensor term, ∇ · Pe that, on the electron inertial scale, is taken in the geometrical frame of the current sheet where Pe possesses non-diagonal elements, as well as the convective electron-inertial term, Ve · ∇Ve, which accounts for the non-linear gradient of the bulk electron speed along the electron flow, all taken in the ion frame. Both terms become large and complement each other around the X line in the electron diffusion region where they generate the reconnection electric field ErecE. In three dimensions an electron-drag-term, −〈δNδE〉, in the total electric field including the convection and reconnection electric fields, must be added to these. Its contribution is due to fluctuations δN in density-caused three-dimensional structures of the electron current sheets. The required electron pressure anisotropy is generated by driving the electron inflow, either self-consistently or forced from the outside by plasma inflow due to imposed convective electric fields. This has been shown by simulations [140, 141, 144] without artificially distorting the current sheet letting it evolve self-consistently in the external forcing. Such conditions are naturally realized at the outer boundaries of the magnetosphere and in the geomagnetic tail plasma sheet. Similar processes are expected to work in the solar corona and in discontinuities in the solar wind.

Recognition of the micro-physical reasons in the pseudo-non-diagonal electron pressure tensor elements, inertial terms, and electron drag for breaking the frozen-in condition is most important. It resolves the long mystery of the absence of sufficiently large anomalous resistivities and dissipation in collisionless reconnection that was reflected in the astonishingly weak plasma wave activity found near the X line (cf. e.g., [83, 84], among others), a fact which troubled both observers and theoreticians for almost three decades. Very high plasma wave intensities were expected for long near the X point; these expectations had even been summarized in the notion of a reconnection “fireball” in the Earth's plasma sheet during substorms. Some residual anomalous dissipation might still be present at the reconnection site; being a byproduct of collisionless reconnection, it is of little importance in the reconnection process itself, however, while causing several secondary effects. Heating of the plasma in reconnection is entirely due to the dissipation provided by the reconnection electric field. The production of anomalous collisions still remains an interesting problem in order to elucidate its wave and wave-particle-interaction origin, its spatial distribution, contribution to the spatial structure of the reconnection electric field, and its role in heating and particle acceleration. In spite of this, it seems that the basic physics of collisionless reconnection (and possible reconnection in general), i.e., the gross physical mechanism of collisionless reconnection, is by now very close to be understood. As it has turned out, this mechanism is far from the original fluid dynamical and magnetohydrodynamical picture which served as a guide over nearly four decades.

Aside from the two kinds of forced and non-forced reconnection, of which the first is probably more frequently realized in nature, an important role must be attributed to the presence of guide fields (as suggested in [71]). Guide fields are naturally present in the oblique encounter of two magnetized plasmas of different properties and magnetic fields. Guide fields, being directed along the current in the separating current sheet, act magnetizing on the electrons. Since the original convection electric field is along the guide field, it accelerates the electrons along the guide field. This process is essentially independent of reconnection but amplifies the electron current which, when exceeding the Buneman threshold, excites electron holes in the collisionless current sheet, forming chains of localized, possibly very strong electric fields containing a dilute hot trapped electron component and being accompanied by very fast accelerated electron beams along the guide field. The role of such chains of holes is still widely unexplored. It is, however, suggestive to think of them as a plasma heating and accelerating facility as suggested by particle-in-cell simulations of the generation of electron holes (cf. e.g., [193]). In addition, many such holes cause a distinct structuring of the electron density and pressure in the current layer. They contribute to drag, pressure anisotropy and pseudo-viscosity and may, therefore, secondarily affect reconnection. Heating the plasma by holes temporarily switches the hole production rate off until further electron acceleration in the convection electric field re-accelerates them and reproduces a new chain of holes. In the mean time ion-acoustic waves are excited. Hence, the reconnection region in the presence of guide fields is filled with a population of holes propagating on the background of a weak ion-acoustic wave level. In addition, electron holes are a mechanism of cooling the non-trapped passing electron component, transforming it into a hole-cooled but very fast electron beam along the guide field. Such beams readily excite Langmuir turbulence which, in the dense high-β current layer, generate second plasma-harmonic electromagnetic radiation. Observation of this radiation maps the reconnection site into remotely detectable radiation as, for instance, emitted from the solar corona during flares, a process of substantial interest in astrophysics but still unexplored in relation to collisionless reconnection. Similarly, electron holes entering the very low density electron exhaust may radiate also in the electron-cyclotron maser mode if the plasma dilution inside the holes is strong enough for the electron cyclotron frequency locally to exceed the electron plasma frequency. This radiation might become very intense but remains trapped around the X point, being unable to escape into free space. Such processes have also been identified at the separatrices in reconnection where electron acceleration takes place via Hall current closure and the presence of kinetic Alfvén and lower-hybrid-drift wave electric fields. These processes have been exhaustively investigated by simulations (e.g., [62, 65, 69, 145], and others).

Most of these insights have been generated by two-dimensional particle-in-cell simulations of collisionless reconnection. Sufficiently precise three-dimensional simulations involving large simulation boxes and sufficiently large particle numbers have become available only recently. The first results of such simulations showed that reconnection in three dimensions is very fast though more complicated than in two dimensions. The electron structure of the X line breaks off into several distinct microscopic layers by twisting the current, suggesting that very thin electron current layers are produced and the reconnection is highly structured in the third dimension. Such processes lead to multitudes of localized three-dimensional reconnection sites (similar to those predicted by analytical kinetic theory [89, 90]) and warped magnetic flux tubes or ropes of their own dynamics. It has been suggested that reconnection in this way may be the generator of mesoscale plasma turbulence (most recently by huge-scale simulations [65]) in the sense that the electron current structure is microscopic on the scale of the X point region, while the flux tubes involved are on scales of the order of the ion inertial scale and larger, becoming macroscopic. It should be noted here that many such narrow small warped current layers have been identified in Earth's magnetosheath [189] claimed to be caused by the turbulence behind the bow shock and undergoing local reconnection which results in plasma heating. Reconnection in the turbulent magnetosheath has also been reported [207].

It is believed that reconnection between multiple adjacent antiparallel current layers is responsible for turbulence in the heliosheath and in many extended astrophysical systems obeying the formation of relativistic shocks. Reconnection provides a link to plasma turbulence in this case. Conversely it suggests that any cascading large scale plasma turbulence which produces small-scale magnetic structures and thus small-scale current vortices will necessarily be accompanied by reconnection on the small-scale end of the cascade in twisted and deformed electron-scale current sheets. The main dissipation mechanism on these scales will not have to be searched for in real or anomalous collisions but in turbulent convection-driven electron pseudo-viscosity [208], electron inertia and drag-excited collisionless reconnection. This reconnection then provides the natural energy sink for the dissipation of the turbulent energy that is stored in the macroscopic turbulent velocity field. In this respect the recent large-scale brute-force simulations [6365] are of vital not to underestimate importance.

Pre-existsing meso-scale or MHD turbulence should also affect the evolution of reconnection. The various thoughts on this problem have recently been summarized in [188]. It might both reduce and increase the global reconnection rate. Several models have been proposed referring to turbulent current broadening and plasmoid interaction, respectively. In the latter case the diffusion layer shrinks under the action of the turbulent plasmoids. Currently no definitive conclusion can be given. Turbulence in three dimensions exhibits chaotic properties due to field line wandering which results in production of small-scale current layers and flashes of chaoticity-induced reconnection. In this case the collisionless reconnection rate is high in every single reconnection flash while the global volume-averaged reconnection rate will be much less, possibly becoming comparable to the ordinary diffusion rate. Turbulent vortices may, on the other hand, compress a fat current sheet and ignite reconnection [209]. Based on a review of available particle simulations, Daughton and Roytershteyn [124] developed a phase diagram for the transition from collisional to collisionless reconnection identifying a large region of plasmoid induced quasi-collisionless reconnection in the collisional regime which arises just due to the compression effect.

The expected wide distribution of collisionless reconnection in space, and probably allover in plasmas in the universe, poses the question whether the notion of collisional reconnection makes any sense if collisionless reconnection proceeds on so fast a temporal scale and in so small regions with so high efficiency as suggested by observations and simulations. In fact, if the requirement is held up that, being restricted to current sub-sheets of width of the electron inertial scale, collisional reconnection can compete only if the collisional mean free path λmfp ~ λe becomes comparable to the electron inertial length. It is easily shown that this condition imposes a limit on the electron temperature given by Te/mec21/Nλe which for realistic densities N > 105 m−3 in space can be satisfied only at almost zero electron temperature. Relaxing this condition to the ion inertial length λmfp ~ λi does not help. By this argument, collisional reconnection seems to be irrelevant. However, the argument is based on the assumption that the generalized Ohm's law holds also in highly collisional, i.e., in dense media, which is not given a priori. If all terms in Ohm's law are negligible against the resistive term, reconnection will be dominated completely by collisions and will proceed just on the extra-ordinarily slow classical diffusive time scales under stationary conditions evolving into long Sweet-Parker dissipation regions. It may be speeded up only by turbulent correlations in the conducting fluid. This may be realized under large-scale high density astrophysical conditions.

Collisionless reconnection has been found an efficient accelerator of particles. In particular, the multiple reconnection in either of the above scenarios is a way of accelerating electrons to high energies. This acceleration is provided by the parallel electric fields which maximize along the separatrices. Another mechanism is provided by the interaction of multiple reconnecting current sheets and in the presence of plasmoids. Trapping between closely spaced large sized plasmoids also accelerates ions. Much insight is expected from future performing of three-dimensional particle-in-cell simulations in newly available large set ups.

Summarizing, collisionless reconnection has not only become an indisputable reality, it also has matured to an intermediate state where we begin to understand its mechanism. The following facts are noticeable: In spite of previous reservations based on the apparent weakness of dissipative processes in high temperature dilute collisionless plasmas, collisionless reconnection is a fast process proceeding on the electron-Alfvén time-scale. It takes place deep inside thin current sheets of widths well below the ion inertial length λi inside the narrow electron diffusion layer |z| ≲ λe centered at the current sheet. It is unclear whether thicker current sheets |z| > λi at all undergo reconnection (see also the discussion in [124, 188]). The opinions are diverging on this point. Under forcing, thick current sheets experience compression until their thickness locally drops below λe for becoming thin enough for reconnection to set on. On the other hand belief is going on that large-scale turbulence provides sufficient driving of large (MHD) scale reconnection. This is probably vindicated by recent three-dimensional simulations as we have discussed above. Presumably reconnection sets on once the turbulent cascade reaches down into the small reconnection scales. Concerning the mechanism of reconnection, current knowledge, strongly supported by two-and three-dimensional particle-in-cell simulations, suggests that the primary reason for onset of collisionless reconnection is the divergence of the electron pseudo-viscosity in the non-diagonal electron pressure tensor elements [208], preferentially in anisotropic pressure conditions. This is aided by small-scale convective electron inertia. Other non-linearities also contribute, but anomalous collisions can probably be ruled out because of the lacking wave intensity in all known cases, even in forced and guide-field reconnection. Lower-hybrid-drift waves, the most viable candidate, contribute as well though not via anomalous dissipation but through their electric fields. The most interesting region is the electron diffusion region. Simulations confirmed that it is highly asymmetrical consisting of a short inner electron current region where pressure and inertia driven dissipation takes place, and a laterally extended electron jetting (or exhaust) region which is the outflow of electron from the reconnection site caused by the reconnection electric field and magnetic stresses on the weakly re-magnetized electrons. The vertical extension of the exhaust is narrow, but its length reaches several ion inertial lengths. Exhaust electrons flow at super-Alfvénic speed until ions become involved and the electron flow slows down to merge into the macroscopic reconnection plasma jets. Reconnection under various different conditions is accompanied by a number of most interesting secondary effects which, however, are not vital for the ignition of reconnection. These are quadrupolar Hall fields generated in the ion diffusion region under symmetric (e.g., in the magnetotail) and dipolar Hall fields generated on the weak field-high density side under asymmetric (e.g., at the magnetopause) external conditions. Closure of Hall fields via field-aligned currents along the separatrices, various kinds of wave instabilities near separatrices and also at the boundaries of the electron diffusion region. The presence of guide fields introduces further obliqueness and twisting of the Hall fields causing asymmetry in reconnection configurations. Guide fields allow for magnetization of electrons. In this way they cause delay of reconnection onset. On the other hand, they stimulate reconnection. Inclusion of normal magnetic field components, which are naturally present in closed magnetic configurations, introduce further variations like the formation of dipolarization fronts, additional particle acceleration, formation of secondary X lines and other side effects. In three dimensions collisionless reconnection exploits the freedom of the new dimension by the tearing mode becoming oblique, depending on the strength of the guide magnetic field. Plasmoids now evolve into twisted flux ropes of complicated three-dimensional structure, while the electron dissipation region becomes multiply structured and shorter than in two dimensions. Moreover, other wave modes can be excited in this case. Finally, large scale three-dimensional simulations demonstrate that there is a close relation between plasma turbulence and collisionless reconnection [65]. The latter provides the microscopic scales on which dissipation of the turbulent energy takes place after the turbulence has cascaded down to form electron scale-narrow current sheets which reconnect and terminate cascading and further formation of smaller scale structures. This connection has turned out to become one of the most promising fields of contemporary research with probably far reaching consequences.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

We thank the two reviewers for their intriguing and very helpful comments on the original manuscript. RT acknowledges the hospitality of the ISSI staff and support by the ISSI librarians Andrea Fischer and Irmela Schweizer.

References

1. Giovanelli RG. A theory of chromospheric flares. Nature (1946) 158:81–2. doi: 10.1038/158081a0

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

2. Cassak PA, Mullen DJ, Shay MA. From solar and stellar flares to coronal heating: theory and observations of how magnetic reconnection regulates coronal conditions. Astrophys J. (2008) 676:L69–L72. doi: 10.1086/587055

CrossRef Full Text

3. Priest E, Forbes T. Magnetic Reconnection: MHD Theory and Applications. Cambridge, UK: Cambridge University Press (2000)

4. Angelopoulos V, McFadden JP, Larson D, Carlson CW, Mende SB, Frey H, et al. Tail reconnection triggering substorm onset Science (2008) 321:931–6. doi: 10.11126/science.1160495

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

5. Paschmann G. Recent in-situ observations of magnetic reconnection in near-Earth space. Geophys Res Lett. (2008) 35:L19109. doi: 10.1029/2008GL035297

CrossRef Full Text

6. Paschmann G, Øieroset M, Phan T. In-situ observations of reconnection in space. Space Sci Rev. (2013) 178:385–417. doi: 10.1007/s11214-012-9957-2

CrossRef Full Text

7. Sweet PA. The neutral point theory of solar flares. In: Lehnert B. editor IAU Symposium 6, Electromagnetic Phenomena in Cosmical Physics. Dordrecht: Kluwer. (1958). p. 123–34.

8. Parker EN. Sweet's mechanism for merging magnetic fields in conducting fluids. J Geophys Res. (1957) 62:509–20. doi: 10.1029/JZ062i004p00509

CrossRef Full Text

9. Artemyev AV, Baumjohann W, Petrukovich AA, Nakamura R, Dandouras I, Fazakerley A. Ann Geophys. (2011) 29:2253–7. doi: 10.5194/angeo-29-2253-2011

CrossRef Full Text

10. Petschek HE. Magnetic field annihilation. In: The Physics of Solar Flares, Proceedings of the AAS-NASA Symposium 28–30 October 1963 at Goddard Space Flight Center Greenbelt, MD: NASA (1964). p. 425–439.

11. Sonnerup BUÖ. Magnetic-field re-connexion in a highly conducting incompressible fluid. J Plasma Phys. (1979) 4:161–74. doi: 10.1017/S0022377800004888

CrossRef Full Text

12. Liu Y-H, Drake JF, Swisdak M. The effects of strong temperature anisotropy on the kinetic structure of collisionless slow shocks and reconnection exhausts. I. Particle-in-cell simulations. Phys Plasmas (2011) 18:062110. doi: 10.1063/1.3601760

CrossRef Full Text

13. Liu Y-H, Drake JF, Swisdak M. The effects of strong temperature anisotropy on the kinetic structure of collisionless slow shocks and reconnection exhausts. II. Theory. Phys Plasmas (2011) 18:092102. doi: 10.1063/1.3627147

CrossRef Full Text

14. Vasyliunas VM. Theoretical models of magnetic field line merging. I. Rev Geophys Space Phys. (1975) 13:303–36. doi: 10.1029/RG013i001p00303

CrossRef Full Text

15. Erkaev NV, Semenov VS, Jamitzky F. Reconnection rate for the inhomogeneous resistivity Petschek model. Phys Rev Lett. (2000) 84:1455. doi: 10.1103/PhysRevLett.84.1455

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

16. Syrovatskii SI. Formation of current sheets in a plasma with a frozen-in strong magnetic field. Sov J Exp Theor Phys. (1971) 33:933.

17. Syrovatskii SI. Dynamic dissipation of a magnetic field and particle acceleration. Sov Astron AJ (1966) 10:270–280.

18. Syrovatskii SI, Direct transformation of magnetic-field energy into energy of fast particles. IAU Symp. (1967) 31:133–134.

19. Biskamp D. Magnetic reconnection across an x-type neutral point - Slow shocks versus current sheets. Phys Lett A (1984) 105:124–128.

20. Biskamp D. Magnetic reconnection. Phys Rep. (1994) 237:179–247.

21. Krauss-Varban D, Karimabadi H, Omidi N. Two-dimensional structure of the co-planar and non-coplanar magnetopause during reconnection. Geophys Res Lett. (1999) 26:L01235. doi: 10.1029/1999GL900211

CrossRef Full Text

22. Yin L, Winske D, Daughton W, Bowers KJ, Kinetic Alfvén waves and electron physics, I. Generation from ion-ion streaming. Phys Plasmas (2007) 14:062104. doi: 10.1063/1.2734950

CrossRef Full Text

23. Yin L, Winske D, Daughton W. Kinetic Alfvén waves and electron physics, I. Oblique slow shocks. Phys Plasmas (2007) 14:062105. doi: 10.1063/1.2734951

CrossRef Full Text

24. Teh W-L, Sonnerup BUÖ, Hu Q, Farrigia C-J. Reconstruction of a large-scale reconnection exhaust structure in the solar wind. Ann Geophys. (2009) 27:807–22. doi: 10.5194/angeo-27-807-2009

CrossRef Full Text

25. Boozer AH. Model of magnetic reconnection in space and astrophysical plasmas. Phys Plasmas (2013) 20:032903. doi: 10.1063/1.4796051

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

26. Dungey JW. Interplanetary magnetic field in the auroral zones. Phys Rev Lett. (1961) 6:47–8. doi: 10.1103/PhysRevLett.6.47

CrossRef Full Text

27. Zweibel EG, Yamada M. Magnetic reconnection in astrophysical and laboratory plasmas. Ann Rev Astron Astrophys. (2009) 47:291–332. doi: 10.1146/annurev-astro-082708-101726

CrossRef Full Text

28. Yamada M, Kulsrud R, Ji H. Rev Mod Phys. (2010) 82:603–664. doi: 10.1103/RevModPhys.82.603

CrossRef Full Text

29. Biskamp D. Magnetic Reconnection in Plasmas. Cambridge: Cambridge University Press (2000).

30. Baumjohann W, Treumann RA. Basic Space Plasma Physics, Revised Edition. Chap. 12, London: Imperial College Press (2012).

31. Kivelson MG, Russell CT. Introduction to Space Physics Chap. 9, (Cambridge, UK: Cambridge University Press) (1995)

32. Treumann RA, Baumjohann W. Advanced Space Plasma Physics. Chap 7. London: Imperial College Press (1997).

33. Krall NA, Trivelpiece AW. Principles of Plasma Physics. Chap. 3, New York, NY: McGRaw-Hill (1973).

34. Sonnerup BUÖ. Magnetic field reconnection. In: Lanzerotti LT, Kennel CF, Parker EN, Solar System Plasma Physics III. New York, NY: North-Holland Publ. Comp (1970), 45–108.

35. Fujimoto M, Nakamura MS, Shinohara I, Nagai T, Mukai T, Saito Y, et al. Observations of earthward streaming electrons at the trailing boundary of a plasmoid. Geophys Res Lett. (1997) 24:2893–6. doi: 10.1029/97GL02821

CrossRef Full Text

36. Nagai T, Shinohara I, Fujimoto M, Hoshino M, Saito Y, Machida S, et al. Geotail observations of the Hall current system: evidence of magnetic reconnection in the magnetotail. J Geophys Res. (2001) 106:25929–50. doi: 10.1029/2001JA900038

CrossRef Full Text

37. Øieroset M, Phan TD, Fujimoto M, Lin RP, Lepping RP. In situ detection of collisionless reconnection in the Earth's magnetotail. Nature (2001) 412:414–7. doi: 10.1038/35086520

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

38. Mozer FS, Bale SD, Phan TD. Evidence of diffusion regions at a subsolar magnetopause crossing. Phys Rev Lett. (2002) 89:015002. doi: 10.11103/PhysRevLett.89.015002

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

39. Uzdensky DA, Kulsrud RM. Physical origin of the quadrupole out-of-plane field in Hall-magnetohydrodynamic reconnection. Phys Plasmas (2006) 93:105001. doi: 10.1063/1.2209627

CrossRef Full Text

40. Baumjohann W, Nakamura R, Treumann RA. Magnetic guide field generation in collisionless current sheets. Ann Geophys. (2010) 28:789–93. doi: 10.1103/10.5194/angeo-28-789-2010

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

41. Weibel ES. Spontaneously growing transverse waves in a plasma due to an anisotropic velocity distribution. Phys Rev Lett. (1959) 2:83–4. doi: 10.1103/PhysRevLett.2.83

CrossRef Full Text

42. Jaroschek CH, Treumann RA, Lesch H, Scholer M. Fast reconnection in relativistic pair plasmas: analysis of particle acceleration in self-consistent full particle simulations. Phys Plasmas (2004) 11:1151–63. doi: 10.1063/1.1644814

CrossRef Full Text

43. Jaroschek CH, Lesch H, Treumann RA. Relativistic kinetic reconnection as a possible source mechanism for high variability and flat spectra in extragalactic radio sources. Astrophys J. (2004) 605:L9–L12. doi: 10.1086/420767

CrossRef Full Text

44. Bessho N, Bhattacharjee A. Collisionless reconnection in an electron-positron plasma. Phys Rev Lett. (2005) 95:245001. doi: 10.1103/PhysRevLett.95.245001

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

45. Karimabadi H, Krauss-Varban D, Huba JD, Vu HX. On magnetic reconnection regimes and associated three-dimensional asymmetries: Hybrid, Hall-less hybrid, and Hall-MHD simulations. J Geophys Res. (2004) 109:A09205. doi: 10.1029/2004JA010478

CrossRef Full Text

46. Karimabadi H, Huba JD, Krauss-Varban D, Omidi N. On the generation and structure of the quadrupole magnetic field in the reconnection process: comparative simulation study. Geophys Res Lett. (2004) 31:L07806. doi: 10.1029/2004GL019553

CrossRef Full Text

47. Treumann RA, Jaroschek CH, Nakamura R, Runov A, Scholer M. The role of the Hall effect in collisionless magnetic reconnection. Adv Space Res. (2007) 38:101–11. doi: 10.1016/j.asr.2004.11.045

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

48. Hesse M, Kuznetsova M, Birn J. Particle-in-cell simulations of three-dimensional collisionless magnetic reconnection. J Geophys Res. (2001) 106:29831–41. doi: 10.1029/10.1029/2001JA000075

CrossRef Full Text

49. Yin L, Winske D, Daughton W, Coroniti FV. Electron quasi-viscous effects in collisionless slow-mode shocks. Geophys Res Lett. (2004) 31:L09803. doi: 10.1029/2004GL019567

CrossRef Full Text

50. Divin A, Markidis S, Lapenta G, Semenov VS, Erkaev NV, Biernat HK. Model of electron pressure anisotropy in the electron diffusion region of collisionless magnetic reconnection. Phys Plasmas (2010) 17:122102. doi: 10.1063/1.3521576

CrossRef Full Text

51. Divin A, Lapenta G, Markidis S, Newman DL, Goldman MV. Numerical simulations of separatrix instabilities in collisionless magnetic reconnection. Phys Plasmas (2012) 19:042110. doi: 10.1063/1.3698621

CrossRef Full Text

52. Pritchett PL. The “Newton-Challenge”: Kinetic aspects of forced magnetic reconnection. J Geophys Res. (2005) 110:A10213. doi: 10.1029/2005JA011228

CrossRef Full Text

53. Karimabadi H, Daughton W, Quest KB. Role of electron temperature anisotropy in the onset of magnetic reconnection. Geophys Res Lett. (2004) 31:18801. doi: 10.1029/2004GL020791

CrossRef Full Text

54. Zenitani S, Hesse M, Klimas A, Kuznetsova M. New measure of the dissipation region in collisionless magnetic reconnection. Phys Rev Lett. (2011) 106:195003. doi: 10.1103/PhysRevLett.106.195003

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

55. Pritchett PL. The influence of intense electric fields on three-dimensional asymmetric magnetic reconnection. Phys Plasmas (2013) 20:061204. doi: 10.1063/1.4811123

CrossRef Full Text

56. Aunai, N, Hesse M, Kuznetsova M. Electron nongyrotropy in the context of collisionless magnetic reconnection. Phys Plasmas (2013) 20:092903. doi: 10.1063/1.4820953

CrossRef Full Text

57. Pritchett PL. Onset and saturation of guide-field magnetic reconnection. Phys Plasmas (2005) 12:062301. doi: 10.1063/1.1914309

CrossRef Full Text

58. Browning P, Lazarian A. Notes on magnetohydrodynamics of magnetic reconnection in turbulent media. Space Sci Rev. (2013) 178:325–355. doi: 10.1007/s11214-013-0022-6

CrossRef Full Text

59. Lee NC, Parks GK. Ponderomotive force in a warm two-fluid plasma. Phys Fluids (1983) 26:724–9. doi: 10.1063/1.864196

CrossRef Full Text

60. Lee NC, Parks GK. Ponderomotive force in a nonisothermal plasma. Phys Fluids (1988) 31:90–4. doi: 10.1063/1.866974

CrossRef Full Text

61. Biglari H, Diamond PH. A mean field Ohm's law for collisionless plasmas. Phys Fluids B Plasma Phys. (1993) 5:3838–40. doi: 10.1063/1.860604

CrossRef Full Text

62. Daughton W, Roytershteyn V, Karimabadi H, Yin L, Albright BJ, Bergen B, et al. Role of electron physics in the development of turbulent magnetic reconnection in collisionless plasmas. Nat Phys. (2011) 7:539–42. doi: 10.1038/NPHYS1965

CrossRef Full Text

63. Roytershteyn V, Dorfman S, Daughton W, Ji H, Yamada M, Karimabadi H. Electromagnetic instability of thin reconnection layers: comparison of three-dimensional simulations with MRX observations. Phys Plasmas (2013) 20:961212. doi: 10.1063/1.4811371

CrossRef Full Text

64. Karimabadi H, Roytershteyn V, Daughton W, Liu Y-H. Recent evolution in the theory of magnetic reconnection and its connection with turbulence. Space Sci Rev. (2013) 178:307–323. doi: 10.1007/s11214-013-0021-7

CrossRef Full Text

65. Karimabadi H, Roytershteyn V, Wan M, Matthaeus WH, Daughton W, Wu P, et al. Coherent structures, intermittent turbulence, and dissipation in high-temperature plasmas. Phys Plasmas (2013) 20:012303. doi: 10.1063/1.4773205

CrossRef Full Text

66. Runov A, Nakamura R, Baumjohann W, Zhang TL, Volwerk M, Eichelberger H-U, et al. Cluster observation of a bifurcated current sheet. Geophys Res Lett. (2003) 30:1036. doi: 10.1029/2002GL016136

CrossRef Full Text

67. Runov A, Sergeev V, Nakamura R, Baumjohann W, Vörös Z, Volwerk M, et al. Properties of a bifurcated current sheet observed on 29 August 2001. Ann Geophys. (2004) 22:2535–40. doi: 10.5194/angeo-22-2535-2004

CrossRef Full Text

68. Jain N, Büchner J, Dorfman S, Ji H, Sharma AS. Current disruption and its spreading in collisionless magnetic reconnection. Phys Plasmas (2013) 20:112101. doi: 10.1063/1.4827828

CrossRef Full Text

69. Daughton W, Lapenta G, Ricci P. Nonlinear evolution of the lower-hybrid drift instability in a current sheet. Phys Rev Lett. (2004) 93:105004. doi: 10.1103/PhysRevLett.93.105004

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

70. Uzdensky DA. The fast collisionless reconnection condition and the self-organization of solar coronal heating. Astrophys J. (2007) 671:2139–53. doi: 10.1086/522915

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

71. Karimabadi H, Krauss-Varban D, Omidi N, Vu HX. Magnetic structure of the reconnection layer and core field generation in plasmoids. J Geophys Res. (1999) 104:12313–26. doi: 10.1029/1999JA900089

CrossRef Full Text

72. Higashimori K, Yokoi N, Hoshino M. Explosive turbulent magnetic reconnection. Phys Rev Lett. (2013) 110:255001. doi: 10.1103/PhysRevLett.110.255001

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

73. Sagdeev RZ. Cooperative phenomena and shock waves in collisionless plasmas. Rev Plasma Phys. (1966) 4:23–91.

74. Sagdeev RZ. The Oppenheimer lectures: critical problems in plasma astrophysics I. Turbulence and nonlinear waves, II. Singular layers and reconnection. Rev Mod Phys. (1979) 51:1–20. doi: 10.1103/RevModPhys.51.1

CrossRef Full Text

75. Buneman O. Instability, turbulence, and conductivity in current-carrying plasma. Phys Rev Lett. (1958) 1:8–9. doi: 10.1103/PhysRev.Lett.1.8

CrossRef Full Text

76. Buneman O. Dissipation of currents in ionized media. Phys Rev. (1959) 115:503–17. doi: 10.1103/PhysRev.115.503

CrossRef Full Text

77. Liewer PC, Krall NA. Self-consistent approach to anomalous resistivity applied to theta pinch experiments. Phys Fluids (1973) 16:1953–63. doi: 10.1063/1.1694240

CrossRef Full Text

78. Davidson RD, Krall NA. Anomalous transport in high-temperature plasmas with applications to solenoidal fusion systems. Nucl Fusion (1977) 17:1313–1372.

79. Davidson RD. Quasi-linear stabilization of lower-hybrid-drift instability. Phys Fluids (1978) 21:1373–80. doi: 10.1063/1.862379

CrossRef Full Text

80. Huba JD, Gladd NT, Drake JF. On the role of the lower hybrid drift instability in substorm dynamics. J Geophys Res. (1981) 86:5881–4. doi: 10.1029/JA086iA07p05881

CrossRef Full Text

81. LaBelle J, Treumann RA. Plasma waves at the dayside magnetopause. Space Sci Rev. (1988) 47:175–202. doi: 10.1007/BF00223240

CrossRef Full Text

82. Treumann RA, LaBelle J, Pottelette R. Plasma diffusion at the magnetopause – The case of lower hybrid drift waves. J Geophys Res. (1991) 96:16009–13. doi: 10.1029/91JA01671

CrossRef Full Text

83. Bale SD, Mozer FS, Phan TD. Observation of lower hybrid drift instability in the diffusion region at a reconnecting magnetopause. Geophys Res Lett. (2002) 29:2180. doi: 10.1029/2002GL016113

CrossRef Full Text

84. Treumann RA, Sckopke N, Brostrom L, LaBelle J. The plasma wave signature of a ‘magnetic hole’ in the vicinity of the magnetopause. J Geophys Res. (1990) 95:19099–114. doi: 10.1029/JA095iA11919099

CrossRef Full Text

85. Fujimoto M, Shinohara I. The role of electron acceleration in quick reconnection triggering. In: Particle Acceleration in Astrophysical Plasmas: Geospace and Beyond. Washington, DC: AGU Geophysical Monograph Series (2005). p. 139–48. doi: 10.1029/156GM17

CrossRef Full Text

86. Coppi B, Laval G, Pellat R. Dynamics of the geomagnetic tail. Phys Rev Lett. (1966) 16:1207–10. doi: 10.1103/PhysRevLett.16.1207

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

87. Laval G, Pellat R, Vuillemin M. Instabilités électromagnétiques des plasmas sans collisions. Plasma Phys Control Nucl Fusion Res. (1966) 2:259.

88. Schindler K. A theory of the substorm mechanism. J Geophys Res. (1974) 79:2803–10. doi: 10.1029/JA079i019p02803

CrossRef Full Text

89. Galeev AA, Zelenyi LM. Nonlinear instability theory for a diffusive neutral layer. Sov Phys JETP. (1975) 69:882–895.

90. Galeev AA, Zelenyi LM. Metastable states of diffuse neutral sheet and the substorm explosive phase. Sov Phys JETP Lett. (1975) 22:170–2.

91. Lembege B, Pellat R. Stability of a thick two-dimensional quasineutral sheet. Phys Fluids (1982) 25:1995–2004. doi: 10.1063/1.863677

CrossRef Full Text

92. Schindler K, Birn J. Magnetospheric physics. Phys Rep. (1978) 47:109–65. doi: 10.1016/0370-1573(78)90016-9

CrossRef Full Text

93. Schindler K. Magnetotail theory. Space Sci Rev. (1986) 44:307–55. doi: 10.1007/BF00200819

CrossRef Full Text

94. Birn J, Sommer RR, Schindler K. Self-consistent theory of the quiet magnetotail in three dimensions. J Geophys Res. (1977) 82:147–54. doi: 10.1029/JA082i001p00147

CrossRef Full Text

95. Galeev AA. Reconnection in the magnetotail. Space Sci Rev. (1979) 23:411–25. doi: 10.1007/BF00172248

CrossRef Full Text

96. Harris EG, On a plasma sheet separating regions of oppositely directed magnetic field. Nuovo Cimento (1962) 23:115–23.

97. Christon SP, Willams DJ, Mitchell DG, Huang CY, Frank LA. Spectral characteristics of plasma sheet ion and electron populations during disturbed geomagnetic conditions. J Geophys Res. (1991) 96:1–22. doi: 10.1029/90JA01633

CrossRef Full Text

98. Yoon PH, Ziebell LF, Gaelzer R, Lin RP, Wang L. Langmuir turbulence and suprathermal electrons. Space Sci Rev. (2012) 173:459–89. doi: 10.1007/s11214.012-9867-3

CrossRef Full Text

99. Treumann RA. Kinetic theoretical foundation of lorentzian statistical mechanics. Phys Scr. (1999) 59:19–26. doi: 10.1238/Physica.Regular.059a00019

CrossRef Full Text

100. Treumann RA. Generalized-Lorentzian thermodynamics. Phys Scr. (1999) 59:204–14. doi: 10.1238/Physica.Regular.059a00204

CrossRef Full Text

101. Treumann RA, Jaroschek CH. Gibbsian theory of power-law distributions. Phys Rev Lett. (2008) 100:155005. doi: 10.1103/PhyRevLett.100.155005

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

102. Zelenyi LM, Malova HV, Artemyev AV, Popov VY, Petrukovich AA. Thin current sheets in collisionless plasma: equilibrium structure, plasma instabilites, and particle acceleration. Plasma Phys Rep. (2011) 37:118–60. doi: 10.1134/S10637780X1102005X

CrossRef Full Text

103. Felten T, Schlickeiser R. Spontaneous electromagnetic fluctuations in unmagnetized plasmas. V. Relativistic form factors of weakly damped/amplified thermal modes. Phys Plasmas (2013) 20:082117. doi: 10.1063/1.4817805

CrossRef Full Text

104. Felten T, Schlickeiser R, Yoon PH, Lazar M. Spontaneous electromagnetic fluctuations in unmagnetized plasma. II. Relativistic form factors of aperiodic thermal modes. Phys Plasmas (2013) 20:052113. doi: 10.1063/1.4804402

CrossRef Full Text

105. Schlickeiser R, Yoon PH. Spontaneous electromagnetic fluctuation in unmagnetized plasma I: General theory and norelativistic limit. Phys Plasmas (2012) 19:022105. doi: 10.1063/1.3682985

CrossRef Full Text

106. Treumann RA, Baumjohann W. A note on the Weibel instability and thermal fluctuations. Ann Geophys. (2012) 30:427–31. doi: 10.5194/angeo-30-427-2012

CrossRef Full Text

107. Yoon PH. Spontaneous thermal magnetic field fluctuations. Phys Plasmas (2007) 14:064504. doi: 10.1063/1.2741388

CrossRef Full Text

108. Furth HP, Killeen J, Rosenbluth MN. Finite-resistivity instabilities of a sheet pinch. Phys Fluids (1963) 6:459–84. doi: 10.1063/1.1706761

CrossRef Full Text

109. Kleva RG. Thermal spectrum of collisionless tearing modes. Phys Fluids (1982) 25:707–11. doi: 10.1063/1.863796

CrossRef Full Text

110. Zelenyi LM, Artemyev A. Mechanisms of spontaneous reconnection: from magnetospheric to fusion plasma. Space Sci Rev. (2013) 178:441–457. doi: 10.1007/s11214-013-9959-8

CrossRef Full Text

111. Kuznetsova MM, Zelenyi LM. Magnetic reconnection in collisionless field reversals - The universality of the ion tearing mode. Geophys Res Lett. (1991) 18:1825–8. doi: 10.1029/91GL02245

CrossRef Full Text

112. Pellat R, Coroniti FV, Pritchett PL. Does ion tearing exist? Geophys Res. (1991) Lett. 18:143–6. doi: 10.1029/91GL00123

CrossRef Full Text

113. Schindler K. Physics of Space Plasma Activity. (Cambridge, UK: Cambridge University Press) (2006) pp. 522.

114. Zelenyi LM, Artemyev AV, Malova KV, Petrukovich AA, Nakamura R. Metastability of current sheets. Phys Usp. (2010) 53:933–41. doi: 10.3367/UFNe.0180.201009g.0973

CrossRef Full Text

115. Leonardis A, Chapman SC, Daughton W, Roytershteyn V, Karimabadi H. Identification of intermittent multifractal turbulence in fully kinetic simulations of magnetic reconnection. Phys Rev Lett. (2013) 110:205003. doi: 10.1103/PhysRevLett.110.205002

CrossRef Full Text

116. Liu Y-H, Daughton W, Karimabadi H, Li H, Roytershteyn V. Bifurcated structure of the electron diffusion region in magnetic reconnection. Phys Rev Lett. (2013) 110:265004. doi: 10.1103/PhysRevLett.110.265004

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

117. Roytershteyn V, Daughton W, Karimabadi H, Mozer FS. Influence of the lower-hybrid drift instability on magnetic reconnection in asymmetric configurations. Phys Rev Lett. (2012) 108:185001. doi: 10.1103/PhysRevLett.108.165001

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

118. Divin AV, Sitnov MI, Swisdak M, Drake JF. Reconnection onset in the magnetotail: particle simulations with open boundary conditions. Geophys Res Lett. (2007) 34:L09109. doi: 10.1029/2007GL029292

CrossRef Full Text

119. Divin A, Lapenta G, Markidis S, Semenov VS, Erkaev NV, Korovinskiy DB, et al. Scaling of the inner electron diffusion region in collisionless magnetic reconnection. J Geophys Res. (2012) 117:A06217. doi: 10.1029/2011JA017464

CrossRef Full Text

120. Sitnov MI, Sharma AS, Guzdar PN, Yoon PH. Reconnection onset in the tail of Earth's magnetosphere. J Geophys Res. (2002) 107:1256. doi: 10.1029/2001JA009148

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

121. Burkhart GR, Drake JF, Dusenbery PB, Speiser TW. Ion tearing in a magnetotail configuration with an embedded thin current sheet. J Geophys Res. (1992) 97:16749–56. doi: 10.1029/92JA01523

CrossRef Full Text

122. Zelenyi L, Artemiev A, Malova H, Popov V. Marginal stability of thin current sheets in the Earth's magnetotail. J Atmosph Solar-Terr Phys. (2008) 70:325–33. doi: 10.1016/j.jastp.2007.08.019

CrossRef Full Text

123. Wang C-P, Gkioulidou M, Lyons LR, Angelopoulos V. Spatial distributions of the ion to electron temperature ratio in the magnetosheath and plasma sheet. J Geophys Res. (2012) 117:A08215. doi: 10.1029/2012JA017658

CrossRef Full Text

124. Daughton W, Roytershteyn V. Emerging parameter space map of magnetic reconnection in collisional and kinetic regimes. Space Sci Rev. (2012) 7:271–82. doi: 10.1007/s11214-011-9766-z

CrossRef Full Text

125. Birn J, Galsgaard K, Hesse, M, Hoshino M, Huba J, Lapenta G, et al. Forced magnetic reconnection. Geophys Res Lett. (2005) 32:L06105. doi: 10.1029/2004GL022058

CrossRef Full Text

126. Zeiler A, Drake JF, Rogers BN. Magnetic reconnection in toroidal ηi mode turbulence. Phys Rev Lett. (2000) 84:99–102. doi: 10.1103/PhysRevLett.84.99

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

127. Zeiler A, Biskamp E, Drake JF, Rogers BN, Shay MA, Scholer M. Three-dimensional particle simulations of collisionless magnetic reconnection. J Geophys Res. (2002) 107:1230. doi: 10.1029/2001JA000287

CrossRef Full Text

128. Kagan D, Milosavljevic M, Spitkovsky A. A flux rope network and particle acceleration in three-dimensional relativistic magnetic reconnection. Astrophys J. (2013) 774:41. doi: 10.1088/0004-637X/774/1/41

CrossRef Full Text

129. Birn J, Drake JF, Shay MA, Rogers BN, Denton RE, Hesse M, et al. Geospace environment modeling (GEM) magnetic reconnection challenge. J Geophys Res. (2001) 106:3715–20. doi: 10.1029/1999JA900449

CrossRef Full Text

130. Daughton W, Karimabadi H. Collisionless magnetic reconnection in large-scale electron-positron plasmas. Phys Plasmas (2007) 14:072303. doi: 10.1063/1.2749494

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

131. Vaivads A, Khotyaintsev Y, Andr'e M, Retinó A, Buchert SC, Rogers BN, et al. Structure of the magnetic reconnection diffusion region from four-spacecraft observations. Phys Rev Lett. (2004) 93:105001. doi: 10.1103/Phys.Rev.Lett.93.105001

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

132. Birn J, Artemyev AV, Baker DN, Echim M, Hoshino M, Zelenyi LM. Particle acceleration in the magnetotail and aurora. Space Sci Rev. (2012) 173:49–102. doi: 10.1007/s11214-012-9874-4

CrossRef Full Text

133. Büchner J. Astrophysical reconnection and collisionless dissipation. Plasma Phys Control Fusion (2007) 49:B325–39. doi: 10.1088/s11214-013-0022-6

CrossRef Full Text

134. Califano F, Faganello M, Pegoraro F. Collisionless magnetic reconnection. Plasma Phys Control Fusion (2007) 49:B439–46. doi: 10.1088/0741-3335/49/12B/S41

CrossRef Full Text

135. Fujimoto M, Shinohara I, Kojima H. Reconnection and waves: a review with a perspective. Space Sci Rev. (2011) 160:123–43. doi: 10.1007/s11214-011-9807-7

CrossRef Full Text

136. Mozer FS, Pritchett PL. Electron physics of asymmetric magnetic field reconnection. Space Sci Rev. (2011) 158:119–43. doi: 10.1007/s11214-010-9681-8

CrossRef Full Text

137. Pritchett PL, Mozer FS. Asymmetric magnetic reconnection in the presence of a guide field. J Geophys Res. (2009) 114:A11210. doi: 10.1029/2009JA014343

CrossRef Full Text

138. Pritchett PL. Geospace environment modeling magnetic reconnection challenge: Simulations with a full particle electromagnetic code. J Geophys Res. (2001) 106:3783–98. doi: 10.1029/1999JA001006

CrossRef Full Text

139. Pritchett PL. Collisionless magnetic reconnection in a three-dimensional open system. J Geophys Res. (2001) 106:25961–78. doi: 10.1029/2001JA000016

CrossRef Full Text

140. Daughton W, Karimabadi H. Kinetic theory of collisionless tearing at the magnetopause. J Geophys Res. (2005) 110:A03217. doi: 10.1029/2004JA010751

CrossRef Full Text

141. Karimabadi H, Daughton W, Quest KB. Physics of saturation of collisionless tearing mode as a function of guide field. J Geophys Res. (2005) 110:3214. doi: 10.1029/2004JA010749

CrossRef Full Text

142. Asano Y, Mukai T, Hoshino M, Saito Y, Hayakawa H, Nagai T. Current sheet structure around the near-Earth neutral line observed by Geotail. J Geophys Res. (2003) 109:A02212. doi: 10.1029/2003JA010114

CrossRef Full Text

143. Asano Y, Mukai T, Hoshino M, Saito Y, Hayakawa H, Nagai T. Evolution of the thin current sheet in a substorm observed by Geotail. J Geophys Res. (2004) 108:1189. doi: 10.1029/2002JA009785

CrossRef Full Text

144. Karimabadi H, Daughton W, Quest KB. Antiparallel versus component merging at the magnetopause: current bifurcation and intermittent reconnection. J Geophys Res. (2005) 109:A03213. doi: 10.1029/2004JA010750

CrossRef Full Text

145. Ricci P, Brackbill JU, Daughton W, Lapenta G. New role of the lower-hybrid drift instability in the magnetic reconnection. Phys Plasmas (2005) 12:055901. doi: 10.1063/1.1885002

CrossRef Full Text

146. Zocco A, Chacón L, Simakov AN. Current sheet bifurcation and collapse in electron magnetohydrodynamics. Phys Plasmas (2009) 16:110703.

147. Jain N, Sharma AS, Zelenyi LM, Malova HV. Electron scale structures of thin current sheets in magnetic reconnection. Ann Geophys. (2012) 30:661–6. doi: 10.5194/angeo-30-661-2012

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

148. Pritchett PL. Collisionless magnetic reconnection in an asymmetric current sheet. J Geophys Res. (2008) 113:A06210. doi: 10.1029/2007JA012930

CrossRef Full Text

149. Phan TD, Dunlop M, Paschmann G, Klecker B, Bosqued J, Réme, H, et al. Cluster observations of continuous reconnection at the magnetopause under steady interplanetary magnetic field conditions. Ann Geophys. (2004) 22:2355–67. doi: 10.5194/angeo-22-2355-2004

CrossRef Full Text

150. Malakit, K, Shay, MA, Cassak PA, Ruffolo D. New electric field in asymmetric magnetic reconnection. Phys Rev Lett. (2013) 111:135001. doi: 10.1103/PhysRevLett.111.135001

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

151. Daughton W, Scudder J, Karimabadi H. Fully kinetic simulations of undriven magnetic reconnection with open boundary conditions. Phys Plasmas (2006) 13:072101. doi: 10.1063/1.2218817

CrossRef Full Text

152. Fujimoto K. Time evolution of the electron diffusion region and the reconnection rate in fully kinetic and large system. Phys Plasmas (2006) 13:072904. doi: 10.1063/1.2220534

CrossRef Full Text

153. Karimabadi H, Daughton W, Scudder J. Multi-scale structure of the electron diffusion region. Geophys Res Lett. (2007) 34:L13104. doi: 10.1029/2007GL030306

CrossRef Full Text

154. Shay MA, Drake JF, Swisdak M. Two-scale structure of the electron dissipation region during collisionless magnetic reconnection. Phys Rev Lett. (2007) 99:155002. doi: 10.1103/PhysRevLett.99.155002

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

155. Scudder JD, Holdaway RD, Daughton WS, Karimabadi H, Roytershteyn V, Russell CT, et al. First resolved observations of the demagnetized electron-diffusion region of an astrophysical magnetic-reconnection site. Phys Rev Lett. (2012) 108:225005. doi: 10.1103/PhysRevLett.108.225005

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

156. Zenitani S, Shinohara I, Nagai T. Evidence for the dissipation region in magnetotail reconnection. Geophys Res Lett. (2012) 39:L11102. doi: 10.1029/2012GL051938

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

157. Phan TD, Paschmann G, Twitty C, Mozer FS, Gosling JT, Eastwood JP, et al. Evidence for magnetic reconnection initiated in the magnetosheath. Geophys Res Lett. (2007) 34:L14104. doi: 10.1029/2007GL030343

CrossRef Full Text

158. Le A, Egedal J, Daughton W, Fox W, Katz N. Equation of state for collisionless guide-field reconnection. Phys Rev Lett. (2009) 102:085001. doi: 10.1103/PhysRevLett.102.085001

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

159. Le A, Egedal J, Ohia O, Daughton W, Karimabadi H, Lukin VS. Regimes of the electron diffusion region in magnetic reconnection. Phys Rev Lett. (2013) 110:135004. doi: 10.1103/PhysRevLett.110.135004

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

160. Ohia O, Egedal J, Lukin VS, Daughton W, Le A. Demonstration of anisotropic fluid closure capturing the kinetic structure of magnetic reconnection. Phys Rev Lett. (2012) 109:115004. doi: 10.1103/PhsRevLett.109.115004

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

161. Egedal J, Le A, Daughton W. A review of pressure anisotropy caused by electron trapping in collisionless plasma and its implications for magnetic reconnection. Phys Plasmas (2013) 20:061201. doi: 10.1063/1.4811092

CrossRef Full Text

162. Rogers BN, Denton RE, Drake JF, Shay MA. Role of dispersive waves in collisionless magnetic reconnection. Phys Rev Lett. (2001) 87:195004. doi: 10.1103/PhysRevLett.87.195004

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

163. Izutsu T, Hasegawa H, Nakamura TKM, Fujimoto M. Plasma transport induced by kinetic Alfvén turbulence. Phys Plasmas (2012) 19:102305. doi: 10.1063/1.4759167

CrossRef Full Text

164. Huba JD, Gladd NT, Papadopoulos K. The lower-hybrid-drift instability as a source of anomalous resistivity for magnetic field line reconnection. Geophys Res Lett. (1977) 4:125–8. doi: 10.1029/GL004i003p00125

CrossRef Full Text

165. Yoon PH, Lui ATY, Sitnov MI. Generalized lower-hybrid drift instabilities in current-sheet equilibrium. Phys Plasmas (2002) 9:1526–38. doi: 10.1063/1.1466822

CrossRef Full Text

166. Mozer FS, Wilber M, Drake JF. Wave associated anomalous drag during magnetic field reconnection. Phys Plasmas (2011) 18:102902. doi: 10.1063/1.3647508

CrossRef Full Text

167. Treumann RA, Nakamura R, Baumjohann W. Collisionless reconnection: mechanism of self-ignition in thin plane homogeneous current sheets. Ann Geophys. (2010) 28:1935–43.

168. Eastwood JP, Phan TD, Øieroset M, Shay MA, Malakit K, Swisdak M, et al. Influence of asymmetries and guide fields on the magnetic reconnection diffusion region in collisionless plasmas. Plasma Phys Control Fusion (2013) 55:124001. doi: 10.1088/0741-3335/55/12/124001

CrossRef Full Text

169. Che H, Drake JF, Swisdak M, Yoon PH. Electron holes and heating in the reconnection dissipation region. Geophys Res Lett. (2010) 37:L11105. doi: 10.1029/2010GL043608

CrossRef Full Text

170. Che H, Drake JF, Swisdak M. A current filamentation mechanism for breaking magnetic field lines during reconnection. Nature (2011) 474:184–7. doi: 10.1038/nature10091

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

171. Drake JF, Swisdak M, Cattell C, Shay MA, Rogers BN, Zeiler A. Formation of electron holes and particle energization during magnetic reconnection. Science (2003) 299:873–7. doi: 10.1126/science.1080333

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

172. Cattell C, Dombeck J, Wygant J, Drake JF, Swisdak M, Goldstein ML, et al. Cluster observations of electron holes in association with magnetotail reconnection and comparison to simulations. J Geophys Res. (2005) 110:A01211. doi: 10.1029/2004JA010519

CrossRef Full Text

173. Fox W, Porkolab M, Egedal J, Katz N, Le A. Observations of electron phase-space holes driven during magnetic reconnection in laboratory plasma. Phys Plasmas (2012) 19:032118–12. doi: 10.1063/1.3692224

CrossRef Full Text

174. Goldman MV, Newman DL, Pritchett PL. Vlasov simulations of electron holes driven by particle distributions from PIC reconnection simulations with a guide field. Geophys Res Lett. (2008) 35:L22109. doi: 10.1029/2008GL035608

CrossRef Full Text

175. Pritchett PL. Onset of magnetic reconnection in the presence of a normal magnetic field: realistic ion to electron mass ratio. J Geophys Res. (2010) 115:A10208. doi: 10.1029/2010JA015371

CrossRef Full Text

176. Galeev AA, Zelenyi LM. Effect of rare collisions on plasma diffusion in stochcastic magnetic fields. Sov Phys JETP Lett. (1979) 29:669–72.

177. Pritchett PL. Externally driven magnetic reconnection in the presence of a normal magnetic field. J Geophys Res. (2005) 110:A05209. doi: 10.1029/2004JA010948

CrossRef Full Text

178. Sitnov MI, Swisdak M, Divin AV. Dipolarization fronts as a signature of transient reconnection in the magnetotail. J Geophys Res. (2009) 114:A04202. doi: 10.1029/2008JA013980

CrossRef Full Text

179. Sitnov MI, Swisdak M. Onset of collisionless magnetic reconnection in two-dimensional current sheets and formation of dipolarization fronts. J Geophys Res. (2011) 116:A12216. doi: 10.1029/2011JA016920

CrossRef Full Text

180. Oka M, Phan T-D, Eastwood JP, Angelopoulos V, Murphy NA, Øieroset M, et al. Magnetic reconnection X-line retreat associated with dipolarization of the Earth's magnetosphere. Geophys Res Lett. (2011) 38:L20105. doi: 10.1029/2011GL049350

CrossRef Full Text

181. Runov A, Angelopoulos V, Sitnov M, Sergeev VA, Nakamura R, Nishimura Y, et al. Dipolarization in the magnetotail plasma sheet. Planet Space Sci. (2011) 59:517–25. doi: 10.1016/j.pss.2010.06.006

CrossRef Full Text

182. Runov A, Angelopoulos V, Zhou X-Z. Multipoint observations of dipolarization front formation by magnetotail reconnection. J Geophy Res. (2012) 117:A05230. doi: 10.1029/2011JA017361

CrossRef Full Text

183. Runov A, Angelopoulos V, Gabrielse C, Zhouo X-Z, Turner D, Plaschke F. Electron fluxes and pitch-angle distributions at dipolarization fronts: THEMIS multipoint observations. J Geophys Res. (2013) 118:744–55. doi: 10.1002/jgra.50121

CrossRef Full Text

184. Øieroset M, Phan TD, Eastwood JP, Fujimoto M, Daughton W, Shay MA, et al. Direct evidence for a three-dimensional magnetic flux rope flanked by two active magnetic reconnection x lines at earth's magnetopause. Phys Rev Lett. (2011) 107:165007. doi: 10.1103/PhysRevLett.107.165007

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

185. Miura A. Nonlinear evolution of the magnetohydrodynamic Kelvin-Helmholtz instability. Phys Rev Lett. (1982) 49:779–82. doi: 10.1103/PhysRevLett.49.779

CrossRef Full Text

186. Miura A, Pritchett PL. Nonlocal stability analysis of the MHD Kelvin-Helmholtz instability in a compressible plasma. J Geophys Res. (1982) 87:7431–44. doi: 10.1029/JA087iA09p07431

CrossRef Full Text

187. Boozer AH. Separation of magnetic field lines. Phys Plasmas (2012) 19:112901. doi: 10.1063/1.4765352

CrossRef Full Text

188. Karimabadi H, Lazarian A. Magnetic reconnection in the presence of externally driven and self-generated turbulence. Phys Plasmas (2013) 20:112102. doi: 10.1063/1.4828395

CrossRef Full Text

189. Retinò A, Sundkvist D, Vaivads A, Mozer F, André M, Owen CJ. In situ evidence of magnetic reconnection in turbulent plasma. Nat Phys. (2007) 3:236–8. doi: 10.1038/nphy574

CrossRef Full Text

190. Phan TD, Drake JF, Shay MA, Mozer FS, Eastwood JP. Evidence for an elongated (> 60 ion skin depths) electron diffusion region during fast magnetic reconnection. Phys Rev Lett. (2007) 99:255002. doi: 10.1103/PhysRevLett.99.255002

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

191. Paschmann G, Papamastorakis I, Sckopke N, Haerendel G, Sonnerup BUÖ, Bame SJ, et al. Plasma acceleration at the magnetopause - evidence for reconnection. Nature (1979) 282:243–6. doi: 10.1038/282243a0

CrossRef Full Text

192. Øieroset M, Lin RP, Phan TD, Larson DE, Bale SD. Phys Rev Lett. (2002) 89:195001. doi: 10.1103/PhysRevLett.89.195001

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

193. Newman DL, Goldman MV, Ergun RE, Mangeney A. Formation of double layers and electron holes in a current-driven space plasma. Phys Rev Lett. (2001) 87:255001. doi: 10.1103/PhysRev.Lett.87.255001

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

194. Drake JF, Swisdak M, Che H, Shay MA. Electron acceleration from contracting magnetic islands during reconnection. Nature (2006) 443:553–6. doi: 10.1038/nature05116

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

195. Oka M, Phan T-D, Krucker S, Fujimoto M, Shinohara I. Electron acceleration by multi-island coalescence. Astrophys J. (2010) 714:915–926. doi: 10.1088/0004-637X/714/1/915

CrossRef Full Text

196. Tanaka KG, Fujimoto M, Badman SV, Shinohara I. Dynamic magnetic island coalescence and associated electron acceleration. Phys Plasmas (2011) 18:022903. doi: 10.1063/1.3554660

CrossRef Full Text

197. Jaroschek CH, Hoshino M, Lesch H, Treumann RA. Stochastic particle acceleration by the forced interaction of relativistic current sheets. Adv Space Res. (2008) 41:481–90. doi: 10.1016/j.asr.2007.07.001

CrossRef Full Text

198. Jaroschek CH, Hoshino M. Radiation-dominated relativistic current sheets. Phys Rev Lett. (2009) 103:075002. doi: 10.1103/PhasRevLett.103.075002

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

199. Cerutti B, Werner GR, Uzdensky DA, Begelman MC. Simulations of particle acceleration beyond the classical synchrotron burnoff limit in magnetic reconnection: an explanation of the crab flares. Astrophys J. (2013) 770:147. doi: 10.1088/0004-637X/770/2/147

CrossRef Full Text

200. Cerutti B, Werner GR, Uzdensky DA, Begelman MC. Three-dimensional relativistic pair plasma reconnection with radiative feedback in the Crab Nebula. Astrophys J. (in press).

201. Bulanov SV, Sasorov PV. Energy spectrum of particles accelerated in the neighborhood of a line of zero magnetic field. Sov Astron. (1976) 19:464–468.

202. Burkhart GR, Drake JF, Chen J. Magnetic reconnection in collisionless plasmas - Prescribed fields. J Geophys Res. (1990) 95:18833–48. doi: 10.1029/JA095iA11p18833

CrossRef Full Text

203. Zelenyi LM, Lipatov AS, Lominadze DG, Taktakishvili AL. The dynamics of the energetic proton bursts in the course of the magnetic field topology reconstruction in the earth's magnetotail. Planet Space Sci. (1984) 32:313–24. doi: 10.1016/0032-0633(84)90167-3

CrossRef Full Text

204. Drake JF, Swisdak M, Fermo R. The Power-law Spectra of Energetic Particles during Multi-island Magnetic Reconnection. Astrophys J Lett. (2013) 763:L5. doi: 10.1088/2041-8205/763/1/L5

CrossRef Full Text

205. Bykov AM, Treumann RA. Fundamentals of collisionless shocks for astrophysical application, 2. Relativistic shocks. Astron Astrophys Rev. (2011) 19:42. doi: 10.1007/s00159-011-0042-8

CrossRef Full Text

206. Sironi L, Spitkovsky A. Acceleration of particles at the termination shock of a relativistic striped wind. Astrophys J. (2011) 741:39. doi: 10.1088/0004-637X/741/1/39

CrossRef Full Text

207. Phan TD, Love TE, Gosling JT, Paschmann G, Eastwood JP, Øieroset M, et al. Triggering of magnetic reconnection in a magnetosheath current sheet due to compression against the magnetopause. Geophys Res Lett. (2011) 38:17101. doi: 10.1029/2011GL048586

CrossRef Full Text

208. Hesse M, Schindler K, Birn J, Kuznetsova M. The diffusion region in collisionless magnetic reconnection. Phys Plasmas (1999) 6:1781–95. doi: 10.1063/1.873436

CrossRef Full Text

209. Nakamura TKM, Daughton W, Karimabadi H, Eriksson S. Three-dimensional dynamics of vortex-induced reconnection and comparison with THEMIS observations. J Geophys Res. (2013) 118:5742–57. doi: 10.1029/jgra.50547

CrossRef Full Text

210. Artemyev A, Zelenyi LM. Kinetic structure of current sheets in the Earth magnetotail. Space Sci Rev. (2012) 173:1–22. doi: 10.1007/s11214-012-9954-5

CrossRef Full Text

Keywords: magnetic merging, reconnection, flux tubes, current sheets, plasma turbulence, flares, substorms, space weather

Citation: Treumann RA and Baumjohann W (2013) Collisionless magnetic reconnection in space plasmas. Front. Physics 1:31. doi: 10.3389/fphy.2013.00031

Received: 12 November 2013; Paper pending published: 23 November 2013;
Accepted: 05 December 2013; Published online: 31 December 2013.

Edited by:

Vladislav Izmodenov, Space Research Institute (IKI) Russian Academy of Sciences, Russia

Reviewed by:

Anton Artemyev, Space Research Institute (IKI), Russia
Homa Karimabadi, University of California at San Diego, USA

Copyright © 2013 Treumann and Baumjohann. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) or licensor are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

*Correspondence: Rudolf A. Treumann, International Space Science Institute Bern, Hallerstrasse 6, CH-3012 Bern, Switzerland e-mail: treumann@issibern.ch
