Si/SiO2 Core/Shell Luminescent Silicon Nanocrystals and Porous Silicon Powders With High Quantum Yield, Long Lifetime, and Good Stability

Introduction

Luminescent Si nanocrystals (SiNCs) are intensively studied for their potential applications in diverse fields, such as optoelectronics, sensing, and medicine [1–20]. Some particularly important characteristics of such SiNCs include absolute quantum yield (AQY), stability, luminescence lifetime, surface chemistry, and synthesis route.

Anodization of Si wafers in hydrofluoric acid, leads to porous silicon (PSi) layers [21], which can then be milled to produce a powder of micrometer-sized flakes of nanostructures. Some degree of control of the micro-sized particles was achieved [22]. The photoluminescence (PL) of PSi is generally very broad, with full width at half maximum (FWHM) of 120–200 nm [12, 23], often explained by size distribution with quantum confinement as well as defect state emission [24]. The luminescence efficiency of PSi is generally rather low, and this was explained mainly by the existence of a small fraction of actually luminescent nano-crystallites [25]. AQY of 23% was reported with PSi layers treated by high-pressure water vapor annealing (HWA) [26, 27] and with PSi powders modified by solution-based chemical oxidation [28]. Recently, ~32% was reported [14], for most likely hydrogen-terminated PSi dried using a supercritical process. Hydrogen-terminated PSi is generally unstable due to the high reactivity of H-Si bonds. Growing good quality oxide helps with surface stabilization. In particular, HWA was proven very good at stabilizing PSi PL [26, 27], electroluminescence [29], photonic structures [30], and 2D Si photonic cavities [31]. Another very popular method is the substitution of hydrogen by organic groups. In particular, hydrosilylation was shown to be an effective way of stabilizing PSi optoelectronic materials and devices [32–34].

Another popular SiNCs fabrication route is plasma synthesis [15, 35, 36]. This route allows for better size control than PSi, and narrow emission lines were reported [37, 38]. The AQY generally decreases with the SiNC size [4, 9, 37]. AQYs much greater than those obtained with PSi were reported recently. Focusing on ensemble AQYs above ~40%, SiNCs mostly consisted of Si cores whose surface was terminated by various kinds of organic compounds, alkyl groups attached by hydrosilylation being the most typical [2, 9, 10, 17, 19, 20]. The confinement somewhat depends on the type of organic group attached to the surface [20]. Due to the long organic chains, these organically-capped SiNCs usually take a paste (slurry-like) form, not ideal for electro- and opto-devices [39]. Moreover, they can easily agglomerate by phase separation when incorporated in a different matrix. Thus, for some applications, Si/SiO₂ core/shell SiNCs are preferred. For these nanoparticles, the highest reported AQY is ~23%, obtained using PSi [26, 28].

The lifetime of the red emission of SiNCs typically ranges from microseconds to hundreds of microseconds, increasing with the emission wavelength [12, 23, 40, 41]. Such long lifetimes may be limiting in some applications, like those requiring high switching speeds, but they are actually an advantage for other applications such as gated imaging [5, 8].

As previously mentioned, HWA was used with PSi layers, leading to a quantum efficiency of 23% [26, 27] and very good PL and EL stability. These good performances were attributed to the very good quality and stable oxide layer (low defect concentration; low stress) passivating the PSi surface. In this paper, the effect of HWA on the optical properties of (i) SiNC powders prepared using non-thermal plasma synthesis, and (ii) PSi powders prepared by anodization followed by milling, were investigated. TEM, PL, AQYs, stability, and PL dynamics were investigated. The best results were obtained with the SiNCs, with very high AQYs, matching the highest values reported to date for organically terminated SiNCs, and very good stability. Furthermore, the lifetimes at given emission wavelengths were the longest ever observed.

Experimental

SiNC synthesis method and apparatus, as well as detailed reaction mechanisms, are provided elsewhere [36]. Briefly, a capacitively-coupled nonthermal plasma was generated by 70 MHz power source in a quartz tube reactor. SiCl₄ and H₂ mixture was used for precursor gas, while Ar was used as a balance so that the total pressure is maintained at 400 Pa. Excited H₂ abstracts chlorine from the chlorinated species (SiCl_n) which initiates nucleation of particles followed by their growth in the gas phase. The mean particle size is controllable by the reaction time. As-produced SiNCs have a chlorine-terminated surface which readily induces silicon suboxide surface upon exposing to air [35]. As-produced SiNCs were dry-etched by HF vapor to get fully hydrogen-terminated surfaces [42]. The final SiNCs exhibited a mean size of about 6 nm.

PSi layers of porosity 68% were formed by anodization in HF (55 wt. %):ethanol = 1:1 of silicon (100)-oriented wafers (5–10 Ω.cm) at 50 mA/cm². Anodization was performed for 21 min to produce 50 μm-thick layers. Immediately after formation, the PSi layers were separated from the substrate by applying a short high-current pulse. The PSi membranes thus obtained were dried and coarsely manually milled to produce the final powder.

In order to get a luminescent reference as-formed PSi layer for stability experiments, a 0.5 μm-thick PSi layer of porosity 80% was fabricated in HF (55 wt. %):ethanol = 1:2.67 at 10 mA/cm² for 100 s.

HWA was carried out using a 30.5 ml stainless steel main chamber. First, an about 1 mm thick carpet of dry SiNC powder (~50 mg) was placed in a separate holder, which was then put into the main chamber. Water (0.54 ml) was then added in another part of the main chamber, not in contact with the SiNC powder. The main chamber was closed, heated to 260°C in order to set a water vapor pressure of 3.9 MPa in the chamber, and after 4 h it was allowed to cool down, and finally opened. The water was found to have condensed almost entirely at the surface of the lid (upper part) of the main chamber. Thus, the SiNC powder was only exposed to water vapor and was left in a dry state. It was extracted mechanically from the holder. The water did not show any color change to the naked eye and was disposed of. Notice that the system is scalable, and therefore it is possible to process larger amounts if needed. HWA-treated PSi and SiNCs will be referred to as HWA-PSi and HWA-SiNCs, respectively.

PL spectra were measured using a spectrometer (QEPro from Ocean Optics) with a spectral range of 200–1,000 nm and resolution of about 1 nm. Excitation was a light-emitting diode (LED) emitting at 385 nm (LLS-385 from Ocean Optics). Time-resolved PL measurements were acquired using a Horiba spectrofluorometer Fluoromax-4. PL stability was evaluated in the following way: powders were illuminated continuously for several hours by a laser diode emitting at 405 nm (85229-E0405-3CM; Edmund Optics; 1 mW on sample; spot diameter: 3 mm), while the PL intensity and laser power were measured every 10 min. The final result was the PL intensity divided by laser power. It turned out that the laser diode was quite stable.

AQY of powders were measured using the QEPro spectrometer and the LLS-385 LED, with an integrating sphere (Labsphere). The method is conventional and was also used by others. For instance, Jurbergs et al. [2] used a LED-380 with a USB2000 spectrometer and Joo et al. [14] used a LLS-365 with a QEPro spectrometer. In our case, the spectrometer's spectral response was calibrated with calibration lamp (Ocean Optics HL-2000-CAL-INT) in the 350–1,100 nm spectral range. We selected LLS-385, rather than LLS-365 (which we also own), as our excitation source because its emission spectrum fully overlaps the HL-2000-CAL-INT calibration range. As a base line, the intensity of the LED was measured with the integrating sphere containing an empty quartz cuvette (dimensions: 2 × 10 × 50 mm). Then the dried powder was introduced into the same cuvette, which was installed again in the integrating sphere in exactly the same position and orientation as for the base line measurement. Then a spectrum, consisting in the PL signal, and the LED signal was acquired. The absorption signal was derived from the decrease of the base line LED signal. Then the spectra were converted from power emission to photon number emission. The AQY, defined as the number of visible photons emitted per absorbed UV photon, was derived by taking the ratio between the integrated PL and absorption signals.

Results and Discussion

The structures of the SiNCs and PSi powders were observed by transmission electron microscopy (TEM) using a JEOL JEM-2010 microscope, performed at an acceleration voltage of 120 kV. The TEM specimens were prepared by dropping the samples dispersed in isopropyl alcohol onto a microgrid. The lattice fringes with a spacing of 0.31 nm observed in nanoparticles correspond to the (111) planes of Si. The TEM image shown in Figure 1a reveals that the SiNCs are crystalline and mostly spherical. The average diameters of the SiNCs in Figures 1a,b are 5.5 and 4.7 nm, respectively. The as-formed sizes observed here are in agreement with earlier more detailed studies of similar powders, which established a mean size of 6 nm [36]. Figures 1c,d shows PSi after HWA. In Figure 1c, crystalline structures can be observed throughout the picture, suggesting the crystalline nature of the PSi structure was maintained by HWA. The diameter of the PSi particles indicated by the arrows in Figure 1d is approximately 2.7 nm, showing the sizes are much smaller in PSi than in our SiNCs. After HWA, the TEM image in Figure 1b shows the growth of an about 1 nm-thick amorphous oxide layer at the SiNCs surface, in agreement with a TEM study of HWA-treated silicon nanowires [43].

FIGURE 1

Figure 1. TEM pictures of SiNCs before (a) and after HWA (b). TEM pictures of PSi after HWA (c,d). The arrows show the location of two nanocrystals.

The PL spectra of the SiNC ensembles are shown in Figure 2. A large blue-shift was induced by HWA, as expected from the core size reduction by oxidation and quantum confinement effect. Table 1 shows the PL characteristics of these spectra. Using the obtained peak energy, an attempt was made at roughly estimating the SiNC mean size in each case using selected literature data [20, 44]. For HWA-SiNCs, the mean sizes are in rather good agreement with the values expected from TEM data and the previous size study of the as-formed SiNCs (see data in Table 1). The as-prepared SiNCs PL is rather broad, reflecting a consequent size distribution. After HWA, the PL became even broader, which can be attributed to an enlarged core size distribution, likely resulting from none-uniform oxide growth at the Si surface.

FIGURE 2

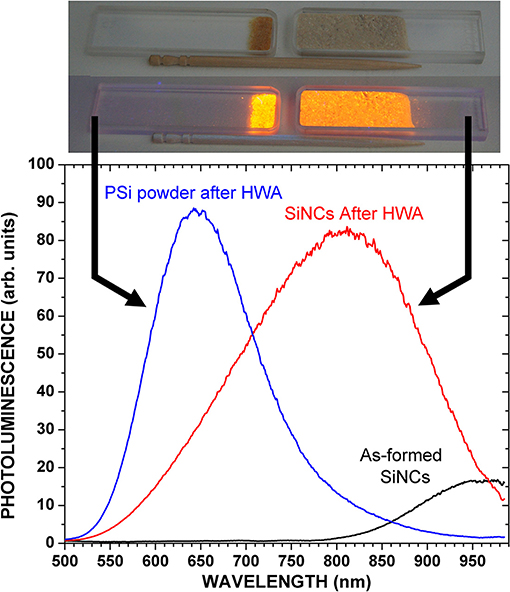

Figure 2. PL of SiNCs powder before and after HWA, and of PSi powder after HWA. Excitation was 385 nm. Pictures of the powders under a 365 nm lamp (SLUV-8 from As One) are shown when the lamp was off and on.

TABLE 1

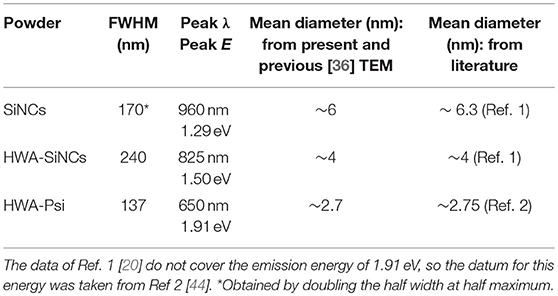

Table 1. PL peak wavelength and energy and FWHM of indicated powders, from spectra shown in Figure 2, and estimated mean size according to measurements and literature.

The PL of as-prepared PSi was extremely weak and, therefore, we do not show its characteristics in Table 1. The PL peak wavelength of HWA-PSi, about 650 nm, is typical of bright PSi layers. The PL peak is at a higher energy compared to that of the PL of HWA-SiNCs, suggesting that the mean size is much smaller in our PSi samples than in our SiNC powders. TEM data in Figure 1 confirm this statement. The peak intensity was similar to that of HWA-SiNCs, but The FWHM was much smaller. The value, 137 nm, falls within the lower end of the typical values found for PSi layers [12, 14, 23, 40].

A picture of the HWA-PSi (left) and HWA-SiNC (right) powders in their cuvettes, placed under a handy UV lamp (SLUV-8 from As One; wavelength: 365 nm) is shown in Figure 2, when the excitation is on or off.

AQYs of HWA-PSi and HWA-SiNC powders were measured several times in order to get some statistical significance of measurements. Each time, the powder was unloaded from the cuvette and then reloaded, in order to average the parts of the powder exposed to the excitation. Measurements were also done on different days, re-calibrating the experiment each time. The PL intensity was linear with the excitation power, up to the maximum power incident on samples: 2 mW for a spot diameter of 7 mm (5.2 mW/cm²). Therefore, there was no dependence of the AQY on the excitation power, in our experimental conditions. Table 2 shows the results. Because the signal-to-noise ratio of the measured spectra was very good, the spread of measurement values given in Table 2 gives the most significant uncertainty. The AQY of HWA-PSi and HWA-SiNC powders, were found in ranges 28–30.7% and 53–61.6%, respectively.

TABLE 2

Table 2. AQYs of fabricated powders.

The lower AQY of HWA-PSi compared to HWA-SiNCs may be attributed to more significant exciton migration to regions having non-radiative defects because PSi is an interconnected network of nanocrystallites [12, 23, 40, 45]. However, considering the rather high extent of oxidation induced by HWA, the interconnection may not be that effective. A few reports have shown that the AQY decreases with SiNC size [4, 9, 37]. Then, the lower AQY of HWA-PSi may be because of its shorter peak emission wavelength. The ratio of the AQY of HWA-SiNCs by that of HWA-PSi is ~56/29 ~1.9. From the report of Mastronardi et al. [4], at 650 nm, the AQY was roughly 25% and for the maximum wavelength reported, 750 nm, it was 43%. This gives a ratio of 43/25 ~1.7, which is similar to our ratio of 1.9, suggesting the lower efficiency of HWA-PSi compared to HWA-SiNCs could be due to this size effect.

For HWA-PSi, our values are close to the ~32% recently reported by Joo et al. [14] who used supercritical drying to improve the AQY compared to when using air drying. Their PL peak wavelength was 685 nm, a bit higher than ours (650 nm), which may also explain their slightly higher AQY considering the emission wavelength dependence of the efficiency discussed above. Our results show that similarly high AQY (30% range) may be obtained without the sophisticated supercritical drying technique. Moreover, the HWA-grown oxide is rather relaxed and stable [26, 27], resulting in reasonably good PL stability as well.

Considering AQYs of HWA-SiNCs, our values match the highest reported ones, in the 50–60% range [2, 7, 9, 10, 17, 19]. Most highly efficient SiNCs were obtained using organic surface passivation [2, 9, 10, 17, 19]. However, our HWA-SiNCs distinguish themselves from these studies in the fact that they are oxide-passivated.

Figure 3 shows the PL intensity as a function of time under continuous excitation in air. The as-formed luminescent PSi layer shows that hydrogen-terminated SiNCs are not stable, and shows a spectacular drop in the initial stage of the experiment. Typically, such silicon surfaces easily get oxidized in air. In contrast, HWA-treated samples are much more stable in air. The oxide is not only providing good passivation but is also stable right after HWA, with no strong evolution of its structure. This is in agreement with previous results of PSi PL [26, 27] and EL [29] of PSi layers treated by HWA.

FIGURE 3

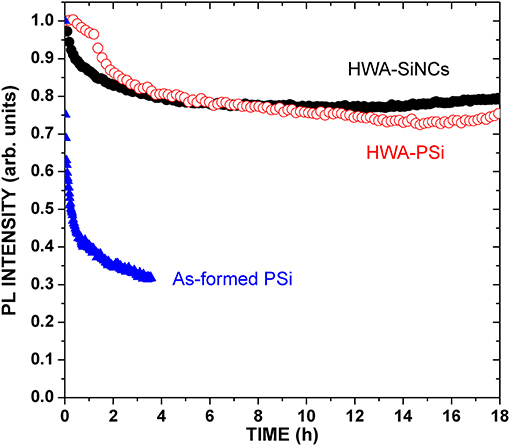

Figure 3. PL peak intensity of HWA-treated SiNCs and PSi powders, as well as of an as-formed 80%-porosity PSi layer, as a function of time under continuous excitation at 405 nm (1 mW on sample; spot diameter: 3 mm).

Figure 4 shows the PL decays across the PL spectrum for HWA-SiNCs excited at 365 nm. They are multi-exponential, which is typical for SiNCs. The departure from a single exponential behavior is typically explained by the inhomogeneous nature of the PL spectrum, invoking crystallite shape distributions or exciton migration [12, 23, 40], or energy transfer between nanocrystals [46]. Exciton migration is not likely to have a large effect for our HWA-SiNC powders since the surface oxide should prevent it. The decays could be fitted with a stretched exponential exp[-(t/τ)^β] [40, 45]. However, parameter β was found to vary significantly, from ~0.76 at 825 nm to ~0.4 at 550 nm, altering the practical meaning of τ. Thus, a more practical estimation of the decay time was used: the time taken for the PL to fall by a factor of e. [40, 47] Obtained values are shown in Figure 4. At the PL peak wavelength, 825 nm, this method gives 283 μs, whereas the stretched exponential gives τ = 232 μs with β = 0.75 (fit shown in Figure 4). The two values are not too far apart as β is not too low in this case. τ increases with the wavelength, which is a typical behavior in SiNC ensembles, and was attributed to size-dependent quantum confinement effects [40], though size-dependent surface defects may also play a role [4].

FIGURE 4

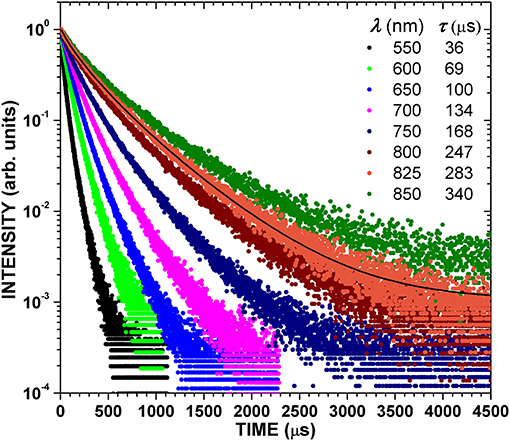

Figure 4. Time-resolved PL of HWA-treated SiNCs at indicated wavelengths. Indicated lifetimes correspond to the time taken for the PL to fall by a factor of e. The black solid curve is a fit with a stretched exponential.

The PL lifetime in SiNCs, τ, has been estimated as (${\tau }_r^{-1}$ + τ_nr⁻¹)⁻¹, where τ_r and τ_nr are the radiative and non-radiative lifetimes, respectively, [12, 23, 40]. Thus, τ is expected to increase with the AQY since τ_nr decreases. Thus, we can compare our lifetimes, in particular that at 825 nm, with those reported for SiNCs exhibiting high AQYs. For example, Sanghaleh et al. [10] reported τ ~90 μs at 860 nm, for an AQY of 60 ± 5%. Mastronardi et al. [4] reported τ ~60 μs at 700 nm, for an AQY of 43%. A lifetime of ~125 μs at ~825 nm was reported for alkyl-terminated SiNCs with AQY of ~65% [19]. A lifetime of ~155 μs at ~860 nm was reported also for alkyl-terminated SiNCs with maximum AQY of ~39% [48]. Furthermore, τ ~65 μs at 800 nm, for PSi having an AQY of 32% (peak wavelength 685 nm) [14]. A particular study of PL lifetimes in SiNCs [41] reported τ ~131 μs at 815 nm for dodecyl-capped SiNCs. The better the surface passivation is, the lower τ_nr, the higher τ, and the higher the AQY are. Thus, our very long PL decays are consistent with our very high measured AQYs, which can be attributed to very good surface passivation provided by the oxide generated by HWA.

The high AQY and good stability are consistent with those we had obtained previously using HWA with PSi layers [26, 27]. In these reports dedicated to PSi layers treated by HWA, we have shown that HWA produces a relaxed, and thus stable, oxide. In addition, electron spin resonance showed very low defect concentration at the core/shell interface [26].

Conclusion

AQYs in ranges 53–61 and 28–30% were measured for SiNCs and PSi powders treated by HWA, respectively. These values are in the higher range of currently reported AQYs [2, 7, 9, 10, 14, 17, 19]. However, our SiNCs are the only ones passivated with oxide to show such high AQYs to date, most others being terminated by some kind of organic groups [2, 9, 10, 17, 19]. At the PL peak emission wavelength (825 nm), the lifetime of HWA-SiNCs was 232 μs using a stretched exponential, or 283 μs using a decay by 1/e, the highest values ever reported at this wavelength. They were also very stable under continuous optical excitation. These oxide-passivated SiNCs may find some applications in gated imaging [5, 8], optoelectronic devices [3, 15, 49, 50], and systems using light emission of nano-particles.

Data Availability

All datasets generated for this study are included in the manuscript and/or the supplementary files.

Author Contributions

BG intitiated the study with TN, did all the optical measurements, managed the discussion and wrote the article. FBJ setup the nanocrystals synthesis system and supplied the nanocrystals. TN heads the laboratory where the Si nanocrystals were fabricated. He participated in various discussions. KA did all the TEM experiments and related disussions. NK participated in various discussions about the oxidizing treatment (HWA). LJ participated in various discussions, supported experiments, and treatments of the silicon nanocrystals.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

This work was partially supported by grant-in-aid for Scientific Research C (16K04898) and B (18H01378) from JSPS, Japan. The authors thank Y. Saito for help with TEM, and H. Kishida for his assistance in time-resolved PL experiments, in Nagoya University. FBJ acknowledges the Indonesia Endowment Fund for Education (LPDP) for their support of this study.
