The Concept of Cooperative Dynamics in Simulations of Soft Matter
- 1Department of Molecular Physics, Łódź University of Technology, Łódź, Poland
- 2Department of Chemistry, University of Warsaw, Warsaw, Poland
In this review we compiled recent advances concerning the cooperative motion in crowded soft matter systems. We tried to answer the question how to perform dynamic Monte Carlo simulations of dense macromolecular systems effectively. This problem is not simple due to the fact that the movement in such systems is strictly correlated which leads to cooperative phenomena. The influence of crowding was found interesting especially for two-dimensional cases, e.g., in membranes where the presence of macromolecules, proteins and cytoskeleton often changed the mean-square displacement as a function of the lag time and anomalous diffusion appeared. Simple models are frequently used to shed a light on molecular transport in biological systems. The emphasis was given to the Dynamic Lattice Liquid model. The latter model became a basis for a parallel algorithm that takes into account coincidences of elementary molecular motion attempts resulting in local cooperative structural transformations. The emphasis is put on influence of the model of molecular transport on the diffusion. The comparison to alternative approaches like single agent model was carried out.
Molecular transport in crowded environments plays a key role in a variety of areas [1–4] while dynamic behavior in such systems is not fully recognized and even its origin is debatable [5–10]. Major experimental techniques used for studies of transport in disordered systems are mainly fluorescence correlation spectroscopy  and single particle tracking [12, 13]. The main parameter describing the diffusive behavior is the mean square displacement of objects, defined as
where ri(t) are the coordinates of the ith object while n stands for the number of mobile objects. The diffusion is considered normal when
In the case α < 1 a subdiffusive motion is present [5, 9]. Real experiments showed exponent α between 0.2 and 0.9 [5, 14] while computer simulations for matrices of obstacles revealed that at the percolation threshold the exponent α approached the value 0.697 [10, 14–19] An anomalous diffusion was found in several models but we are interested in the case of obstructive motion where it is caused by the presence of other objects [5, 15, 16]. When the concentration of obstacles was below the percolation point an anomalous diffusion appeared transient while above the threshold it remains anomalous all the time [5, 17, 18]. Simple obstructive model was extended by changing and differentiating size of obstructing objects, their distribution [14, 19–21], mobility [22–24] or interactions [23–27]. Most of the simulations of such systems were performed by means of molecular dynamics employing coarse-grained and atomistic representation [14, 17, 19, 20, 22–25, 28–32] as well as dynamic Monte Carlo [33, 34], discontinuous molecular dynamics , and model based on the Lorentz gas [35, 36]. The high densities and large time scales caused significant computational problems. Most of Monte Carlo simulation algorithms are not able to work at these conditions. The only algorithms that can deal with this problem have to include a cooperative motion where the motion of molecules is correlated with the movement of its neighbors.
This work reviews the problem of dynamics in a soft matter model employing the Dynamic lattice liquid (DLL) [37, 38] where the correlations in motion between mobile objects were introduced into the system. The most striking effects of dynamics in disordered systems modeled as systems with obstacles were compared to the results of a very popular SAM where correlations in motion and hydrodynamic effects were totally ignored .
Cooperative Motion in Soft Matter
Crowded environments have a very complex structure spanning many scales of size and are characterized by very complex dynamics that lead to relaxation processes spanning many time scales. Due to the high density of their physical state (solution, mixture, glass or crystal), the transport of particles is confined and connected with the motion of particles in the vicinity. Despite this rather complicated picture, it is usually possible to distinguish individual time scales [39–41]. The shortest timescale τv corresponds to the time the molecules vibrate around a position, which is the result of being temporarily trapped by other molecules. It is obvious that translational movements of molecules from their momentary position require a more extended time scale τα, which is related to the participation of molecules in cooperative processes. Thus, paths of particles in a crowded environment can be considered as a combination of two types of motion: oscillations around a momentary position resulting from entrapment by other molecules and not very frequent changes of momentary position (translation). Thus, the flow of the fluid on the macroscopic level corresponds to the time scale τα, for which the alignment of the particles is no longer stable because each of the molecules in this time scale can participate in the movement. The above image of the movement of particles in a liquid is generally accepted and well documented by molecular dynamics simulation for dense systems of discs in which Lennard-Jones potential interactions were used [42, 43] but it is not obvious what exact conditions are required for a single diffusion step. The known theories of the fluid transport phenomena do not also closely examine this problem. The Brownian motion theories [44, 45] treat the trajectories of particles as random walks, and thus the time scale in which the movements of particles are observed is much longer than the time scale corresponding to the elementary diffusion step. The “mode coupling” theory  considers several time scales, but so far there is no precise picture of the memory function that would allow considering the motion of molecules at the microscopic level. In contrast, phenomenological models such as the free-volume model  or the Adam-Gibbs model  lack a microscopic picture of dynamics.
Cooperativity is considered to be one of the main factors responsible for the relaxation mechanism in molecular fluids. It has remained a poorly defined phenomenon for a long time. It was especially difficult to associate cooperativity with a well-defined microscopic image. The solution to this problem is proposed by the DLL model [17, 19, 48].
The Most Important Results Featuring Dynamic Lattice Liquid
The DLL model is a simple model of fluid dynamics  which takes into account the cooperative movement of molecules based on the lattice structure. The position of the molecule in this model corresponds to a lattice node. We assume that objects occupy all places in the lattice, but the system has some additional volume, which allows the objects to oscillate around the position determined by the lattice site. We also assume that the oscillations have a frequency ofνv=1/τv, which correspond to a short time scale, i.e., the vibrations of particles around the average location are associated with the place of temporary entrapment by neighboring molecules. Each shift of a molecule from an average position defined by a lattice node to another lattice node (new average position) corresponds to a translation and hence to a time scale τα; most attempts of this translational movement fail. It results from the assumption that the system remains quasi-continuous all the time, i.e., that:
(1) in the system, no free spaces can be created, the sizes of which would be comparable to the sizes of the molecules under consideration,
(2) the excluded volume condition is fulfilled, i.e., a lattice node cannot be occupied by more than one molecule at the same time.
As a consequence of the assumptions presented above, most attempts of a move are unsuccessful and after a time τν the molecule returns to its original position. The attempts that coincide with other attempts of motion of two or more adjacent molecules in combination with the formation of a closed loop in which the total shift of the elements is approximately 0 will be successful. In order to determine the probability of such an event one has to calculate the probability of the formation of a closed loop (for a given type of lattice) with self-avoidance, i.e., a loop that does not intersect with itself. Intensive research on this problem has led to a generally accepted result that the probability of the formation of such a loop can be described by the expression :
where n is the length of the loop, B is a constant depending on the lattice type, μ is the effective coordination number of the lattice (also called the connective constant) and the exponent h is a positive quantity which weakly depends on the lattice type, i.e., its coordination number and the dimension of space [17, 51]. If one knows the probability, then one can determine the mean position relaxation time corresponding to the time needed for the molecule to change its position as:
The DLL algorithm is ergodic and the proof of micro-reversibility can be easily obtained using the properties of the permutation group . It should be emphasized that all the above considerations were carried out with the assumption that the lattice is isotropic and the effective coordination number takes the maximum value for a given lattice and that the system is densely packed. In this case, the exclusion of the molecule from motion is due to the continuity condition, but all attempts to move should be considered as potentially possible. The situation presented above corresponds to the so-called an athermal case, i.e., when the system does not take into account other interactions apart from the interactions related to the existence of the excluded volume. The introduction of interactions and temperature will lead to limitations of movement, and thus to a change in the effective value of the coordination number, which determines the mobility of the elements. Molecular Dynamics simulations revealed similar to assumed in the DLL model vibrations and collective jumps of group of atoms in densely packed disordered systems like glasses and undercooled liquids . This situation is illustrated in Figure 1, where schemes of molecular dynamics and DLL model are shown together with trajectories obtained in simulations.
FIGURE 1. The scheme of molecular dynamics simulations of hard disks (left), trajectories of simulated hard disks (middle), and a scheme of cooperative loops in the dynamic lattice liquid model (right): green–a cooperative motion is possible, yellow, red and pink–no cooperative loop of motion.
The DLL model became a starting point for the development of other models based on the concept of cooperative dynamics. After introducing constraints (stiff bonds) into this model the structure and dynamics of macromolecular systems were studied [51–55]. Two models of soft-material membrane were developed directly from the DLL model which appeared to be appropriate for studies of subdiffusive behavior [56, 57].
As mentioned earlier, the main feature of crowded environments is the fact that the movement of an object is closely correlated with the movement of neighboring objects. The strong correlation in the motion between objects leads to a significantly greater impact of obstacles (or other types of restrictions) on the motion of individual elements as a result of the transfer of hydrodynamic forces. It results in dramatic changes in the objects trajectories, and thus in the dynamics in the system. Hence, it is of interest to compare two extremely different situations that correspond to a strong correlation in movement (the DLL model) and a single agent model (SAM) case where there are no such correlations at all. The diffusion coefficient D is defined by the Einstein relation and for system in two dimensions it can be calculated from the following formula .
The assumption that the dependence of
The α2 parameter measures the deviation of the distribution of object’s displacements from the Gaussian distribution. Therefore, it can be treated as a measure of the dynamic heterogeneity of a given system and α2 remains near zero in the case of a normal diffusion and its value increases when dealing with a non-Fickian diffusion. Inset to Figure 2A shows the variation of α2 with time for both models in the vicinity of the percolation threshold. The presence of a distinct peak on the DLL curve confirms stronger heterogeneity of motion, i.e., caging effects in the DLL model . It was already confirmed that this heterogeneity was correlated with structural heterogenicity . One can distinguish three regimes on Δr2 curves: normal, subdiffusive and normal again. As the first one is also well defined we were able to calculate a diffusion coefficient and called it a short-time diffusion coefficient. The diffusion coefficient was determined according to Eq 5 for short time and long time and presented in Figures 2B as a function of the obstacles concentration. Short time diffusion coefficients decrease exponentially with the obstacle concentration while those determined long time decrease considerably stronger. For both models a rapid decrease of long time diffusion coefficient is visible near the percolation threshold. A universal scaling formula relates the long time diffusion coefficient in the vicinity of the percolation threshold cp: D ∼ ɛμ where ɛ=|c–cp|/cp and µ is a critical exponent. In the case of SAM µ = 1.31 as predicted by the theory  but in the case of the DLL model µ = 4.34  what in turn leads to different values of the exponents:α ≈ 0.37 and 0.37 for SAM and DLL models respectively. Changes of the dynamic of the system when approaching the percolation threshold resembles the glass transition although both of these are completely different phenomena. Moreover, we can actually observe a breakdown of the Stokes-Einstein relation. According to the Stokes-Einstein relation the product

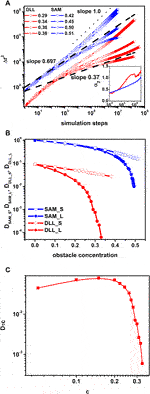

FIGURE 2. The comparison of dynamic lattice liquid and single agent model models near the percolation point. <∆r2> vs. time for concentrations of obstacles indicated in top left corner (the inset shows the non-Gaussian parameter vs. time near the percolation threshold) (A); short-time (S) and long-time (L) diffusion coefficient D as functions of the obstacles concentration (B); the product Dτc as a function of the obstacles concentration (C).
The example of DLL showed that the introduction of a cooperative model of transport led to the dramatic changes in the motion of objects in disordered systems. The deviations from a normal diffusion are definitely more pronounced in the DLL model cooperative motion assumed here generates additional caging effect. The percolation threshold and critical exponents were found to be dependent on the model of transport. Although the DLL model had been designed and initially developed for studies of liquids it found application in soft matter systems like membranes, porous materials, polymers and gels [51–55, 59–62]. The mechanism of molecular transport introduced in DLL was also found to be applicable in soft matter reproducing the dynamic behavior in many systems including biological materials. The case of macromolecular systems containing long chains is much more difficult for studies under the DLL model because relaxation of such systems via cooperative loops is very long but it possible to study the entire process of polymerization [37, 38]. It has also be noted that it is possible to introduce the temperature into this model via free-volume or directly in potentials of interaction.
