Reconfigurable THz Metamaterial Filter Based on Binary Response for Information Processing System

Introduction

Materials with special characteristics like negative permittivity together with negative permeability cannot be found in nature. Thus, engineers or researchers sought to develop artificial materials of different structures exhibiting negative permittivity and negative permeability at a time within a certain frequency spectrum. Such artificial materials are known as metamaterials [1, 2]. One exotic phenomenon of metamaterial is that they can greatly impact the propagation of electromagnetic waves with a superior ability to control the electromagnetic waves as their subwavelength periodic meta-atom unit cell can be designed and optimized for desired applications. In previous works, light-matter interactions in microstructures were optimized to produce non-typical electromagnetic responses. With this in mind, negative electrical permittivity and negative magnetic permeability are included and examined to minimize the gap between basic micro-science and micro-devices [3] alongside the dynamic functionalities of the micro-devices. Metamaterials that can be actively controlled are utilized for numerous applications like controlling the propagation of the electromagnetic wave, analogue computing, [4, 5] etc. Recent studies focus more on the orbital angular momentum (OAM) of planar metamaterial and metasurfaces [6, 7]. For instance, in an optical transmission system, the OAM of light can be used for multiplexing and to increase the power of the system.

The developmental increase of coded, programmable, and digital metamaterial concepts represent the beginning of a new age in the field of information technology [8–10]. Metamaterials incorporated in digital applications have different exotic characteristics such as beam manipulation [11], broadband diffusion [12], controlling of electromagnetic waves [13], vibration controlling [14], etc. In 2014, Giovampaola and Engheta [15] presented a digital metamaterial concept by constructing metamaterial bytes using spatial mixtures of digital metamaterial bits. The digital metamaterial bits were particles of the materials which indicate explicit material properties of the positive permittivity layer of Silicon (Si) and negative permittivity layer of Silver (Ag). In the following year, a coding metamaterial was developed by Cui et al. [8] for the manipulation of the reflection, scattering, and diffusion of waves in the microwave spectrum. They presented two types of unit cells with 0 and π phases which they named as 0 and 1. They then extended the work from 1-bit coding to 2-bit coding metamaterial. Additionally, Shen et al. [16] presented an integrated Si-based digital metamaterial exhibiting unidirectional energy flow. They also utilized integrated digital metamaterial to develop an optical diode. Furthermore, Shen et al. [17] developed a coding metasurface for beamforming applications based on transmission whereby the transmitted field patterns depended upon the metamaterial bits of the particular meta-atom structure. Meanwhile, Gao et al. [12] presented a coded Minkowski closed-loop structured unit cell to produce several bits on different geometrical scales to control terahertz (THz) radiation.

Moreover, many studies reported numerous micro-electro-mechanical-system (MEMS) based metamaterial and metasurface structures for numerous applications [18–22]. Ma et al. [18] developed polarization-sensitive MEMS-based tunable metamaterials for the terahertz spectrum. The proposed metamaterial structures used curved cantilevers of electric split-ring resonators based on deformable MEMS. In 2014, Han et al. [19] developed a MEMS-based reconfigurable filter and modulator. Low loss and high transparent substrate Quartz was used as a substrate. At 480 GHz, the system manifested a high contrast switching efficiency of 16.5 dB. Meanwhile, Bilgin et al. [20] developed a MEMS-based THz detector which was characterized to extract its mechanical performance in 2015. The detector had a pixel size of 200 × 200 μm, working between 1 and 5 THz bands. Arbabi et al. [21] in 2018, developed a MEMS-based tunable dielectric metasurface lens. The lens was made of MEMS and has an optical power shift of more than 4% per 1 μm movement of the metasurface. In 2020, Huang et al. [22] developed an actively tunable THz filter based on MEMS metamaterial. Due to the advantage in optical applications, electromagnetically induced transparency (EIT) analogues in classical oscillator systems were also discussed. As a functional filter, the metamaterial regulated EIT activity to regulate waves around 1.832 THz.

This study introduces a new reconfigurable metamaterial microstructure that works as a digital filter and is capable of performing bit sequencing conversion in the THz frequency spectrum. The micro-unit cell structure exhibited two transmission resonances and one special passband resonance. A special tunneled arrangement is also presented and numerically explained by digital binary output. Moreover, the basic unit cell is defined as the digital metamaterial by addressing the dielectric substrate as “0” and the metallic resonator as “1.” Appropriate tunnel sequencing which was designed and explained can manipulate the electromagnetic waves and convert propagating waves to binary output through a digital metamaterial filter.

Structure of Micro Metamaterial Device

Figure 1A illustrates the geometry of the metamaterial structure. Its unit cells are composed of corrugated metal strips labeled C to V (C-V) in alphabetical order and periodically arrayed in the x- and y-directions. The C and V strips create horizontal and vertical mirror images, respectively. Figures 1A–C present the proposed and modified C-V structures. Whereby, Figures 1B,C represent the reconfigurable designs of the C-V structure. which are based on Figure 1A [10]. Figure 1B displays one arm of V strips that was freed, while Figure 1C depicts two arms that were freed from the dielectric interface. On the other hand, lossy metal aluminium utilized in this study possesses an electric conductivity of 3.56 × 10,007 S/m, thermal conductivity of 237 W/k/m and Young's modulus of 69 GPa. The success of aluminium nano-particles in the field of nanoscience and nanotechnology is therefore attributed to their desirable properties. They are non-magnetic, light and non-sparking. Also, since they are high in the scale of malleability, they are commonly used in many industrial applications requiring a solid, lightweight and easily constructible material.

FIGURE 1

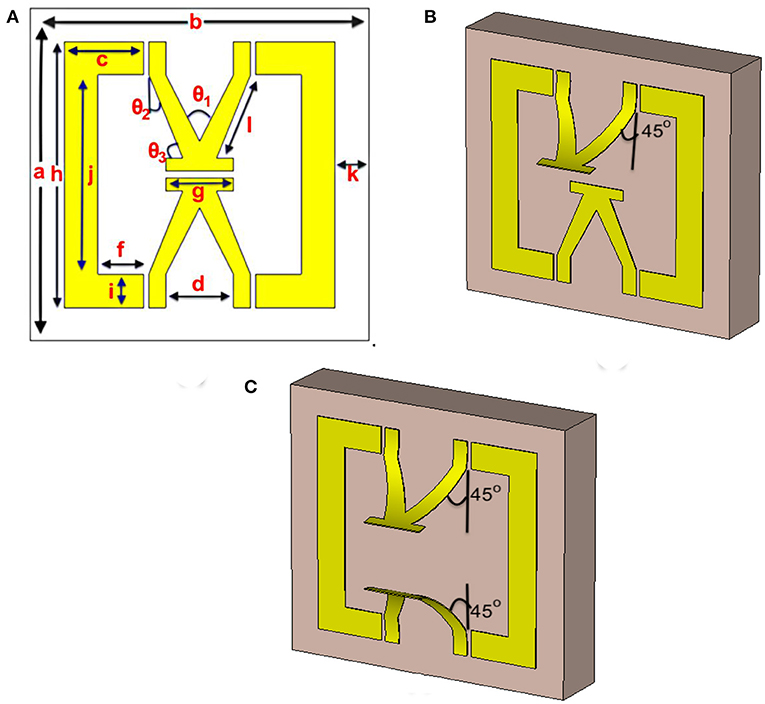

Figure 1. Proposed metamaterial (A) C-V unit cell, (B) V one arm bend, and (C) V two-arm bend structures.

Figure 1 and Table 1 depict the geometrical parameters of the unit cell. The symbols “a” and “b” denote the substrate length and width, respectively. Meanwhile, symbol “e” represents the gap distance between strips C and V, “h” indicates the length of part C, “c” is the width of the two legs in part C, “d” is the gap between the legs of part V, “I” is the metal width of leg C, “j” is the vertical length of strip C, “g” and “l” are the base width and slope of strip V alongside “k” which is the distance between the metal arm and substrate edge. The angles between the two legs of strip V on the bottom inner side, the outer side of the head of strip V, and the bottom outer side of strip V were θ₁ = 45°, θ₂ = 30°, and θ₃ = 60°, respectively. Moreover, the arms of strip V are bent at a 45° angle from the dielectric-metal interface as depicted in Figures 1B,C.

TABLE 1

Table 1. Geometric parameters of the proposed metamaterial microstructure.

Recently, the use of filters in processing optical information has gained the interest of many researchers. Analogous data sets can be encoded for optical communication based on their amplitude, phase, intensity, wavelength, or polarization [23, 24]. Based on these properties, a three-unit cell was designed to create an array to serve as an individual unit cell. The array plates were also used to arrange a parallel sequence to achieve binary information of the proposed micro reconfigurable metamaterial device. Furthermore, the proposed device consisted of four different array structures including one arrangement exhibiting tunneling of normal dielectric-metal combination, two providing one- and two-arm bend tunnel combinations and the other exhibiting combined reconfigurable tunnel structure. Figure 2 indicates the subsequent combinations of the tunnel structure, in which the micro-structured metamaterial tunneled structure was divided into three parts corresponding to the processes of splitting, enhancing, and encoding. According to Figure 5, these parts respond to the propagation of electromagnetic waves. The proposed micro metamaterial structure and its operating reconfigurable unit cell are exhibited in Figure 2.

FIGURE 2

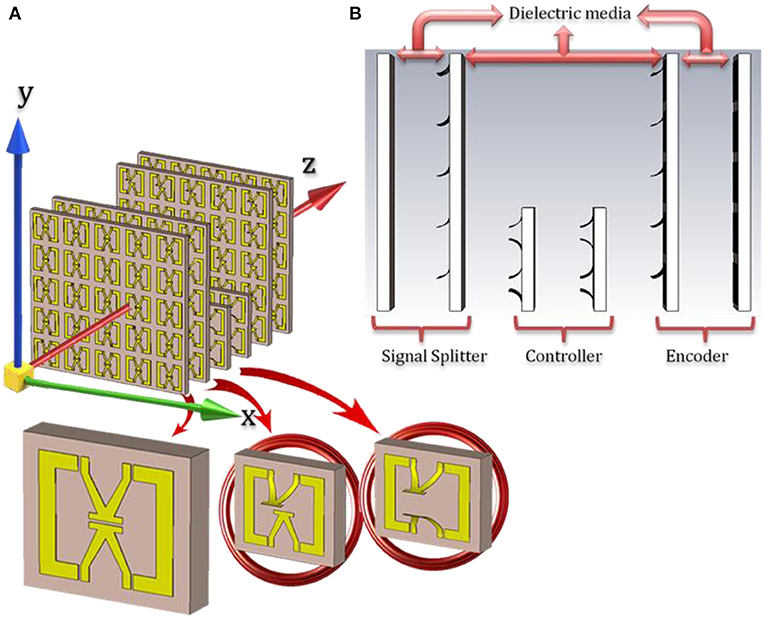

Figure 2. Proposed reconfigurable tunnel metamaterial device with (A) perspective view with indicated unit cell, and (B) side view.

The designed C-V metamaterial structure can be modified into a bent structure. After designing three modified reconfigurable structures in one tunnel metamaterial arrangement, the tunnel structure manifested a special response at its passband double negative frequency region. The tunnel structure arrangement is illustrated in Figure 3. The first two array structures are of the 5 × 5 array structure indicated by the signal splitter. This part converted the input signal into 11 electron clouds for a 5 × 5 array structure. Following the conversion into 11 clouds, the signal passed through a controller part indicated by the two tunnel arrangements. Here the signal experienced a strong evanescent field effect and was significantly modified. Then, the modified controlled signal finally passed through the encoder part to create binary responses according to field intensity. The procedure is presented in Figure 3.

FIGURE 3

Figure 3. Combined tunnel structure with its e-field response.

Before designing, the reconfigurable array combination three-unit cells (eSRR) are designed. Figure 4 exhibits the three-unit cell-based meta-tunnel structure device. All the structures contained a 5 × 5 array unit cell in the signal splitter and encoder region. However, the tunnel area used a 2 × 5 array pattern. The stacked tunnel metamaterial device has six metamaterial array plates, whereby the distance between each plate was 10 μm.

FIGURE 4

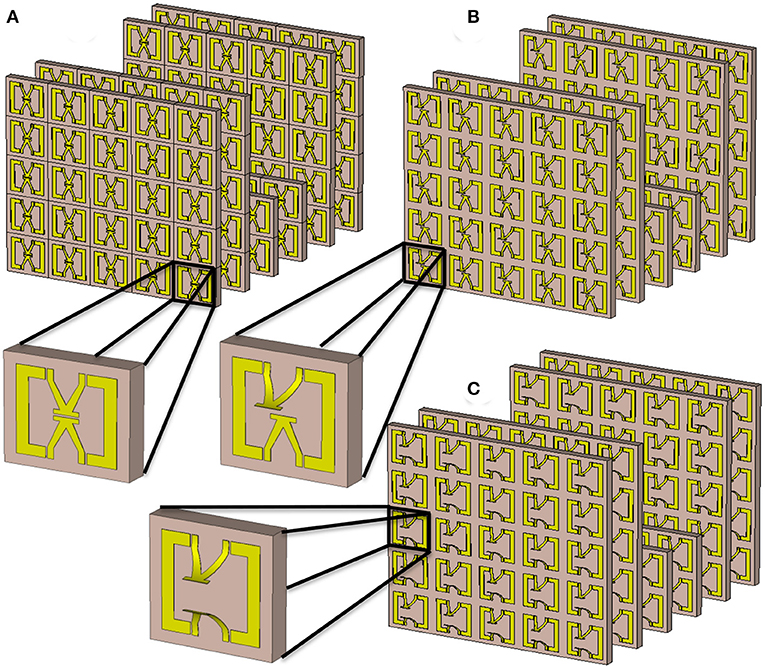

Figure 4. Three different tunnel structures. (A) Normal C-V eSRR tunnel structure (B) V one arm bend, and (C) V two-arm bend of eSRR tunnel structure with unit cells.

Results and Discussion

Figures 4A–C depict the proposed eSRR design and the two other tunnel structures. Figure 5A describes the scattering parameters of the normal C-V structure. The first structure exhibited transmission resonances of 25.70 and 26.71 THz, with a passband frequency of 25.70 THz. The C-V structure with one V arm bend demonstrated transmission resonances of 25.50 and 26.85 THz (Figure 5B), whereas the structure with a tunnel and two V arm bends exhibited transmission resonances of 25.22, 25.98, and 28.75 THz (Figure 5C). At the same time, the two reconfigurable structures, namely one arm and two-arm bend structures, exhibited passband resonances of 25.90 and 25.22 THz, respectively. Furthermore, the tunnel structure scattering parameters were better compared to the solid unit cell and array. Meanwhile, the reconfigurable combined tunnel structure exhibited a passband resonance of 29.36 THz.

FIGURE 5

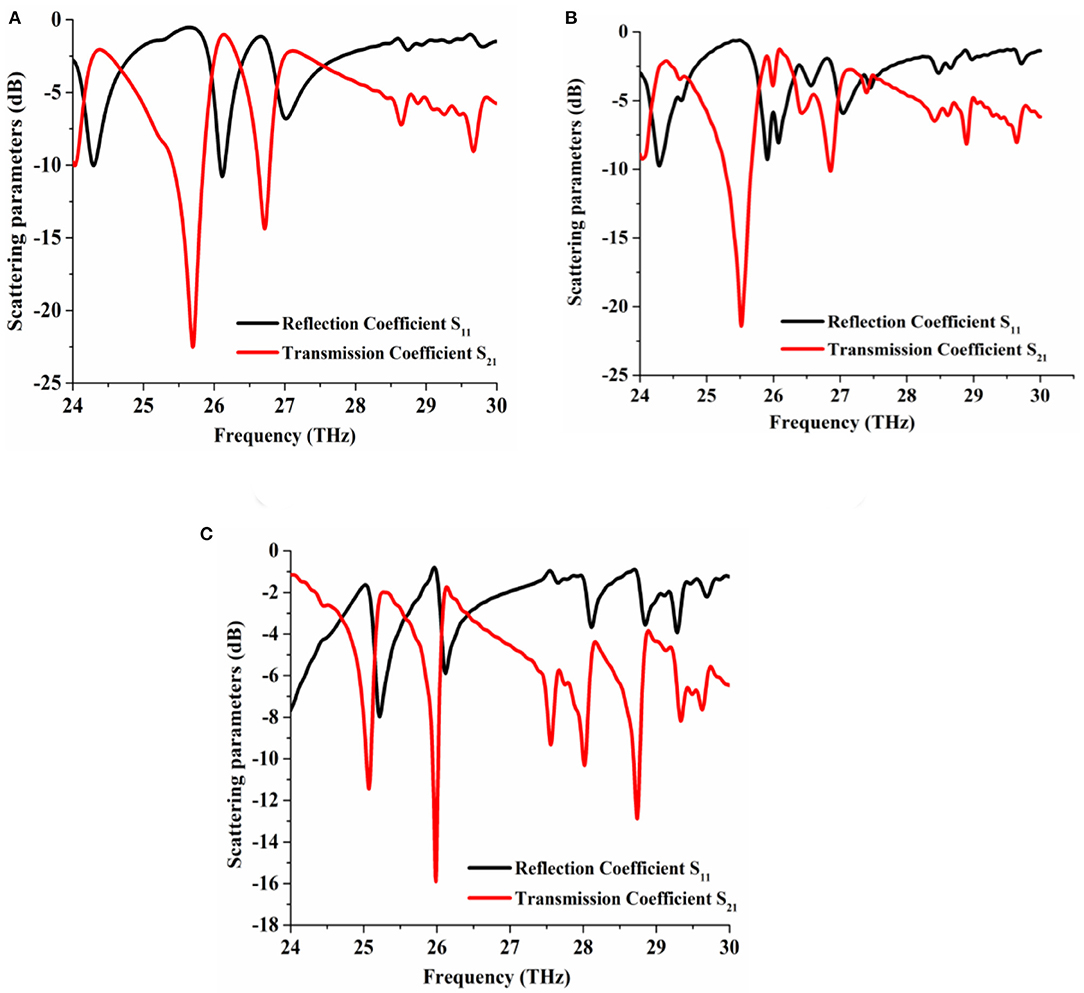

Figure 5. The scattering parameters of (A) C-V, (B) one arm V-bend, and (C) two-arm V-bend proposed structure.

Electrons have a special quality in conveying information from the sender to the receiver. Based on this special behavior, the electric field in a metal-dielectric interface is explored to develop devices like phase shifter, converter, plasmonic power divider, lenses, etc. The evanescent field in the stacked metamaterial tunnel array structure can create different electron cloud patterns that are unavailable in a normal stacked metamaterial array pattern. These metamaterial tunnel array devices could be explained using binary responses. The designed eSRR tunnel structure created a binary response below its λ/2 limits, while creating a strong evanescent field response in the passband field. The characteristics of the introduced tunnel structures were examined using the transverse electromagnetic (TEM) wave propagation, which interacts partly with the first layer of the metamaterial array and then spreads into eleven clouds of electron regulated by the micro-structured tunnels. The controlled electron clouds were then encoded by the encoding portion whereby the generated signal was delivered to the receiving portion. Next, the modulated electromagnetic electron clouds were transmitted by waveguide port 1 as waveguide port 2 received them. However, based on this condition, the designed four tunnel structures were identified to be in their passband resonances.

In the array pattern, the electric field clouds for the C-V tunnel field contour, V one arm bend, and V two-arm bend in the tunnel field contour are presented in Figure 6. The propagation wave traveled in a z-direction for all the cases. The tunnel can create a strong evanescent field in a higher frequency region. Therefore, the tunnel array device faces a strong evanescent field contour in the tunnel area. The linear wave experienced a dielectric-metal path in the tunnel area creating a strong evanescent field environment to help obtain different binary responses. In the case of V one arm and two-arm array structures, the wave contours were affected by the dielectric metal interface where its attenuation constant alpha was changed. The wave which experienced a dielectric metal combination with a bend pattern also created a strong evanescent field.

FIGURE 6

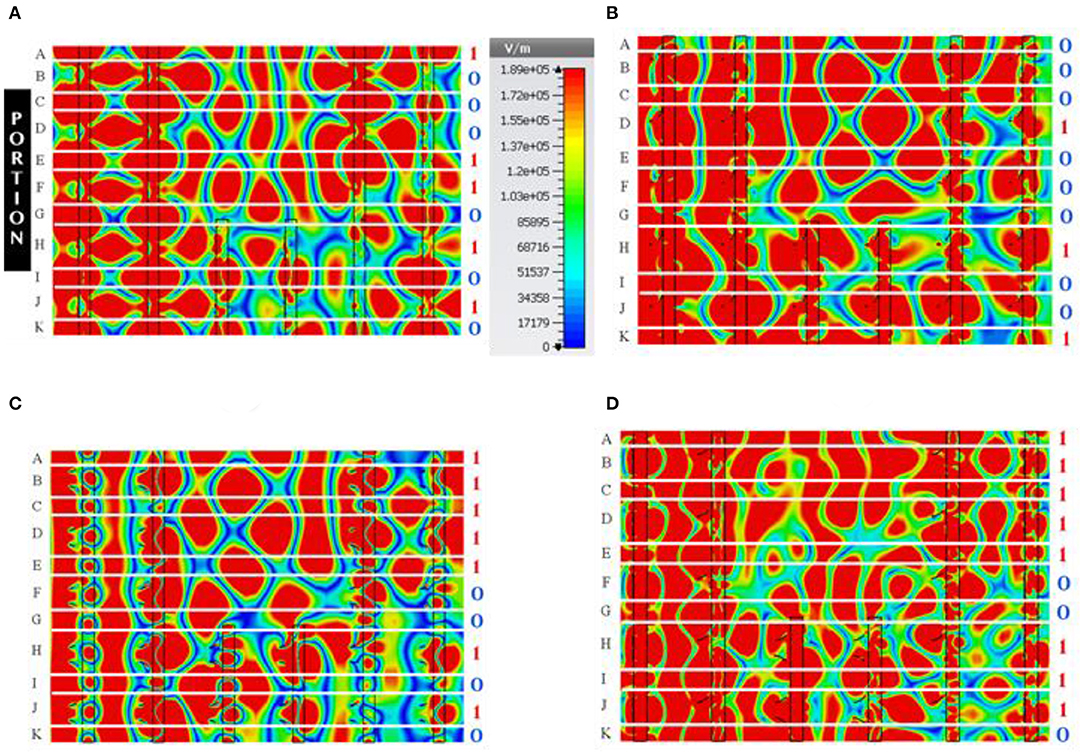

Figure 6. Electric field distributions of the (A) C-V tunnel structure, (B) One arm V-bend tunnel, (C) Two arm V-bend tunnel, and (D) Reconfigurable combined C-V tunnel structure.

On the other hand, the micro-structured tunnel controlled the strength of the induced electric field. The amplitude of the propagating TEM wave varied when the structural configuration was modified and the electric field intensity was adjusted. When the propagation wave (PW) enters the structure of the first array and gathers information from the last metamaterial slab, the electron clouds formed in the tunnel structure through TEM wave propagation were utilized to convert the electrical signal to information signal as binary output (0 or 1). Therefore, based on the metallic and dielectric parts of the metamaterial tunneled structure, the whole structure can be divided into 11 sections. Firstly, the propagating electromagnetic wave occurred during the first metamaterial collection whereby the modulated electron contour was broken into parts. These contours are referred to as a cloud and were transformed when the tunnel was inserted (Figure 6) which can be explained digitally. Normally, the movement of free electrons can be used for signal encoding in the forms of current or voltage at the dielectric-metal interface.

The information encoded in this study was digitized based on voltage. Binary output “1” referred to the high voltage red area, whereas the low intensity of the remaining colors was classified as binary “0.” Portion A of the passband frequency (25.70 THz) in Figure 6A indicated that the electron cloud was digitally high, contributing to a high conversion point. Meanwhile, the converted clouds in portions E, F, H, and J were also digitally high and were represented by “1.” However, the digitally low electron clouds in portions B, C, D, G, I, and K were classified as “0.” Nevertheless, the tunnel structure response for one V arm bend (Figure 6B) was digitally high at portions D, H, and K, while digitally low at portions A, B, C, E, F, G, I, and J with 22.89 THz. High response at portions A, B, C, D, E, H, and J were evident for the two-arm bend V tunnel structure, with low responses at portions F, G I, and J at 22.34 THz (Figure 6C). Finally, the combined normal and reconfigurable tunnel structure indicated digital responses at 29.34 THz at which the passband was created. This device exhibited digitally high responses at portions A, B, C, D, E, H, I, and J, whereas digitally low responses were recorded at portions F, G, and K (Figure 6D).

The digital responses obtained from various portions of the four-tunnel structure are indicated in Figure 7. Electric clouds are dominated by the structure of the tunnel, whereby, all the tunnel arrangements responded differently according to the passband resonances. The e-field responses from Figure 6A are summarized in Figure 7 and indicated by only the C-V tunnel; likewise, three more structures are indicated by its digital responses in Figure 7.

FIGURE 7

Figure 7. Binary response of the indicated four-tunnel structure.

A schematic diagram of the information processing system using the micro-structured metamaterial device is illustrated in Figure 8. Active or passive metamaterial representing the meta-atom structure generated the meta-atom in a digital form. Next, the micro-structured tunnel configuration was utilized as a filter to encode the binary output from the propagation of waves. Moreover, artificial intelligence (AI) software or algorithm can be used for micro-device applications based on binary outputs.

FIGURE 8

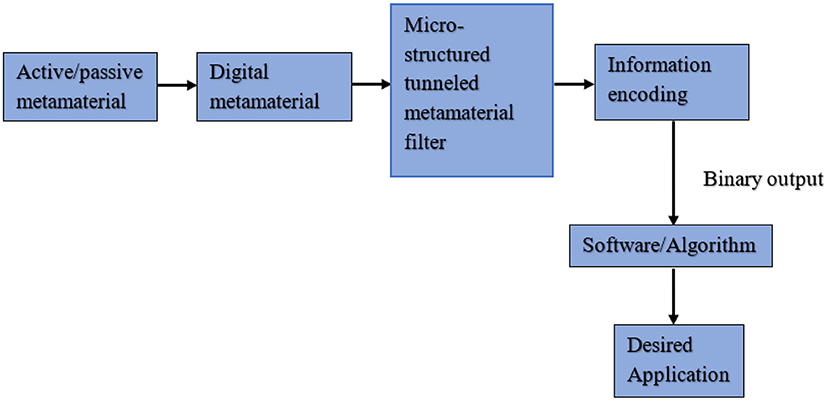

Figure 8. A schematic diagram of the use of digital metamaterial filter for an information processing system.

Conclusion

To sum up, a new reconfigurable metamaterial micro-structure was designed and numerically explained based on its binary output to create a digital information filter. The configurations can be completely controlled by the metamaterial tunnel structure arrangement. The electric field was also primarily determined by the configuration of the tunneled micro-structure, whereby the modulated wave signal was encoded to binary output using the proposed meta-device. The entire encoding function was numerically clarified for resonance frequency that corresponded to the reconfigurable tunnel micro-structured metamaterial of one optical passband. A possible schematic diagram of the information processing system was also drawn for the application purpose. In conclusion, the arrangement of the micro-structured tunnel and the flexibility of controlling the moving arms were compatible with an advanced information processing system.
