Abstract
Entanglement, that is, quantum correlations that do not have a classical counterpart, is a precondition to establishing communication protocols beyond the existing classical protocols, such as quantum key distribution, that achieves a higher level of security without computational assumptions. In this work, we present a proof of demonstration of detecting various entangled states, prepared by time-bin encoding with photons that are natural resources for long-distance quantum communication. We generate a maximally entangled state in time-bin qubits and verify the state in two ways. We first consider measurements that realize entanglement witnesses for the verification of entanglement. We then perform a quantum state tomography for the full characterization. Experimental resources are also discussed.
1 Introduction
Entanglement signifies quantum correlations existing in multipartite quantum states that cannot be prepared by local quantum operations and classical communication only [1]. It has been identified as a key resource that enables quantum information processing to outperform its counterpart [2]. In particular, entanglement is a precondition for quantum cryptographic protocols [3, 4], that is, the quantum key distribution, that establishes secure communication between two legitimate parties with a higher level of security without relying on computational assumptions [5, 6].
On the one hand, entangled states can be completely verified by quantum state tomography (QST) [7]. Two parties prepare tomographically complete or informationally complete measurements, that is, a set of measurements that can uniquely identify a single state for the given measurement statistics. Instances of tomographically complete states correspond to mutually unbiased bases [8], such as observables X, Y, and Z for qubits, and also symmetric and informationally complete (SIC) states [9]. Once a state is fully characterized, known theoretical methods of detecting entangled states can be applied. For instance, the partial transpose criteria on two-qubit states can find whether a given state is entangled or separable [10, 11].
On the other hand, there are observables that can distinguish entangled states from separable states, known as entanglement witnesses (EWs) [12–14]. An EW presents non-negative expectation values for all separable states whereas negative values for some entangled states. Conversely, positive expectation values of EW do not guarantee that the given states are separable, as some entangled states have positive expectation values. Therefore, a negative expectation value of an EW obtained from an experiment can unambiguously conclude an entangled state. It is worth mentioning that measurements for EWs can be tomographically incomplete [15]. Namely, an EW can find a set of entangled states in a cost-effective manner with a smaller number of measurement operators.
For instance, Bell inequalities such as the Clauser–Horne–Shimony–Holt (CHSH) inequality for a two-input and two-outcome scenario [16, 17] can be derived as EWs. A violation of Bell inequalities finds a set of entangled states with a measurement that is tomographically incomplete: yet, a measurement suffices to detect entangled states. EWs also contain advantages over quantum state tomography in the verification of entanglement for multipartite and high-dimensional quantum systems: while experimental costs for quantum tomography increase exponentially, a few measurements suffice to detect genuine multipartite entangled states.
Extensive experimental efforts have been made to realize and exploit entangled states for practical quantum information applications. For instance, quantum teleportation has been realized with photonic qubits [18], quantum sensing, quantum computing, and quantum communication [19]. Various degrees of freedom of photonic systems have been exploited to prepare entangled states: polarization [20, 21], spatial mode [22, 23], time-bin [24, 25], and path [26, 27].
For practical purposes, in a realistic quantum communication scenario, time-bin qubits harbor distinct advantages when integrated with optical fiber systems. Challenges in optical fibers, including polarization fluctuations and depolarization [28], pose complications for the utilization of polarization-based qubits, while time-bin qubits are not affected. Moreover, while dispersion is a concern when a pulsed laser is transmitted through a long optical fiber, the insertion of dispersion compensation fibers can reduce the pulse-broadening effects [29, 30]. Due to these practical benefits, time-bin qubits have been empirically demonstrated and employed in experiments involving long-distance optical fibers [29, 31, 32].
In this paper, we generate entangled time-bin qubits and demonstrate the detection of entanglement and verification of shared states. We prepare time-bin entangled states using fiber-based Franson interferometers and perform tomographically complete measurements. We collect the measurement outcomes to reconstruct an entangled state that has been designed and also demonstrate that a subset of measurement data can be used to construct an EW for the verification of entanglement. Our results present a proof-of-principle demonstration of an EW for time-bin qubits.
2 Theory and methods
2.1 Entanglement witness
A Hermitian operator is said to be EW if it has non-negative expectation values for all separable states, , and negative expectation values for some entangled states, [10, 12, 13, 33, 34]:
Extensive efforts have been made to develop suitable witness operators. In Refs [35, 36], the authors have developed EW operators using two orthogonal local observables. To develop EW operators, let us consider an experimental setup that has been constructed to prepare the state . In practice, the generated state becomes the mixed state ρ, which is in proximity to the state . To test whether the state is entangled or not, the authors in Refs [35, 36] proposed a witness operator in the formwhere “” represents the identity operator, the operator stabilizes the state , that is, , and is the constant. In this work, two time-bin entangled photons are prepared in one of four two-qubit Bell states, e.g.,where the subscript i corresponds to the ith photon. For the aforementioned Bell states, the stabilizing operators are and , where are Pauli operators acting on the ith photon. The corresponding witness operators certifying the Bell states are as follows [35, 36]:
The experimentally generated state is said to be entangled if
In the ideal scenario, .
2.2 Experimental setup and method

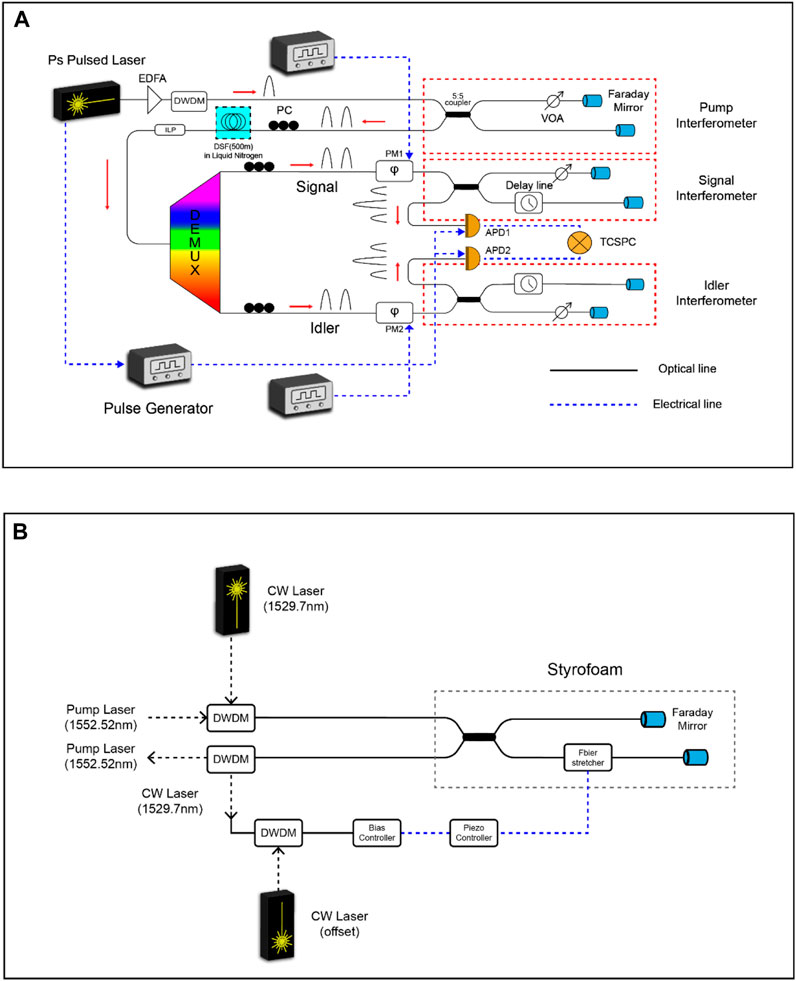

The experimental setup is shown in Figure 1A. The pump laser is a picosecond pulsed laser operating at a wavelength of 1552.52 nm. The repetition rate, spectrum width, and pulse width are 20 MHz, 0.26 nm, and 13.23 ps, respectively. First, this pump pulse is amplified using an erbium-doped fiber amplifier (EDFA), following which a dense wavelength division multiplexing (DWDM) is utilized to remove the amplified spontaneous emission from EDFA [37]. Then, the amplified pump pulse is temporally divided into two peaks with a 3-ns interval by passing through the pump interferometer. We construct each interferometer with an optical fiber splice and optical delay lines, each with an optical path length difference of 3 ns. Faraday mirrors and the Michelson interferometer are utilized to match the polarization of two peaks [38]. Furthermore, we use a variable optical attenuator (VOA) to correct the optical loss difference due to the path difference between the short and long paths in the interferometer. Afterward, a time-bin entangled photon pair state is generated in the dispersion-shifted fiber (DSF) by spontaneous four-wave mixing (SFWM). Here, to reduce spontaneous Raman scattering, DSF was immersed in liquid nitrogen to lower the temperature [37], and an in-line polarizer (ILP) was used. These are divided into the signal at 1549.32 nm and idler channels at 1555.75 nm through the DEMUX composed of DWDM with a 100 GHz bandwidth.
FIGURE 1
In fiber optics, the phase of the fiber interferometer changes with temperature. Therefore, thermal stabilization is required. The scheme for thermal stabilization is shown in Figure 1B. This stabilization setup is included in the red dotted line in Figure 1A. For feedback, a continuous wave (CW) laser in a range different (1529.7 nm) from the wavelength of the pump was used [39]. Feedback is more stable when the tracking point is minimum. The minimum detector power of the bias controller is −30 dBm, and the minimum optical power of interference used in the CW laser is less than −30 dBm. Therefore, another CW laser for offset is used. Output power before and after stabilization is shown in Figure 2. In addition, we placed the interferometer inside the styrofoam for thermal stabilization.

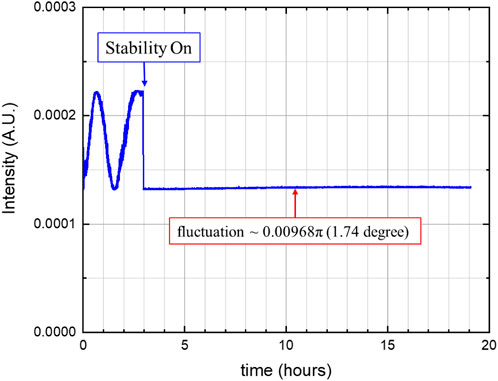

FIGURE 2
Phase modulators (PMs), equipped with a 3-dB bandwidth of 10 GHz, are utilized to alter the phase of the signal and idler photons’ second peak (late peak). We apply rectangular voltage pulses to the PMs using an arbitrary pulse generator. Each voltage pulse possesses a rise time less than the 3-ns interval between the first and second pulses and is applied at the second peak time. Notably, the pulse heights are controlled from one pulse to another, leading to alterations in the phase of the second peak of the signal and idler photons, denoted by and , respectively. When these time-bin qubits pass through the interferometer, they are temporally separated into three peaks with an interval of 3 ns. Then, the state of the center peak becomes the superposed state as follows:where is the phase of the signal or the idler changed by PM. In the interference between the center peak of the signal and the center peak of the idler, the coincidence count rate is given by
where is the phase of the pump changed by the pump’s PM, and in our experiment, . In order to know the phase change for voltage applied to PM, we measured the coincidence between the center peaks of the signal and idler by changing the voltage applied to the PM of the signal (idler), while the voltage of the PM of the idler (signal) is fixed. The results are shown in Figure 3. From the fitting curves, we obtain and of the signal and idler, respectively. The difference in the voltage values of the signal and idler is due to an error in the PM itself. Finally, we performed projection measurement by using PMs and time-correlated single-photon counting (TCSPC) and adjusting the gate delay of the single-photon detector based on the InGaAs avalanche photodiode (APD). The gate width and quantum efficiency of the two APDs are 1 ns and 20%, respectively. The gate frequency of APDs is synchronized with the repetition rate of the pump pulse laser through the pulse generator.

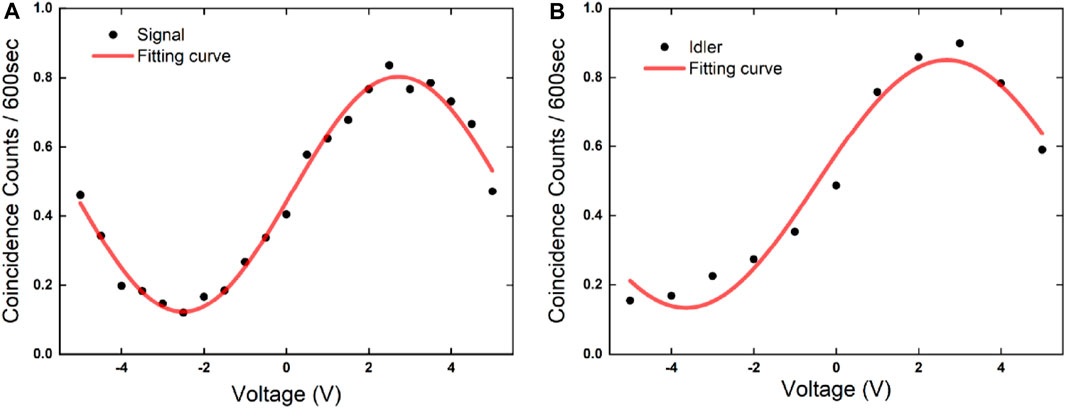

FIGURE 3
3 Results
3.1 Quantum state tomography
First, we checked whether the Bell state was properly generated by performing QST [40, 41] before the measurement of EW. In order to proceed with QST, we used for the signal and for the idler, and the coincidence counts for these combinations are shown in Table 1. In addition, since only one detector is connected at the output of each interferometer in our setup, a 50% intrinsic loss occurs in time basis measurement. Therefore, for the project measurement including one-time basis and the project measurement including two-time basis, the coincidence measurement time was doubled and quadrupled, respectively [37]. The coincidence counts were corrected by subtracting the accidental coincidence count, as shown in Table 1. As a result of QST performed using these coincidence counts, the obtained density matrix is given byand is shown in Figure 4. The state has a fidelity of with the ideal state . The concurrence of the state is . The aforementioned parameters confirm that the prepared state is an entangled and Bell state,
TABLE 1
| Signal | Idler | Coincidence count (600 s) |
|---|---|---|
| 508 | ||
| 13 | ||
| 476 | ||
| 0 | ||
| 252 | ||
| 235 | ||
| 259 | ||
| 232 | ||
| 271 | ||
| 7 | ||
| 206 | ||
| 267 | ||
| 203 | ||
| 265 | ||
| 245 | ||
| 434 |
Coincidence counts of projection measurements for QST.

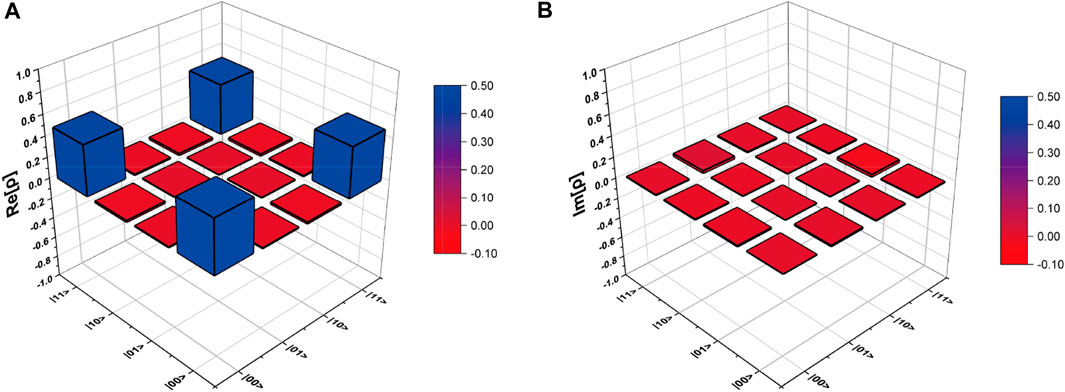

FIGURE 4
3.2 Entanglement witness
3.2.1 Experimental results
Since we generated the state, we need to use the witness of Eq. 5. In addition, the measurement of and can be expressed, respectively, as follows:
Using coincidence count in Table 2, these can be calculated as follows:where is the coincidence count of the signal photon in the state and the idler photon in the state , and these are provided in Table 2.

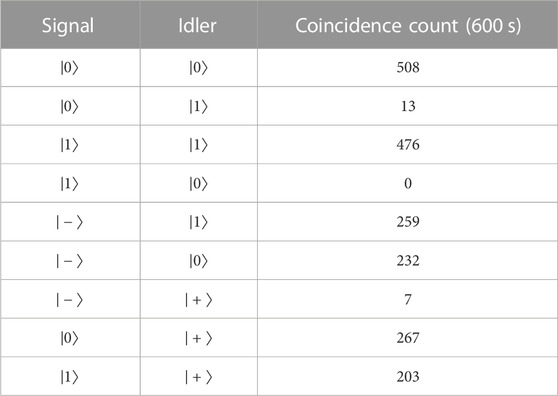

TABLE 2
| Signal | Idler | Coincidence count (600 s) |
|---|---|---|
| 508 | ||
| 13 | ||
| 476 | ||
| 0 | ||
| 259 | ||
| 232 | ||
| 7 | ||
| 267 | ||
| 203 |
Coincidence counts of projection measurements for EW.
The result of the witness measurement is given by
Therefore, since the measurement result is less than zero, we have experimentally shown that the prepared state is an entangled state.
3.2.2 Theoretical results from the density matrix obtained by QST
From the density matrix of Eq. 12 obtained by QST, we have theoretically calculated the expectation value of :where and . As a result, the experimentally obtained value of agrees with the value obtained by QST.
4 Conclusion
We have experimentally prepared a two-photon time-bin entangled state using an interferometer with fiber-based active feedback for thermal stabilization and SFWM. The entanglement of the prepared state has been verified by measuring the EW operator. This EW operator has been constructed with two local measurements on individual photons. Additionally, the entanglement was also verified by QST. Both EW and QST methods confirmed that the state has been generated with high fidelity with the ideal state. Our experimental setup can generate any Bell state.
